"Analyses of the Effect of Patent Category" is the property of its rightful owner. Permission is granted to download and print the materials on this website for personal, non-commercial use only, and to display it on your personal computer provided you do not modify the materials and that you retain all copyright notices contained in the materials. By downloading content from our website, you accept the terms of this agreement.
Presentation Transcript

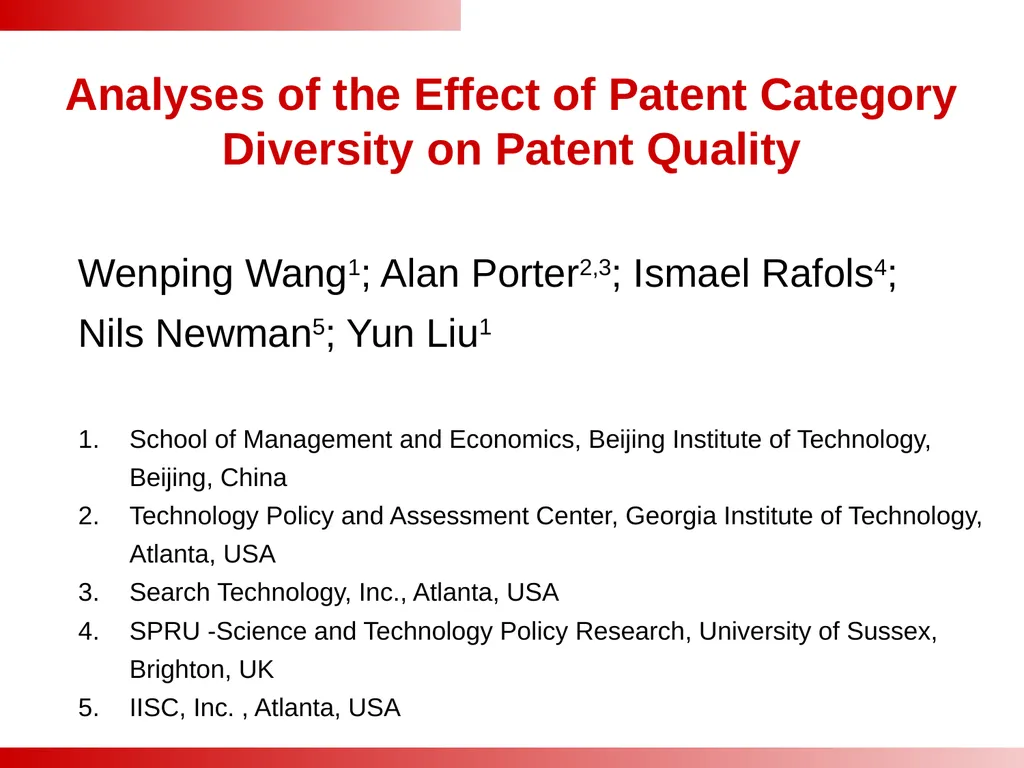

slide1. Analyses of the Effect of Patent Category Diversity on Patent Quality Wenping Wang1; Alan Porter2,3; Ismael Rafols4;
Nils Newman5; Yun Liu1
School of Management and Economics, Beijing Institute of Technology, Beijing, China
Technology Policy and Assessment Center, Georgia Institute of Technology, Atlanta, USA
Search Technology, Inc., Atlanta, USA
SPRU -Science and Technology Policy Research, University of Sussex, Brighton, UK
IISC, Inc. , Atlanta, USA<br>

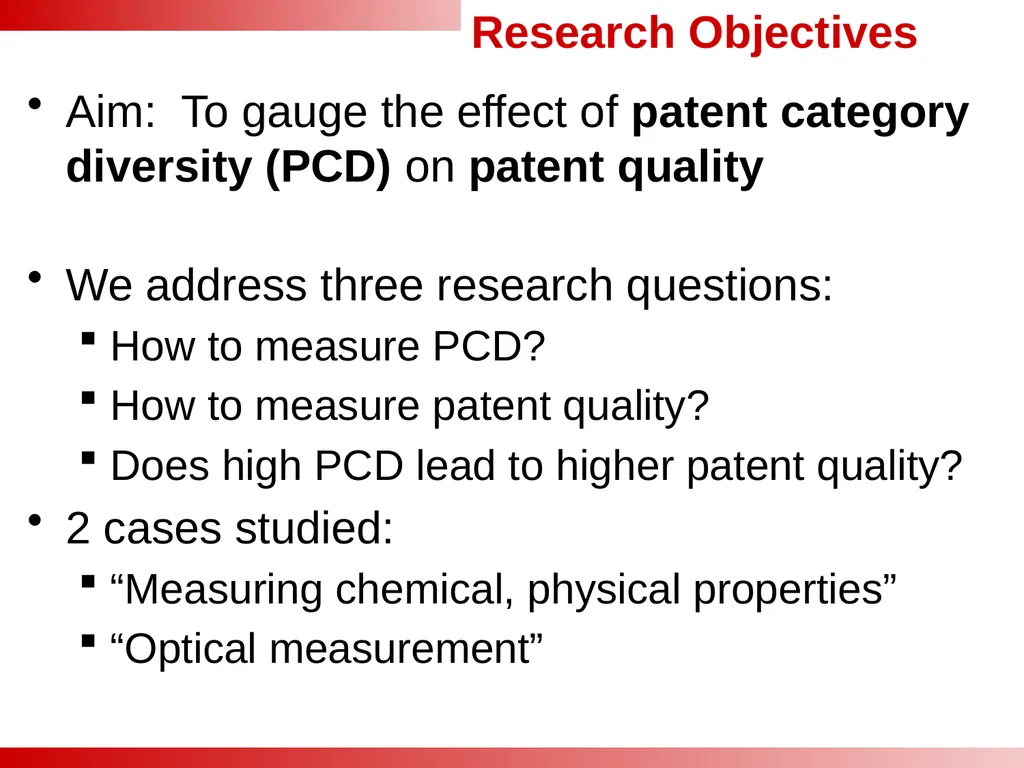

slide2. Research Objectives Aim: To gauge the effect of patent category diversity (PCD) on patent quality
We address three research questions:
How to measure PCD?
How to measure patent quality?
Does high PCD lead to higher patent quality?
2 cases studied:
“Measuring chemical, physical properties”
“Optical measurement”<br>

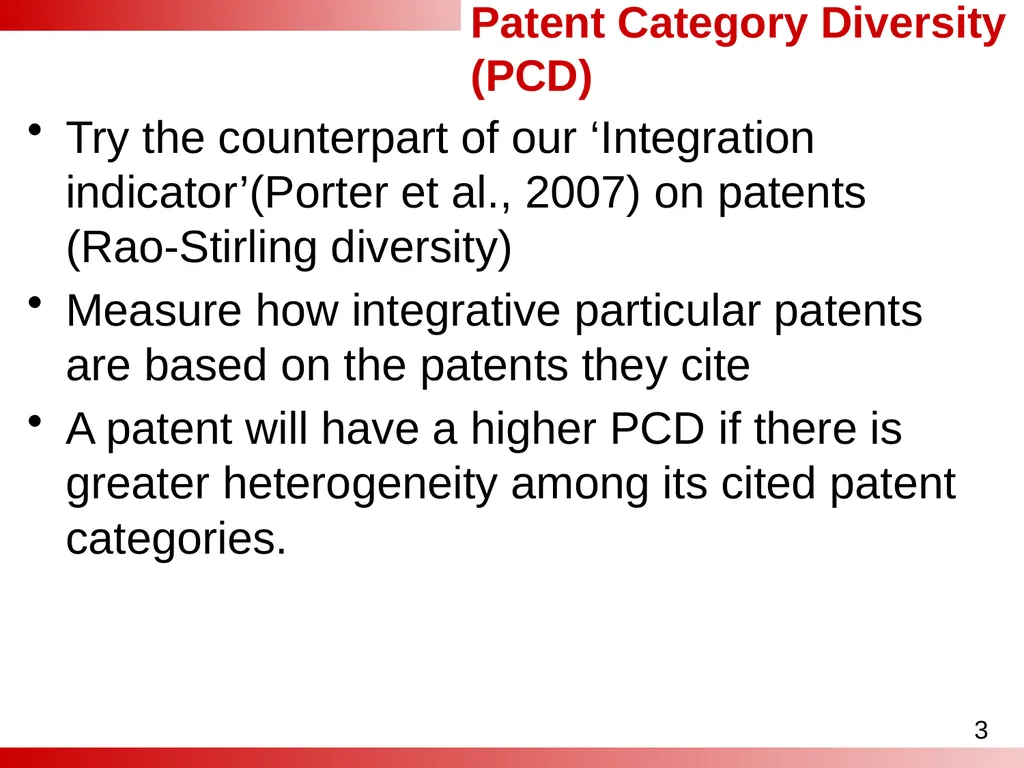

slide3. Try the counterpart of our ‘Integration indicator’(Porter et al., 2007) on patents (Rao-Stirling diversity)
Measure how integrative particular patents are based on the patents they cite
A patent will have a higher PCD if there is greater heterogeneity among its cited patent categories. 3 Patent Category Diversity (PCD)<br>

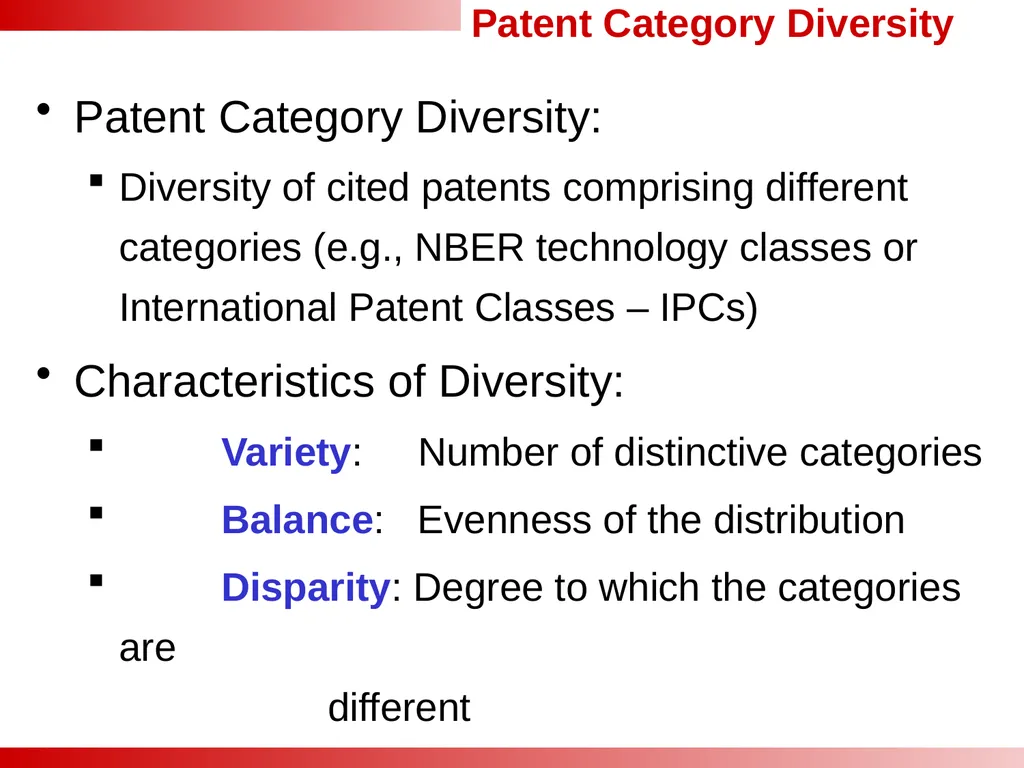

slide4. Patent Category Diversity Patent Category Diversity:
Diversity of cited patents comprising different categories (e.g., NBER technology classes or International Patent Classes – IPCs)
Characteristics of Diversity:
Variety: Number of distinctive categories
Balance: Evenness of the distribution
Disparity: Degree to which the categories are different<br>
slide5. Selected Measures of PCD (based on Rao, 1982; Stirling, 1998, 2007; Rafols and Meyer, 2010)<br>

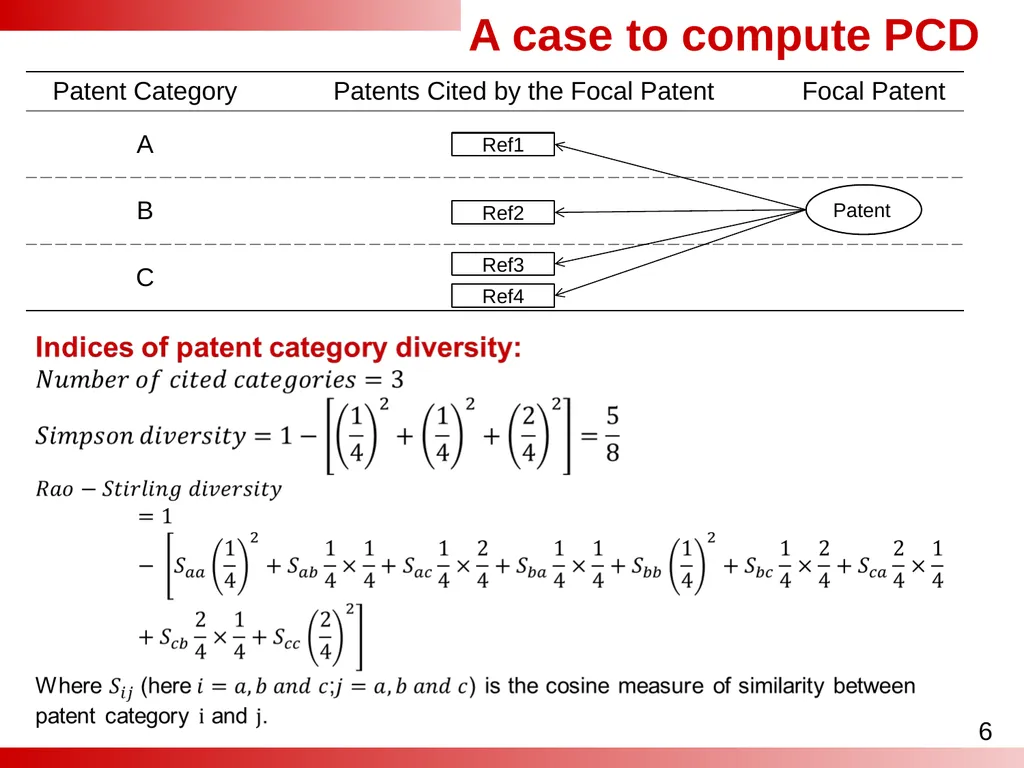

slide6. A case to compute PCD 6<br>

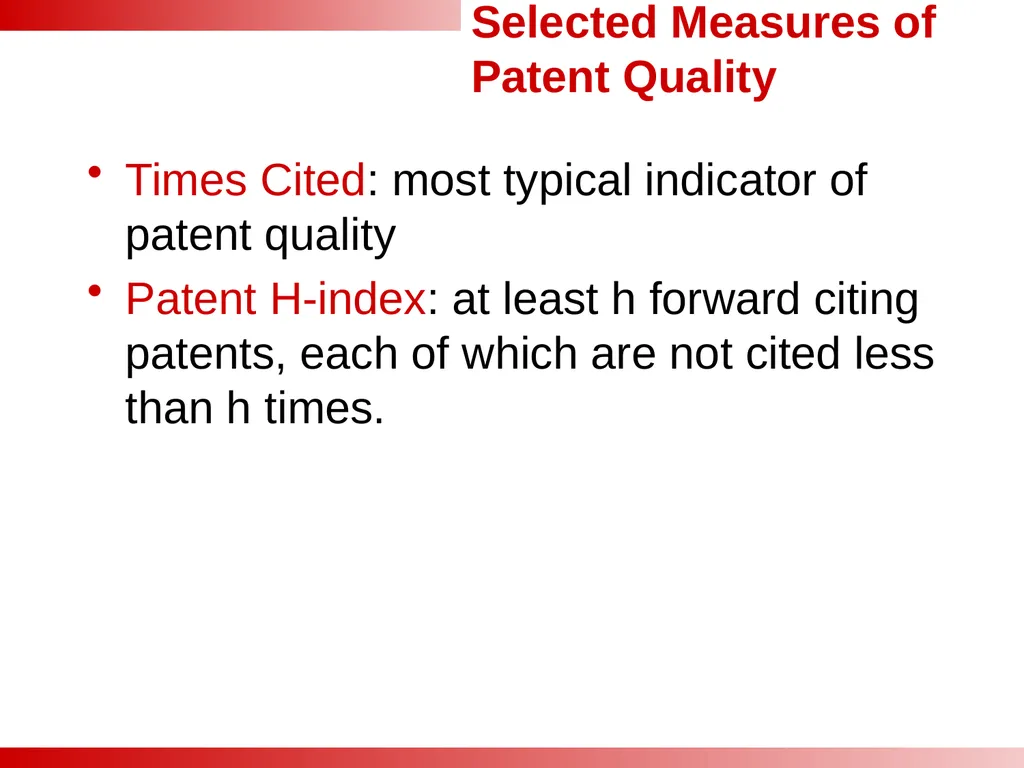

slide7. Selected Measures of Patent Quality Times Cited: most typical indicator of patent quality
Patent H-index: at least h forward citing patents, each of which are not cited less than h times.<br>

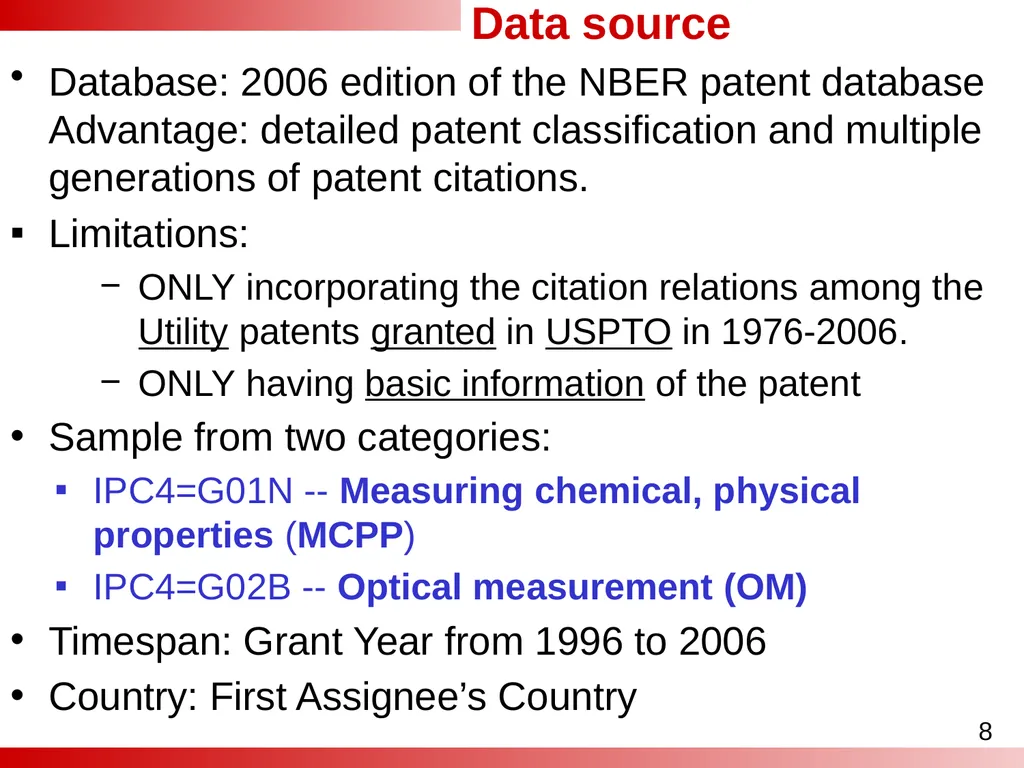

slide8. Data source Database: 2006 edition of the NBER patent database Advantage: detailed patent classification and multiple generations of patent citations.
Limitations:
ONLY incorporating the citation relations among the Utility patents granted in USPTO in 1976-2006.
ONLY having basic information of the patent
Sample from two categories:
IPC4=G01N -- Measuring chemical, physical properties (MCPP)
IPC4=G02B -- Optical measurement (OM)
Timespan: Grant Year from 1996 to 2006
Country: First Assignee’s Country 8<br>

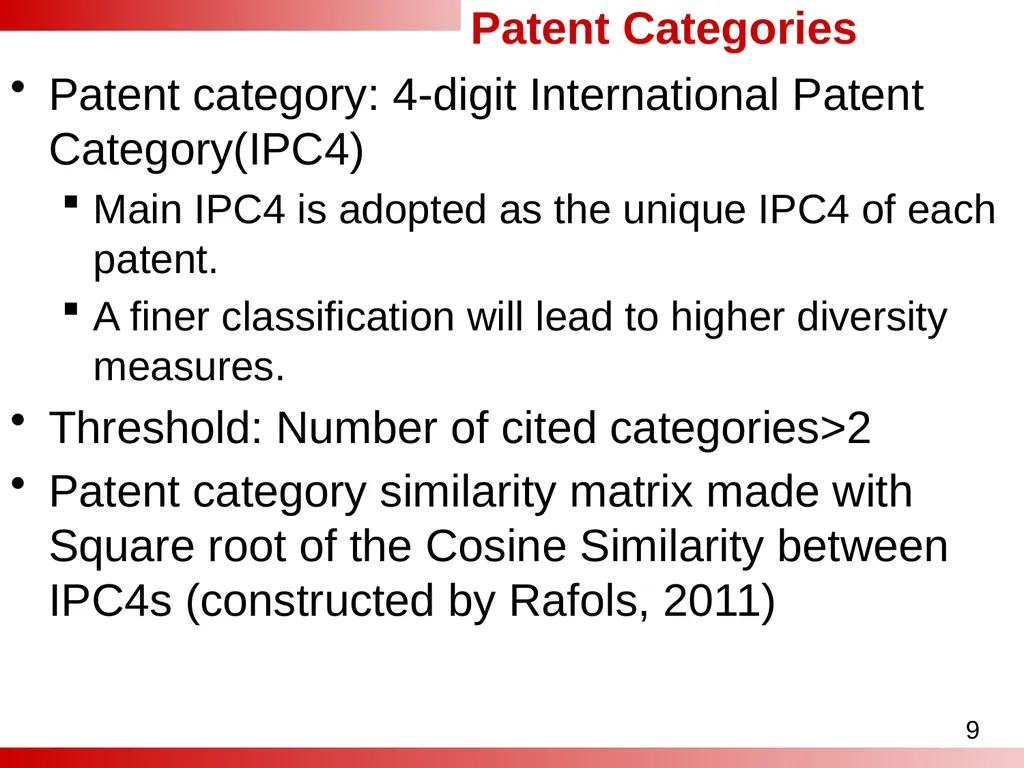

slide9. Patent category: 4-digit International Patent Category(IPC4)
Main IPC4 is adopted as the unique IPC4 of each patent.
A finer classification will lead to higher diversity measures.
Threshold: Number of cited categories>2
Patent category similarity matrix made with Square root of the Cosine Similarity between IPC4s (constructed by Rafols, 2011) Patent Categories 9<br>

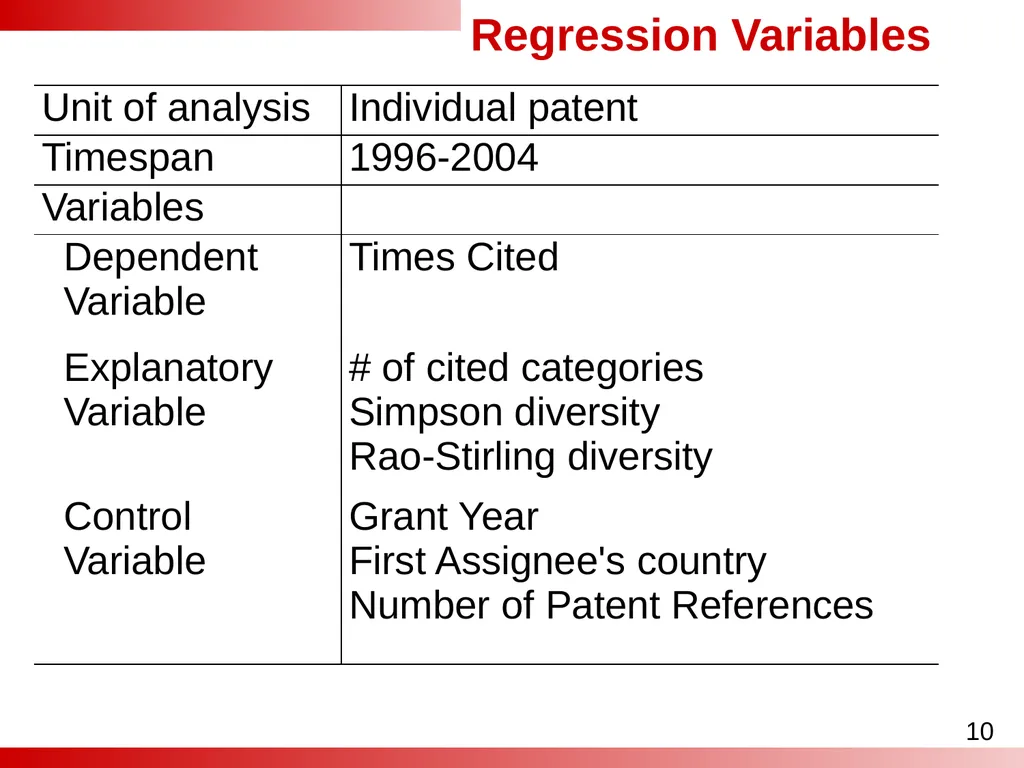

slide10. Regression Variables 10<br>

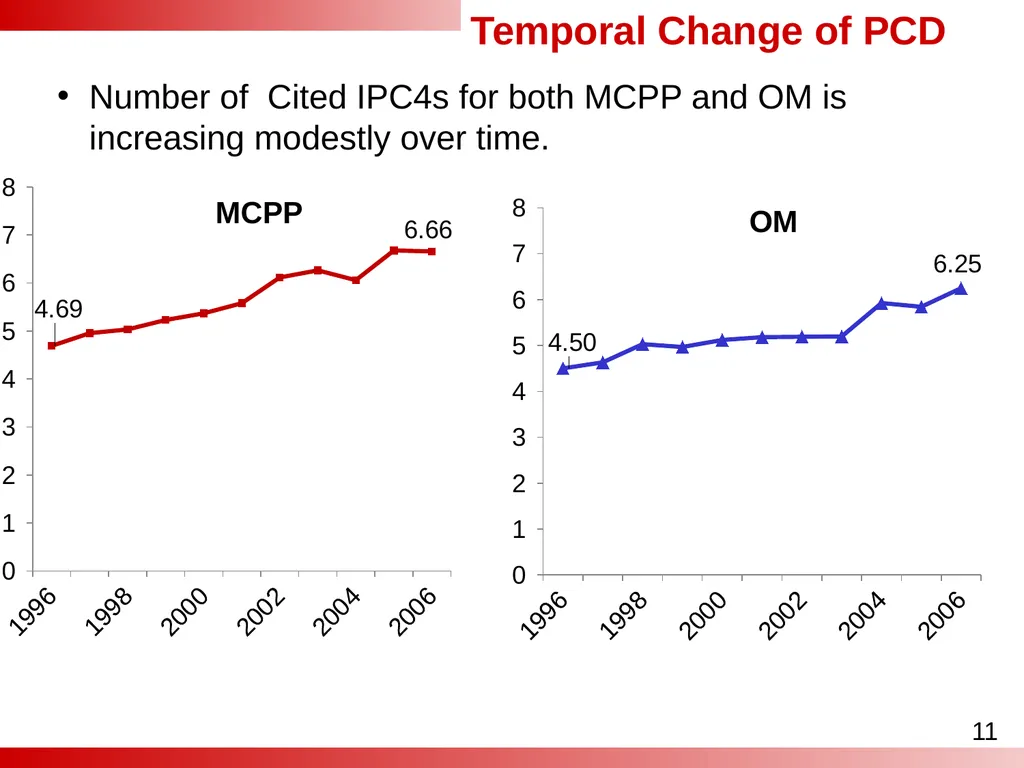

slide11. Temporal Change of PCD Number of Cited IPC4s for both MCPP and OM is increasing modestly over time. 11<br>

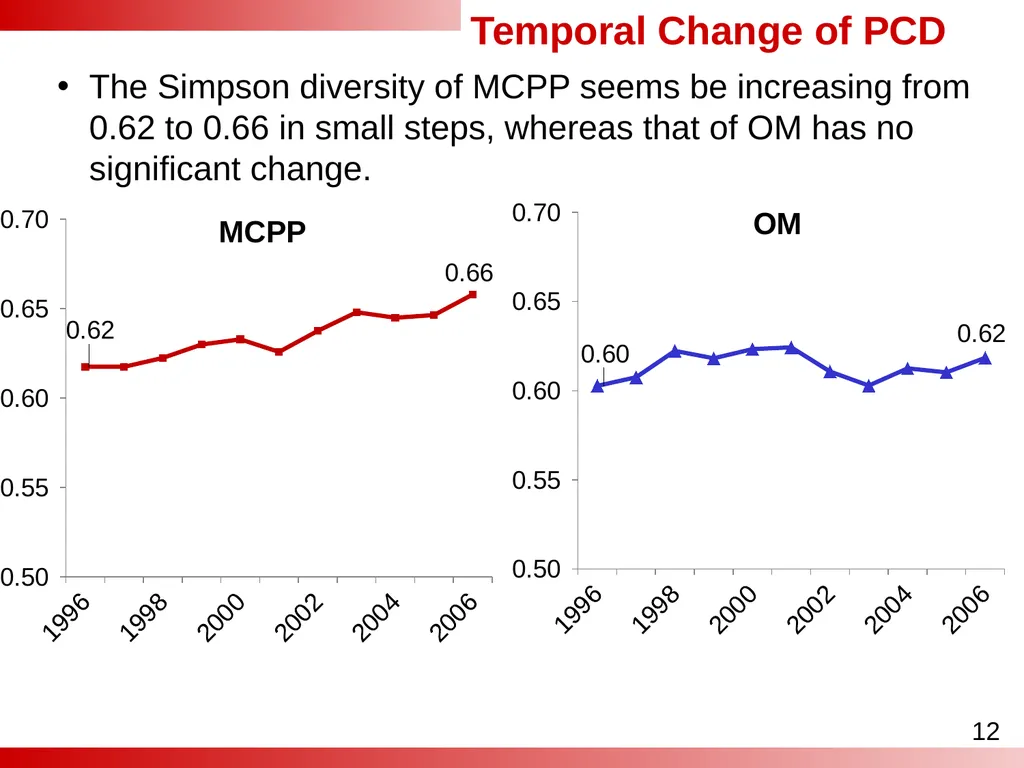

slide12. Temporal Change of PCD The Simpson diversity of MCPP seems be increasing from 0.62 to 0.66 in small steps, whereas that of OM has no significant change. 12<br>

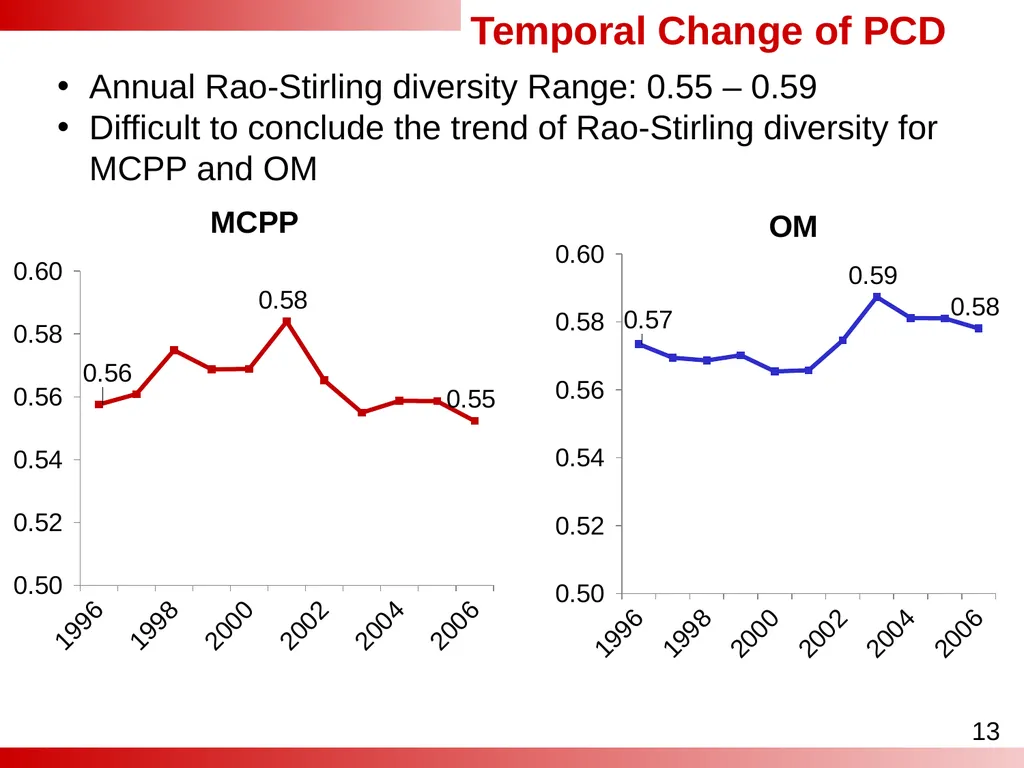

slide13. Temporal Change of PCD Annual Rao-Stirling diversity Range: 0.55 – 0.59
Difficult to conclude the trend of Rao-Stirling diversity for MCPP and OM 13<br>

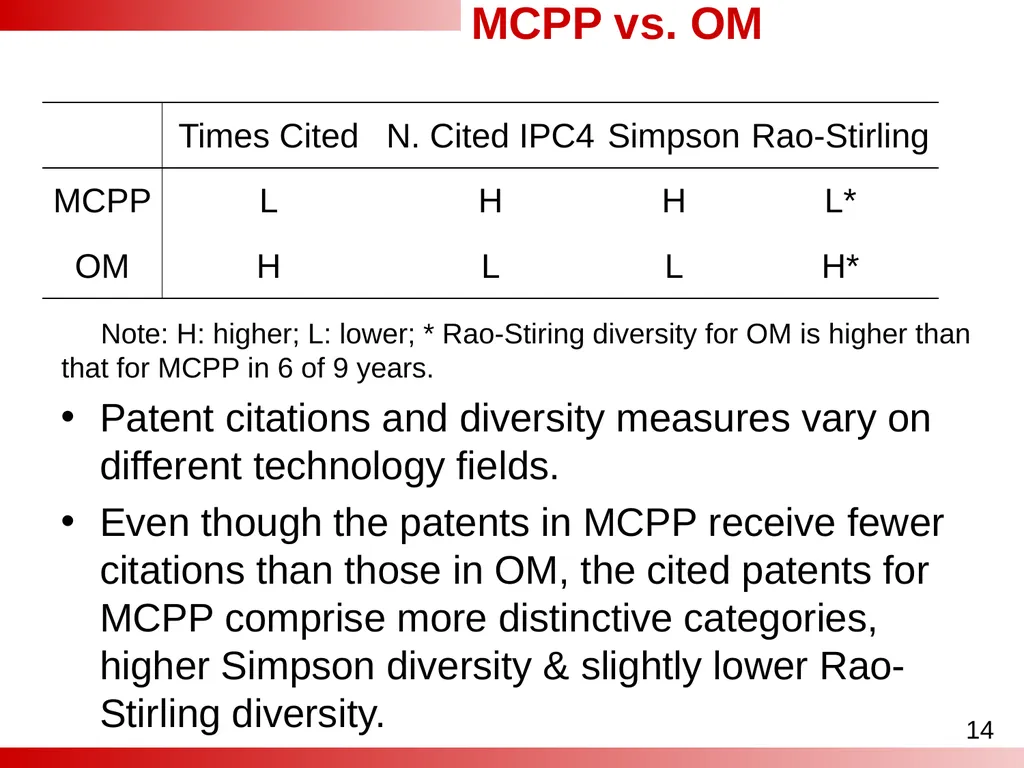

slide14. MCPP vs. OM Note: H: higher; L: lower; * Rao-Stiring diversity for OM is higher than that for MCPP in 6 of 9 years.
Patent citations and diversity measures vary on different technology fields.
Even though the patents in MCPP receive fewer citations than those in OM, the cited patents for MCPP comprise more distinctive categories, higher Simpson diversity & slightly lower Rao-Stirling diversity. 14<br>

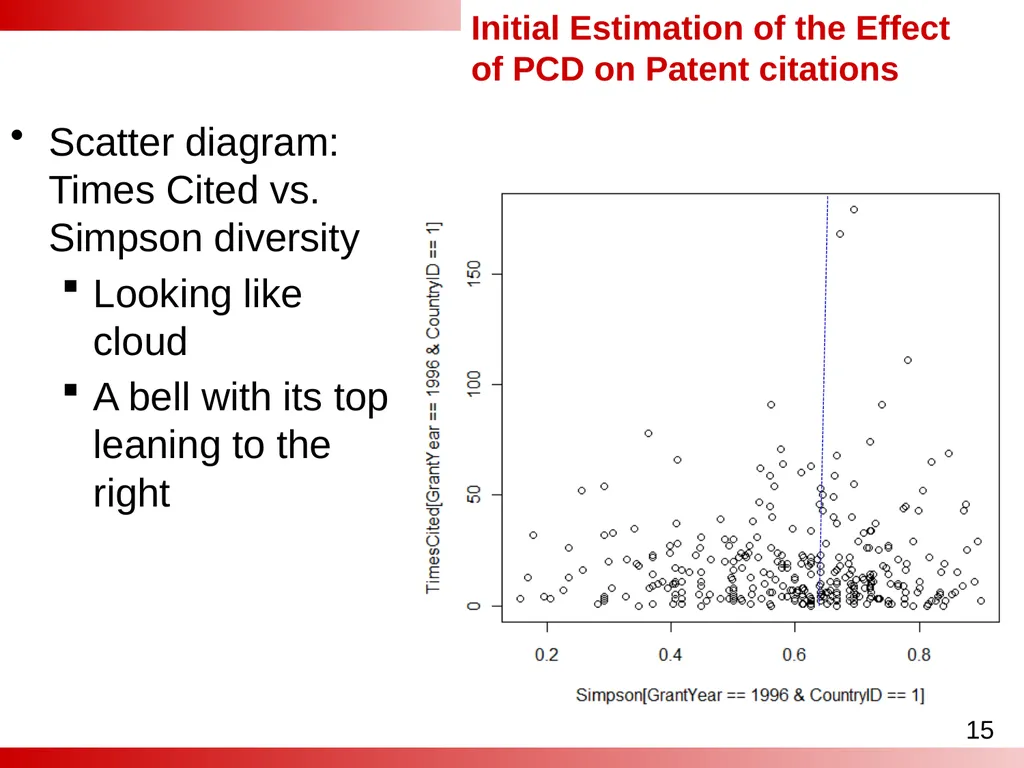

slide15. Initial Estimation of the Effect of PCD on Patent citations Scatter diagram: Times Cited vs. Simpson diversity
Looking like cloud
A bell with its top leaning to the right 15<br>

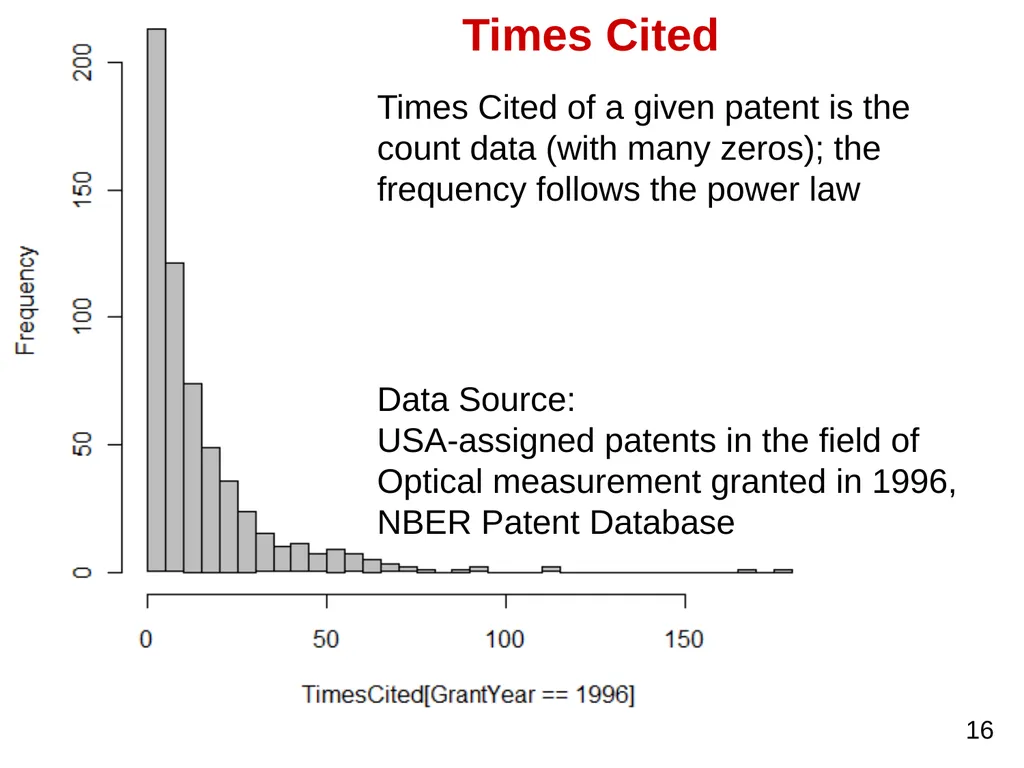

slide16. Times Cited Times Cited of a given patent is the count data (with many zeros); the frequency follows the power law Data Source:
USA-assigned patents in the field of Optical measurement granted in 1996, NBER Patent Database 16<br>

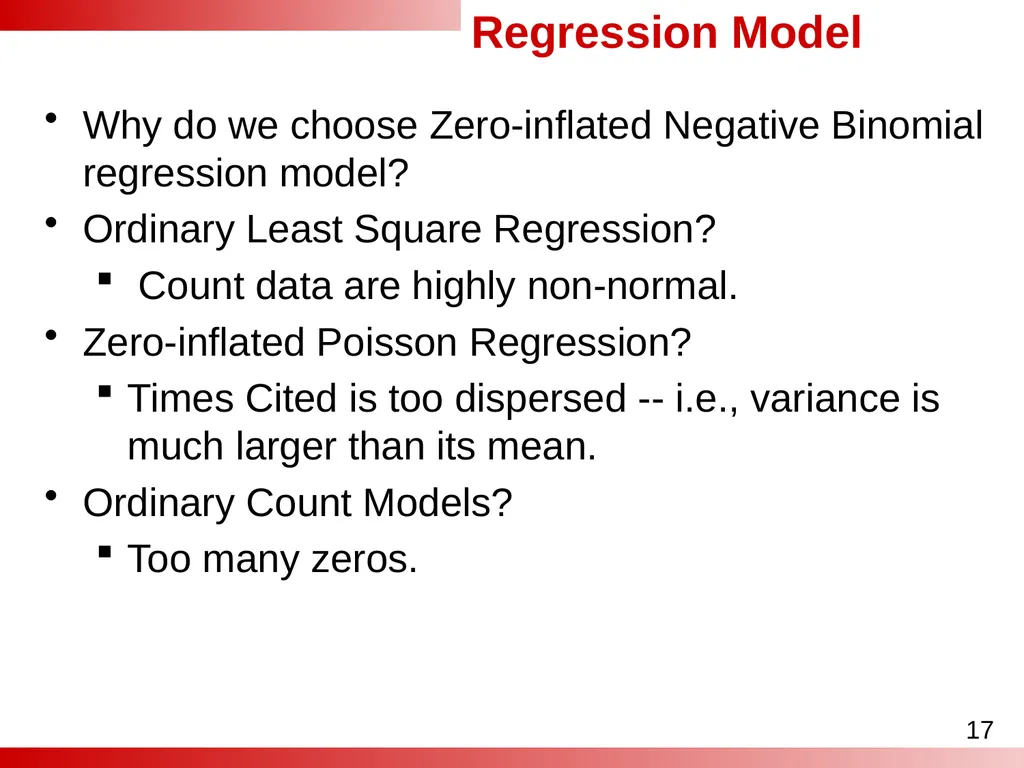

slide17. Regression Model Why do we choose Zero-inflated Negative Binomial regression model?
Ordinary Least Square Regression?
Count data are highly non-normal.
Zero-inflated Poisson Regression?
Times Cited is too dispersed -- i.e., variance is much larger than its mean.
Ordinary Count Models?
Too many zeros. 17<br>

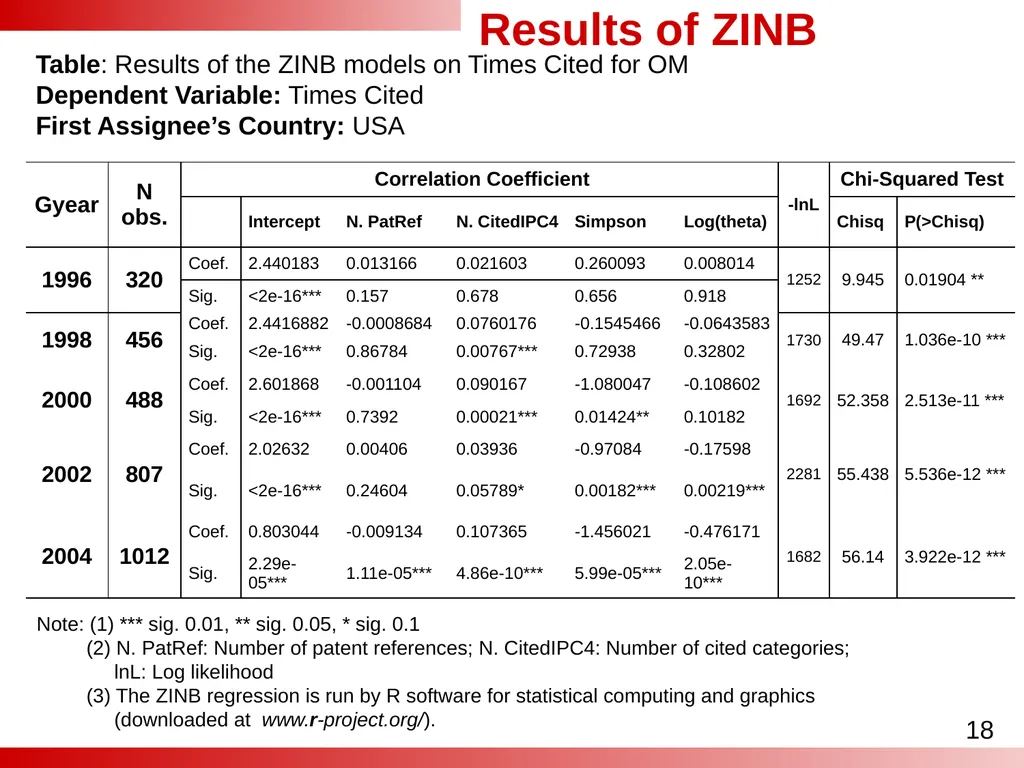

slide18. Results of ZINB Table: Results of the ZINB models on Times Cited for OM
Dependent Variable: Times Cited
First Assignee’s Country: USA Note: (1) *** sig. 0.01, ** sig. 0.05, * sig. 0.1
(2) N. PatRef: Number of patent references; N. CitedIPC4: Number of cited categories;
lnL: Log likelihood
(3) The ZINB regression is run by R software for statistical computing and graphics
(downloaded at www.r-project.org/). 18<br>

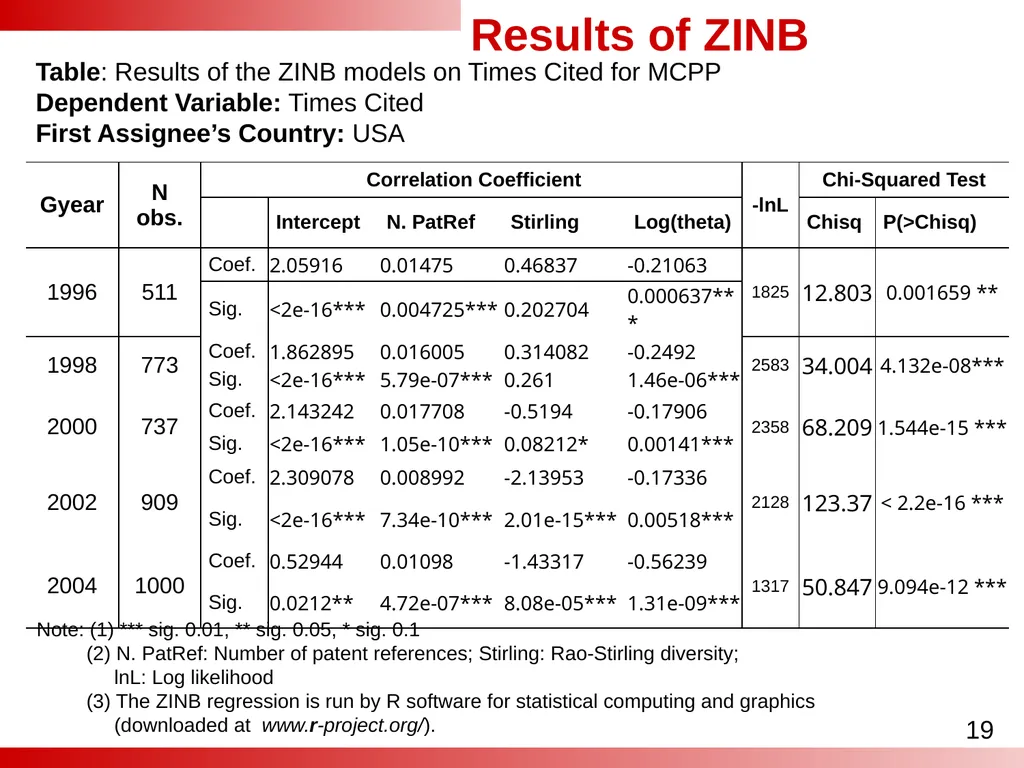

slide19. Results of ZINB Table: Results of the ZINB models on Times Cited for MCPP
Dependent Variable: Times Cited
First Assignee’s Country: USA Note: (1) *** sig. 0.01, ** sig. 0.05, * sig. 0.1
(2) N. PatRef: Number of patent references; Stirling: Rao-Stirling diversity;
lnL: Log likelihood
(3) The ZINB regression is run by R software for statistical computing and graphics
(downloaded at www.r-project.org/). 19<br>

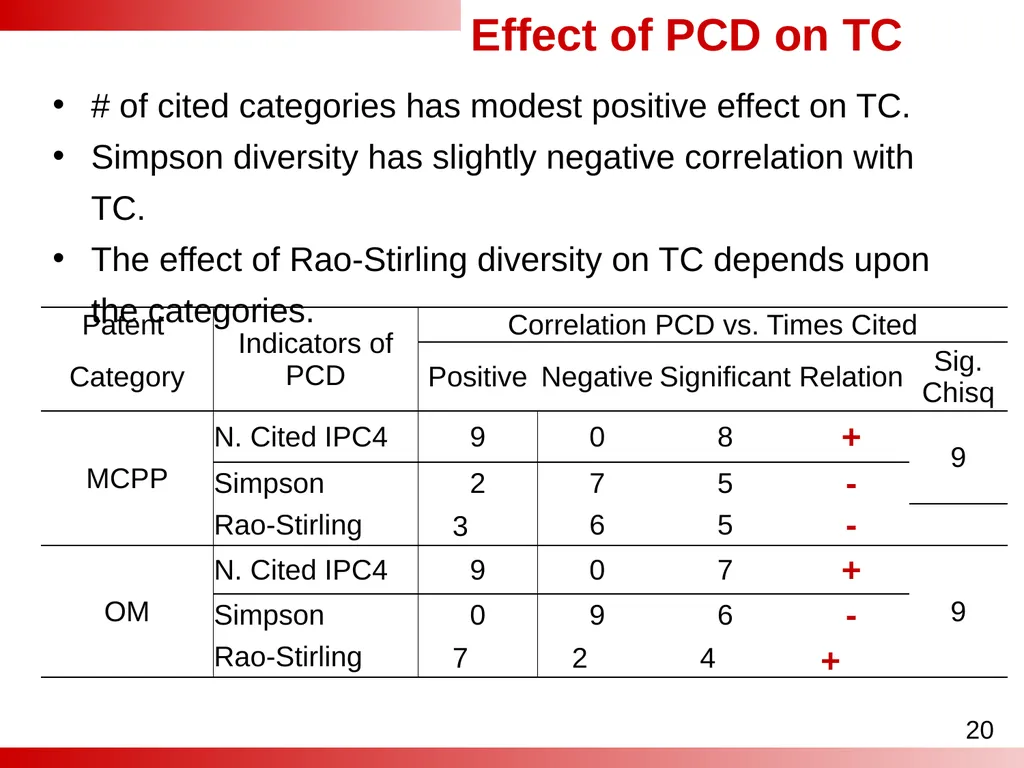

slide20. Effect of PCD on TC # of cited categories has modest positive effect on TC.
Simpson diversity has slightly negative correlation with TC.
The effect of Rao-Stirling diversity on TC depends upon the categories. 20<br>

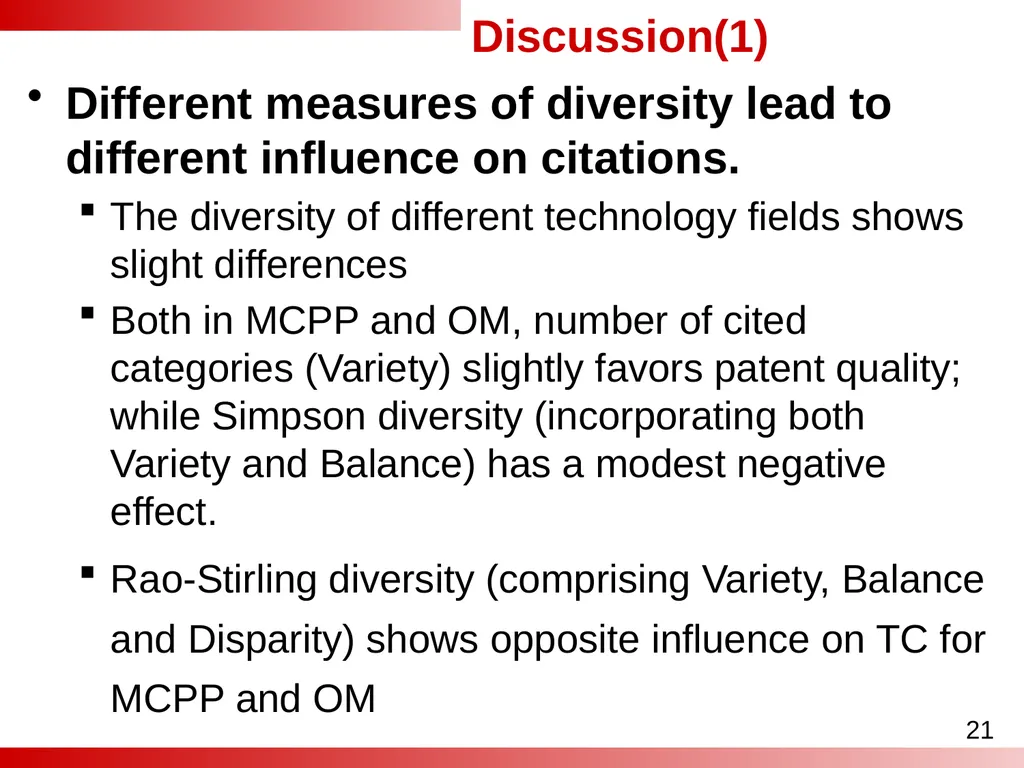

slide21. Discussion(1) Different measures of diversity lead to different influence on citations.
The diversity of different technology fields shows slight differences
Both in MCPP and OM, number of cited categories (Variety) slightly favors patent quality; while Simpson diversity (incorporating both Variety and Balance) has a modest negative effect.
Rao-Stirling diversity (comprising Variety, Balance and Disparity) shows opposite influence on TC for MCPP and OM 21<br>

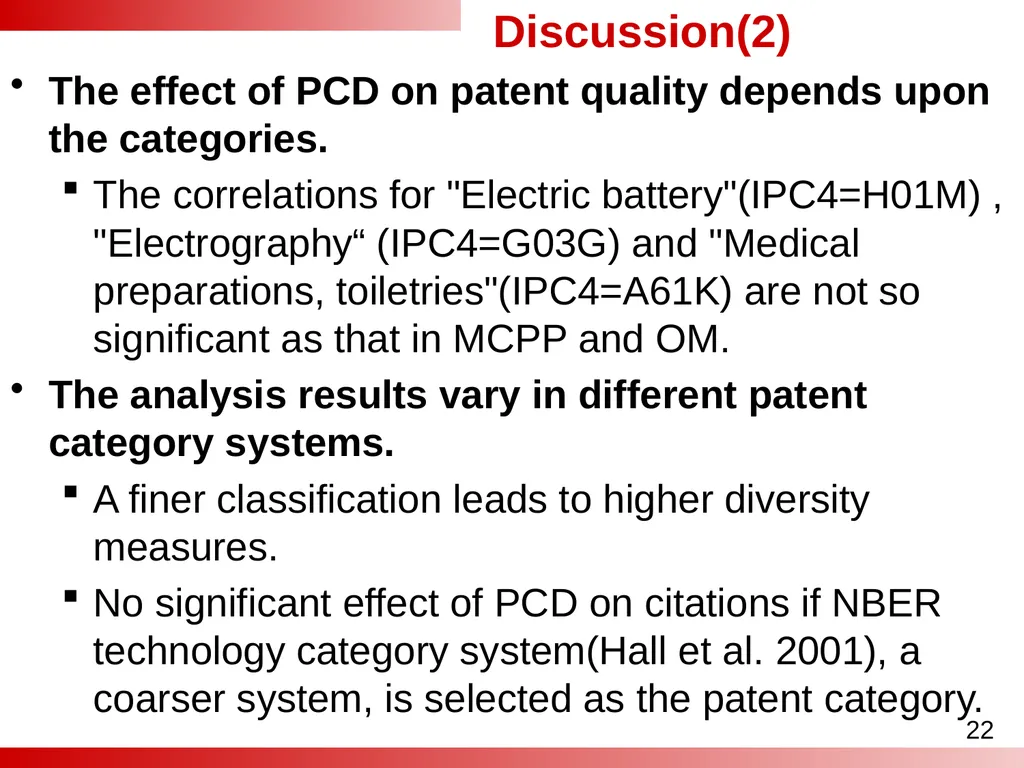

slide22. Discussion(2) The effect of PCD on patent quality depends upon the categories.
The correlations for "Electric battery"(IPC4=H01M) , "Electrography“ (IPC4=G03G) and "Medical preparations, toiletries"(IPC4=A61K) are not so significant as that in MCPP and OM.
The analysis results vary in different patent category systems.
A finer classification leads to higher diversity measures.
No significant effect of PCD on citations if NBER technology category system(Hall et al. 2001), a coarser system, is selected as the patent category. 22<br>

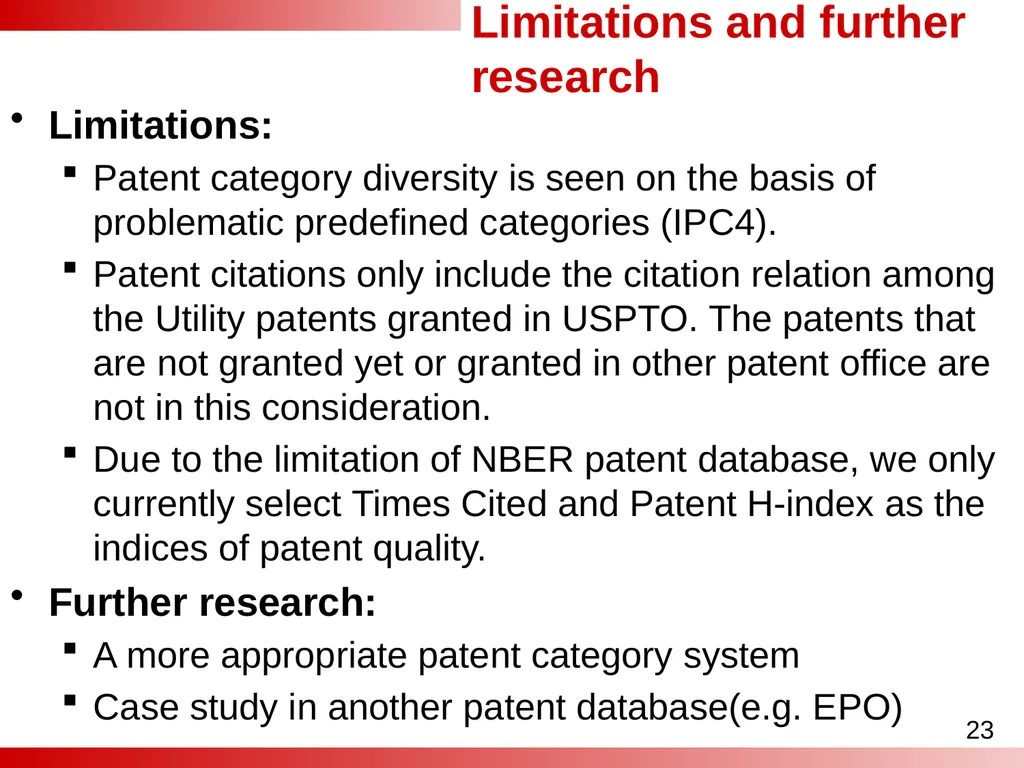

slide23. Limitations and further research Limitations:
Patent category diversity is seen on the basis of problematic predefined categories (IPC4).
Patent citations only include the citation relation among the Utility patents granted in USPTO. The patents that are not granted yet or granted in other patent office are not in this consideration.
Due to the limitation of NBER patent database, we only currently select Times Cited and Patent H-index as the indices of patent quality.
Further research:
A more appropriate patent category system
Case study in another patent database(e.g. EPO) 23<br>

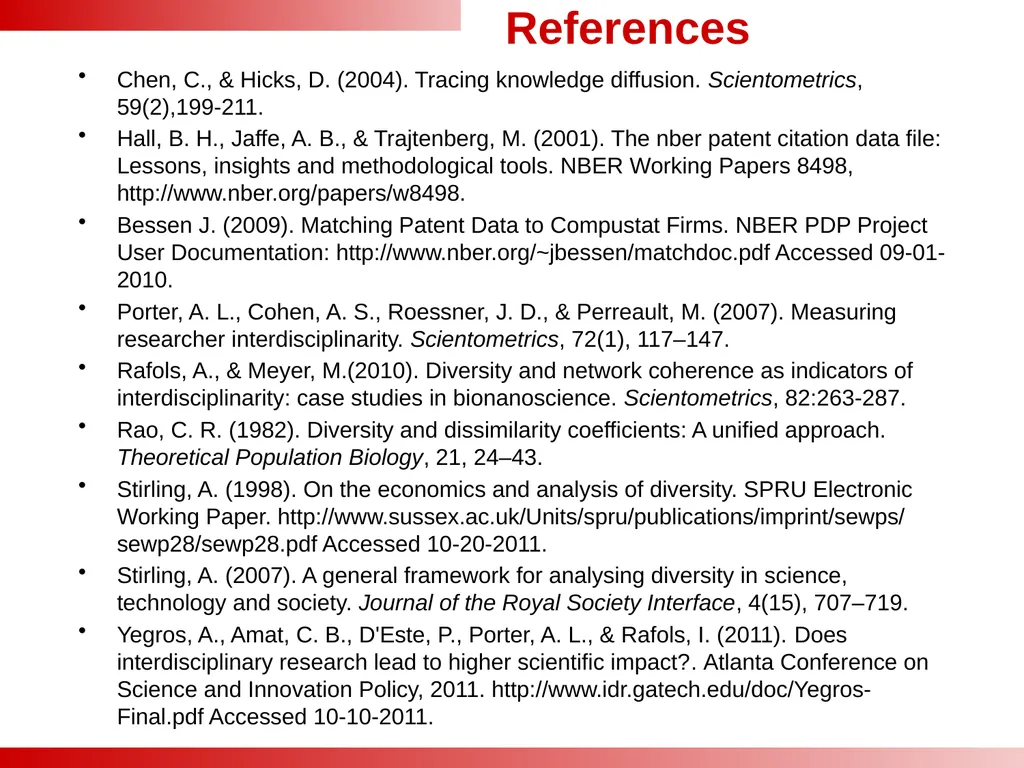

slide24. Chen, C., & Hicks, D. (2004). Tracing knowledge diffusion. Scientometrics, 59(2),199-211.
Hall, B. H., Jaffe, A. B., & Trajtenberg, M. (2001). The nber patent citation data file: Lessons, insights and methodological tools. NBER Working Papers 8498, http://www.nber.org/papers/w8498.
Bessen J. (2009). Matching Patent Data to Compustat Firms. NBER PDP Project User Documentation: http://www.nber.org/~jbessen/matchdoc.pdf Accessed 09-01-2010.
Porter, A. L., Cohen, A. S., Roessner, J. D., & Perreault, M. (2007). Measuring researcher interdisciplinarity. Scientometrics, 72(1), 117–147.
Rafols, A., & Meyer, M.(2010). Diversity and network coherence as indicators of interdisciplinarity: case studies in bionanoscience. Scientometrics, 82:263-287.
Rao, C. R. (1982). Diversity and dissimilarity coefficients: A unified approach. Theoretical Population Biology, 21, 24–43.
Stirling, A. (1998). On the economics and analysis of diversity. SPRU Electronic Working Paper. http://www.sussex.ac.uk/Units/spru/publications/imprint/sewps/ sewp28/sewp28.pdf Accessed 10-20-2011.
Stirling, A. (2007). A general framework for analysing diversity in science, technology and society. Journal of the Royal Society Interface, 4(15), 707–719.
Yegros, A., Amat, C. B., D'Este, P., Porter, A. L., & Rafols, I. (2011). Does interdisciplinary research lead to higher scientific impact?. Atlanta Conference on Science and Innovation Policy, 2011. http://www.idr.gatech.edu/doc/Yegros-Final.pdf Accessed 10-10-2011. References<br>
slide25. Thank you!<br>
