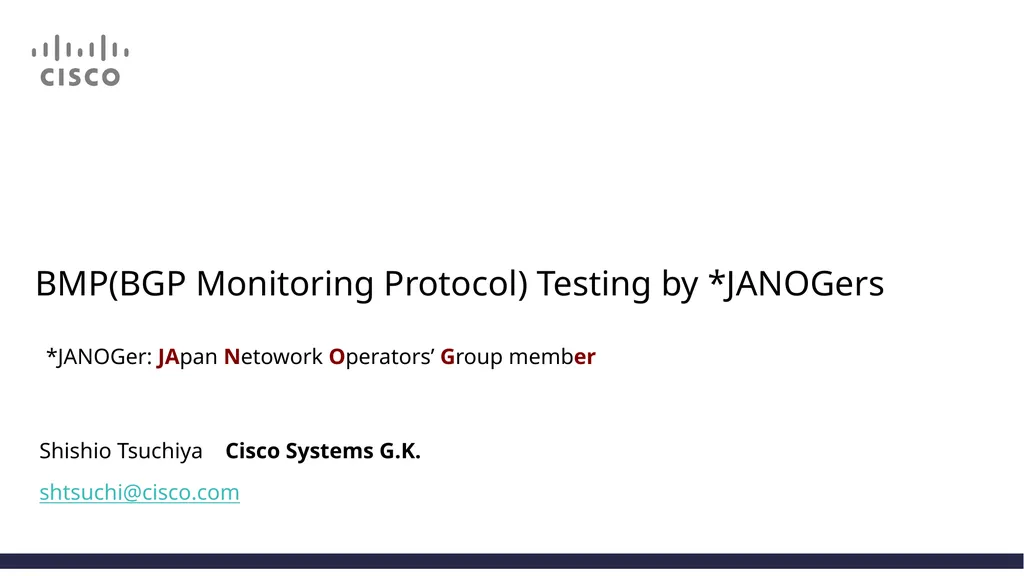

slide1. BMP(BGP Monitoring Protocol) Testing by *JANOGers Shishio Tsuchiya Cisco Systems G.K.
shtsuchi@cisco.com *JANOGer: JApan Netowork Operators’ Group member<br>

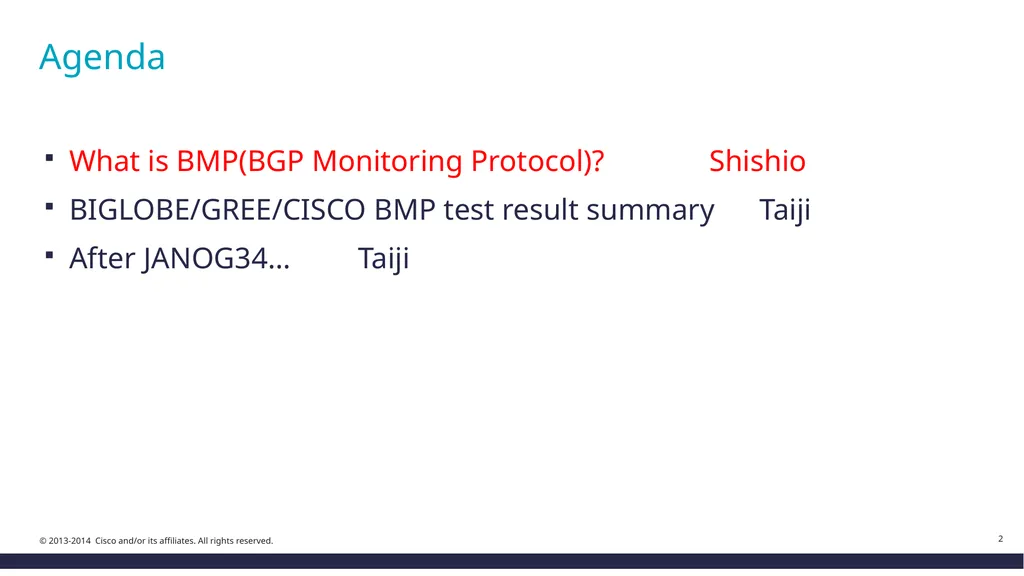

slide2. What is BMP(BGP Monitoring Protocol)? Shishio
BIGLOBE/GREE/CISCO BMP test result summary Taiji
After JANOG34… Taiji Agenda<br>

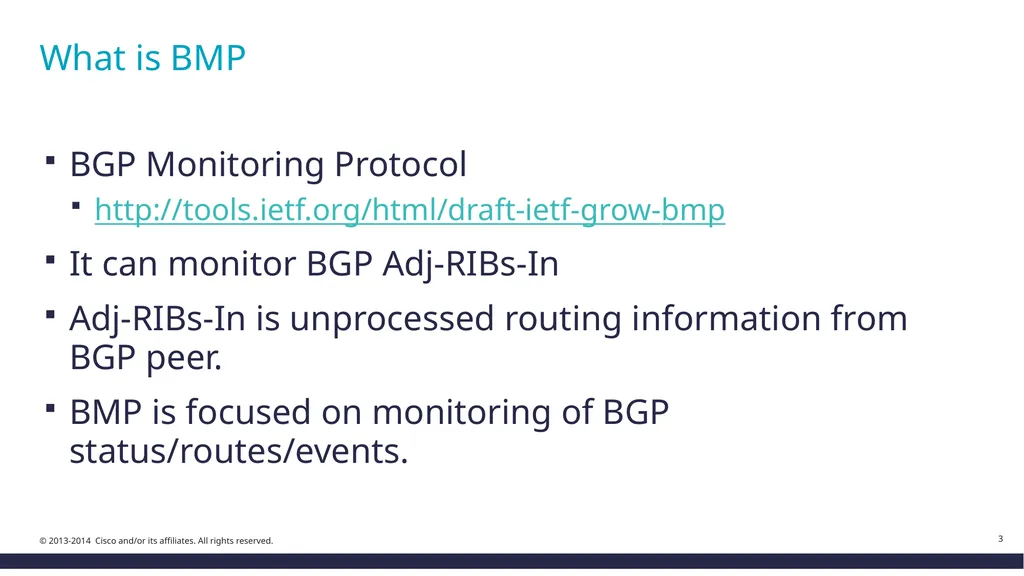

slide3. What is BMP BGP Monitoring Protocol
http://tools.ietf.org/html/draft-ietf-grow-bmp
It can monitor BGP Adj-RIBs-In
Adj-RIBs-In is unprocessed routing information from BGP peer.
BMP is focused on monitoring of BGP status/routes/events.<br>

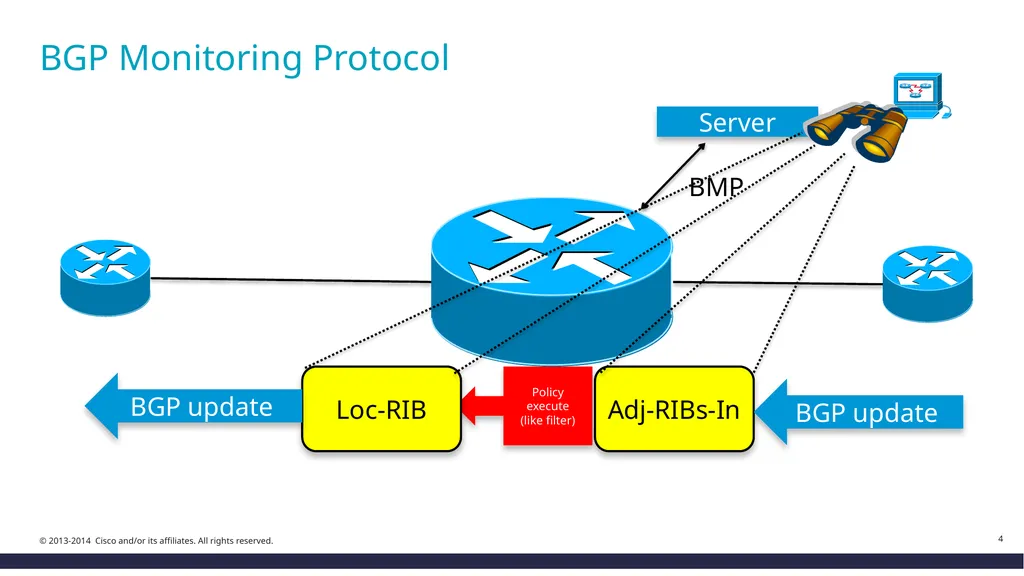

slide4. BGP Monitoring Protocol Adj-RIBs-In Policy execute (like filter) Loc-RIB BGP update BGP update Server BMP<br>

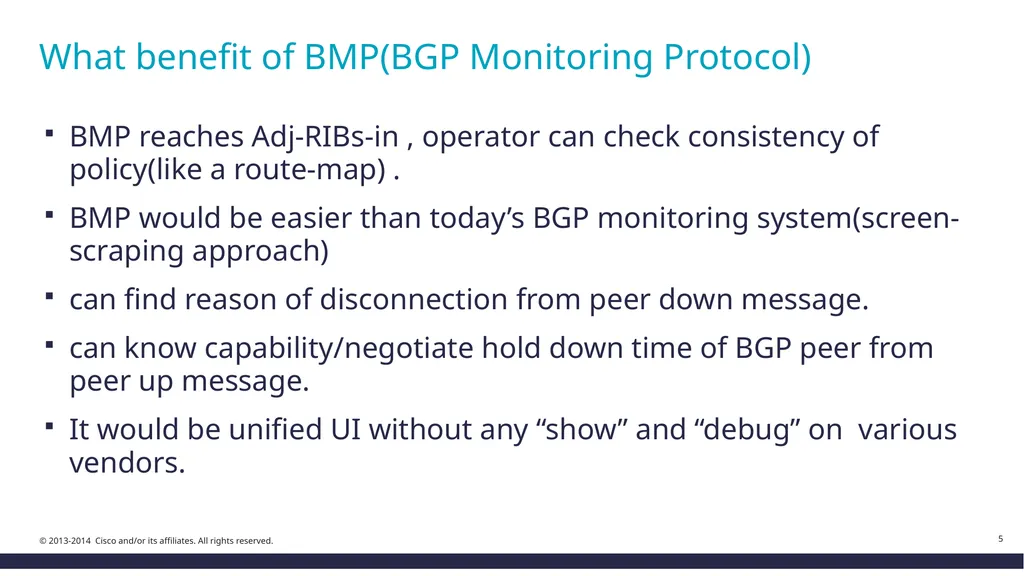

slide5. BMP reaches Adj-RIBs-in , operator can check consistency of policy(like a route-map) .
BMP would be easier than today’s BGP monitoring system(screen-scraping approach)
can find reason of disconnection from peer down message.
can know capability/negotiate hold down time of BGP peer from peer up message.
It would be unified UI without any “show” and “debug” on various vendors. What benefit of BMP(BGP Monitoring Protocol)<br>
slide6. BMP Message<br>

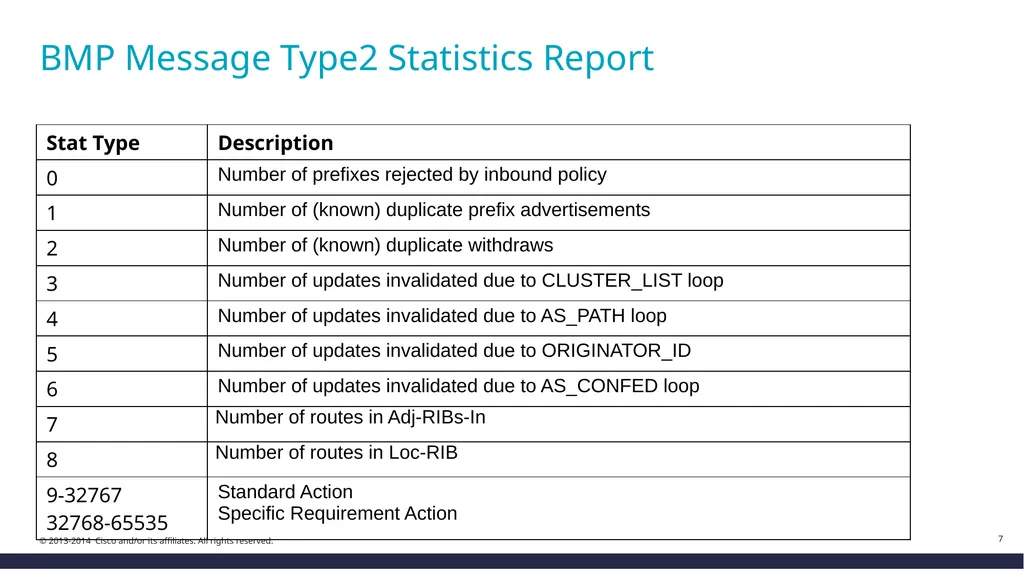

slide7. BMP Message Type2 Statistics Report<br>

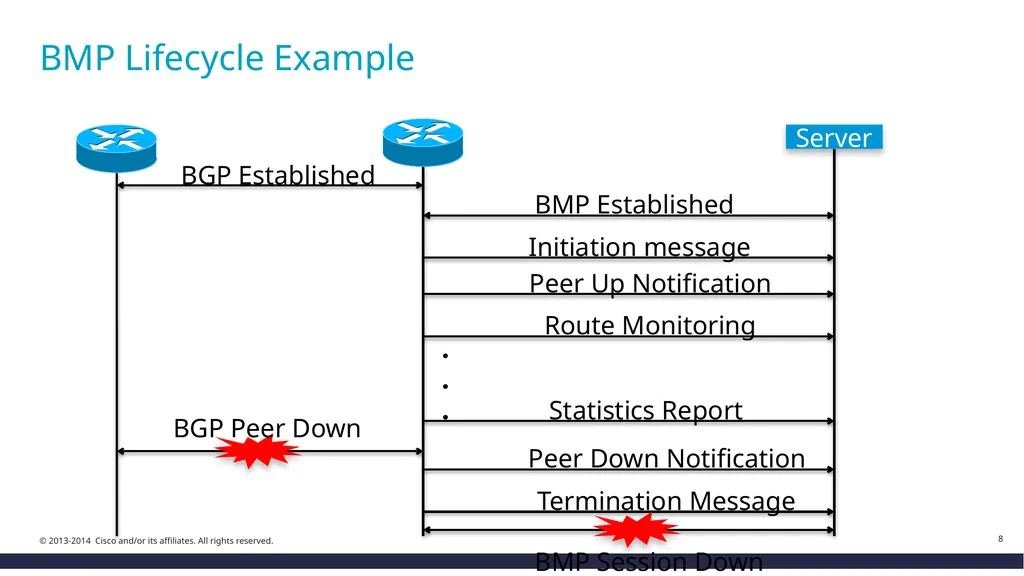

slide8. BMP Lifecycle Example Server BGP Established BMP Established Initiation message Peer Up Notification Route Monitoring ・
・
・ Statistics Report BGP Peer Down Peer Down Notification Termination Message BMP Session Down<br>

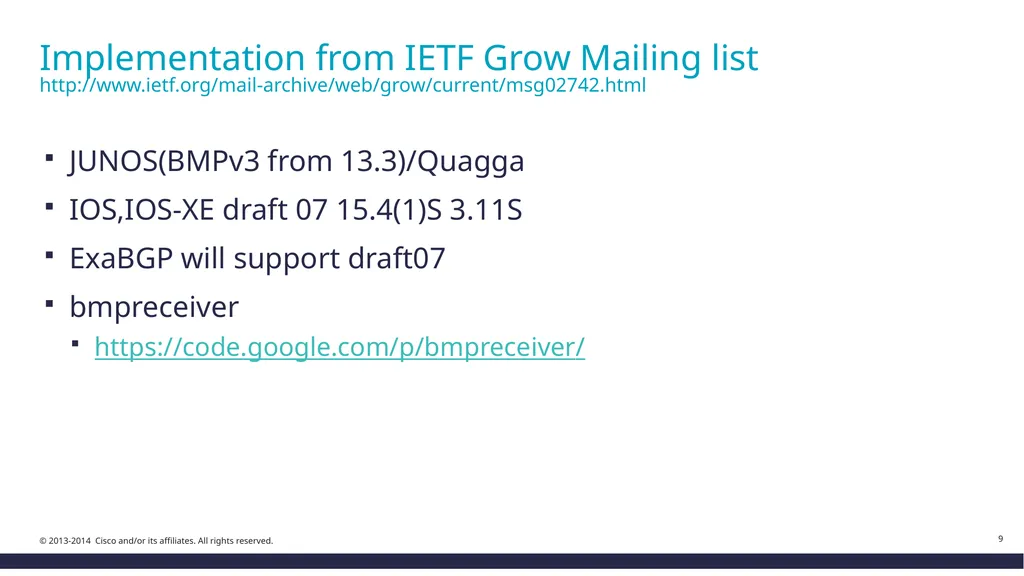

slide9. Implementation from IETF Grow Mailing list http://www.ietf.org/mail-archive/web/grow/current/msg02742.html JUNOS(BMPv3 from 13.3)/Quagga
IOS,IOS-XE draft 07 15.4(1)S 3.11S
ExaBGP will support draft07
bmpreceiver
https://code.google.com/p/bmpreceiver/<br>
slide10. What is BMP(BGP Monitoring Protocol)? Shishio
BIGLOBE/GREE/CISCO BMP test result summary Taiji
After JANOG34… Taiji Agenda<br>
shtsuchi@cisco.com *JANOGer: JApan Netowork Operators’ Group member<br>
slide2. What is BMP(BGP Monitoring Protocol)? Shishio
BIGLOBE/GREE/CISCO BMP test result summary Taiji
After JANOG34… Taiji Agenda<br>
slide3. What is BMP BGP Monitoring Protocol
http://tools.ietf.org/html/draft-ietf-grow-bmp
It can monitor BGP Adj-RIBs-In
Adj-RIBs-In is unprocessed routing information from BGP peer.
BMP is focused on monitoring of BGP status/routes/events.<br>
slide4. BGP Monitoring Protocol Adj-RIBs-In Policy execute (like filter) Loc-RIB BGP update BGP update Server BMP<br>
slide5. BMP reaches Adj-RIBs-in , operator can check consistency of policy(like a route-map) .
BMP would be easier than today’s BGP monitoring system(screen-scraping approach)
can find reason of disconnection from peer down message.
can know capability/negotiate hold down time of BGP peer from peer up message.
It would be unified UI without any “show” and “debug” on various vendors. What benefit of BMP(BGP Monitoring Protocol)<br>

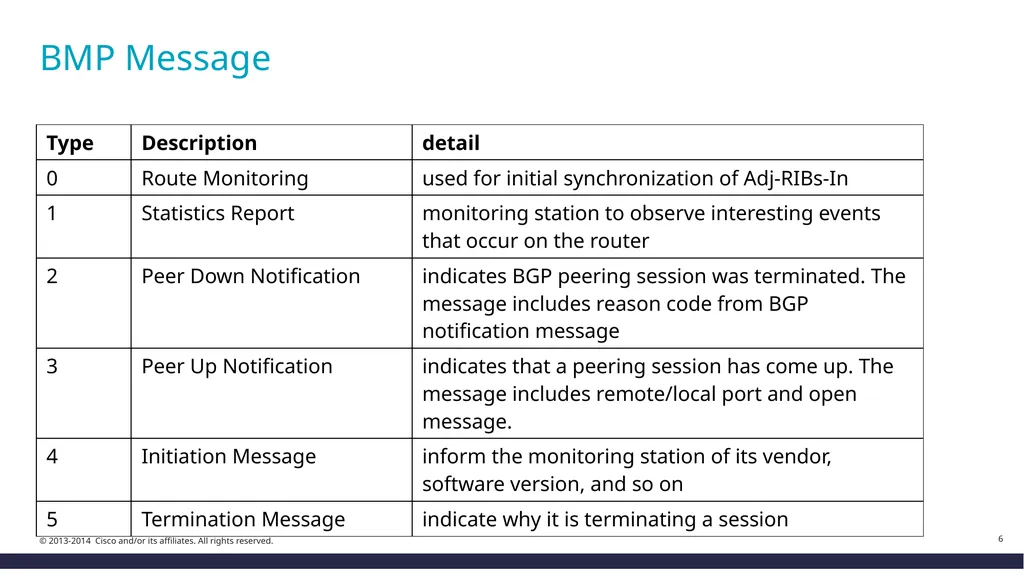

slide6. BMP Message<br>
slide7. BMP Message Type2 Statistics Report<br>
slide8. BMP Lifecycle Example Server BGP Established BMP Established Initiation message Peer Up Notification Route Monitoring ・
・
・ Statistics Report BGP Peer Down Peer Down Notification Termination Message BMP Session Down<br>
slide9. Implementation from IETF Grow Mailing list http://www.ietf.org/mail-archive/web/grow/current/msg02742.html JUNOS(BMPv3 from 13.3)/Quagga
IOS,IOS-XE draft 07 15.4(1)S 3.11S
ExaBGP will support draft07
bmpreceiver
https://code.google.com/p/bmpreceiver/<br>

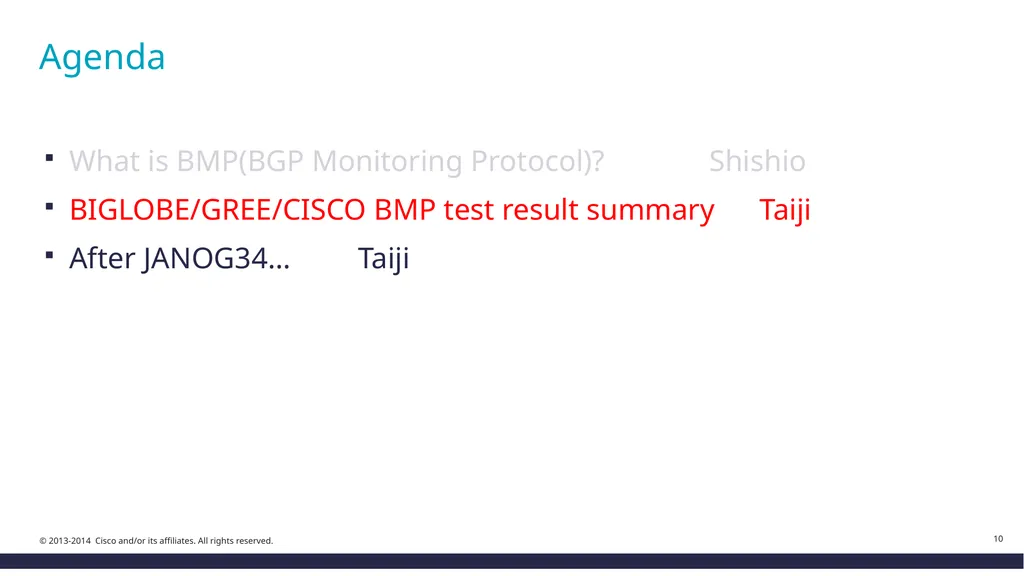

slide10. What is BMP(BGP Monitoring Protocol)? Shishio
