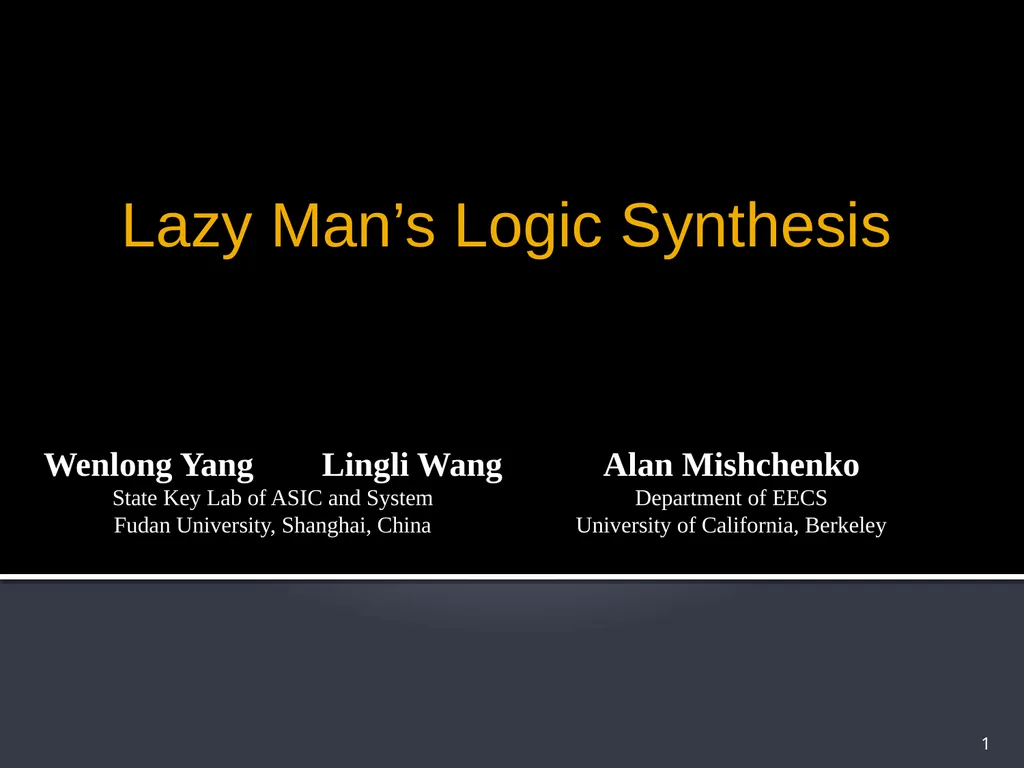

slide1. Wenlong Yang Lingli Wang
State Key Lab of ASIC and System
Fudan University, Shanghai, China Alan Mishchenko
Department of EECS
University of California, Berkeley 1 Lazy Man’s Logic Synthesis<br>

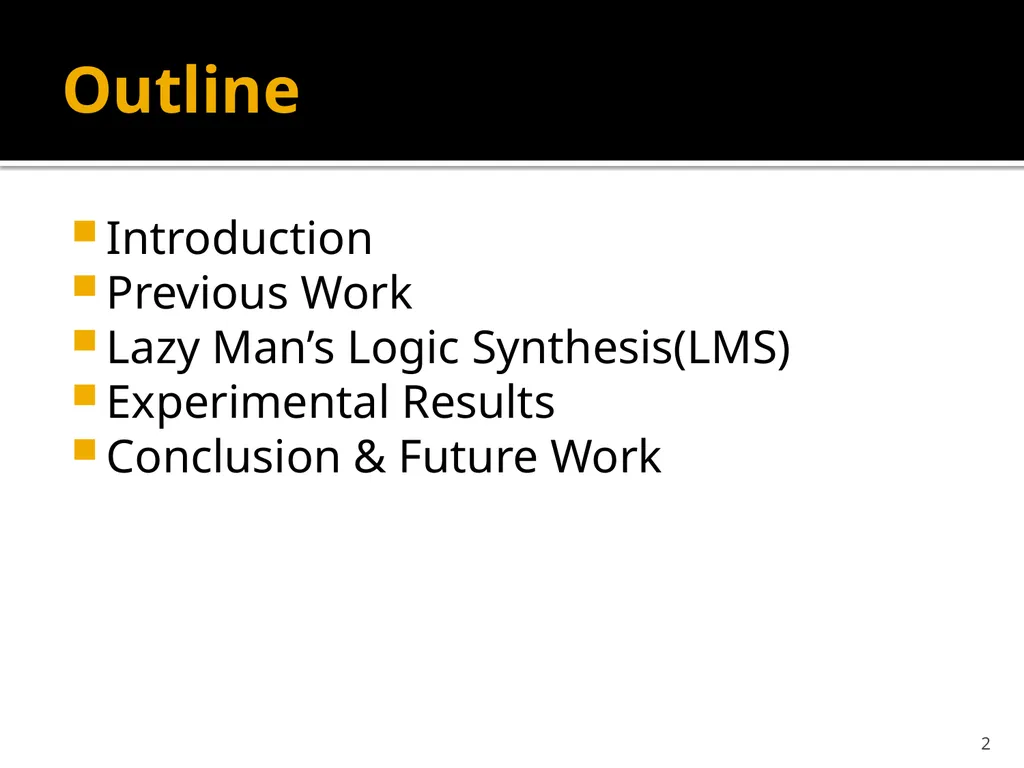

slide2. Outline Introduction
Previous Work
Lazy Man’s Logic Synthesis(LMS)
Experimental Results
Conclusion & Future Work 2<br>

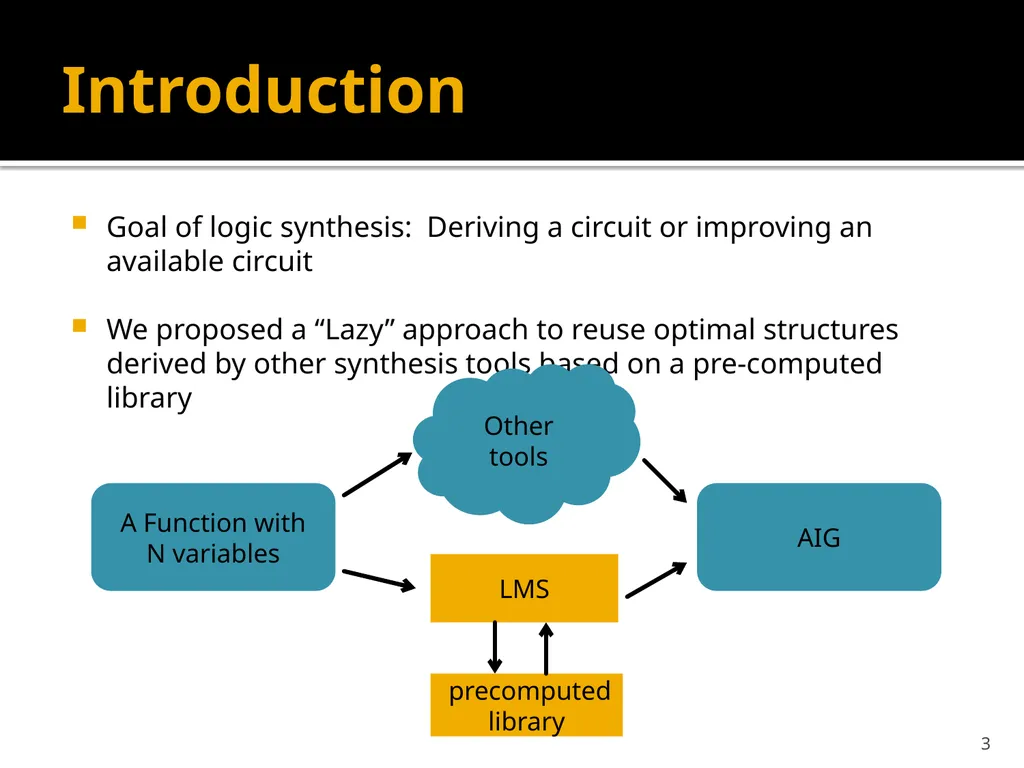

slide3. Introduction Goal of logic synthesis: Deriving a circuit or improving an available circuit
We proposed a “Lazy” approach to reuse optimal structures derived by other synthesis tools based on a pre-computed library AIG A Function with N variables Other tools LMS precomputed library 3<br>

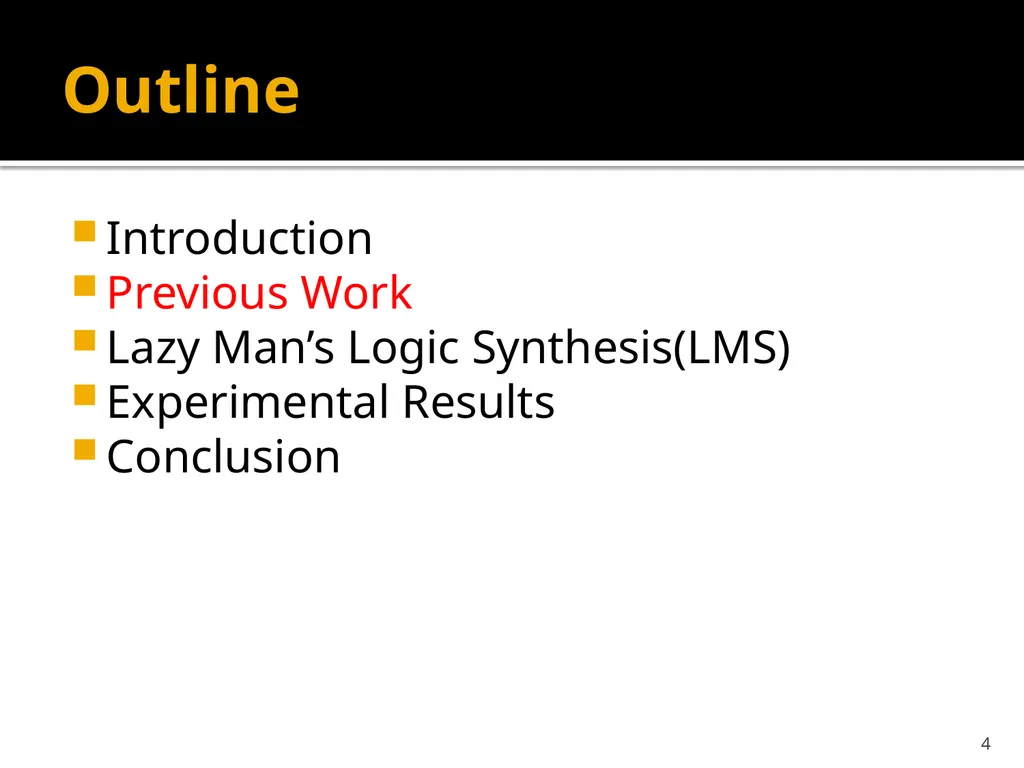

slide4. Outline Introduction
Previous Work
Lazy Man’s Logic Synthesis(LMS)
Experimental Results
Conclusion 4<br>

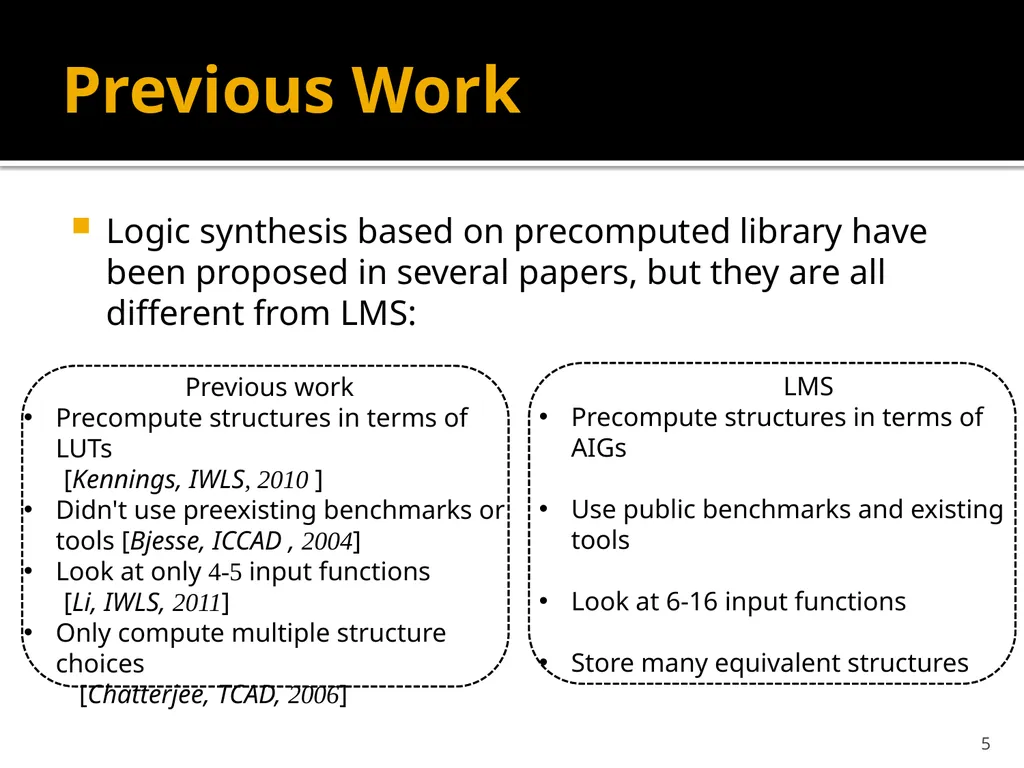

slide5. Previous Work Logic synthesis based on precomputed library have been proposed in several papers, but they are all different from LMS: Previous work
Precompute structures in terms of LUTs
[Kennings, IWLS, 2010 ]
Didn't use preexisting benchmarks or tools [Bjesse, ICCAD , 2004]
Look at only 4-5 input functions
[Li, IWLS, 2011]
Only compute multiple structure choices
[Chatterjee, TCAD, 2006] LMS
Precompute structures in terms of AIGs
Use public benchmarks and existing tools
Look at 6-16 input functions
Store many equivalent structures 5<br>

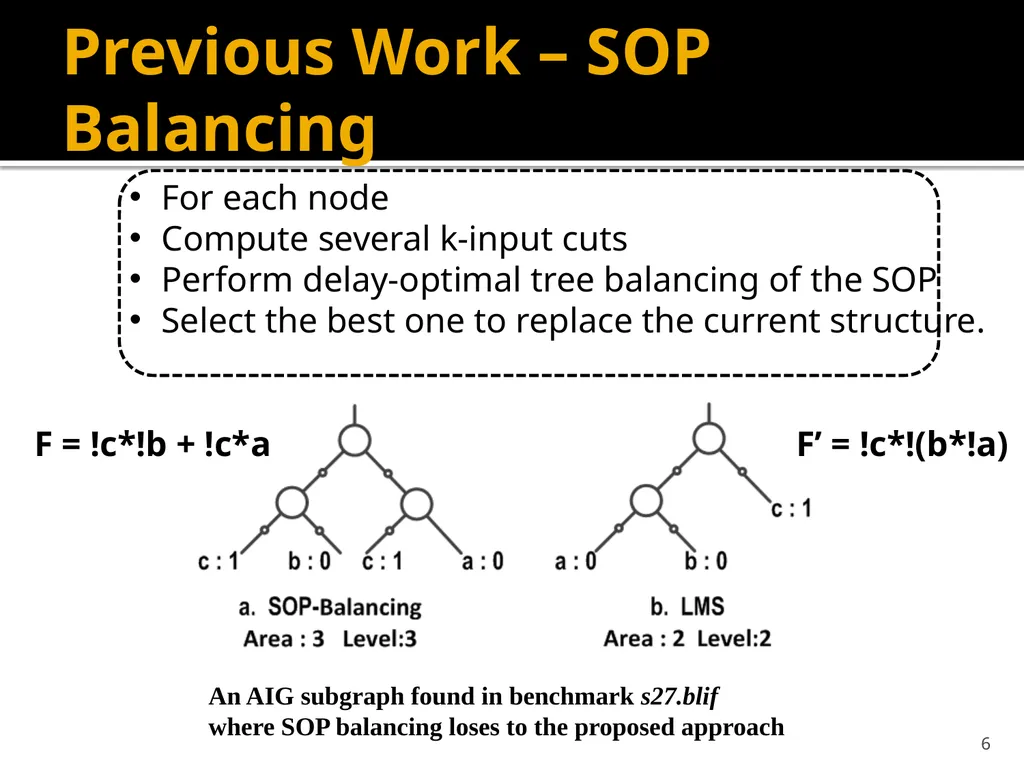

slide6. Previous Work – SOP Balancing For each node
Compute several k-input cuts
Perform delay-optimal tree balancing of the SOP
Select the best one to replace the current structure. An AIG subgraph found in benchmark s27.blif
where SOP balancing loses to the proposed approach F = !c*!b + !c*a F’ = !c*!(b*!a) 6<br>

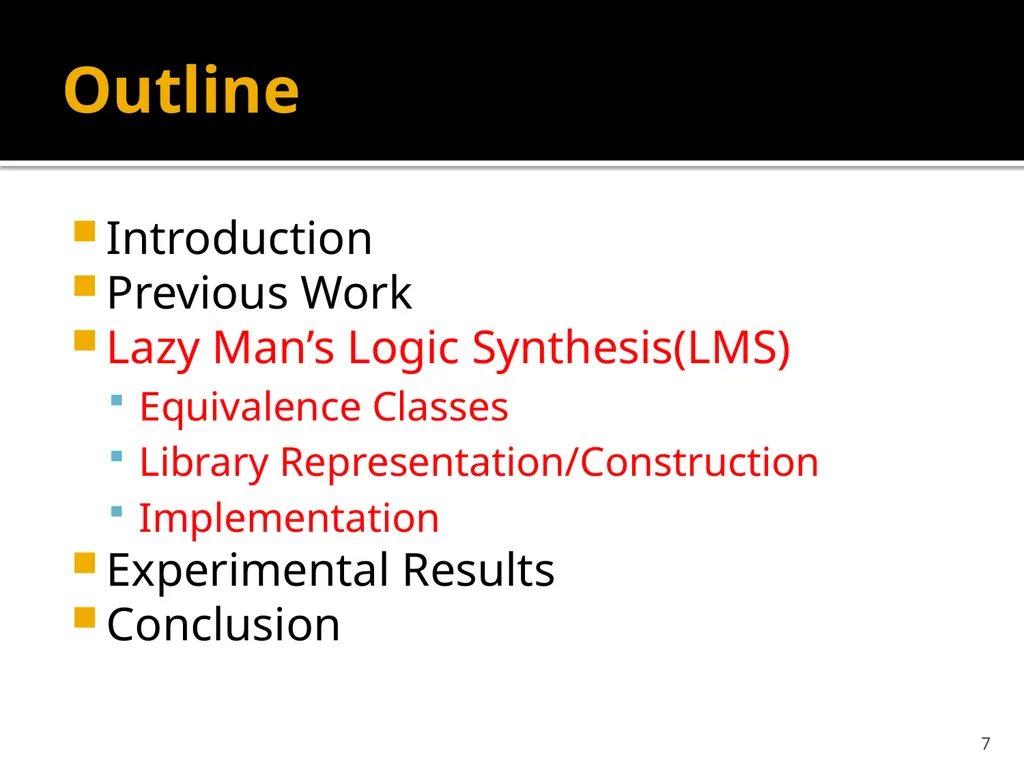

slide7. Outline Introduction
Previous Work
Lazy Man’s Logic Synthesis(LMS)
Equivalence Classes
Library Representation/Construction
Implementation
Experimental Results
Conclusion 7<br>

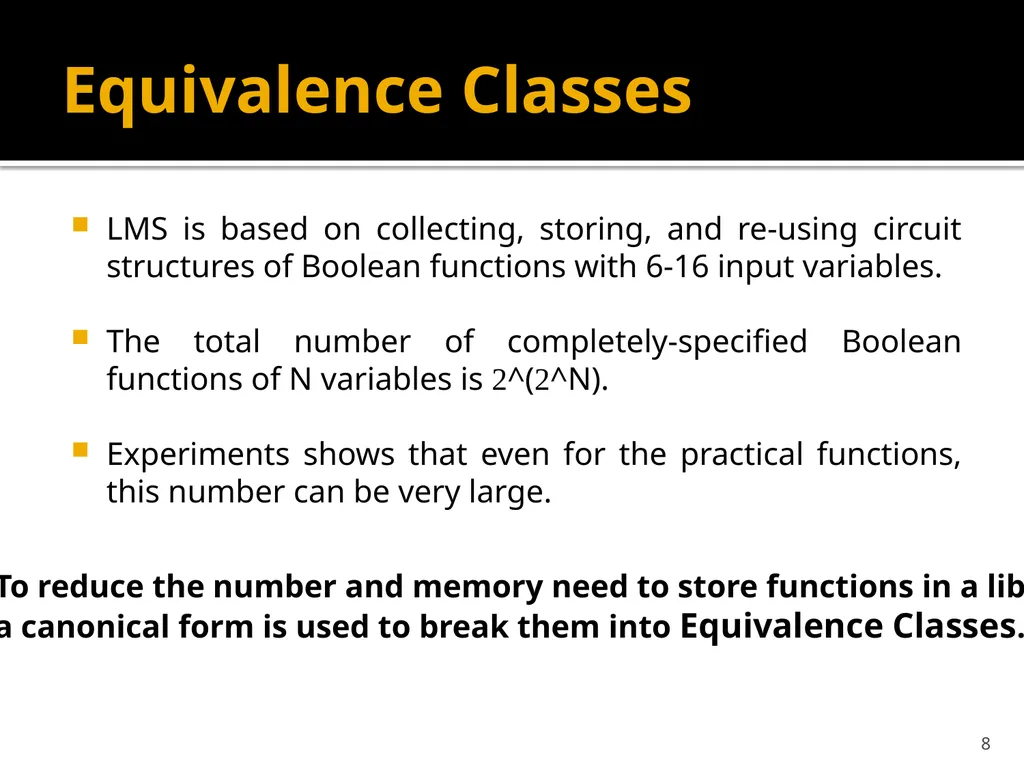

slide8. Equivalence Classes LMS is based on collecting, storing, and re-using circuit structures of Boolean functions with 6-16 input variables.
The total number of completely-specified Boolean functions of N variables is 2^(2^N).
Experiments shows that even for the practical functions, this number can be very large. To reduce the number and memory need to store functions in a library,
a canonical form is used to break them into Equivalence Classes. 8<br>

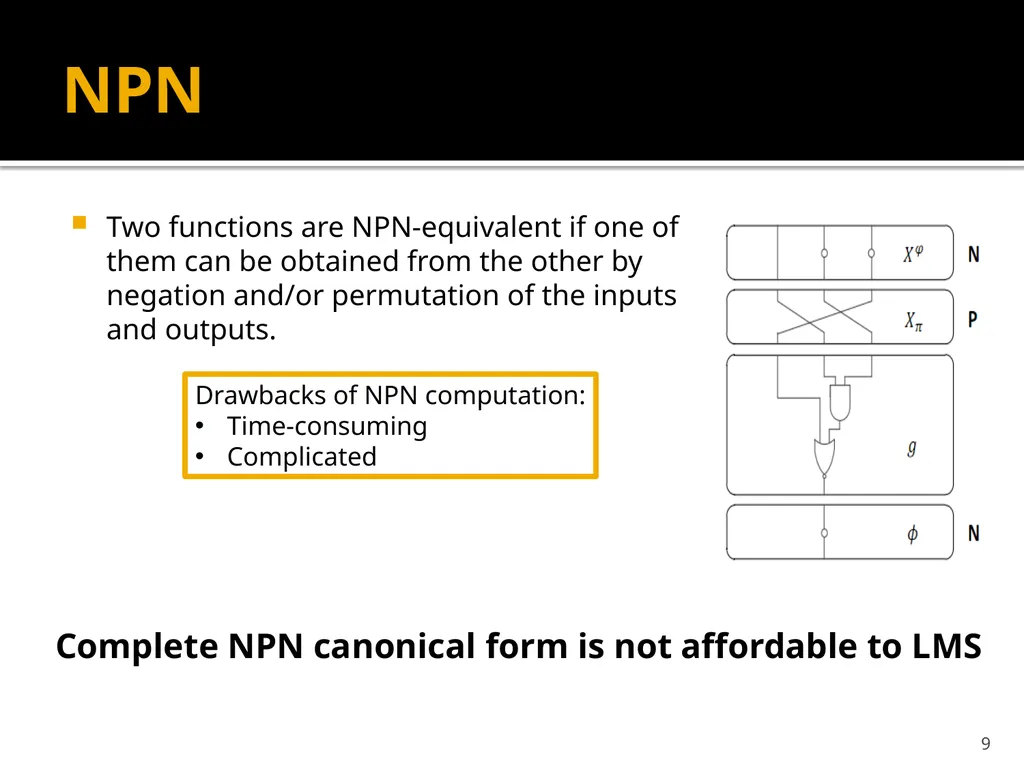

slide9. NPN Two functions are NPN-equivalent if one of them can be obtained from the other by negation and/or permutation of the inputs and outputs. Complete NPN canonical form is not affordable to LMS Drawbacks of NPN computation:
Time-consuming
Complicated 9<br>

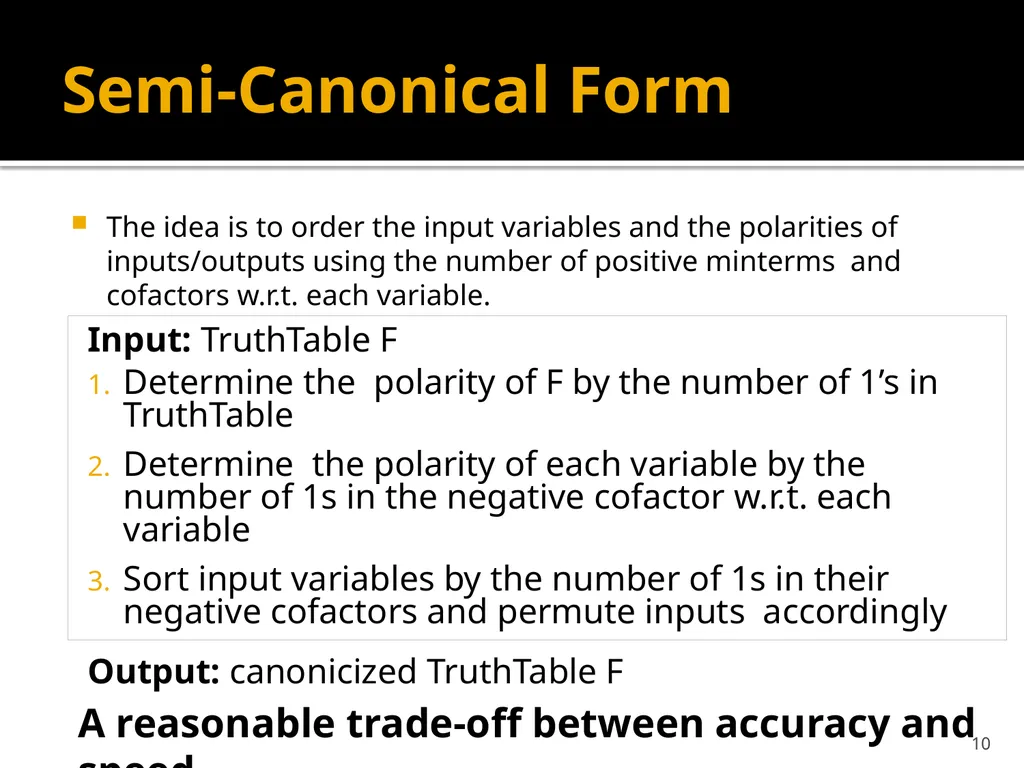

slide10. Semi-Canonical Form The idea is to order the input variables and the polarities of inputs/outputs using the number of positive minterms and cofactors w.r.t. each variable. Input: TruthTable F
Determine the polarity of F by the number of 1’s in TruthTable
Determine the polarity of each variable by the number of 1s in the negative cofactor w.r.t. each variable
Sort input variables by the number of 1s in their negative cofactors and permute inputs accordingly
Output: canonicized TruthTable F A reasonable trade-off between accuracy and speed 10<br>

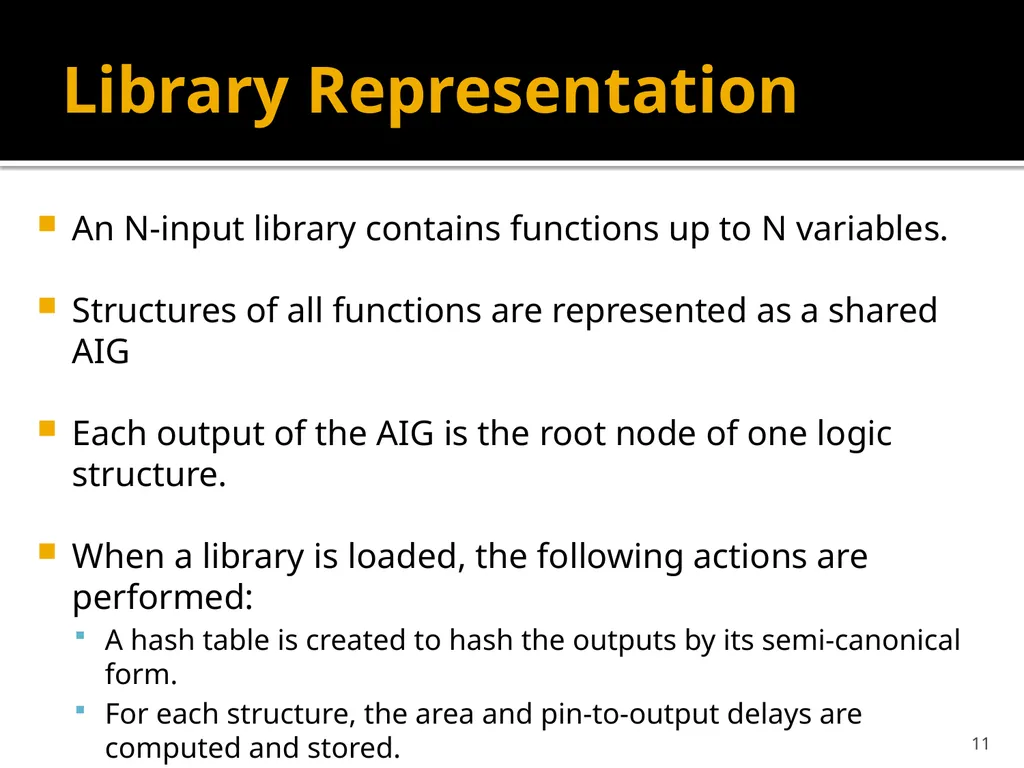

slide11. Library Representation An N-input library contains functions up to N variables.
Structures of all functions are represented as a shared AIG
Each output of the AIG is the root node of one logic structure.
When a library is loaded, the following actions are performed:
A hash table is created to hash the outputs by its semi-canonical form.
For each structure, the area and pin-to-output delays are computed and stored. 11<br>

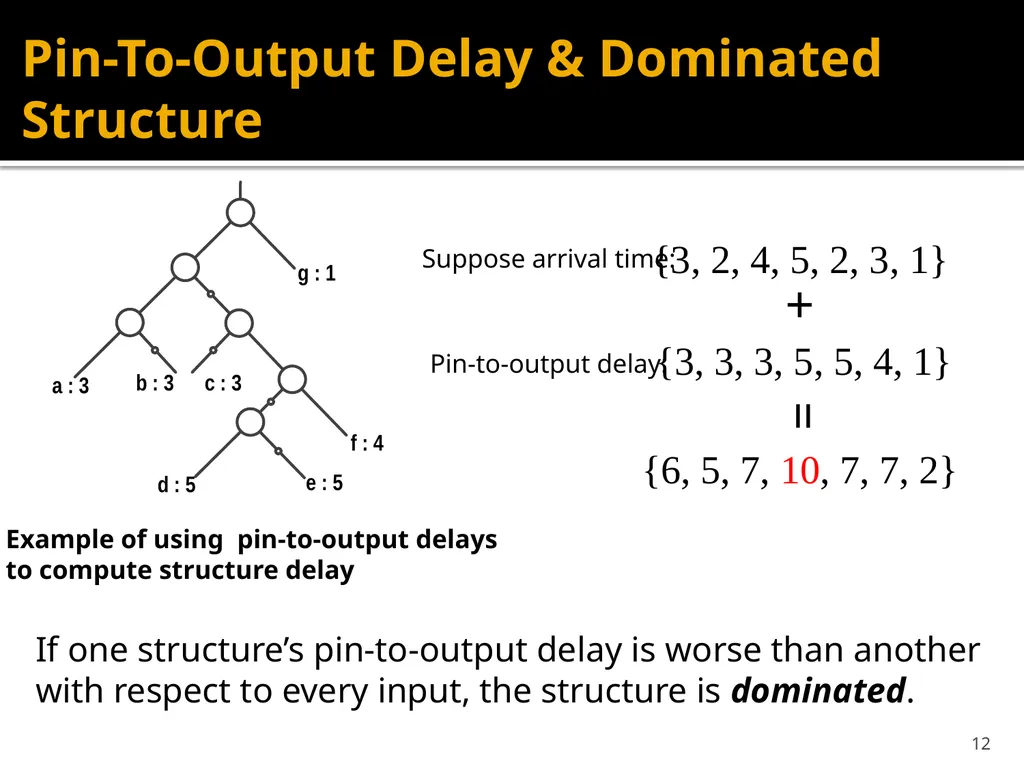

slide12. Pin-To-Output Delay & Dominated Structure Example of using pin-to-output delays
to compute structure delay Suppose arrival time: {3, 2, 4, 5, 2, 3, 1} Pin-to-output delay: {3, 3, 3, 5, 5, 4, 1} + {6, 5, 7, 10, 7, 7, 2} = If one structure’s pin-to-output delay is worse than another with respect to every input, the structure is dominated. 12<br>

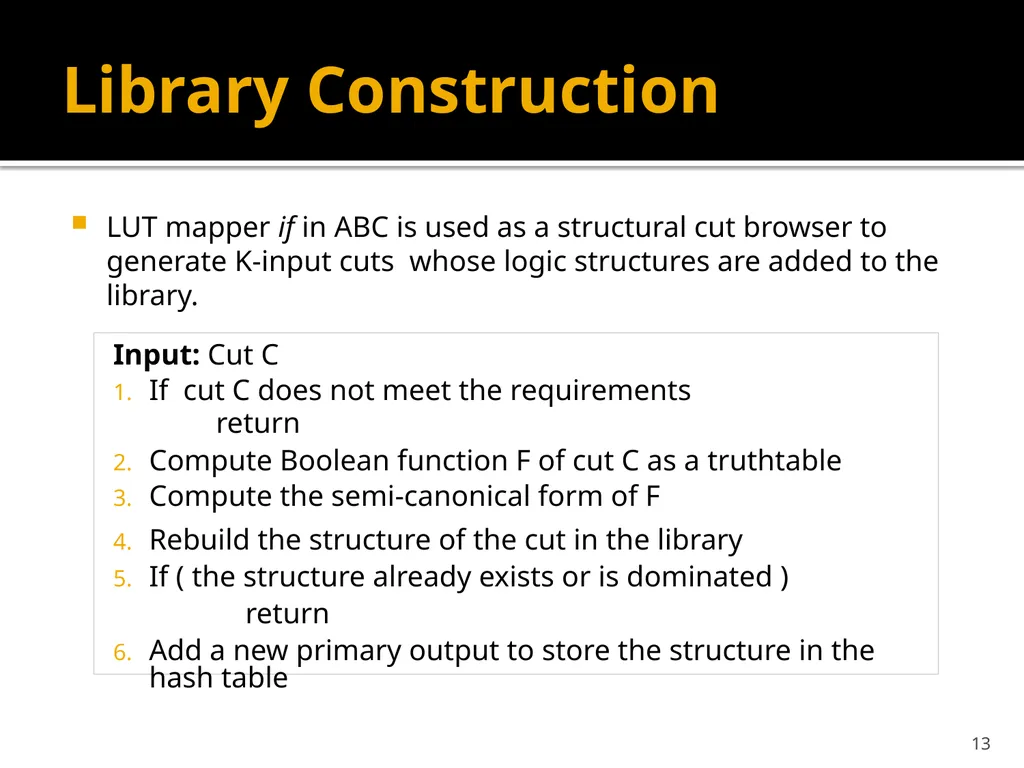

slide13. Library Construction LUT mapper if in ABC is used as a structural cut browser to generate K-input cuts whose logic structures are added to the library. Input: Cut C
If cut C does not meet the requirements
return
Compute Boolean function F of cut C as a truthtable
Compute the semi-canonical form of F
Rebuild the structure of the cut in the library
If ( the structure already exists or is dominated )
return
Add a new primary output to store the structure in the hash table 13<br>

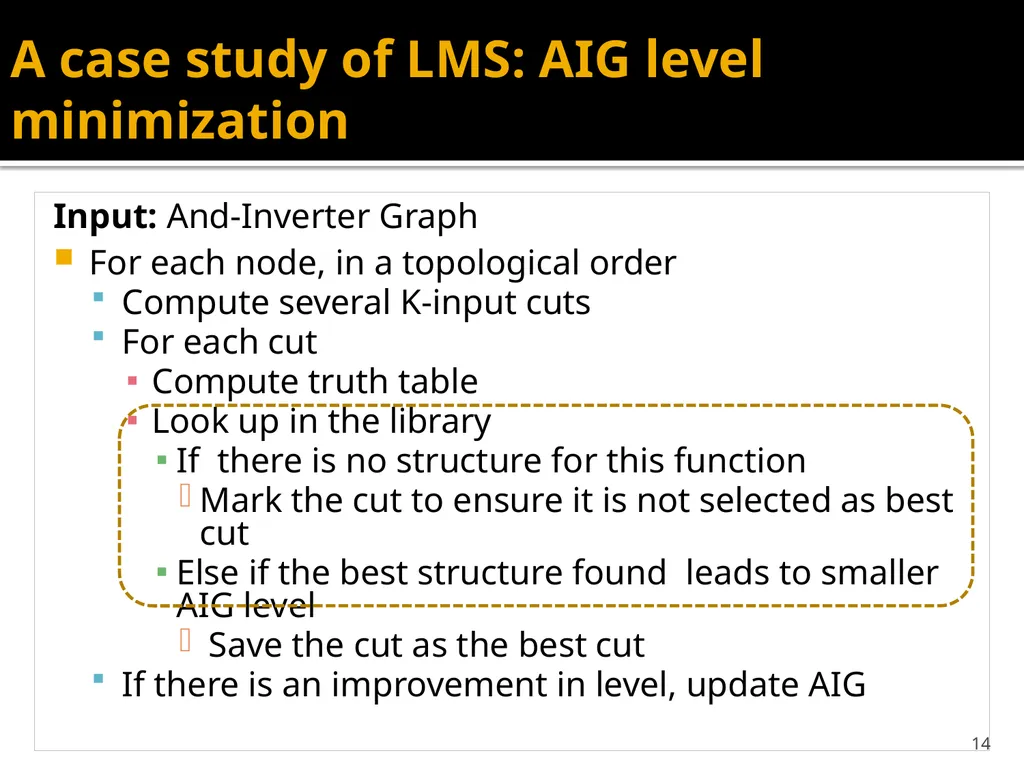

slide14. A case study of LMS: AIG level minimization Input: And-Inverter Graph
For each node, in a topological order
Compute several K-input cuts
For each cut
Compute truth table
Look up in the library
If there is no structure for this function
Mark the cut to ensure it is not selected as best cut
Else if the best structure found leads to smaller AIG level
Save the cut as the best cut
If there is an improvement in level, update AIG 14<br>

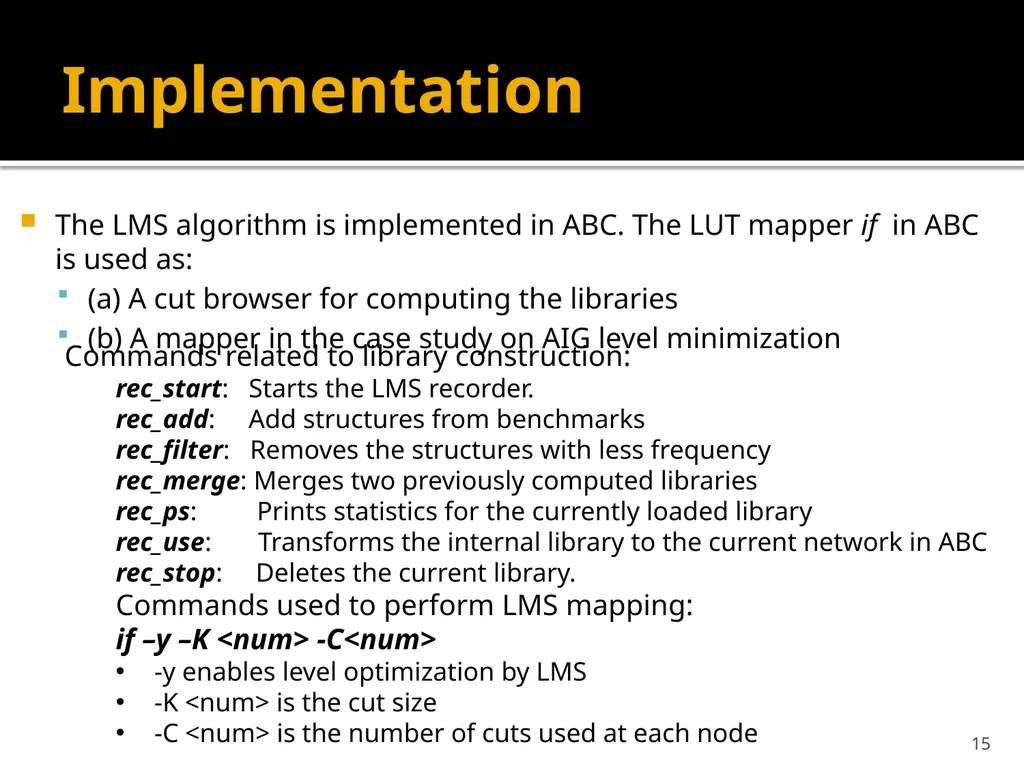

slide15. Implementation The LMS algorithm is implemented in ABC. The LUT mapper if in ABC is used as:
(a) A cut browser for computing the libraries
(b) A mapper in the case study on AIG level minimization Commands related to library construction:
rec_start: Starts the LMS recorder.
rec_add: Add structures from benchmarks
rec_filter: Removes the structures with less frequency
rec_merge: Merges two previously computed libraries
rec_ps: Prints statistics for the currently loaded library
rec_use: Transforms the internal library to the current network in ABC
rec_stop: Deletes the current library.
Commands used to perform LMS mapping:
if –y –K <num> -C<num>
-y enables level optimization by LMS
-K <num> is the cut size
-C <num> is the number of cuts used at each node 15<br>

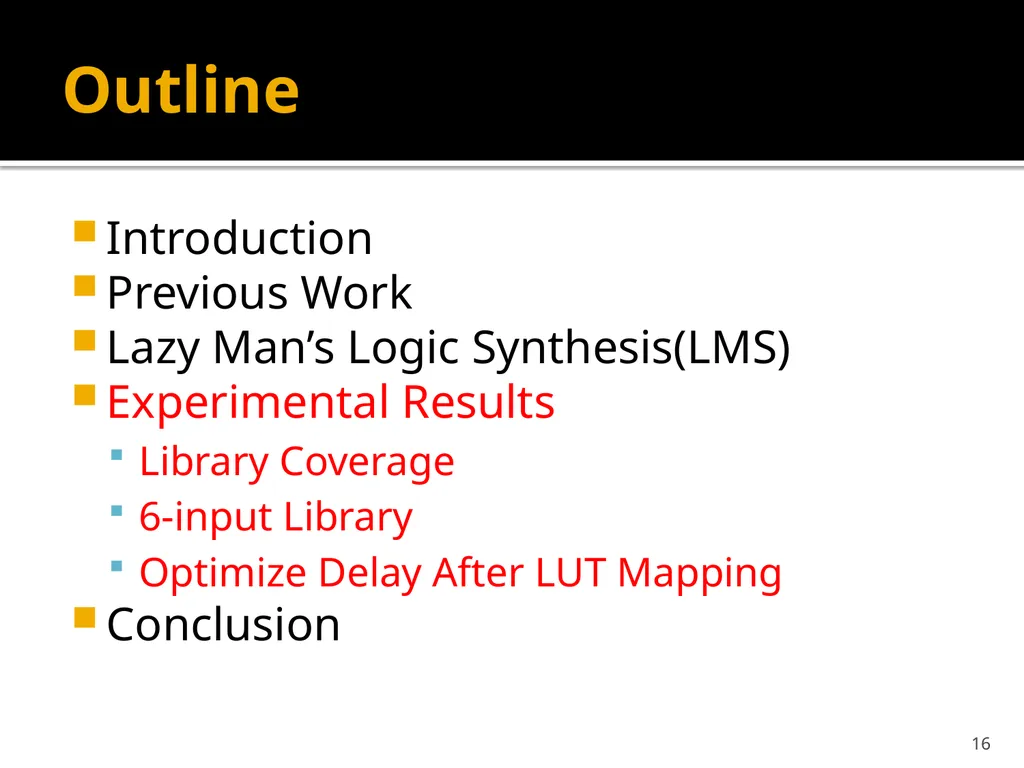

slide16. Outline Introduction
Previous Work
Lazy Man’s Logic Synthesis(LMS)
Experimental Results
Library Coverage
6-input Library
Optimize Delay After LUT Mapping
Conclusion 16<br>

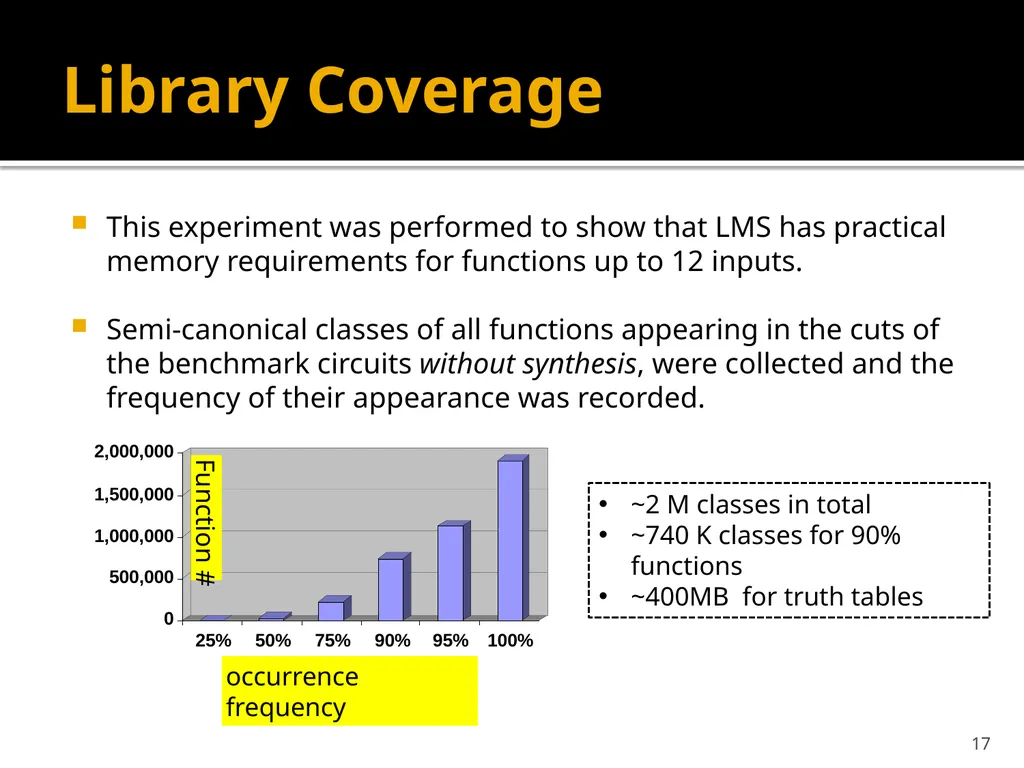

slide17. Library Coverage This experiment was performed to show that LMS has practical memory requirements for functions up to 12 inputs.
Semi-canonical classes of all functions appearing in the cuts of the benchmark circuits without synthesis, were collected and the frequency of their appearance was recorded. occurrence frequency 17 Function #<br>

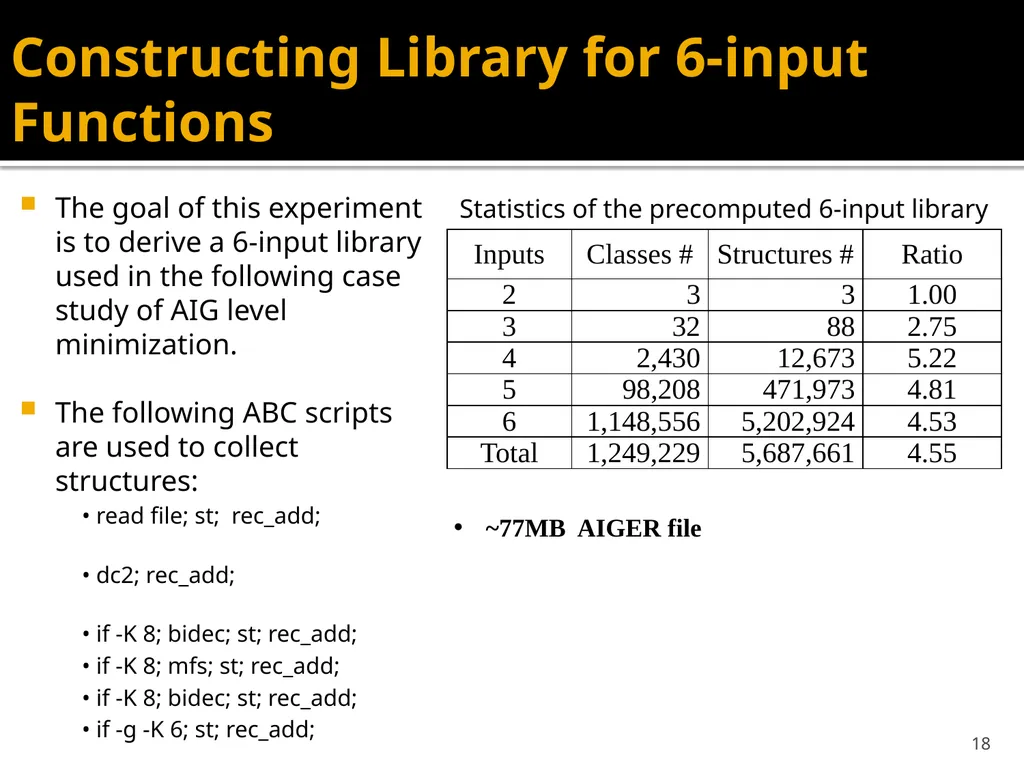

slide18. Constructing Library for 6-input Functions The goal of this experiment is to derive a 6-input library used in the following case study of AIG level minimization.
The following ABC scripts are used to collect structures:
• read file; st; rec_add;
• dc2; rec_add;
• if -K 8; bidec; st; rec_add;
• if -K 8; mfs; st; rec_add;
• if -K 8; bidec; st; rec_add;
• if -g -K 6; st; rec_add;
• if -g -K 6; st; rec_add; Statistics of the precomputed 6-input library ~77MB AIGER file 18<br>

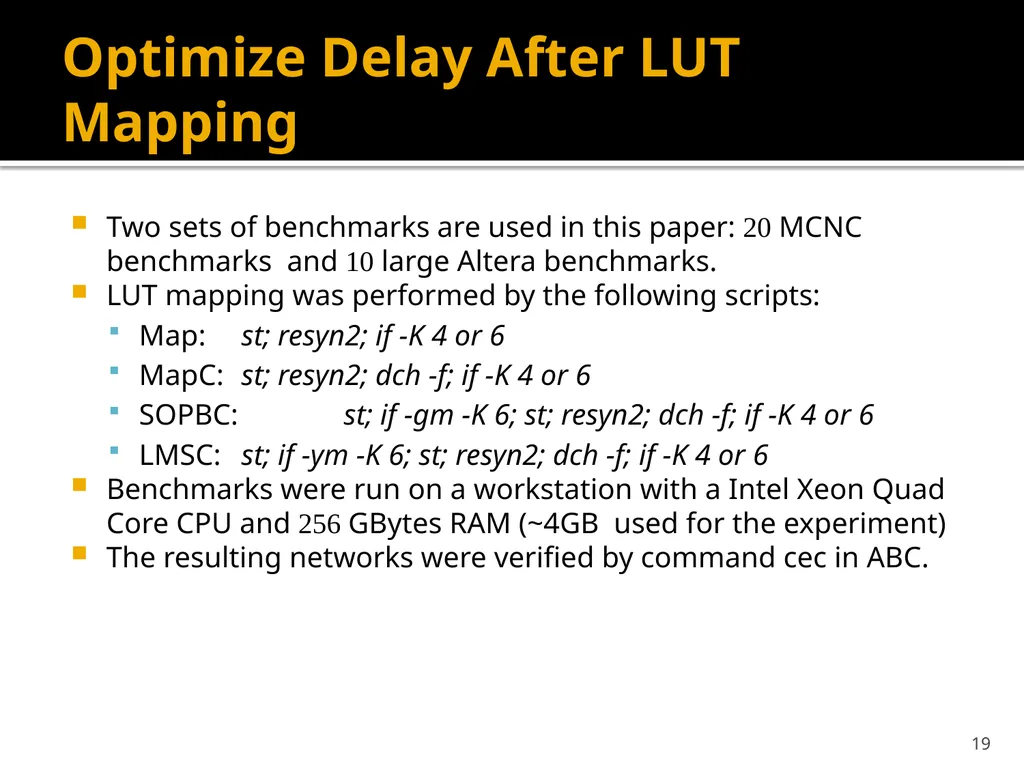

slide19. Optimize Delay After LUT Mapping Two sets of benchmarks are used in this paper: 20 MCNC benchmarks and 10 large Altera benchmarks.
LUT mapping was performed by the following scripts:
Map: st; resyn2; if -K 4 or 6
MapC: st; resyn2; dch -f; if -K 4 or 6
SOPBC: st; if -gm -K 6; st; resyn2; dch -f; if -K 4 or 6
LMSC: st; if -ym -K 6; st; resyn2; dch -f; if -K 4 or 6
Benchmarks were run on a workstation with a Intel Xeon Quad Core CPU and 256 GBytes RAM (~4GB used for the experiment)
The resulting networks were verified by command cec in ABC. 19<br>

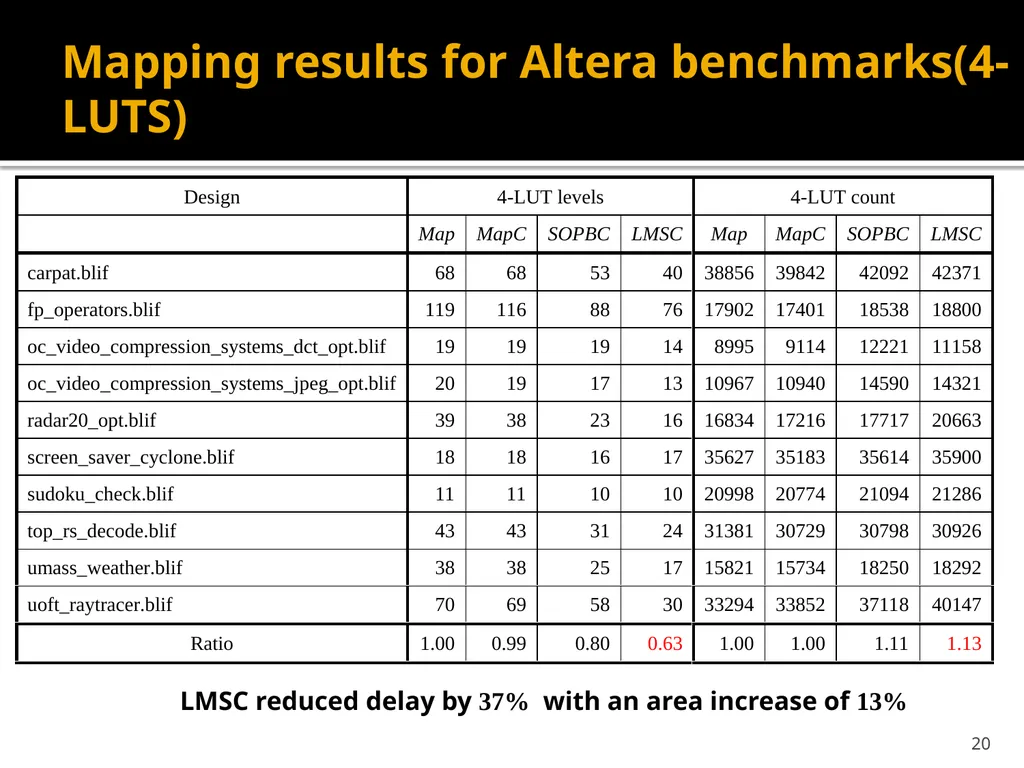

slide20. Mapping results for Altera benchmarks(4-LUTS) LMSC reduced delay by 37% with an area increase of 13% 20<br>

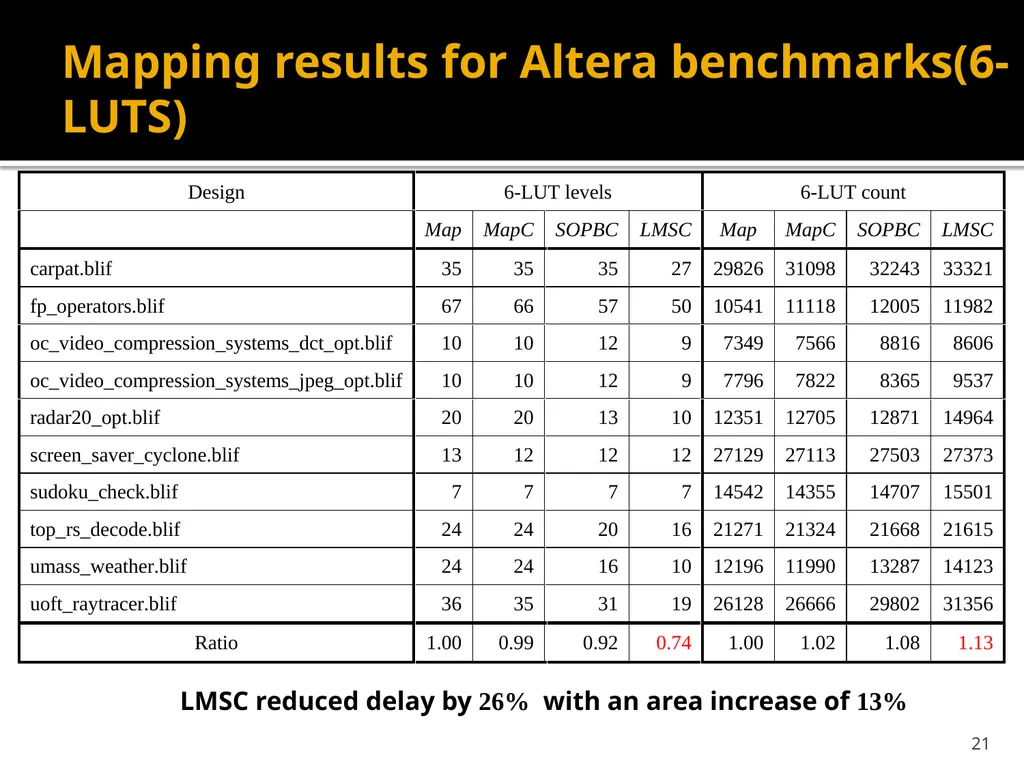

slide21. Mapping results for Altera benchmarks(6-LUTS) LMSC reduced delay by 26% with an area increase of 13% 21<br>

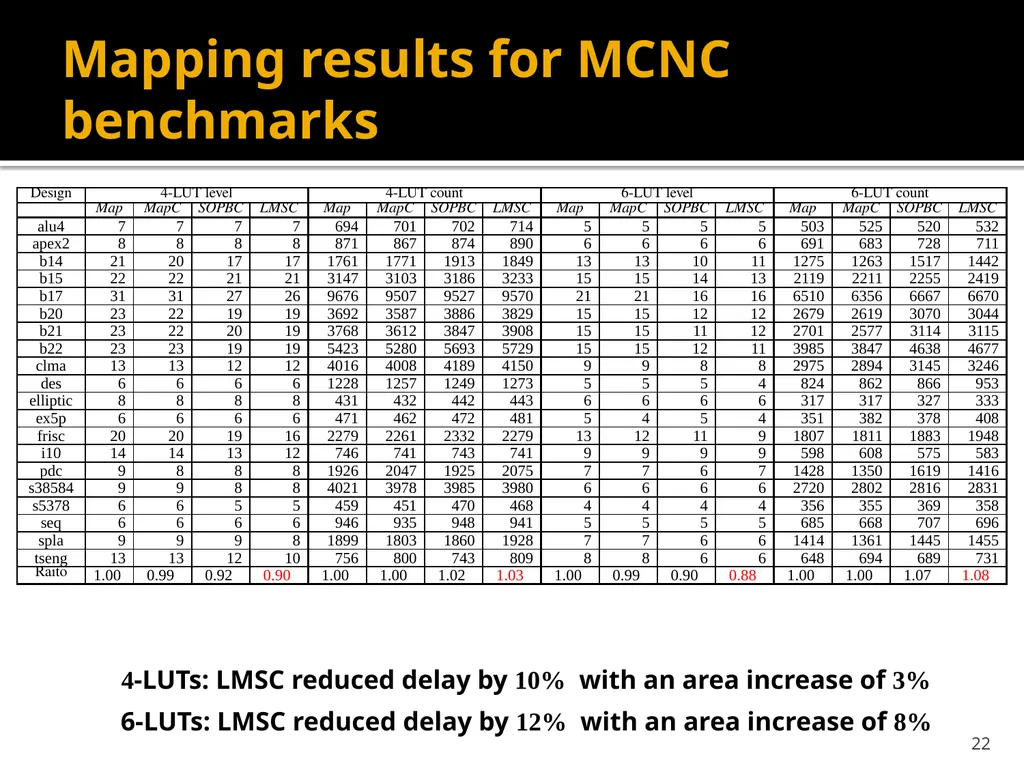

slide22. Mapping results for MCNC benchmarks 4-LUTs: LMSC reduced delay by 10% with an area increase of 3% 6-LUTs: LMSC reduced delay by 12% with an area increase of 8% 22<br>

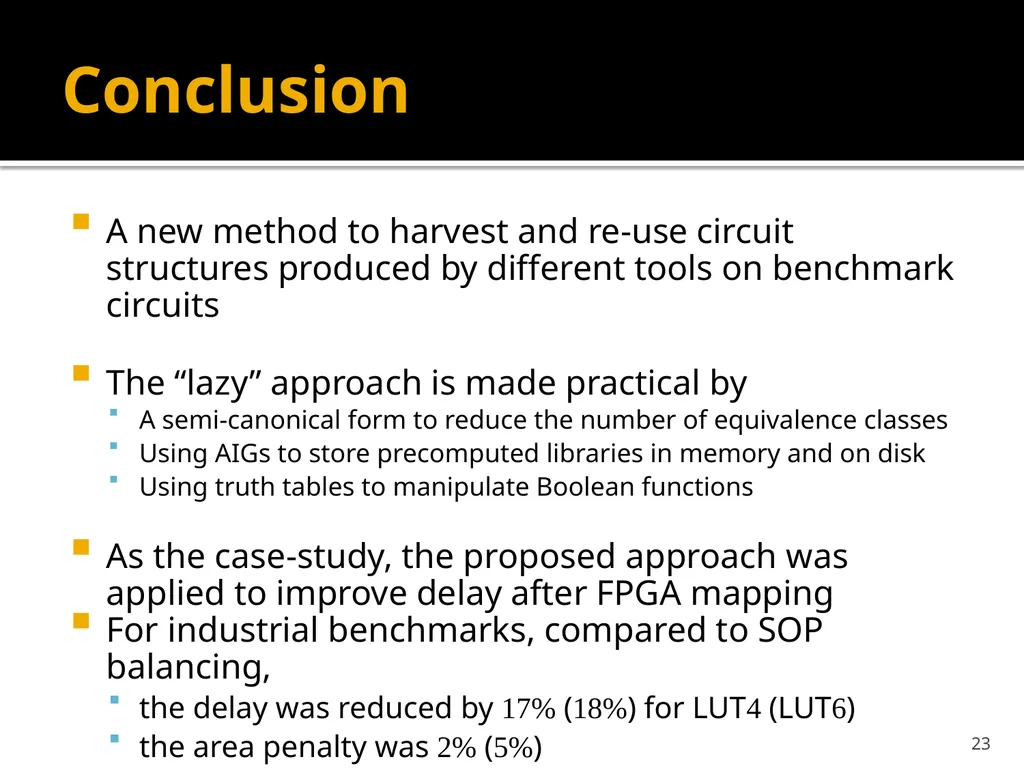

slide23. Conclusion A new method to harvest and re-use circuit structures produced by different tools on benchmark circuits
The “lazy” approach is made practical by
A semi-canonical form to reduce the number of equivalence classes
Using AIGs to store precomputed libraries in memory and on disk
Using truth tables to manipulate Boolean functions
As the case-study, the proposed approach was applied to improve delay after FPGA mapping
For industrial benchmarks, compared to SOP balancing,
the delay was reduced by 17% (18%) for LUT4 (LUT6)
the area penalty was 2% (5%) 23<br>

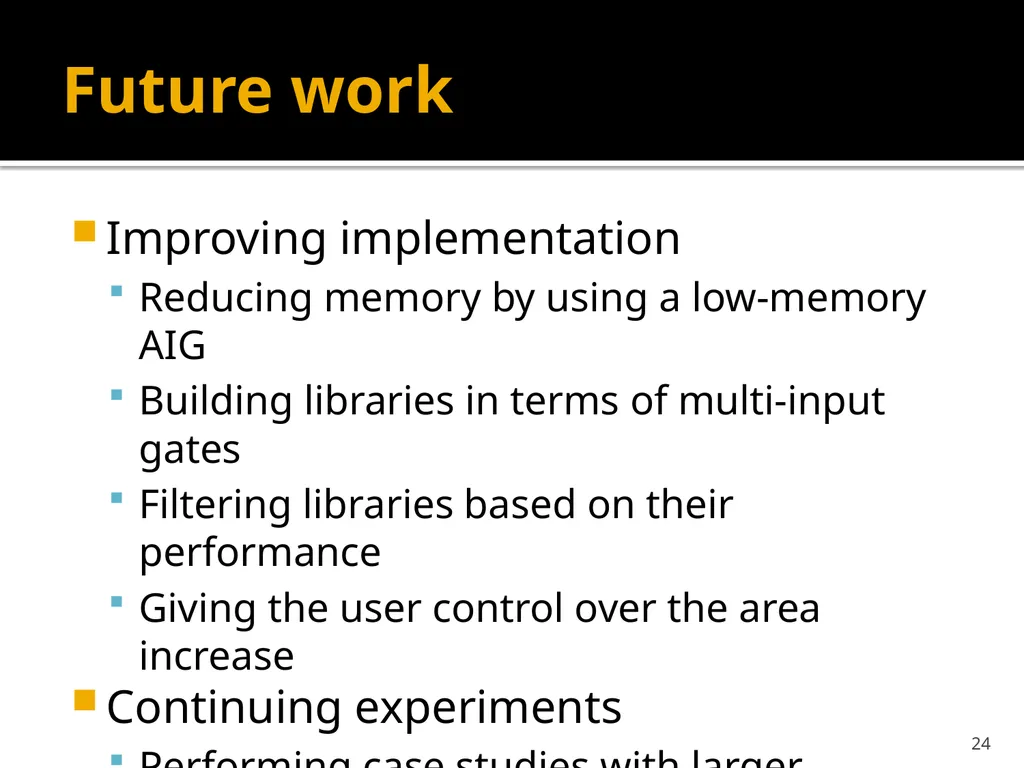

slide24. Future work Improving implementation
Reducing memory by using a low-memory AIG
Building libraries in terms of multi-input gates
Filtering libraries based on their performance
Giving the user control over the area increase
Continuing experiments
Performing case studies with larger functions
Evaluating delay improvements after P&R 24<br>

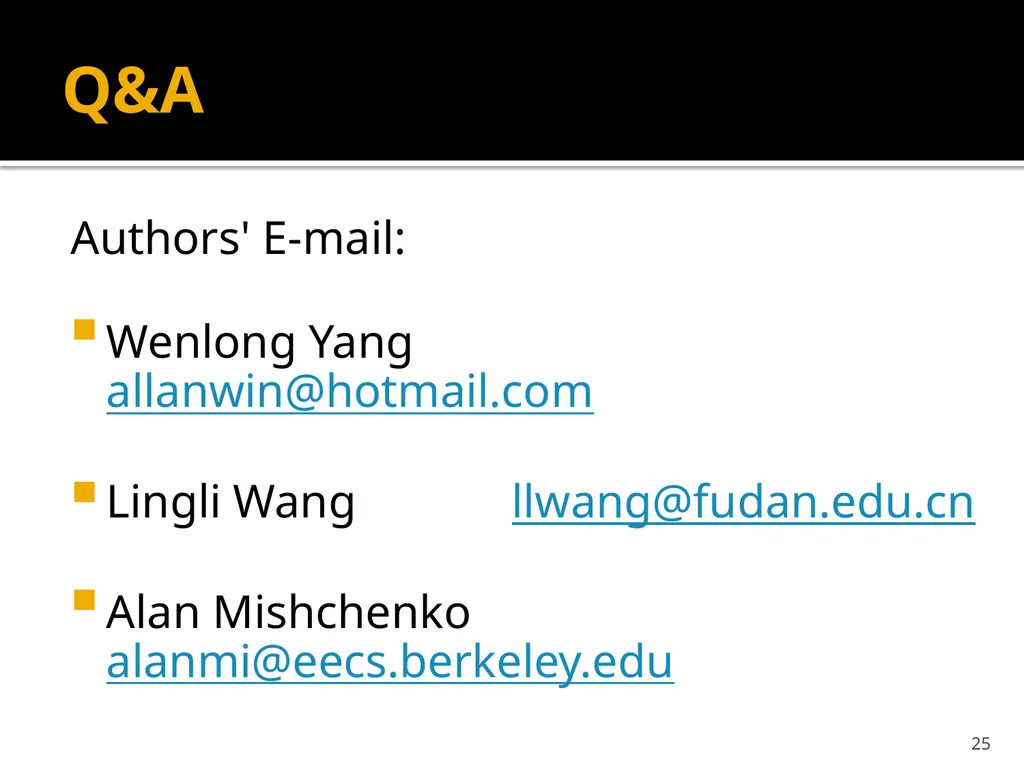

slide25. Q&A Authors' E-mail:
Wenlong Yang allanwin@hotmail.com
Lingli Wang llwang@fudan.edu.cn
Alan Mishchenko alanmi@eecs.berkeley.edu 25<br>

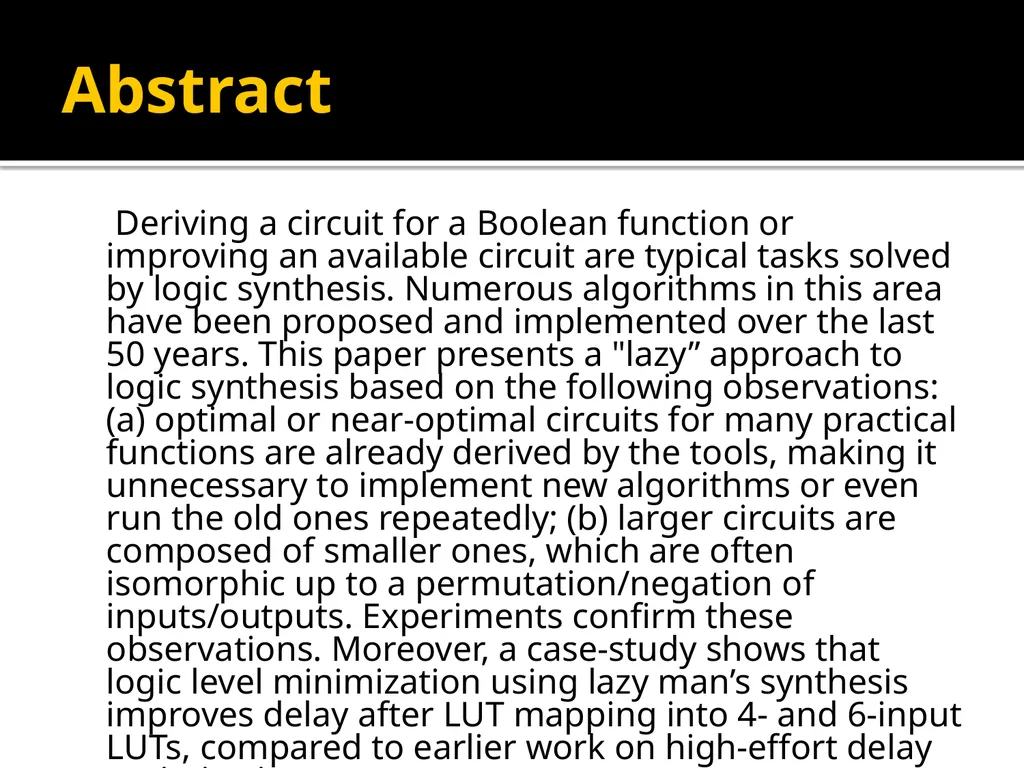

slide26. Abstract Deriving a circuit for a Boolean function or improving an available circuit are typical tasks solved by logic synthesis. Numerous algorithms in this area have been proposed and implemented over the last 50 years. This paper presents a "lazy” approach to logic synthesis based on the following observations: (a) optimal or near-optimal circuits for many practical functions are already derived by the tools, making it unnecessary to implement new algorithms or even run the old ones repeatedly; (b) larger circuits are composed of smaller ones, which are often isomorphic up to a permutation/negation of inputs/outputs. Experiments confirm these observations. Moreover, a case-study shows that logic level minimization using lazy man’s synthesis improves delay after LUT mapping into 4- and 6-input LUTs, compared to earlier work on high-effort delay optimization.<br>
State Key Lab of ASIC and System
Fudan University, Shanghai, China Alan Mishchenko
Department of EECS
University of California, Berkeley 1 Lazy Man’s Logic Synthesis<br>
slide2. Outline Introduction
Previous Work
Lazy Man’s Logic Synthesis(LMS)
Experimental Results
Conclusion & Future Work 2<br>
slide3. Introduction Goal of logic synthesis: Deriving a circuit or improving an available circuit
We proposed a “Lazy” approach to reuse optimal structures derived by other synthesis tools based on a pre-computed library AIG A Function with N variables Other tools LMS precomputed library 3<br>
slide4. Outline Introduction
Previous Work
Lazy Man’s Logic Synthesis(LMS)
Experimental Results
Conclusion 4<br>
slide5. Previous Work Logic synthesis based on precomputed library have been proposed in several papers, but they are all different from LMS: Previous work
Precompute structures in terms of LUTs
[Kennings, IWLS, 2010 ]
Didn't use preexisting benchmarks or tools [Bjesse, ICCAD , 2004]
Look at only 4-5 input functions
[Li, IWLS, 2011]
Only compute multiple structure choices
[Chatterjee, TCAD, 2006] LMS
Precompute structures in terms of AIGs
Use public benchmarks and existing tools
Look at 6-16 input functions
Store many equivalent structures 5<br>
slide6. Previous Work – SOP Balancing For each node
Compute several k-input cuts
Perform delay-optimal tree balancing of the SOP
Select the best one to replace the current structure. An AIG subgraph found in benchmark s27.blif
where SOP balancing loses to the proposed approach F = !c*!b + !c*a F’ = !c*!(b*!a) 6<br>
slide7. Outline Introduction
Previous Work
Lazy Man’s Logic Synthesis(LMS)
Equivalence Classes
Library Representation/Construction
Implementation
Experimental Results
Conclusion 7<br>
slide8. Equivalence Classes LMS is based on collecting, storing, and re-using circuit structures of Boolean functions with 6-16 input variables.
The total number of completely-specified Boolean functions of N variables is 2^(2^N).
Experiments shows that even for the practical functions, this number can be very large. To reduce the number and memory need to store functions in a library,
a canonical form is used to break them into Equivalence Classes. 8<br>
slide9. NPN Two functions are NPN-equivalent if one of them can be obtained from the other by negation and/or permutation of the inputs and outputs. Complete NPN canonical form is not affordable to LMS Drawbacks of NPN computation:
Time-consuming
Complicated 9<br>
slide10. Semi-Canonical Form The idea is to order the input variables and the polarities of inputs/outputs using the number of positive minterms and cofactors w.r.t. each variable. Input: TruthTable F
Determine the polarity of F by the number of 1’s in TruthTable
Determine the polarity of each variable by the number of 1s in the negative cofactor w.r.t. each variable
Sort input variables by the number of 1s in their negative cofactors and permute inputs accordingly
Output: canonicized TruthTable F A reasonable trade-off between accuracy and speed 10<br>
slide11. Library Representation An N-input library contains functions up to N variables.
Structures of all functions are represented as a shared AIG
Each output of the AIG is the root node of one logic structure.
When a library is loaded, the following actions are performed:
A hash table is created to hash the outputs by its semi-canonical form.
For each structure, the area and pin-to-output delays are computed and stored. 11<br>
slide12. Pin-To-Output Delay & Dominated Structure Example of using pin-to-output delays
to compute structure delay Suppose arrival time: {3, 2, 4, 5, 2, 3, 1} Pin-to-output delay: {3, 3, 3, 5, 5, 4, 1} + {6, 5, 7, 10, 7, 7, 2} = If one structure’s pin-to-output delay is worse than another with respect to every input, the structure is dominated. 12<br>
slide13. Library Construction LUT mapper if in ABC is used as a structural cut browser to generate K-input cuts whose logic structures are added to the library. Input: Cut C
If cut C does not meet the requirements
return
Compute Boolean function F of cut C as a truthtable
Compute the semi-canonical form of F
Rebuild the structure of the cut in the library
If ( the structure already exists or is dominated )
return
Add a new primary output to store the structure in the hash table 13<br>
slide14. A case study of LMS: AIG level minimization Input: And-Inverter Graph
For each node, in a topological order
Compute several K-input cuts
For each cut
Compute truth table
Look up in the library
If there is no structure for this function
Mark the cut to ensure it is not selected as best cut
Else if the best structure found leads to smaller AIG level
Save the cut as the best cut
If there is an improvement in level, update AIG 14<br>
slide15. Implementation The LMS algorithm is implemented in ABC. The LUT mapper if in ABC is used as:
(a) A cut browser for computing the libraries
(b) A mapper in the case study on AIG level minimization Commands related to library construction:
rec_start: Starts the LMS recorder.
rec_add: Add structures from benchmarks
rec_filter: Removes the structures with less frequency
rec_merge: Merges two previously computed libraries
rec_ps: Prints statistics for the currently loaded library
rec_use: Transforms the internal library to the current network in ABC
rec_stop: Deletes the current library.
Commands used to perform LMS mapping:
if –y –K <num> -C<num>
-y enables level optimization by LMS
-K <num> is the cut size
-C <num> is the number of cuts used at each node 15<br>
slide16. Outline Introduction
Previous Work
Lazy Man’s Logic Synthesis(LMS)
Experimental Results
Library Coverage
6-input Library
Optimize Delay After LUT Mapping
Conclusion 16<br>
slide17. Library Coverage This experiment was performed to show that LMS has practical memory requirements for functions up to 12 inputs.
Semi-canonical classes of all functions appearing in the cuts of the benchmark circuits without synthesis, were collected and the frequency of their appearance was recorded. occurrence frequency 17 Function #<br>
slide18. Constructing Library for 6-input Functions The goal of this experiment is to derive a 6-input library used in the following case study of AIG level minimization.
The following ABC scripts are used to collect structures:
• read file; st; rec_add;
• dc2; rec_add;
• if -K 8; bidec; st; rec_add;
• if -K 8; mfs; st; rec_add;
• if -K 8; bidec; st; rec_add;
• if -g -K 6; st; rec_add;
• if -g -K 6; st; rec_add; Statistics of the precomputed 6-input library ~77MB AIGER file 18<br>
slide19. Optimize Delay After LUT Mapping Two sets of benchmarks are used in this paper: 20 MCNC benchmarks and 10 large Altera benchmarks.
LUT mapping was performed by the following scripts:
Map: st; resyn2; if -K 4 or 6
MapC: st; resyn2; dch -f; if -K 4 or 6
SOPBC: st; if -gm -K 6; st; resyn2; dch -f; if -K 4 or 6
LMSC: st; if -ym -K 6; st; resyn2; dch -f; if -K 4 or 6
Benchmarks were run on a workstation with a Intel Xeon Quad Core CPU and 256 GBytes RAM (~4GB used for the experiment)
The resulting networks were verified by command cec in ABC. 19<br>
slide20. Mapping results for Altera benchmarks(4-LUTS) LMSC reduced delay by 37% with an area increase of 13% 20<br>
slide21. Mapping results for Altera benchmarks(6-LUTS) LMSC reduced delay by 26% with an area increase of 13% 21<br>
slide22. Mapping results for MCNC benchmarks 4-LUTs: LMSC reduced delay by 10% with an area increase of 3% 6-LUTs: LMSC reduced delay by 12% with an area increase of 8% 22<br>
slide23. Conclusion A new method to harvest and re-use circuit structures produced by different tools on benchmark circuits
The “lazy” approach is made practical by
A semi-canonical form to reduce the number of equivalence classes
Using AIGs to store precomputed libraries in memory and on disk
Using truth tables to manipulate Boolean functions
As the case-study, the proposed approach was applied to improve delay after FPGA mapping
For industrial benchmarks, compared to SOP balancing,
the delay was reduced by 17% (18%) for LUT4 (LUT6)
the area penalty was 2% (5%) 23<br>
slide24. Future work Improving implementation
Reducing memory by using a low-memory AIG
Building libraries in terms of multi-input gates
Filtering libraries based on their performance
Giving the user control over the area increase
Continuing experiments
Performing case studies with larger functions
Evaluating delay improvements after P&R 24<br>
slide25. Q&A Authors' E-mail:
Wenlong Yang allanwin@hotmail.com
Lingli Wang llwang@fudan.edu.cn
Alan Mishchenko alanmi@eecs.berkeley.edu 25<br>
slide26. Abstract Deriving a circuit for a Boolean function or improving an available circuit are typical tasks solved by logic synthesis. Numerous algorithms in this area have been proposed and implemented over the last 50 years. This paper presents a "lazy” approach to logic synthesis based on the following observations: (a) optimal or near-optimal circuits for many practical functions are already derived by the tools, making it unnecessary to implement new algorithms or even run the old ones repeatedly; (b) larger circuits are composed of smaller ones, which are often isomorphic up to a permutation/negation of inputs/outputs. Experiments confirm these observations. Moreover, a case-study shows that logic level minimization using lazy man’s synthesis improves delay after LUT mapping into 4- and 6-input LUTs, compared to earlier work on high-effort delay optimization.<br>
