Presentation Transcript

01
1 DNB Terrain Correction Slide Fire, AZ Part 2 William Straka III 1<br>
02

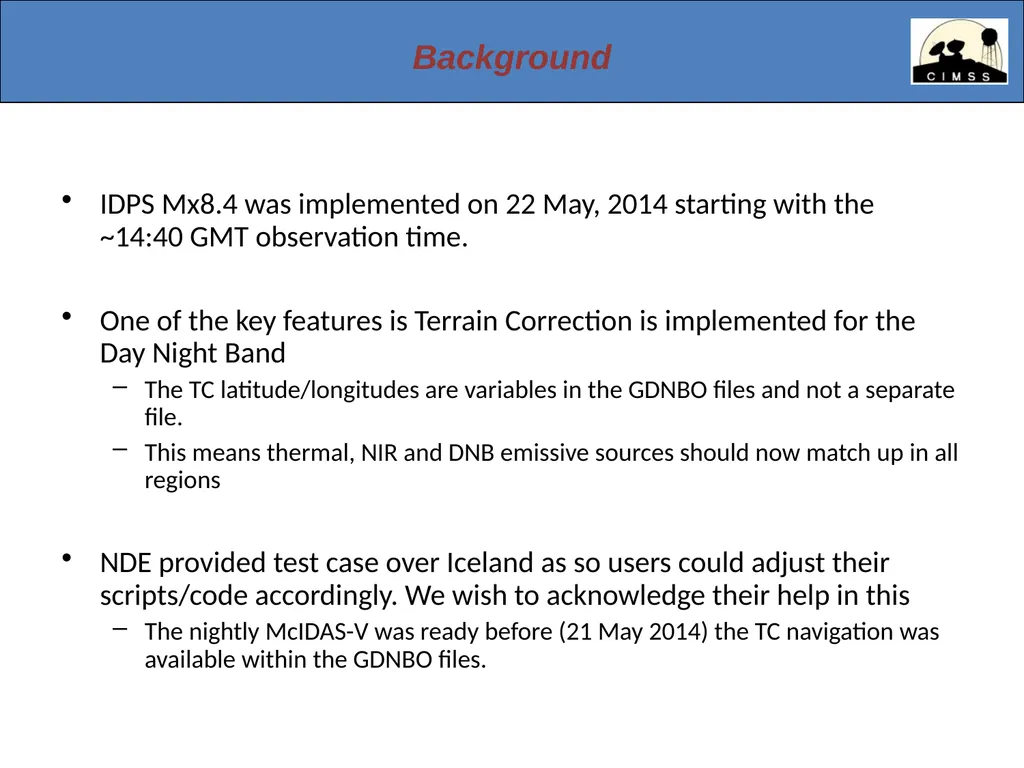

Background IDPS Mx8.4 was implemented on 22 May, 2014 starting with the ~14:40 GMT observation time.

One of the key features is Terrain Correction is implemented for the Day Night Band
The TC latitude/longitudes are variables in the GDNBO files and not a separate file.
This means thermal, NIR and DNB emissive sources should now match up in all regions

NDE provided test case over Iceland as so users could adjust their scripts/code accordingly. We wish to acknowledge their help in this
The nightly McIDAS-V was ready before (21 May 2014) the TC navigation was available within the GDNBO files.<br>
03

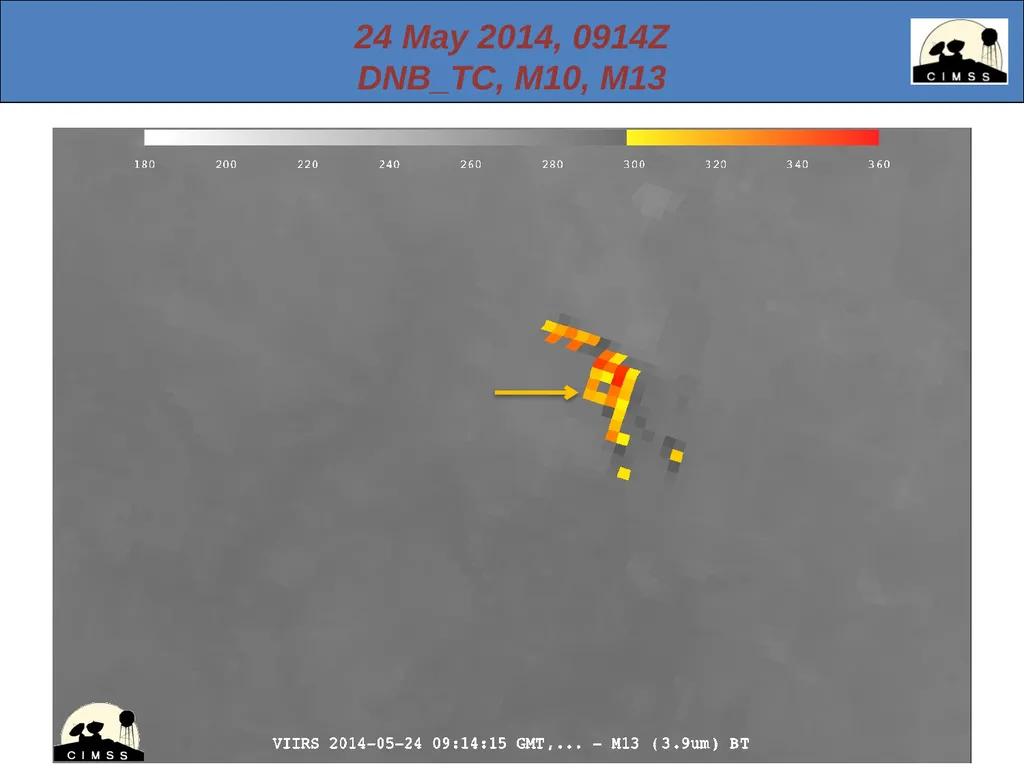

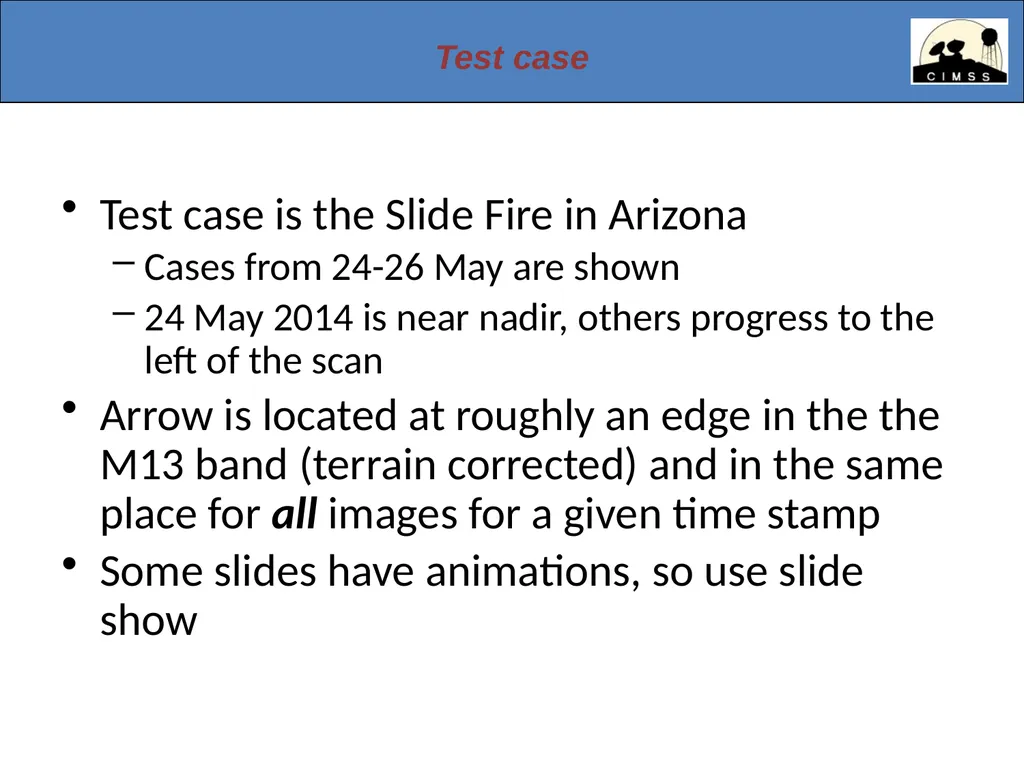

Test case Test case is the Slide Fire in Arizona

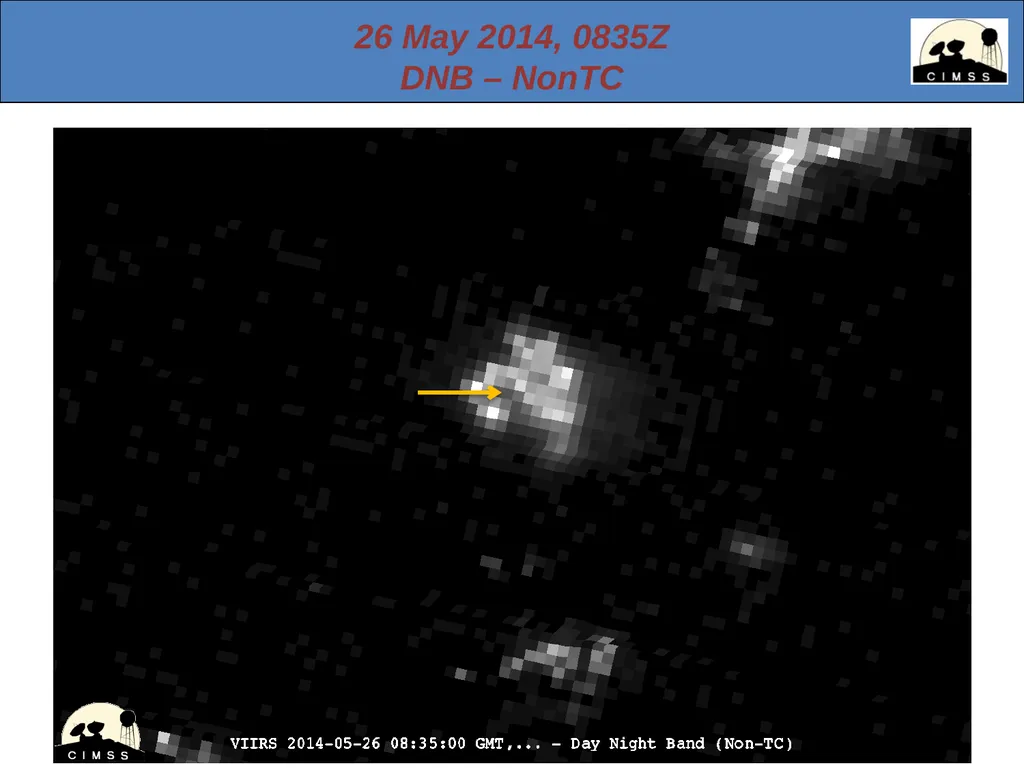

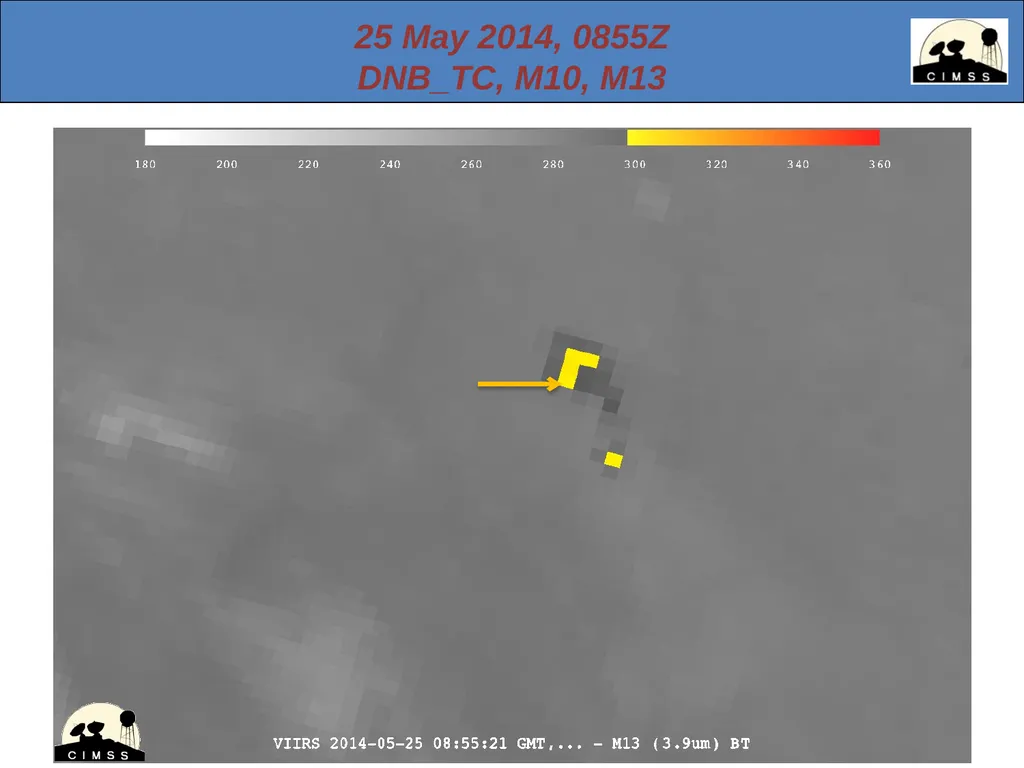

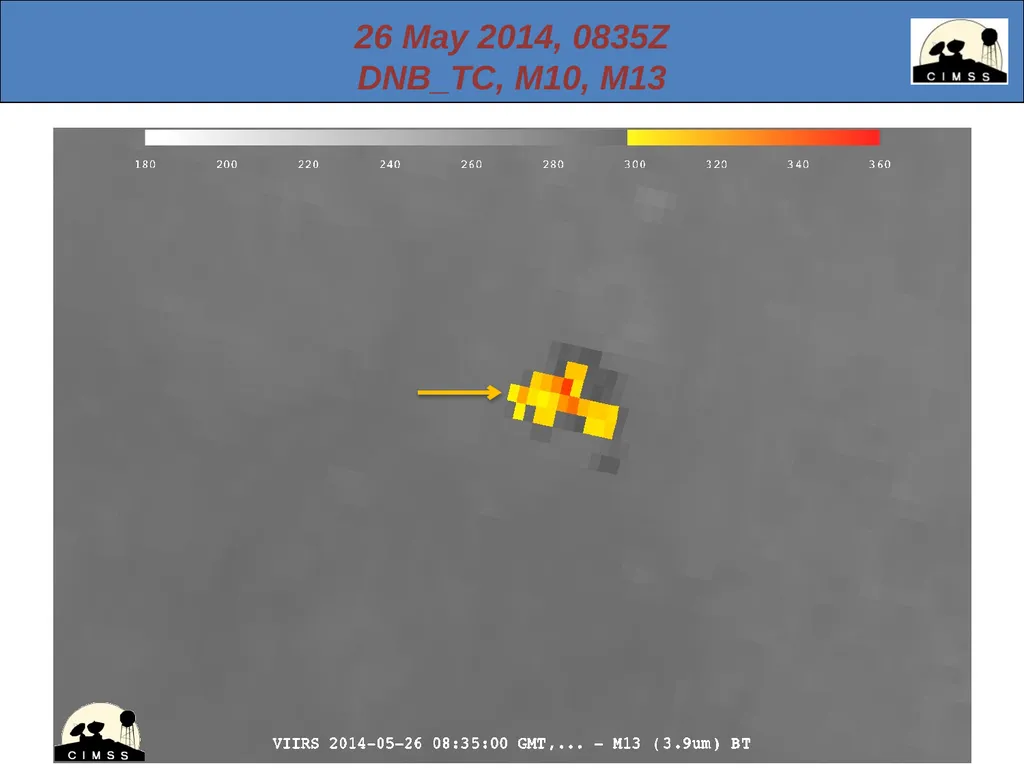

Cases from 24-26 May are shown

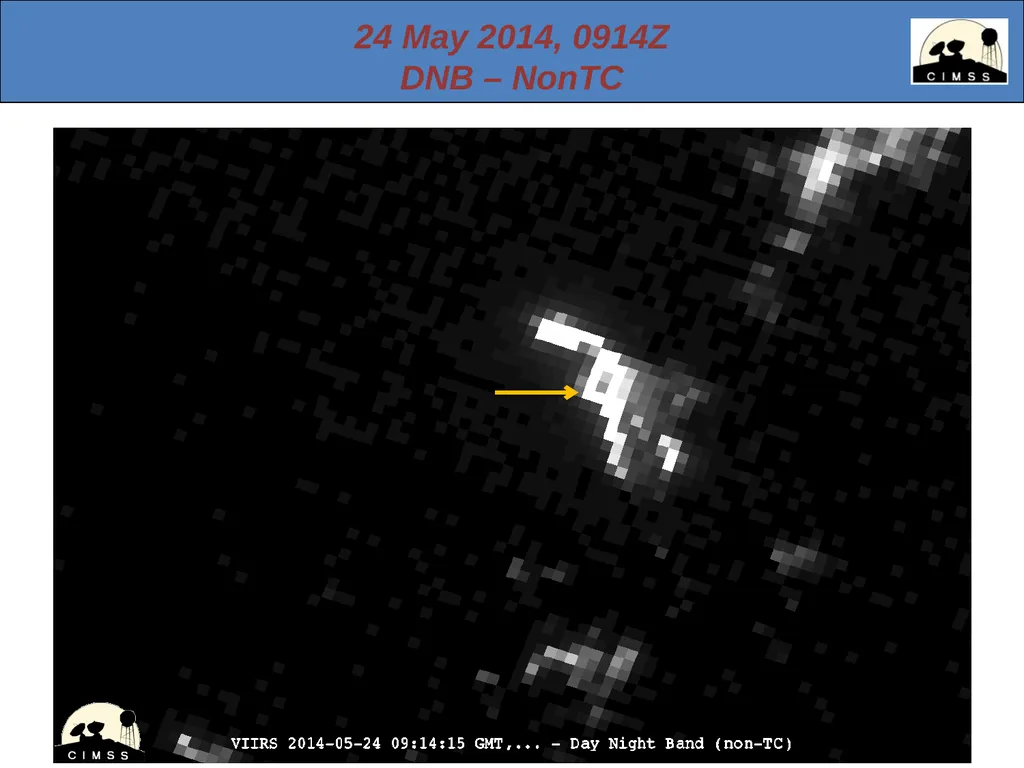

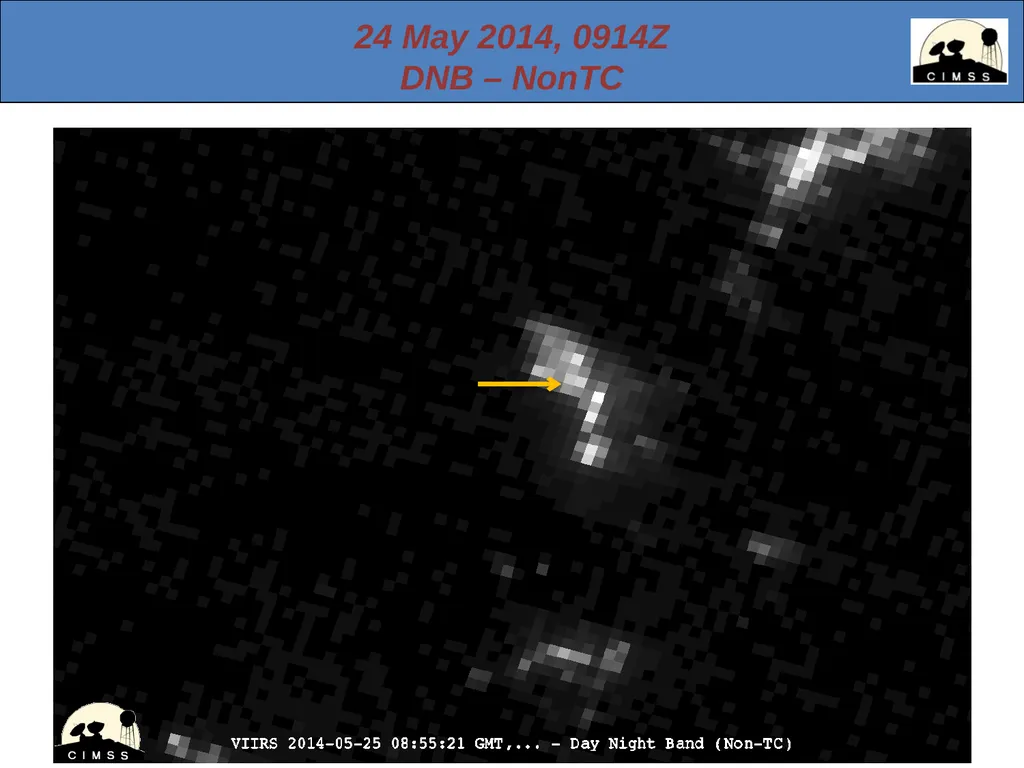

24 May 2014 is near nadir, others progress to the left of the scan

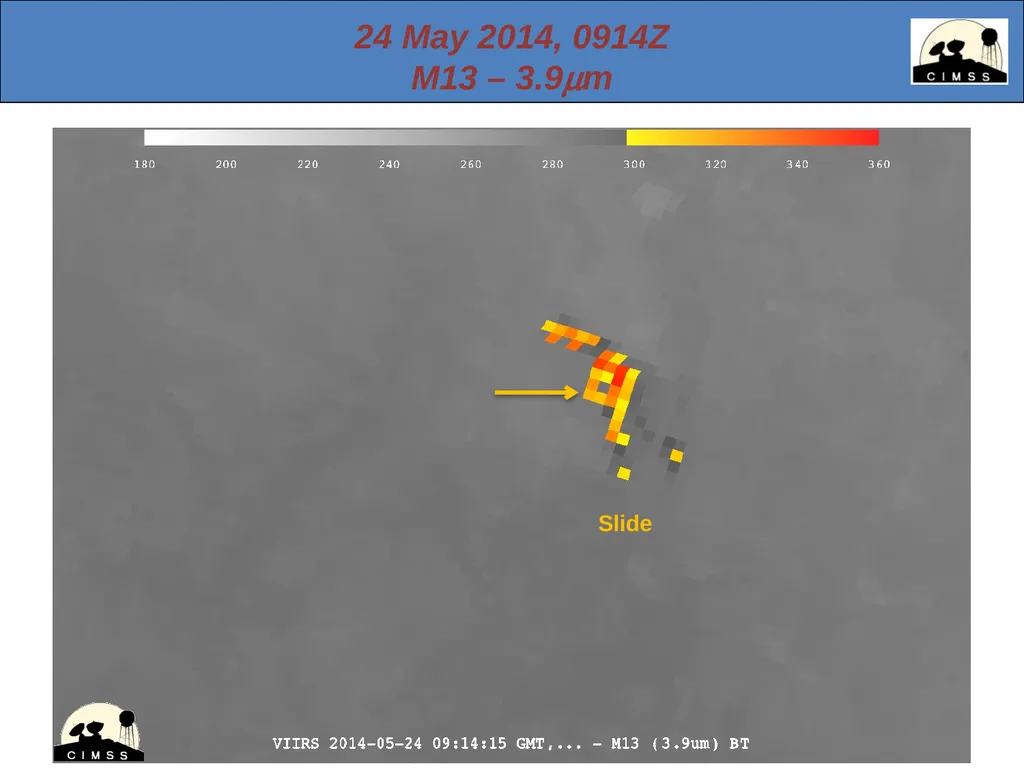

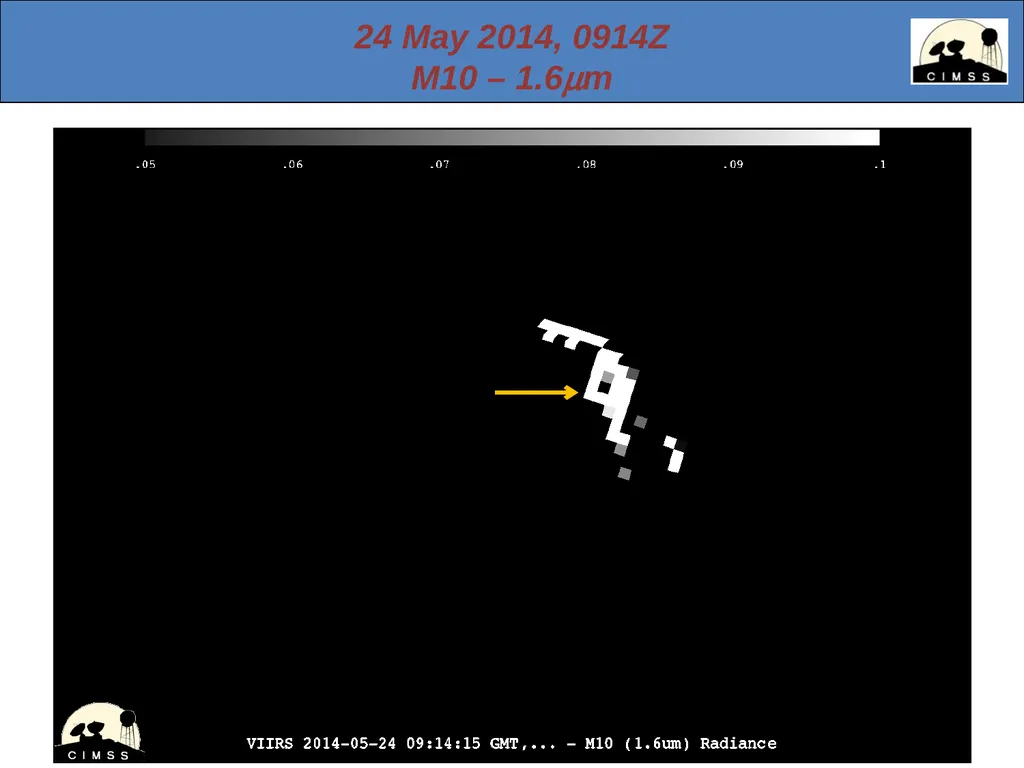

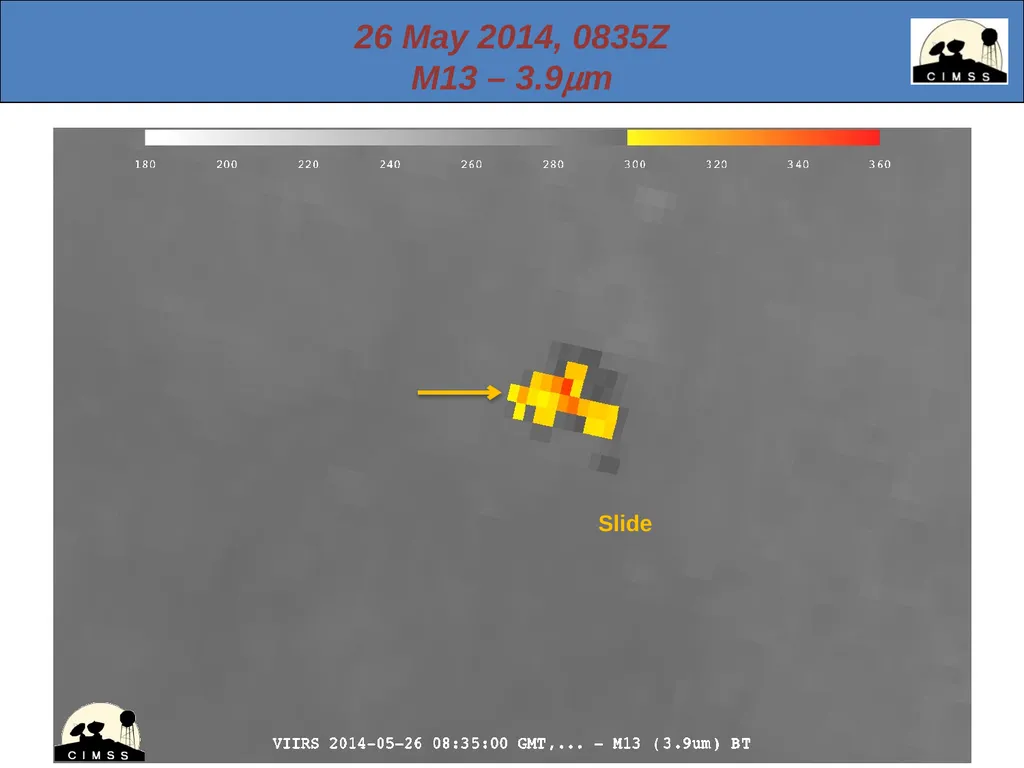

Arrow is located at roughly an edge in the the M13 band (terrain corrected) and in the same place for all images for a given time stamp
Some slides have animations, so use slide show<br>
