Presentation Transcript
01
Boiler Safety Developed by Western Iowa Tech Community College
This material was produced under a grant (SH-16634-07-60-F-19) from the Occupational Safety and Health Administration, U.S. Department of Labor. It does not necessarily reflect the views or policies of the U.S. Department of Labor, nor does the mention or trade names, commercial products, or organization imply endorsement by the U.S. government.<br>
02

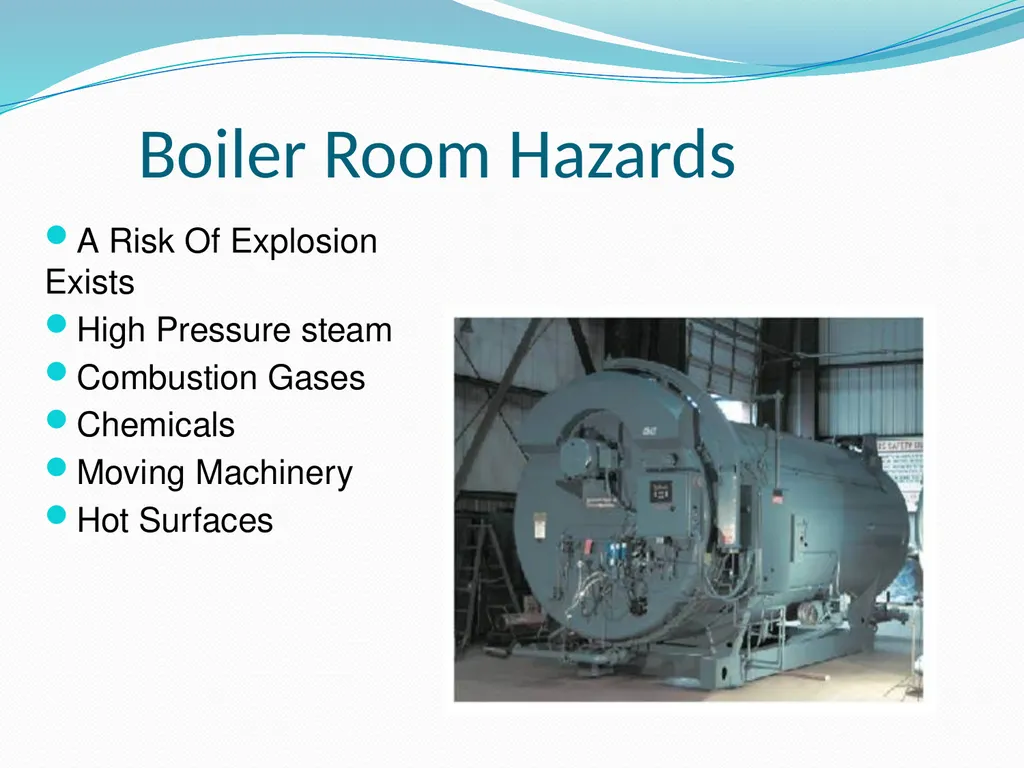

Boiler Room Hazards A Risk Of Explosion Exists
High Pressure steam
Combustion Gases
Chemicals
Moving Machinery
Hot Surfaces<br>
03

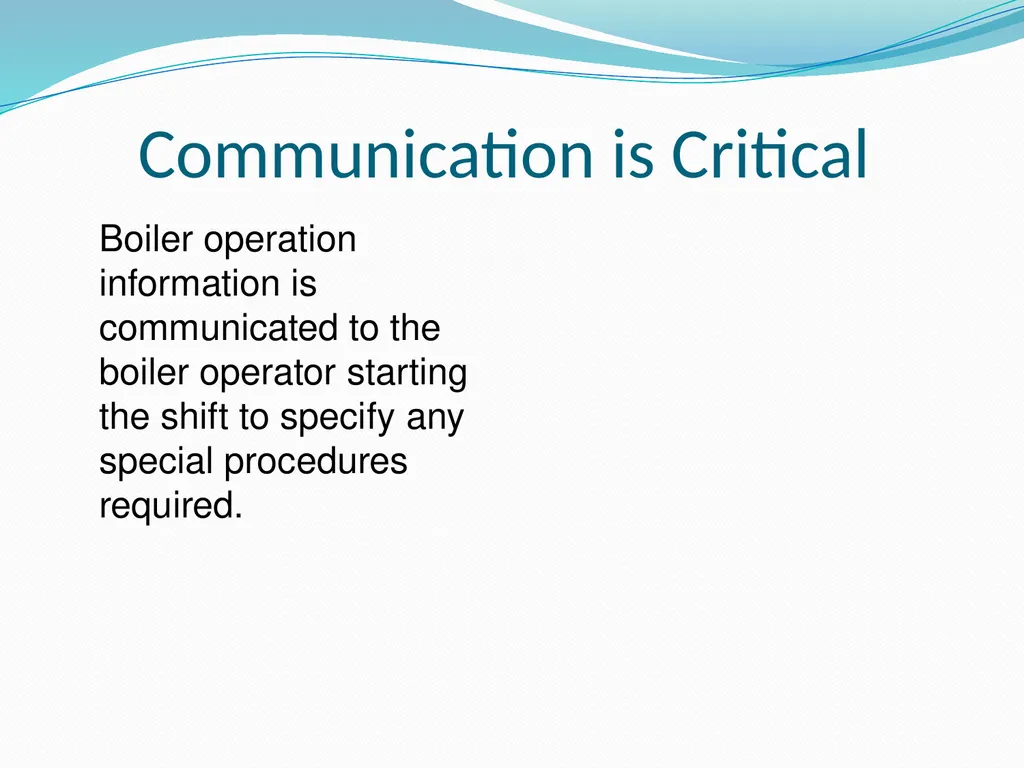

Communication is Critical Boiler operation information is communicated to the boiler operator starting the shift to specify any special procedures required.<br>
04

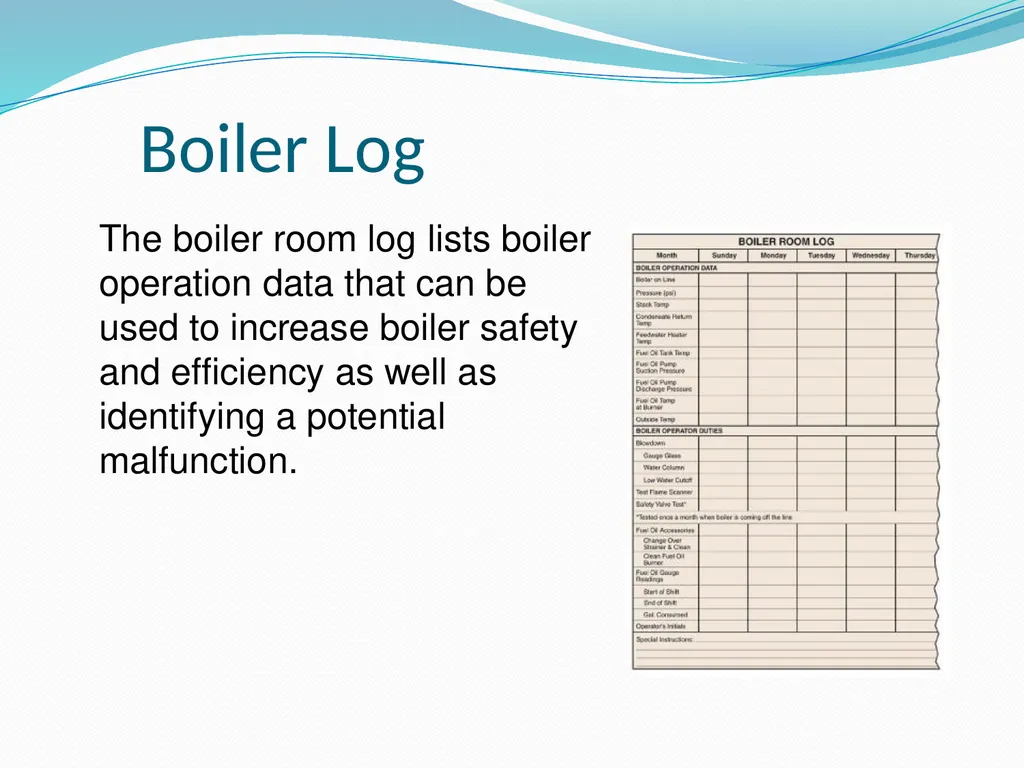

Boiler Log The boiler room log lists boiler operation data that can be used to increase boiler safety and efficiency as well as identifying a potential malfunction.<br>
05

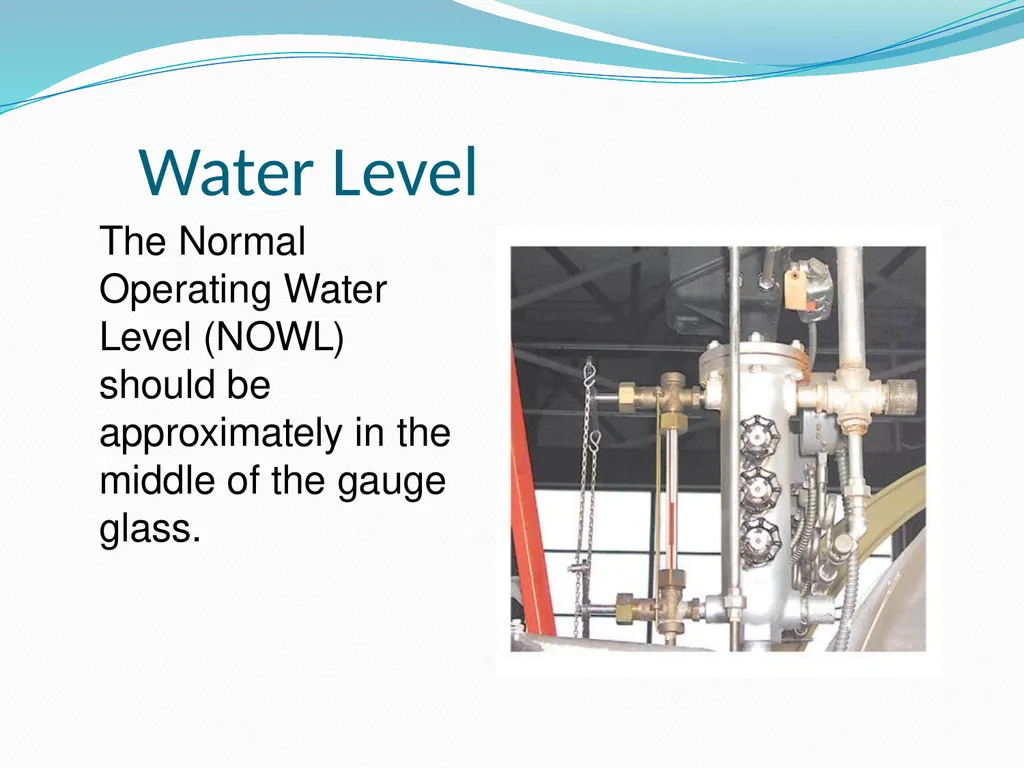

Water Level The Normal Operating Water Level (NOWL) should be approximately in the middle of the gauge glass.<br>
06

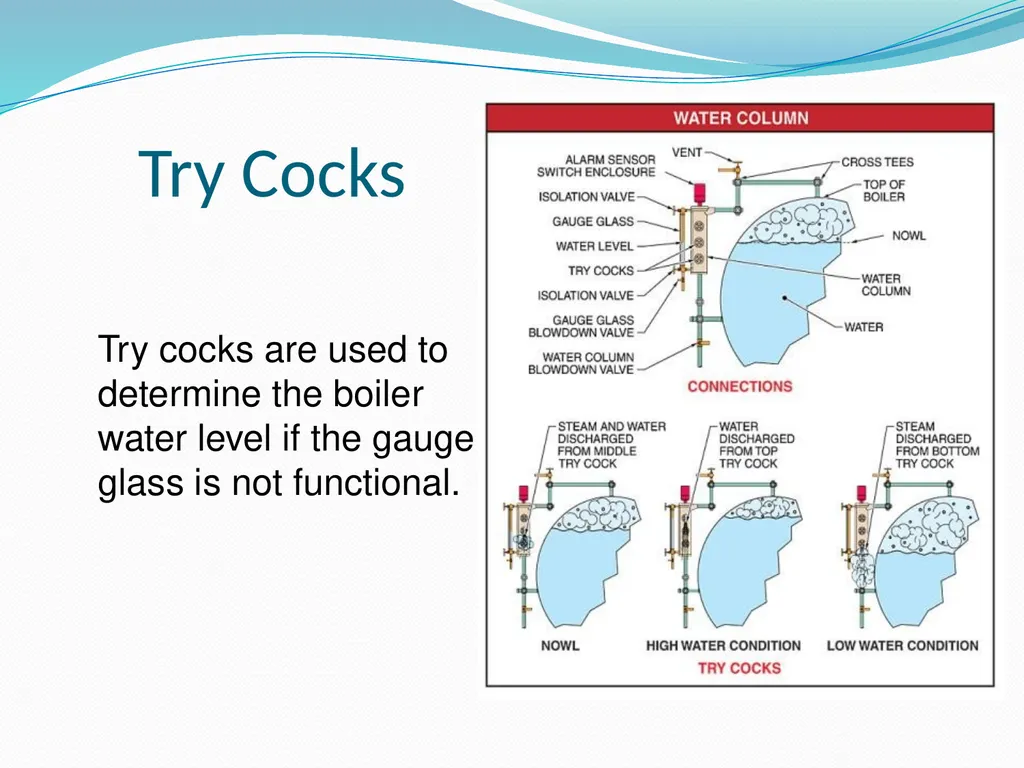

Try Cocks Try Cocks Try cocks are used to determine the boiler water level if the gauge glass is not functional.<br>
07

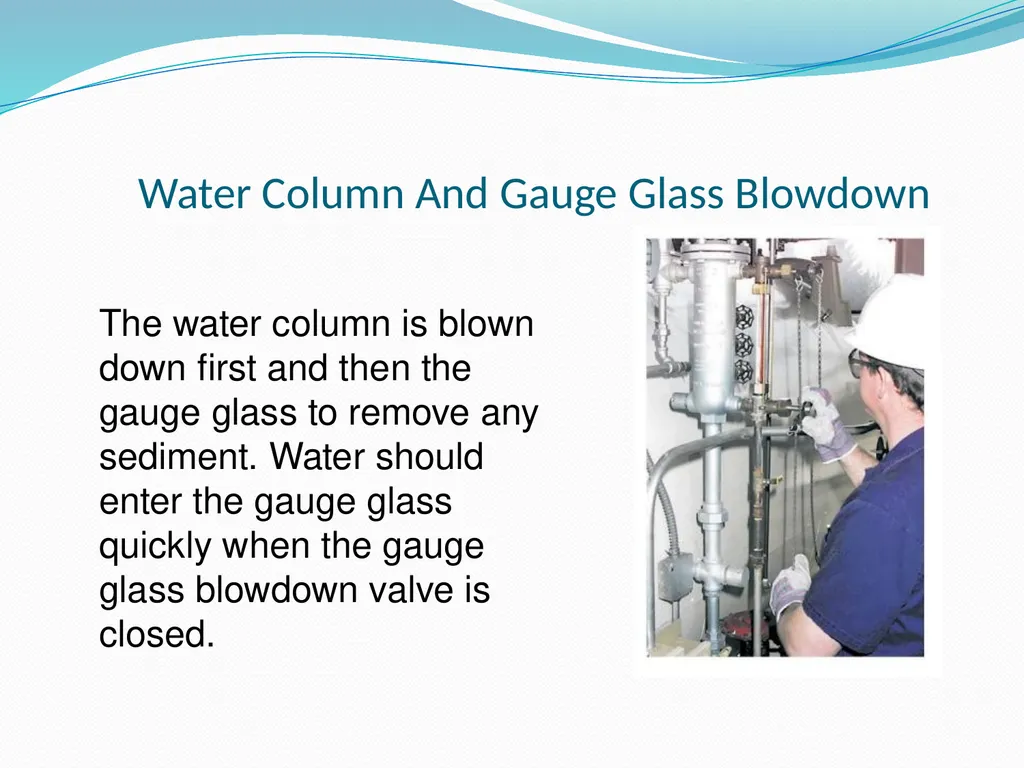

Water Column And Gauge Glass Blowdown The water column is blown down first and then the gauge glass to remove any sediment. Water should enter the gauge glass quickly when the gauge glass blowdown valve is closed.<br>
08

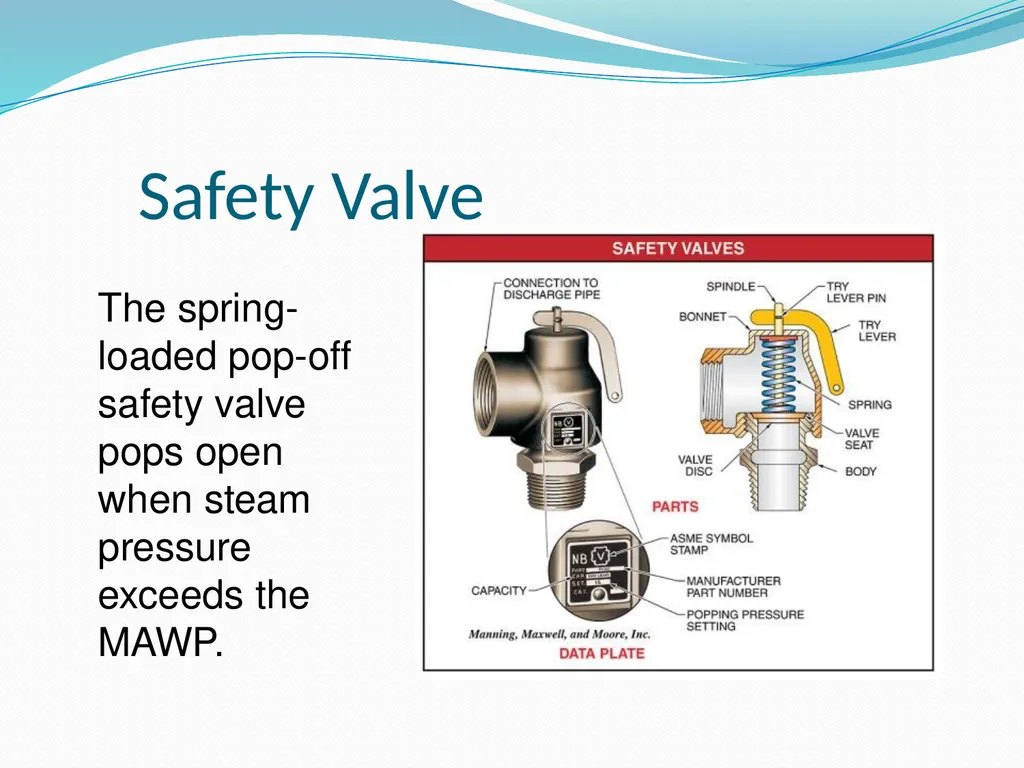

Safety Valve The spring-loaded pop-off safety valve pops open when steam pressure exceeds the MAWP.<br>
09

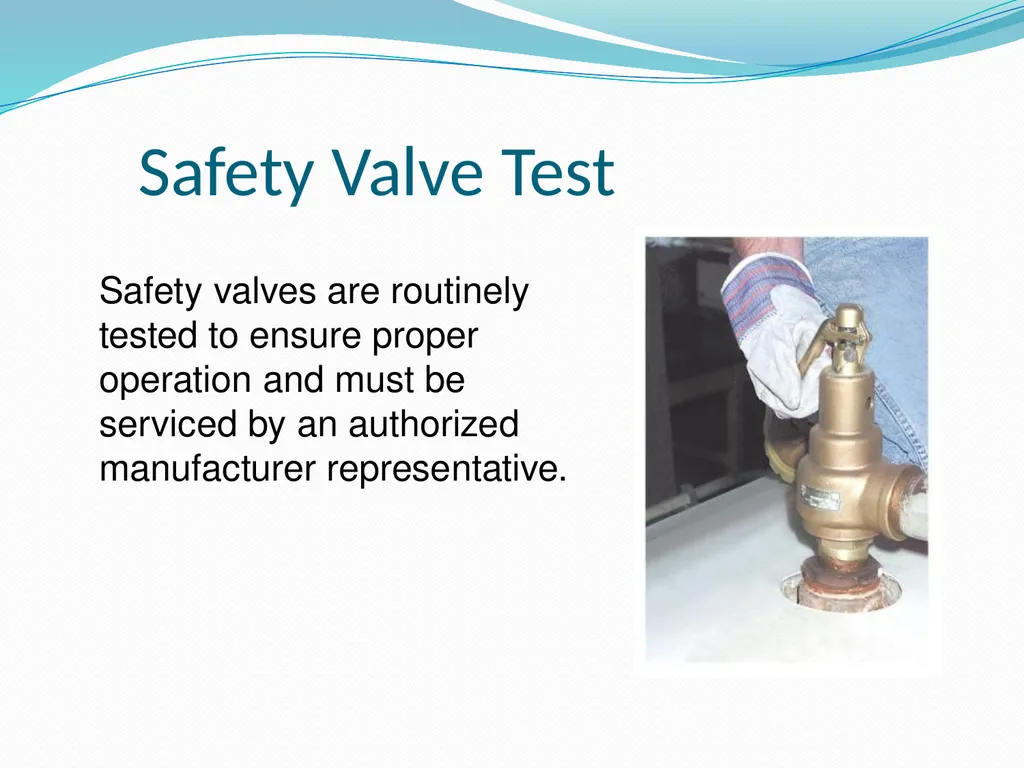

Safety Valve Test Safety valves are routinely tested to ensure proper operation and must be serviced by an authorized manufacturer representative.<br>
10

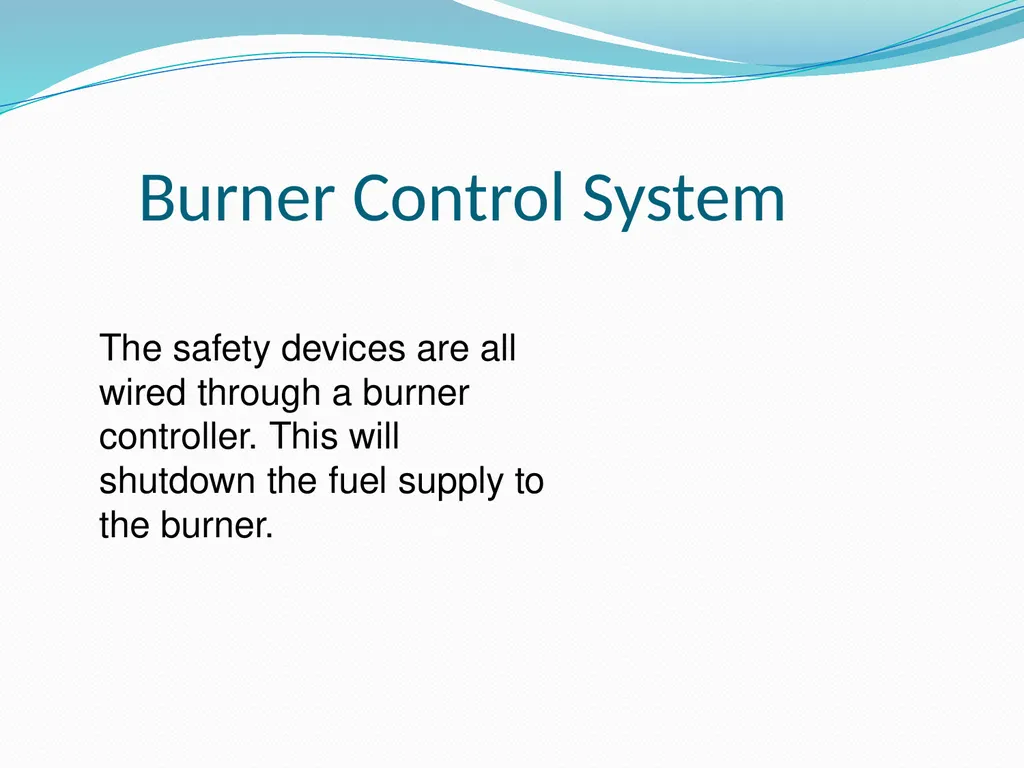

Burner Control System The safety devices are all wired through a burner controller. This will shutdown the fuel supply to the burner.<br>
11

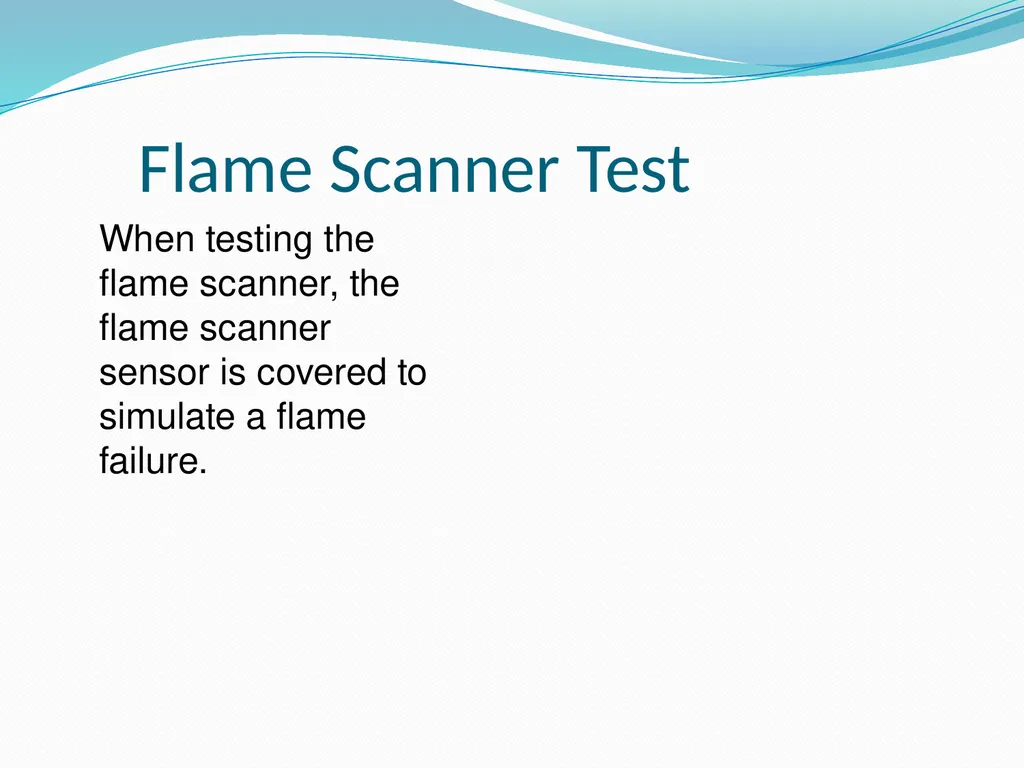

Flame Scanner Test When testing the flame scanner, the flame scanner sensor is covered to simulate a flame failure.<br>
12

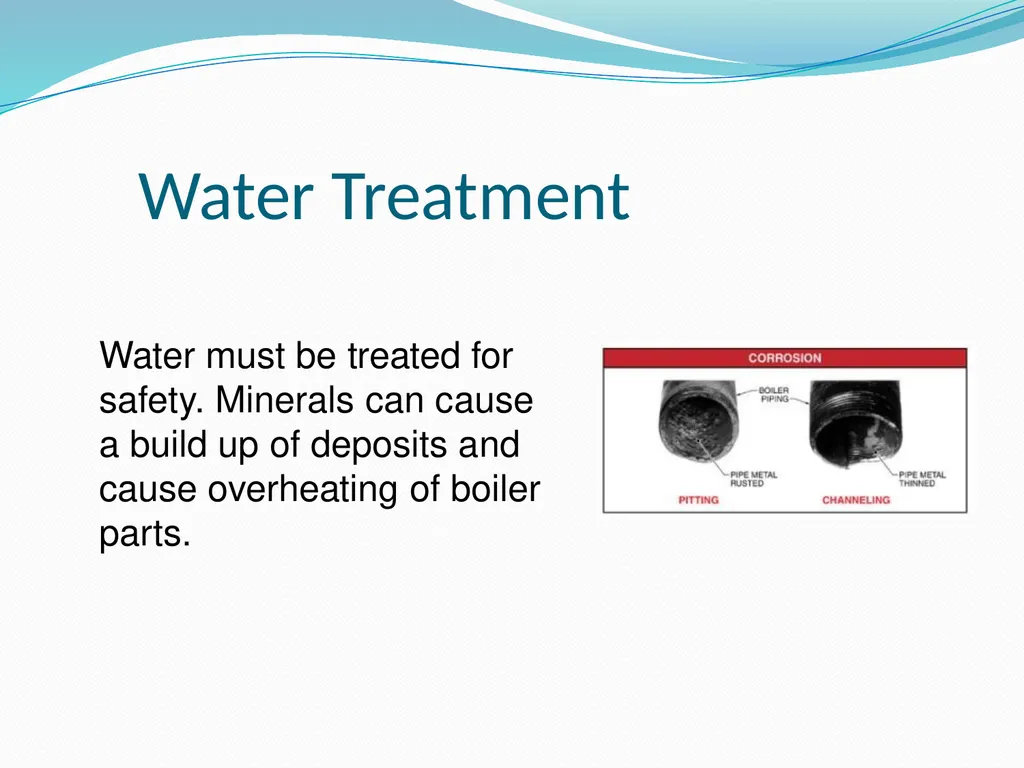

Water Treatment Water must be treated for safety. Minerals can cause a build up of deposits and cause overheating of boiler parts.<br>
13

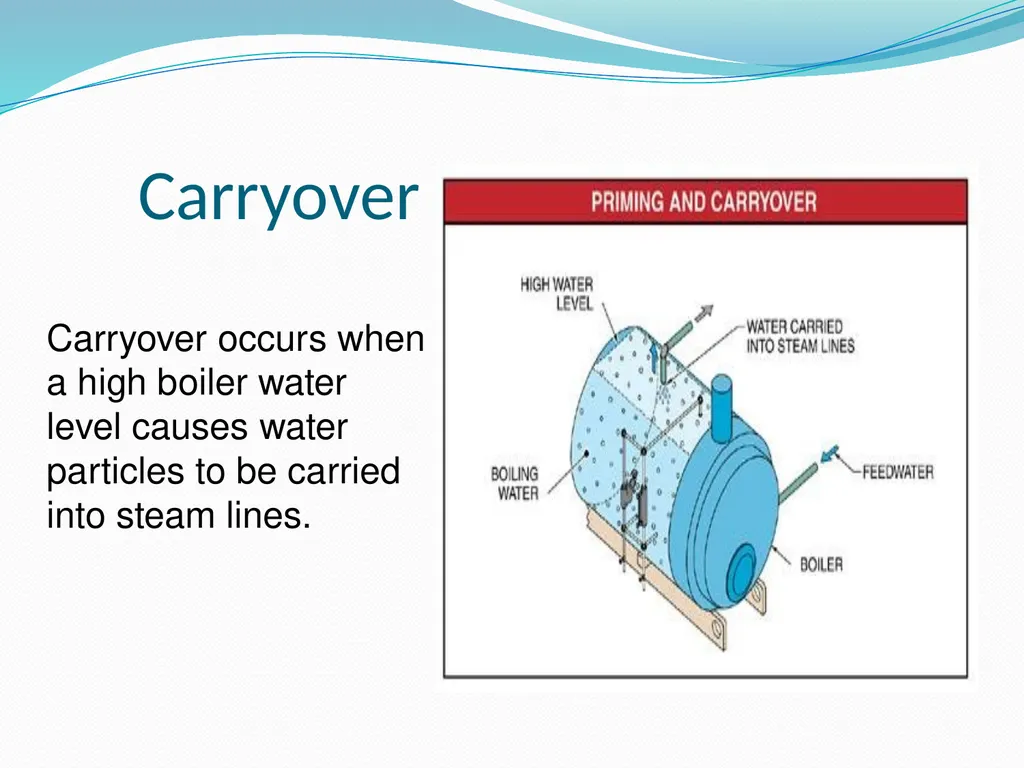

Carryover & Carryover occurs when a high boiler water level causes water particles to be carried into steam lines.<br>
14

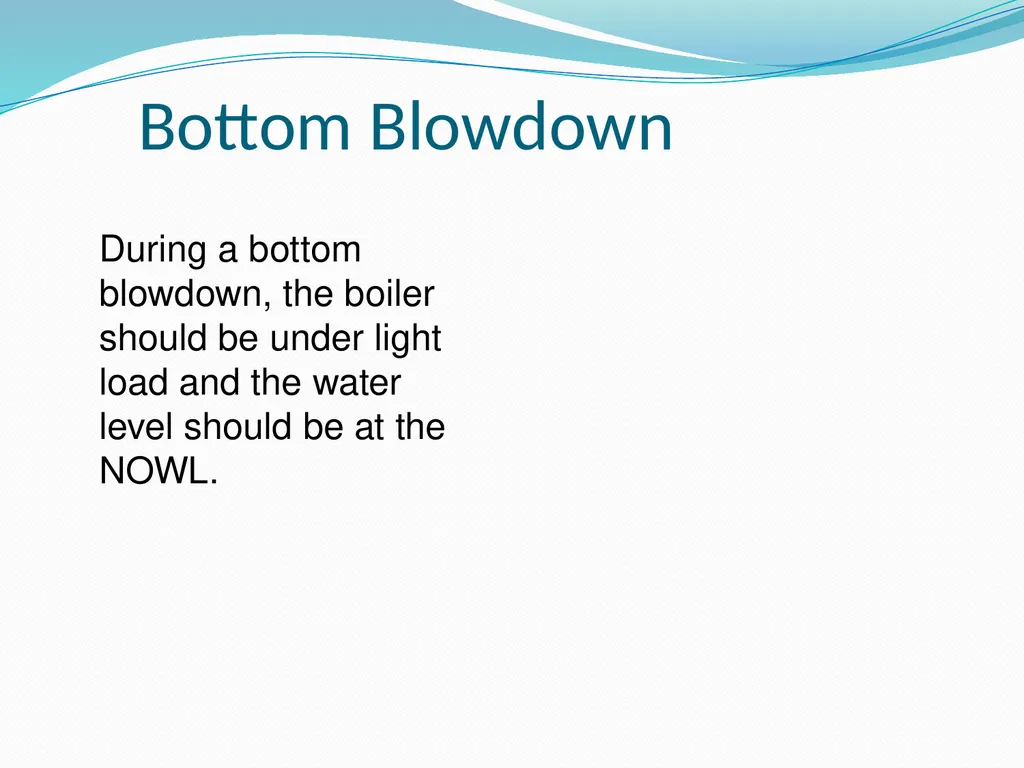

Bottom Blowdown During a bottom blowdown, the boiler should be under light load and the water level should be at the NOWL.<br>
15

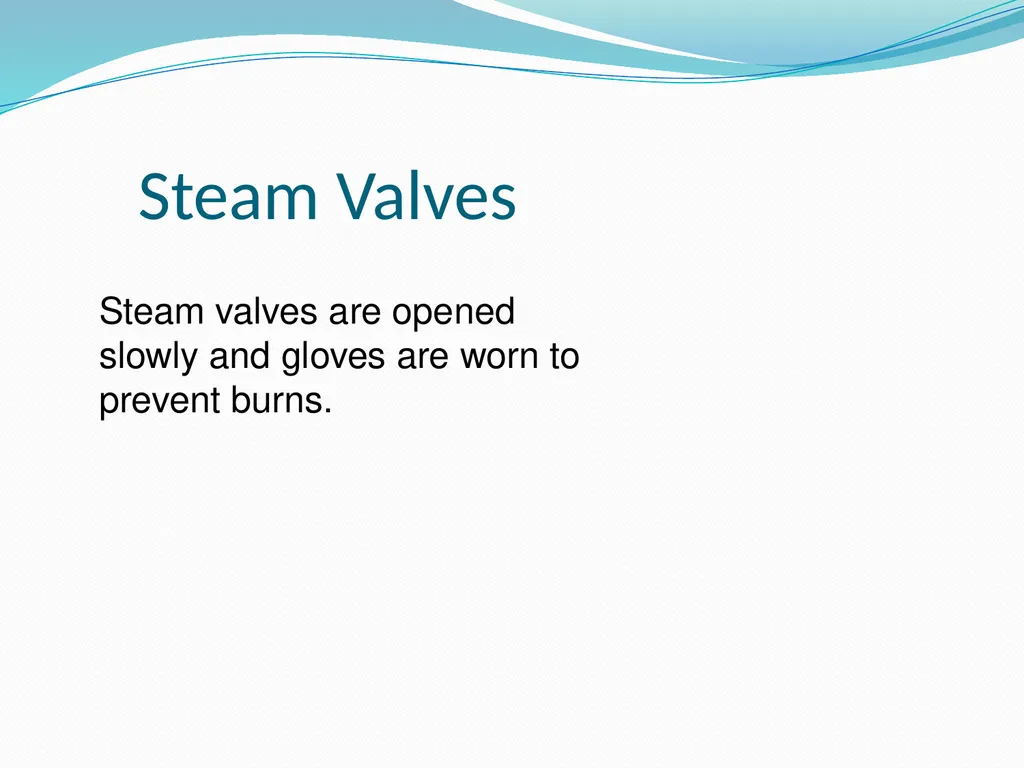

Steam Valves Steam valves are opened slowly and gloves are worn to prevent burns.<br>
16

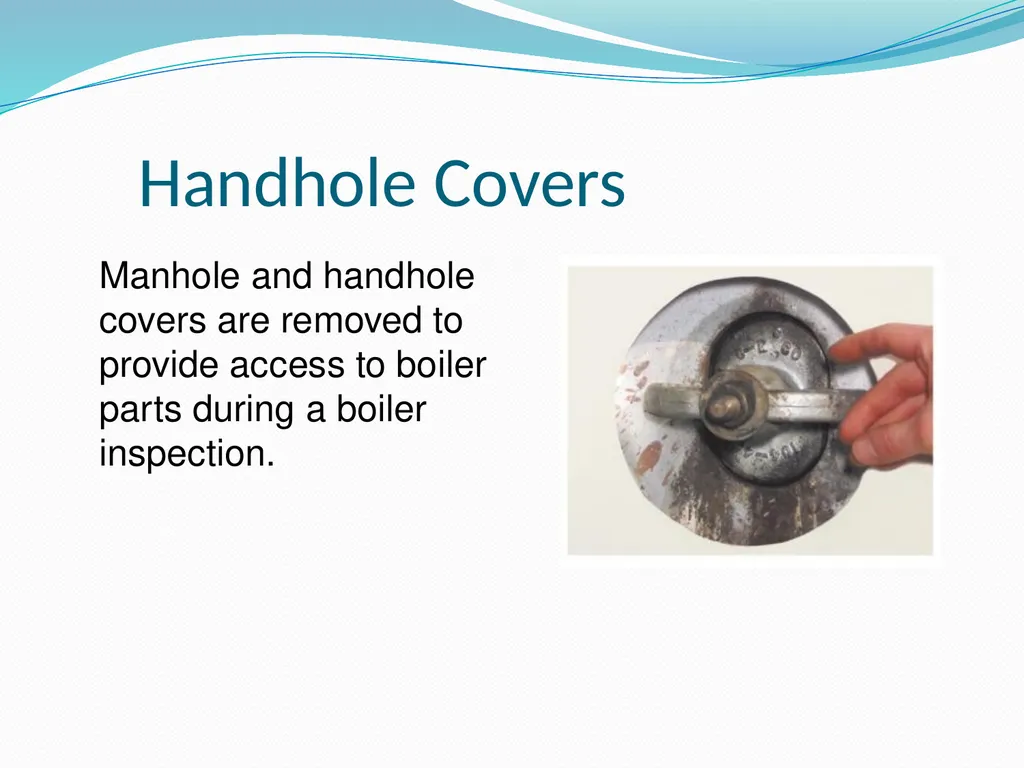

Handhole Covers Manhole and handhole covers are removed to provide access to boiler parts during a boiler inspection.<br>
17

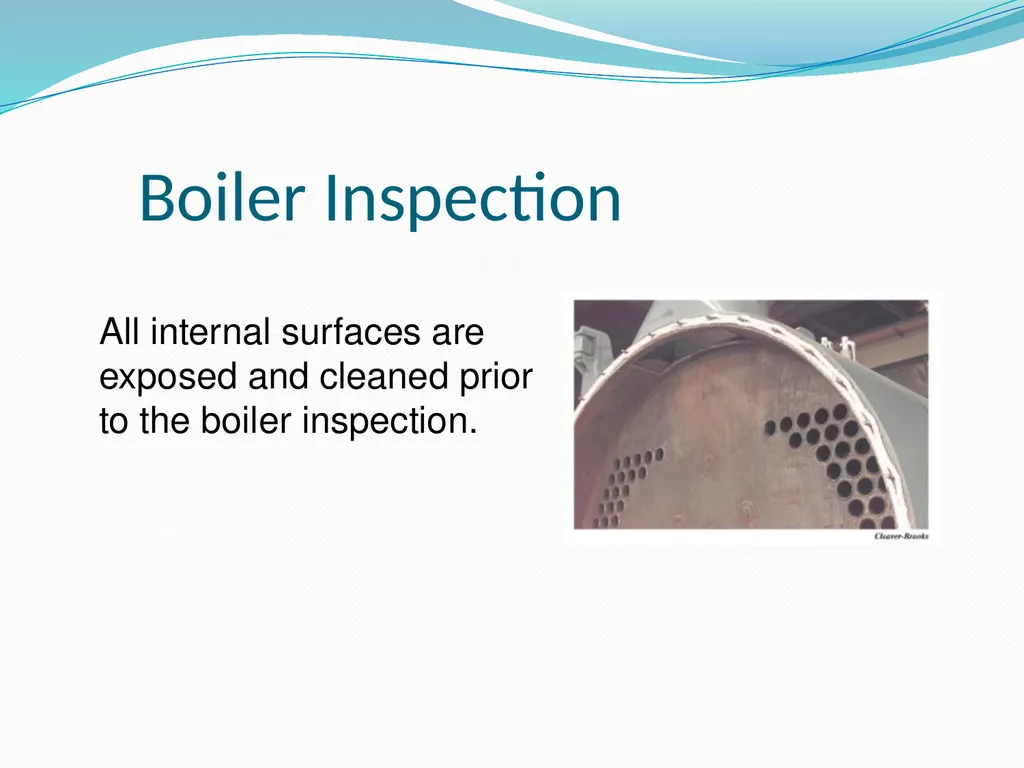

Boiler Inspection All internal surfaces are exposed and cleaned prior to the boiler inspection.<br>
18

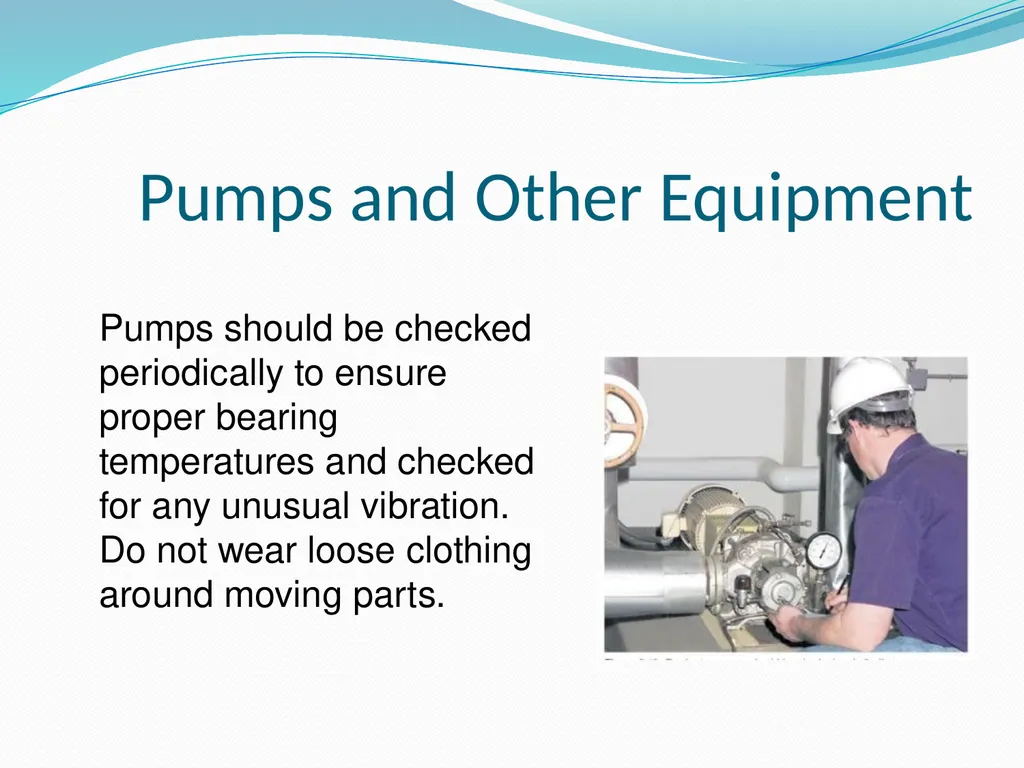

Pumps and Other Equipment Pumps should be checked periodically to ensure proper bearing temperatures and checked for any unusual vibration. Do not wear loose clothing around moving parts.<br>
19

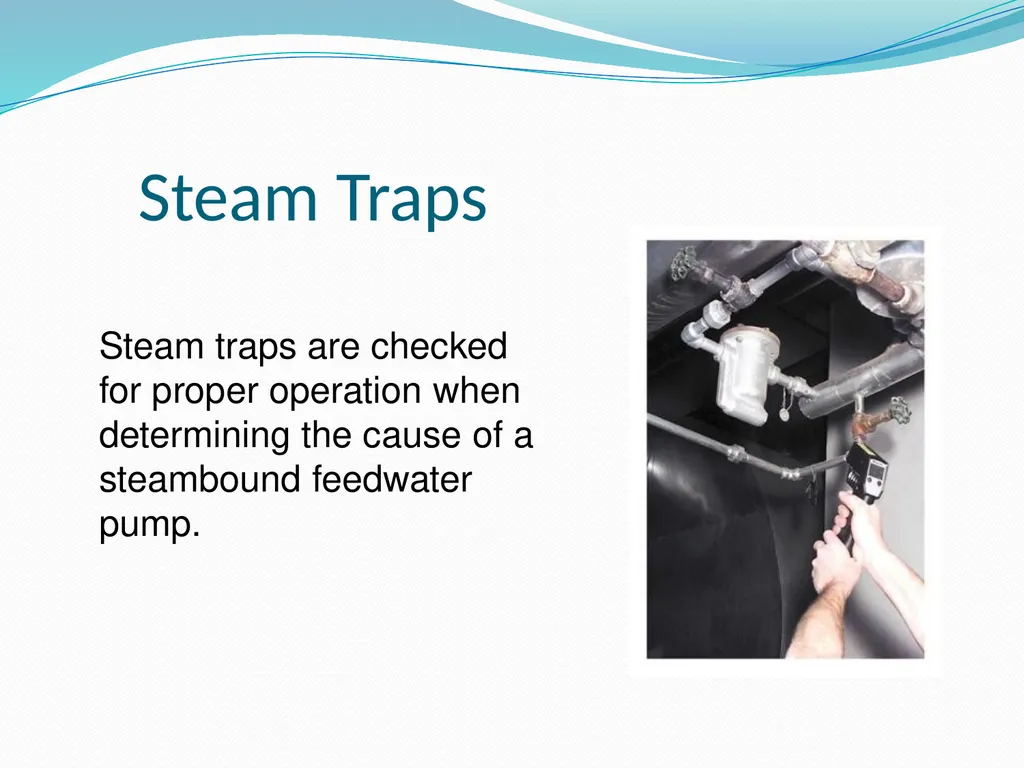

Steam Traps Steam traps are checked for proper operation when determining the cause of a steambound feedwater pump.<br>
20

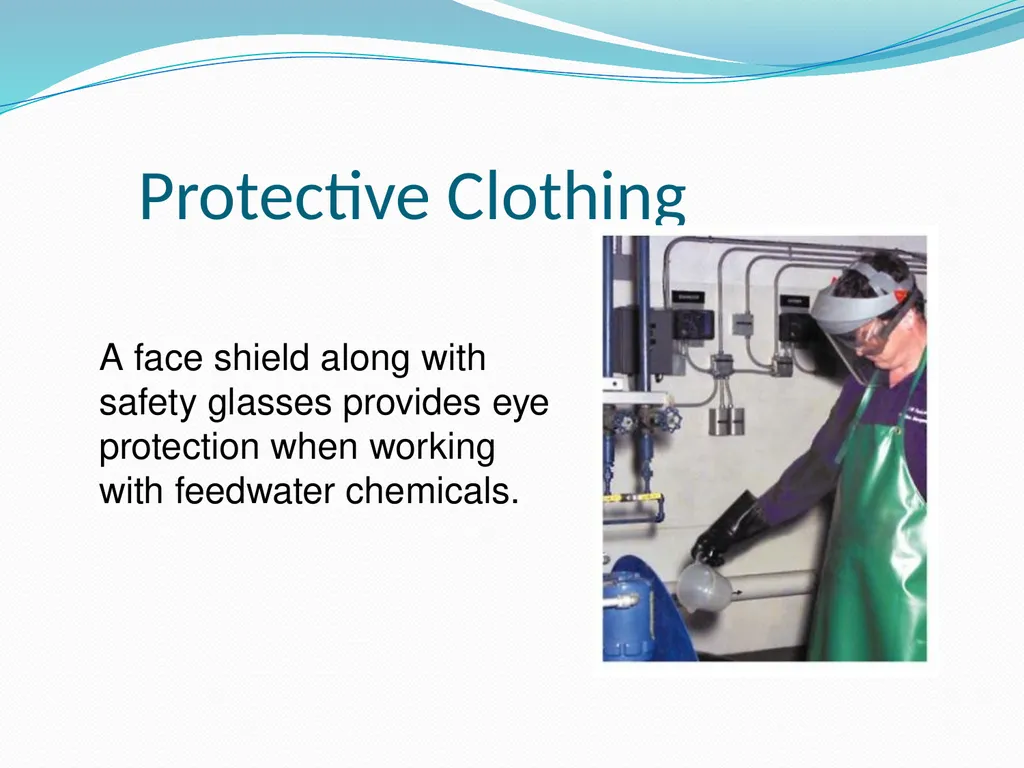

Protective Clothing A face shield along with safety glasses provides eye protection when working with feedwater chemicals.<br>
21

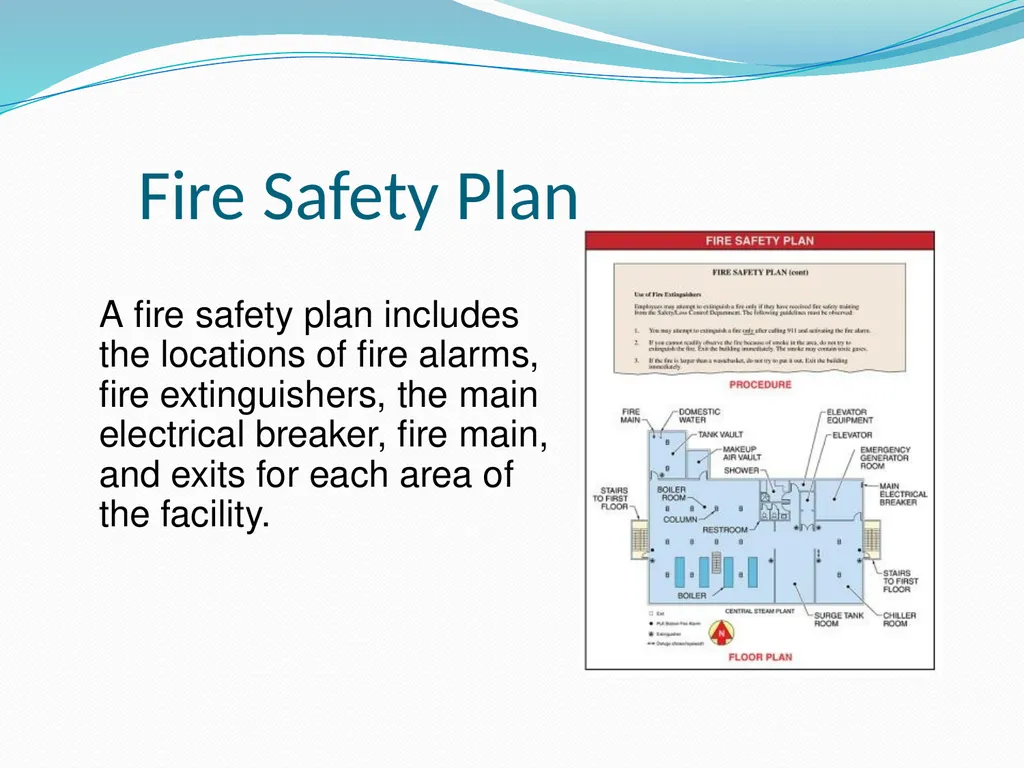

Fire Safety Plan A fire safety plan includes the locations of fire alarms, fire extinguishers, the main electrical breaker, fire main, and exits for each area of the facility.<br>
22

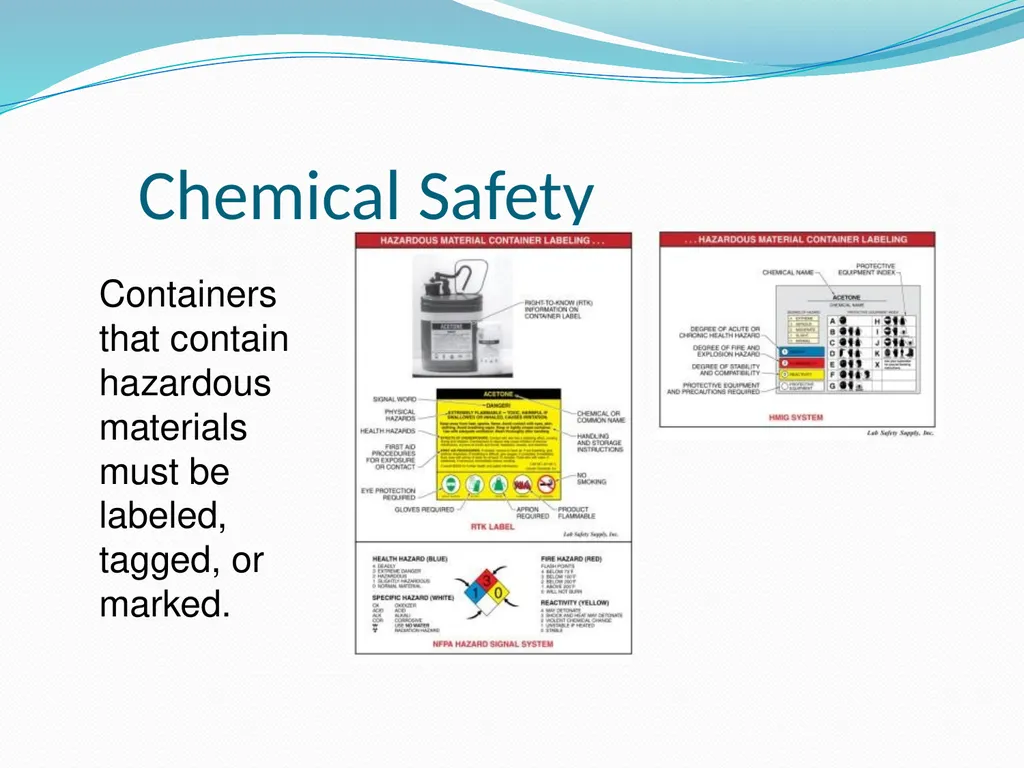

Chemical Safety Containers that contain hazardous materials must be labeled, tagged, or marked.<br>
23

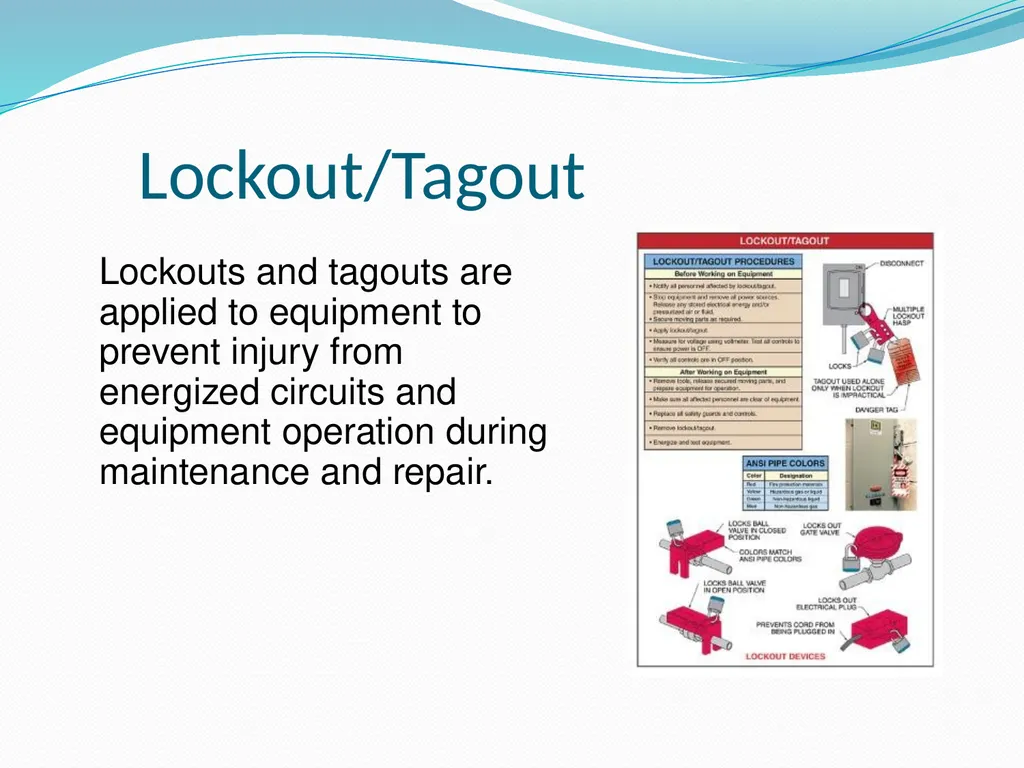

Lockout/Tagout Lockouts and tagouts are applied to equipment to prevent injury from energized circuits and equipment operation during maintenance and repair.<br>
24

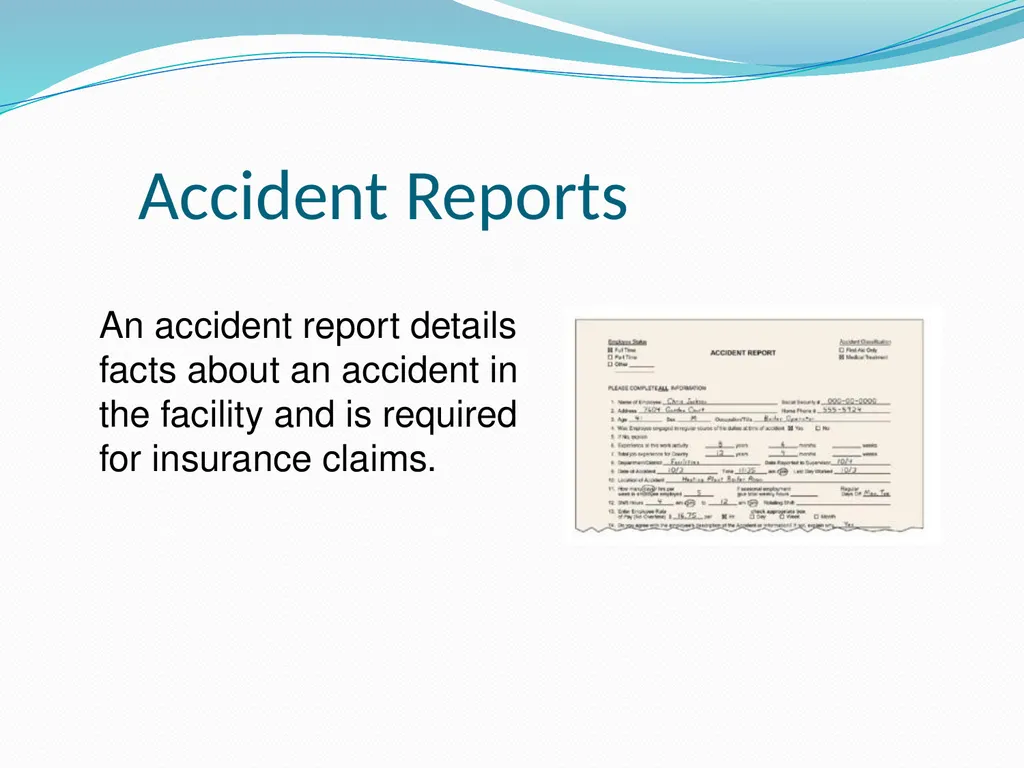

Accident Reports An accident report details facts about an accident in the facility and is required for insurance claims.<br>
