Presentation Transcript

01
Helping Johnny To Analyze Malware: A Usability-Optimized Decompiler and Malware Analysis User Study Khaled Yakdan
University of Bonn
Fraunhofer FKIE Sergej Dechand
University of Bonn Elmar Gerhards-Padilla
Fraunhofer FKIE Matthew Smith
University of Bonn IEEE Symposium on Security and Privacy 2016<br>
02

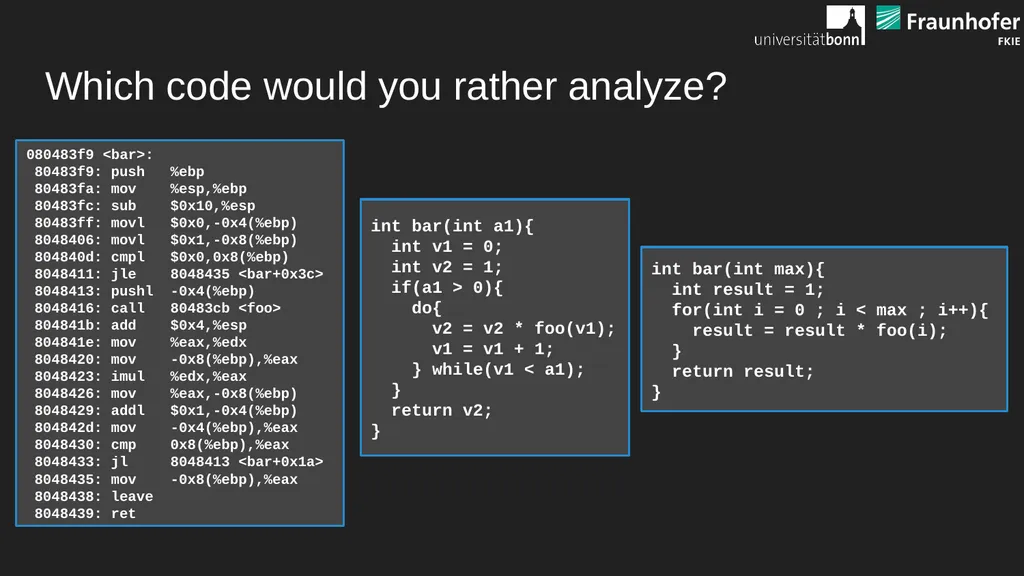

Which code would you rather analyze? 080483f9 <bar>:
80483f9: push %ebp
80483fa: mov %esp,%ebp
80483fc: sub $0x10,%esp
80483ff: movl $0x0,-0x4(%ebp)
8048406: movl $0x1,-0x8(%ebp)
804840d: cmpl $0x0,0x8(%ebp)
8048411: jle 8048435 <bar+0x3c>
8048413: pushl -0x4(%ebp)
8048416: call 80483cb <foo>
804841b: add $0x4,%esp
804841e: mov %eax,%edx
8048420: mov -0x8(%ebp),%eax
8048423: imul %edx,%eax
8048426: mov %eax,-0x8(%ebp)
8048429: addl $0x1,-0x4(%ebp)
804842d: mov -0x4(%ebp),%eax
8048430: cmp 0x8(%ebp),%eax
8048433: jl 8048413 <bar+0x1a>
8048435: mov -0x8(%ebp),%eax
8048438: leave
8048439: ret int bar(int a1){ int v1 = 0; int v2 = 1; if(a1 > 0){ do{ v2 = v2 * foo(v1); v1 = v1 + 1; } while(v1 < a1); } return v2; } int bar(int max){ int result = 1; for(int i = 0 ; i < max ; i++){ result = result * foo(i); } return result; }<br>
03

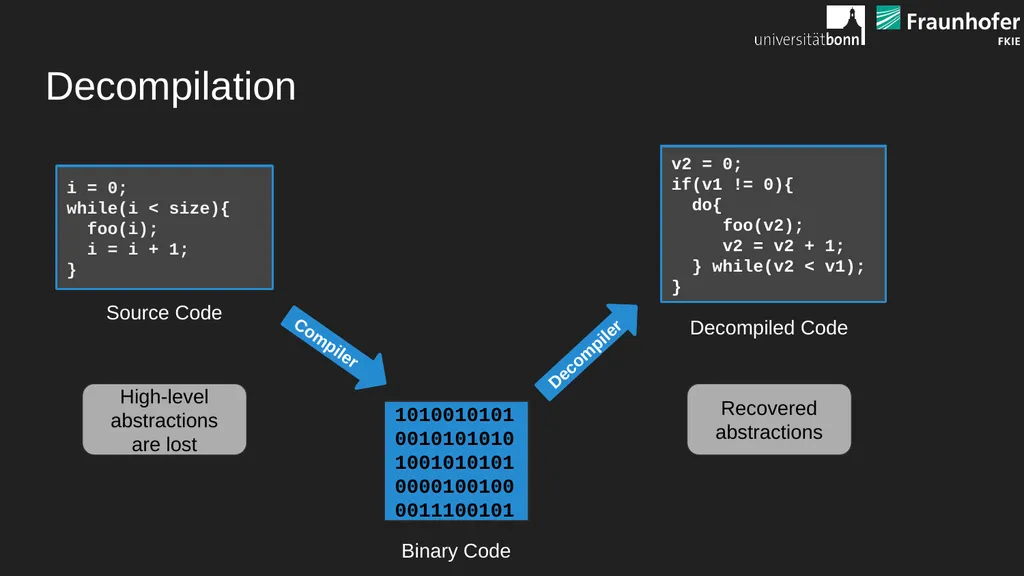

Decompilation 10100101010010101010100101010100001001000011100101 i = 0;
while(i < size){
foo(i);
i = i + 1;
} Compiler Decompiler v2 = 0;
if(v1 != 0){
do{
foo(v2);
v2 = v2 + 1;
} while(v2 < v1);
} Source Code Decompiled Code Binary Code High-level abstractions are lost Recovered abstractions<br>
