Presentation Transcript
01

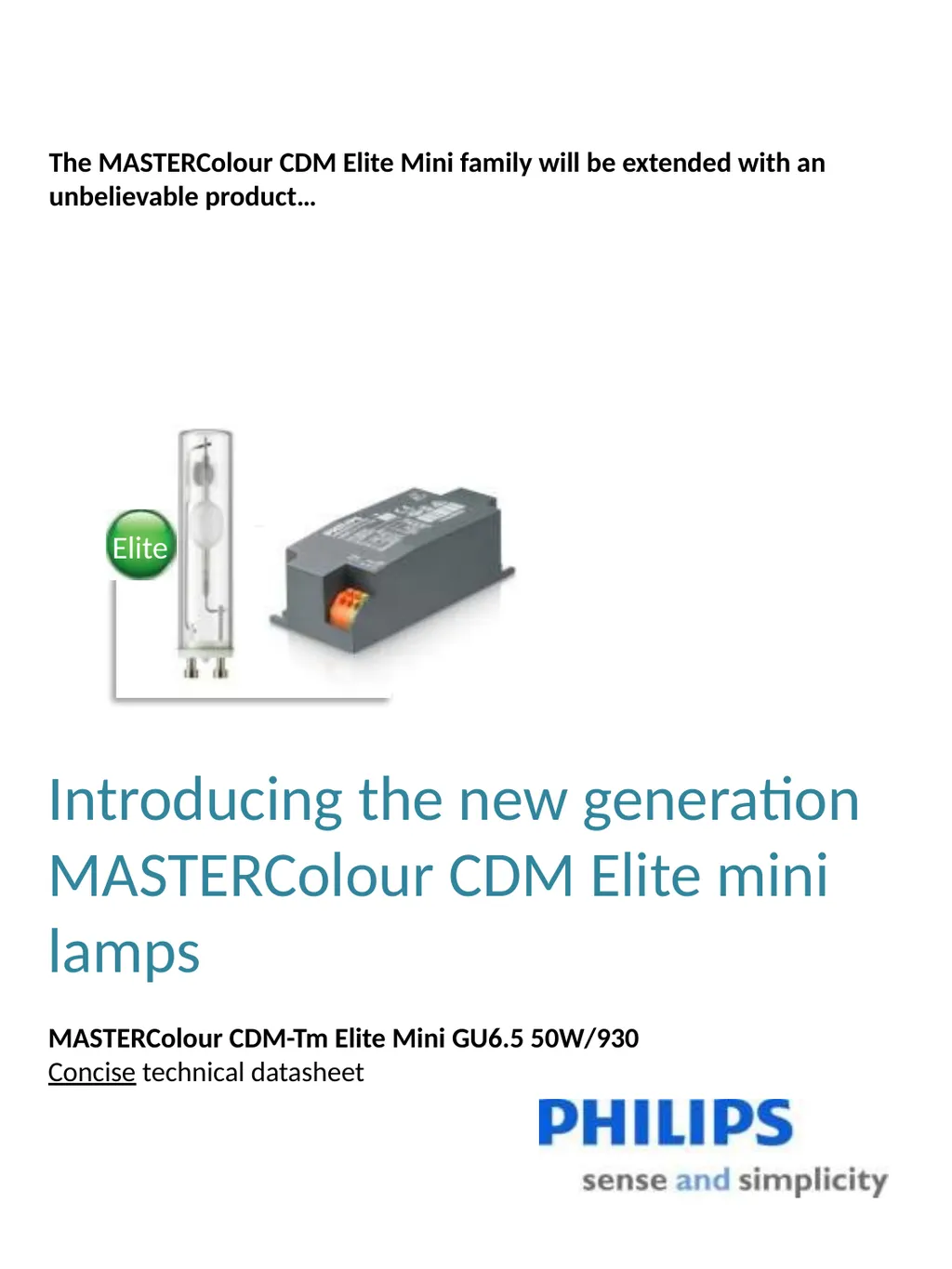

Introducing the new generation
MASTERColour CDM Elite mini lamps
MASTERColour CDM-Tm Elite Mini GU6.5 50W/930
Concise technical datasheet The MASTERColour CDM Elite Mini family will be extended with an unbelievable product…<br>
02

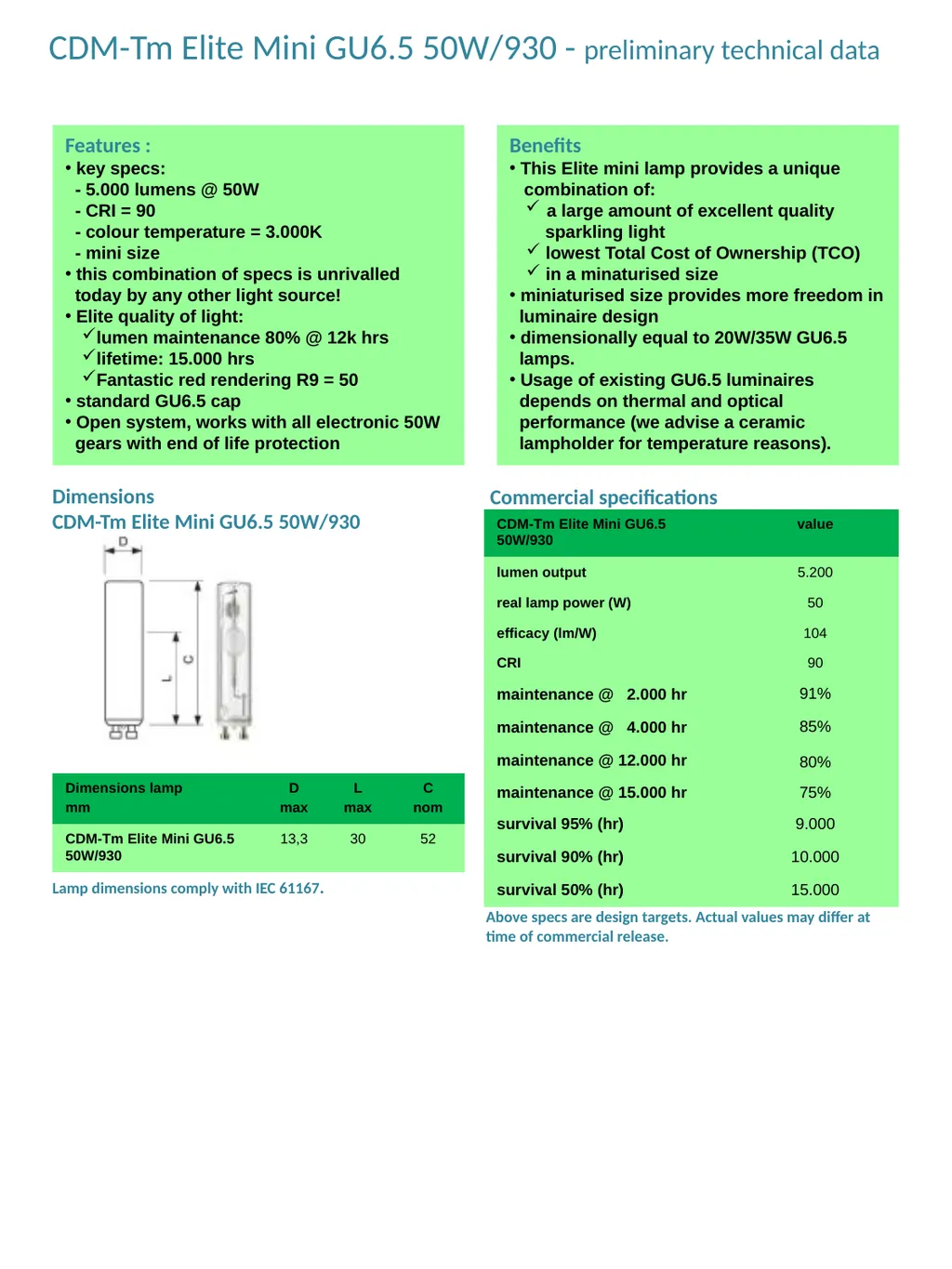

Features :
key specs:
- 5.000 lumens @ 50W
- CRI = 90
- colour temperature = 3.000K
- mini size
this combination of specs is unrivalled
today by any other light source!
Elite quality of light:
lumen maintenance 80% @ 12k hrs
lifetime: 15.000 hrs
Fantastic red rendering R9 = 50
standard GU6.5 cap
Open system, works with all electronic 50W
gears with end of life protection Dimensions
CDM-Tm Elite Mini GU6.5 50W/930 Commercial specifications Benefits
This Elite mini lamp provides a unique
combination of:
a large amount of excellent quality
sparkling light
lowest Total Cost of Ownership (TCO)
in a minaturised size
miniaturised size provides more freedom in
luminaire design
dimensionally equal to 20W/35W GU6.5
lamps.
Usage of existing GU6.5 luminaires
depends on thermal and optical
performance (we advise a ceramic
lampholder for temperature reasons). CDM-Tm Elite Mini GU6.5 50W/930 - preliminary technical data Lamp dimensions comply with IEC 61167. Above specs are design targets. Actual values may differ at
time of commercial release.<br>
03

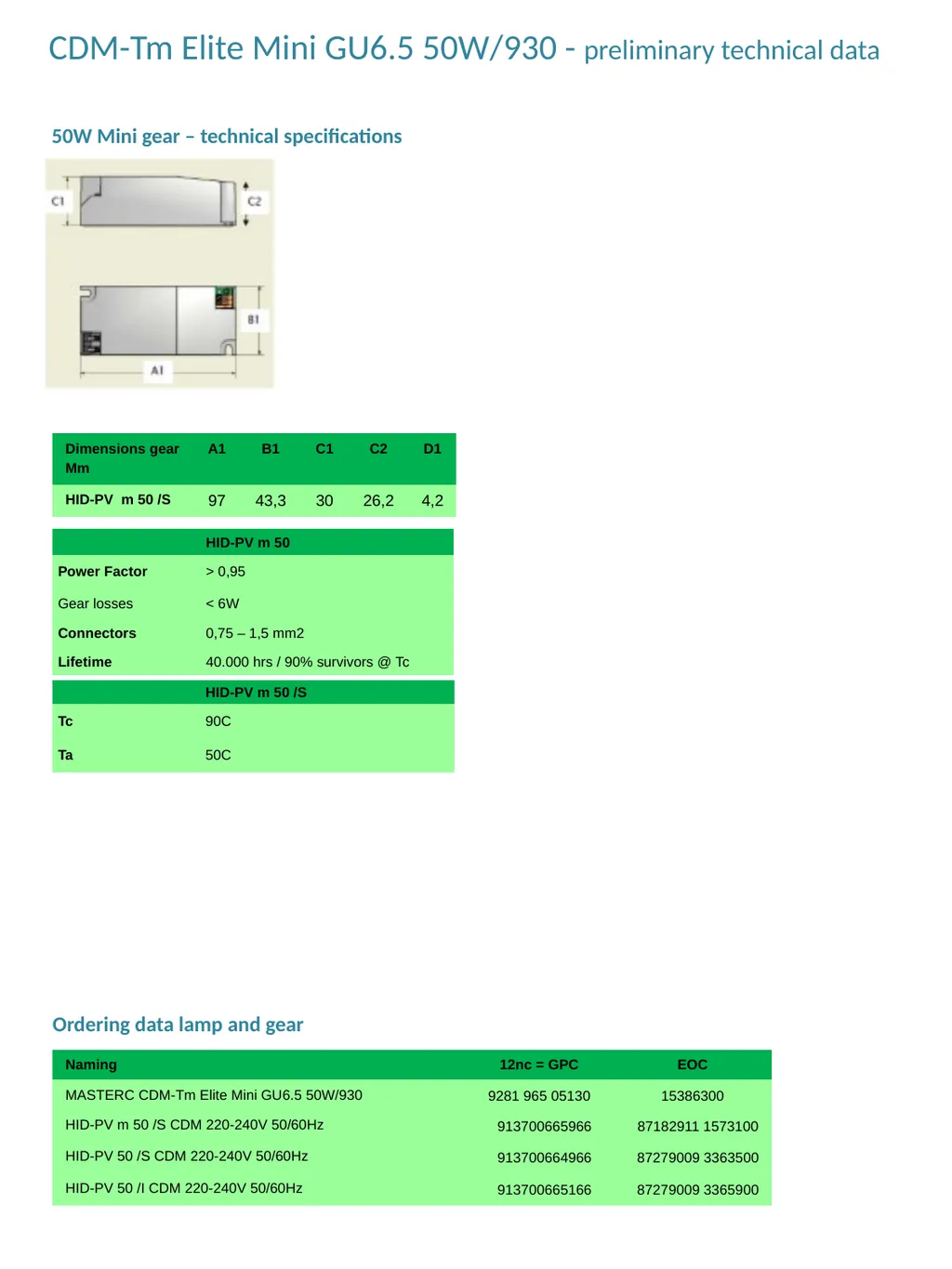

50W Mini gear – technical specifications CDM-Tm Elite Mini GU6.5 50W/930 - preliminary technical data Ordering data lamp and gear<br>
04

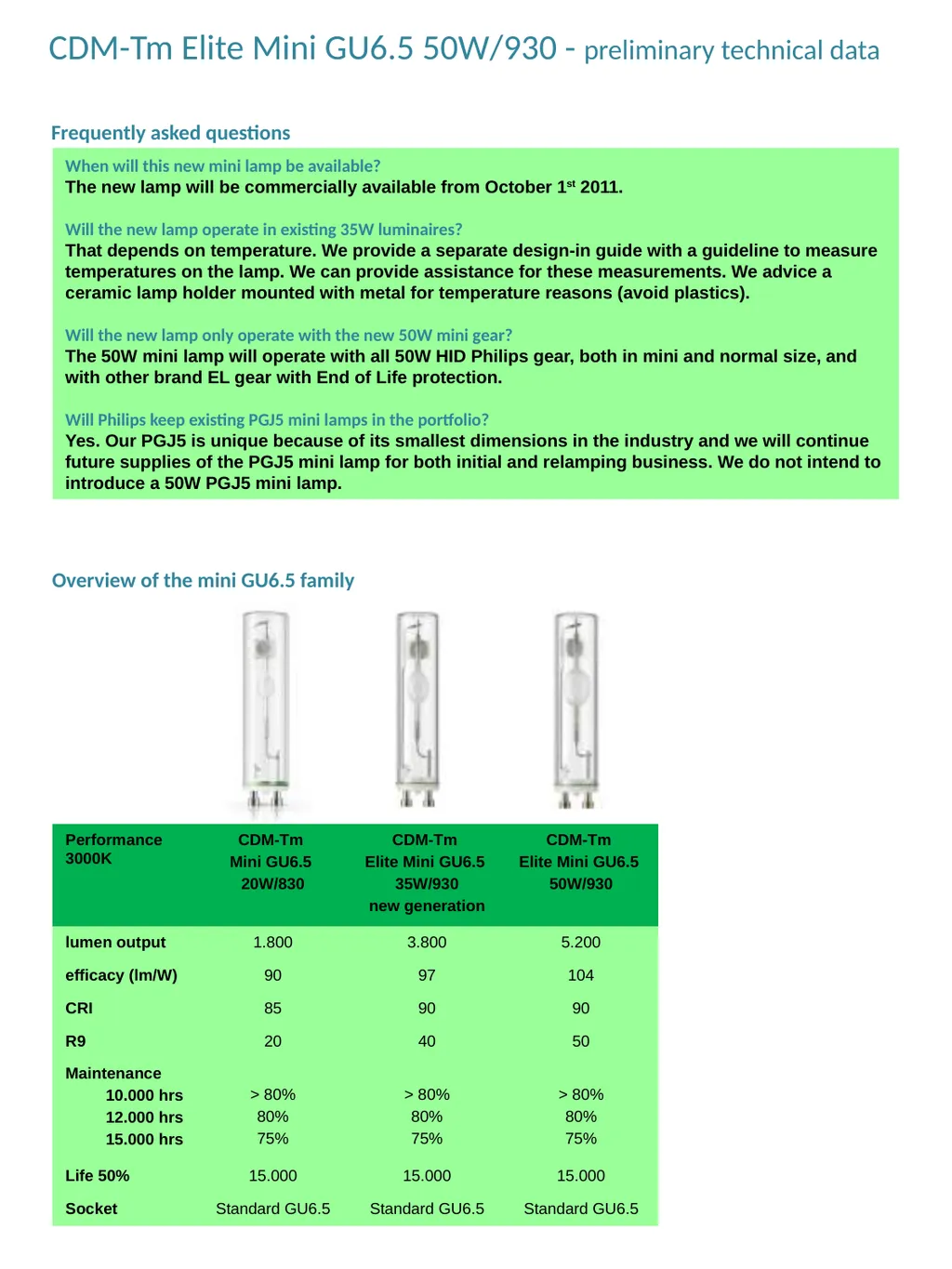

Ordering data lamp and gear When will this new mini lamp be available?
The new lamp will be commercially available from October 1st 2011.
Will the new lamp operate in existing 35W luminaires?
That depends on temperature. We provide a separate design-in guide with a guideline to measure temperatures on the lamp. We can provide assistance for these measurements. We advice a ceramic lamp holder mounted with metal for temperature reasons (avoid plastics).
Will the new lamp only operate with the new 50W mini gear?
The 50W mini lamp will operate with all 50W HID Philips gear, both in mini and normal size, and with other brand EL gear with End of Life protection.
Will Philips keep existing PGJ5 mini lamps in the portfolio?
Yes. Our PGJ5 is unique because of its smallest dimensions in the industry and we will continue future supplies of the PGJ5 mini lamp for both initial and relamping business. We do not intend to introduce a 50W PGJ5 mini lamp. Frequently asked questions Overview of the mini GU6.5 family CDM-Tm Elite Mini GU6.5 50W/930 - preliminary technical data<br>
