Non-linear MHD modelling of Edge Localized Modes
1 / 1
Description
Non-linear MHD modelling of Edge Localized Modes and their interaction with Resonant Magnetic Perturbations in rotating plasmas. Becoulet M. et al TH6-1Rb The non-linear resistive reduced MHD code JOREK Huysmans NF2007 in toroidal

Related Topics

Download this presentation From Below

"Non-linear MHD modelling of Edge Localized Modes" is the property of its rightful owner. Permission is granted to download and print the materials on this website for personal, non-commercial use only, and to display it on your personal computer provided you do not modify the materials and that you retain all copyright notices contained in the materials. By downloading content from our website, you accept the terms of this agreement.

Presentation Transcript

01

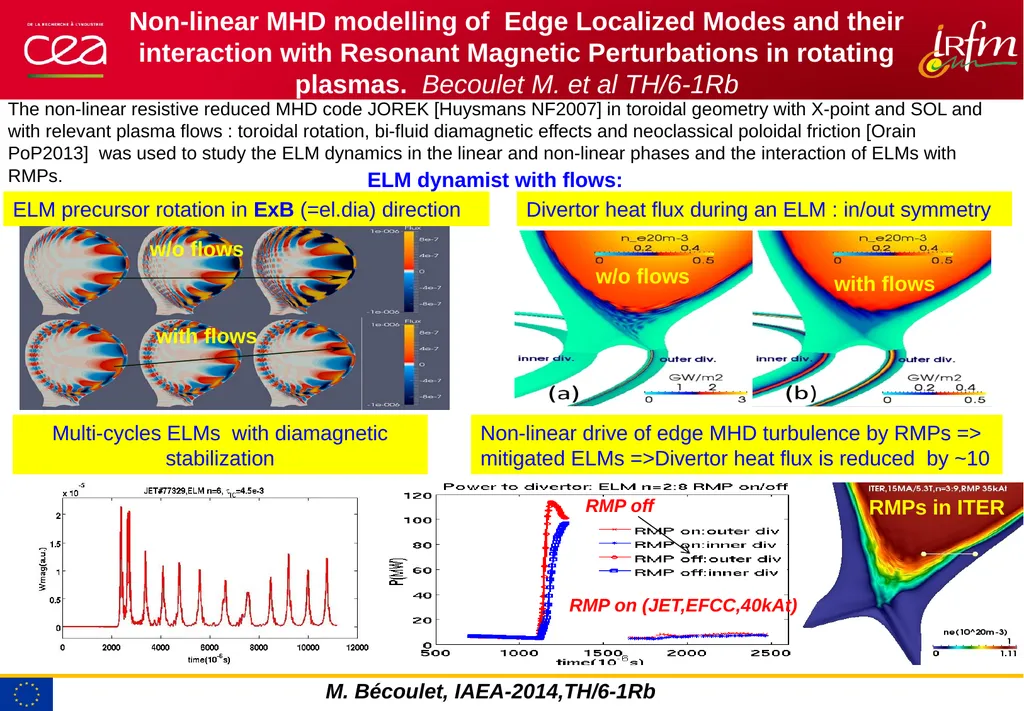

Non-linear MHD modelling of Edge Localized Modes and their interaction with Resonant Magnetic Perturbations in rotating plasmas. Becoulet M. et al TH/6-1Rb The non-linear resistive reduced MHD code JOREK [Huysmans NF2007] in toroidal geometry with X-point and SOL and with relevant plasma flows : toroidal rotation, bi-fluid diamagnetic effects and neoclassical poloidal friction [Orain PoP2013] was used to study the ELM dynamics in the linear and non-linear phases and the interaction of ELMs with RMPs. ELM precursor rotation in ExB (=el.dia) direction ELM dynamist with flows: Divertor heat flux during an ELM : in/out symmetry w/o flows with flows w/o flows with flows Multi-cycles ELMs with diamagnetic stabilization Non-linear drive of edge MHD turbulence by RMPs => mitigated ELMs =>Divertor heat flux is reduced by ~10 RMP off RMP on (JET,EFCC,40kAt) RMPs in ITER<br>
