Stem and Leaf Diagrams Stem and leaf diagrams are a pictorial way of showing statistics The important parts of a stem and leaf diagram are The Title The stem The leaves in order starting from the stem The number of items The key Class Maths

Related Topics

Download this presentation From Below

"Stem and Leaf Diagrams Stem and leaf diagrams are" is the property of its rightful owner. Permission is granted to download and print the materials on this website for personal, non-commercial use only, and to display it on your personal computer provided you do not modify the materials and that you retain all copyright notices contained in the materials. By downloading content from our website, you accept the terms of this agreement.

Presentation Transcript

01

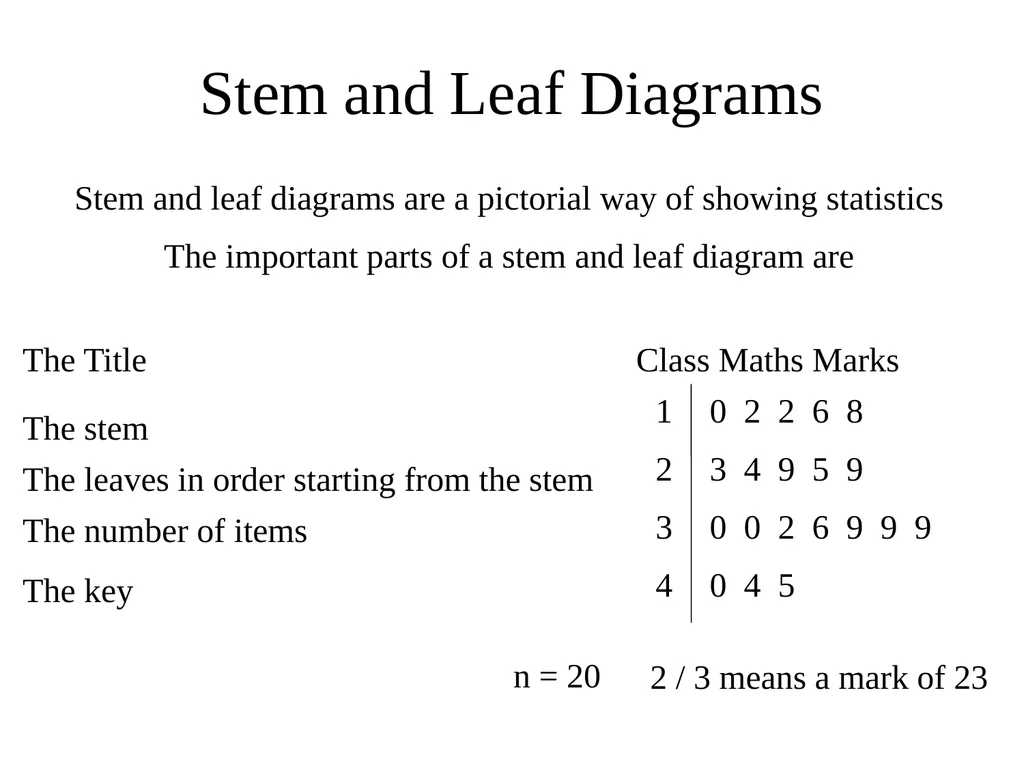

Stem and Leaf Diagrams Stem and leaf diagrams are a pictorial way of showing statistics
The important parts of a stem and leaf diagram are The Title The stem The leaves in order starting from the stem The number of items The key Class Maths Marks 0 2 2 6 8
3 4 9 5 9
0 0 2 6 9 9 9
0 4 5 n = 20 2 / 3 means a mark of 23<br>
02

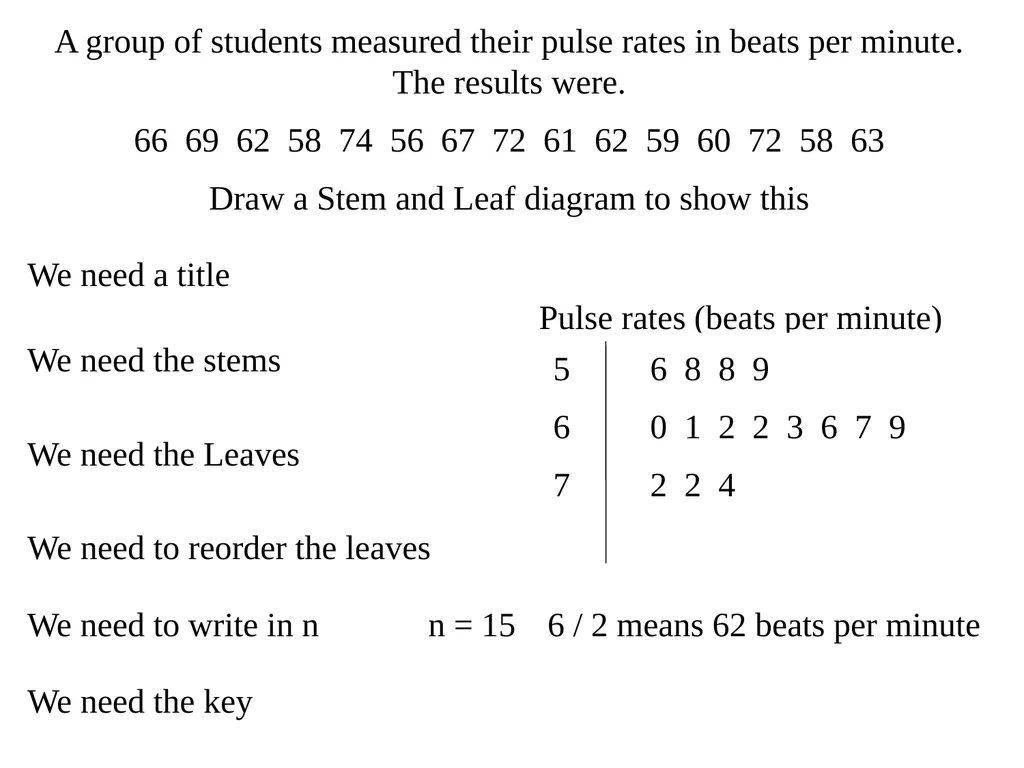

A group of students measured their pulse rates in beats per minute. The results were.
66 69 62 58 74 56 67 72 61 62 59 60 72 58 63
Draw a Stem and Leaf diagram to show this We need a title Pulse rates (beats per minute) We need the stems We need the Leaves 8 6 9 8
6 9 2 7 1 2 0 3
4 2 2 We need to reorder the leaves 6 8 8 9
0 1 2 2 3 6 7 9
2 2 4 We need to write in n n = 15 We need the key 6 / 2 means 62 beats per minute<br>
03

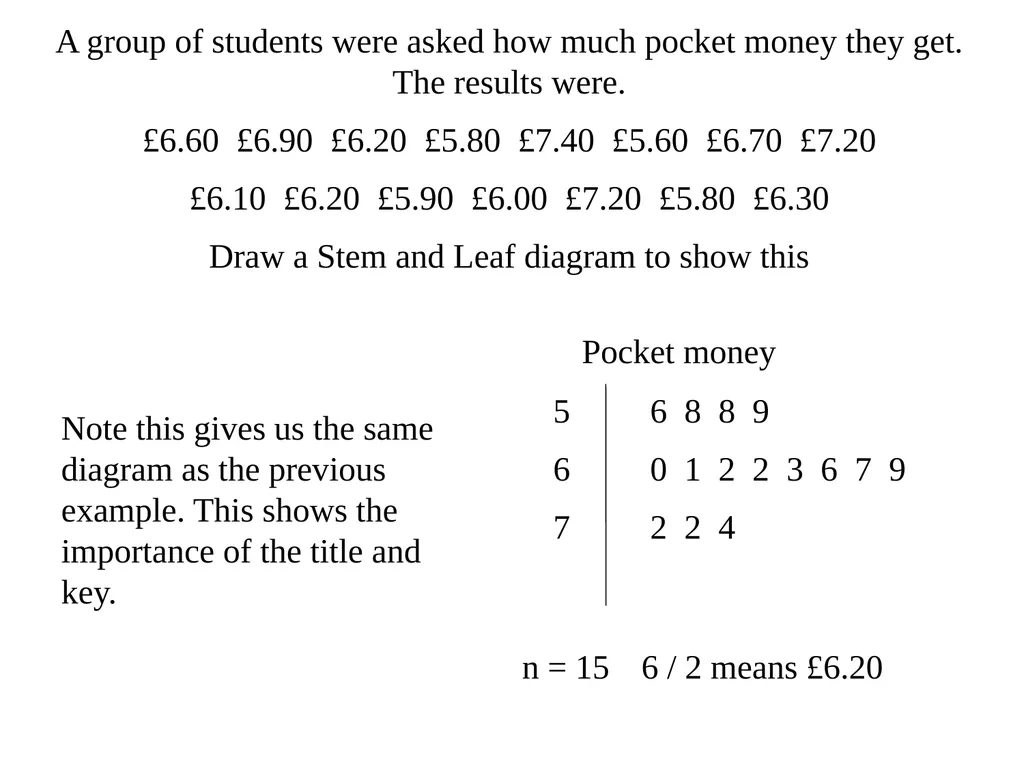

A group of students were asked how much pocket money they get. The results were.
£6.60 £6.90 £6.20 £5.80 £7.40 £5.60 £6.70 £7.20
£6.10 £6.20 £5.90 £6.00 £7.20 £5.80 £6.30
Draw a Stem and Leaf diagram to show this Note this gives us the same diagram as the previous example. This shows the importance of the title and key.<br>
