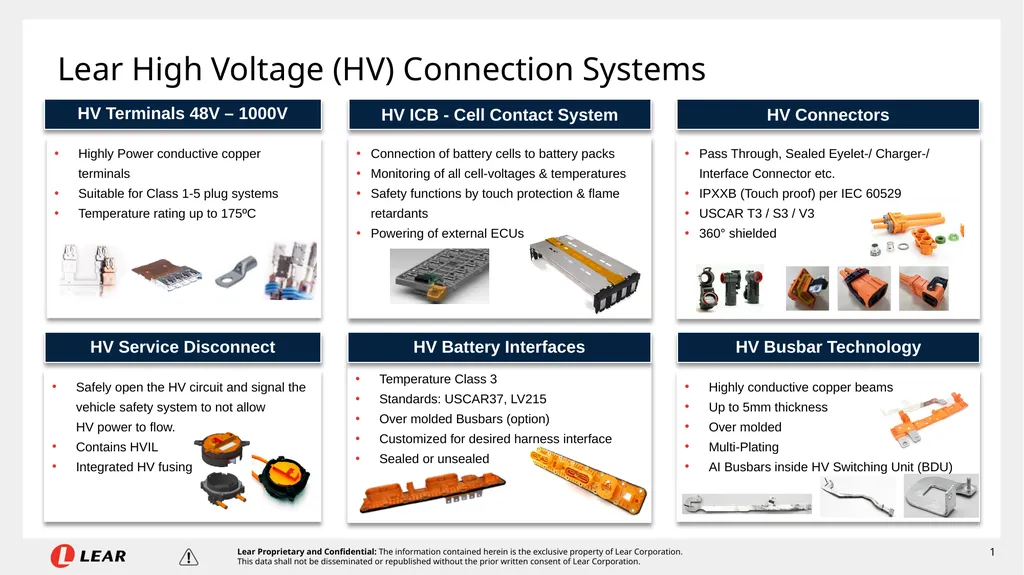

1 Lear High Voltage (HV) Connection Systems Temperature Class 3
Standards: USCAR37, LV215
Over molded Busbars (option)
Customized for desired harness interface
Sealed or unsealed Highly Power conductive copper terminals
Suitable for Class 1-5 plug systems
Temperature rating up to 175ºC HV Battery Interfaces HV Terminals 48V – 1000V Pass Through, Sealed Eyelet-/ Charger-/ Interface Connector etc.
IPXXB (Touch proof) per IEC 60529
USCAR T3 / S3 / V3
360° shielded HV Connectors Highly conductive copper beams
Up to 5mm thickness
Over molded
Multi-Plating
AI Busbars inside HV Switching Unit (BDU) HV Busbar Technology Safely open the HV circuit and signal the vehicle safety system to not allow HV power to flow.
Contains HVIL
Integrated HV fusing HV Service Disconnect Connection of battery cells to battery packs
Monitoring of all cell-voltages & temperatures
Safety functions by touch protection & flame retardants
Powering of external ECUs HV ICB - Cell Contact System<br>
