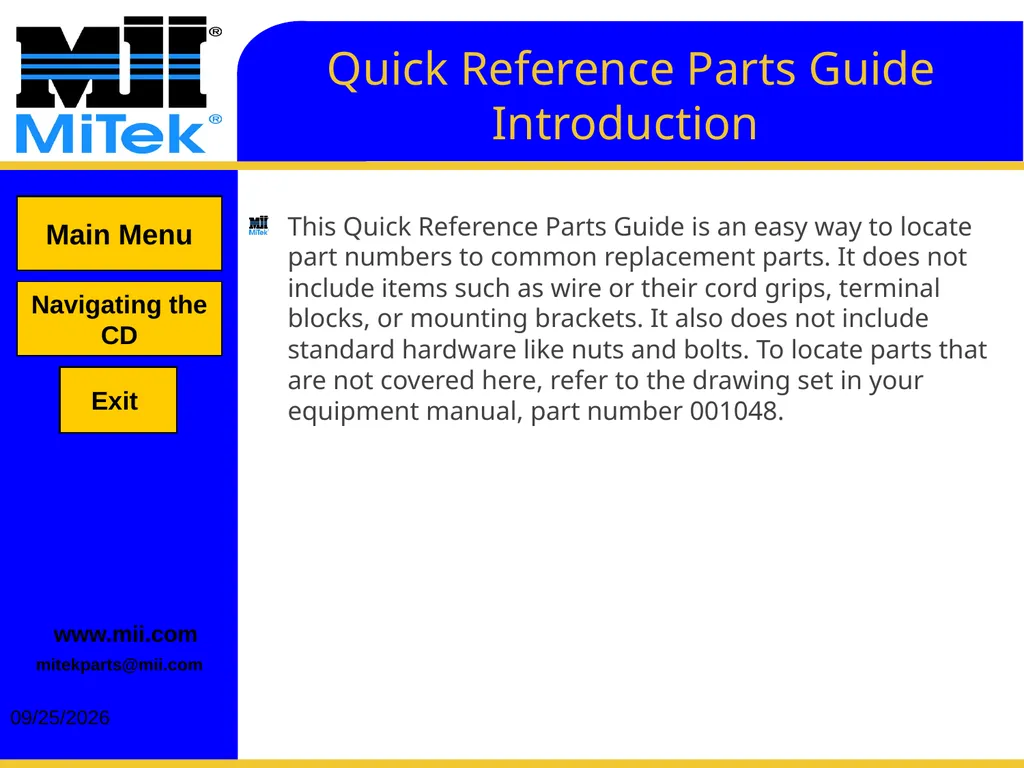

2/15/2017 Quick Reference Parts GuideIntroduction This Quick Reference Parts Guide is an easy way to locate part numbers to common replacement parts. It does not include items such as wire or their cord grips, terminal blocks, or mounting brackets. It also does not include standard hardware like nuts and bolts. To locate parts that are not covered here, refer to the drawing set in your equipment manual, part number 001048. Main Menu Exit Navigating the
CD www.mii.com mitekparts@mii.com<br>
CD www.mii.com mitekparts@mii.com<br>
02

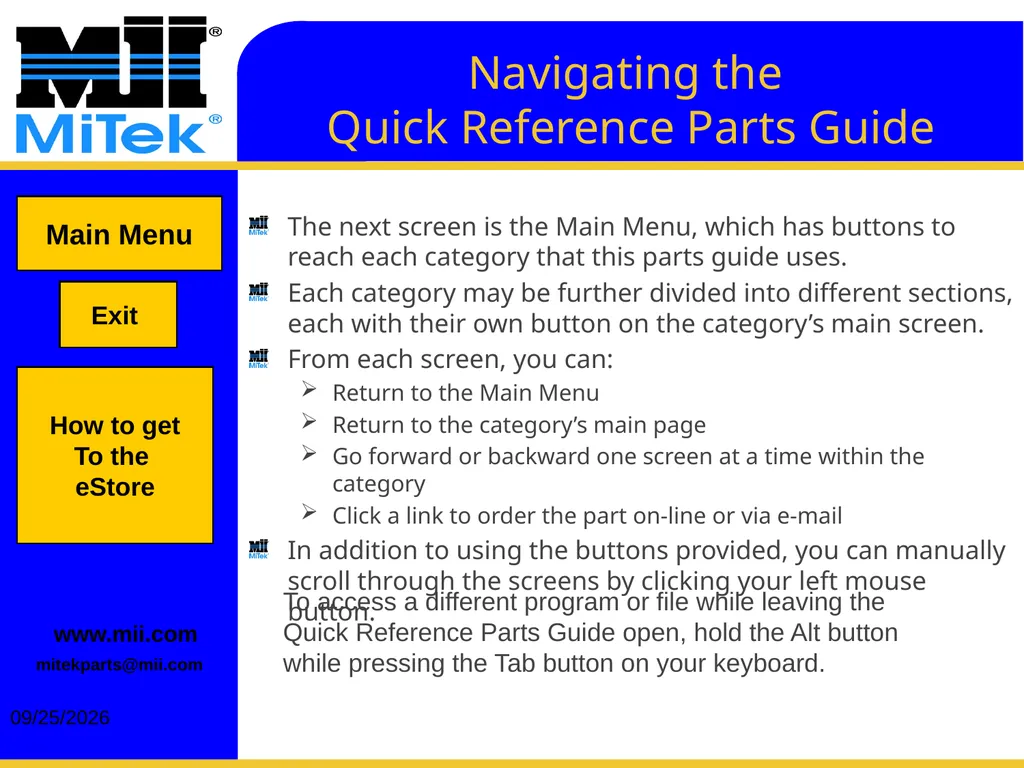

2/15/2017 Navigating the Quick Reference Parts Guide The next screen is the Main Menu, which has buttons to reach each category that this parts guide uses.
Each category may be further divided into different sections, each with their own button on the category’s main screen.
From each screen, you can:
Return to the Main Menu
Return to the category’s main page
Go forward or backward one screen at a time within the category
Click a link to order the part on-line or via e-mail
In addition to using the buttons provided, you can manually scroll through the screens by clicking your left mouse button. Main Menu Exit To access a different program or file while leaving the Quick Reference Parts Guide open, hold the Alt button while pressing the Tab button on your keyboard. How to get
To the
eStore www.mii.com mitekparts@mii.com<br>
Each category may be further divided into different sections, each with their own button on the category’s main screen.
From each screen, you can:
Return to the Main Menu
Return to the category’s main page
Go forward or backward one screen at a time within the category
Click a link to order the part on-line or via e-mail
In addition to using the buttons provided, you can manually scroll through the screens by clicking your left mouse button. Main Menu Exit To access a different program or file while leaving the Quick Reference Parts Guide open, hold the Alt button while pressing the Tab button on your keyboard. How to get
To the
eStore www.mii.com mitekparts@mii.com<br>
03

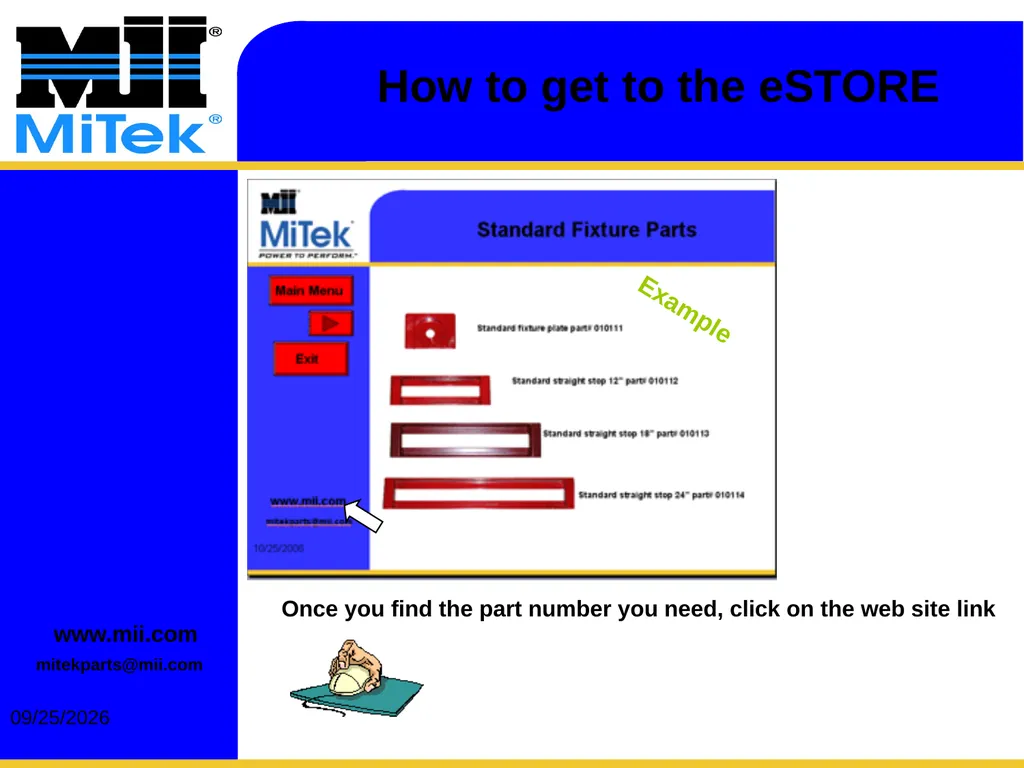

2/15/2017 Once you find the part number you need, click on the web site link How to get to the eSTORE Example www.mii.com mitekparts@mii.com<br>
04

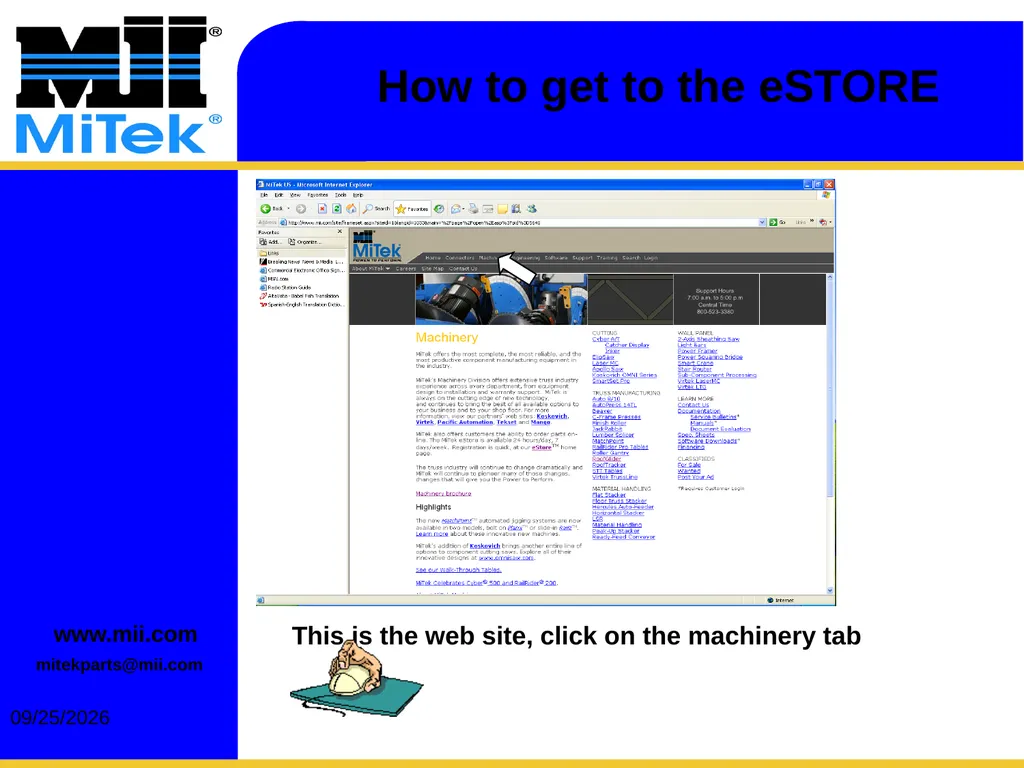

2/15/2017 This is the web site, click on the machinery tab How to get to the eSTORE www.mii.com mitekparts@mii.com<br>
05

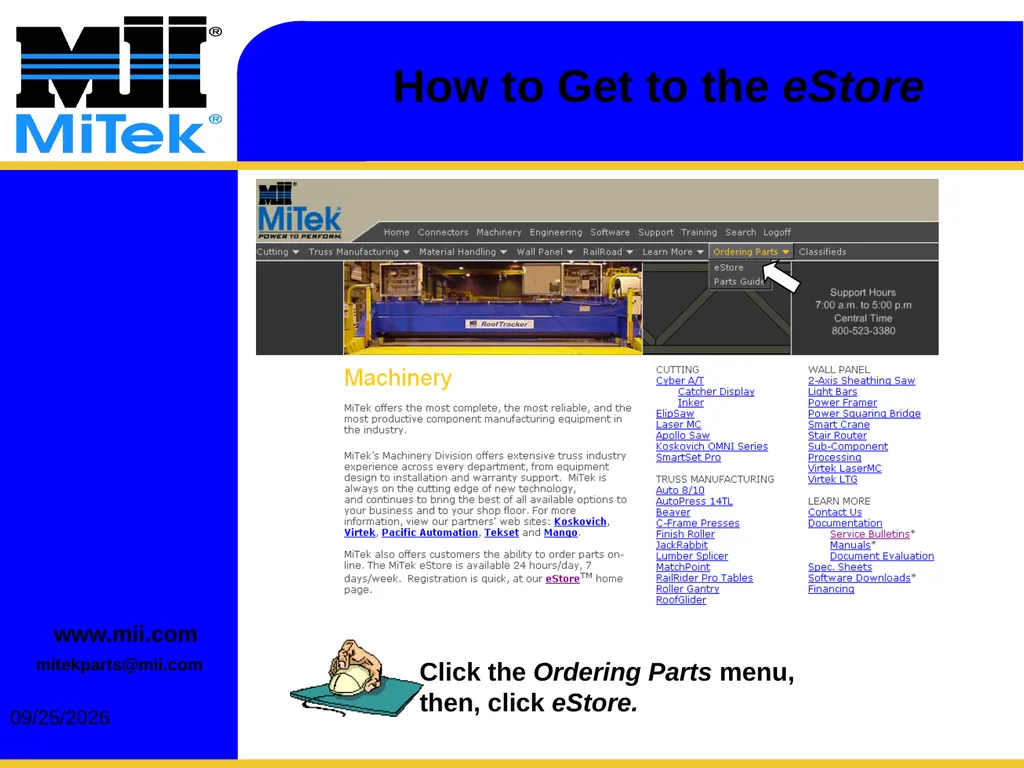

2/15/2017 Click the Ordering Parts menu, then, click eStore. How to Get to the eStore www.mii.com mitekparts@mii.com<br>
06

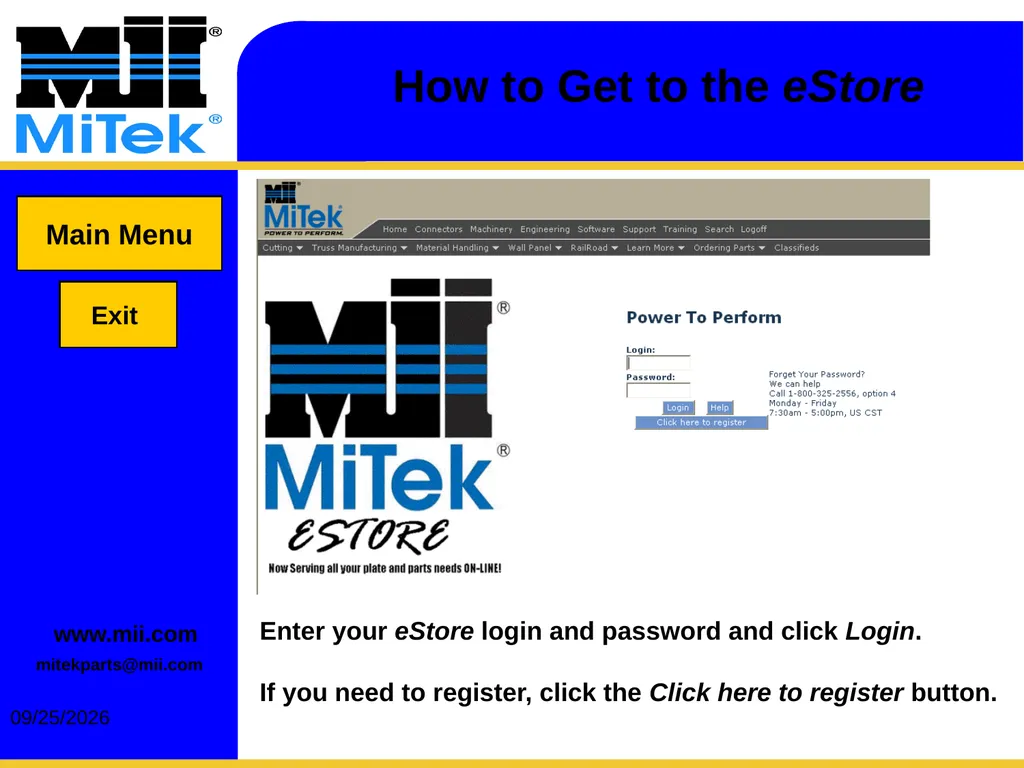

2/15/2017 Enter your eStore login and password and click Login.
If you need to register, click the Click here to register button. Main Menu Exit How to Get to the eStore www.mii.com mitekparts@mii.com<br>
If you need to register, click the Click here to register button. Main Menu Exit How to Get to the eStore www.mii.com mitekparts@mii.com<br>
07

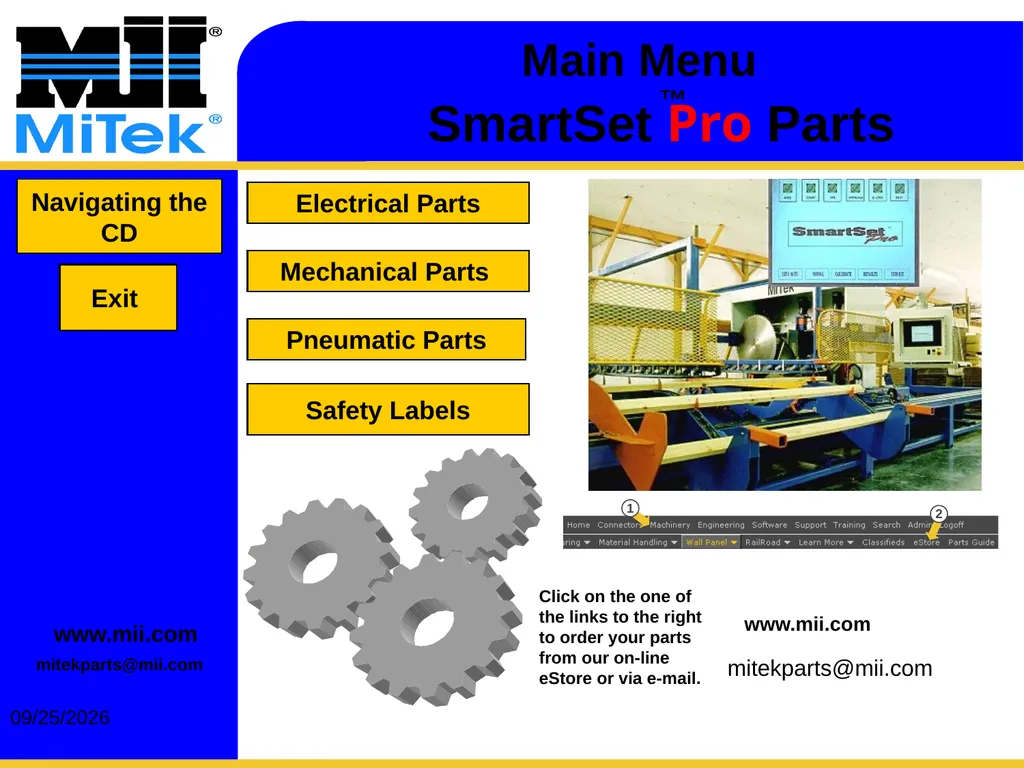

2/15/2017 SmartSet Pro Parts Electrical Parts Mechanical Parts Pneumatic Parts Main Menu Exit mitekparts@mii.com Navigating the
CD Safety Labels www.mii.com Click on the one of the links to the right to order your parts from our on-line eStore or via e-mail. ™ www.mii.com mitekparts@mii.com<br>
CD Safety Labels www.mii.com Click on the one of the links to the right to order your parts from our on-line eStore or via e-mail. ™ www.mii.com mitekparts@mii.com<br>
08

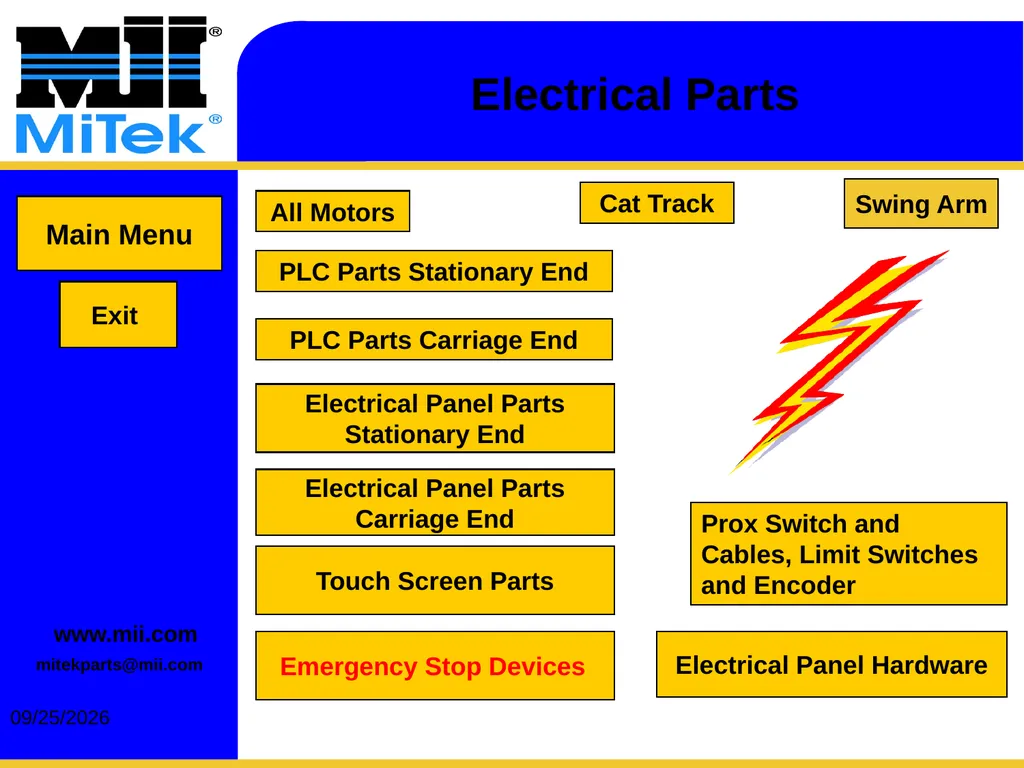

2/15/2017 Electrical Parts Main Menu Exit All Motors PLC Parts Stationary End PLC Parts Carriage End Electrical Panel Parts
Stationary End Electrical Panel Parts
Carriage End Touch Screen Parts Emergency Stop Devices Electrical Panel Hardware Prox Switch and Cables, Limit Switches

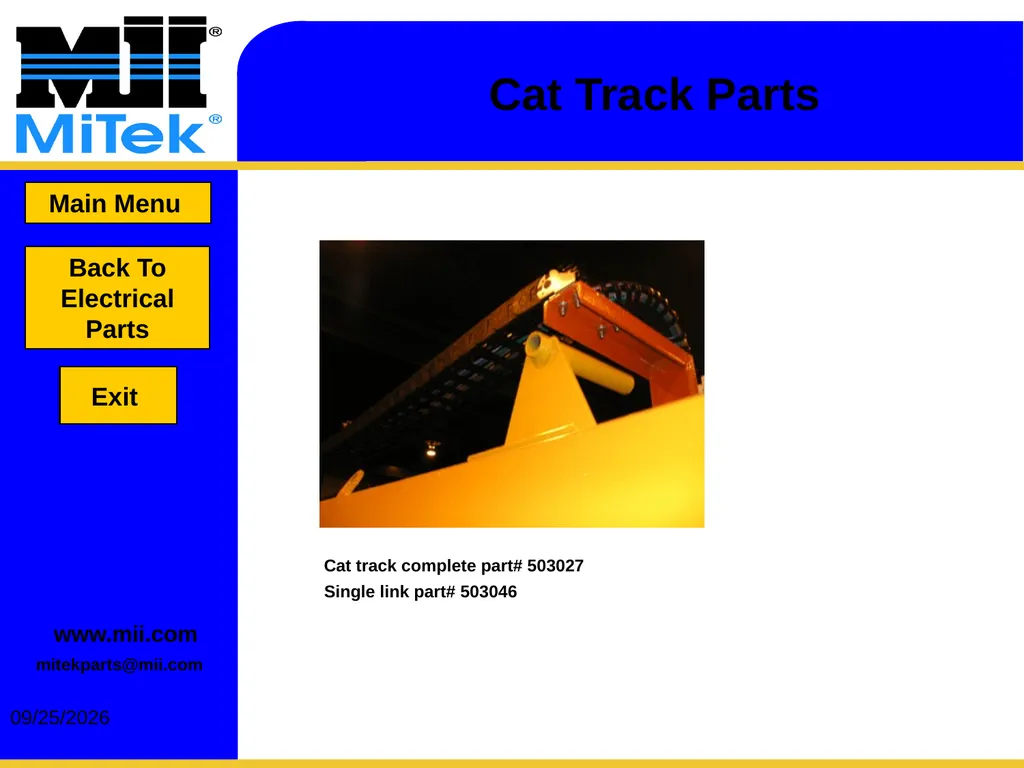

and Encoder Cat Track Swing Arm www.mii.com mitekparts@mii.com<br>
Stationary End Electrical Panel Parts
Carriage End Touch Screen Parts Emergency Stop Devices Electrical Panel Hardware Prox Switch and Cables, Limit Switches
and Encoder Cat Track Swing Arm www.mii.com mitekparts@mii.com<br>
09

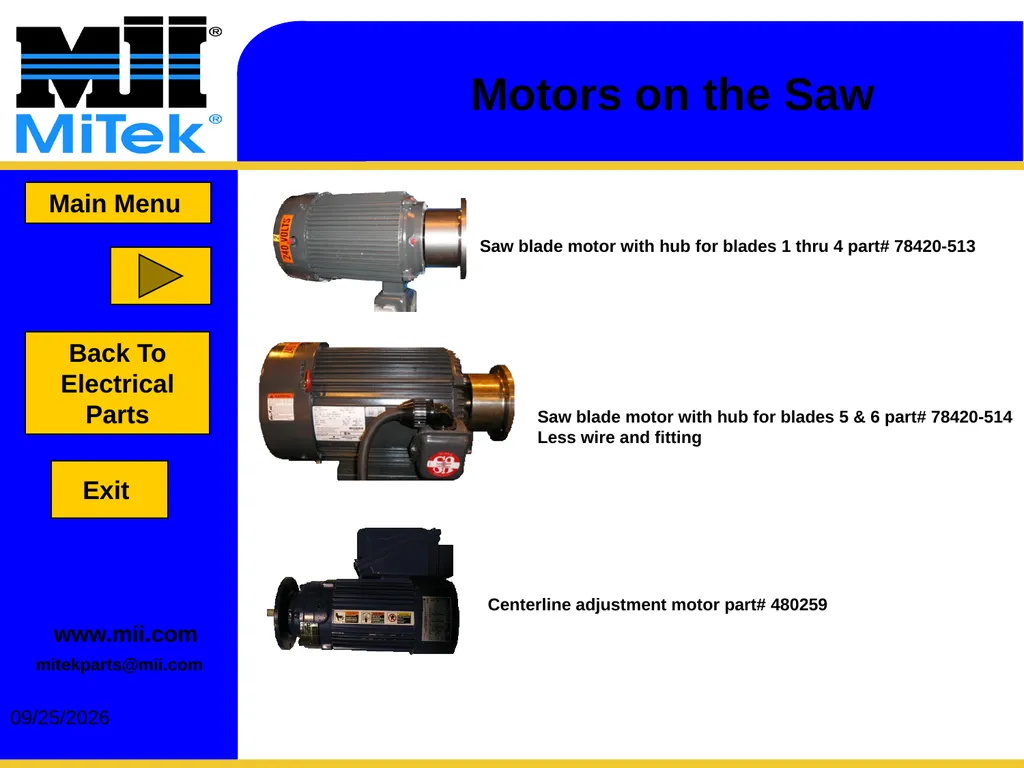

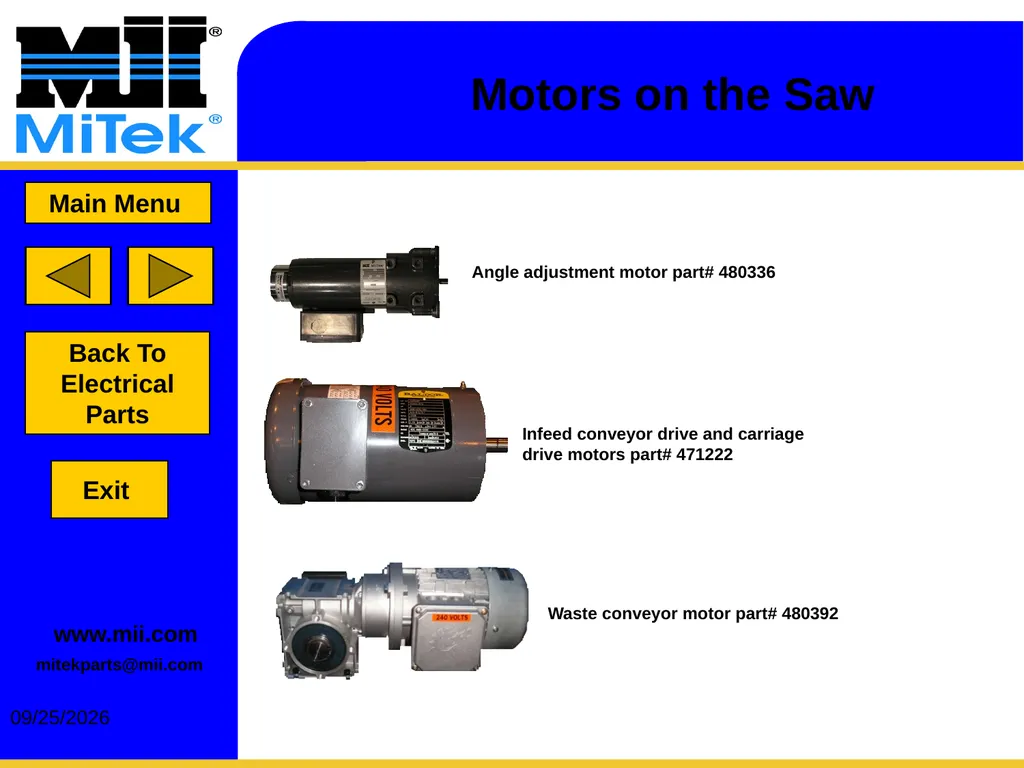

2/15/2017 Motors on the Saw Saw blade motor with hub for blades 1 thru 4 part# 78420-513 Centerline adjustment motor part# 480259 Saw blade motor with hub for blades 5 & 6 part# 78420-514
Less wire and fitting Main Menu Exit Back To Electrical Parts mitekparts@mii.com www.mii.com<br>
Less wire and fitting Main Menu Exit Back To Electrical Parts mitekparts@mii.com www.mii.com<br>
10
2/15/2017 Angle adjustment motor part# 480336 Infeed conveyor drive and carriage
drive motors part# 471222 Waste conveyor motor part# 480392 Main Menu Back To Electrical Parts Exit mitekparts@mii.com Motors on the Saw www.mii.com<br>
drive motors part# 471222 Waste conveyor motor part# 480392 Main Menu Back To Electrical Parts Exit mitekparts@mii.com Motors on the Saw www.mii.com<br>
11

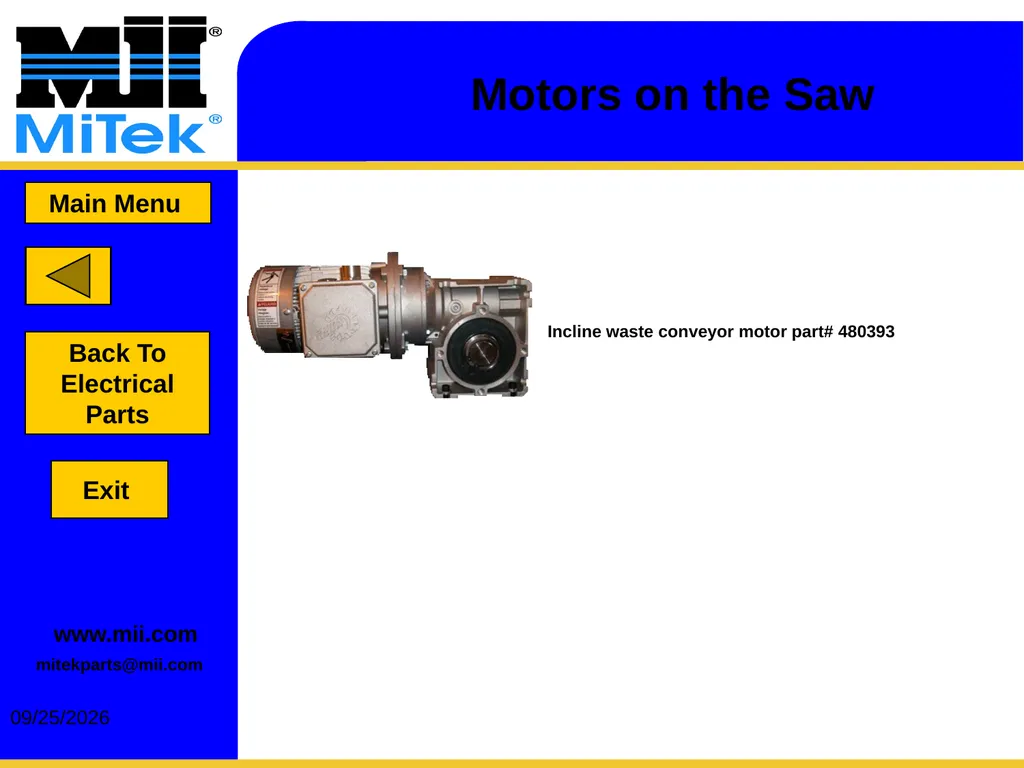

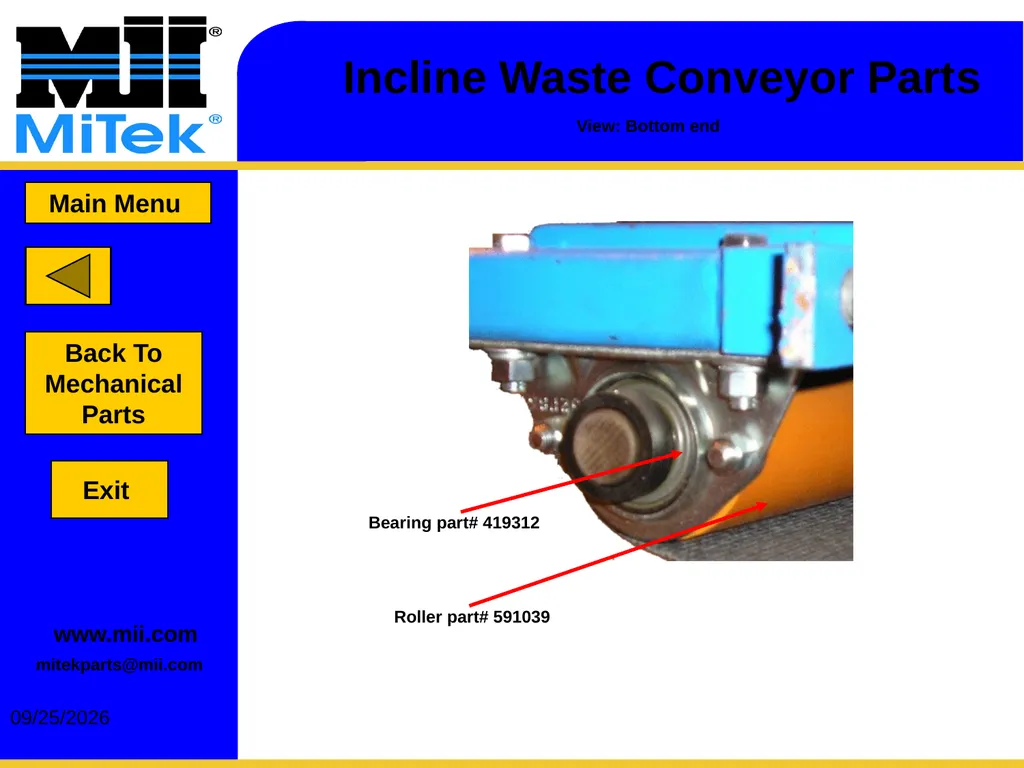

2/15/2017 Incline waste conveyor motor part# 480393 Motors on the Saw Main Menu Back To Electrical Parts Exit mitekparts@mii.com www.mii.com<br>
12

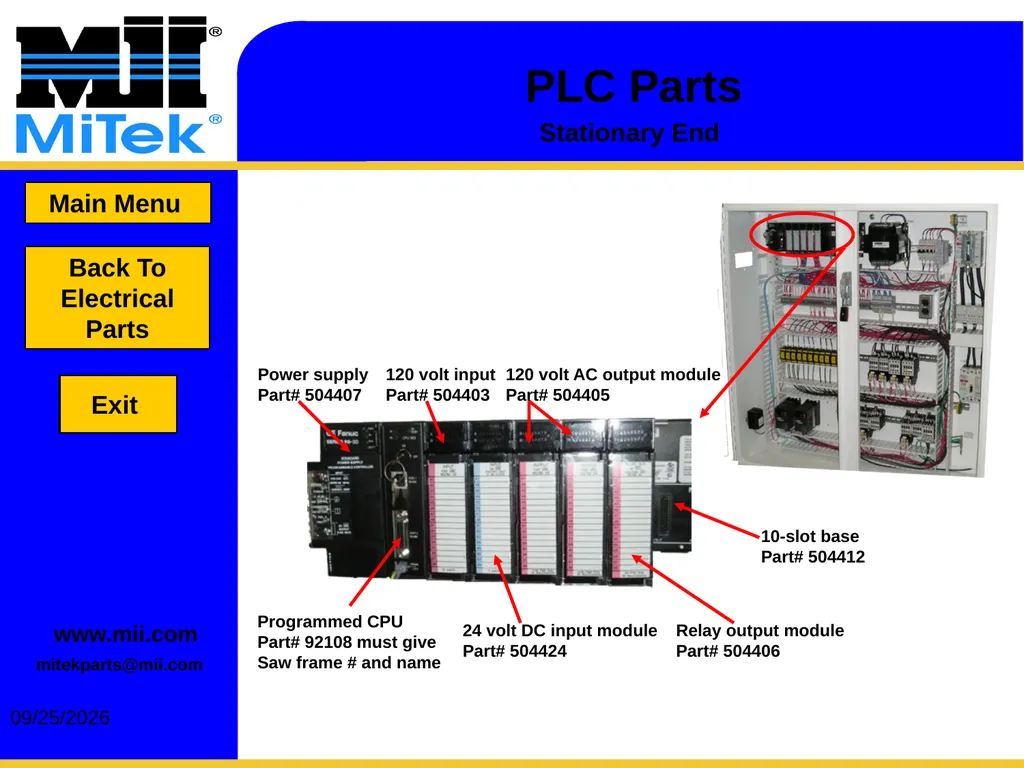

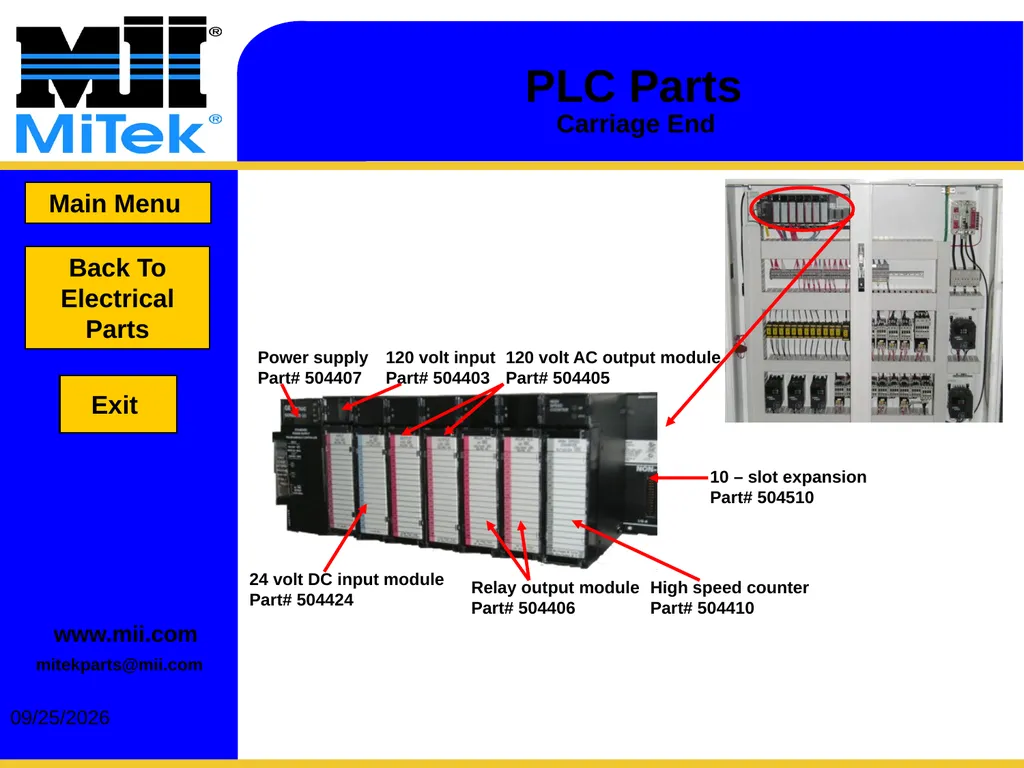

2/15/2017 PLC Parts Stationary End Main Menu Power supply
Part# 504407 Programmed CPU
Part# 92108 must give
Saw frame # and name 120 volt input
Part# 504403 24 volt DC input module
Part# 504424 120 volt AC output module
Part# 504405 Relay output module
Part# 504406 10-slot base
Part# 504412 Back To Electrical Parts Exit mitekparts@mii.com www.mii.com<br>
Part# 504407 Programmed CPU
Part# 92108 must give
Saw frame # and name 120 volt input
Part# 504403 24 volt DC input module
Part# 504424 120 volt AC output module
Part# 504405 Relay output module
Part# 504406 10-slot base
Part# 504412 Back To Electrical Parts Exit mitekparts@mii.com www.mii.com<br>
13
2/15/2017 PLC Parts Main Menu Back To Electrical Parts Exit mitekparts@mii.com Carriage End Power supply
Part# 504407 120 volt input
Part# 504403 24 volt DC input module
Part# 504424 120 volt AC output module
Part# 504405 Relay output module
Part# 504406 High speed counter
Part# 504410 10 – slot expansion
Part# 504510 www.mii.com<br>
Part# 504407 120 volt input
Part# 504403 24 volt DC input module
Part# 504424 120 volt AC output module
Part# 504405 Relay output module
Part# 504406 High speed counter
Part# 504410 10 – slot expansion
Part# 504510 www.mii.com<br>
14

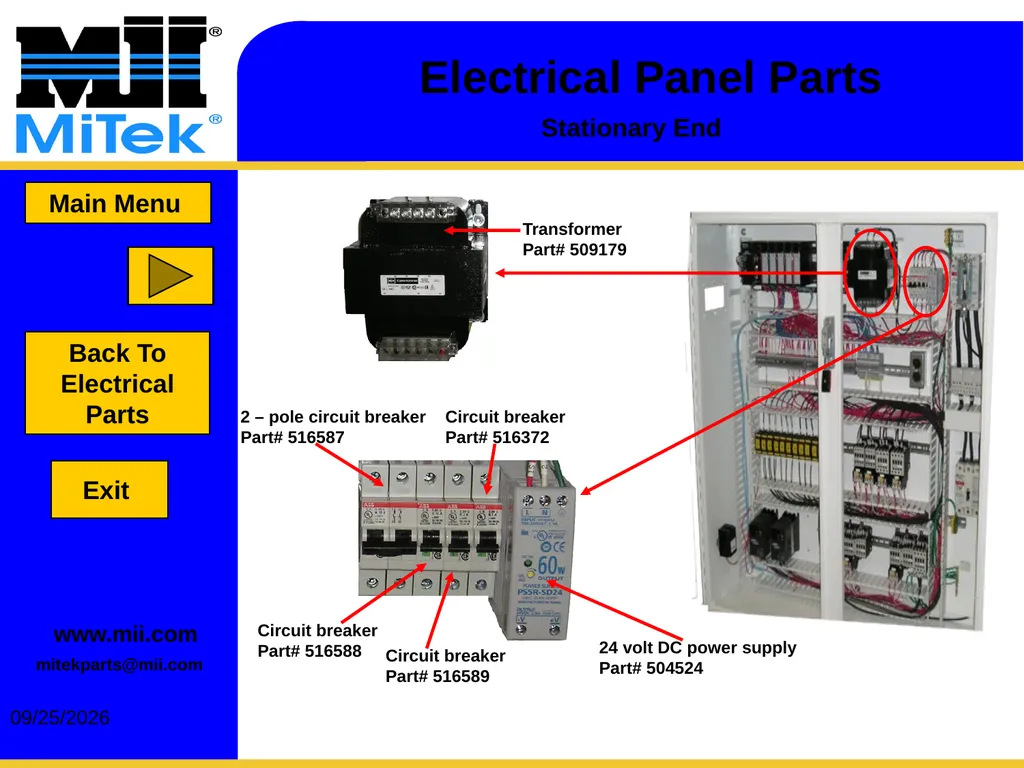

2/15/2017 Electrical Panel Parts Stationary End 2 – pole circuit breaker
Part# 516587 Circuit breaker
Part# 516588 Circuit breaker
Part# 516589 Circuit breaker
Part# 516372 24 volt DC power supply
Part# 504524 Transformer
Part# 509179 Main Menu Back To Electrical Parts Exit mitekparts@mii.com www.mii.com<br>
Part# 516587 Circuit breaker
Part# 516588 Circuit breaker
Part# 516589 Circuit breaker
Part# 516372 24 volt DC power supply
Part# 504524 Transformer
Part# 509179 Main Menu Back To Electrical Parts Exit mitekparts@mii.com www.mii.com<br>
15

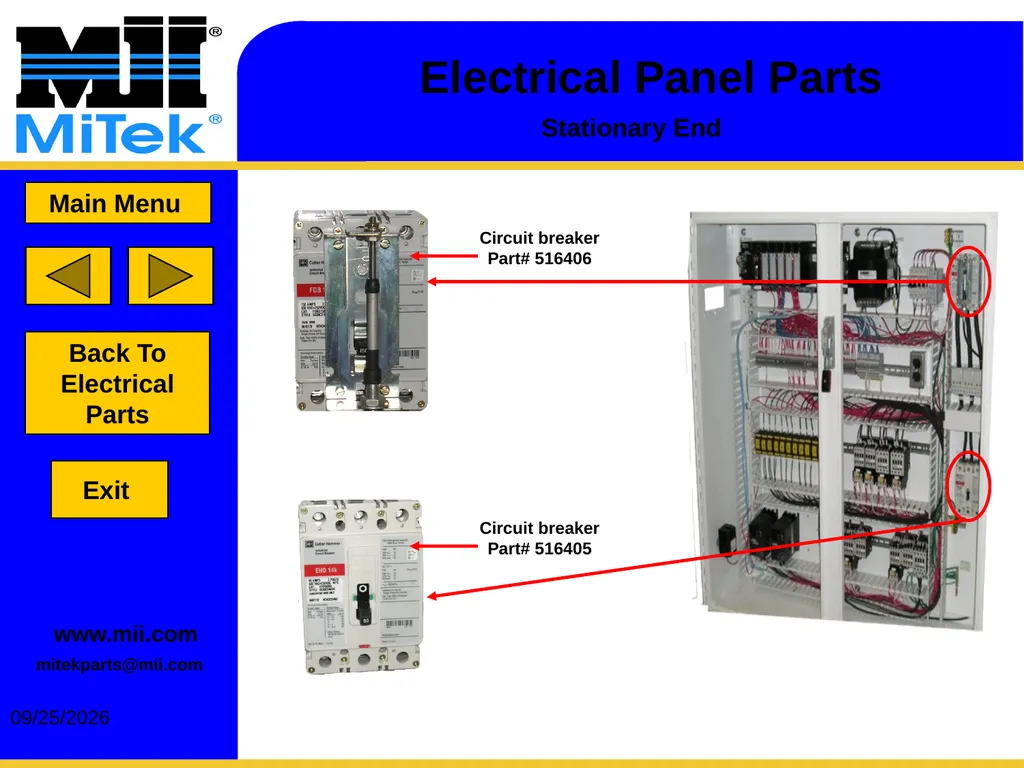

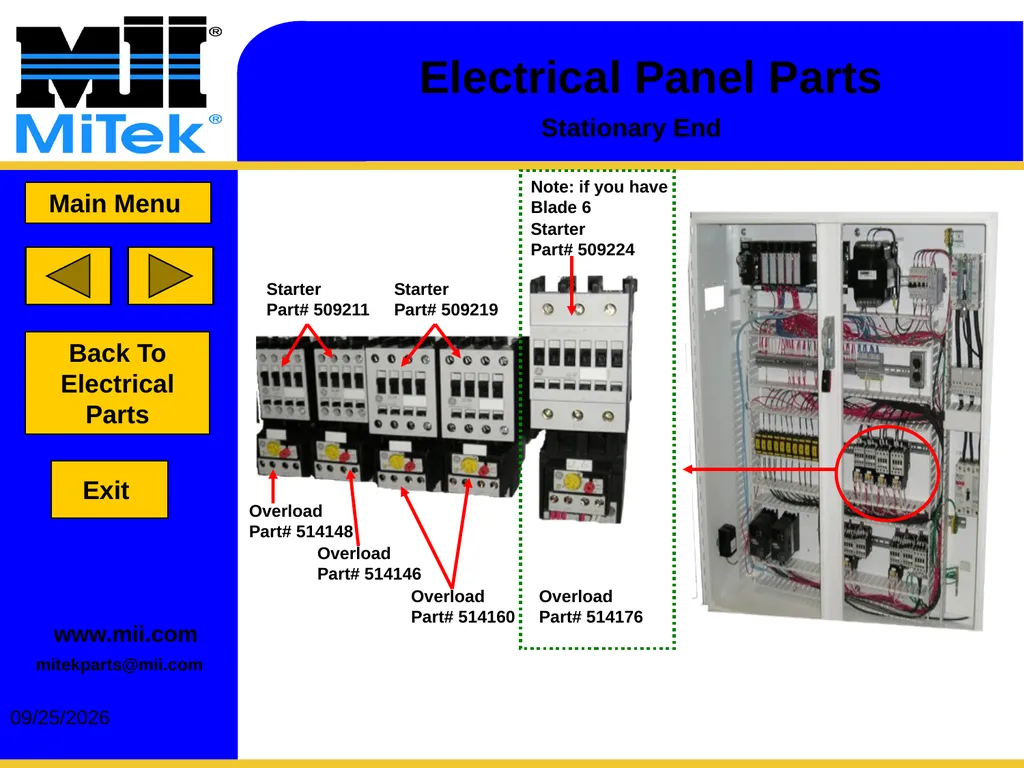

2/15/2017 Electrical Panel Parts Stationary End Main Menu Back To Electrical Parts Exit mitekparts@mii.com Circuit breaker
Part# 516406 Circuit breaker
Part# 516405 www.mii.com<br>
Part# 516406 Circuit breaker
Part# 516405 www.mii.com<br>
16

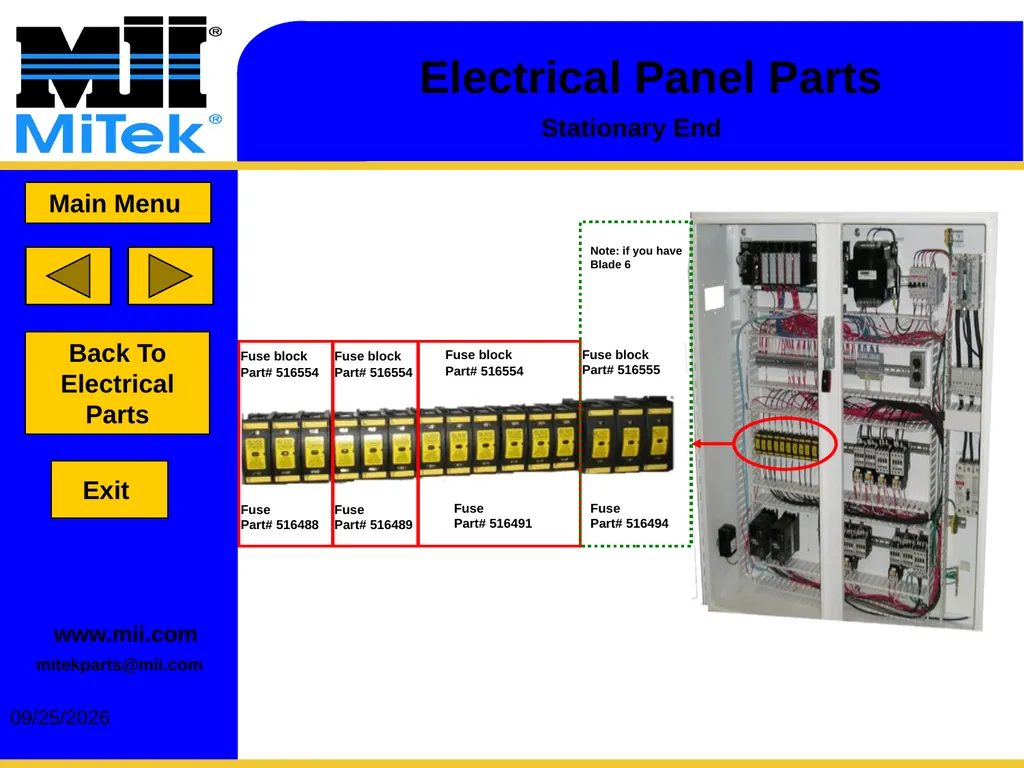

2/15/2017 Electrical Panel Parts Stationary End Main Menu Back To Electrical Parts Exit mitekparts@mii.com Fuse block
Part# 516554 Fuse
Part# 516488 Fuse block
Part# 516554 Fuse
Part# 516489 Fuse block
Part# 516554 Fuse
Part# 516491 Fuse block
Part# 516555 Fuse
Part# 516494 Note: if you have
Blade 6 www.mii.com<br>
Part# 516554 Fuse
Part# 516488 Fuse block
Part# 516554 Fuse
Part# 516489 Fuse block
Part# 516554 Fuse
Part# 516491 Fuse block
Part# 516555 Fuse
Part# 516494 Note: if you have
Blade 6 www.mii.com<br>
17
2/15/2017 Electrical Panel Parts Stationary End Main Menu Back To Electrical Parts Exit mitekparts@mii.com Starter
Part# 509211 Starter
Part# 509219 Starter
Part# 509224 Note: if you have
Blade 6 Overload
Part# 514148 Overload
Part# 514146 Overload
Part# 514160 Overload
Part# 514176 www.mii.com<br>
Part# 509211 Starter
Part# 509219 Starter
Part# 509224 Note: if you have
Blade 6 Overload
Part# 514148 Overload
Part# 514146 Overload
Part# 514160 Overload
Part# 514176 www.mii.com<br>
18

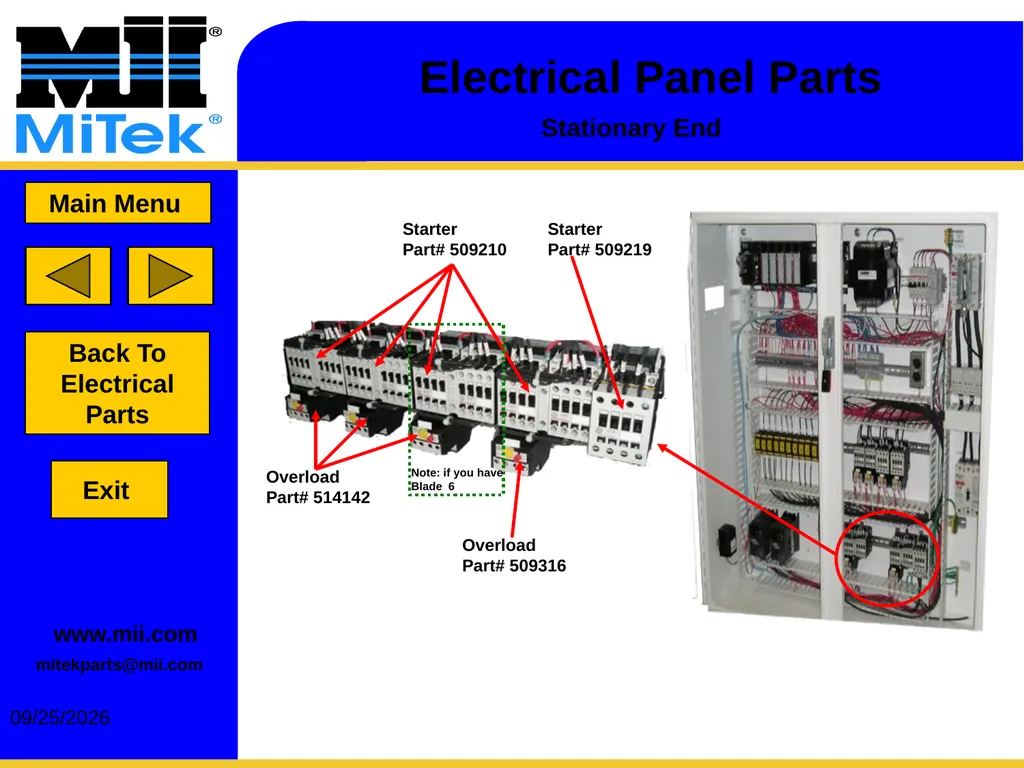

2/15/2017 Electrical Panel Parts Stationary End Main Menu Back To Electrical Parts Exit mitekparts@mii.com Starter
Part# 509210 Note: if you have
Blade 6 Overload
Part# 514142 Overload
Part# 509316 Starter
Part# 509219 www.mii.com<br>
Part# 509210 Note: if you have
Blade 6 Overload
Part# 514142 Overload
Part# 509316 Starter
Part# 509219 www.mii.com<br>
19
2/15/2017 Electrical Panel Parts Stationary End Main Menu Back To Electrical Parts Exit mitekparts@mii.com Angle programmed

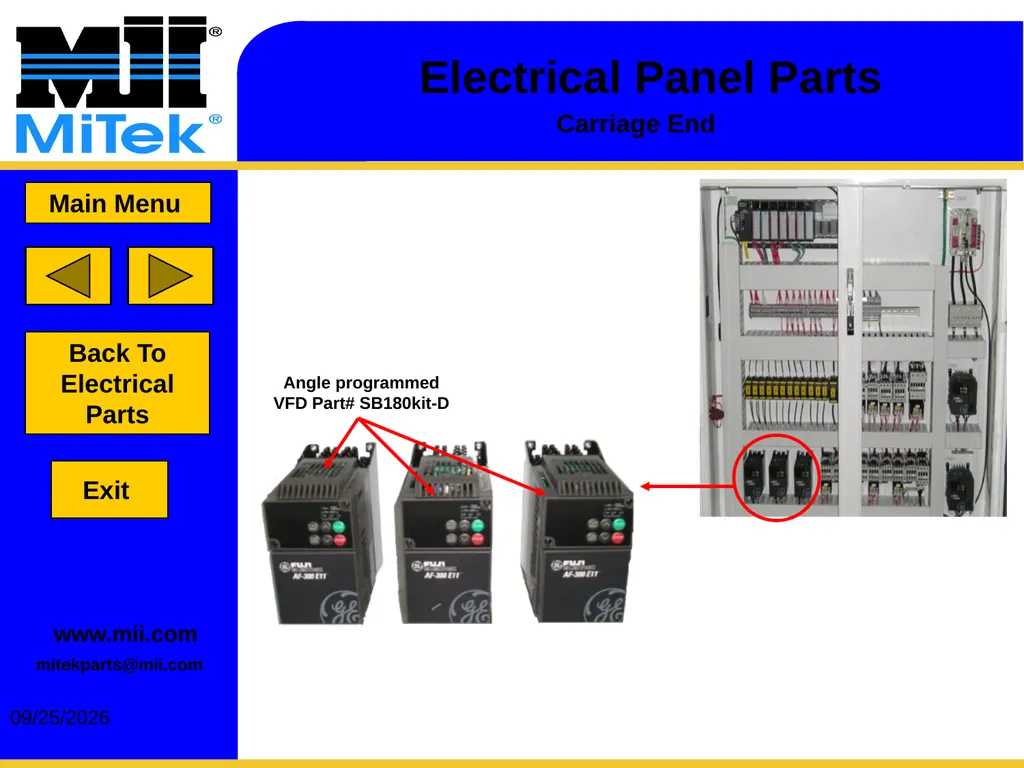

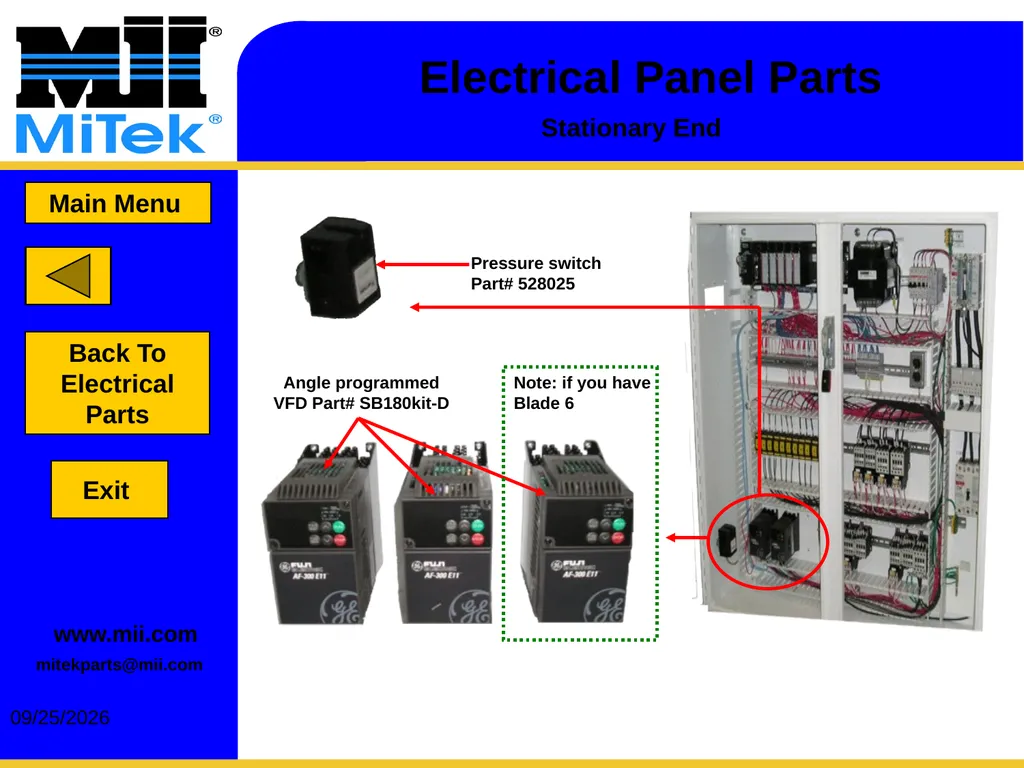

VFD Part# SB180kit-D Note: if you have
Blade 6 Pressure switch
Part# 528025 www.mii.com<br>
VFD Part# SB180kit-D Note: if you have
Blade 6 Pressure switch
Part# 528025 www.mii.com<br>
20

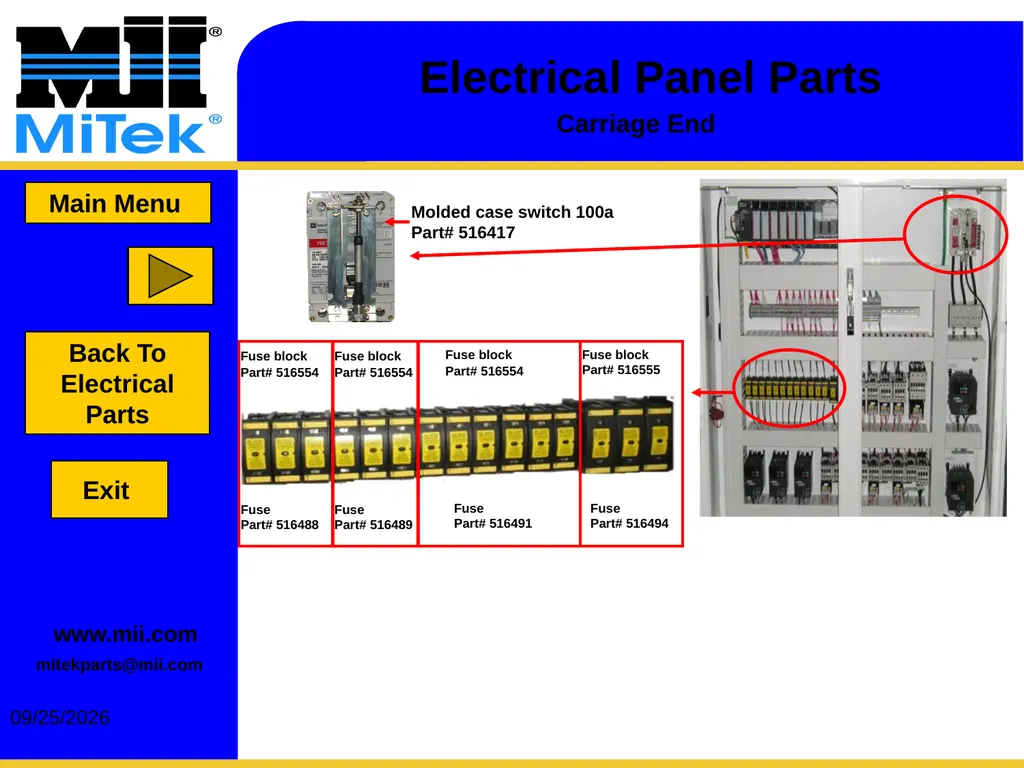

2/15/2017 Electrical Panel Parts Main Menu Back To Electrical Parts Exit mitekparts@mii.com Carriage End Molded case switch 100a
Part# 516417 Fuse block
Part# 516554 Fuse
Part# 516488 Fuse block
Part# 516554 Fuse
Part# 516489 Fuse block
Part# 516554 Fuse
Part# 516491 Fuse block
Part# 516555 Fuse
Part# 516494 www.mii.com<br>
Part# 516417 Fuse block
Part# 516554 Fuse
Part# 516488 Fuse block
Part# 516554 Fuse
Part# 516489 Fuse block
Part# 516554 Fuse
Part# 516491 Fuse block
Part# 516555 Fuse
Part# 516494 www.mii.com<br>
21

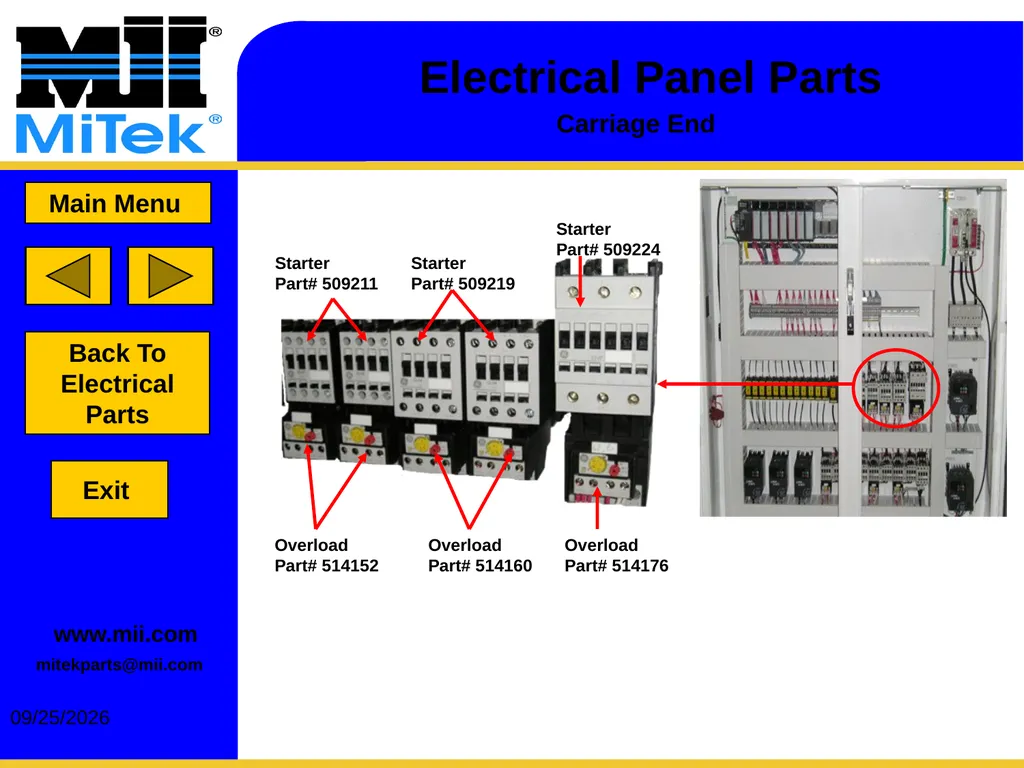

2/15/2017 Electrical Panel Parts Carriage End Main Menu Back To Electrical Parts mitekparts@mii.com Starter

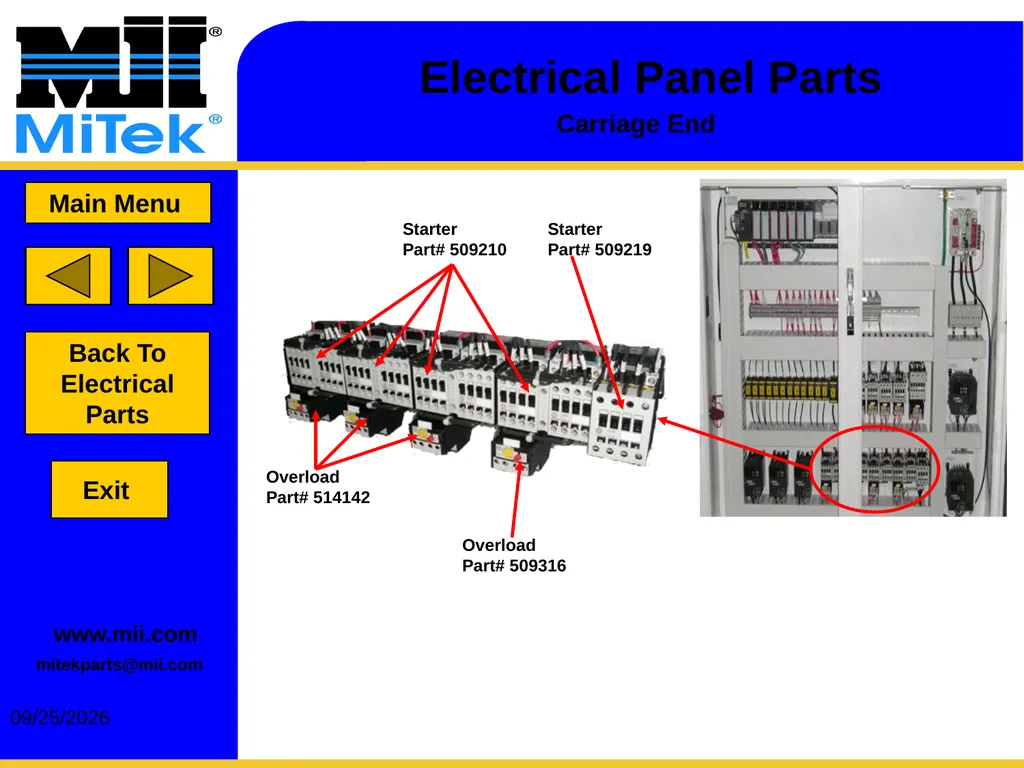

Part# 509219 Starter
Part# 509224 Overload
Part# 514176 Overload
Part# 514160 Starter
Part# 509211 Overload
Part# 514152 Exit www.mii.com<br>
Part# 509219 Starter
Part# 509224 Overload
Part# 514176 Overload
Part# 514160 Starter
Part# 509211 Overload
Part# 514152 Exit www.mii.com<br>
22
2/15/2017 Electrical Panel Parts Carriage End Main Menu Exit Back To Electrical Parts mitekparts@mii.com Starter
Part# 509210 Starter
Part# 509219 Overload
Part# 514142 Overload
Part# 509316 www.mii.com<br>
Part# 509210 Starter
Part# 509219 Overload
Part# 514142 Overload
Part# 509316 www.mii.com<br>
23
2/15/2017 Electrical Panel Parts Carriage End Main Menu Back To Electrical Parts Exit mitekparts@mii.com Angle programmed
VFD Part# SB180kit-D www.mii.com<br>
VFD Part# SB180kit-D www.mii.com<br>
24
2/15/2017 Electrical Panel Parts Carriage End Main Menu Back To Electrical Parts Exit mitekparts@mii.com VFD programmed for infeed

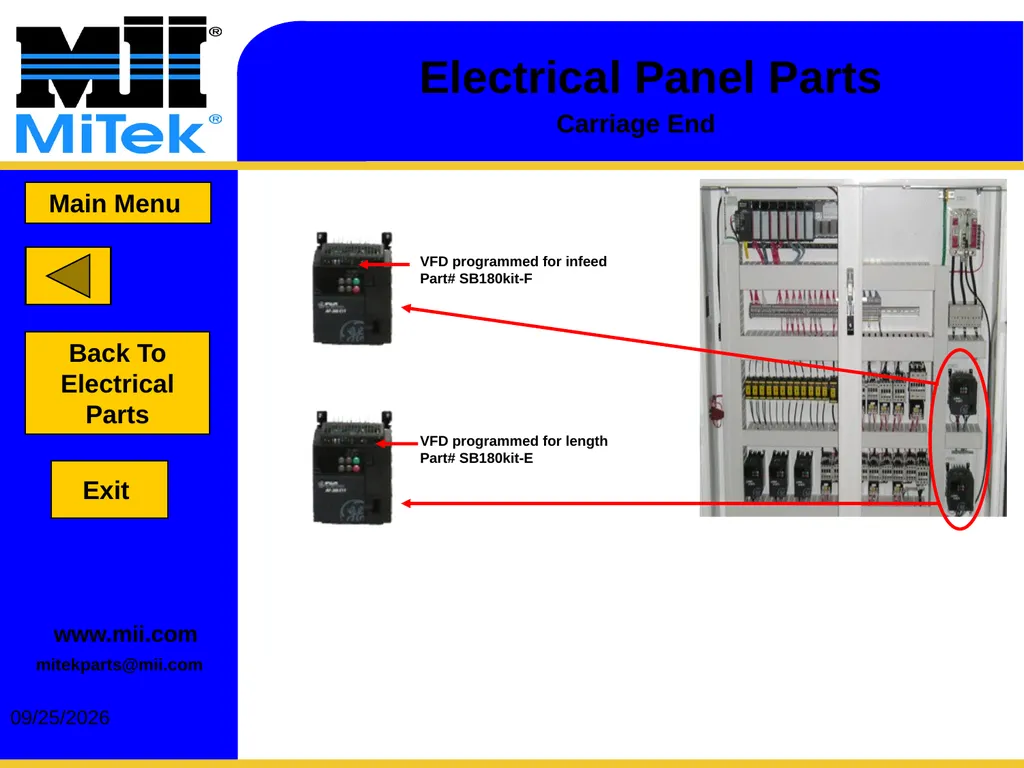

Part# SB180kit-F VFD programmed for length
Part# SB180kit-E www.mii.com<br>
Part# SB180kit-F VFD programmed for length
Part# SB180kit-E www.mii.com<br>
25

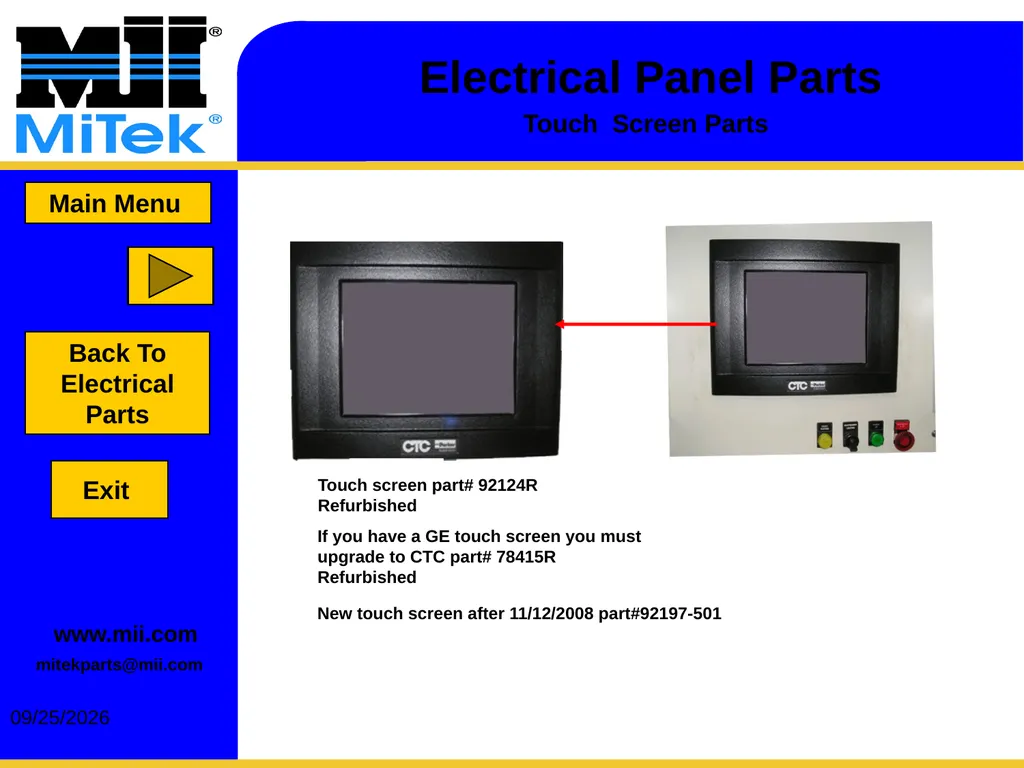

2/15/2017 Touch Screen Parts Electrical Panel Parts Main Menu Back To Electrical Parts mitekparts@mii.com Exit Touch screen part# 92124R
Refurbished If you have a GE touch screen you must
upgrade to CTC part# 78415R
Refurbished New touch screen after 11/12/2008 part#92197-501 www.mii.com<br>
Refurbished If you have a GE touch screen you must
upgrade to CTC part# 78415R
Refurbished New touch screen after 11/12/2008 part#92197-501 www.mii.com<br>
26

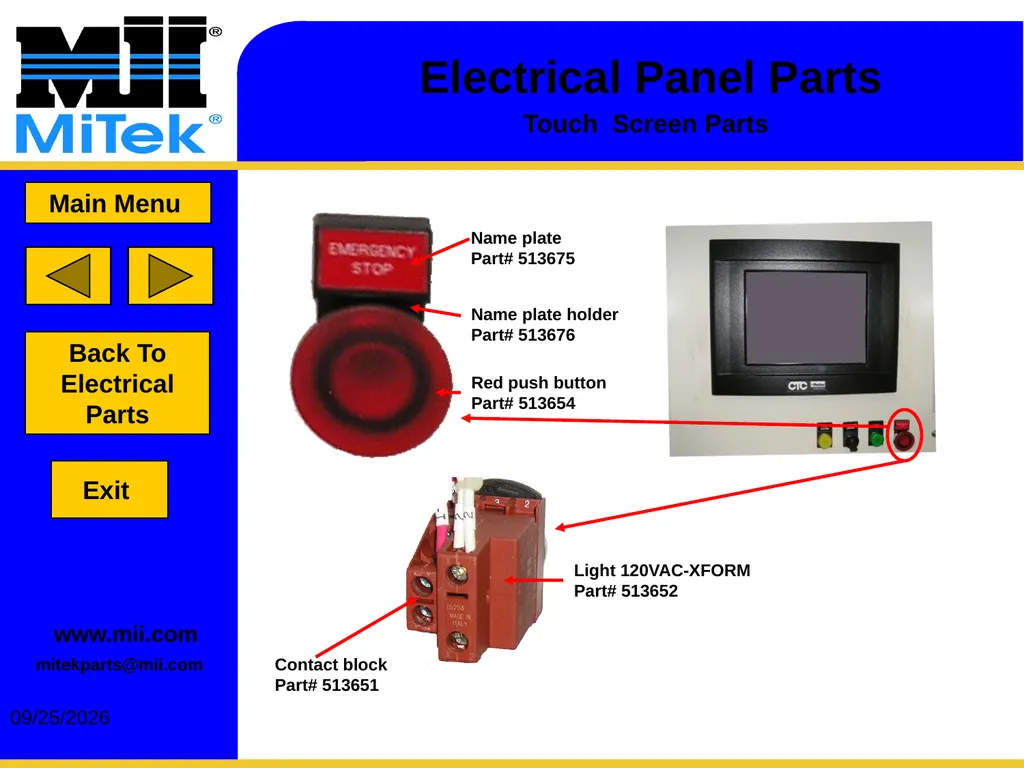

2/15/2017 Main Menu Back To Electrical Parts Exit mitekparts@mii.com Contact block
Part# 513651 Light 120VAC-XFORM
Part# 513652 Red push button
Part# 513654 Name plate holder
Part# 513676 Name plate
Part# 513675 Electrical Panel Parts Touch Screen Parts www.mii.com<br>
Part# 513651 Light 120VAC-XFORM
Part# 513652 Red push button
Part# 513654 Name plate holder
Part# 513676 Name plate
Part# 513675 Electrical Panel Parts Touch Screen Parts www.mii.com<br>
27

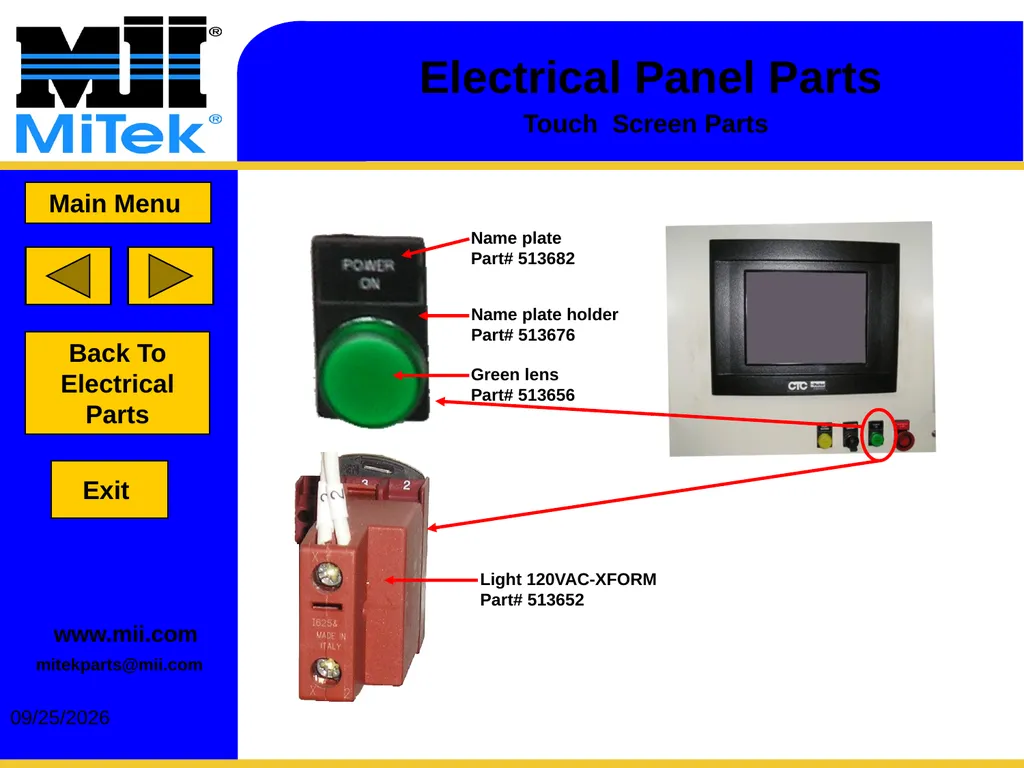

2/15/2017 Electrical Panel Parts Touch Screen Parts Main Menu Back To Electrical Parts mitekparts@mii.com Light 120VAC-XFORM
Part# 513652 Name plate holder
Part# 513676 Name plate
Part# 513682 Green lens
Part# 513656 Exit www.mii.com<br>
Part# 513652 Name plate holder
Part# 513676 Name plate
Part# 513682 Green lens
Part# 513656 Exit www.mii.com<br>
28

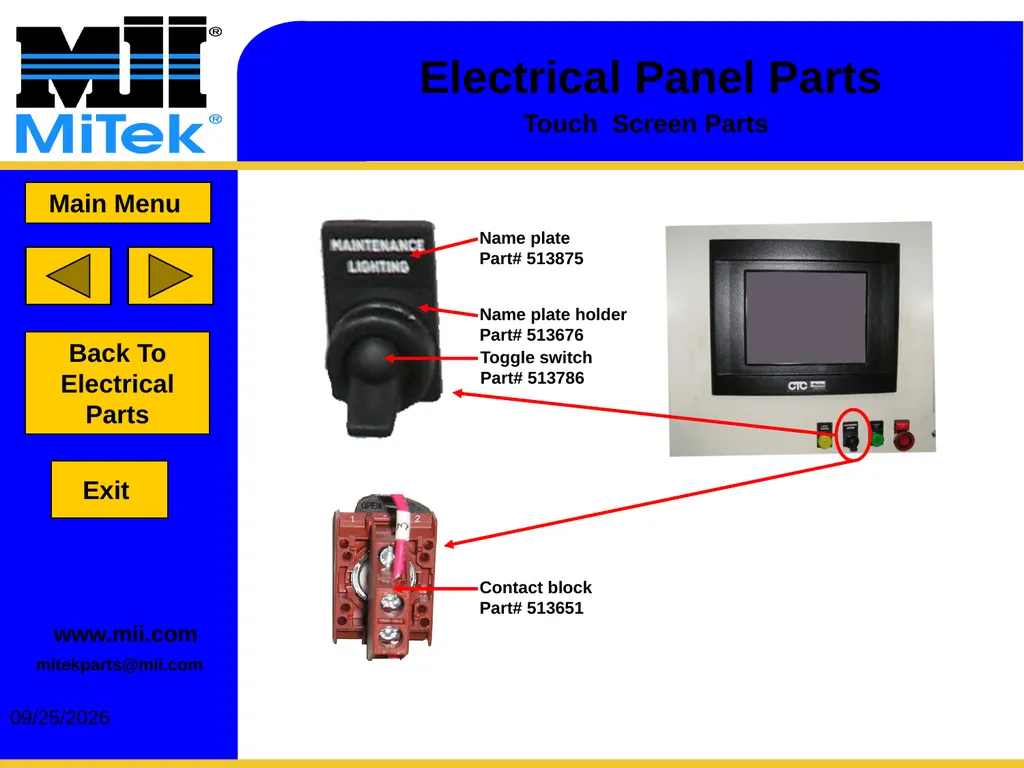

2/15/2017 Electrical Panel Parts Touch Screen Parts Main Menu Back To Electrical Parts Exit mitekparts@mii.com Toggle switch
Part# 513786 Contact block
Part# 513651 Name plate holder
Part# 513676 Name plate
Part# 513875 www.mii.com<br>
Part# 513786 Contact block
Part# 513651 Name plate holder
Part# 513676 Name plate
Part# 513875 www.mii.com<br>
29

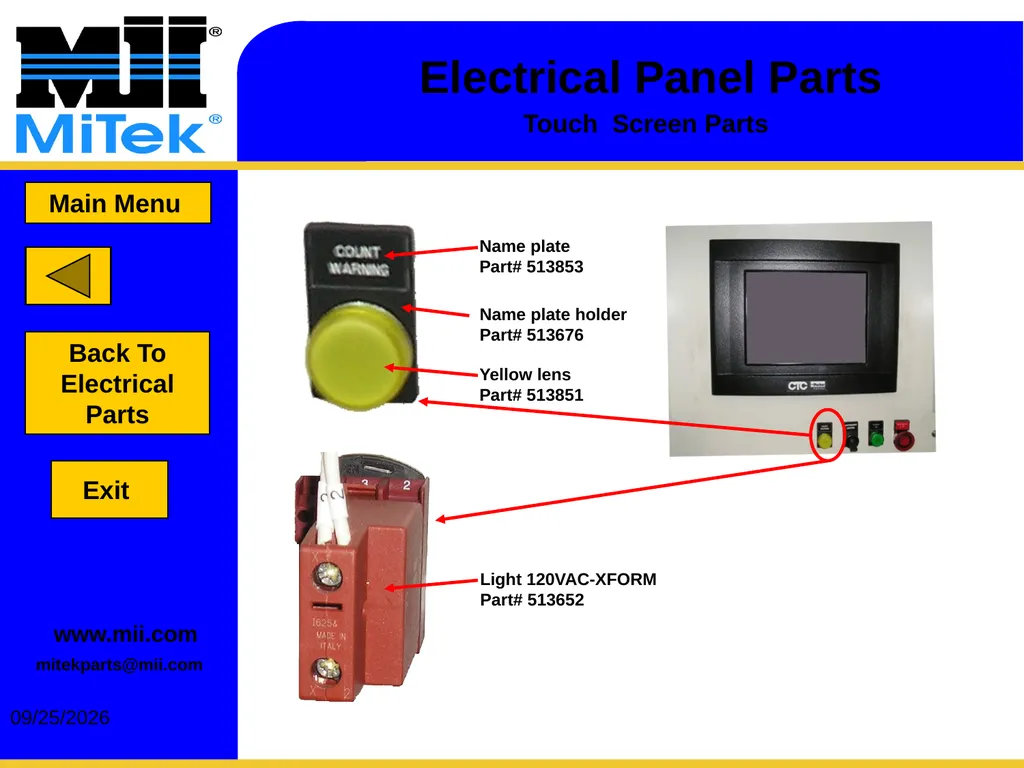

2/15/2017 Electrical Panel Parts Touch Screen Parts Main Menu Back To Electrical Parts Exit mitekparts@mii.com Light 120VAC-XFORM
Part# 513652 Name plate holder
Part# 513676 Name plate
Part# 513853 Yellow lens
Part# 513851 www.mii.com<br>
Part# 513652 Name plate holder
Part# 513676 Name plate
Part# 513853 Yellow lens
Part# 513851 www.mii.com<br>
30

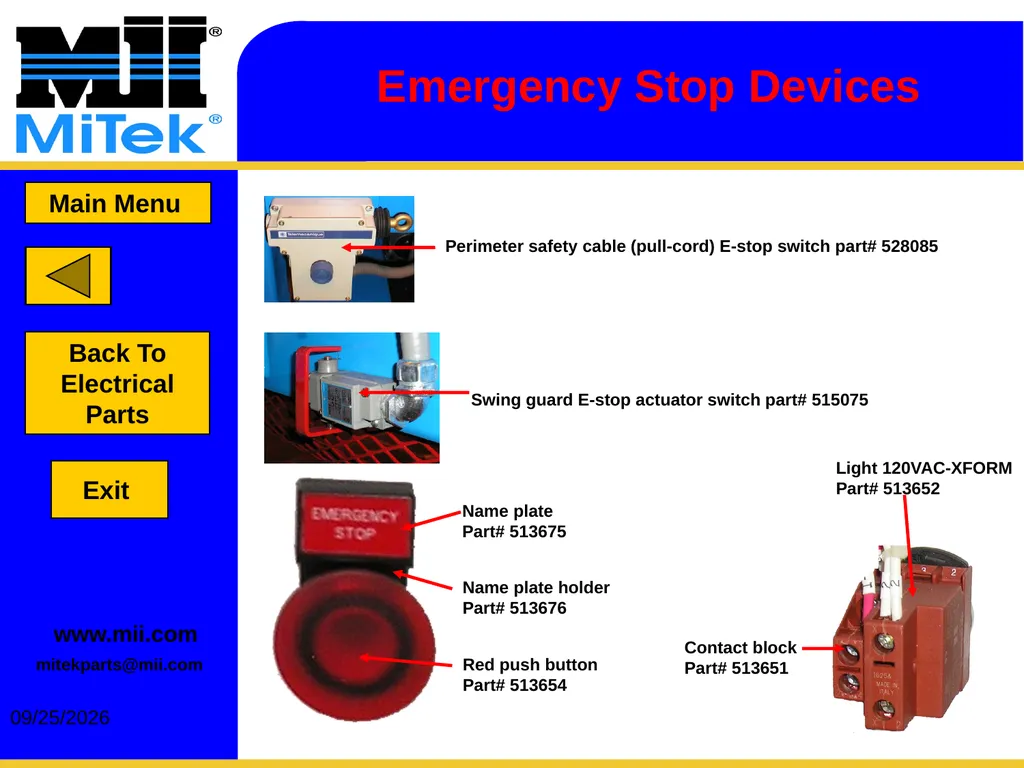

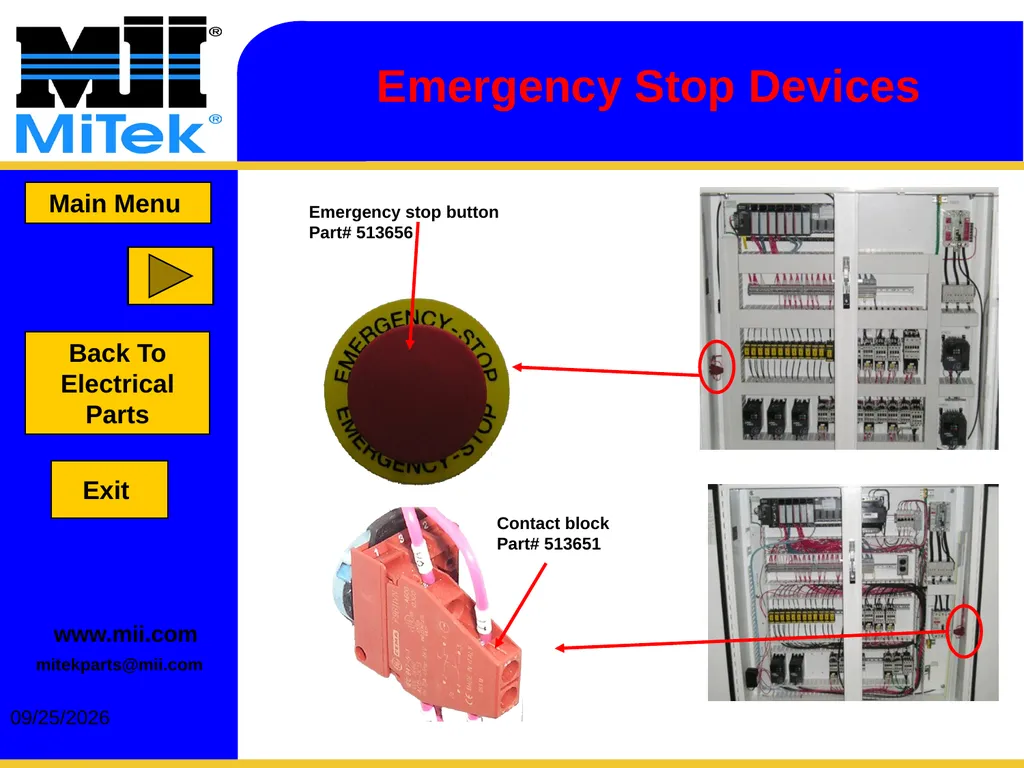

2/15/2017 Emergency stop button
Part# 513656 Emergency Stop Devices Contact block
Part# 513651 Main Menu Back To Electrical Parts Exit mitekparts@mii.com www.mii.com<br>
Part# 513656 Emergency Stop Devices Contact block
Part# 513651 Main Menu Back To Electrical Parts Exit mitekparts@mii.com www.mii.com<br>
31
2/15/2017 Emergency Stop Devices Main Menu Back To Electrical Parts Exit mitekparts@mii.com Perimeter safety cable (pull-cord) E-stop switch part# 528085 Swing guard E-stop actuator switch part# 515075 Red push button
Part# 513654 Name plate holder
Part# 513676 Name plate
Part# 513675 Light 120VAC-XFORM
Part# 513652 Contact block
Part# 513651 www.mii.com<br>
Part# 513654 Name plate holder
Part# 513676 Name plate
Part# 513675 Light 120VAC-XFORM
Part# 513652 Contact block
Part# 513651 www.mii.com<br>
32

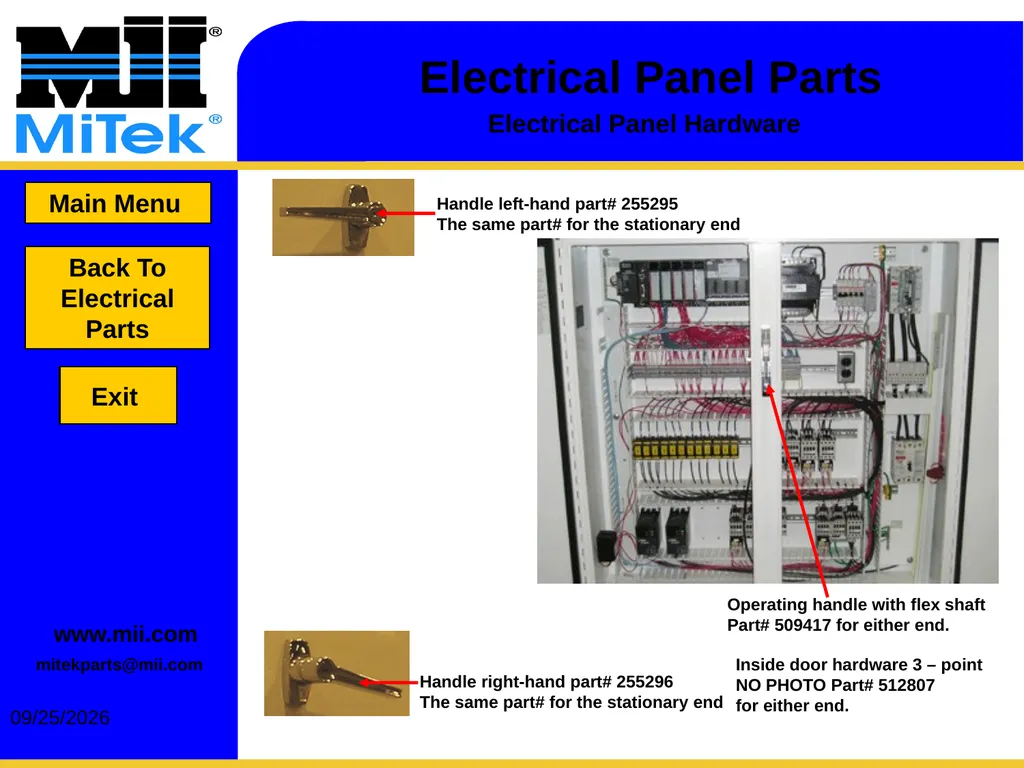

2/15/2017 Operating handle with flex shaft
Part# 509417 for either end. Inside door hardware 3 – point
NO PHOTO Part# 512807
for either end. Main Menu Back To Electrical Parts Exit Handle left-hand part# 255295
The same part# for the stationary end Handle right-hand part# 255296
The same part# for the stationary end mitekparts@mii.com Electrical Panel Parts Electrical Panel Hardware www.mii.com<br>
Part# 509417 for either end. Inside door hardware 3 – point
NO PHOTO Part# 512807
for either end. Main Menu Back To Electrical Parts Exit Handle left-hand part# 255295
The same part# for the stationary end Handle right-hand part# 255296
The same part# for the stationary end mitekparts@mii.com Electrical Panel Parts Electrical Panel Hardware www.mii.com<br>
33

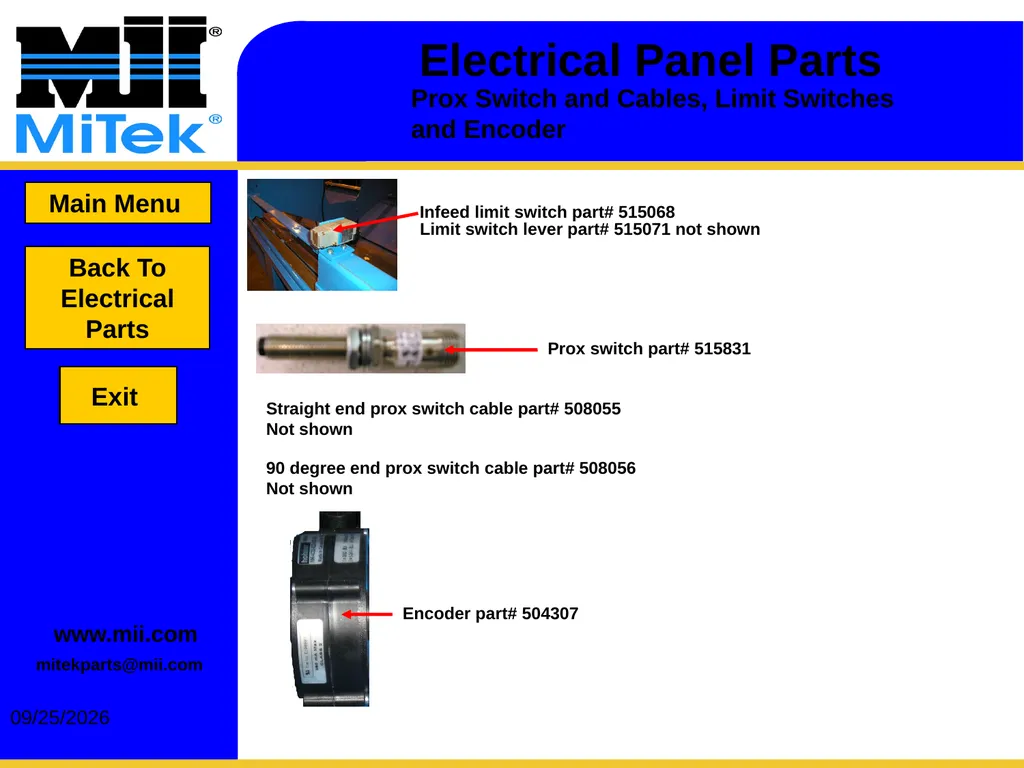

2/15/2017 Electrical Panel Parts Infeed limit switch part# 515068 Limit switch lever part# 515071 not shown Prox switch part# 515831 Straight end prox switch cable part# 508055
Not shown 90 degree end prox switch cable part# 508056
Not shown Encoder part# 504307 Main Menu Back To Electrical Parts Exit mitekparts@mii.com Prox Switch and Cables, Limit Switches
and Encoder www.mii.com<br>
Not shown 90 degree end prox switch cable part# 508056
Not shown Encoder part# 504307 Main Menu Back To Electrical Parts Exit mitekparts@mii.com Prox Switch and Cables, Limit Switches
and Encoder www.mii.com<br>
34
2/15/2017 Cat track complete part# 503027 Single link part# 503046 Cat Track Parts Main Menu Back To Electrical Parts Exit mitekparts@mii.com www.mii.com<br>
35

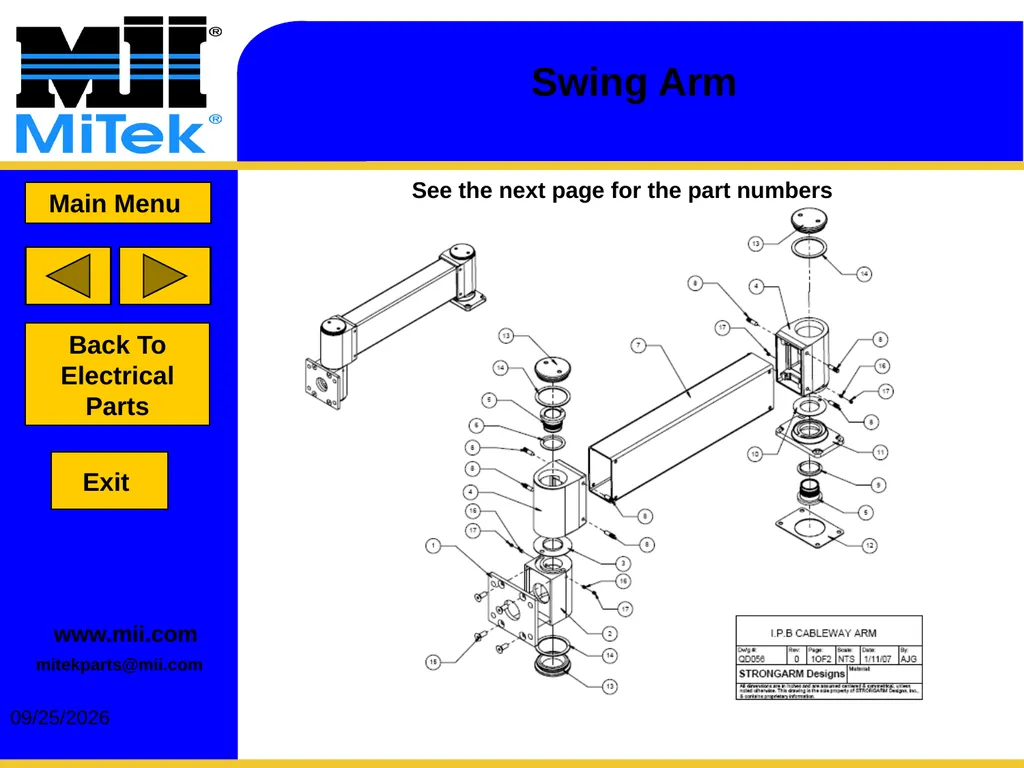

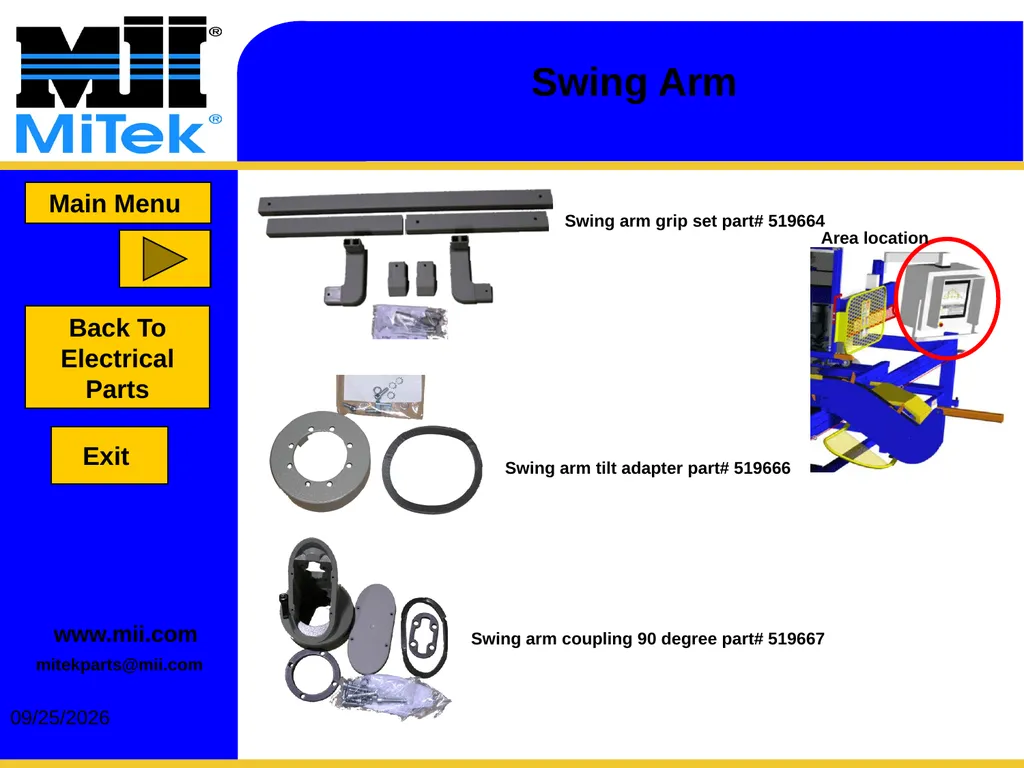

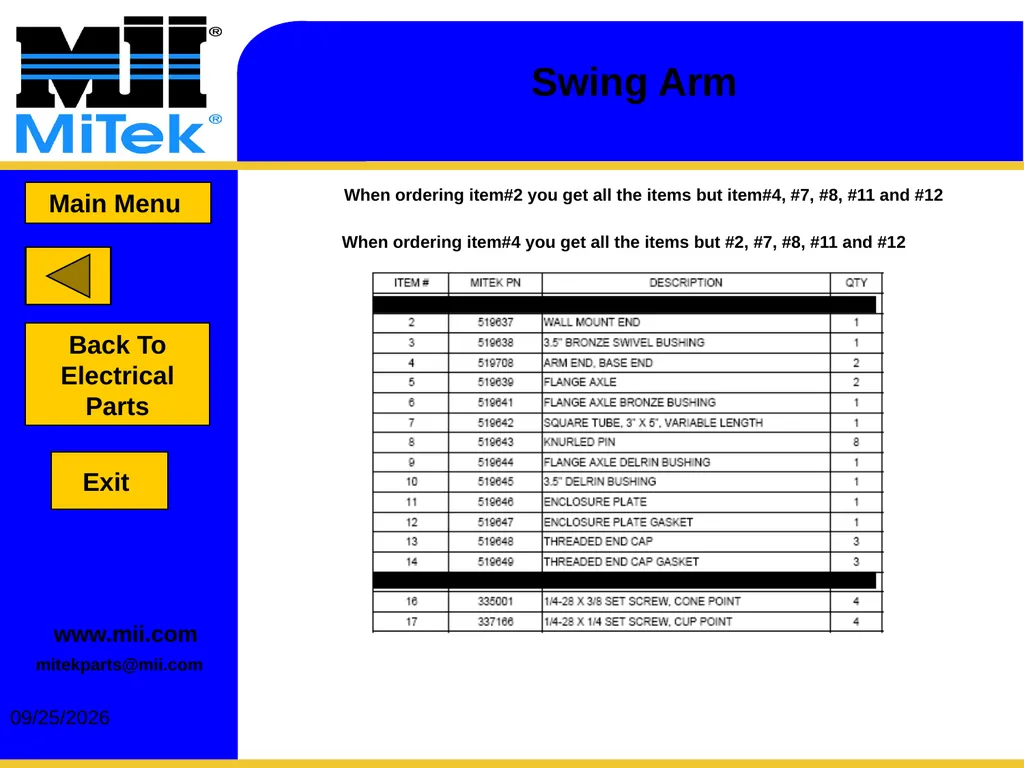

2/15/2017 Swing Arm Main Menu Back To Electrical Parts Exit Swing arm grip set part# 519664 Swing arm tilt adapter part# 519666 Swing arm coupling 90 degree part# 519667 Area location mitekparts@mii.com www.mii.com<br>
36
2/15/2017 Swing Arm Back To Electrical Parts Main Menu Exit mitekparts@mii.com See the next page for the part numbers www.mii.com<br>
37
2/15/2017 Swing Arm Main Menu Back To Electrical Parts Exit mitekparts@mii.com www.mii.com When ordering item#2 you get all the items but item#4, #7, #8, #11 and #12 When ordering item#4 you get all the items but #2, #7, #8, #11 and #12<br>
38
2/15/2017 Mechanical Parts Hold-Down Channel Main Menu Exit Infeed Horizontal Adjustment Hold-Down Vertical Infeed Conveyor Hold-Down Chain Drive Carriage End Hold-Down & Infeed Conveyor Drive, Stationary End Carriage Drive Centerline Acme Rods
And Acme Nuts Hold – Down Horizontal
Adjustment Centerline Drive Quadrant Drive Air Brakes Lumber Stop Saw Blade and Bolts Scale and Scale Kits Waste Conveyor Incline Waste Conveyor Guards and Covers www.mii.com<br>
And Acme Nuts Hold – Down Horizontal
Adjustment Centerline Drive Quadrant Drive Air Brakes Lumber Stop Saw Blade and Bolts Scale and Scale Kits Waste Conveyor Incline Waste Conveyor Guards and Covers www.mii.com<br>
39

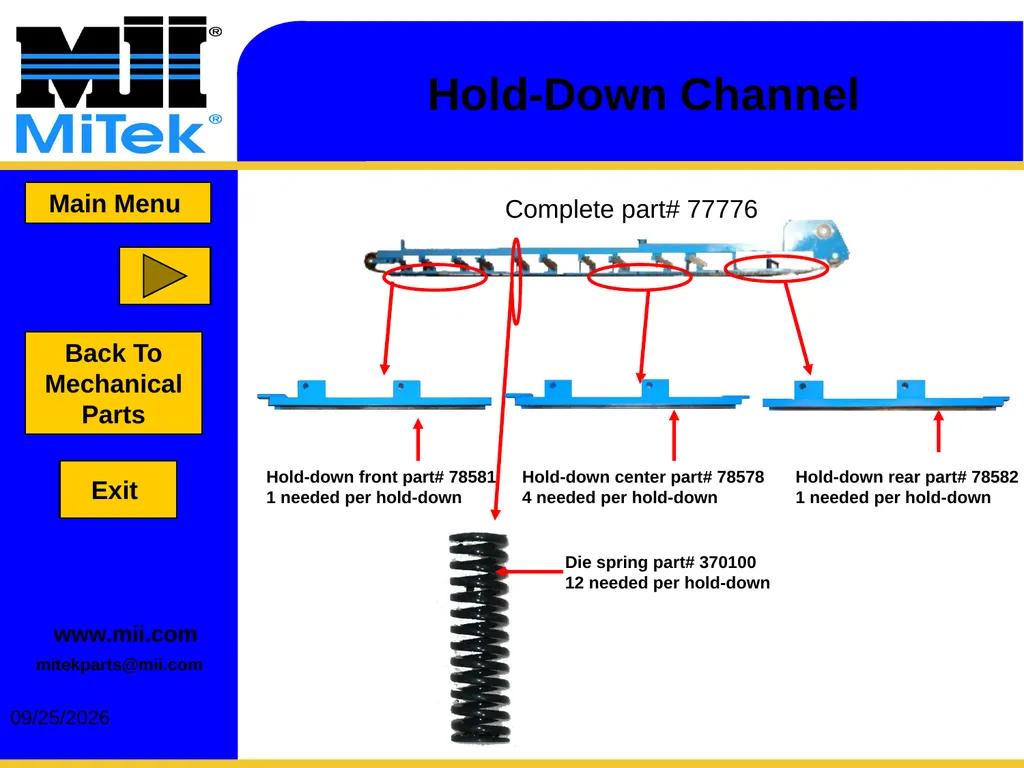

2/15/2017 Hold-Down Channel Complete part# 77776 Hold-down front part# 78581
1 needed per hold-down Hold-down center part# 78578
4 needed per hold-down Hold-down rear part# 78582
1 needed per hold-down Die spring part# 370100
12 needed per hold-down Back To Mechanical Parts Main Menu Exit mitekparts@mii.com www.mii.com<br>
1 needed per hold-down Hold-down center part# 78578
4 needed per hold-down Hold-down rear part# 78582
1 needed per hold-down Die spring part# 370100
12 needed per hold-down Back To Mechanical Parts Main Menu Exit mitekparts@mii.com www.mii.com<br>
40

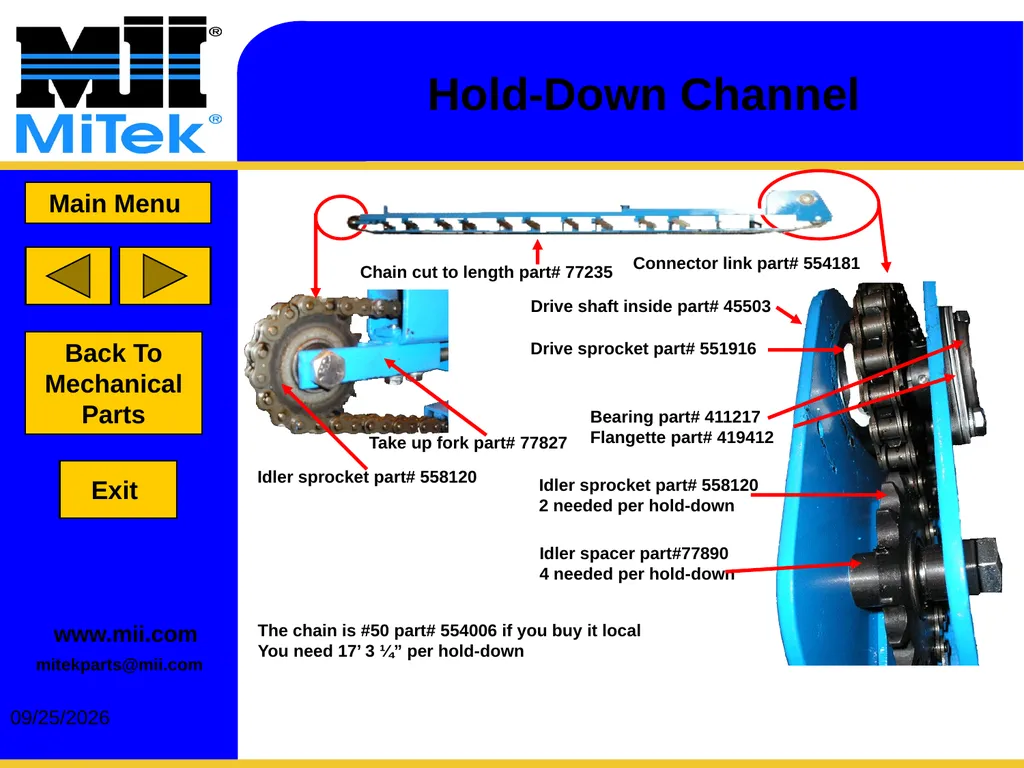

2/15/2017 Idler sprocket part# 558120 Drive shaft inside part# 45503 Drive sprocket part# 551916 Idler sprocket part# 558120
2 needed per hold-down Bearing part# 411217
Flangette part# 419412 Idler spacer part#77890
4 needed per hold-down Take up fork part# 77827 Chain cut to length part# 77235 Connector link part# 554181 The chain is #50 part# 554006 if you buy it local
You need 17’ 3 ¼” per hold-down Main Menu Back To Mechanical Parts Exit Hold-Down Channel mitekparts@mii.com www.mii.com<br>
2 needed per hold-down Bearing part# 411217
Flangette part# 419412 Idler spacer part#77890
4 needed per hold-down Take up fork part# 77827 Chain cut to length part# 77235 Connector link part# 554181 The chain is #50 part# 554006 if you buy it local
You need 17’ 3 ¼” per hold-down Main Menu Back To Mechanical Parts Exit Hold-Down Channel mitekparts@mii.com www.mii.com<br>
41

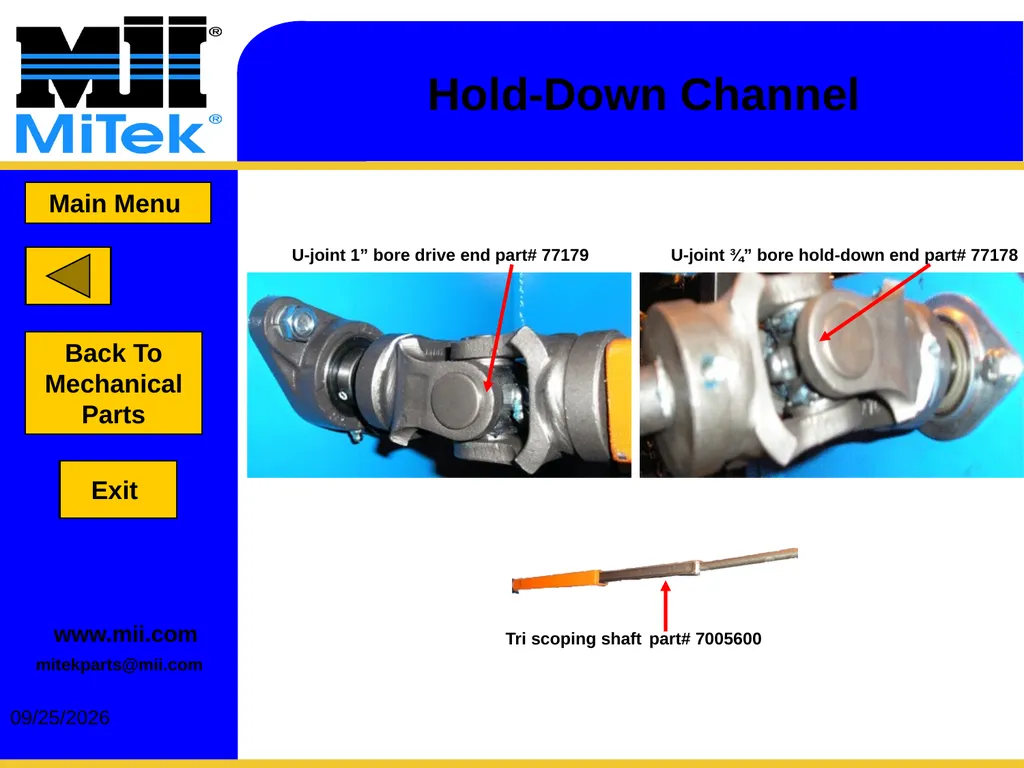

2/15/2017 U-joint 1” bore drive end part# 77179 U-joint ¾” bore hold-down end part# 77178 Tri scoping shaft part# 7005600 Main Menu Back To Mechanical Parts Exit Hold-Down Channel mitekparts@mii.com www.mii.com<br>
42

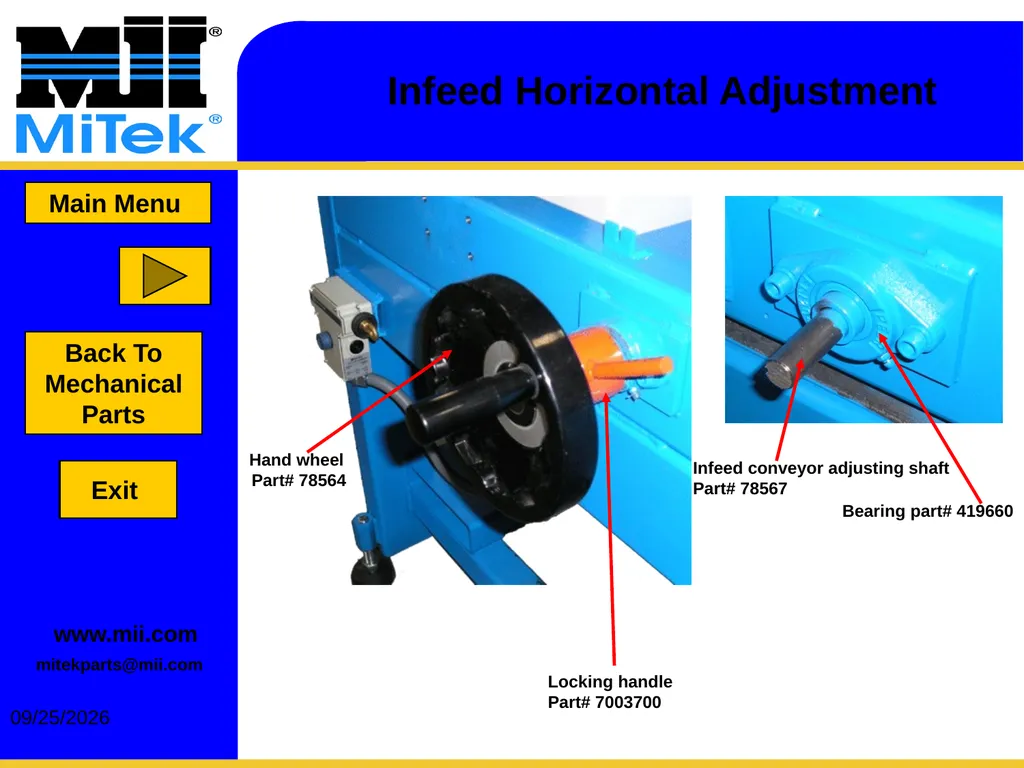

2/15/2017 Locking handle
Part# 7003700 Hand wheel
Part# 78564 Infeed conveyor adjusting shaft
Part# 78567 Bearing part# 419660 Infeed Horizontal Adjustment Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
Part# 7003700 Hand wheel
Part# 78564 Infeed conveyor adjusting shaft
Part# 78567 Bearing part# 419660 Infeed Horizontal Adjustment Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
43
2/15/2017 Infeed Horizontal Adjustment Main Menu Back To Mechanical Parts Exit mitekparts@mii.com Spur gear part# 544169 Roll pin part# 395198 www.mii.com<br>
44

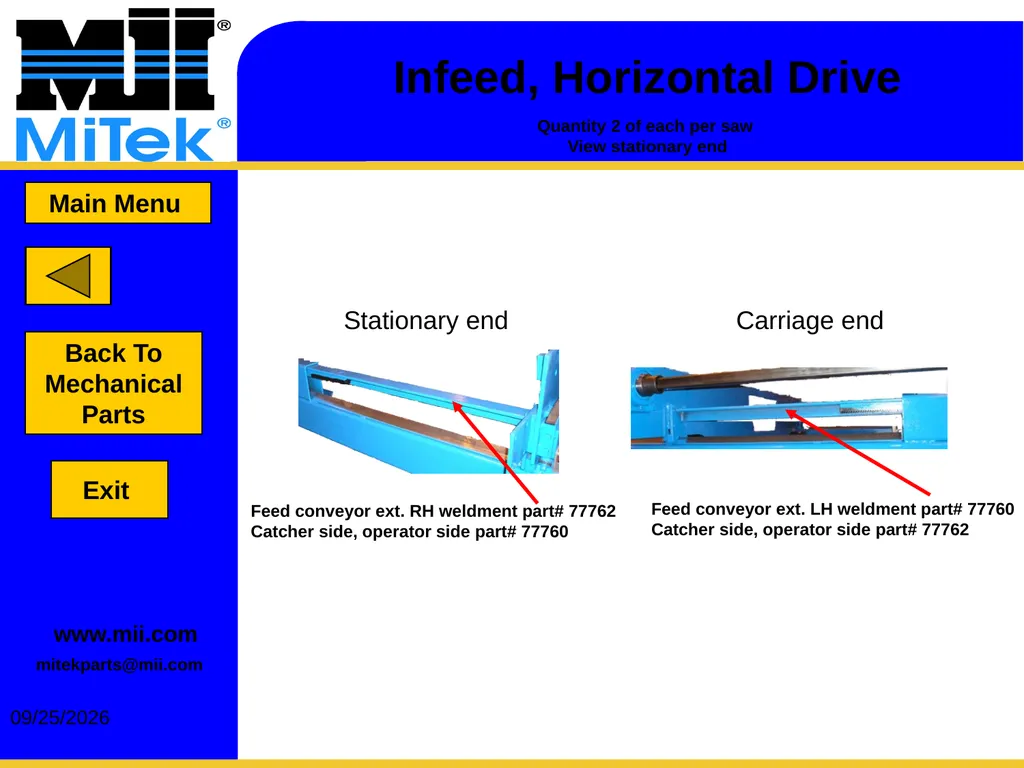

2/15/2017 Feed conveyor ext. RH weldment part# 77762
Catcher side, operator side part# 77760 Stationary end Carriage end Feed conveyor ext. LH weldment part# 77760
Catcher side, operator side part# 77762 Quantity 2 of each per saw
View stationary end Infeed, Horizontal Drive Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
Catcher side, operator side part# 77760 Stationary end Carriage end Feed conveyor ext. LH weldment part# 77760
Catcher side, operator side part# 77762 Quantity 2 of each per saw
View stationary end Infeed, Horizontal Drive Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
45

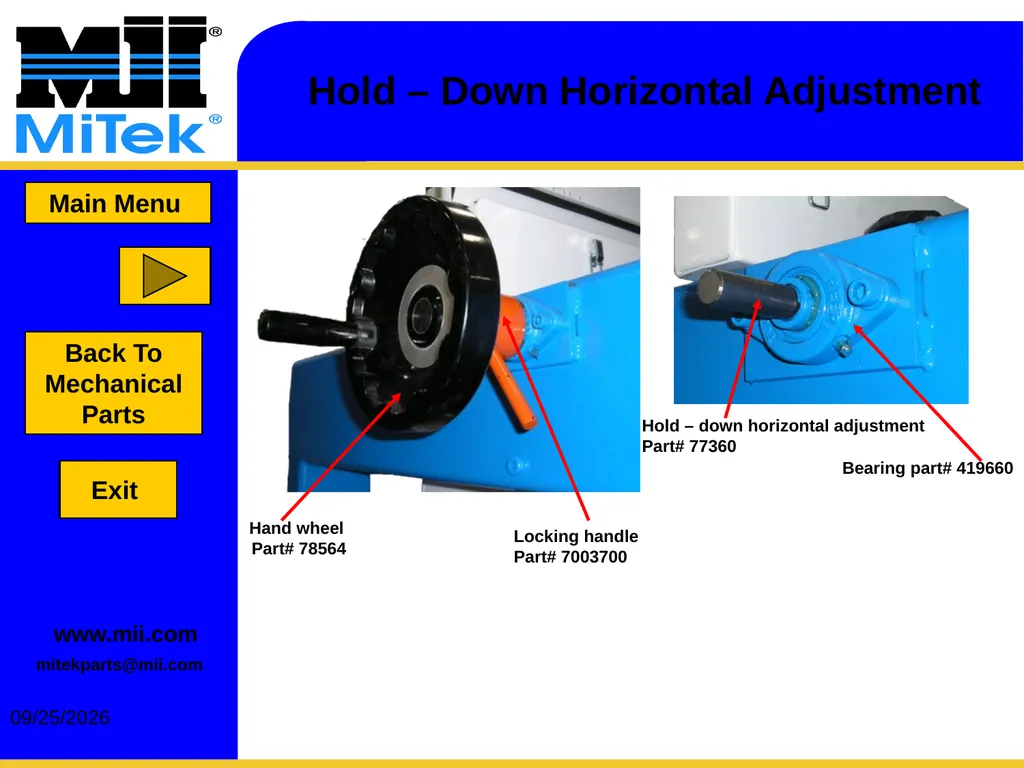

2/15/2017 Locking handle
Part# 7003700 Hand wheel
Part# 78564 Hold – down horizontal adjustment
Part# 77360 Bearing part# 419660 Hold – Down Horizontal Adjustment Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
Part# 7003700 Hand wheel
Part# 78564 Hold – down horizontal adjustment
Part# 77360 Bearing part# 419660 Hold – Down Horizontal Adjustment Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
46

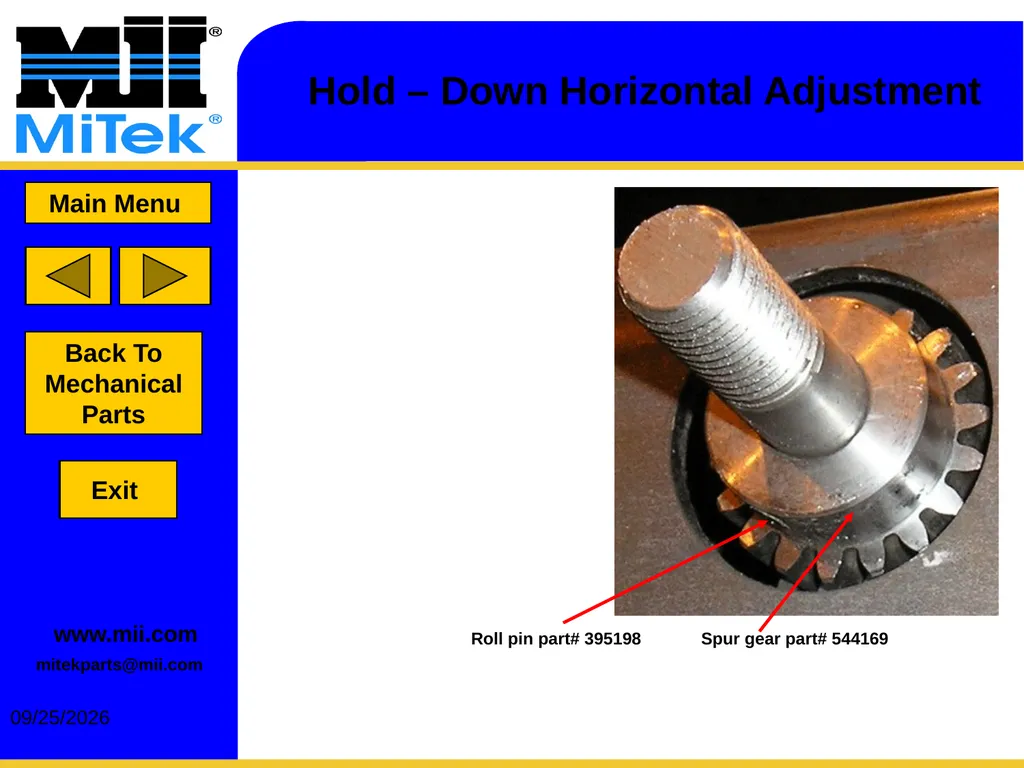

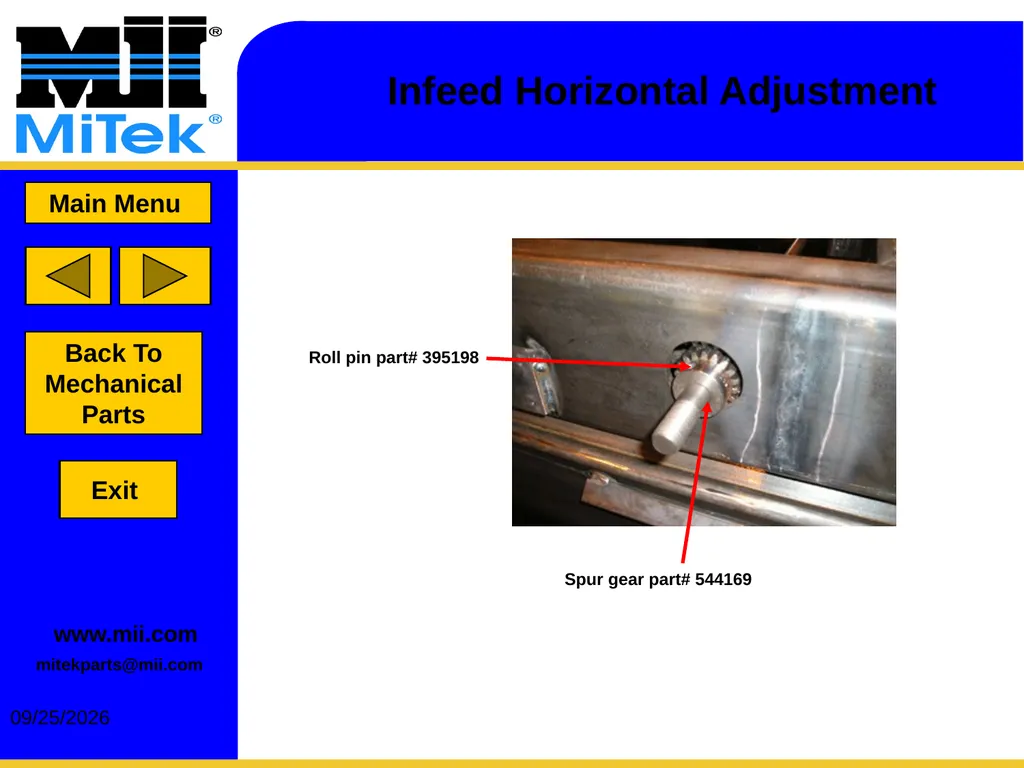

2/15/2017 Spur gear part# 544169 Roll pin part# 395198 Hold – Down Horizontal Adjustment mitekparts@mii.com Exit Back To Mechanical Parts Main Menu www.mii.com<br>
47
2/15/2017 Bearing part# 419660

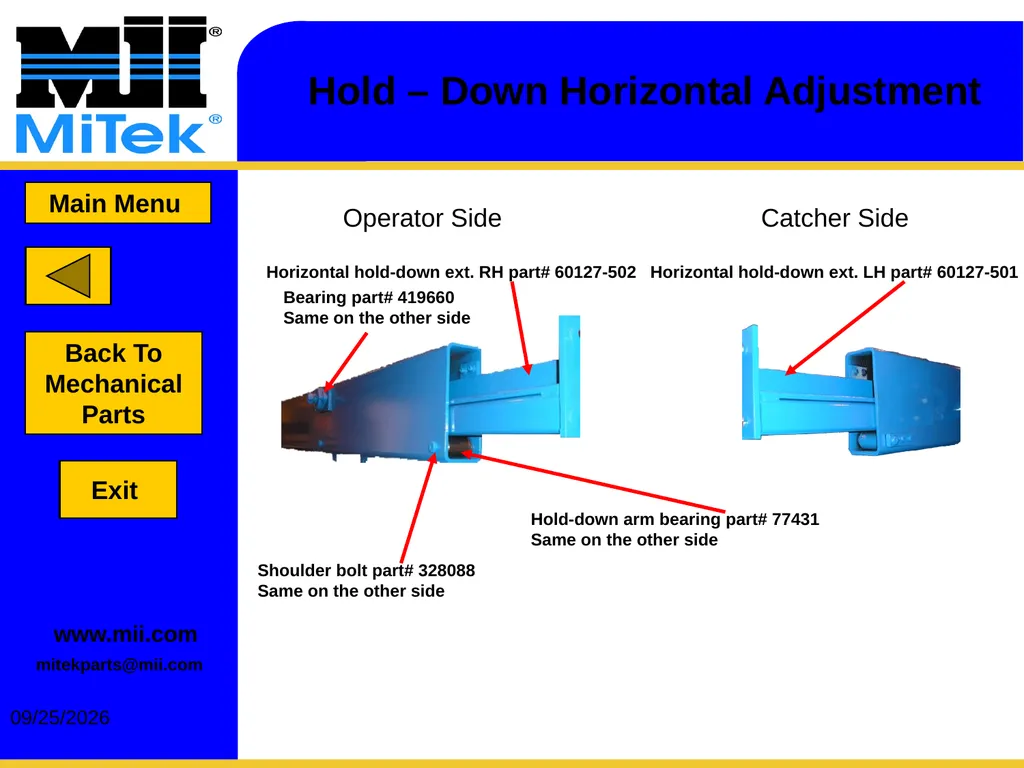

Same on the other side Horizontal hold-down ext. RH part# 60127-502 Operator Side Horizontal hold-down ext. LH part# 60127-501 Catcher Side Hold-down arm bearing part# 77431
Same on the other side Shoulder bolt part# 328088
Same on the other side mitekparts@mii.com Main Menu Back To Mechanical Parts Exit Hold – Down Horizontal Adjustment www.mii.com<br>
Same on the other side Horizontal hold-down ext. RH part# 60127-502 Operator Side Horizontal hold-down ext. LH part# 60127-501 Catcher Side Hold-down arm bearing part# 77431
Same on the other side Shoulder bolt part# 328088
Same on the other side mitekparts@mii.com Main Menu Back To Mechanical Parts Exit Hold – Down Horizontal Adjustment www.mii.com<br>
48

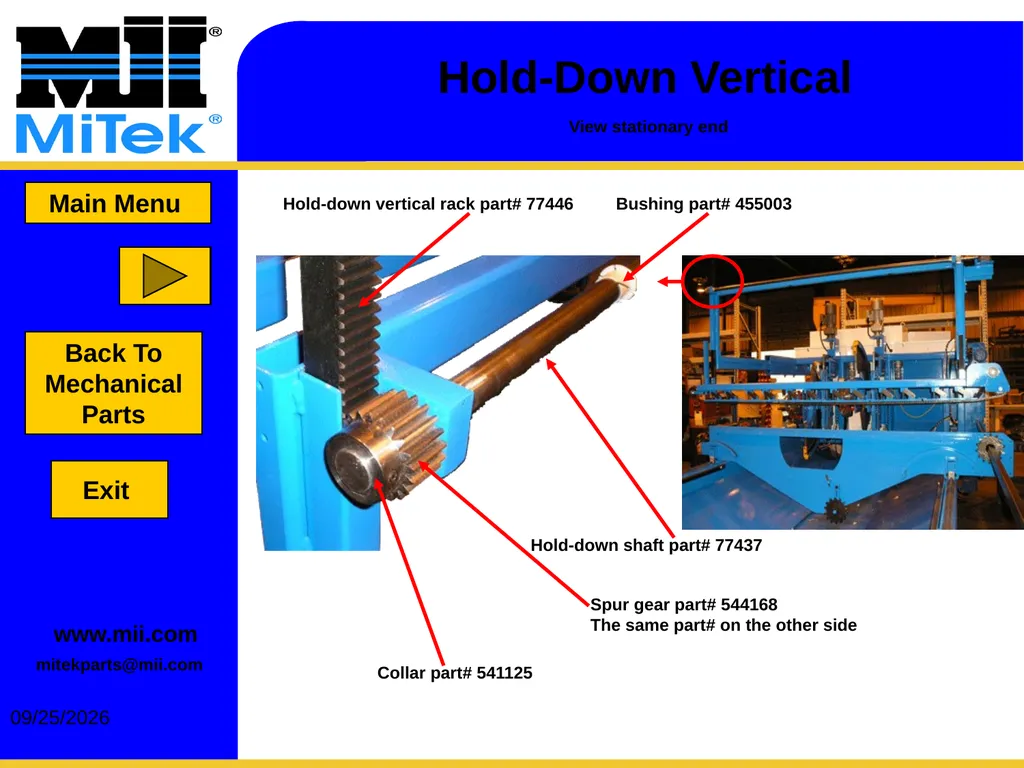

2/15/2017 Hold-down vertical rack part# 77446 Hold-down shaft part# 77437 Bushing part# 455003 Spur gear part# 544168
The same part# on the other side Collar part# 541125 Hold-Down Vertical View stationary end Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
The same part# on the other side Collar part# 541125 Hold-Down Vertical View stationary end Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
49

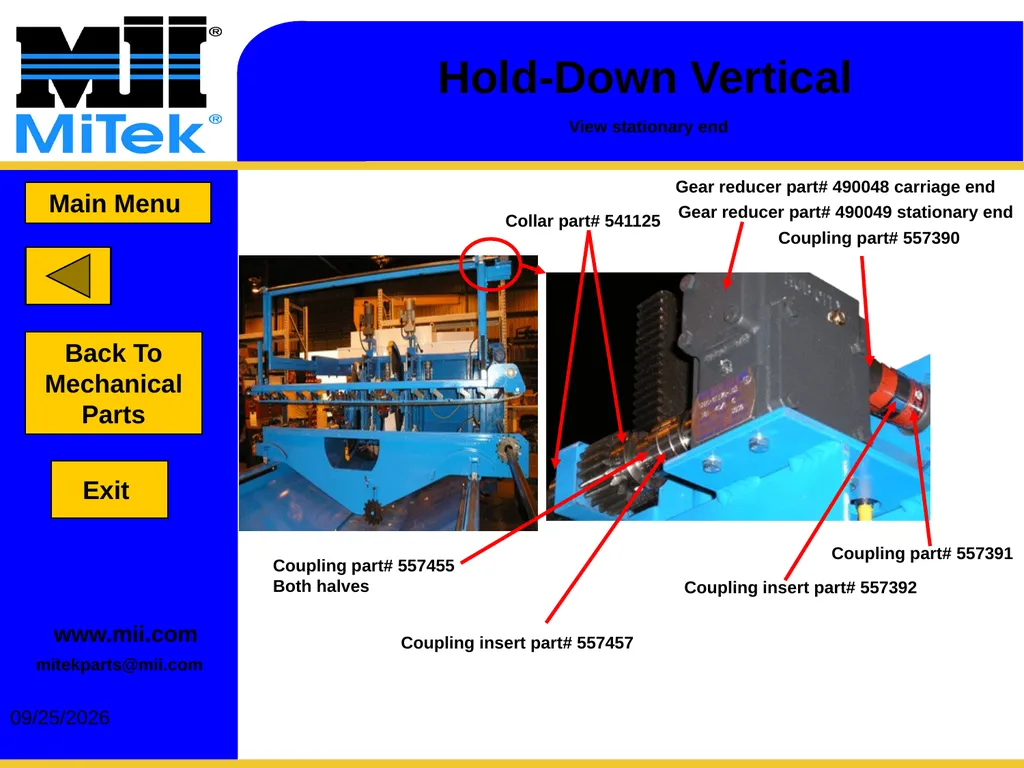

2/15/2017 Collar part# 541125 Coupling part# 557390 Coupling part# 557391 Coupling insert part# 557392 Gear reducer part# 490049 stationary end Coupling part# 557455
Both halves Coupling insert part# 557457 Gear reducer part# 490048 carriage end Main Menu Back To Mechanical Parts Exit Hold-Down Vertical View stationary end mitekparts@mii.com www.mii.com<br>
Both halves Coupling insert part# 557457 Gear reducer part# 490048 carriage end Main Menu Back To Mechanical Parts Exit Hold-Down Vertical View stationary end mitekparts@mii.com www.mii.com<br>
50

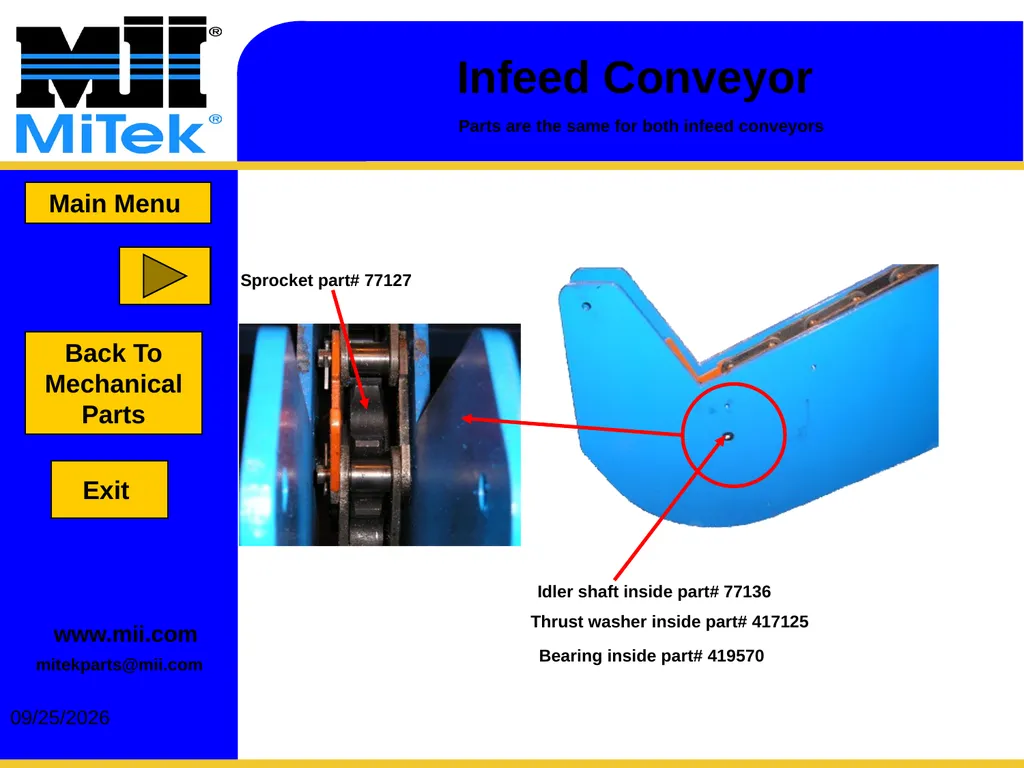

2/15/2017 Infeed Conveyor Sprocket part# 77127 Idler shaft inside part# 77136 Thrust washer inside part# 417125 Bearing inside part# 419570 Parts are the same for both infeed conveyors Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
51

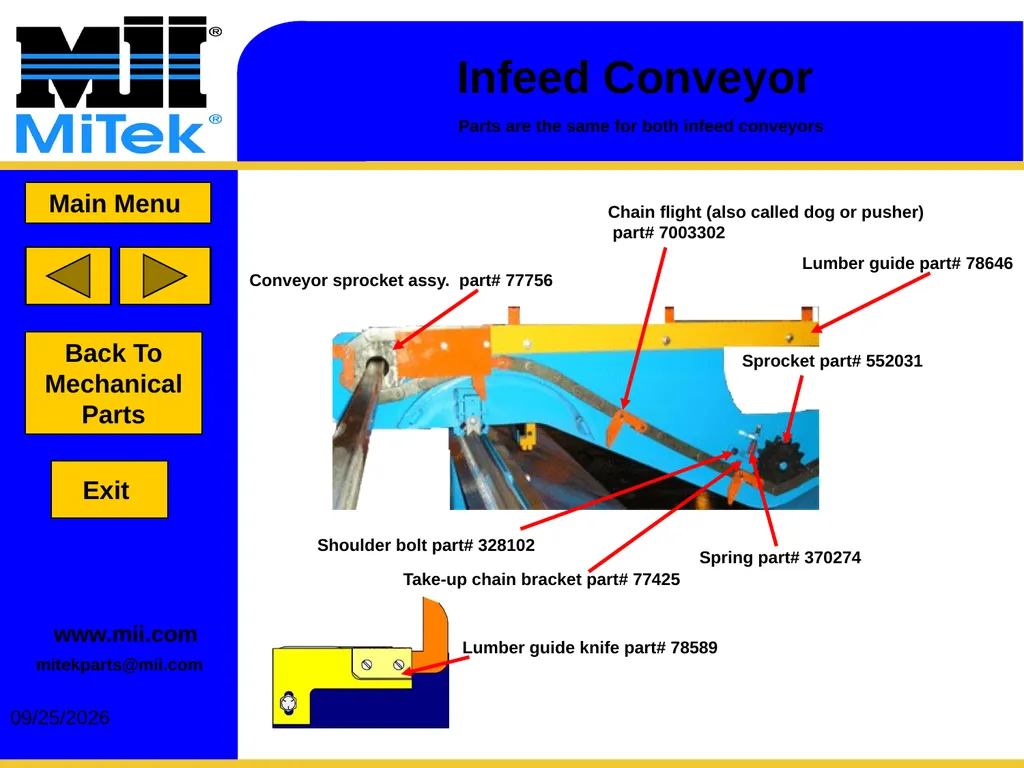

2/15/2017 Sprocket part# 552031 Conveyor sprocket assy. part# 77756 Spring part# 370274 Take-up chain bracket part# 77425 Chain flight (also called dog or pusher) part# 7003302 Shoulder bolt part# 328102 Lumber guide part# 78646 Lumber guide knife part# 78589 Main Menu Back To Mechanical Parts Exit Infeed Conveyor Parts are the same for both infeed conveyors mitekparts@mii.com www.mii.com<br>
52

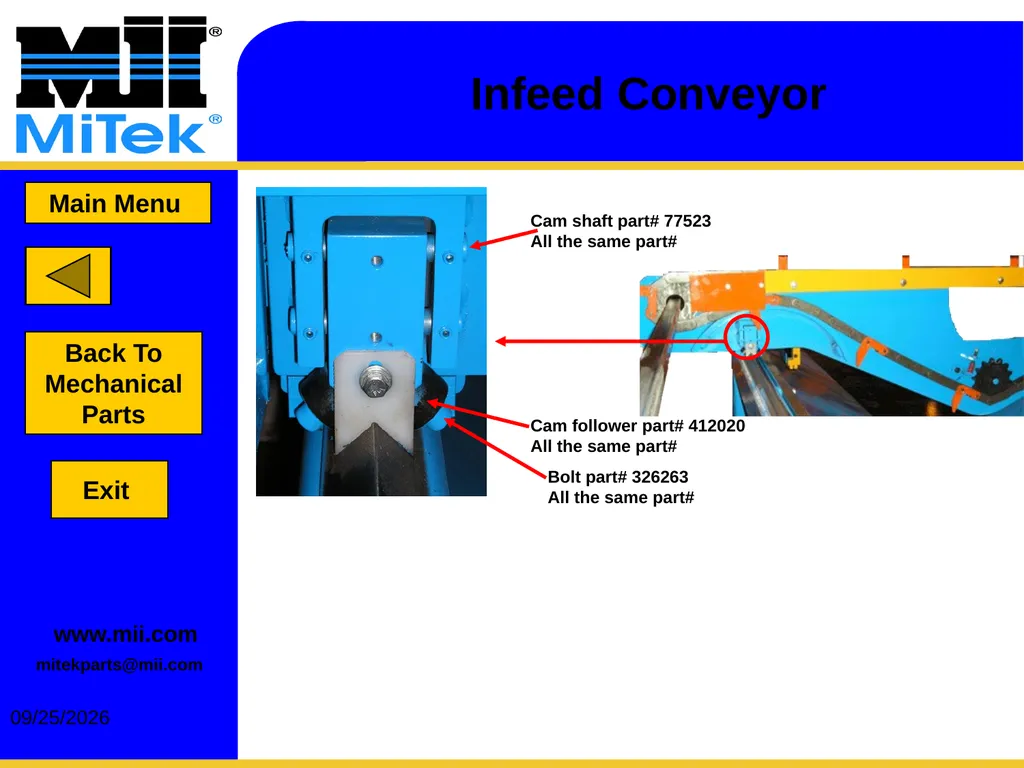

2/15/2017 Cam follower part# 412020
All the same part# Bolt part# 326263
All the same part# Cam shaft part# 77523
All the same part# Infeed Conveyor Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
All the same part# Bolt part# 326263
All the same part# Cam shaft part# 77523
All the same part# Infeed Conveyor Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
53

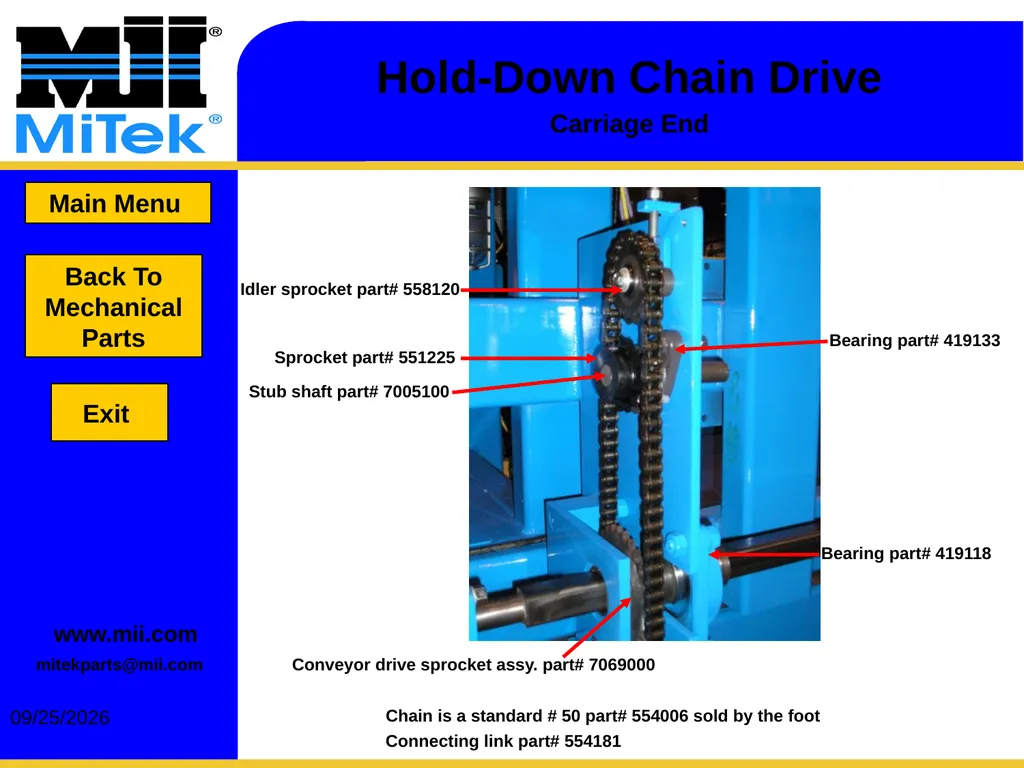

2/15/2017 Hold-Down Chain Drive Idler sprocket part# 558120 Sprocket part# 551225 Stub shaft part# 7005100 Conveyor drive sprocket assy. part# 7069000 Bearing part# 419133 Bearing part# 419118 Chain is a standard # 50 part# 554006 sold by the foot Connecting link part# 554181 Main Menu Back To Mechanical Parts Exit Carriage End mitekparts@mii.com www.mii.com<br>
54

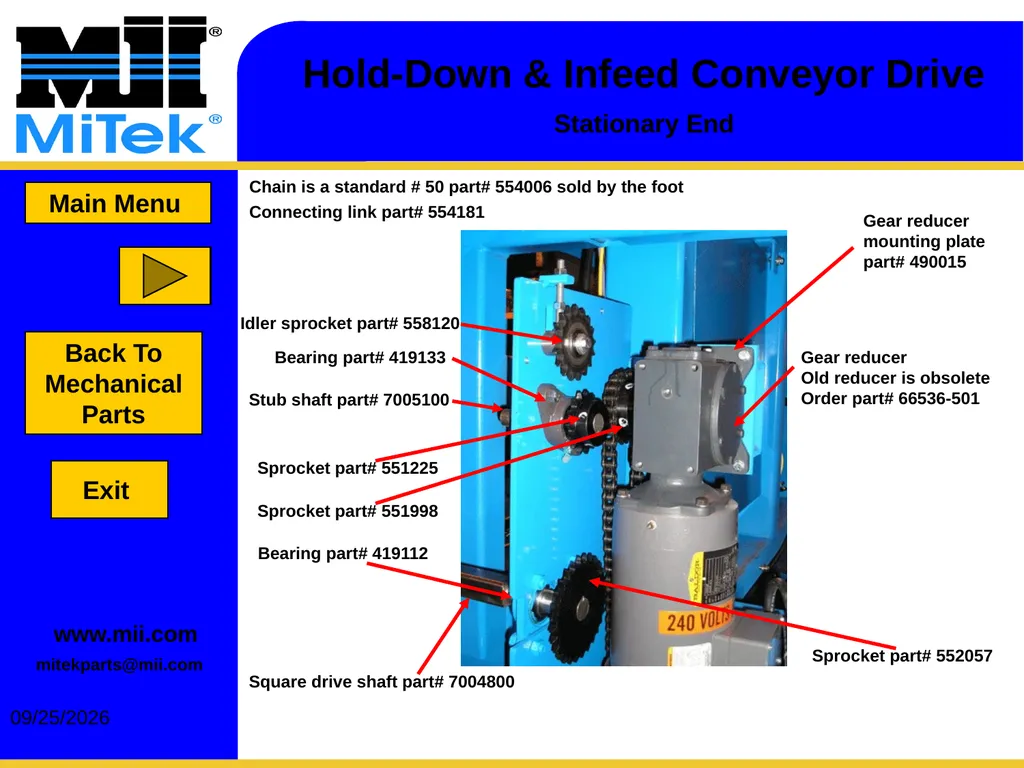

2/15/2017 Hold-Down & Infeed Conveyor Drive Idler sprocket part# 558120 Sprocket part# 551225 Stub shaft part# 7005100 Bearing part# 419133 Sprocket part# 551998 Sprocket part# 552057 Bearing part# 419112 Square drive shaft part# 7004800 Gear reducer
Old reducer is obsolete
Order part# 66536-501 Gear reducer mounting plate part# 490015 Chain is a standard # 50 part# 554006 sold by the foot Connecting link part# 554181 Main Menu Back To Mechanical Parts Exit Stationary End mitekparts@mii.com www.mii.com<br>
Old reducer is obsolete
Order part# 66536-501 Gear reducer mounting plate part# 490015 Chain is a standard # 50 part# 554006 sold by the foot Connecting link part# 554181 Main Menu Back To Mechanical Parts Exit Stationary End mitekparts@mii.com www.mii.com<br>
55

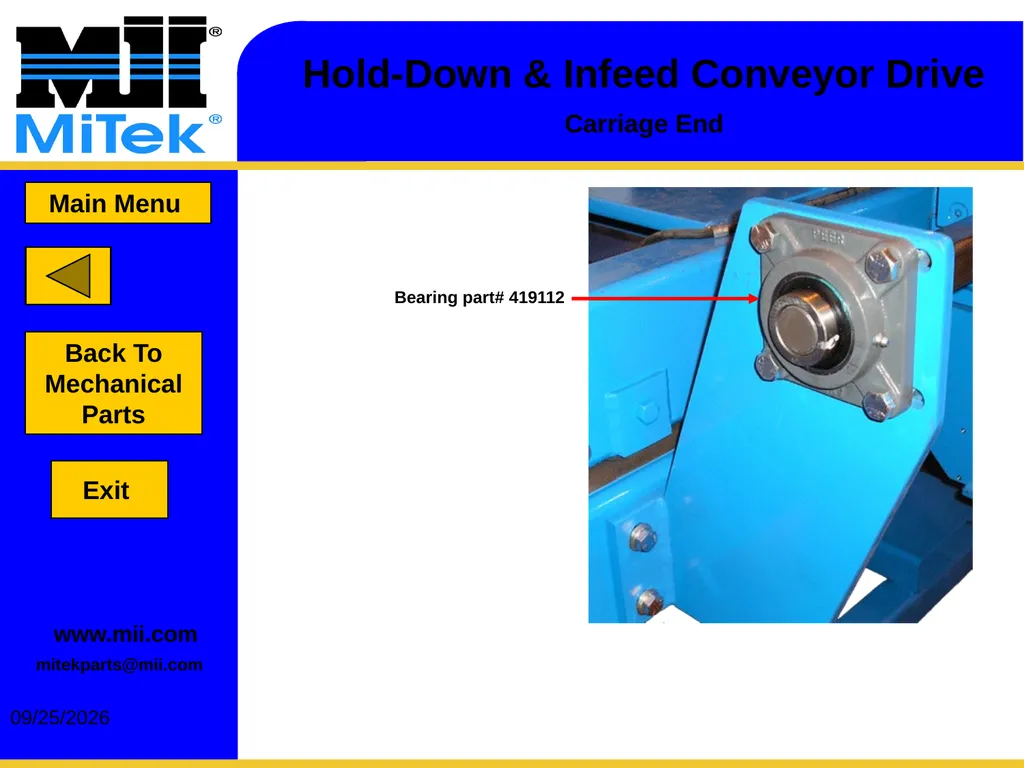

2/15/2017 Bearing part# 419112 Main Menu Back To Mechanical Parts Exit Hold-Down & Infeed Conveyor Drive Carriage End mitekparts@mii.com www.mii.com<br>
56

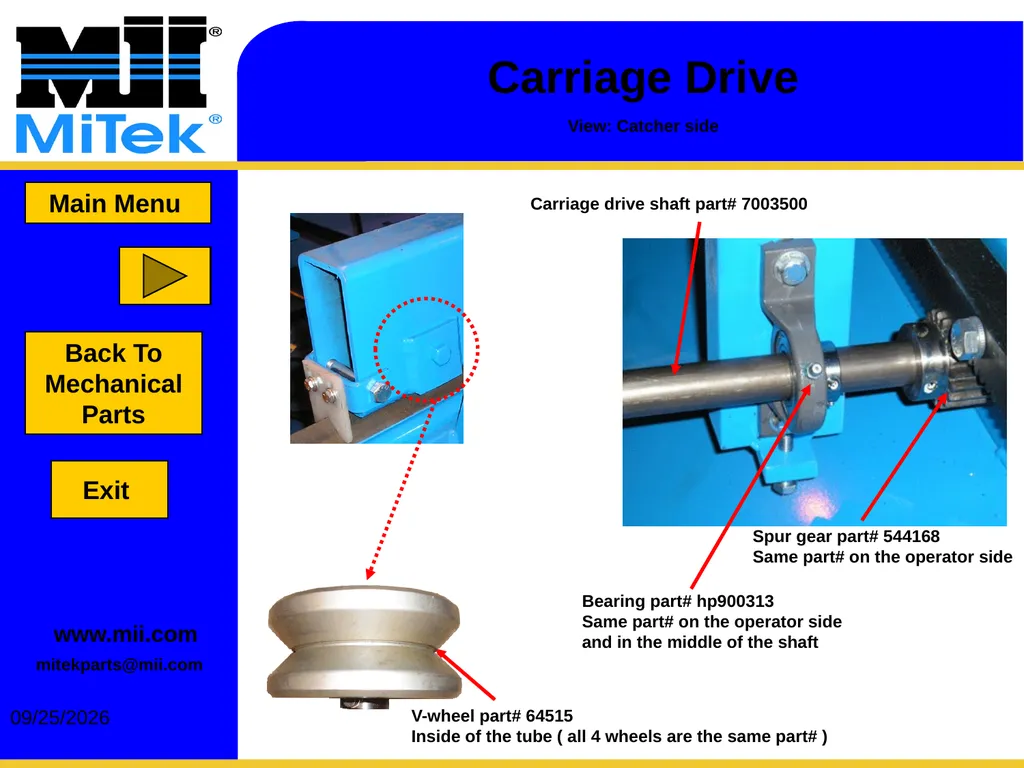

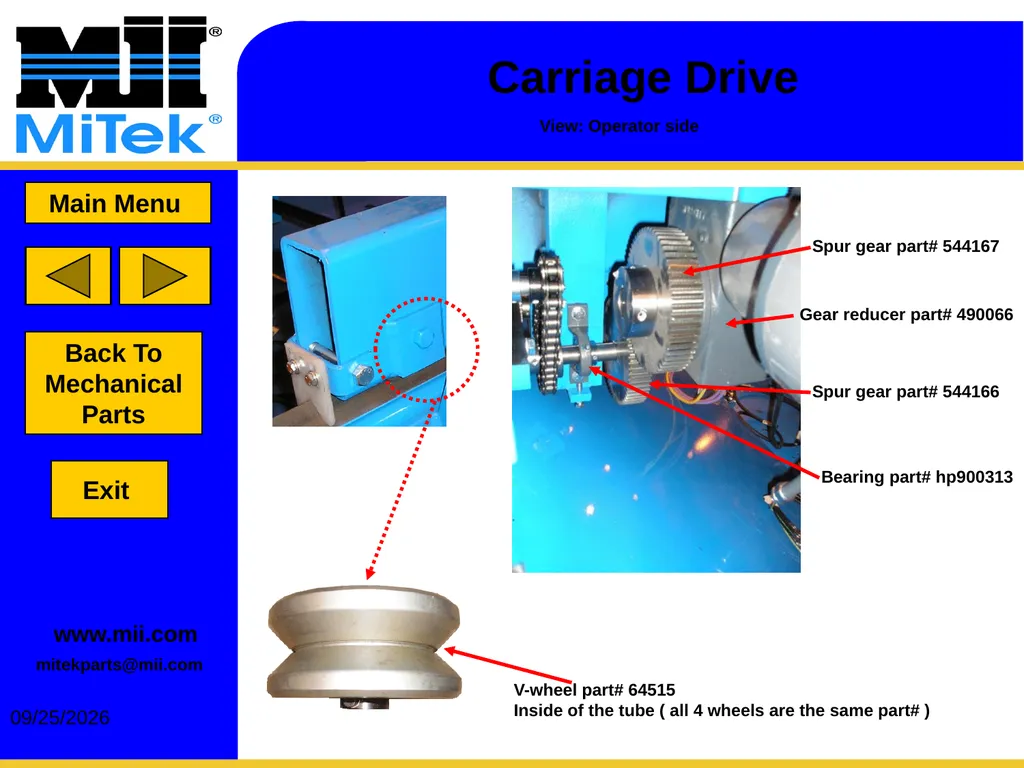

2/15/2017 Carriage Drive Spur gear part# 544168
Same part# on the operator side Bearing part# hp900313
Same part# on the operator side
and in the middle of the shaft Carriage drive shaft part# 7003500 View: Catcher side V-wheel part# 64515
Inside of the tube ( all 4 wheels are the same part# ) Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
Same part# on the operator side Bearing part# hp900313
Same part# on the operator side
and in the middle of the shaft Carriage drive shaft part# 7003500 View: Catcher side V-wheel part# 64515
Inside of the tube ( all 4 wheels are the same part# ) Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
57
2/15/2017 Spur gear part# 544167 Spur gear part# 544166 Gear reducer part# 490066 Bearing part# hp900313 V-wheel part# 64515
Inside of the tube ( all 4 wheels are the same part# ) Carriage Drive Main Menu Back To Mechanical Parts Exit View: Operator side mitekparts@mii.com www.mii.com<br>
Inside of the tube ( all 4 wheels are the same part# ) Carriage Drive Main Menu Back To Mechanical Parts Exit View: Operator side mitekparts@mii.com www.mii.com<br>
58

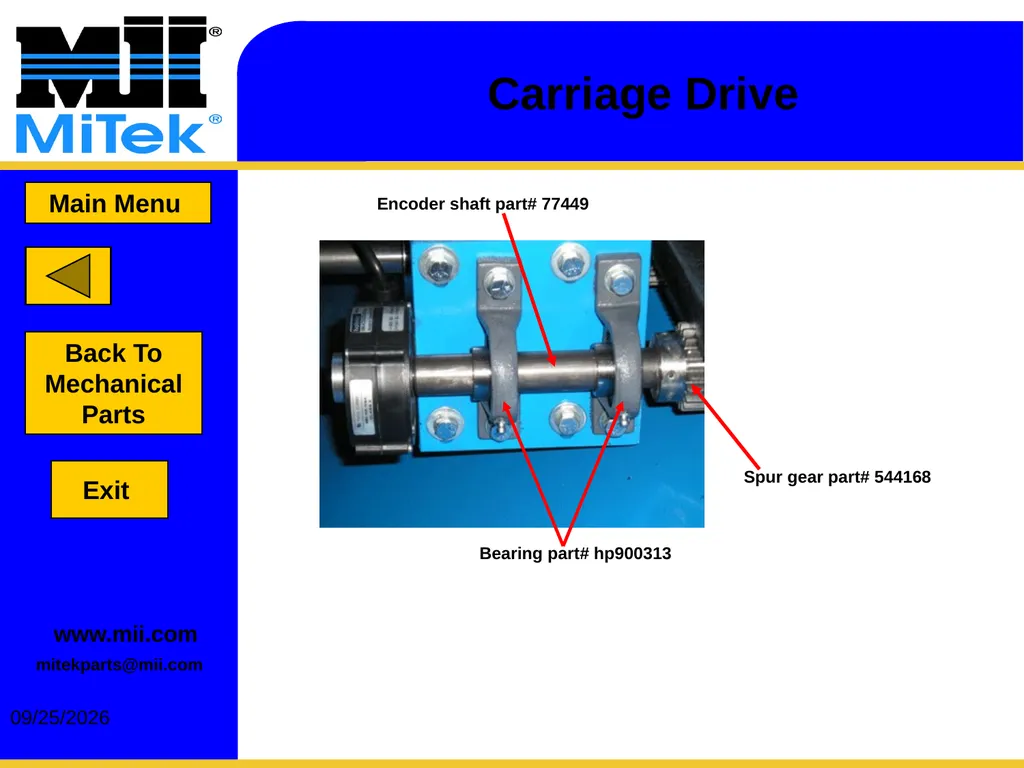

2/15/2017 Encoder shaft part# 77449 Spur gear part# 544168 Carriage Drive Main Menu Back To Mechanical Parts Exit mitekparts@mii.com Bearing part# hp900313 www.mii.com<br>
59

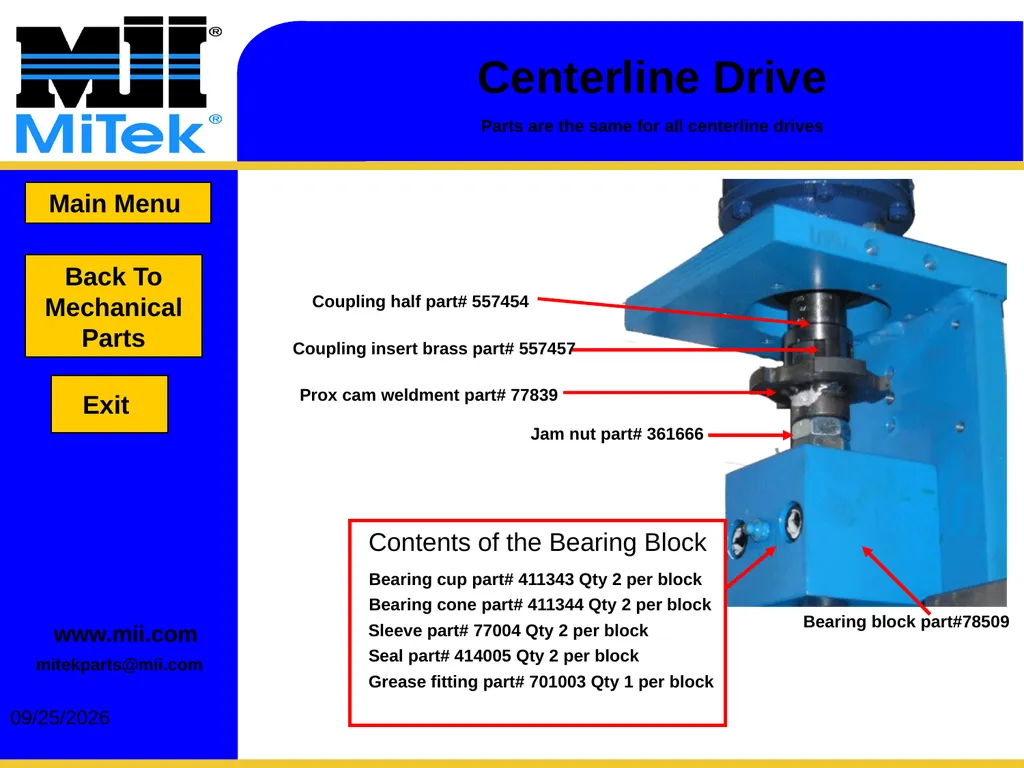

2/15/2017 Centerline Drive Jam nut part# 361666 Parts are the same for all centerline drives Bearing block part#78509 Contents of the Bearing Block Bearing cup part# 411343 Qty 2 per block Bearing cone part# 411344 Qty 2 per block Sleeve part# 77004 Qty 2 per block Seal part# 414005 Qty 2 per block Grease fitting part# 701003 Qty 1 per block Main Menu Back To Mechanical Parts Exit mitekparts@mii.com Coupling half part# 557454 Coupling insert brass part# 557457 Prox cam weldment part# 77839 www.mii.com<br>
60

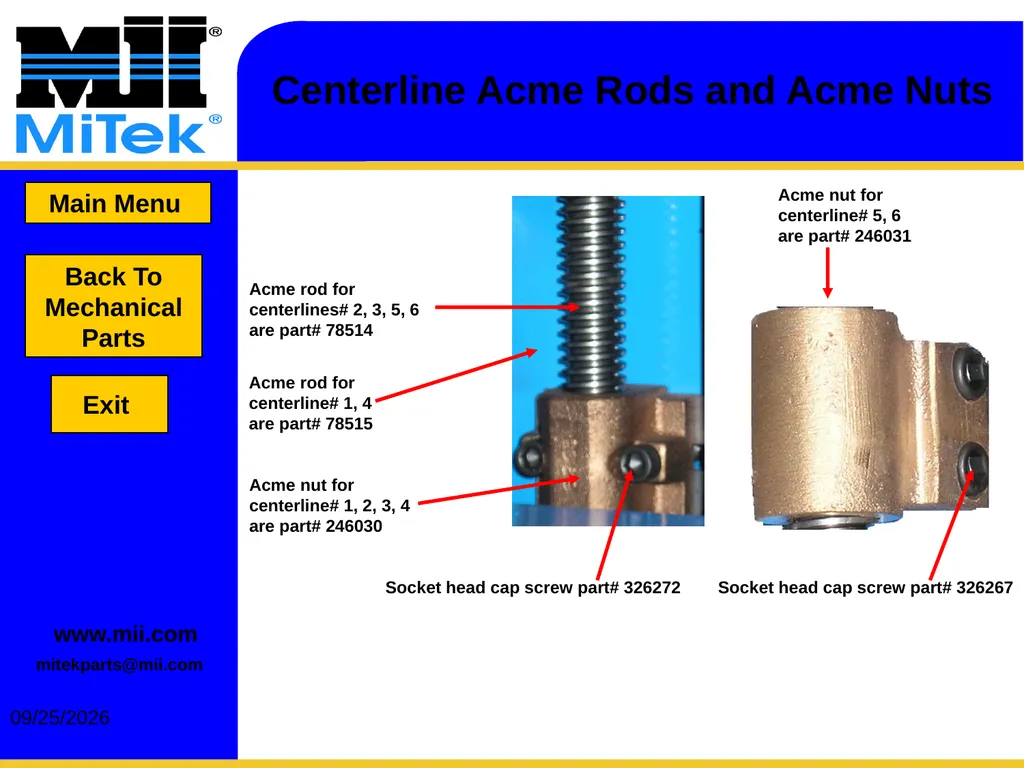

2/15/2017 Centerline Acme Rods and Acme Nuts Acme rod for
centerlines# 2, 3, 5, 6
are part# 78514 Acme rod for
centerline# 1, 4
are part# 78515 Acme nut for
centerline# 1, 2, 3, 4
are part# 246030 Socket head cap screw part# 326272 Acme nut for
centerline# 5, 6
are part# 246031 Socket head cap screw part# 326267 Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
centerlines# 2, 3, 5, 6
are part# 78514 Acme rod for
centerline# 1, 4
are part# 78515 Acme nut for
centerline# 1, 2, 3, 4
are part# 246030 Socket head cap screw part# 326272 Acme nut for
centerline# 5, 6
are part# 246031 Socket head cap screw part# 326267 Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
61

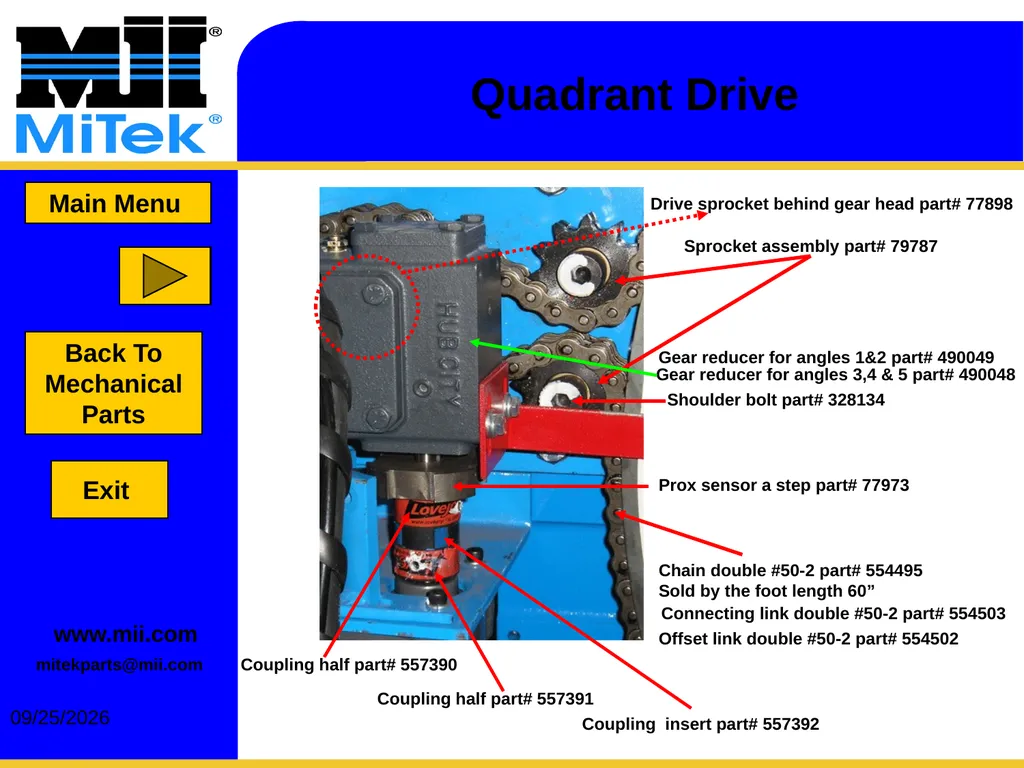

2/15/2017 Quadrant Drive Sprocket assembly part# 79787 Shoulder bolt part# 328134 Drive sprocket behind gear head part# 77898 Chain double #50-2 part# 554495
Sold by the foot length 60” Connecting link double #50-2 part# 554503 Offset link double #50-2 part# 554502 Main Menu Back To Mechanical Parts Exit mitekparts@mii.com Prox sensor a step part# 77973 Coupling half part# 557390 Coupling half part# 557391 Coupling insert part# 557392 Gear reducer for angles 1&2 part# 490049 Gear reducer for angles 3,4 & 5 part# 490048 www.mii.com<br>
Sold by the foot length 60” Connecting link double #50-2 part# 554503 Offset link double #50-2 part# 554502 Main Menu Back To Mechanical Parts Exit mitekparts@mii.com Prox sensor a step part# 77973 Coupling half part# 557390 Coupling half part# 557391 Coupling insert part# 557392 Gear reducer for angles 1&2 part# 490049 Gear reducer for angles 3,4 & 5 part# 490048 www.mii.com<br>
62

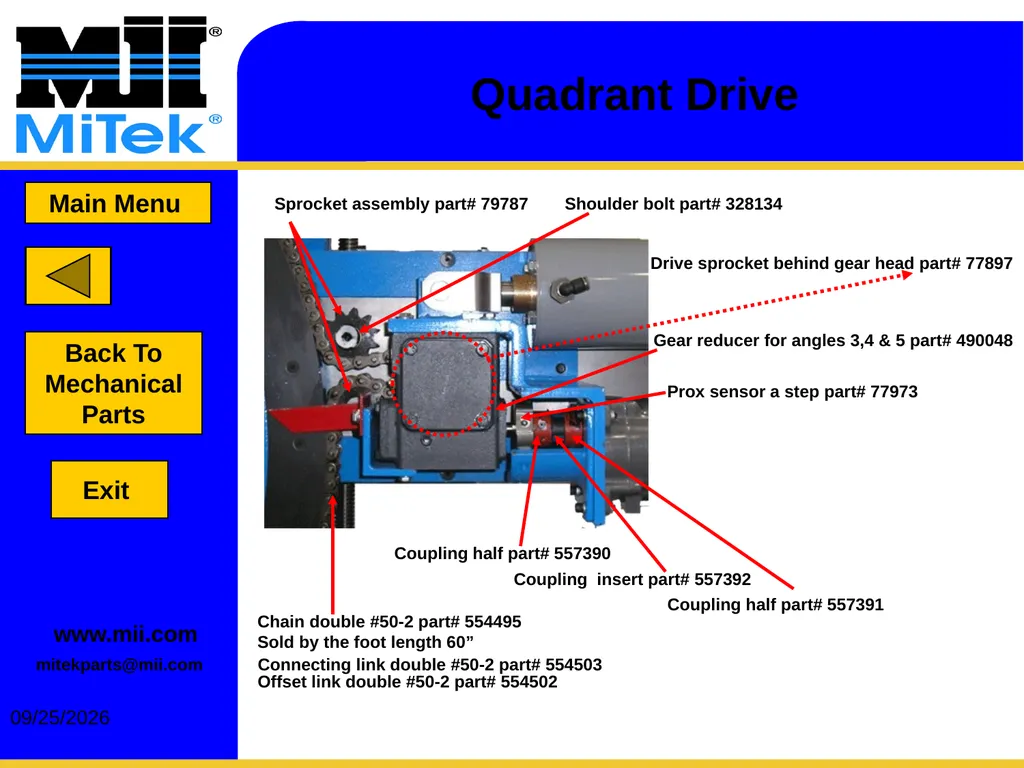

2/15/2017 Quadrant Drive Main Menu Back To Mechanical Parts Exit mitekparts@mii.com Sprocket assembly part# 79787 Shoulder bolt part# 328134 Prox sensor a step part# 77973 Gear reducer for angles 3,4 & 5 part# 490048 Coupling insert part# 557392 Coupling half part# 557391 Coupling half part# 557390 Drive sprocket behind gear head part# 77897 Chain double #50-2 part# 554495
Sold by the foot length 60” Connecting link double #50-2 part# 554503 Offset link double #50-2 part# 554502 www.mii.com<br>
Sold by the foot length 60” Connecting link double #50-2 part# 554503 Offset link double #50-2 part# 554502 www.mii.com<br>
63

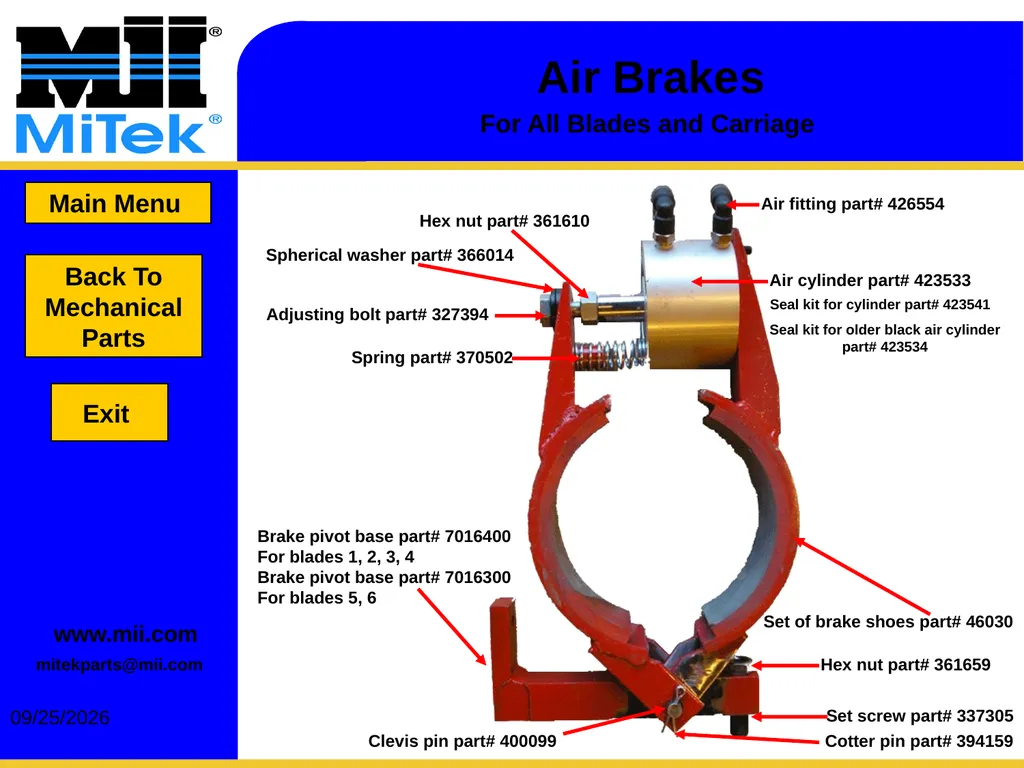

2/15/2017 Air Brakes Set of brake shoes part# 46030 Air fitting part# 426554 Air cylinder part# 423533 Spring part# 370502 Adjusting bolt part# 327394 Hex nut part# 361610 Spherical washer part# 366014 Set screw part# 337305 Hex nut part# 361659 Brake pivot base part# 7016400
For blades 1, 2, 3, 4
Brake pivot base part# 7016300
For blades 5, 6 Clevis pin part# 400099 Cotter pin part# 394159 For All Blades and Carriage Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com Seal kit for cylinder part# 423541 Seal kit for older black air cylinder
part# 423534<br>
For blades 1, 2, 3, 4
Brake pivot base part# 7016300
For blades 5, 6 Clevis pin part# 400099 Cotter pin part# 394159 For All Blades and Carriage Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com Seal kit for cylinder part# 423541 Seal kit for older black air cylinder
part# 423534<br>
64

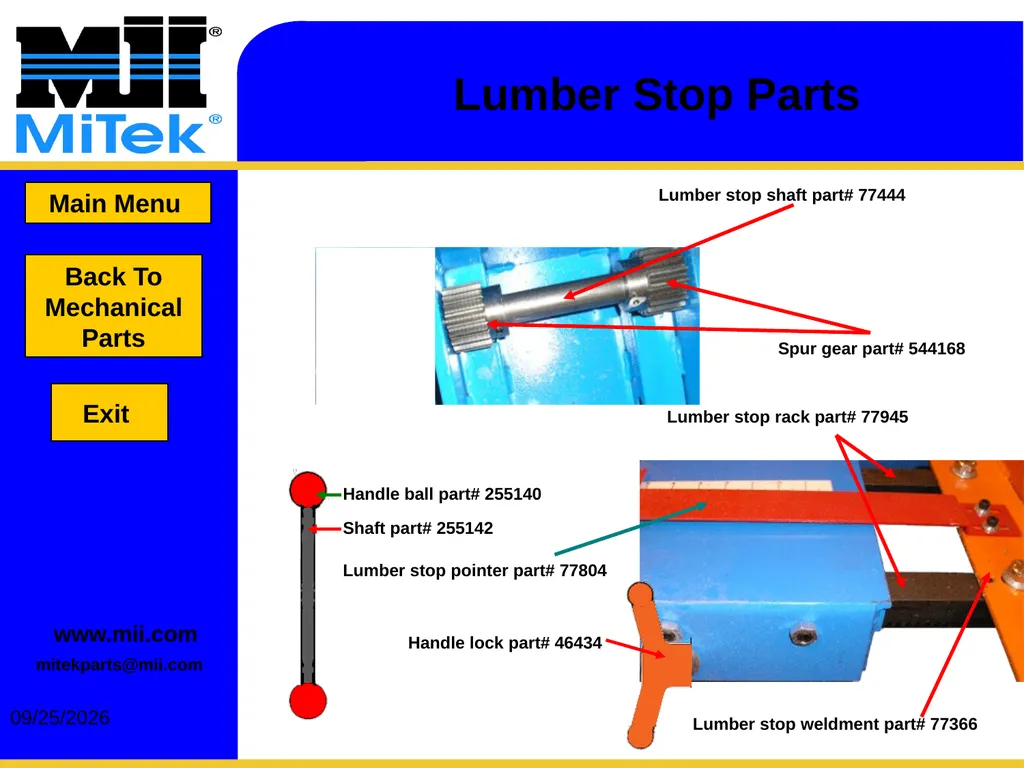

2/15/2017 Lumber Stop Parts Spur gear part# 544168 Lumber stop shaft part# 77444 Lumber stop rack part# 77945 Lumber stop weldment part# 77366 Lumber stop pointer part# 77804 Back To Mechanical Parts Main Menu Exit mitekparts@mii.com Handle lock part# 46434 Shaft part# 255142 Handle ball part# 255140 www.mii.com<br>
65

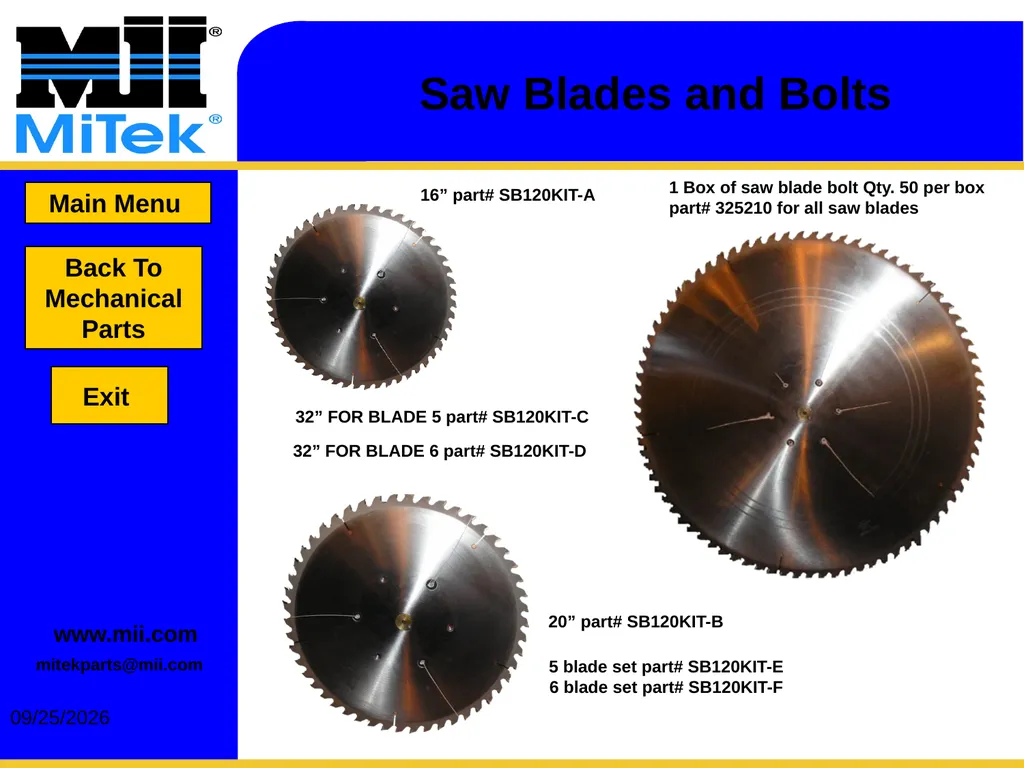

2/15/2017 Saw Blades and Bolts Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com 16” part# SB120KIT-A 1 Box of saw blade bolt Qty. 50 per box
part# 325210 for all saw blades 32” FOR BLADE 5 part# SB120KIT-C 32” FOR BLADE 6 part# SB120KIT-D 20” part# SB120KIT-B 5 blade set part# SB120KIT-E
6 blade set part# SB120KIT-F<br>
part# 325210 for all saw blades 32” FOR BLADE 5 part# SB120KIT-C 32” FOR BLADE 6 part# SB120KIT-D 20” part# SB120KIT-B 5 blade set part# SB120KIT-E
6 blade set part# SB120KIT-F<br>
66

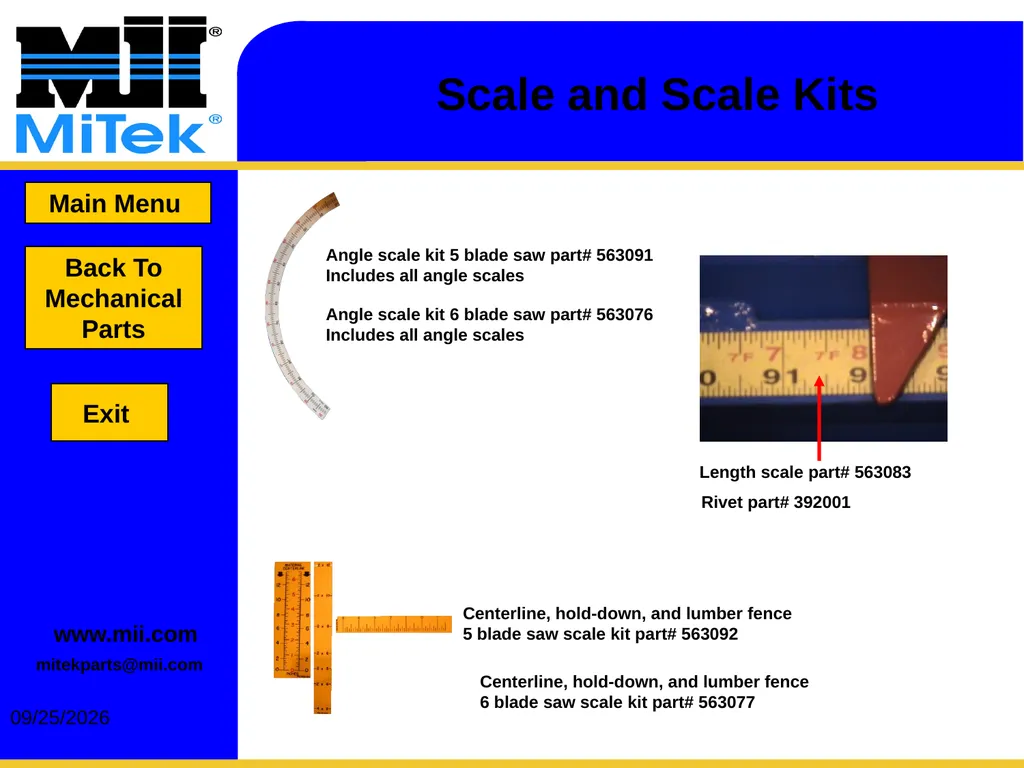

2/15/2017 Scale and Scale Kits Angle scale kit 5 blade saw part# 563091
Includes all angle scales Angle scale kit 6 blade saw part# 563076
Includes all angle scales Centerline, hold-down, and lumber fence
5 blade saw scale kit part# 563092 Length scale part# 563083 Rivet part# 392001 Centerline, hold-down, and lumber fence
6 blade saw scale kit part# 563077 Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
Includes all angle scales Angle scale kit 6 blade saw part# 563076
Includes all angle scales Centerline, hold-down, and lumber fence
5 blade saw scale kit part# 563092 Length scale part# 563083 Rivet part# 392001 Centerline, hold-down, and lumber fence
6 blade saw scale kit part# 563077 Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
67

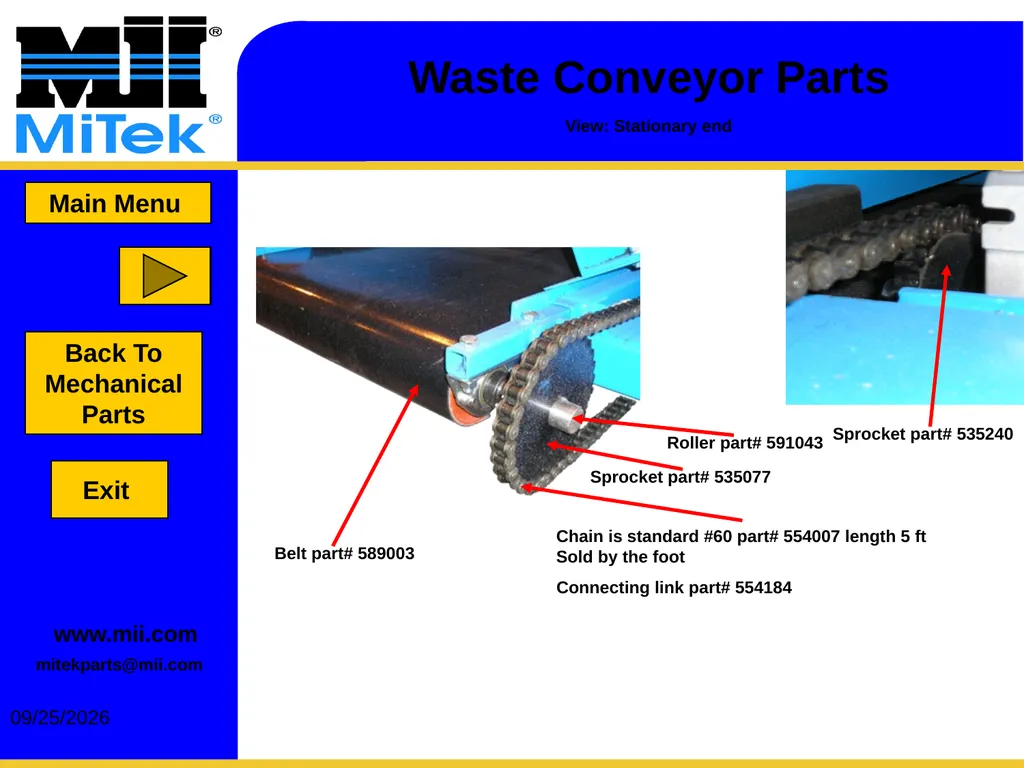

2/15/2017 Waste Conveyor Parts Sprocket part# 535240 Sprocket part# 535077 Chain is standard #60 part# 554007 length 5 ft
Sold by the foot Connecting link part# 554184 Roller part# 591043 Belt part# 589003 View: Stationary end Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
Sold by the foot Connecting link part# 554184 Roller part# 591043 Belt part# 589003 View: Stationary end Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
68

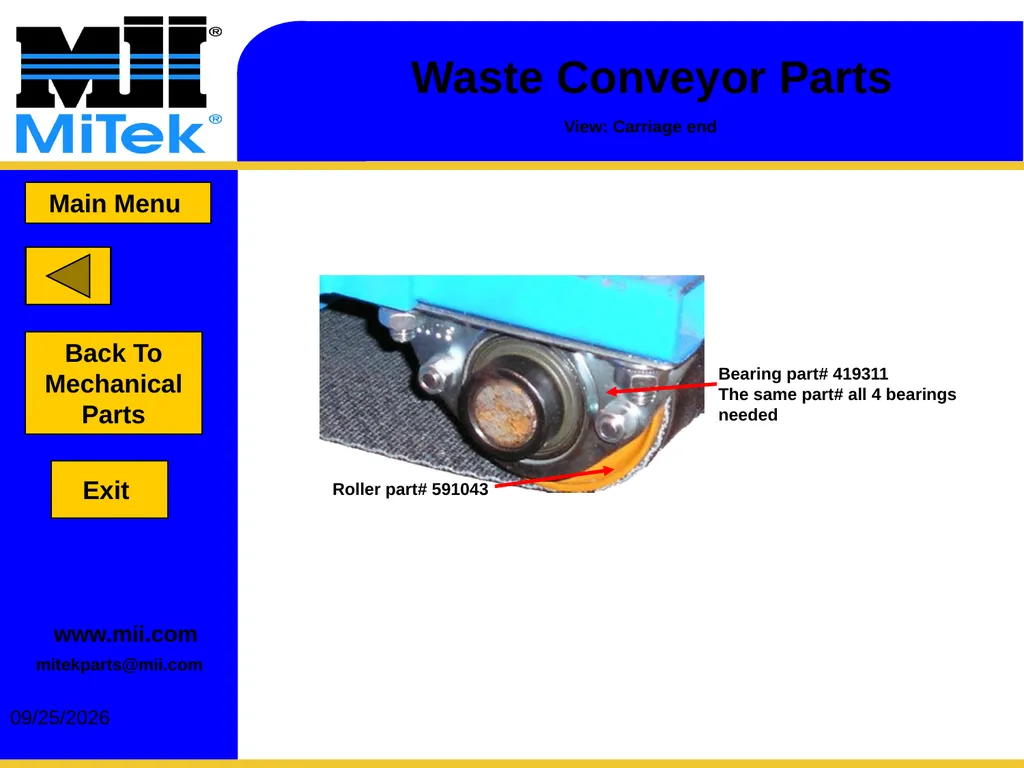

2/15/2017 Roller part# 591043 Bearing part# 419311
The same part# all 4 bearings
needed Waste Conveyor Parts View: Carriage end Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
The same part# all 4 bearings
needed Waste Conveyor Parts View: Carriage end Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
69

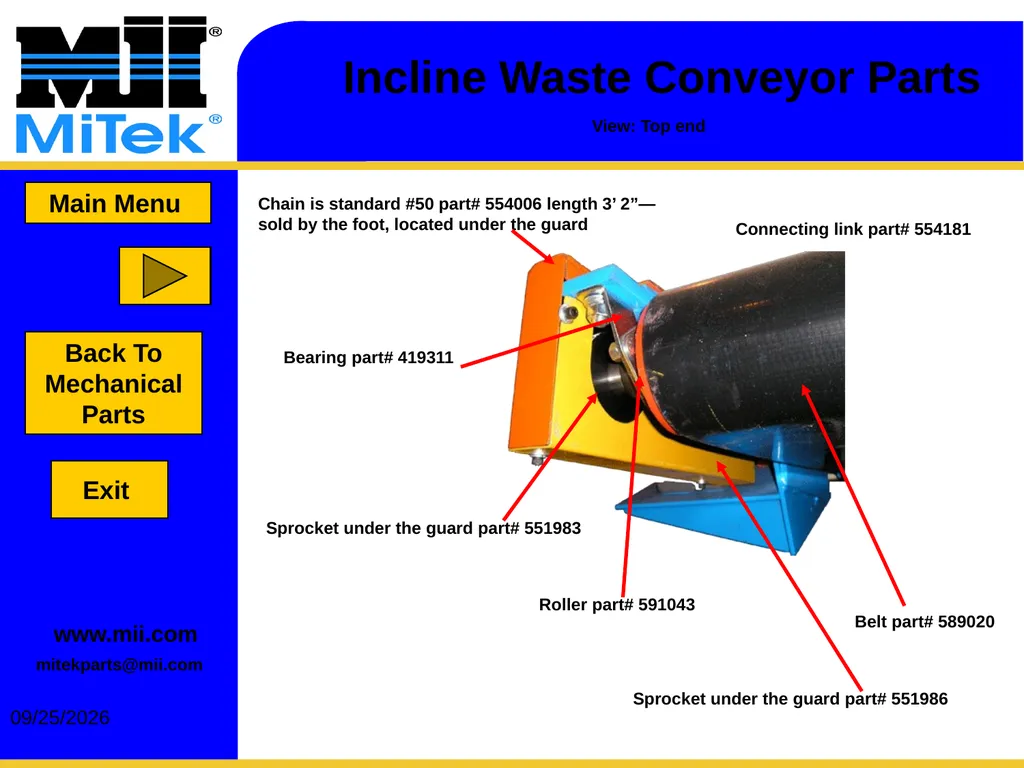

2/15/2017 Incline Waste Conveyor Parts Sprocket under the guard part# 551983 Roller part# 591043 Belt part# 589020 Bearing part# 419311 Sprocket under the guard part# 551986 Chain is standard #50 part# 554006 length 3’ 2”—
sold by the foot, located under the guard Connecting link part# 554181 Main Menu Back To Mechanical Parts Exit View: Top end mitekparts@mii.com www.mii.com<br>
sold by the foot, located under the guard Connecting link part# 554181 Main Menu Back To Mechanical Parts Exit View: Top end mitekparts@mii.com www.mii.com<br>
70
2/15/2017 Roller part# 591039 Bearing part# 419312 Incline Waste Conveyor Parts Main Menu Back To Mechanical Parts Exit View: Bottom end mitekparts@mii.com www.mii.com<br>
71

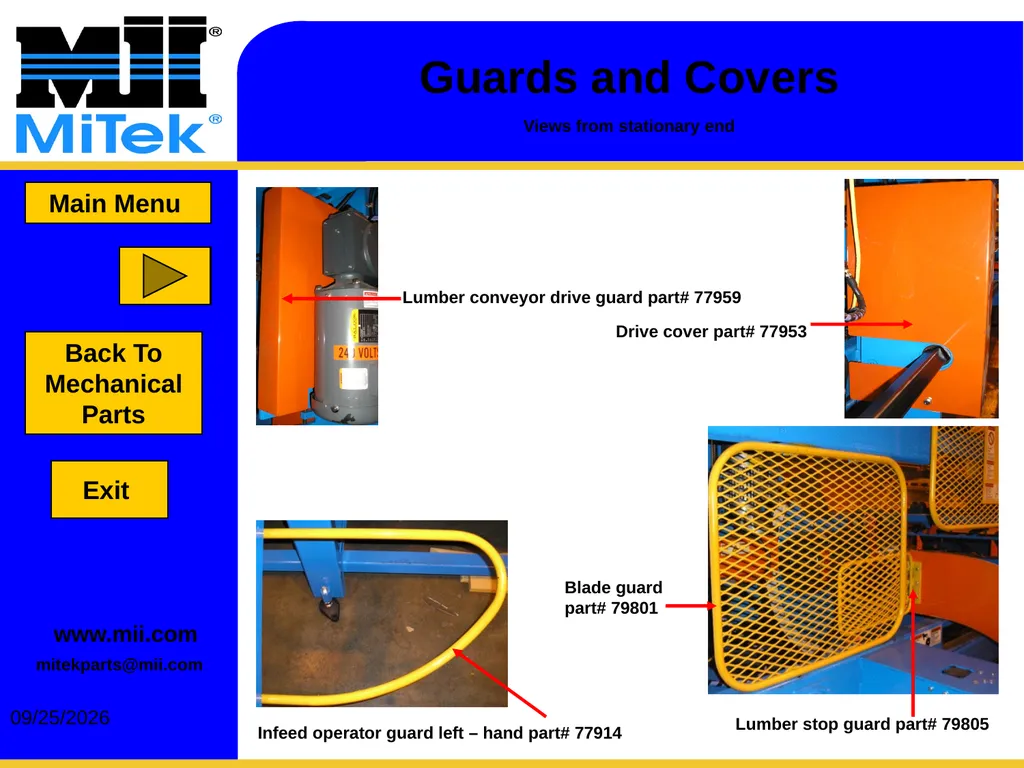

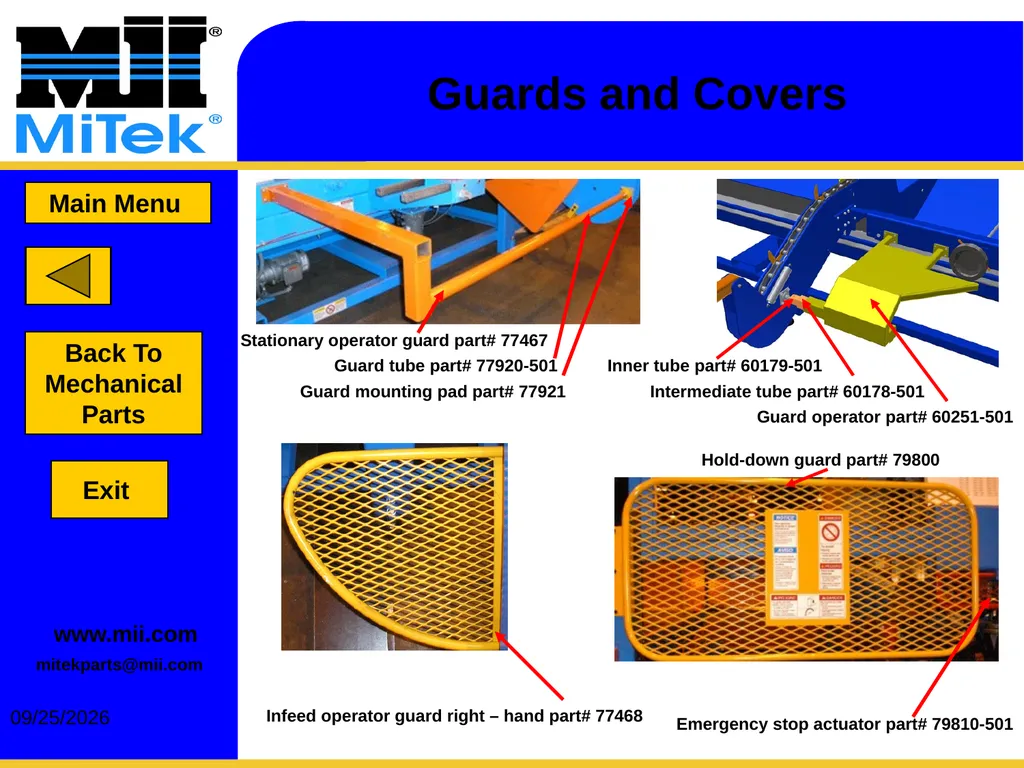

2/15/2017 Guards and Covers Lumber conveyor drive guard part# 77959 Views from stationary end Main Menu Back To Mechanical Parts Exit mitekparts@mii.com Drive cover part# 77953 Infeed operator guard left – hand part# 77914 Lumber stop guard part# 79805 Blade guard part# 79801 www.mii.com<br>
72

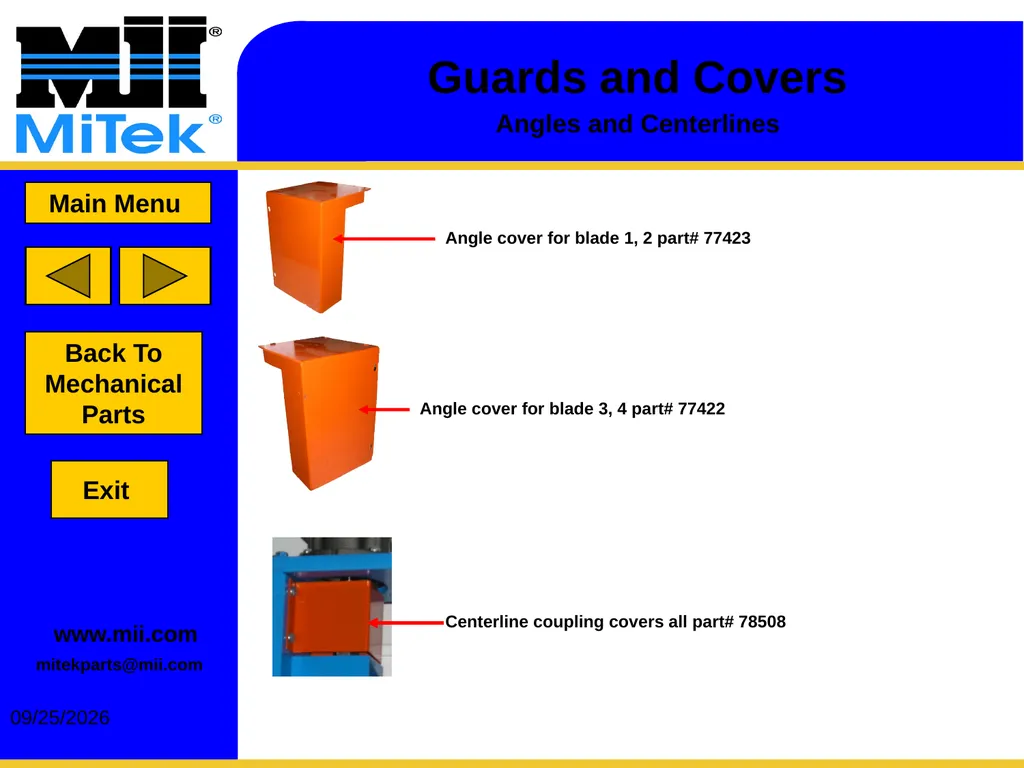

2/15/2017 Angle cover for blade 1, 2 part# 77423 Angle cover for blade 3, 4 part# 77422 Angles and Centerlines Centerline coupling covers all part# 78508 Guards and Covers Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
73

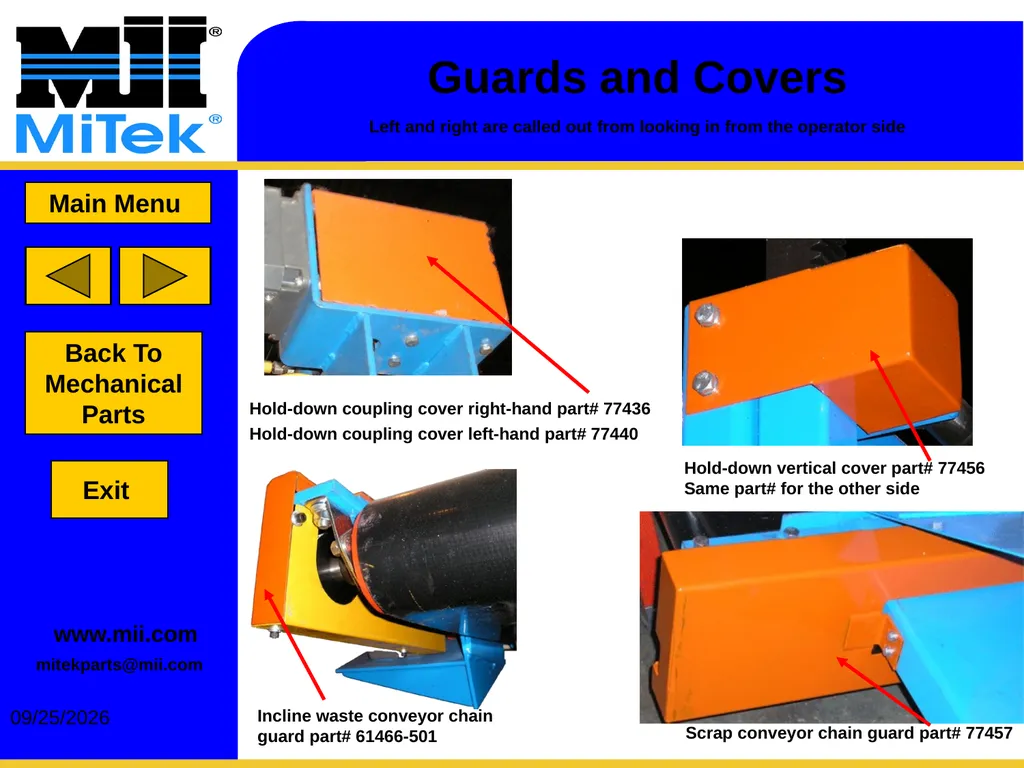

2/15/2017 Hold-down coupling cover right-hand part# 77436 Hold-down coupling cover left-hand part# 77440 Hold-down vertical cover part# 77456
Same part# for the other side Left and right are called out from looking in from the operator side Scrap conveyor chain guard part# 77457 Incline waste conveyor chain guard part# 61466-501 Guards and Covers Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
Same part# for the other side Left and right are called out from looking in from the operator side Scrap conveyor chain guard part# 77457 Incline waste conveyor chain guard part# 61466-501 Guards and Covers Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
74

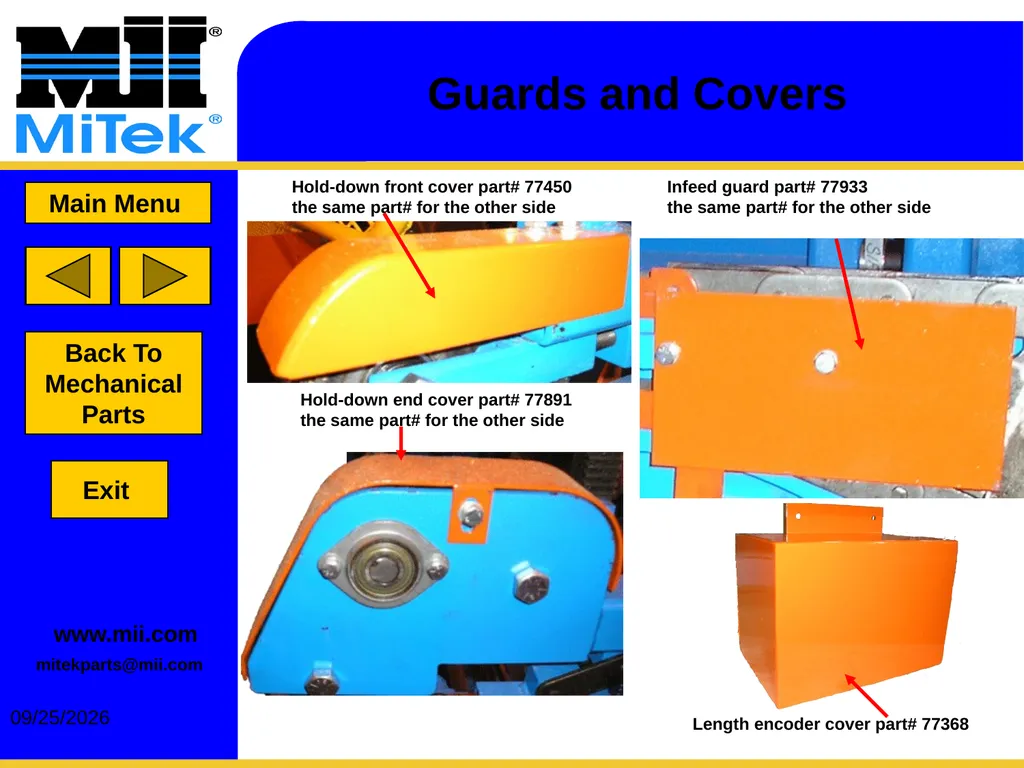

2/15/2017 Hold-down front cover part# 77450
the same part# for the other side Hold-down end cover part# 77891
the same part# for the other side Infeed guard part# 77933
the same part# for the other side Length encoder cover part# 77368 Guards and Covers Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
the same part# for the other side Hold-down end cover part# 77891
the same part# for the other side Infeed guard part# 77933
the same part# for the other side Length encoder cover part# 77368 Guards and Covers Main Menu Back To Mechanical Parts Exit mitekparts@mii.com www.mii.com<br>
75
2/15/2017 Guards and Covers Main Menu Back To Mechanical Parts Exit mitekparts@mii.com Infeed operator guard right – hand part# 77468 Hold-down guard part# 79800 Emergency stop actuator part# 79810-501 Stationary operator guard part# 77467 Guard mounting pad part# 77921 Guard tube part# 77920-501 Guard operator part# 60251-501 Intermediate tube part# 60178-501 Inner tube part# 60179-501 www.mii.com<br>
76
2/15/2017 Safety Labels Main Menu Exit Part# 691519 Part# 691408 Part# 691407 Part# 691601 Part# 691513 mitekparts@mii.com www.mii.com<br>
77

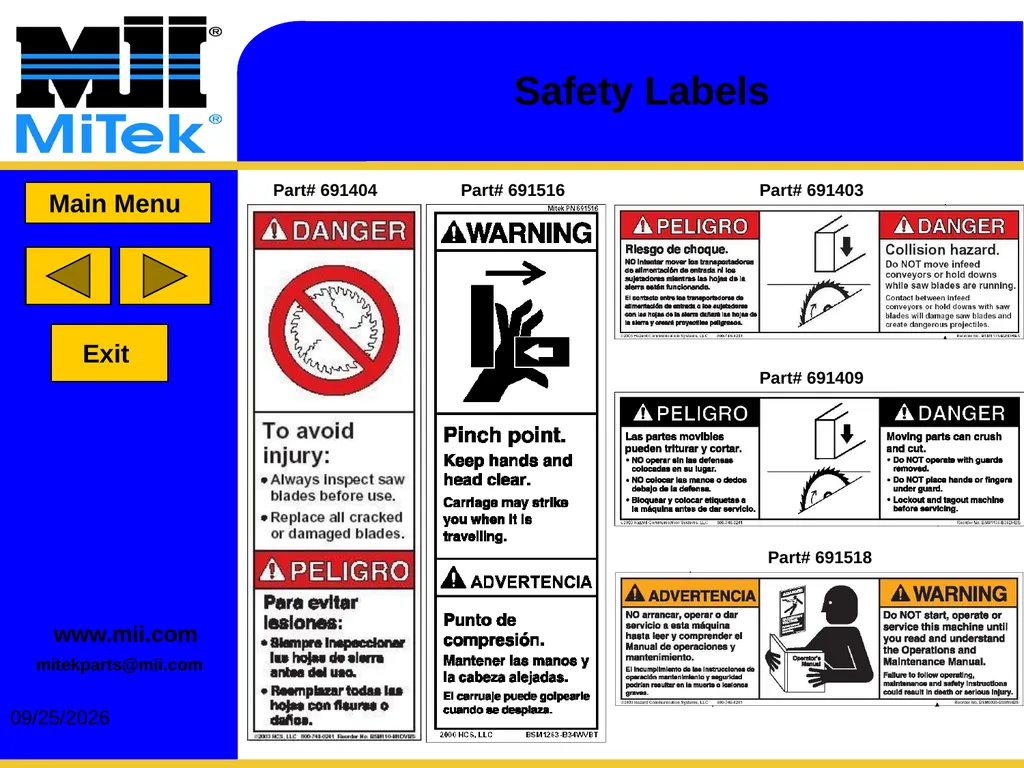

2/15/2017 Safety Labels Main Menu Exit Part# 691404 Part# 691516 Part# 691403 Part# 691409 Part# 691518 mitekparts@mii.com www.mii.com<br>
78
2/15/2017 Safety Labels Part# 691702 Part# 691703 Part# 691603 Part# 691604 Part# 691517 Main Menu Exit mitekparts@mii.com www.mii.com<br>
79

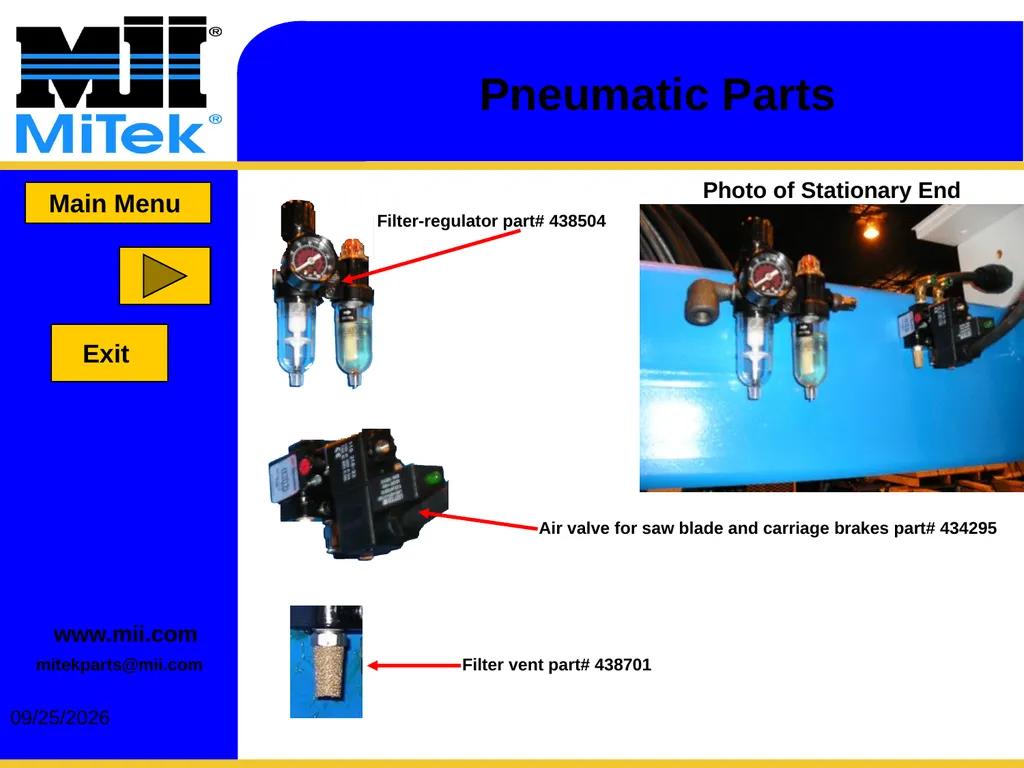

2/15/2017 Pneumatic Parts Filter-regulator part# 438504 Air valve for saw blade and carriage brakes part# 434295 Filter vent part# 438701 Photo of Stationary End Main Menu Exit mitekparts@mii.com www.mii.com<br>
80

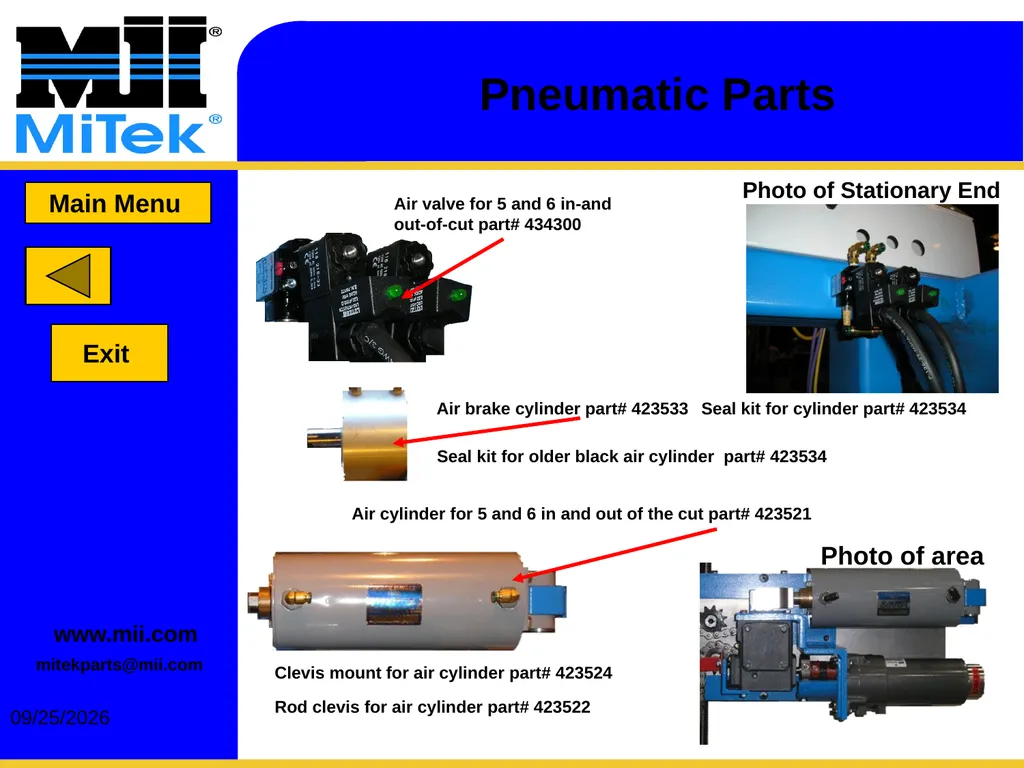

2/15/2017 Air valve for 5 and 6 in-and out-of-cut part# 434300 Air cylinder for 5 and 6 in and out of the cut part# 423521 Clevis mount for air cylinder part# 423524 Rod clevis for air cylinder part# 423522 Photo of area Air brake cylinder part# 423533 Photo of Stationary End Pneumatic Parts Main Menu Exit Seal kit for cylinder part# 423534 mitekparts@mii.com www.mii.com Seal kit for older black air cylinder part# 423534<br>
