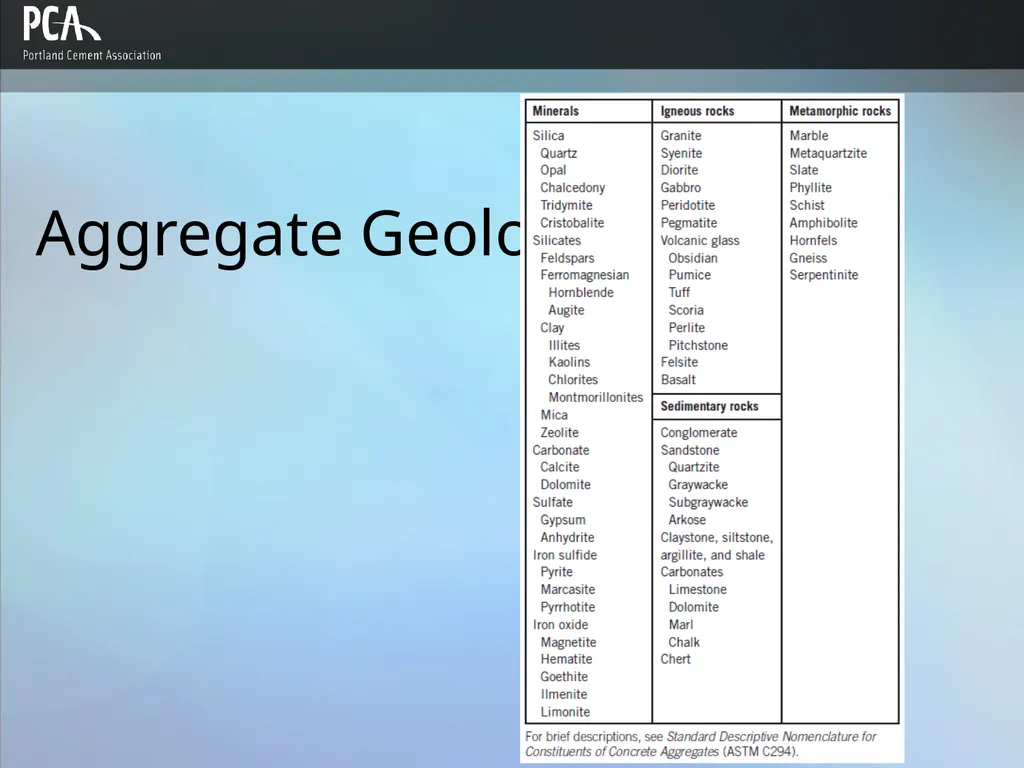

05

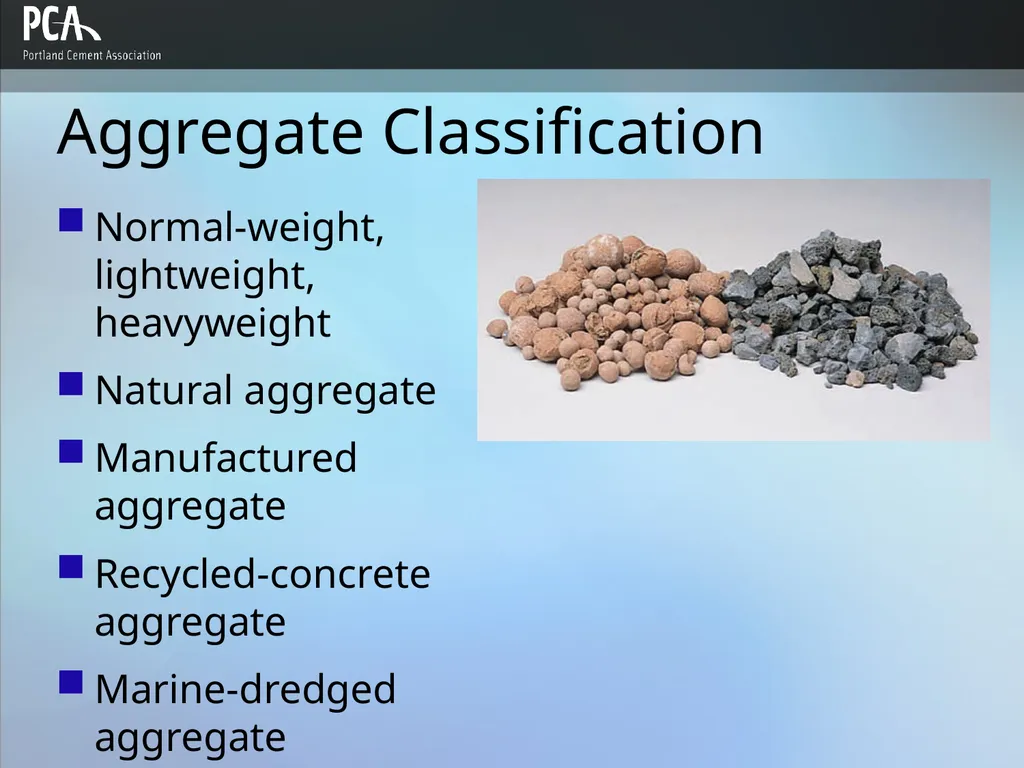

Aggregate Classification Normal-weight, lightweight, heavyweight
Natural aggregate
Manufactured aggregate
Recycled-concrete aggregate
Marine-dredged aggregate<br>
06

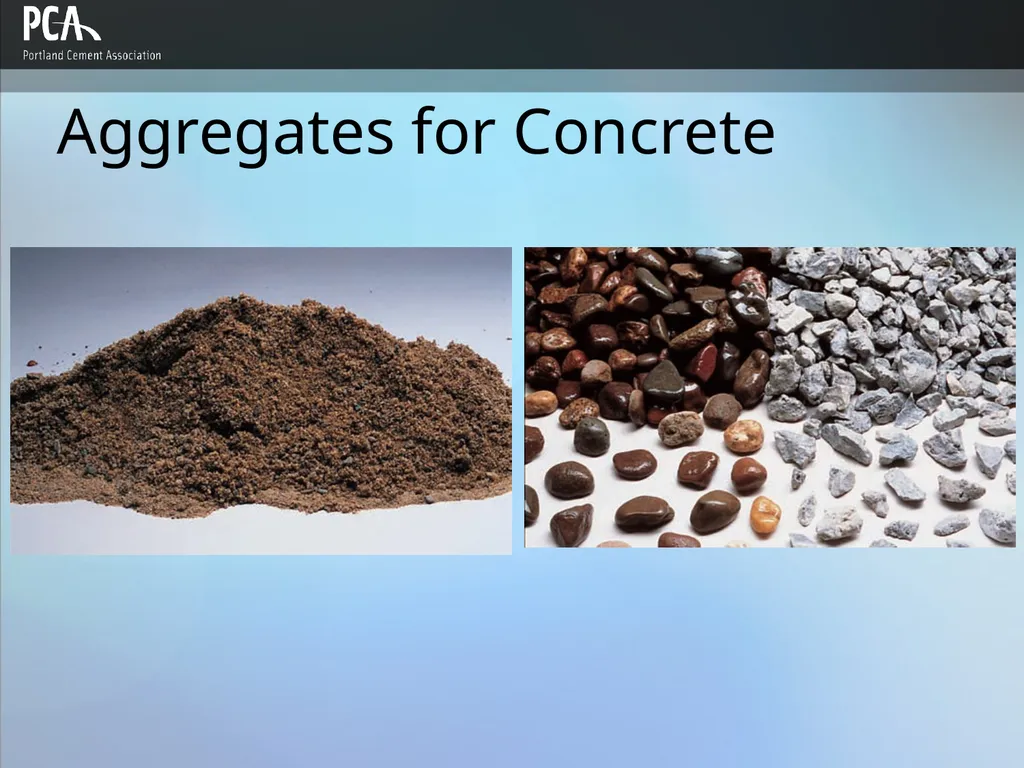

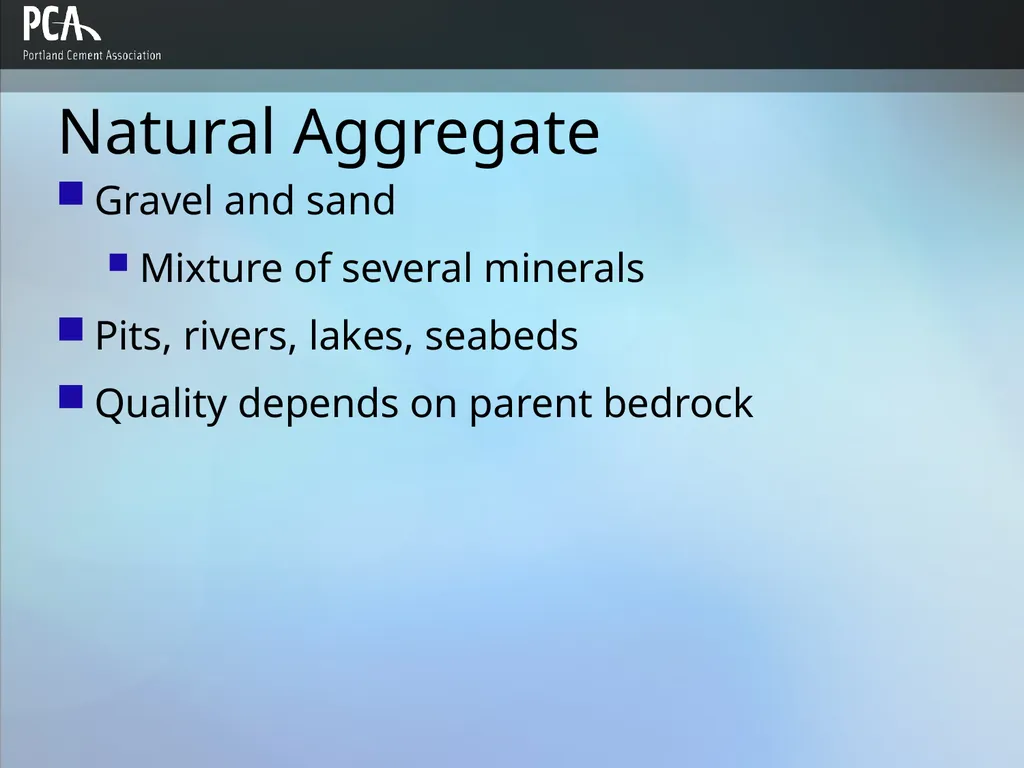

Natural Aggregate Gravel and sand
Mixture of several minerals
Pits, rivers, lakes, seabeds
Quality depends on parent bedrock<br>
07

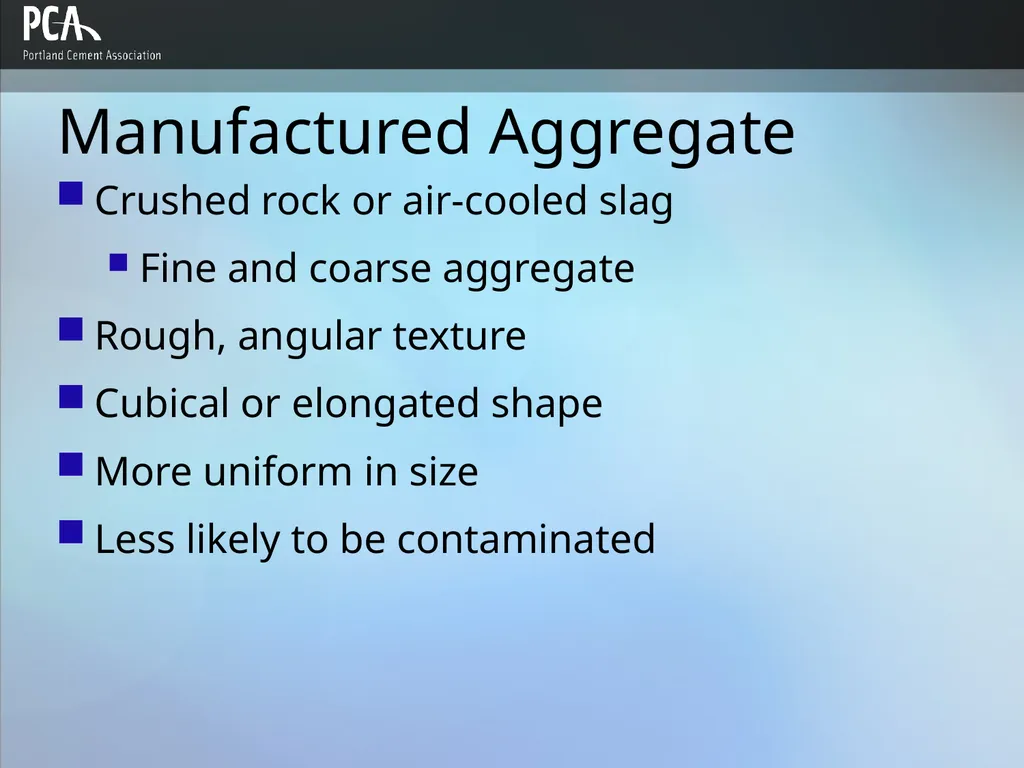

Manufactured Aggregate Crushed rock or air-cooled slag
Fine and coarse aggregate
Rough, angular texture
Cubical or elongated shape
More uniform in size
Less likely to be contaminated<br>
08

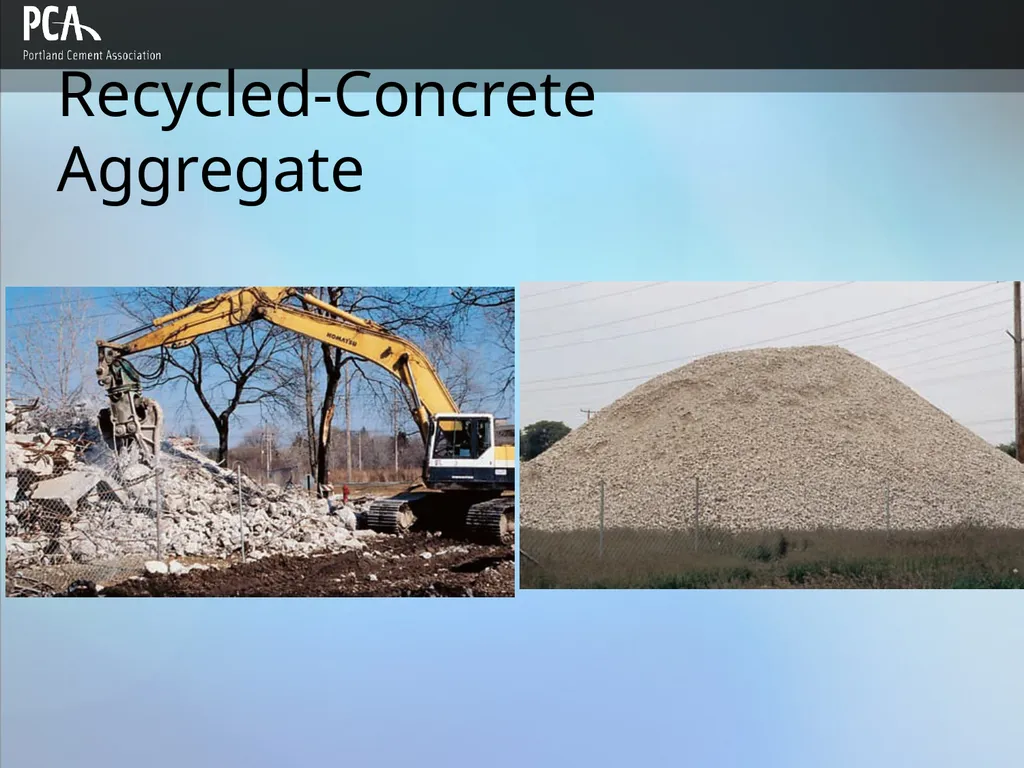

Recycled-Concrete Aggregate<br>
09

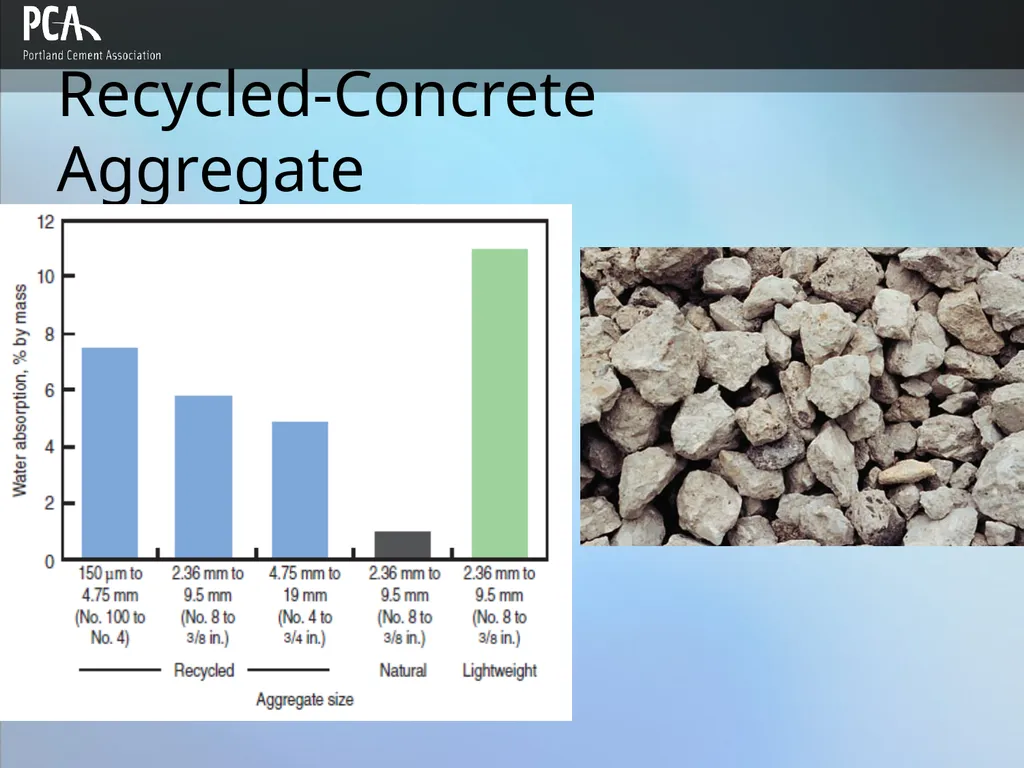

Recycled-Concrete Aggregate<br>
10

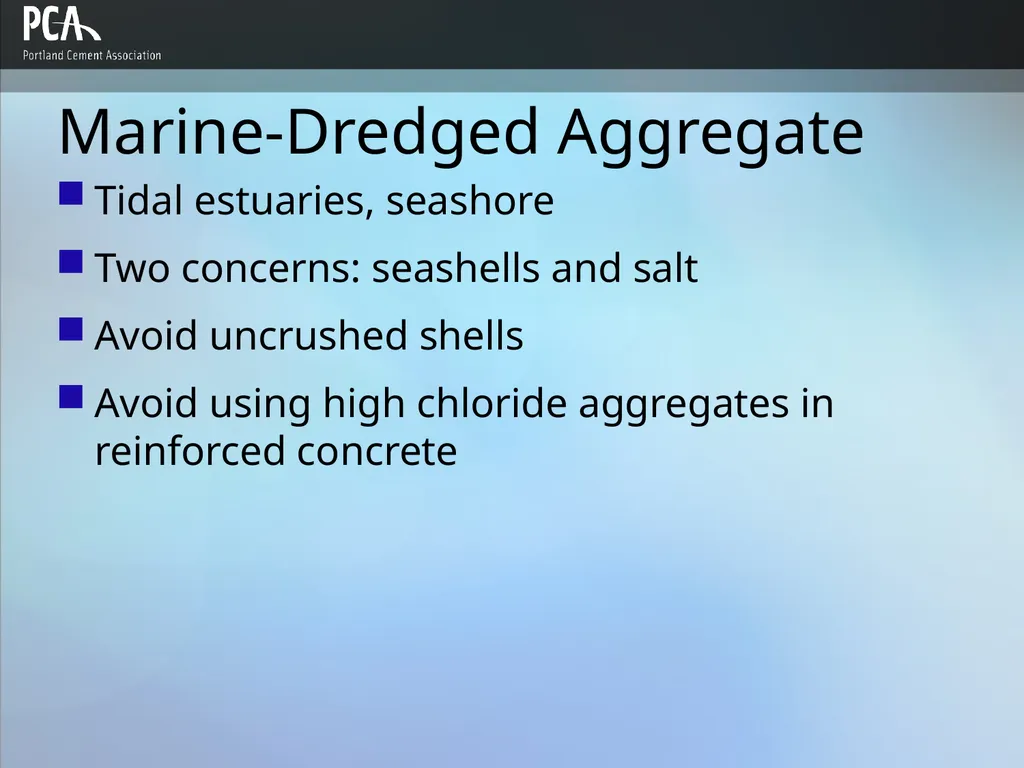

Marine-Dredged Aggregate Tidal estuaries, seashore
Two concerns: seashells and salt
Avoid uncrushed shells
Avoid using high chloride aggregates in reinforced concrete<br>
11

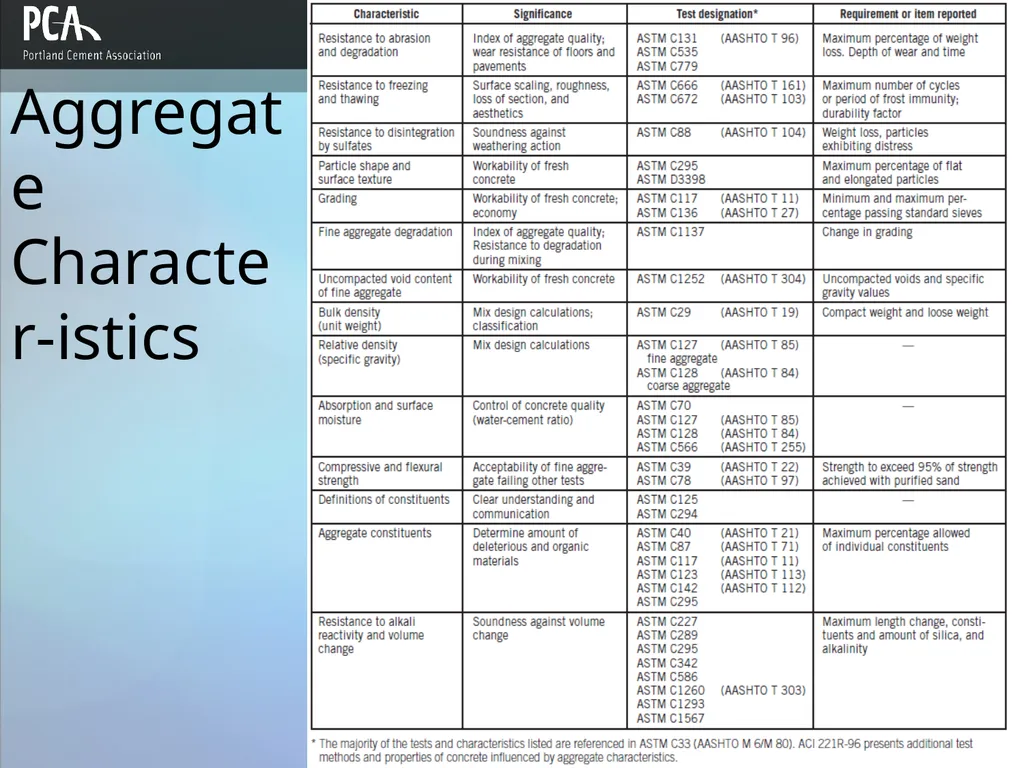

Aggregate Character-istics<br>

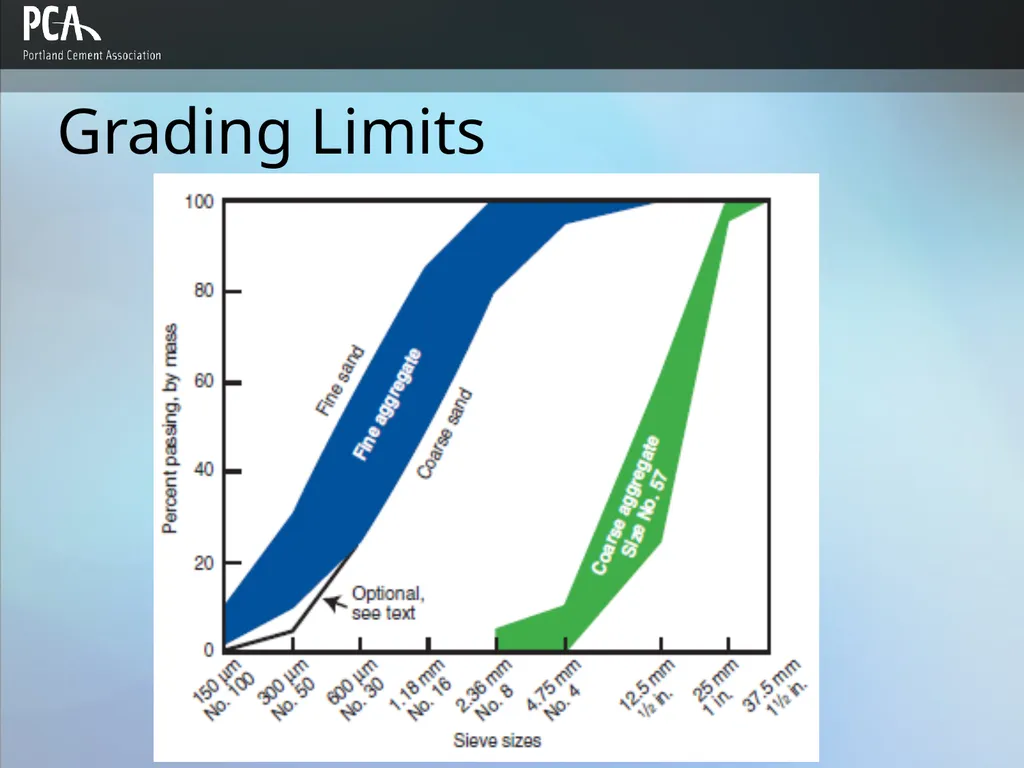

15

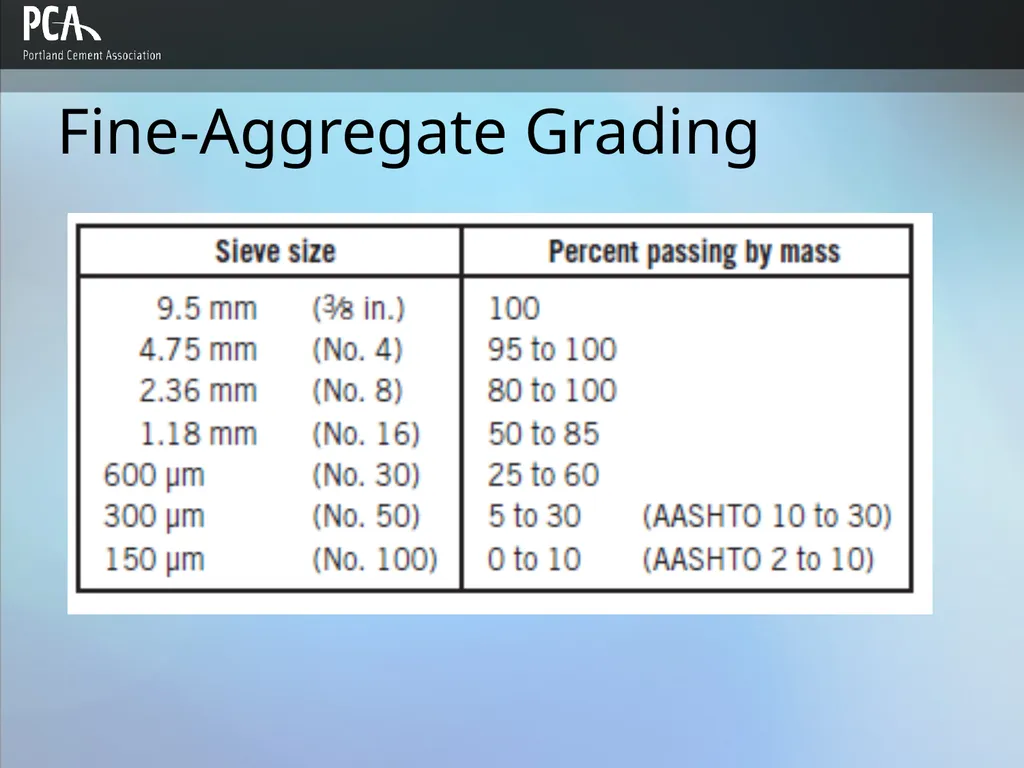

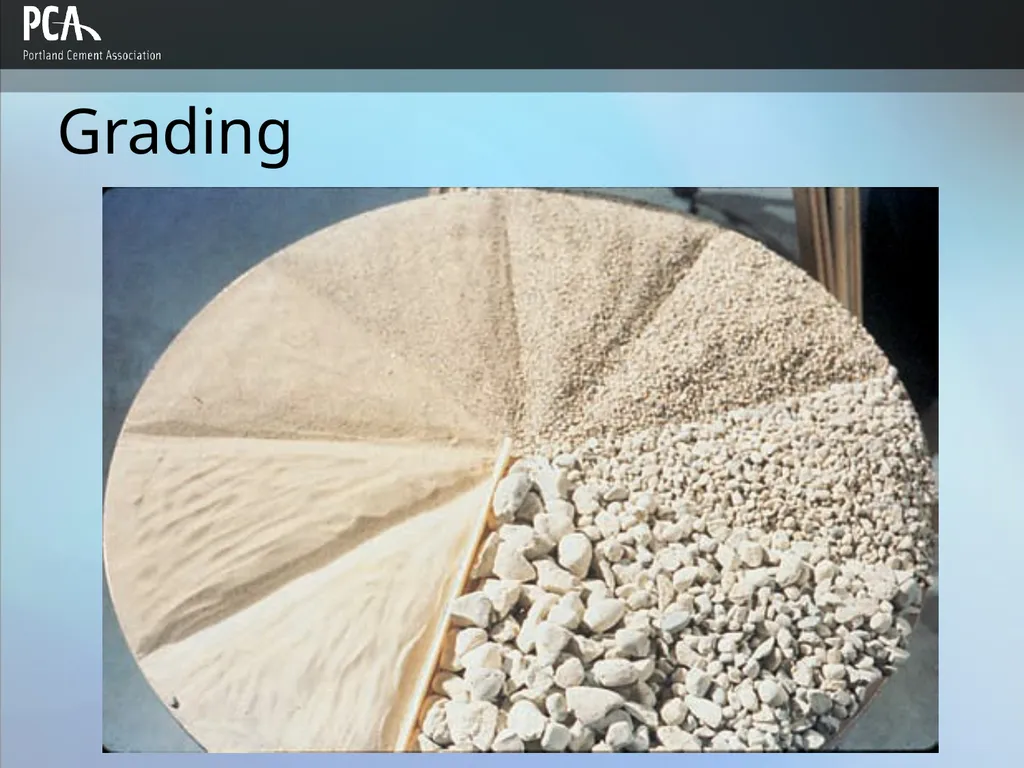

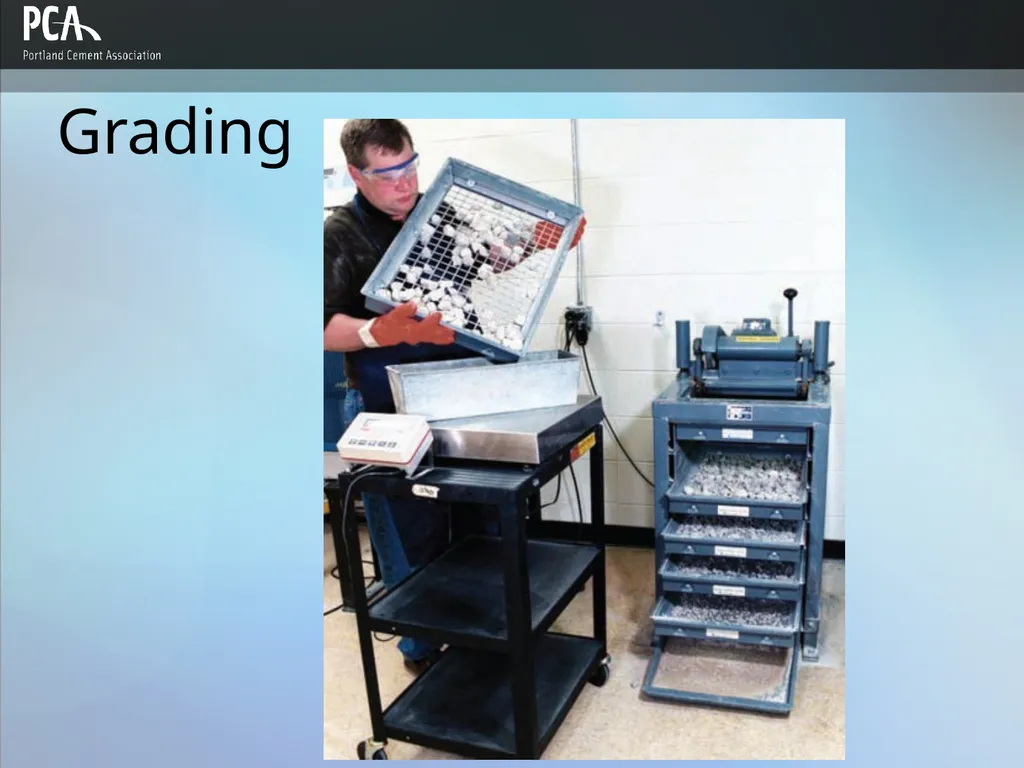

Fine-Aggregate Grading<br>
16

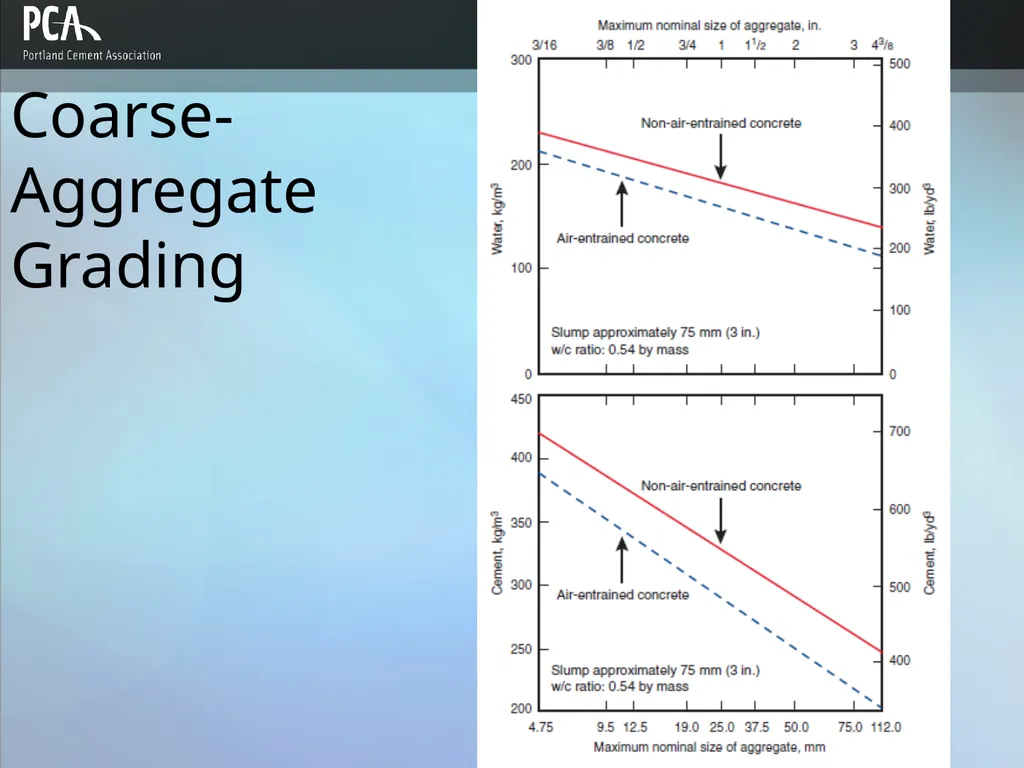

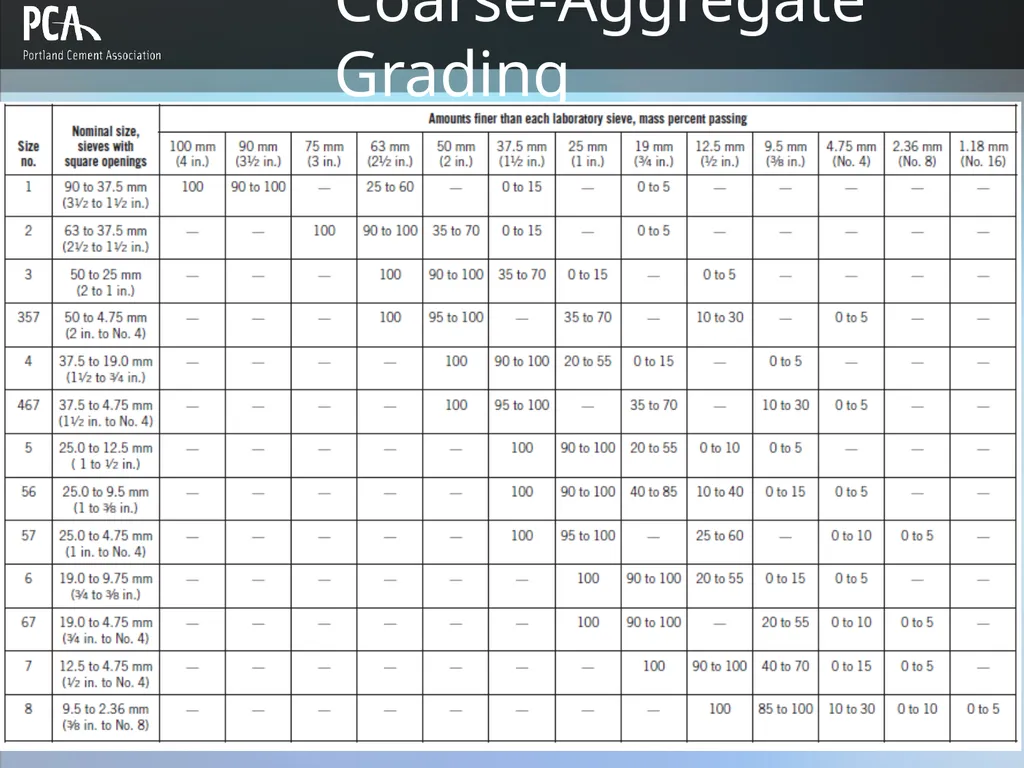

Coarse-Aggregate Grading<br>
17
Coarse-Aggregate Grading<br>
18

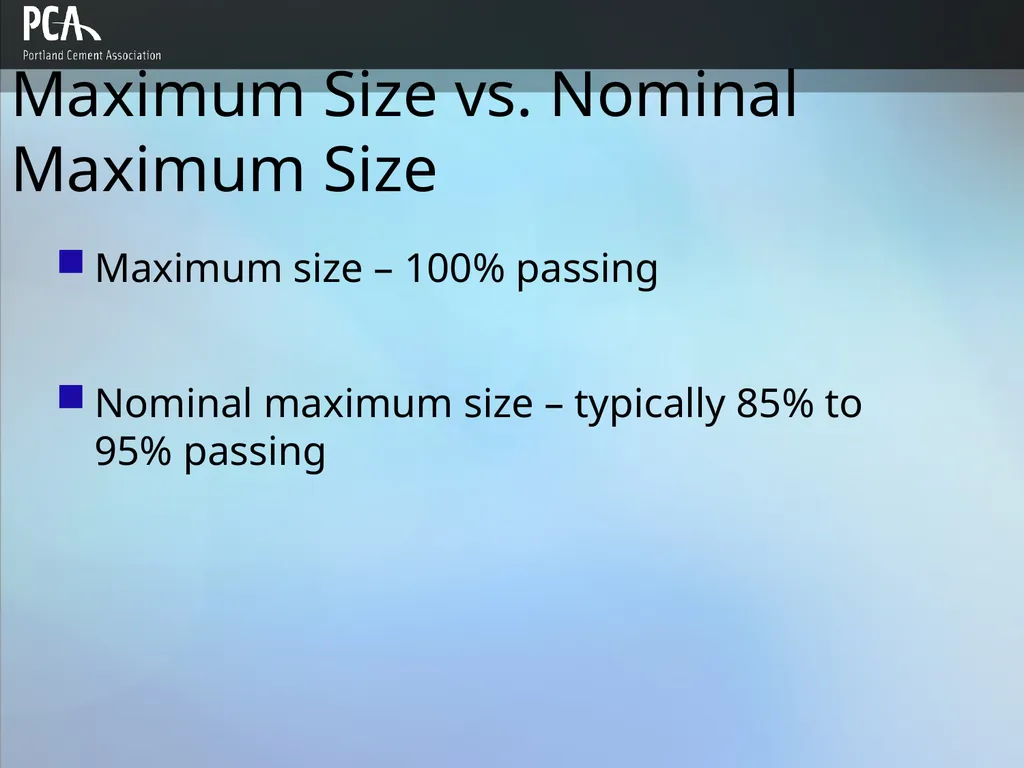

Maximum Size vs. Nominal Maximum Size Maximum size – 100% passing
Nominal maximum size – typically 85% to 95% passing<br>
19

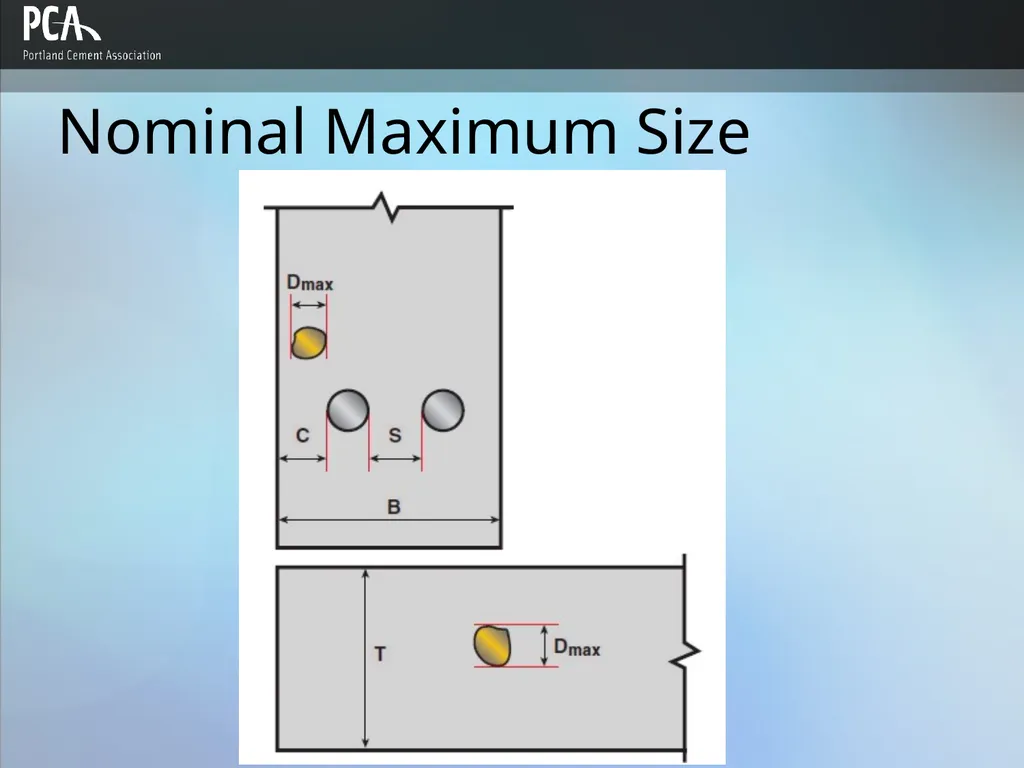

Nominal Maximum Size<br>
20

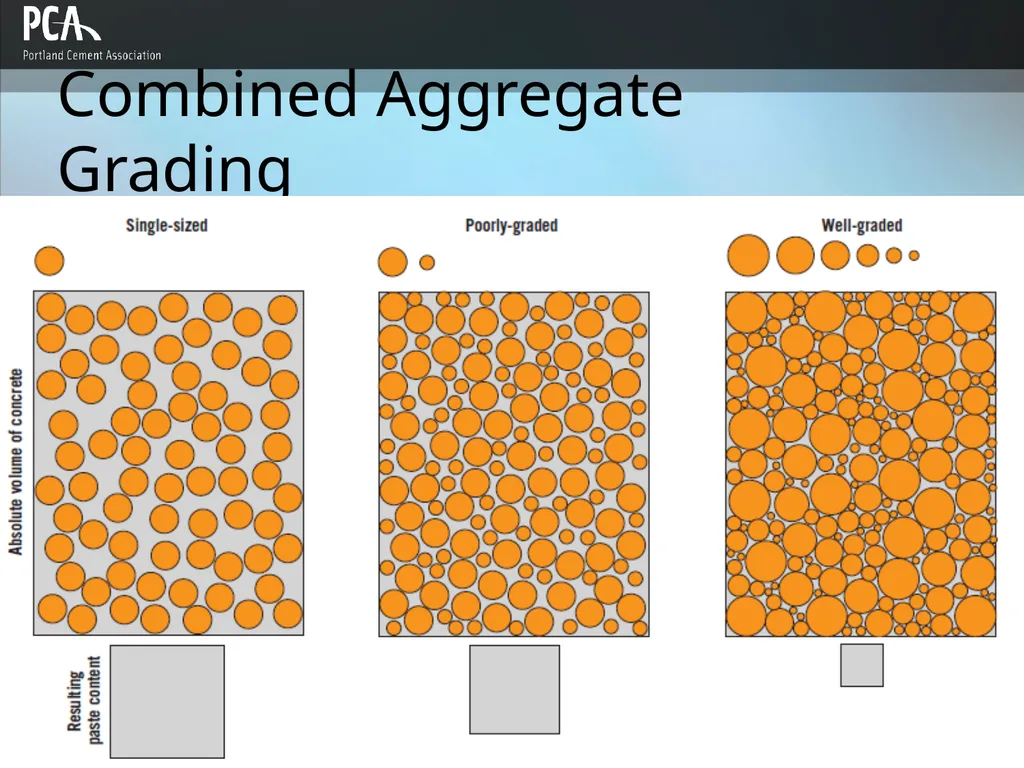

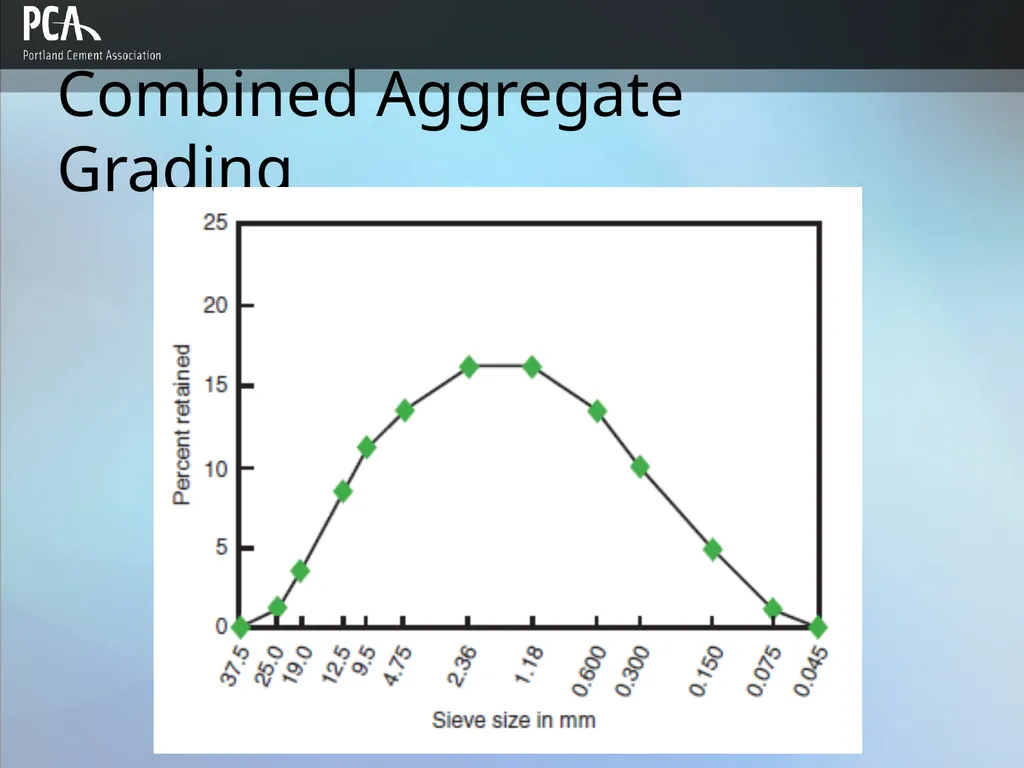

Combined Aggregate Grading<br>
21

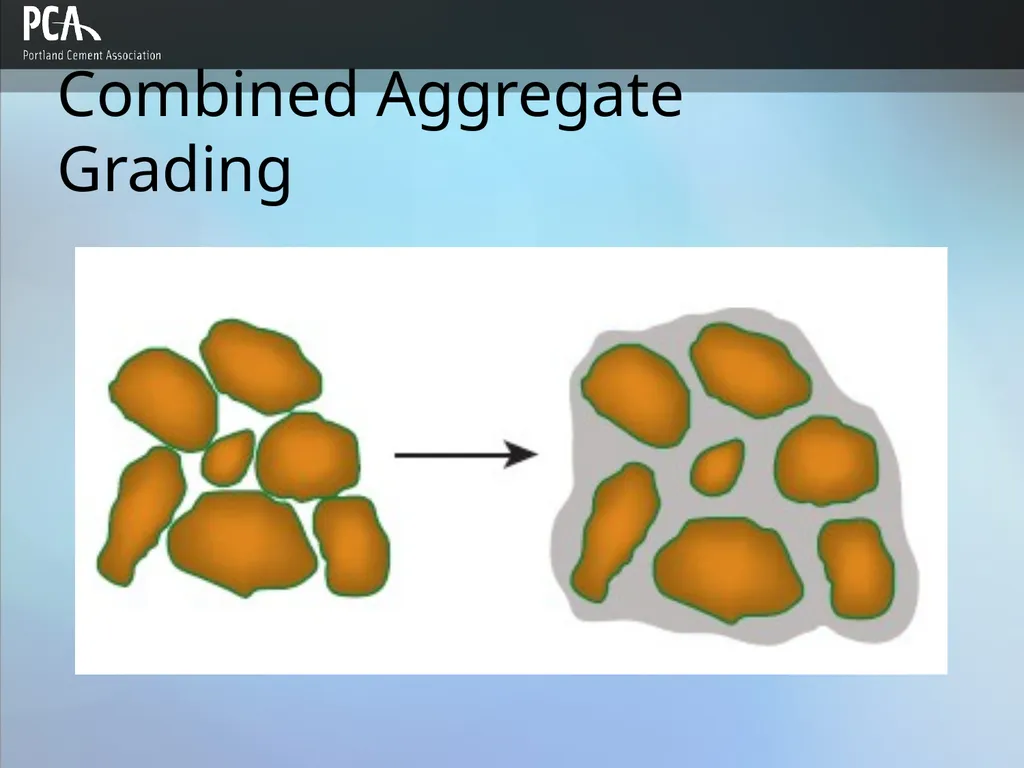

Combined Aggregate Grading<br>
22
Combined Aggregate Grading<br>
23

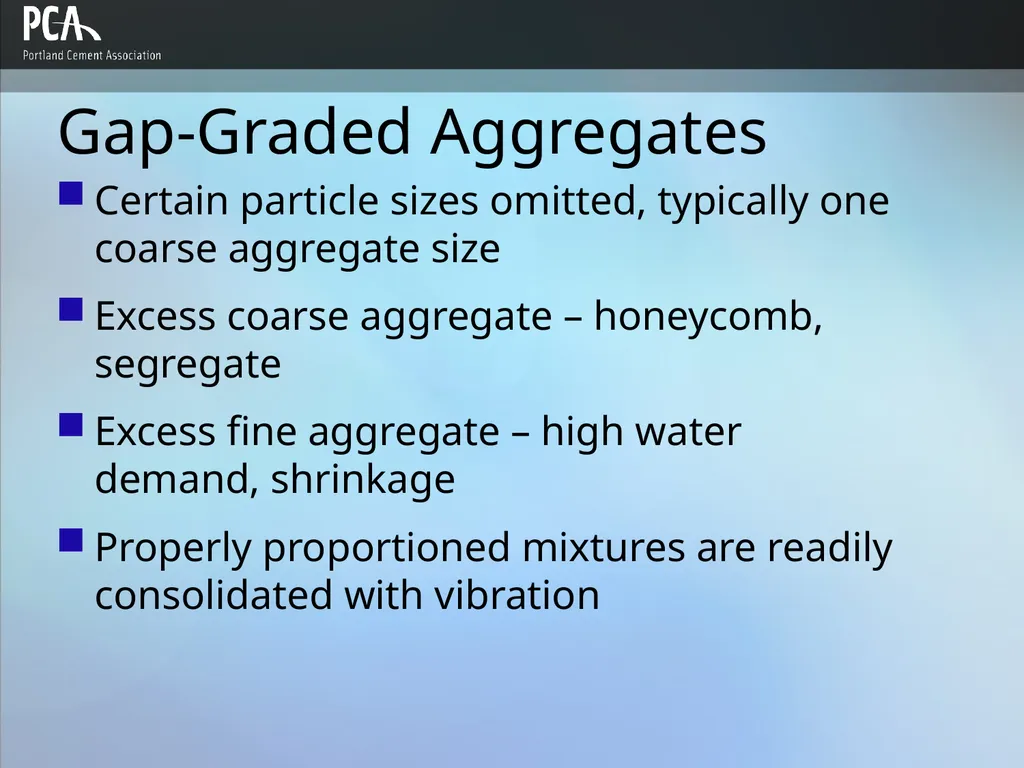

Gap-Graded Aggregates Certain particle sizes omitted, typically one coarse aggregate size
Excess coarse aggregate – honeycomb, segregate
Excess fine aggregate – high water demand, shrinkage
Properly proportioned mixtures are readily consolidated with vibration<br>

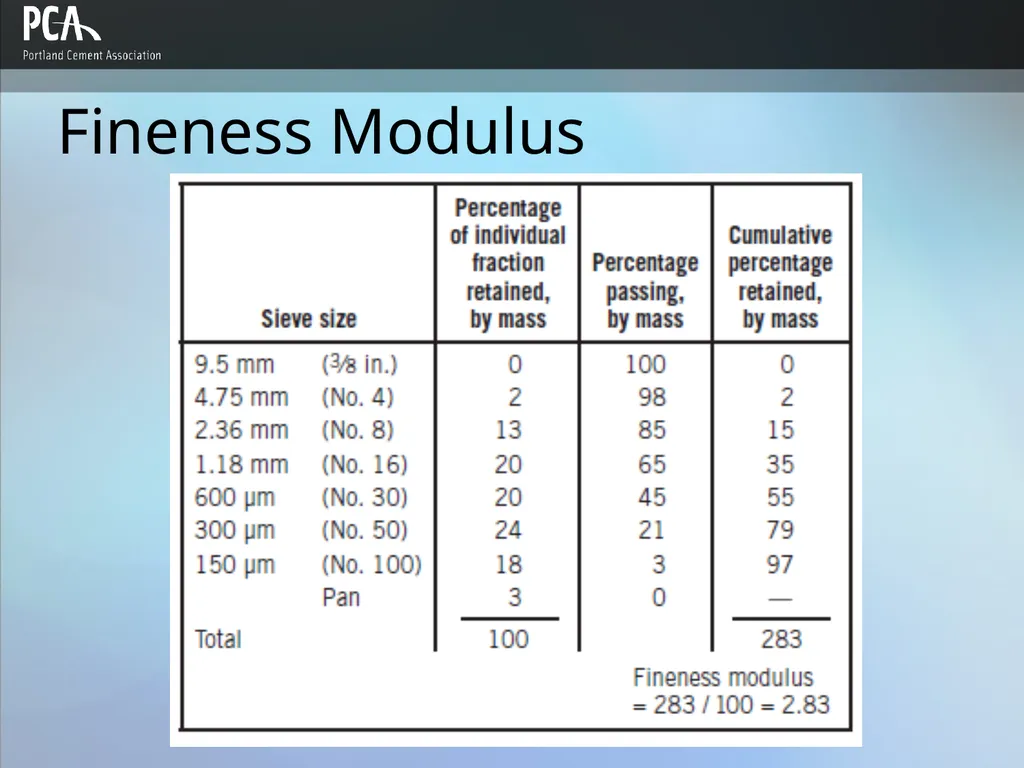

25

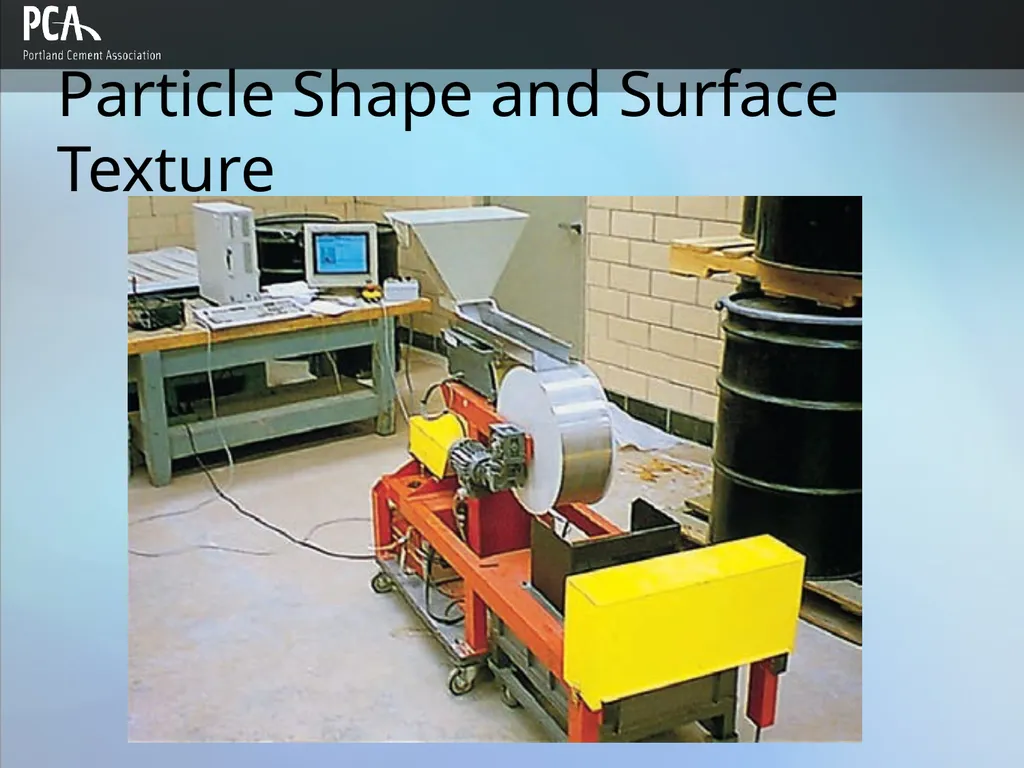

Particle Shape and Surface Texture<br>
26

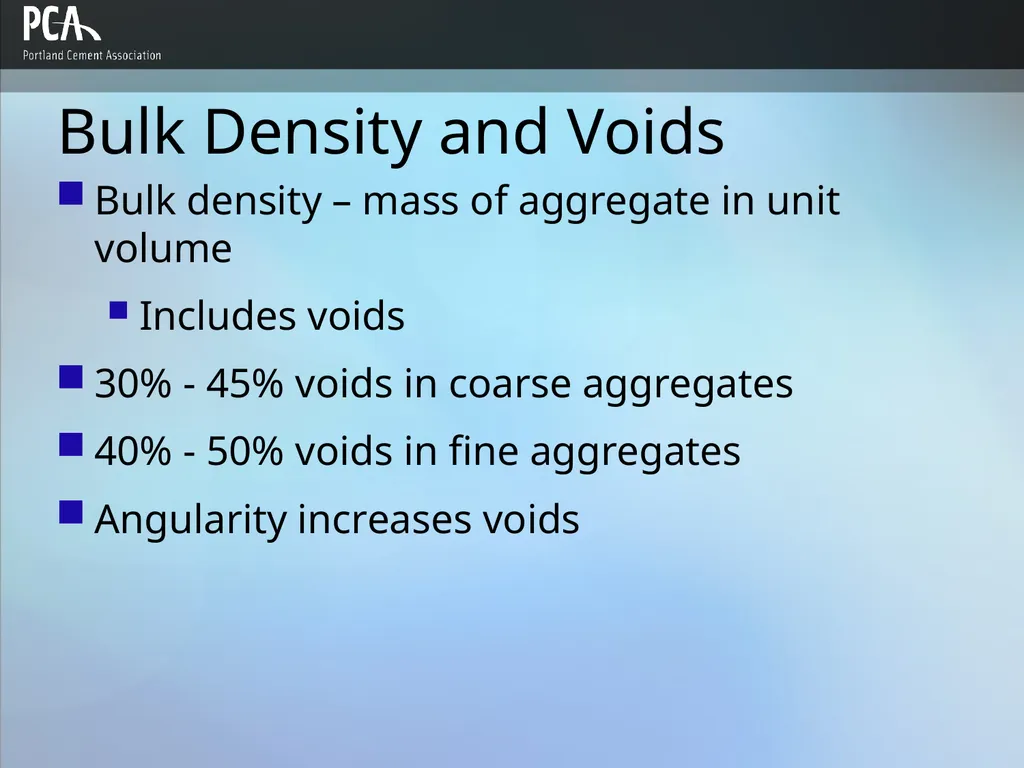

Bulk Density and Voids Bulk density – mass of aggregate in unit volume
Includes voids
30% - 45% voids in coarse aggregates
40% - 50% voids in fine aggregates
Angularity increases voids<br>
27

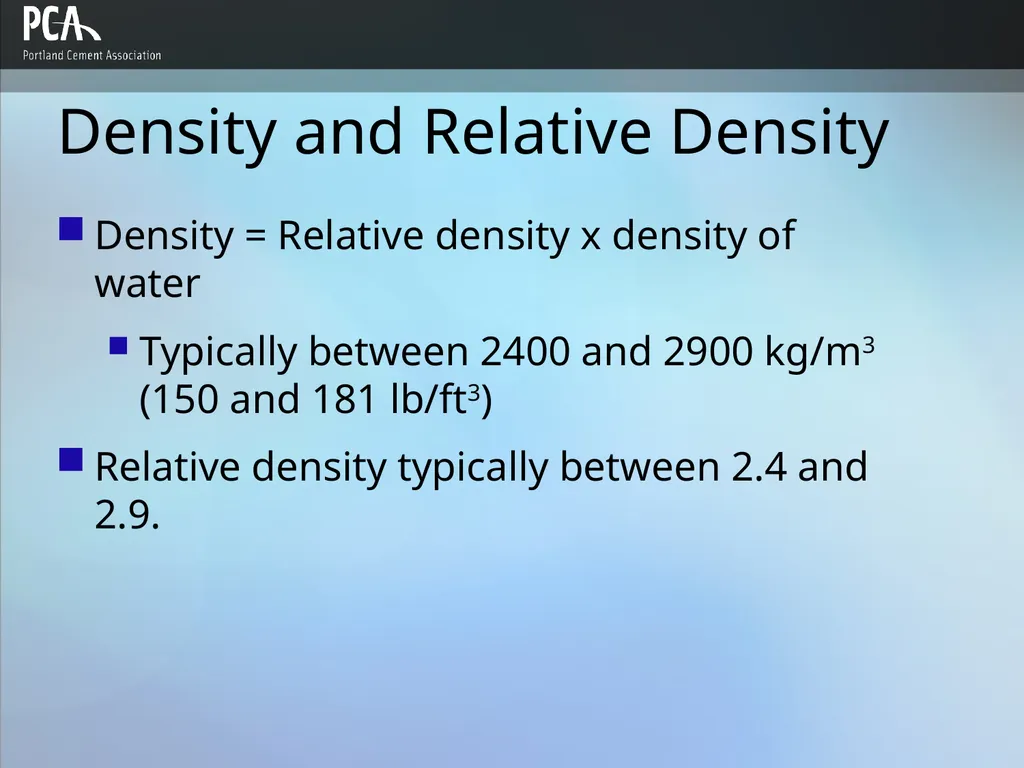

Density and Relative Density Density = Relative density x density of water
Typically between 2400 and 2900 kg/m3 (150 and 181 lb/ft3)
Relative density typically between 2.4 and 2.9.<br>
28

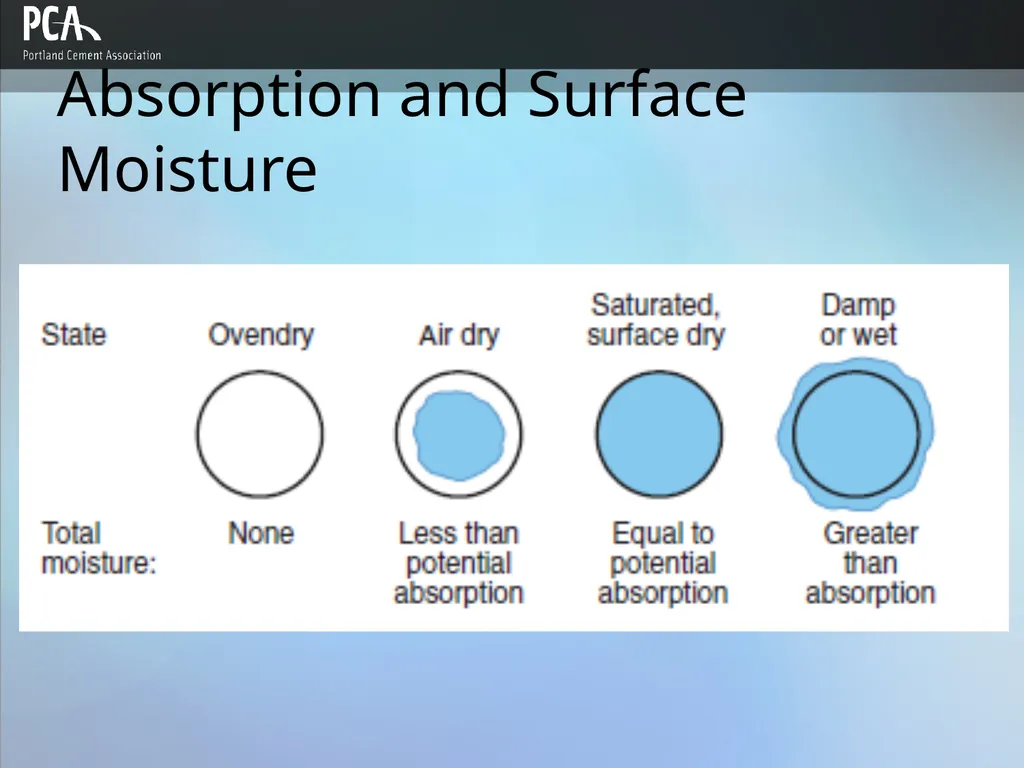

Absorption and Surface Moisture<br>

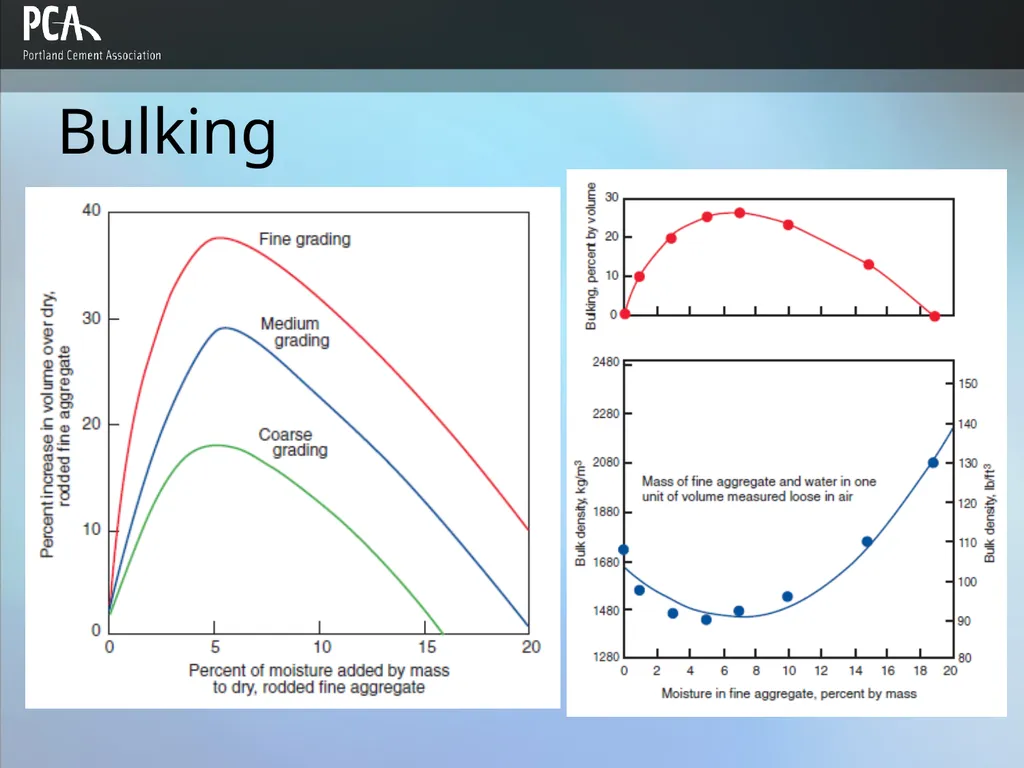

30

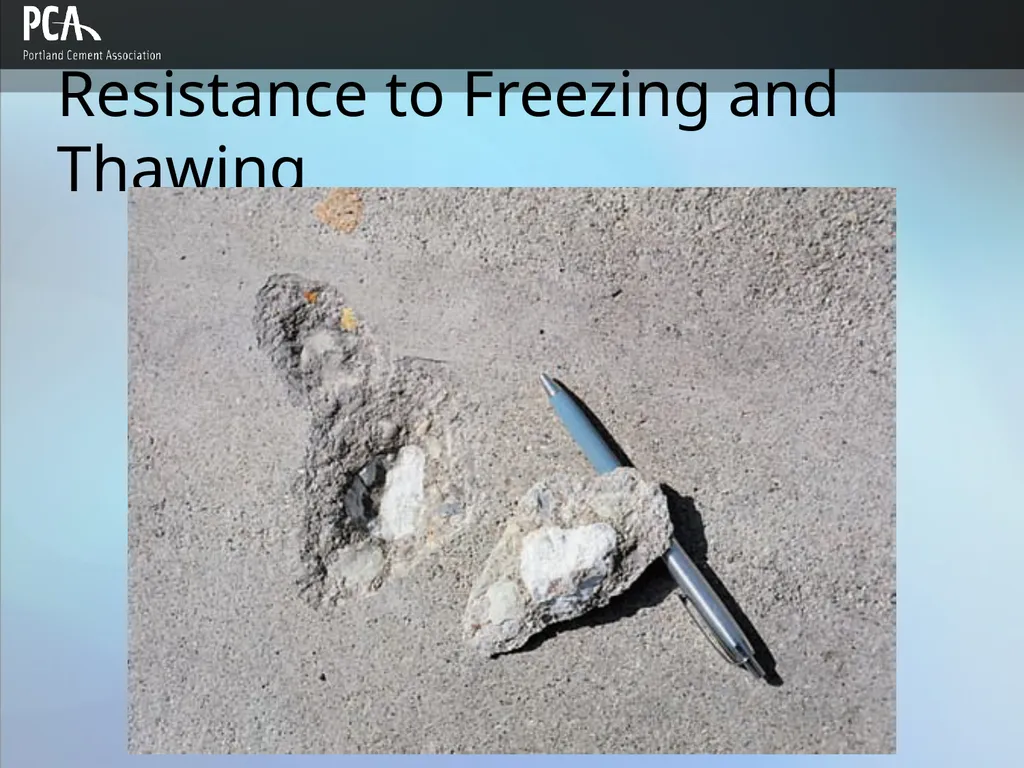

Resistance to Freezing and Thawing<br>

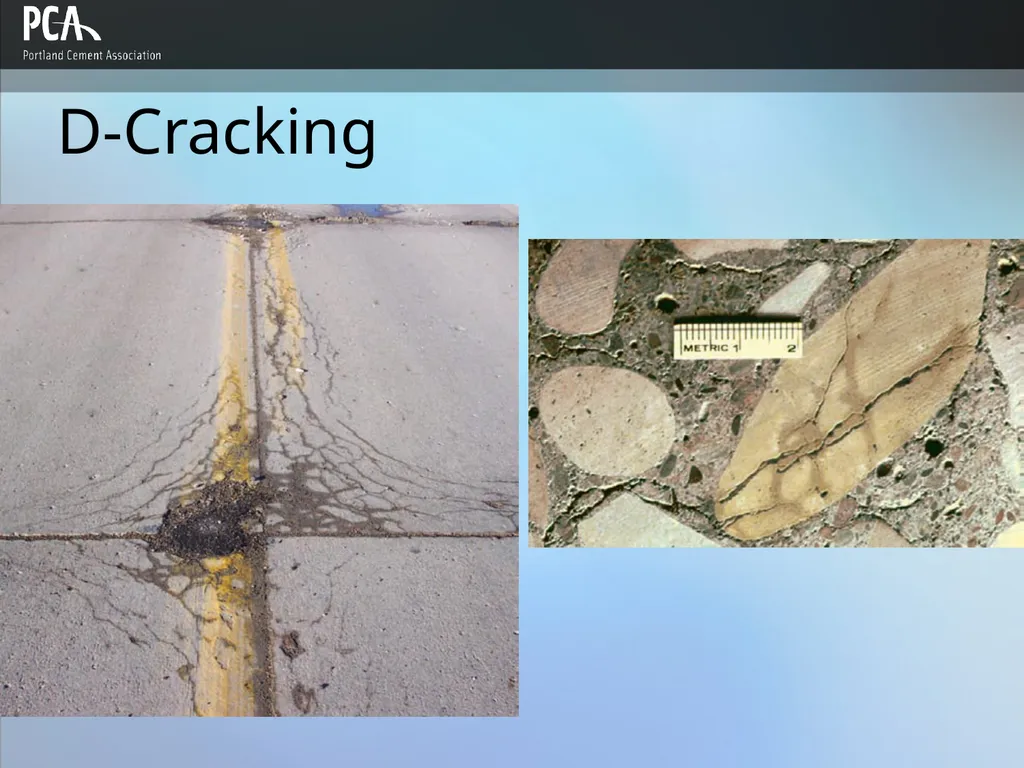

32
Abrasion and Skid Resistance Abrasion resistance used as quality index
Los Angeles abrasion test is most common
No correlation between aggregate abrasion and concrete abrasion
Siliceous content > 25% for good skid resistance<br>
33

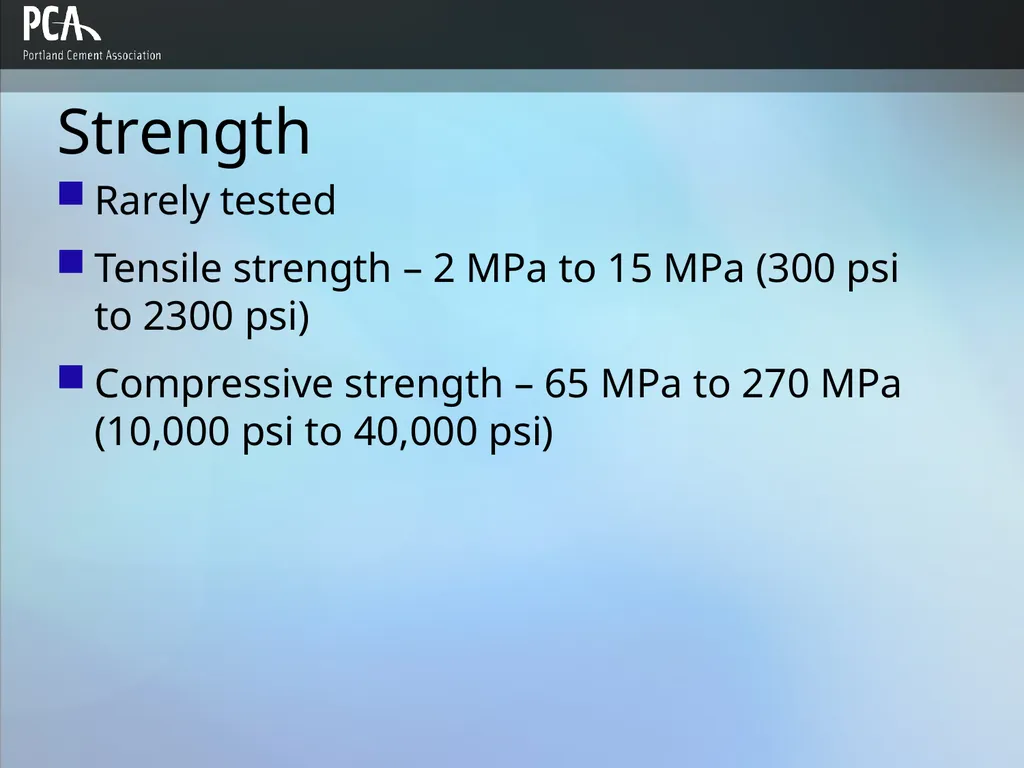

Strength Rarely tested
Tensile strength – 2 MPa to 15 MPa (300 psi to 2300 psi)
Compressive strength – 65 MPa to 270 MPa (10,000 psi to 40,000 psi)<br>

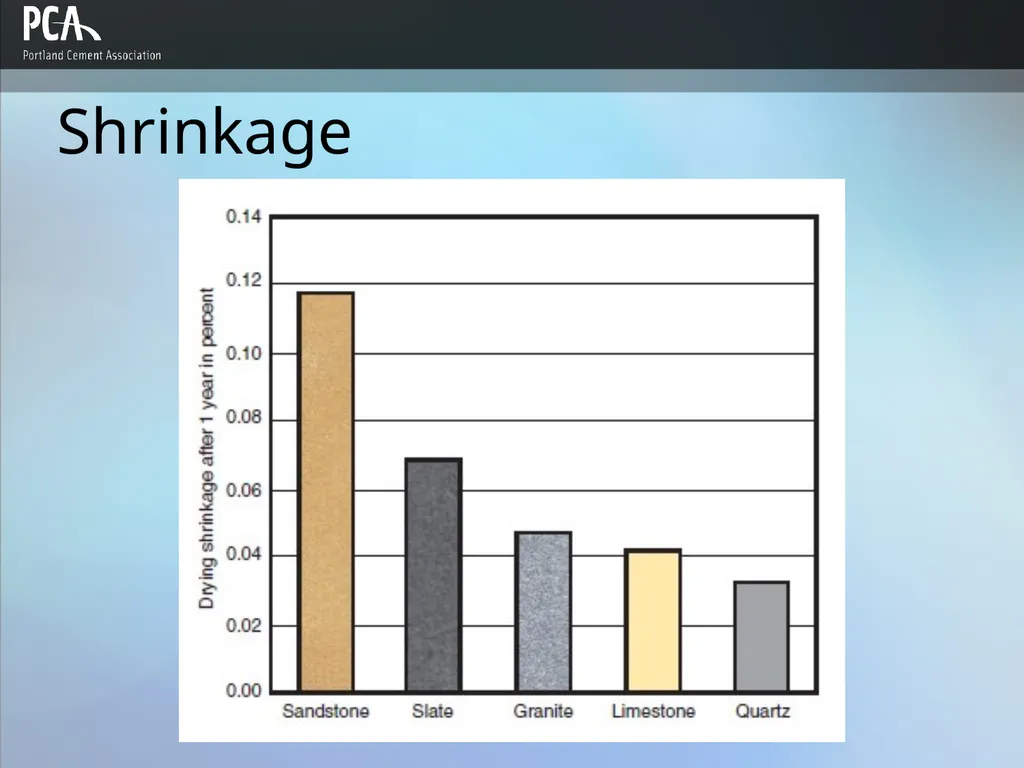

35

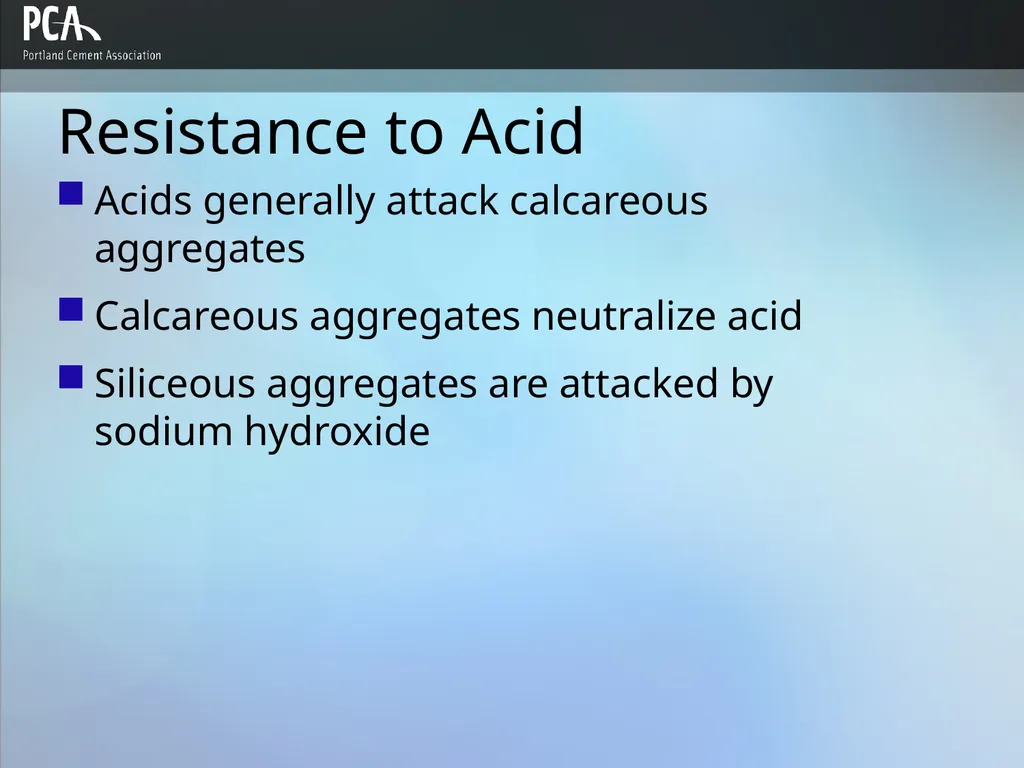

Resistance to Acid Acids generally attack calcareous aggregates
Calcareous aggregates neutralize acid
Siliceous aggregates are attacked by sodium hydroxide<br>
36

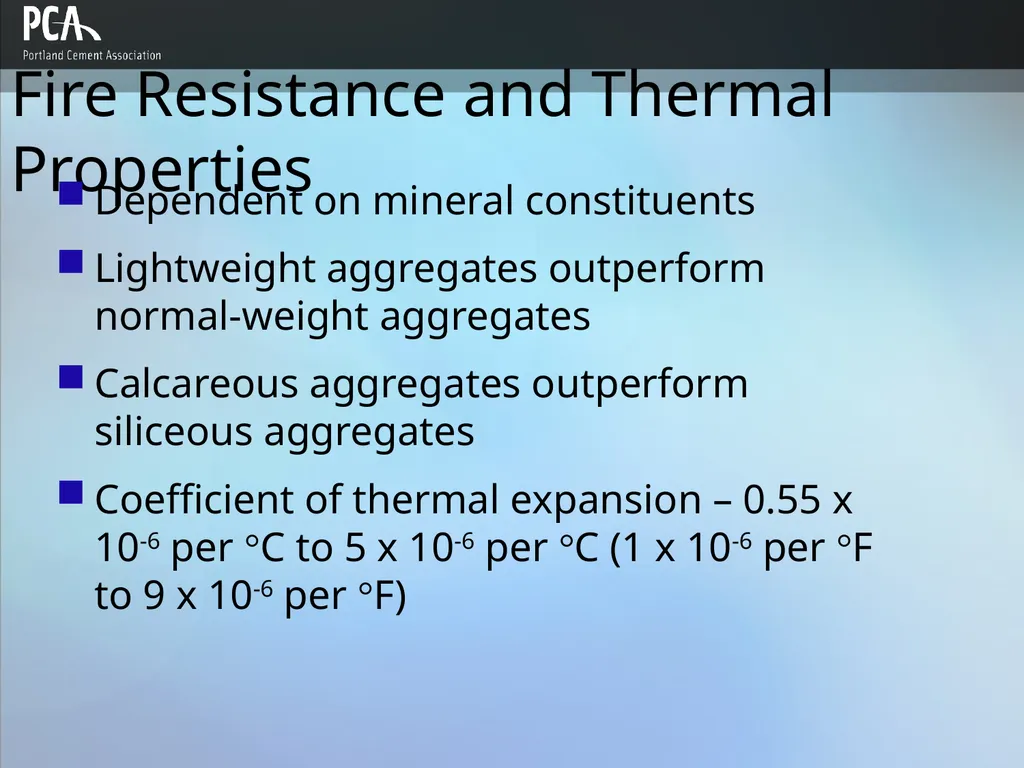

Fire Resistance and Thermal Properties Dependent on mineral constituents
Lightweight aggregates outperform normal-weight aggregates
Calcareous aggregates outperform siliceous aggregates
Coefficient of thermal expansion – 0.55 x 10-6 per °C to 5 x 10-6 per °C (1 x 10-6 per °F to 9 x 10-6 per °F)<br>
37

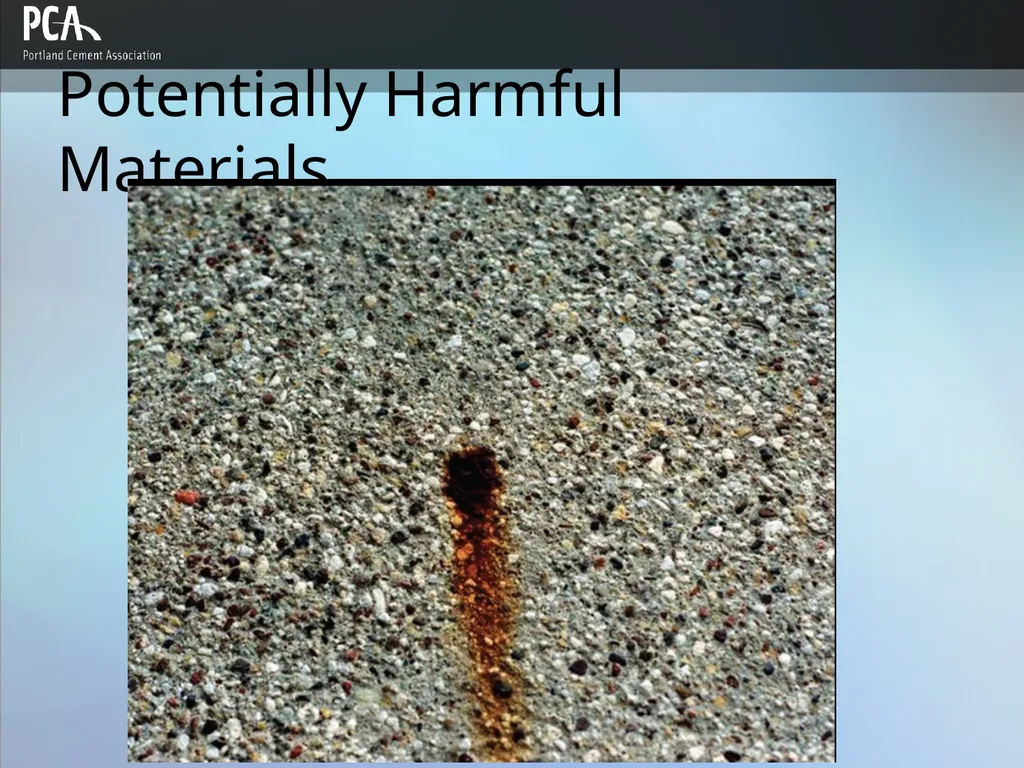

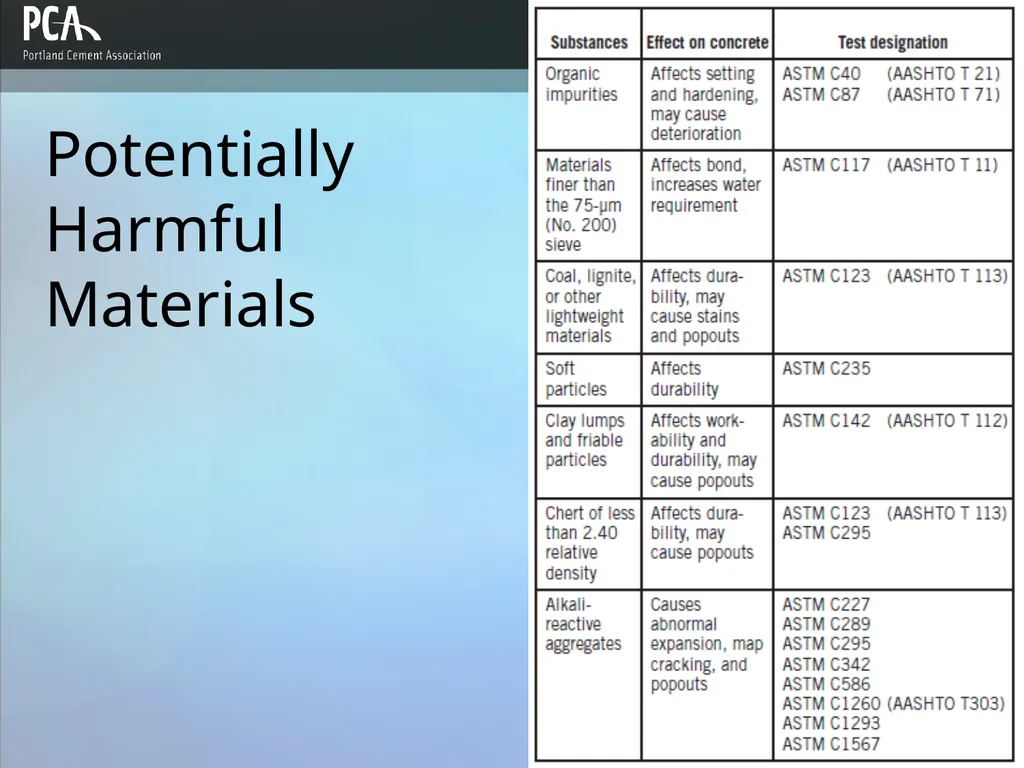

Potentially Harmful Materials<br>
38
Potentially Harmful Materials<br>
39

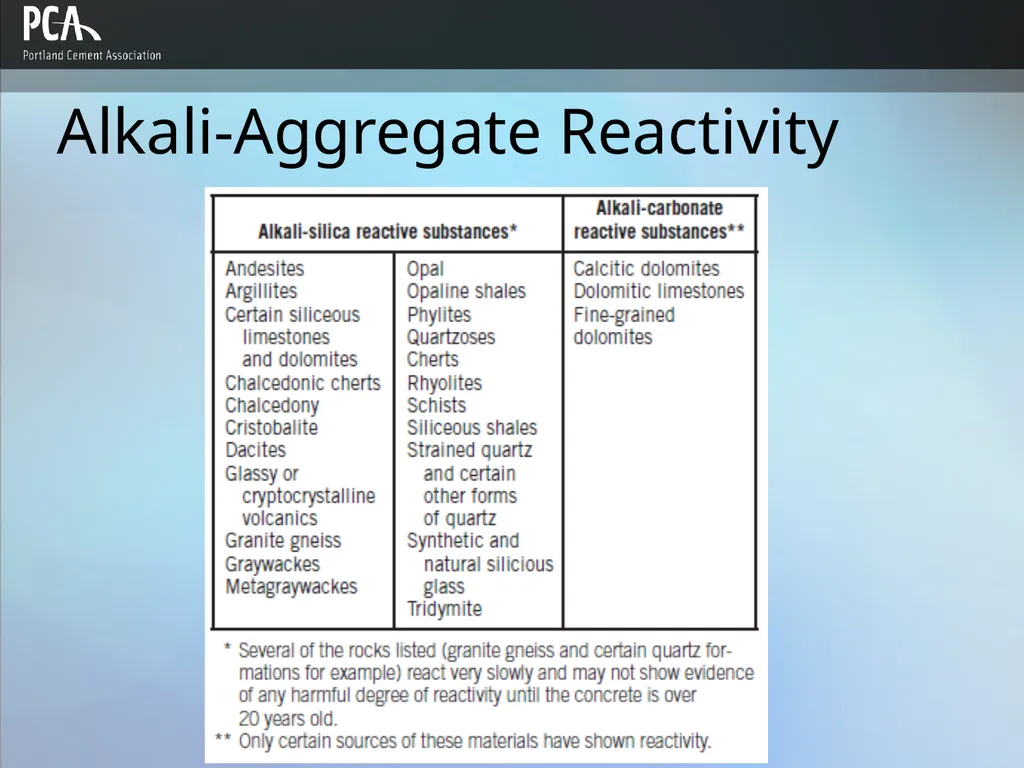

Alkali-Aggregate Reactivity<br>
40

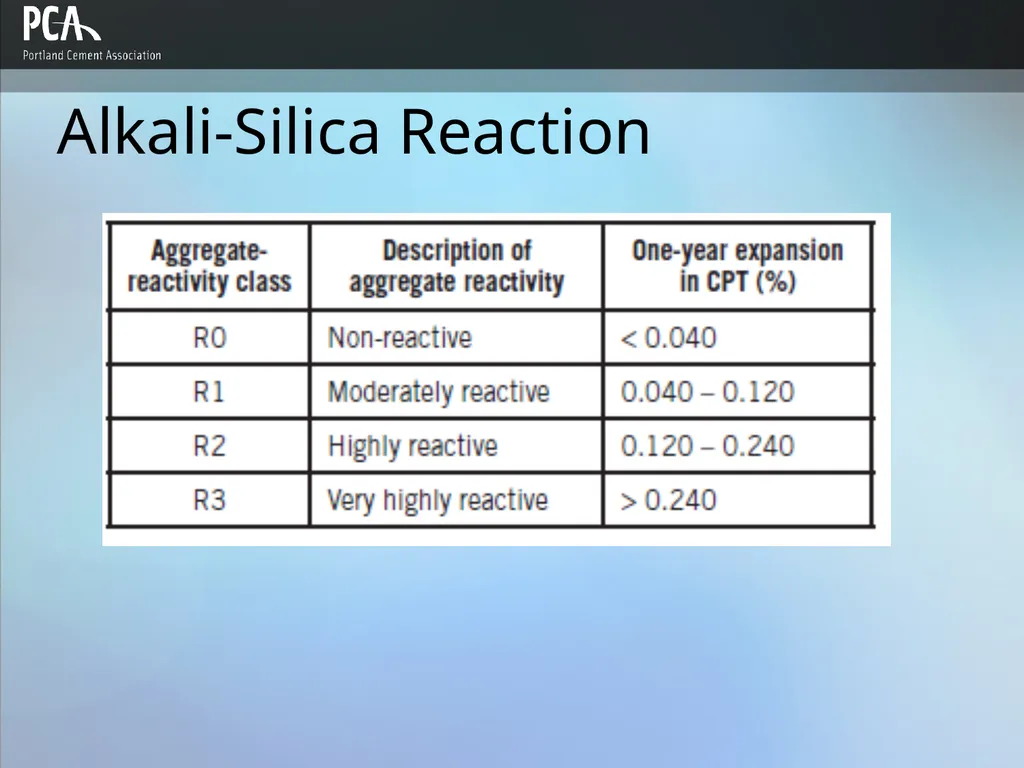

Alkali-Silica Reaction<br>
41

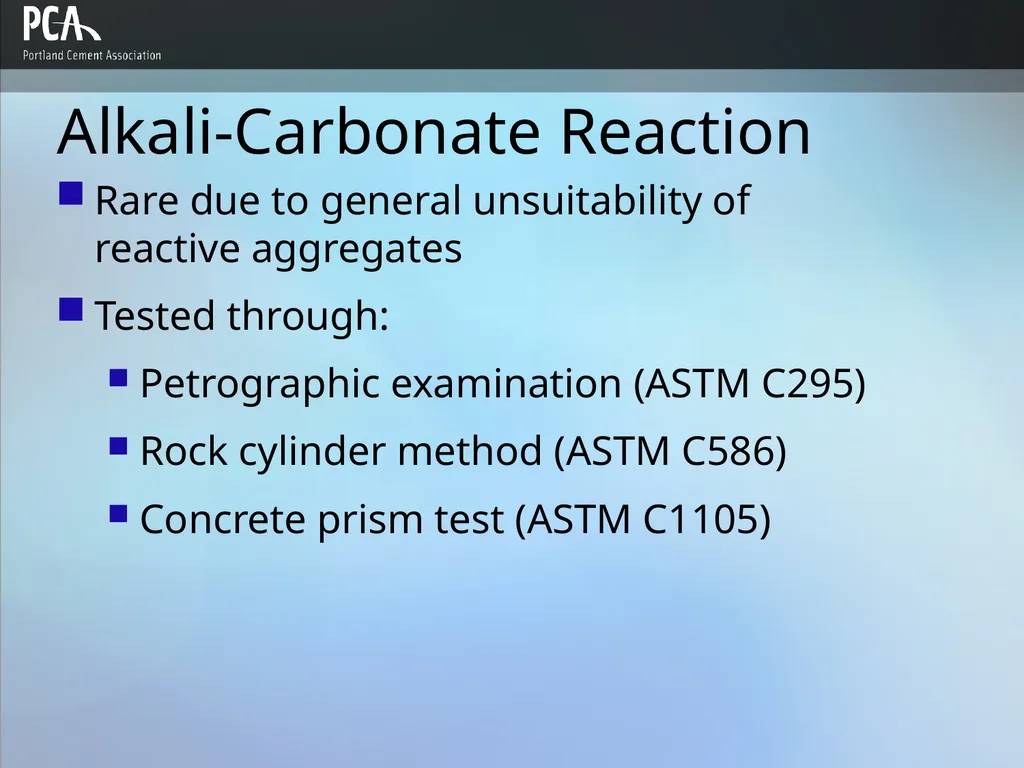

Alkali-Carbonate Reaction Rare due to general unsuitability of reactive aggregates
Tested through:
Petrographic examination (ASTM C295)
Rock cylinder method (ASTM C586)
Concrete prism test (ASTM C1105)<br>
42

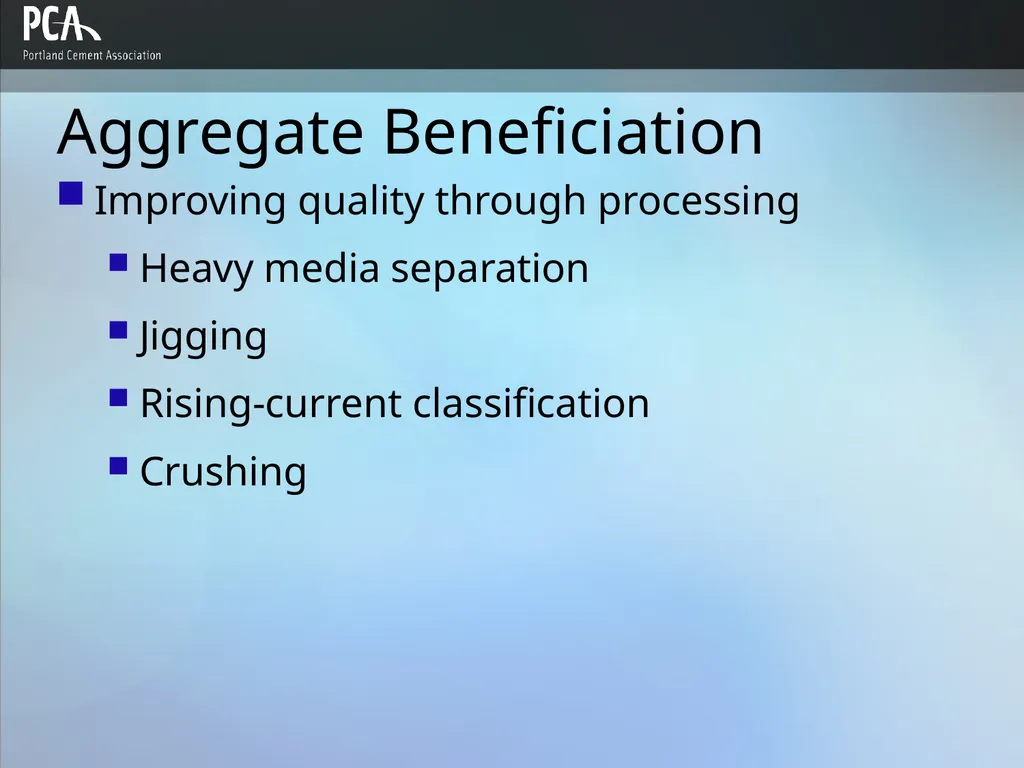

Aggregate Beneficiation Improving quality through processing
Heavy media separation
Jigging
Rising-current classification
Crushing<br>
43

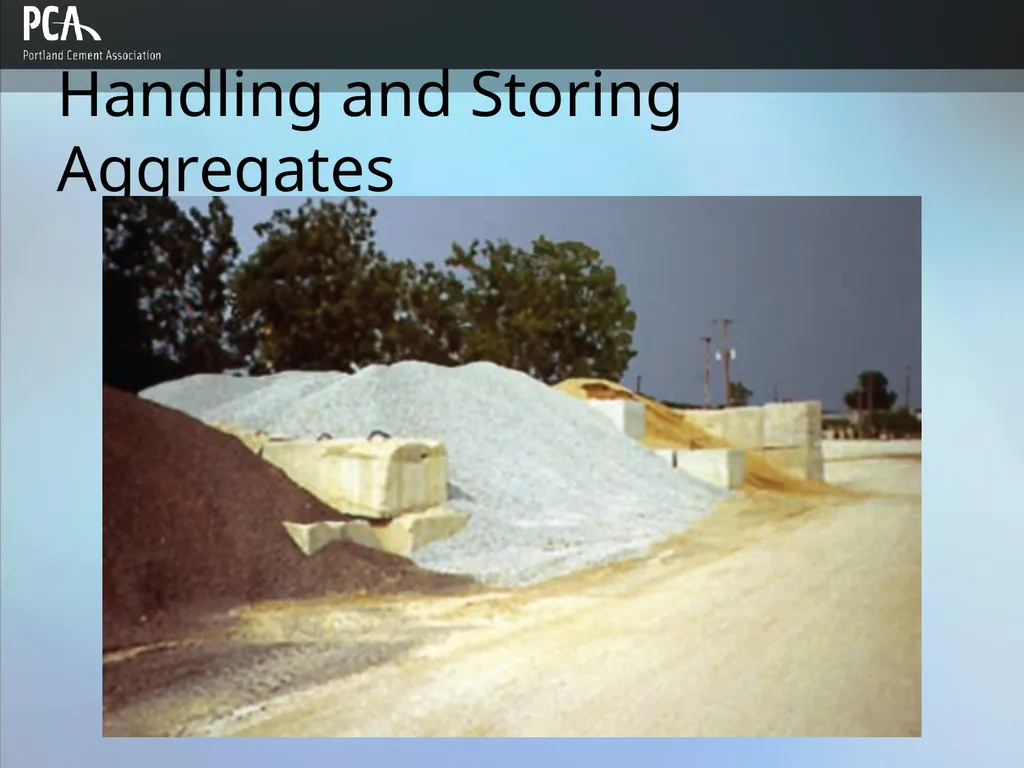

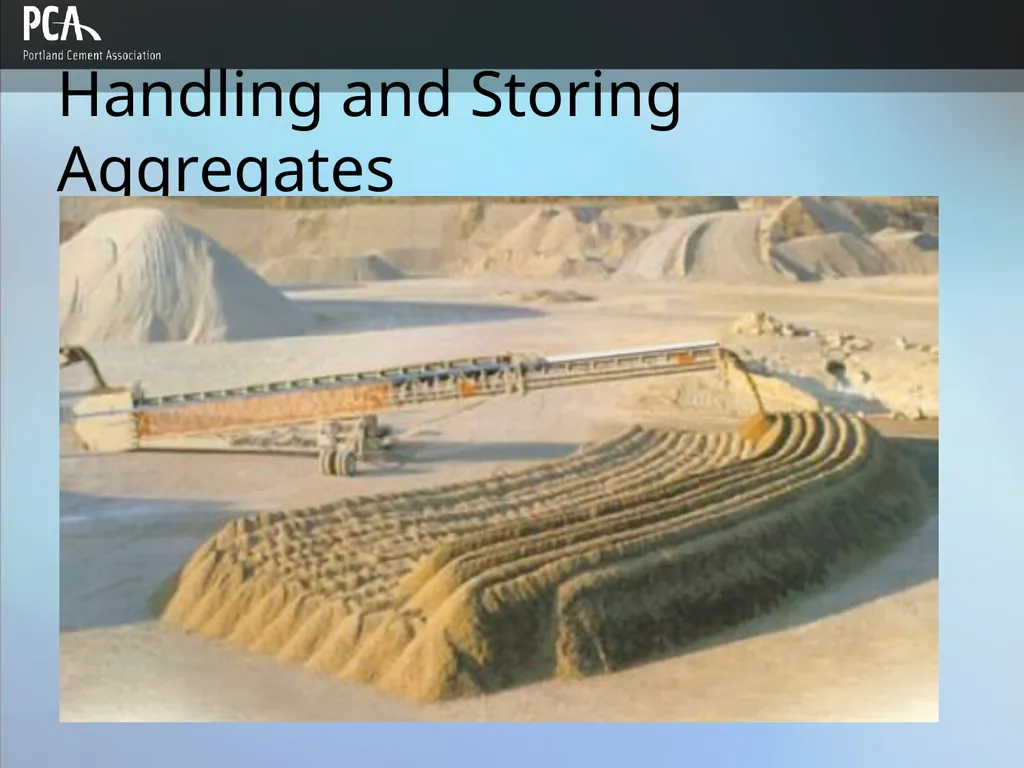

Handling and Storing Aggregates<br>
44
Handling and Storing Aggregates<br>
45
Summary Geology
Classification
Characteristics of Aggregates
Potentially Harmful Materials
Alkali-Aggregate Reactivity
Beneficiation
Handling and Storage<br>
