slide1. Chapter No. 05 Friction C203.5
Use the conditions of equilibrium for forces acting on a body associated with friction.<br>

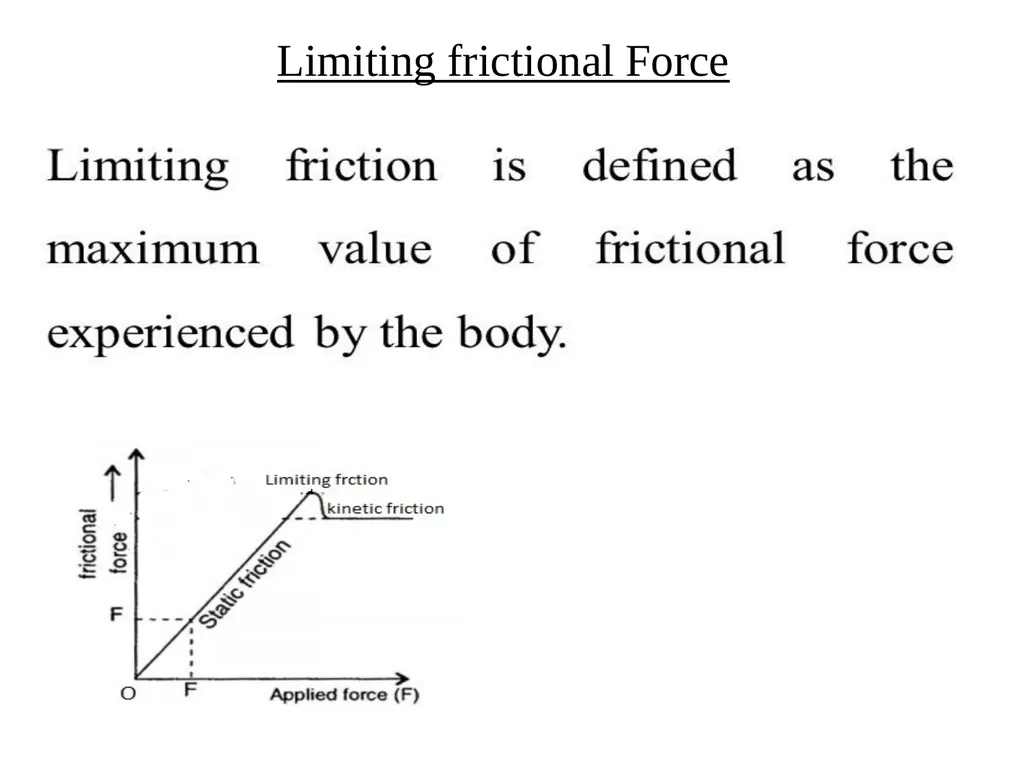

slide4. Limiting frictional Force<br>
slide5. Coefficient of Friction<br>

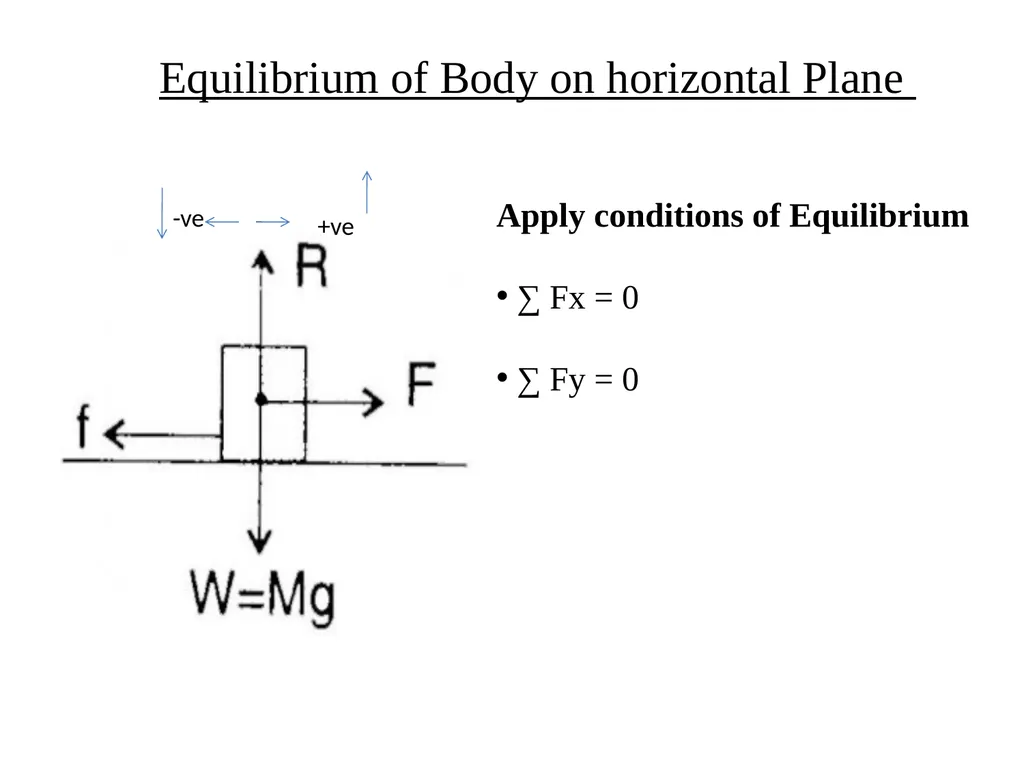

slide6. Equilibrium of Body on horizontal Plane +ve -ve Apply conditions of Equilibrium
∑ Fx = 0
∑ Fy = 0<br>

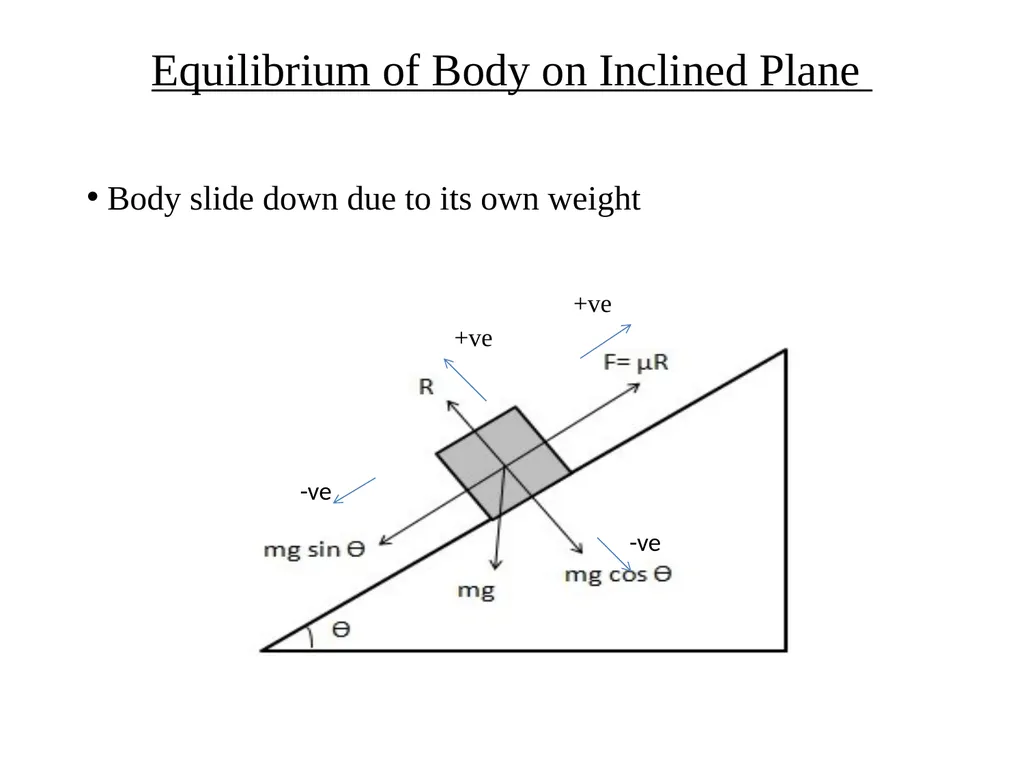

slide7. Equilibrium of Body on Inclined Plane Body slide down due to its own weight +ve +ve -ve -ve<br>
slide8. Body at rest on inclined plane by holding force P<br>

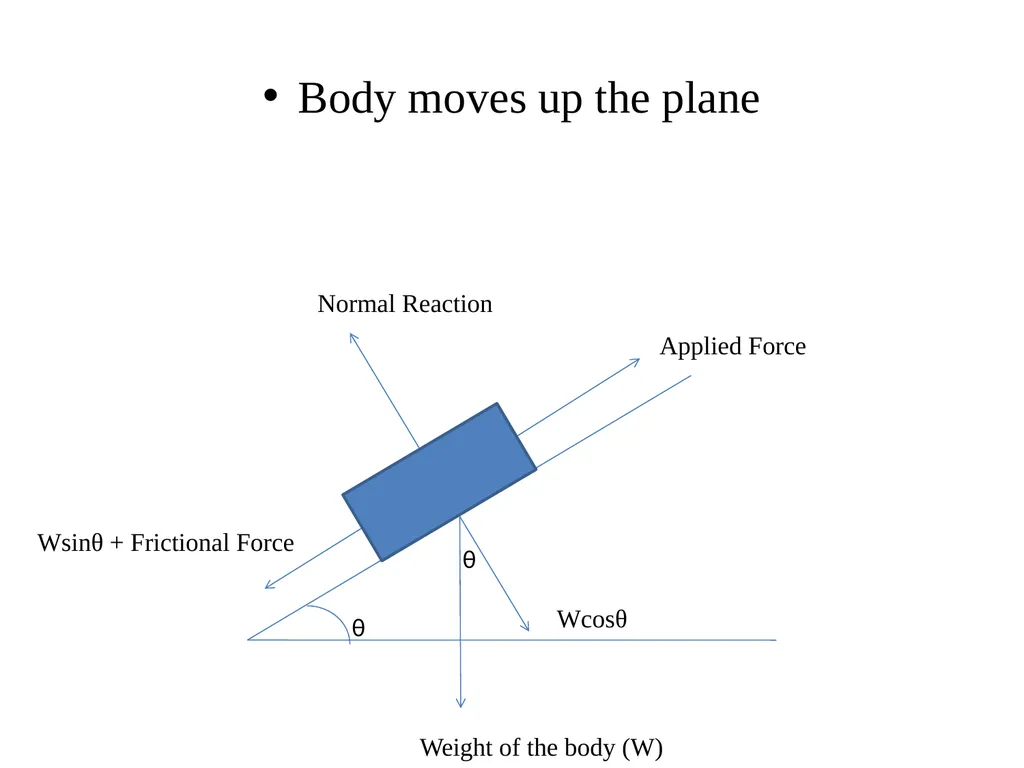

slide9. Body moves up the plane Normal Reaction Applied Force Weight of the body (W) θ θ Wcosθ Wsinθ + Frictional Force<br>
