01

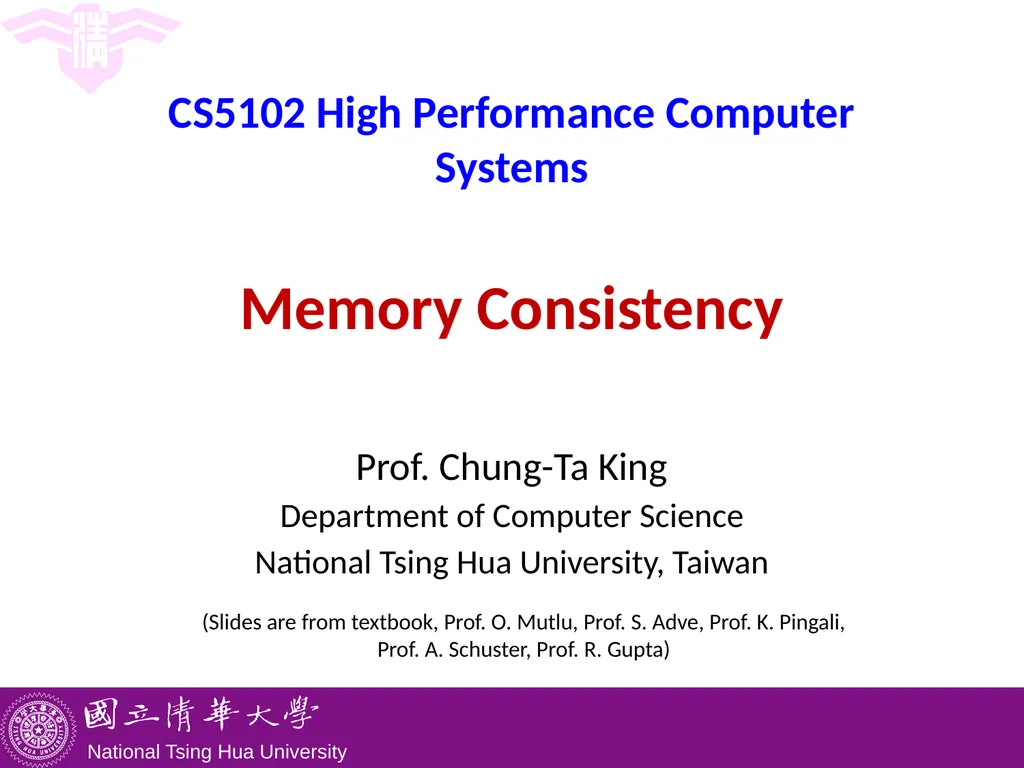

CS5102 High Performance Computer Systems Memory Consistency Prof. Chung-Ta King
Department of Computer Science
National Tsing Hua University, Taiwan (Slides are from textbook, Prof. O. Mutlu, Prof. S. Adve, Prof. K. Pingali, Prof. A. Schuster, Prof. R. Gupta)<br>
Department of Computer Science
National Tsing Hua University, Taiwan (Slides are from textbook, Prof. O. Mutlu, Prof. S. Adve, Prof. K. Pingali, Prof. A. Schuster, Prof. R. Gupta)<br>
02

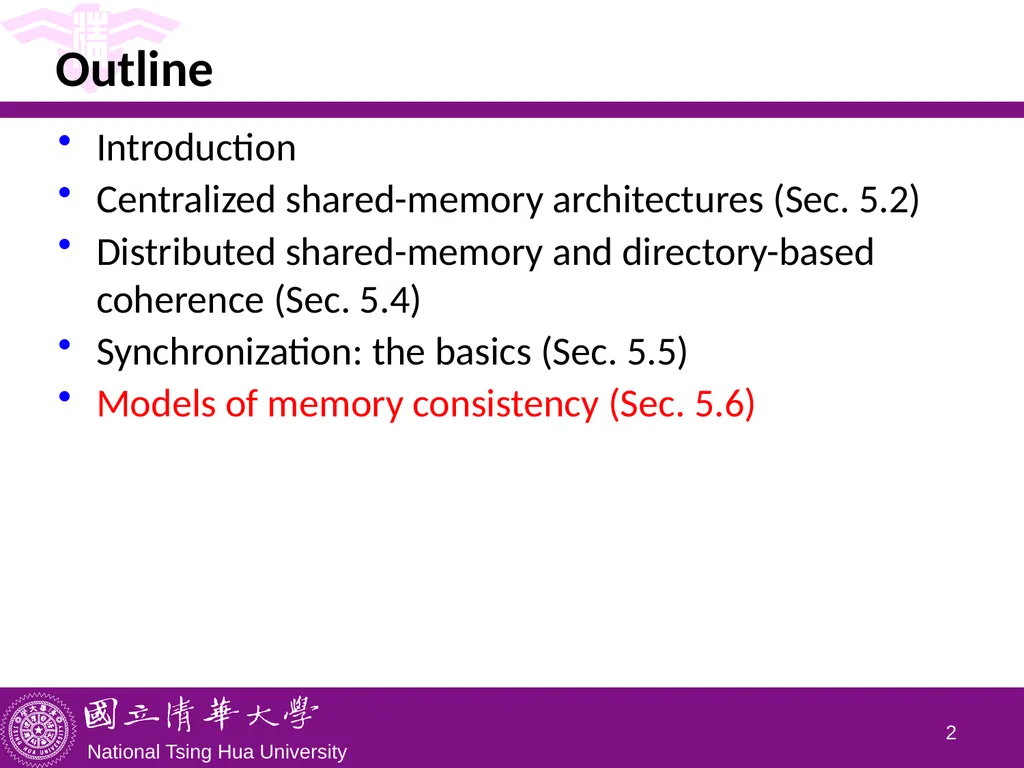

Outline Introduction
Centralized shared-memory architectures (Sec. 5.2)
Distributed shared-memory and directory-based coherence (Sec. 5.4)
Synchronization: the basics (Sec. 5.5)
Models of memory consistency (Sec. 5.6) 1<br>
Centralized shared-memory architectures (Sec. 5.2)
Distributed shared-memory and directory-based coherence (Sec. 5.4)
Synchronization: the basics (Sec. 5.5)
Models of memory consistency (Sec. 5.6) 1<br>
03

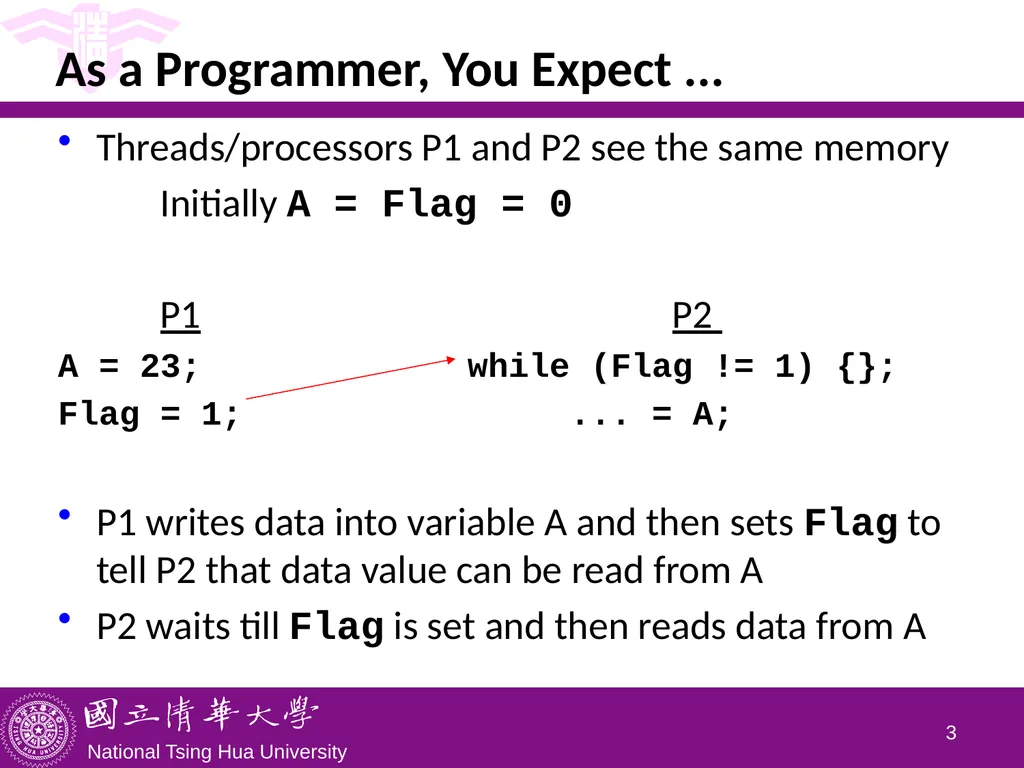

As a Programmer, You Expect ... Threads/processors P1 and P2 see the same memory
Initially A = Flag = 0
P1 P2
A = 23; while (Flag != 1) {};
Flag = 1; ... = A;
P1 writes data into variable A and then sets Flag to tell P2 that data value can be read from A
P2 waits till Flag is set and then reads data from A 2<br>
Initially A = Flag = 0
P1 P2
A = 23; while (Flag != 1) {};
Flag = 1; ... = A;
P1 writes data into variable A and then sets Flag to tell P2 that data value can be read from A
P2 waits till Flag is set and then reads data from A 2<br>
04

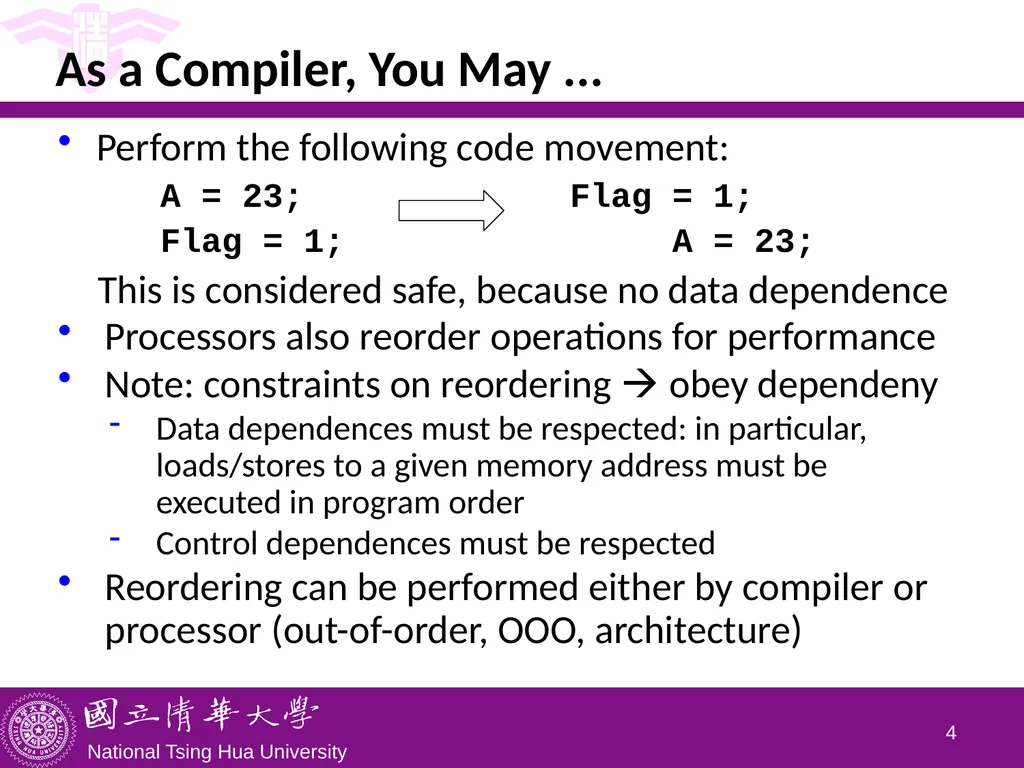

As a Compiler, You May ... Perform the following code movement:
A = 23; Flag = 1;
Flag = 1; A = 23;
This is considered safe, because no data dependence
Processors also reorder operations for performance
Note: constraints on reordering obey dependeny
Data dependences must be respected: in particular, loads/stores to a given memory address must be executed in program order
Control dependences must be respected
Reordering can be performed either by compiler or processor (out-of-order, OOO, architecture) 3<br>
A = 23; Flag = 1;
Flag = 1; A = 23;
This is considered safe, because no data dependence
Processors also reorder operations for performance
Note: constraints on reordering obey dependeny
Data dependences must be respected: in particular, loads/stores to a given memory address must be executed in program order
Control dependences must be respected
Reordering can be performed either by compiler or processor (out-of-order, OOO, architecture) 3<br>
05

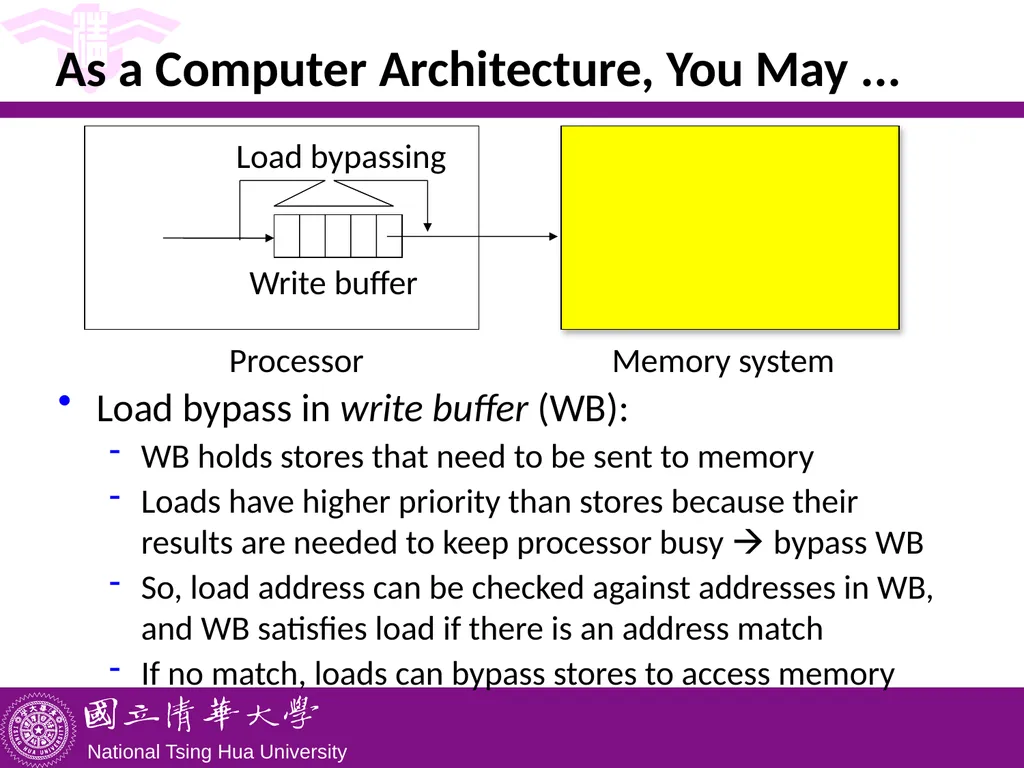

Load bypass in write buffer (WB):
WB holds stores that need to be sent to memory
Loads have higher priority than stores because their results are needed to keep processor busy bypass WB
So, load address can be checked against addresses in WB, and WB satisfies load if there is an address match
If no match, loads can bypass stores to access memory As a Computer Architecture, You May ... Memory system Processor Write buffer Load bypassing<br>
WB holds stores that need to be sent to memory
Loads have higher priority than stores because their results are needed to keep processor busy bypass WB
So, load address can be checked against addresses in WB, and WB satisfies load if there is an address match
If no match, loads can bypass stores to access memory As a Computer Architecture, You May ... Memory system Processor Write buffer Load bypassing<br>
06

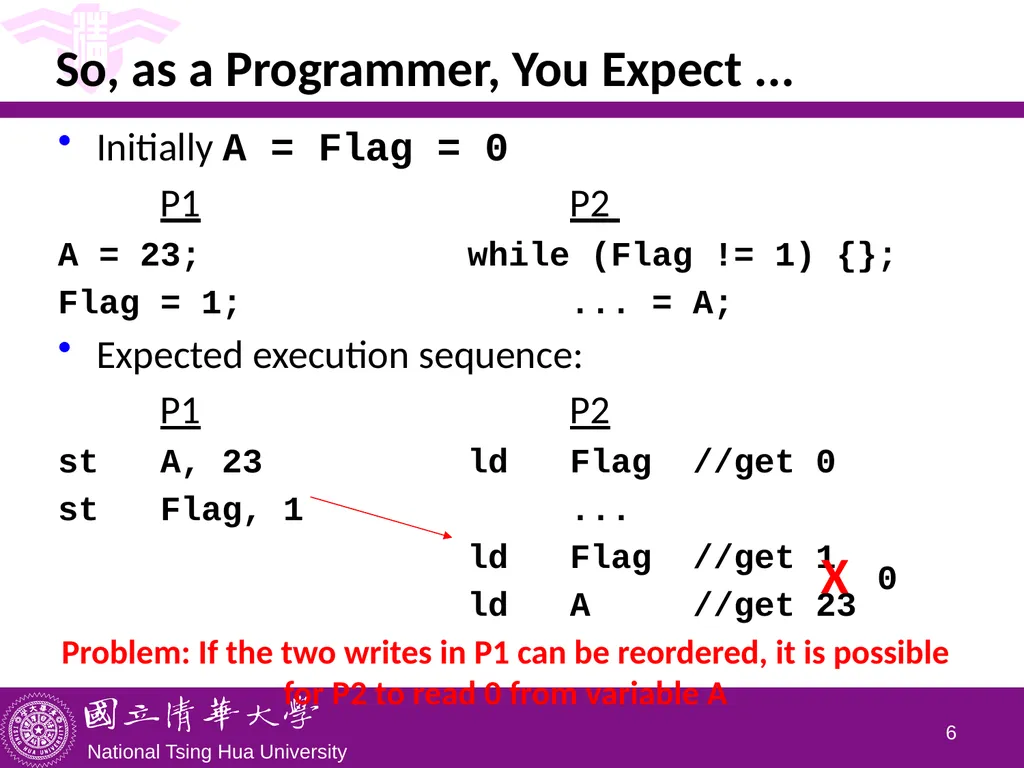

So, as a Programmer, You Expect ... Initially A = Flag = 0
P1 P2
A = 23; while (Flag != 1) {};
Flag = 1; ... = A;
Expected execution sequence:
P1 P2
st A, 23 ld Flag //get 0
st Flag, 1 ...
ld Flag //get 1
ld A //get 23
Problem: If the two writes in P1 can be reordered, it is possible for P2 to read 0 from variable A 5 X 0<br>
P1 P2
A = 23; while (Flag != 1) {};
Flag = 1; ... = A;
Expected execution sequence:
P1 P2
st A, 23 ld Flag //get 0
st Flag, 1 ...
ld Flag //get 1
ld A //get 23
Problem: If the two writes in P1 can be reordered, it is possible for P2 to read 0 from variable A 5 X 0<br>
07

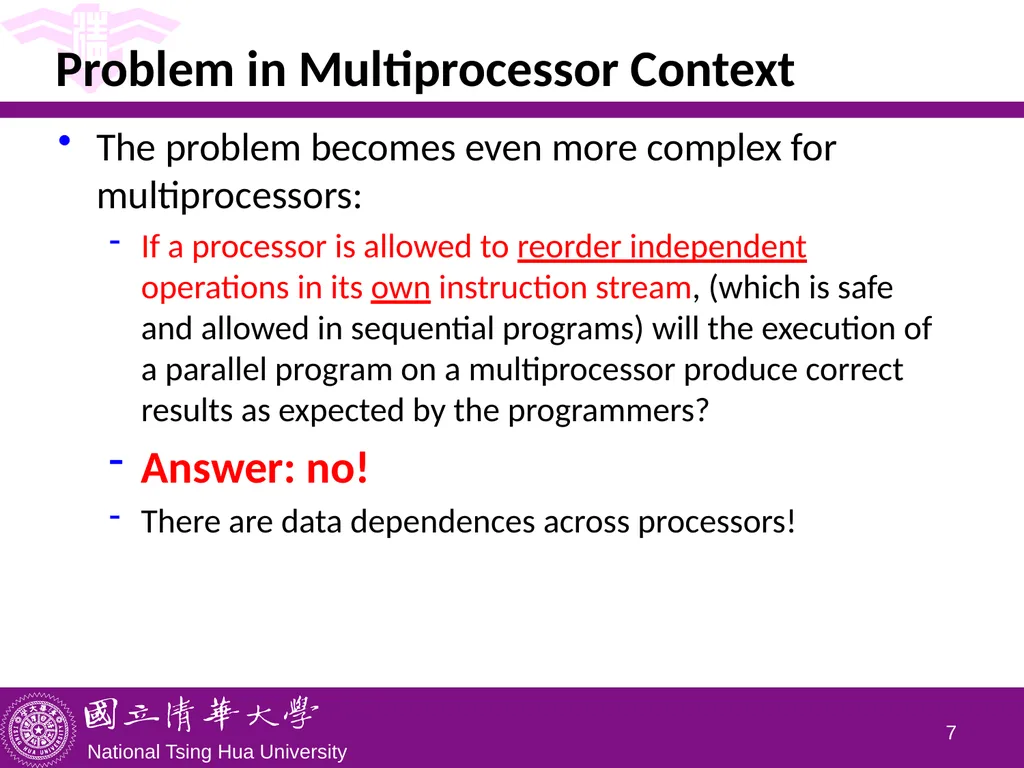

Problem in Multiprocessor Context The problem becomes even more complex for multiprocessors:
If a processor is allowed to reorder independent operations in its own instruction stream, (which is safe and allowed in sequential programs) will the execution of a parallel program on a multiprocessor produce correct results as expected by the programmers?
Answer: no!
There are data dependences across processors! 6<br>
If a processor is allowed to reorder independent operations in its own instruction stream, (which is safe and allowed in sequential programs) will the execution of a parallel program on a multiprocessor produce correct results as expected by the programmers?
Answer: no!
There are data dependences across processors! 6<br>

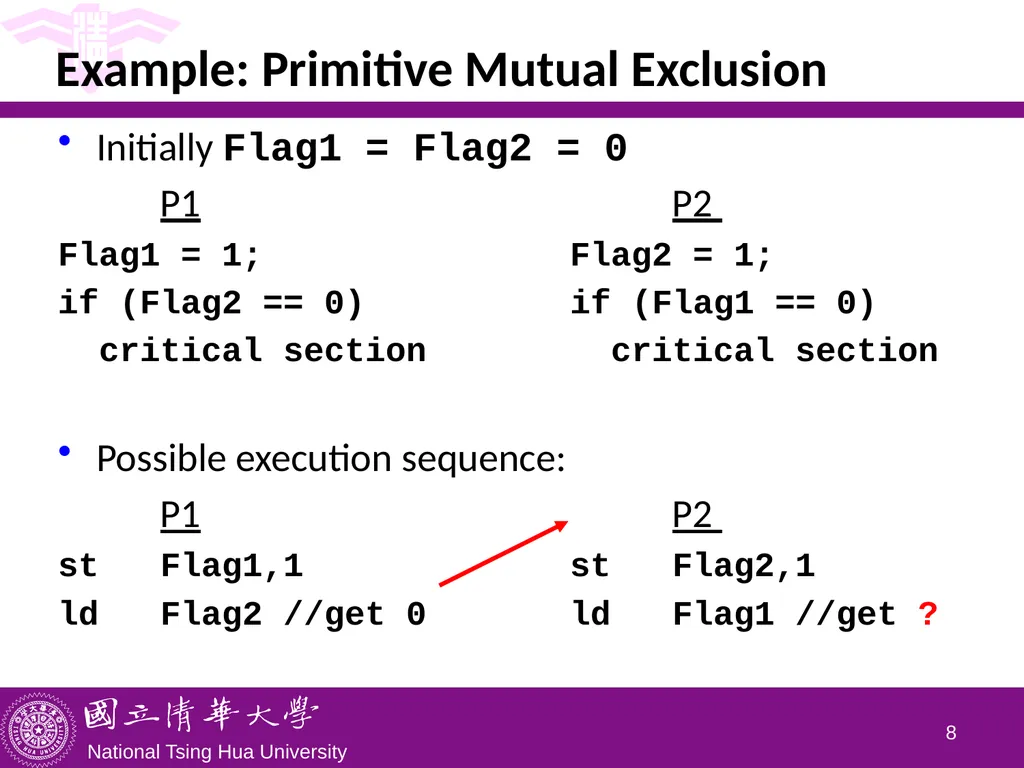

08
Example: Primitive Mutual Exclusion Initially Flag1 = Flag2 = 0
P1 P2
Flag1 = 1; Flag2 = 1;
if (Flag2 == 0) if (Flag1 == 0)
critical section critical section
Possible execution sequence:
P1 P2
st Flag1,1 st Flag2,1
ld Flag2 //get 0 ld Flag1 //get ? 7<br>
P1 P2
Flag1 = 1; Flag2 = 1;
if (Flag2 == 0) if (Flag1 == 0)
critical section critical section
Possible execution sequence:
P1 P2
st Flag1,1 st Flag2,1
ld Flag2 //get 0 ld Flag1 //get ? 7<br>

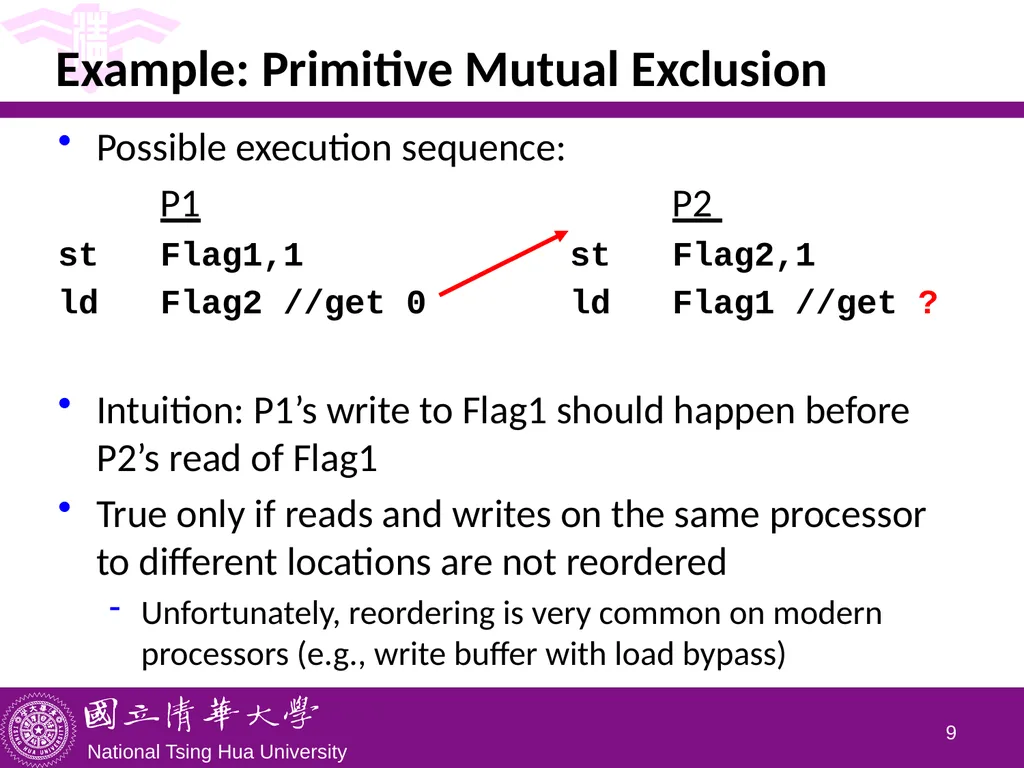

09
Example: Primitive Mutual Exclusion Possible execution sequence:
P1 P2
st Flag1,1 st Flag2,1
ld Flag2 //get 0 ld Flag1 //get ?
Intuition: P1’s write to Flag1 should happen before P2’s read of Flag1
True only if reads and writes on the same processor to different locations are not reordered
Unfortunately, reordering is very common on modern processors (e.g., write buffer with load bypass) 8<br>
P1 P2
st Flag1,1 st Flag2,1
ld Flag2 //get 0 ld Flag1 //get ?
Intuition: P1’s write to Flag1 should happen before P2’s read of Flag1
True only if reads and writes on the same processor to different locations are not reordered
Unfortunately, reordering is very common on modern processors (e.g., write buffer with load bypass) 8<br>

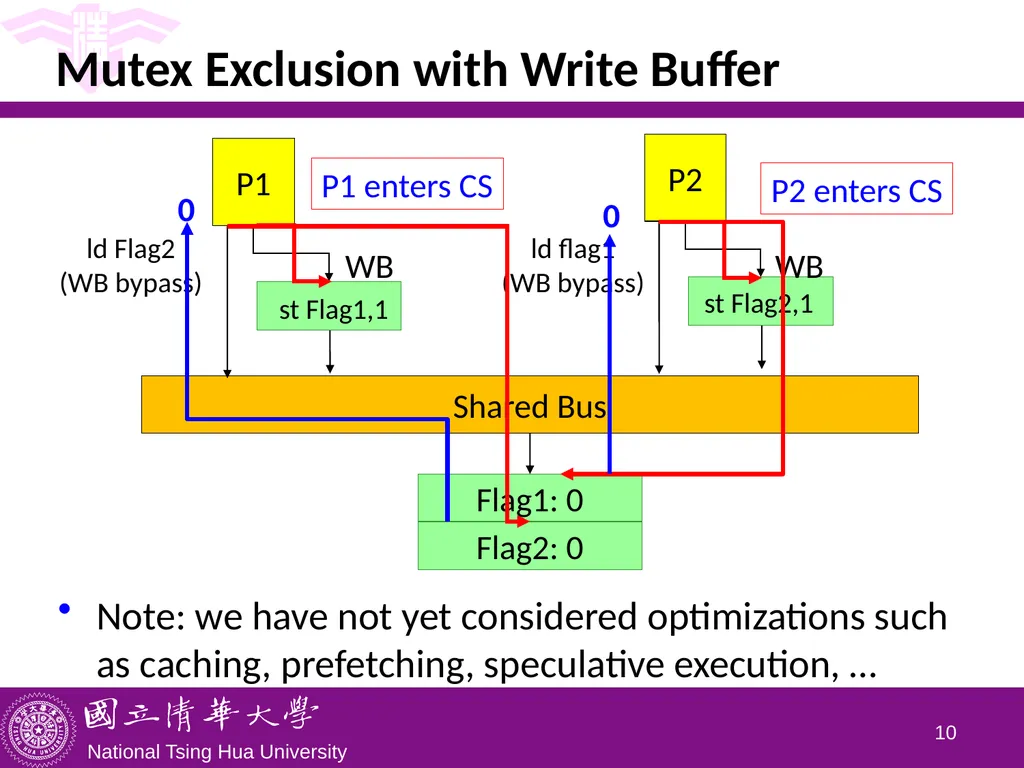

10
Mutex Exclusion with Write Buffer Note: we have not yet considered optimizations such as caching, prefetching, speculative execution, … 9 Shared Bus P1 ld Flag2
(WB bypass) P2 ld flag1
(WB bypass) Flag1: 0 Flag2: 0 WB WB st Flag1,1 st Flag2,1 0 P1 enters CS 0 P2 enters CS<br>
(WB bypass) P2 ld flag1
(WB bypass) Flag1: 0 Flag2: 0 WB WB st Flag1,1 st Flag2,1 0 P1 enters CS 0 P2 enters CS<br>
11

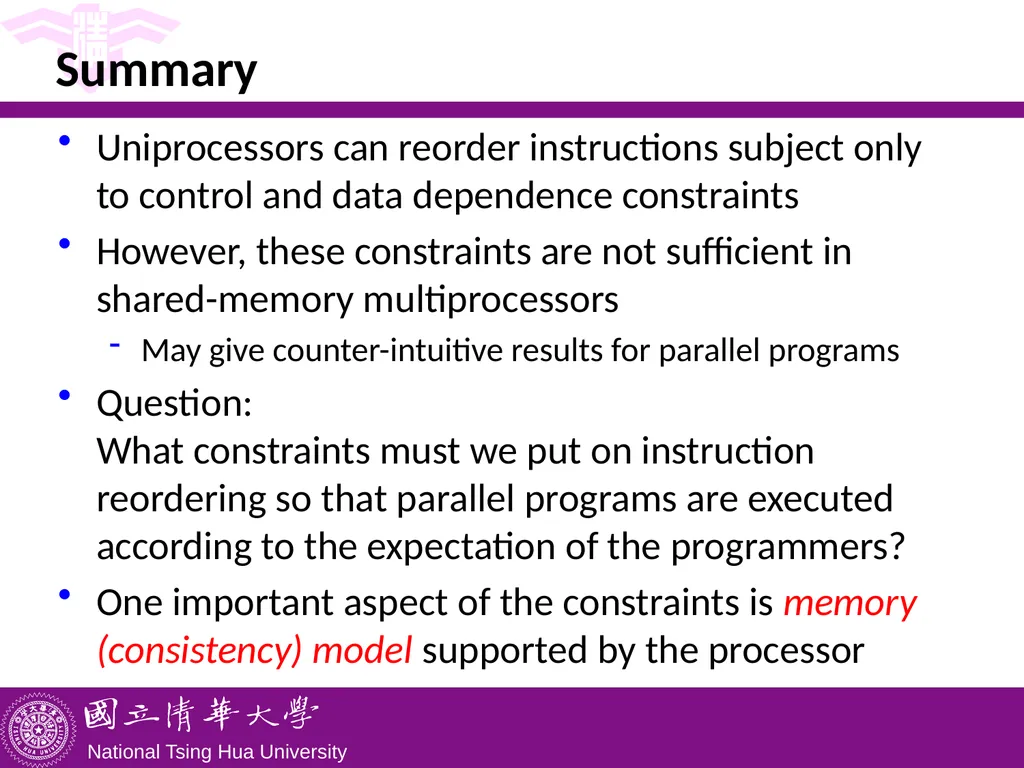

Summary Uniprocessors can reorder instructions subject only to control and data dependence constraints
However, these constraints are not sufficient in shared-memory multiprocessors
May give counter-intuitive results for parallel programs
Question: What constraints must we put on instruction reordering so that parallel programs are executed according to the expectation of the programmers?
One important aspect of the constraints is memory (consistency) model supported by the processor<br>
However, these constraints are not sufficient in shared-memory multiprocessors
May give counter-intuitive results for parallel programs
Question: What constraints must we put on instruction reordering so that parallel programs are executed according to the expectation of the programmers?
One important aspect of the constraints is memory (consistency) model supported by the processor<br>
12

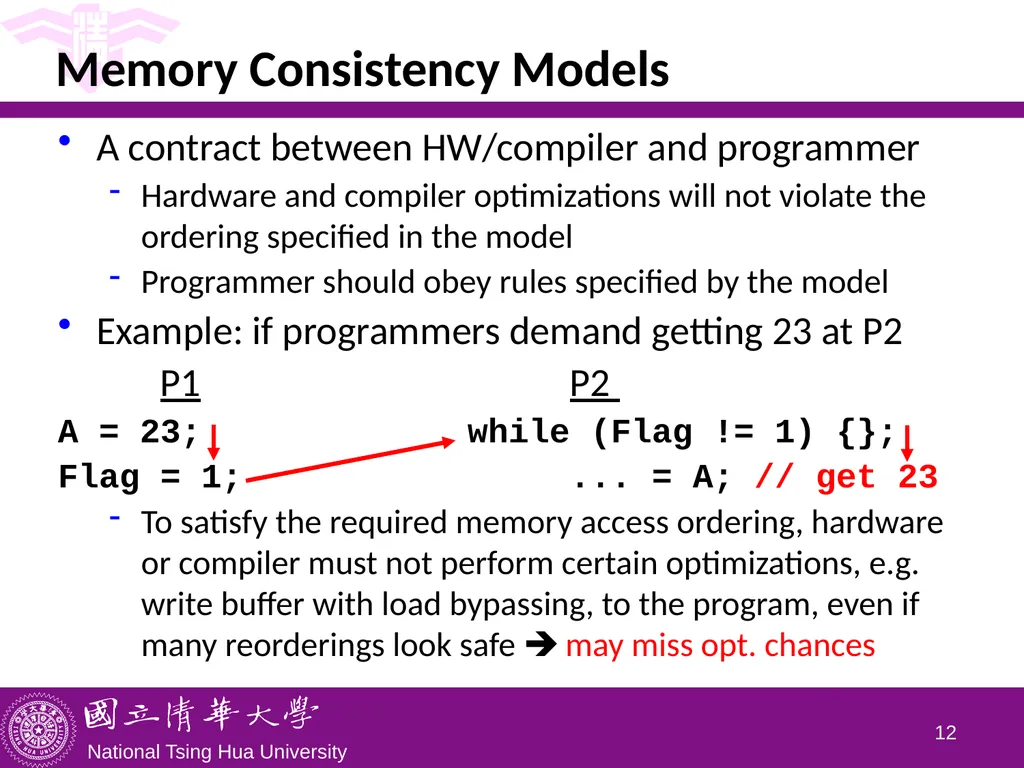

Memory Consistency Models A contract between HW/compiler and programmer
Hardware and compiler optimizations will not violate the ordering specified in the model
Programmer should obey rules specified by the model
Example: if programmers demand getting 23 at P2
P1 P2
A = 23; while (Flag != 1) {};
Flag = 1; ... = A; // get 23
To satisfy the required memory access ordering, hardware or compiler must not perform certain optimizations, e.g. write buffer with load bypassing, to the program, even if many reorderings look safe may miss opt. chances 11<br>
Hardware and compiler optimizations will not violate the ordering specified in the model
Programmer should obey rules specified by the model
Example: if programmers demand getting 23 at P2
P1 P2
A = 23; while (Flag != 1) {};
Flag = 1; ... = A; // get 23
To satisfy the required memory access ordering, hardware or compiler must not perform certain optimizations, e.g. write buffer with load bypassing, to the program, even if many reorderings look safe may miss opt. chances 11<br>
13

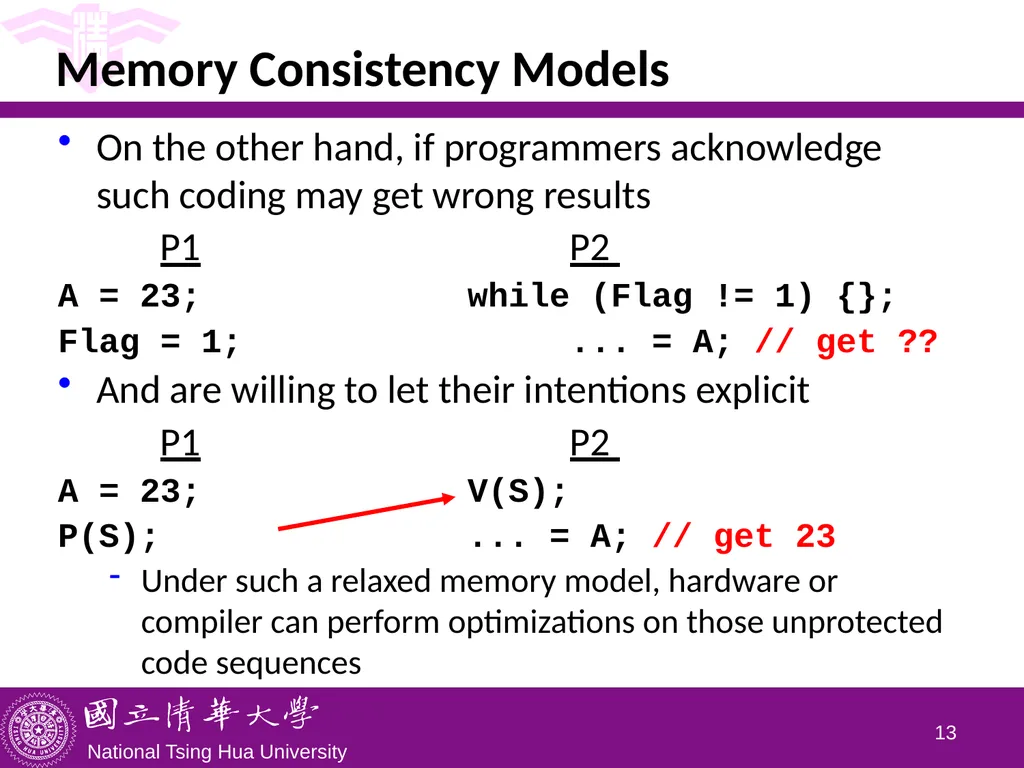

Memory Consistency Models On the other hand, if programmers acknowledge such coding may get wrong results
P1 P2
A = 23; while (Flag != 1) {};
Flag = 1; ... = A; // get ??
And are willing to let their intentions explicit
P1 P2
A = 23; V(S);
P(S); ... = A; // get 23
Under such a relaxed memory model, hardware or compiler can perform optimizations on those unprotected code sequences 12<br>
P1 P2
A = 23; while (Flag != 1) {};
Flag = 1; ... = A; // get ??
And are willing to let their intentions explicit
P1 P2
A = 23; V(S);
P(S); ... = A; // get 23
Under such a relaxed memory model, hardware or compiler can perform optimizations on those unprotected code sequences 12<br>

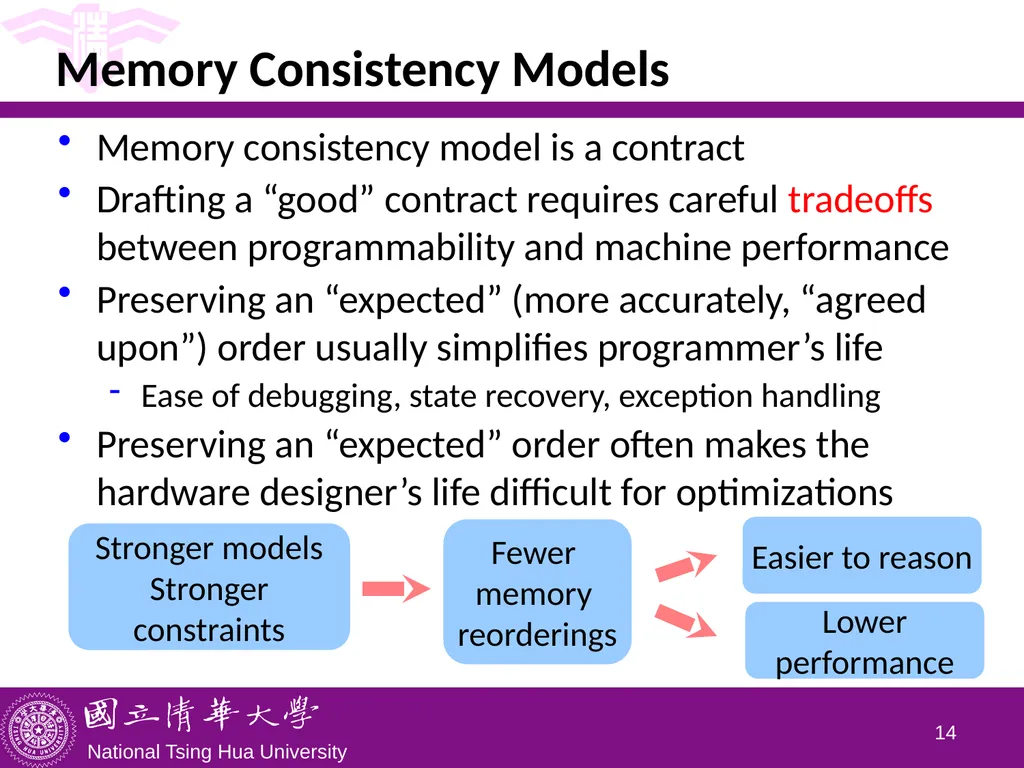

14
Memory Consistency Models Memory consistency model is a contract
Drafting a “good” contract requires careful tradeoffs between programmability and machine performance
Preserving an “expected” (more accurately, “agreed upon”) order usually simplifies programmer’s life
Ease of debugging, state recovery, exception handling
Preserving an “expected” order often makes the hardware designer’s life difficult for optimizations 13<br>
Drafting a “good” contract requires careful tradeoffs between programmability and machine performance
Preserving an “expected” (more accurately, “agreed upon”) order usually simplifies programmer’s life
Ease of debugging, state recovery, exception handling
Preserving an “expected” order often makes the hardware designer’s life difficult for optimizations 13<br>
15

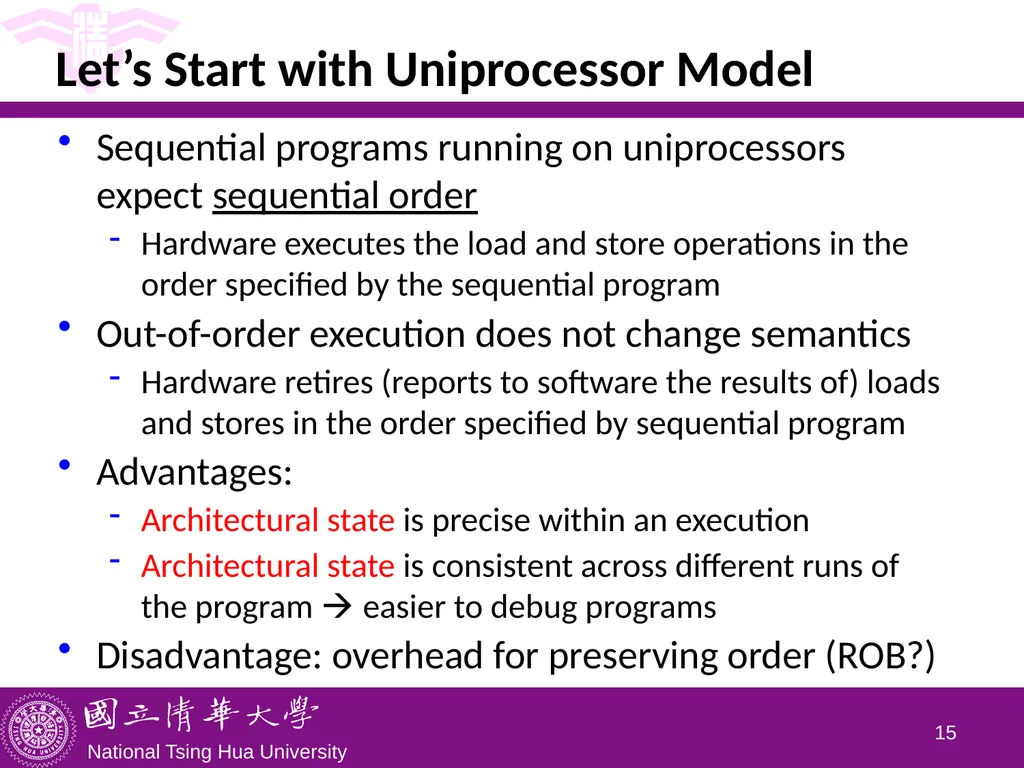

Let’s Start with Uniprocessor Model Sequential programs running on uniprocessors expect sequential order
Hardware executes the load and store operations in the order specified by the sequential program
Out-of-order execution does not change semantics
Hardware retires (reports to software the results of) loads and stores in the order specified by sequential program
Advantages:
Architectural state is precise within an execution
Architectural state is consistent across different runs of the program easier to debug programs
Disadvantage: overhead for preserving order (ROB?) 14<br>
Hardware executes the load and store operations in the order specified by the sequential program
Out-of-order execution does not change semantics
Hardware retires (reports to software the results of) loads and stores in the order specified by sequential program
Advantages:
Architectural state is precise within an execution
Architectural state is consistent across different runs of the program easier to debug programs
Disadvantage: overhead for preserving order (ROB?) 14<br>

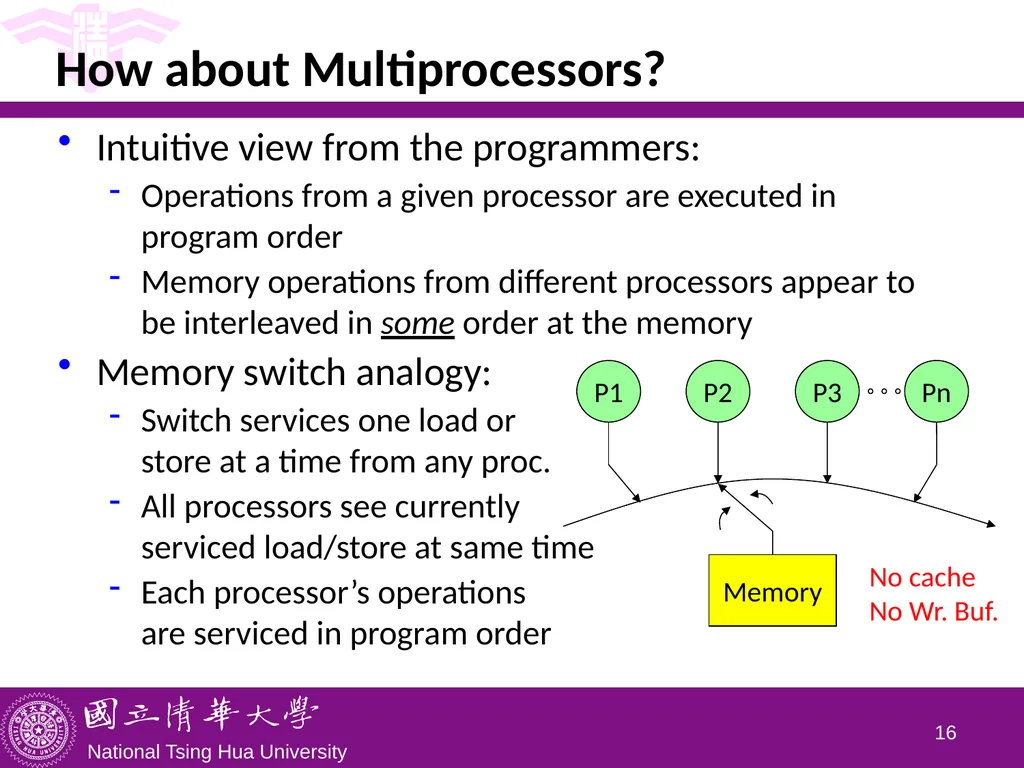

16
How about Multiprocessors? Intuitive view from the programmers:
Operations from a given processor are executed in program order
Memory operations from different processors appear to be interleaved in some order at the memory
Memory switch analogy:
Switch services one load or store at a time from any proc.
All processors see currently serviced load/store at same time
Each processor’s operations are serviced in program order 15 No cache
No Wr. Buf.<br>
Operations from a given processor are executed in program order
Memory operations from different processors appear to be interleaved in some order at the memory
Memory switch analogy:
Switch services one load or store at a time from any proc.
All processors see currently serviced load/store at same time
Each processor’s operations are serviced in program order 15 No cache
No Wr. Buf.<br>

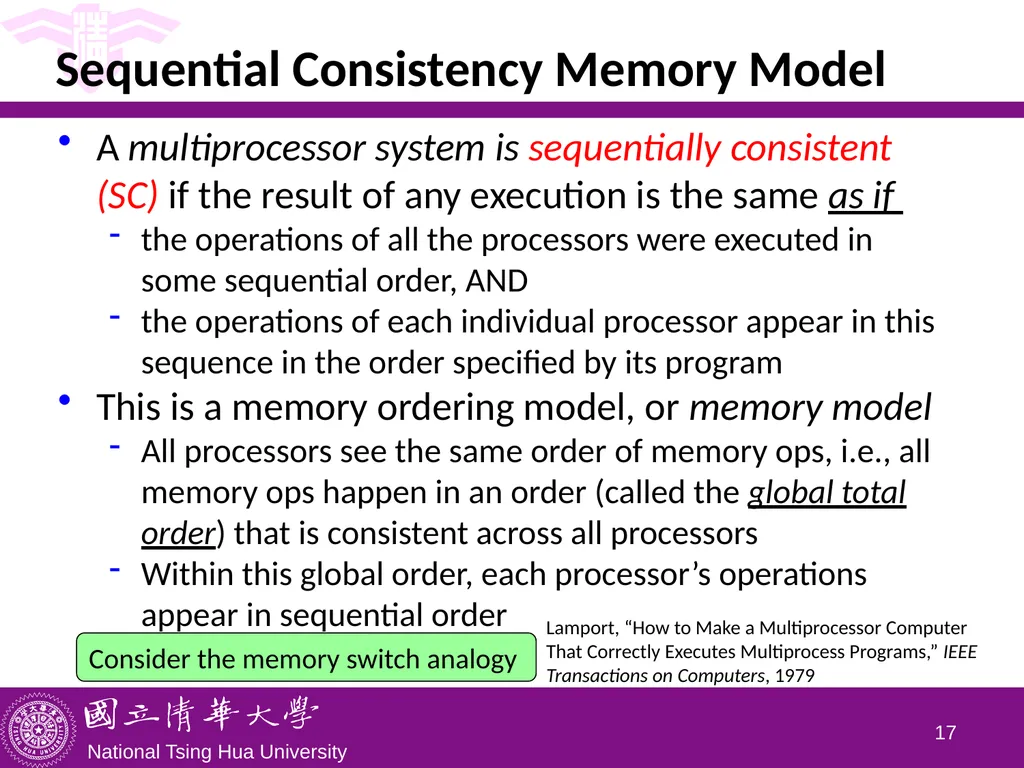

17
Sequential Consistency Memory Model A multiprocessor system is sequentially consistent (SC) if the result of any execution is the same as if
the operations of all the processors were executed in some sequential order, AND
the operations of each individual processor appear in this sequence in the order specified by its program
This is a memory ordering model, or memory model
All processors see the same order of memory ops, i.e., all memory ops happen in an order (called the global total order) that is consistent across all processors
Within this global order, each processor’s operations appear in sequential order 16 Lamport, “How to Make a Multiprocessor Computer That Correctly Executes Multiprocess Programs,” IEEE Transactions on Computers, 1979 Consider the memory switch analogy<br>
the operations of all the processors were executed in some sequential order, AND
the operations of each individual processor appear in this sequence in the order specified by its program
This is a memory ordering model, or memory model
All processors see the same order of memory ops, i.e., all memory ops happen in an order (called the global total order) that is consistent across all processors
Within this global order, each processor’s operations appear in sequential order 16 Lamport, “How to Make a Multiprocessor Computer That Correctly Executes Multiprocess Programs,” IEEE Transactions on Computers, 1979 Consider the memory switch analogy<br>

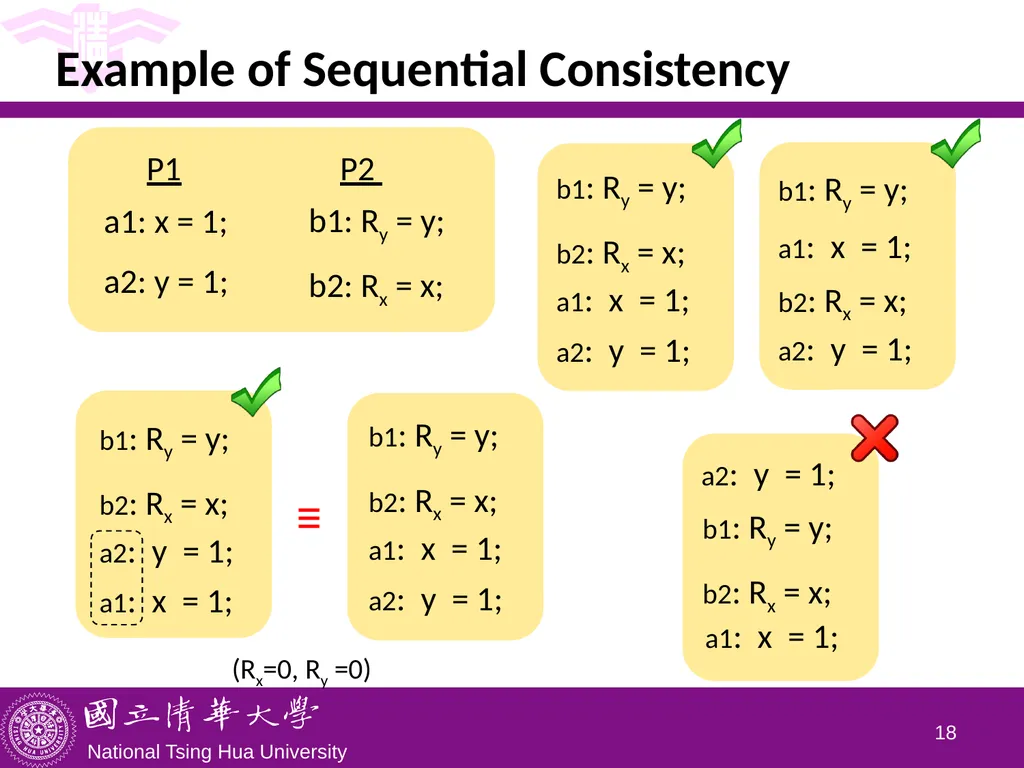

18
b1: Ry = y;
b2: Rx = x; (Rx=0, Ry =0) a1: x = 1; a2: y = 1; P1 P2 ≡ Example of Sequential Consistency 17<br>
b2: Rx = x; (Rx=0, Ry =0) a1: x = 1; a2: y = 1; P1 P2 ≡ Example of Sequential Consistency 17<br>
19

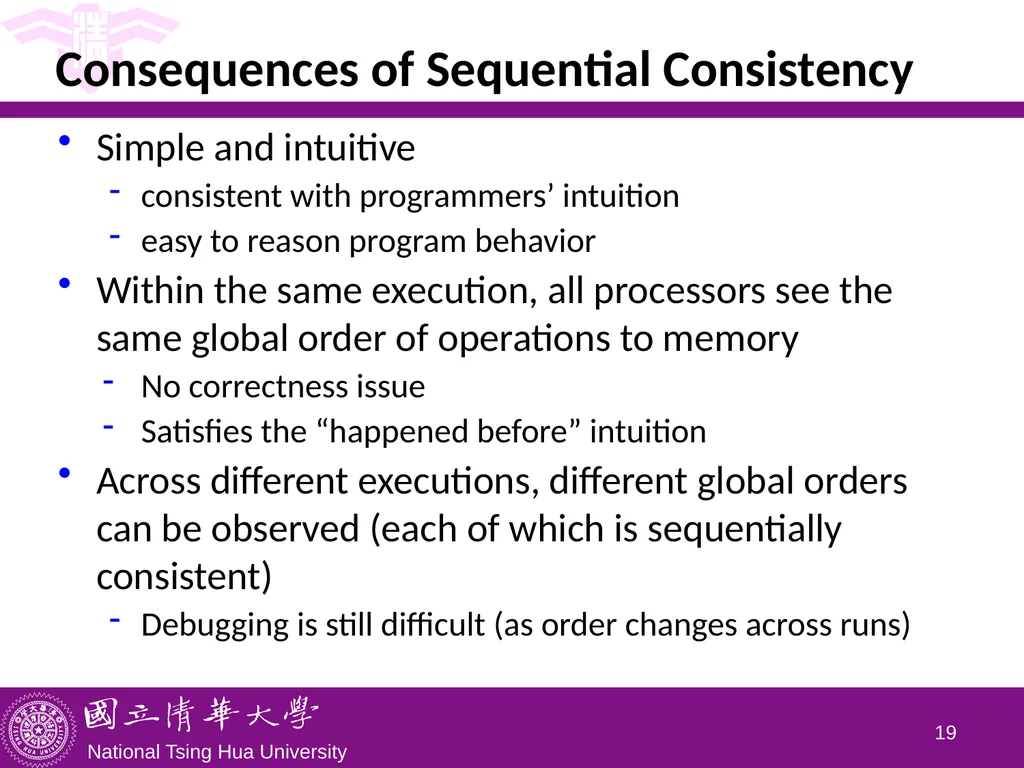

Consequences of Sequential Consistency Simple and intuitive
consistent with programmers’ intuition
easy to reason program behavior
Within the same execution, all processors see the same global order of operations to memory
No correctness issue
Satisfies the “happened before” intuition
Across different executions, different global orders can be observed (each of which is sequentially consistent)
Debugging is still difficult (as order changes across runs) 18<br>
consistent with programmers’ intuition
easy to reason program behavior
Within the same execution, all processors see the same global order of operations to memory
No correctness issue
Satisfies the “happened before” intuition
Across different executions, different global orders can be observed (each of which is sequentially consistent)
Debugging is still difficult (as order changes across runs) 18<br>
20

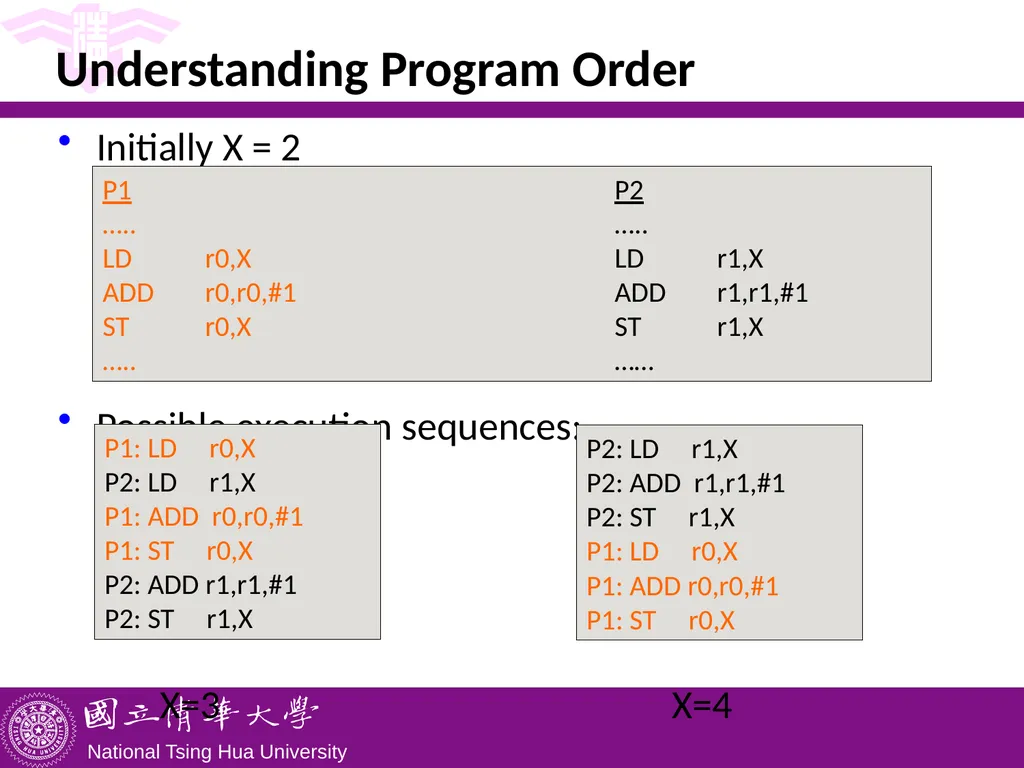

Understanding Program Order Initially X = 2
Possible execution sequences:
X=3 X=4 P1 P2
….. …..
LD r0,X LD r1,X
ADD r0,r0,#1 ADD r1,r1,#1
ST r0,X ST r1,X
….. …… P1: LD r0,X
P2: LD r1,X
P1: ADD r0,r0,#1
P1: ST r0,X
P2: ADD r1,r1,#1
P2: ST r1,X P2: LD r1,X
P2: ADD r1,r1,#1
P2: ST r1,X
P1: LD r0,X
P1: ADD r0,r0,#1
P1: ST r0,X<br>
Possible execution sequences:
X=3 X=4 P1 P2
….. …..
LD r0,X LD r1,X
ADD r0,r0,#1 ADD r1,r1,#1
ST r0,X ST r1,X
….. …… P1: LD r0,X
P2: LD r1,X
P1: ADD r0,r0,#1
P1: ST r0,X
P2: ADD r1,r1,#1
P2: ST r1,X P2: LD r1,X
P2: ADD r1,r1,#1
P2: ST r1,X
P1: LD r0,X
P1: ADD r0,r0,#1
P1: ST r0,X<br>
21

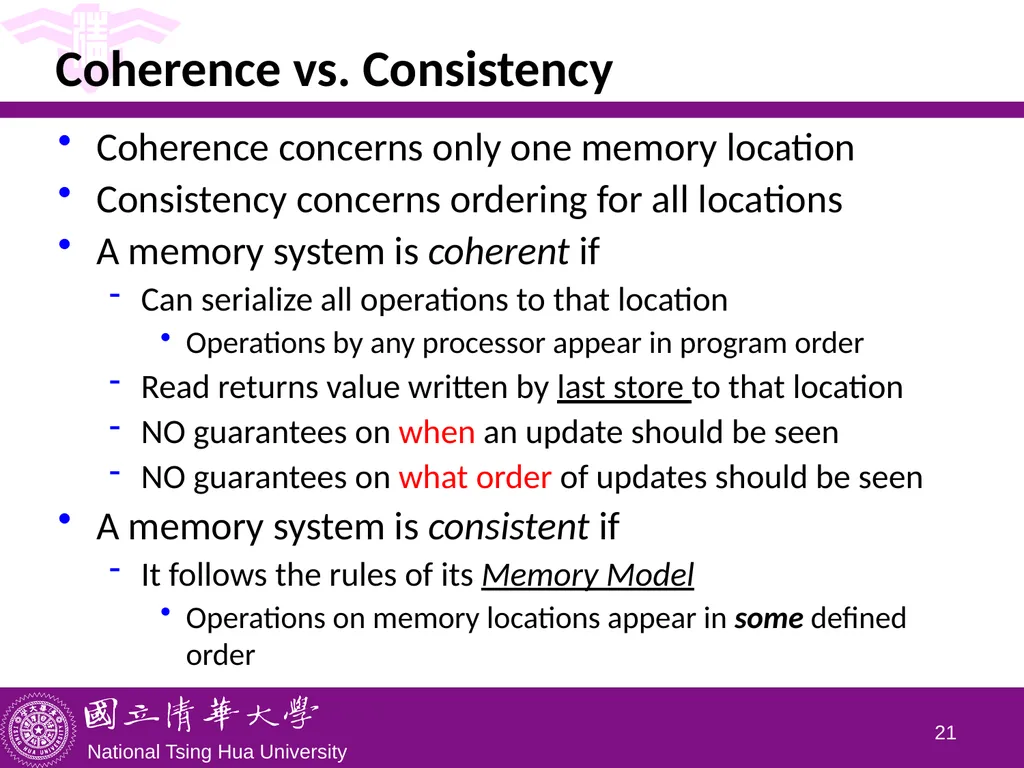

Coherence vs. Consistency Coherence concerns only one memory location
Consistency concerns ordering for all locations
A memory system is coherent if
Can serialize all operations to that location
Operations by any processor appear in program order
Read returns value written by last store to that location
NO guarantees on when an update should be seen
NO guarantees on what order of updates should be seen
A memory system is consistent if
It follows the rules of its Memory Model
Operations on memory locations appear in some defined order 20<br>
Consistency concerns ordering for all locations
A memory system is coherent if
Can serialize all operations to that location
Operations by any processor appear in program order
Read returns value written by last store to that location
NO guarantees on when an update should be seen
NO guarantees on what order of updates should be seen
A memory system is consistent if
It follows the rules of its Memory Model
Operations on memory locations appear in some defined order 20<br>
22

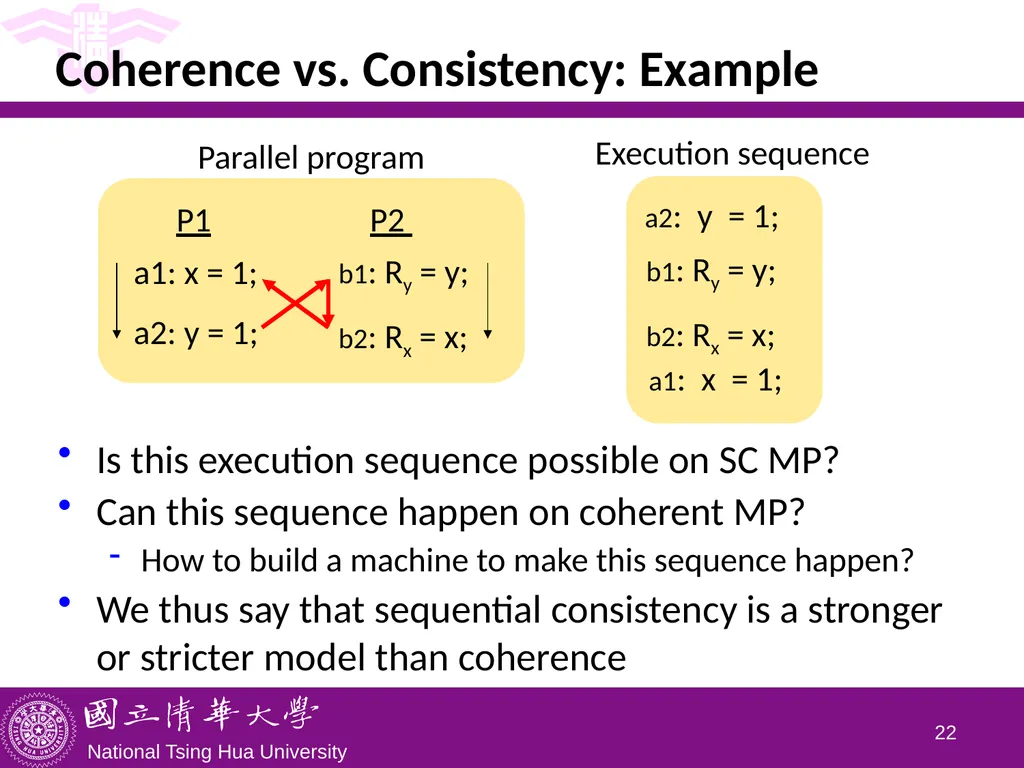

Is this execution sequence possible on SC MP?
Can this sequence happen on coherent MP?
How to build a machine to make this sequence happen?
We thus say that sequential consistency is a stronger or stricter model than coherence b1: Ry = y;
b2: Rx = x; a1: x = 1; a2: y = 1; P1 P2 Coherence vs. Consistency: Example 21 Parallel program Execution sequence<br>
Can this sequence happen on coherent MP?
How to build a machine to make this sequence happen?
We thus say that sequential consistency is a stronger or stricter model than coherence b1: Ry = y;
b2: Rx = x; a1: x = 1; a2: y = 1; P1 P2 Coherence vs. Consistency: Example 21 Parallel program Execution sequence<br>
23

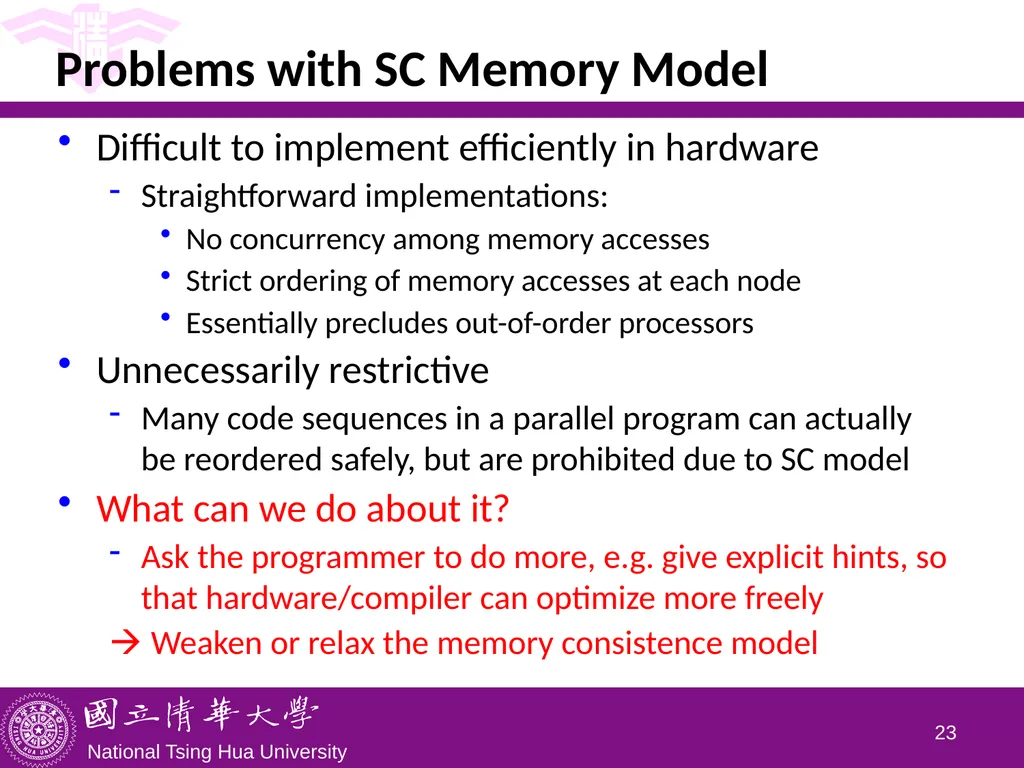

Problems with SC Memory Model Difficult to implement efficiently in hardware
Straightforward implementations:
No concurrency among memory accesses
Strict ordering of memory accesses at each node
Essentially precludes out-of-order processors
Unnecessarily restrictive
Many code sequences in a parallel program can actually be reordered safely, but are prohibited due to SC model
What can we do about it?
Ask the programmer to do more, e.g. give explicit hints, so that hardware/compiler can optimize more freely
Weaken or relax the memory consistence model 22<br>
Straightforward implementations:
No concurrency among memory accesses
Strict ordering of memory accesses at each node
Essentially precludes out-of-order processors
Unnecessarily restrictive
Many code sequences in a parallel program can actually be reordered safely, but are prohibited due to SC model
What can we do about it?
Ask the programmer to do more, e.g. give explicit hints, so that hardware/compiler can optimize more freely
Weaken or relax the memory consistence model 22<br>
24

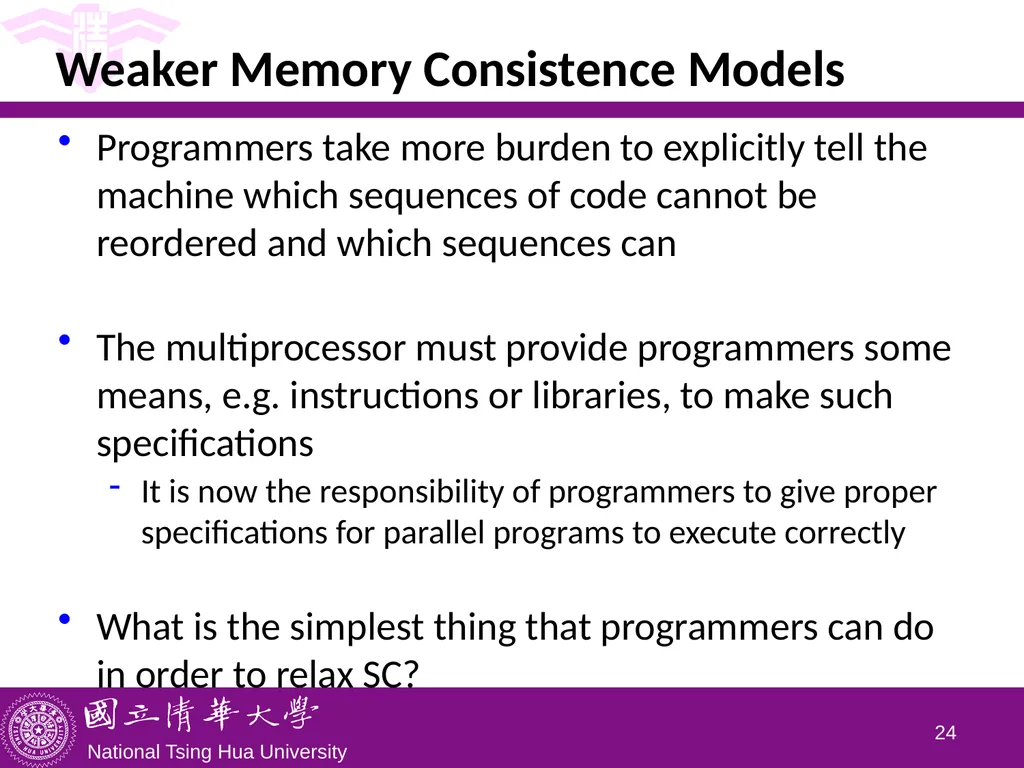

Weaker Memory Consistence Models Programmers take more burden to explicitly tell the machine which sequences of code cannot be reordered and which sequences can
The multiprocessor must provide programmers some means, e.g. instructions or libraries, to make such specifications
It is now the responsibility of programmers to give proper specifications for parallel programs to execute correctly
What is the simplest thing that programmers can do in order to relax SC? 23<br>
The multiprocessor must provide programmers some means, e.g. instructions or libraries, to make such specifications
It is now the responsibility of programmers to give proper specifications for parallel programs to execute correctly
What is the simplest thing that programmers can do in order to relax SC? 23<br>
25

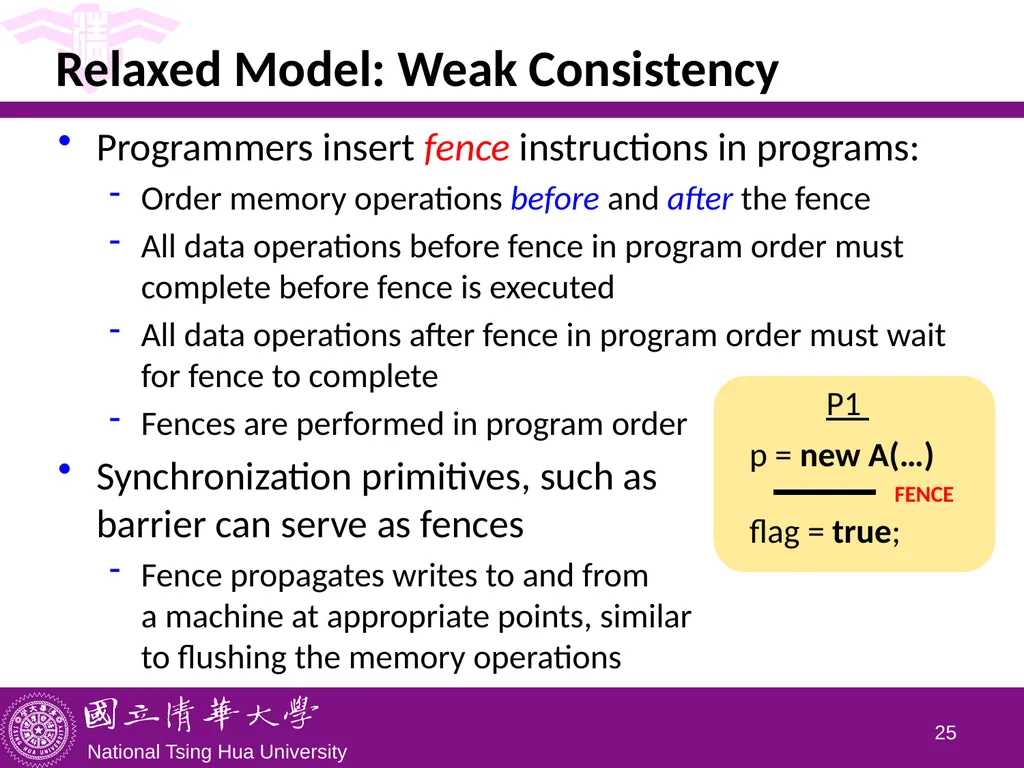

Relaxed Model: Weak Consistency Programmers insert fence instructions in programs:
Order memory operations before and after the fence
All data operations before fence in program order must complete before fence is executed
All data operations after fence in program order must wait for fence to complete
Fences are performed in program order
Synchronization primitives, such as barrier can serve as fences
Fence propagates writes to and from a machine at appropriate points, similar to flushing the memory operations 24 p = new A(…) flag = true; P1<br>
Order memory operations before and after the fence
All data operations before fence in program order must complete before fence is executed
All data operations after fence in program order must wait for fence to complete
Fences are performed in program order
Synchronization primitives, such as barrier can serve as fences
Fence propagates writes to and from a machine at appropriate points, similar to flushing the memory operations 24 p = new A(…) flag = true; P1<br>
26

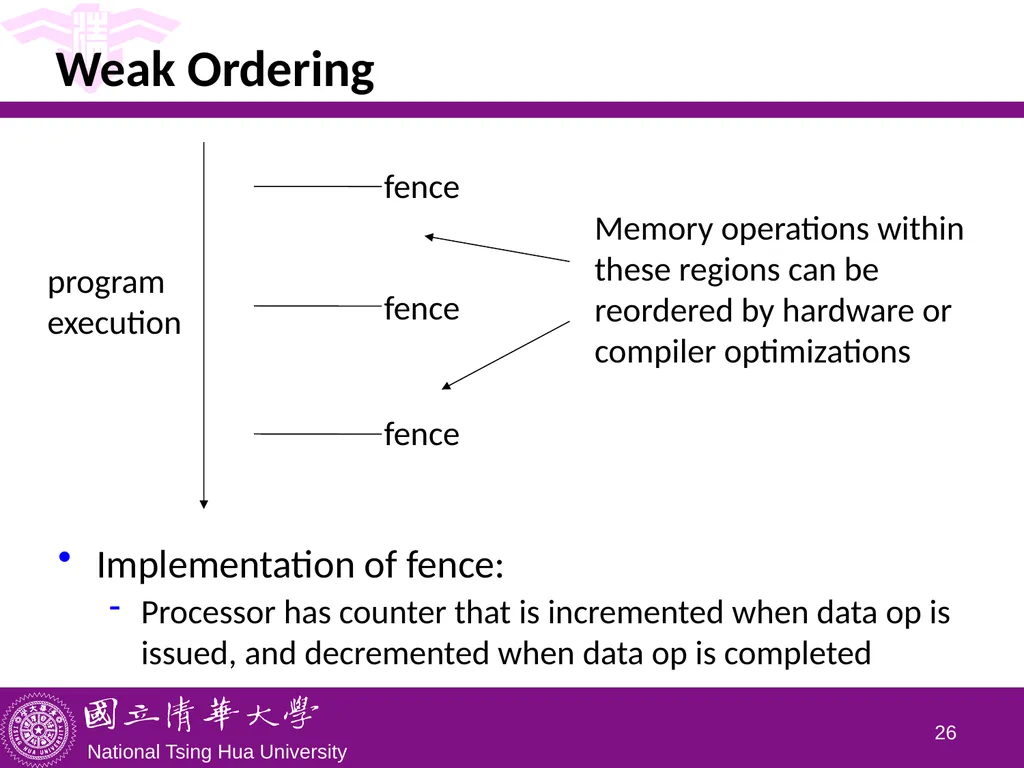

Weak Ordering Implementation of fence:
Processor has counter that is incremented when data op is issued, and decremented when data op is completed 25 fence fence fence program
execution Memory operations within these regions can be reordered by hardware or compiler optimizations<br>
Processor has counter that is incremented when data op is issued, and decremented when data op is completed 25 fence fence fence program
execution Memory operations within these regions can be reordered by hardware or compiler optimizations<br>
27

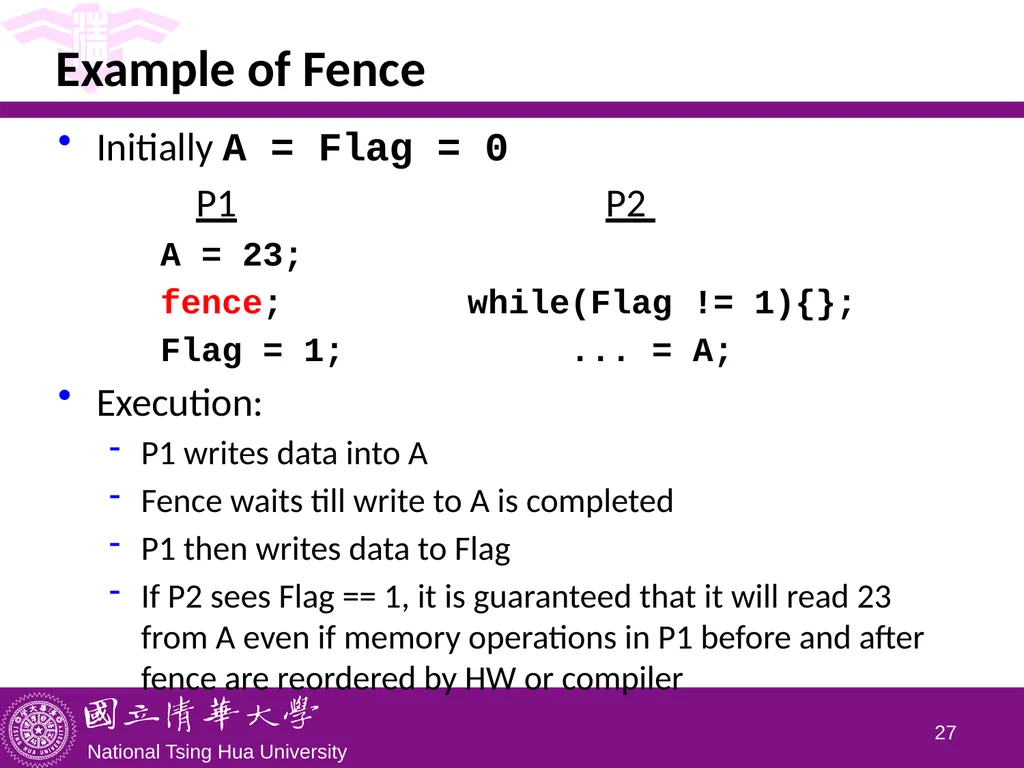

Example of Fence Initially A = Flag = 0
P1 P2
A = 23;
fence; while(Flag != 1){};
Flag = 1; ... = A;
Execution:
P1 writes data into A
Fence waits till write to A is completed
P1 then writes data to Flag
If P2 sees Flag == 1, it is guaranteed that it will read 23 from A even if memory operations in P1 before and after fence are reordered by HW or compiler 26<br>
P1 P2
A = 23;
fence; while(Flag != 1){};
Flag = 1; ... = A;
Execution:
P1 writes data into A
Fence waits till write to A is completed
P1 then writes data to Flag
If P2 sees Flag == 1, it is guaranteed that it will read 23 from A even if memory operations in P1 before and after fence are reordered by HW or compiler 26<br>
28

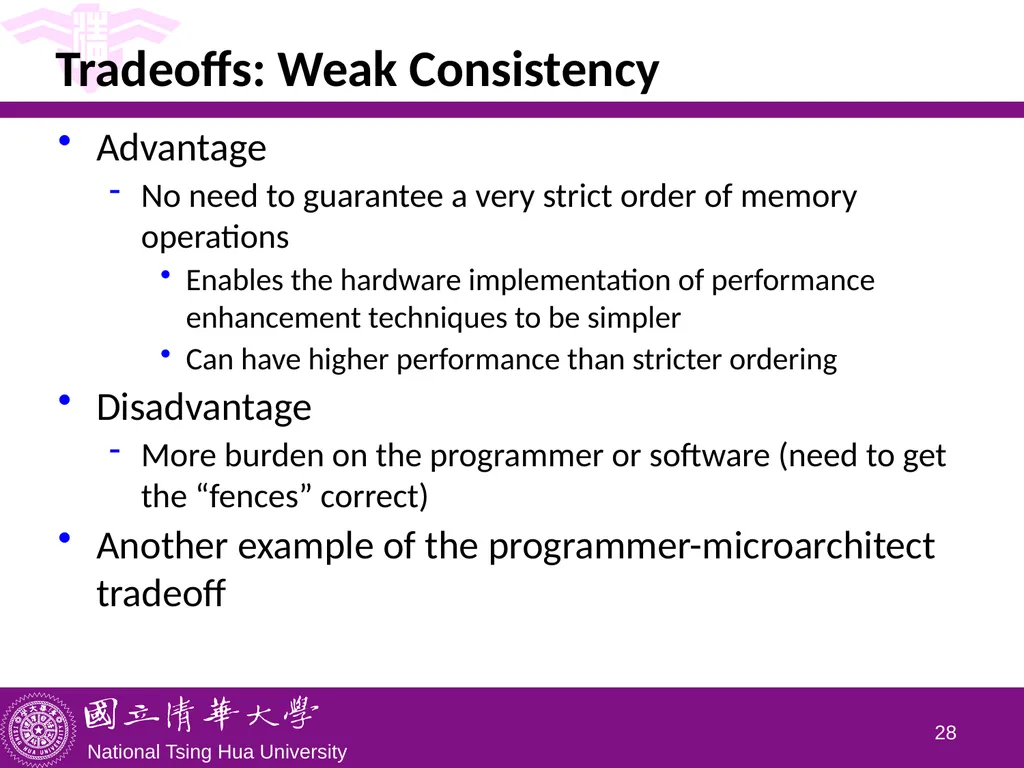

Tradeoffs: Weak Consistency Advantage
No need to guarantee a very strict order of memory operations
Enables the hardware implementation of performance enhancement techniques to be simpler
Can have higher performance than stricter ordering
Disadvantage
More burden on the programmer or software (need to get the “fences” correct)
Another example of the programmer-microarchitect tradeoff 27<br>
No need to guarantee a very strict order of memory operations
Enables the hardware implementation of performance enhancement techniques to be simpler
Can have higher performance than stricter ordering
Disadvantage
More burden on the programmer or software (need to get the “fences” correct)
Another example of the programmer-microarchitect tradeoff 27<br>
29

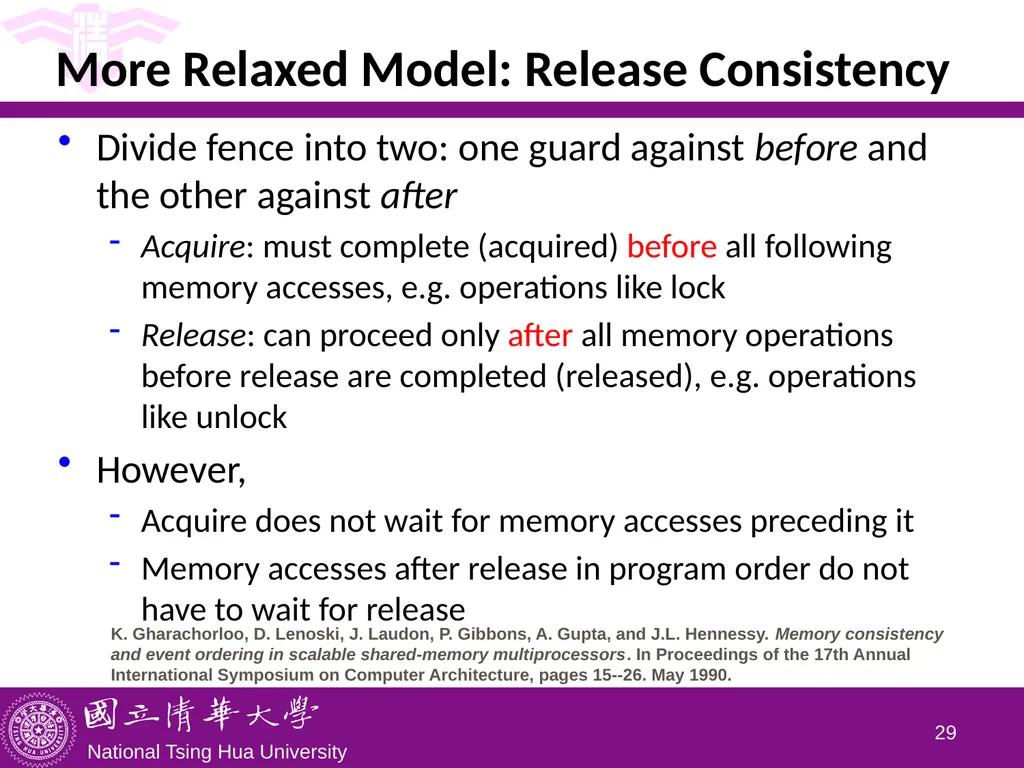

More Relaxed Model: Release Consistency Divide fence into two: one guard against before and the other against after
Acquire: must complete (acquired) before all following memory accesses, e.g. operations like lock
Release: can proceed only after all memory operations before release are completed (released), e.g. operations like unlock
However,
Acquire does not wait for memory accesses preceding it
Memory accesses after release in program order do not have to wait for release 28 K. Gharachorloo, D. Lenoski, J. Laudon, P. Gibbons, A. Gupta, and J.L. Hennessy. Memory consistency and event ordering in scalable shared-memory multiprocessors. In Proceedings of the 17th Annual International Symposium on Computer Architecture, pages 15--26. May 1990.<br>
Acquire: must complete (acquired) before all following memory accesses, e.g. operations like lock
Release: can proceed only after all memory operations before release are completed (released), e.g. operations like unlock
However,
Acquire does not wait for memory accesses preceding it
Memory accesses after release in program order do not have to wait for release 28 K. Gharachorloo, D. Lenoski, J. Laudon, P. Gibbons, A. Gupta, and J.L. Hennessy. Memory consistency and event ordering in scalable shared-memory multiprocessors. In Proceedings of the 17th Annual International Symposium on Computer Architecture, pages 15--26. May 1990.<br>
30

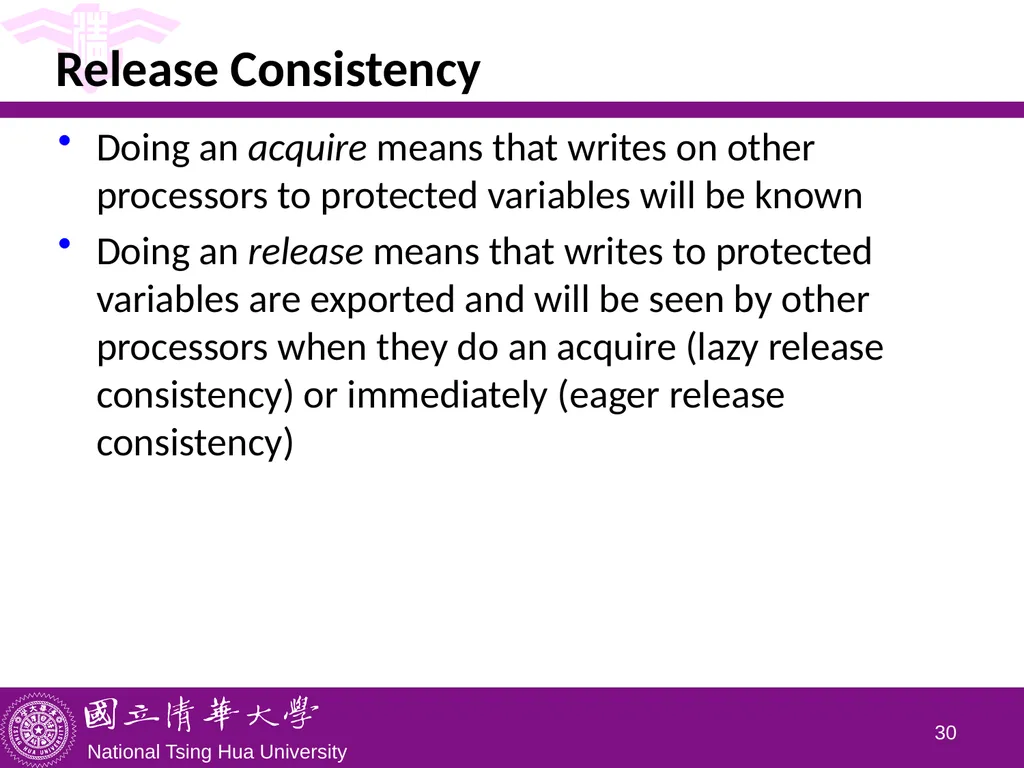

Release Consistency Doing an acquire means that writes on other processors to protected variables will be known
Doing an release means that writes to protected variables are exported and will be seen by other processors when they do an acquire (lazy release consistency) or immediately (eager release consistency) 29<br>
Doing an release means that writes to protected variables are exported and will be seen by other processors when they do an acquire (lazy release consistency) or immediately (eager release consistency) 29<br>
31

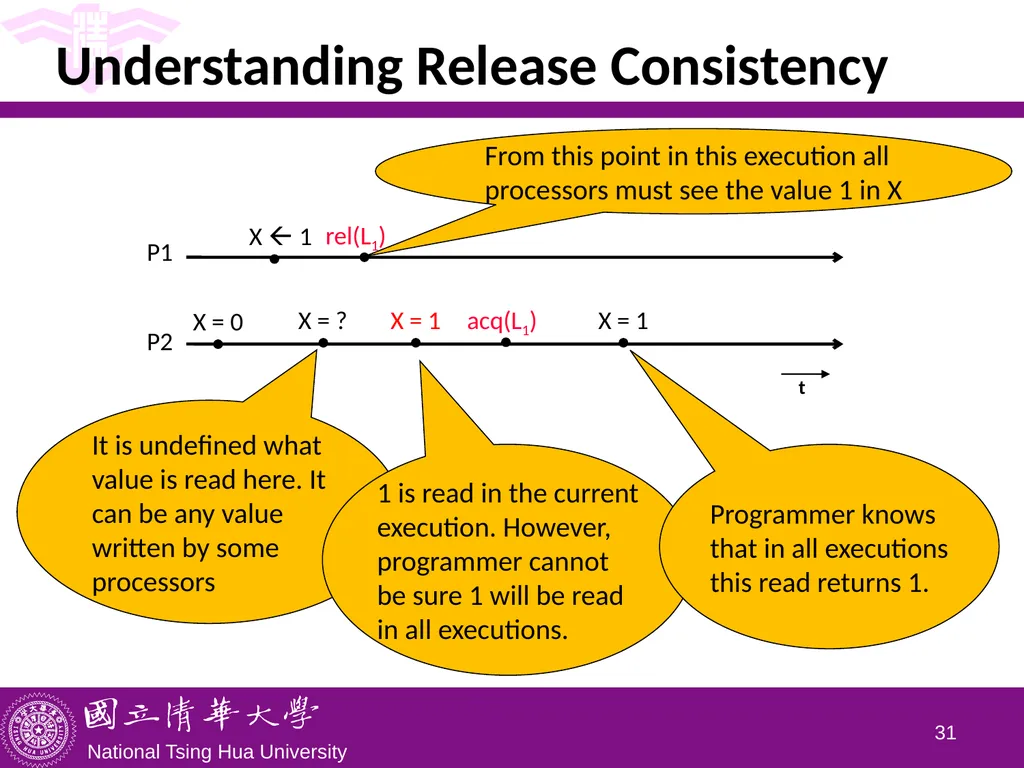

Understanding Release Consistency 30 From this point in this execution all processors must see the value 1 in X It is undefined what value is read here. It can be any value written by some processors 1 is read in the current execution. However, programmer cannot be sure 1 will be read in all executions. Programmer knows that in all executions this read returns 1.<br>
32

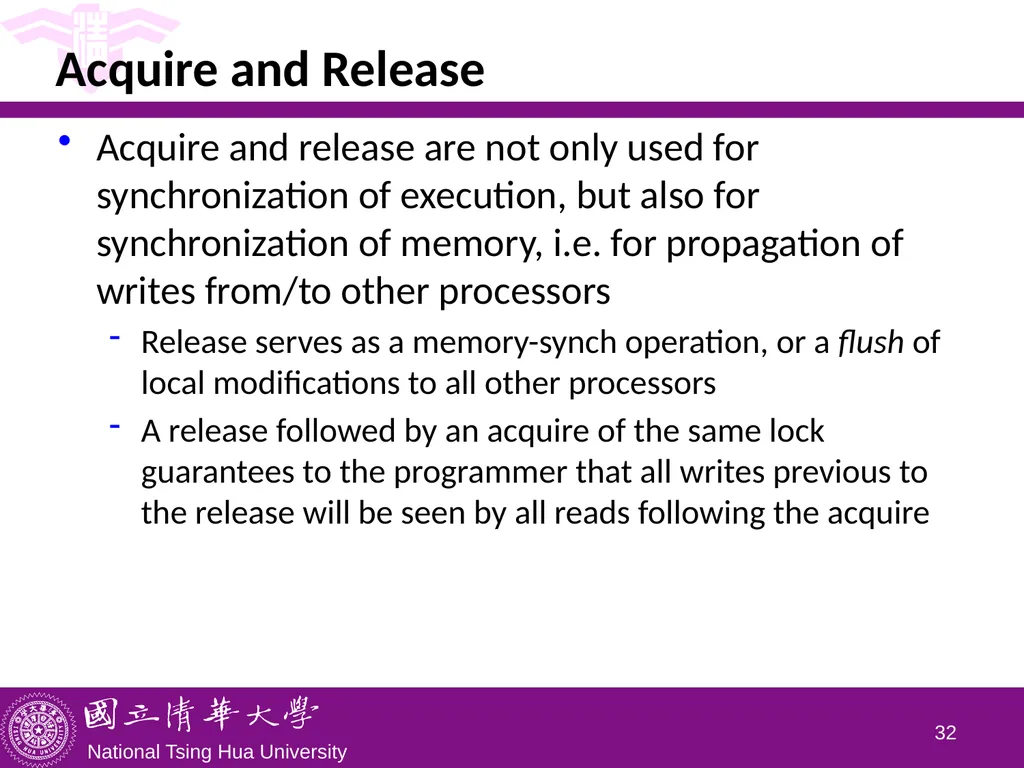

Acquire and Release Acquire and release are not only used for synchronization of execution, but also for synchronization of memory, i.e. for propagation of writes from/to other processors
Release serves as a memory-synch operation, or a flush of local modifications to all other processors
A release followed by an acquire of the same lock guarantees to the programmer that all writes previous to the release will be seen by all reads following the acquire 31<br>
Release serves as a memory-synch operation, or a flush of local modifications to all other processors
A release followed by an acquire of the same lock guarantees to the programmer that all writes previous to the release will be seen by all reads following the acquire 31<br>
33

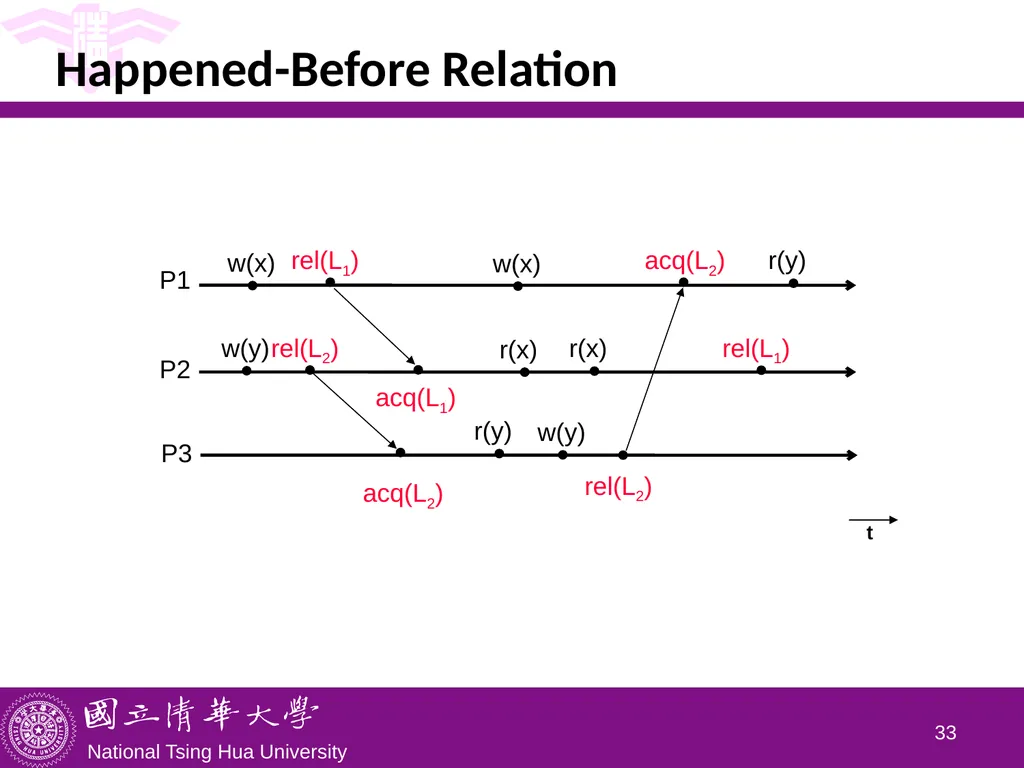

P1 P2 rel(L2) acq(L1) acq(L2) P3 Happened-Before Relation 32<br>
34

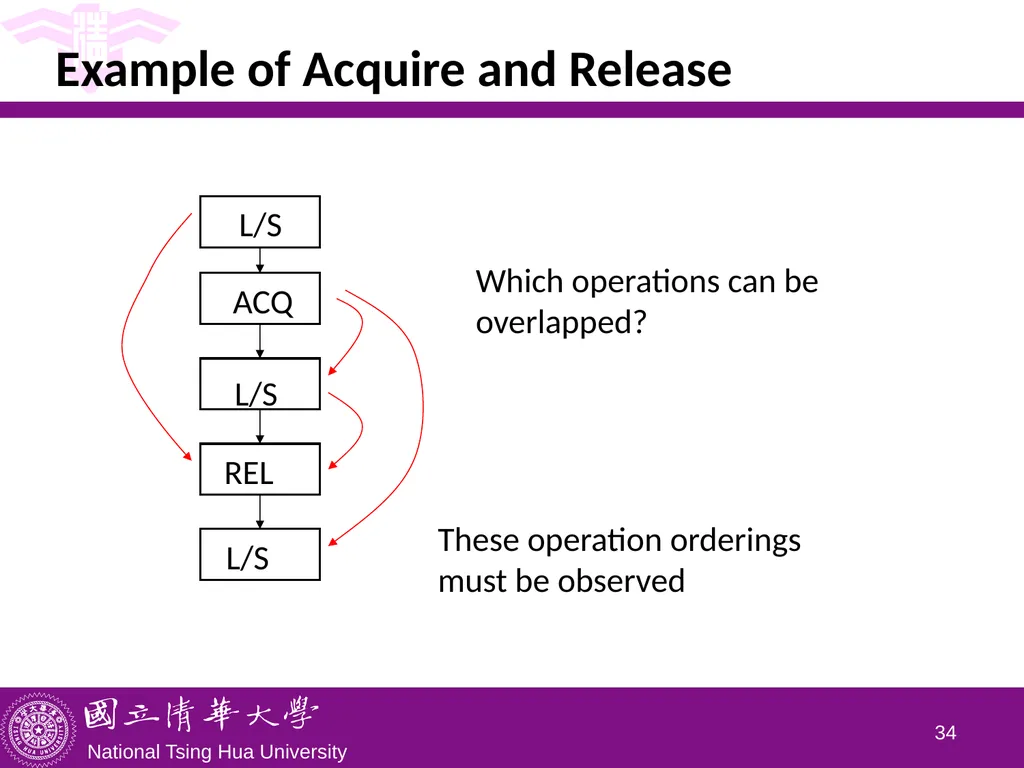

Example of Acquire and Release L/S ACQ L/S REL L/S Which operations can be overlapped? 33 These operation orderings must be observed<br>
35

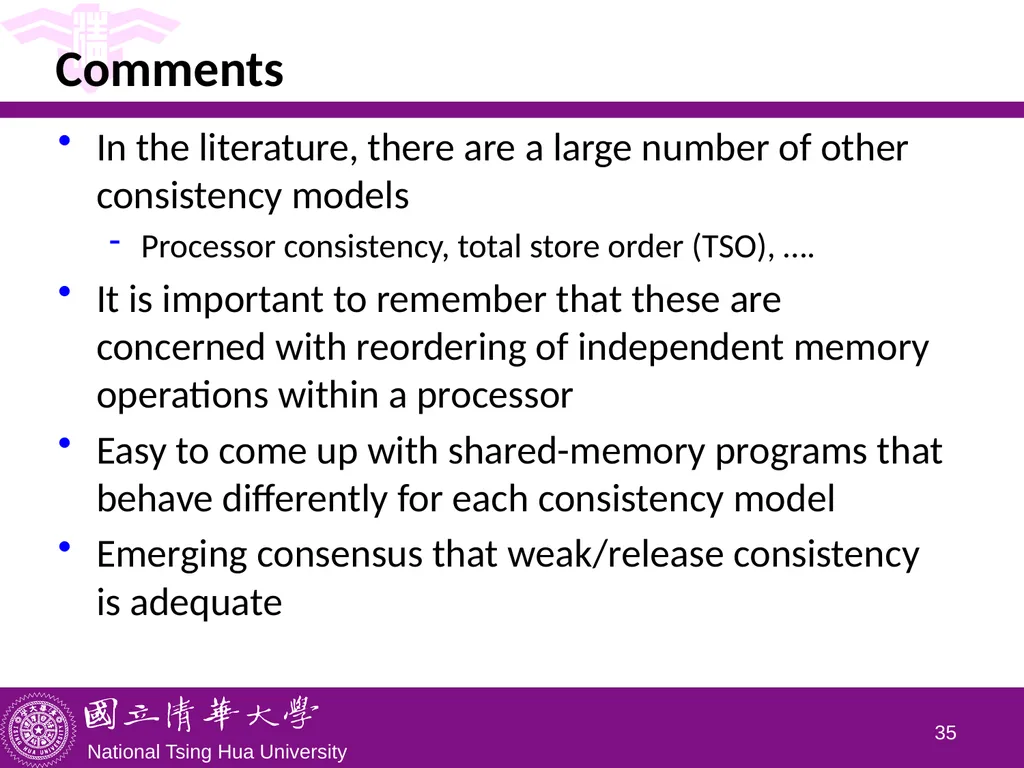

Comments In the literature, there are a large number of other consistency models
Processor consistency, total store order (TSO), ….
It is important to remember that these are concerned with reordering of independent memory operations within a processor
Easy to come up with shared-memory programs that behave differently for each consistency model
Emerging consensus that weak/release consistency is adequate 34<br>
Processor consistency, total store order (TSO), ….
It is important to remember that these are concerned with reordering of independent memory operations within a processor
Easy to come up with shared-memory programs that behave differently for each consistency model
Emerging consensus that weak/release consistency is adequate 34<br>
36

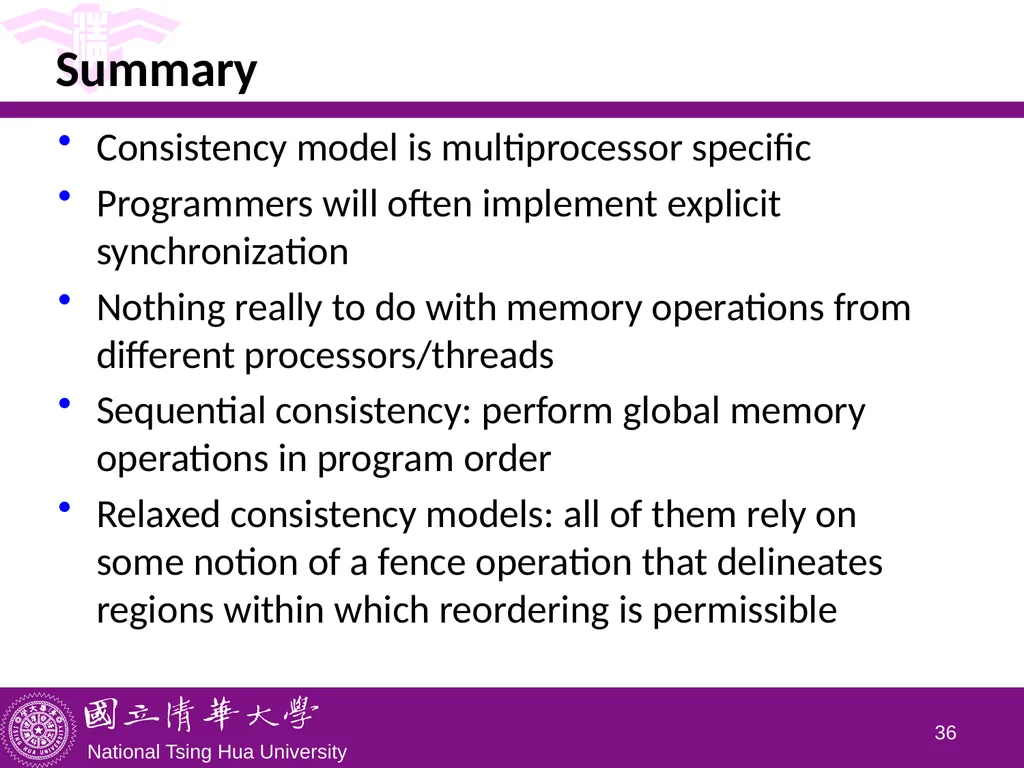

Summary Consistency model is multiprocessor specific
Programmers will often implement explicit synchronization
Nothing really to do with memory operations from different processors/threads
Sequential consistency: perform global memory operations in program order
Relaxed consistency models: all of them rely on some notion of a fence operation that delineates regions within which reordering is permissible 35<br>
Programmers will often implement explicit synchronization
Nothing really to do with memory operations from different processors/threads
Sequential consistency: perform global memory operations in program order
Relaxed consistency models: all of them rely on some notion of a fence operation that delineates regions within which reordering is permissible 35<br>
