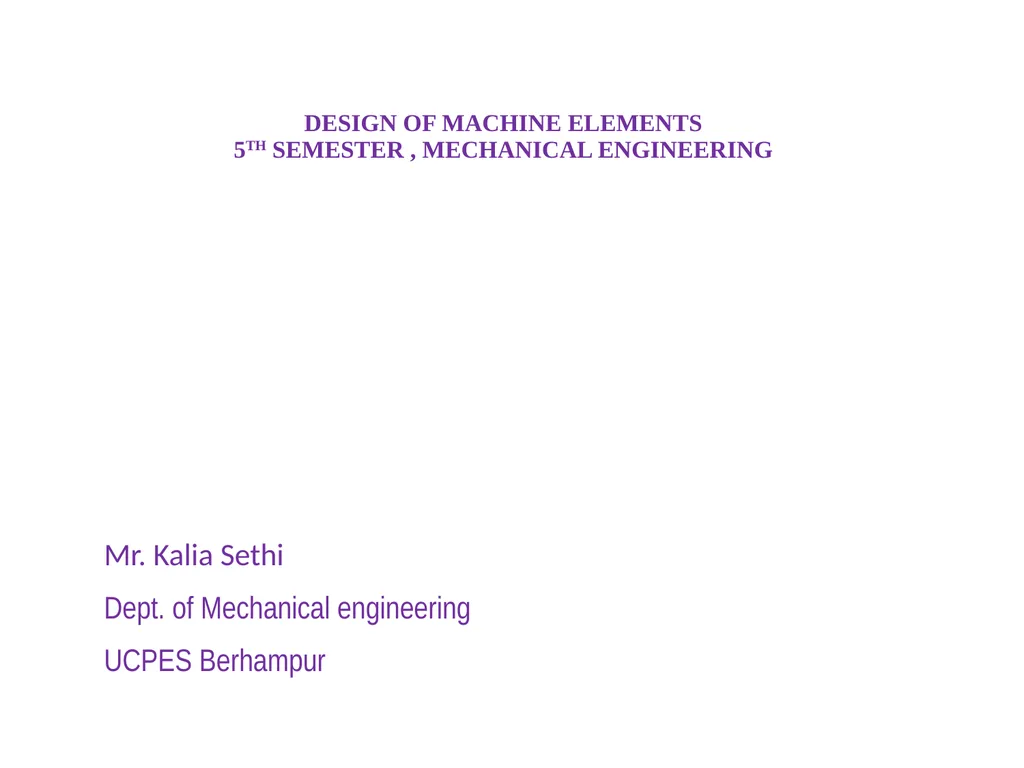

DESIGN OF MACHINE ELEMENTS 5TH SEMESTER , MECHANICAL ENGINEERING Mr. Kalia Sethi
Dept. of Mechanical engineering
UCPES Berhampur<br>
02

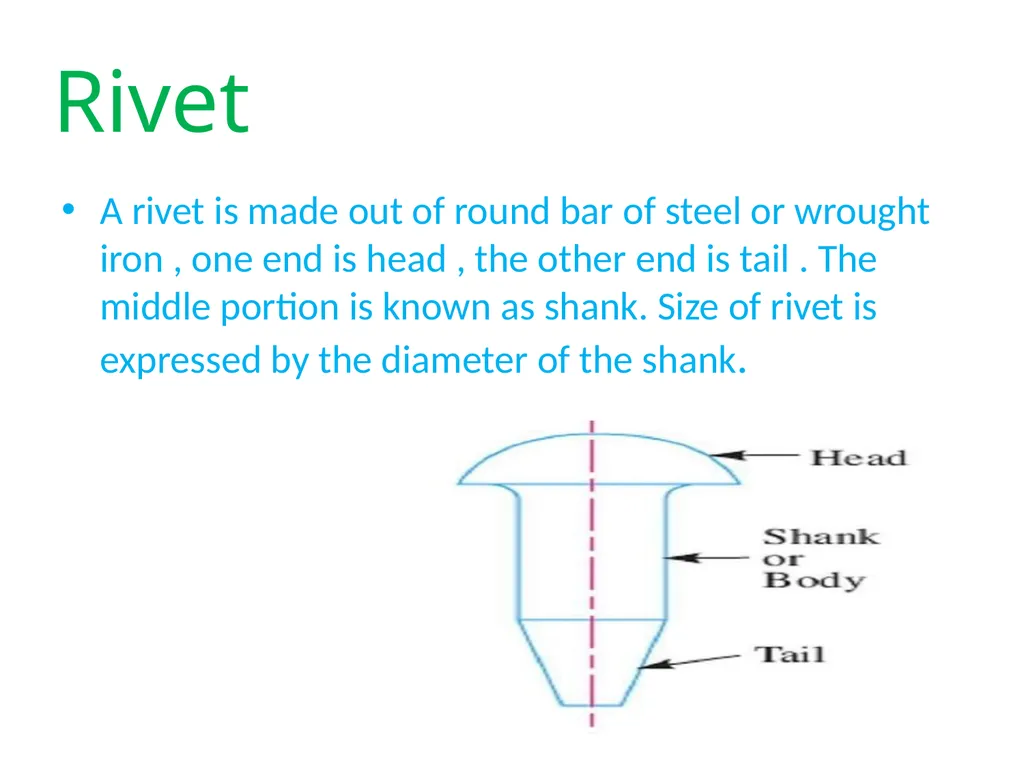

A rivet is made out of round bar of steel or wrought iron , one end is head , the other end is tail . The middle portion is known as shank. Size of rivet is expressed by the diameter of the shank. Rivet<br>
03

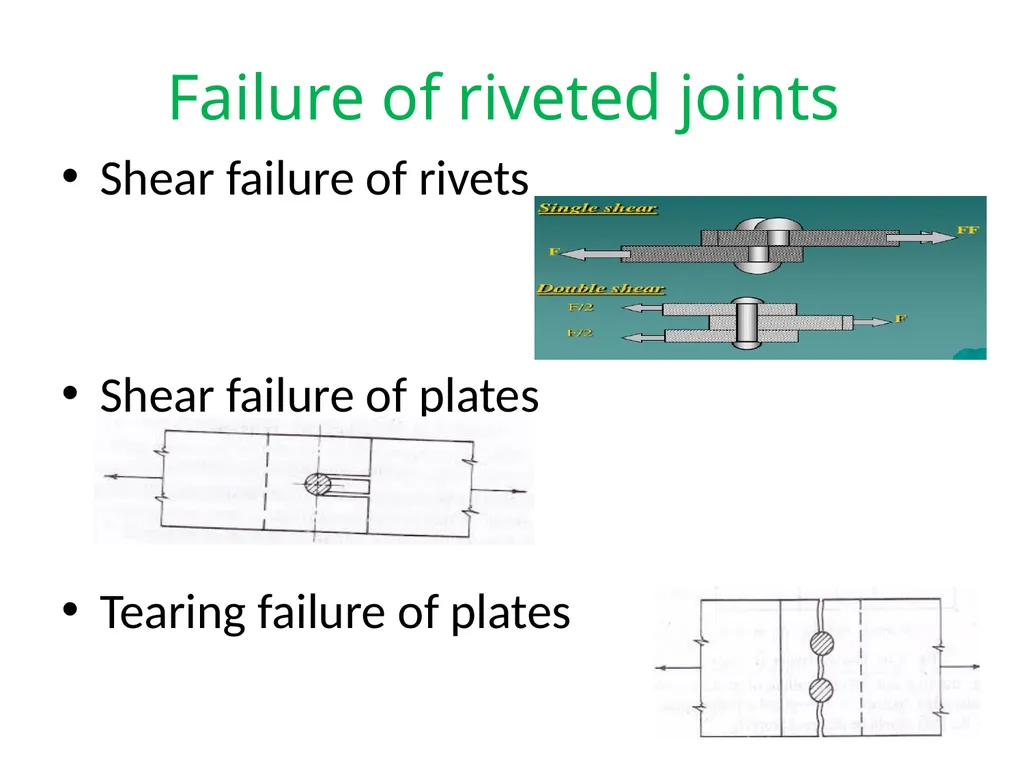

Failure of riveted joints Shear failure of rivets


Shear failure of plates


Tearing failure of plates<br>
