How to differentiate thread types? Typical fitting

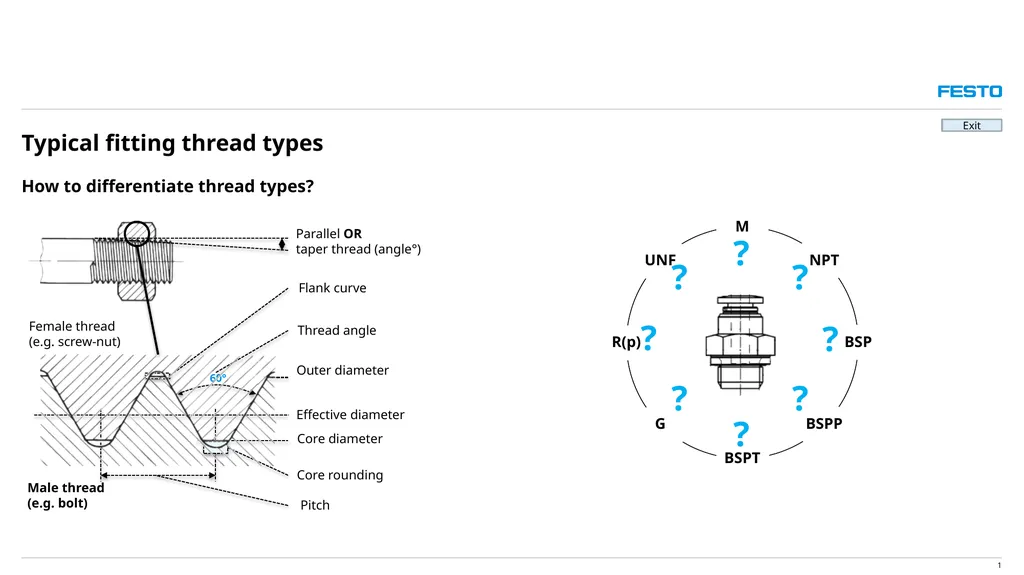

Description: How to differentiate thread types? Typical fitting thread types Female thread (e.g. screw-nut) Male thread (e.g. bolt) 60 Flank curve Thread angle Outer diameter Effective diameter Core diameter Core rounding Pitch Parallel OR taper thread
