slide1. HPC USER FORUM ISV PANEL April 2010 Dearborn, MI<br>

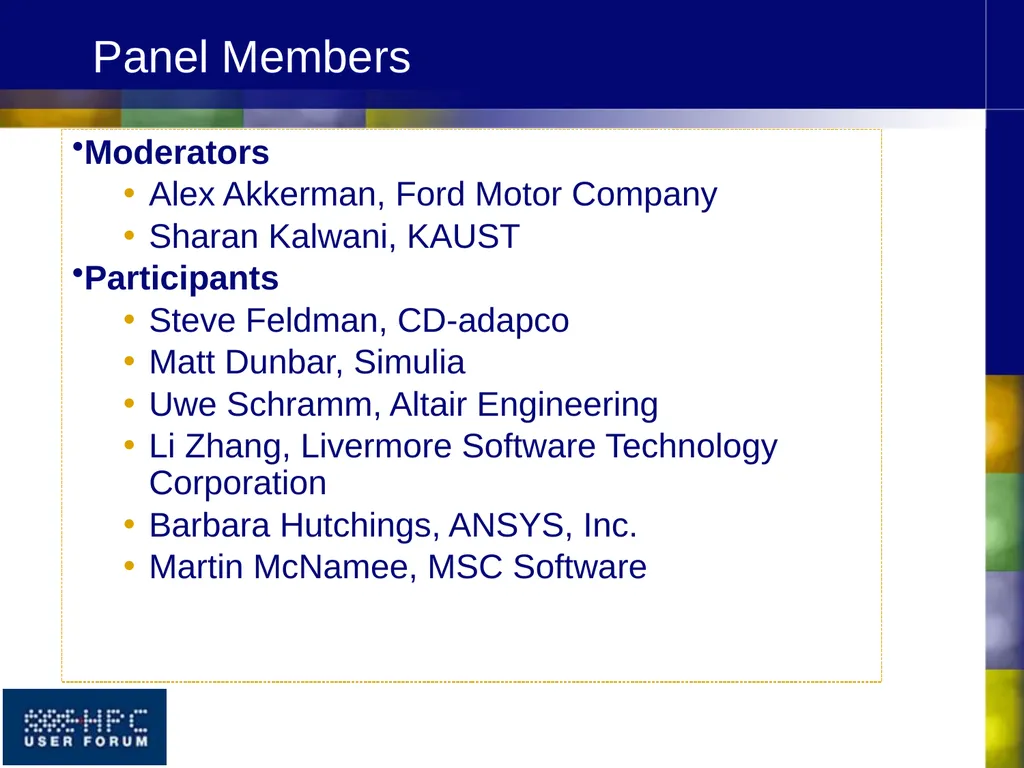

slide2. Panel Members Moderators
Alex Akkerman, Ford Motor Company
Sharan Kalwani, KAUST
Participants
Steve Feldman, CD-adapco
Matt Dunbar, Simulia
Uwe Schramm, Altair Engineering
Li Zhang, Livermore Software Technology Corporation
Barbara Hutchings, ANSYS, Inc.
Martin McNamee, MSC Software<br>

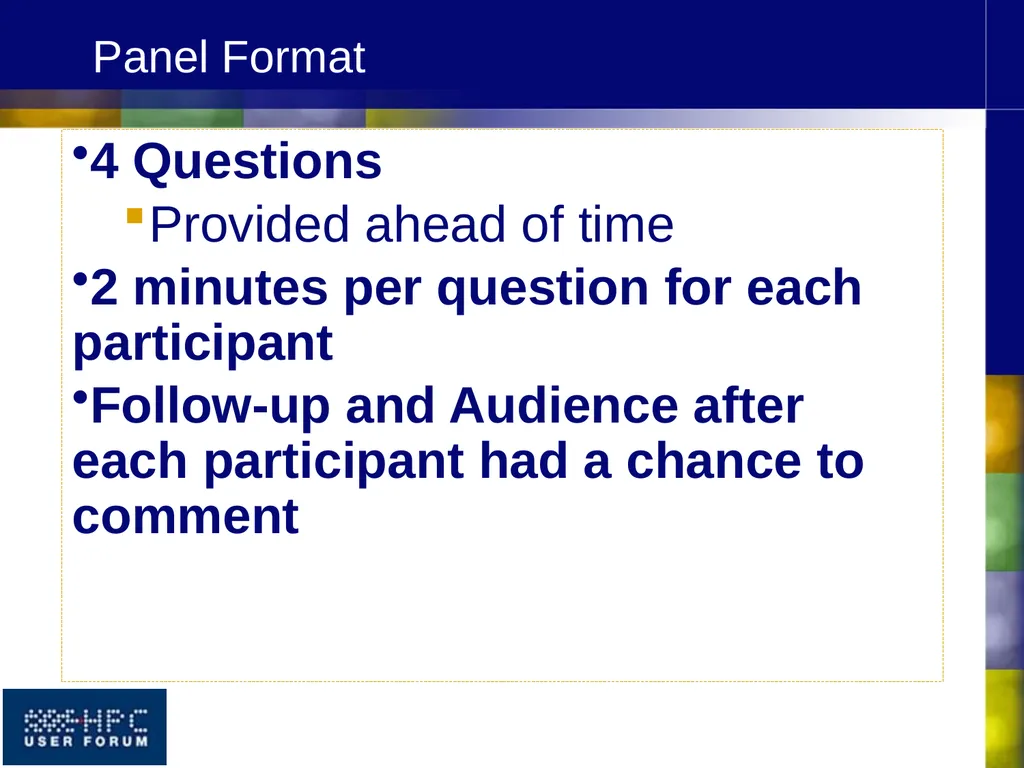

slide3. Panel Format 4 Questions
Provided ahead of time
2 minutes per question for each participant
Follow-up and Audience after each participant had a chance to comment<br>

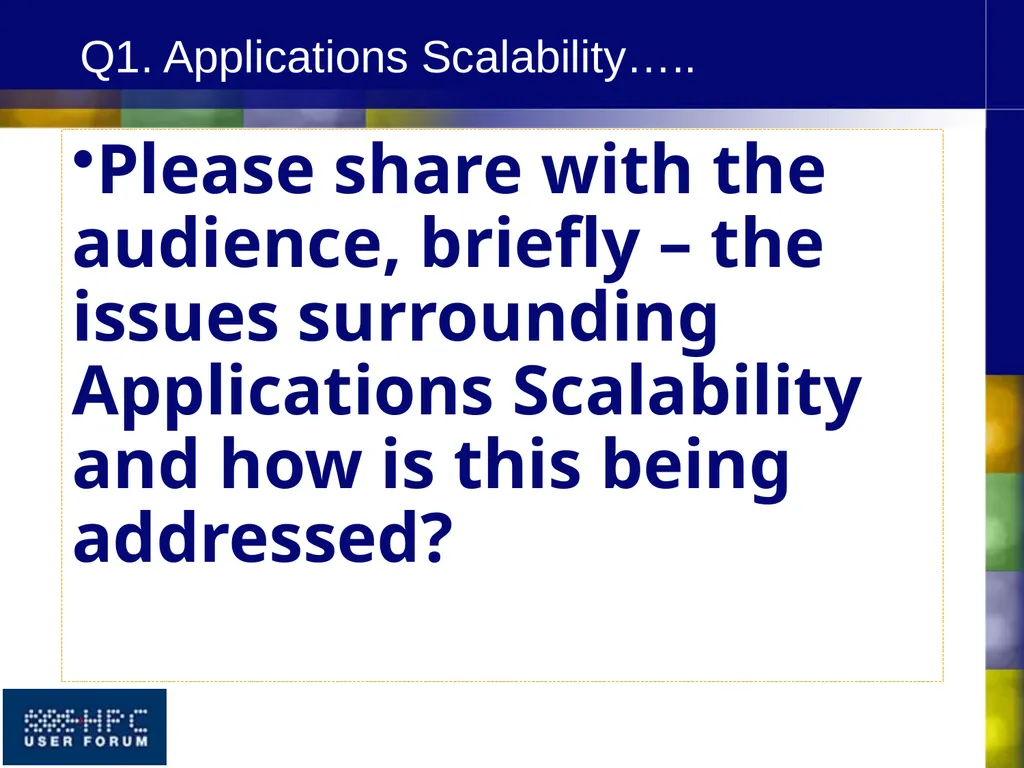

slide4. Q1. Applications Scalability….. Please share with the audience, briefly – the issues surrounding Applications Scalability and how is this being addressed?<br>

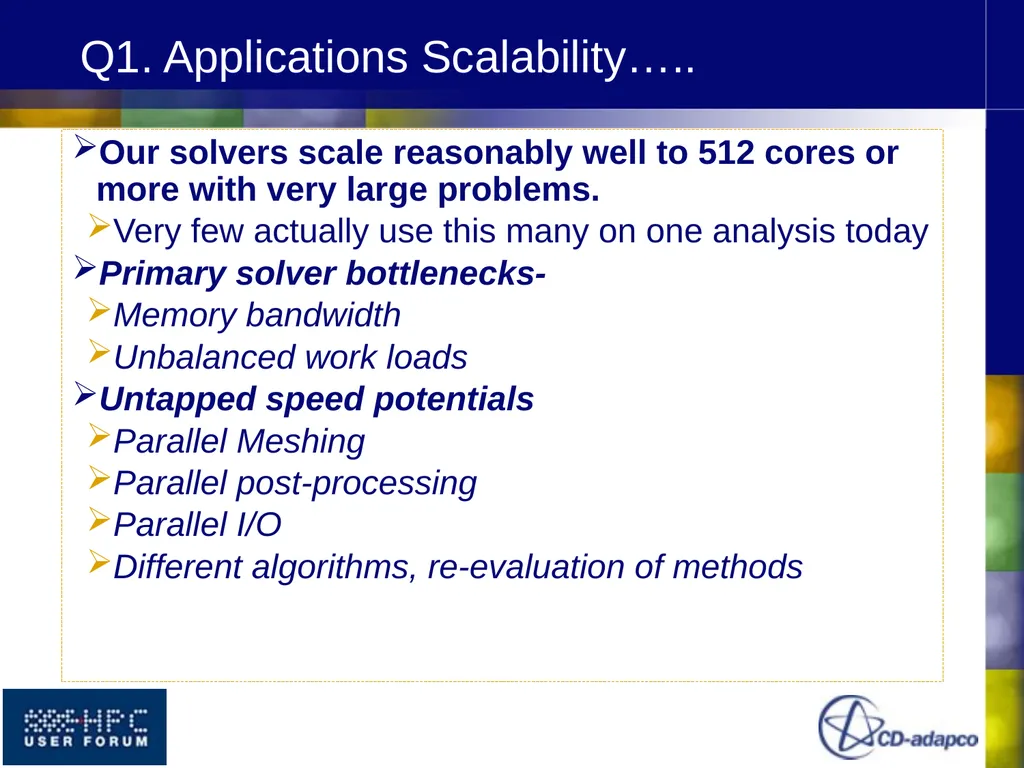

slide5. Our solvers scale reasonably well to 512 cores or more with very large problems.
Very few actually use this many on one analysis today
Primary solver bottlenecks-
Memory bandwidth
Unbalanced work loads
Untapped speed potentials
Parallel Meshing
Parallel post-processing
Parallel I/O
Different algorithms, re-evaluation of methods Q1. Applications Scalability…..<br>

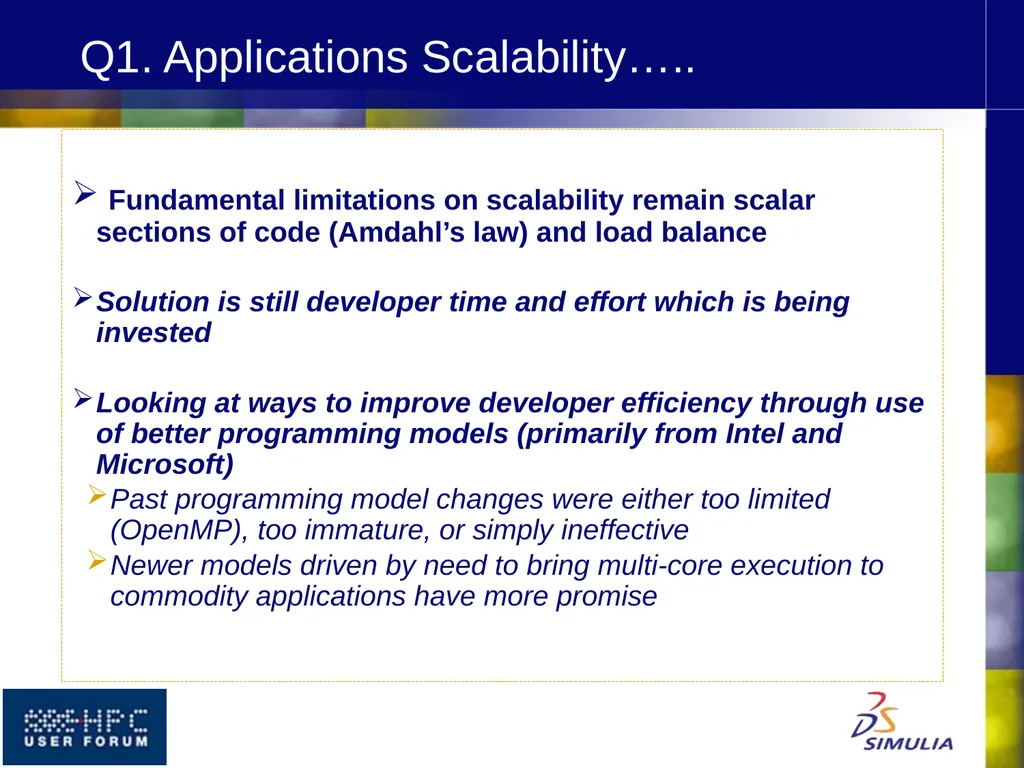

slide6. Fundamental limitations on scalability remain scalar sections of code (Amdahl’s law) and load balance
Solution is still developer time and effort which is being invested
Looking at ways to improve developer efficiency through use of better programming models (primarily from Intel and Microsoft)
Past programming model changes were either too limited (OpenMP), too immature, or simply ineffective
Newer models driven by need to bring multi-core execution to commodity applications have more promise Q1. Applications Scalability…..<br>

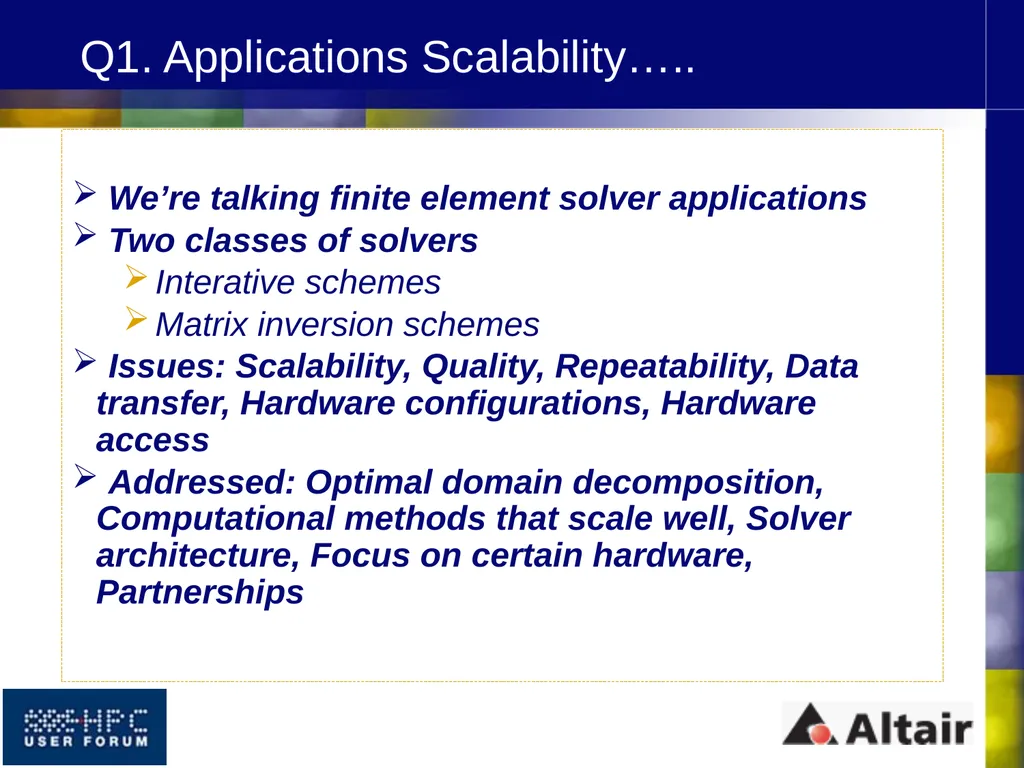

slide7. We’re talking finite element solver applications
Two classes of solvers
Interative schemes
Matrix inversion schemes
Issues: Scalability, Quality, Repeatability, Data transfer, Hardware configurations, Hardware access
Addressed: Optimal domain decomposition, Computational methods that scale well, Solver architecture, Focus on certain hardware, Partnerships Q1. Applications Scalability…..<br>

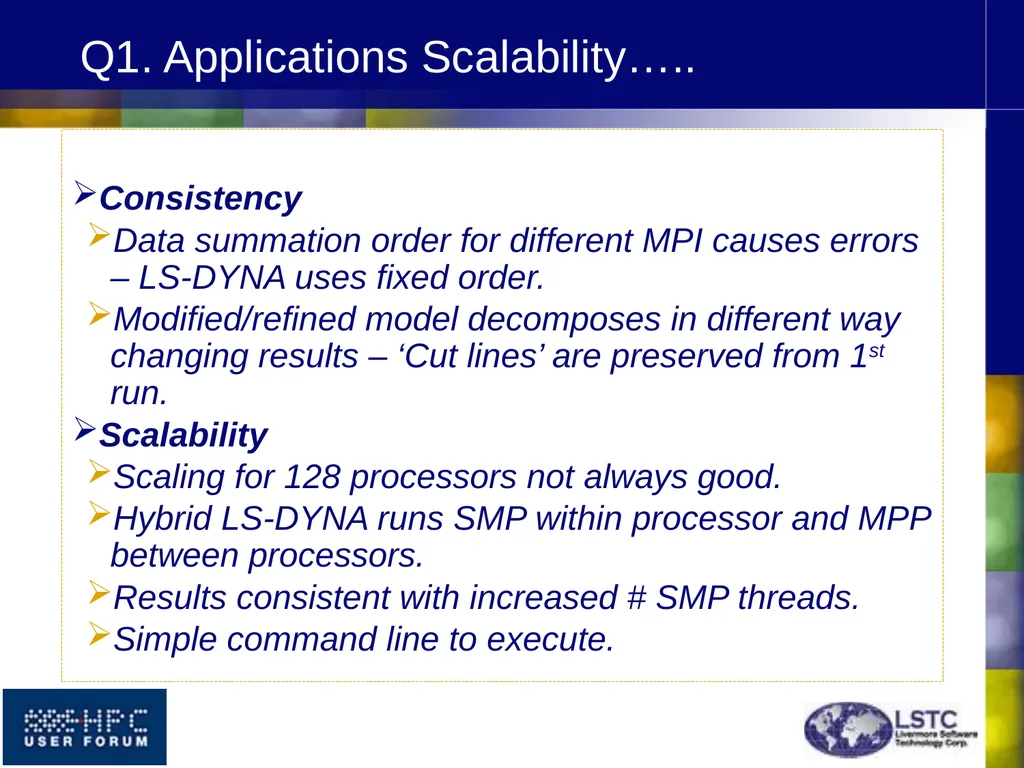

slide8. Consistency
Data summation order for different MPI causes errors – LS-DYNA uses fixed order.
Modified/refined model decomposes in different way changing results – ‘Cut lines’ are preserved from 1st run.
Scalability
Scaling for 128 processors not always good.
Hybrid LS-DYNA runs SMP within processor and MPP between processors.
Results consistent with increased # SMP threads.
Simple command line to execute. Q1. Applications Scalability…..<br>

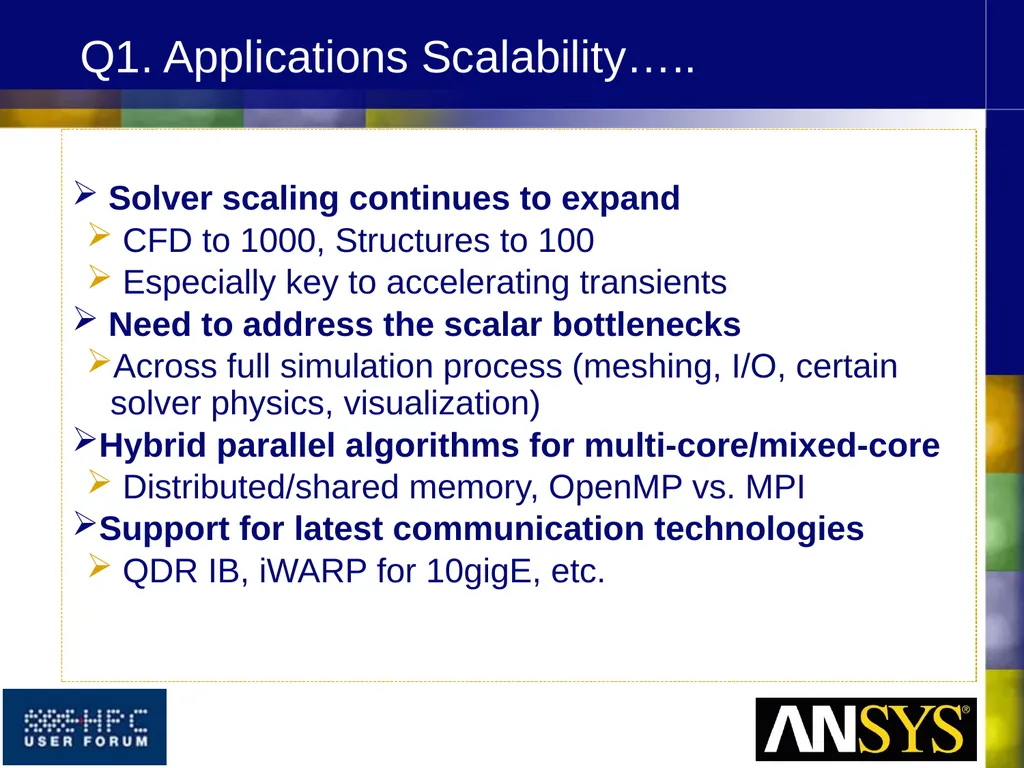

slide9. Q1. Applications Scalability….. Solver scaling continues to expand
CFD to 1000, Structures to 100
Especially key to accelerating transients
Need to address the scalar bottlenecks
Across full simulation process (meshing, I/O, certain solver physics, visualization)
Hybrid parallel algorithms for multi-core/mixed-core
Distributed/shared memory, OpenMP vs. MPI
Support for latest communication technologies
QDR IB, iWARP for 10gigE, etc.<br>

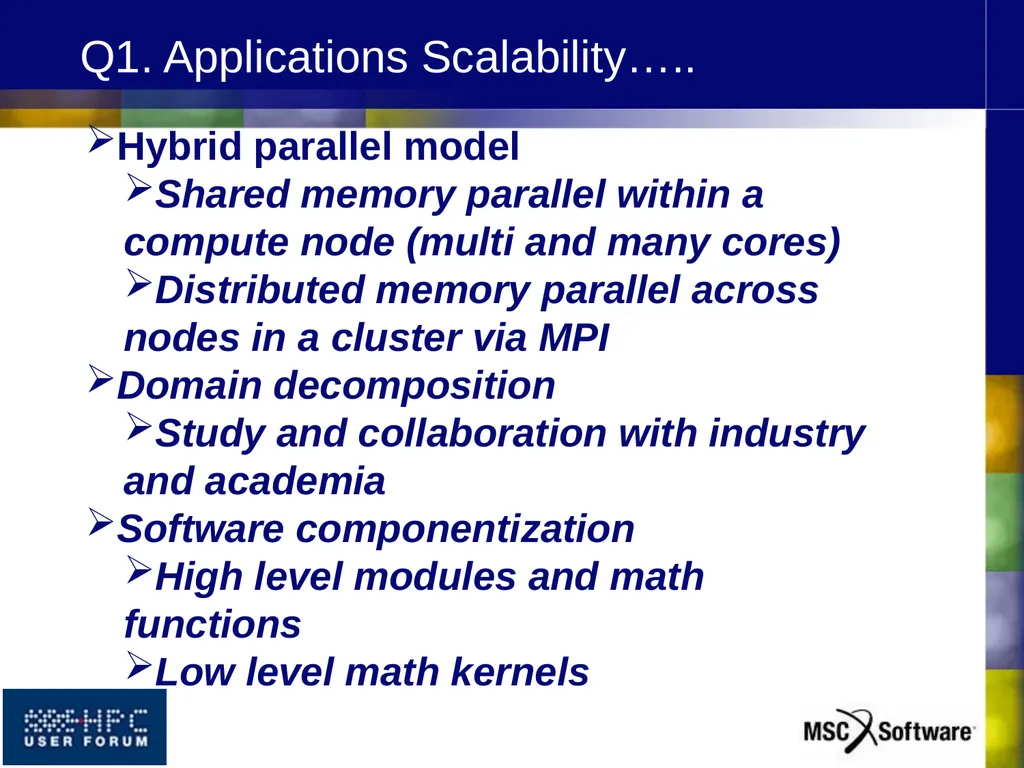

slide10. Q1. Applications Scalability….. Hybrid parallel model
Shared memory parallel within a compute node (multi and many cores)
Distributed memory parallel across nodes in a cluster via MPI
Domain decomposition
Study and collaboration with industry and academia
Software componentization
High level modules and math functions
Low level math kernels<br>

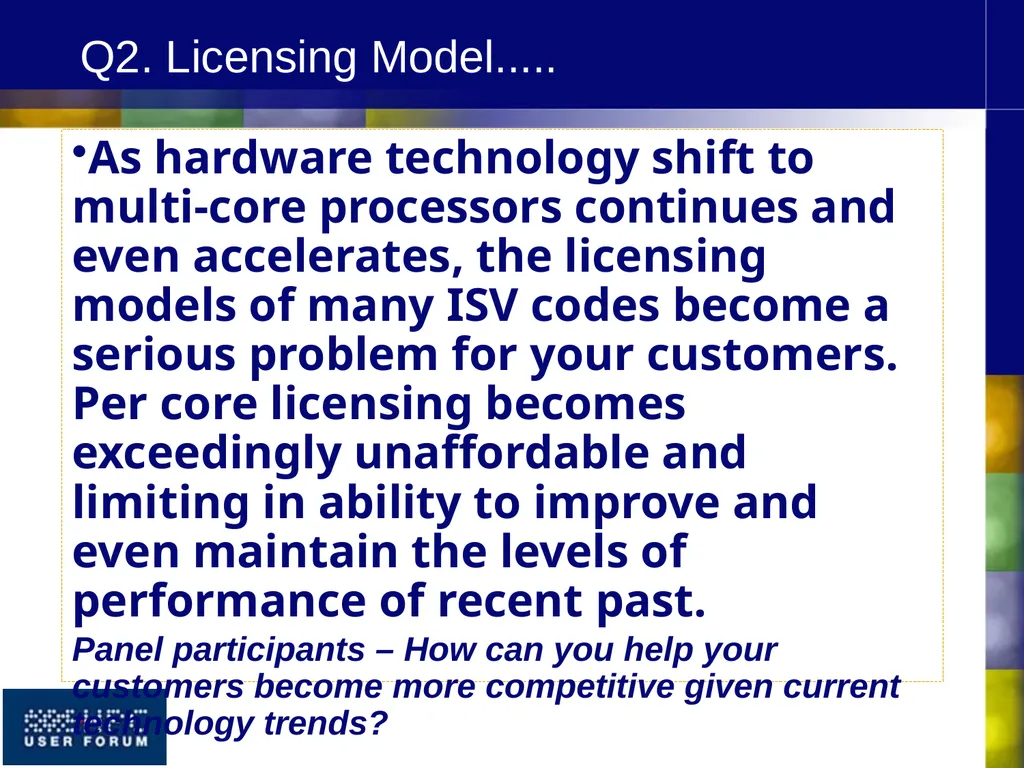

slide11. Q2. Licensing Model..... As hardware technology shift to multi-core processors continues and even accelerates, the licensing models of many ISV codes become a serious problem for your customers. Per core licensing becomes exceedingly unaffordable and limiting in ability to improve and even maintain the levels of performance of recent past.
Panel participants – How can you help your customers become more competitive given current technology trends?<br>

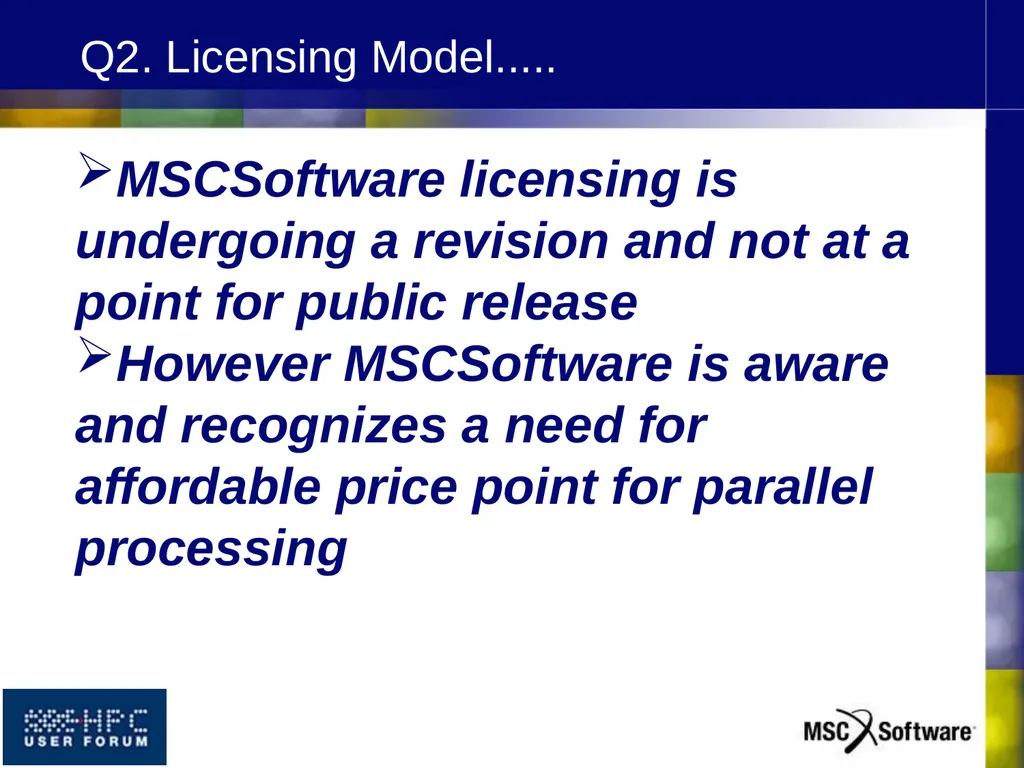

slide12. Q2. Licensing Model..... MSCSoftware licensing is undergoing a revision and not at a point for public release
However MSCSoftware is aware and recognizes a need for affordable price point for parallel processing<br>

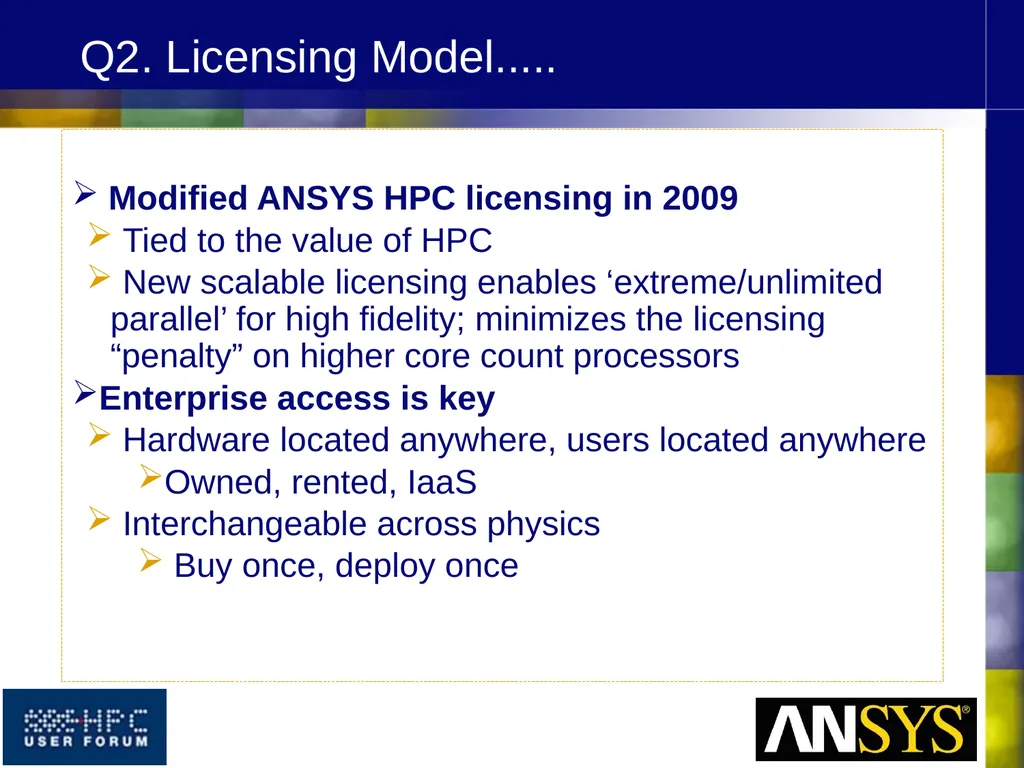

slide13. Q2. Licensing Model..... Modified ANSYS HPC licensing in 2009
Tied to the value of HPC
New scalable licensing enables ‘extreme/unlimited parallel’ for high fidelity; minimizes the licensing “penalty” on higher core count processors
Enterprise access is key
Hardware located anywhere, users located anywhere
Owned, rented, IaaS
Interchangeable across physics
Buy once, deploy once<br>

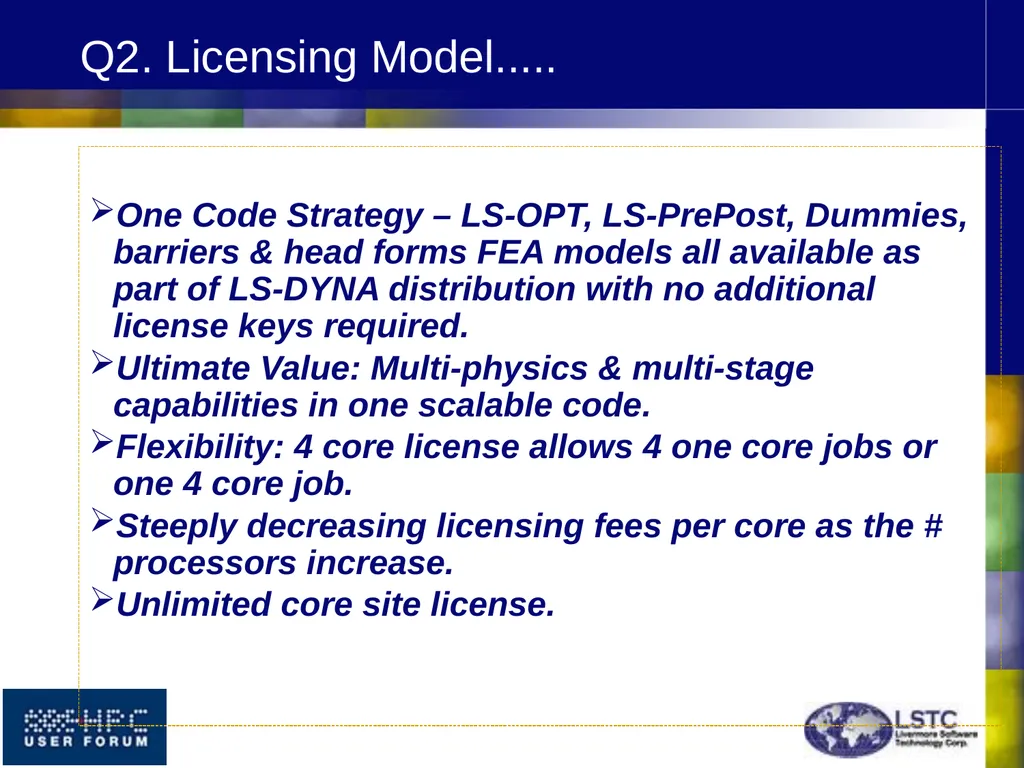

slide14. Q2. Licensing Model..... One Code Strategy – LS-OPT, LS-PrePost, Dummies, barriers & head forms FEA models all available as part of LS-DYNA distribution with no additional license keys required.
Ultimate Value: Multi-physics & multi-stage capabilities in one scalable code.
Flexibility: 4 core license allows 4 one core jobs or one 4 core job.
Steeply decreasing licensing fees per core as the # processors increase.
Unlimited core site license.<br>

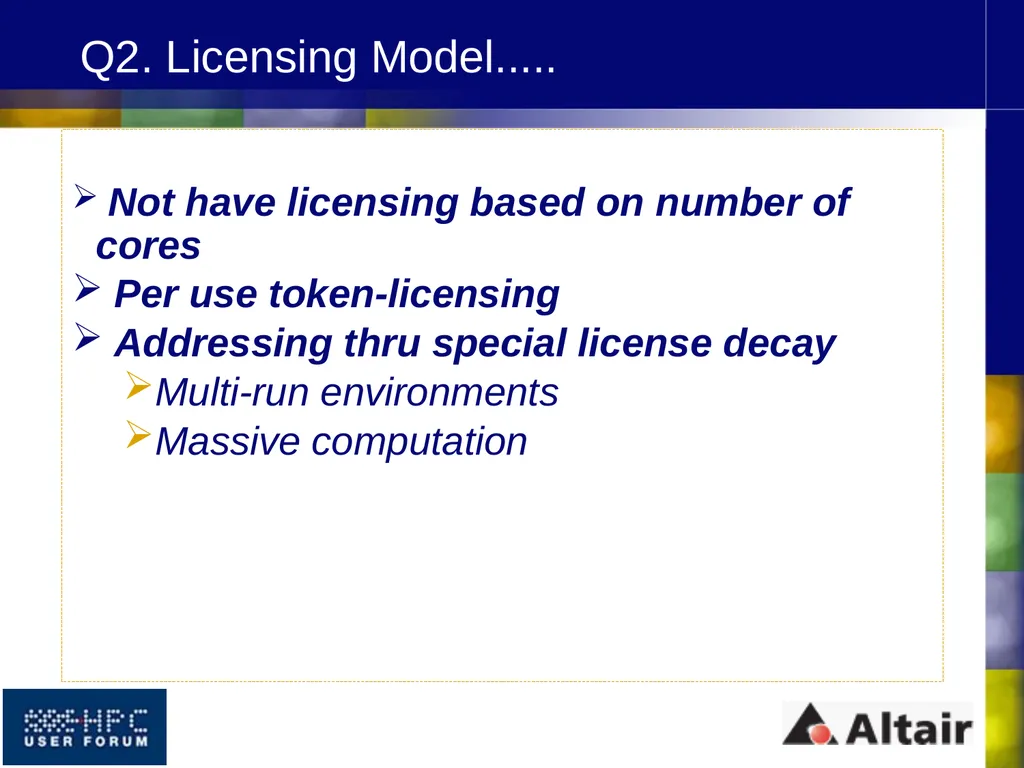

slide15. Not have licensing based on number of cores
Per use token-licensing
Addressing thru special license decay
Multi-run environments
Massive computation Q2. Licensing Model.....<br>

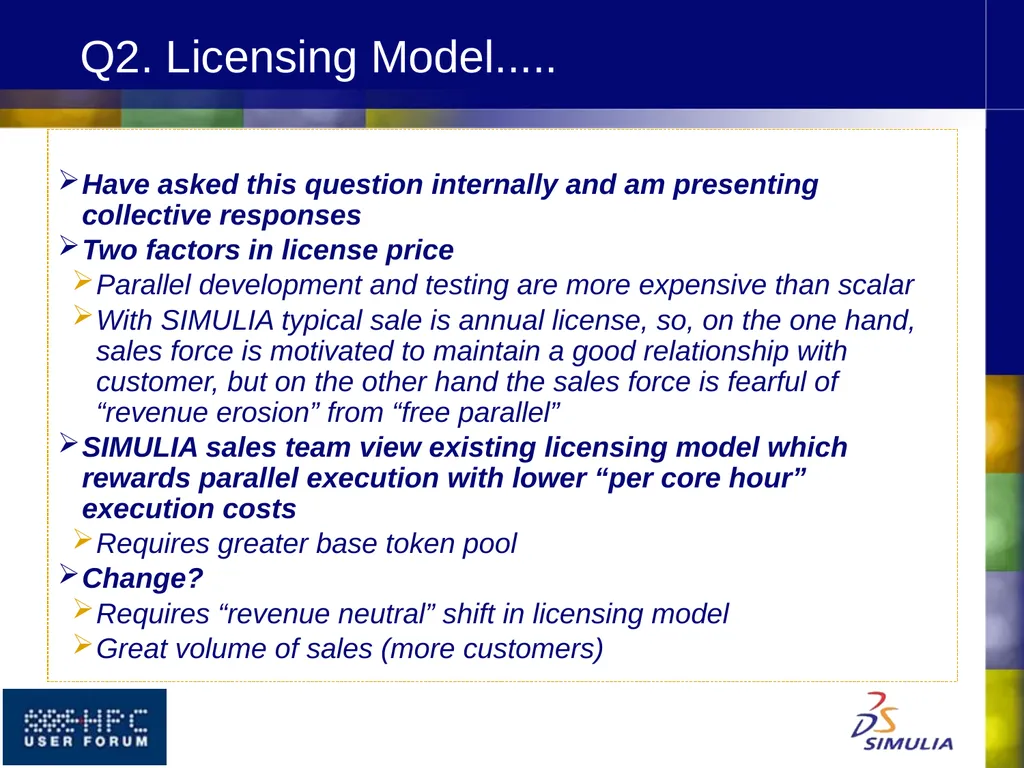

slide16. Have asked this question internally and am presenting collective responses
Two factors in license price
Parallel development and testing are more expensive than scalar
With SIMULIA typical sale is annual license, so, on the one hand, sales force is motivated to maintain a good relationship with customer, but on the other hand the sales force is fearful of “revenue erosion” from “free parallel”
SIMULIA sales team view existing licensing model which rewards parallel execution with lower “per core hour” execution costs
Requires greater base token pool
Change?
Requires “revenue neutral” shift in licensing model
Great volume of sales (more customers) Q2. Licensing Model.....<br>

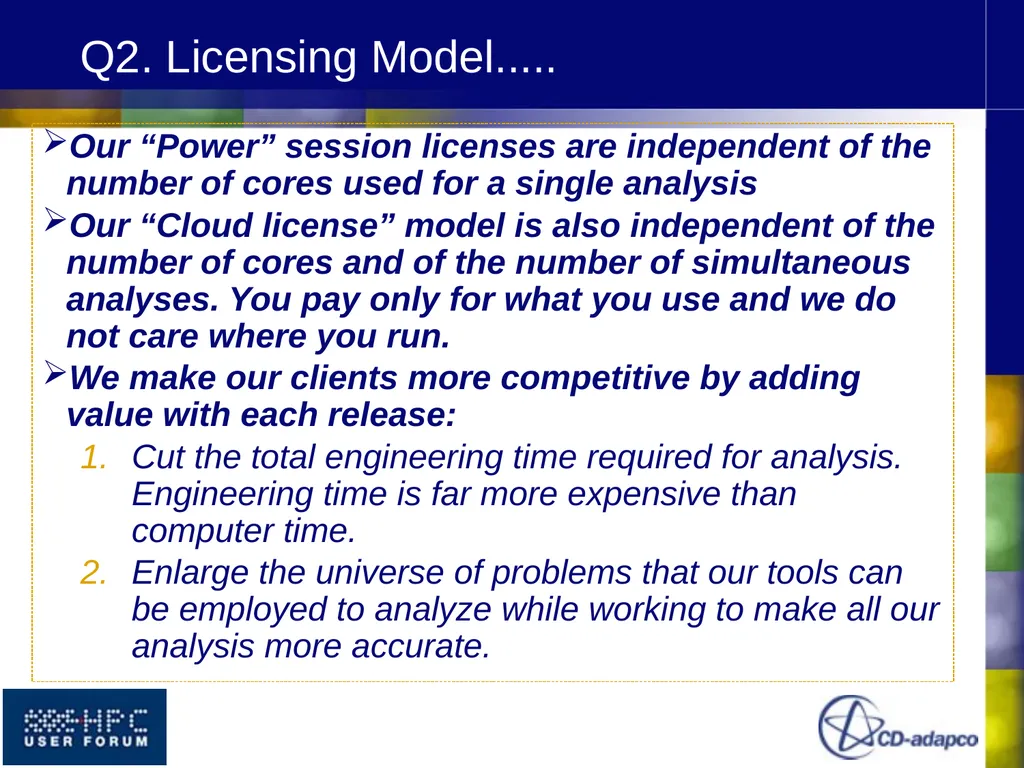

slide17. Our “Power” session licenses are independent of the number of cores used for a single analysis
Our “Cloud license” model is also independent of the number of cores and of the number of simultaneous analyses. You pay only for what you use and we do not care where you run.
We make our clients more competitive by adding value with each release:
Cut the total engineering time required for analysis. Engineering time is far more expensive than computer time.
Enlarge the universe of problems that our tools can be employed to analyze while working to make all our analysis more accurate. Q2. Licensing Model.....<br>

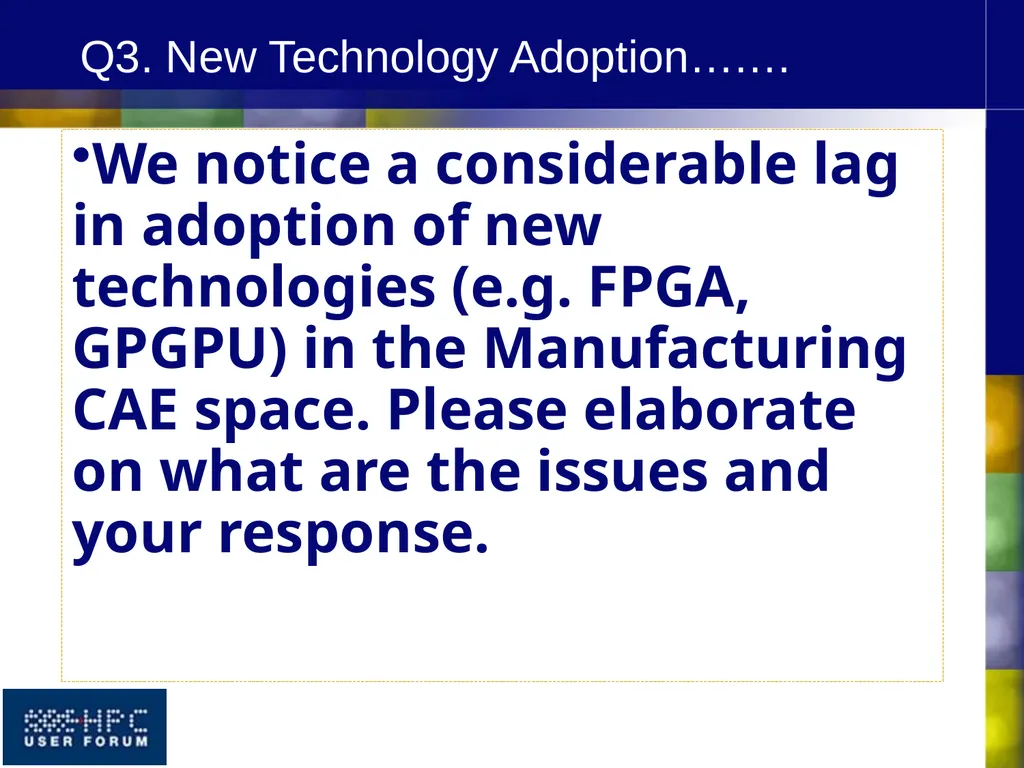

slide18. Q3. New Technology Adoption….… We notice a considerable lag in adoption of new technologies (e.g. FPGA, GPGPU) in the Manufacturing CAE space. Please elaborate on what are the issues and your response.<br>

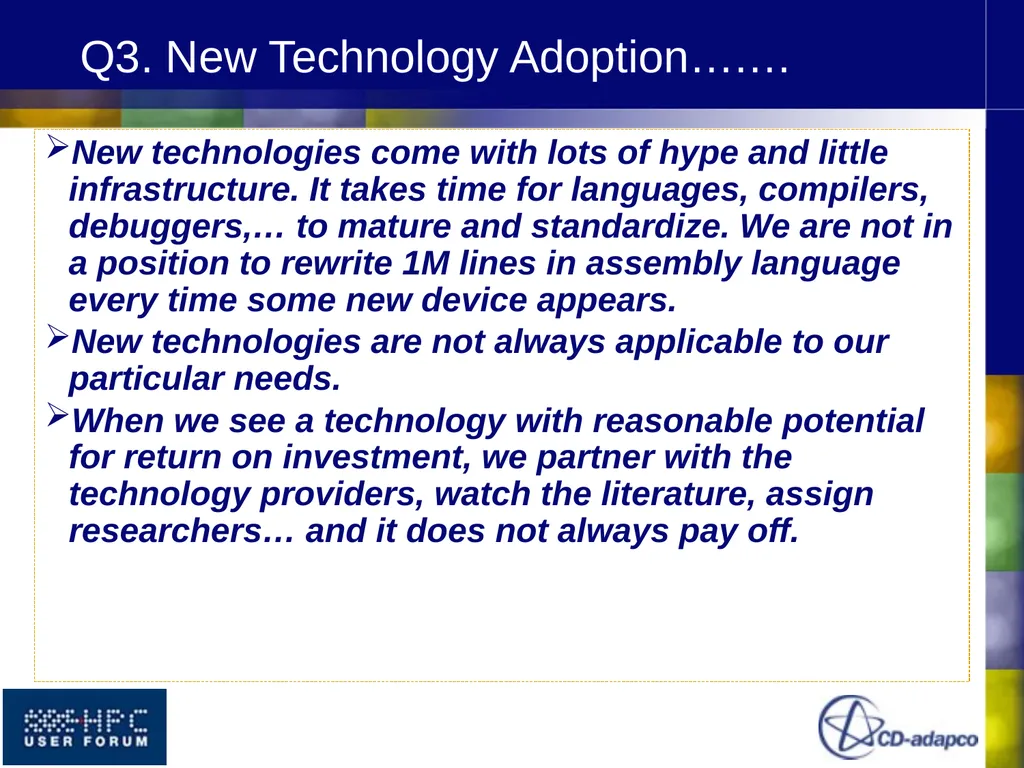

slide19. Q3. New Technology Adoption….… New technologies come with lots of hype and little infrastructure. It takes time for languages, compilers, debuggers,… to mature and standardize. We are not in a position to rewrite 1M lines in assembly language every time some new device appears.
New technologies are not always applicable to our particular needs.
When we see a technology with reasonable potential for return on investment, we partner with the technology providers, watch the literature, assign researchers… and it does not always pay off.<br>
slide20. Adoption of GPGPU, and to greater extent, FPGA has high programming cost for large, general purpose codes
Result is that GPGPU focus tends to be on acceleration of obvious bottlenecks, preferably, with low code line counts
Drawback for parallel codes is that often greater parallel gains are in same areas, so gains from GPGPU are considerably less for parallel codes than for scalar codes
Even where adoption is underway, keeping x86 and GPGPU code (CUDA/OpenCL) results in two code bases
SIMULIA is accelerating obvious code with GPGPU, and working internally and with partners to find better programming model Q3. New Technology Adoption….…<br>

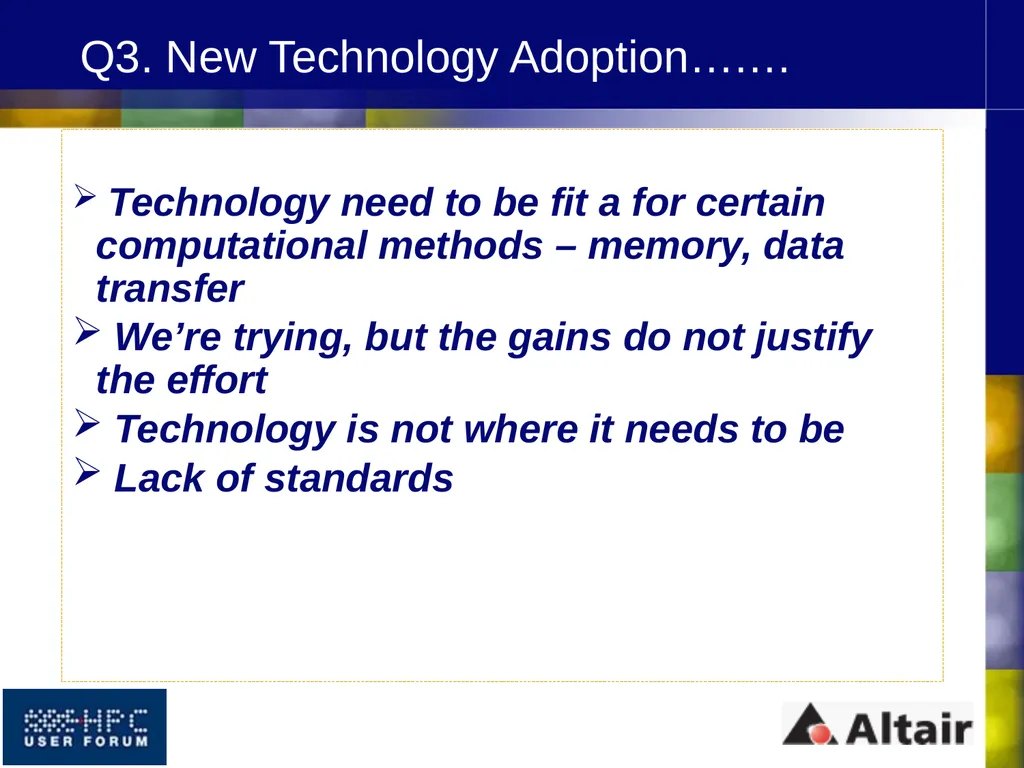

slide21. Technology need to be fit a for certain computational methods – memory, data transfer
We’re trying, but the gains do not justify the effort
Technology is not where it needs to be
Lack of standards Q3. New Technology Adoption….…<br>

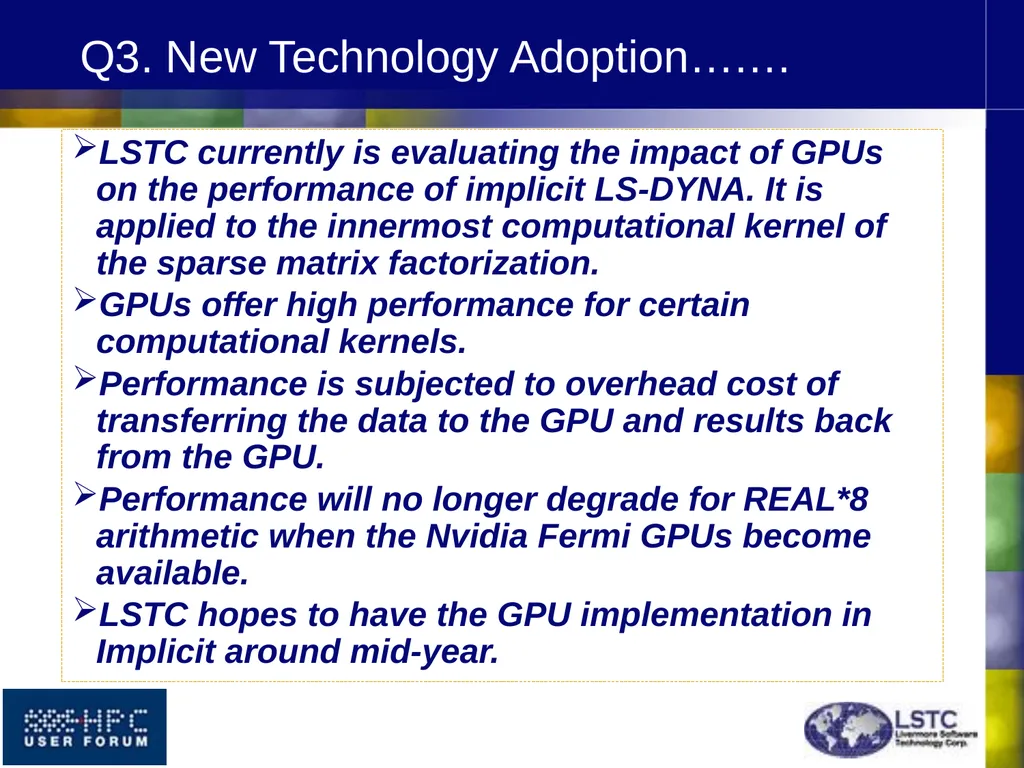

slide22. LSTC currently is evaluating the impact of GPUs on the performance of implicit LS-DYNA. It is applied to the innermost computational kernel of the sparse matrix factorization.
GPUs offer high performance for certain computational kernels.
Performance is subjected to overhead cost of transferring the data to the GPU and results back from the GPU.
Performance will no longer degrade for REAL*8 arithmetic when the Nvidia Fermi GPUs become available.
LSTC hopes to have the GPU implementation in Implicit around mid-year. Q3. New Technology Adoption….…<br>

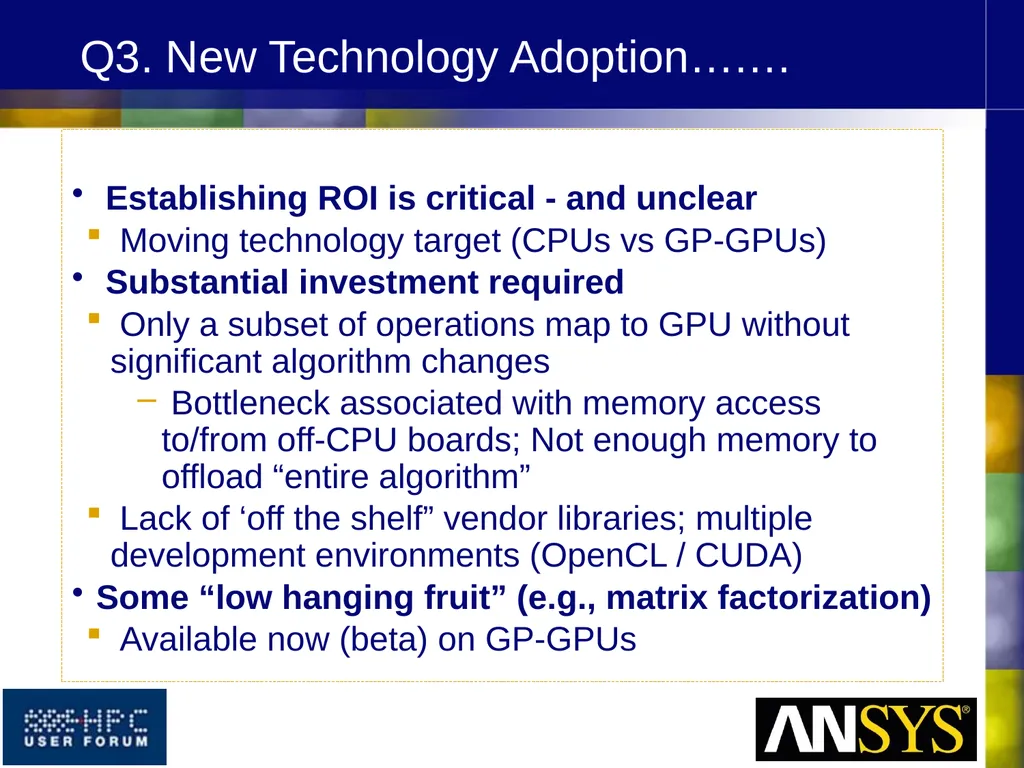

slide23. Establishing ROI is critical - and unclear
Moving technology target (CPUs vs GP-GPUs)
Substantial investment required
Only a subset of operations map to GPU without significant algorithm changes
Bottleneck associated with memory access to/from off-CPU boards; Not enough memory to offload “entire algorithm”
Lack of ‘off the shelf” vendor libraries; multiple development environments (OpenCL / CUDA)
Some “low hanging fruit” (e.g., matrix factorization)
Available now (beta) on GP-GPUs Q3. New Technology Adoption….…<br>

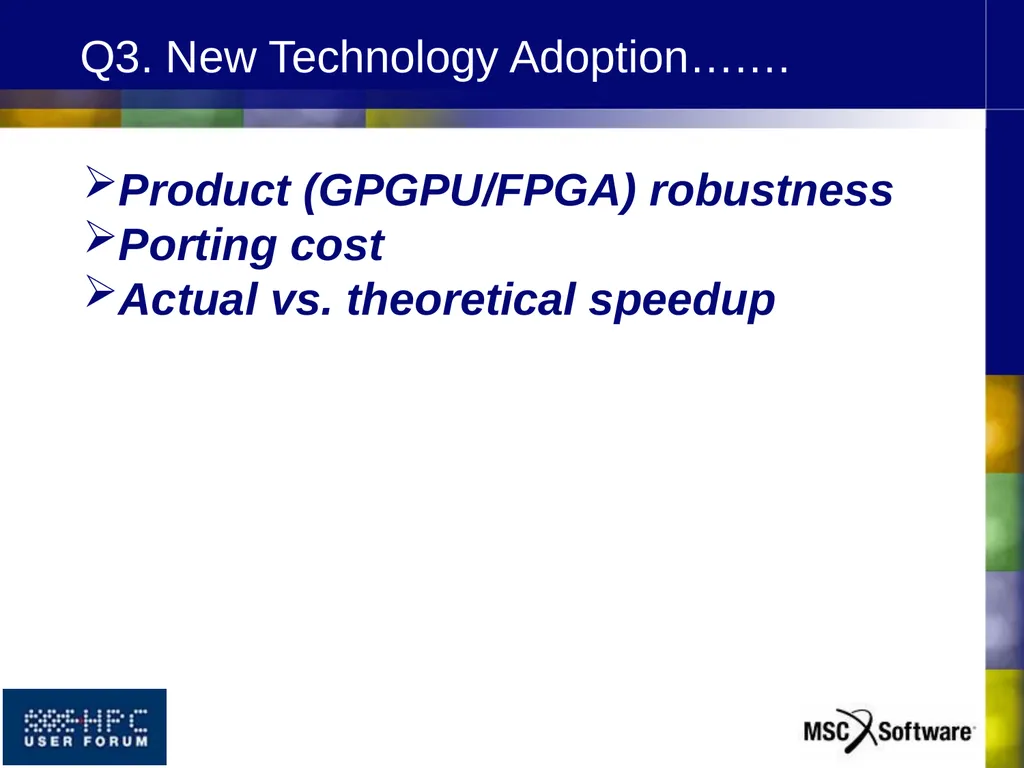

slide24. Q3. New Technology Adoption….… Product (GPGPU/FPGA) robustness
Porting cost
Actual vs. theoretical speedup<br>

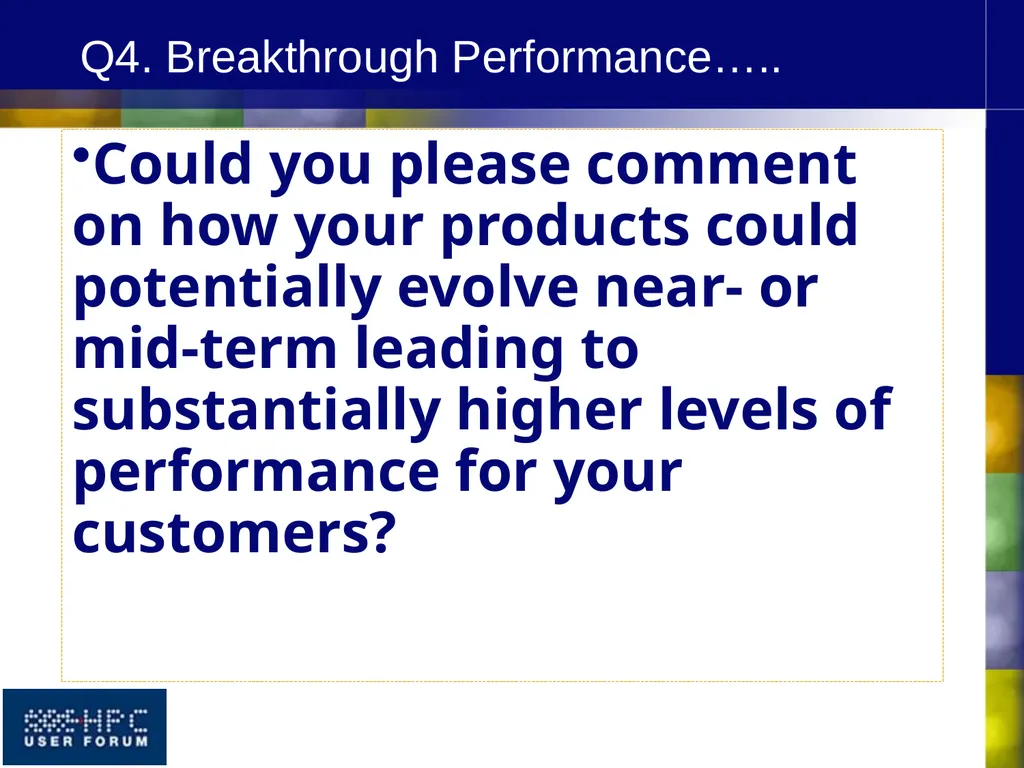

slide25. Q4. Breakthrough Performance….. Could you please comment on how your products could potentially evolve near- or mid-term leading to substantially higher levels of performance for your customers?<br>

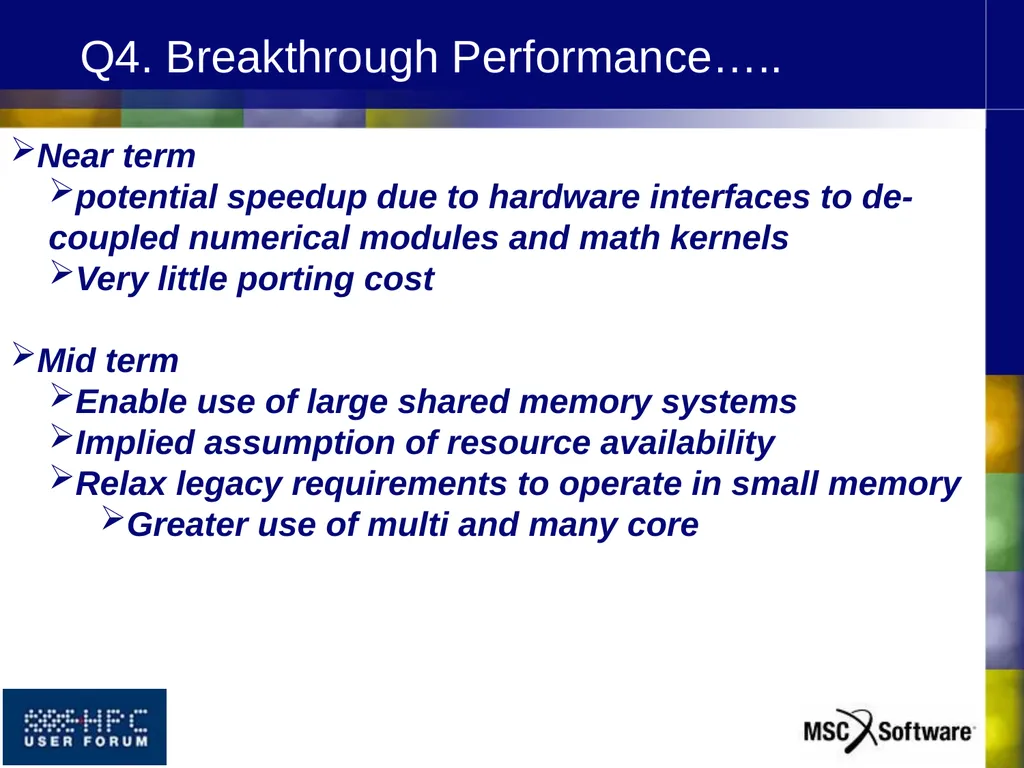

slide26. Q4. Breakthrough Performance….. Near term
potential speedup due to hardware interfaces to de-coupled numerical modules and math kernels
Very little porting cost
Mid term
Enable use of large shared memory systems
Implied assumption of resource availability
Relax legacy requirements to operate in small memory
Greater use of multi and many core<br>

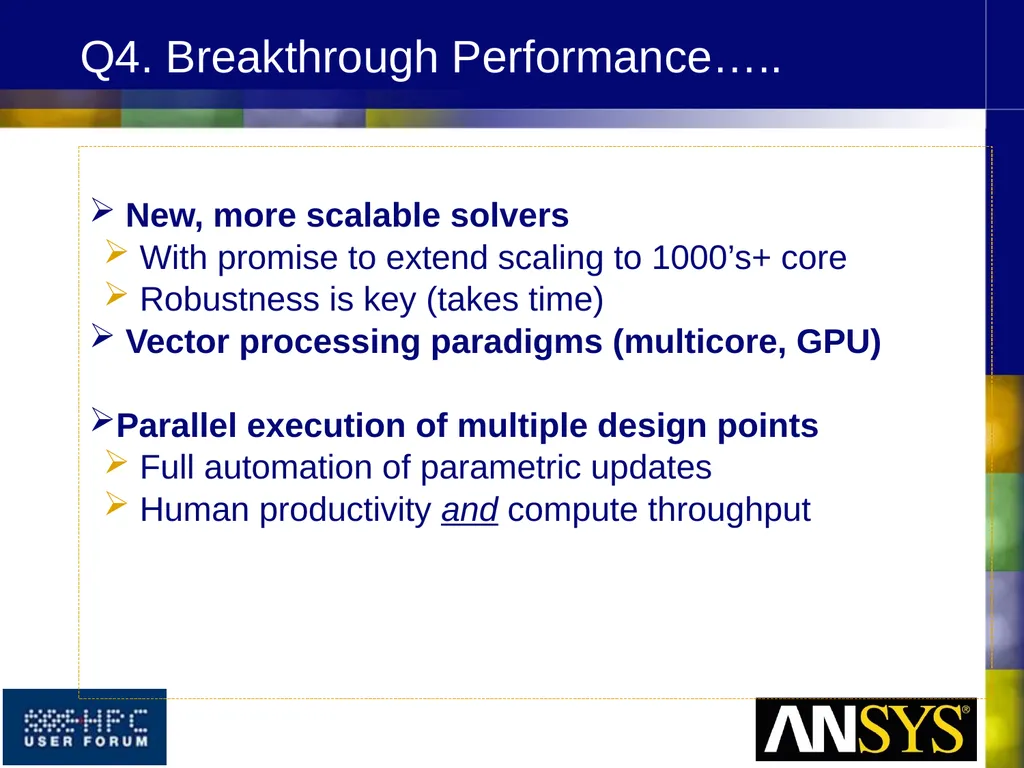

slide27. Q4. Breakthrough Performance….. New, more scalable solvers
With promise to extend scaling to 1000’s+ core
Robustness is key (takes time)
Vector processing paradigms (multicore, GPU)
Parallel execution of multiple design points
Full automation of parametric updates
Human productivity and compute throughput<br>

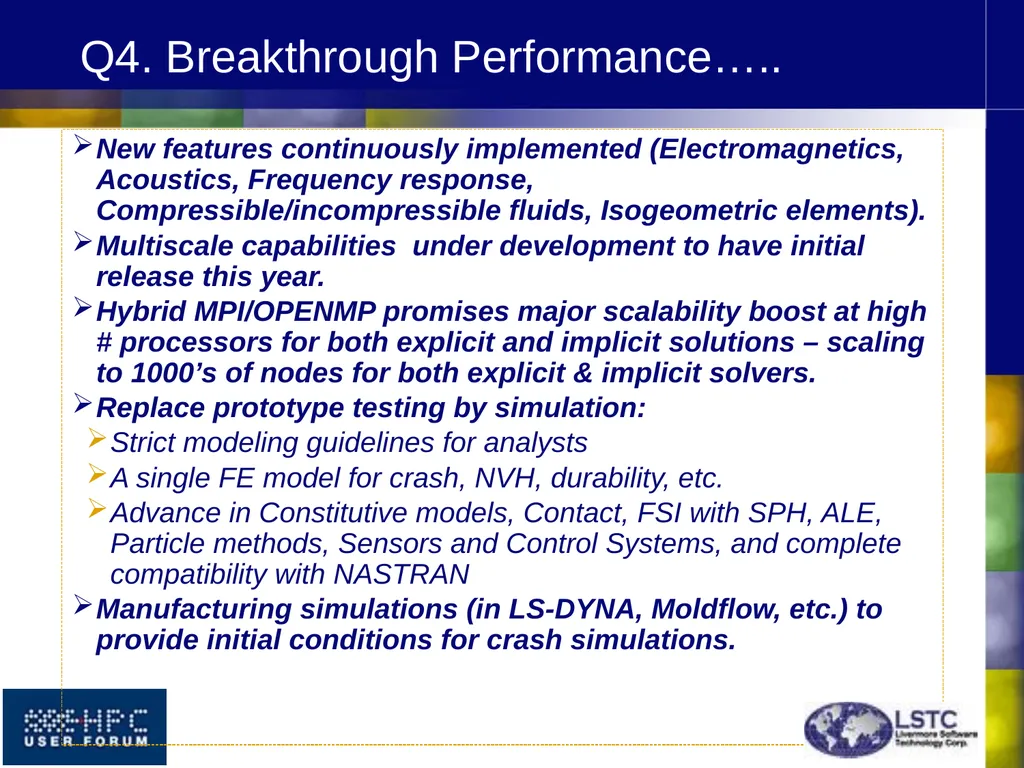

slide28. New features continuously implemented (Electromagnetics, Acoustics, Frequency response, Compressible/incompressible fluids, Isogeometric elements).
Multiscale capabilities under development to have initial release this year.
Hybrid MPI/OPENMP promises major scalability boost at high # processors for both explicit and implicit solutions – scaling to 1000’s of nodes for both explicit & implicit solvers.
Replace prototype testing by simulation:
Strict modeling guidelines for analysts
A single FE model for crash, NVH, durability, etc.
Advance in Constitutive models, Contact, FSI with SPH, ALE, Particle methods, Sensors and Control Systems, and complete compatibility with NASTRAN
Manufacturing simulations (in LS-DYNA, Moldflow, etc.) to provide initial conditions for crash simulations. Q4. Breakthrough Performance…..<br>

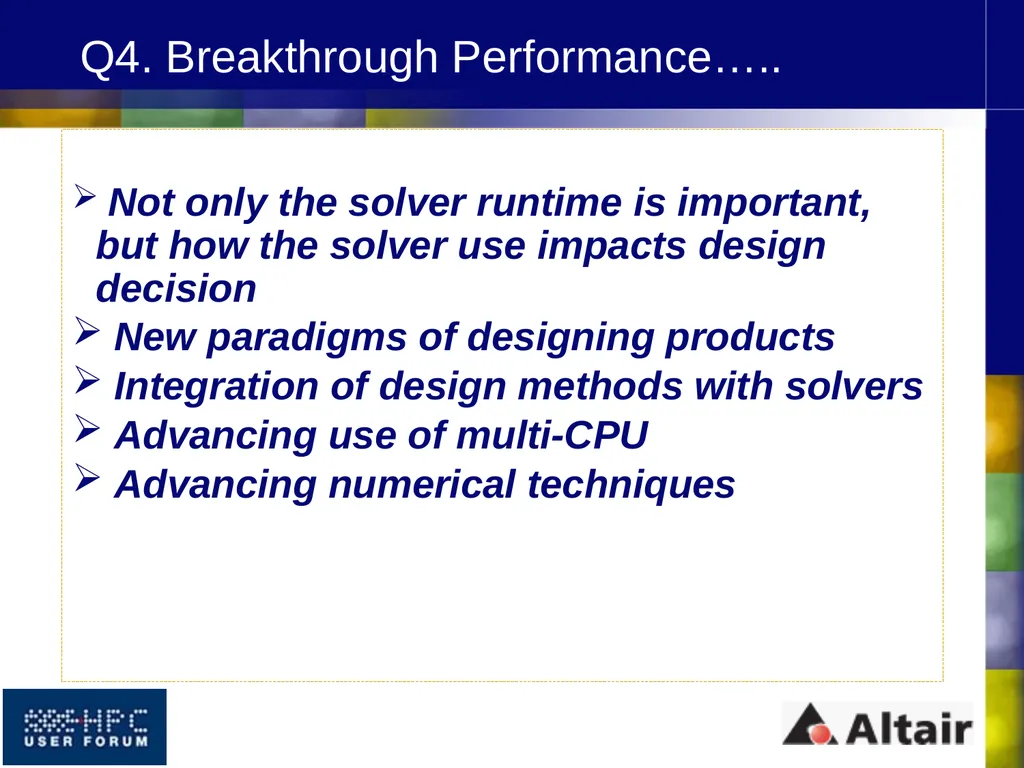

slide29. Not only the solver runtime is important, but how the solver use impacts design decision
New paradigms of designing products
Integration of design methods with solvers
Advancing use of multi-CPU
Advancing numerical techniques Q4. Breakthrough Performance…..<br>

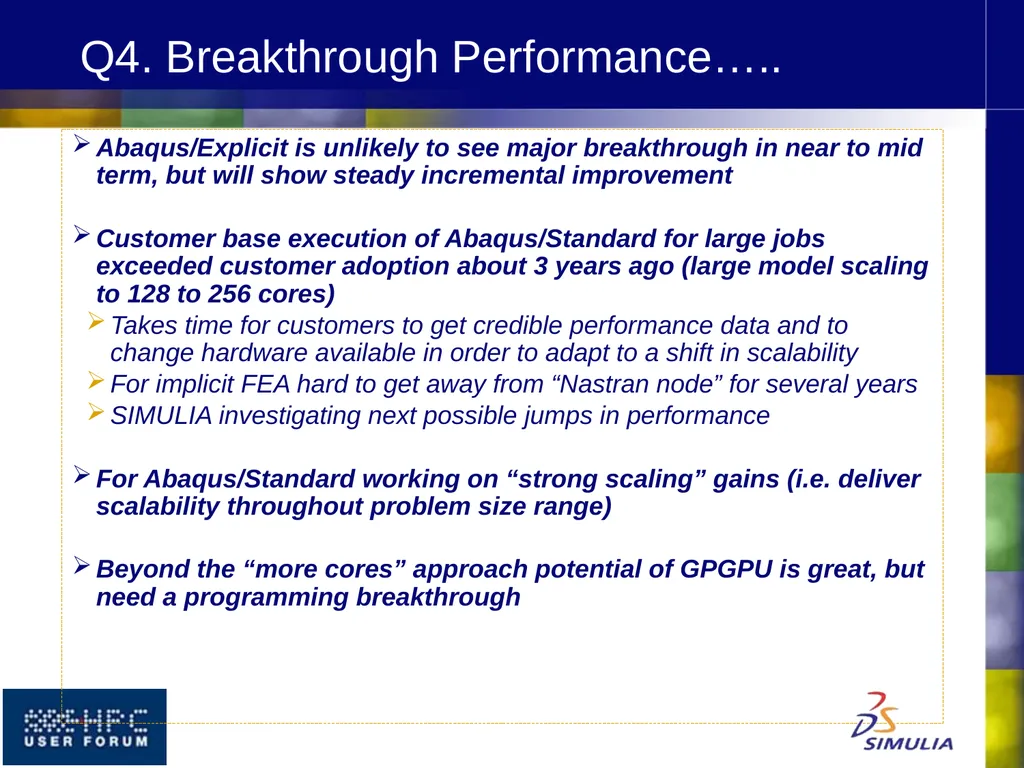

slide30. Abaqus/Explicit is unlikely to see major breakthrough in near to mid term, but will show steady incremental improvement
Customer base execution of Abaqus/Standard for large jobs exceeded customer adoption about 3 years ago (large model scaling to 128 to 256 cores)
Takes time for customers to get credible performance data and to change hardware available in order to adapt to a shift in scalability
For implicit FEA hard to get away from “Nastran node” for several years
SIMULIA investigating next possible jumps in performance
For Abaqus/Standard working on “strong scaling” gains (i.e. deliver scalability throughout problem size range)
Beyond the “more cores” approach potential of GPGPU is great, but need a programming breakthrough Q4. Breakthrough Performance…..<br>
slide31. Our goal is to cut down the TOTAL simulation time.
Meshing/CAD interfacing. We have gone from weeks of preparation time to hours. We have made enormous breakthroughs in our ability to process “dirty” CAD.
Post-processing – recently cut the time to output a specific set of plots from 40 hours to 1 hour.
Strategies to deal with larger models and transients, including use of parallel I/O.
Customization and integration with the client’s own workflows and processes.
Solver efficiency alone is not the only important measure of performance. Q4. Breakthrough Performance…..<br>
