In Part of Sy No: 21 of Chelaganahalli Village,

slide1. In Part of Sy No: 21 of Chelaganahalli Village, Koratagere Taluk and Tumkur District,Karnataka. Extent: 5-00 Acres WELCOME TO

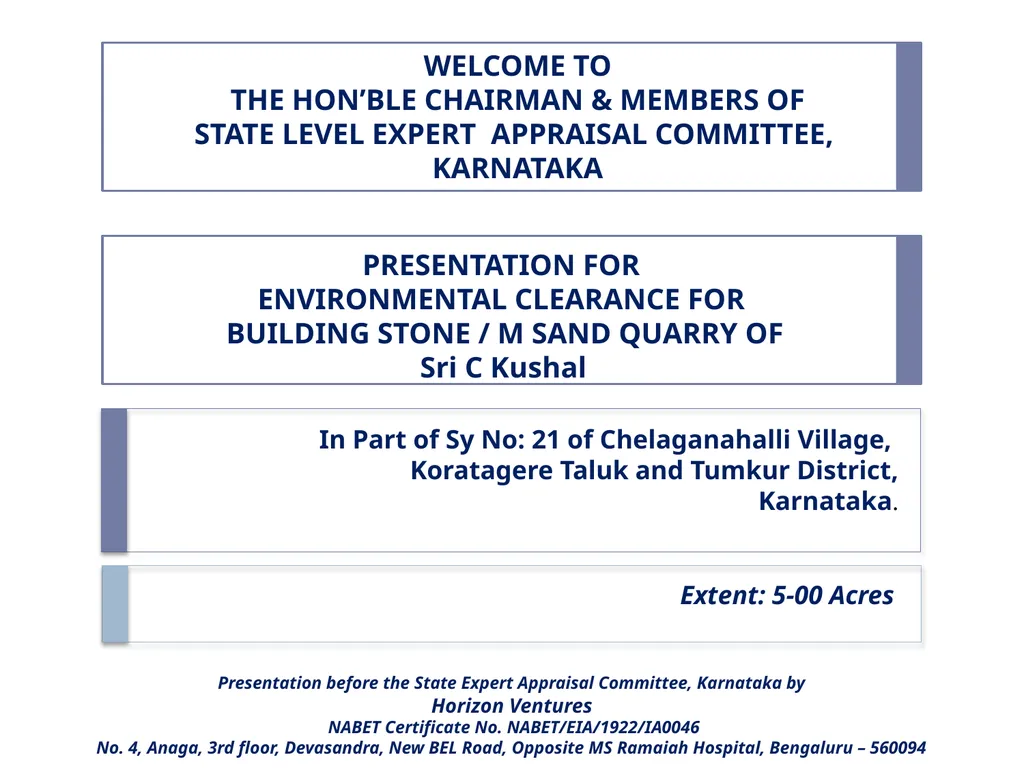

THE HON’BLE CHAIRMAN & MEMBERS OF
STATE LEVEL EXPERT APPRAISAL COMMITTEE,
KARNATAKA PRESENTATION FOR
ENVIRONMENTAL CLEARANCE FOR
BUILDING STONE / M SAND QUARRY OF
Sri C Kushal Presentation before the State Expert Appraisal Committee, Karnataka by
Horizon Ventures
NABET Certificate No. NABET/EIA/1922/IA0046
No. 4, Anaga, 3rd floor, Devasandra, New BEL Road, Opposite MS Ramaiah Hospital, Bengaluru – 560094<br>

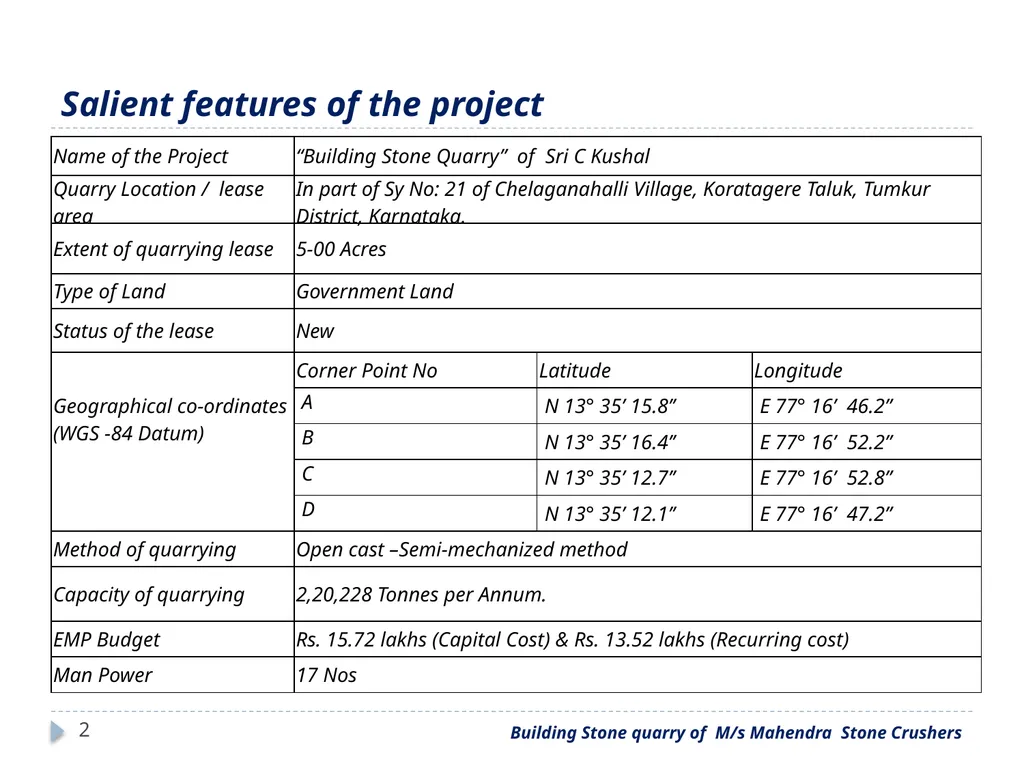

slide2. Salient features of the project 2 Building Stone quarry of M/s Mahendra Stone Crushers<br>

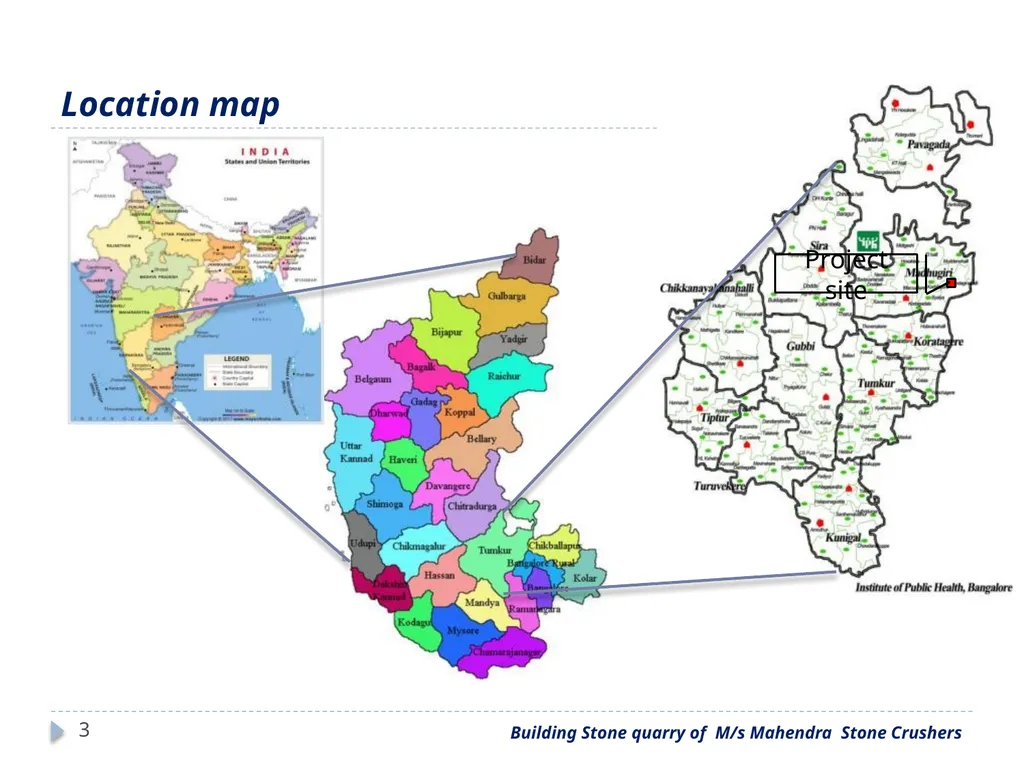

slide3. Location map 3 Project site Building Stone quarry of M/s Mahendra Stone Crushers<br>

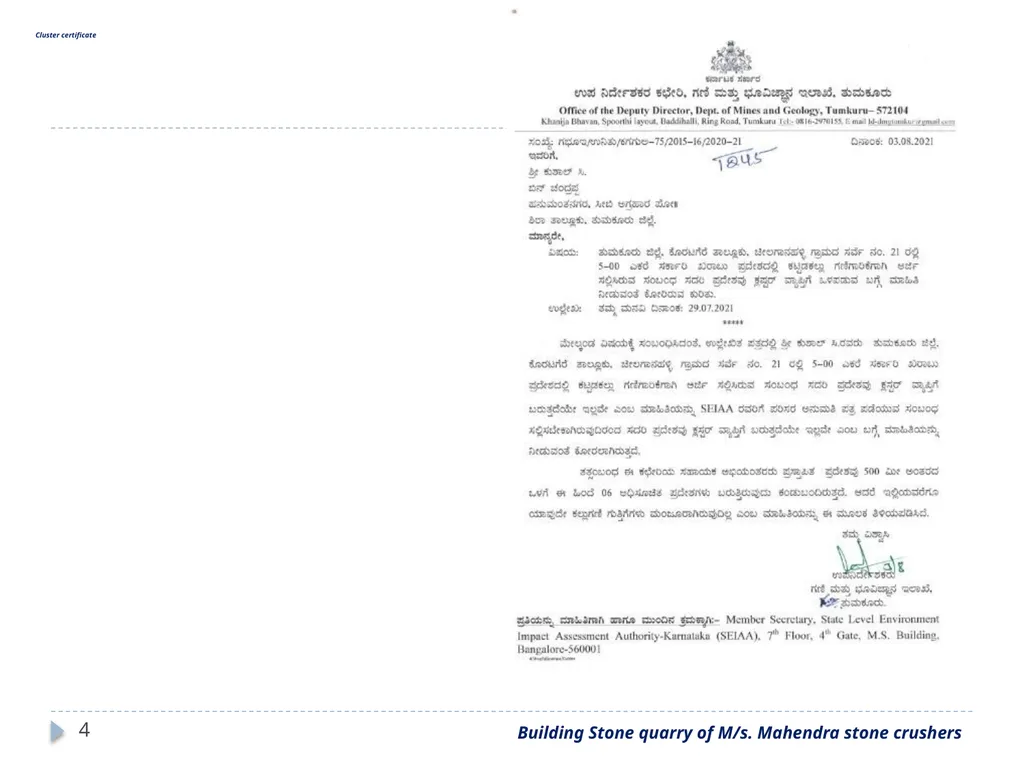

slide4. Cluster certificate 4 Building Stone quarry of M/s. Mahendra stone crushers<br>

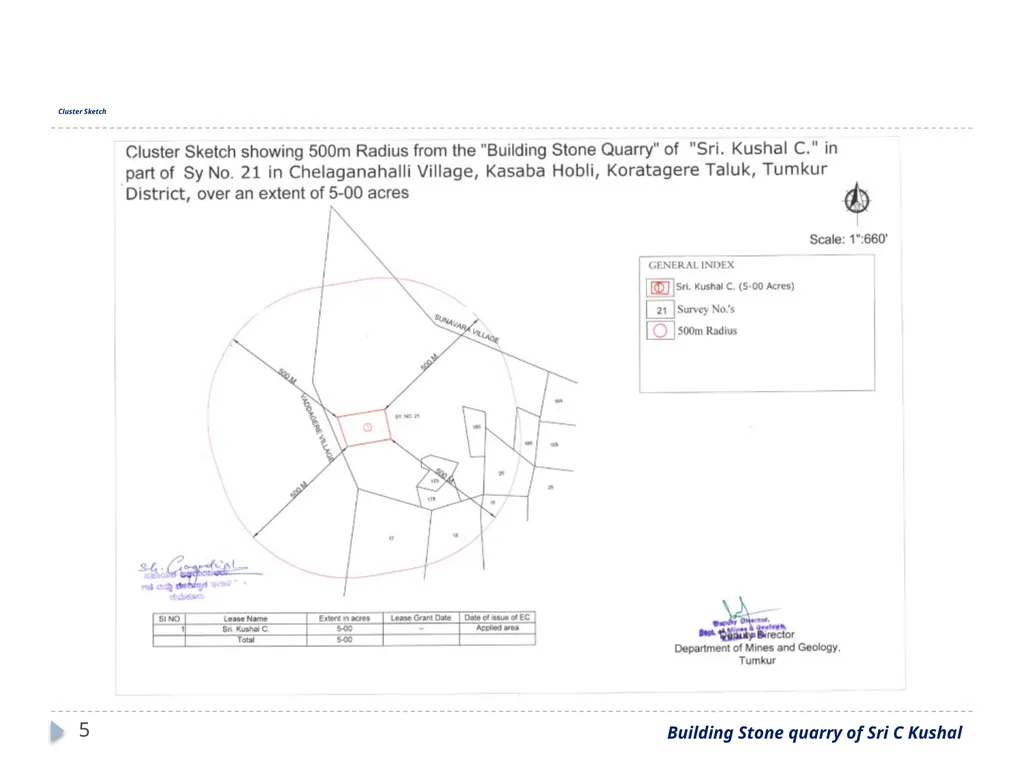

slide5. Cluster Sketch 5 Building Stone quarry of Sri C Kushal<br>

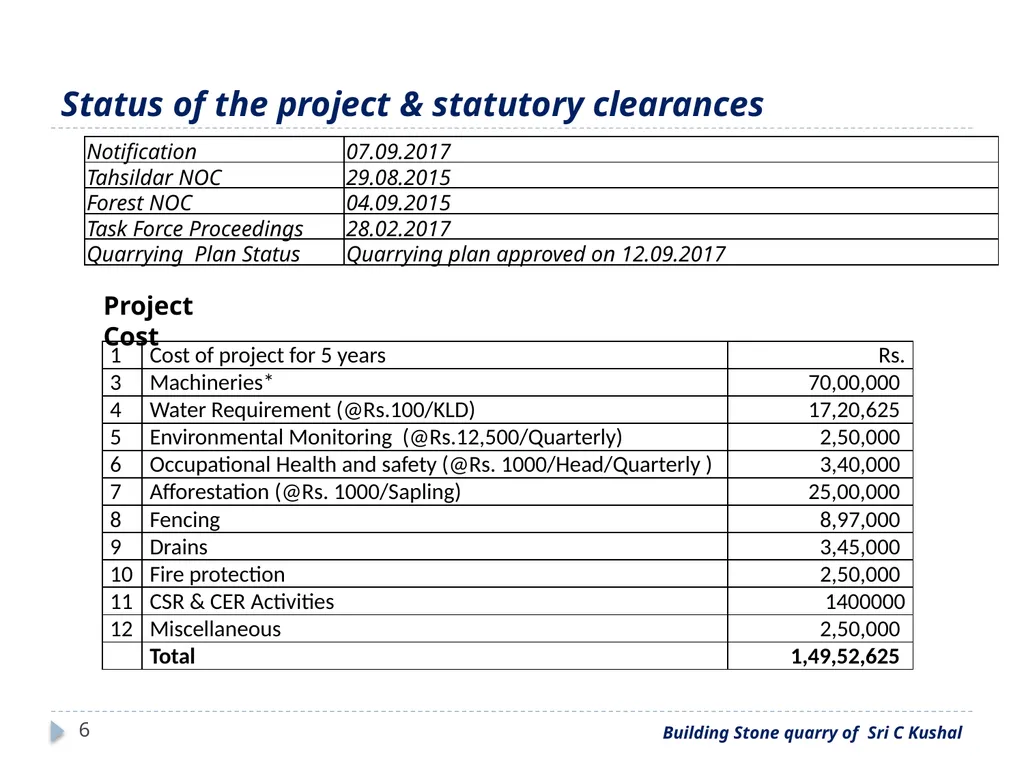

slide6. Status of the project & statutory clearances 6 Building Stone quarry of Sri C Kushal Project Cost<br>

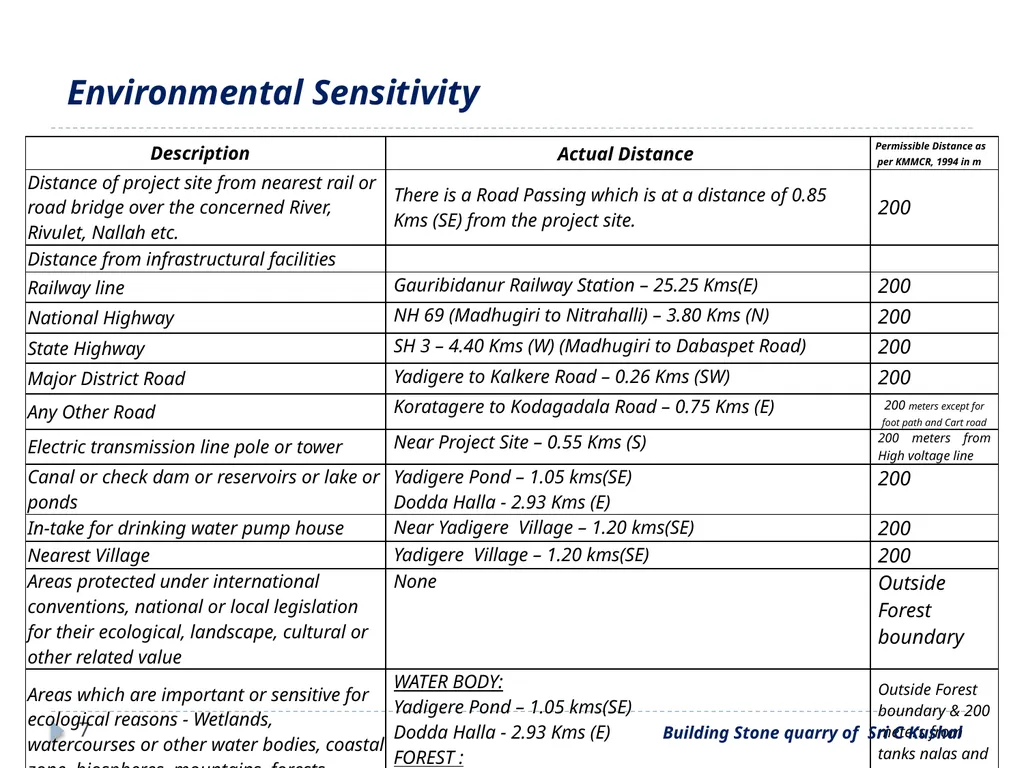

slide7. Environmental Sensitivity 7 Building Stone quarry of Sri C Kushal<br>

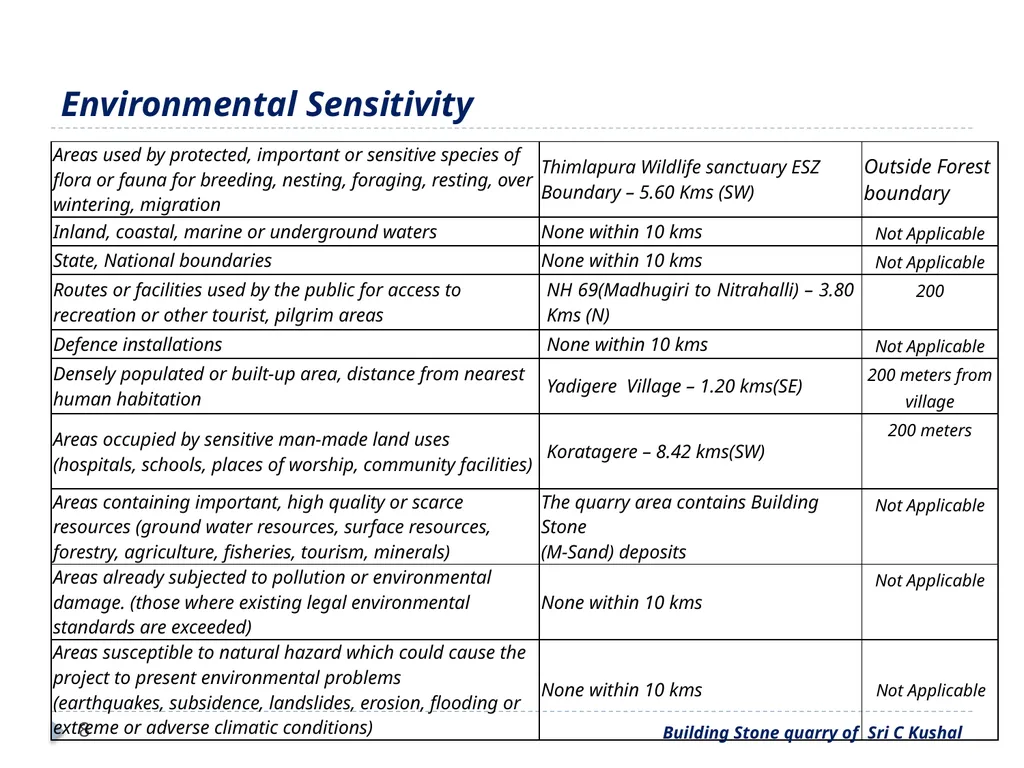

slide8. Environmental Sensitivity 8 Building Stone quarry of Sri C Kushal<br>

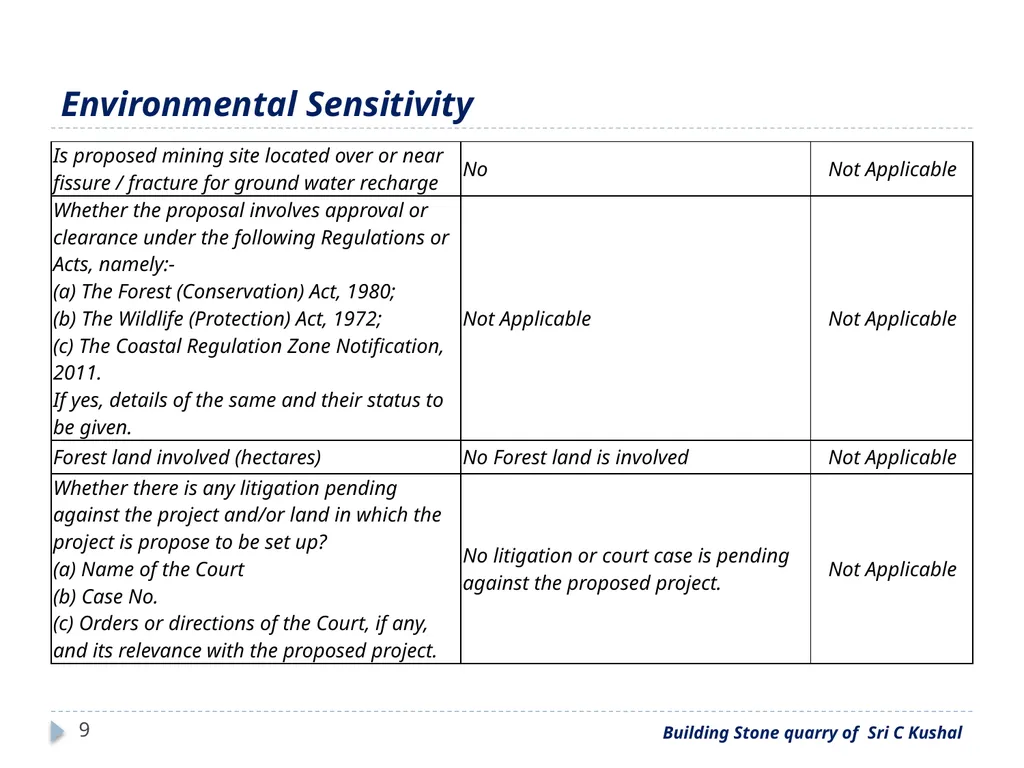

slide9. Environmental Sensitivity 9 Building Stone quarry of Sri C Kushal<br>
slide10. Map showing Thimlapura Sanctuary Boundary to Site 10 Building Stone quarry of Sri C Kushal<br>

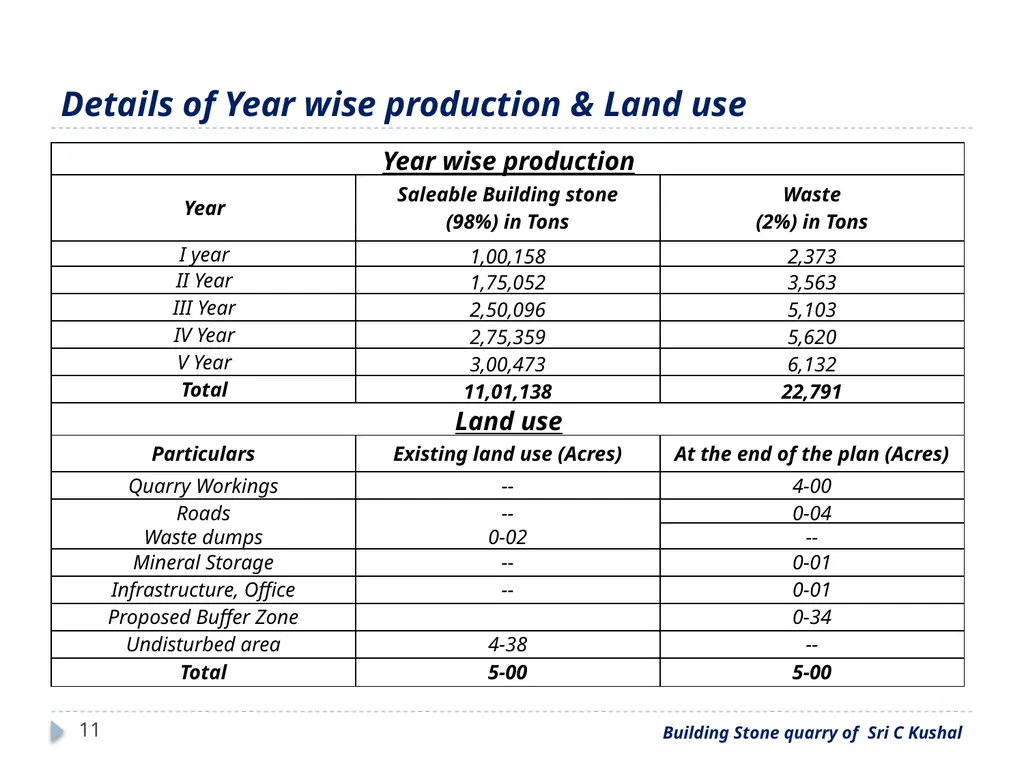

slide11. Details of Year wise production & Land use 11 Building Stone quarry of Sri C Kushal<br>

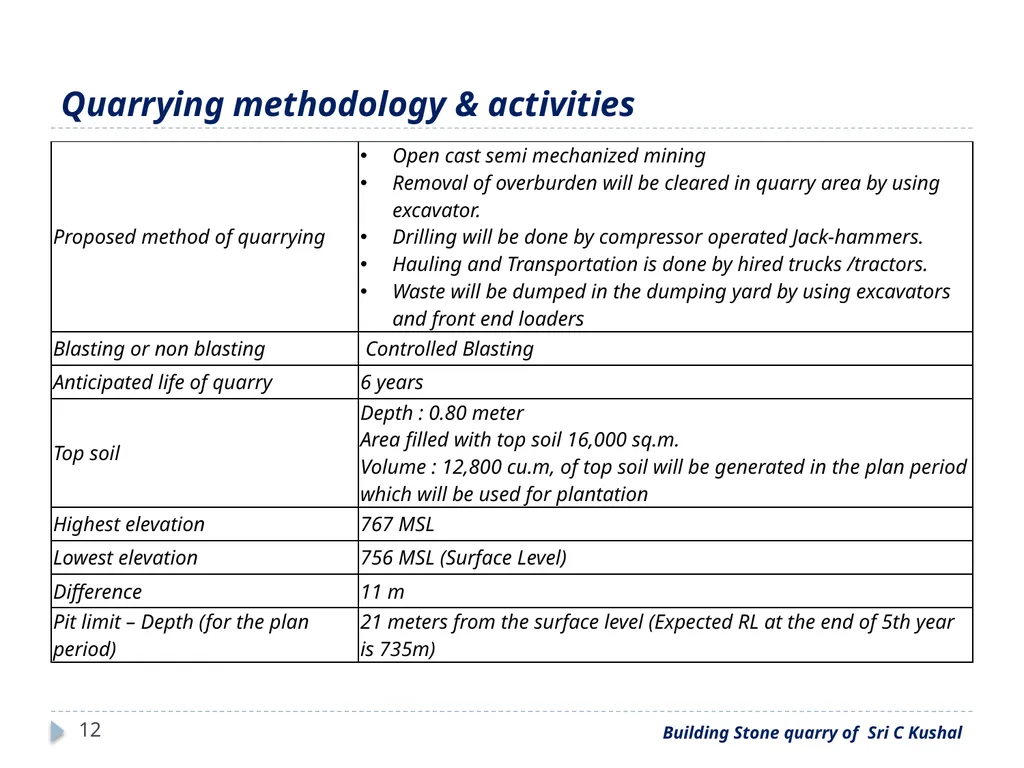

slide12. Quarrying methodology & activities 12 Building Stone quarry of Sri C Kushal<br>

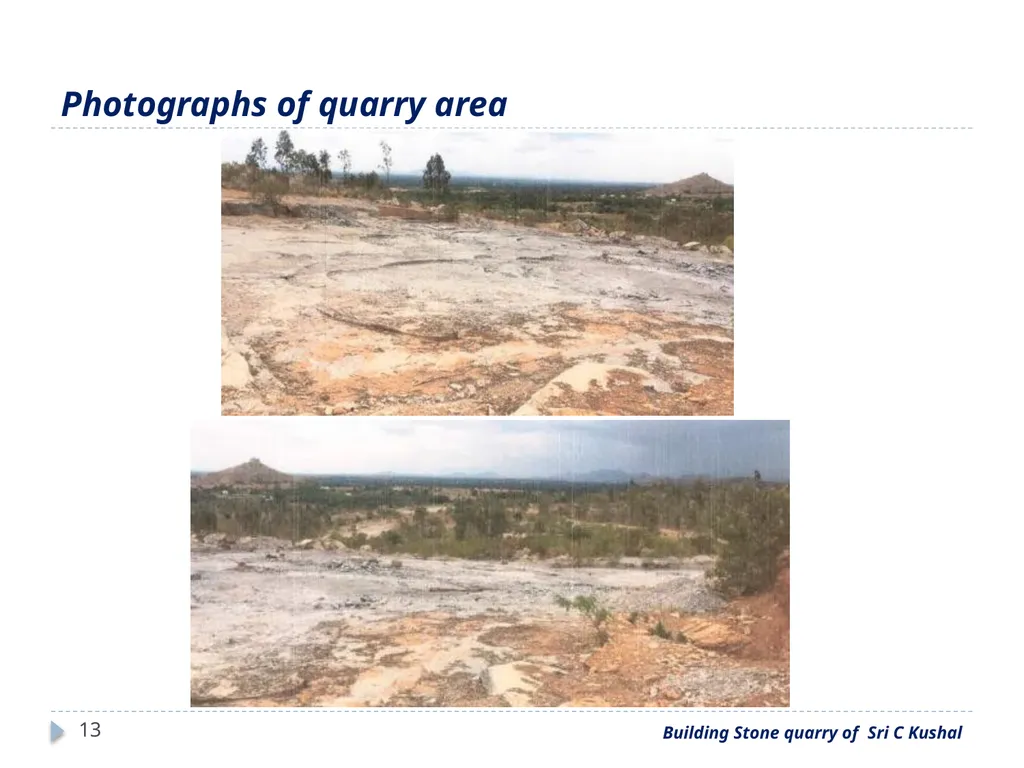

slide13. Photographs of quarry area 13 Building Stone quarry of Sri C Kushal<br>
slide14. Satellite Imagery of the quarry area 14 Approach road length is 0.26 Km Building Stone quarry of M/s Mahendra Stone Crushers Approach Road<br>
slide15. Satellite Imagery of the quarry area 15 Dust Screen Gully plug and drains Building Stone quarry of M/s Mahendra Stone Crushers BP-D BP-C BP-B BP-A<br>

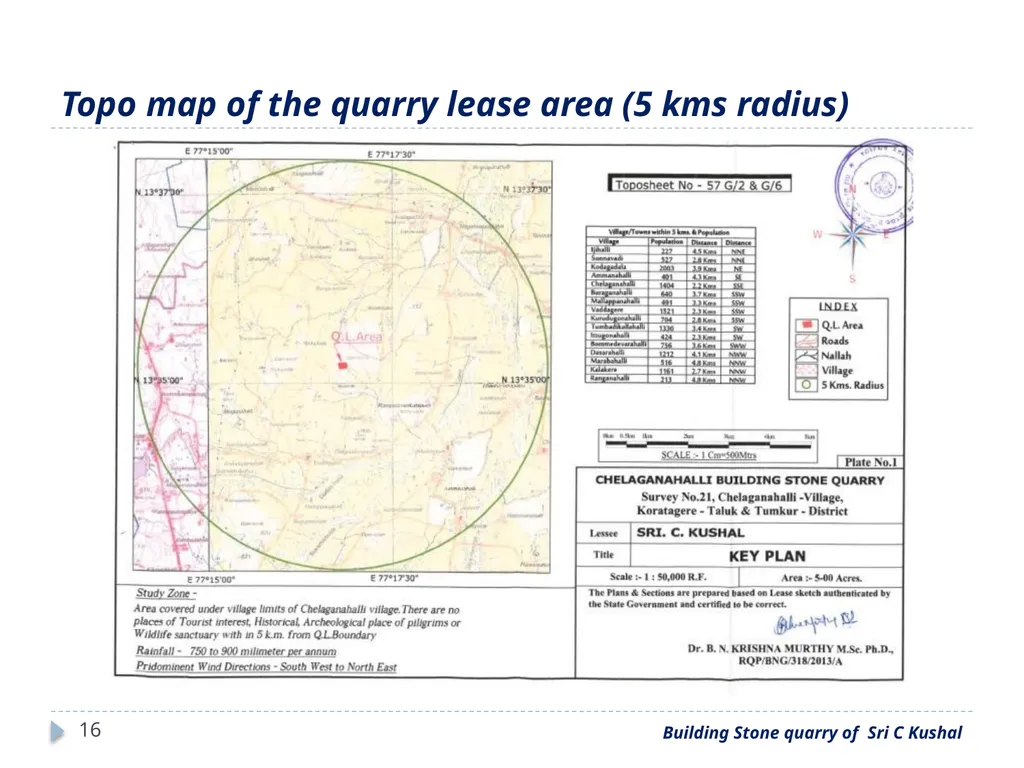

slide16. Topo map of the quarry lease area (5 kms radius) 16 Building Stone quarry of Sri C Kushal<br>

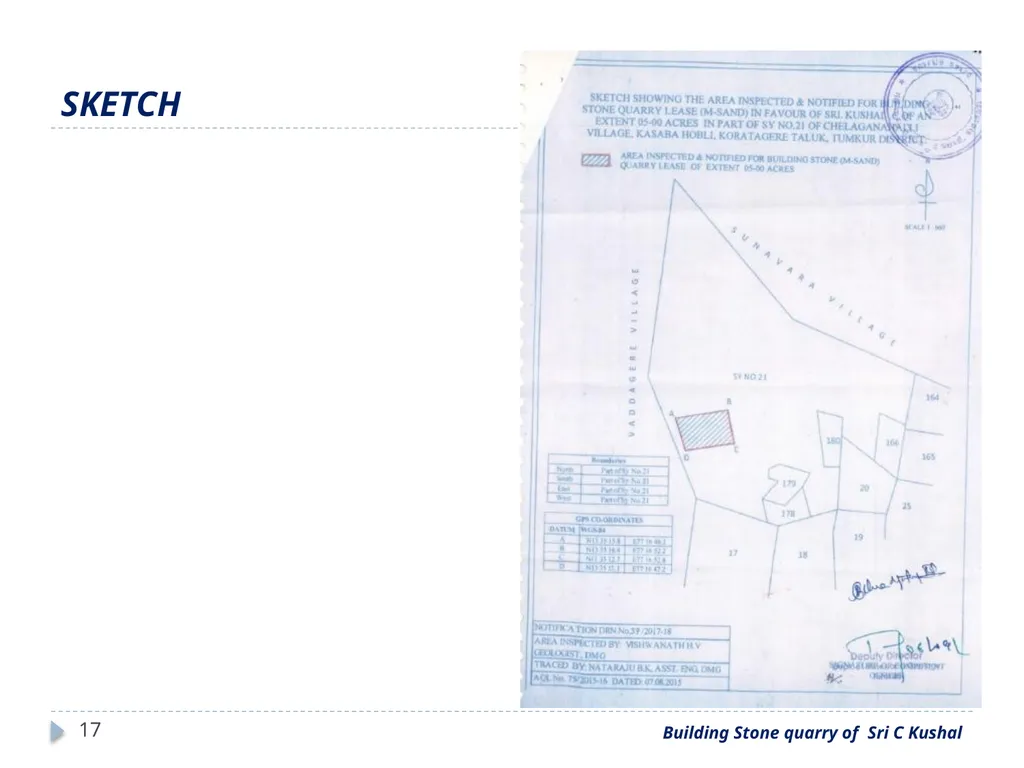

slide17. SKETCH 17 Building Stone quarry of Sri C Kushal<br>

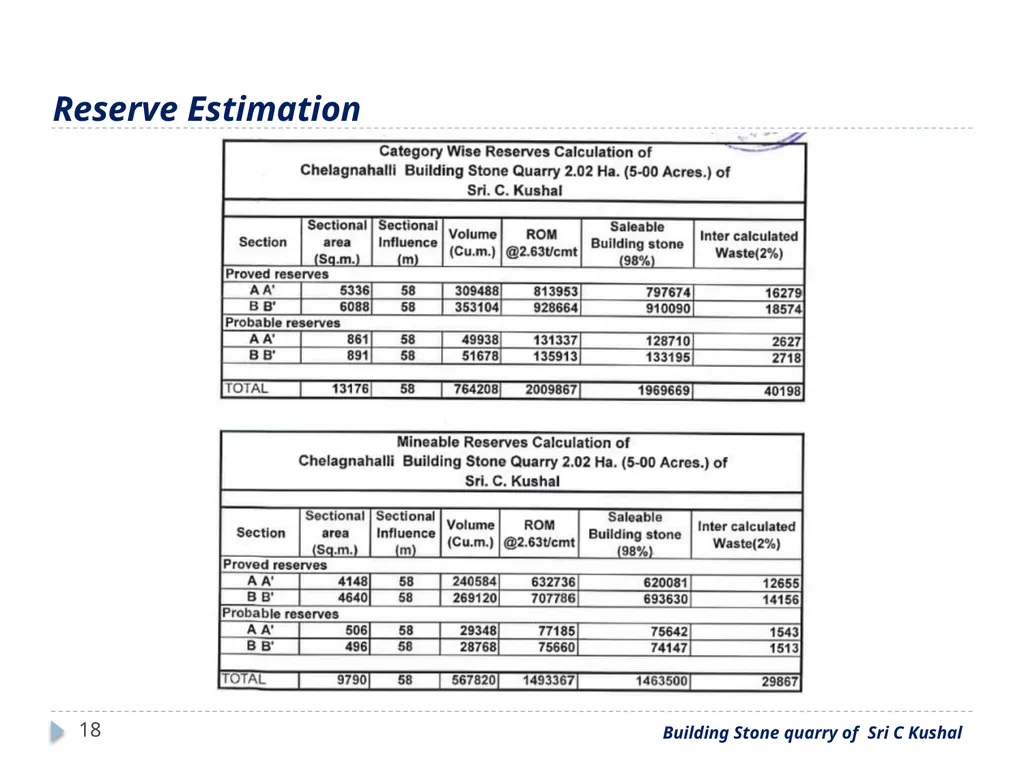

slide18. Reserve Estimation 18 Building Stone quarry of Sri C Kushal<br>

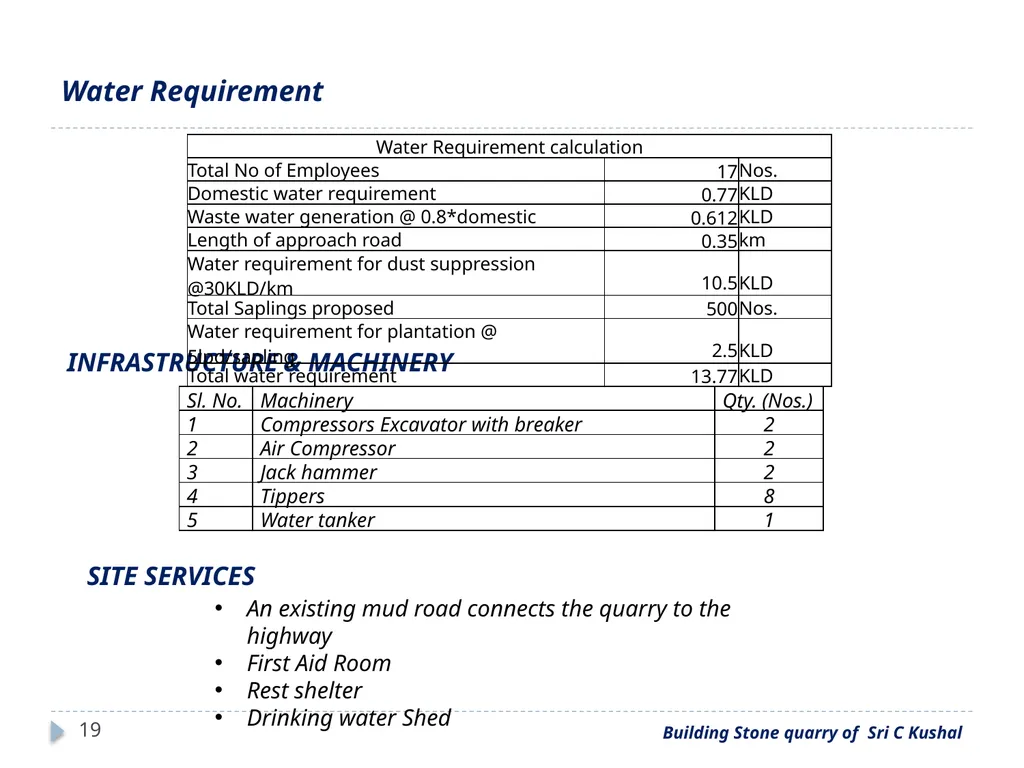

slide19. Water Requirement 19 Building Stone quarry of Sri C Kushal INFRASTRUCTURE & MACHINERY SITE SERVICES An existing mud road connects the quarry to the highway
First Aid Room
Rest shelter
Drinking water Shed<br>

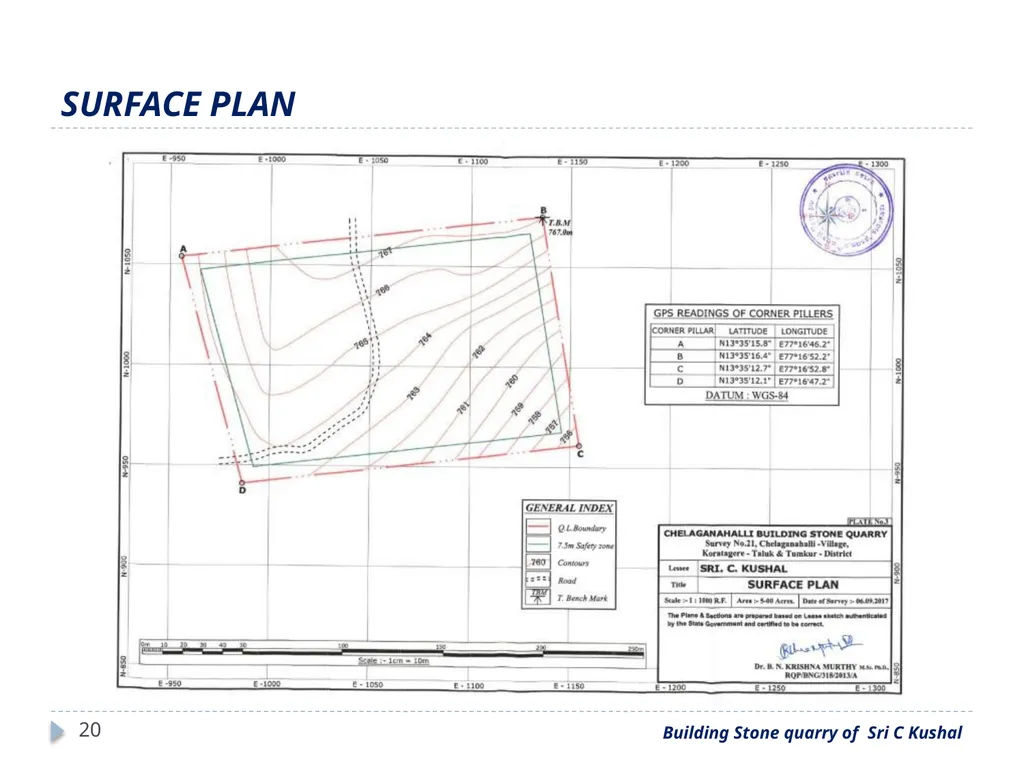

slide20. SURFACE PLAN 20 Building Stone quarry of Sri C Kushal<br>

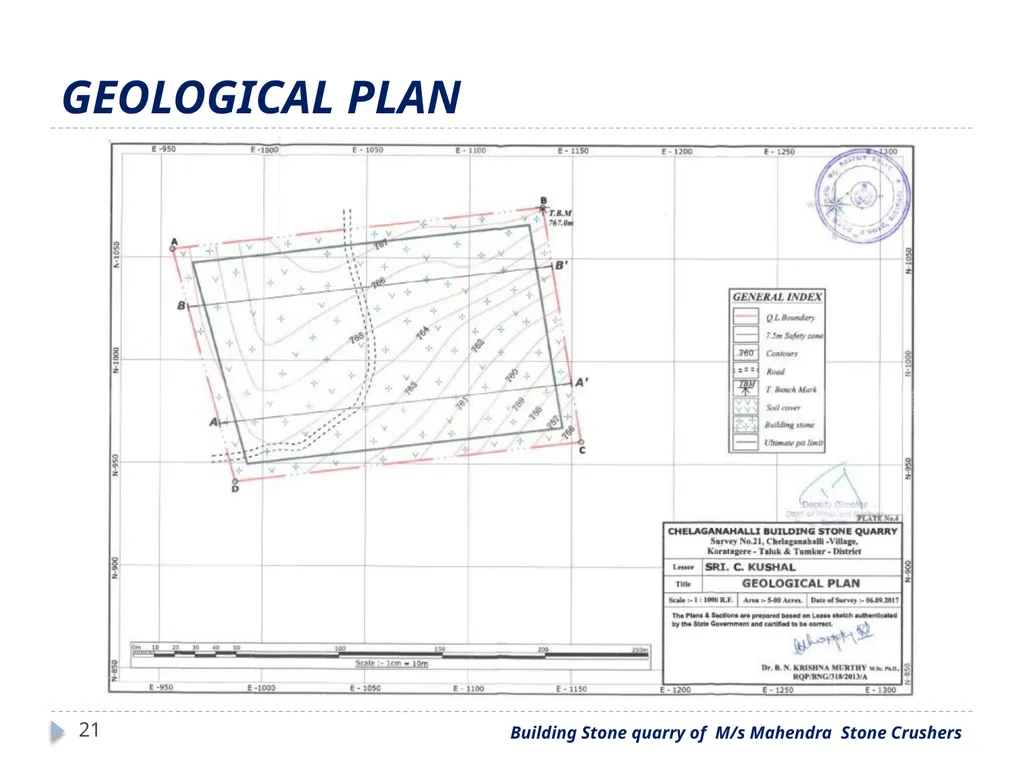

slide21. 21 Building Stone quarry of M/s Mahendra Stone Crushers GEOLOGICAL PLAN<br>

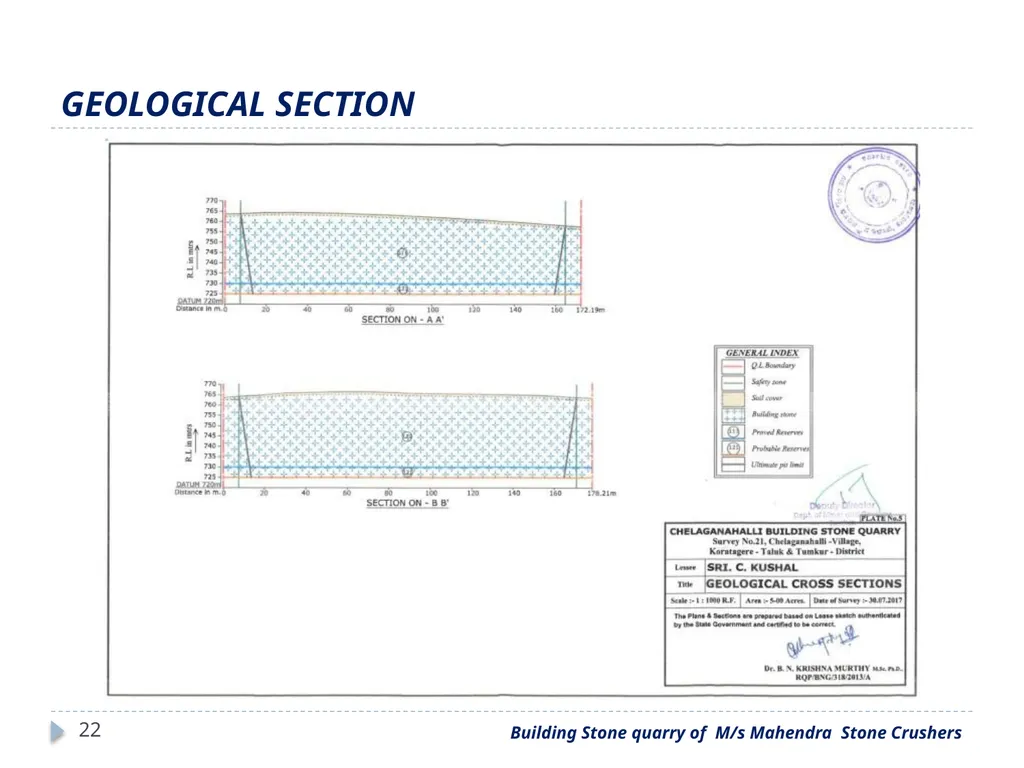

slide22. GEOLOGICAL SECTION 22 Building Stone quarry of M/s Mahendra Stone Crushers<br>

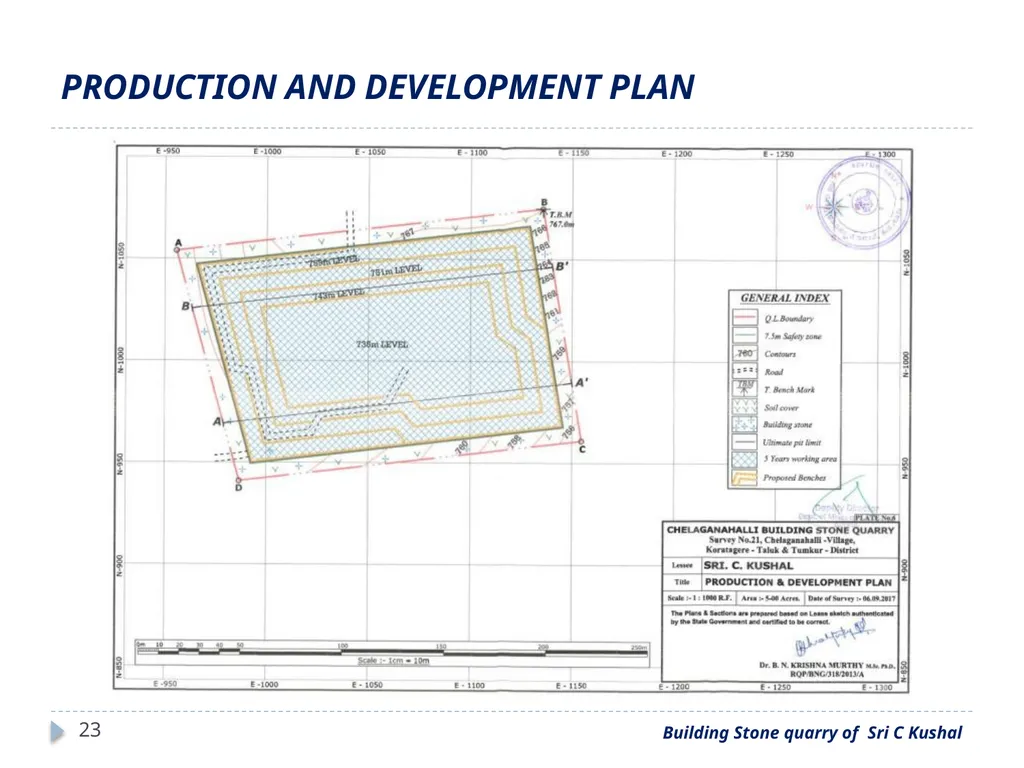

slide23. PRODUCTION AND DEVELOPMENT PLAN 23 Building Stone quarry of Sri C Kushal<br>

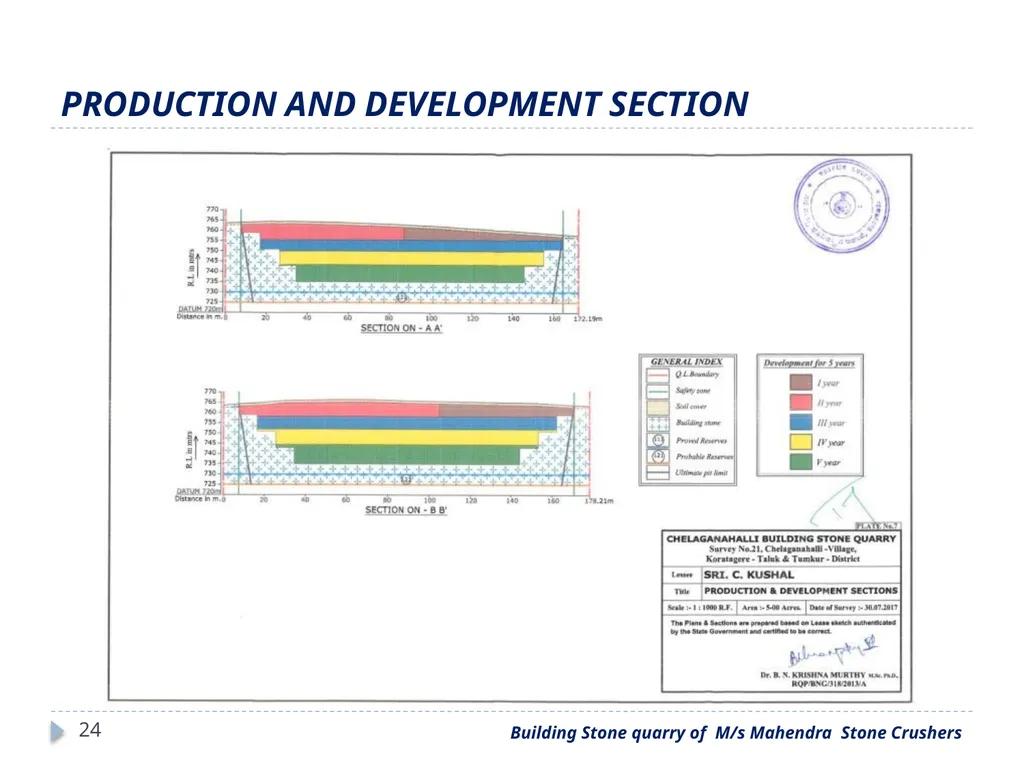

slide24. PRODUCTION AND DEVELOPMENT SECTION 24 Building Stone quarry of M/s Mahendra Stone Crushers<br>

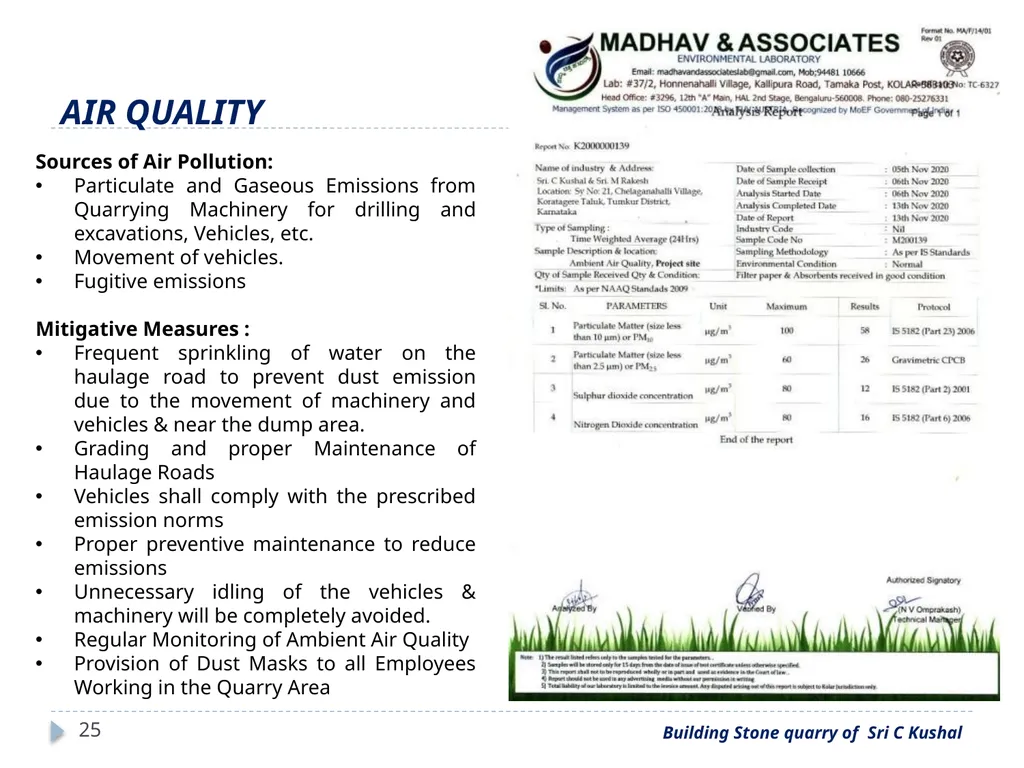

slide25. AIR QUALITY 25 Building Stone quarry of Sri C Kushal Sources of Air Pollution:
Particulate and Gaseous Emissions from Quarrying Machinery for drilling and excavations, Vehicles, etc.
Movement of vehicles.
Fugitive emissions

Mitigative Measures :
Frequent sprinkling of water on the haulage road to prevent dust emission due to the movement of machinery and vehicles & near the dump area.
Grading and proper Maintenance of Haulage Roads
Vehicles shall comply with the prescribed emission norms
Proper preventive maintenance to reduce emissions
Unnecessary idling of the vehicles & machinery will be completely avoided.
Regular Monitoring of Ambient Air Quality
Provision of Dust Masks to all Employees Working in the Quarry Area<br>

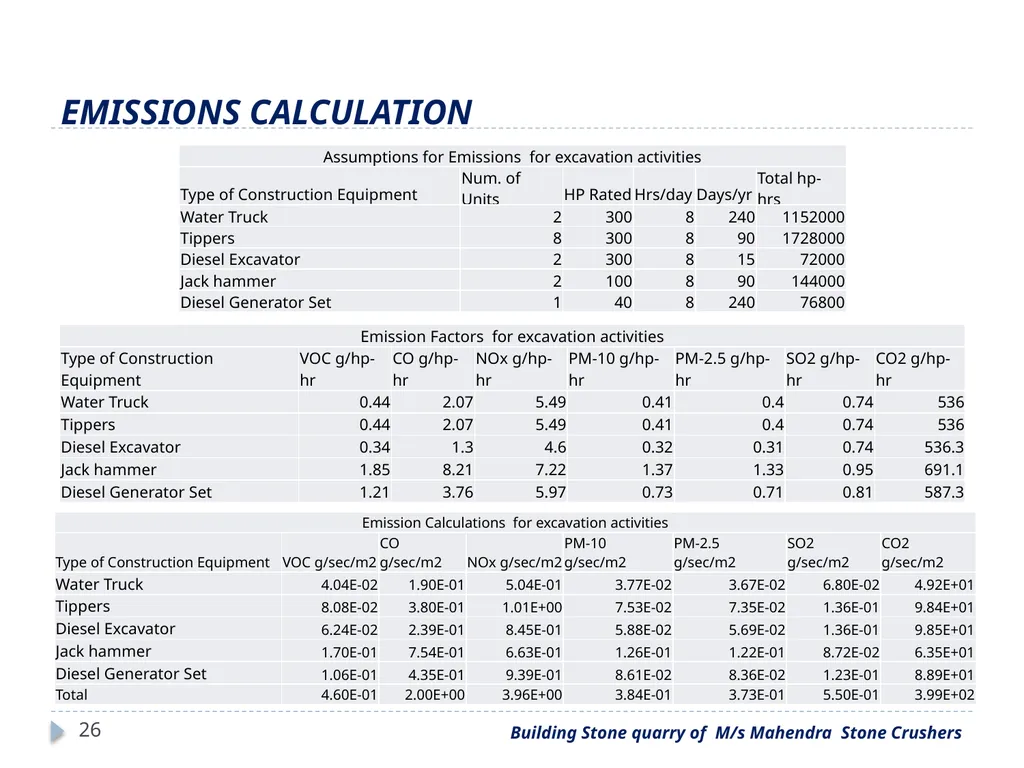

slide26. EMISSIONS CALCULATION 26 Building Stone quarry of M/s Mahendra Stone Crushers<br>

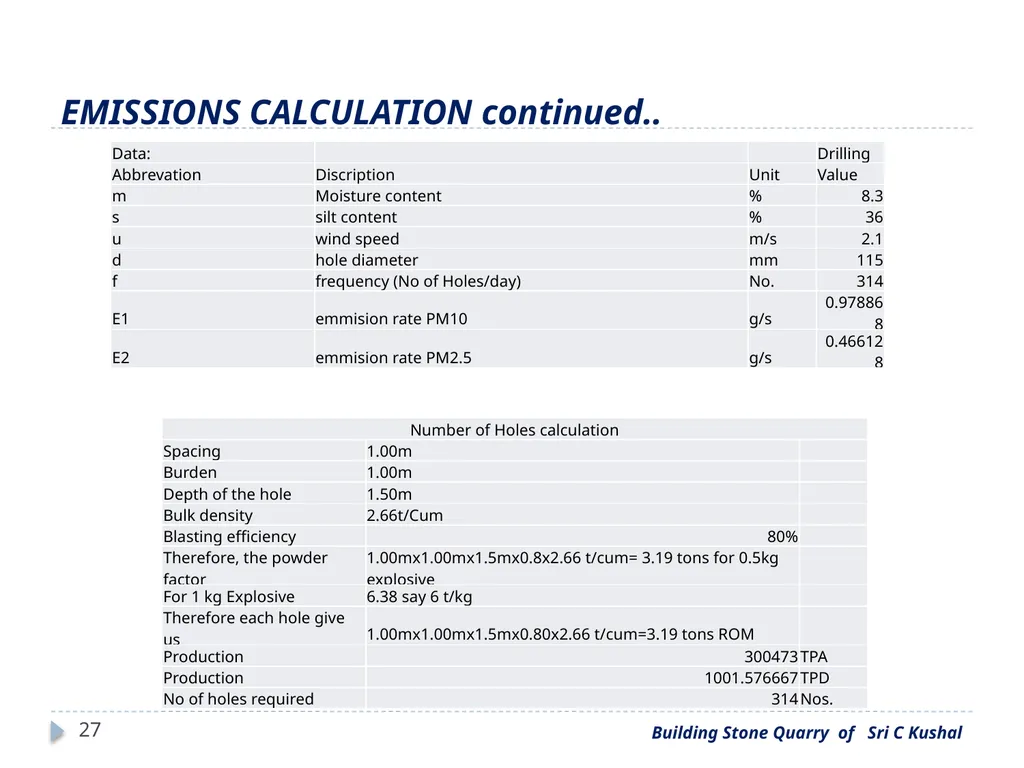

slide27. EMISSIONS CALCULATION continued.. 27 Building Stone Quarry of Sri C Kushal<br>

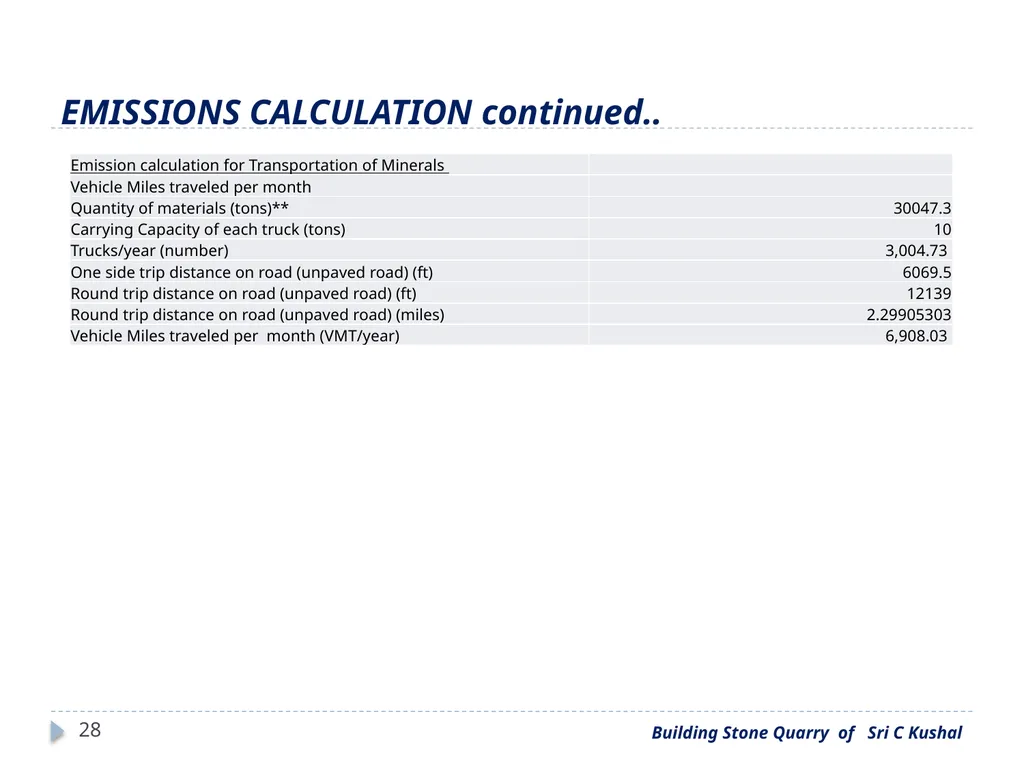

slide28. EMISSIONS CALCULATION continued.. 28 Building Stone Quarry of Sri C Kushal<br>

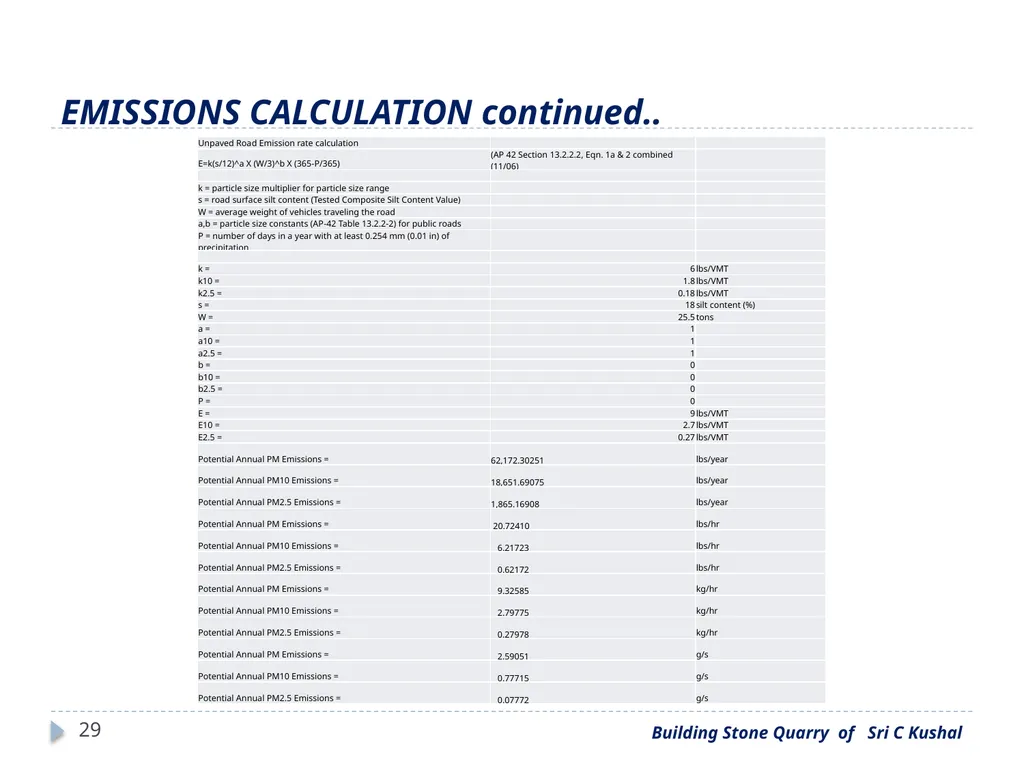

slide29. EMISSIONS CALCULATION continued.. 29 Building Stone Quarry of Sri C Kushal<br>

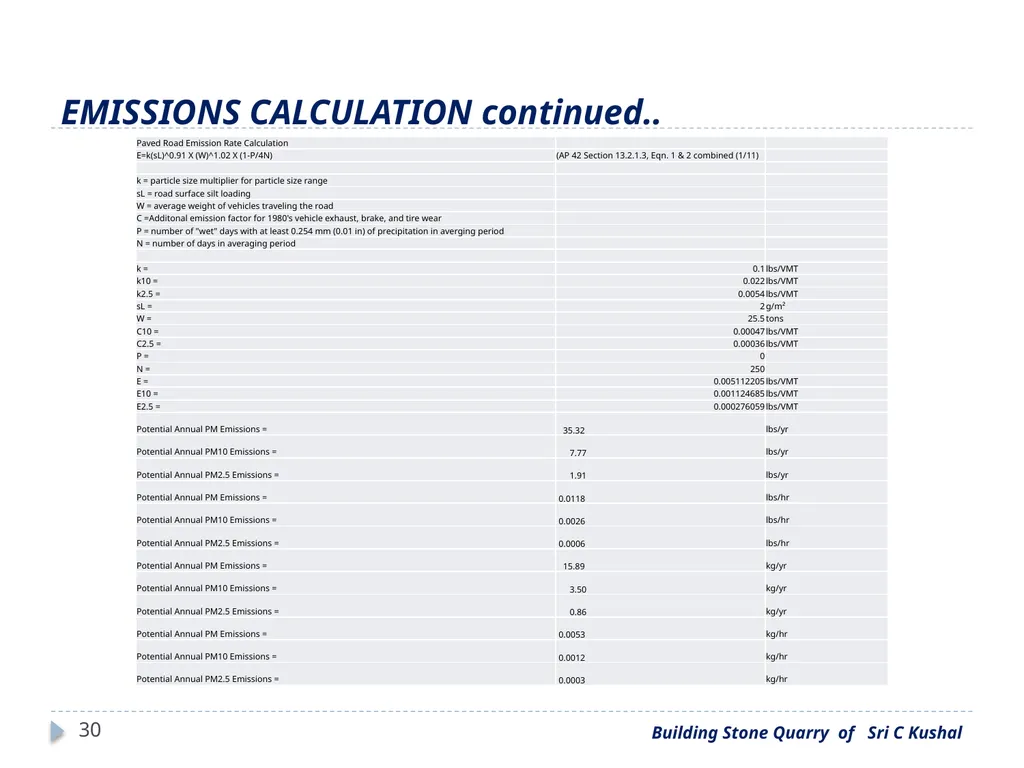

slide30. EMISSIONS CALCULATION continued.. 30 Building Stone Quarry of Sri C Kushal<br>

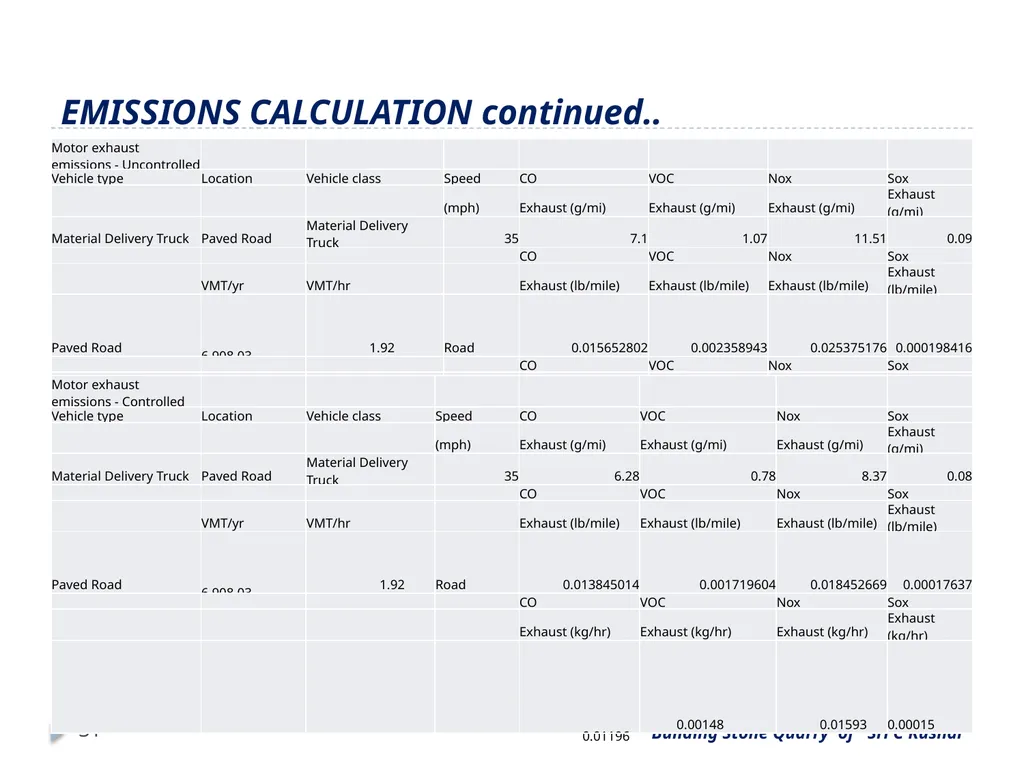

slide31. EMISSIONS CALCULATION continued.. 31 Building Stone Quarry of Sri C Kushal<br>

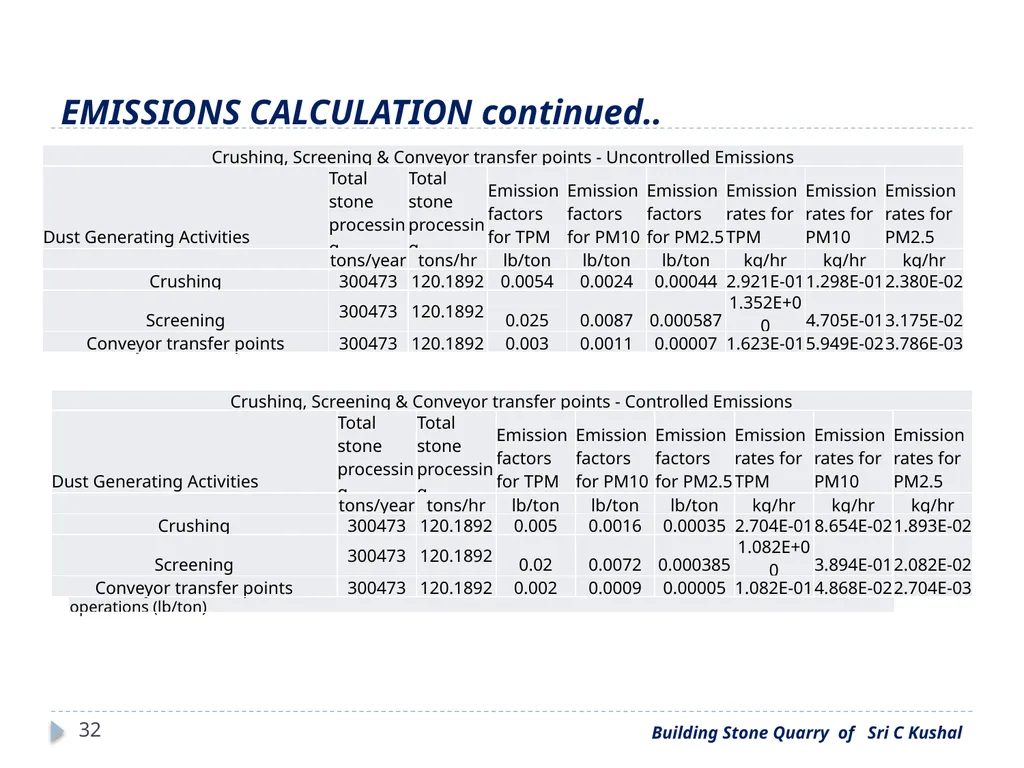

slide32. EMISSIONS CALCULATION continued.. 32 Building Stone Quarry of Sri C Kushal<br>

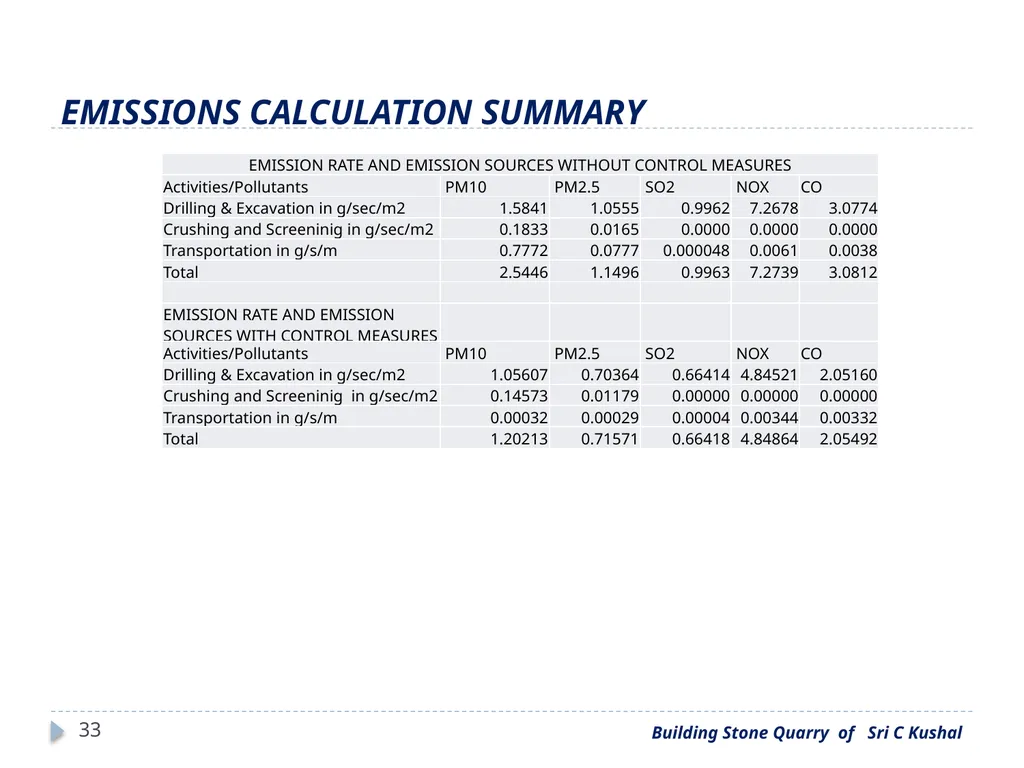

slide33. EMISSIONS CALCULATION SUMMARY 33 Building Stone Quarry of Sri C Kushal<br>

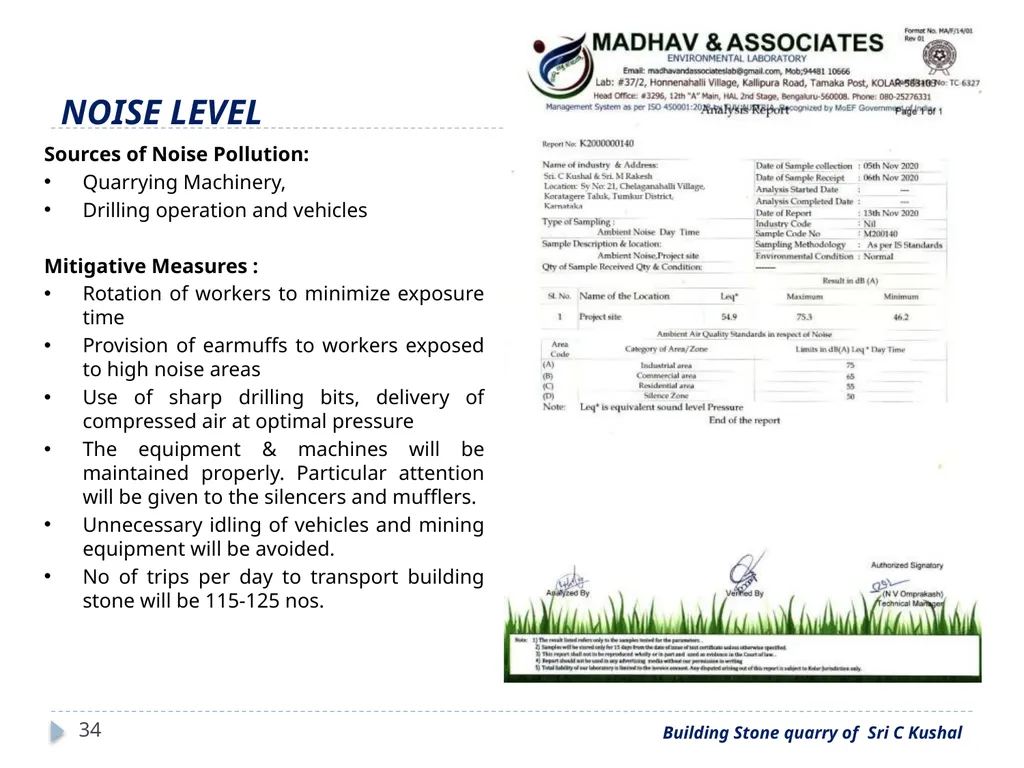

slide34. NOISE LEVEL 34 Building Stone quarry of Sri C Kushal Sources of Noise Pollution:
Quarrying Machinery,
Drilling operation and vehicles

Mitigative Measures :
Rotation of workers to minimize exposure time
Provision of earmuffs to workers exposed to high noise areas
Use of sharp drilling bits, delivery of compressed air at optimal pressure
The equipment & machines will be maintained properly. Particular attention will be given to the silencers and mufflers.
Unnecessary idling of vehicles and mining equipment will be avoided.
No of trips per day to transport building stone will be 115-125 nos.<br>

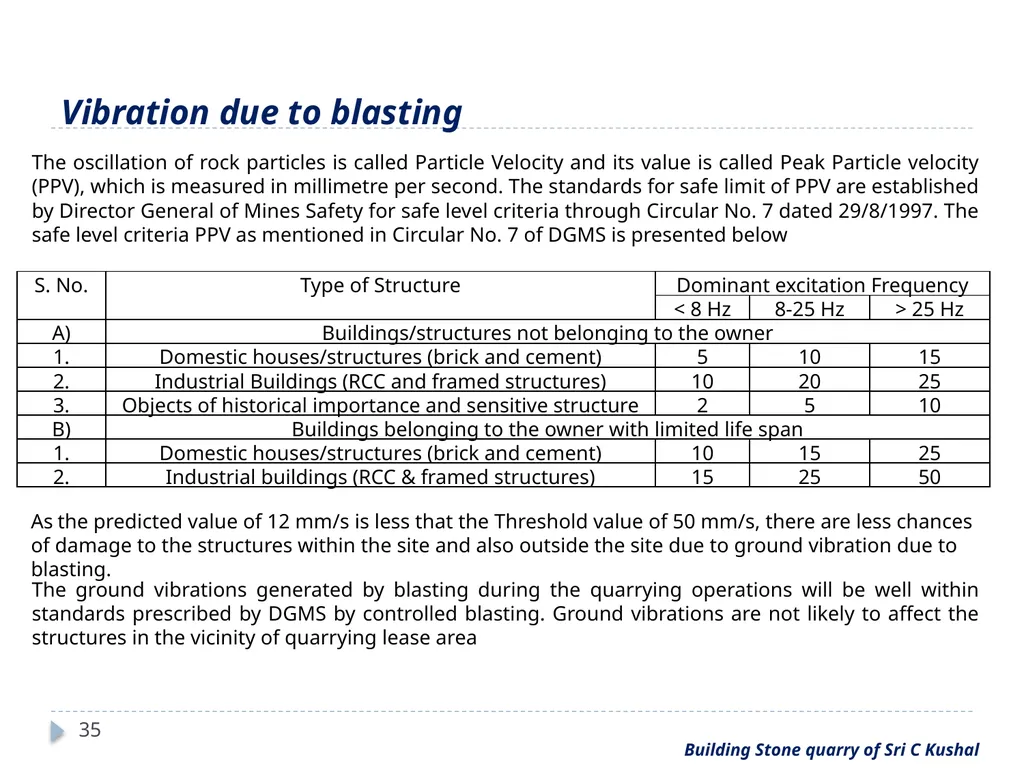

slide35. Vibration due to blasting 35 The oscillation of rock particles is called Particle Velocity and its value is called Peak Particle velocity (PPV), which is measured in millimetre per second. The standards for safe limit of PPV are established by Director General of Mines Safety for safe level criteria through Circular No. 7 dated 29/8/1997. The safe level criteria PPV as mentioned in Circular No. 7 of DGMS is presented below The ground vibrations generated by blasting during the quarrying operations will be well within standards prescribed by DGMS by controlled blasting. Ground vibrations are not likely to affect the structures in the vicinity of quarrying lease area As the predicted value of 12 mm/s is less that the Threshold value of 50 mm/s, there are less chances of damage to the structures within the site and also outside the site due to ground vibration due to blasting. Building Stone quarry of Sri C Kushal<br>

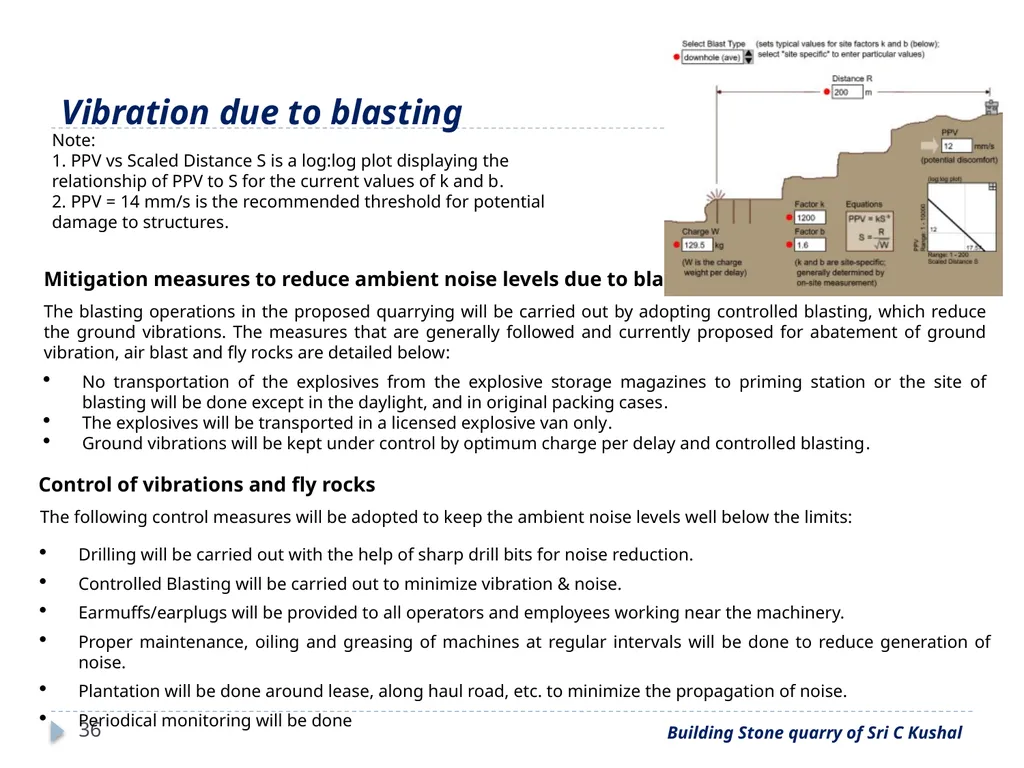

slide36. Vibration due to blasting 36 Note:
1. PPV vs Scaled Distance S is a log:log plot displaying the relationship of PPV to S for the current values of k and b.
2. PPV = 14 mm/s is the recommended threshold for potential damage to structures. Mitigation measures to reduce ambient noise levels due to blasting The following control measures will be adopted to keep the ambient noise levels well below the limits:
Drilling will be carried out with the help of sharp drill bits for noise reduction.
Controlled Blasting will be carried out to minimize vibration & noise.
Earmuffs/earplugs will be provided to all operators and employees working near the machinery.
Proper maintenance, oiling and greasing of machines at regular intervals will be done to reduce generation of noise.
Plantation will be done around lease, along haul road, etc. to minimize the propagation of noise.
Periodical monitoring will be done Control of vibrations and fly rocks The blasting operations in the proposed quarrying will be carried out by adopting controlled blasting, which reduce the ground vibrations. The measures that are generally followed and currently proposed for abatement of ground vibration, air blast and fly rocks are detailed below:
No transportation of the explosives from the explosive storage magazines to priming station or the site of blasting will be done except in the daylight, and in original packing cases.
The explosives will be transported in a licensed explosive van only.
Ground vibrations will be kept under control by optimum charge per delay and controlled blasting. Building Stone quarry of Sri C Kushal<br>

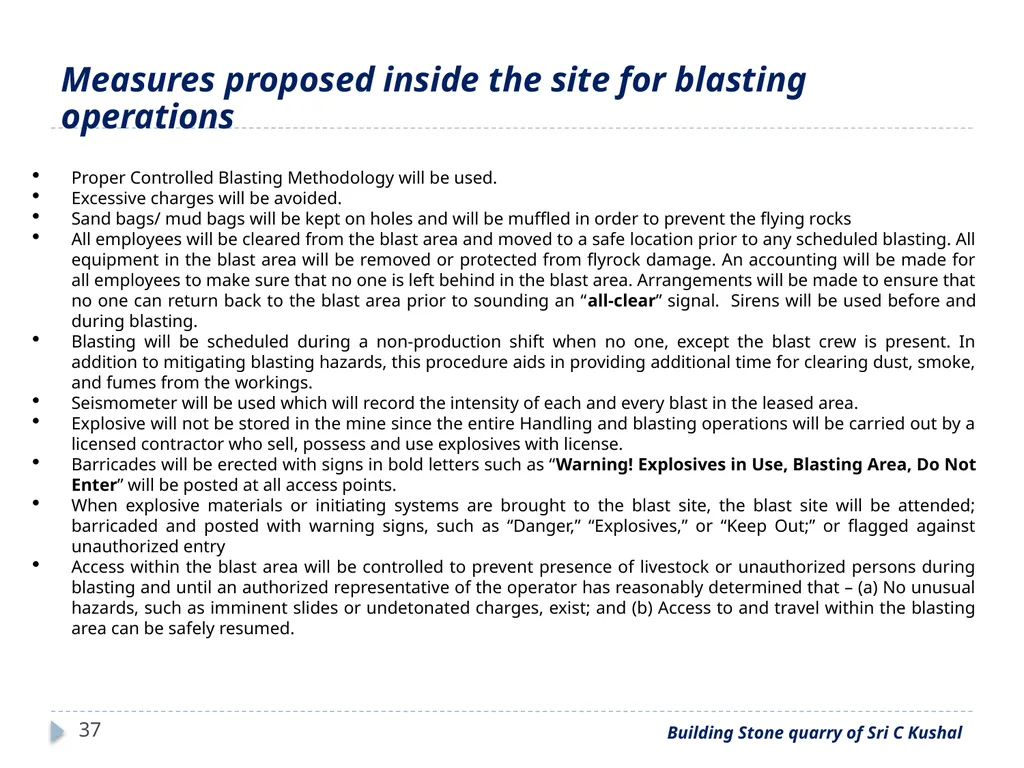

slide37. Measures proposed inside the site for blasting operations 37 Proper Controlled Blasting Methodology will be used.
Excessive charges will be avoided.
Sand bags/ mud bags will be kept on holes and will be muffled in order to prevent the flying rocks
All employees will be cleared from the blast area and moved to a safe location prior to any scheduled blasting. All equipment in the blast area will be removed or protected from flyrock damage. An accounting will be made for all employees to make sure that no one is left behind in the blast area. Arrangements will be made to ensure that no one can return back to the blast area prior to sounding an “all-clear” signal. Sirens will be used before and during blasting.
Blasting will be scheduled during a non-production shift when no one, except the blast crew is present. In addition to mitigating blasting hazards, this procedure aids in providing additional time for clearing dust, smoke, and fumes from the workings.
Seismometer will be used which will record the intensity of each and every blast in the leased area.
Explosive will not be stored in the mine since the entire Handling and blasting operations will be carried out by a licensed contractor who sell, possess and use explosives with license.
Barricades will be erected with signs in bold letters such as “Warning! Explosives in Use, Blasting Area, Do Not Enter” will be posted at all access points.
When explosive materials or initiating systems are brought to the blast site, the blast site will be attended; barricaded and posted with warning signs, such as “Danger,” “Explosives,” or “Keep Out;” or flagged against unauthorized entry
Access within the blast area will be controlled to prevent presence of livestock or unauthorized persons during blasting and until an authorized representative of the operator has reasonably determined that – (a) No unusual hazards, such as imminent slides or undetonated charges, exist; and (b) Access to and travel within the blasting area can be safely resumed. Building Stone quarry of Sri C Kushal<br>

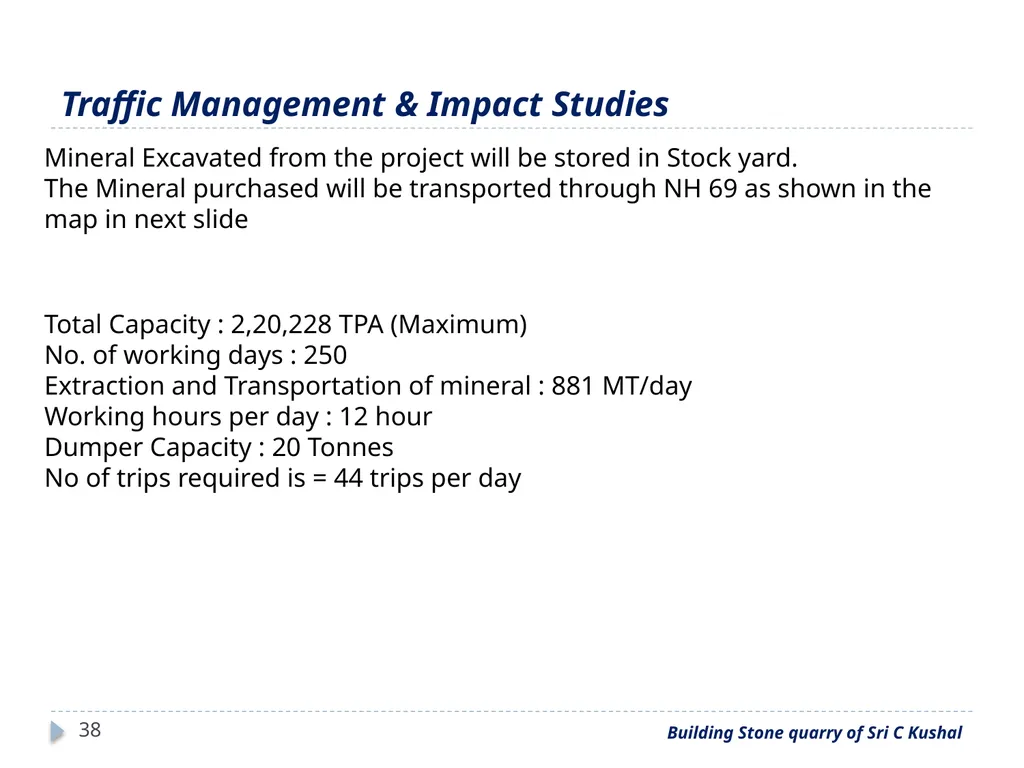

slide38. 38 Traffic Management & Impact Studies Total Capacity : 2,20,228 TPA (Maximum)
No. of working days : 250
Extraction and Transportation of mineral : 881 MT/day
Working hours per day : 12 hour
Dumper Capacity : 20 Tonnes
No of trips required is = 44 trips per day Mineral Excavated from the project will be stored in Stock yard.
The Mineral purchased will be transported through NH 69 as shown in the map in next slide Building Stone quarry of Sri C Kushal<br>

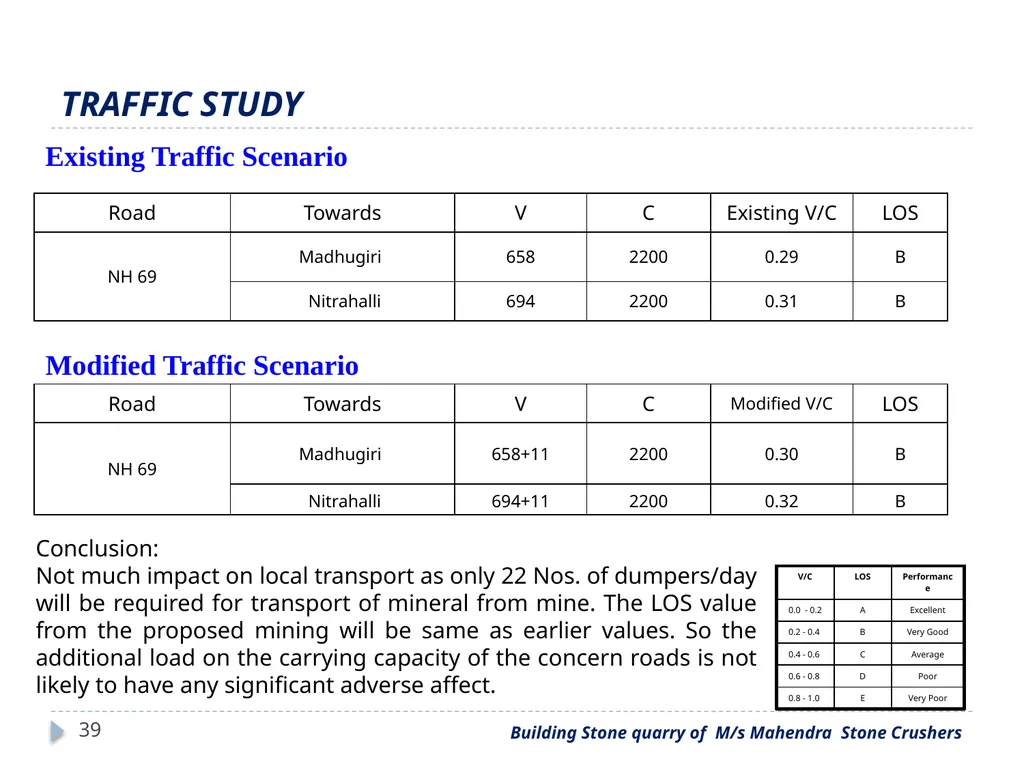

slide39. 39 TRAFFIC STUDY Existing Traffic Scenario Modified Traffic Scenario Conclusion:
Not much impact on local transport as only 22 Nos. of dumpers/day will be required for transport of mineral from mine. The LOS value from the proposed mining will be same as earlier values. So the additional load on the carrying capacity of the concern roads is not likely to have any significant adverse affect. Building Stone quarry of M/s Mahendra Stone Crushers<br>

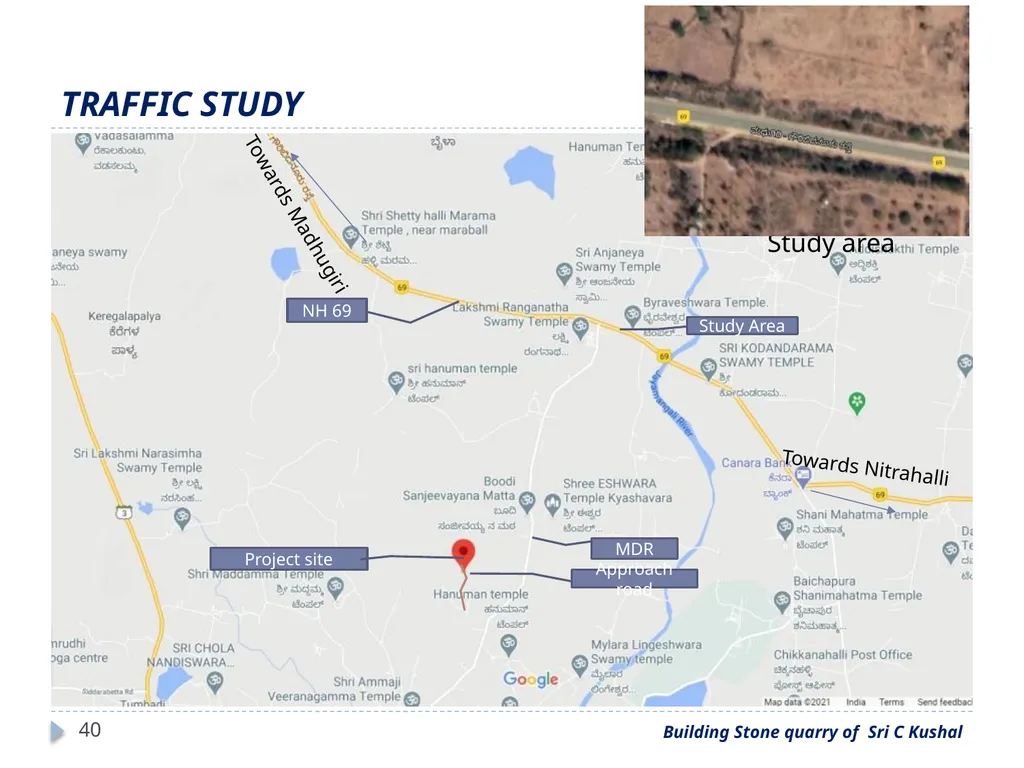

slide40. 40 TRAFFIC STUDY Towards Nitrahalli Towards Madhugiri MDR Project site Study Area NH 69 Approach road Study area Building Stone quarry of Sri C Kushal<br>

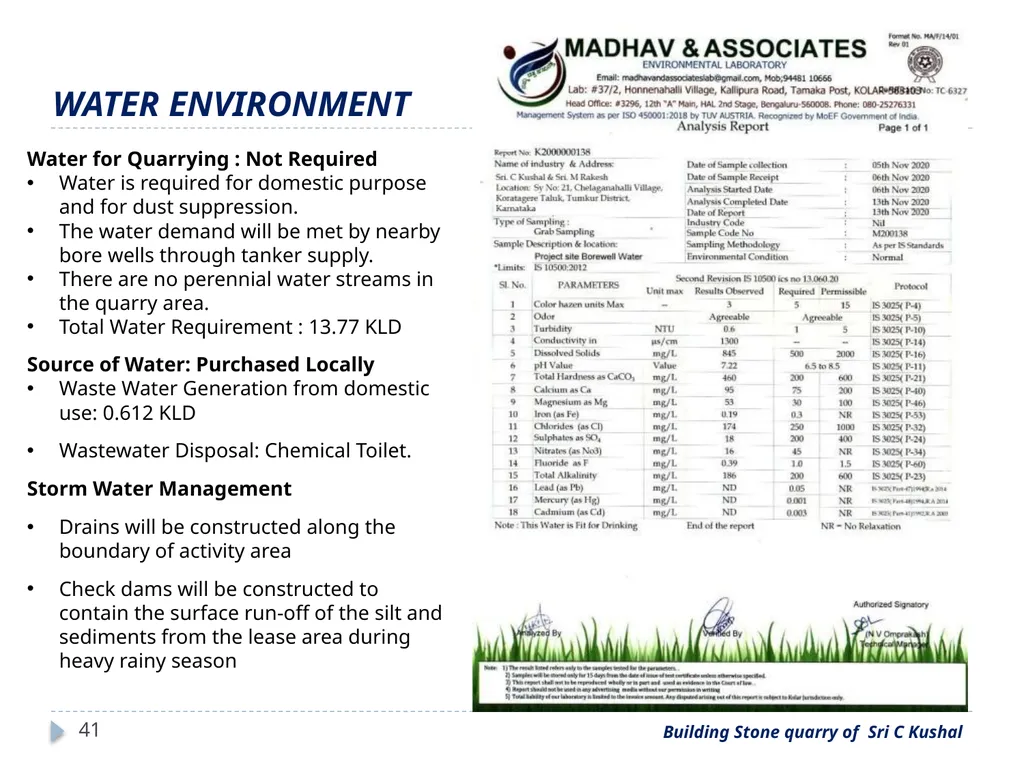

slide41. WATER ENVIRONMENT 41 Building Stone quarry of Sri C Kushal Water for Quarrying : Not Required
Water is required for domestic purpose and for dust suppression.
The water demand will be met by nearby bore wells through tanker supply.
There are no perennial water streams in the quarry area.
Total Water Requirement : 13.77 KLD
Source of Water: Purchased Locally
Waste Water Generation from domestic use: 0.612 KLD
Wastewater Disposal: Chemical Toilet.
Storm Water Management
Drains will be constructed along the boundary of activity area
Check dams will be constructed to contain the surface run-off of the silt and sediments from the lease area during heavy rainy season<br>

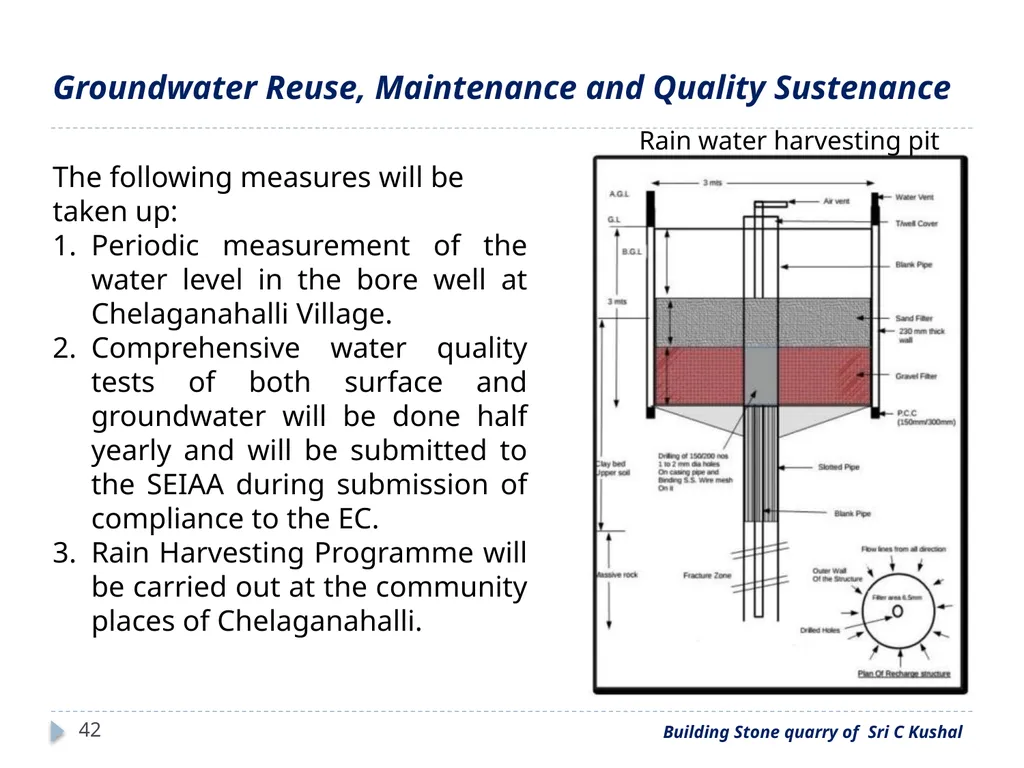

slide42. Groundwater Reuse, Maintenance and Quality Sustenance 42 The following measures will be taken up:
Periodic measurement of the water level in the bore well at Chelaganahalli Village.
Comprehensive water quality tests of both surface and groundwater will be done half yearly and will be submitted to the SEIAA during submission of compliance to the EC.
Rain Harvesting Programme will be carried out at the community places of Chelaganahalli. Rain water harvesting pit Building Stone quarry of Sri C Kushal<br>

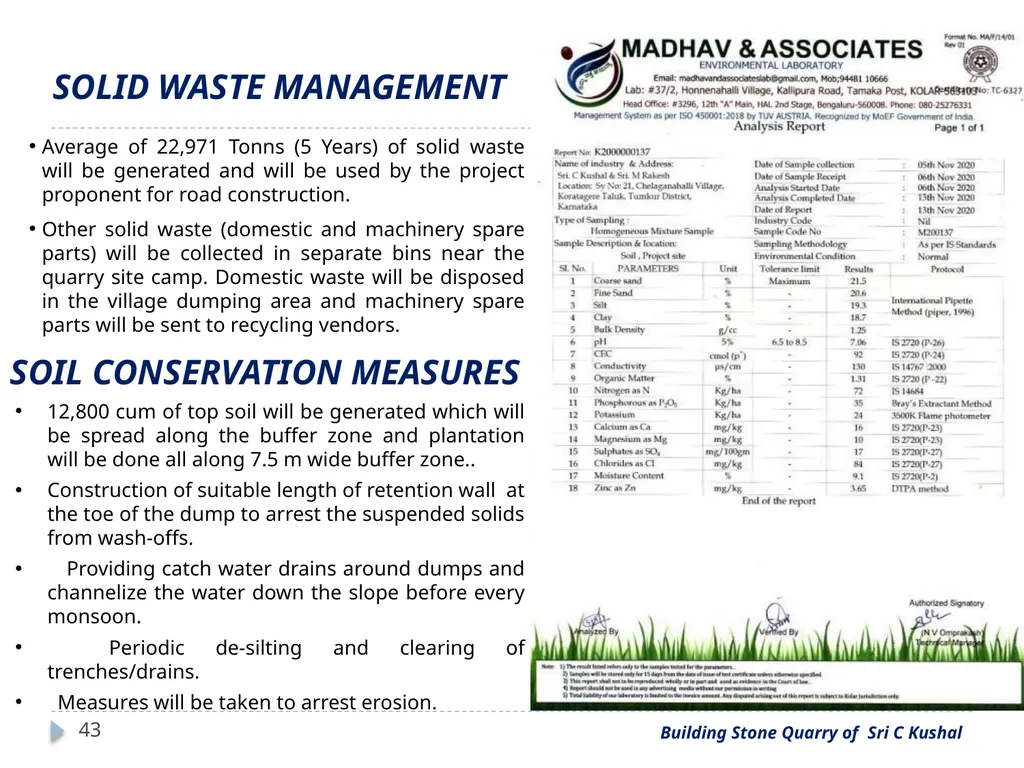

slide43. SOLID WASTE MANAGEMENT 43 Building Stone Quarry of Sri C Kushal Average of 22,971 Tonns (5 Years) of solid waste will be generated and will be used by the project proponent for road construction.
Other solid waste (domestic and machinery spare parts) will be collected in separate bins near the quarry site camp. Domestic waste will be disposed in the village dumping area and machinery spare parts will be sent to recycling vendors. SOIL CONSERVATION MEASURES 12,800 cum of top soil will be generated which will be spread along the buffer zone and plantation will be done all along 7.5 m wide buffer zone..
Construction of suitable length of retention wall at the toe of the dump to arrest the suspended solids from wash-offs.
Providing catch water drains around dumps and channelize the water down the slope before every monsoon.
Periodic de-silting and clearing of trenches/drains.
Measures will be taken to arrest erosion.<br>

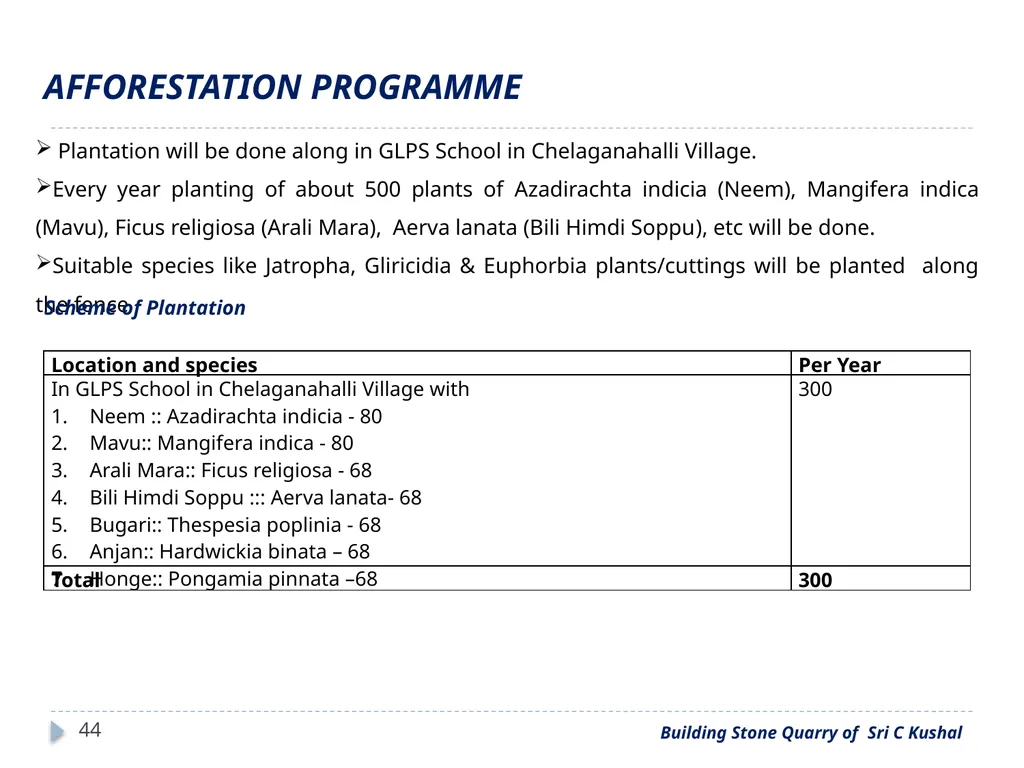

slide44. 44 AFFORESTATION PROGRAMME Plantation will be done along in GLPS School in Chelaganahalli Village.
Every year planting of about 500 plants of Azadirachta indicia (Neem), Mangifera indica (Mavu), Ficus religiosa (Arali Mara), Aerva lanata (Bili Himdi Soppu), etc will be done.
Suitable species like Jatropha, Gliricidia & Euphorbia plants/cuttings will be planted along the fence Scheme of Plantation Building Stone Quarry of Sri C Kushal<br>

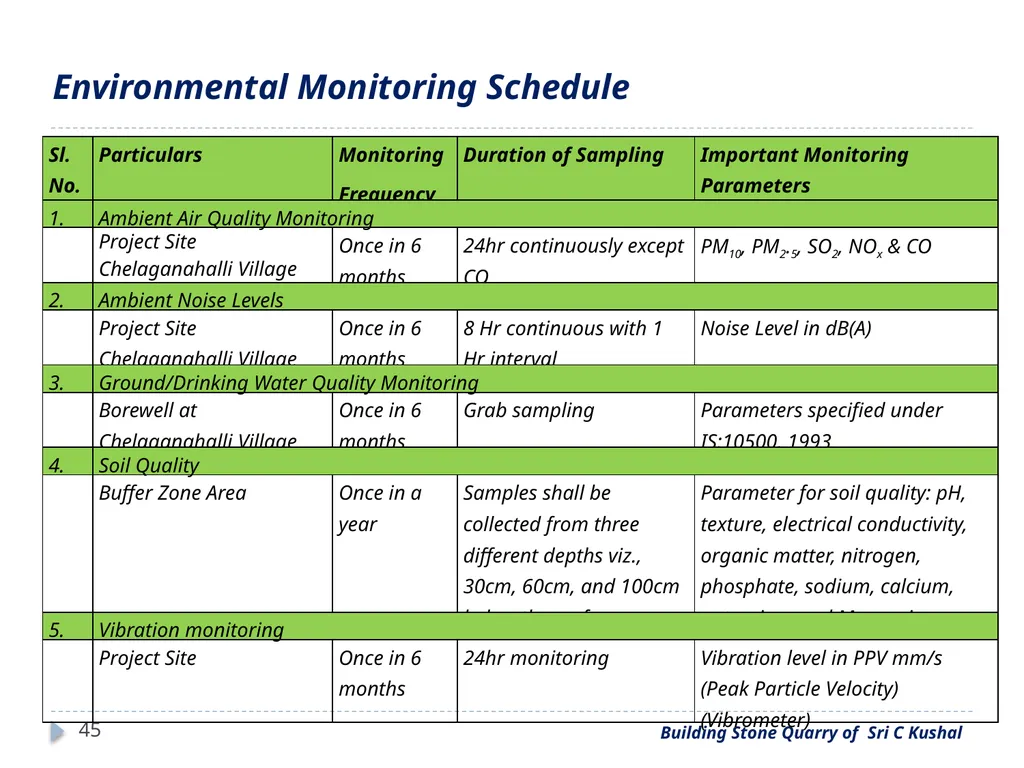

slide45. Environmental Monitoring Schedule 45 Building Stone Quarry of Sri C Kushal<br>

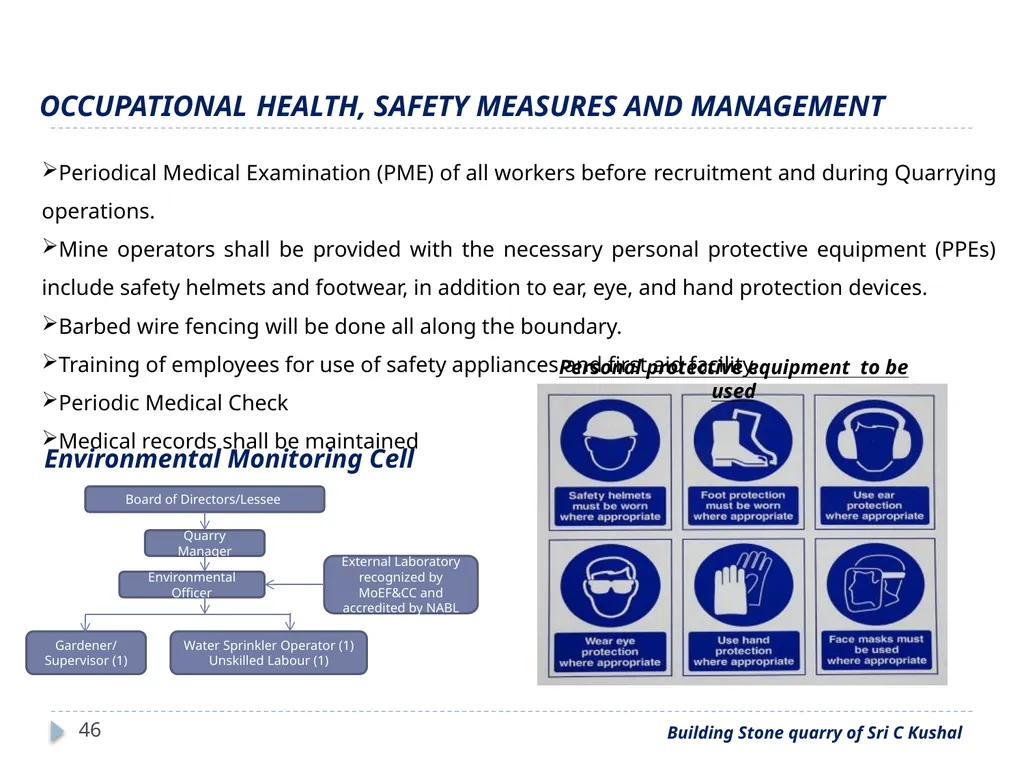

slide46. 46 Building Stone quarry of Sri C Kushal OCCUPATIONAL HEALTH, SAFETY MEASURES AND MANAGEMENT Periodical Medical Examination (PME) of all workers before recruitment and during Quarrying operations.
Mine operators shall be provided with the necessary personal protective equipment (PPEs) include safety helmets and footwear, in addition to ear, eye, and hand protection devices.
Barbed wire fencing will be done all along the boundary.
Training of employees for use of safety appliances and first aid facility.
Periodic Medical Check
Medical records shall be maintained Personal protective equipment to be used Environmental Monitoring Cell Board of Directors/Lessee Quarry Manager Environmental Officer Gardener/ Supervisor (1) Water Sprinkler Operator (1)
Unskilled Labour (1) External Laboratory recognized by MoEF&CC and accredited by NABL<br>

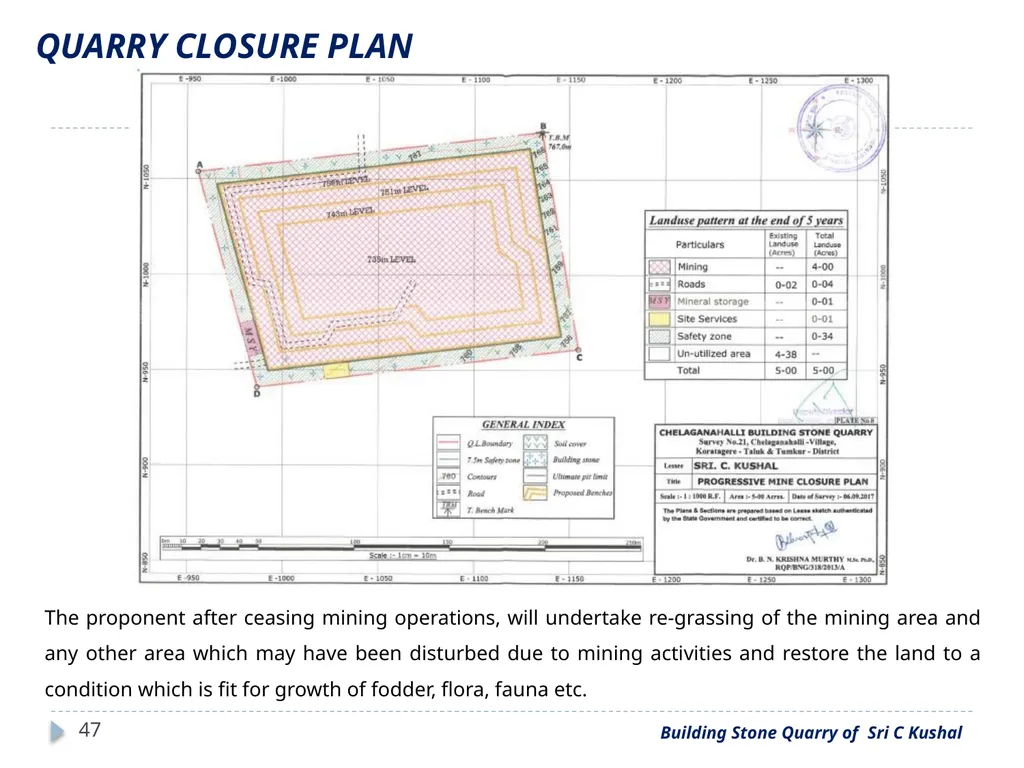

slide47. 47 Building Stone Quarry of Sri C Kushal QUARRY CLOSURE PLAN The proponent after ceasing mining operations, will undertake re-grassing of the mining area and any other area which may have been disturbed due to mining activities and restore the land to a condition which is fit for growth of fodder, flora, fauna etc.<br>

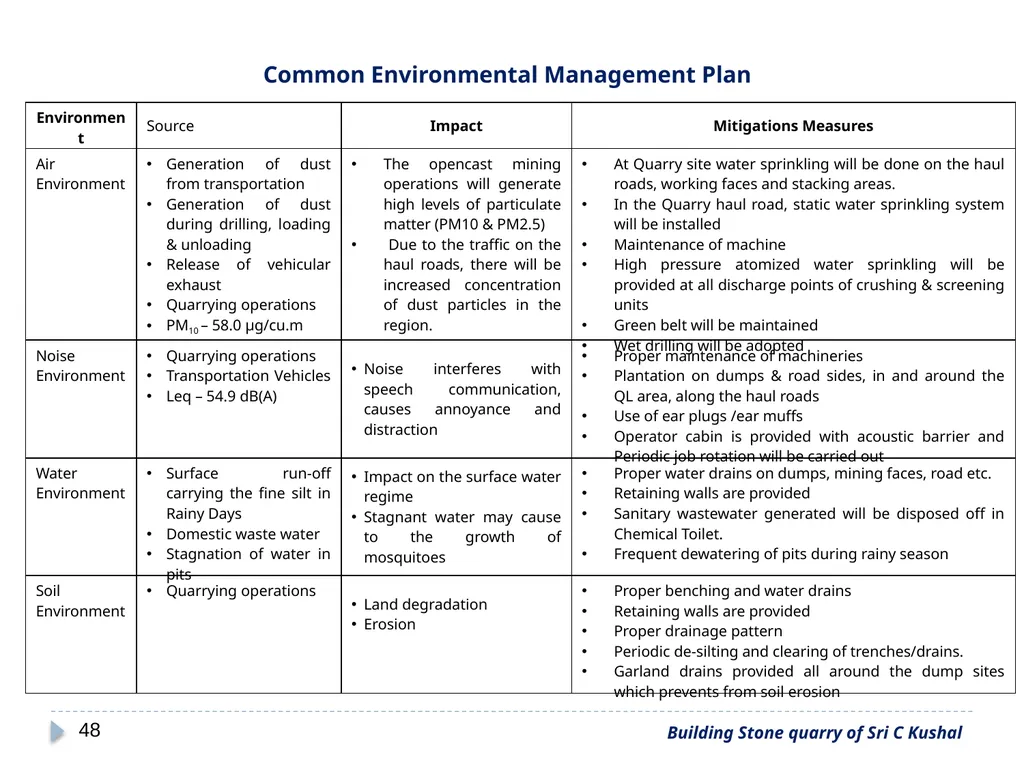

slide48. 48 Common Environmental Management Plan Building Stone quarry of Sri C Kushal<br>

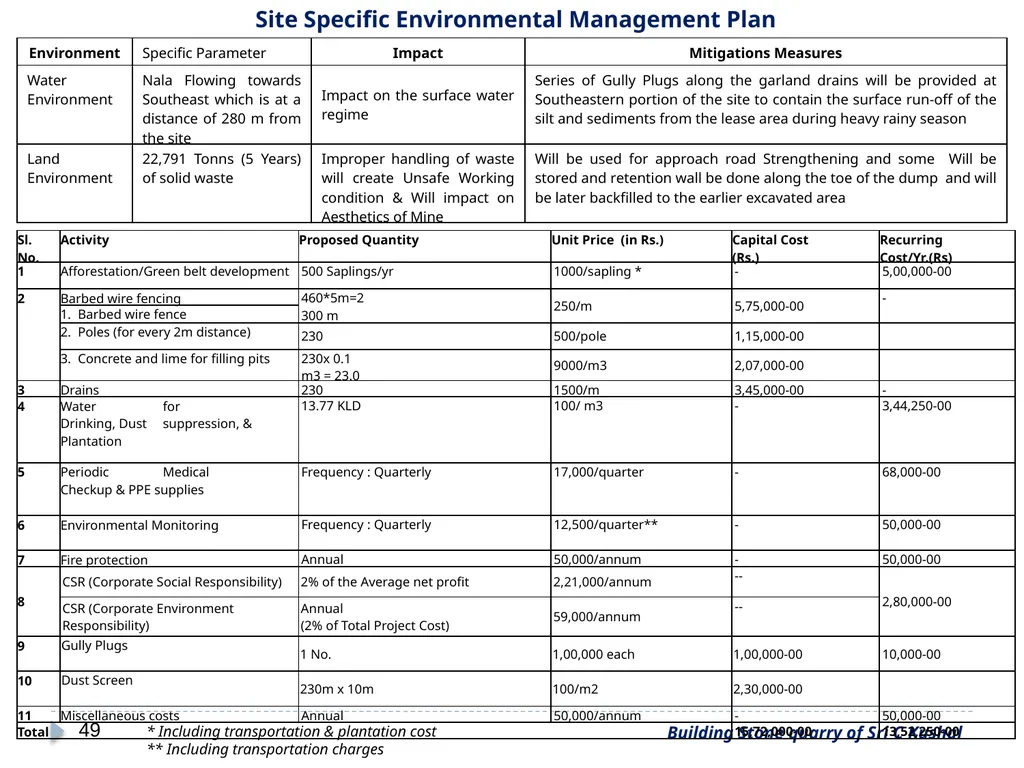

slide49. Site Specific Environmental Management Plan 49 Building Stone quarry of Sri C Kushal * Including transportation & plantation cost
** Including transportation charges<br>
slide50. 50 CER Action Plan: Under CER we have proposed 5 years for the CER activities (Greenfield project – 2% of project cost - <100 crores ): CSR Action Plan: 2% of the Average net profit of the company made during the three immediate preceding financial years (as per section 135(5) of the companies act 2013 ):
Estimated Profit: Rs.50 Tons/annum
CSR budget will be = Rs.50*2,20,228 tons per annum*2%
= Rs. 2,20,228/- CSR & CER Activities Building Stone quarry of Sri C Kushal<br>

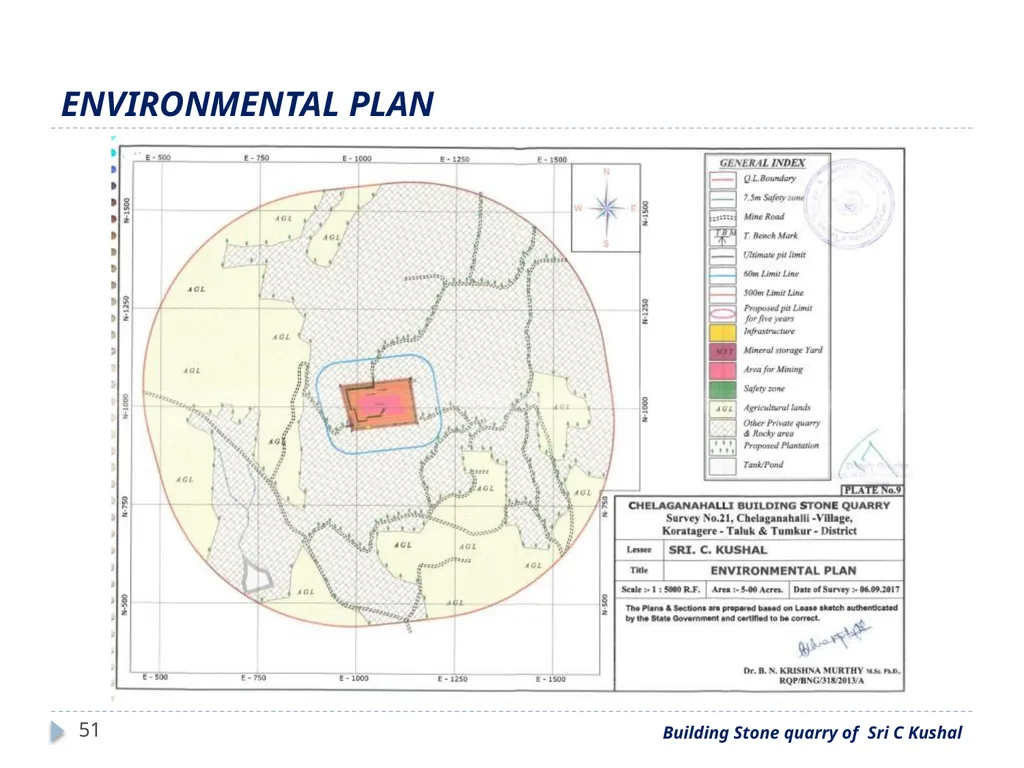

slide51. ENVIRONMENTAL PLAN 51 Building Stone quarry of Sri C Kushal<br>

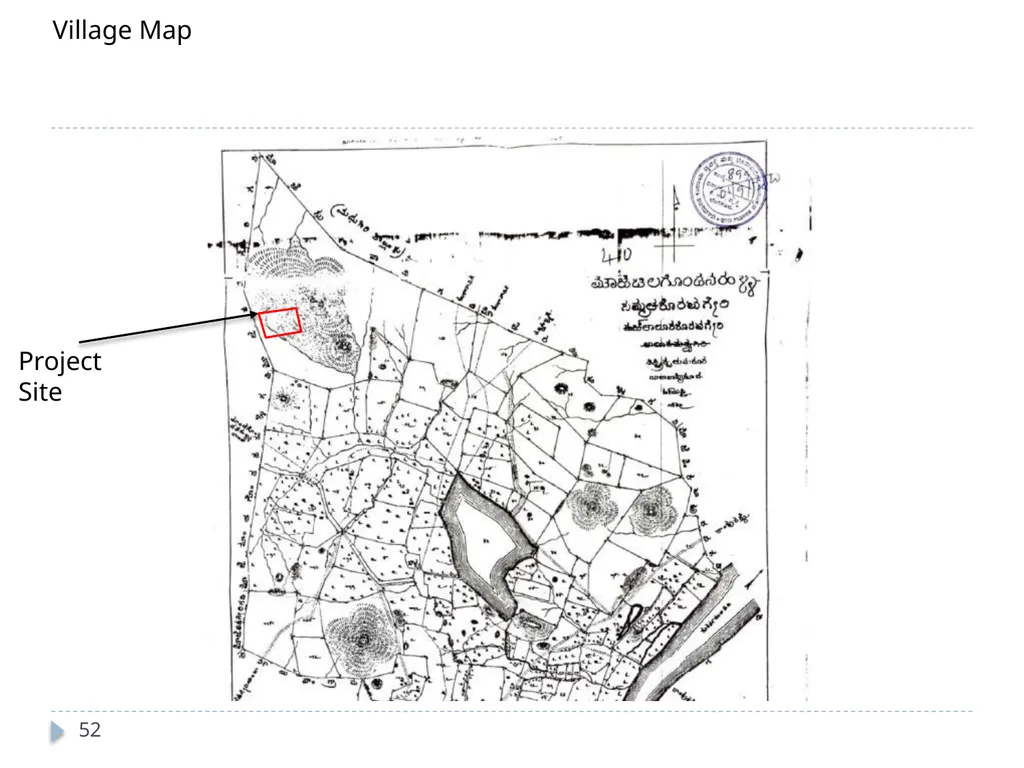

slide52. 52 Village Map Project Site<br>
slide53. 53 Building Stone Quarry of Sri C Kushal Thank You<br>
