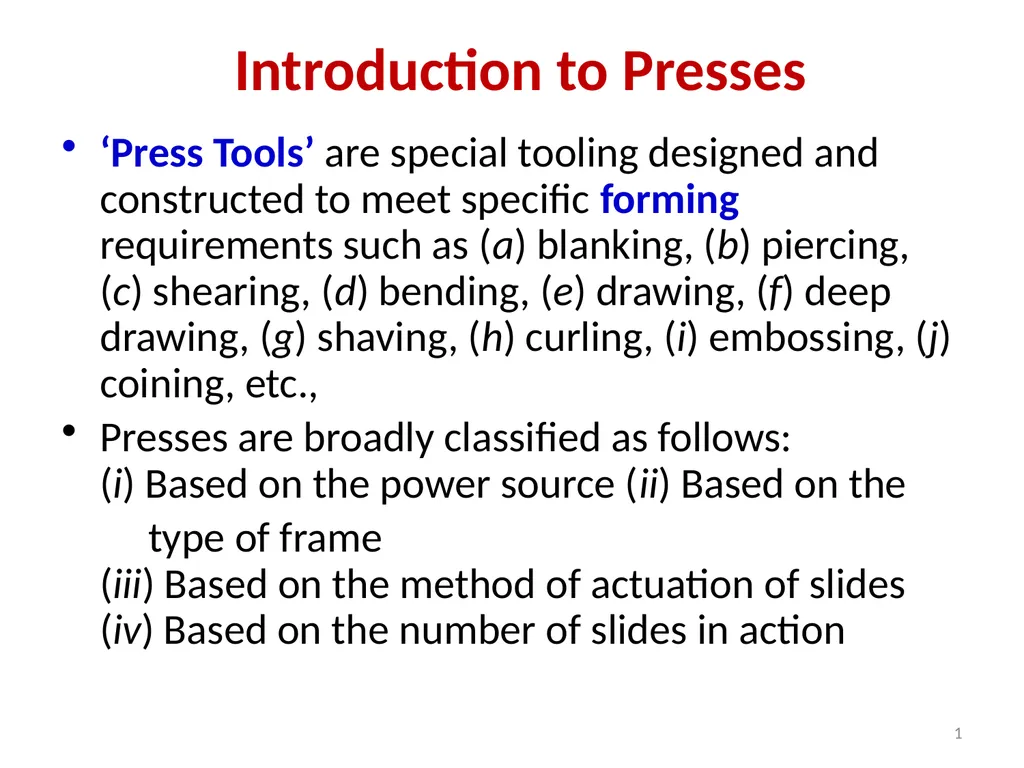

Introduction to Presses ‘Press Tools’ are special

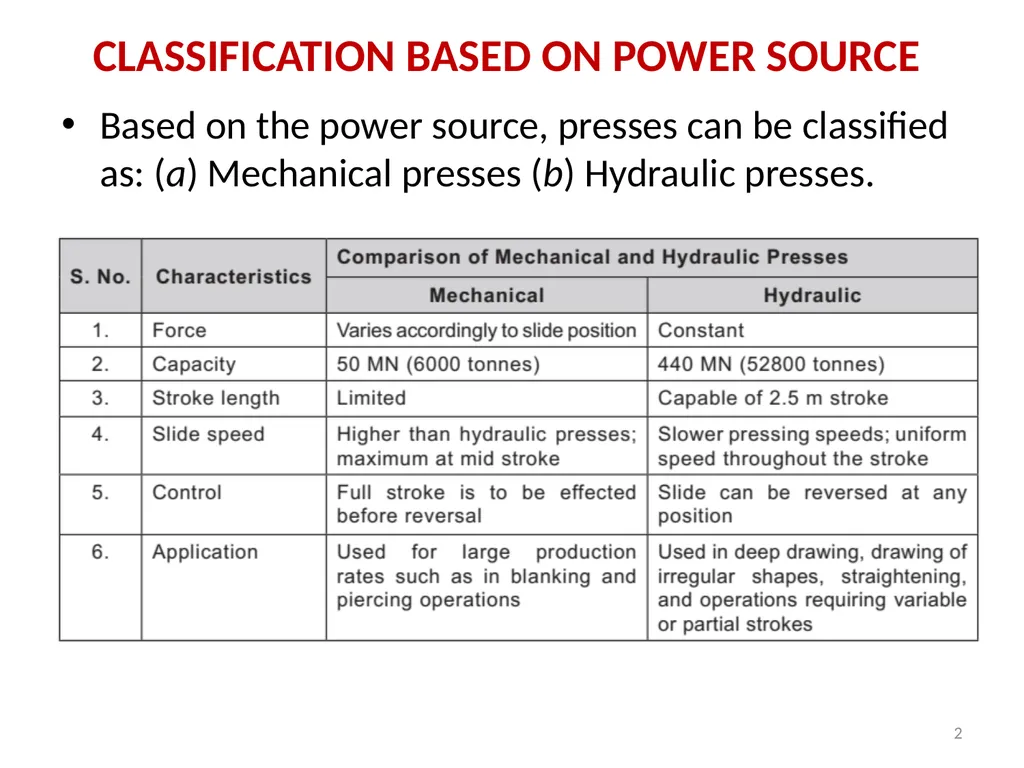

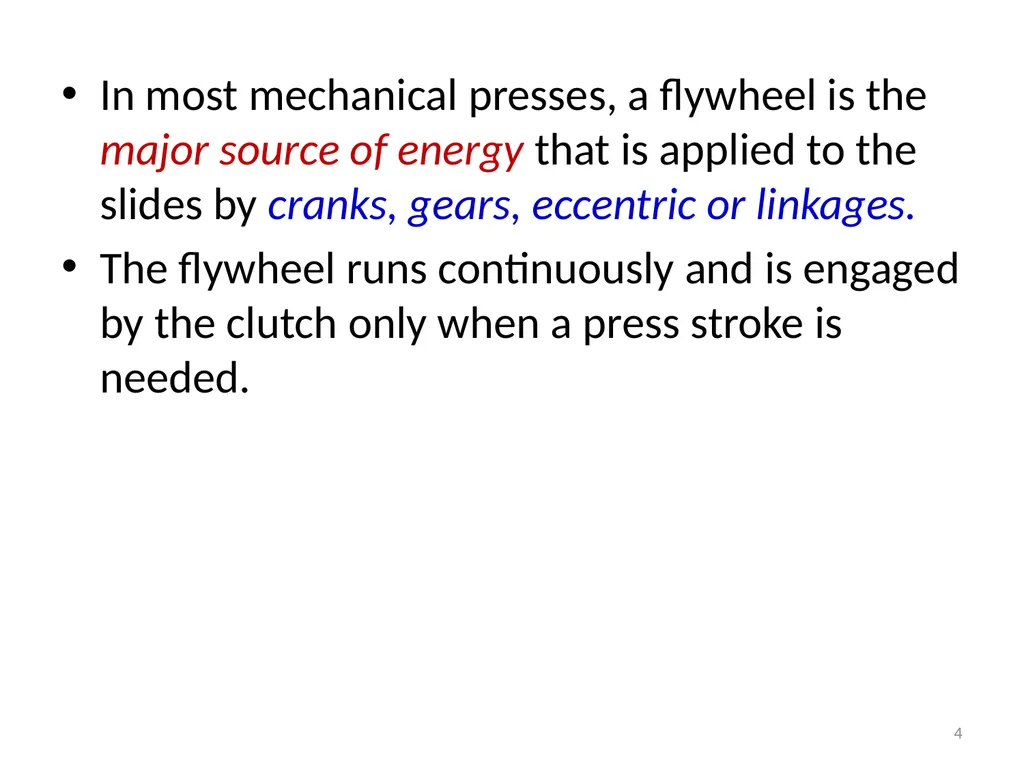

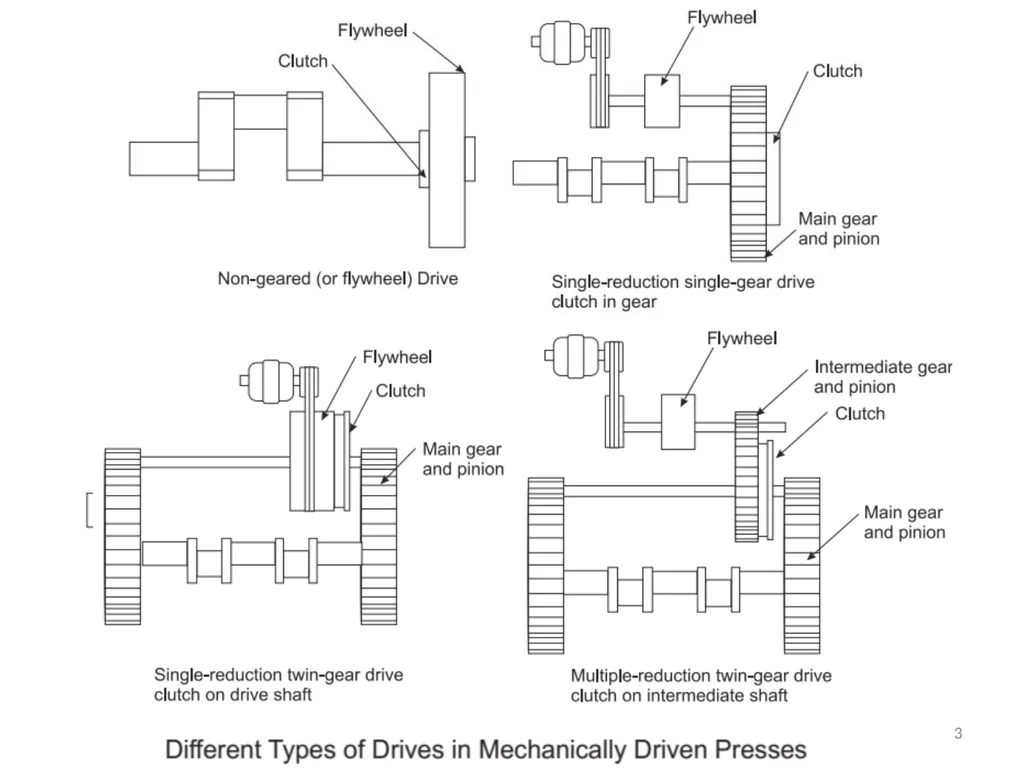

In most mechanical presses, a flywheel is the major source of energy that is applied to theslides by cranks, gears, eccentric or linkages.
The flywheel runs continuously and is engaged by the clutch only when a press stroke is needed. 4<br>

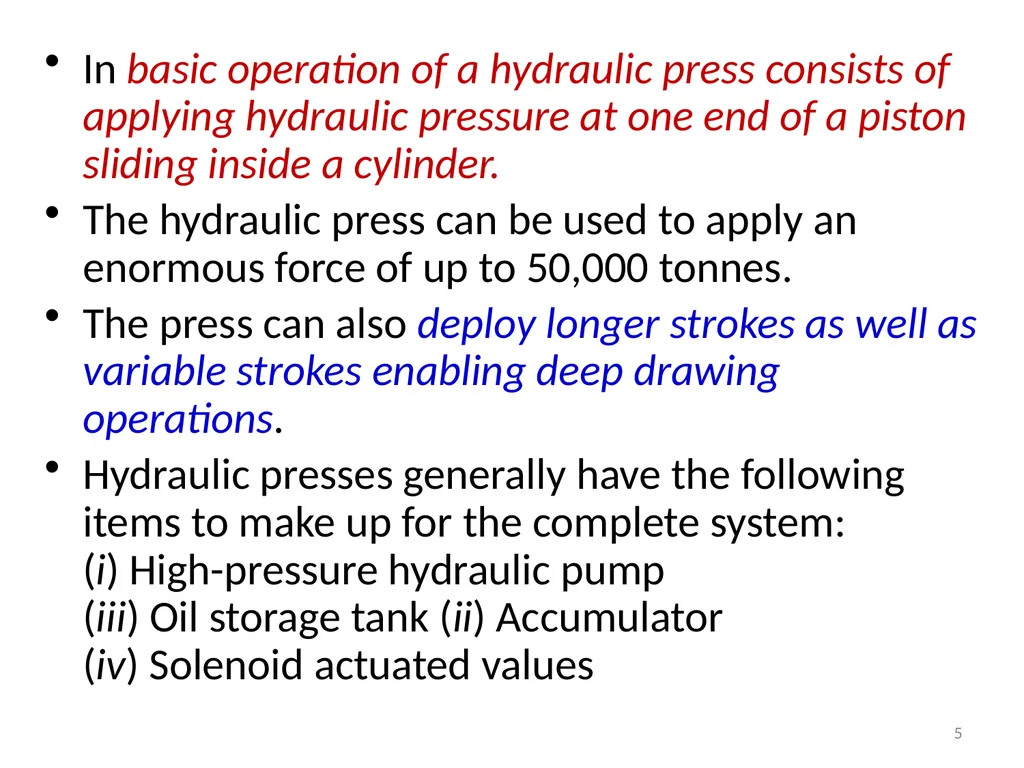

In basic operation of a hydraulic press consists of applying hydraulic pressure at one end of a piston sliding inside a cylinder.
The hydraulic press can be used to apply an enormous force of up to 50,000 tonnes.
The press can also deploy longer strokes as well as variable strokes enabling deep drawing operations.
Hydraulic presses generally have the followingitems to make up for the complete system:(i) High-pressure hydraulic pump (iii) Oil storage tank (ii) Accumulator(iv) Solenoid actuated values 5<br>

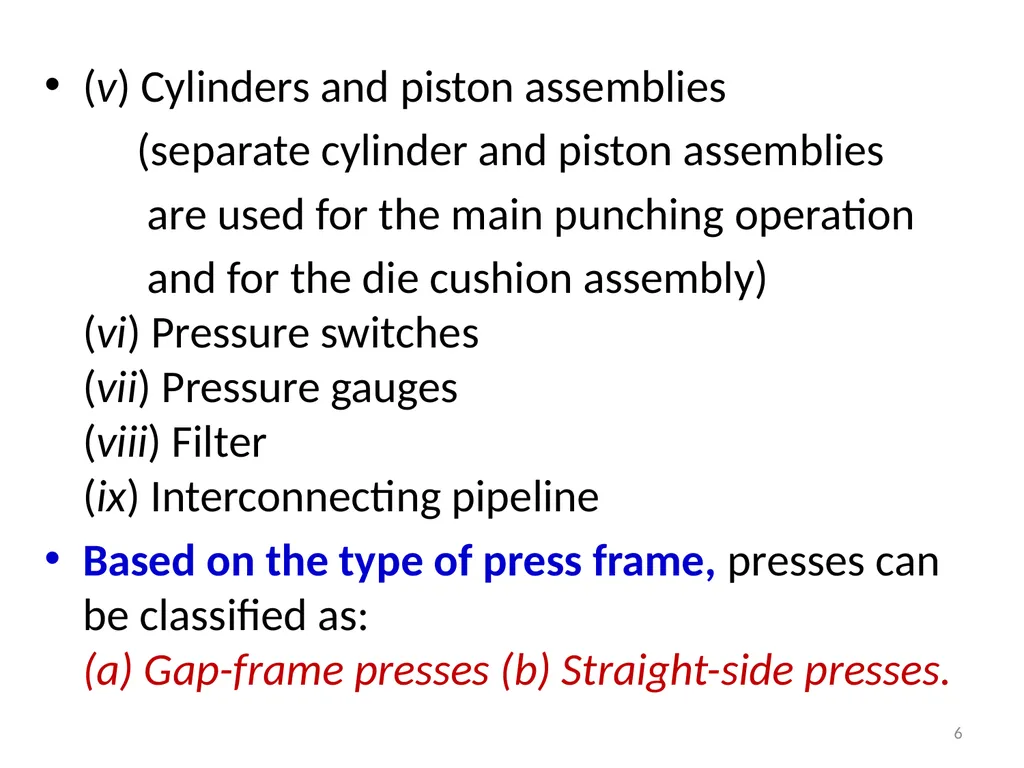

(v) Cylinders and piston assemblies
(separate cylinder and piston assemblies
are used for the main punching operation
and for the die cushion assembly)(vi) Pressure switches(vii) Pressure gauges(viii) Filter(ix) Interconnecting pipeline
Based on the type of press frame, presses can be classified as:(a) Gap-frame presses (b) Straight-side presses. 6<br>

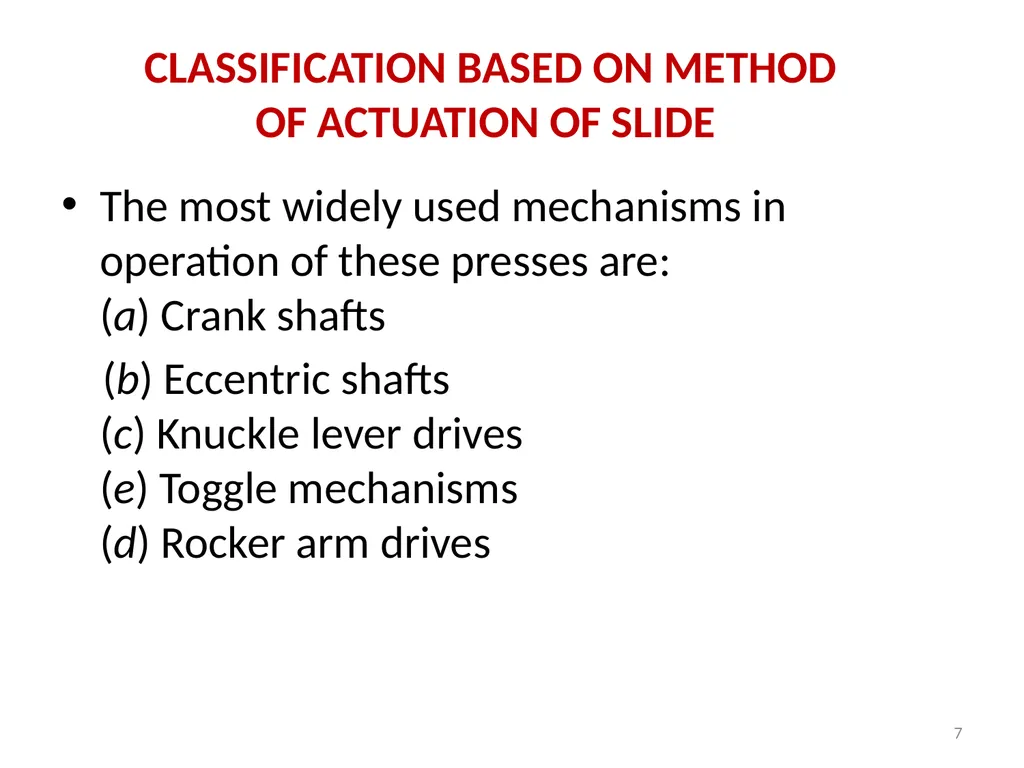

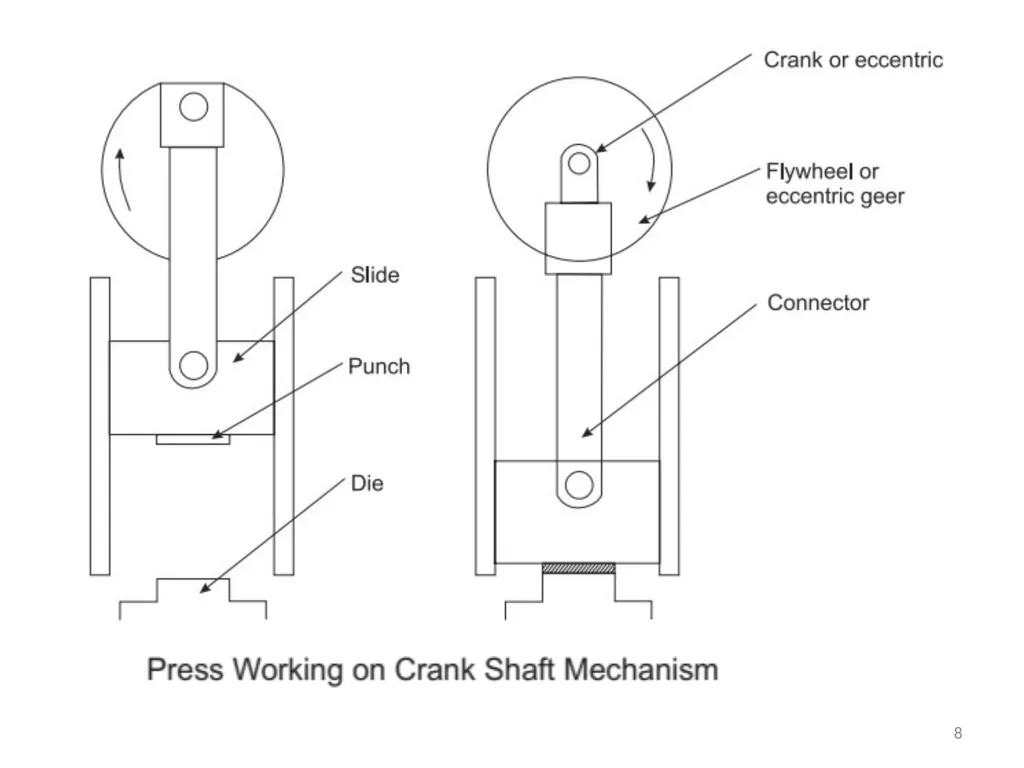

CLASSIFICATION BASED ON METHOD OF ACTUATION OF SLIDE The most widely used mechanisms in operation of these presses are:(a) Crank shafts

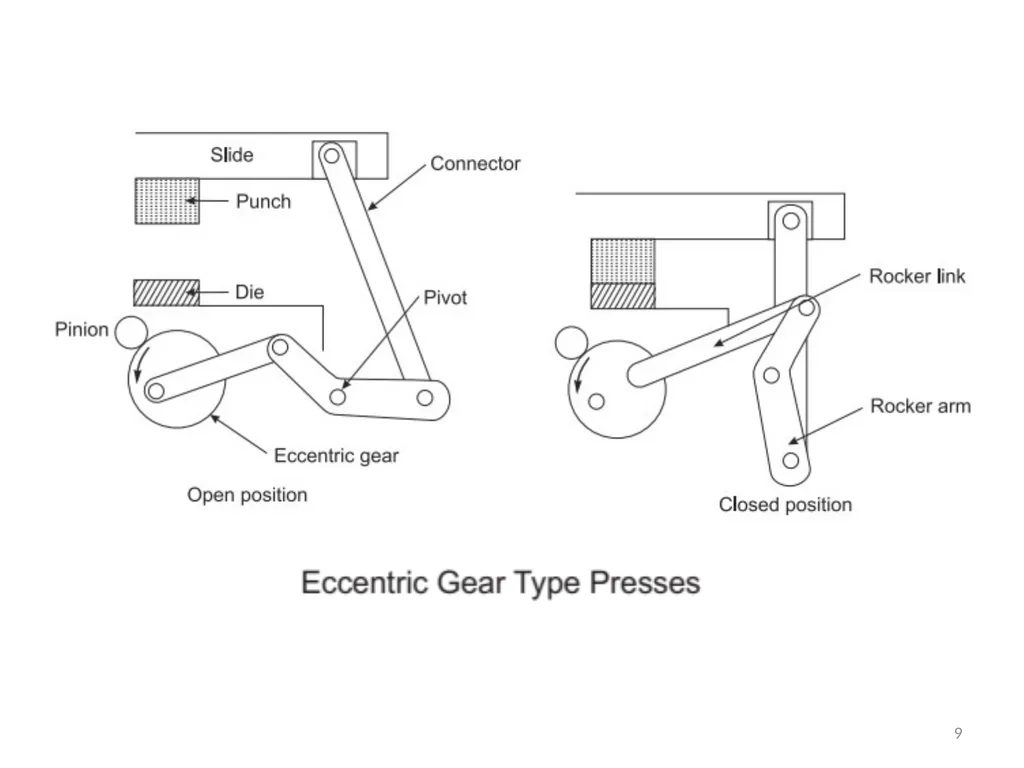

(b) Eccentric shafts(c) Knuckle lever drives (e) Toggle mechanisms(d) Rocker arm drives 7<br>

8<br>

9<br>

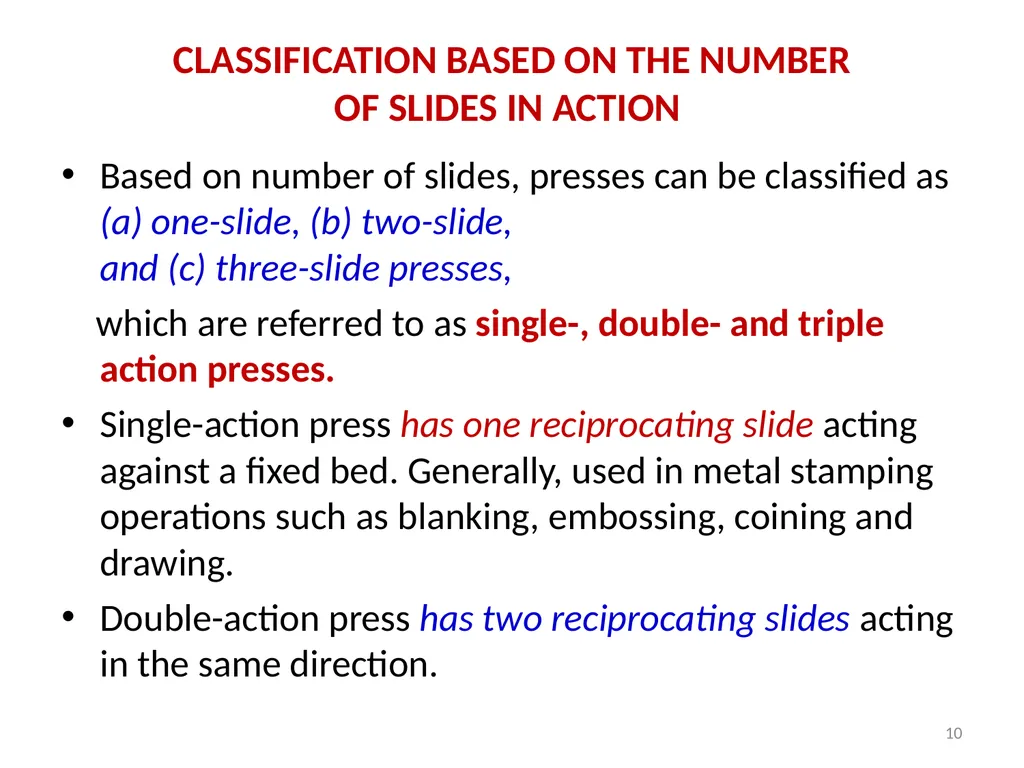

CLASSIFICATION BASED ON THE NUMBEROF SLIDES IN ACTION Based on number of slides, presses can be classified as (a) one-slide, (b) two-slide,and (c) three-slide presses,
which are referred to as single-, double- and triple action presses.
Single-action press has one reciprocating slide acting against a fixed bed. Generally, used in metal stamping operations such as blanking, embossing, coining and drawing.
Double-action press has two reciprocating slides acting in the same direction. 10<br>

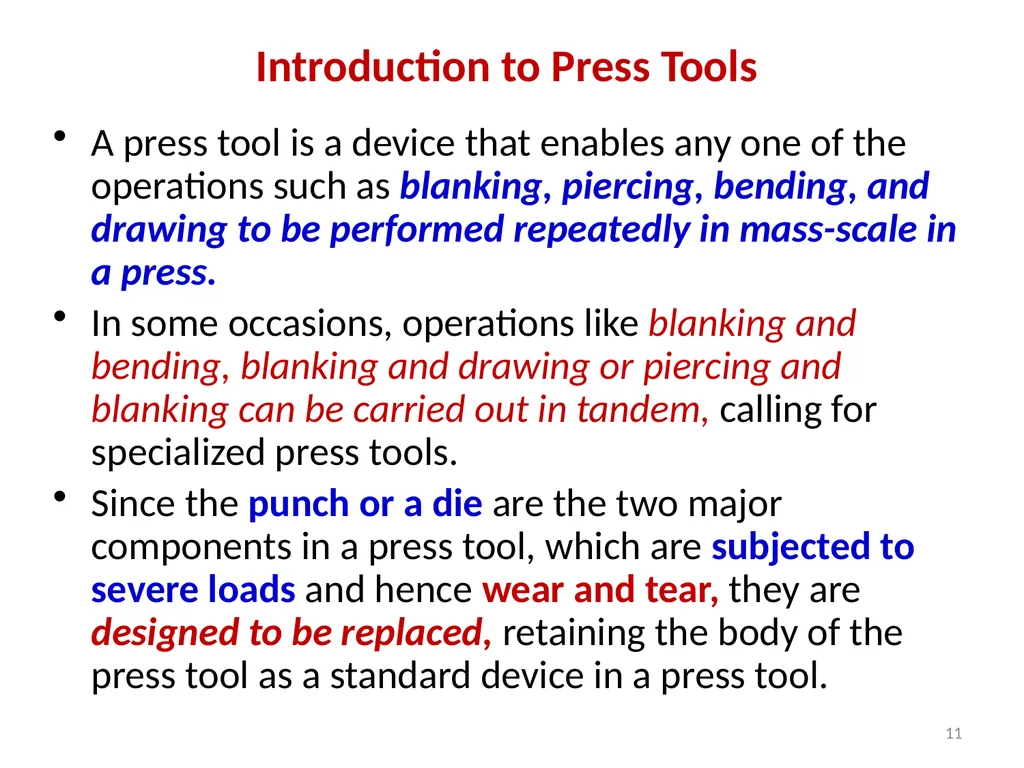

Introduction to Press Tools A press tool is a device that enables any one of the operations such as blanking, piercing, bending, and drawing to be performed repeatedly in mass-scale in a press.
In some occasions, operations like blanking and bending, blanking and drawing or piercing and blanking can be carried out in tandem, calling for specialized press tools.
Since the punch or a die are the two major components in a press tool, which are subjected to severe loads and hence wear and tear, they are designed to be replaced, retaining the body of the press tool as a standard device in a press tool. 11<br>

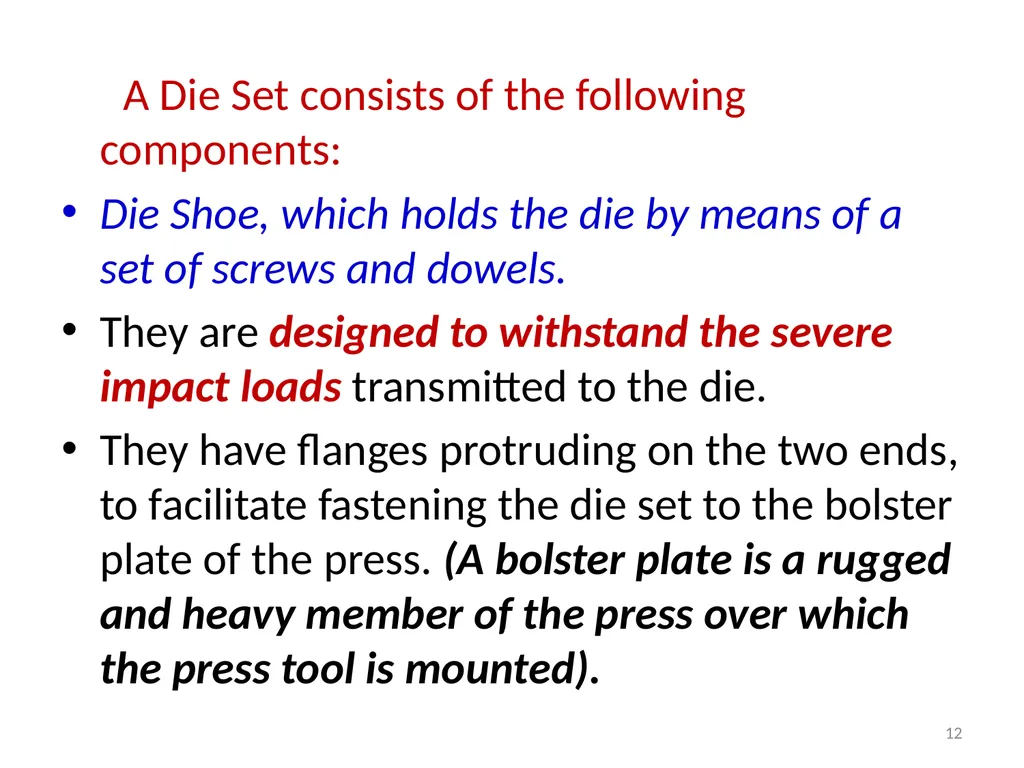

A Die Set consists of the following components:
Die Shoe, which holds the die by means of a set of screws and dowels.
They are designed to withstand the severe impact loads transmitted to the die.
They have flanges protruding on the two ends, to facilitate fastening the die set to the bolster plate of the press. (A bolster plate is a rugged and heavy member of the press over which the press tool is mounted). 12<br>

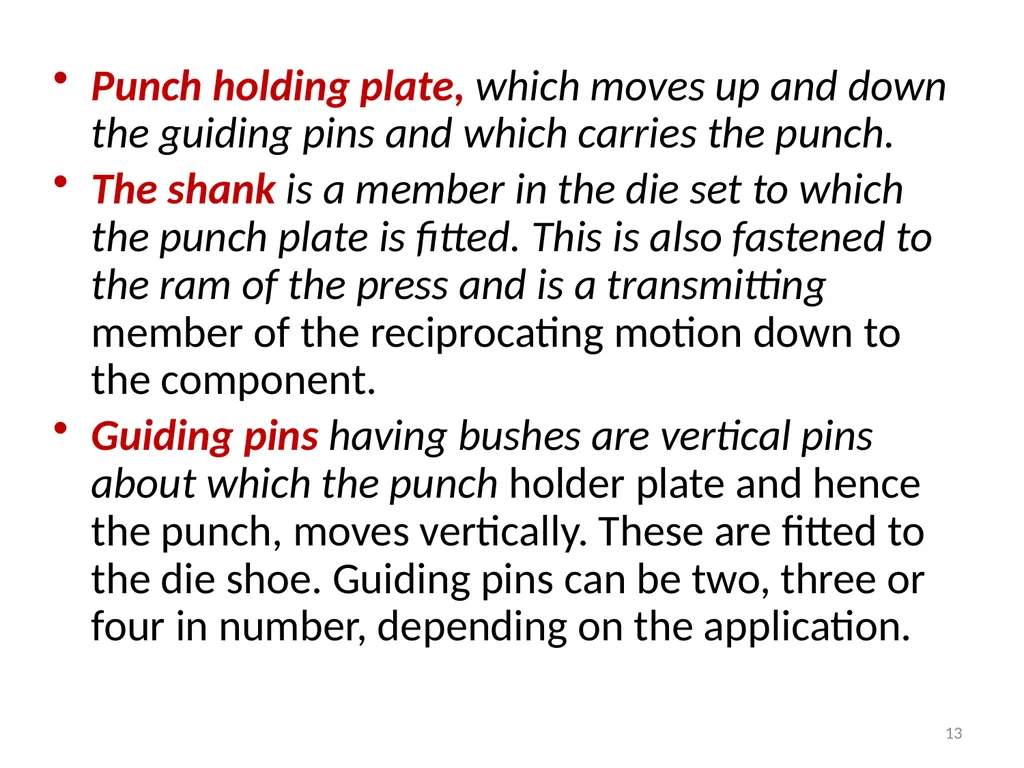

Punch holding plate, which moves up and down the guiding pins and which carries the punch.
The shank is a member in the die set to which the punch plate is fitted. This is also fastened to the ram of the press and is a transmitting member of the reciprocating motion down to the component.
Guiding pins having bushes are vertical pins about which the punch holder plate and hence the punch, moves vertically. These are fitted to the die shoe. Guiding pins can be two, three or four in number, depending on the application. 13<br>

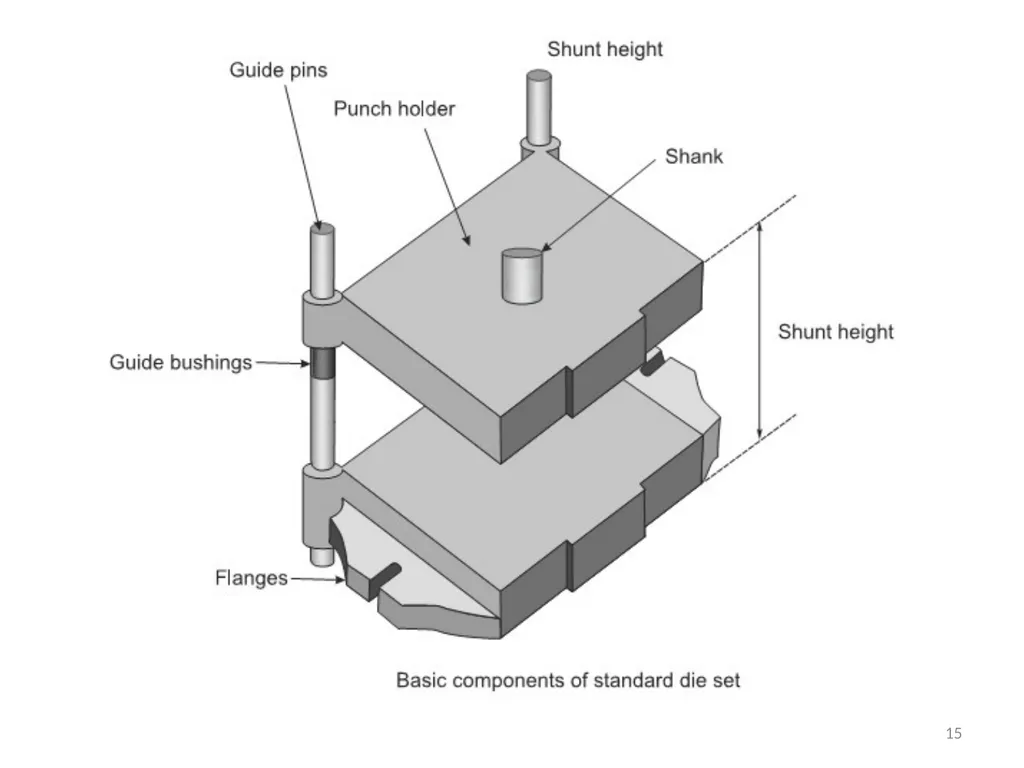

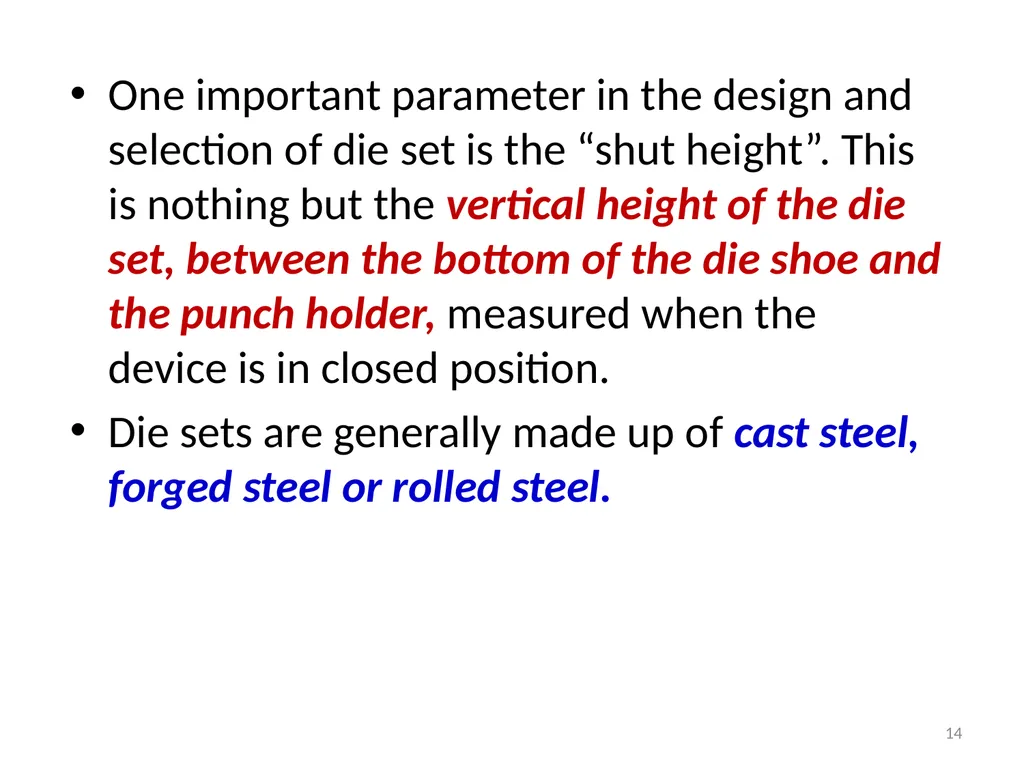

One important parameter in the design and selection of die set is the “shut height”. This is nothing but the vertical height of the die set, between the bottom of the die shoe and the punch holder, measured when the device is in closed position.
Die sets are generally made up of cast steel, forged steel or rolled steel. 14<br>

15<br>

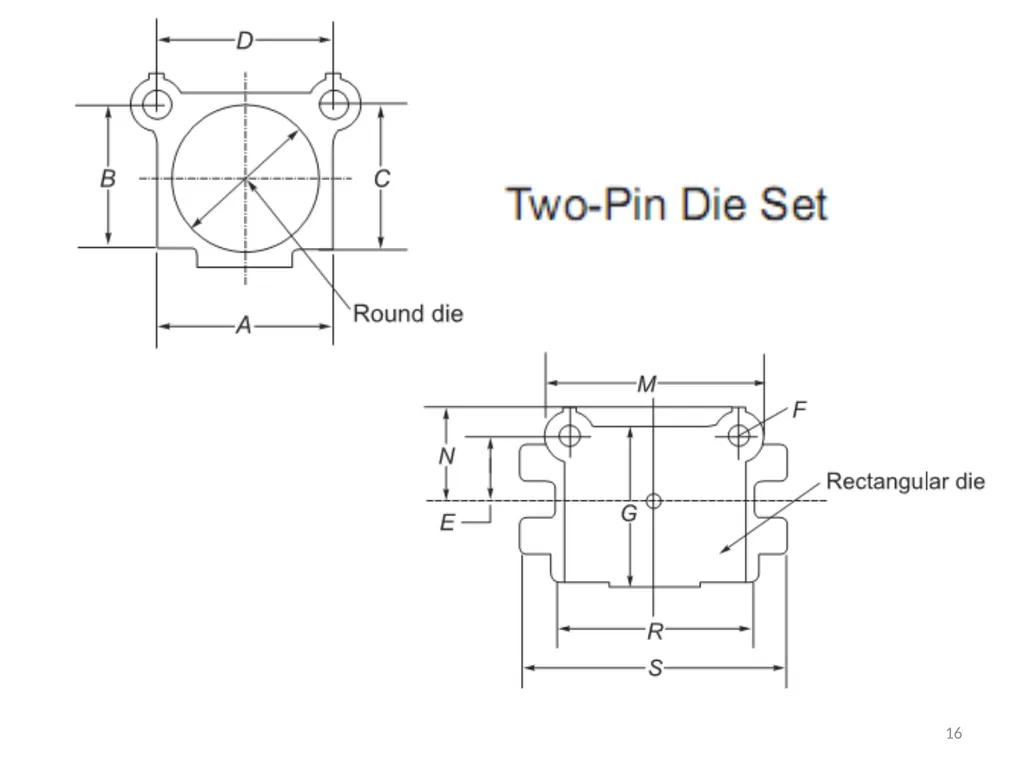

16<br>

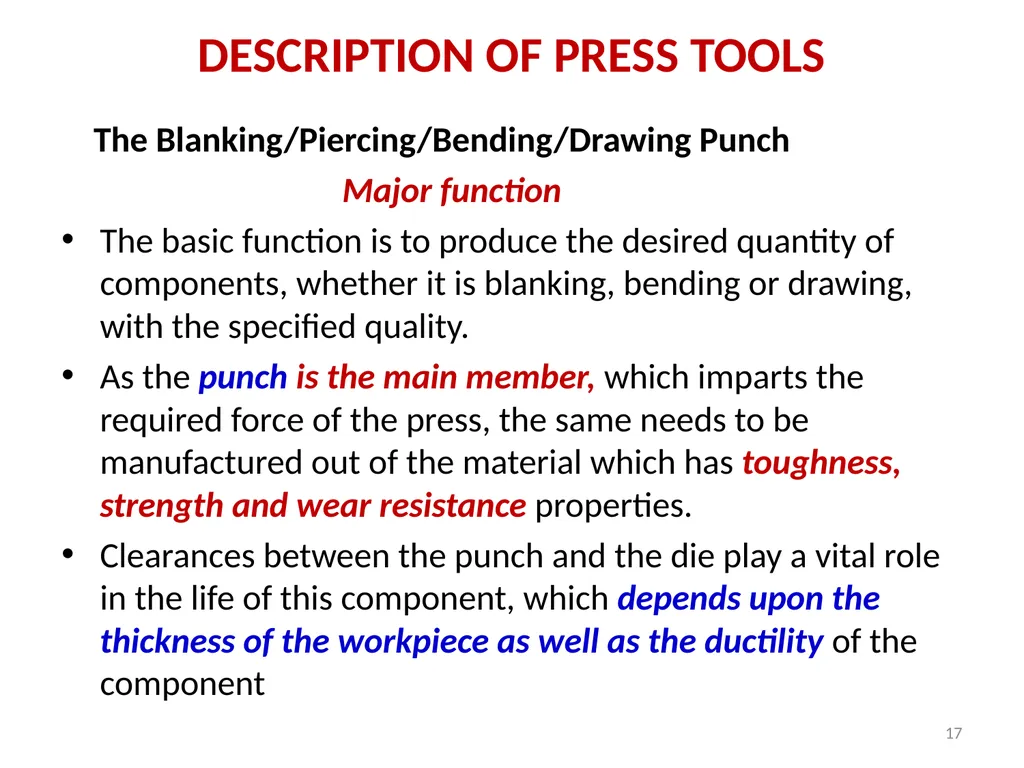

DESCRIPTION OF PRESS TOOLS The Blanking/Piercing/Bending/Drawing Punch
Major function
The basic function is to produce the desired quantity of components, whether it is blanking, bending or drawing, with the specified quality.
As the punch is the main member, which imparts the required force of the press, the same needs to be manufactured out of the material which has toughness, strength and wear resistance properties.
Clearances between the punch and the die play a vital role in the life of this component, which depends upon the thickness of the workpiece as well as the ductility of the component 17<br>

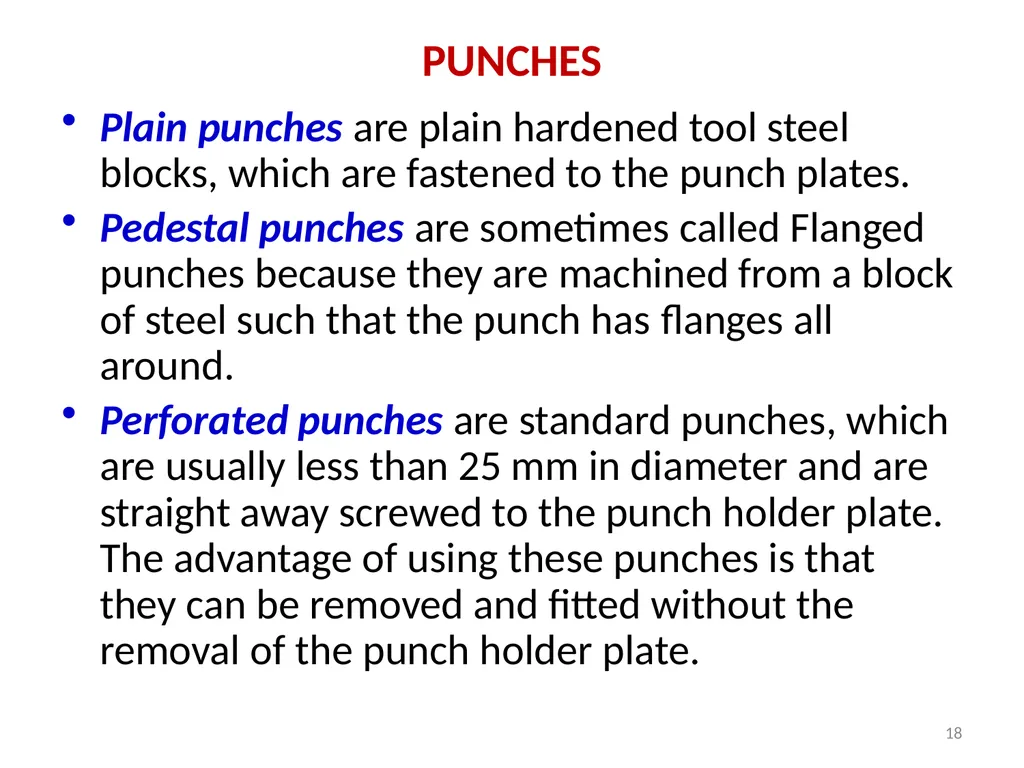

PUNCHES Plain punches are plain hardened tool steel blocks, which are fastened to the punch plates.
Pedestal punches are sometimes called Flanged punches because they are machined from a block of steel such that the punch has flanges all around.
Perforated punches are standard punches, which are usually less than 25 mm in diameter and are straight away screwed to the punch holder plate. The advantage of using these punches is that they can be removed and fitted without the removal of the punch holder plate. 18<br>

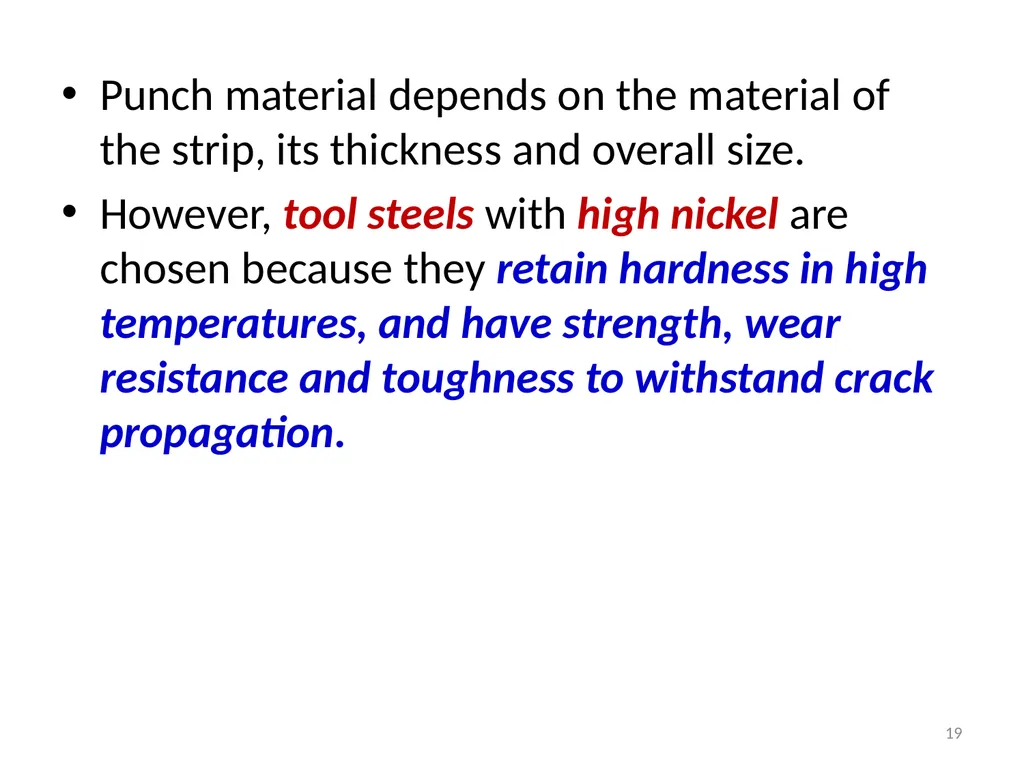

Punch material depends on the material of the strip, its thickness and overall size.
However, tool steels with high nickel are chosen because they retain hardness in high temperatures, and have strength, wear resistance and toughness to withstand crack propagation. 19<br>

End of Lecture 20<br>
