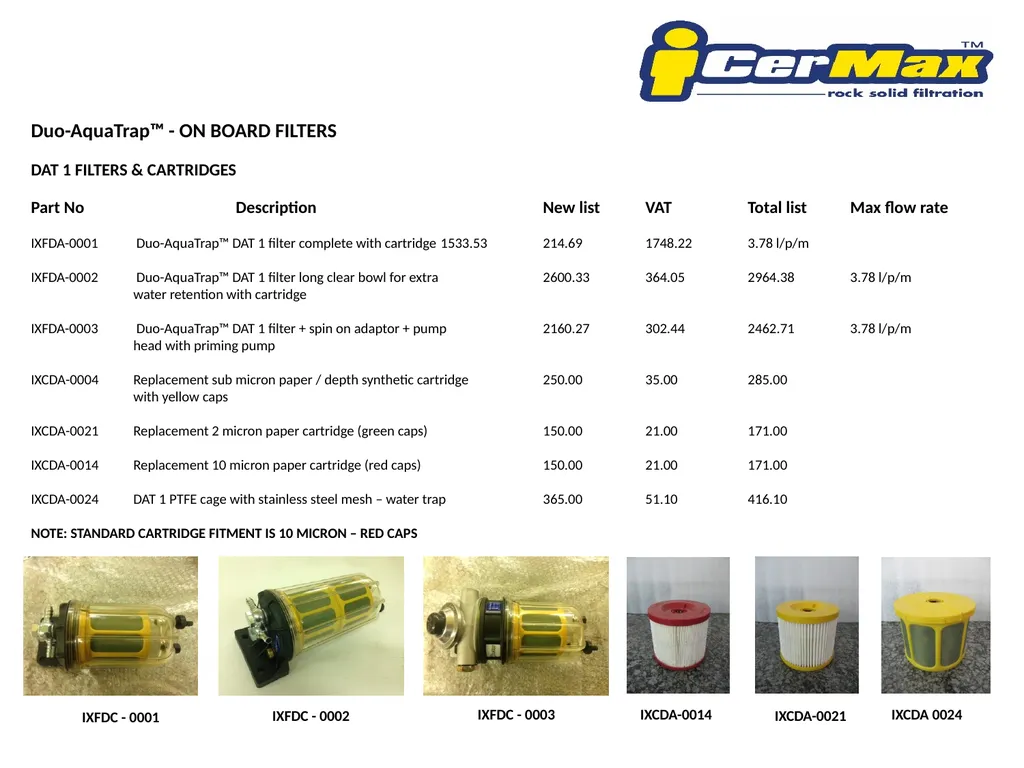

IXFDC - 0001 IXFDC - 0002 IXFDC - 0003 IXCDA-0014 Duo-AquaTrap™ - ON BOARD FILTERS

DAT 1 FILTERS & CARTRIDGES

Part No Description New list VAT Total list Max flow rate

IXFDA-0001 Duo-AquaTrap™ DAT 1 filter complete with cartridge 1533.53 214.69 1748.22 3.78 l/p/m

IXFDA-0002 Duo-AquaTrap™ DAT 1 filter long clear bowl for extra 2600.33 364.05 2964.38 3.78 l/p/m
water retention with cartridge

IXFDA-0003 Duo-AquaTrap™ DAT 1 filter + spin on adaptor + pump 2160.27 302.44 2462.71 3.78 l/p/m
head with priming pump

IXCDA-0004 Replacement sub micron paper / depth synthetic cartridge 250.00 35.00 285.00 with yellow caps

IXCDA-0021 Replacement 2 micron paper cartridge (green caps) 150.00 21.00 171.00

IXCDA-0014 Replacement 10 micron paper cartridge (red caps) 150.00 21.00 171.00

IXCDA-0024 DAT 1 PTFE cage with stainless steel mesh – water trap 365.00 51.10 416.10

NOTE: STANDARD CARTRIDGE FITMENT IS 10 MICRON – RED CAPS IXCDA 0024 IXCDA-0021

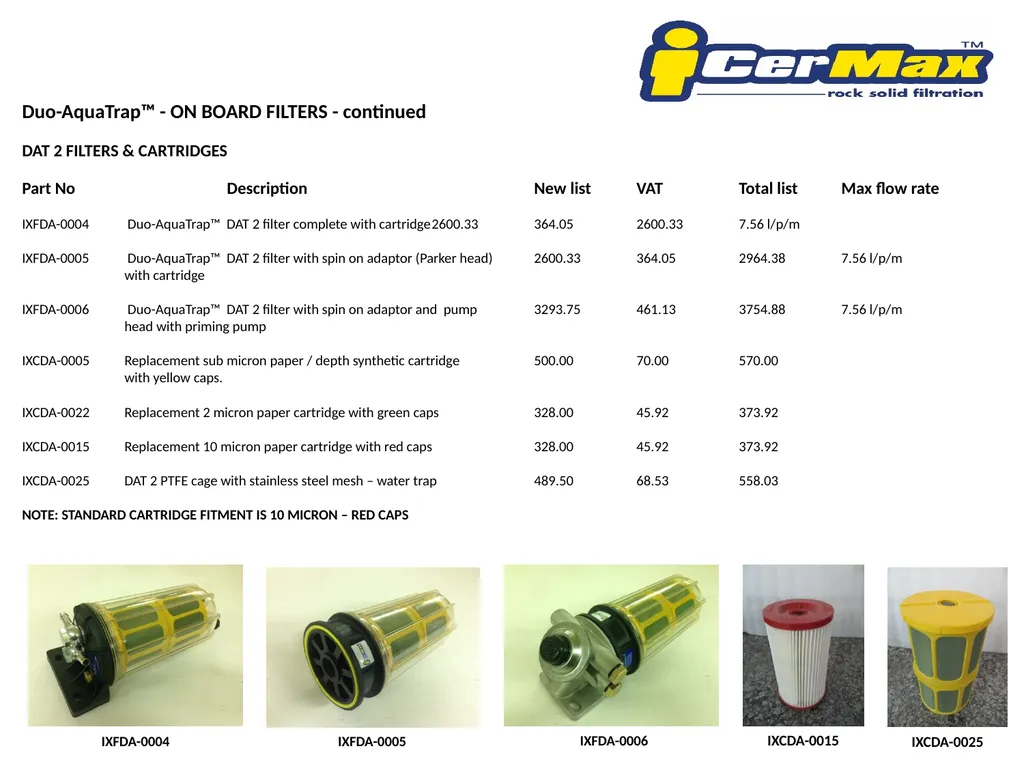

Duo-AquaTrap™ - ON BOARD FILTERS - continued

DAT 2 FILTERS & CARTRIDGES

Part No Description New list VAT Total list Max flow rate

IXFDA-0004 Duo-AquaTrap™ DAT 2 filter complete with cartridge 2600.33 364.05 2600.33 7.56 l/p/m

IXFDA-0005 Duo-AquaTrap™ DAT 2 filter with spin on adaptor (Parker head) 2600.33 364.05 2964.38 7.56 l/p/m
with cartridge

IXFDA-0006 Duo-AquaTrap™ DAT 2 filter with spin on adaptor and pump 3293.75 461.13 3754.88 7.56 l/p/m head with priming pump

IXCDA-0005 Replacement sub micron paper / depth synthetic cartridge 500.00 70.00 570.00
with yellow caps.

IXCDA-0022 Replacement 2 micron paper cartridge with green caps 328.00 45.92 373.92

IXCDA-0015 Replacement 10 micron paper cartridge with red caps 328.00 45.92 373.92

IXCDA-0025 DAT 2 PTFE cage with stainless steel mesh – water trap 489.50 68.53 558.03

NOTE: STANDARD CARTRIDGE FITMENT IS 10 MICRON – RED CAPS IXFDA-0004 IXFDA-0005 IXFDA-0006 IXCDA-0015 IXCDA-0025

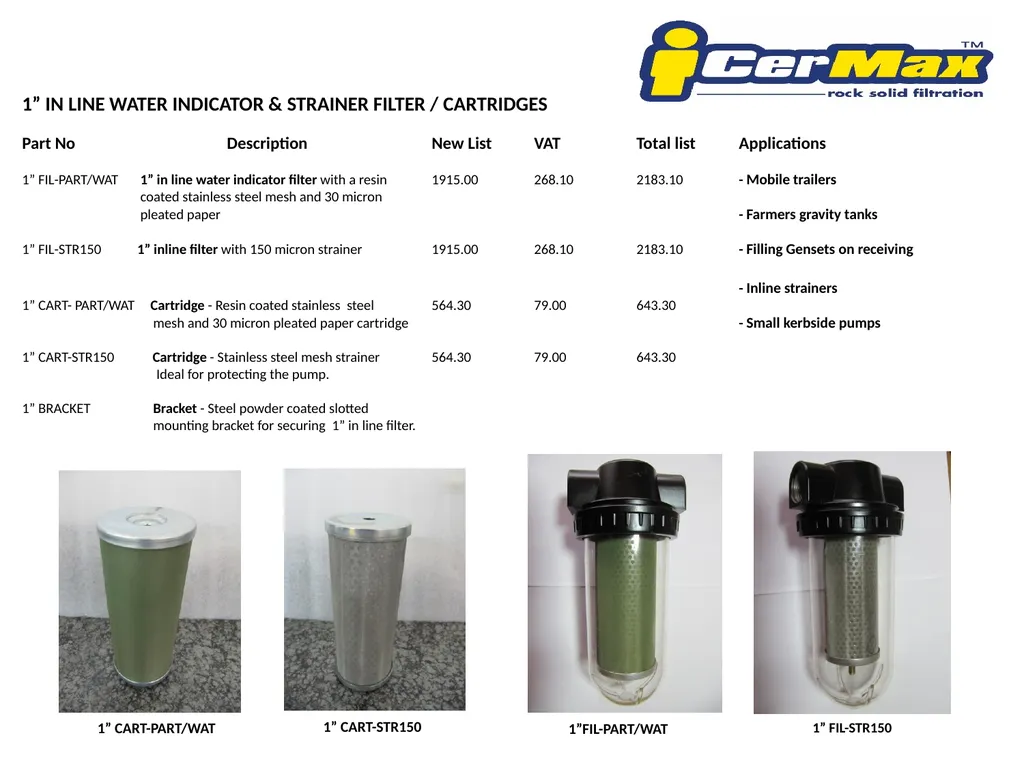

1” IN LINE WATER INDICATOR & STRAINER FILTER / CARTRIDGES

Part No Description New List VAT Total list Applications

1” FIL-PART/WAT 1” in line water indicator filter with a resin 1915.00 268.10 2183.10 - Mobile trailers
coated stainless steel mesh and 30 micron
pleated paper - Farmers gravity tanks

1” FIL-STR150 1” inline filter with 150 micron strainer 1915.00 268.10 2183.10 - Filling Gensets on receiving

- Inline strainers
1” CART- PART/WAT Cartridge - Resin coated stainless steel 564.30 79.00 643.30
mesh and 30 micron pleated paper cartridge - Small kerbside pumps

1” CART-STR150 Cartridge - Stainless steel mesh strainer 564.30 79.00 643.30
Ideal for protecting the pump.

1” BRACKET Bracket - Steel powder coated slotted
mounting bracket for securing 1” in line filter. 1” CART-PART/WAT 1” CART-STR150 1”FIL-PART/WAT 1” FIL-STR150

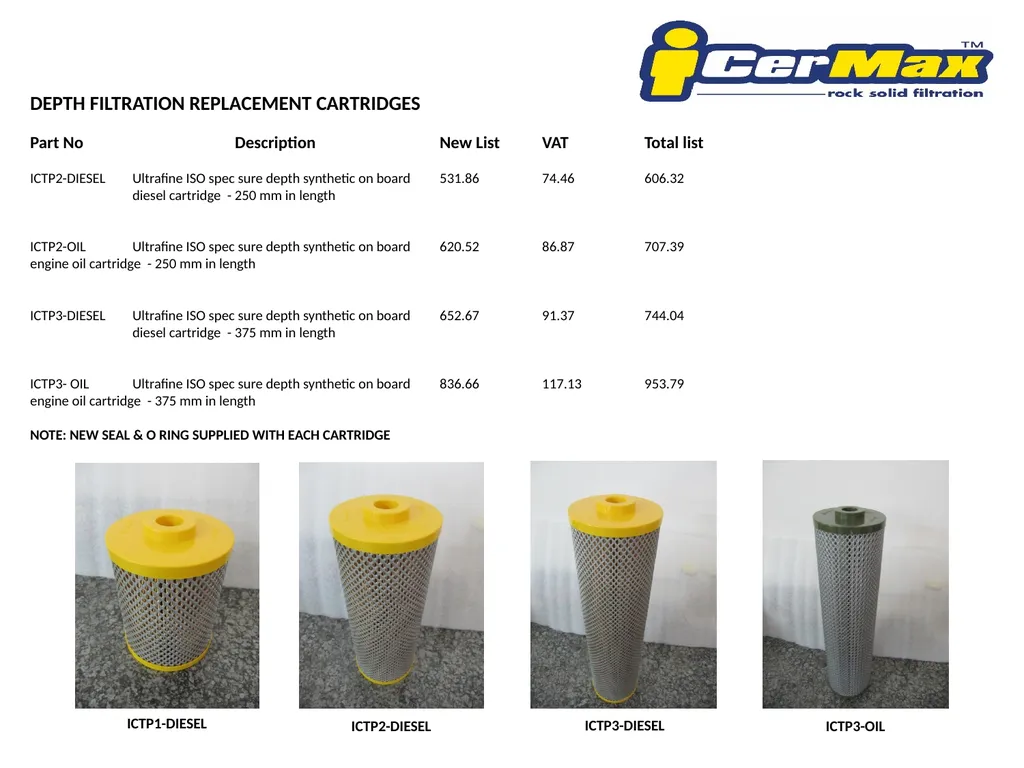

DEPTH FILTRATION REPLACEMENT CARTRIDGES

Part No Description New List VAT Total list

ICTP2-DIESEL Ultrafine ISO spec sure depth synthetic on board 531.86 74.46 606.32
diesel cartridge - 250 mm in length

ICTP2-OIL Ultrafine ISO spec sure depth synthetic on board 620.52 86.87 707.39 engine oil cartridge - 250 mm in length

ICTP3-DIESEL Ultrafine ISO spec sure depth synthetic on board 652.67 91.37 744.04
diesel cartridge - 375 mm in length

ICTP3- OIL Ultrafine ISO spec sure depth synthetic on board 836.66 117.13 953.79 engine oil cartridge - 375 mm in length

NOTE: NEW SEAL & O RING SUPPLIED WITH EACH CARTRIDGE ICTP2-DIESEL ICTP1-DIESEL ICTP3-DIESEL ICTP3-OIL

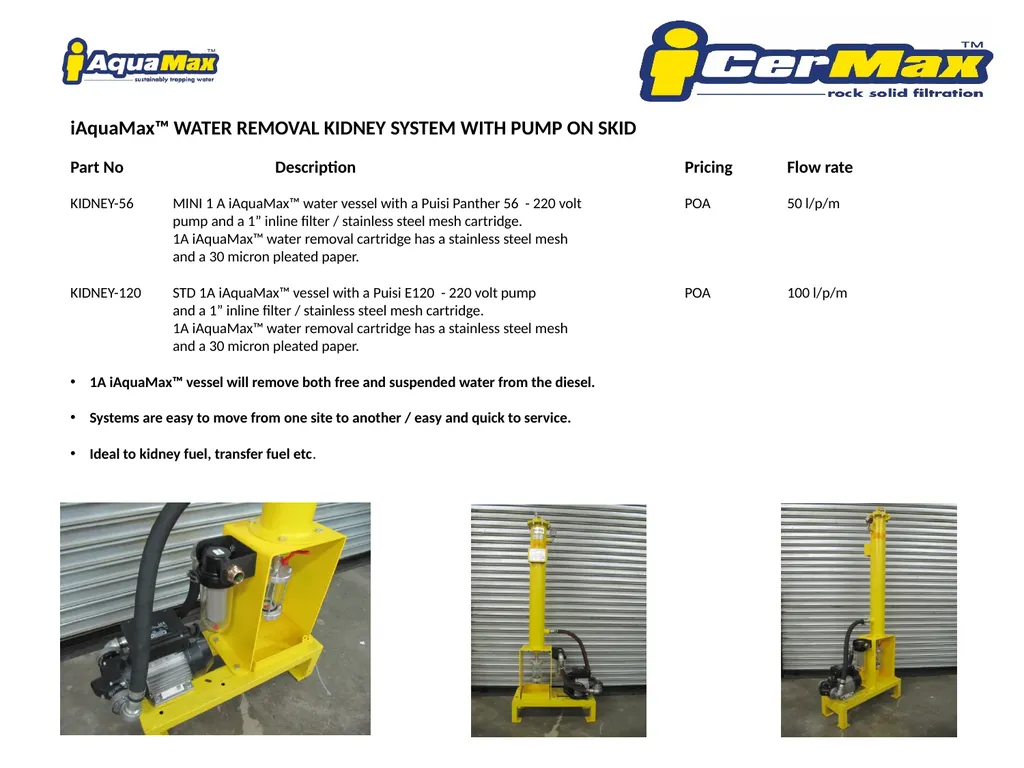

iAquaMax™ WATER REMOVAL KIDNEY SYSTEM WITH PUMP ON SKID

Part No Description Pricing Flow rate

KIDNEY-56 MINI 1 A iAquaMax™ water vessel with a Puisi Panther 56 - 220 volt POA 50 l/p/m
pump and a 1” inline filter / stainless steel mesh cartridge.
1A iAquaMax™ water removal cartridge has a stainless steel mesh and a 30 micron pleated paper.

KIDNEY-120 STD 1A iAquaMax™ vessel with a Puisi E120 - 220 volt pump POA 100 l/p/m
and a 1” inline filter / stainless steel mesh cartridge.
1A iAquaMax™ water removal cartridge has a stainless steel mesh and a 30 micron pleated paper.

1A iAquaMax™ vessel will remove both free and suspended water from the diesel.

Systems are easy to move from one site to another / easy and quick to service.

Ideal to kidney fuel, transfer fuel etc.

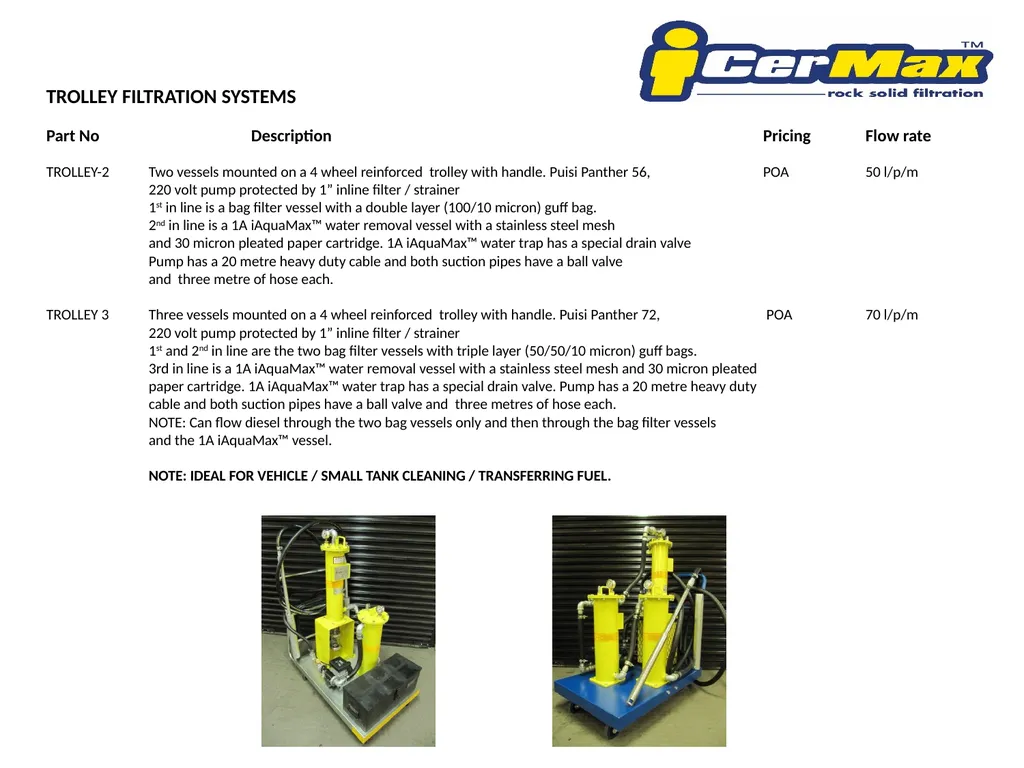

TROLLEY FILTRATION SYSTEMS

Part No Description Pricing Flow rate

TROLLEY-2 Two vessels mounted on a 4 wheel reinforced trolley with handle. Puisi Panther 56, POA 50 l/p/m
220 volt pump protected by 1” inline filter / strainer
1st in line is a bag filter vessel with a double layer (100/10 micron) guff bag.
2nd in line is a 1A iAquaMax™ water removal vessel with a stainless steel mesh
and 30 micron pleated paper cartridge. 1A iAquaMax™ water trap has a special drain valve
Pump has a 20 metre heavy duty cable and both suction pipes have a ball valve
and three metre of hose each.

TROLLEY 3 Three vessels mounted on a 4 wheel reinforced trolley with handle. Puisi Panther 72, POA 70 l/p/m
220 volt pump protected by 1” inline filter / strainer
1st and 2nd in line are the two bag filter vessels with triple layer (50/50/10 micron) guff bags.
3rd in line is a 1A iAquaMax™ water removal vessel with a stainless steel mesh and 30 micron pleated
paper cartridge. 1A iAquaMax™ water trap has a special drain valve. Pump has a 20 metre heavy duty
cable and both suction pipes have a ball valve and three metres of hose each.
NOTE: Can flow diesel through the two bag vessels only and then through the bag filter vessels
and the 1A iAquaMax™ vessel.

NOTE: IDEAL FOR VEHICLE / SMALL TANK CLEANING / TRANSFERRING FUEL.

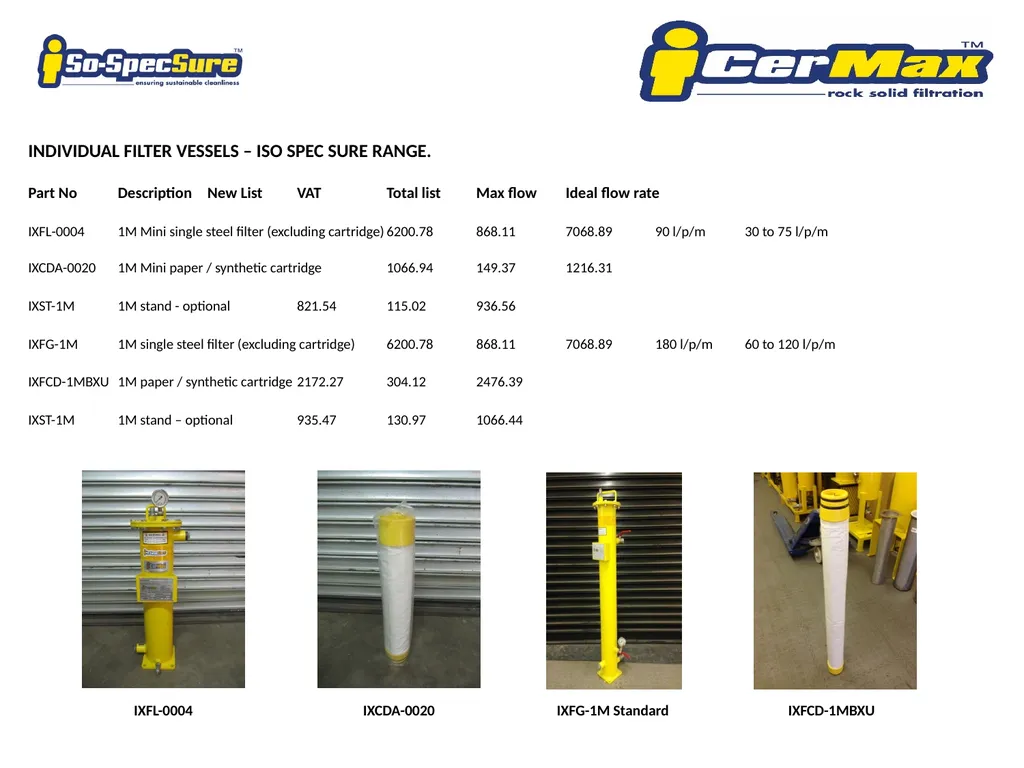

INDIVIDUAL FILTER VESSELS – ISO SPEC SURE RANGE.

Part No Description New List VAT Total list Max flow Ideal flow rate

IXFL-0004 1M Mini single steel filter (excluding cartridge) 6200.78 868.11 7068.89 90 l/p/m 30 to 75 l/p/m

IXCDA-0020 1M Mini paper / synthetic cartridge 1066.94 149.37 1216.31

IXST-1M 1M stand - optional 821.54 115.02 936.56

IXFG-1M 1M single steel filter (excluding cartridge) 6200.78 868.11 7068.89 180 l/p/m 60 to 120 l/p/m

IXFCD-1MBXU 1M paper / synthetic cartridge 2172.27 304.12 2476.39

IXST-1M 1M stand – optional 935.47 130.97 1066.44 IXFG-1M Standard IXFCD-1MBXU IXCDA-0020 IXFL-0004

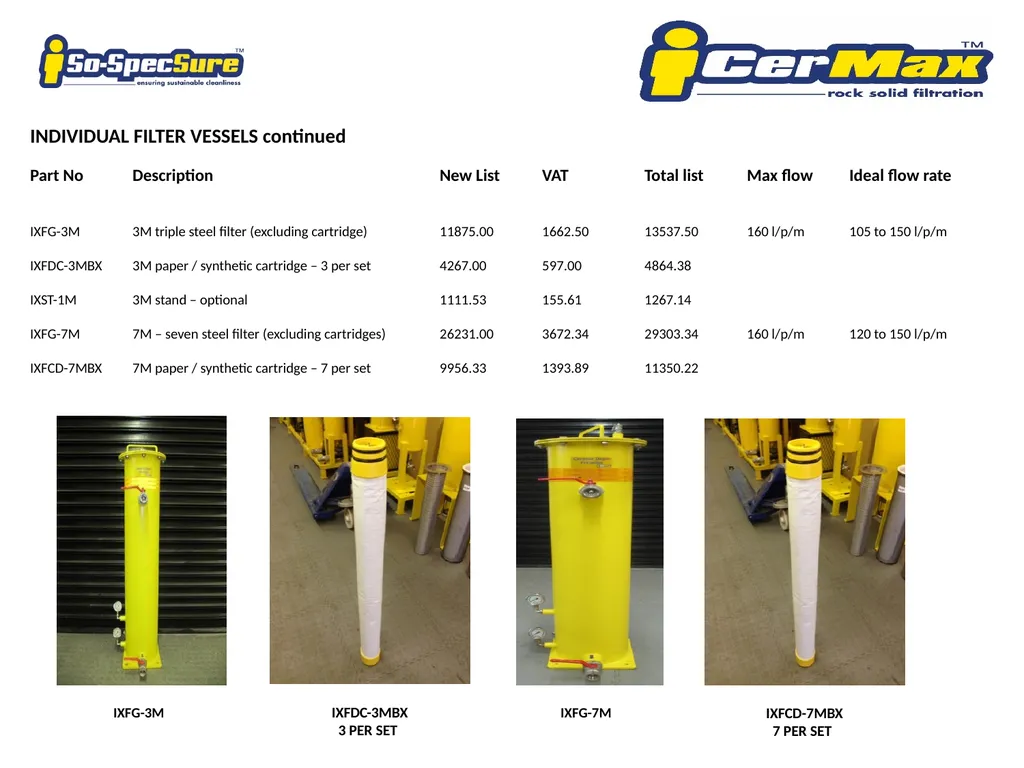

INDIVIDUAL FILTER VESSELS continued

Part No Description New List VAT Total list Max flow Ideal flow rate

IXFG-3M 3M triple steel filter (excluding cartridge) 11875.00 1662.50 13537.50 160 l/p/m 105 to 150 l/p/m

IXFDC-3MBX 3M paper / synthetic cartridge – 3 per set 4267.00 597.00 4864.38

IXST-1M 3M stand – optional 1111.53 155.61 1267.14

IXFG-7M 7M – seven steel filter (excluding cartridges) 26231.00 3672.34 29303.34 160 l/p/m 120 to 150 l/p/m

IXFCD-7MBX 7M paper / synthetic cartridge – 7 per set 9956.33 1393.89 11350.22 IXFG-3M IXFG-7M IXFDC-3MBX
3 PER SET IXFCD-7MBX
7 PER SET

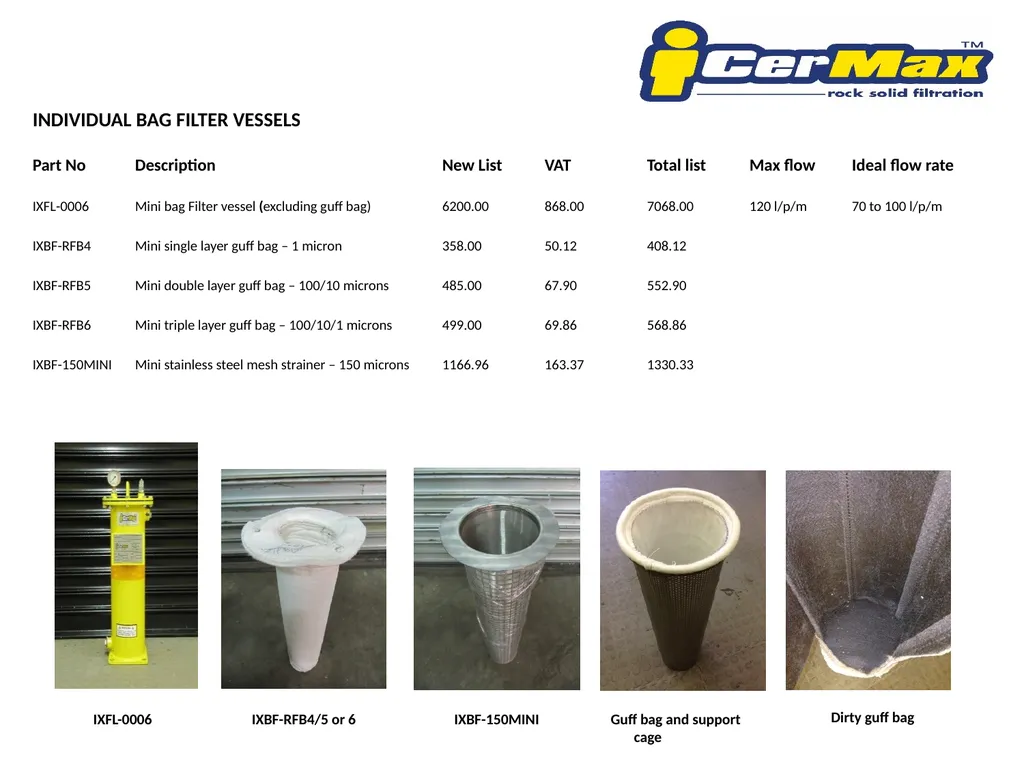

INDIVIDUAL BAG FILTER VESSELS

Part No Description New List VAT Total list Max flow Ideal flow rate

IXFL-0006 Mini bag Filter vessel (excluding guff bag) 6200.00 868.00 7068.00 120 l/p/m 70 to 100 l/p/m

IXBF-RFB4 Mini single layer guff bag – 1 micron 358.00 50.12 408.12

IXBF-RFB5 Mini double layer guff bag – 100/10 microns 485.00 67.90 552.90

IXBF-RFB6 Mini triple layer guff bag – 100/10/1 microns 499.00 69.86 568.86

IXBF-150MINI Mini stainless steel mesh strainer – 150 microns 1166.96 163.37 1330.33 IXFL-0006 Dirty guff bag Guff bag and support cage IXBF-RFB4/5 or 6 IXBF-150MINI

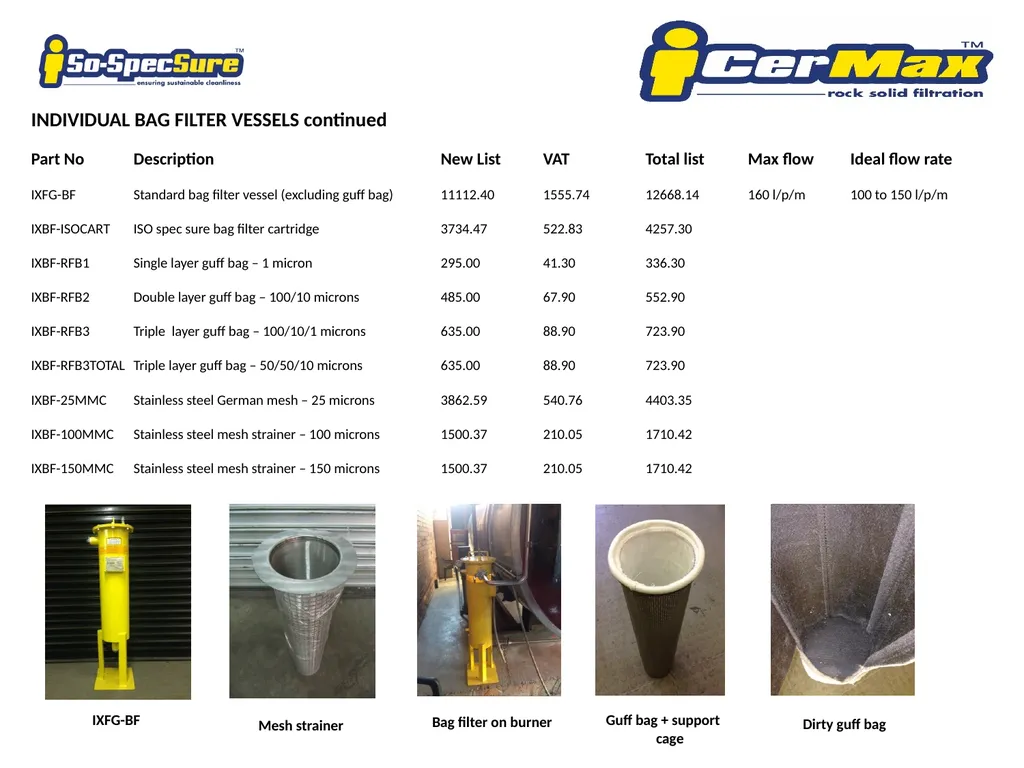

INDIVIDUAL BAG FILTER VESSELS continued

Part No Description New List VAT Total list Max flow Ideal flow rate

IXFG-BF Standard bag filter vessel (excluding guff bag) 11112.40 1555.74 12668.14 160 l/p/m 100 to 150 l/p/m

IXBF-ISOCART ISO spec sure bag filter cartridge 3734.47 522.83 4257.30

IXBF-RFB1 Single layer guff bag – 1 micron 295.00 41.30 336.30

IXBF-RFB2 Double layer guff bag – 100/10 microns 485.00 67.90 552.90

IXBF-RFB3 Triple layer guff bag – 100/10/1 microns 635.00 88.90 723.90

IXBF-RFB3TOTAL Triple layer guff bag – 50/50/10 microns 635.00 88.90 723.90

IXBF-25MMC Stainless steel German mesh – 25 microns 3862.59 540.76 4403.35

IXBF-100MMC Stainless steel mesh strainer – 100 microns 1500.37 210.05 1710.42

IXBF-150MMC Stainless steel mesh strainer – 150 microns 1500.37 210.05 1710.42 IXFG-BF Bag filter on burner Dirty guff bag Guff bag + support cage Mesh strainer

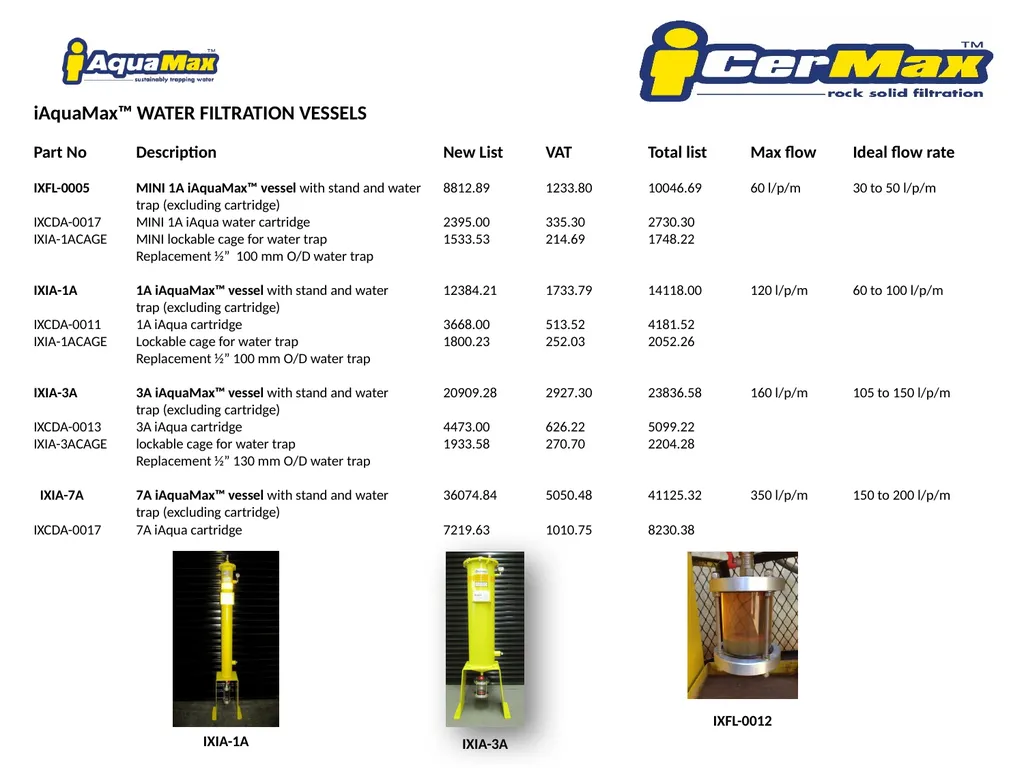

iAquaMax™ WATER FILTRATION VESSELS

Part No Description New List VAT Total list Max flow Ideal flow rate

IXFL-0005 MINI 1A iAquaMax™ vessel with stand and water 8812.89 1233.80 10046.69 60 l/p/m 30 to 50 l/p/m
trap (excluding cartridge)
IXCDA-0017 MINI 1A iAqua water cartridge 2395.00 335.30 2730.30
IXIA-1ACAGE MINI lockable cage for water trap 1533.53 214.69 1748.22
Replacement ½” 100 mm O/D water trap

IXIA-1A 1A iAquaMax™ vessel with stand and water 12384.21 1733.79 14118.00 120 l/p/m 60 to 100 l/p/m
trap (excluding cartridge)
IXCDA-0011 1A iAqua cartridge 3668.00 513.52 4181.52
IXIA-1ACAGE Lockable cage for water trap 1800.23 252.03 2052.26
Replacement ½” 100 mm O/D water trap

IXIA-3A 3A iAquaMax™ vessel with stand and water 20909.28 2927.30 23836.58 160 l/p/m 105 to 150 l/p/m
trap (excluding cartridge)
IXCDA-0013 3A iAqua cartridge 4473.00 626.22 5099.22
IXIA-3ACAGE lockable cage for water trap 1933.58 270.70 2204.28
Replacement ½” 130 mm O/D water trap

IXIA-7A 7A iAquaMax™ vessel with stand and water 36074.84 5050.48 41125.32 350 l/p/m 150 to 200 l/p/m
trap (excluding cartridge)
IXCDA-0017 7A iAqua cartridge 7219.63 1010.75 8230.38 IXIA-1A IXIA-3A IXFL-0012

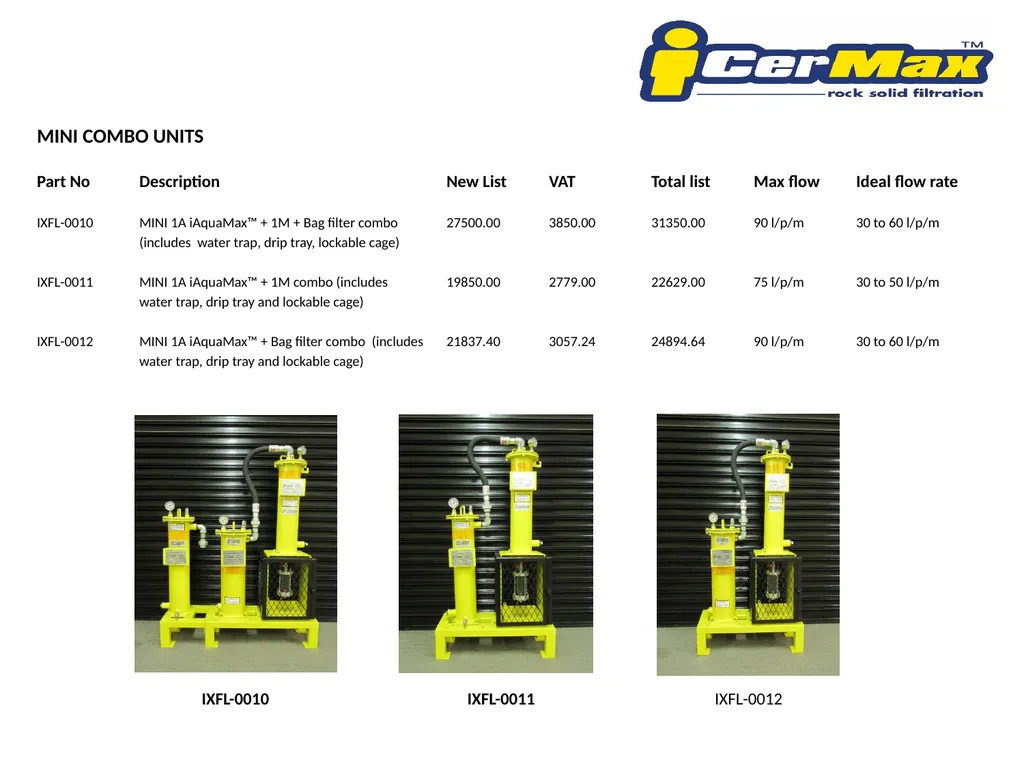

MINI COMBO UNITS

Part No Description New List VAT Total list Max flow Ideal flow rate

IXFL-0010 MINI 1A iAquaMax™ + 1M + Bag filter combo 27500.00 3850.00 31350.00 90 l/p/m 30 to 60 l/p/m
(includes water trap, drip tray, lockable cage)

IXFL-0011 MINI 1A iAquaMax™ + 1M combo (includes 19850.00 2779.00 22629.00 75 l/p/m 30 to 50 l/p/m
water trap, drip tray and lockable cage)

IXFL-0012 MINI 1A iAquaMax™ + Bag filter combo (includes 21837.40 3057.24 24894.64 90 l/p/m 30 to 60 l/p/m
water trap, drip tray and lockable cage) IXFL-0010 IXFL-0011 IXFL-0012

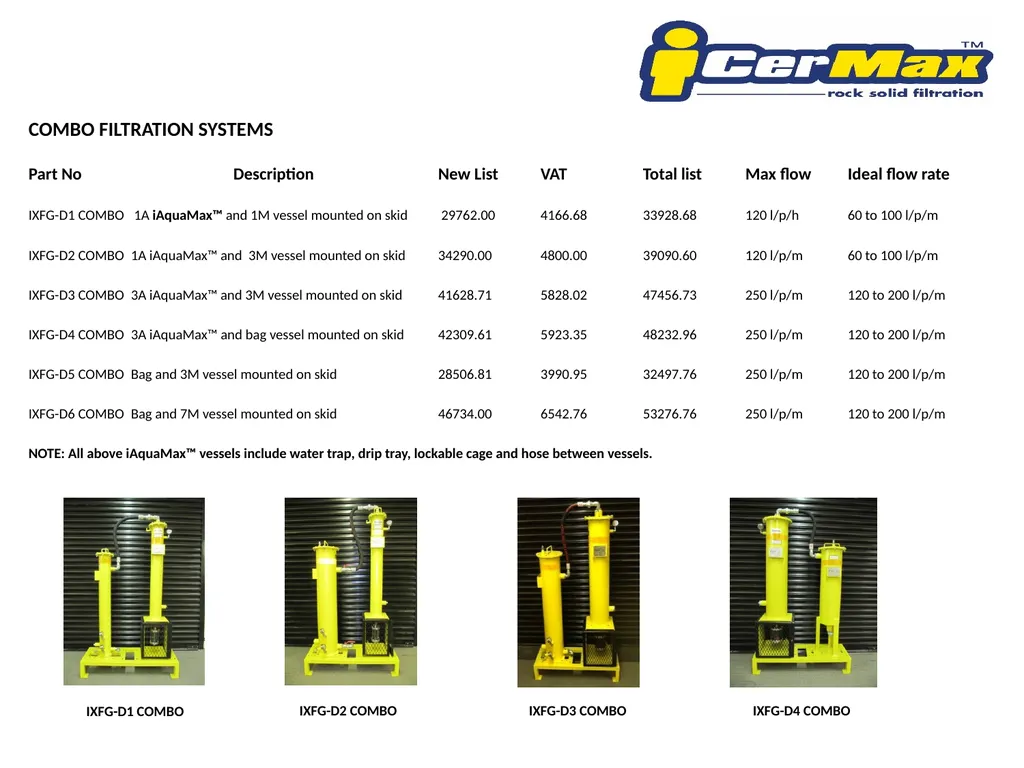

COMBO FILTRATION SYSTEMS

Part No Description New List VAT Total list Max flow Ideal flow rate

IXFG-D1 COMBO 1A iAquaMax™ and 1M vessel mounted on skid 29762.00 4166.68 33928.68 120 l/p/h 60 to 100 l/p/m

IXFG-D2 COMBO 1A iAquaMax™ and 3M vessel mounted on skid 34290.00 4800.00 39090.60 120 l/p/m 60 to 100 l/p/m

IXFG-D3 COMBO 3A iAquaMax™ and 3M vessel mounted on skid 41628.71 5828.02 47456.73 250 l/p/m 120 to 200 l/p/m

IXFG-D4 COMBO 3A iAquaMax™ and bag vessel mounted on skid 42309.61 5923.35 48232.96 250 l/p/m 120 to 200 l/p/m

IXFG-D5 COMBO Bag and 3M vessel mounted on skid 28506.81 3990.95 32497.76 250 l/p/m 120 to 200 l/p/m

IXFG-D6 COMBO Bag and 7M vessel mounted on skid 46734.00 6542.76 53276.76 250 l/p/m 120 to 200 l/p/m

NOTE: All above iAquaMax™ vessels include water trap, drip tray, lockable cage and hose between vessels. IXFG-D1 COMBO IXFG-D2 COMBO IXFG-D3 COMBO IXFG-D4 COMBO

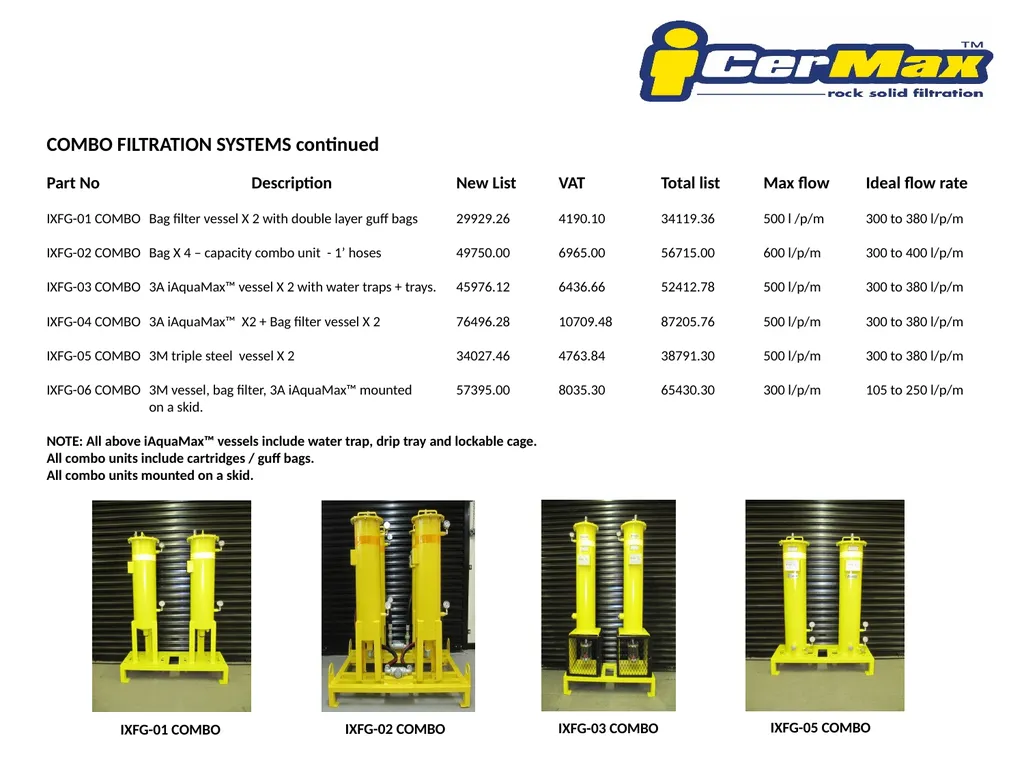

COMBO FILTRATION SYSTEMS continued

Part No Description New List VAT Total list Max flow Ideal flow rate

IXFG-01 COMBO Bag filter vessel X 2 with double layer guff bags 29929.26 4190.10 34119.36 500 l /p/m 300 to 380 l/p/m

IXFG-02 COMBO Bag X 4 – capacity combo unit - 1’ hoses 49750.00 6965.00 56715.00 600 l/p/m 300 to 400 l/p/m

IXFG-03 COMBO 3A iAquaMax™ vessel X 2 with water traps + trays. 45976.12 6436.66 52412.78 500 l/p/m 300 to 380 l/p/m

IXFG-04 COMBO 3A iAquaMax™ X2 + Bag filter vessel X 2 76496.28 10709.48 87205.76 500 l/p/m 300 to 380 l/p/m

IXFG-05 COMBO 3M triple steel vessel X 2 34027.46 4763.84 38791.30 500 l/p/m 300 to 380 l/p/m

IXFG-06 COMBO 3M vessel, bag filter, 3A iAquaMax™ mounted 57395.00 8035.30 65430.30 300 l/p/m 105 to 250 l/p/m
on a skid.

NOTE: All above iAquaMax™ vessels include water trap, drip tray and lockable cage.
All combo units include cartridges / guff bags.
All combo units mounted on a skid. IXFG-01 COMBO IXFG-02 COMBO IXFG-03 COMBO IXFG-05 COMBO

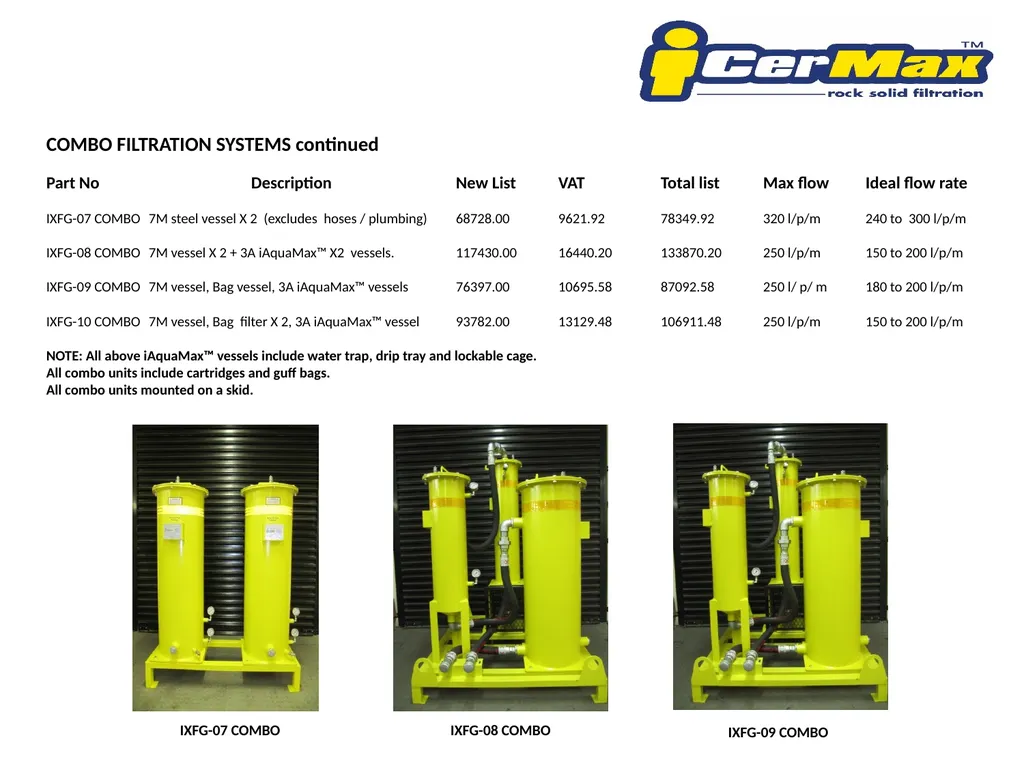

COMBO FILTRATION SYSTEMS continued

Part No Description New List VAT Total list Max flow Ideal flow rate

IXFG-07 COMBO 7M steel vessel X 2 (excludes hoses / plumbing) 68728.00 9621.92 78349.92 320 l/p/m 240 to 300 l/p/m

IXFG-08 COMBO 7M vessel X 2 + 3A iAquaMax™ X2 vessels. 117430.00 16440.20 133870.20 250 l/p/m 150 to 200 l/p/m

IXFG-09 COMBO 7M vessel, Bag vessel, 3A iAquaMax™ vessels 76397.00 10695.58 87092.58 250 l/ p/ m 180 to 200 l/p/m

IXFG-10 COMBO 7M vessel, Bag filter X 2, 3A iAquaMax™ vessel 93782.00 13129.48 106911.48 250 l/p/m 150 to 200 l/p/m

NOTE: All above iAquaMax™ vessels include water trap, drip tray and lockable cage.
All combo units include cartridges and guff bags.
All combo units mounted on a skid. IXFG-07 COMBO IXFG-09 COMBO IXFG-08 COMBO

SILICA GEL BREATHERS

Part No Description New List VAT Total list

TXP1 2000 litre bulk tank 1029.14 144.08 1173.22

TXP-1C Replacement pack for TXP1 breather 208.03 29.12 237.15

TXP4 16000 litre bulk tank 2333.63 326.71 2660.34

TXP-4C Replacement pack for TXP4 breather 865.44 121.16 986.60
TXP4 PLUMB Plumbing for installation of breather 716.09 100.25 816.34
TXP7 23000 litre bulk tank 3667.13 513.40 4180.53

TXP-7C Replacement pack for TXP7 breather 1109.47 155.33 1264.80

TXP7 PLUMB Plumbing for installation of breather 716.09 100.25 816.34

IXFG-A23 Velvet Coalesce air breather for 23000 tank 2513.65 351.91 2865.56

IXFG-A83 Velvet Coalesce air breather for 83000 tank 3333.75 466.73 3800.48 Installation of breather with reducer and one way valve TXP1 and TXP4

IXFDC - 0001 IXFDC - 0002 IXFDC - 0003 IXCDA-0014

Related Topics

Share

Embed code

Download this presentation From Below

Presentation Transcript
