slide1. Keep appetite for the stats, it costs nothing Presentation of the statistics consumption model in VPP from the costless low-level design to their exploitation in user space 6 February 2022 FOSDEM 2022 1 Arthur de Kerhor
arthurdekerhor@gmail.com Hedi Bouattour<br>

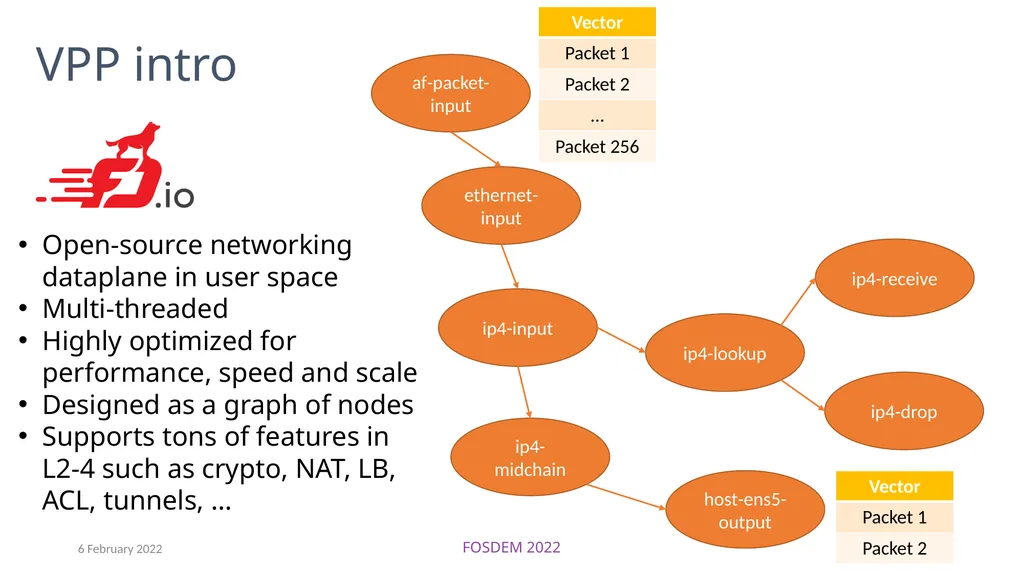

slide2. VPP intro af-packet-input ethernet-input ip4-input ip4-lookup ip4-receive ip4-drop ip4-midchain host-ens5-output Open-source networking dataplane in user space
Multi-threaded
Highly optimized for performance, speed and scale
Designed as a graph of nodes
Supports tons of features in L2-4 such as crypto, NAT, LB, ACL, tunnels, … 6 February 2022 FOSDEM 2022 2<br>

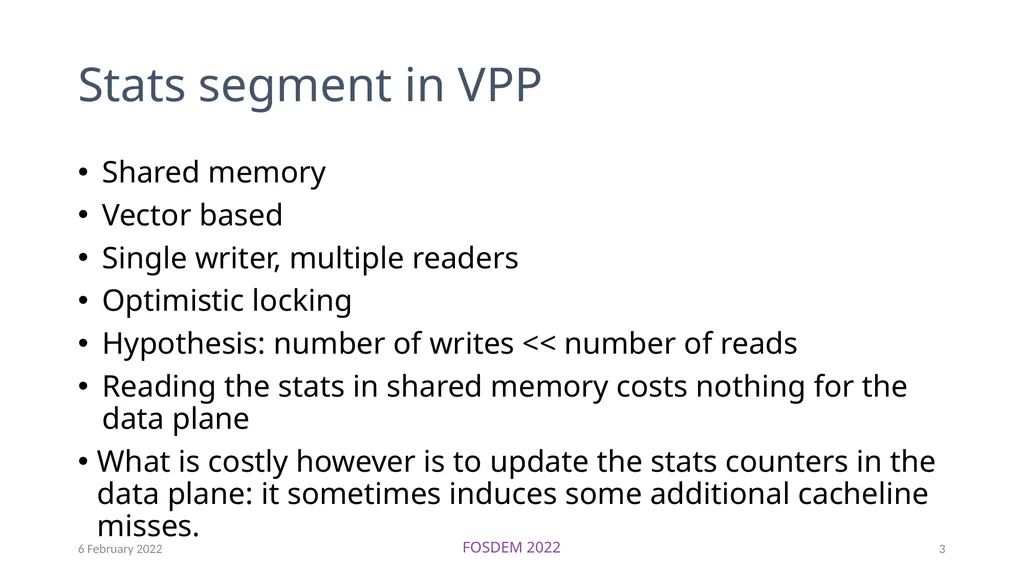

slide3. Stats segment in VPP Shared memory
Vector based
Single writer, multiple readers
Optimistic locking
Hypothesis: number of writes << number of reads
Reading the stats in shared memory costs nothing for the data plane
What is costly however is to update the stats counters in the data plane: it sometimes induces some additional cacheline misses. 6 February 2022 FOSDEM 2022 3<br>

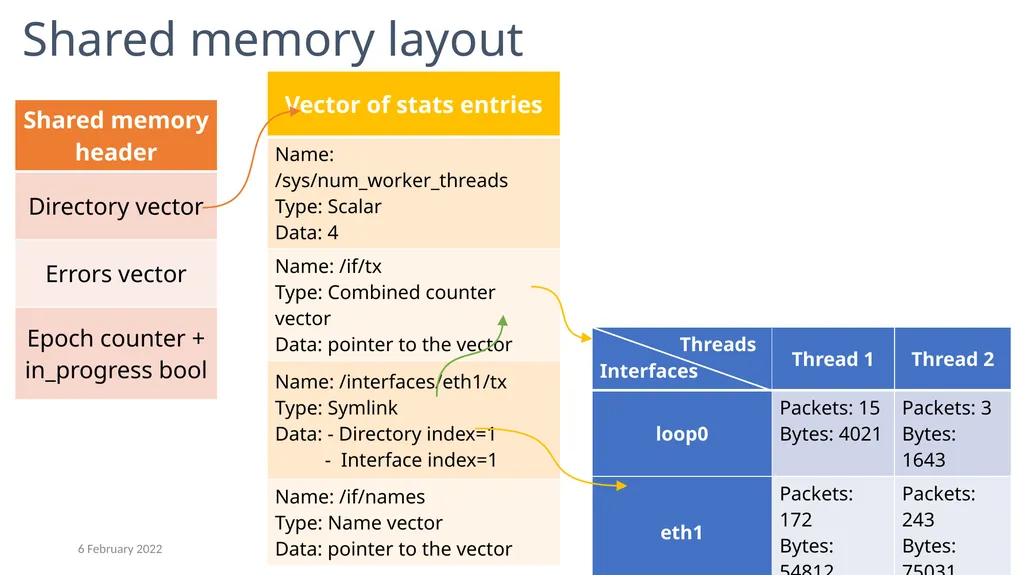

slide4. Shared memory layout 6 February 2022 FOSDEM 2022 4<br>

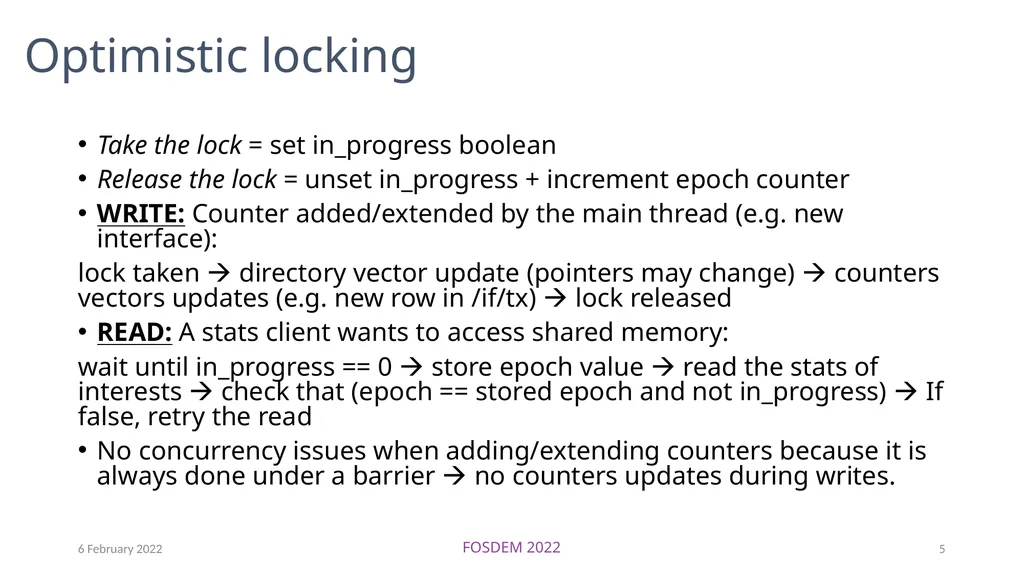

slide5. Optimistic locking Take the lock = set in_progress boolean
Release the lock = unset in_progress + increment epoch counter
WRITE: Counter added/extended by the main thread (e.g. new interface):
lock taken directory vector update (pointers may change) counters vectors updates (e.g. new row in /if/tx) lock released
READ: A stats client wants to access shared memory:
wait until in_progress == 0 store epoch value read the stats of interests check that (epoch == stored epoch and not in_progress) If false, retry the read
No concurrency issues when adding/extending counters because it is always done under a barrier no counters updates during writes. 6 February 2022 FOSDEM 2022 5<br>

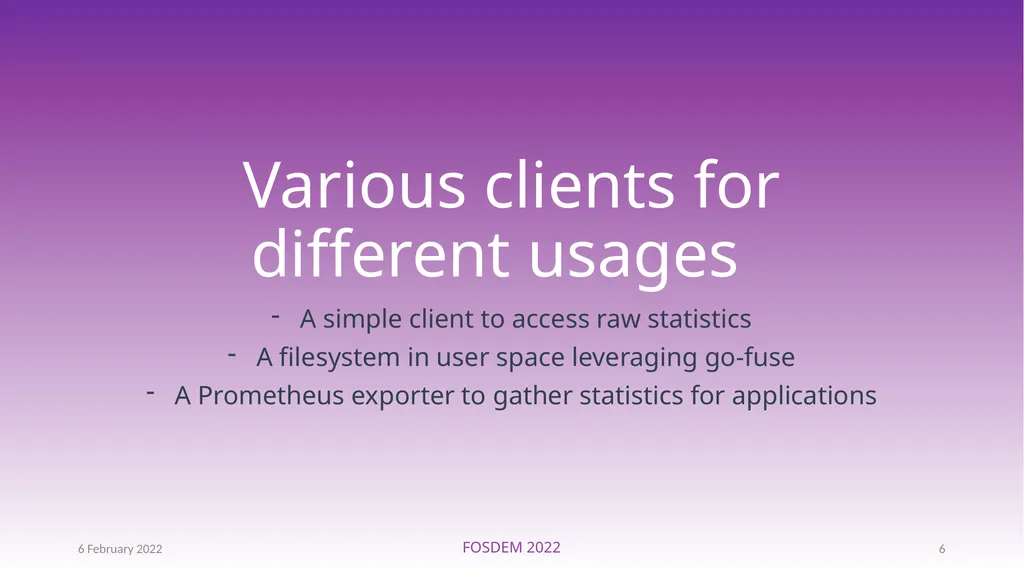

slide6. Various clients for different usages A simple client to access raw statistics
A filesystem in user space leveraging go-fuse
A Prometheus exporter to gather statistics for applications 6 February 2022 FOSDEM 2022 6<br>

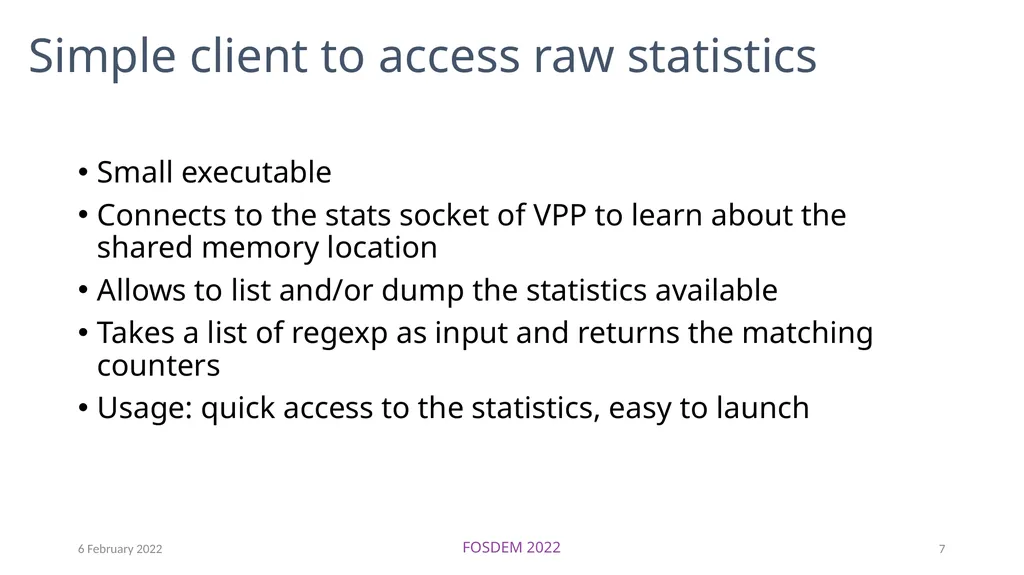

slide7. Simple client to access raw statistics Small executable
Connects to the stats socket of VPP to learn about the shared memory location
Allows to list and/or dump the statistics available
Takes a list of regexp as input and returns the matching counters
Usage: quick access to the statistics, easy to launch 6 February 2022 FOSDEM 2022 7<br>

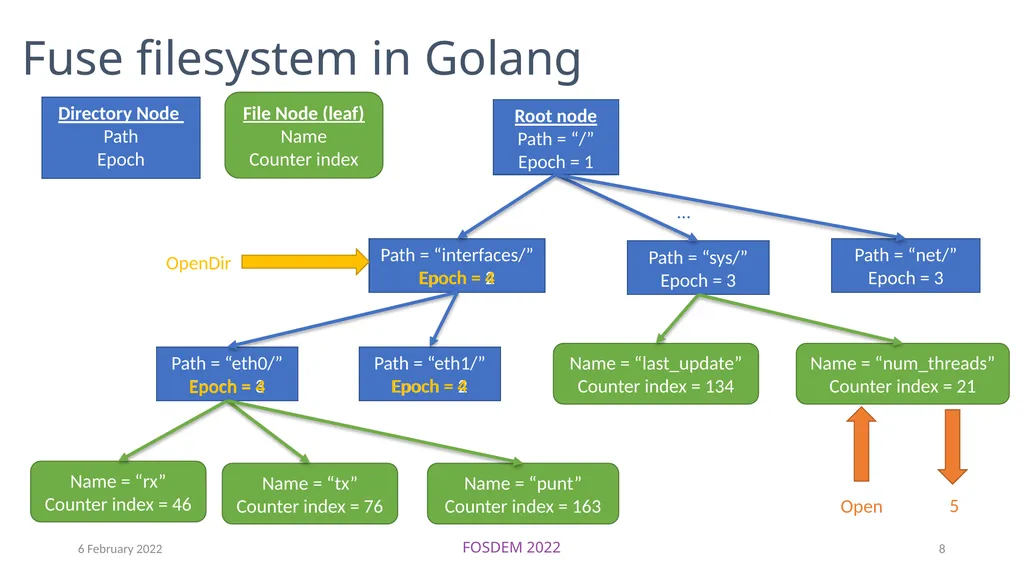

slide8. Fuse filesystem in Golang Directory Node
Path
Epoch File Node (leaf)
Name
Counter index Root node
Path = “/”
Epoch = 1 Path = “interfaces/”
Epoch = 2 Path = “sys/”
Epoch = 3 Path = “net/”
Epoch = 3 Path = “eth0/”
Epoch = 3 Path = “eth1/”
Epoch = 2 Name = “last_update”
Counter index = 134 Name = “rx”
Counter index = 46 Name = “tx”
Counter index = 76 Name = “num_threads”
Counter index = 21 … OpenDir Open 5 Name = “punt”
Counter index = 163 Epoch = 4 Epoch = 4 Epoch = 4 6 February 2022 FOSDEM 2022 8<br>
slide9. Demo! 6 February 2022 FOSDEM 2022 9<br>

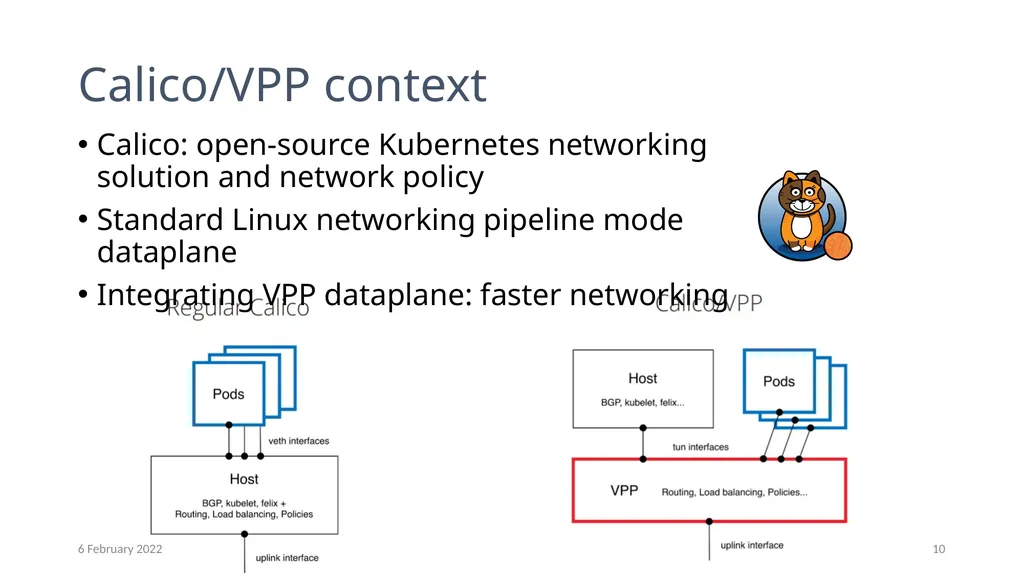

slide10. Calico/VPP context 6 February 2022 FOSDEM 2022 10 Calico: open-source Kubernetes networking solution and network policy
Standard Linux networking pipeline mode dataplane
Integrating VPP dataplane: faster networking<br>

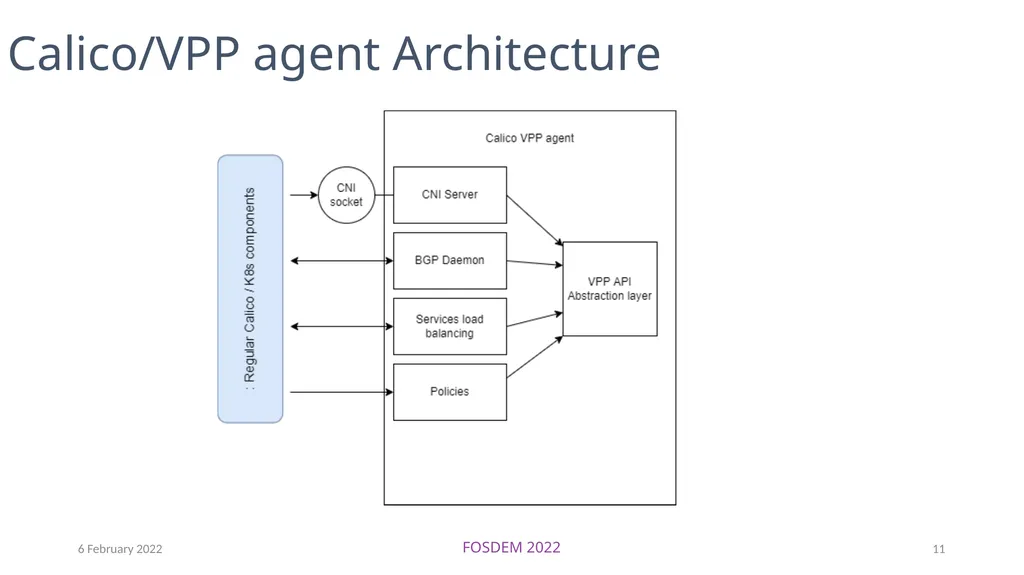

slide11. 6 February 2022 FOSDEM 2022 11 Calico/VPP agent Architecture<br>

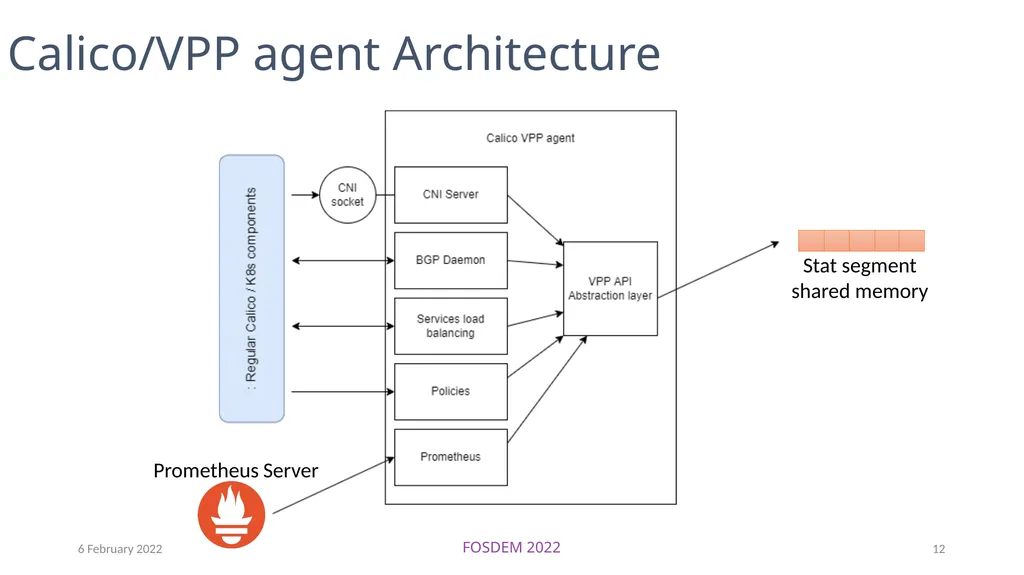

slide12. 6 February 2022 FOSDEM 2022 12 Calico/VPP agent Architecture Stat segment shared memory Prometheus Server<br>

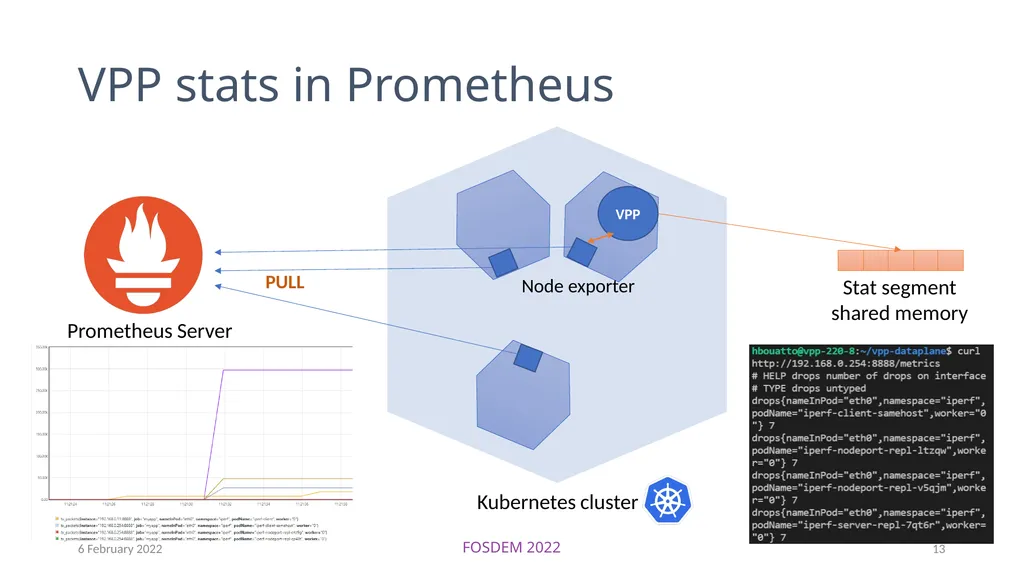

slide13. VPP stats in Prometheus 6 February 2022 FOSDEM 2022 13 Prometheus Server PULL Stat segment shared memory Kubernetes cluster Node exporter VPP<br>
slide14. Demo! 6 February 2022 FOSDEM 2022 14<br>
slide15. Q&A session 6 February 2022 FOSDEM 2022 15<br>
