slide1. Lesson 8.4 Proportionality Theorems<br>

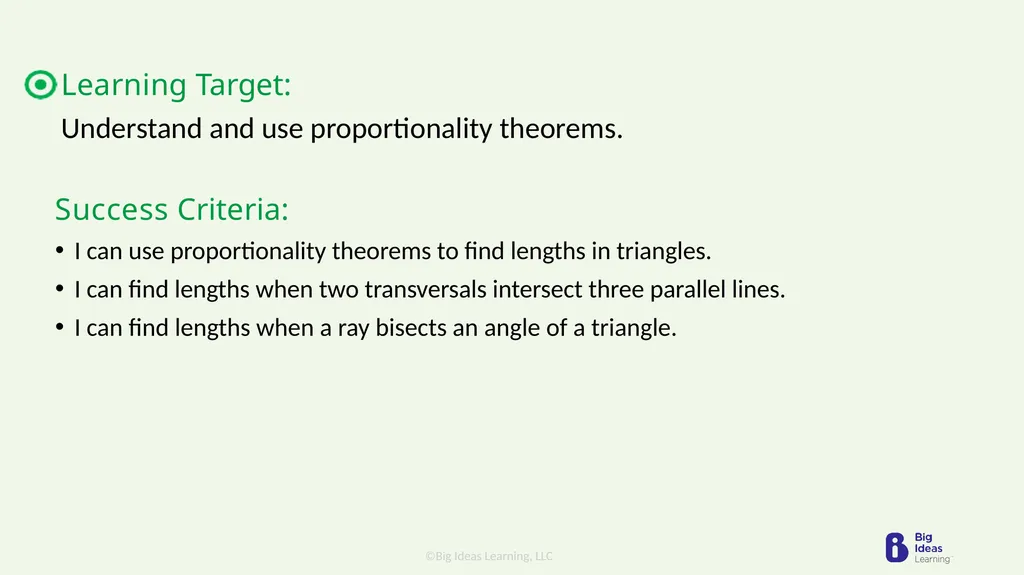

slide2. Learning Target:
Understand and use proportionality theorems. Success Criteria:
I can use proportionality theorems to find lengths in triangles.
I can find lengths when two transversals intersect three parallel lines.
I can find lengths when a ray bisects an angle of a triangle.<br>

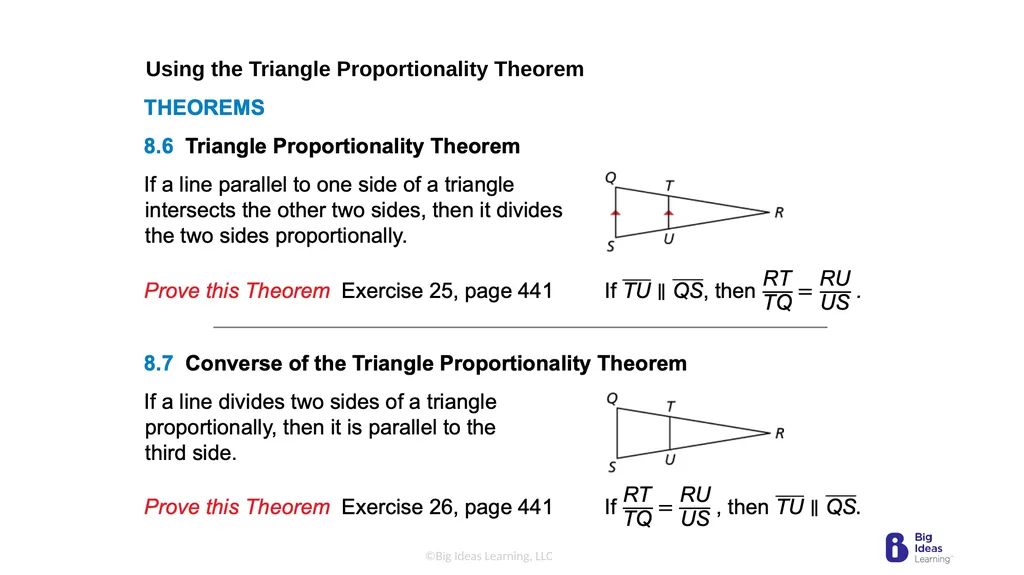

slide3. Using the Triangle Proportionality Theorem<br>
slide4. Example 1 Finding the Length of a Segment Triangle Proportionality Theorem Substitute. Multiply each side by 9. SOLUTION Find the length of RQ.<br>

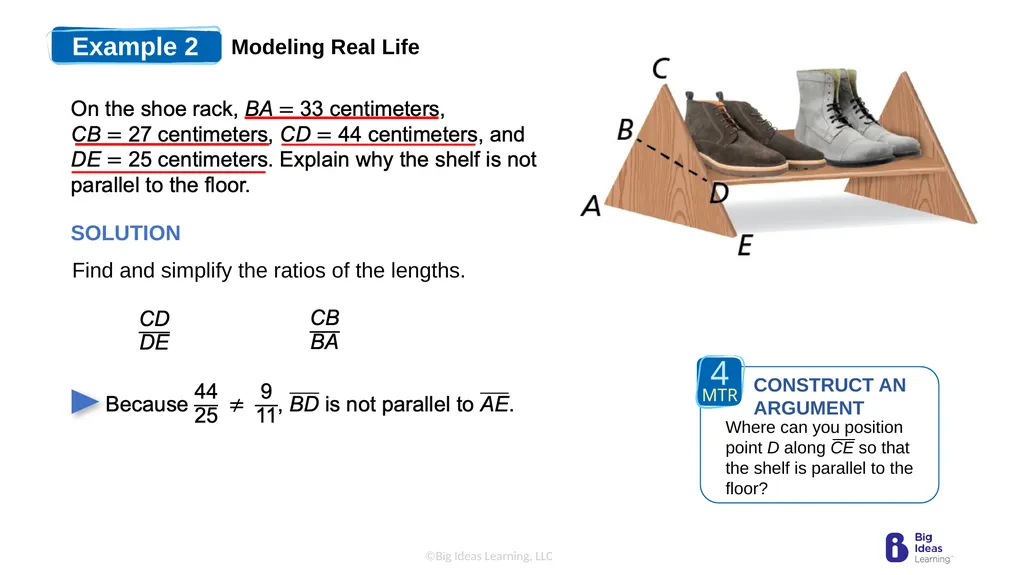

slide6. Example 2 Modeling Real Life Find and simplify the ratios of the lengths. SOLUTION<br>

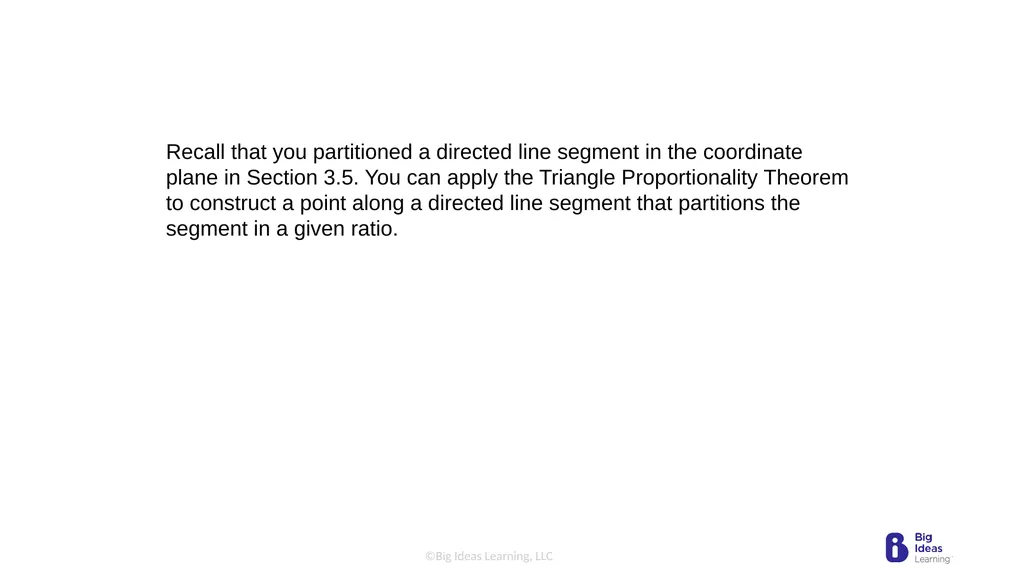

slide7. Recall that you partitioned a directed line segment in the coordinate plane in Section 3.5. You can apply the Triangle Proportionality Theorem to construct a point along a directed line segment that partitions the segment in a given ratio.<br>

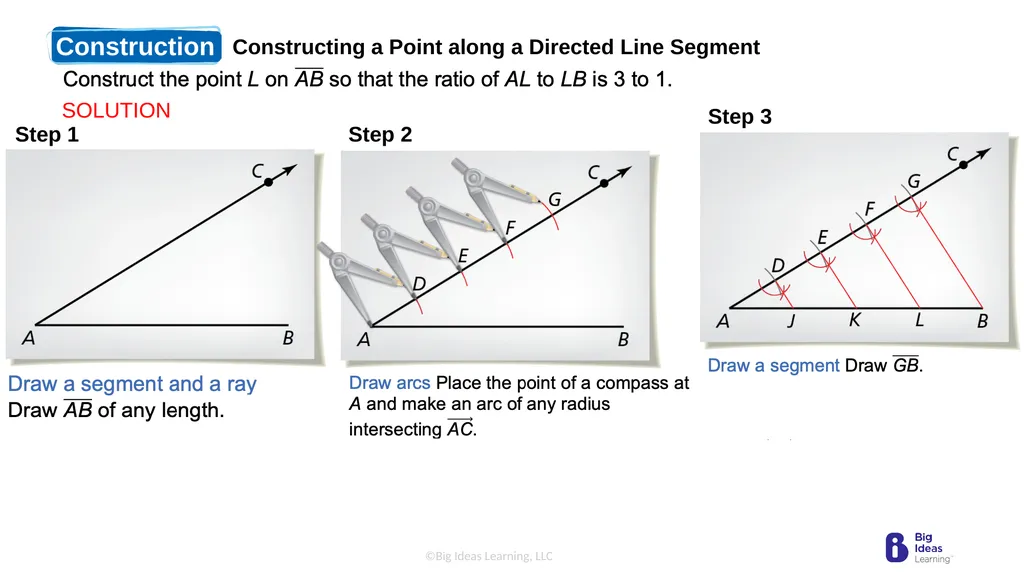

slide8. Construction Constructing a Point along a Directed Line Segment SOLUTION Step 1 Step 2 Step 3<br>

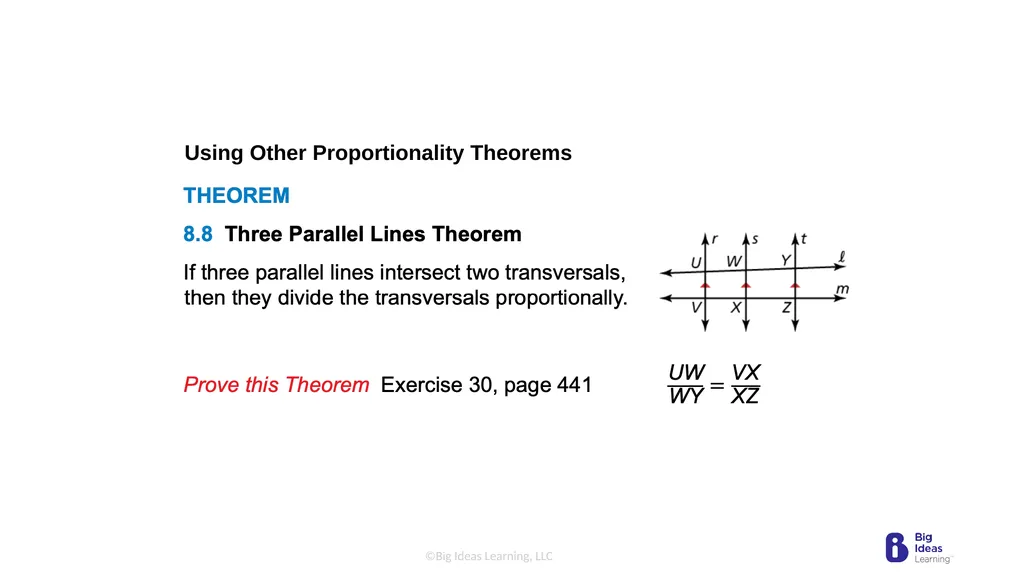

slide9. Using Other Proportionality Theorems<br>
slide10. Example 3 Using the Three Parallel Lines Theorem Find the distance HF between Main Street and South Main Street. Method 1 Use the Three Parallel Lines Theorem to write a proportion. Three Parallel Lines Theorem Substitute. Multiply each side by 120. So, the distance between Main Street and South Main Street is 360 yards. SOLUTION<br>
slide11. Example 3 Using the Three Parallel Lines Theorem Method 2 Write a proportion involving total and partial distances. Step 1 Make a table to compare the distances. Step 2 Write and solve a proportion. Write proportion. Multiply each side by 120. So, the distance between Main Street and South Main Street is 360 yards.<br>
slide13. Example 4 Using the Triangle Angle Bisector Theorem Triangle Angle Bisector Theorem Substitute. Cross Products Property Solve for x. SOLUTION<br>
