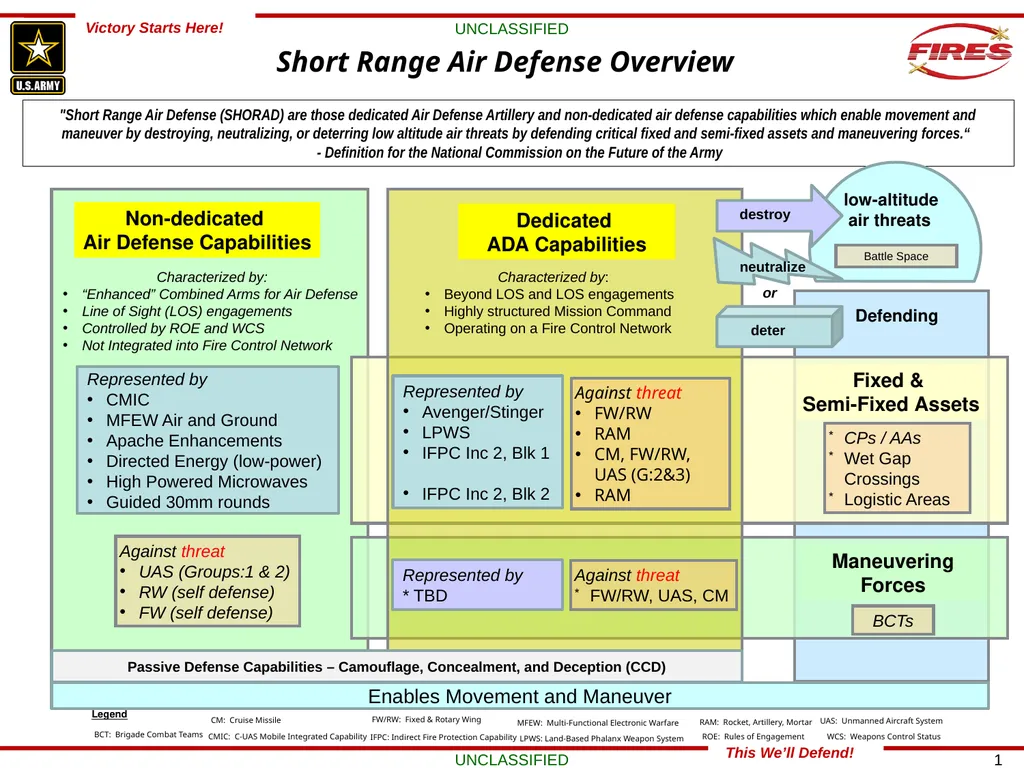

slide1. "Short Range Air Defense (SHORAD) are those dedicated Air Defense Artillery and non-dedicated air defense capabilities which enable movement and maneuver by destroying, neutralizing, or deterring low altitude air threats by defending critical fixed and semi-fixed assets and maneuvering forces.“
- Definition for the National Commission on the Future of the Army Non-dedicated
Air Defense Capabilities Characterized by:
“Enhanced” Combined Arms for Air Defense
Line of Sight (LOS) engagements
Controlled by ROE and WCS
Not Integrated into Fire Control Network Defending Enables Movement and Maneuver Short Range Air Defense Overview Dedicated
ADA Capabilities Characterized by:
Beyond LOS and LOS engagements
Highly structured Mission Command
Operating on a Fire Control Network CPs / AAs
Wet Gap Crossings
Logistic Areas BCTs Passive Defense Capabilities – Camouflage, Concealment, and Deception (CCD) UNCLASSIFIED UNCLASSIFIED Fixed &
Semi-Fixed Assets Maneuvering Forces Represented by
Avenger/Stinger
LPWS
IFPC Inc 2, Blk 1
IFPC Inc 2, Blk 2 Against threat
FW/RW
RAM
CM, FW/RW, UAS (G:2&3)
RAM Against threat
FW/RW, UAS, CM Represented by
* TBD Represented by
CMIC
MFEW Air and Ground
Apache Enhancements
Directed Energy (low-power)
High Powered Microwaves
Guided 30mm rounds Against threat
UAS (Groups:1 & 2)
RW (self defense)
FW (self defense)<br>
