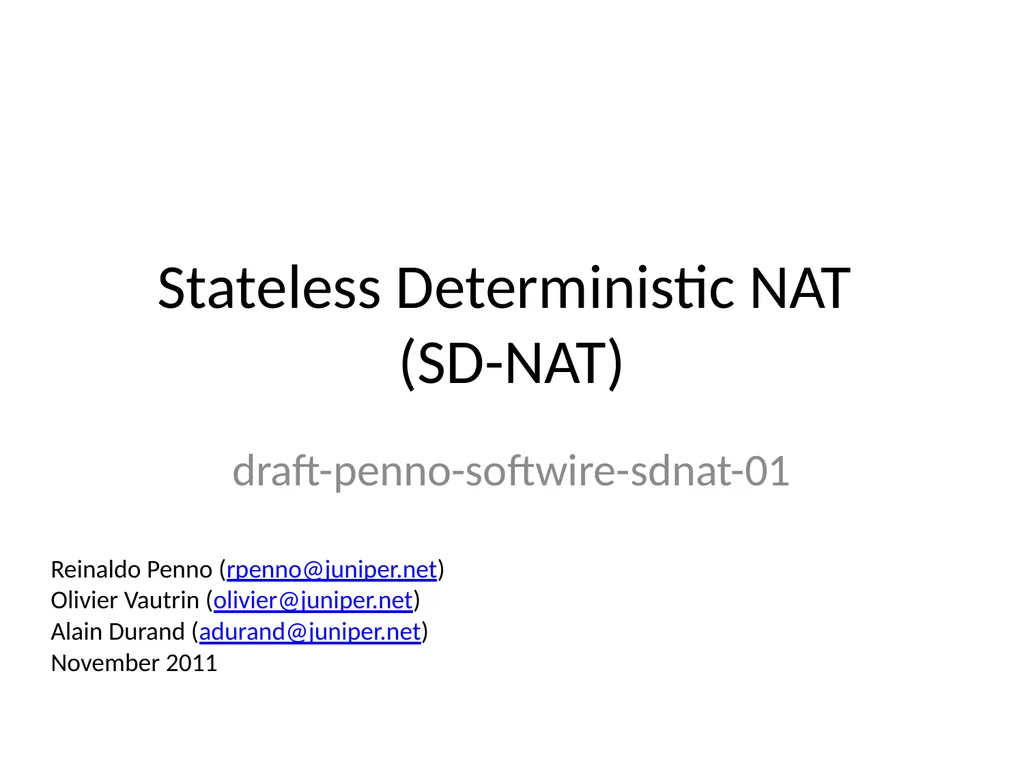

slide1. Stateless Deterministic NAT (SD-NAT) draft-penno-softwire-sdnat-01 Reinaldo Penno (rpenno@juniper.net)
Olivier Vautrin (olivier@juniper.net)
Alain Durand (adurand@juniper.net)
November 2011<br>

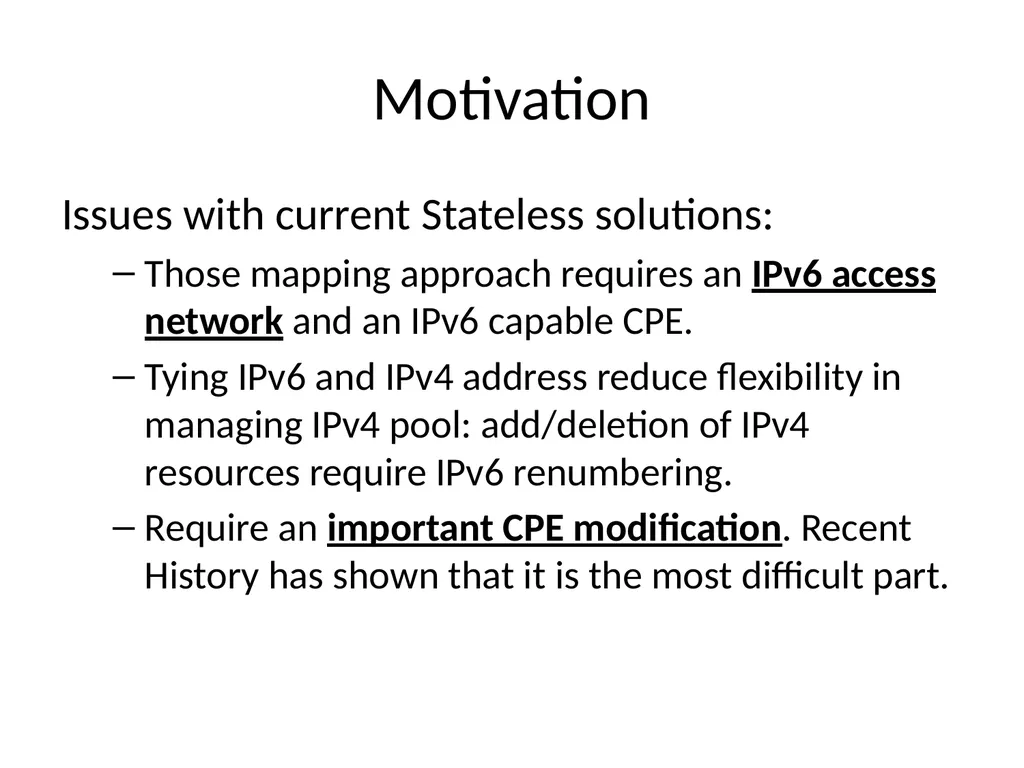

slide2. Motivation Issues with current Stateless solutions:
Those mapping approach requires an IPv6 access network and an IPv6 capable CPE.
Tying IPv6 and IPv4 address reduce flexibility in managing IPv4 pool: add/deletion of IPv4 resources require IPv6 renumbering.
Require an important CPE modification. Recent History has shown that it is the most difficult part.<br>

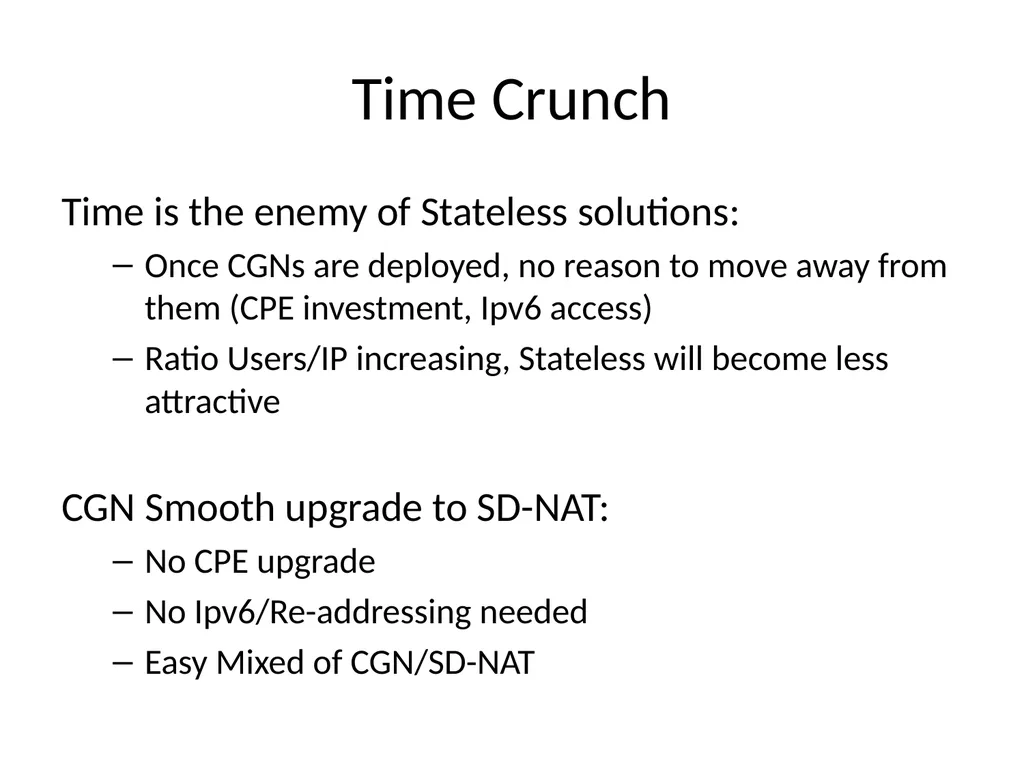

slide3. Time Crunch Time is the enemy of Stateless solutions:
Once CGNs are deployed, no reason to move away from them (CPE investment, Ipv6 access)
Ratio Users/IP increasing, Stateless will become less attractive
CGN Smooth upgrade to SD-NAT:
No CPE upgrade
No Ipv6/Re-addressing needed
Easy Mixed of CGN/SD-NAT<br>

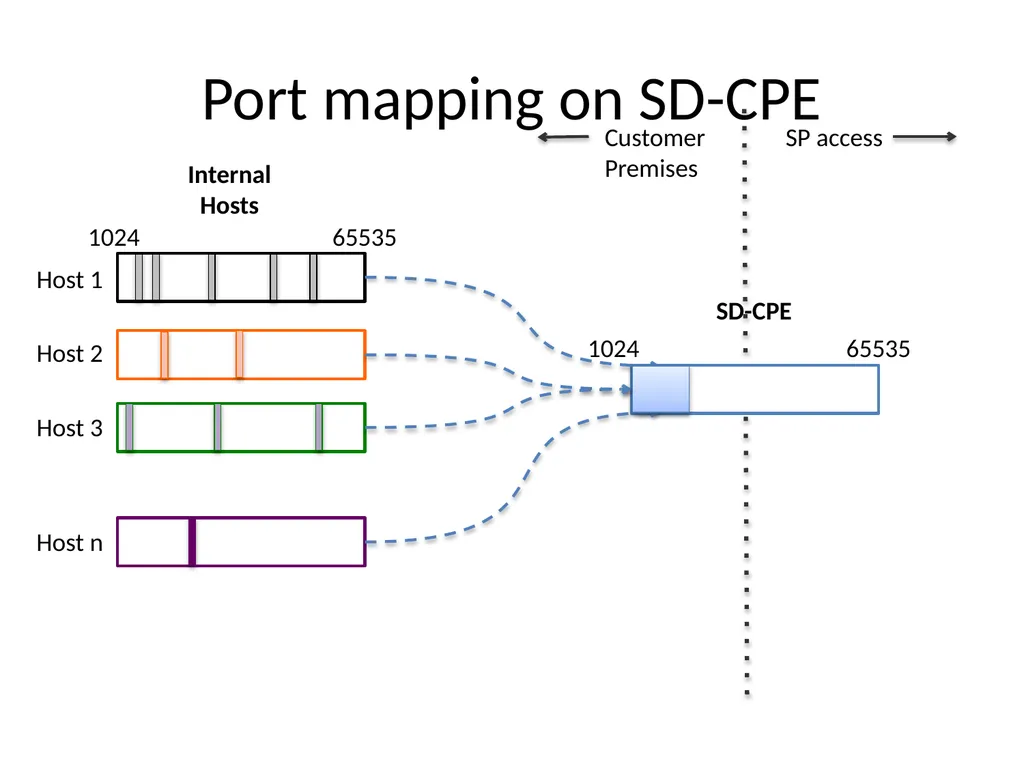

slide4. SP access Customer Premises Port mapping on SD-CPE 1024 65535 Host 1 Host 2 Host 3 Host n 1024 65535 Internal Hosts SD-CPE<br>

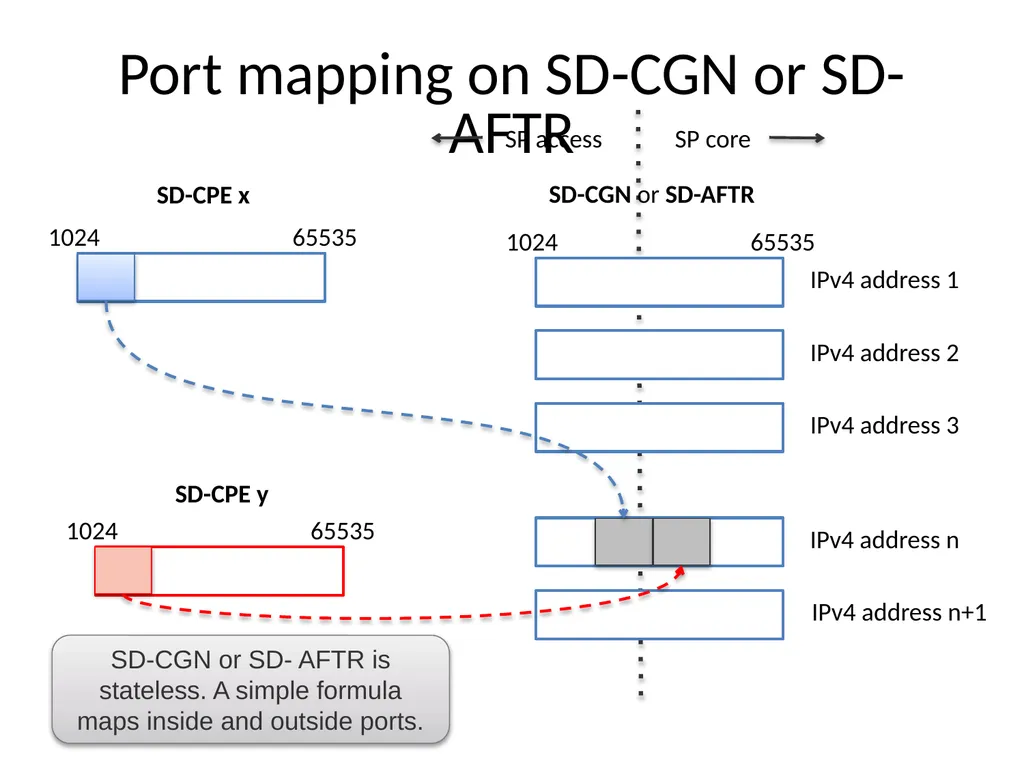

slide5. Port mapping on SD-CGN or SD-AFTR 1024 65535 IPv4 address 1 IPv4 address 2 IPv4 address 3 IPv4 address n IPv4 address n+1 1024 65535 SD-CPE x SD-CGN or SD-AFTR 1024 65535 SD-CPE y SD-CGN or SD- AFTR is stateless. A simple formula maps inside and outside ports. SP core SP access<br>

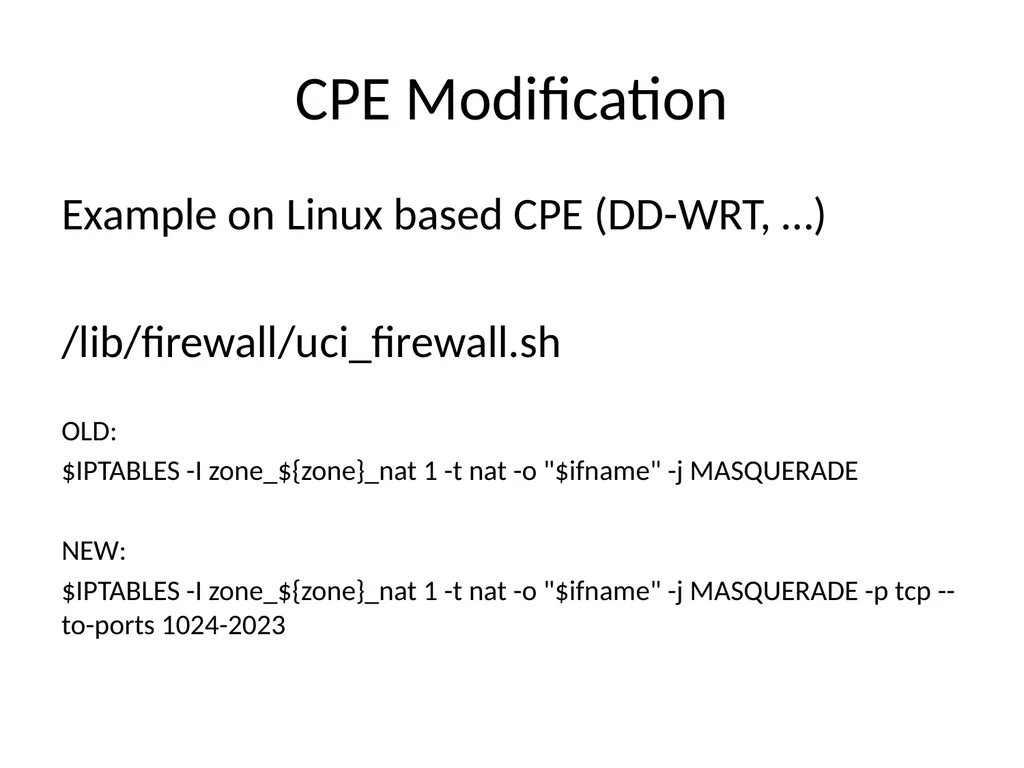

slide6. CPE Modification Example on Linux based CPE (DD-WRT, …)
/lib/firewall/uci_firewall.sh
OLD:
$IPTABLES -I zone_${zone}_nat 1 -t nat -o "$ifname" -j MASQUERADE
NEW:
$IPTABLES -I zone_${zone}_nat 1 -t nat -o "$ifname" -j MASQUERADE -p tcp --to-ports 1024-2023<br>

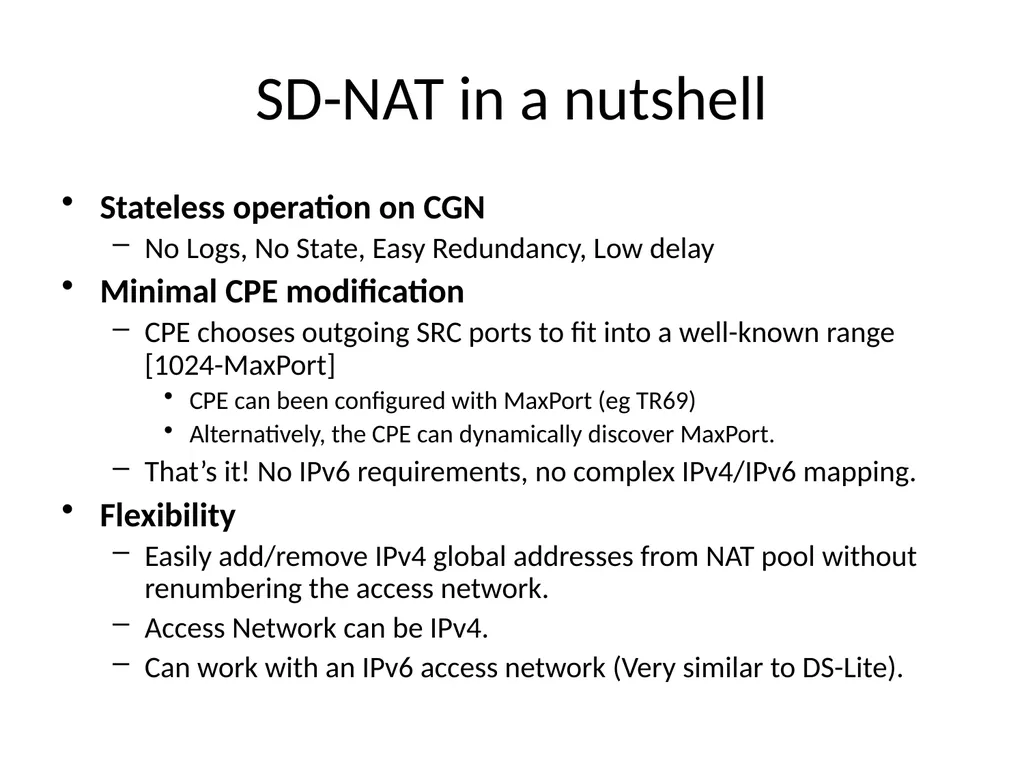

slide7. SD-NAT in a nutshell Stateless operation on CGN
No Logs, No State, Easy Redundancy, Low delay
Minimal CPE modification
CPE chooses outgoing SRC ports to fit into a well-known range [1024-MaxPort]
CPE can been configured with MaxPort (eg TR69)
Alternatively, the CPE can dynamically discover MaxPort.
That’s it! No IPv6 requirements, no complex IPv4/IPv6 mapping.
Flexibility
Easily add/remove IPv4 global addresses from NAT pool without renumbering the access network.
Access Network can be IPv4.
Can work with an IPv6 access network (Very similar to DS-Lite).<br>
slide8. Time Crunch Time is the enemy of Stateless solutions:
Once CGNs are deployed, no reason to move away from them (CPE investment, Ipv6 access)
Ratio Users/IP increasing, Stateless will become less attractive
CGN Smooth upgrade to SD-NAT:
No CPE upgrade
No Ipv6/Re-addressing needed
Easy Mixed of CGN/SD-NAT<br>
slide9. Thank you Questions?<br>
