Presentation Transcript
01
Visualization of energy flows in PVT systems Template and Examples A companion document of Report D4 of Task 60 DOI: A visualization scheme for the uniform representation of combined electrical and thermal energy flows in PVT systems
Danny Jonas<br>
02

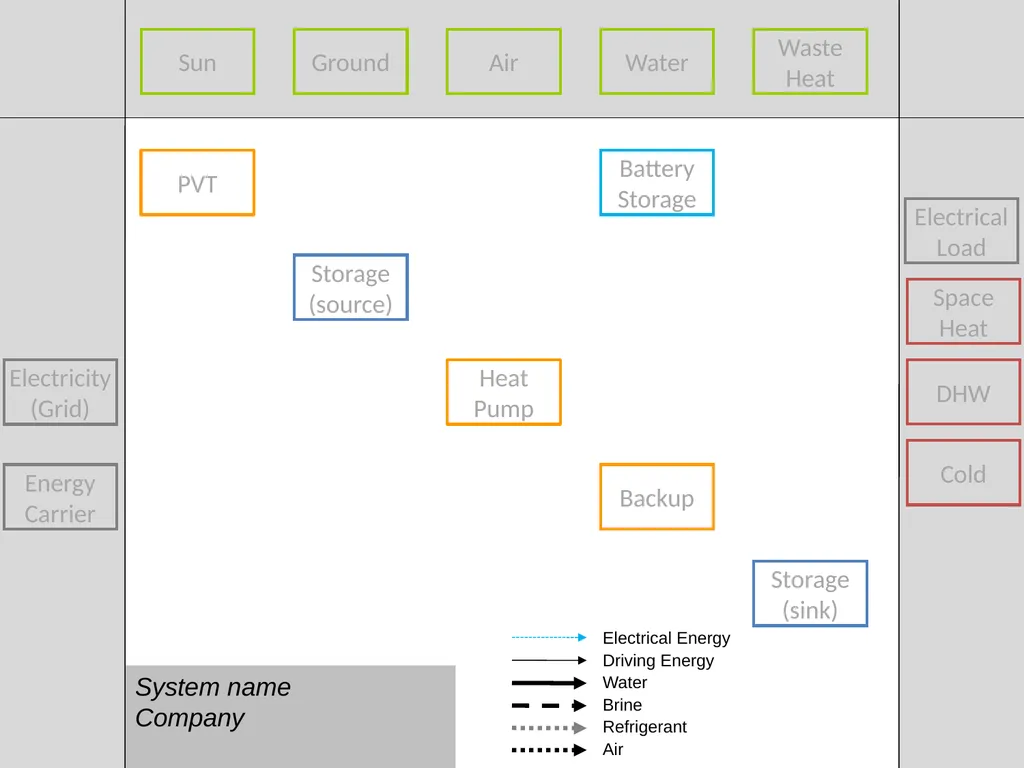

System name
Company Heat Pump Air Water Ground Storage (source) Storage (sink) Space Heat DHW Waste Heat Sun Backup Cold Energy Carrier PVT Battery Storage Electrical Load Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air Electricity
(Grid)<br>
03

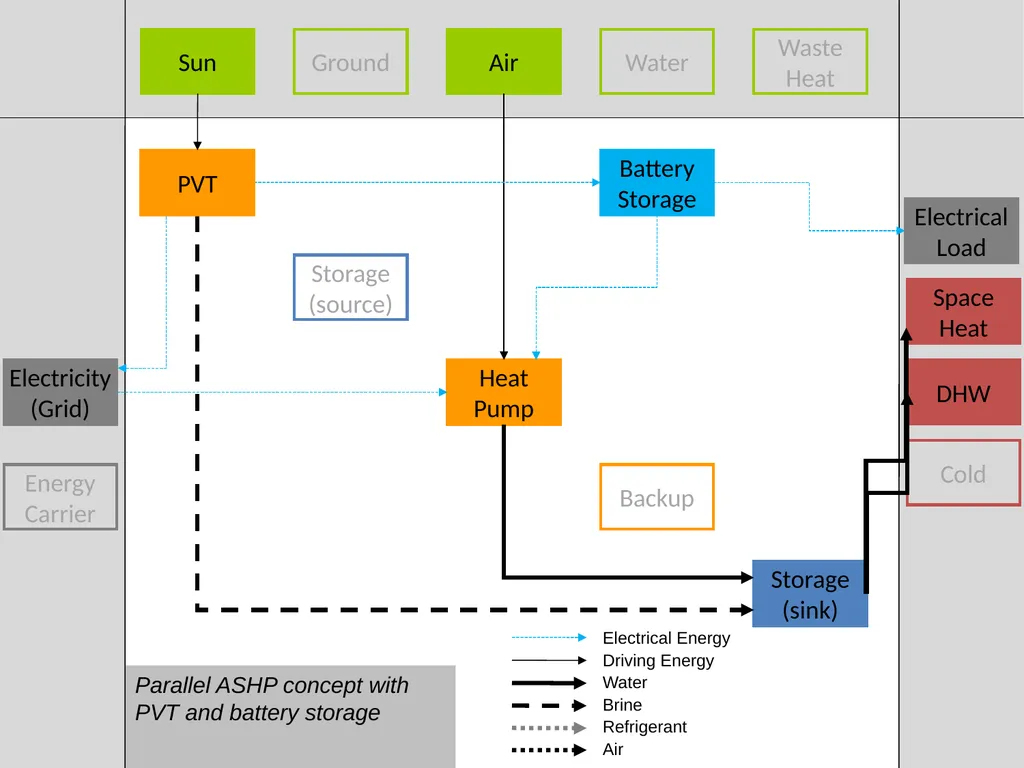

Parallel ASHP concept with PVT and battery storage Heat Pump Air Water Ground Storage (source) Storage (sink) Space Heat DHW Waste Heat Sun Backup Cold Energy Carrier Battery Storage Electrical Load Electricity
(Grid) PVT Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air<br>
04

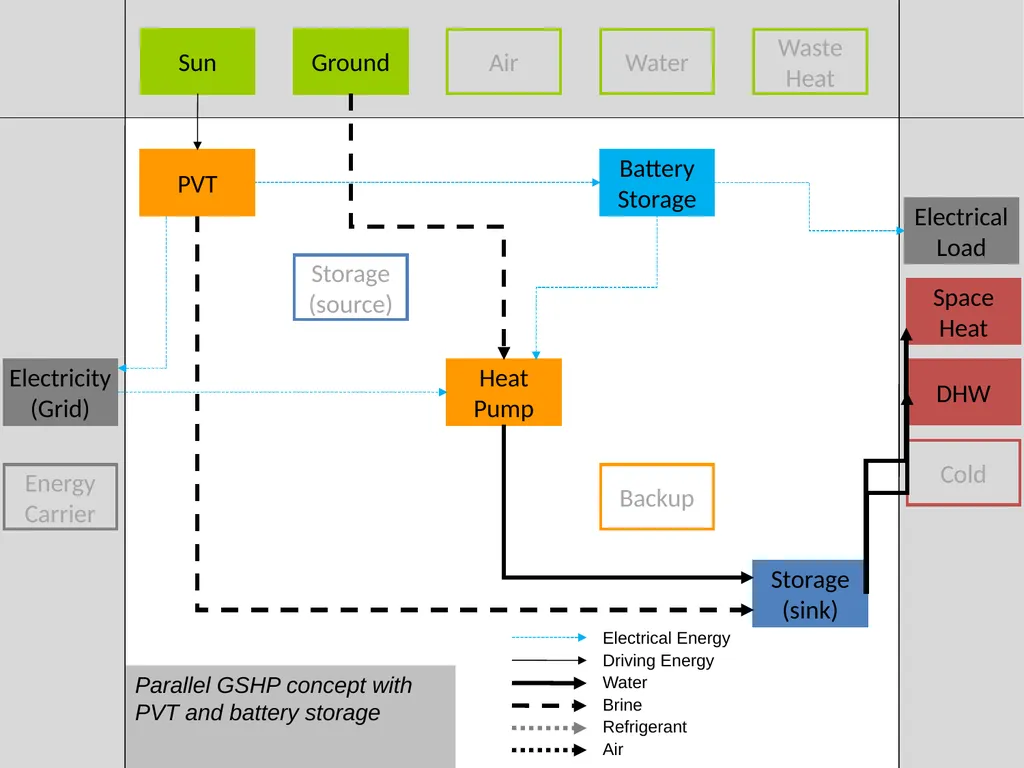

Parallel GSHP concept with PVT and battery storage Heat Pump Air Water Ground Storage (source) Storage (sink) Space Heat DHW Waste Heat Sun Backup Cold Energy Carrier Battery Storage Electrical Load Electricity
(Grid) PVT Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air<br>
05

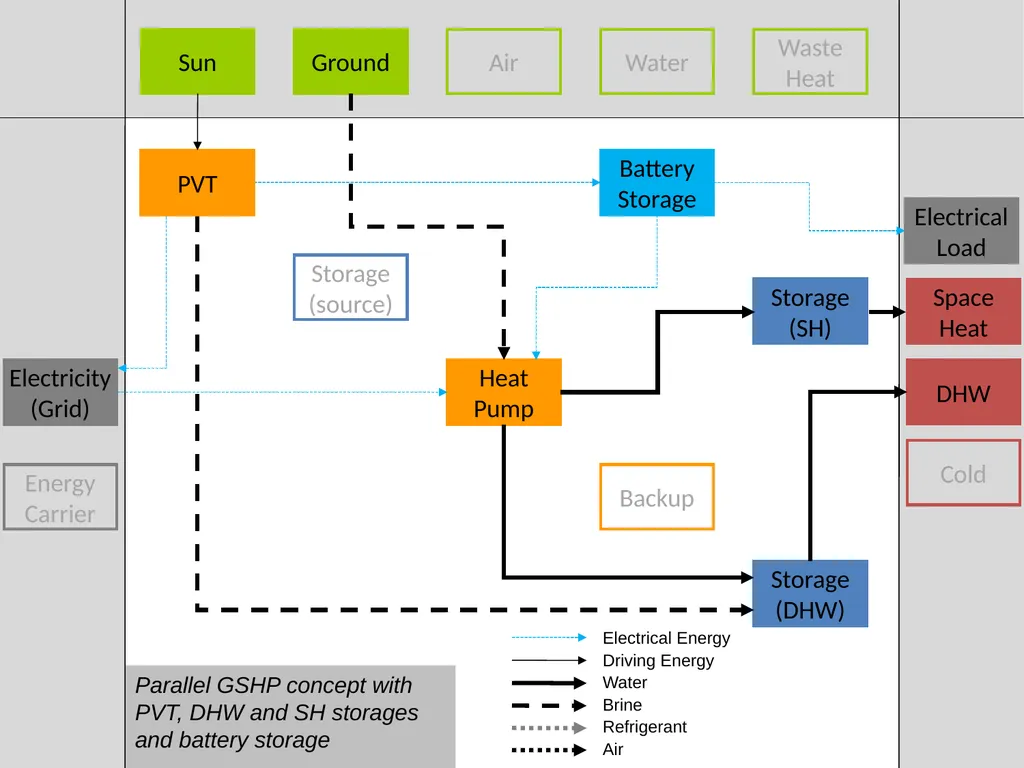

Parallel GSHP concept with PVT, DHW and SH storages and battery storage Heat Pump Air Water Ground Storage (source) Storage (DHW) Space Heat DHW Waste Heat Sun Backup Cold Energy Carrier Battery Storage Electrical Load Electricity
(Grid) PVT Storage (SH) Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air<br>
06

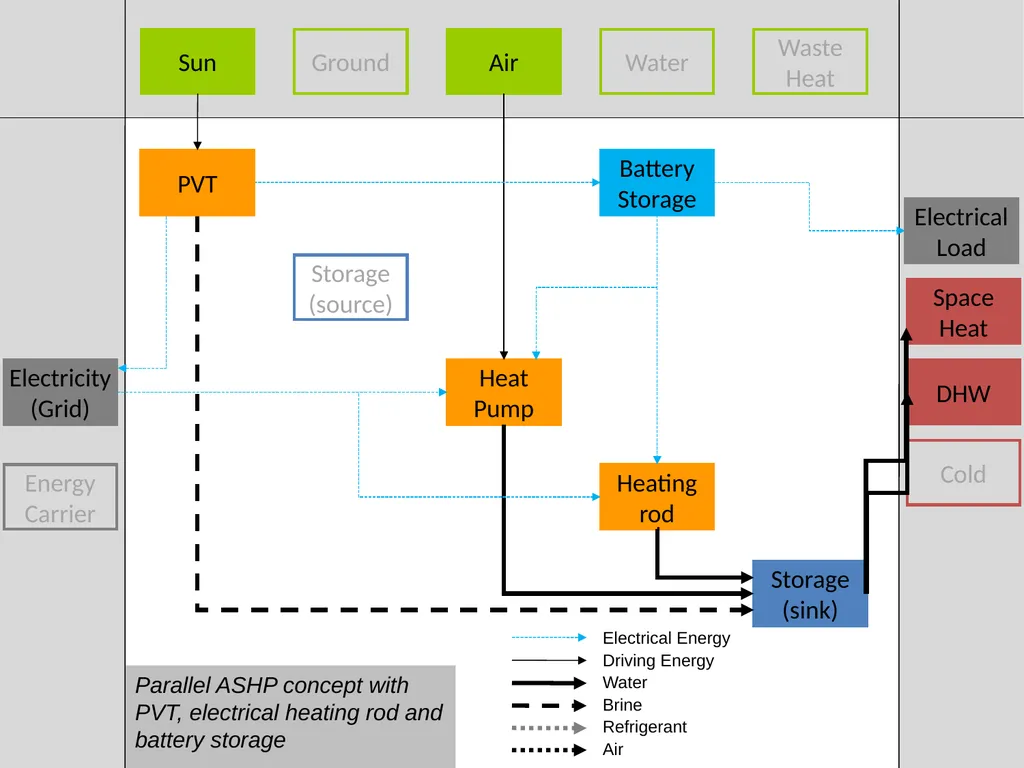

Parallel ASHP concept with PVT, electrical heating rod and battery storage Heat Pump Air Water Ground Storage (source) Storage (sink) Space Heat DHW Waste Heat Sun Heating rod Cold Energy Carrier Battery Storage Electrical Load Electricity
(Grid) PVT Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air<br>
07

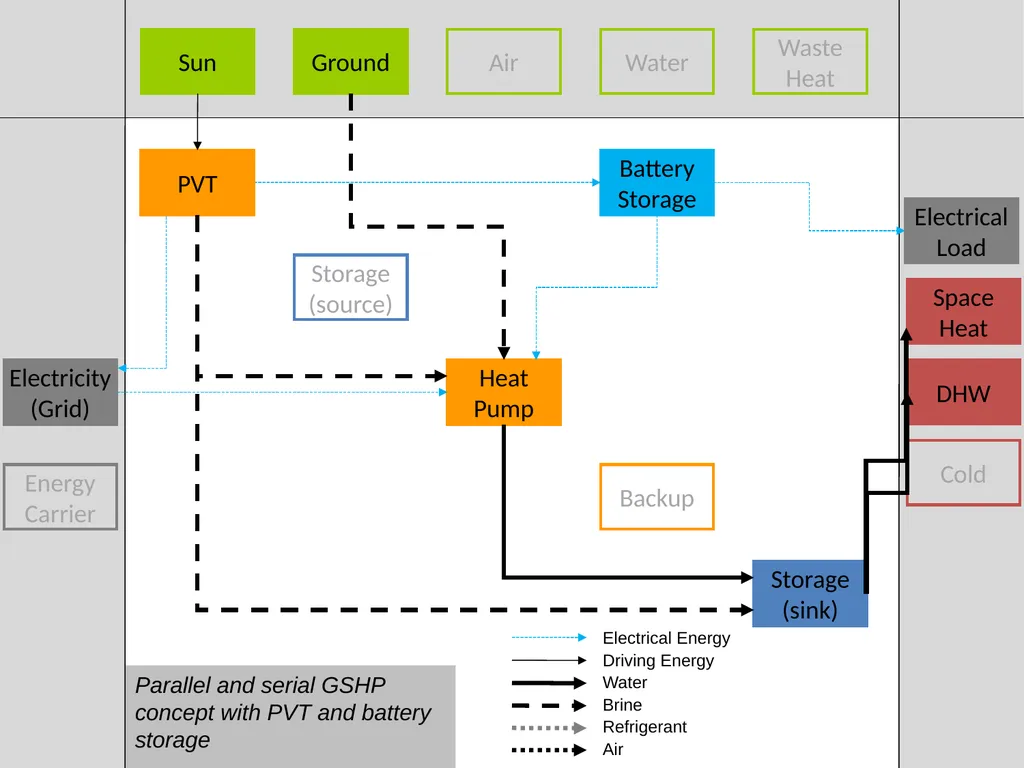

Parallel and serial GSHP concept with PVT and battery storage Heat Pump Air Water Ground Storage (source) Storage (sink) Space Heat DHW Waste Heat Sun Backup Cold Energy Carrier Battery Storage Electrical Load Electricity
(Grid) PVT Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air<br>
08

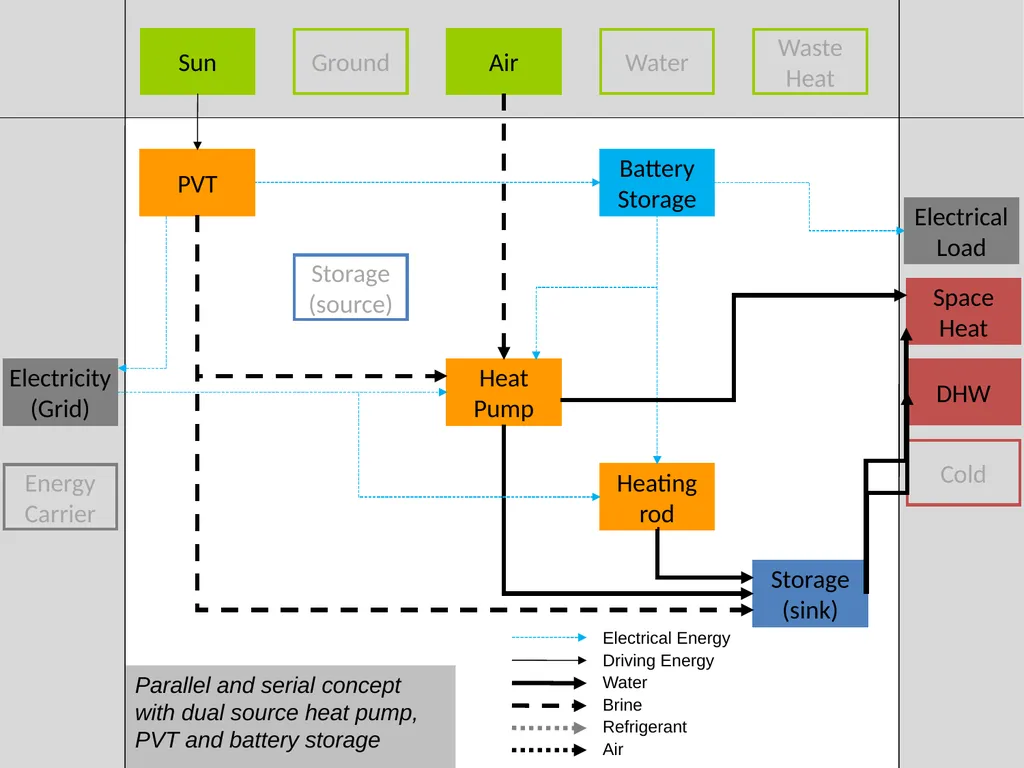

Parallel and serial concept with dual source heat pump, PVT and battery storage Heat Pump Air Water Ground Storage (source) Storage (sink) Space Heat DHW Waste Heat Sun Heating rod Cold Energy Carrier Battery Storage Electrical Load Electricity
(Grid) PVT Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air<br>
09

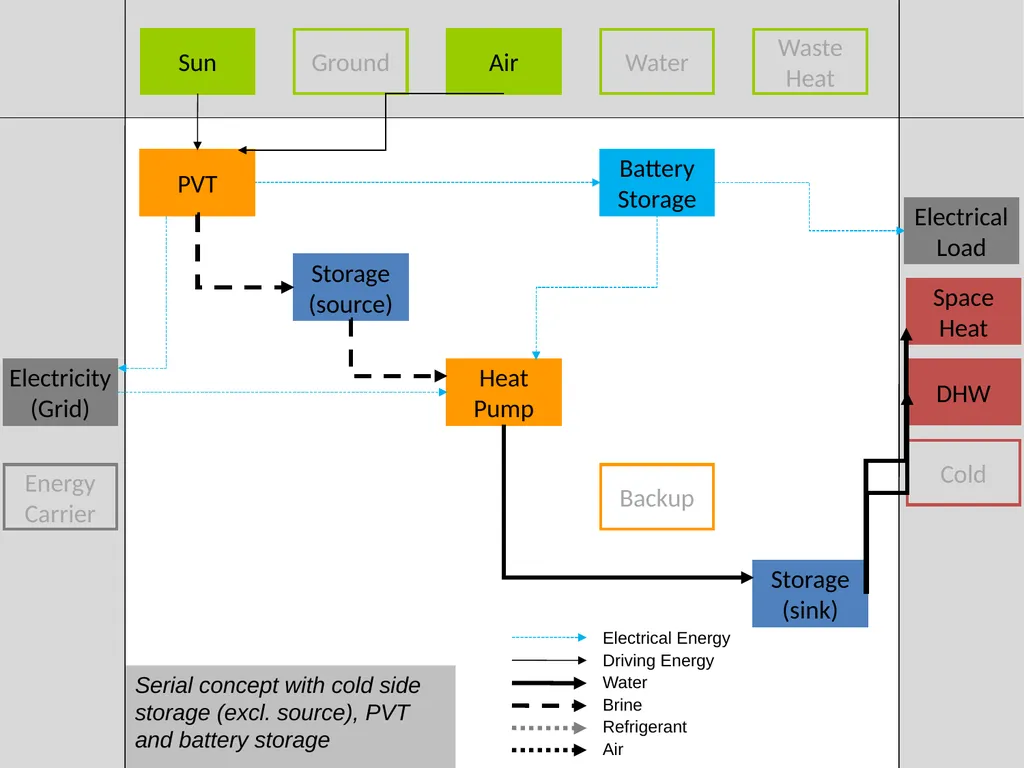

Serial concept with cold side storage (excl. source), PVT and battery storage Heat Pump Air Water Ground Storage (source) Storage (sink) Space Heat DHW Waste Heat Sun Backup Cold Energy Carrier Battery Storage Electrical Load Electricity
(Grid) PVT Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air<br>
10

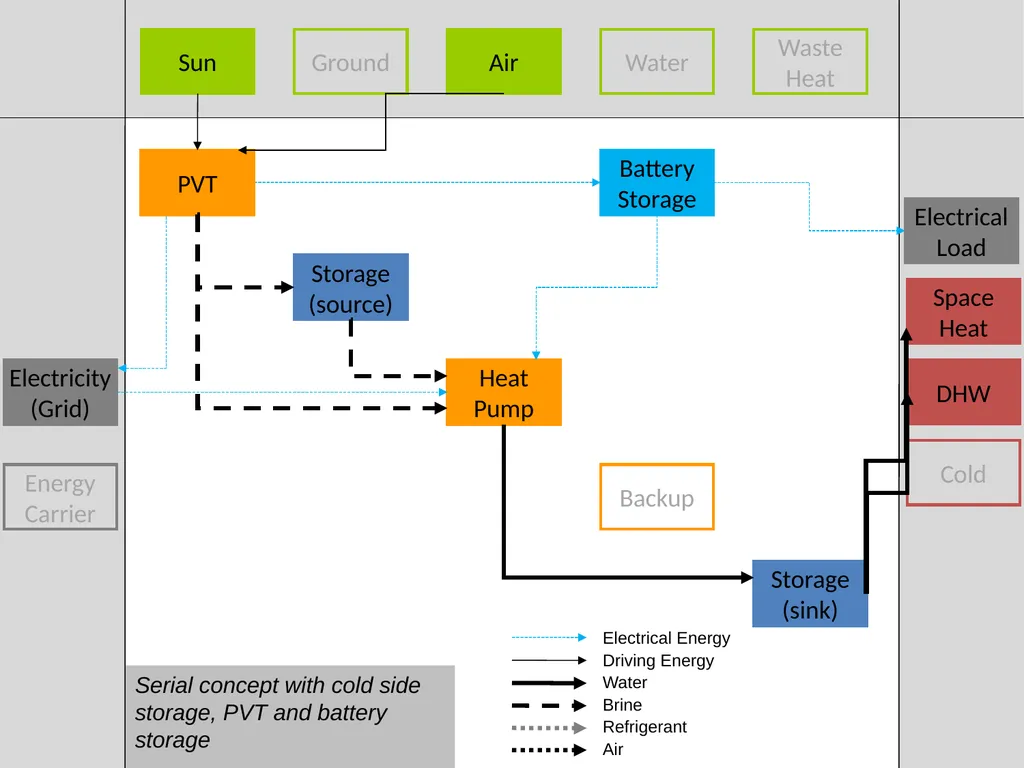

Serial concept with cold side storage, PVT and battery storage Heat Pump Air Water Ground Storage (source) Storage (sink) Space Heat DHW Waste Heat Sun Backup Cold Energy Carrier Battery Storage Electrical Load Electricity
(Grid) PVT Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air<br>
11
Parallel and serial concept with cold side storage (excl. source), PVT and battery storage Heat Pump Air Water Ground Storage (source) Storage (sink) Space Heat DHW Waste Heat Sun Backup Cold Energy Carrier Battery Storage Electrical Load Electricity
(Grid) PVT Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air<br>
12

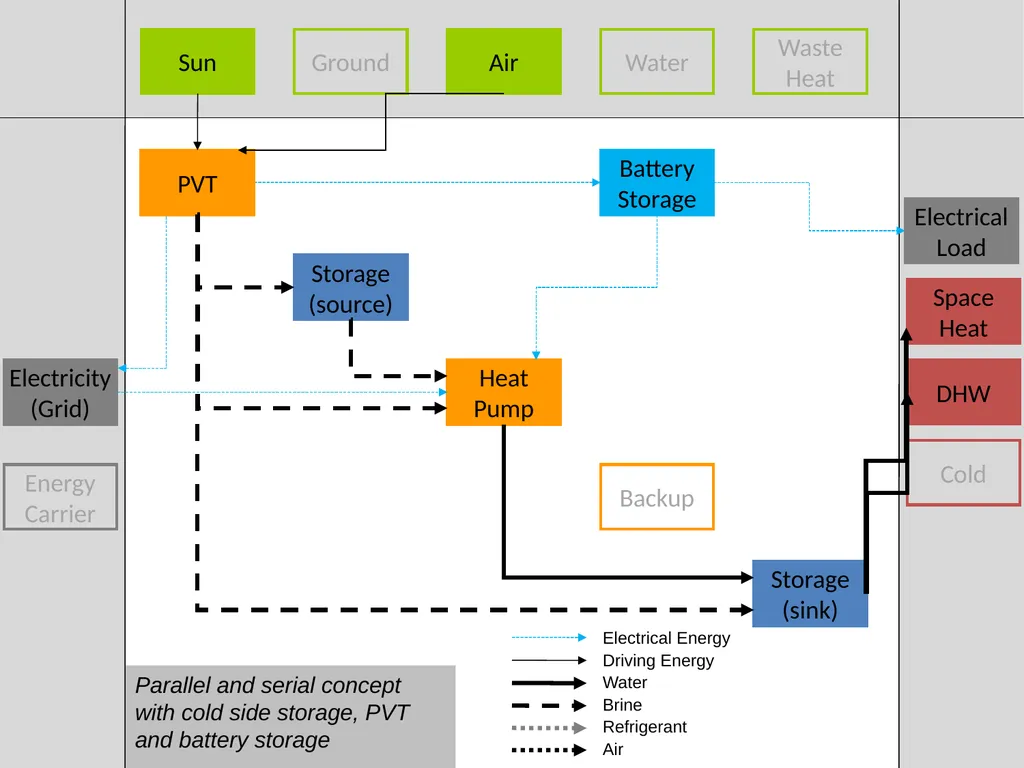

Parallel and serial concept with cold side storage, PVT and battery storage Heat Pump Air Water Ground Storage (source) Storage (sink) Space Heat DHW Waste Heat Sun Backup Cold Energy Carrier Battery Storage Electrical Load Electricity
(Grid) PVT Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air<br>
13

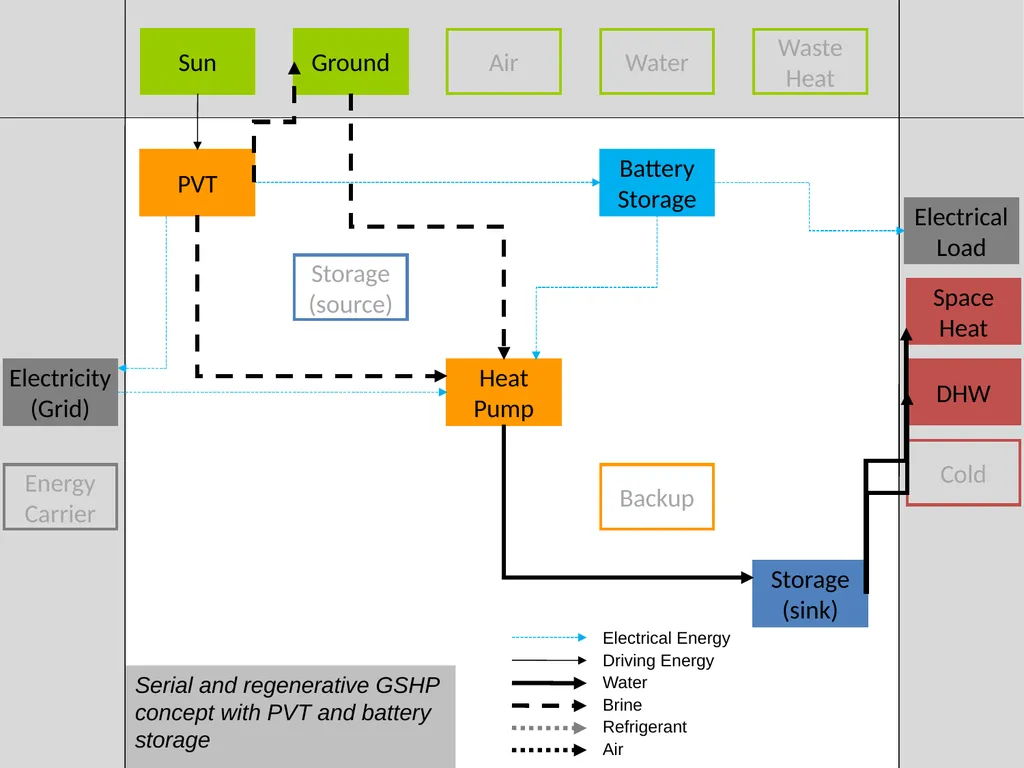

Serial and regenerative GSHP concept with PVT and battery storage Heat Pump Air Water Ground Storage (source) Storage (sink) Space Heat DHW Waste Heat Sun Backup Cold Energy Carrier Battery Storage Electrical Load Electricity
(Grid) PVT Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air<br>
14

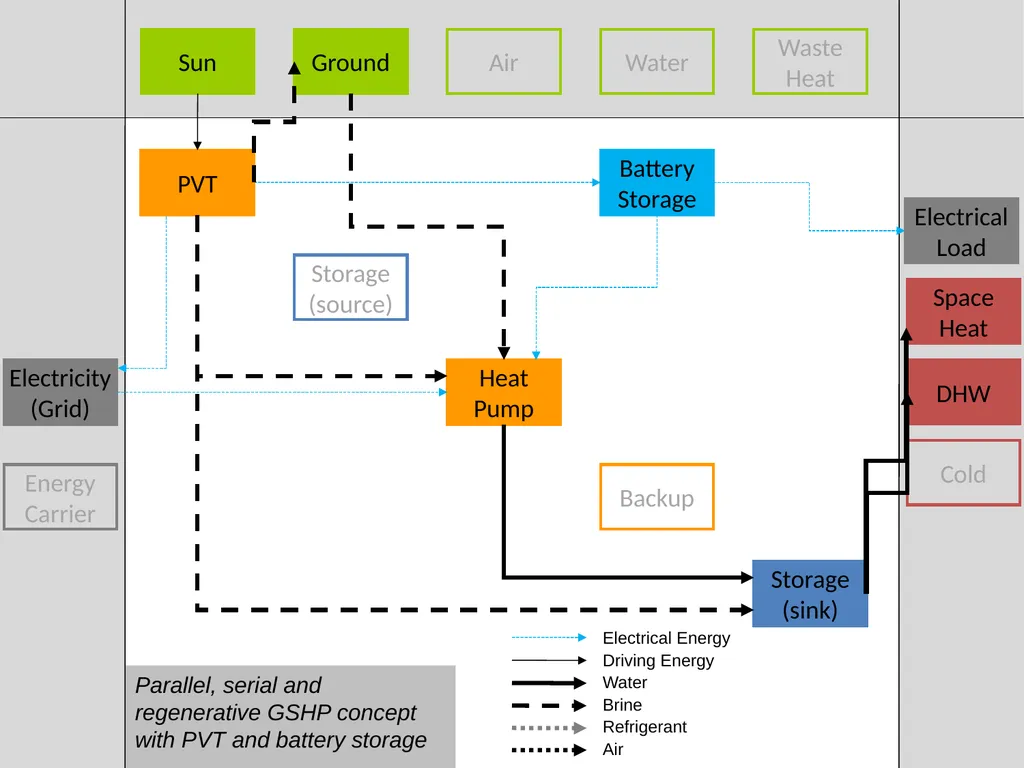

Parallel, serial and regenerative GSHP concept with PVT and battery storage Heat Pump Air Water Ground Storage (source) Storage (sink) Space Heat DHW Waste Heat Sun Backup Cold Energy Carrier Battery Storage Electrical Load Electricity
(Grid) PVT Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air<br>
15

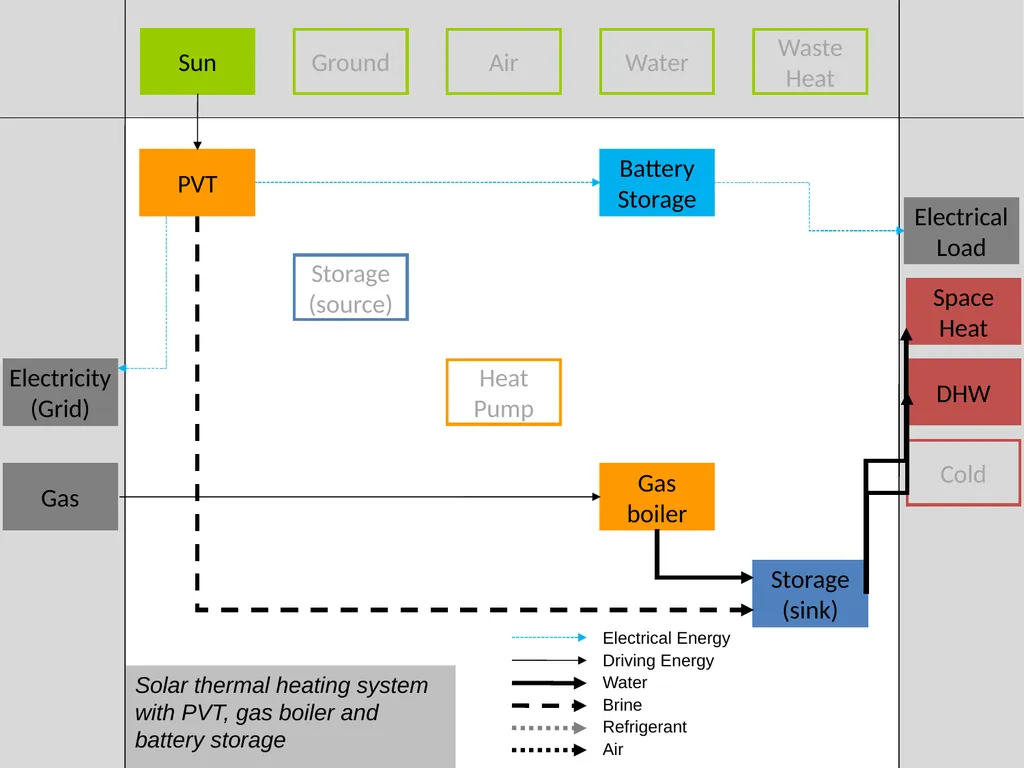

Solar thermal heating system with PVT, gas boiler and battery storage Heat Pump Air Water Ground Storage (source) Storage (sink) Space Heat DHW Waste Heat Sun Gas boiler Cold Gas Battery Storage Electrical Load Electricity
(Grid) PVT Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air<br>
16

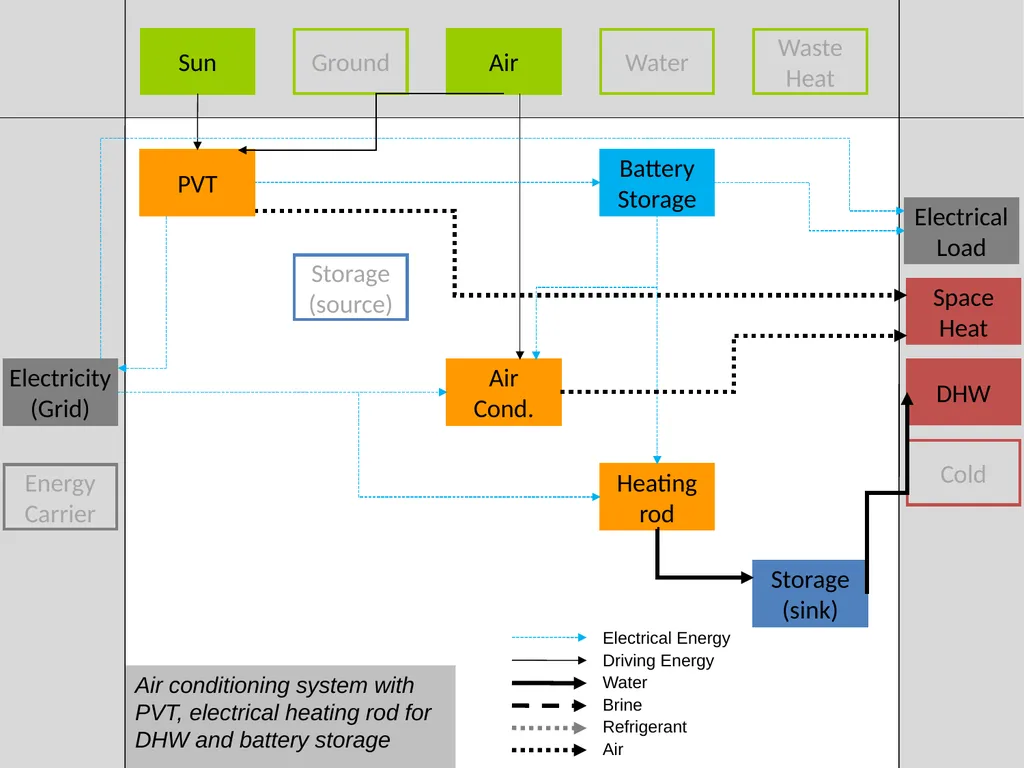

Air conditioning system with PVT, electrical heating rod for DHW and battery storage Air Cond. Air Water Ground Storage (source) Storage (sink) Space Heat DHW Waste Heat Sun Heating rod Cold Energy Carrier Battery Storage Electrical Load Electricity
(Grid) PVT Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air<br>
17

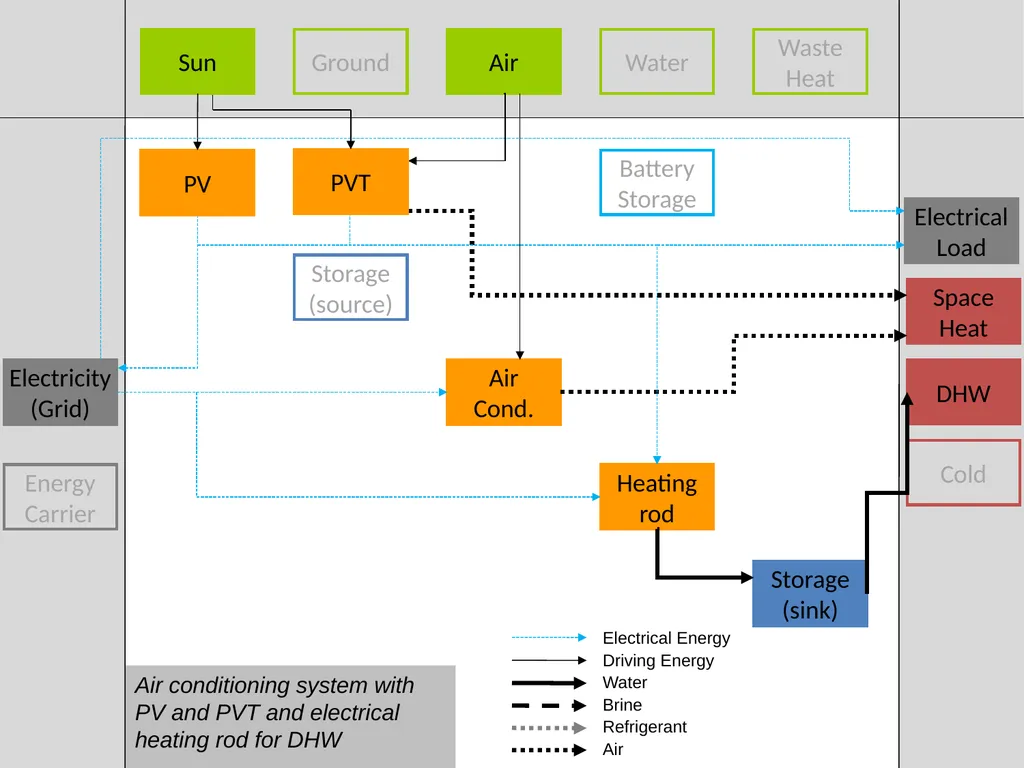

Air conditioning system with PV and PVT and electrical heating rod for DHW Air Cond. Air Water Ground Storage (source) Storage (sink) Space Heat DHW Waste Heat Sun Heating rod Cold Energy Carrier Battery Storage Electrical Load Electricity
(Grid) PV Electrical Energy
Driving Energy
Water
Brine
Refrigerant
Air PVT<br>
