Presentation Transcript
01
A Few Flute FYIs: A Slide Show<br>
02

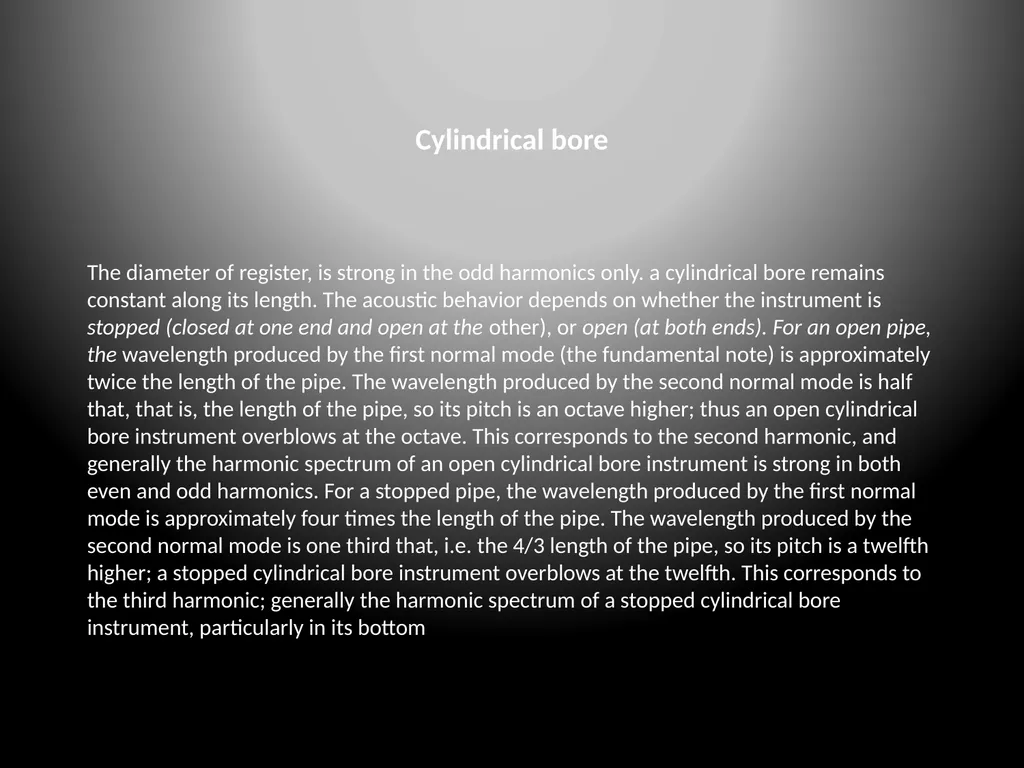

Cylindrical bore The diameter of register, is strong in the odd harmonics only. a cylindrical bore remains constant along its length. The acoustic behavior depends on whether the instrument is stopped (closed at one end and open at the other), or open (at both ends). For an open pipe, the wavelength produced by the first normal mode (the fundamental note) is approximately twice the length of the pipe. The wavelength produced by the second normal mode is half that, that is, the length of the pipe, so its pitch is an octave higher; thus an open cylindrical bore instrument overblows at the octave. This corresponds to the second harmonic, and generally the harmonic spectrum of an open cylindrical bore instrument is strong in both even and odd harmonics. For a stopped pipe, the wavelength produced by the first normal mode is approximately four times the length of the pipe. The wavelength produced by the second normal mode is one third that, i.e. the 4/3 length of the pipe, so its pitch is a twelfth higher; a stopped cylindrical bore instrument overblows at the twelfth. This corresponds to the third harmonic; generally the harmonic spectrum of a stopped cylindrical bore instrument, particularly in its bottom<br>
03

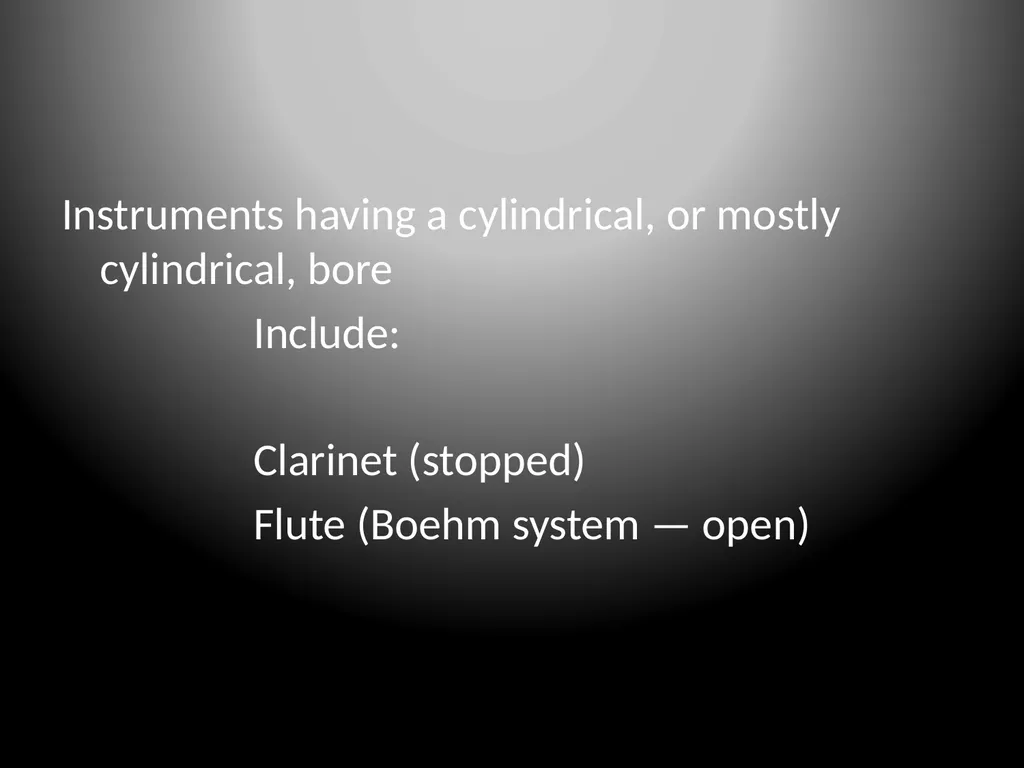

Instruments having a cylindrical, or mostly cylindrical, bore
Include:
Clarinet (stopped)
Flute (Boehm system — open)<br>
04

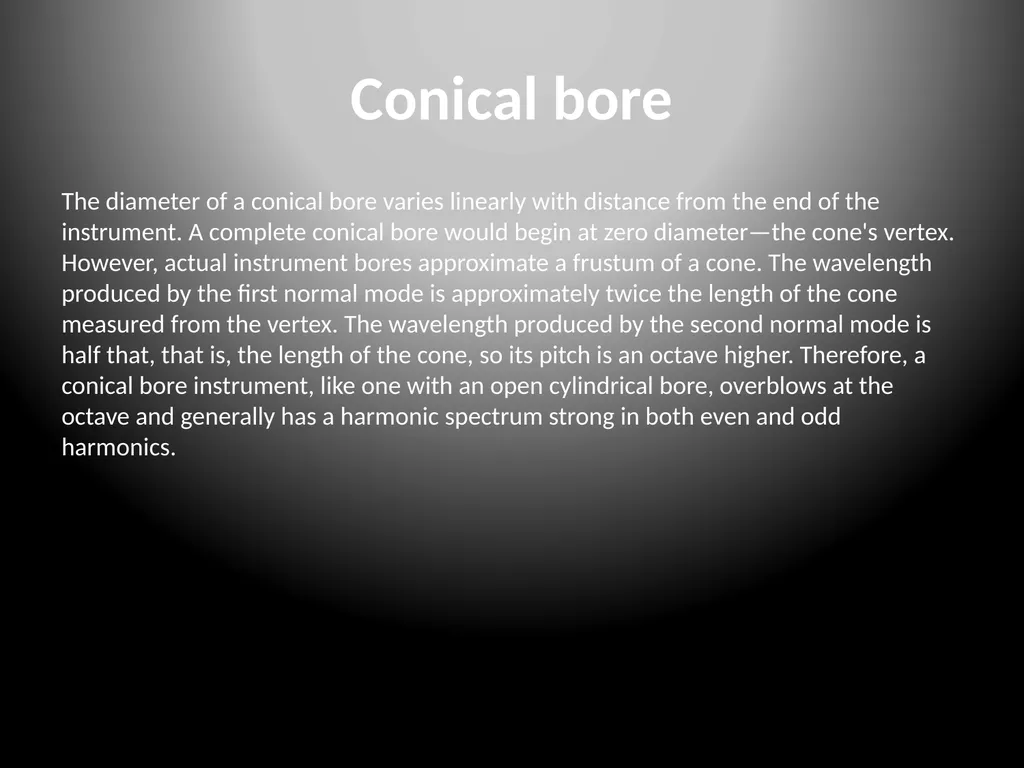

Conical bore The diameter of a conical bore varies linearly with distance from the end of the instrument. A complete conical bore would begin at zero diameter—the cone's vertex. However, actual instrument bores approximate a frustum of a cone. The wavelength produced by the first normal mode is approximately twice the length of the cone measured from the vertex. The wavelength produced by the second normal mode is half that, that is, the length of the cone, so its pitch is an octave higher. Therefore, a conical bore instrument, like one with an open cylindrical bore, overblows at the octave and generally has a harmonic spectrum strong in both even and odd harmonics.<br>
05

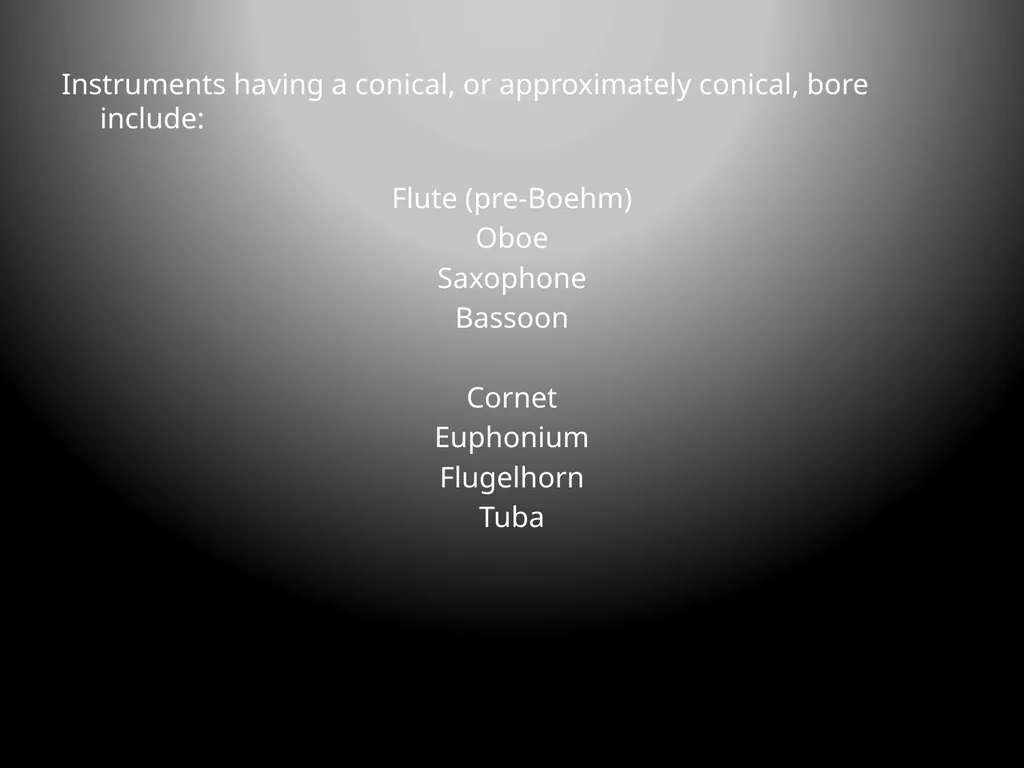

Instruments having a conical, or approximately conical, bore include:
Flute (pre-Boehm)
Oboe
Saxophone
Bassoon
Cornet
Euphonium
Flugelhorn
Tuba<br>
06

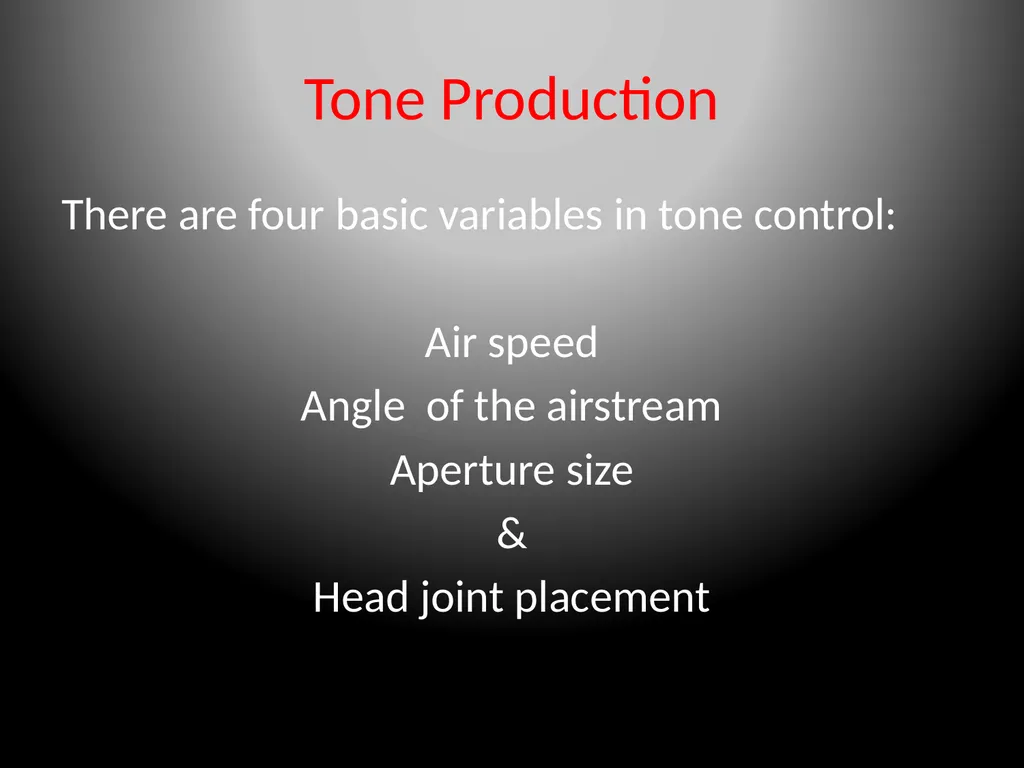

Tone Production There are four basic variables in tone control:
Air speed
Angle of the airstream
Aperture size
&
Head joint placement<br>
