Presentation Transcript
01
A Global-Local Optimization Framework for Simultaneous Multi-Mode Multi-Corner Clock Skew Variation Reduction Kwangsoo Han, Andrew B. Kahng, Jongpil Lee, Jiajia Li and Siddhartha Nath
VLSI CAD LABORATORY, UC San Diego<br>
02
Outline Motivation
Related Work
Our Optimization Framework
Experimental Setup and Results
Conclusions<br>
03

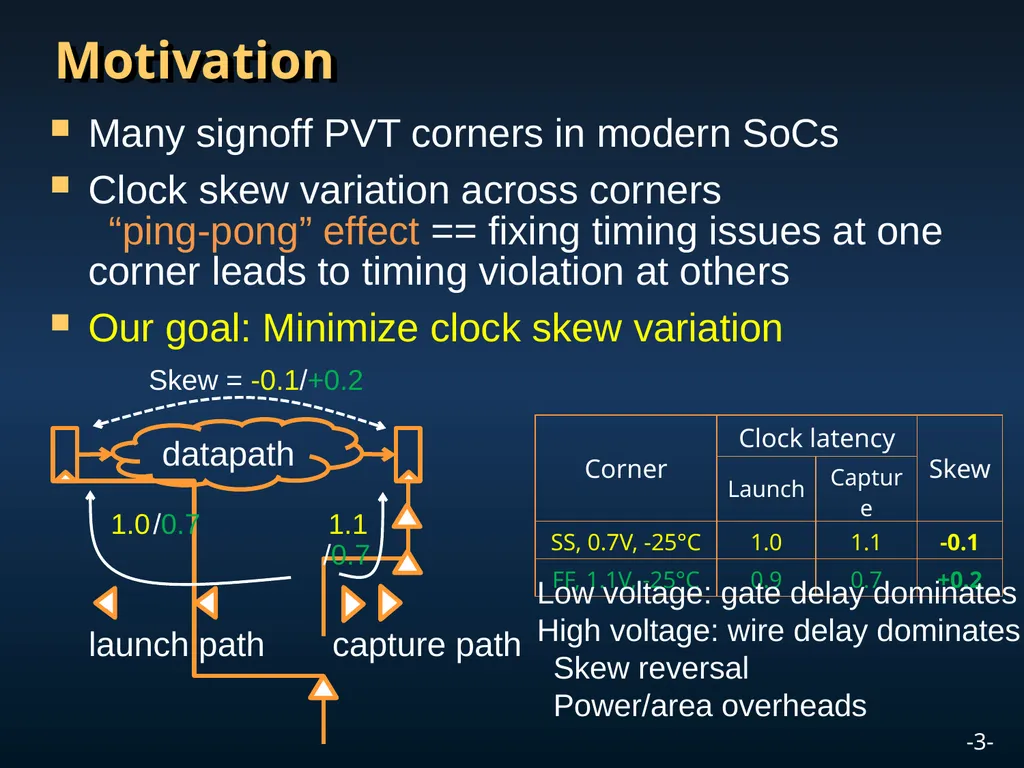

Motivation Many signoff PVT corners in modern SoCs
Clock skew variation across corners “ping-pong” effect == fixing timing issues at one corner leads to timing violation at others
Our goal: Minimize clock skew variation Low voltage: gate delay dominates
High voltage: wire delay dominates
Skew reversal Power/area overheads<br>
04
Outline Motivation
Related Work
Our Optimization Framework
Experimental Setup and Results
Conclusions<br>
05

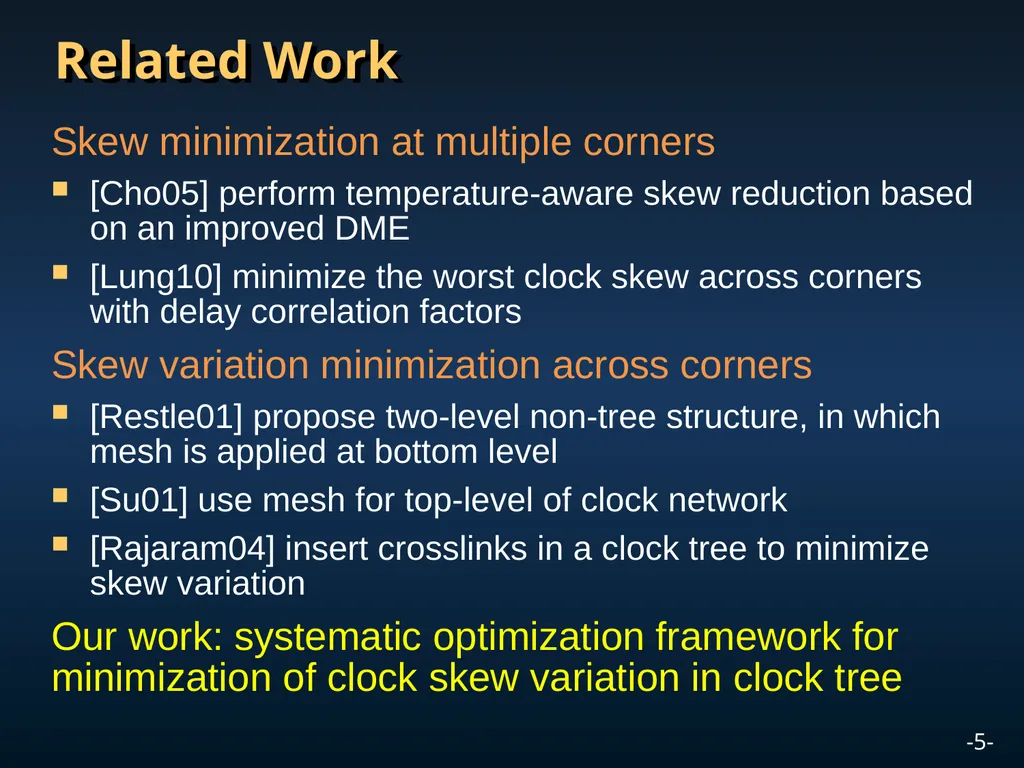

Related Work Skew minimization at multiple corners
[Cho05] perform temperature-aware skew reduction based on an improved DME
[Lung10] minimize the worst clock skew across corners with delay correlation factors
Skew variation minimization across corners
[Restle01] propose two-level non-tree structure, in which mesh is applied at bottom level
[Su01] use mesh for top-level of clock network
[Rajaram04] insert crosslinks in a clock tree to minimize skew variation
Our work: systematic optimization framework for minimization of clock skew variation in clock tree<br>
06

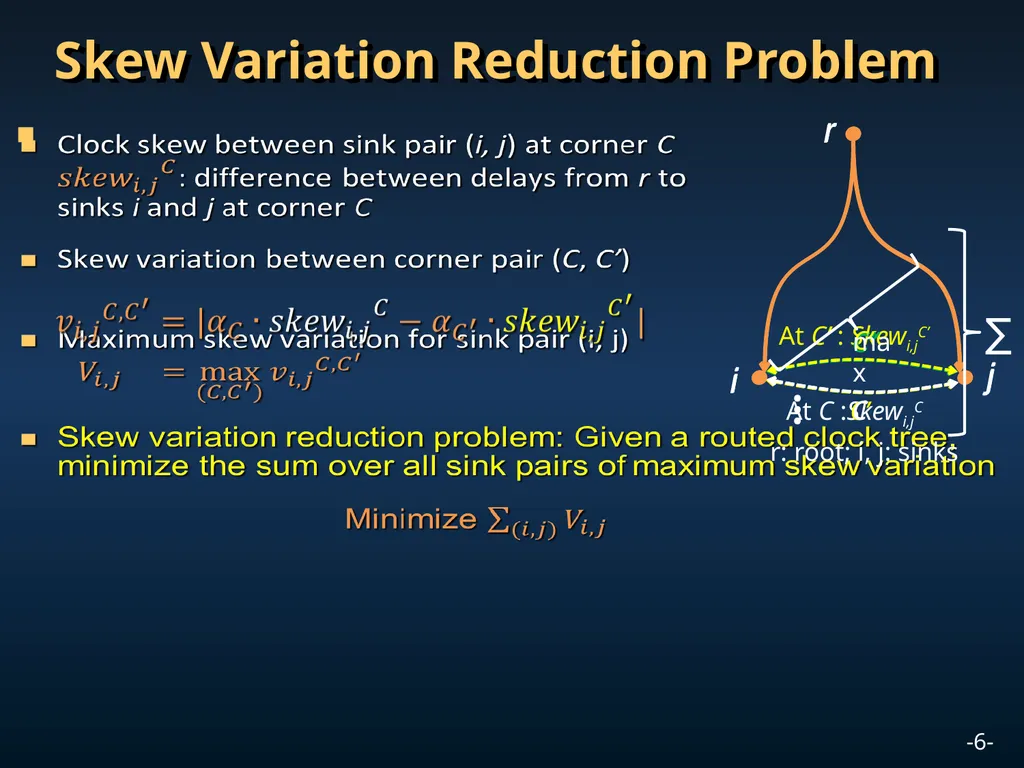

Skew Variation Reduction Problem r: root; i, j: sinks …<br>
07
Outline Motivation
Related Work
Our Optimization Framework
Experimental Setup and Results
Conclusions<br>
08

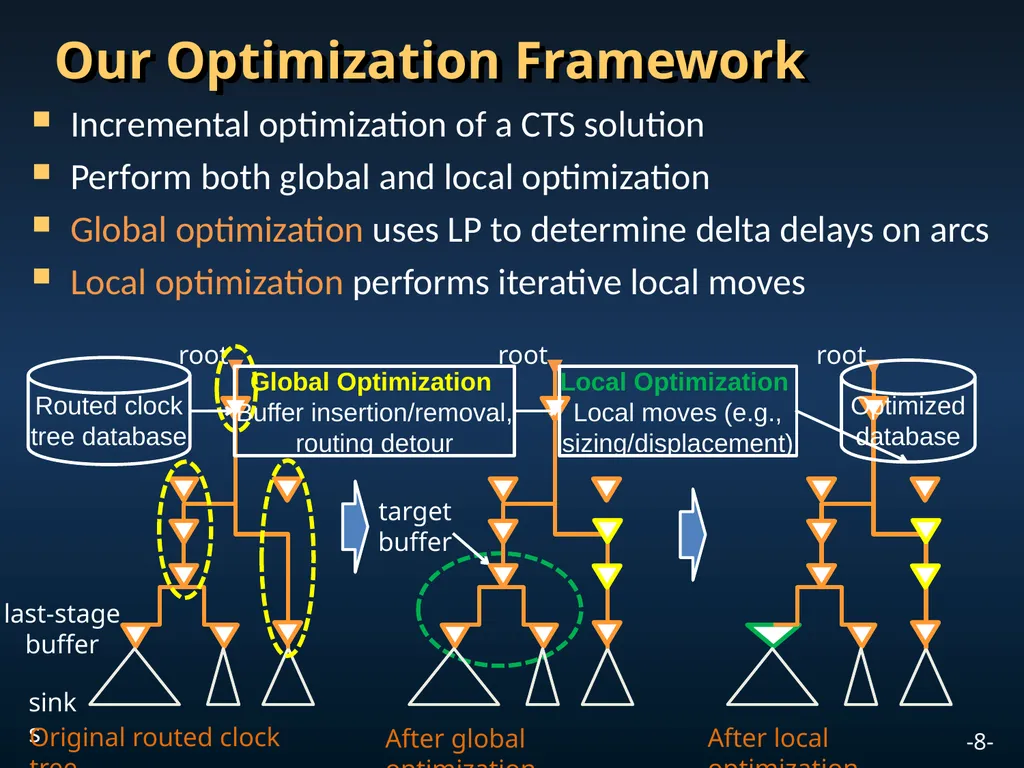

Our Optimization Framework Incremental optimization of a CTS solution
Perform both global and local optimization
Global optimization uses LP to determine delta delays on arcs
Local optimization performs iterative local moves<br>
09

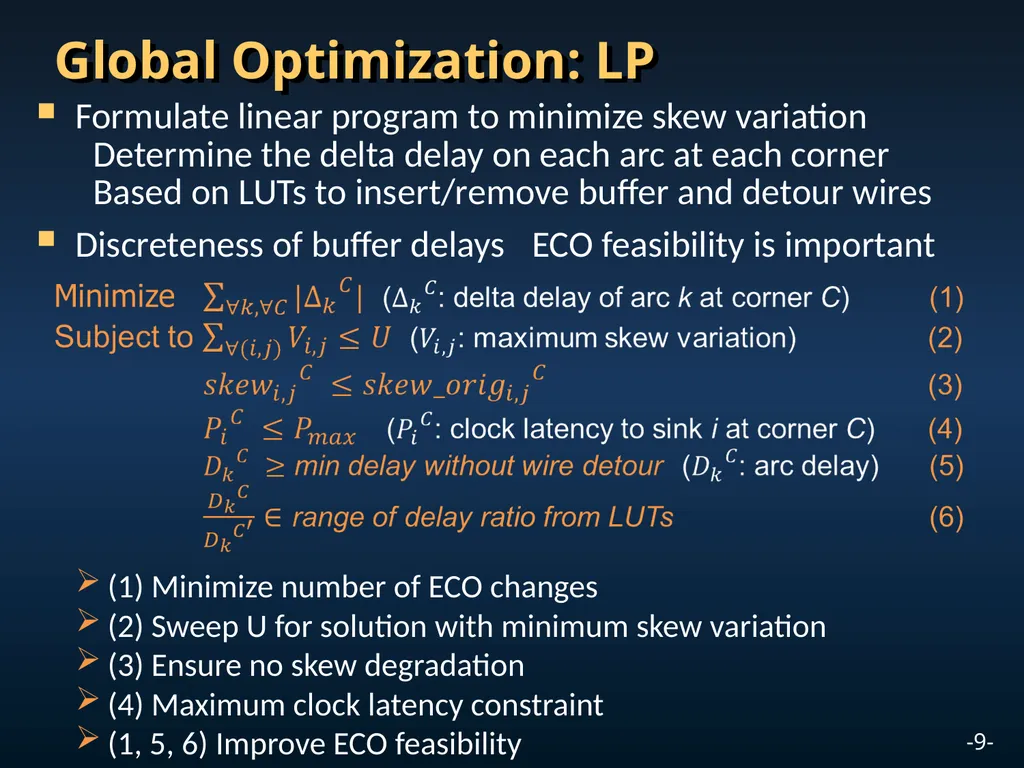

Global Optimization: LP Formulate linear program to minimize skew variation Determine the delta delay on each arc at each corner Based on LUTs to insert/remove buffer and detour wires
Discreteness of buffer delays ECO feasibility is important (1) Minimize number of ECO changes
(2) Sweep U for solution with minimum skew variation
(3) Ensure no skew degradation
(4) Maximum clock latency constraint
(1, 5, 6) Improve ECO feasibility<br>
10

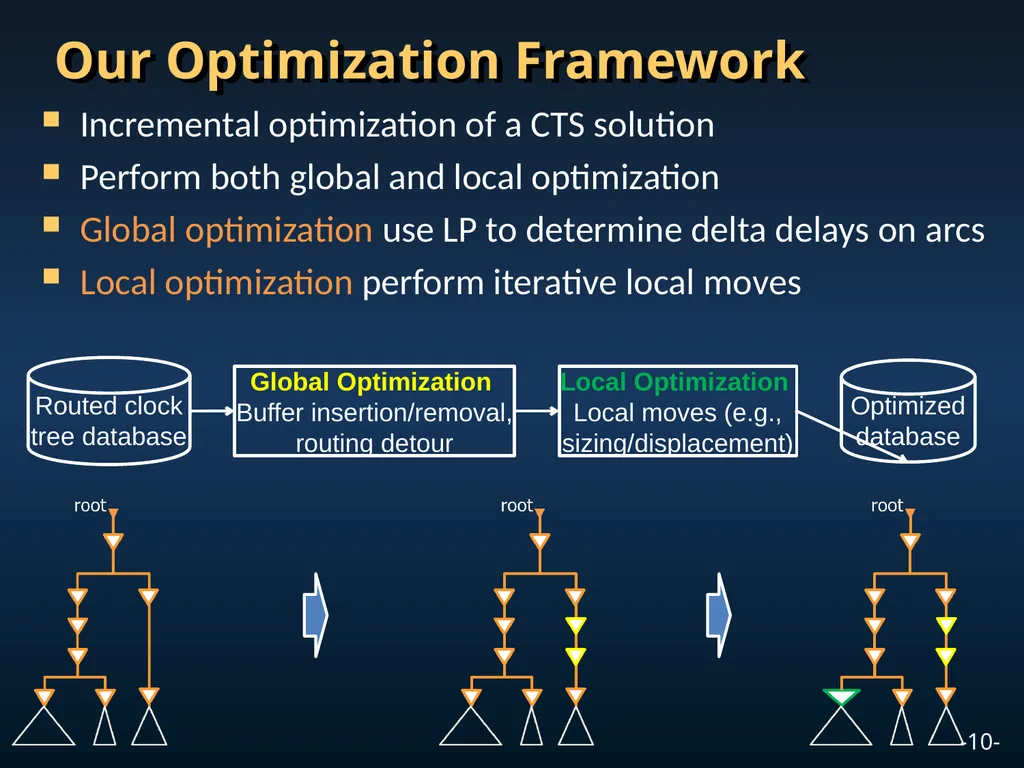

Our Optimization Framework Incremental optimization of a CTS solution
Perform both global and local optimization
Global optimization use LP to determine delta delays on arcs
Local optimization perform iterative local moves<br>
11

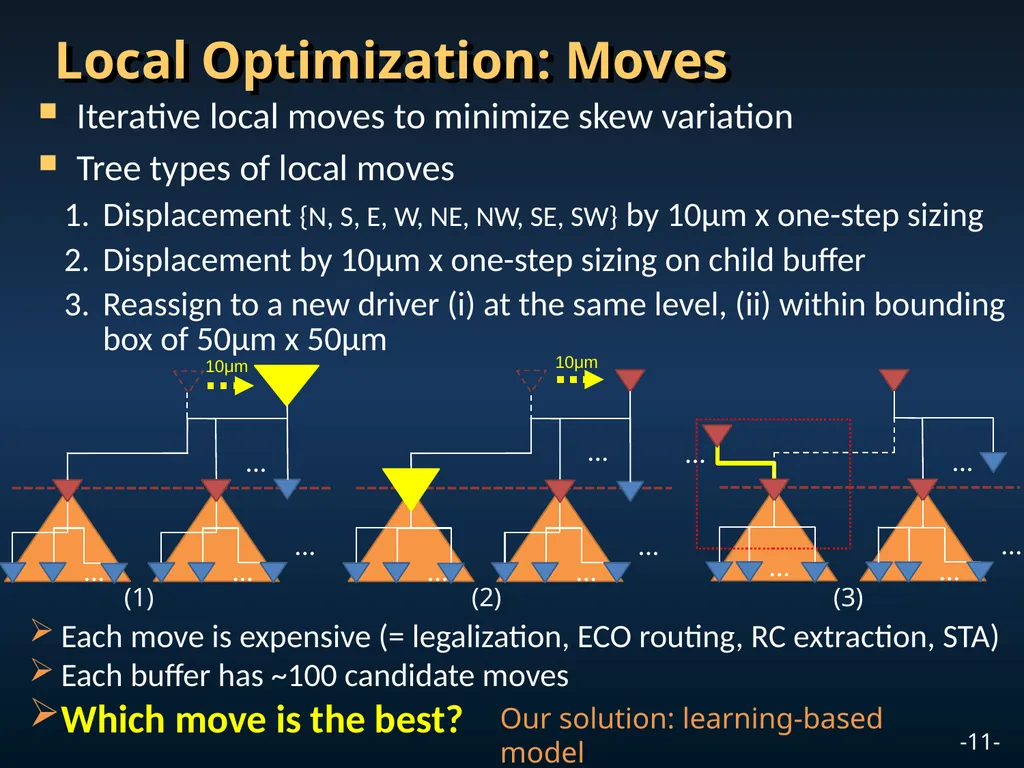

Local Optimization: Moves Iterative local moves to minimize skew variation
Tree types of local moves
Displacement {N, S, E, W, NE, NW, SE, SW} by 10μm x one-step sizing
Displacement by 10μm x one-step sizing on child buffer
Reassign to a new driver (i) at the same level, (ii) within bounding box of 50μm x 50μm Each move is expensive (= legalization, ECO routing, RC extraction, STA)
Each buffer has ~100 candidate moves
Which move is the best? Our solution: learning-based model<br>
12

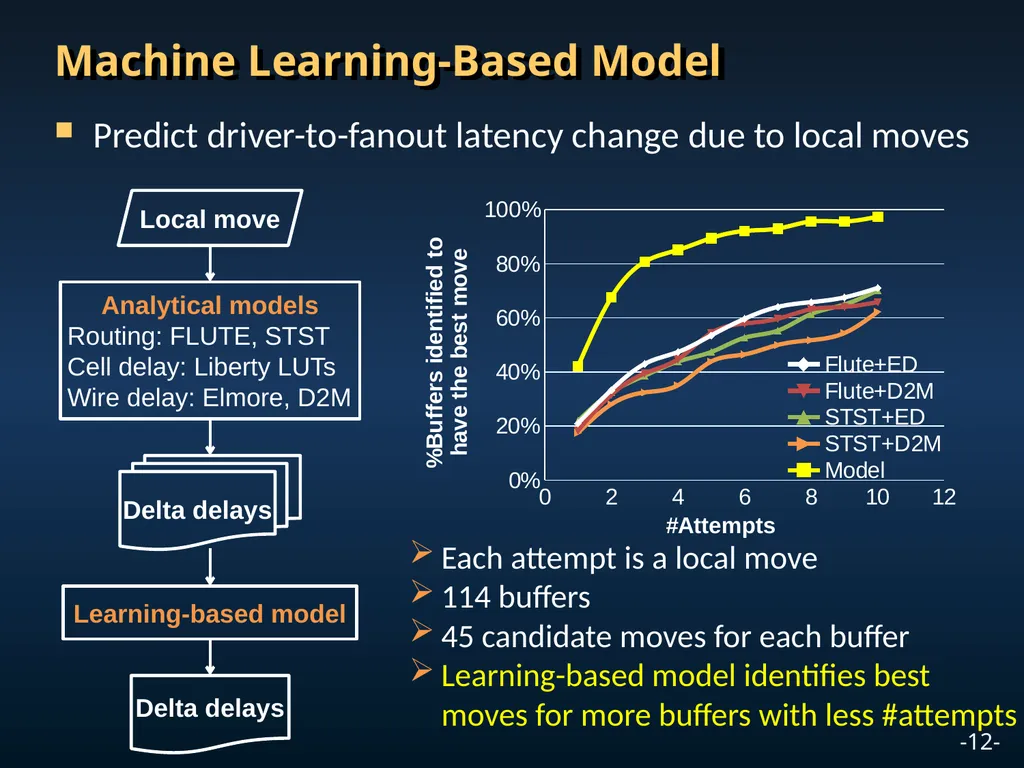

Machine Learning-Based Model Predict driver-to-fanout latency change due to local moves Local move Each attempt is a local move
114 buffers
45 candidate moves for each buffer
Learning-based model identifies best moves for more buffers with less #attempts<br>
13
Outline Motivation
Related Work
Our Optimization Framework
Experimental Setup and Results
Conclusions<br>
14

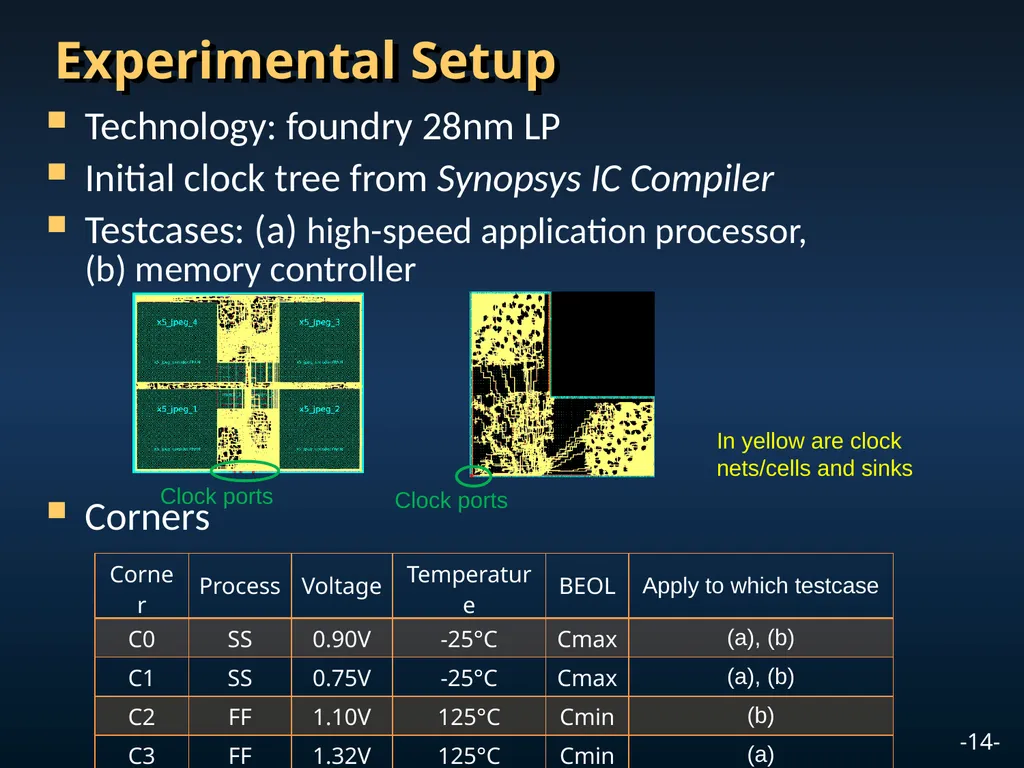

Experimental Setup Technology: foundry 28nm LP
Initial clock tree from Synopsys IC Compiler
Testcases: (a) high-speed application processor, (b) memory controller
Corners<br>
15

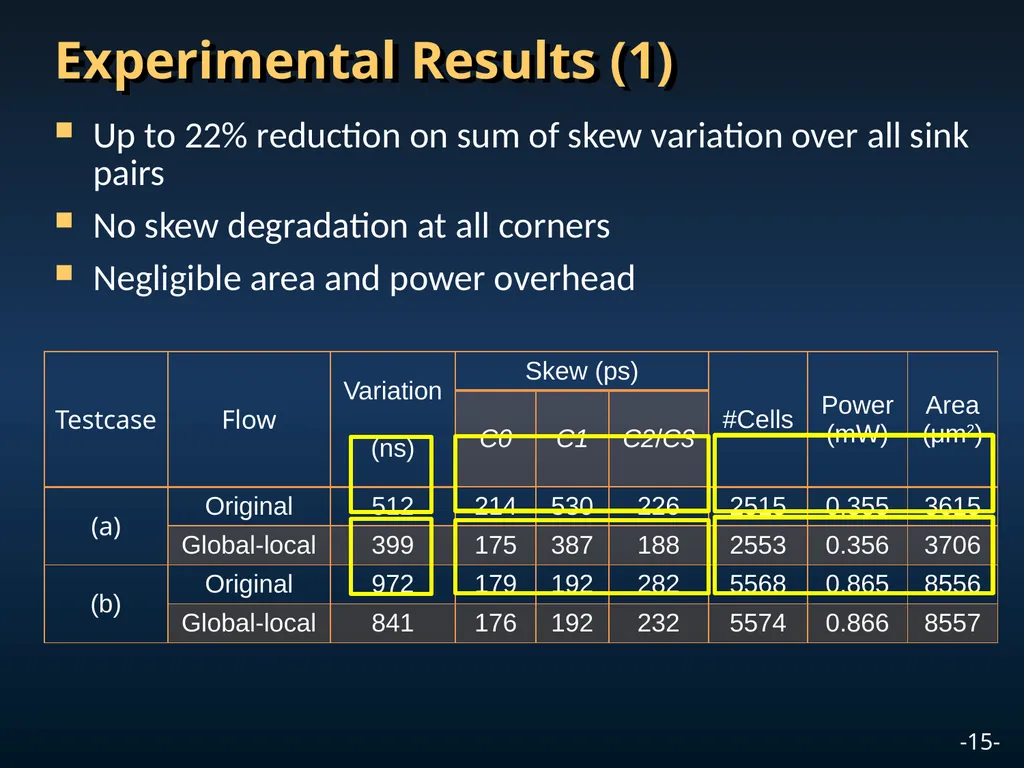

Experimental Results (1) Up to 22% reduction on sum of skew variation over all sink pairs
No skew degradation at all corners
Negligible area and power overhead<br>
16

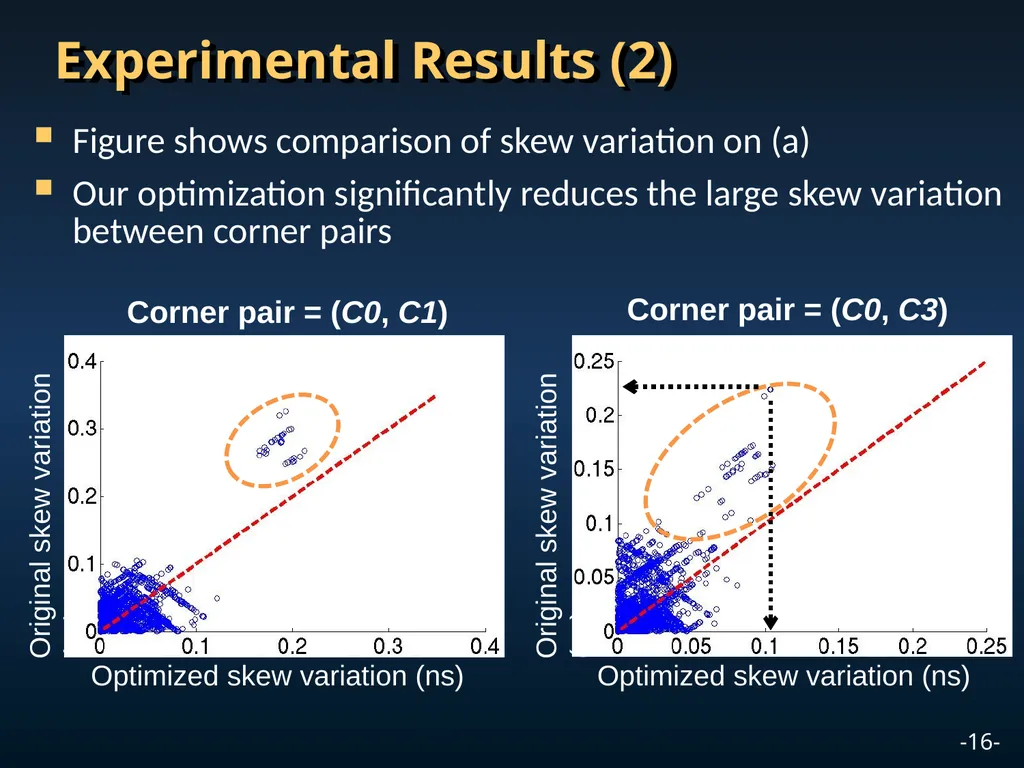

Experimental Results (2) Figure shows comparison of skew variation on (a)
Our optimization significantly reduces the large skew variation between corner pairs<br>
17

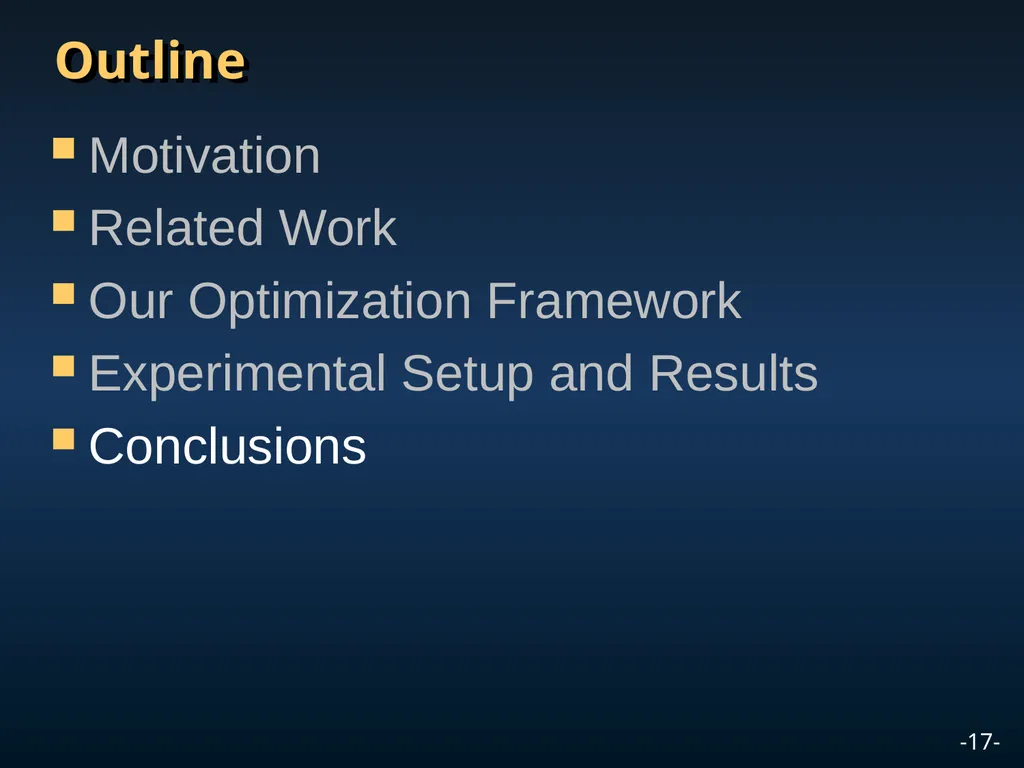

Outline Motivation
Related Work
Our Optimization Framework
Experimental Setup and Results
Conclusions<br>
18

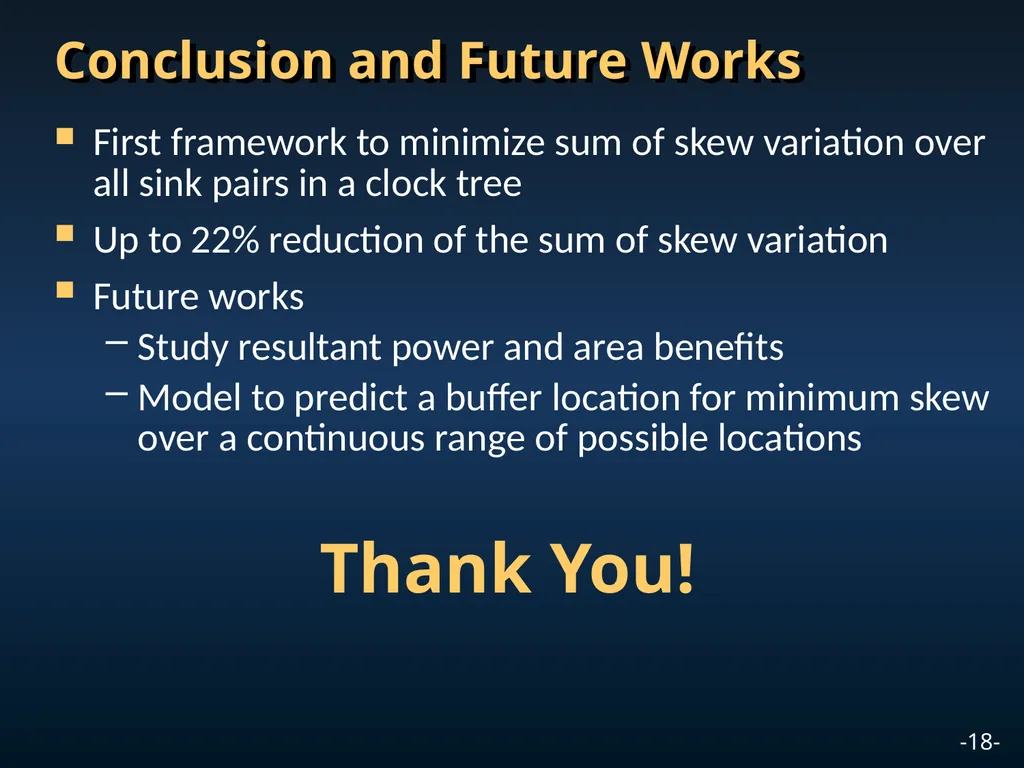

Conclusion and Future Works First framework to minimize sum of skew variation over all sink pairs in a clock tree
Up to 22% reduction of the sum of skew variation
Future works
Study resultant power and area benefits
Model to predict a buffer location for minimum skew over a continuous range of possible locations Thank You!<br>
19
Backup Slides<br>
20

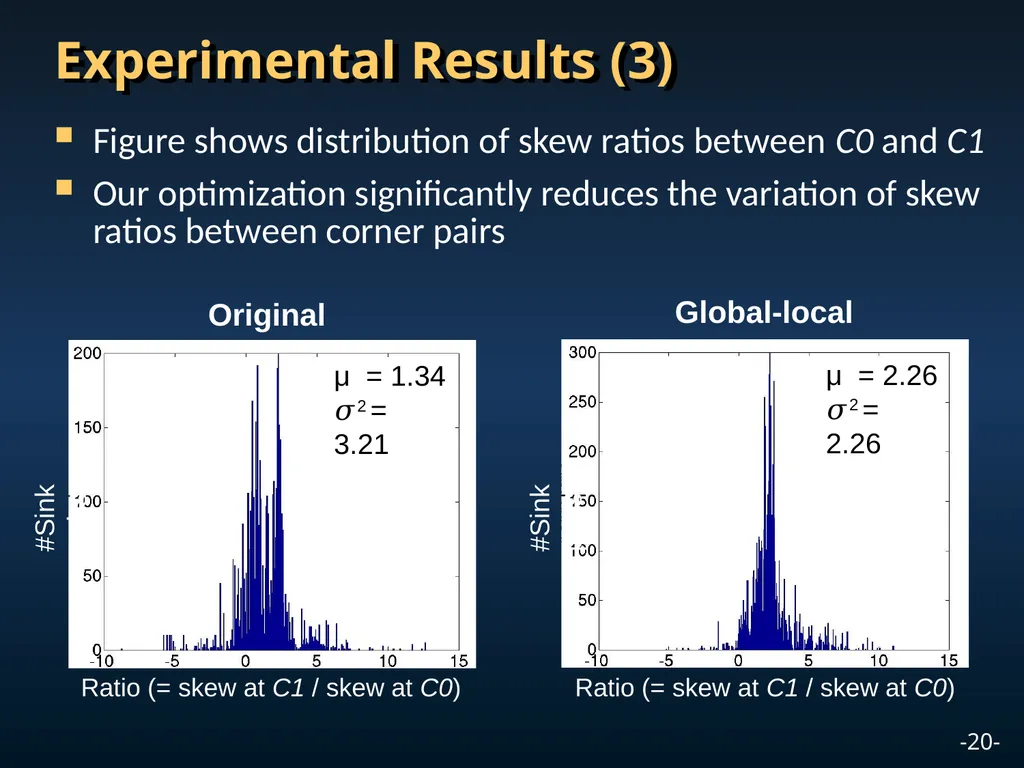

Experimental Results (3) Figure shows distribution of skew ratios between C0 and C1
Our optimization significantly reduces the variation of skew ratios between corner pairs<br>
