Presentation Transcript
01

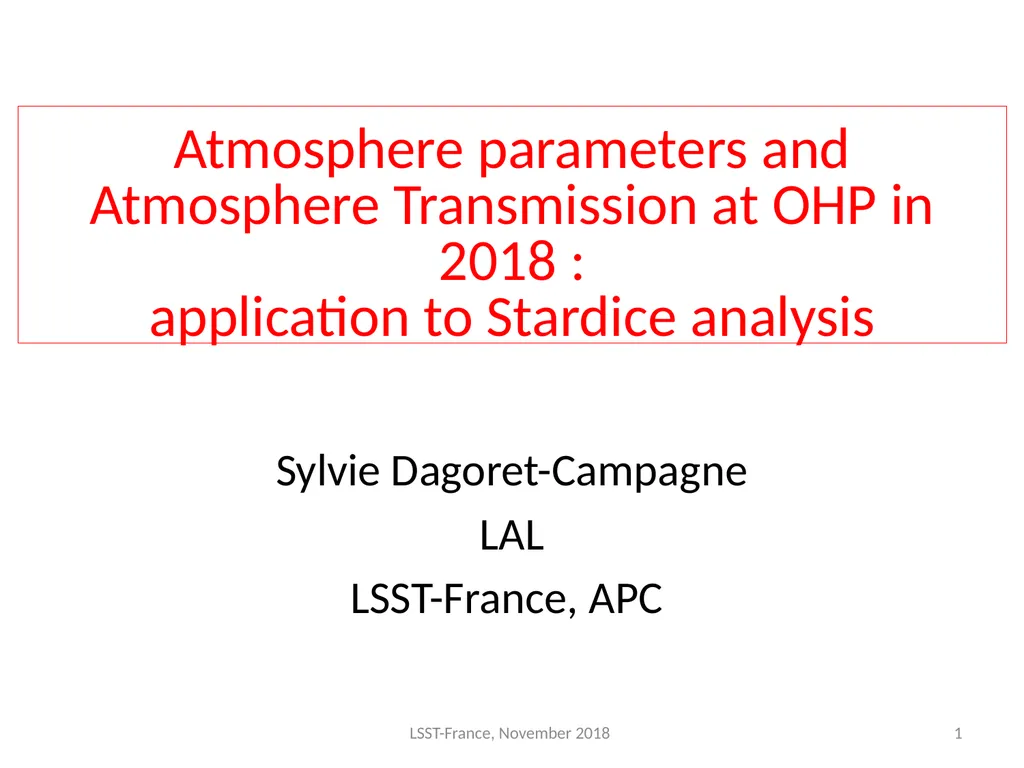

Atmosphere parameters and Atmosphere Transmission at OHP in 2018 : application to Stardice analysis Sylvie Dagoret-Campagne
LAL
LSST-France, APC LSST-France, November 2018 1<br>
02

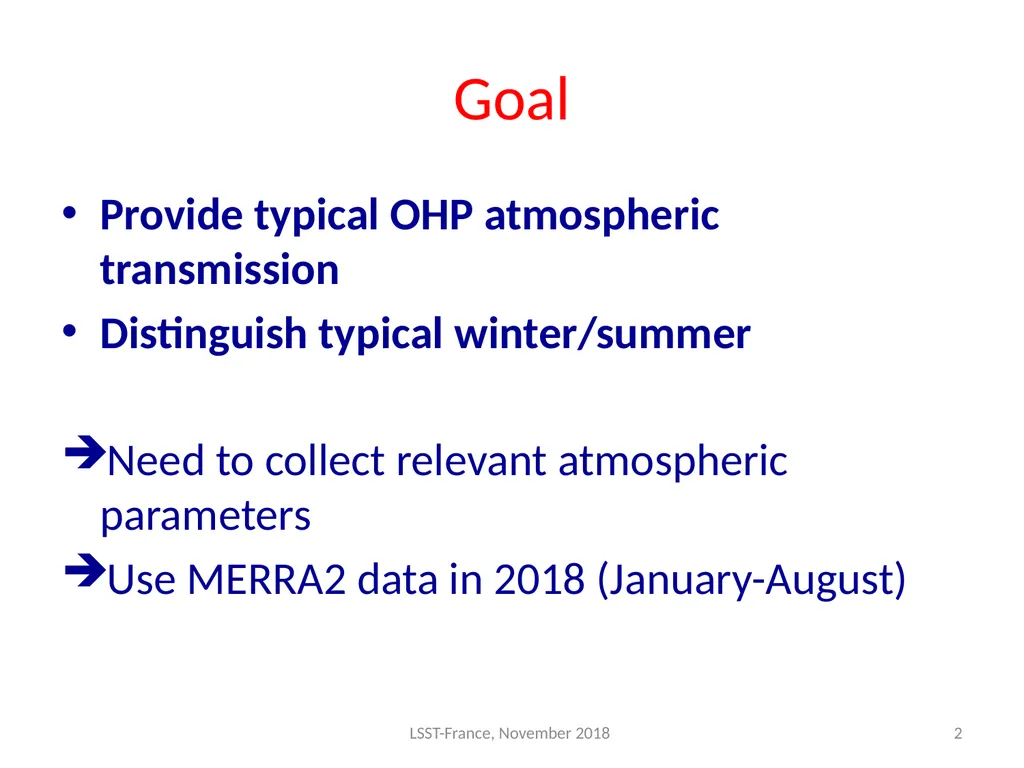

Goal Provide typical OHP atmospheric transmission
Distinguish typical winter/summer
Need to collect relevant atmospheric parameters
Use MERRA2 data in 2018 (January-August) LSST-France, November 2018 2<br>
03

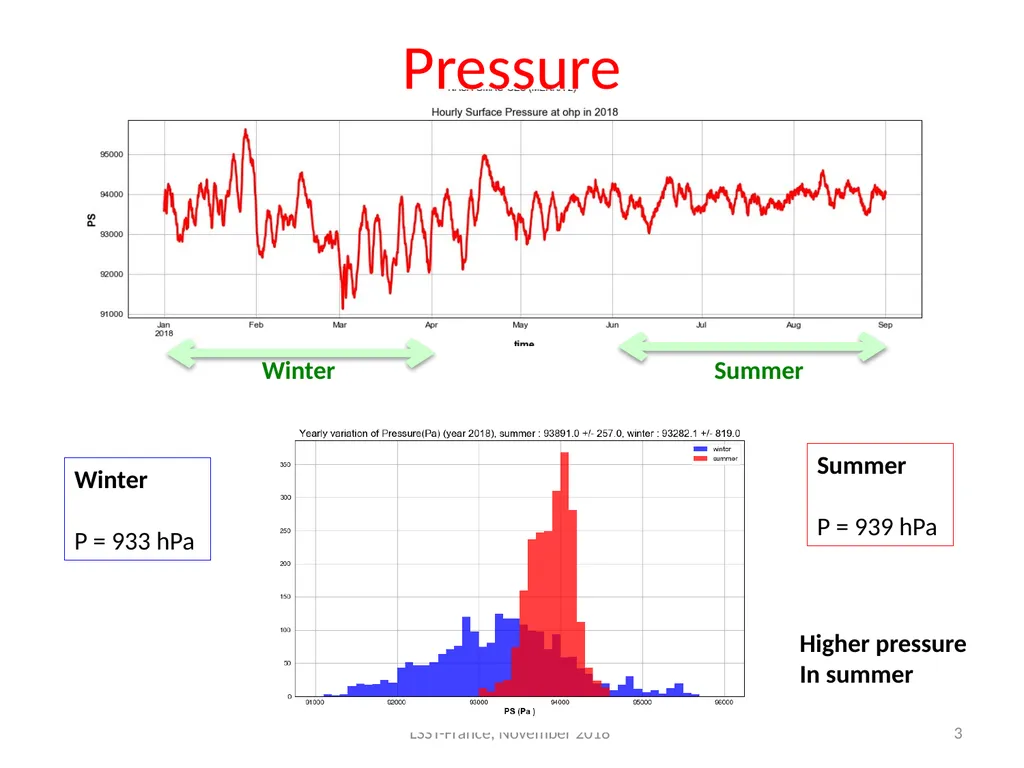

Pressure LSST-France, November 2018 3 Summer
P = 939 hPa Winter
P = 933 hPa Higher pressure
In summer<br>
04

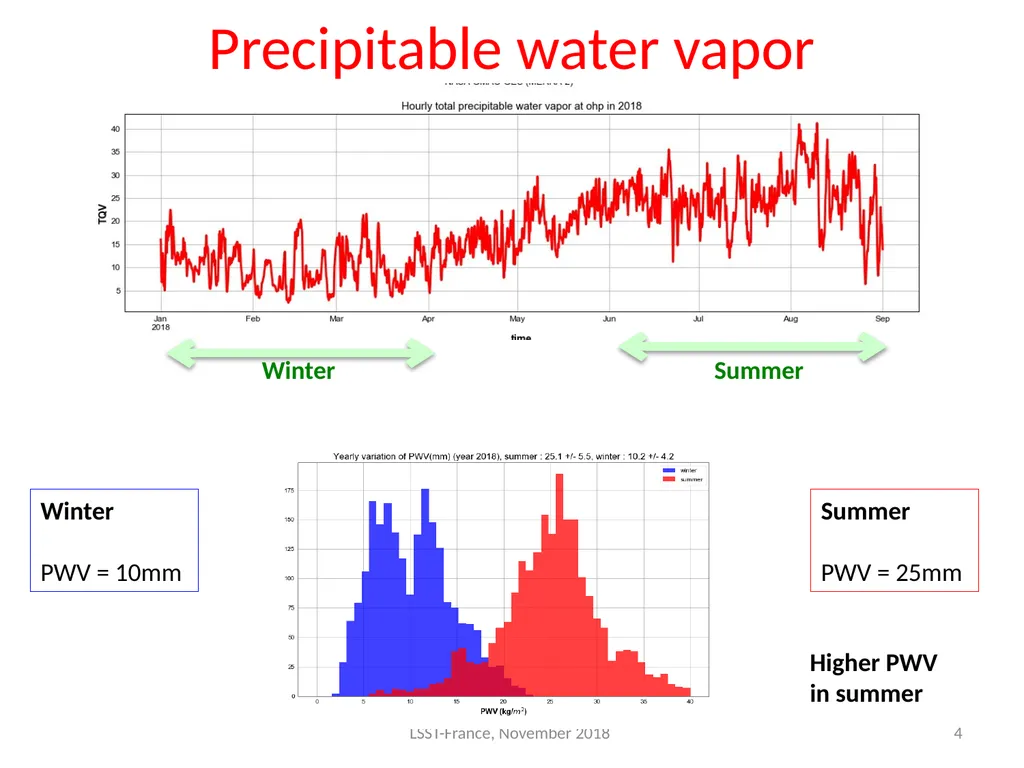

Precipitable water vapor LSST-France, November 2018 4 Summer
PWV = 25mm Winter
PWV = 10mm Higher PWV
in summer<br>
05

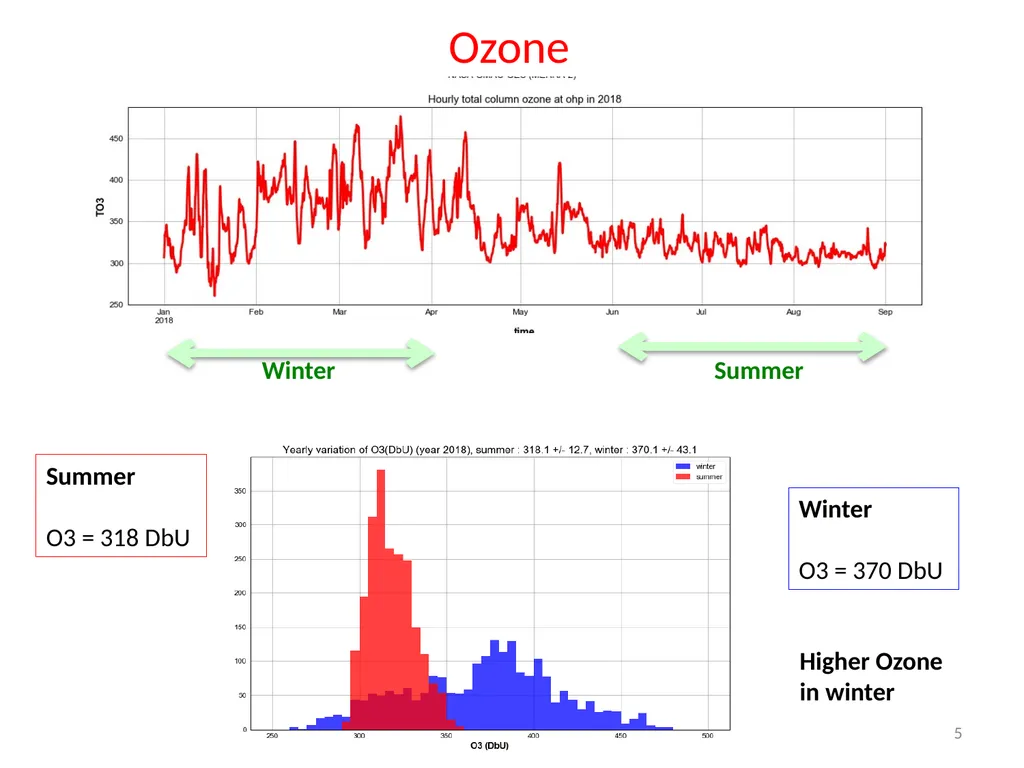

Ozone LSST-France, November 2018 5 Summer
O3 = 318 DbU Winter
O3 = 370 DbU Higher Ozone
in winter<br>
06

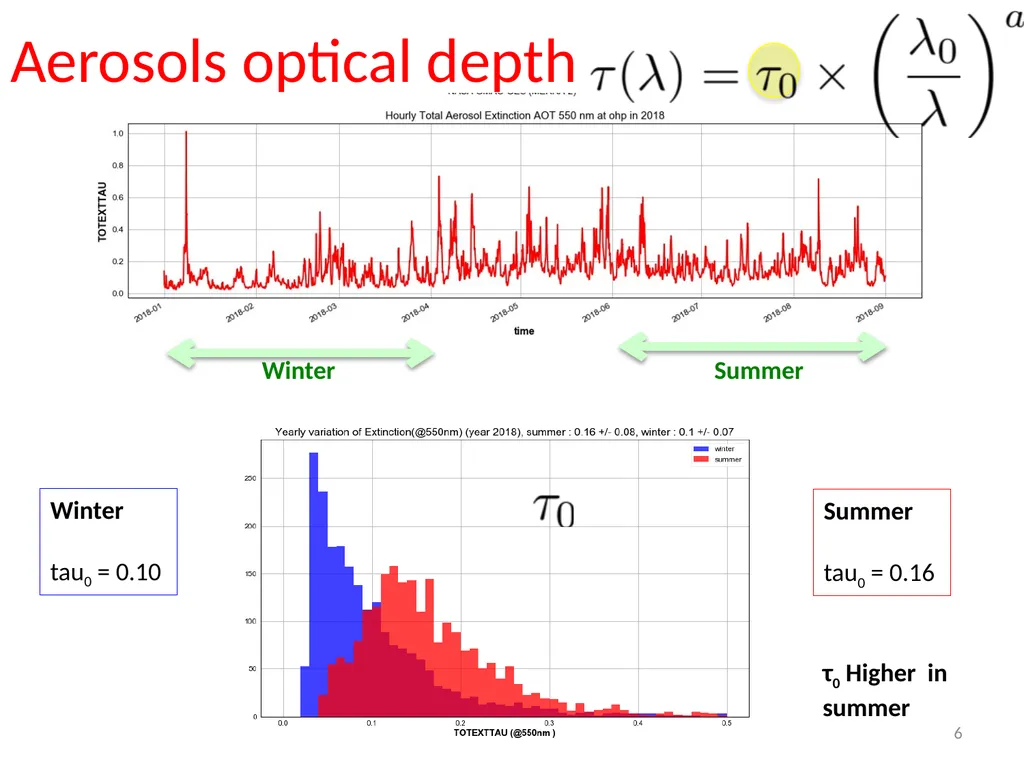

Aerosols optical depth LSST-France, November 2018 6 Summer
tau0 = 0.16 Winter
tau0 = 0.10 τ0 Higher in
summer<br>
07

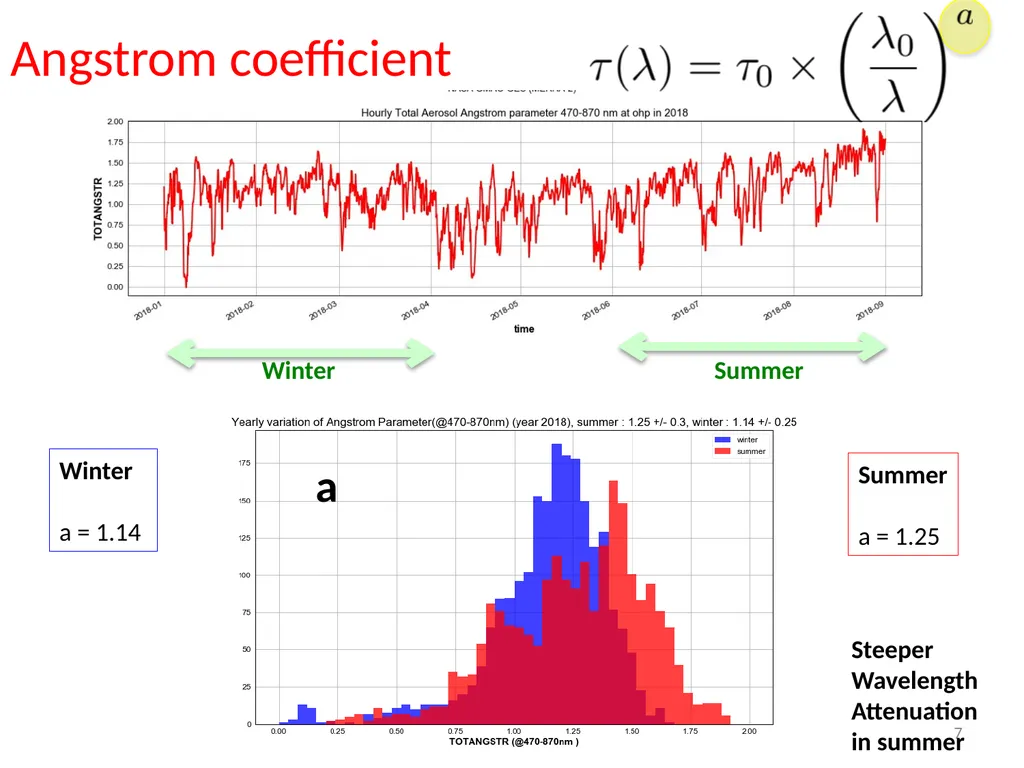

Angstrom coefficient LSST-France, November 2018 7 Summer
a = 1.25 Winter
a = 1.14 Steeper
Wavelength
Attenuation
in summer a<br>
08

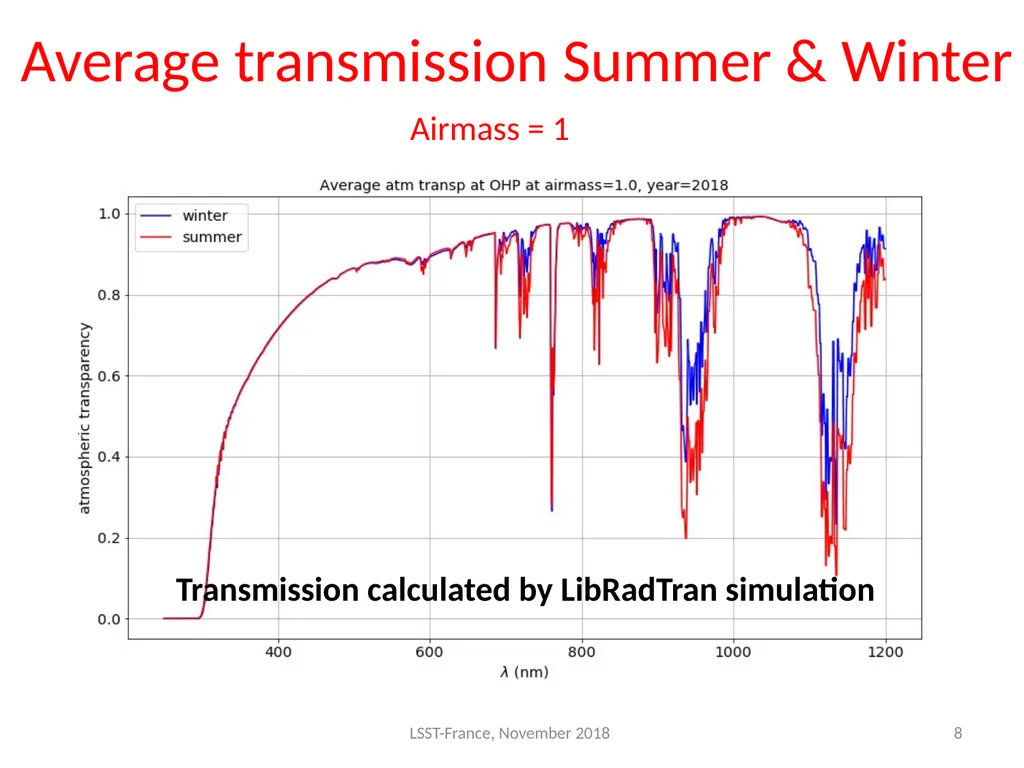

Average transmission Summer & Winter LSST-France, November 2018 8 Transmission calculated by LibRadTran simulation Airmass = 1<br>
09

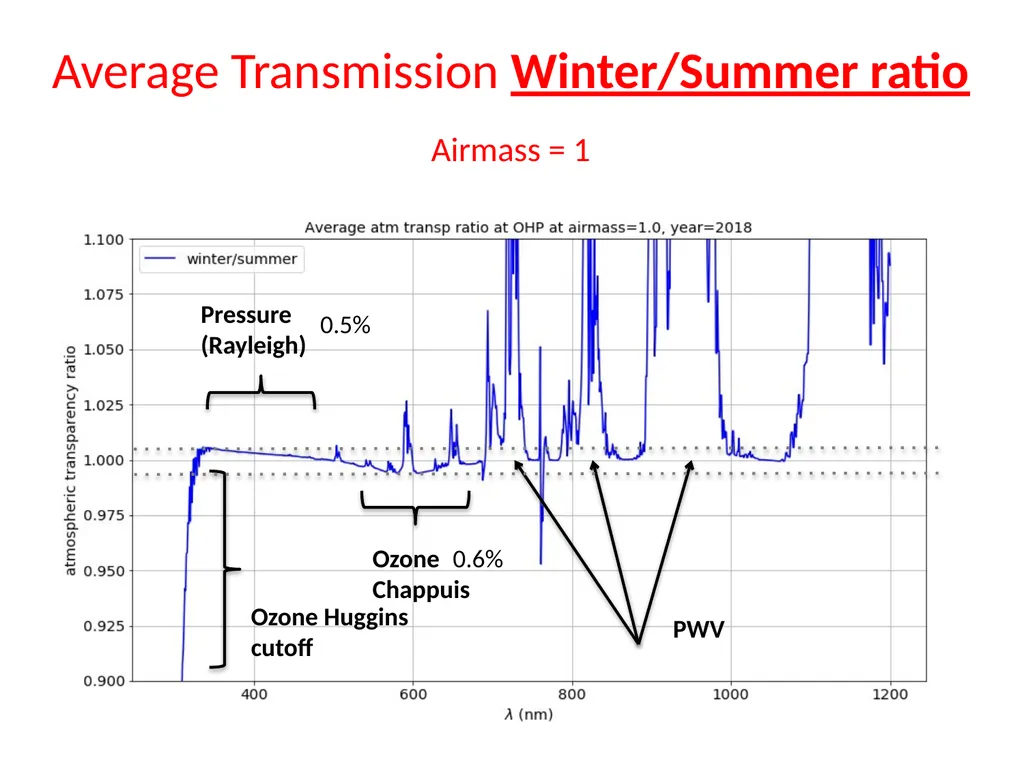

Average Transmission Winter/Summer ratio LSST-France, November 2018 9 Ozone
Chappuis Pressure
(Rayleigh) PWV Ozone Huggins
cutoff 0.5% 0.6% Airmass = 1<br>
10

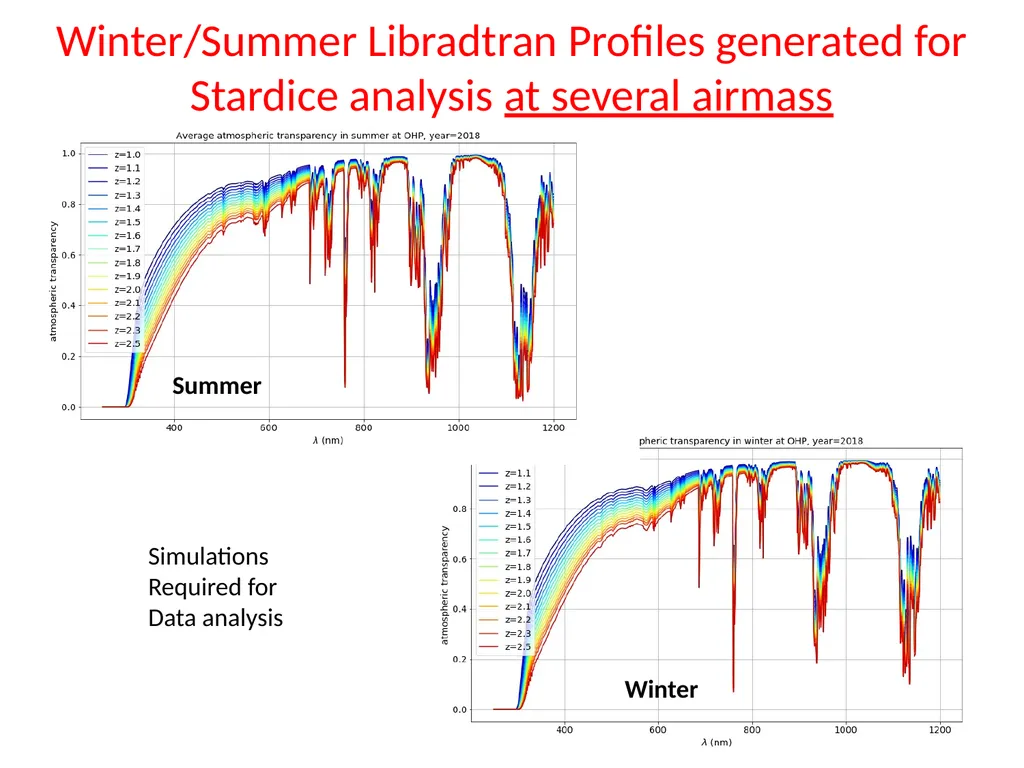

Winter/Summer Libradtran Profiles generated for Stardice analysis at several airmass LSST-France, November 2018 10 Summer Winter Simulations
Required for
Data analysis<br>
11

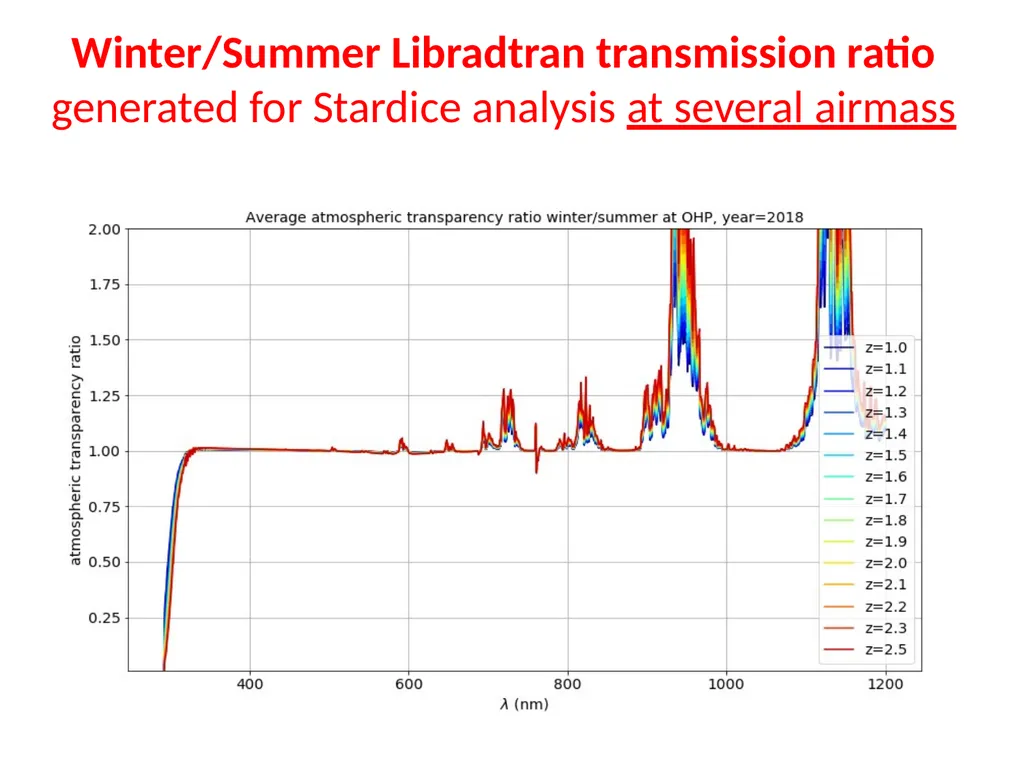

Winter/Summer Libradtran transmission ratio generated for Stardice analysis at several airmass LSST-France, November 2018 11<br>
12

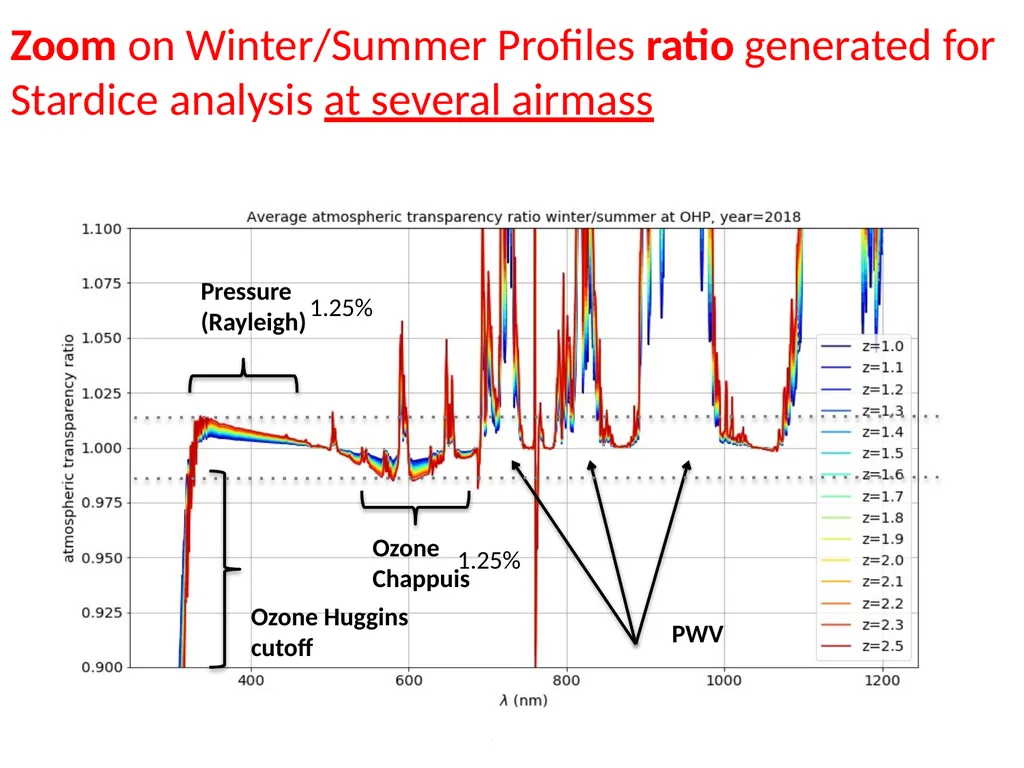

Zoom on Winter/Summer Profiles ratio generated for Stardice analysis at several airmass LSST-France, November 2018 12 Pressure
(Rayleigh) Ozone
Chappuis PWV Ozone Huggins
cutoff 1.25% 1.25%<br>
13

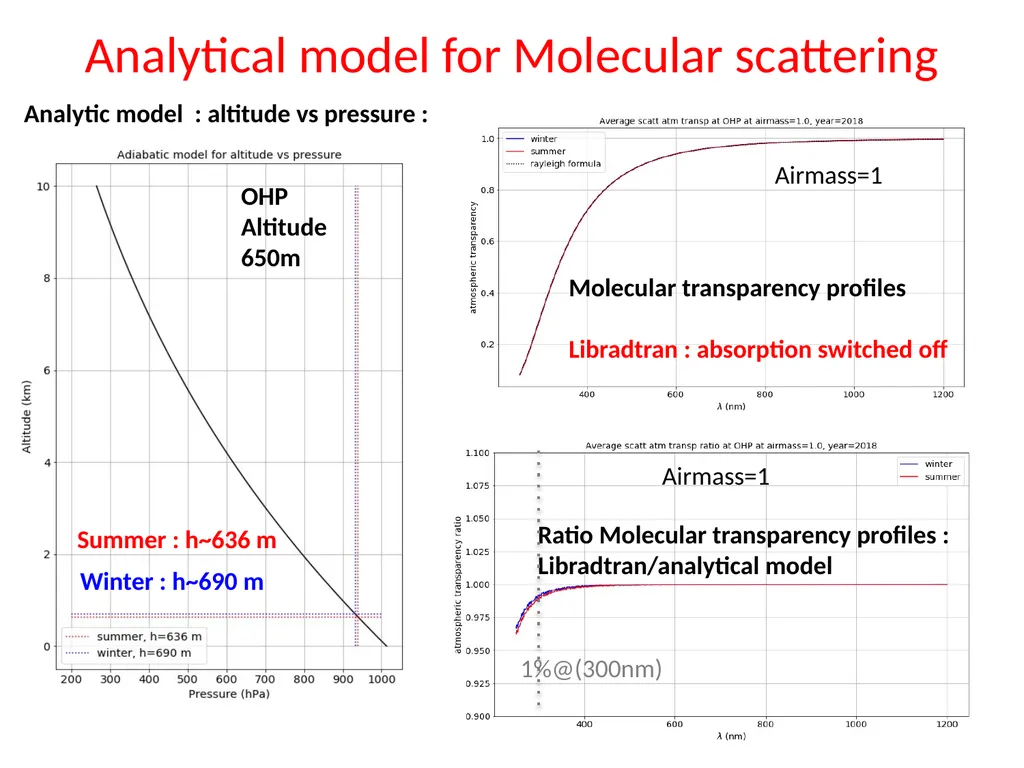

Analytical model for Molecular scattering LSST-France, November 2018 13 Analytic model : altitude vs pressure : Molecular transparency profiles
Libradtran : absorption switched off Ratio Molecular transparency profiles :
Libradtran/analytical model OHP
Altitude
650m 1%@(300nm) Summer : h~636 m Winter : h~690 m Airmass=1 Airmass=1<br>
14

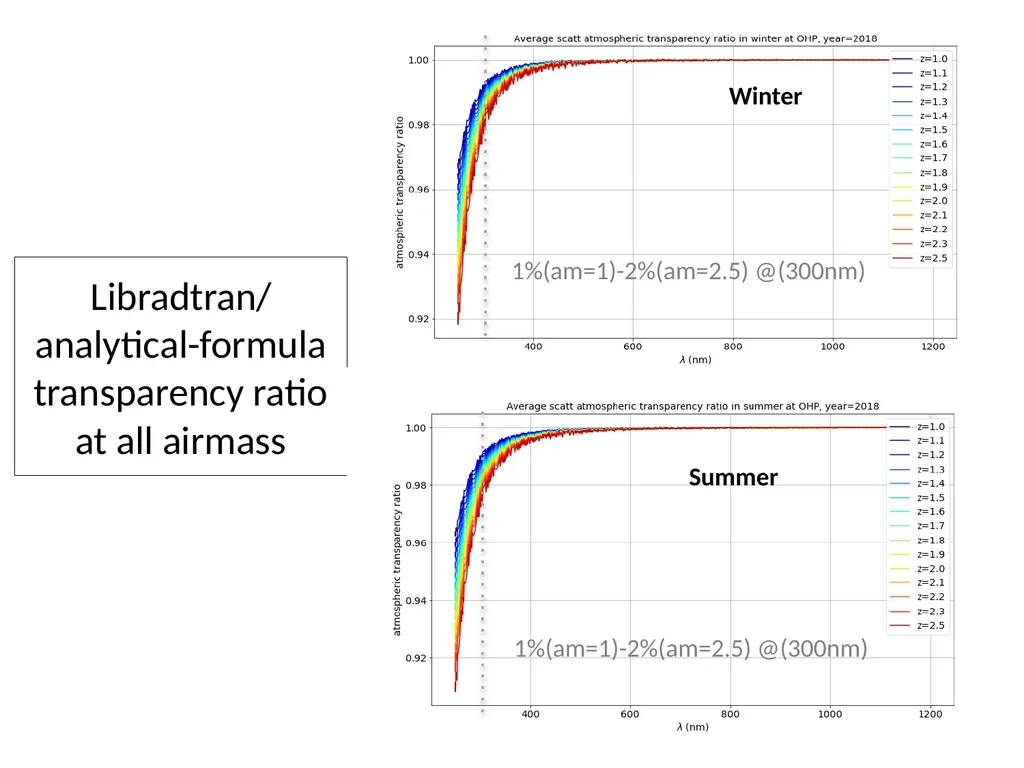

Libradtran/analytical-formula transparency ratio at all airmass LSST-France, November 2018 14 Winter Summer 1%(am=1)-2%(am=2.5) @(300nm) 1%(am=1)-2%(am=2.5) @(300nm)<br>
15

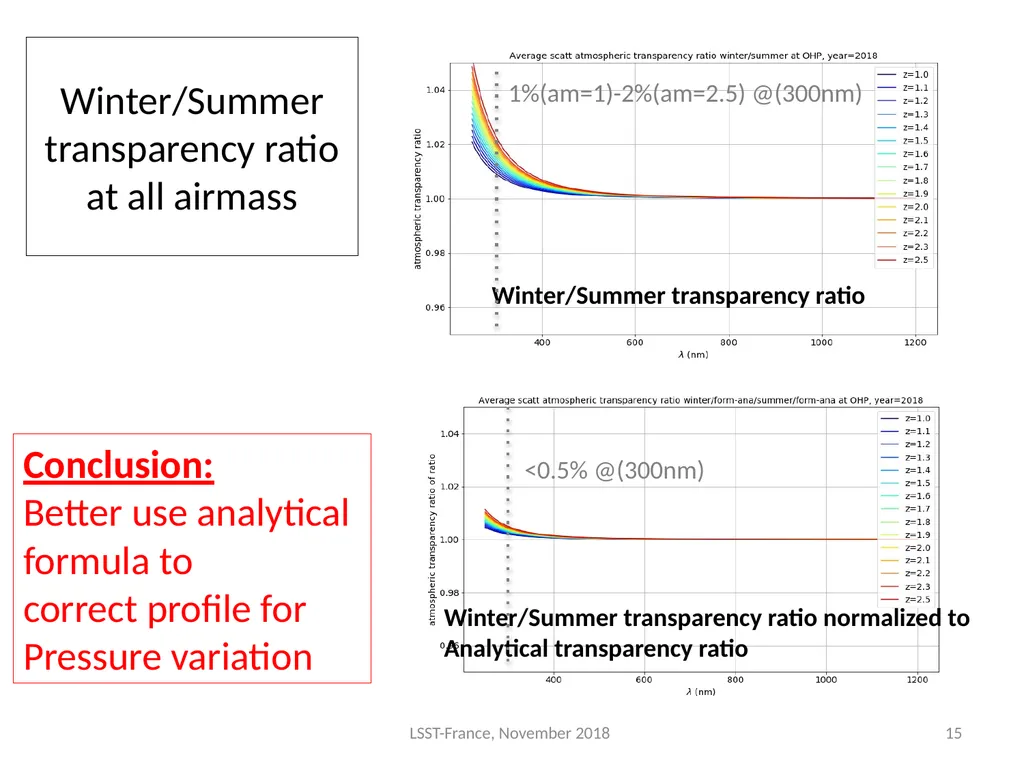

LSST-France, November 2018 15 Winter/Summer transparency ratio Winter/Summer transparency ratio normalized to
Analytical transparency ratio Winter/Summer transparency ratio at all airmass Conclusion:
Better use analytical formula to
correct profile for Pressure variation 1%(am=1)-2%(am=2.5) @(300nm) <0.5% @(300nm)<br>
16

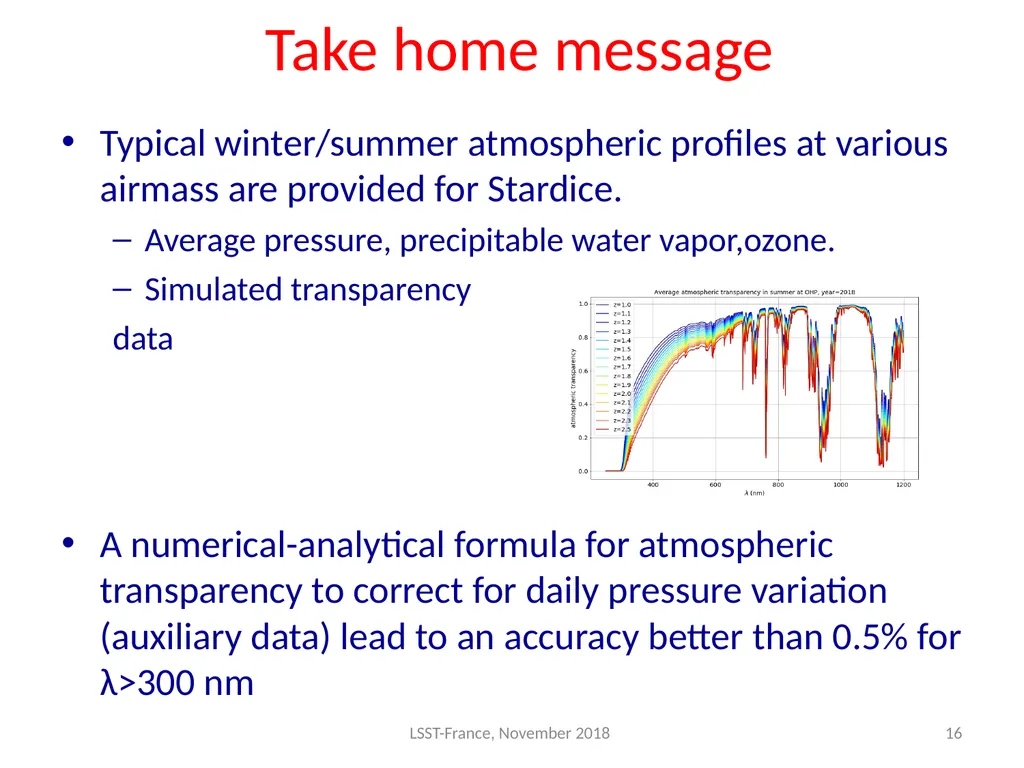

Take home message Typical winter/summer atmospheric profiles at various airmass are provided for Stardice.
Average pressure, precipitable water vapor,ozone.
Simulated transparency
data
A numerical-analytical formula for atmospheric transparency to correct for daily pressure variation (auxiliary data) lead to an accuracy better than 0.5% for λ>300 nm LSST-France, November 2018 16<br>
