Presentation Transcript
slide1. BBL Enterotube II Author: Multiple Authors
Citation: Multiple Authors. 2013. Bbl enterotube ii.
Publication Date: June 2013<br>

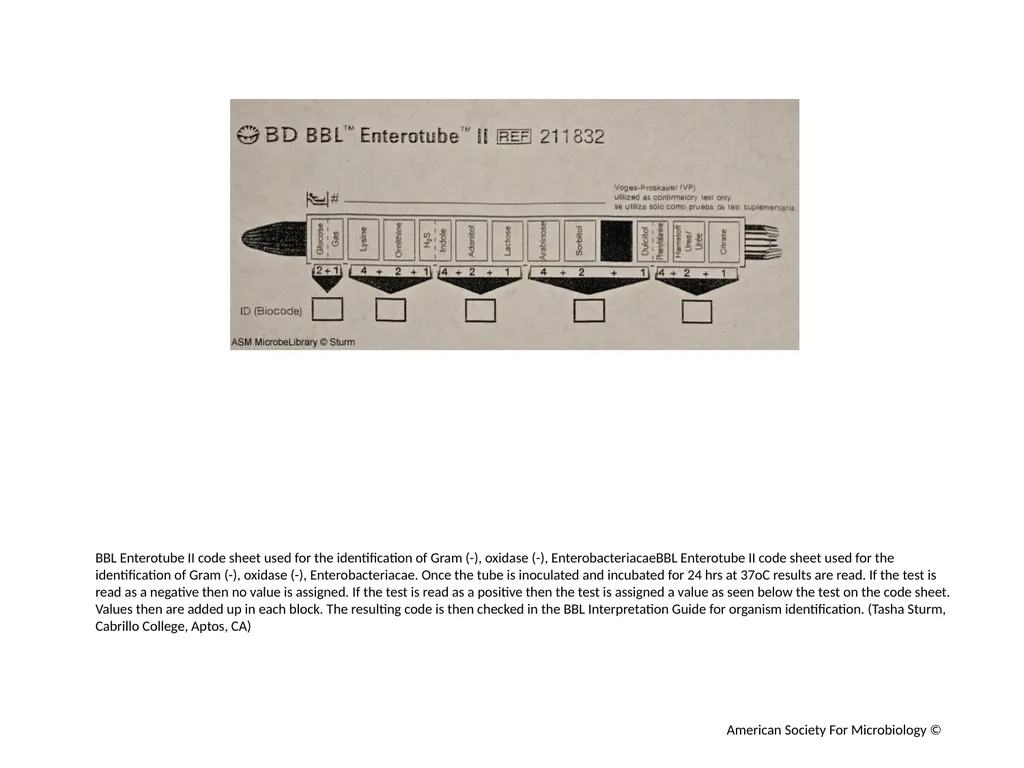

slide2. BBL Enterotube II code sheet used for the identification of Gram (-), oxidase (-), EnterobacteriacaeBBL Enterotube II code sheet used for the identification of Gram (-), oxidase (-), Enterobacteriacae. Once the tube is inoculated and incubated for 24 hrs at 37oC results are read. If the test is read as a negative then no value is assigned. If the test is read as a positive then the test is assigned a value as seen below the test on the code sheet. Values then are added up in each block. The resulting code is then checked in the BBL Interpretation Guide for organism identification. (Tasha Sturm, Cabrillo College, Aptos, CA) American Society For Microbiology ©<br>

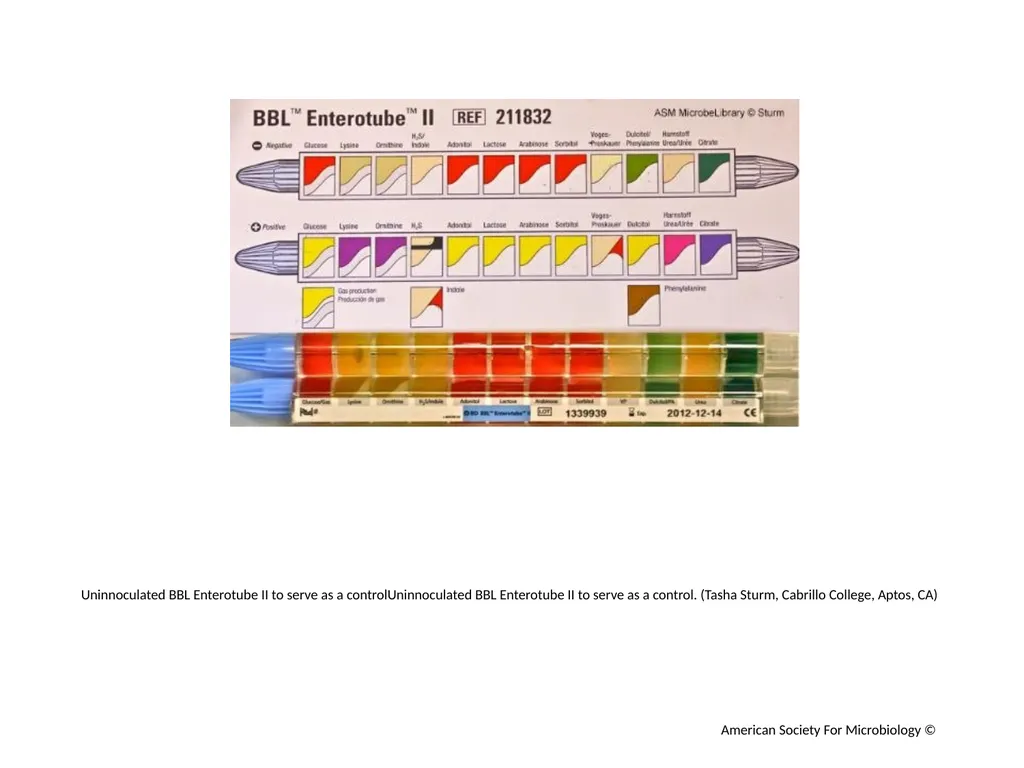

slide3. Uninnoculated BBL Enterotube II to serve as a controlUninnoculated BBL Enterotube II to serve as a control. (Tasha Sturm, Cabrillo College, Aptos, CA) American Society For Microbiology ©<br>

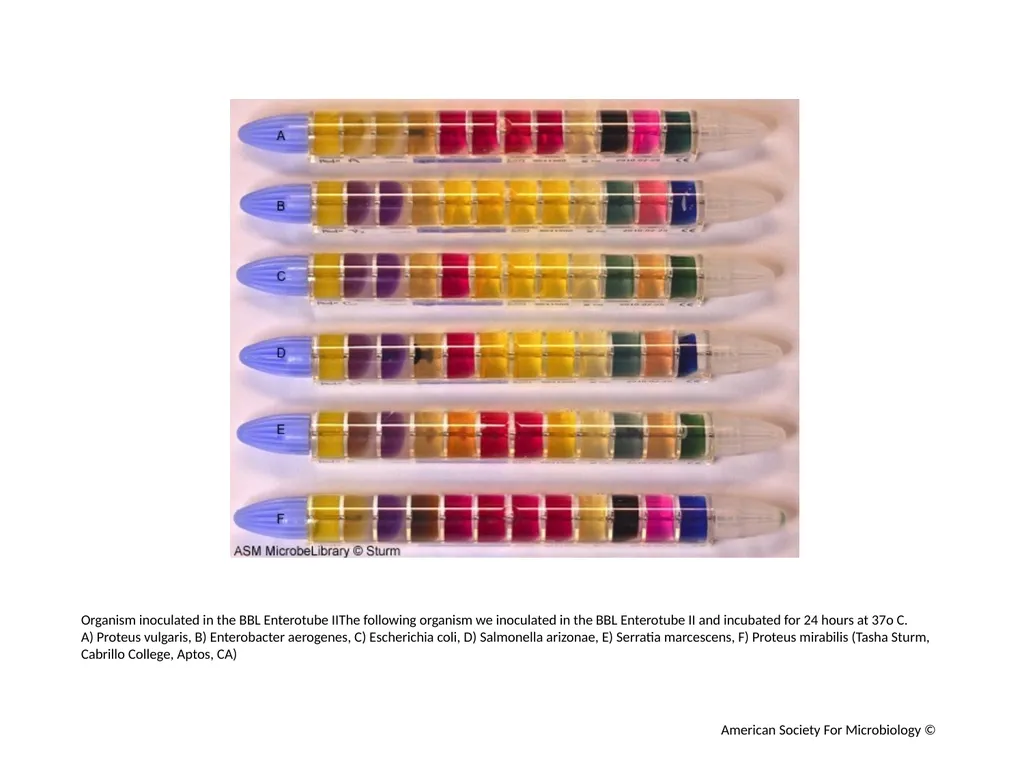

slide4. Organism inoculated in the BBL Enterotube IIThe following organism we inoculated in the BBL Enterotube II and incubated for 24 hours at 37o C.
A) Proteus vulgaris, B) Enterobacter aerogenes, C) Escherichia coli, D) Salmonella arizonae, E) Serratia marcescens, F) Proteus mirabilis (Tasha Sturm, Cabrillo College, Aptos, CA) American Society For Microbiology ©<br>

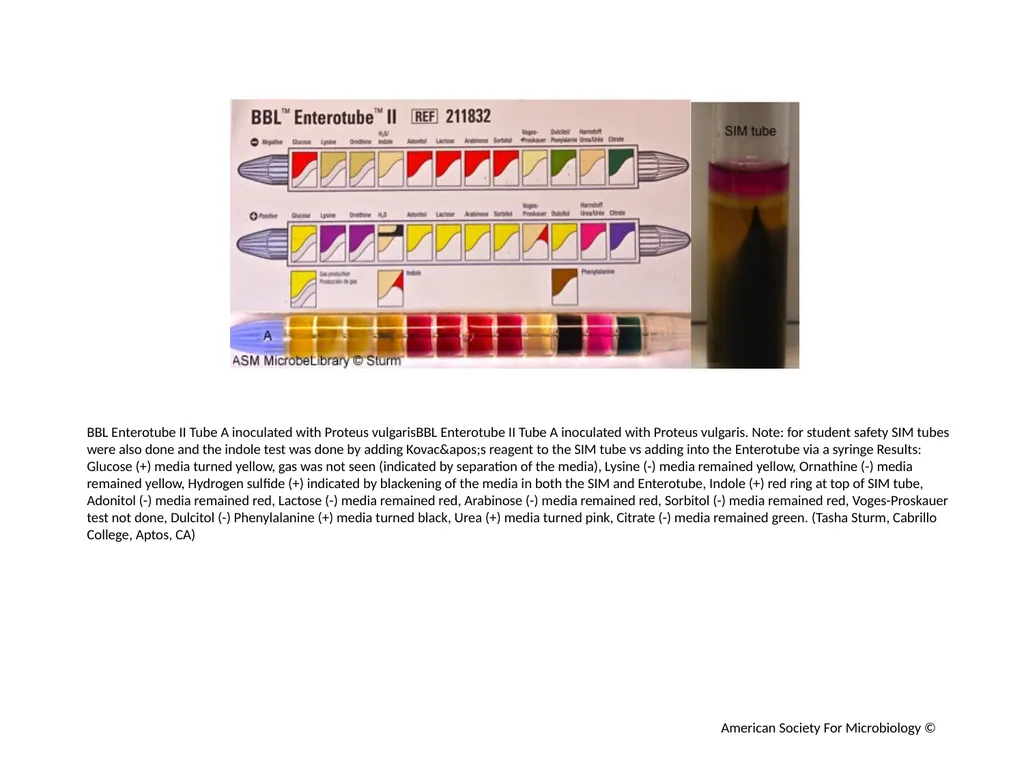

slide5. American Society For Microbiology © BBL Enterotube II Tube A inoculated with Proteus vulgarisBBL Enterotube II Tube A inoculated with Proteus vulgaris. Note: for student safety SIM tubes were also done and the indole test was done by adding Kovac's reagent to the SIM tube vs adding into the Enterotube via a syringe Results: Glucose (+) media turned yellow, gas was not seen (indicated by separation of the media), Lysine (-) media remained yellow, Ornathine (-) media remained yellow, Hydrogen sulfide (+) indicated by blackening of the media in both the SIM and Enterotube, Indole (+) red ring at top of SIM tube, Adonitol (-) media remained red, Lactose (-) media remained red, Arabinose (-) media remained red, Sorbitol (-) media remained red, Voges-Proskauer test not done, Dulcitol (-) Phenylalanine (+) media turned black, Urea (+) media turned pink, Citrate (-) media remained green. (Tasha Sturm, Cabrillo College, Aptos, CA)<br>

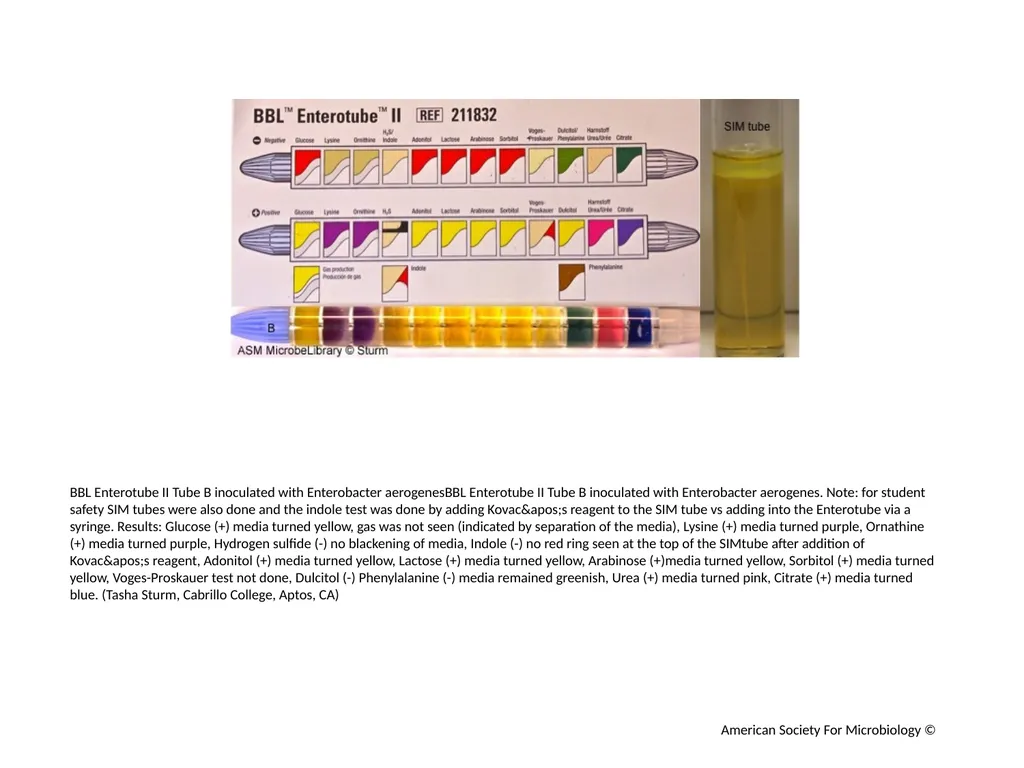

slide6. American Society For Microbiology © BBL Enterotube II Tube B inoculated with Enterobacter aerogenesBBL Enterotube II Tube B inoculated with Enterobacter aerogenes. Note: for student safety SIM tubes were also done and the indole test was done by adding Kovac's reagent to the SIM tube vs adding into the Enterotube via a syringe. Results: Glucose (+) media turned yellow, gas was not seen (indicated by separation of the media), Lysine (+) media turned purple, Ornathine (+) media turned purple, Hydrogen sulfide (-) no blackening of media, Indole (-) no red ring seen at the top of the SIMtube after addition of Kovac's reagent, Adonitol (+) media turned yellow, Lactose (+) media turned yellow, Arabinose (+)media turned yellow, Sorbitol (+) media turned yellow, Voges-Proskauer test not done, Dulcitol (-) Phenylalanine (-) media remained greenish, Urea (+) media turned pink, Citrate (+) media turned blue. (Tasha Sturm, Cabrillo College, Aptos, CA)<br>

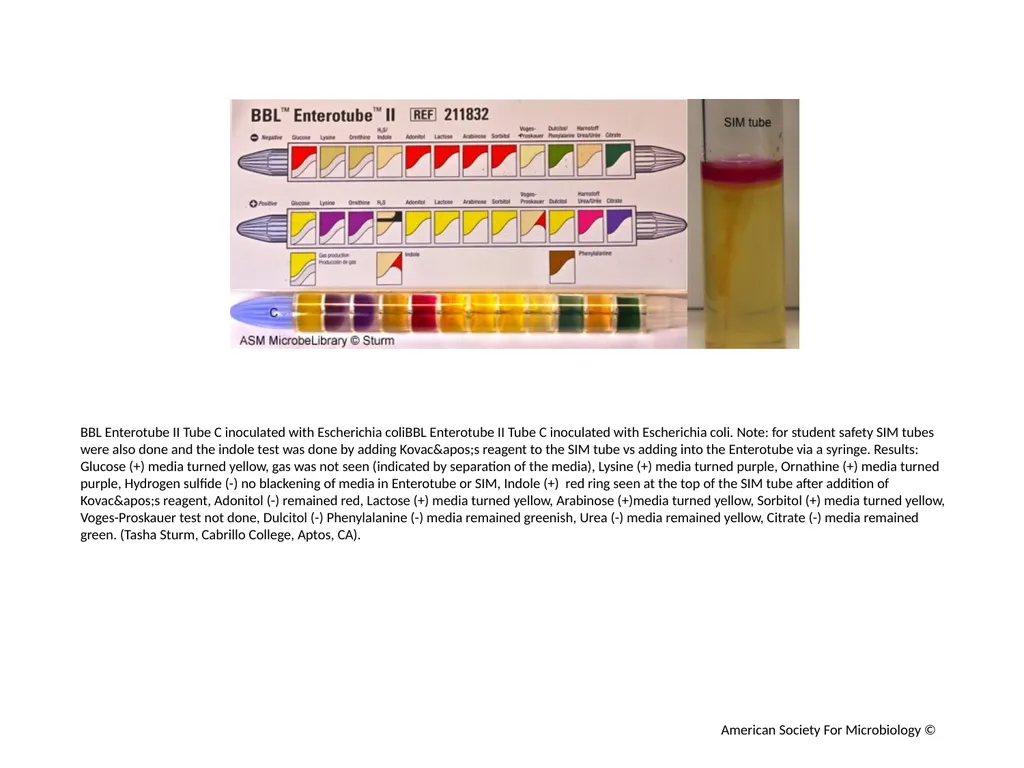

slide7. American Society For Microbiology © BBL Enterotube II Tube C inoculated with Escherichia coliBBL Enterotube II Tube C inoculated with Escherichia coli. Note: for student safety SIM tubes were also done and the indole test was done by adding Kovac's reagent to the SIM tube vs adding into the Enterotube via a syringe. Results: Glucose (+) media turned yellow, gas was not seen (indicated by separation of the media), Lysine (+) media turned purple, Ornathine (+) media turned purple, Hydrogen sulfide (-) no blackening of media in Enterotube or SIM, Indole (+) red ring seen at the top of the SIM tube after addition of Kovac's reagent, Adonitol (-) remained red, Lactose (+) media turned yellow, Arabinose (+)media turned yellow, Sorbitol (+) media turned yellow, Voges-Proskauer test not done, Dulcitol (-) Phenylalanine (-) media remained greenish, Urea (-) media remained yellow, Citrate (-) media remained green. (Tasha Sturm, Cabrillo College, Aptos, CA).<br>

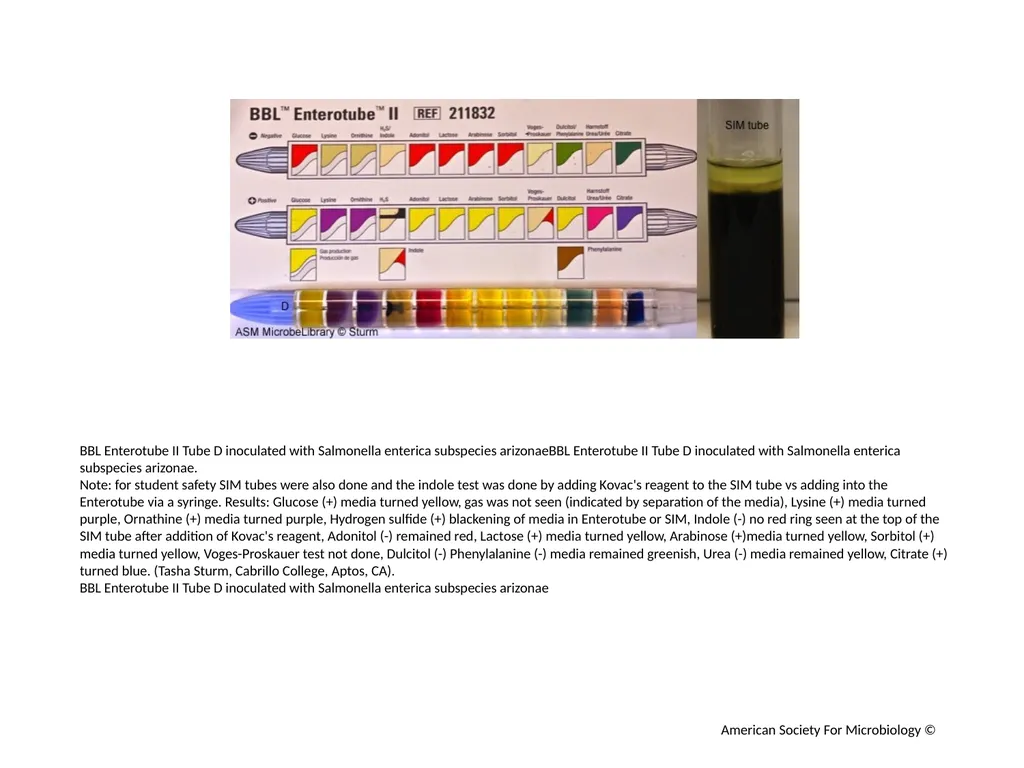

slide8. American Society For Microbiology © BBL Enterotube II Tube D inoculated with Salmonella enterica subspecies arizonaeBBL Enterotube II Tube D inoculated with Salmonella enterica subspecies arizonae.
Note: for student safety SIM tubes were also done and the indole test was done by adding Kovac's reagent to the SIM tube vs adding into the Enterotube via a syringe. Results: Glucose (+) media turned yellow, gas was not seen (indicated by separation of the media), Lysine (+) media turned purple, Ornathine (+) media turned purple, Hydrogen sulfide (+) blackening of media in Enterotube or SIM, Indole (-) no red ring seen at the top of the SIM tube after addition of Kovac's reagent, Adonitol (-) remained red, Lactose (+) media turned yellow, Arabinose (+)media turned yellow, Sorbitol (+) media turned yellow, Voges-Proskauer test not done, Dulcitol (-) Phenylalanine (-) media remained greenish, Urea (-) media remained yellow, Citrate (+) turned blue. (Tasha Sturm, Cabrillo College, Aptos, CA).
BBL Enterotube II Tube D inoculated with Salmonella enterica subspecies arizonae<br>

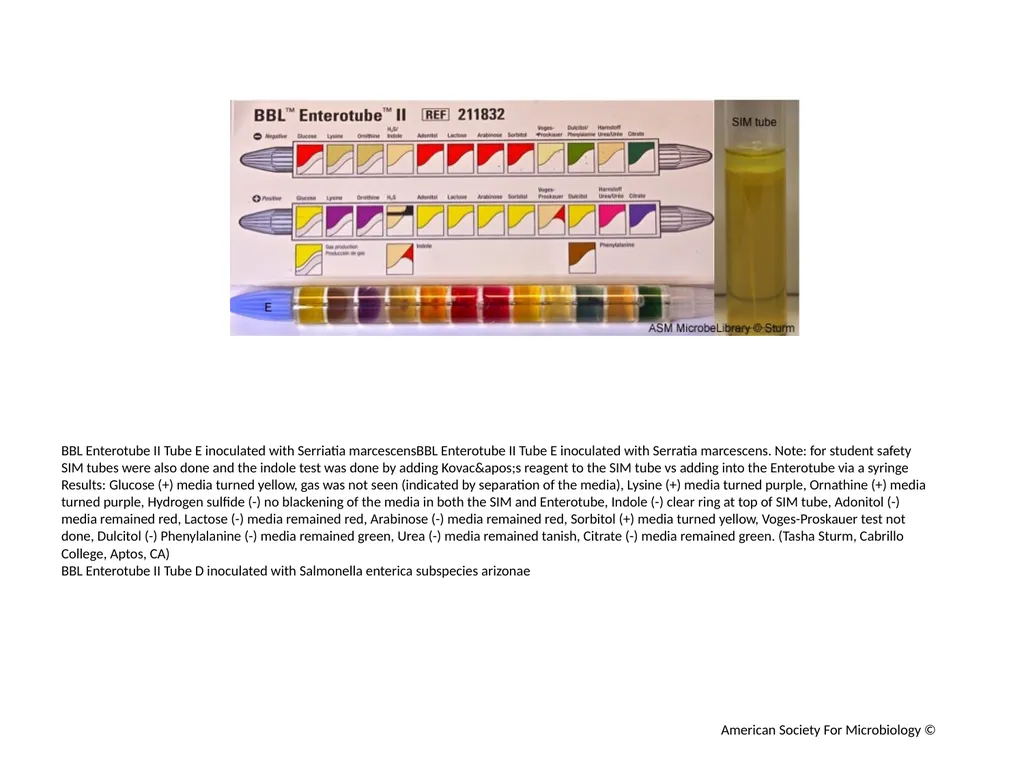

slide9. American Society For Microbiology © BBL Enterotube II Tube E inoculated with Serriatia marcescensBBL Enterotube II Tube E inoculated with Serratia marcescens. Note: for student safety SIM tubes were also done and the indole test was done by adding Kovac's reagent to the SIM tube vs adding into the Enterotube via a syringe Results: Glucose (+) media turned yellow, gas was not seen (indicated by separation of the media), Lysine (+) media turned purple, Ornathine (+) media turned purple, Hydrogen sulfide (-) no blackening of the media in both the SIM and Enterotube, Indole (-) clear ring at top of SIM tube, Adonitol (-) media remained red, Lactose (-) media remained red, Arabinose (-) media remained red, Sorbitol (+) media turned yellow, Voges-Proskauer test not done, Dulcitol (-) Phenylalanine (-) media remained green, Urea (-) media remained tanish, Citrate (-) media remained green. (Tasha Sturm, Cabrillo College, Aptos, CA)
BBL Enterotube II Tube D inoculated with Salmonella enterica subspecies arizonae<br>

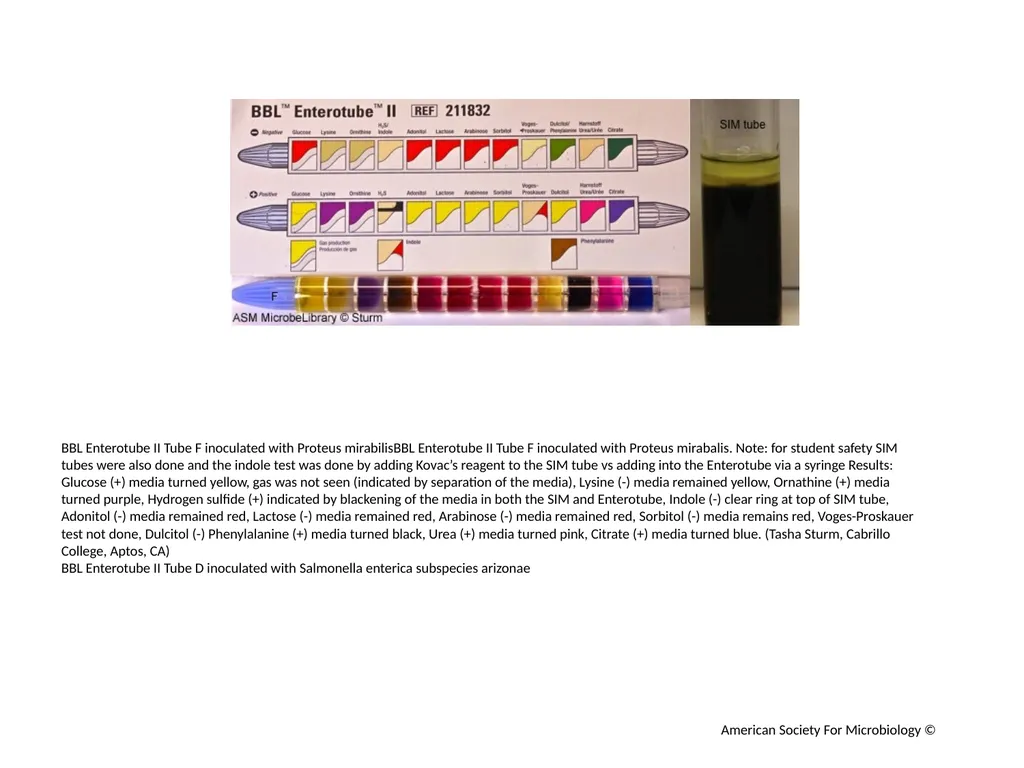

slide10. American Society For Microbiology © BBL Enterotube II Tube F inoculated with Proteus mirabilisBBL Enterotube II Tube F inoculated with Proteus mirabalis. Note: for student safety SIM tubes were also done and the indole test was done by adding Kovac’s reagent to the SIM tube vs adding into the Enterotube via a syringe Results: Glucose (+) media turned yellow, gas was not seen (indicated by separation of the media), Lysine (-) media remained yellow, Ornathine (+) media turned purple, Hydrogen sulfide (+) indicated by blackening of the media in both the SIM and Enterotube, Indole (-) clear ring at top of SIM tube, Adonitol (-) media remained red, Lactose (-) media remained red, Arabinose (-) media remained red, Sorbitol (-) media remains red, Voges-Proskauer test not done, Dulcitol (-) Phenylalanine (+) media turned black, Urea (+) media turned pink, Citrate (+) media turned blue. (Tasha Sturm, Cabrillo College, Aptos, CA)
BBL Enterotube II Tube D inoculated with Salmonella enterica subspecies arizonae<br>
