slide1. CO@L4BCC I.Kozsar BE/CO<br>

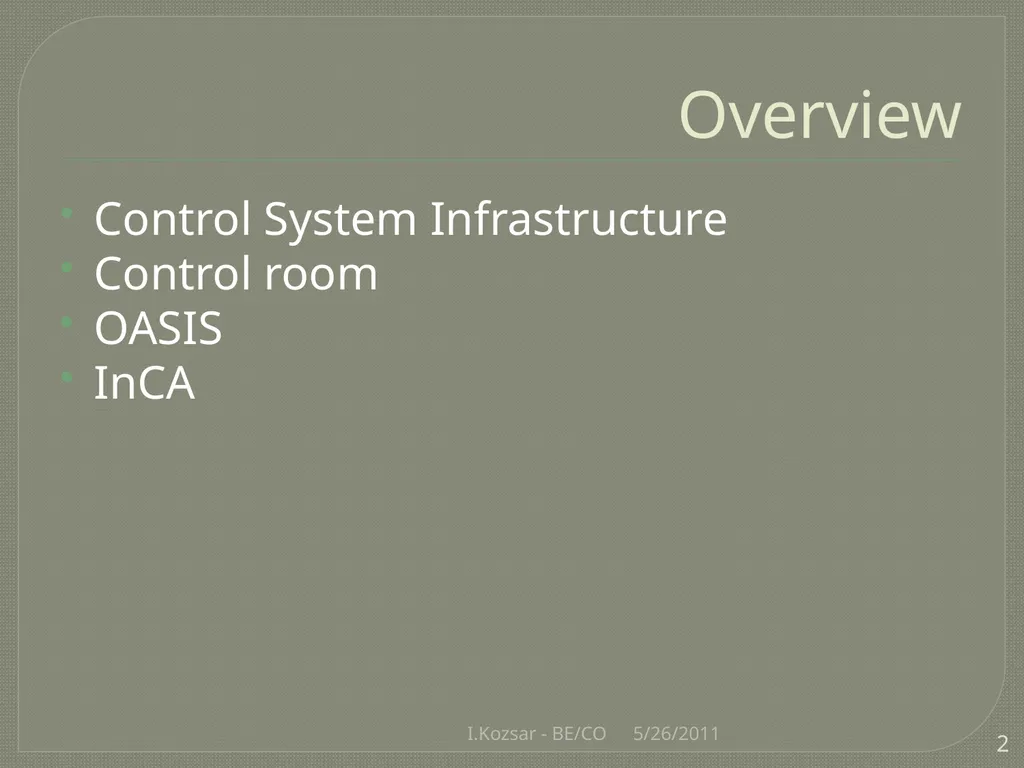

slide2. Overview Control System Infrastructure
Control room
OASIS
InCA 5/26/2011 I.Kozsar - BE/CO 2<br>

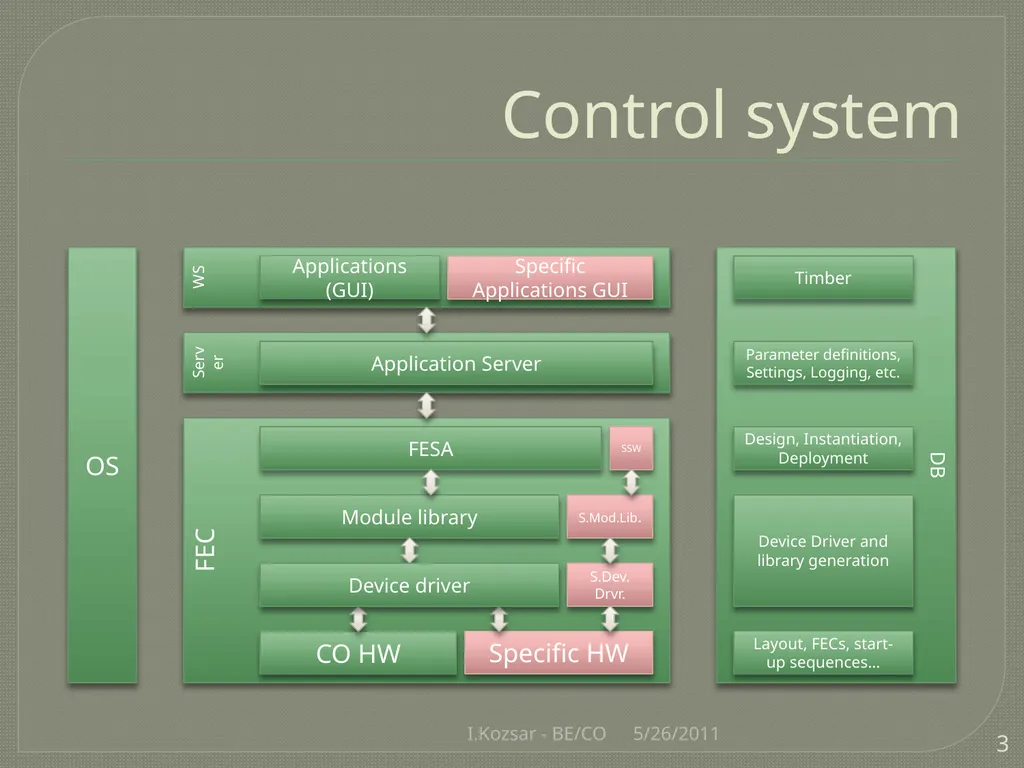

slide3. Control system 5/26/2011 I.Kozsar - BE/CO 3 DB Layout, FECs, start-up sequences… Device Driver and library generation Design, Instantiation, Deployment Parameter definitions, Settings, Logging, etc. Timber OS<br>

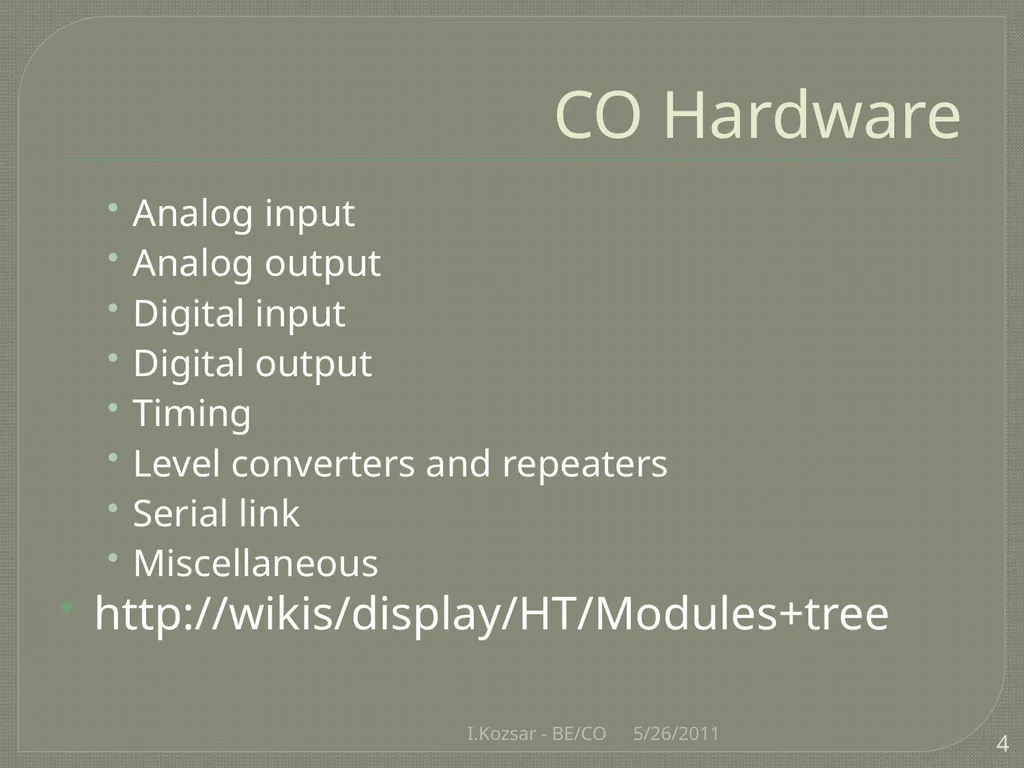

slide4. CO Hardware Analog input
Analog output
Digital input
Digital output
Timing
Level converters and repeaters
Serial link
Miscellaneous
http://wikis/display/HT/Modules+tree 5/26/2011 I.Kozsar - BE/CO 4<br>

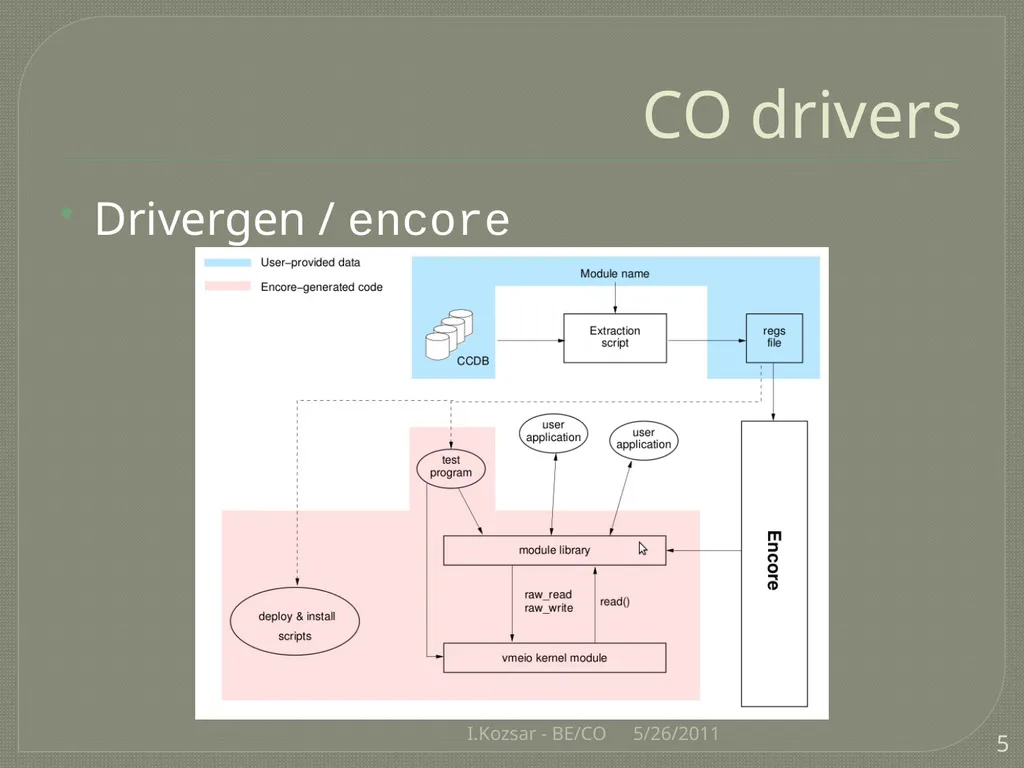

slide5. CO drivers Drivergen / encore 5/26/2011 I.Kozsar - BE/CO 5<br>

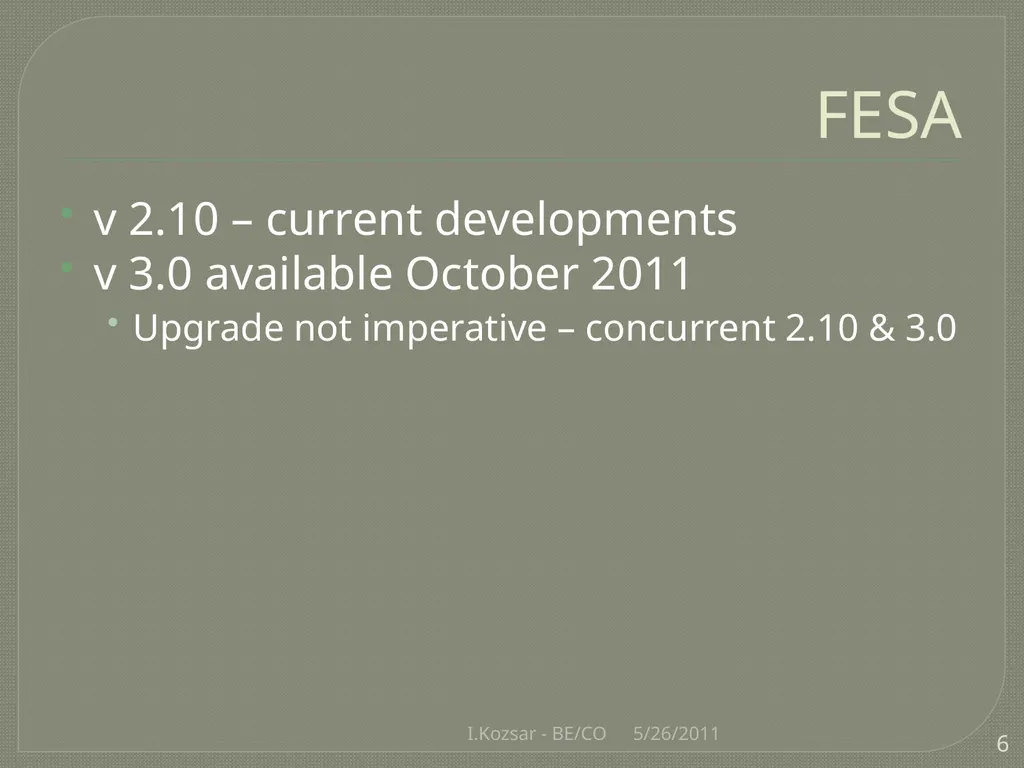

slide6. FESA v 2.10 – current developments
v 3.0 available October 2011
Upgrade not imperative – concurrent 2.10 & 3.0 5/26/2011 I.Kozsar - BE/CO 6<br>

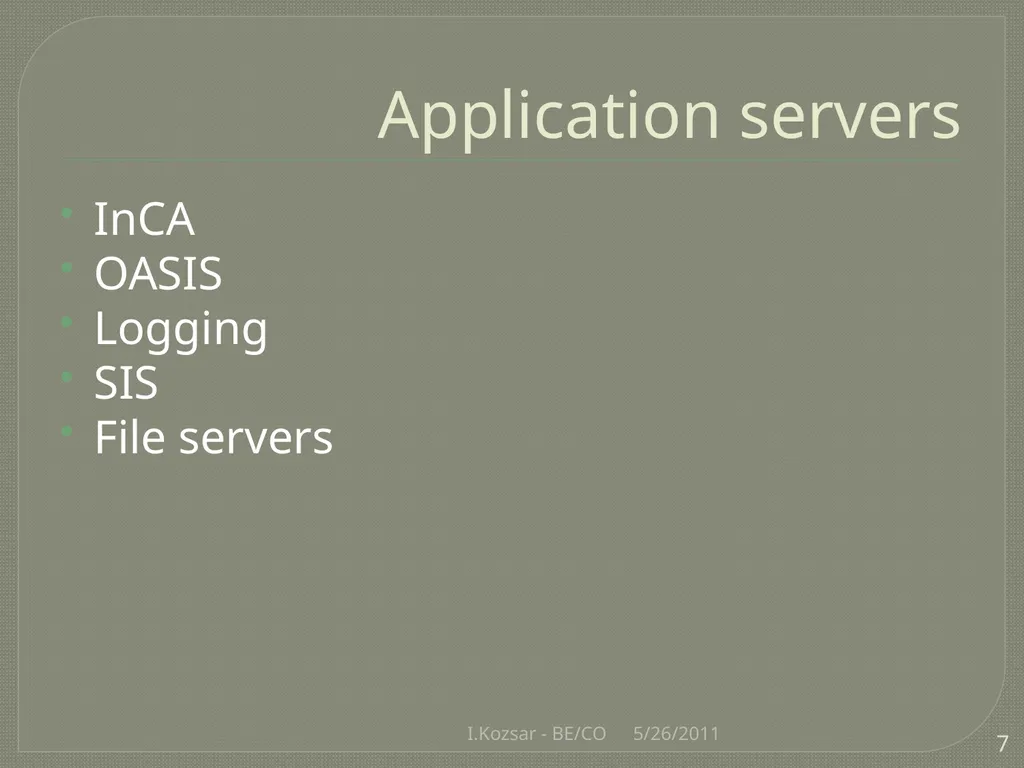

slide7. Application servers InCA
OASIS
Logging
SIS
File servers 5/26/2011 I.Kozsar - BE/CO 7<br>

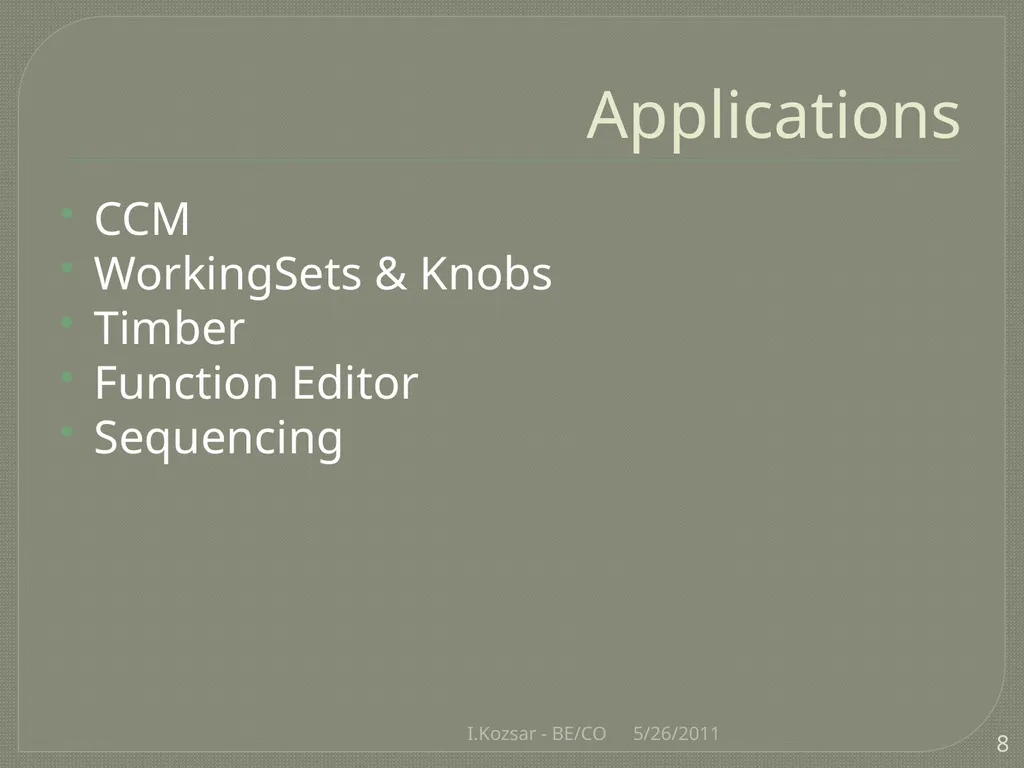

slide8. Applications CCM
WorkingSets & Knobs
Timber
Function Editor
Sequencing 5/26/2011 I.Kozsar - BE/CO 8<br>

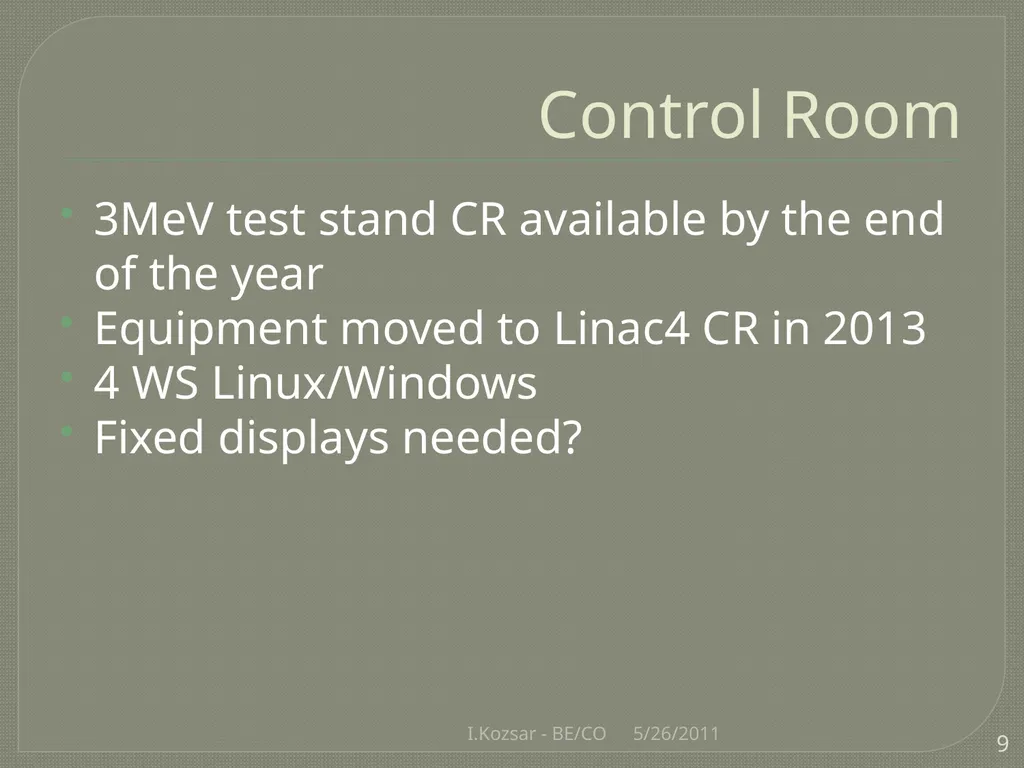

slide9. Control Room 3MeV test stand CR available by the end of the year
Equipment moved to Linac4 CR in 2013
4 WS Linux/Windows
Fixed displays needed? 5/26/2011 I.Kozsar - BE/CO 9<br>

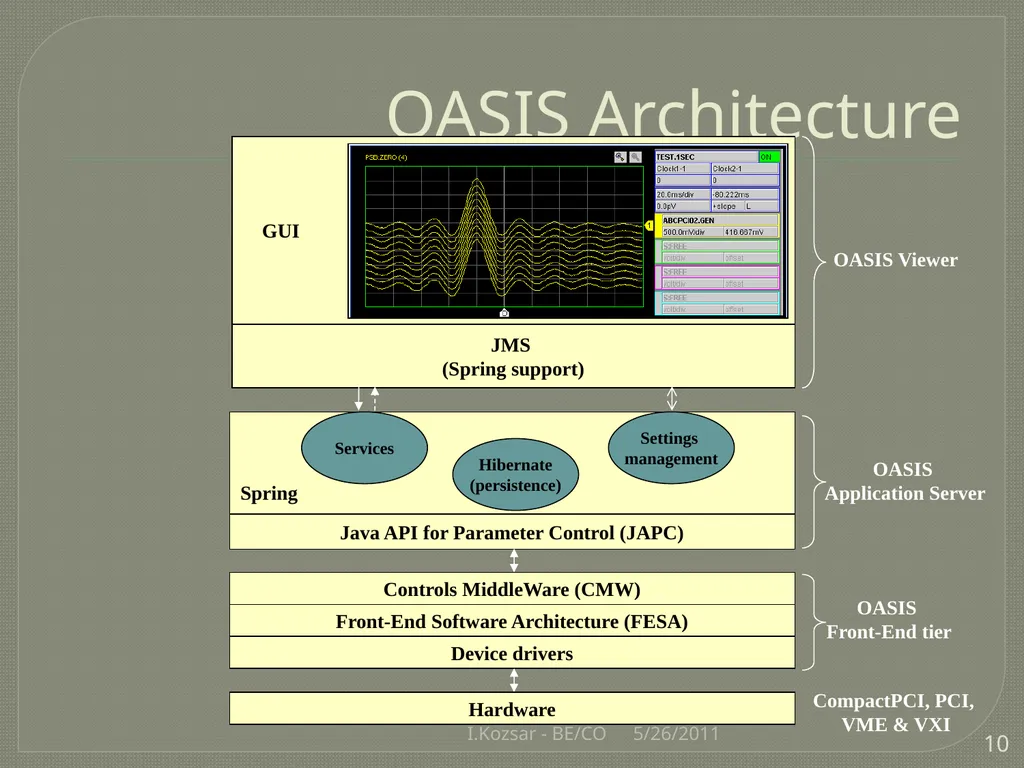

slide10. OASIS Architecture 5/26/2011 I.Kozsar - BE/CO 10<br>

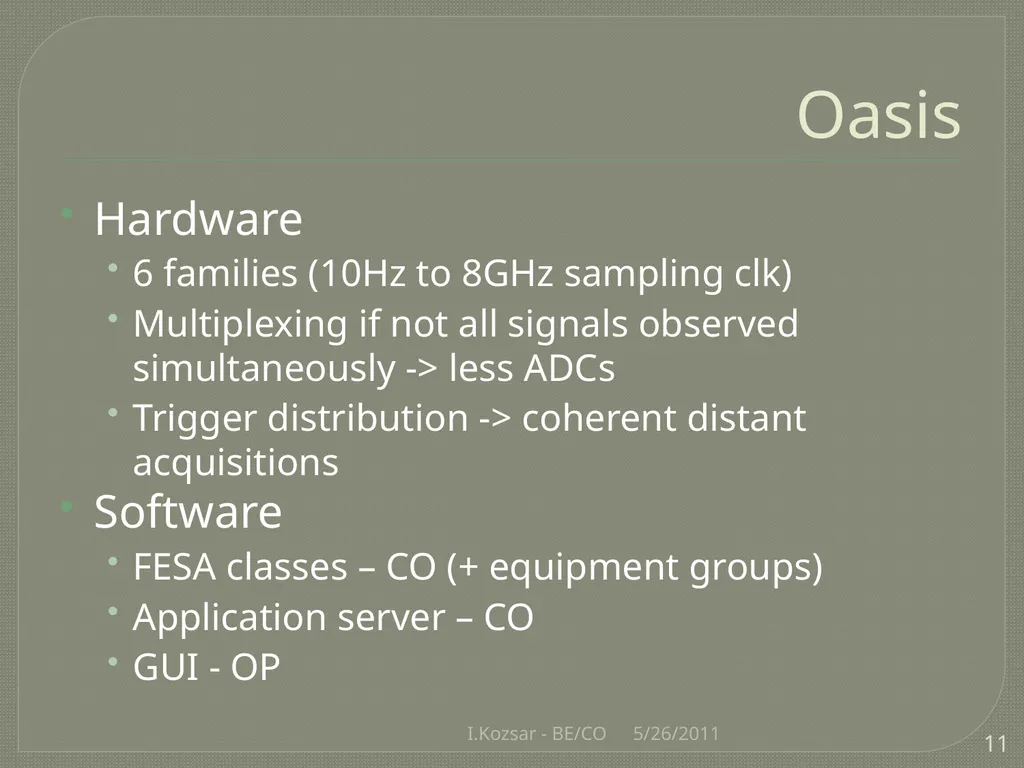

slide11. Oasis Hardware
6 families (10Hz to 8GHz sampling clk)
Multiplexing if not all signals observed simultaneously -> less ADCs
Trigger distribution -> coherent distant acquisitions
Software
FESA classes – CO (+ equipment groups)
Application server – CO
GUI - OP 5/26/2011 I.Kozsar - BE/CO 11<br>

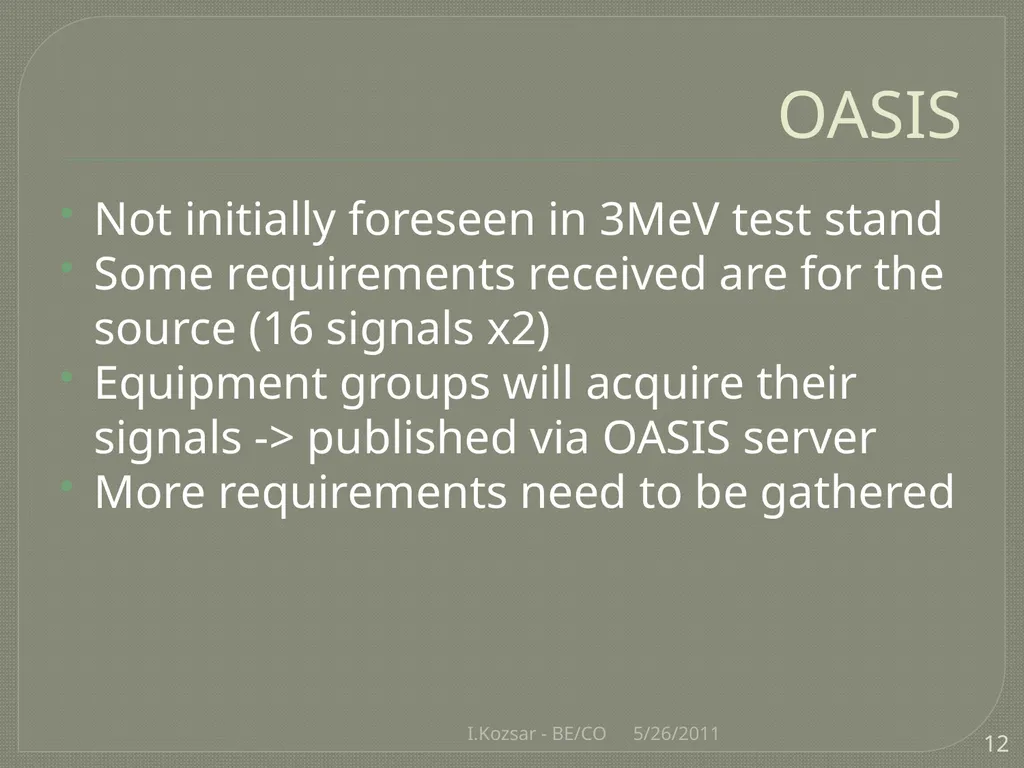

slide12. OASIS Not initially foreseen in 3MeV test stand
Some requirements received are for the source (16 signals x2)
Equipment groups will acquire their signals -> published via OASIS server
More requirements need to be gathered 5/26/2011 I.Kozsar - BE/CO 12<br>

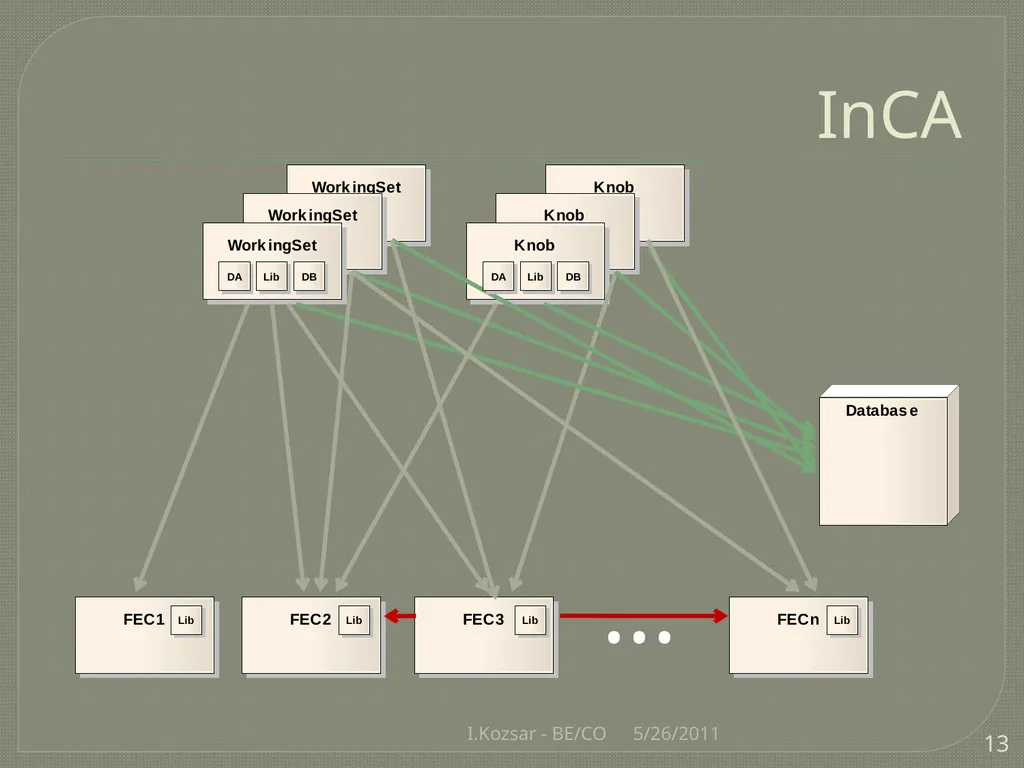

slide13. InCA 5/26/2011 I.Kozsar - BE/CO 13 ...<br>

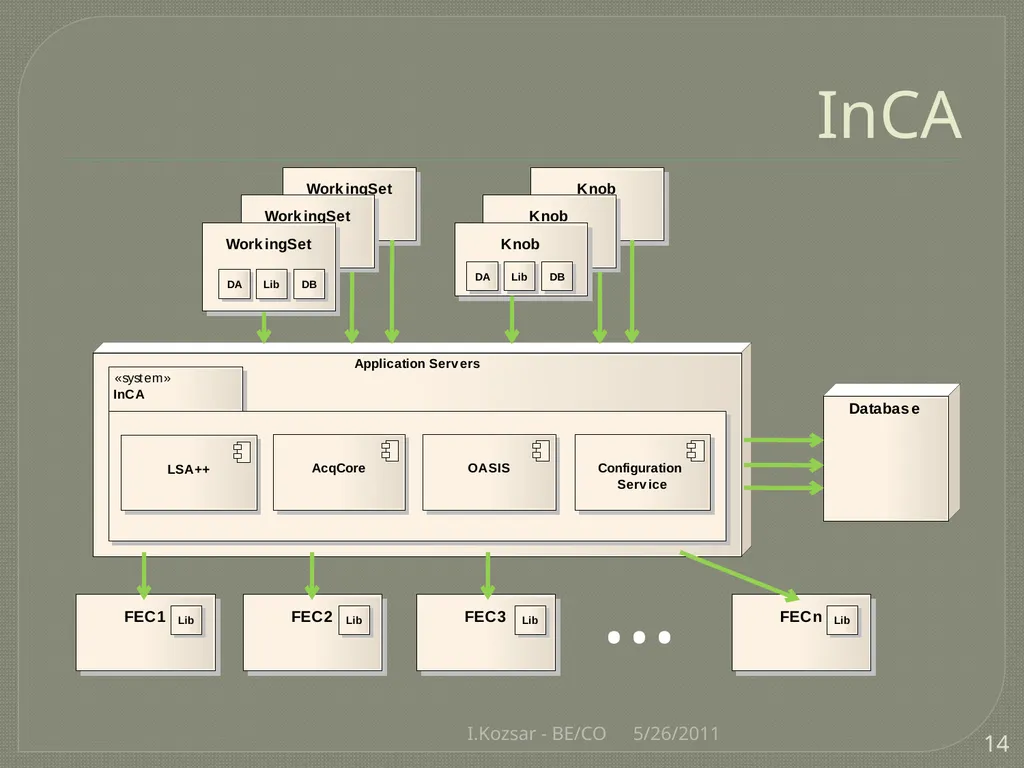

slide14. InCA 5/26/2011 I.Kozsar - BE/CO 14 ...<br>

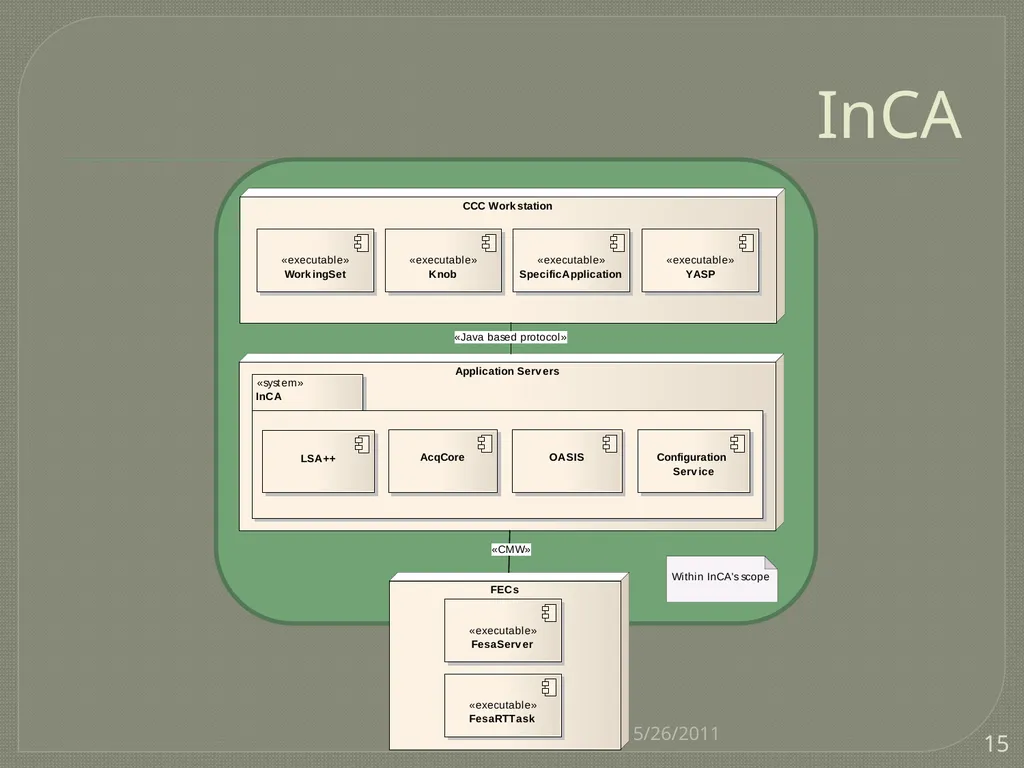

slide15. InCA 5/26/2011 I.Kozsar - BE/CO 15<br>

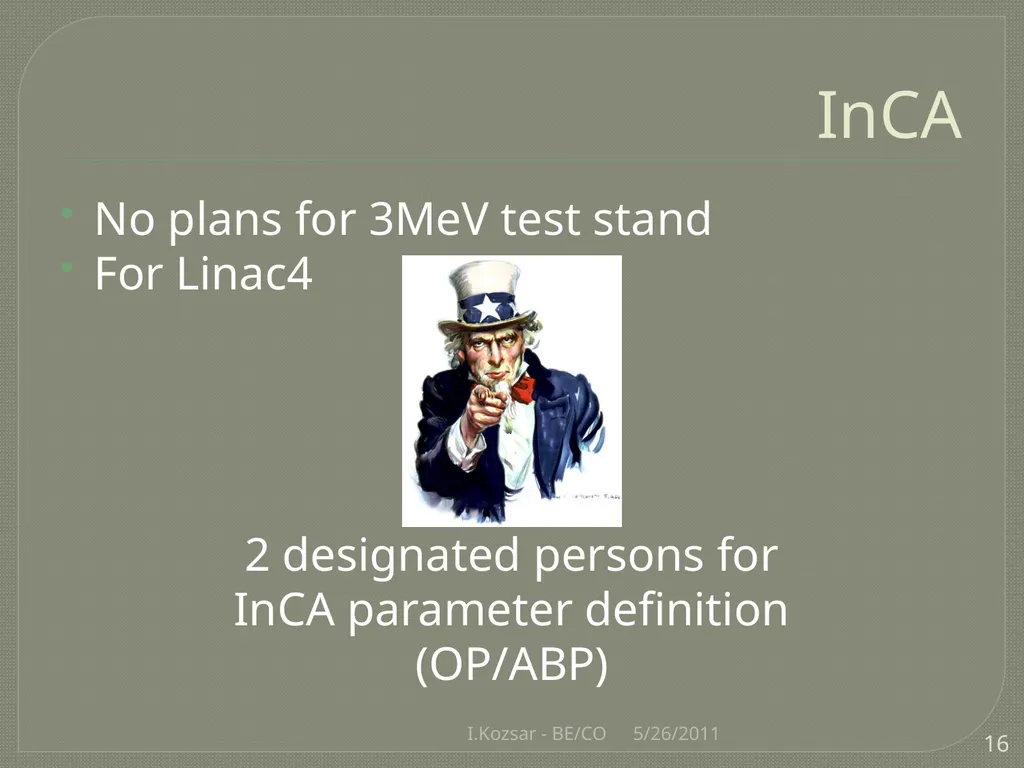

slide16. InCA No plans for 3MeV test stand
For Linac4 5/26/2011 I.Kozsar - BE/CO 16 2 designated persons for
InCA parameter definition
(OP/ABP)<br>
slide17. Thank you 5/26/2011 17 I.Kozsar - BE/CO<br>
