Presentation Transcript

01
IS 2510 Lab
Oracle SQL Revision<br>
02

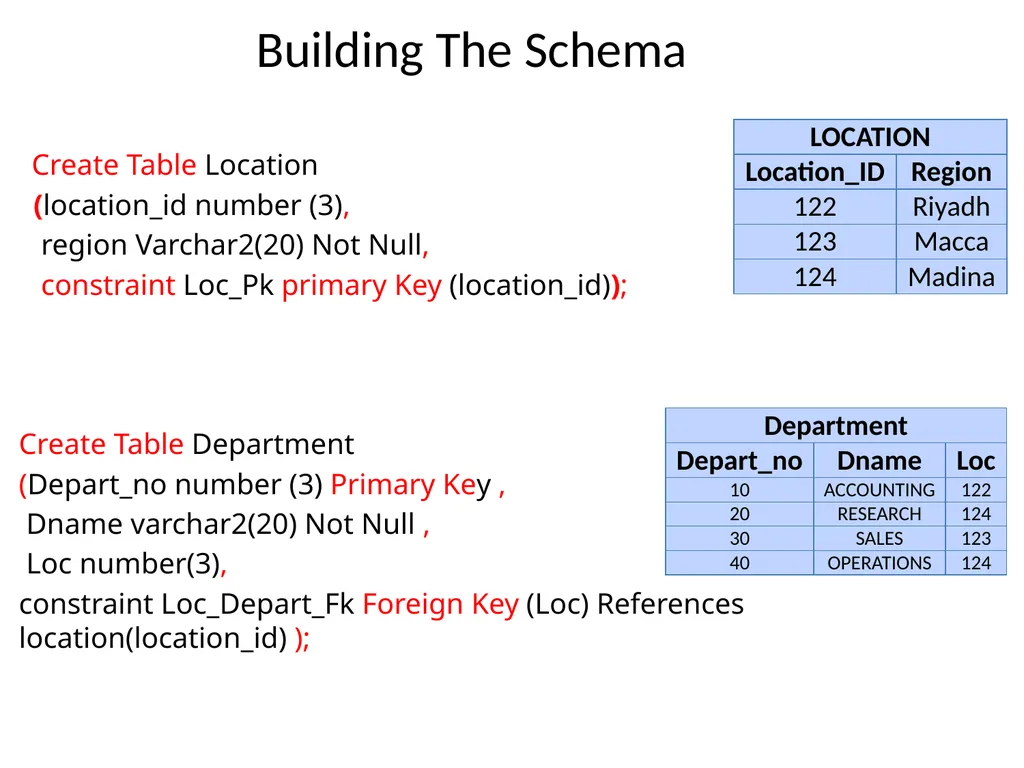

Building The Schema Create Table Location
(location_id number (3),
region Varchar2(20) Not Null,
constraint Loc_Pk primary Key (location_id));



Create Table Department
(Depart_no number (3) Primary Key ,
Dname varchar2(20) Not Null ,
Loc number(3),
constraint Loc_Depart_Fk Foreign Key (Loc) References location(location_id) );<br>
03

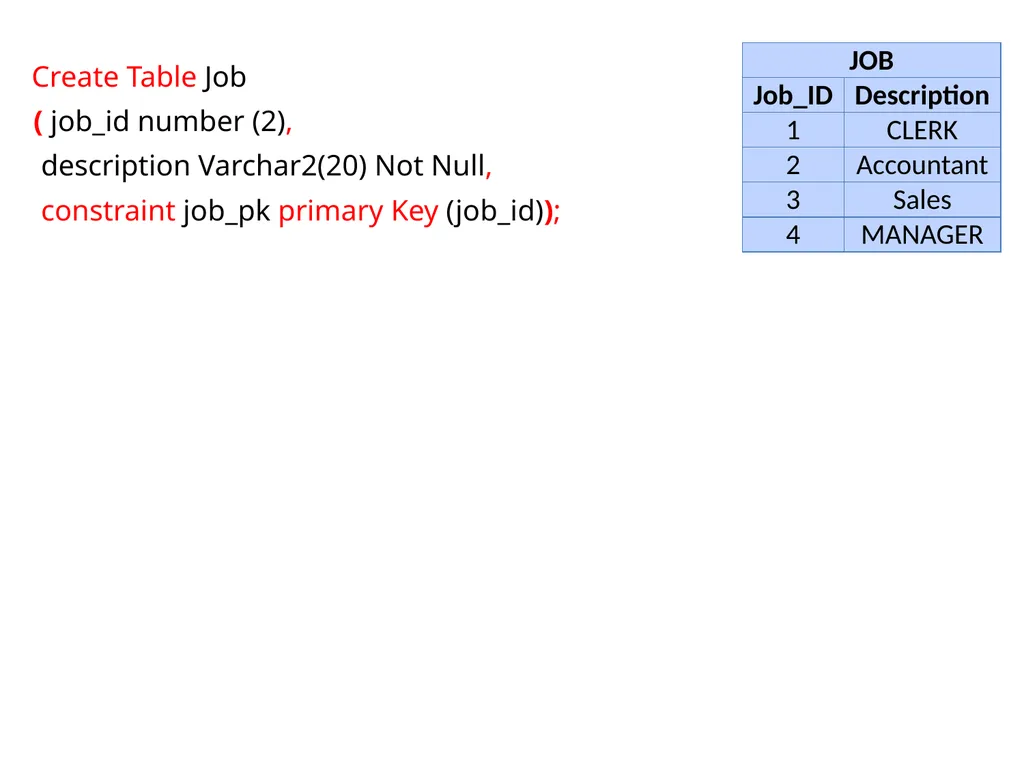

Create Table Job
( job_id number (2),
description Varchar2(20) Not Null,
constraint job_pk primary Key (job_id));<br>
