Description

Lesson 4.3 Rotations Learning Target: Understand rotations of figures. Success Criteria: I can rotate figures. I can perform compositions with rotations. I can identify rotational symmetry in polygons. Vocabulary rotation, p. 184 center of

Download this presentation From Below

"Lesson 4.3 Rotations Learning Target: Understand" is the property of its rightful owner. Permission is granted to download and print the materials on this website for personal, non-commercial use only, and to display it on your personal computer provided you do not modify the materials and that you retain all copyright notices contained in the materials. By downloading content from our website, you accept the terms of this agreement.

Presentation Transcript

Lesson 4.3 Rotations

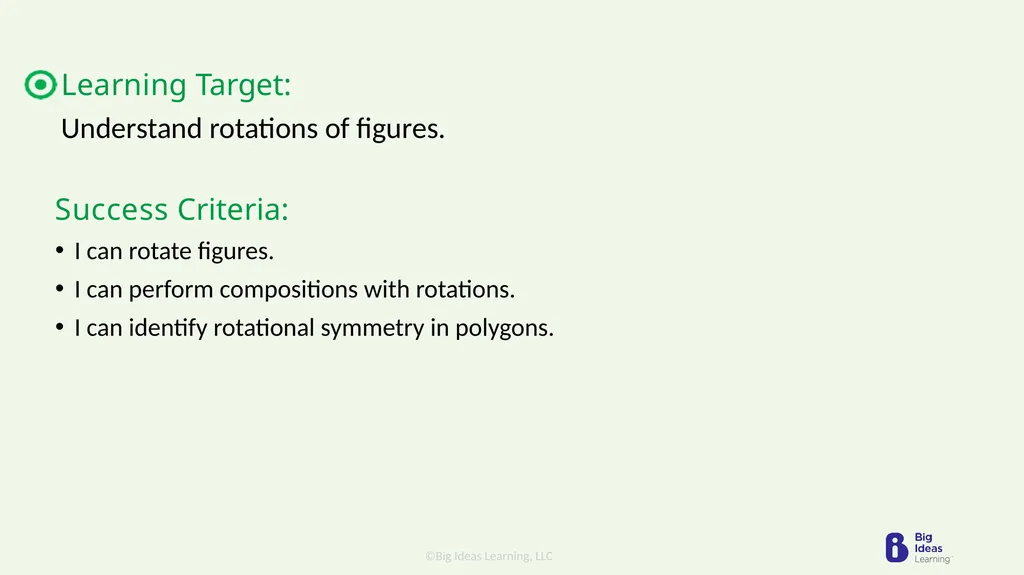

Learning Target:
Understand rotations of figures. Success Criteria:
I can rotate figures.
I can perform compositions with rotations.
I can identify rotational symmetry in polygons.

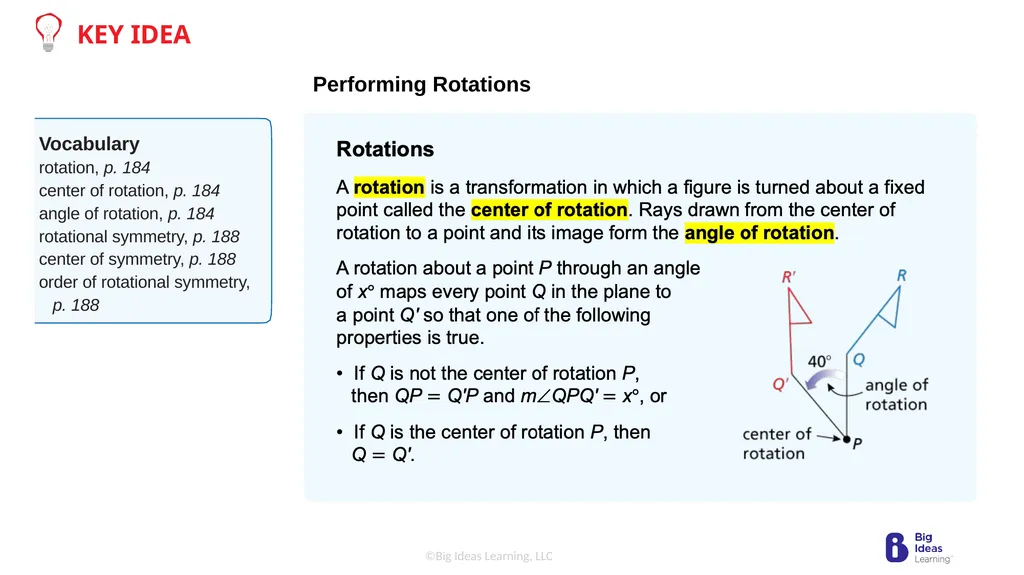

Vocabulary
rotation, p. 184
center of rotation, p. 184
angle of rotation, p. 184
rotational symmetry, p. 188
center of symmetry, p. 188
order of rotational symmetry,
p. 188 KEY IDEA Performing Rotations

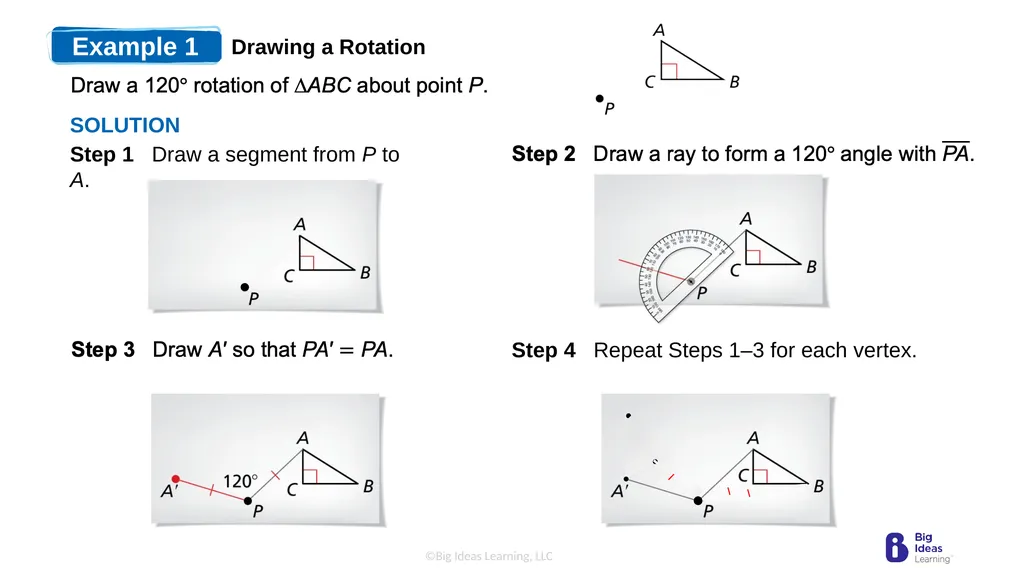

Example 1 Drawing a Rotation Step 1 Draw a segment from P to A. Step 4 Repeat Steps 1–3 for each vertex.
Draw A′B′C′. SOLUTION

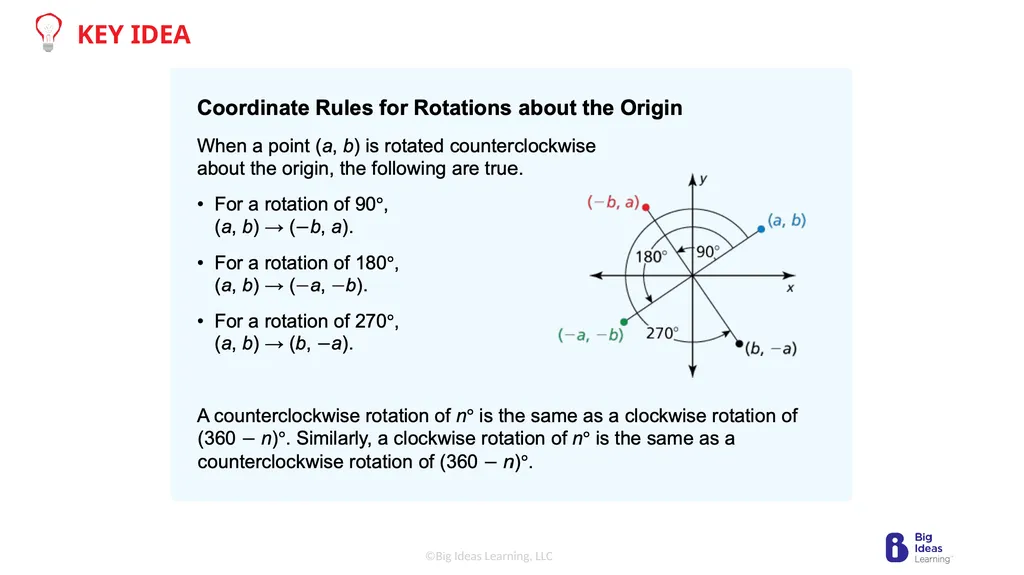

KEY IDEA

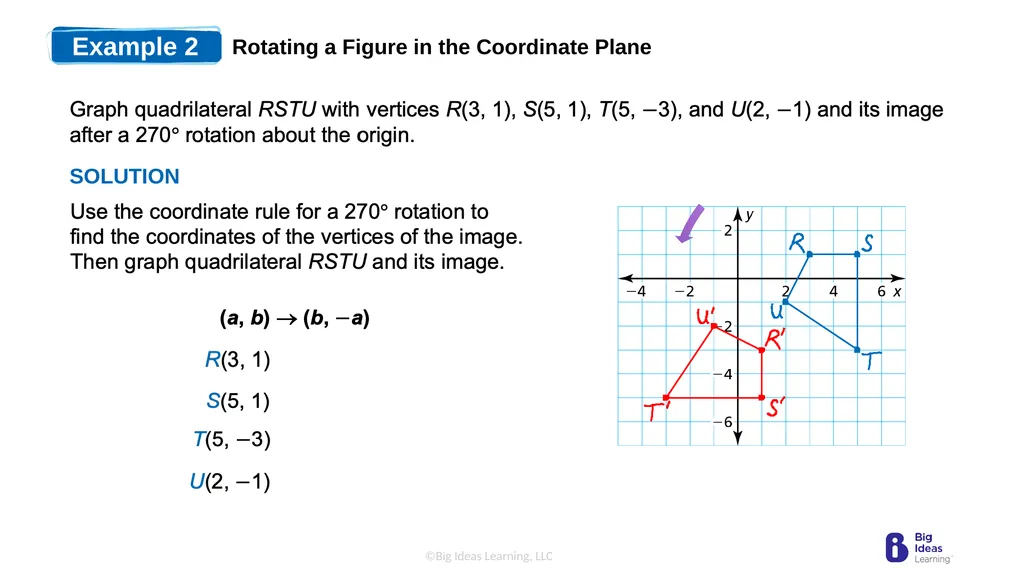

Example 2 Rotating a Figure in the Coordinate Plane SOLUTION

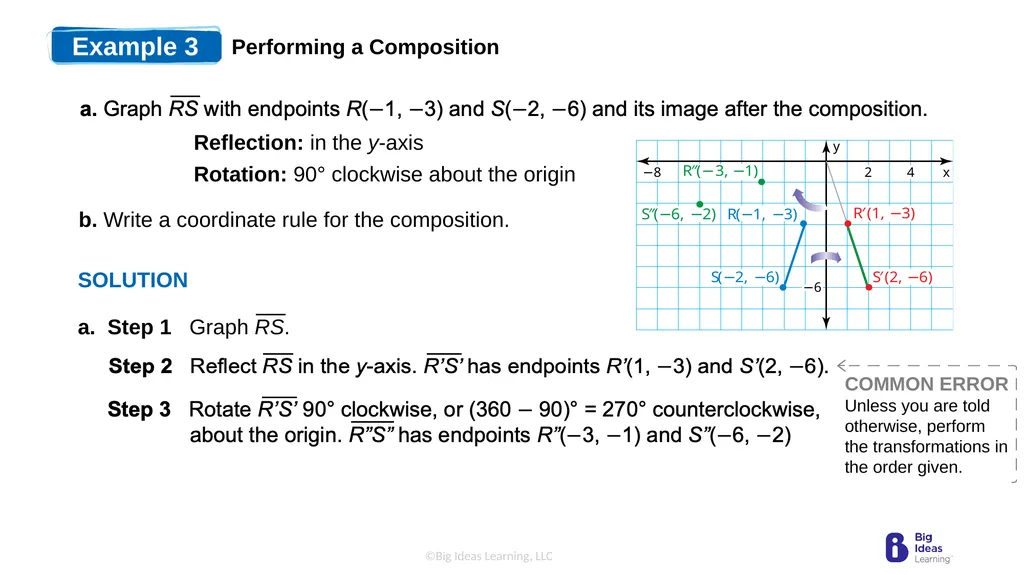

Example 3 Performing a Composition SOLUTION b. Write a coordinate rule for the composition. Reflection: in the y-axis
Rotation: 90° clockwise about the origin

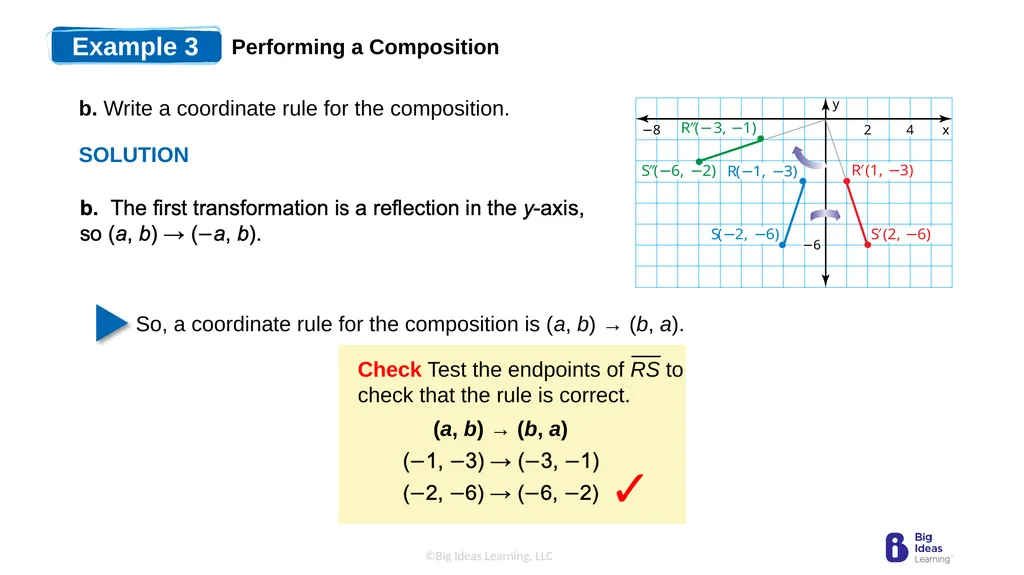

Example 3 Performing a Composition SOLUTION b. Write a coordinate rule for the composition. (a, b) → (b, a) ✓

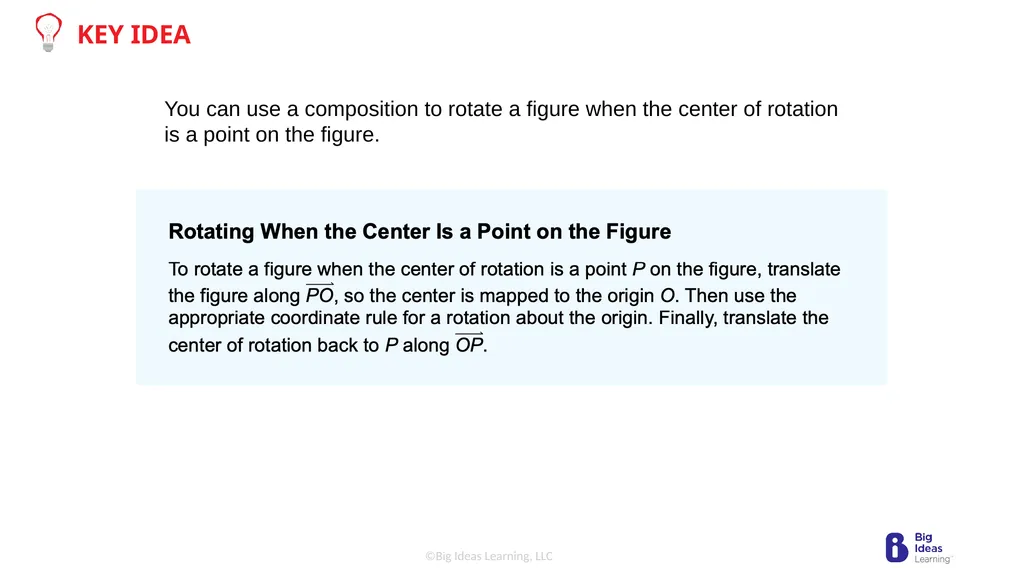

KEY IDEA You can use a composition to rotate a figure when the center of rotation is a point on the figure.

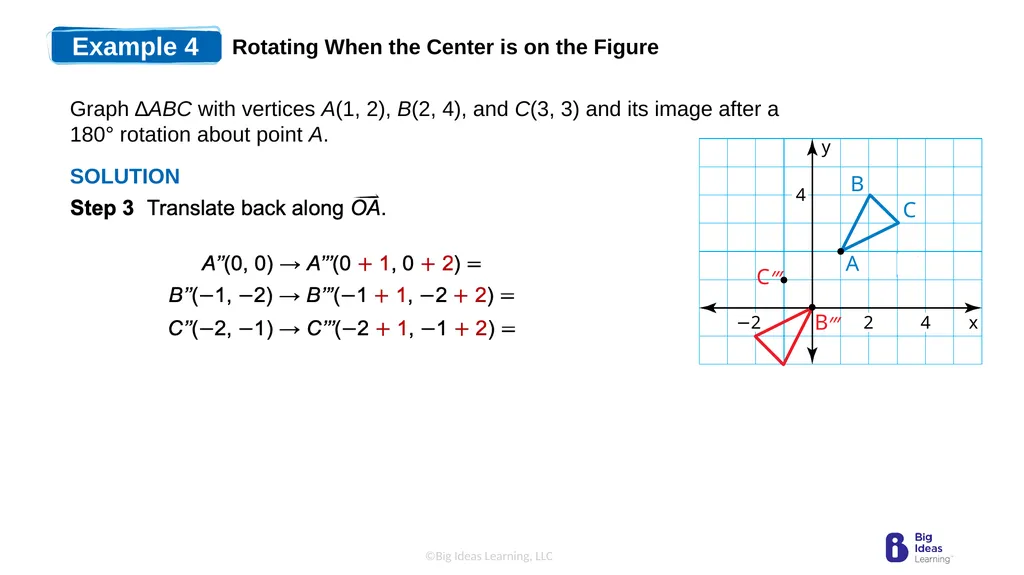

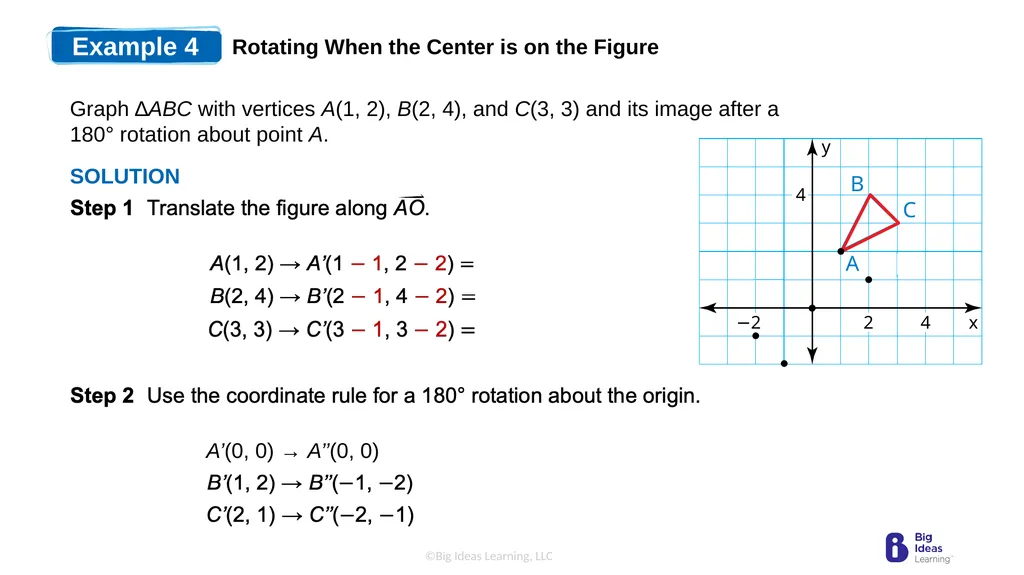

Example 4 Rotating When the Center is on the Figure Graph ∆ABC with vertices A(1, 2), B(2, 4), and C(3, 3) and its image after a 180° rotation about point A. SOLUTION A’(0, 0) → A’’(0, 0)

Example 4 Rotating When the Center is on the Figure Graph ∆ABC with vertices A(1, 2), B(2, 4), and C(3, 3) and its image after a 180° rotation about point A. SOLUTION

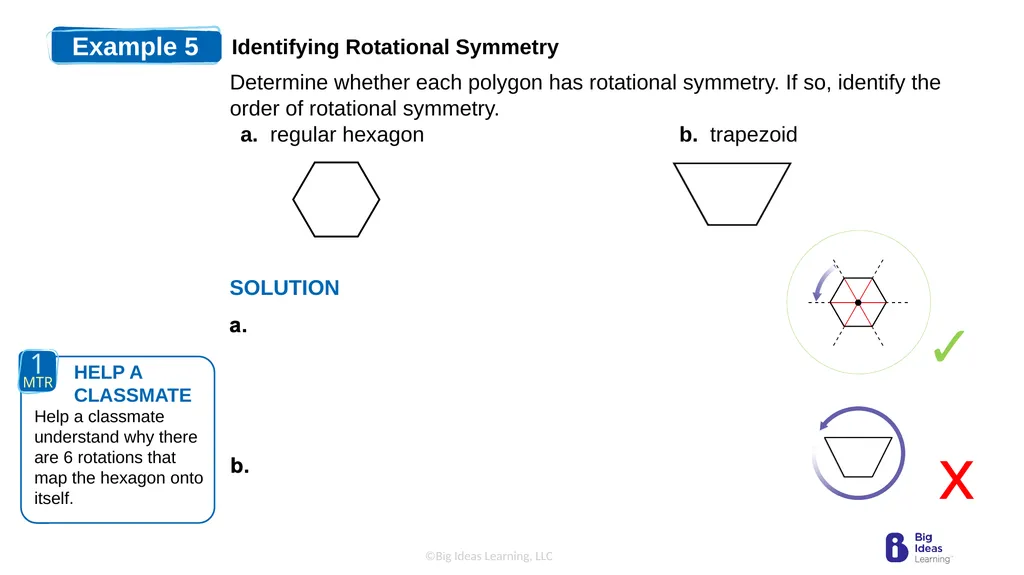

Example 5 Identifying Rotational Symmetry Determine whether each polygon has rotational symmetry. If so, identify the order of rotational symmetry. a. regular hexagon b. trapezoid SOLUTION ✓ x
