01

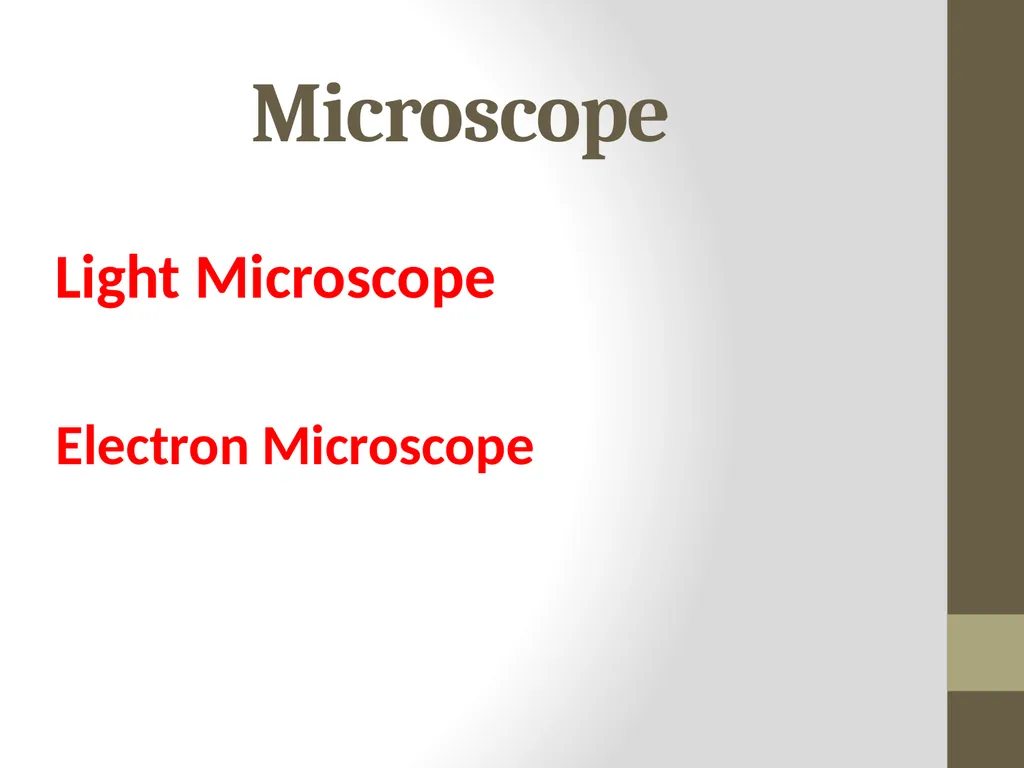

Microscope Light Microscope Electron Microscope<br>
02

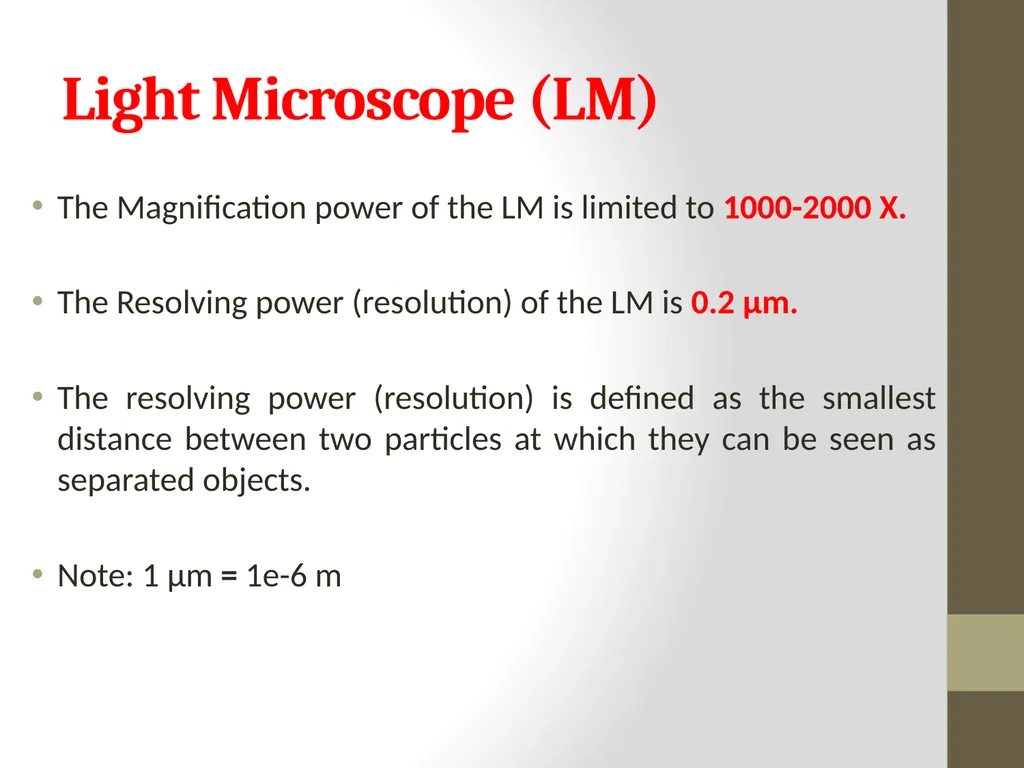

The Magnification power of the LM is limited to 1000-2000 X.

The Resolving power (resolution) of the LM is 0.2 µm.

The resolving power (resolution) is defined as the smallest distance between two particles at which they can be seen as separated objects.

Note: 1 µm = 1e-6 m Light Microscope (LM)<br>
03

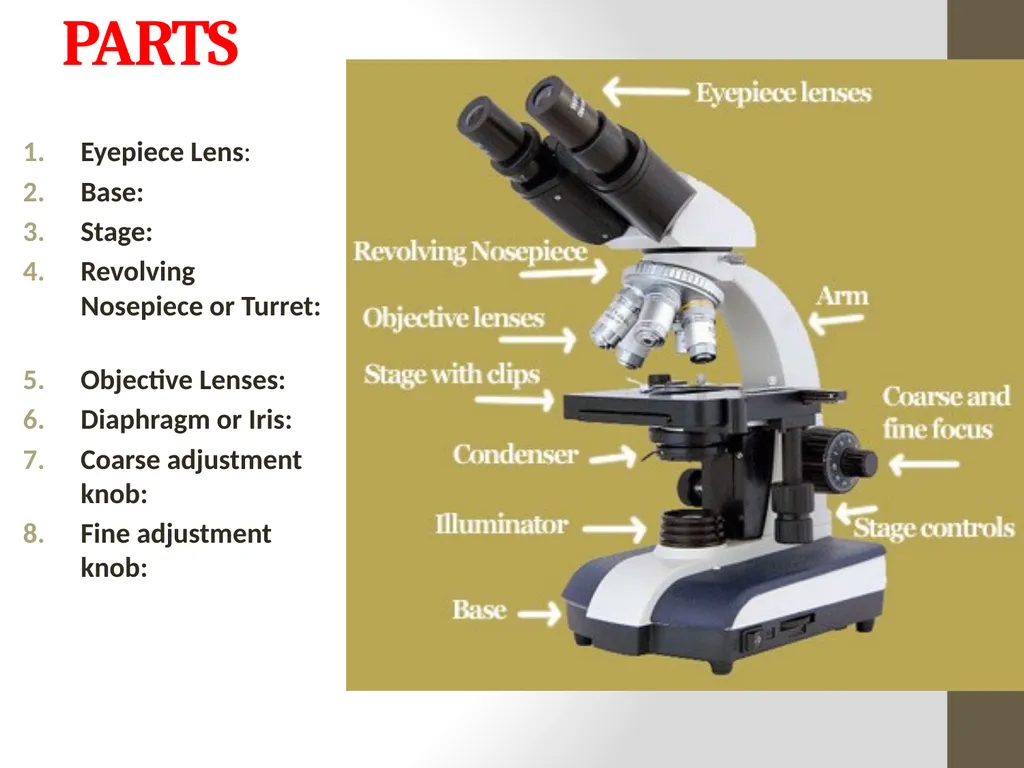

PARTS Eyepiece Lens:
Base:
Stage:
Revolving Nosepiece or Turret:
Objective Lenses:
Diaphragm or Iris:
Coarse adjustment knob:
Fine adjustment knob:<br>
