Presentation Transcript

01

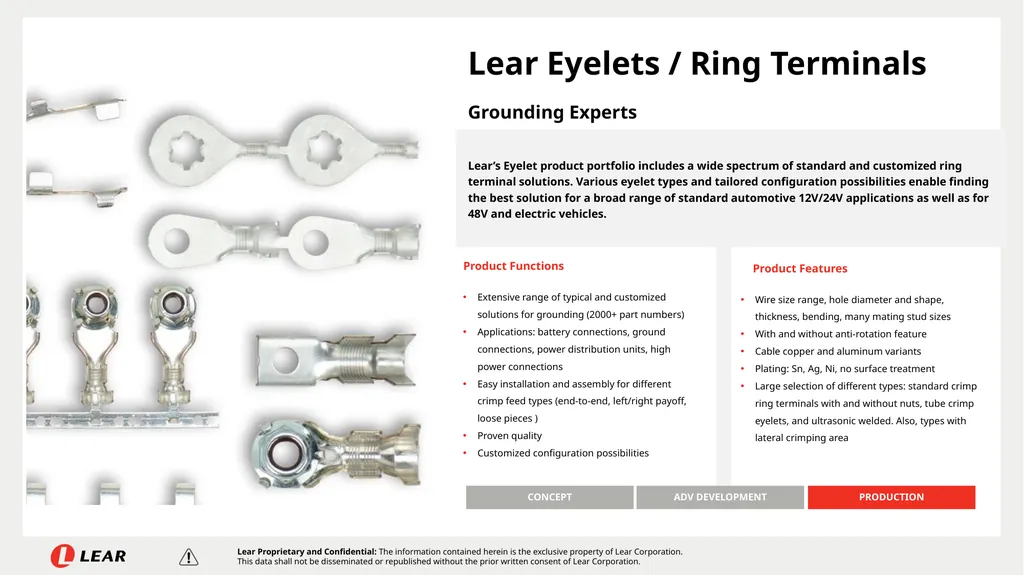

Product Functions Extensive range of typical and customized solutions for grounding (2000+ part numbers)
Applications: battery connections, ground connections, power distribution units, high power connections
Easy installation and assembly for different crimp feed types (end-to-end, left/right payoff, loose pieces )
Proven quality
Customized configuration possibilities Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions. Various eyelet types and tailored configuration possibilities enable finding the best solution for a broad range of standard automotive 12V/24V applications as well as for 48V and electric vehicles. Product Features Wire size range, hole diameter and shape, thickness, bending, many mating stud sizes
With and without anti-rotation feature
Cable copper and aluminum variants
Plating: Sn, Ag, Ni, no surface treatment
Large selection of different types: standard crimp ring terminals with and without nuts, tube crimp eyelets, and ultrasonic welded. Also, types with lateral crimping area Grounding Experts Lear Eyelets / Ring Terminals<br>
02

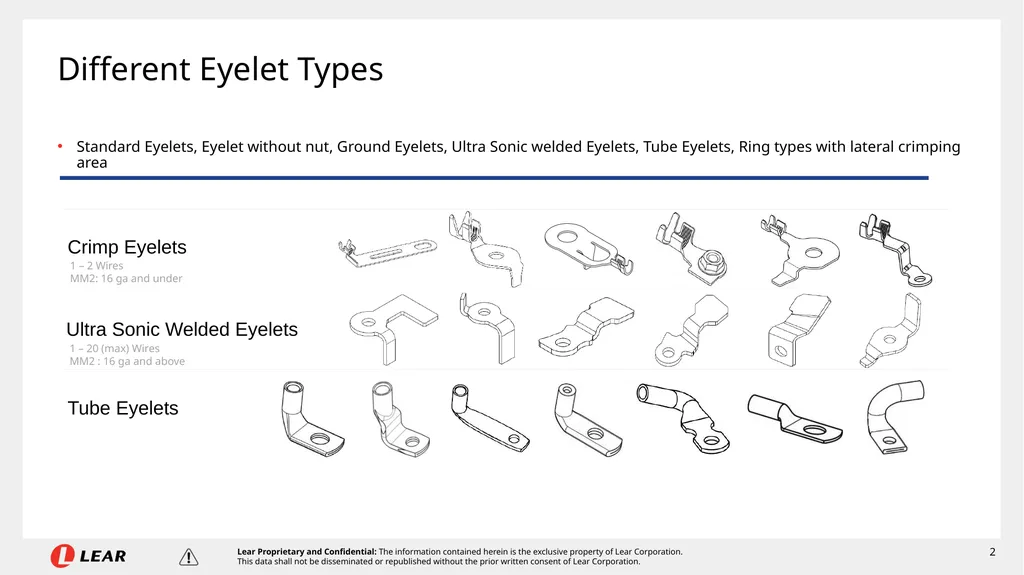

2 Different Eyelet Types Standard Eyelets, Eyelet without nut, Ground Eyelets, Ultra Sonic welded Eyelets, Tube Eyelets, Ring types with lateral crimping area Crimp Eyelets Ultra Sonic Welded Eyelets 1 – 2 Wires
MM2: 16 ga and under Tube Eyelets 1 – 20 (max) Wires
MM2 : 16 ga and above<br>
