Presentation Transcript
01
PYRROLE Kota.Swathi
Assistant Professor
Department of Pharmaceutical Chemistry
St. Peter’s institute of pharmaceutical sciences<br>
02

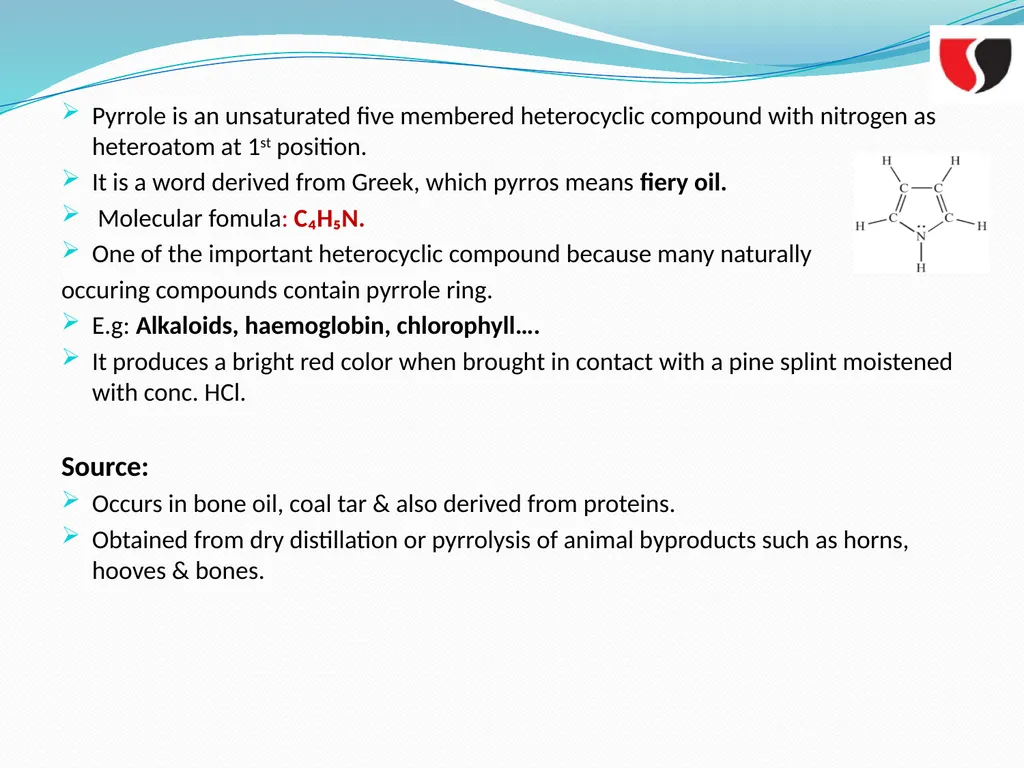

Pyrrole is an unsaturated five membered heterocyclic compound with nitrogen as heteroatom at 1st position.
It is a word derived from Greek, which pyrros means fiery oil.
Molecular fomula: C₄H₅N.
One of the important heterocyclic compound because many naturally
occuring compounds contain pyrrole ring.
E.g: Alkaloids, haemoglobin, chlorophyll….
It produces a bright red color when brought in contact with a pine splint moistened with conc. HCl.
Source:
Occurs in bone oil, coal tar & also derived from proteins.
Obtained from dry distillation or pyrrolysis of animal byproducts such as horns, hooves & bones.<br>
03

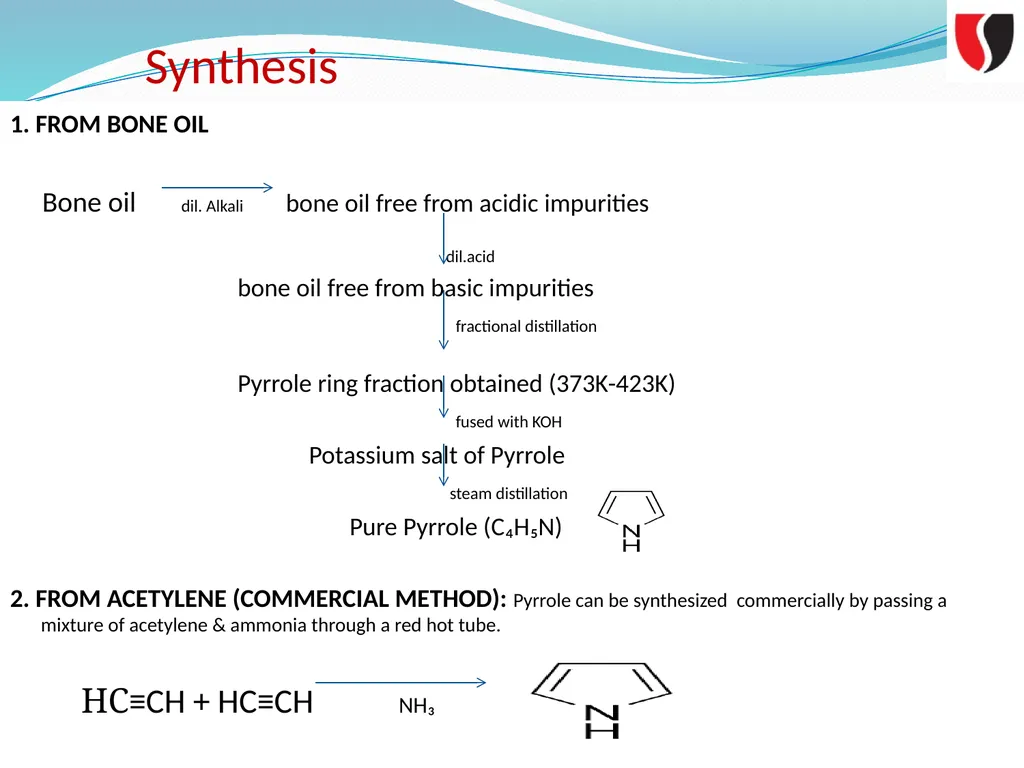

Synthesis 1. FROM BONE OIL
Bone oil dil. Alkali bone oil free from acidic impurities
dil.acid
bone oil free from basic impurities
fractional distillation
Pyrrole ring fraction obtained (373K-423K)
fused with KOH
Potassium salt of Pyrrole
steam distillation
Pure Pyrrole (C₄H₅N)
2. FROM ACETYLENE (COMMERCIAL METHOD): Pyrrole can be synthesized commercially by passing a mixture of acetylene & ammonia through a red hot tube.
HC≡CH + HC≡CH NH₃<br>
04

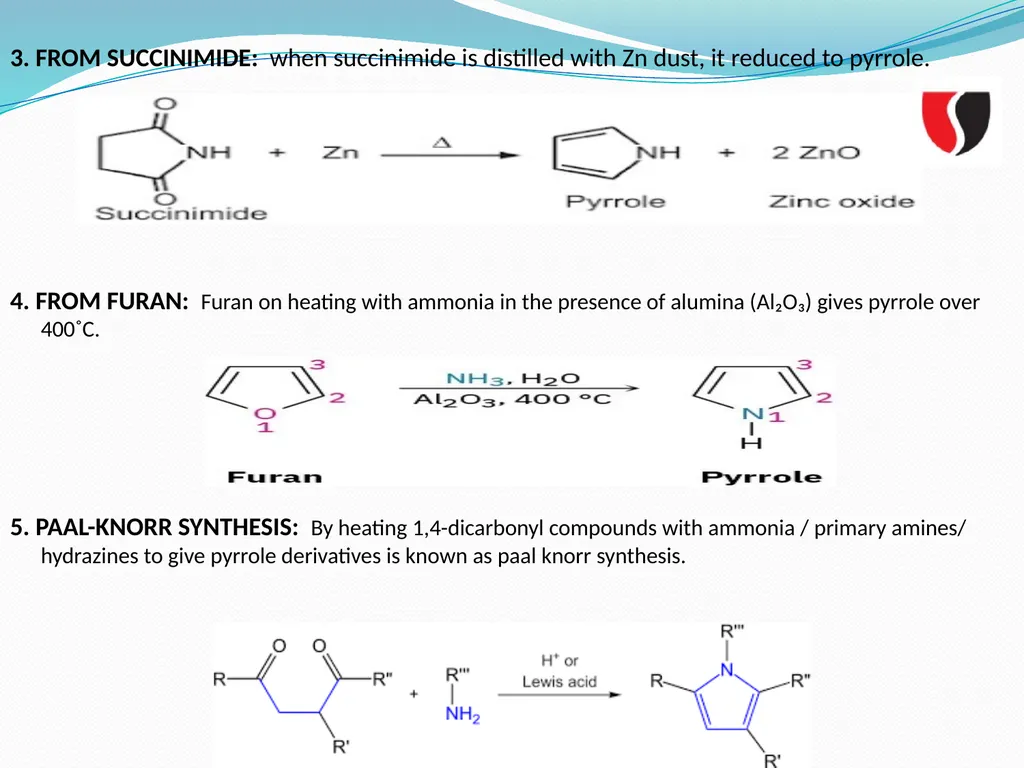

3. FROM SUCCINIMIDE: when succinimide is distilled with Zn dust, it reduced to pyrrole.
4. FROM FURAN: Furan on heating with ammonia in the presence of alumina (Al₂O₃) gives pyrrole over 400˚C.
5. PAAL-KNORR SYNTHESIS: By heating 1,4-dicarbonyl compounds with ammonia / primary amines/ hydrazines to give pyrrole derivatives is known as paal knorr synthesis.<br>
05

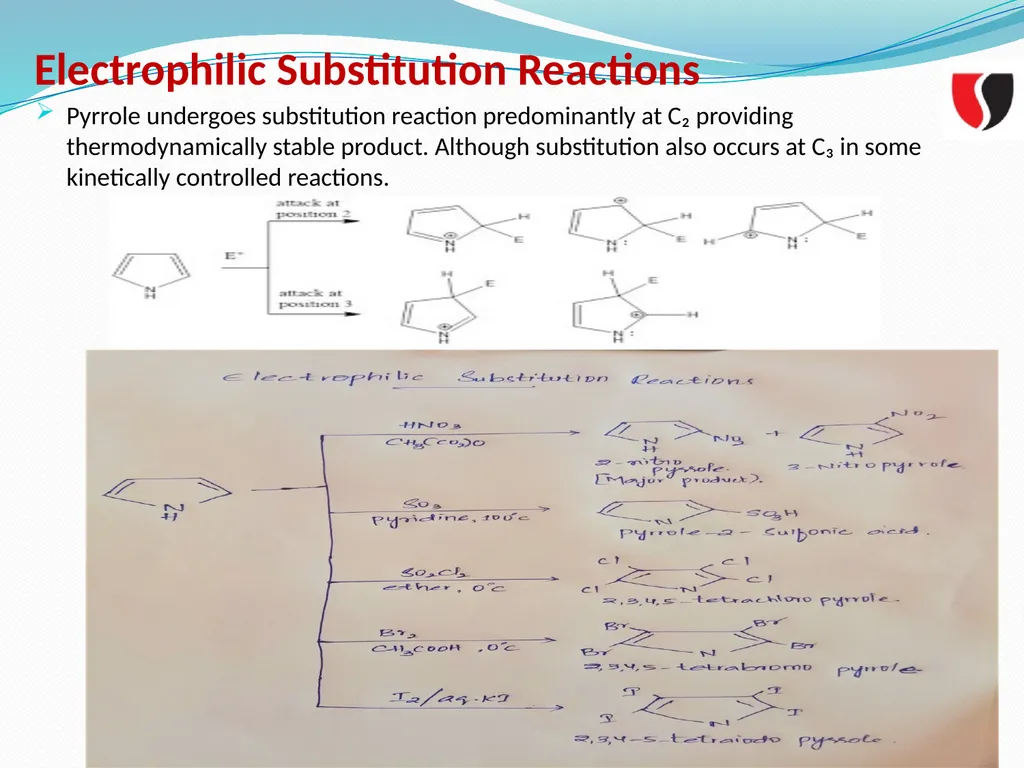

Electrophilic Substitution Reactions Pyrrole undergoes substitution reaction predominantly at C₂ providing thermodynamically stable product. Although substitution also occurs at C₃ in some kinetically controlled reactions.<br>
06

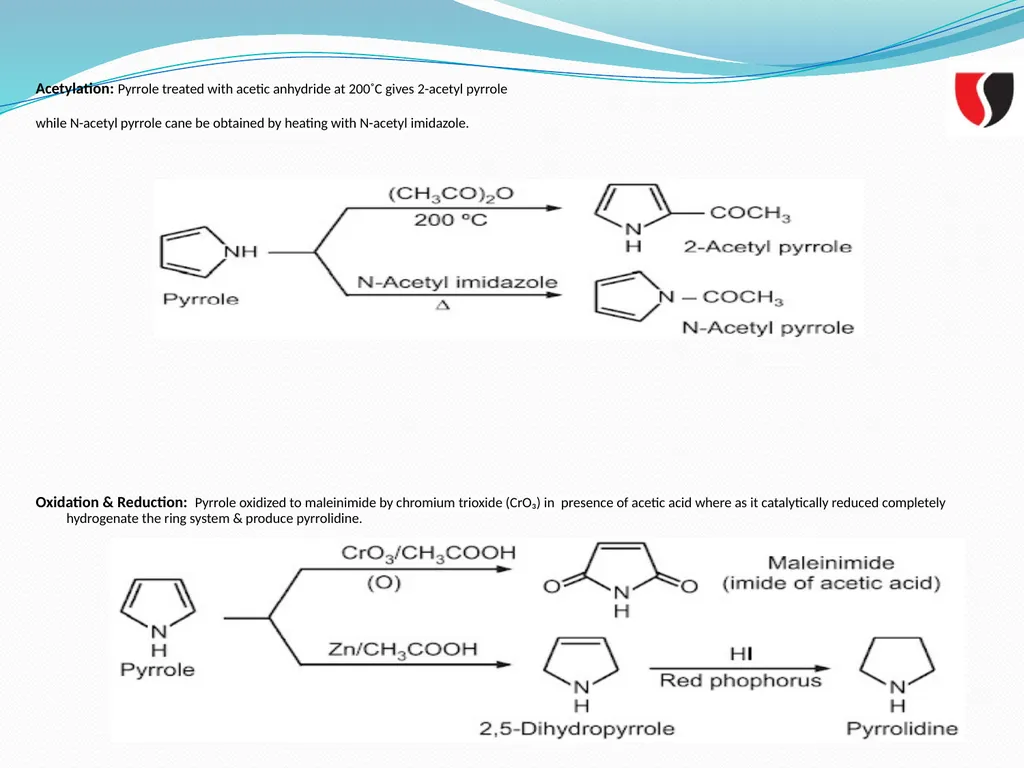

Acetylation: Pyrrole treated with acetic anhydride at 200˚C gives 2-acetyl pyrrole
while N-acetyl pyrrole cane be obtained by heating with N-acetyl imidazole.
Oxidation & Reduction: Pyrrole oxidized to maleinimide by chromium trioxide (CrO₃) in presence of acetic acid where as it catalytically reduced completely hydrogenate the ring system & produce pyrrolidine.<br>
07

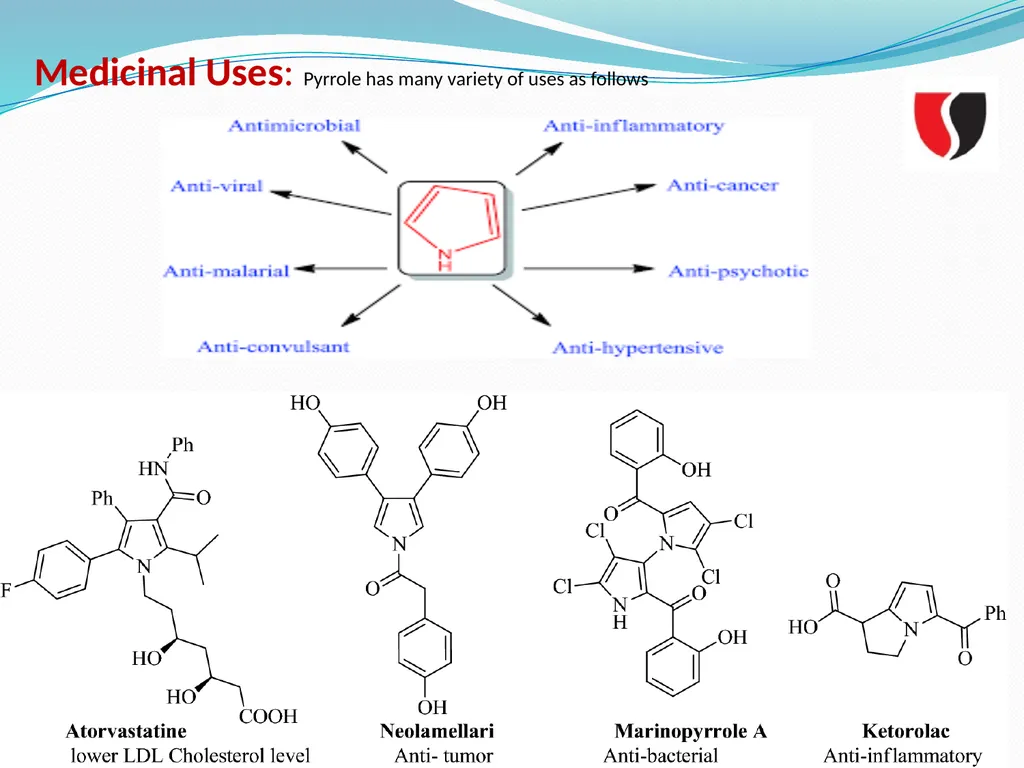

Medicinal Uses: Pyrrole has many variety of uses as follows<br>
