Presentation Transcript
01
Safe to the Last Instruction: Automated Verification of a Type-Safe Operating System Jean Yang
MIT CSAIL Chris Hawblitzel
Microsoft Research<br>
02

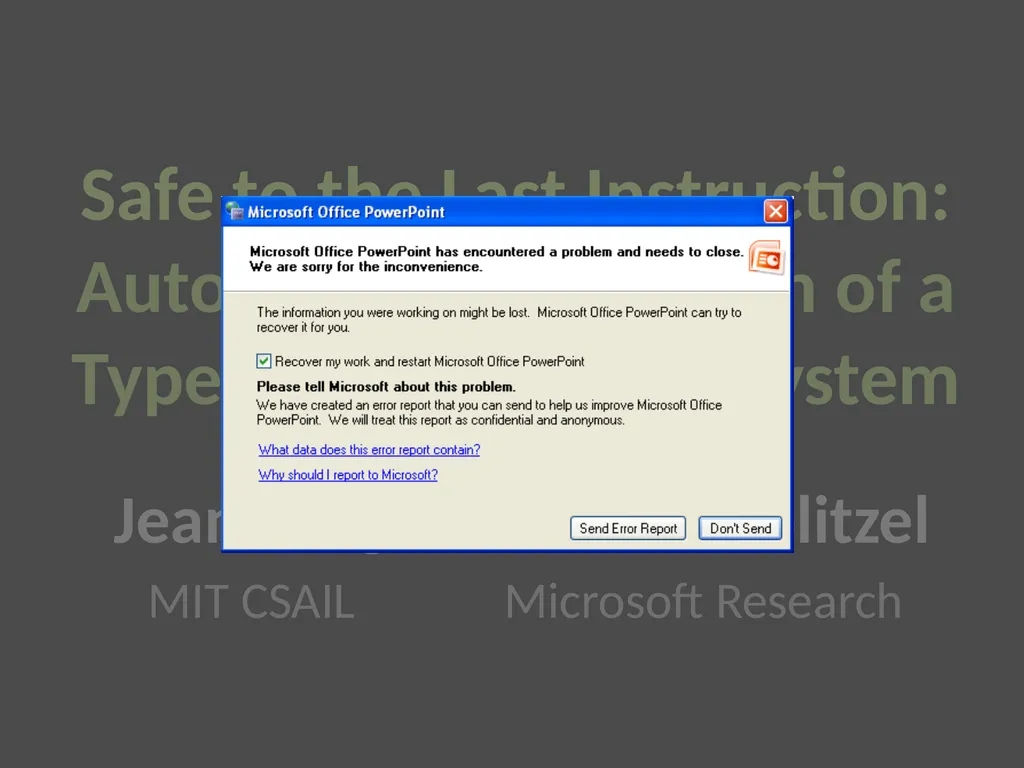

Safe to the Last Instruction: Automated Verification of a Type-Safe Operating System Jean Yang
MIT CSAIL Chris Hawblitzel
Microsoft Research<br>
03

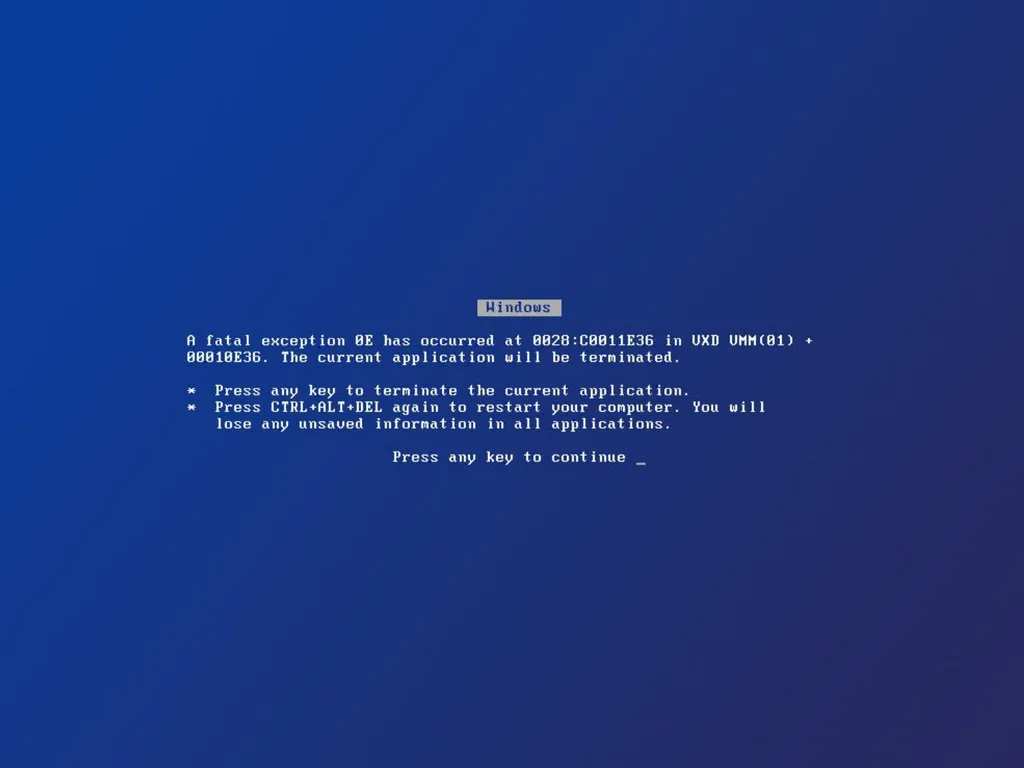

3 Safe to the Last Instruction / Jean Yang<br>
04
Safe to the Last Instruction / Jean Yang 4<br>
05
Safe to the Last Instruction / Jean Yang Memory Safety 5<br>
06
Type Safety 6 Safe to the Last Instruction / Jean Yang<br>
07

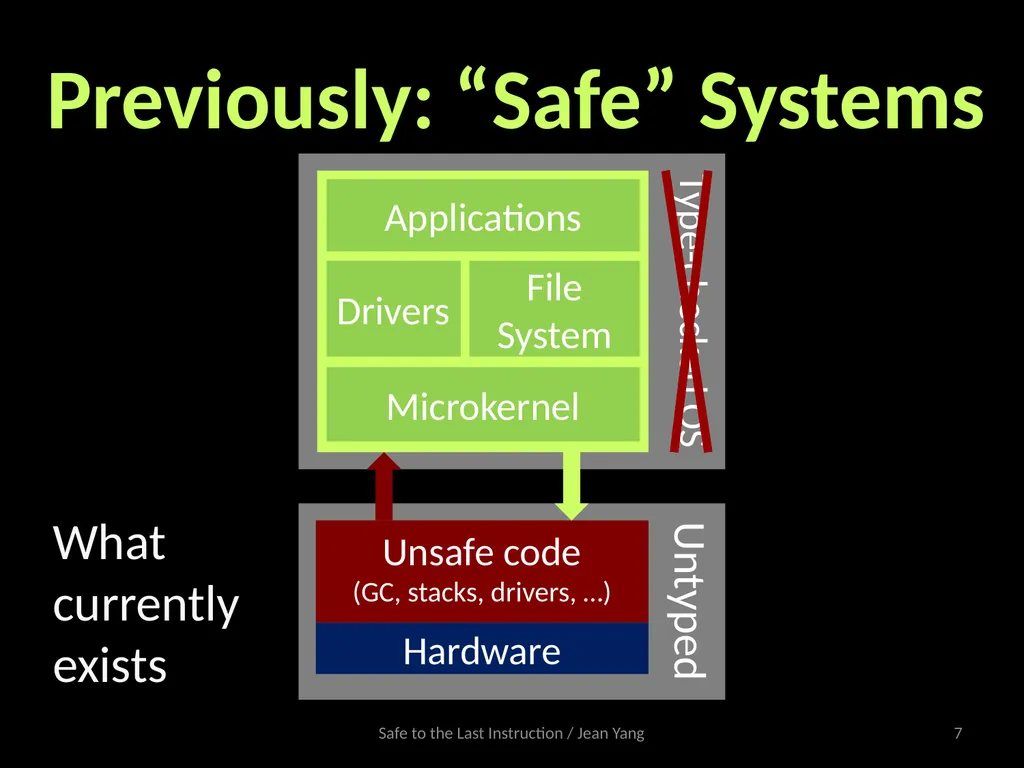

Safe to the Last Instruction / Jean Yang Untyped Unsafe code
(GC, stacks, drivers, …) Type-checked OS File System Drivers Applications Microkernel Hardware Previously: “Safe” Systems 7 What currently exists<br>
08

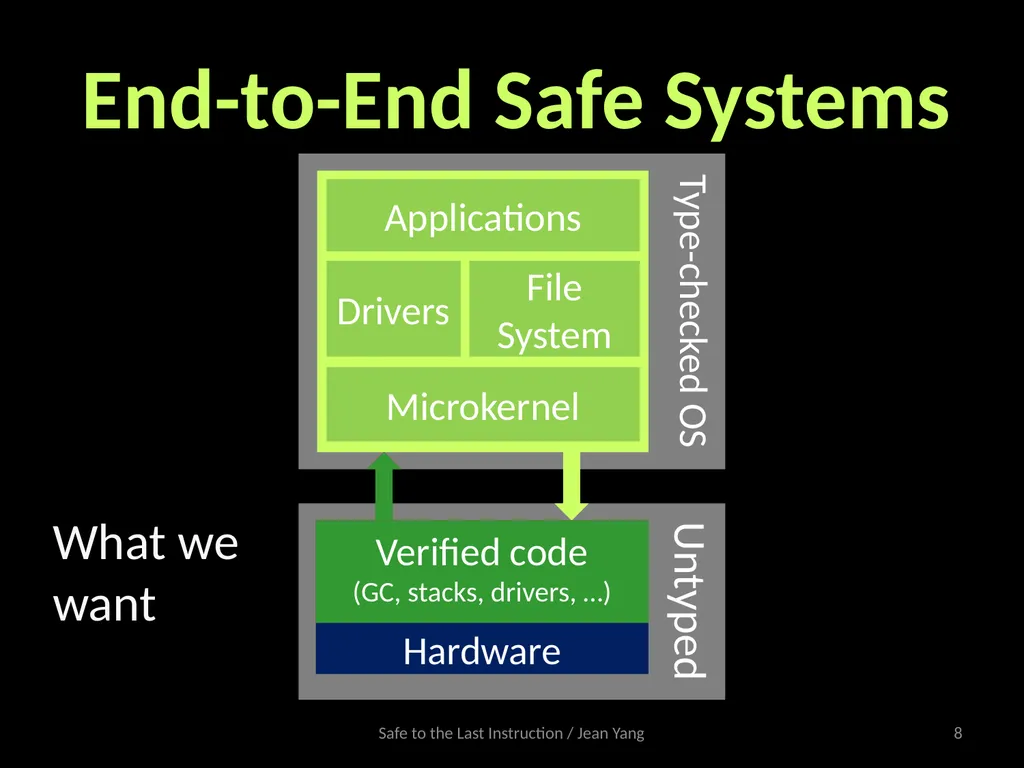

Safe to the Last Instruction / Jean Yang Untyped Unsafe code
(GC, stacks, drivers, …) Type-checked OS File System Drivers Applications Microkernel Hardware End-to-End Safe Systems 8 Verified code
(GC, stacks, drivers, …) What we want<br>
09

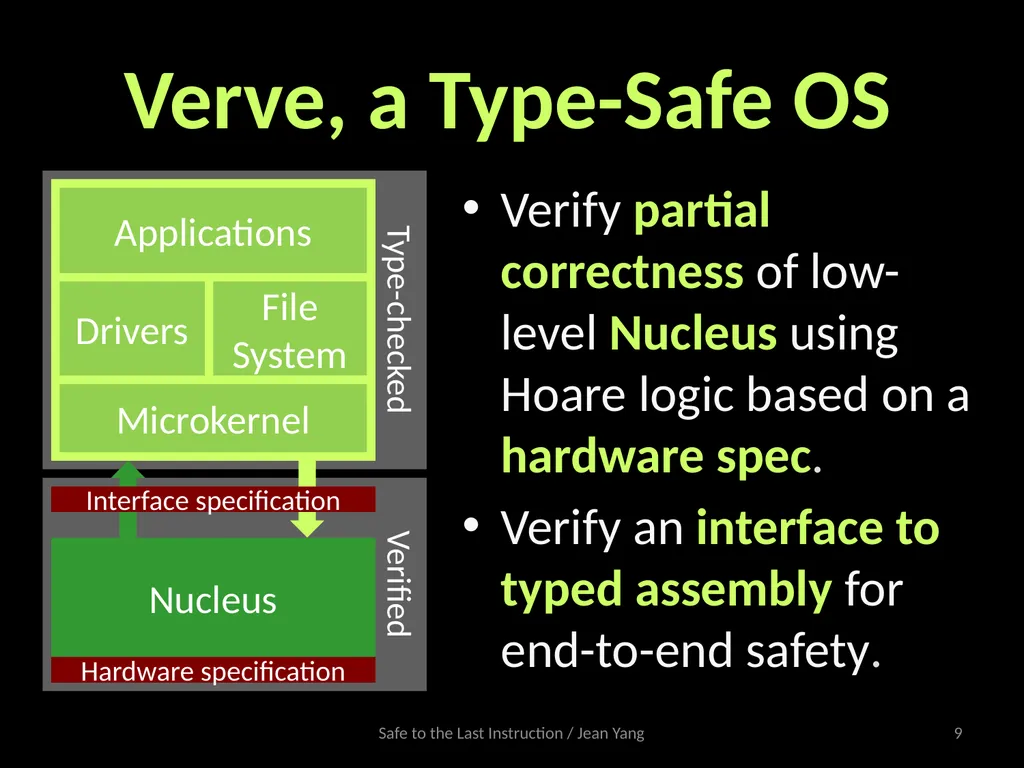

Verified Type-checked Verve, a Type-Safe OS Safe to the Last Instruction / Jean Yang Verify partial correctness of low-level Nucleus using Hoare logic based on a hardware spec.
Verify an interface to typed assembly for end-to-end safety. Nucleus File System Drivers Applications Microkernel Hardware specification Interface specification 9<br>
10

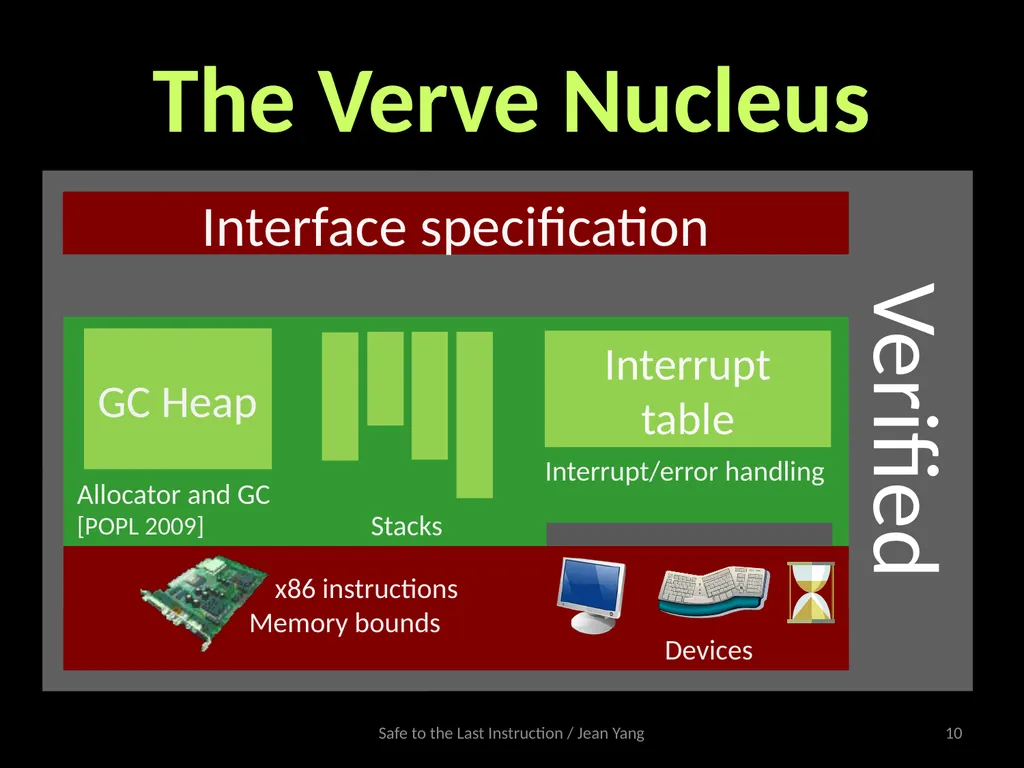

The Verve Nucleus Safe to the Last Instruction / Jean Yang 10 x86 instructions
Memory bounds Devices GC Heap Allocator and GC
[POPL 2009] Stacks Interrupt table Interrupt/error handling Interface specification<br>
11

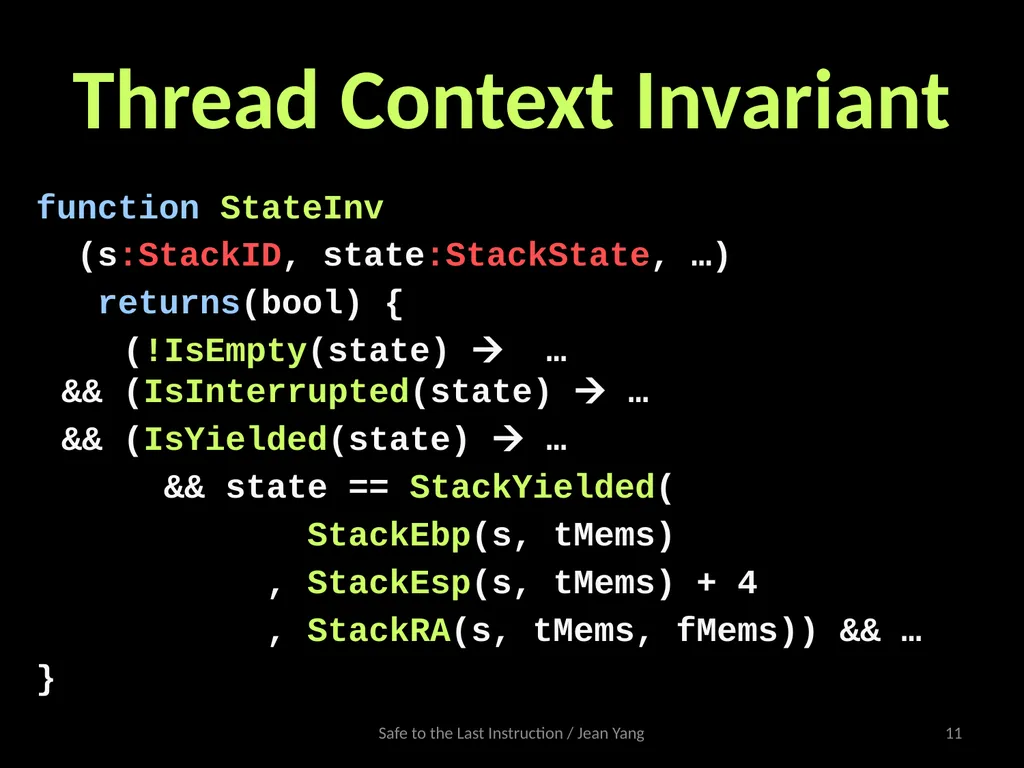

Thread Context Invariant function StateInv
(s:StackID, state:StackState, …)
returns(bool) {
(!IsEmpty(state) … && (IsInterrupted(state) …
&& (IsYielded(state) …
&& state == StackYielded(
StackEbp(s, tMems)
, StackEsp(s, tMems) + 4
, StackRA(s, tMems, fMems)) && …
} Safe to the Last Instruction / Jean Yang 11<br>
12

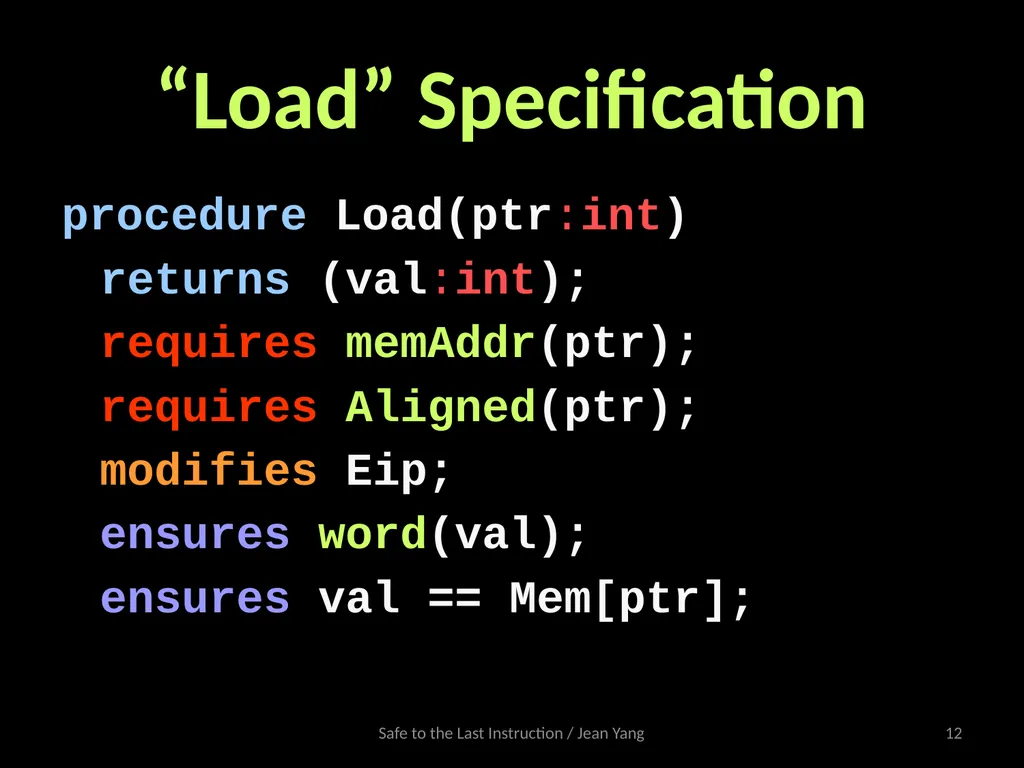

“Load” Specification procedure Load(ptr:int)
returns (val:int);
requires memAddr(ptr);
requires Aligned(ptr);
modifies Eip;
ensures word(val);
ensures val == Mem[ptr]; Safe to the Last Instruction / Jean Yang 12<br>
13

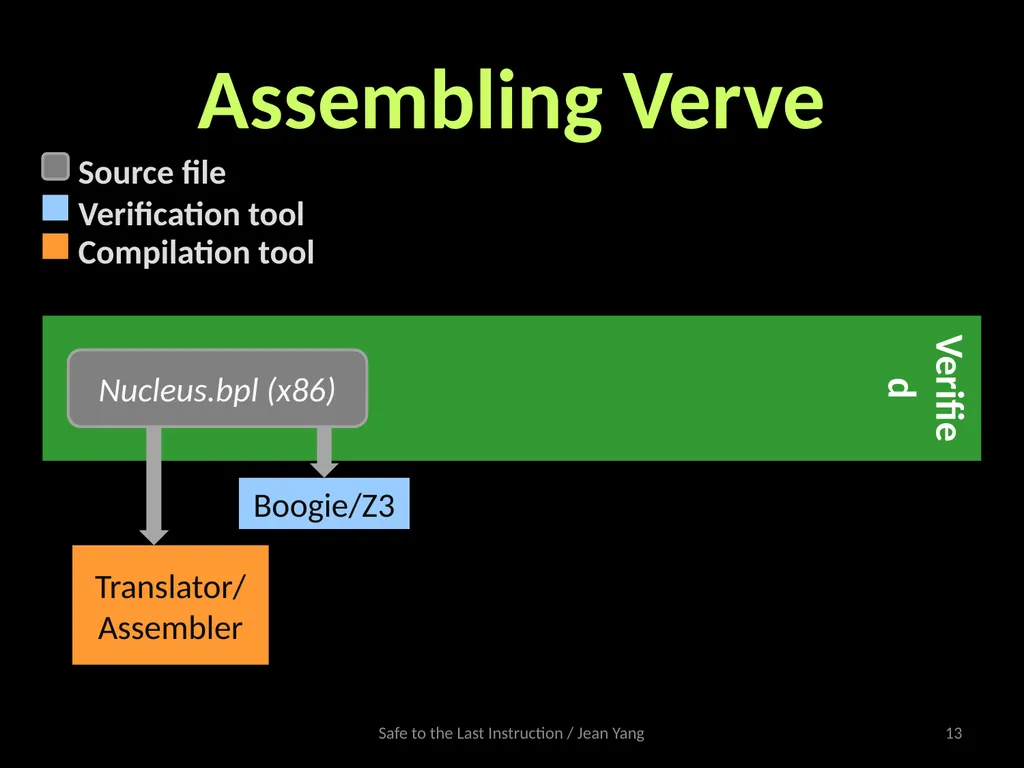

Assembling Verve Verified Safe to the Last Instruction / Jean Yang Boogie/Z3 Translator/
Assembler Source file Compilation tool Verification tool Nucleus.bpl (x86) 13<br>
14

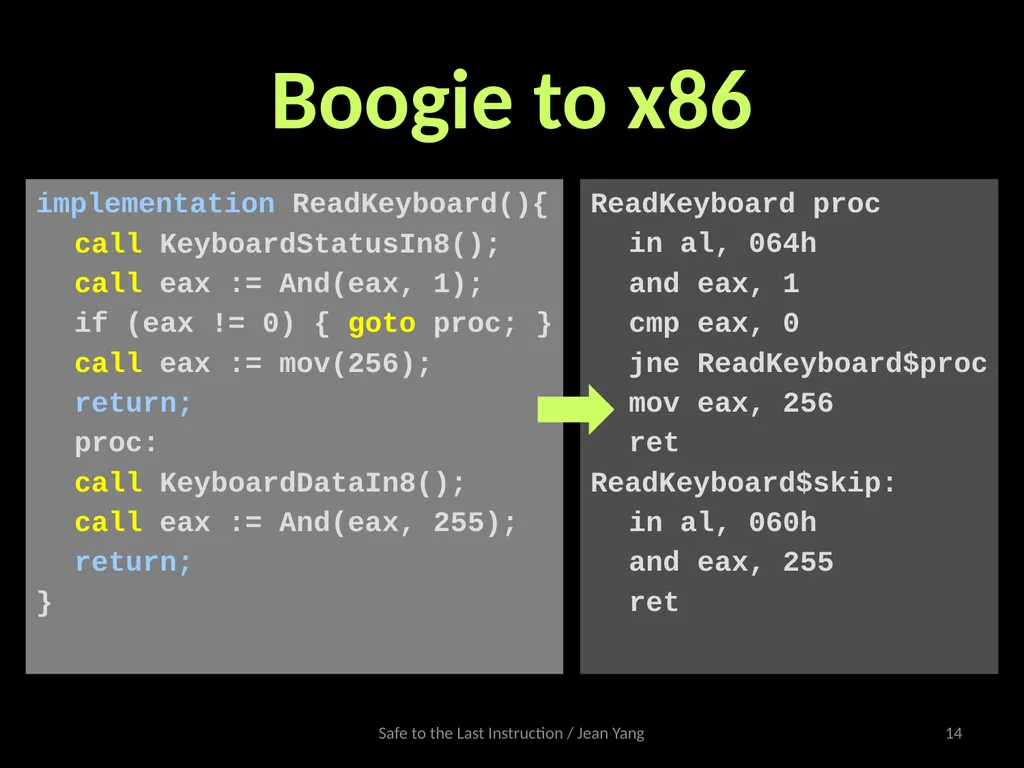

Boogie to x86 implementation ReadKeyboard(){
call KeyboardStatusIn8();
call eax := And(eax, 1);
if (eax != 0) { goto proc; }
call eax := mov(256);
return;
proc:
call KeyboardDataIn8();
call eax := And(eax, 255);
return;
} Safe to the Last Instruction / Jean Yang ReadKeyboard proc
in al, 064h
and eax, 1
cmp eax, 0
jne ReadKeyboard$proc
mov eax, 256
ret
ReadKeyboard$skip:
in al, 060h
and eax, 255
ret 14<br>
15

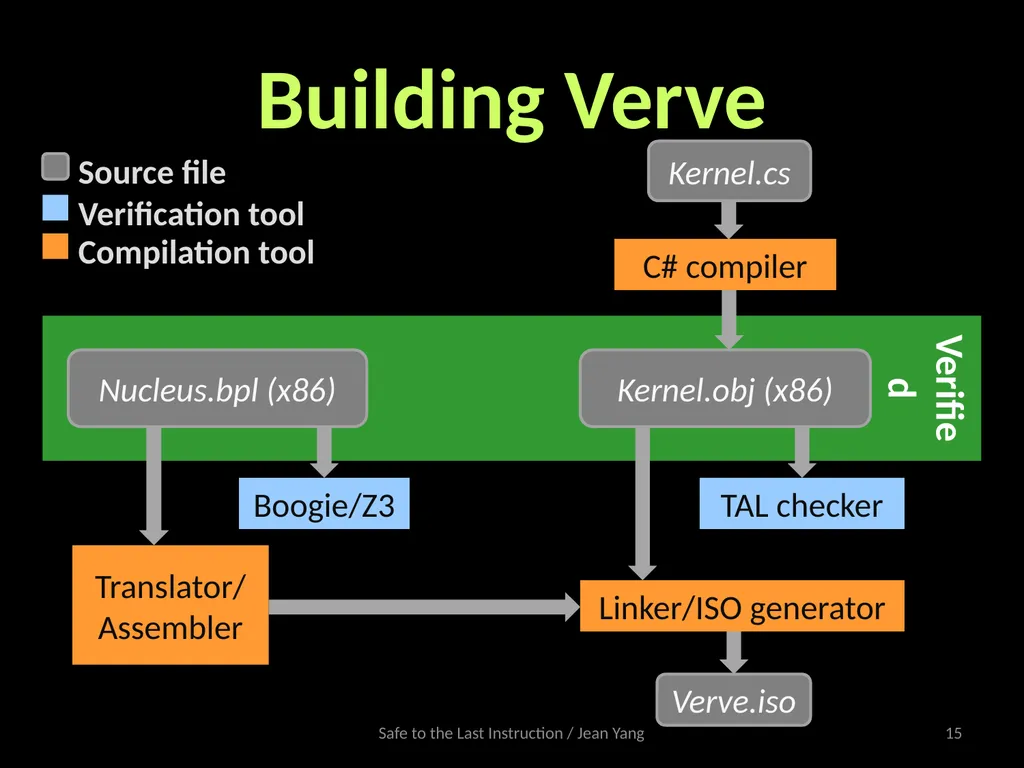

Building Verve Verified Safe to the Last Instruction / Jean Yang C# compiler Kernel.cs Boogie/Z3 Translator/
Assembler TAL checker Linker/ISO generator Verve.iso Source file Compilation tool Verification tool Nucleus.bpl (x86) Kernel.obj (x86) 15<br>
16

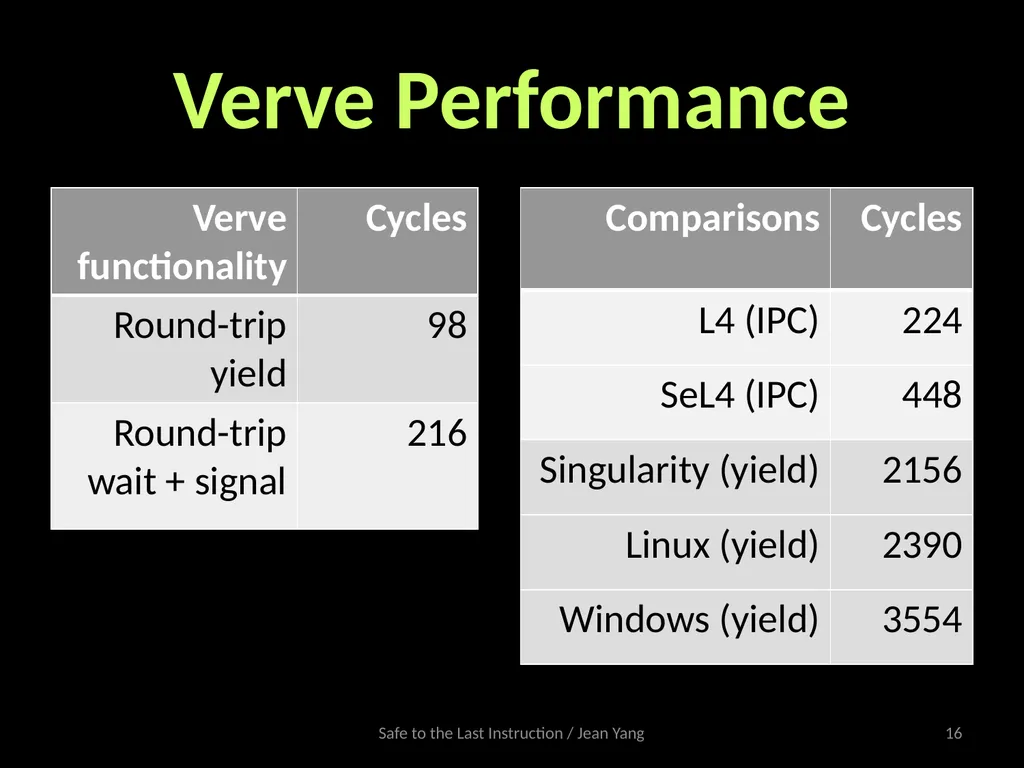

Verve Performance Safe to the Last Instruction / Jean Yang 16<br>
17

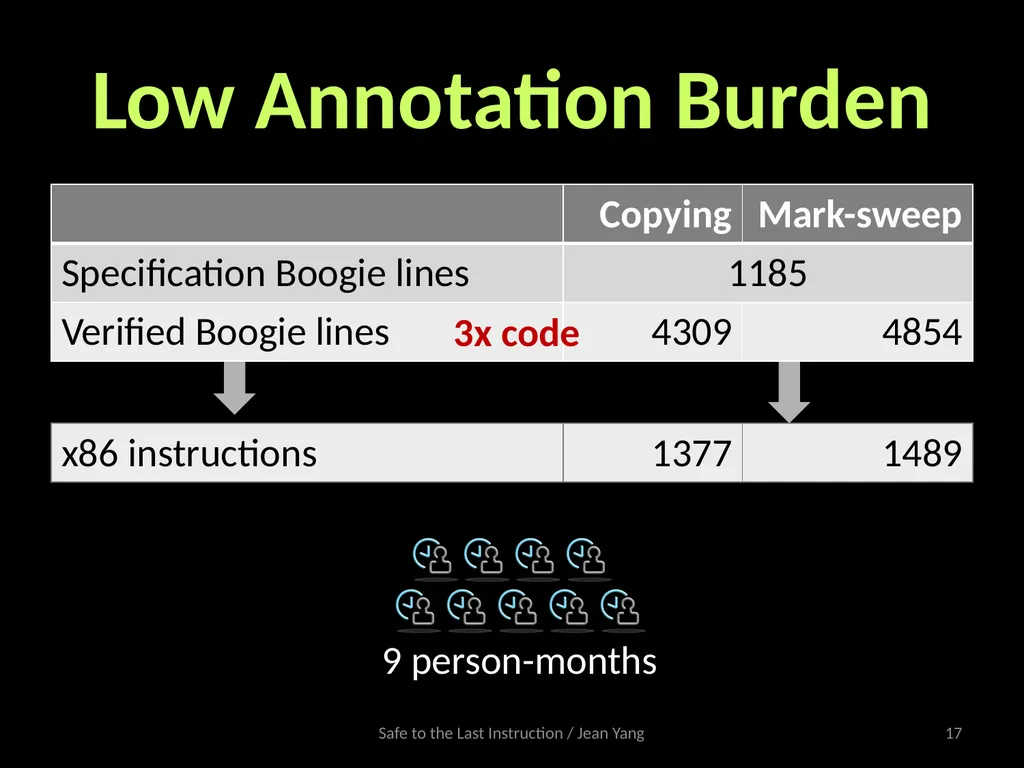

Low Annotation Burden Safe to the Last Instruction / Jean Yang 17 9 person-months 3x code<br>
18

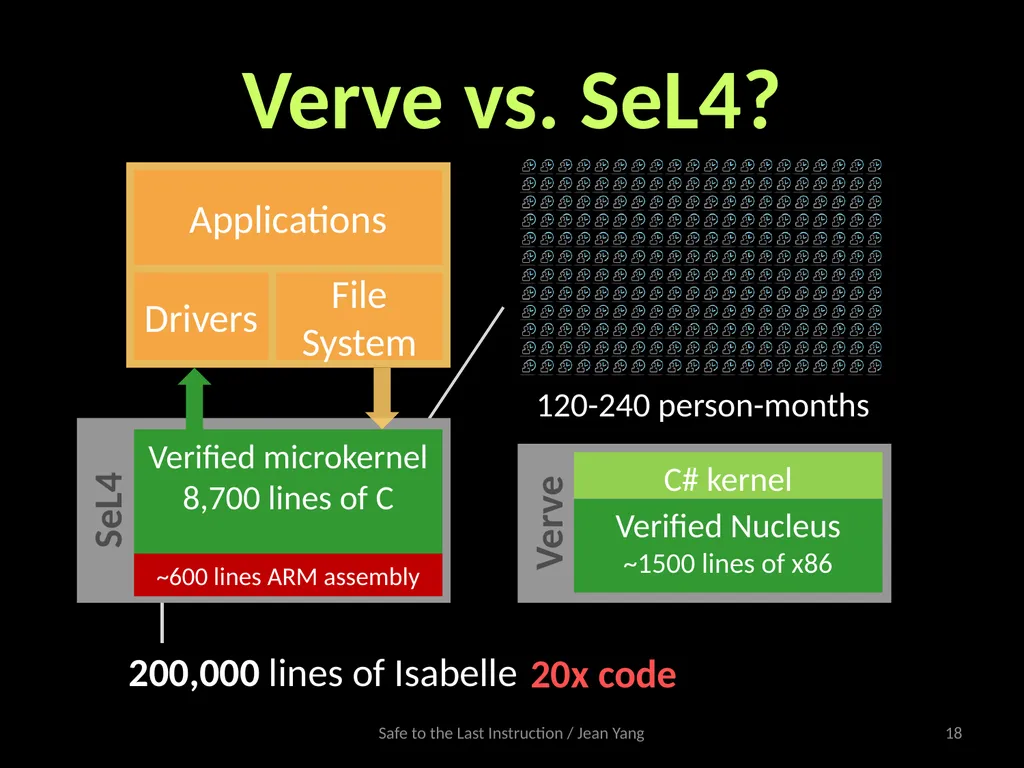

Verve vs. SeL4? Safe to the Last Instruction / Jean Yang SeL4 Verified microkernel
8,700 lines of C 200,000 lines of Isabelle ~600 lines ARM assembly 120-240 person-months 18 20x code Verve Verified Nucleus
~1500 lines of x86 C# kernel<br>
19

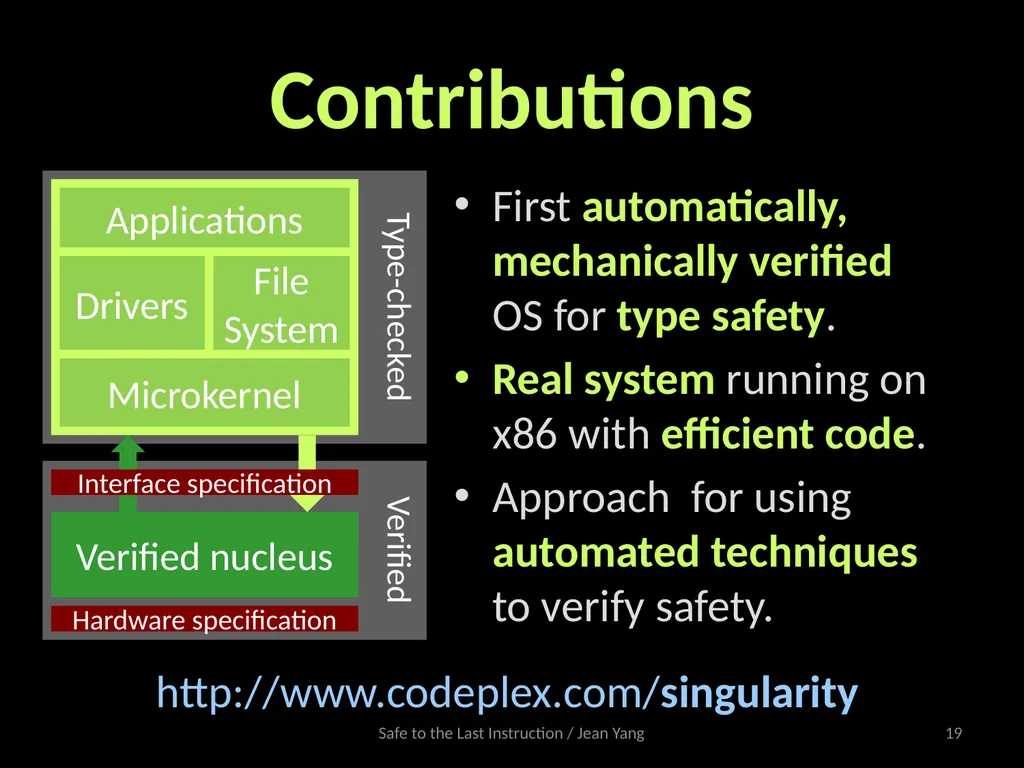

Contributions Safe to the Last Instruction / Jean Yang First automatically, mechanically verified OS for type safety.
Real system running on x86 with efficient code.
Approach for using automated techniques to verify safety. Verified Type-checked Verified nucleus File System Drivers Applications Microkernel Hardware specification Interface specification http://www.codeplex.com/singularity 19<br>
