Presentation Transcript

01
Simulation of Radio Frequency Quadrupole Mass Analyzer Stephen Jones
EPS 109 Final Project
11/27/12<br>
02

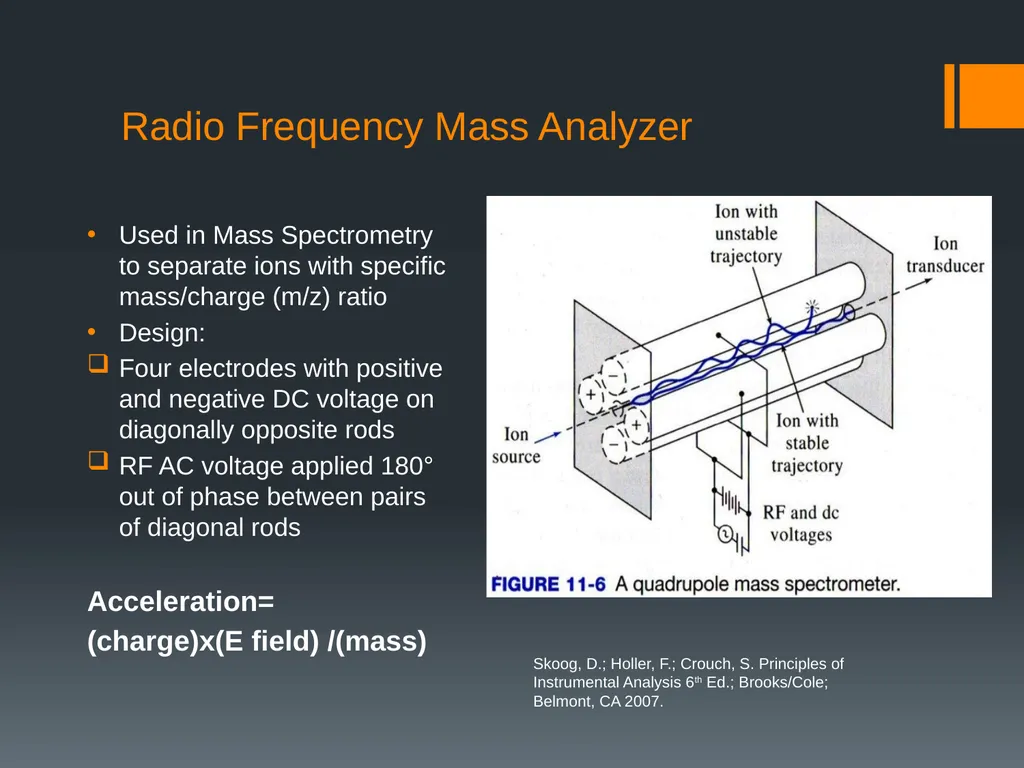

Radio Frequency Mass Analyzer Used in Mass Spectrometry to separate ions with specific mass/charge (m/z) ratio
Design:
Four electrodes with positive and negative DC voltage on diagonally opposite rods
RF AC voltage applied 180° out of phase between pairs of diagonal rods

Acceleration=
(charge)x(E field) /(mass) Skoog, D.; Holler, F.; Crouch, S. Principles of Instrumental Analysis 6th Ed.; Brooks/Cole; Belmont, CA 2007.<br>
03

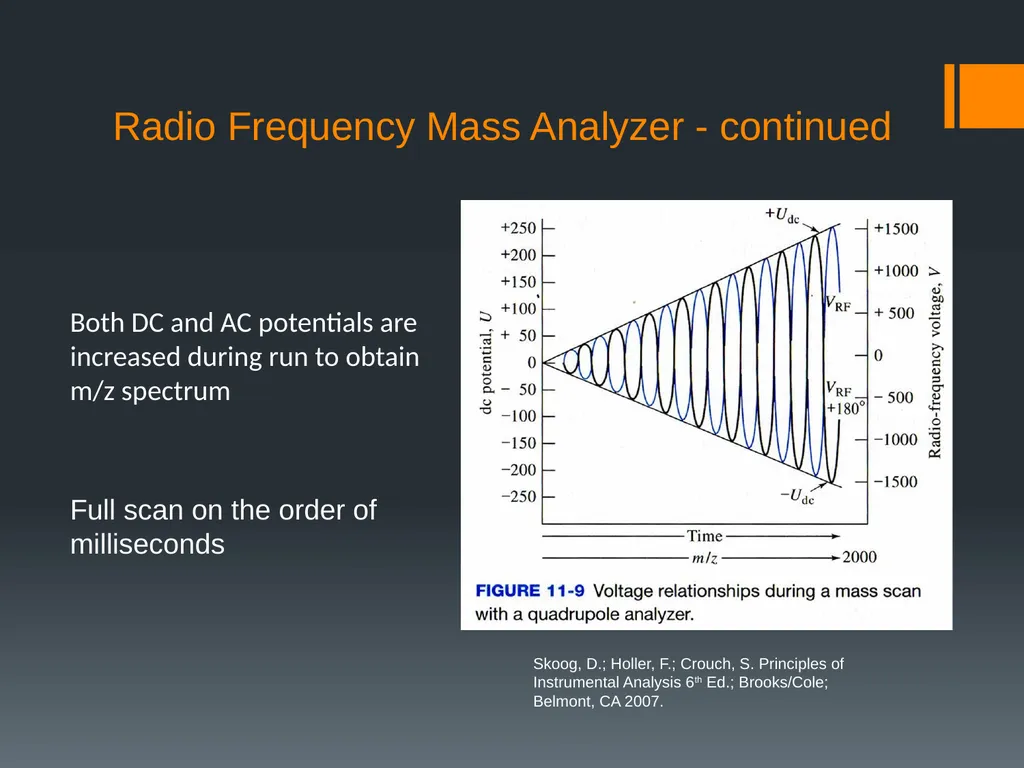

Radio Frequency Mass Analyzer - continued Both DC and AC potentials are increased during run to obtain m/z spectrum


Full scan on the order of milliseconds Skoog, D.; Holler, F.; Crouch, S. Principles of Instrumental Analysis 6th Ed.; Brooks/Cole; Belmont, CA 2007.<br>
