Presentation Transcript

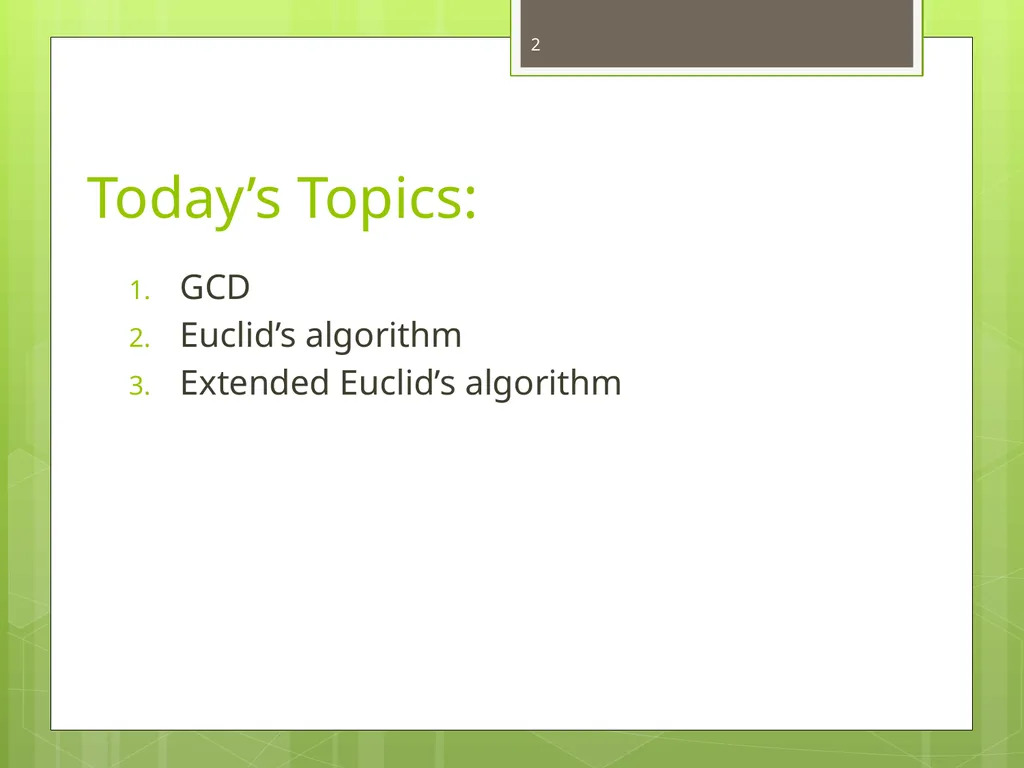

slide2. Today’s Topics: GCD
Euclid’s algorithm
Extended Euclid’s algorithm 2<br>
slide3. 1. GCD The poor man version of prime factorization 3<br>

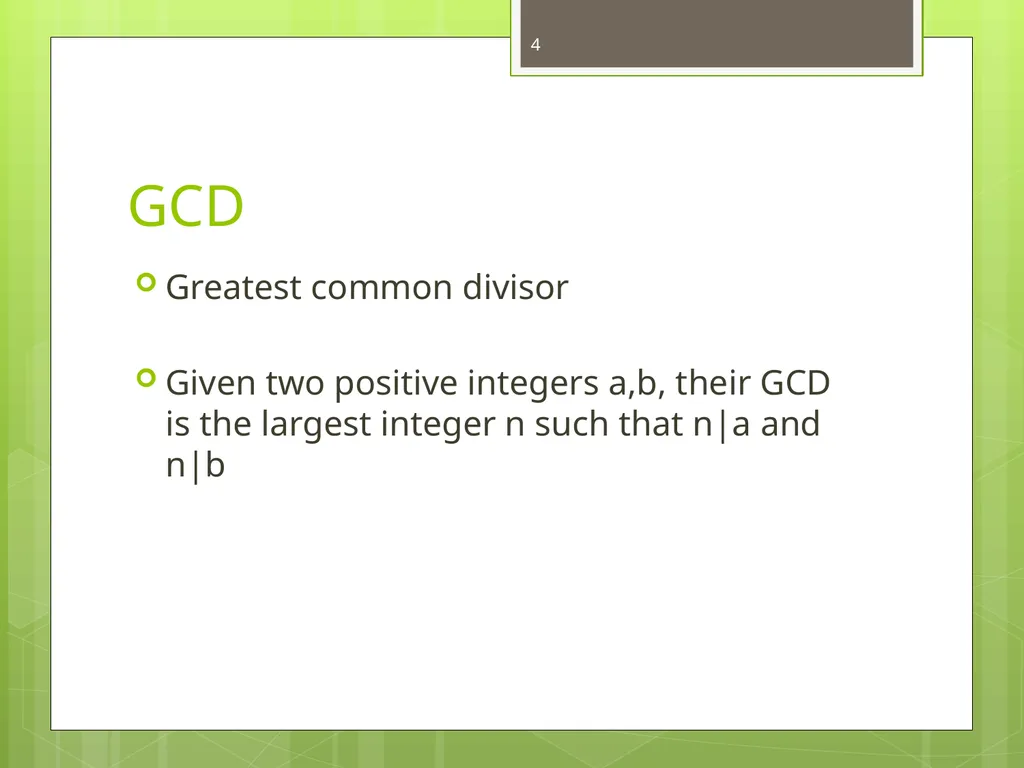

slide4. GCD Greatest common divisor
Given two positive integers a,b, their GCD is the largest integer n such that n|a and n|b 4<br>
slide5. GCD What is GCD(20,30)?
5
10
20
30
Other 5<br>
slide6. GCD What is GCD(101281371,347832984723)? 6<br>

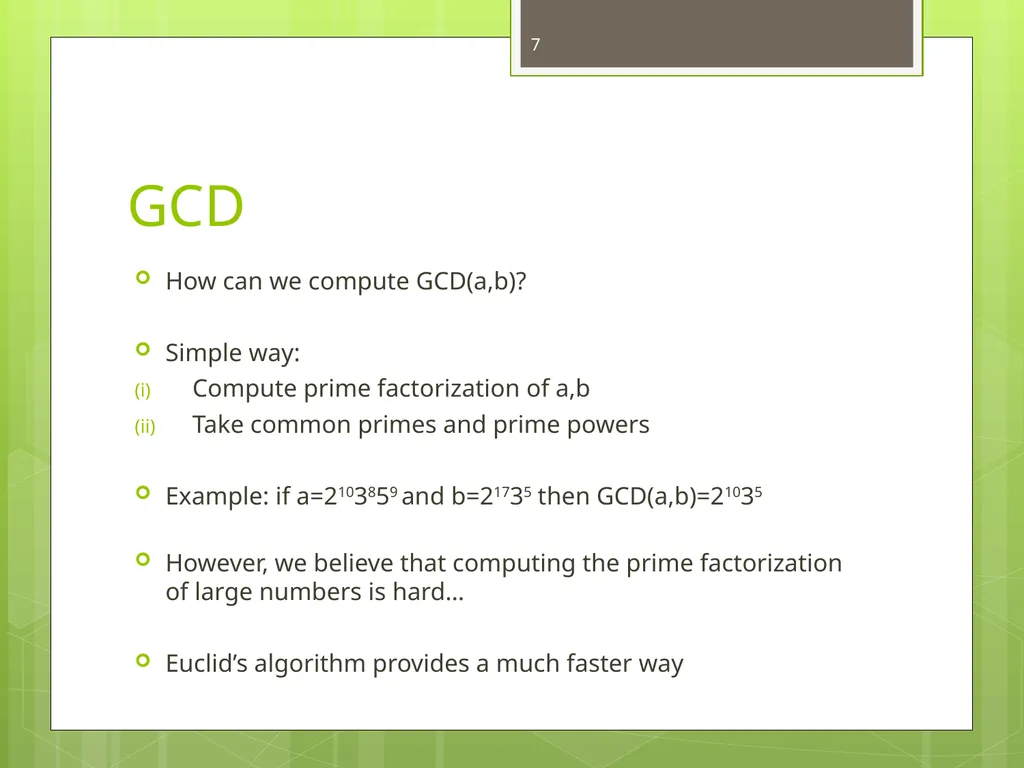

slide7. GCD How can we compute GCD(a,b)?
Simple way:
Compute prime factorization of a,b
Take common primes and prime powers
Example: if a=2103859 and b=21735 then GCD(a,b)=21035
However, we believe that computing the prime factorization of large numbers is hard…
Euclid’s algorithm provides a much faster way 7<br>
slide8. 2. Euclid’s algorithm Fast GCD 8<br>

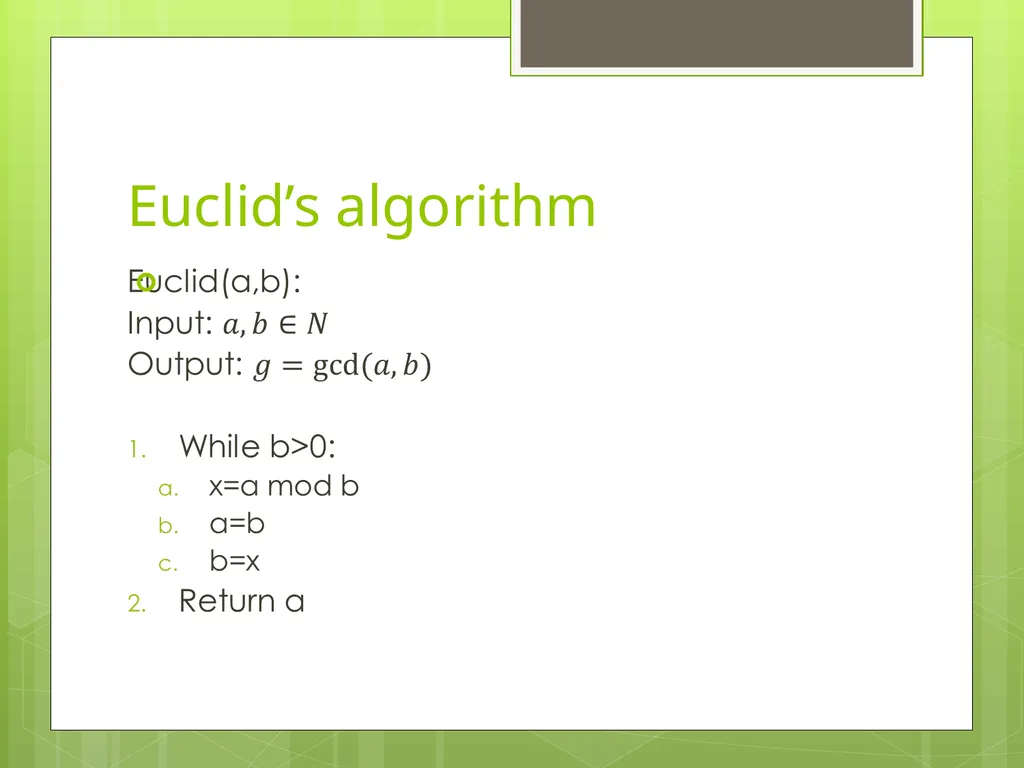

slide9. Euclid’s algorithm<br>

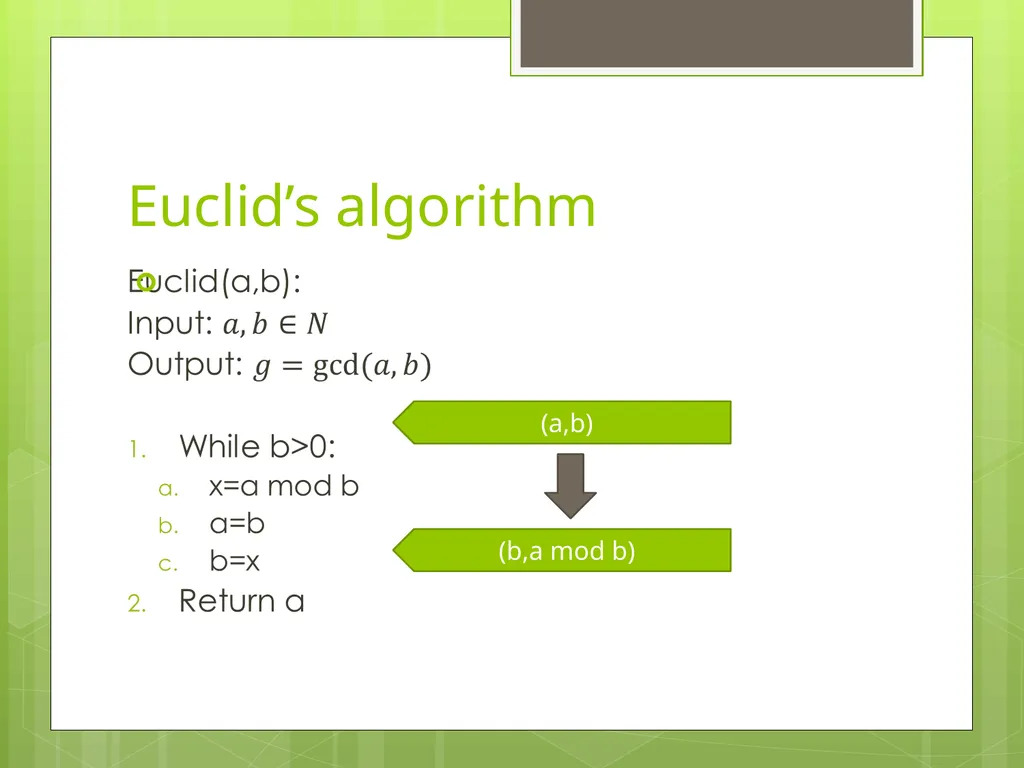

slide10. Euclid’s algorithm (a,b) (b,a mod b)<br>

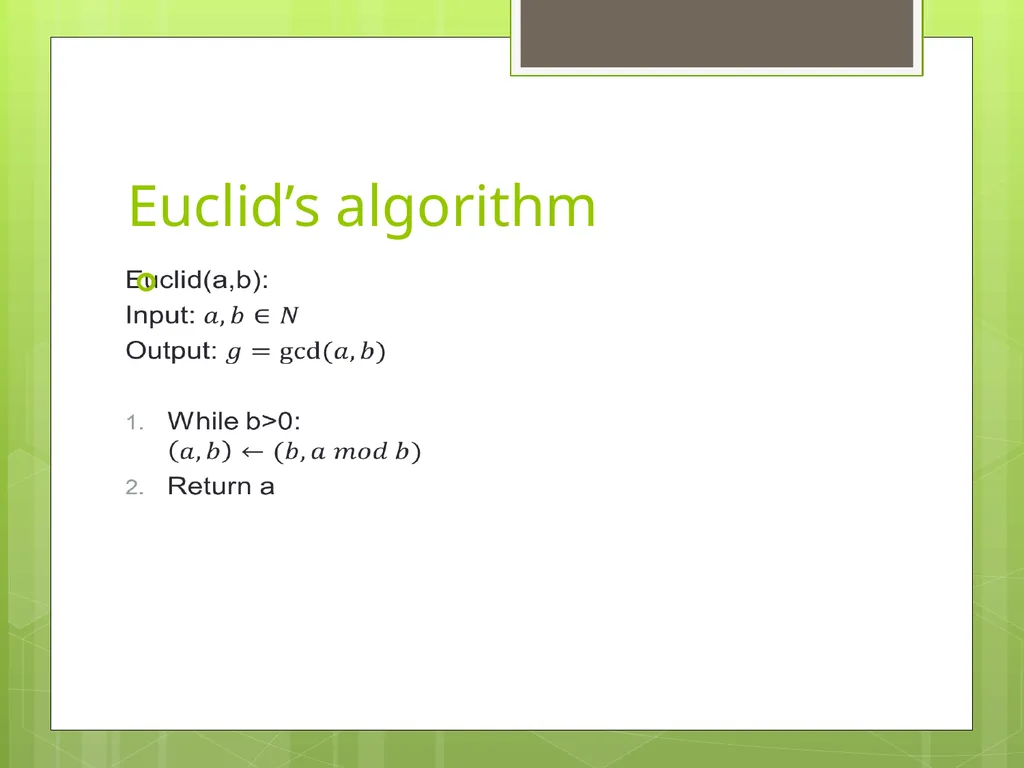

slide11. Euclid’s algorithm<br>

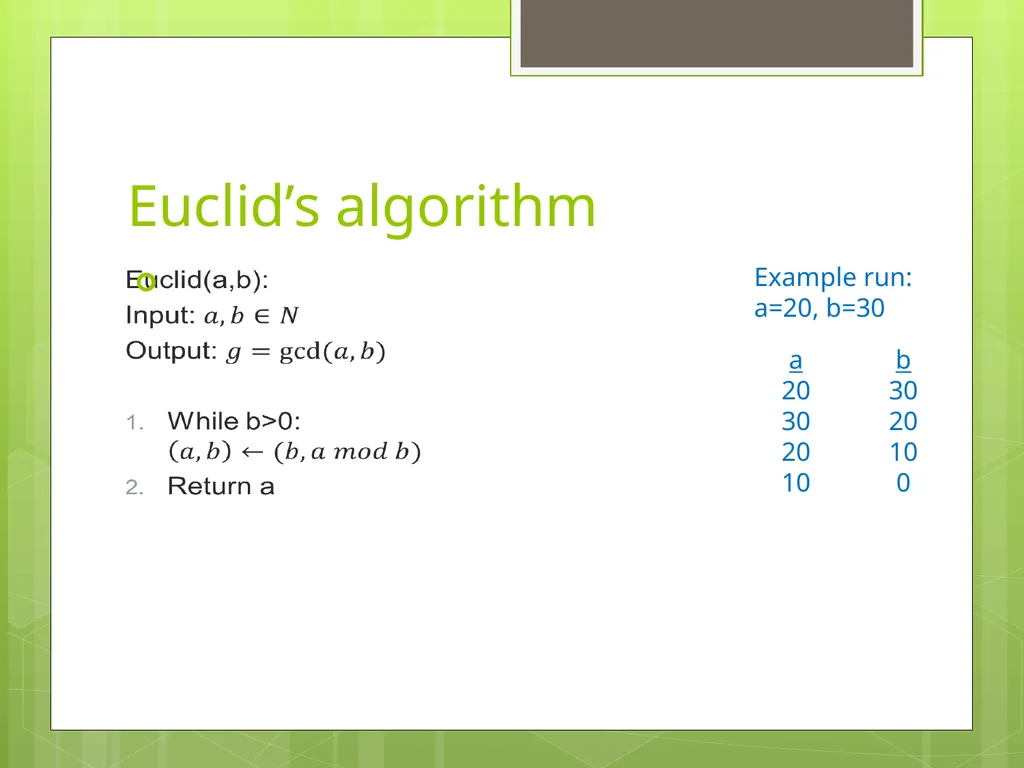

slide12. Euclid’s algorithm a
20
30
20
10 b
30
20
10
0 Example run: a=20, b=30<br>

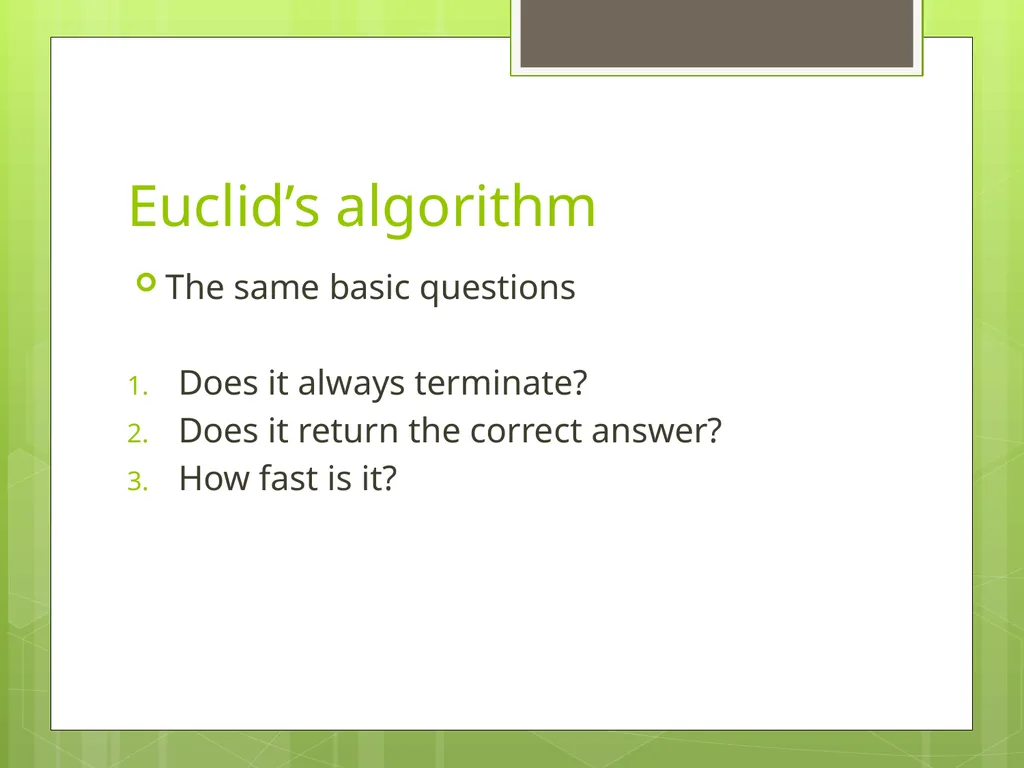

slide13. Euclid’s algorithm The same basic questions
Does it always terminate?
Does it return the correct answer?
How fast is it?<br>
slide14. Euclid’s algorithm: termination<br>

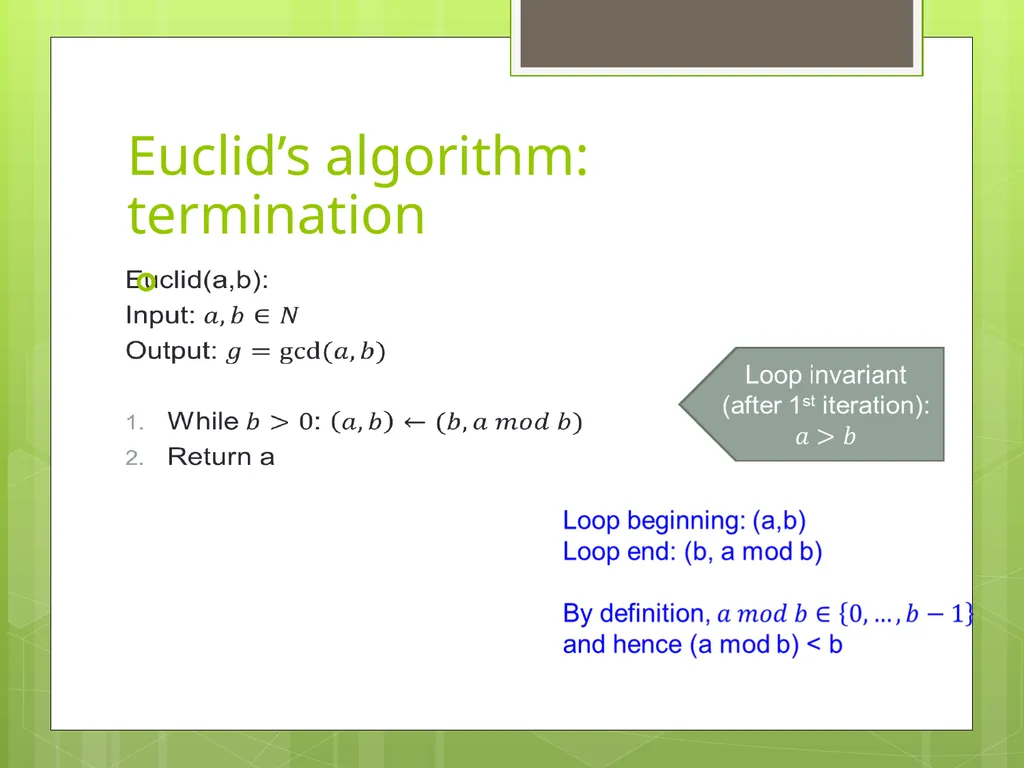

slide15. Euclid’s algorithm: termination<br>

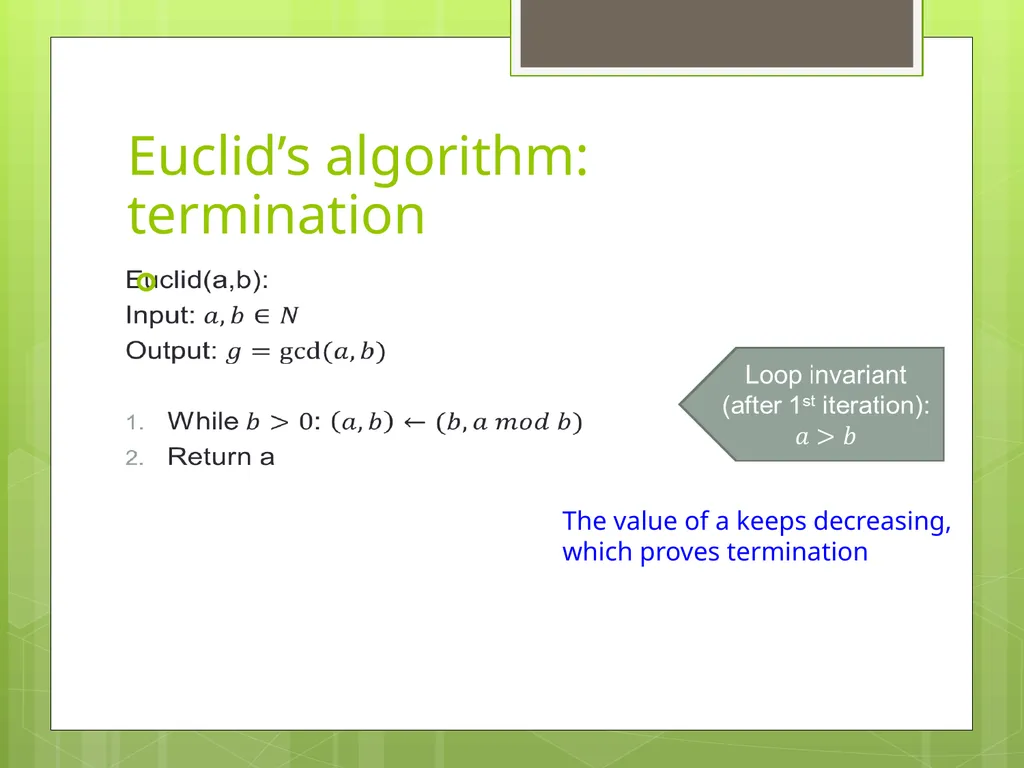

slide16. Euclid’s algorithm: termination The value of a keeps decreasing,
which proves termination<br>
slide17. Euclid’s algorithm: correctness g=gcd(a,b)<br>

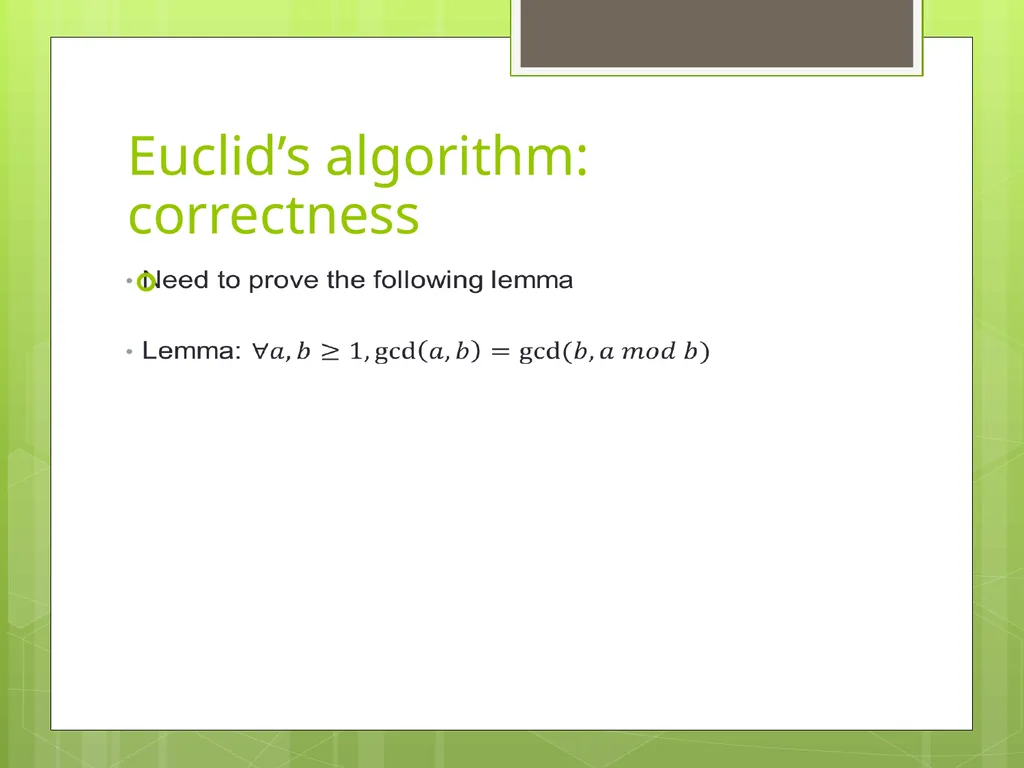

slide18. Euclid’s algorithm: correctness<br>

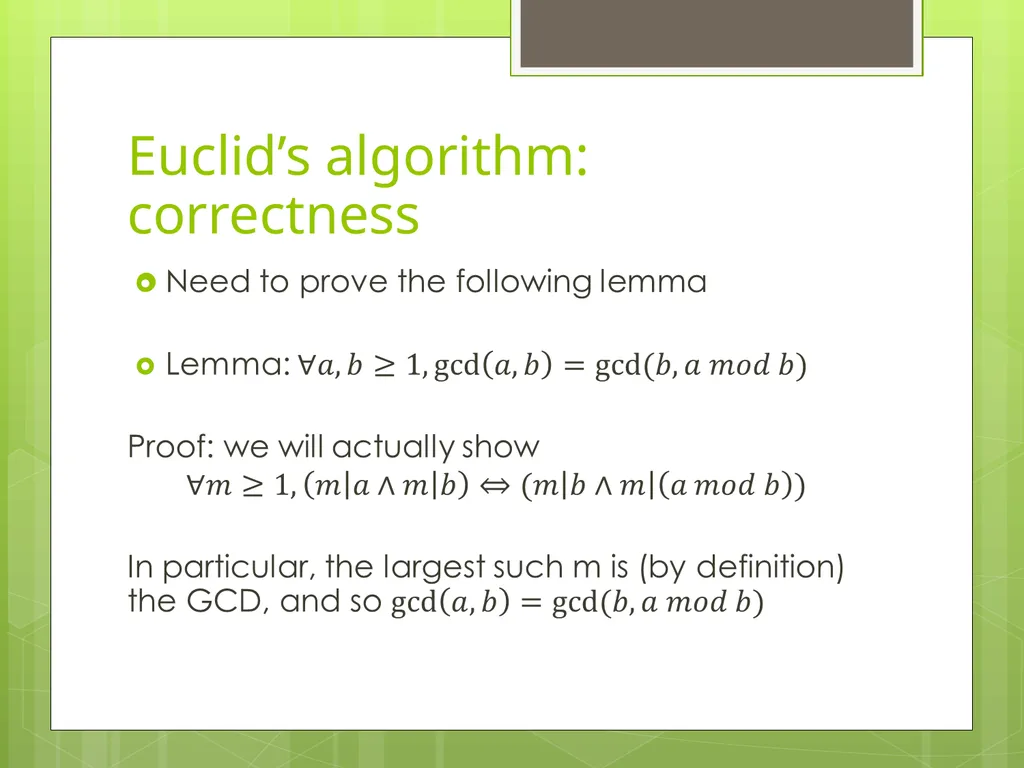

slide19. Euclid’s algorithm: correctness<br>

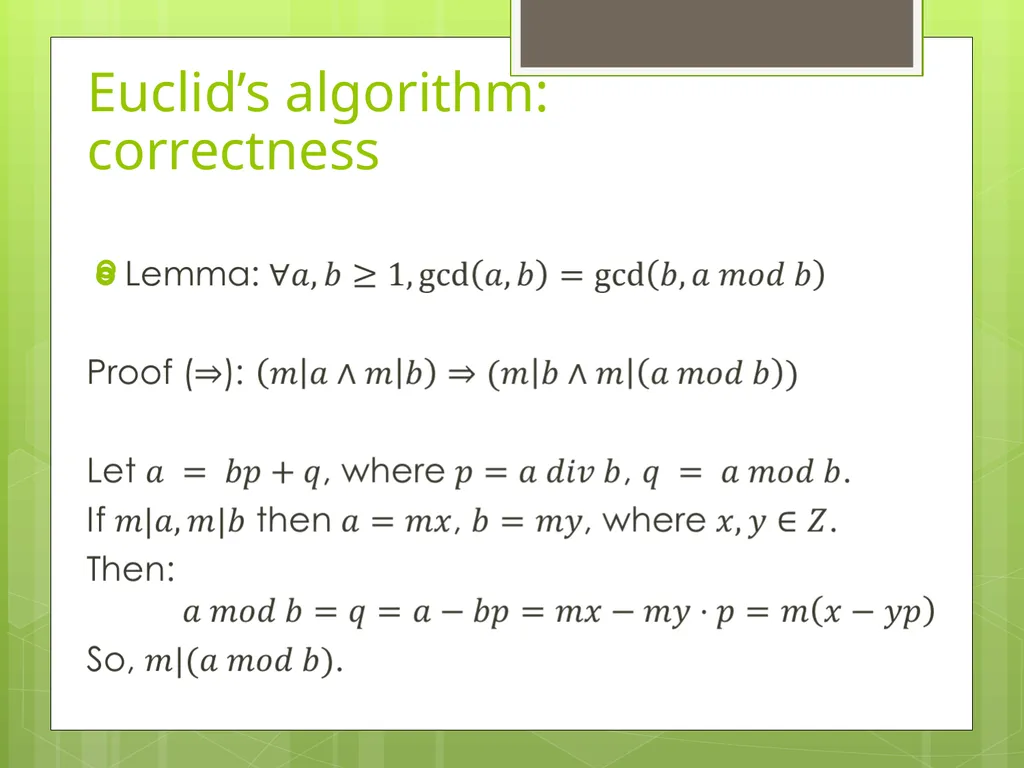

slide20. Euclid’s algorithm: correctness<br>

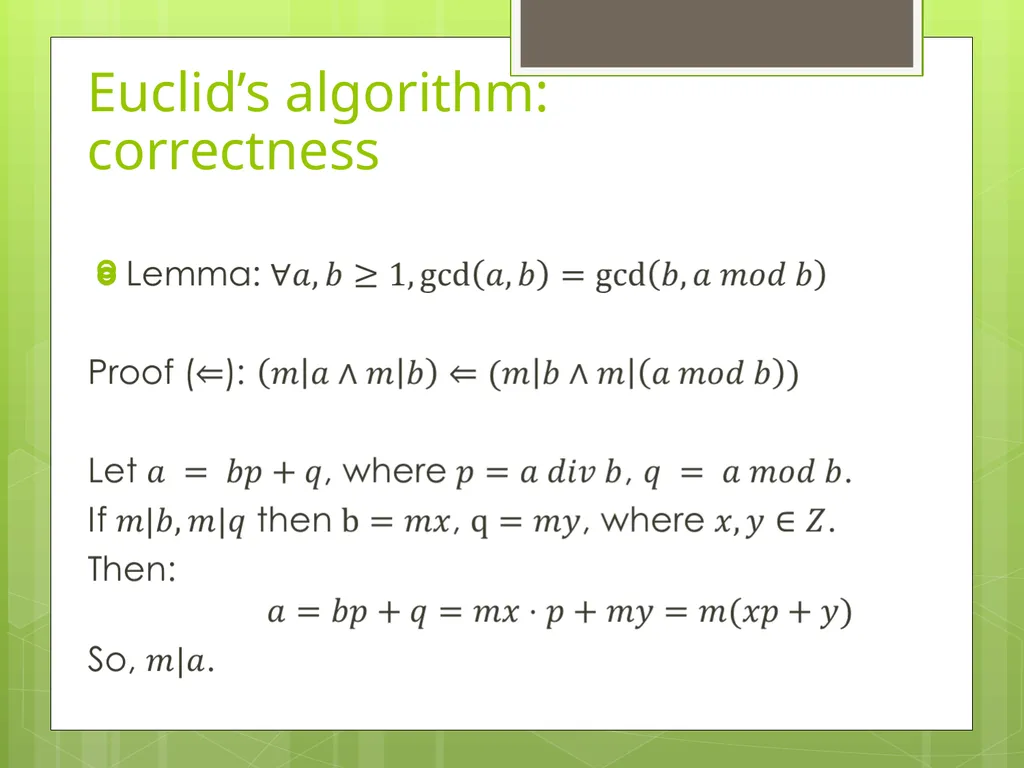

slide21. Euclid’s algorithm: correctness<br>

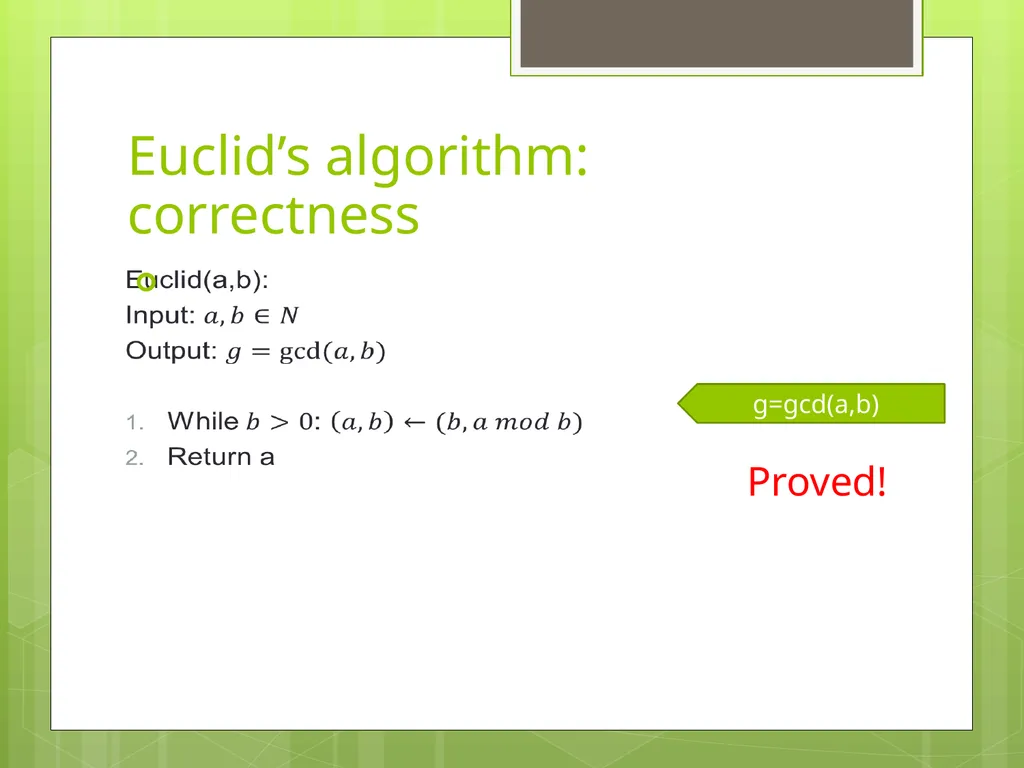

slide22. Euclid’s algorithm: correctness g=gcd(a,b) Proved!<br>

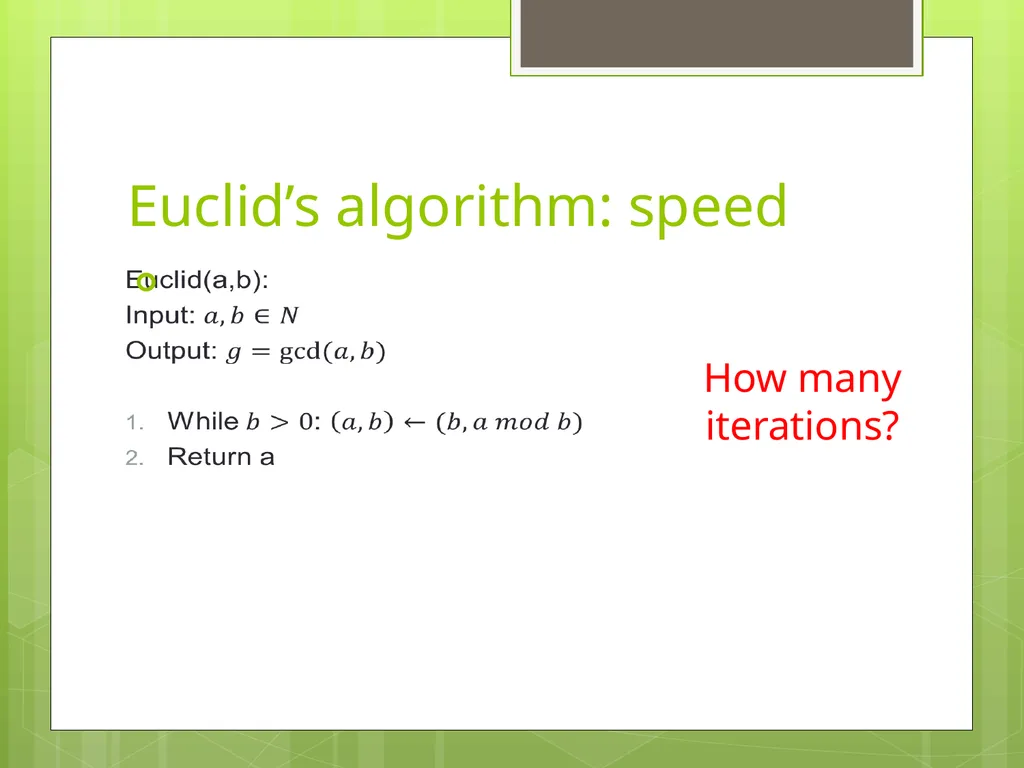

slide23. Euclid’s algorithm: speed How many iterations?<br>

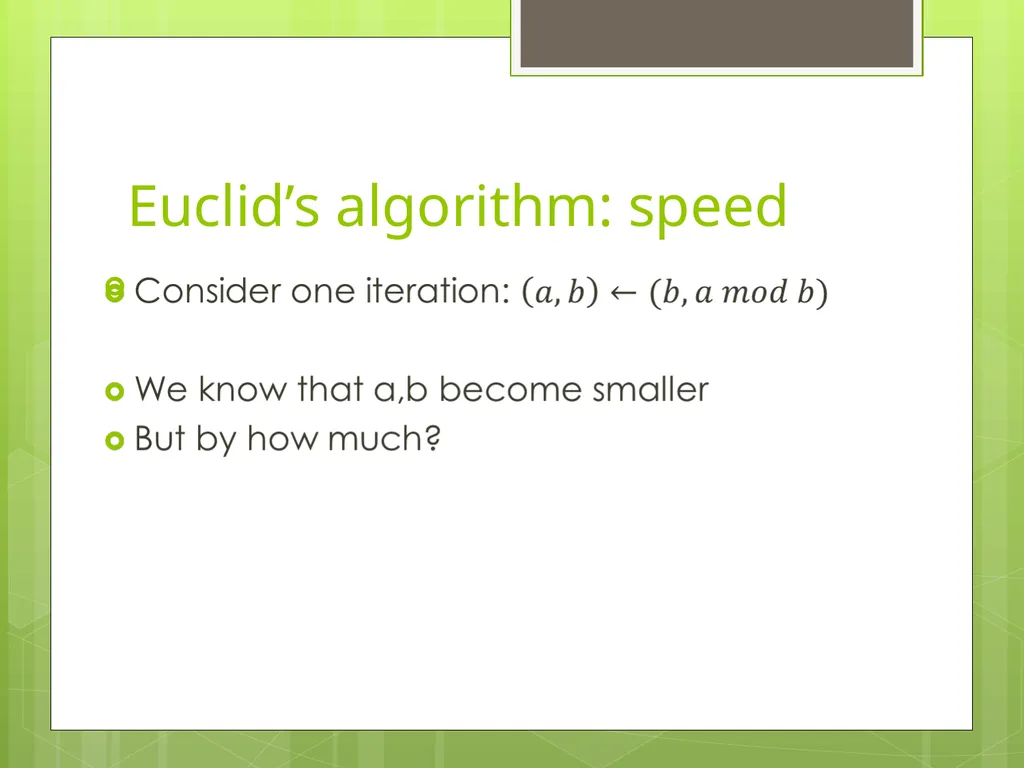

slide24. Euclid’s algorithm: speed<br>

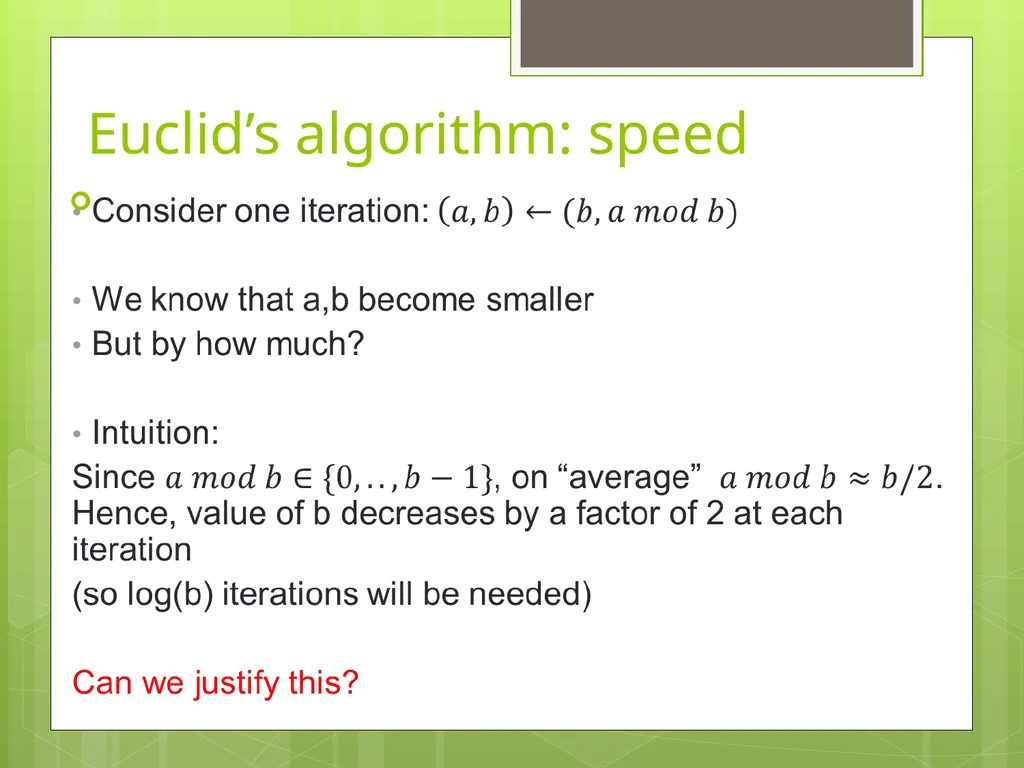

slide25. Euclid’s algorithm: speed<br>

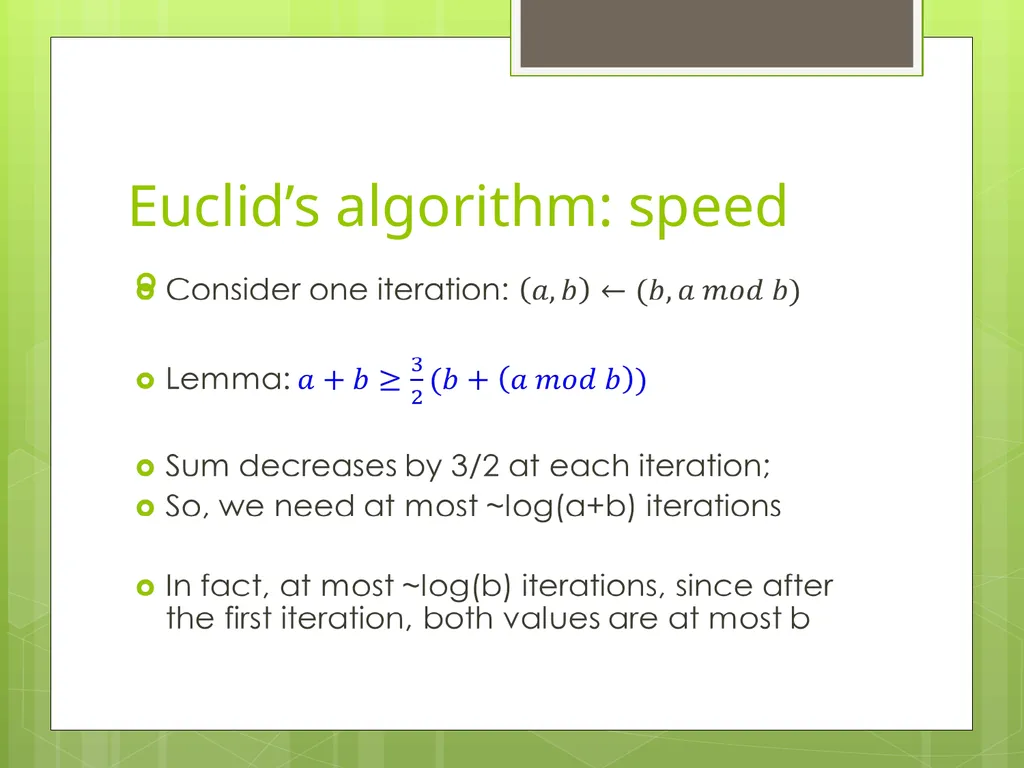

slide26. Euclid’s algorithm: speed<br>

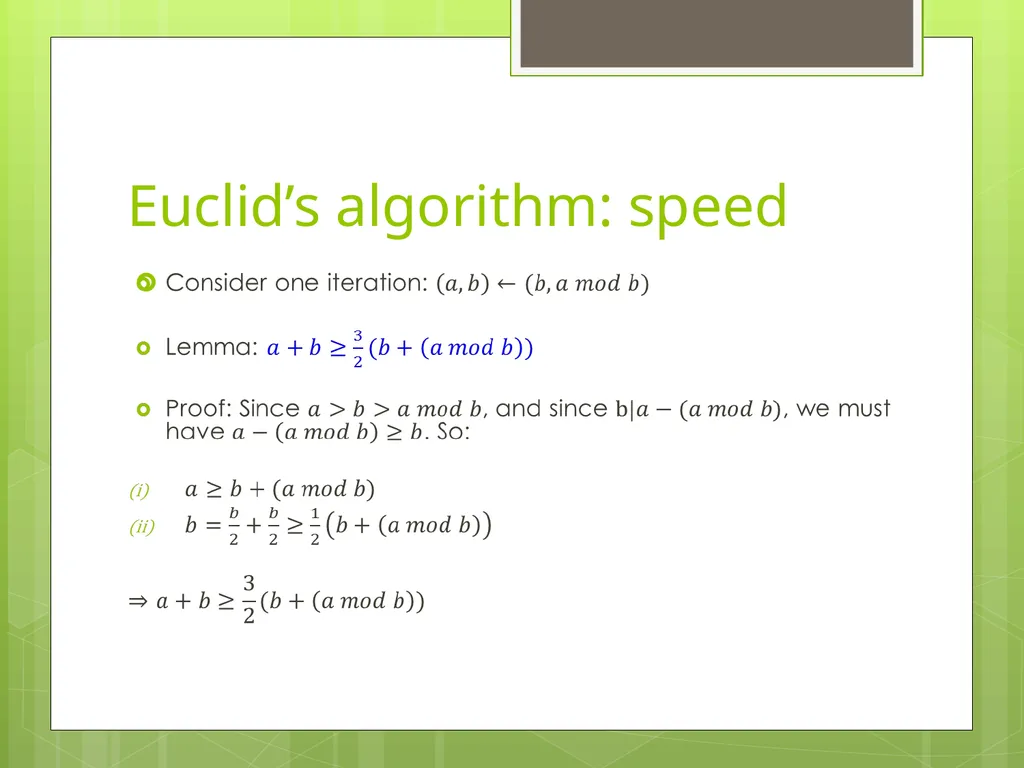

slide27. Euclid’s algorithm: speed<br>

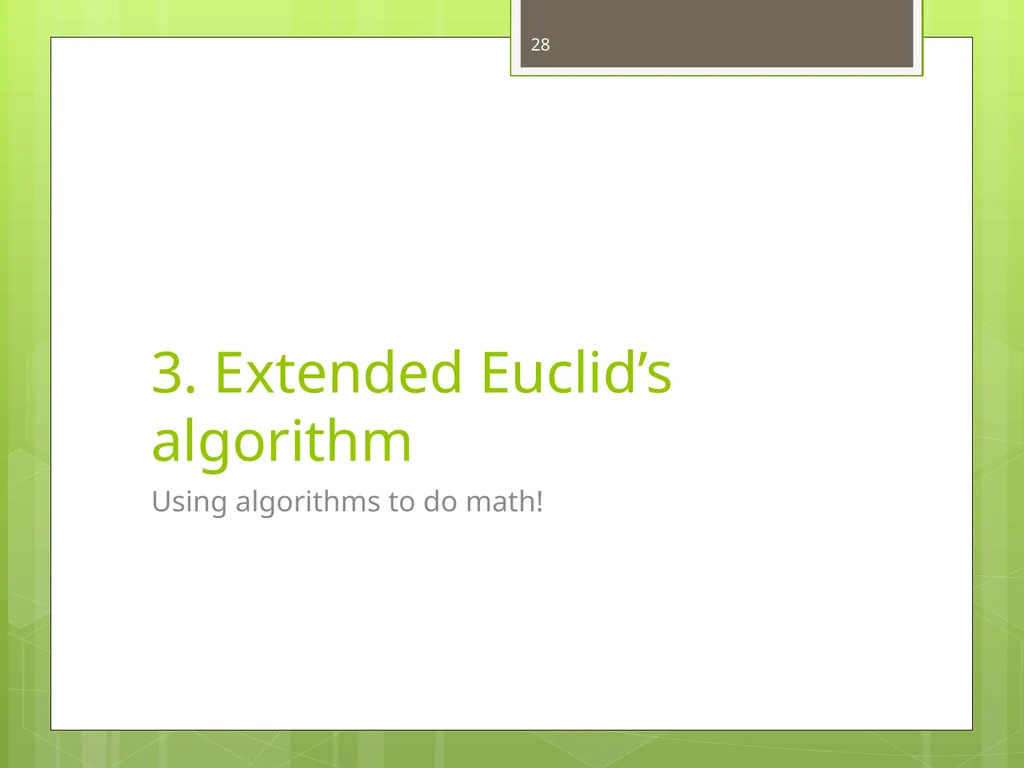

slide28. 3. Extended Euclid’s algorithm Using algorithms to do math! 28<br>

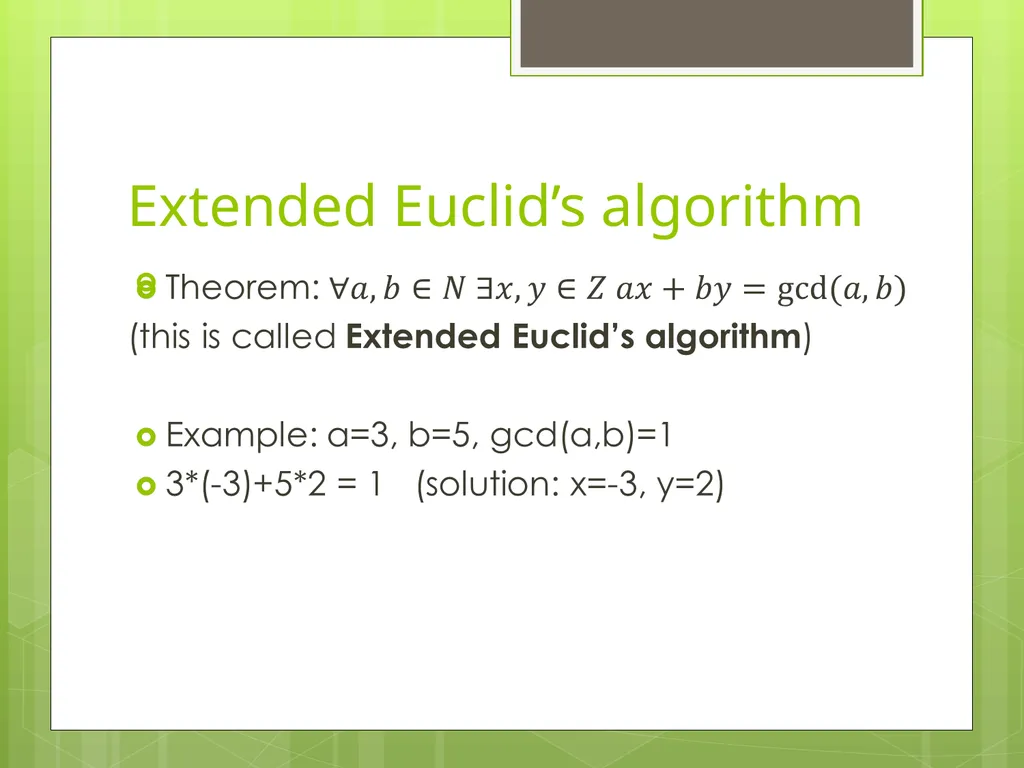

slide29. Extended Euclid’s algorithm<br>

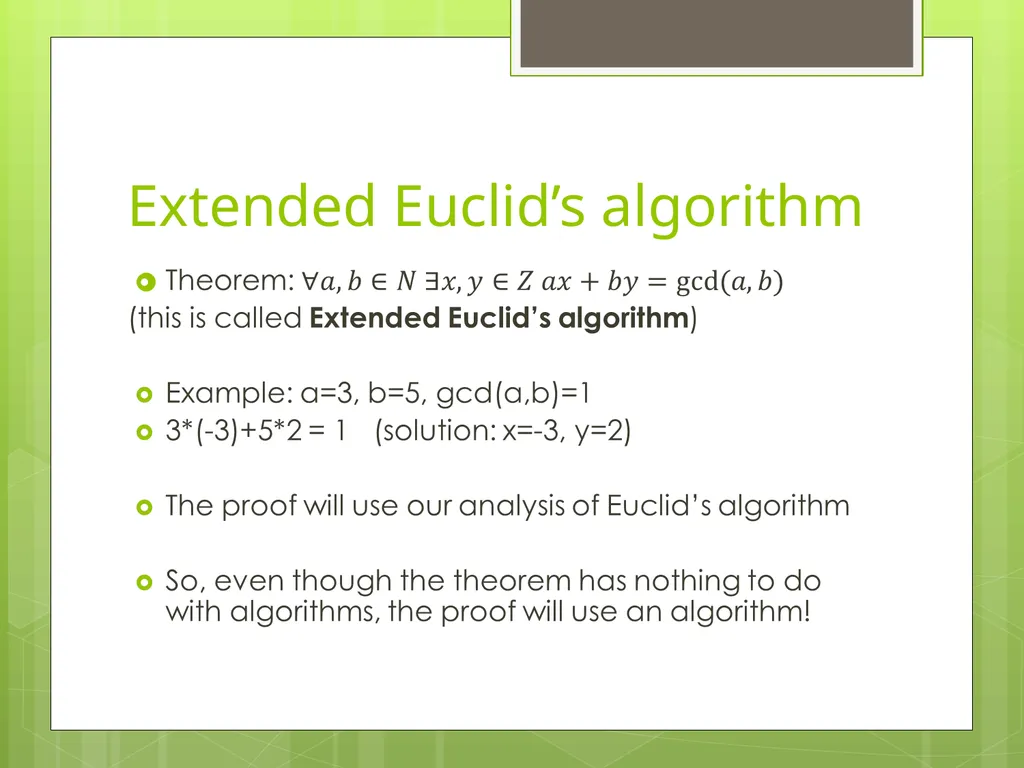

slide30. Extended Euclid’s algorithm<br>

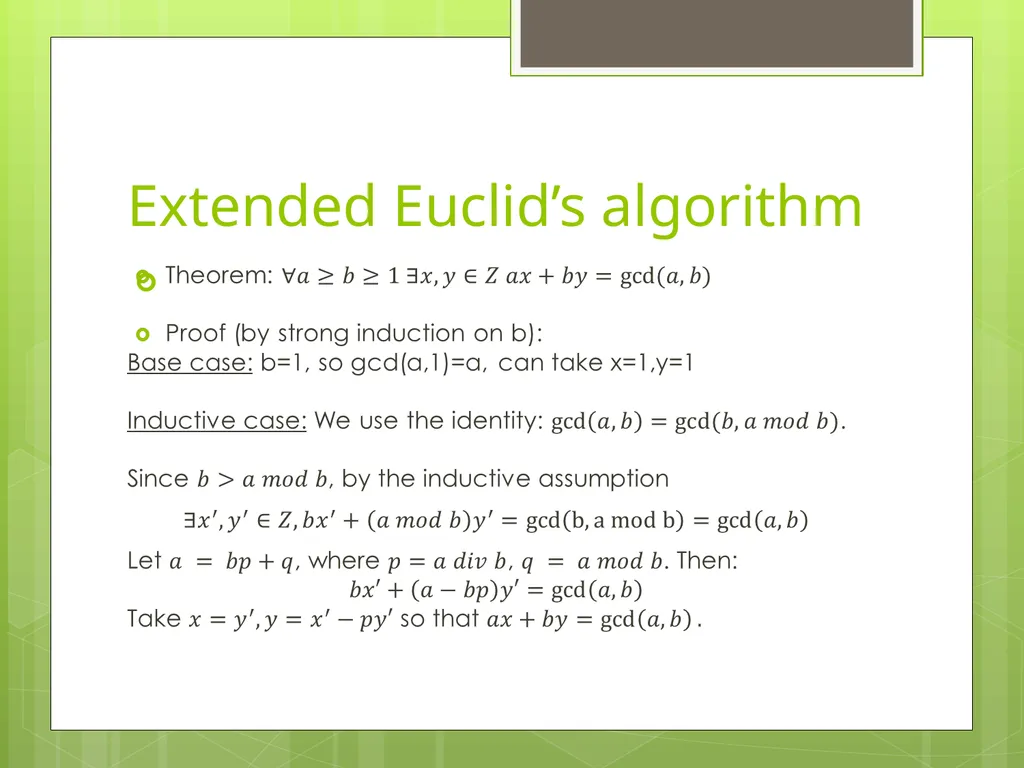

slide31. Extended Euclid’s algorithm<br>
