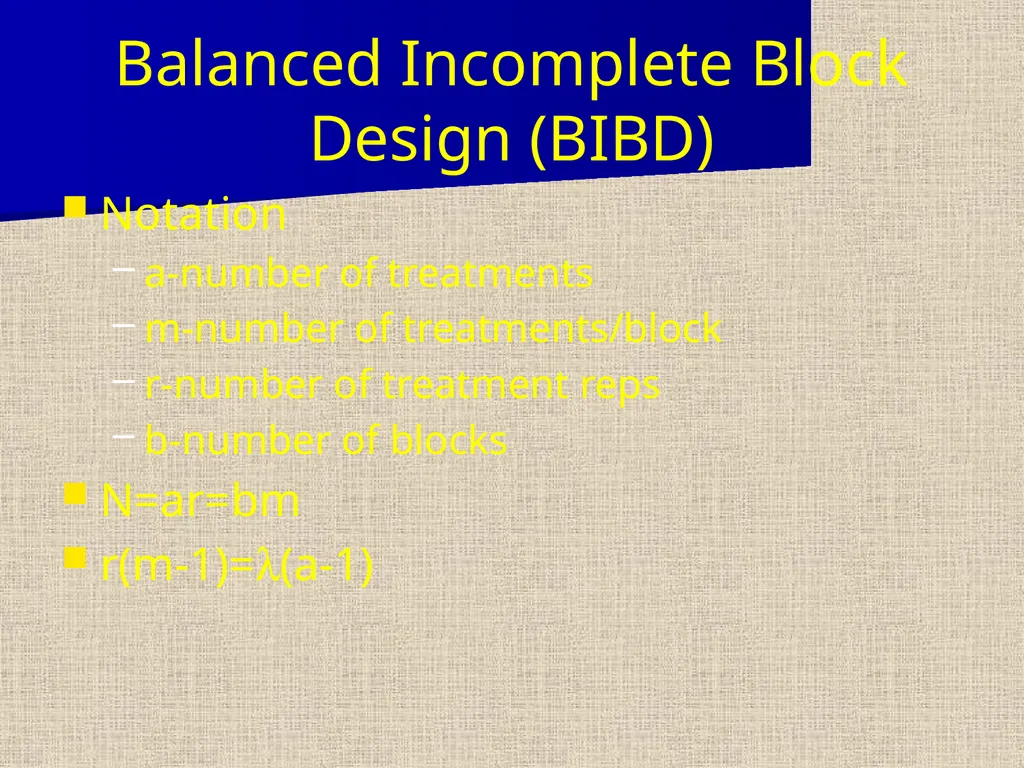

slide1. Balanced Incomplete Block Design (BIBD) Notation
a-number of treatments
m-number of treatments/block
r-number of treatment reps
b-number of blocks
N=ar=bm
r(m-1)=l(a-1)<br>

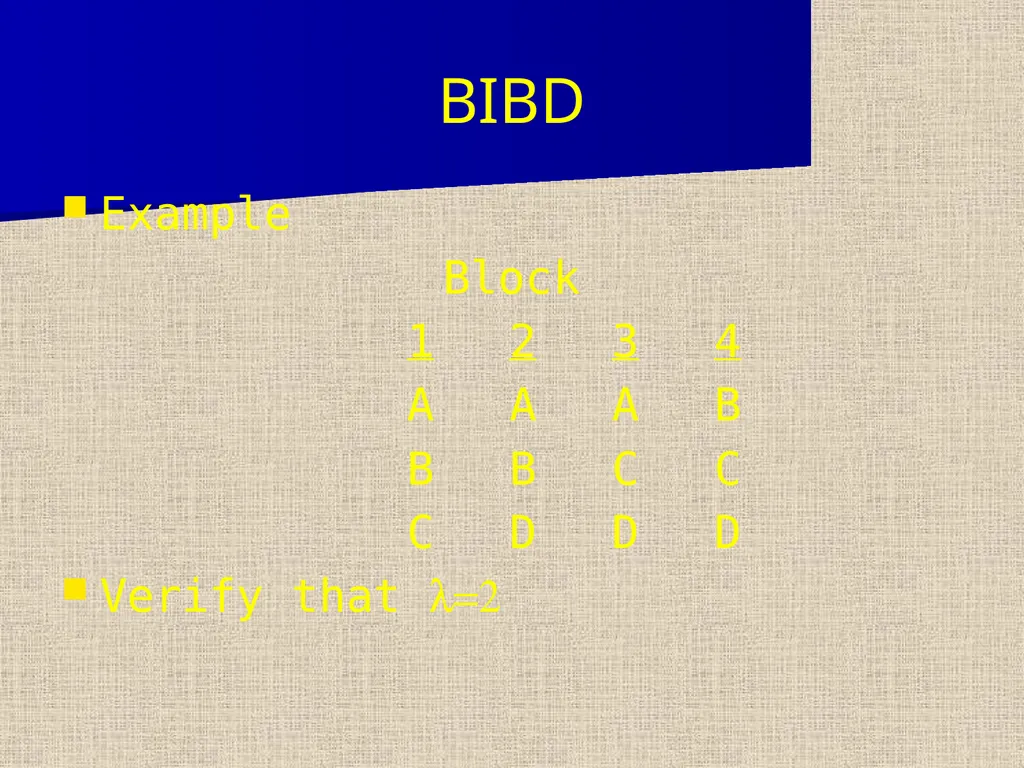

slide2. BIBD Example
Block
1 2 3 4
A A A B
B B C C
C D D D
Verify that l=2<br>

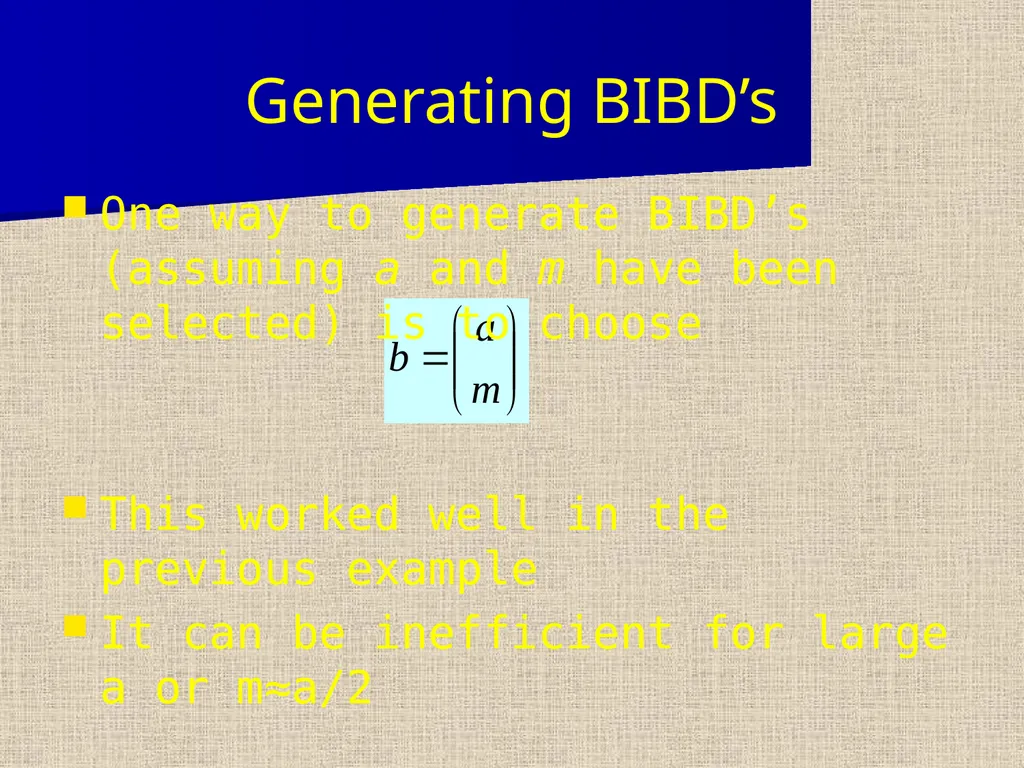

slide3. One way to generate BIBD’s (assuming a and m have been selected) is to choose
This worked well in the previous example
It can be inefficient for large a or m≈a/2 Generating BIBD’s<br>

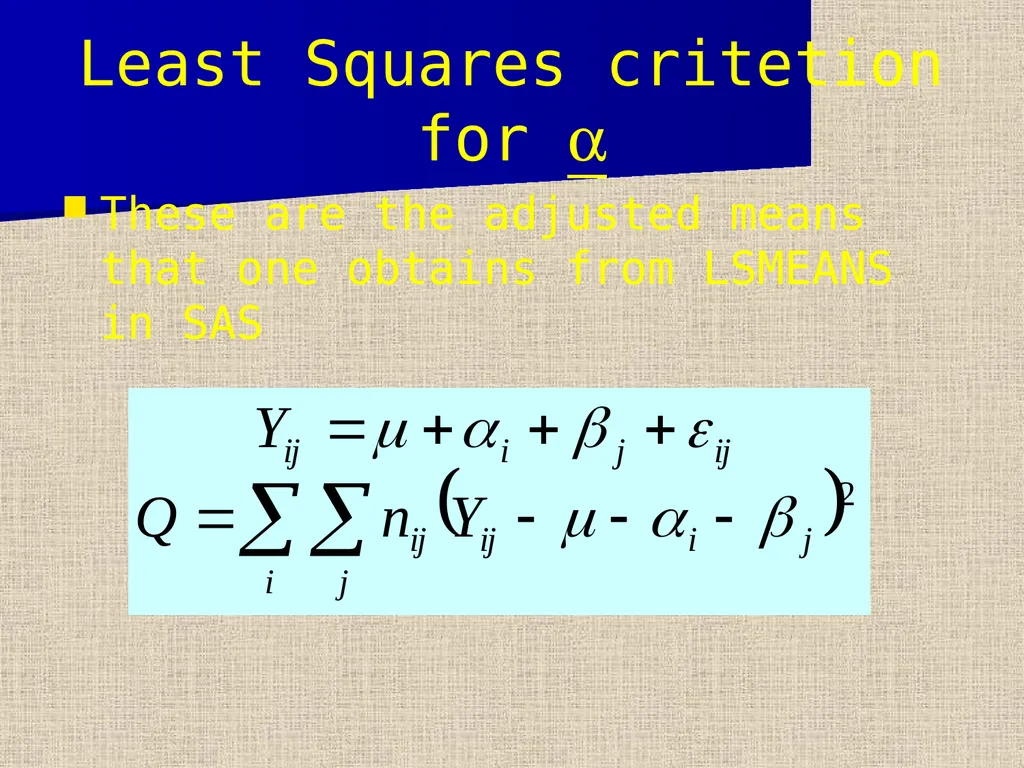

slide4. These are the adjusted means that one obtains from LSMEANS in SAS Least Squares critetion for a<br>

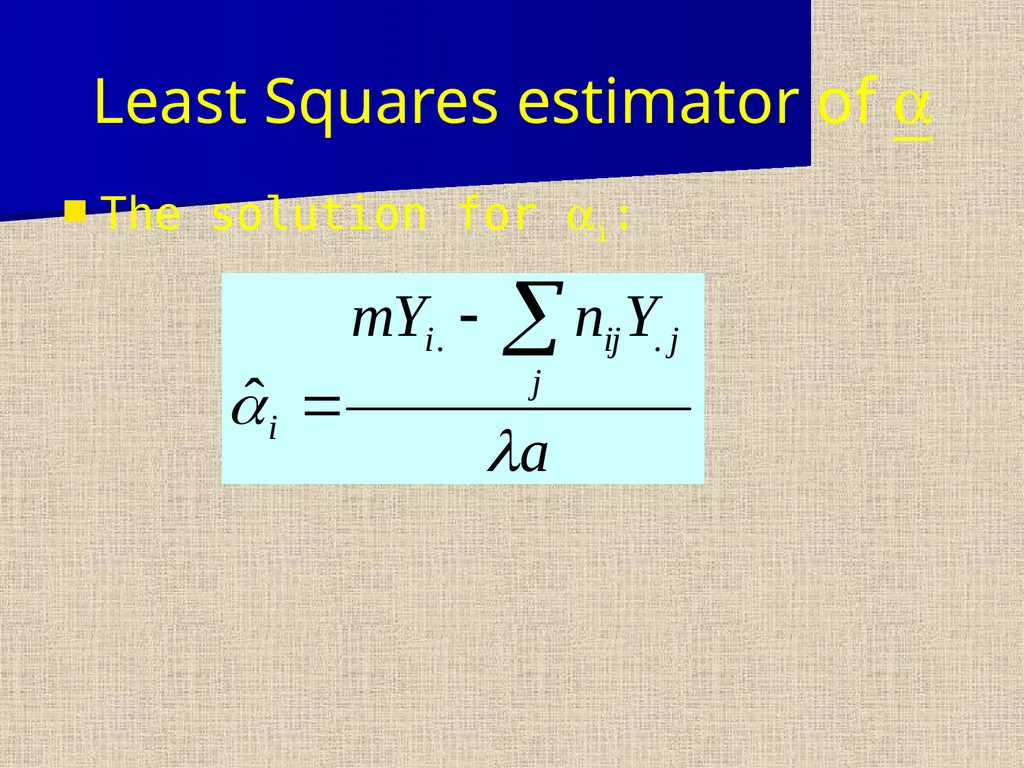

slide5. The solution for ai: Least Squares estimator of a<br>

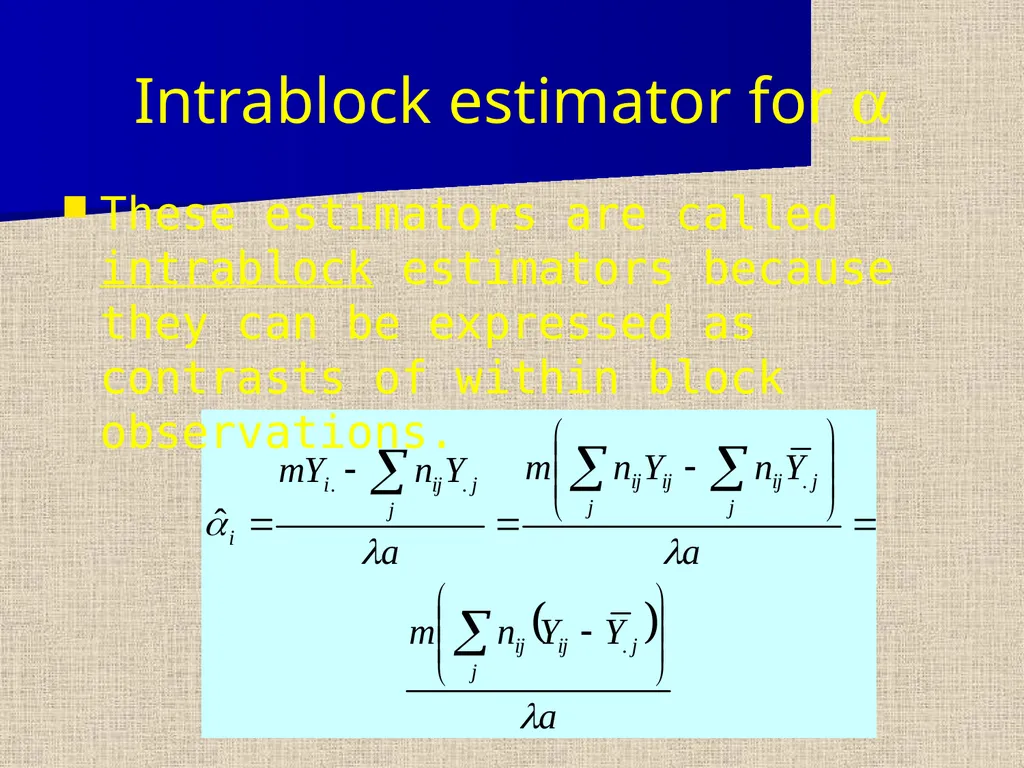

slide6. These estimators are called intrablock estimators because they can be expressed as contrasts of within block observations. Intrablock estimator for a<br>

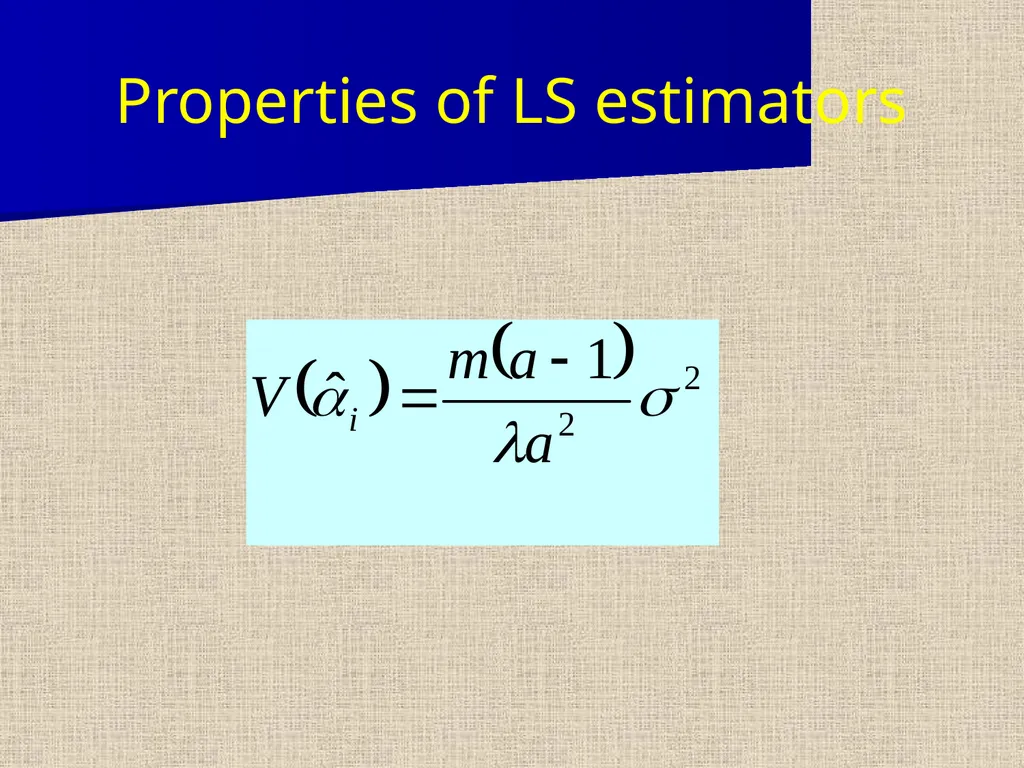

slide7. Properties of LS estimators<br>

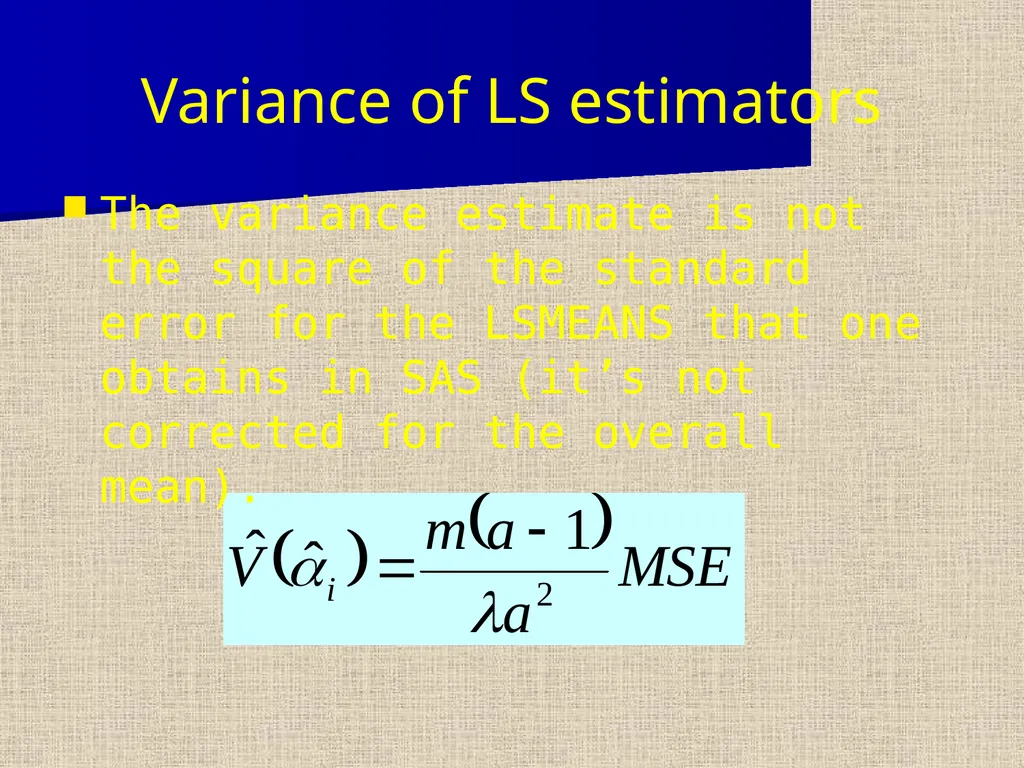

slide8. The variance estimate is not the square of the standard error for the LSMEANS that one obtains in SAS (it’s not corrected for the overall mean). Variance of LS estimators<br>
slide9. Example Region II Science Fair Winner
Treatment is organic chemical repellent
Block is Day
Response is average number of flies on underside of lid (smaller is better)
Originally presented as a Latin Square (additional block was Fly Group)<br>
slide10. A=Ascorbic Acid B=Citric Acid C=Control D=Hesperidin
E=Lemon Juice F=Black Pepper G=Piperine Data Table<br>

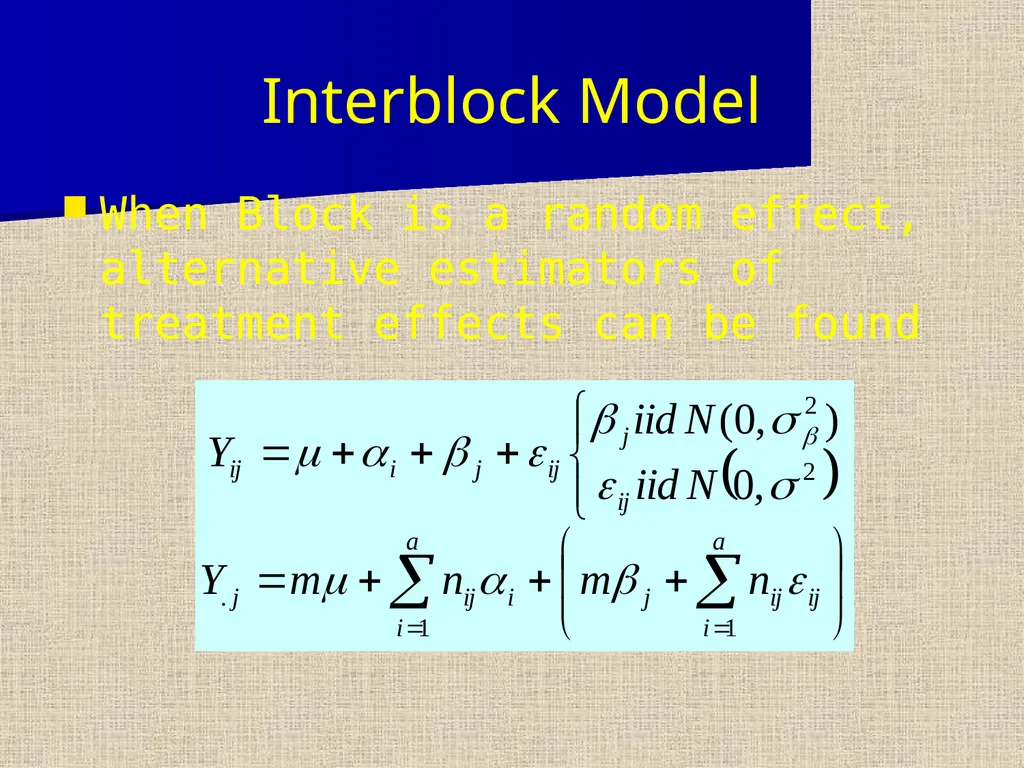

slide11. When Block is a random effect, alternative estimators of treatment effects can be found Interblock Model<br>

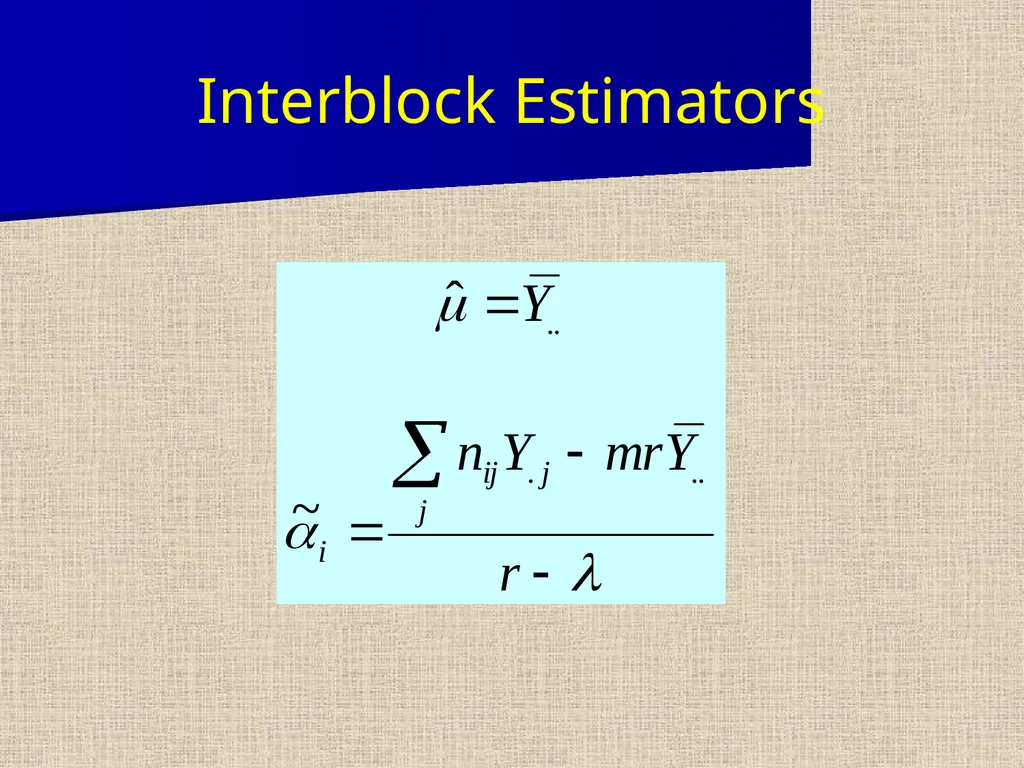

slide12. Interblock Estimators<br>

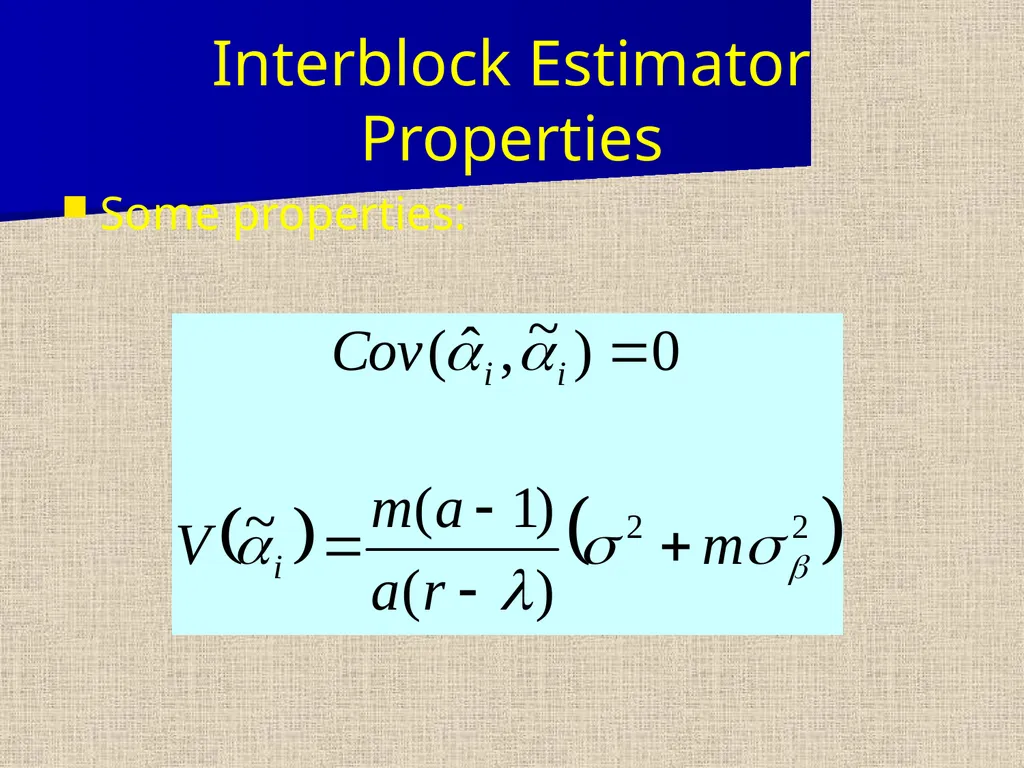

slide13. Some properties: Interblock Estimator Properties<br>

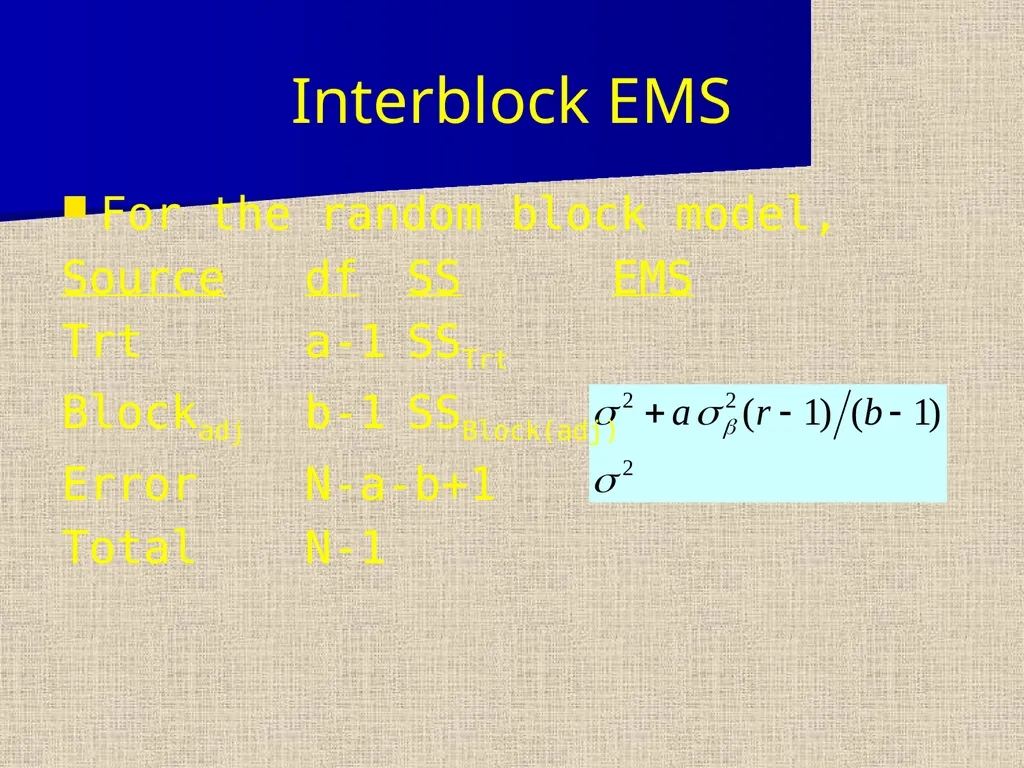

slide14. For the random block model,
Source df SS EMS
Trt a-1 SSTrt
Blockadj b-1 SSBlock(adj)
Error N-a-b+1
Total N-1 Interblock EMS<br>

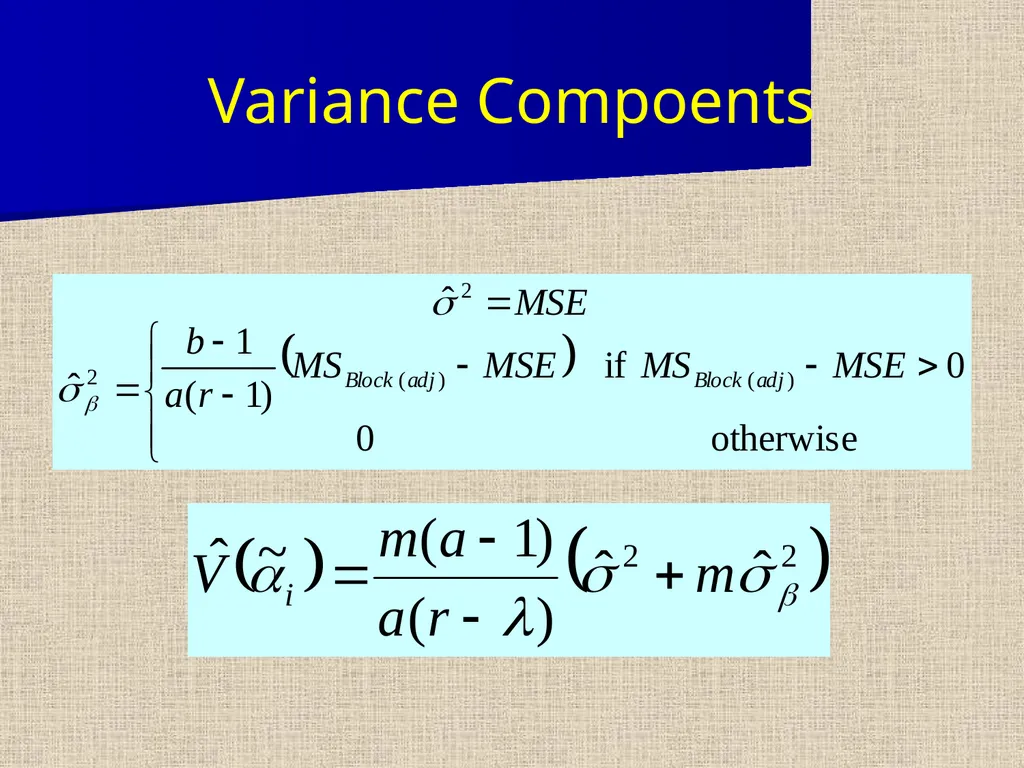

slide15. Variance Compoents<br>
slide16. Suppose we want to minimize the variance of estimators of the form:
The best weighted estimator is: BIBD Estimators<br>

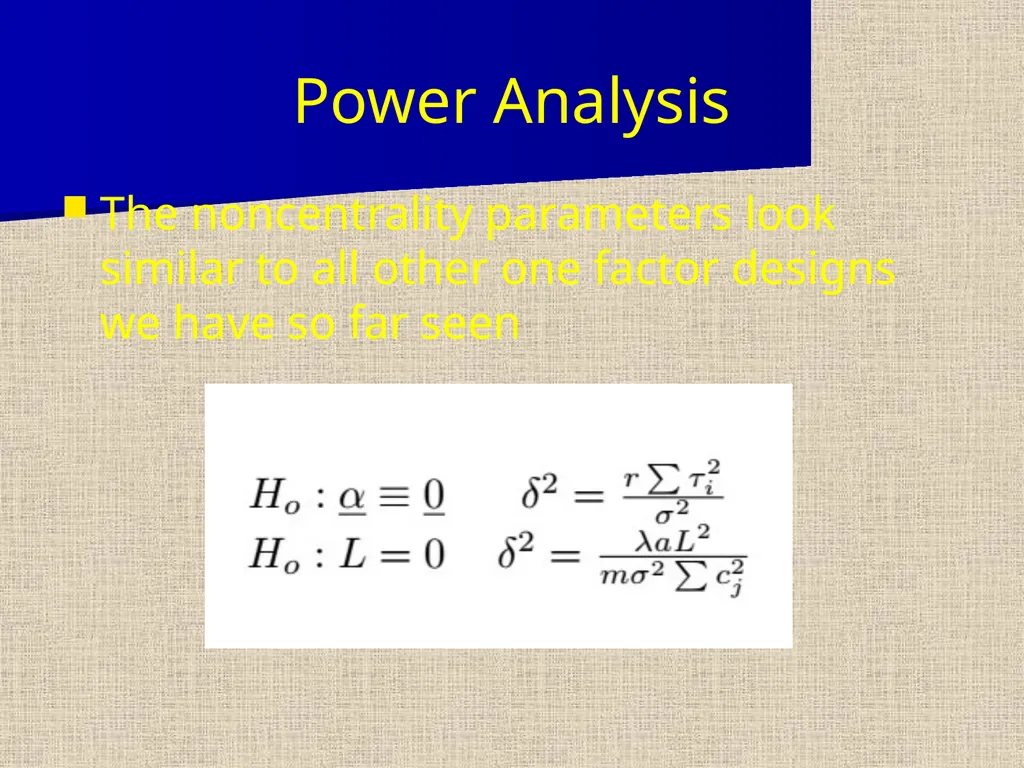

slide17. The noncentrality parameters look similar to all other one factor designs we have so far seen Power Analysis<br>
