slide1. Computer Systems An Integrated Approach to Architecture and Operating Systems Chapter 1
Introduction ©Copyright 2008 Umakishore Ramachandran and William D. Leahy Jr.<br>
slide2. What’s Inside the Box?<br>
slide3. Levels of Abstraction<br>

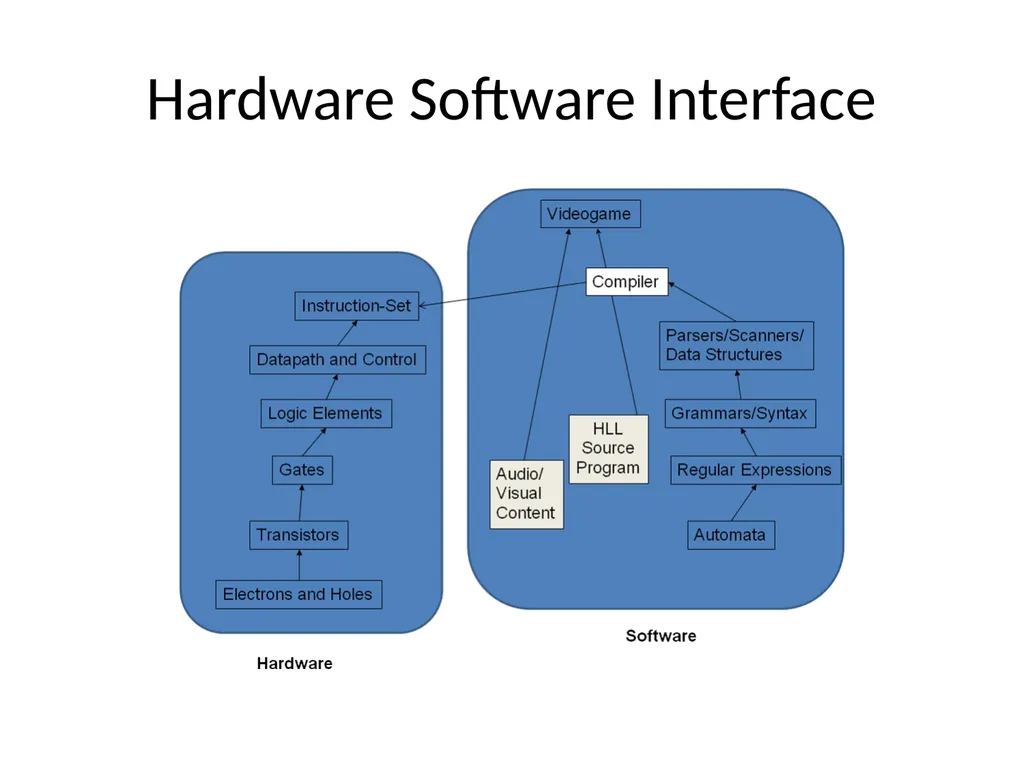

slide4. Hardware Software Interface<br>

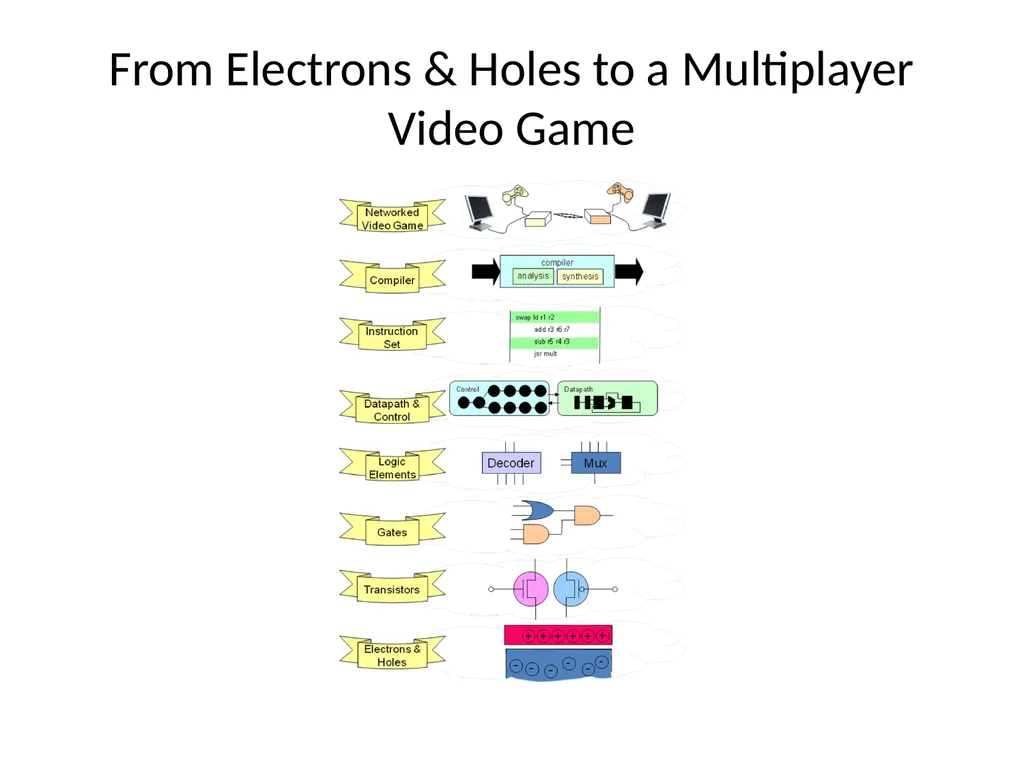

slide5. From Electrons & Holes to a Multiplayer Video Game<br>

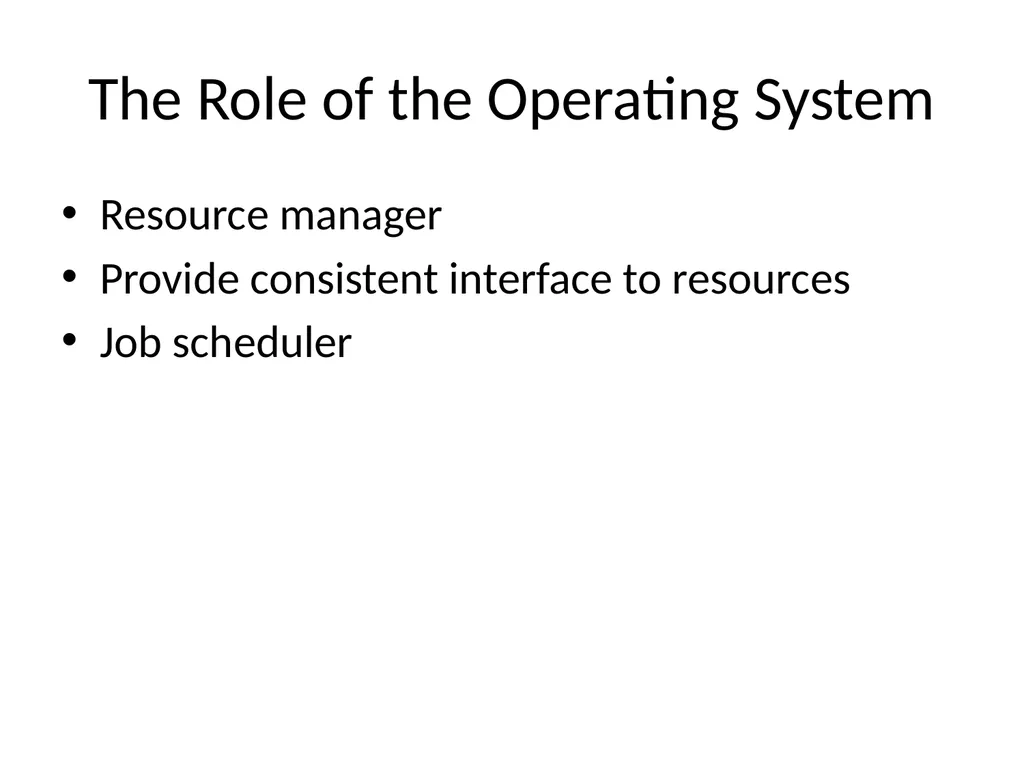

slide6. The Role of the Operating System Resource manager
Provide consistent interface to resources
Job scheduler<br>

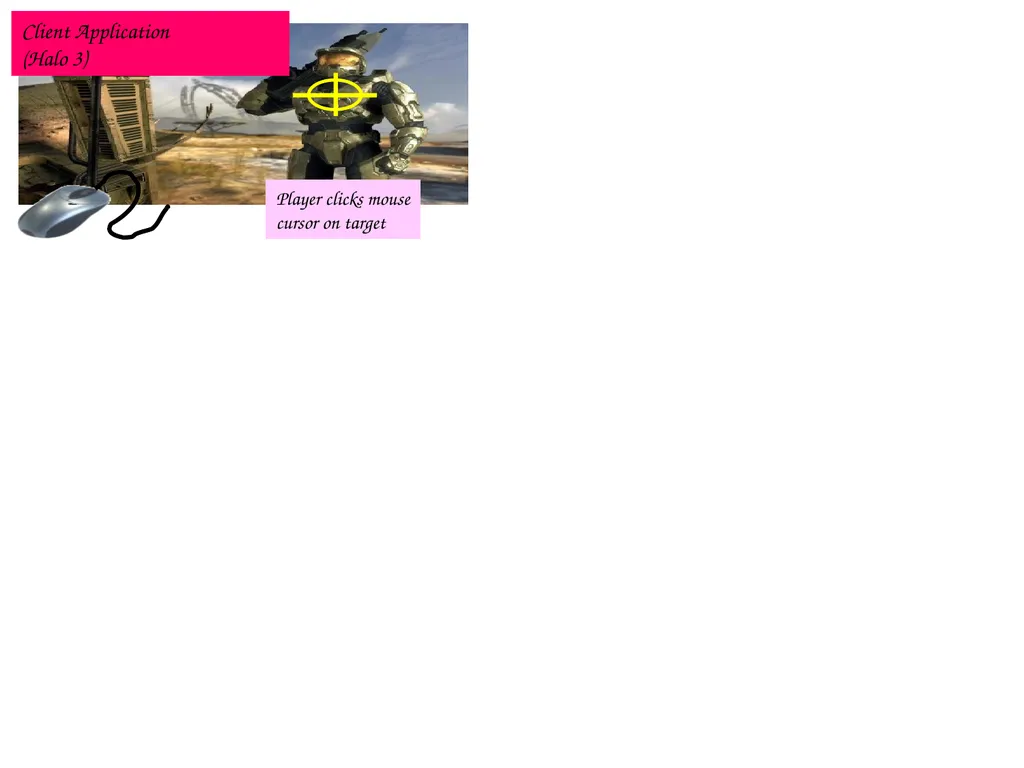

slide7. Client Application
(Halo 3) Player clicks mouse
cursor on target<br>

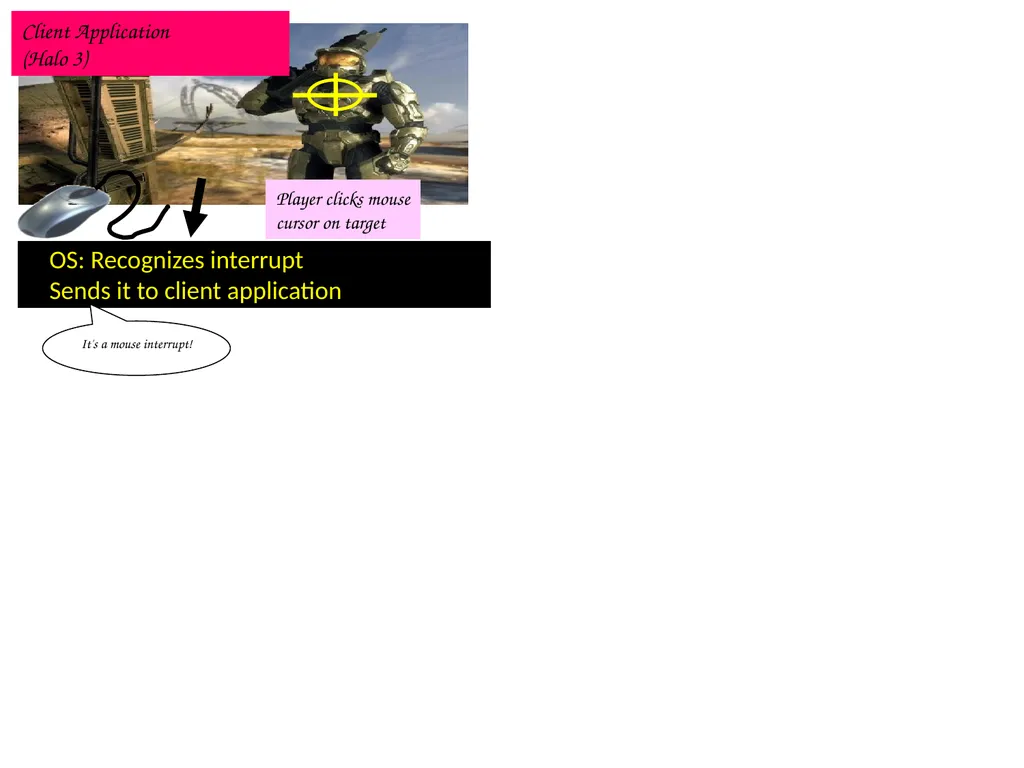

slide8. Client Application
(Halo 3) OS: Recognizes interrupt
Sends it to client application Player clicks mouse
cursor on target It's a mouse interrupt!<br>

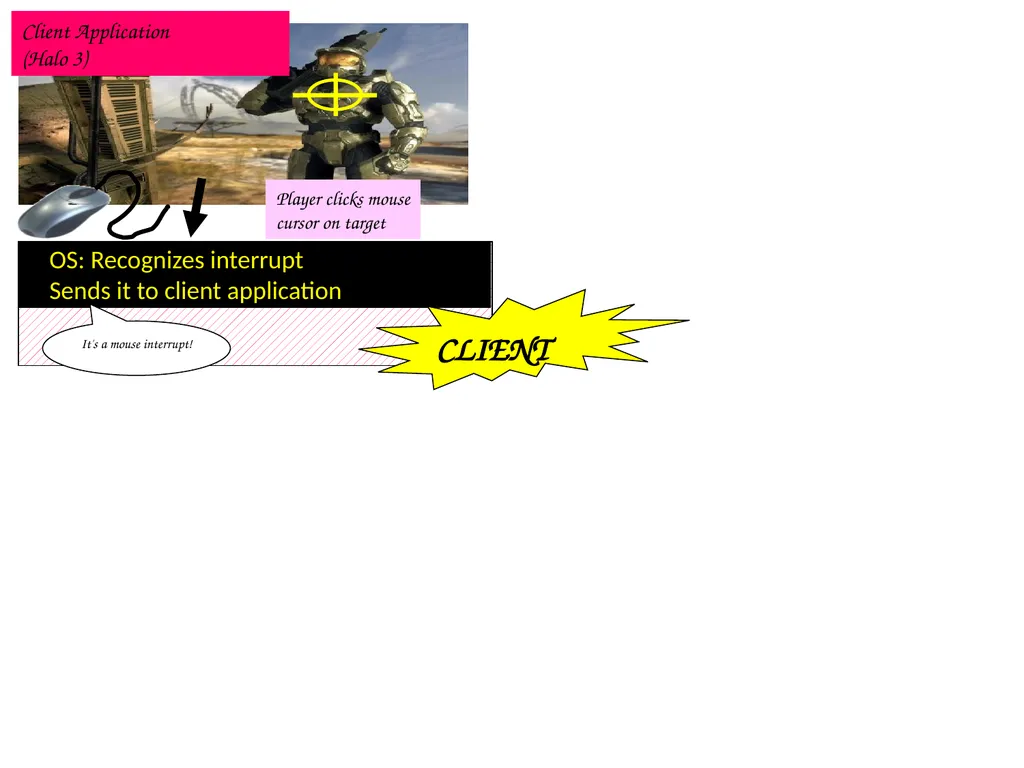

slide9. Client Application
(Halo 3) OS: Recognizes interrupt
Sends it to client application It's a mouse interrupt! CLIENT Player clicks mouse
cursor on target<br>

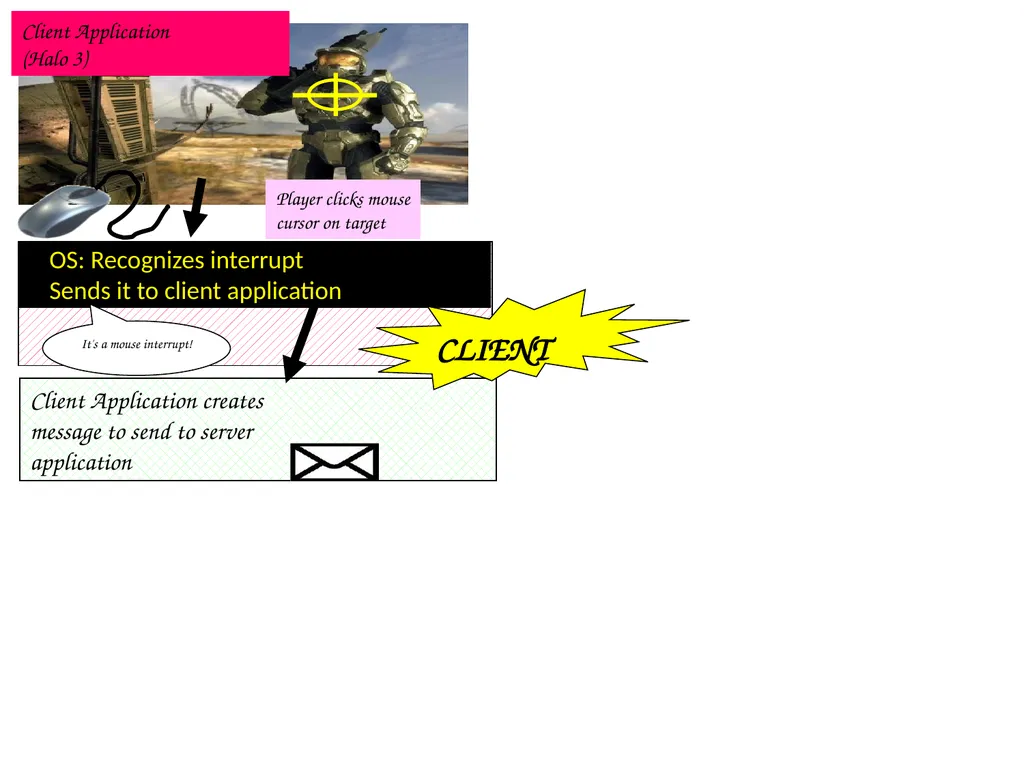

slide10. Client Application creates
message to send to server
application Client Application
(Halo 3) OS: Recognizes interrupt
Sends it to client application It's a mouse interrupt! CLIENT Player clicks mouse
cursor on target<br>

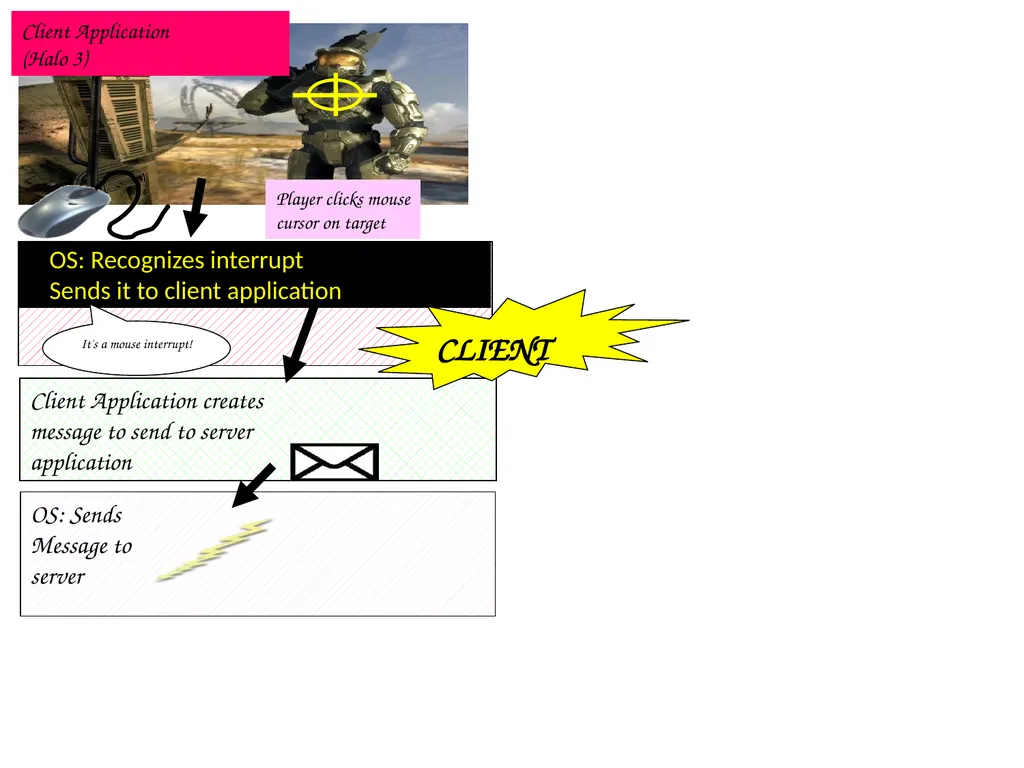

slide11. Client Application creates
message to send to server
application OS: Sends
Message to
server Client Application
(Halo 3) OS: Recognizes interrupt
Sends it to client application It's a mouse interrupt! CLIENT Player clicks mouse
cursor on target<br>

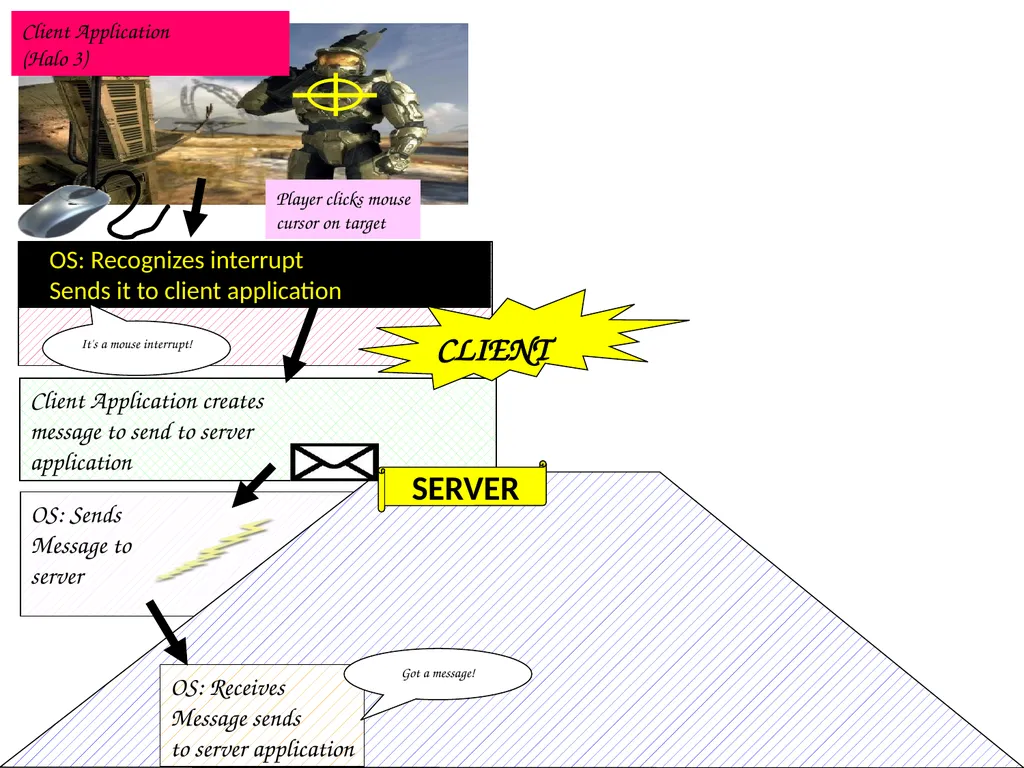

slide12. Client Application creates
message to send to server
application OS: Sends
Message to
server Client Application
(Halo 3) OS: Recognizes interrupt
Sends it to client application OS: Receives
Message sends
to server application It's a mouse interrupt! Got a message! CLIENT Player clicks mouse
cursor on target SERVER<br>

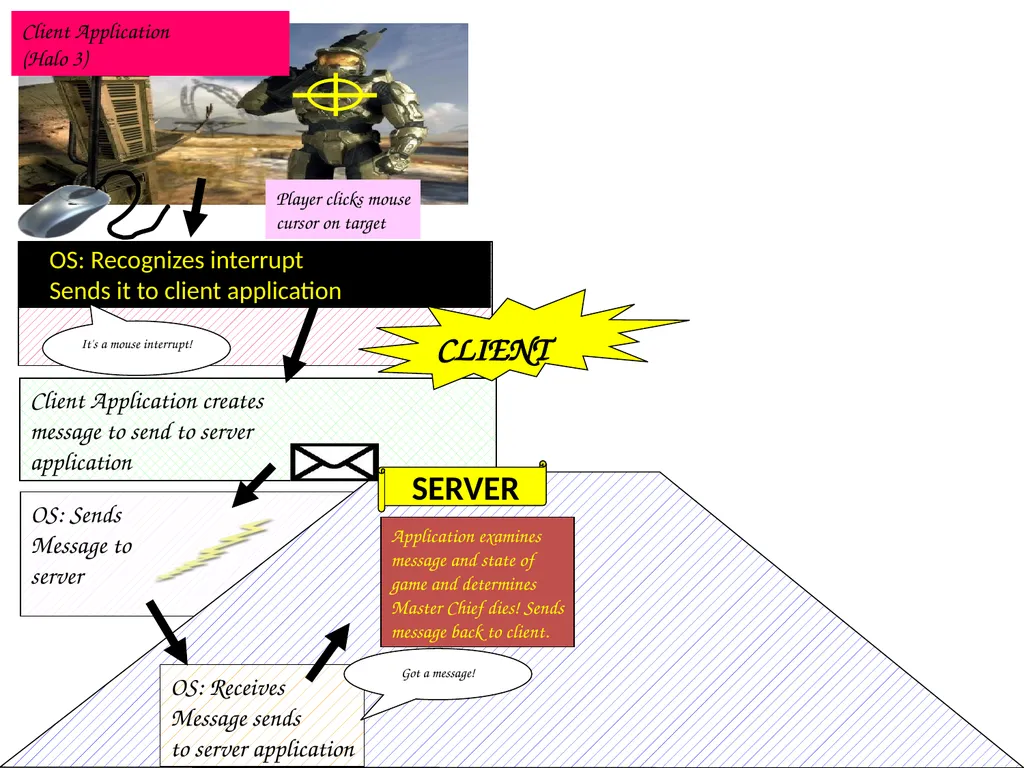

slide13. Client Application creates
message to send to server
application OS: Sends
Message to
server Client Application
(Halo 3) OS: Recognizes interrupt
Sends it to client application OS: Receives
Message sends
to server application Application examines
message and state of
game and determines
Master Chief dies! Sends
message back to client. It's a mouse interrupt! Got a message! CLIENT Player clicks mouse
cursor on target SERVER<br>
slide14. Client Application creates
message to send to server
application OS: Sends
Message to
server Client Application
(Halo 3) OS: Recognizes interrupt
Sends it to client application OS: Receives
Message sends
to server application Application examines
message and state of
game and determines
Master Chief dies! Sends
message back to client. OS: Sends
Message to client It's a mouse interrupt! Got a message! CLIENT Player clicks mouse
cursor on target SERVER<br>
slide15. Client Application creates
message to send to server
application OS: Sends
Message to
server Client Application
(Halo 3) OS: Recognizes interrupt
Sends it to client application OS: Receives
Message sends
to server application Application examines
message and state of
game and determines
Master Chief dies! Sends
message back to client. OS: Sends
Message to client It's a mouse interrupt! Got a message! CLIENT Player clicks mouse
cursor on target SERVER OS: Receives
message and
sends it to
application<br>

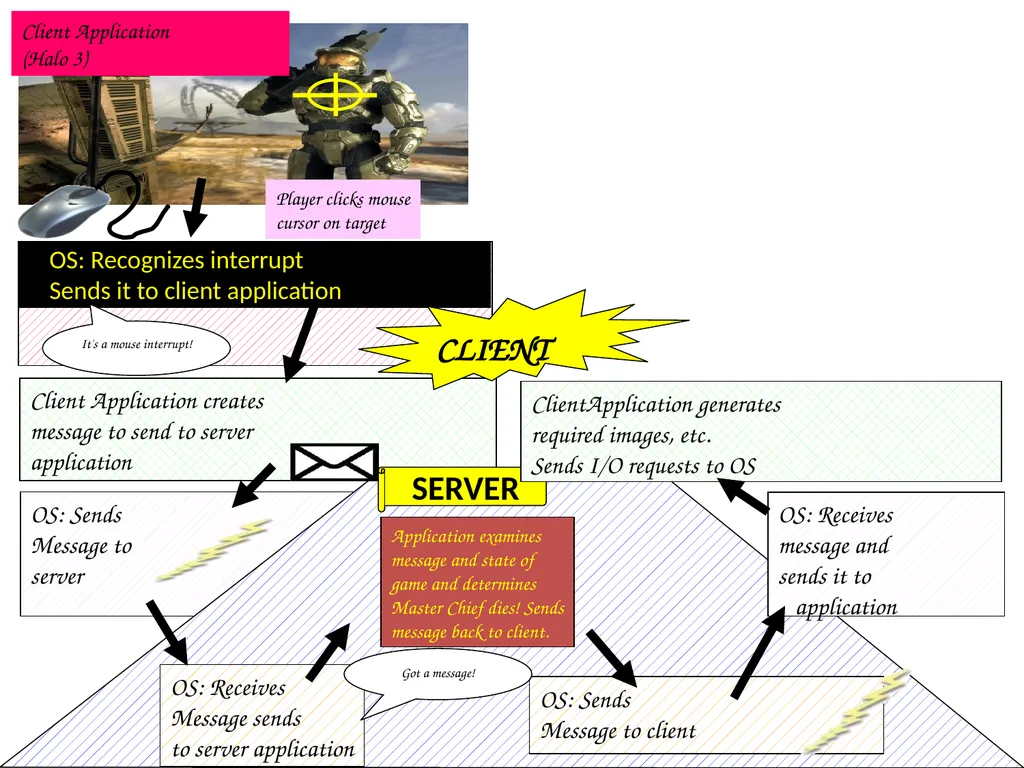

slide16. Client Application creates
message to send to server
application OS: Sends
Message to
server Client Application
(Halo 3) OS: Recognizes interrupt
Sends it to client application OS: Receives
Message sends
to server application Application examines
message and state of
game and determines
Master Chief dies! Sends
message back to client. OS: Sends
Message to client It's a mouse interrupt! Got a message! CLIENT Player clicks mouse
cursor on target SERVER OS: Receives
message and
sends it to
application ClientApplication generates
required images, etc.
Sends I/O requests to OS<br>

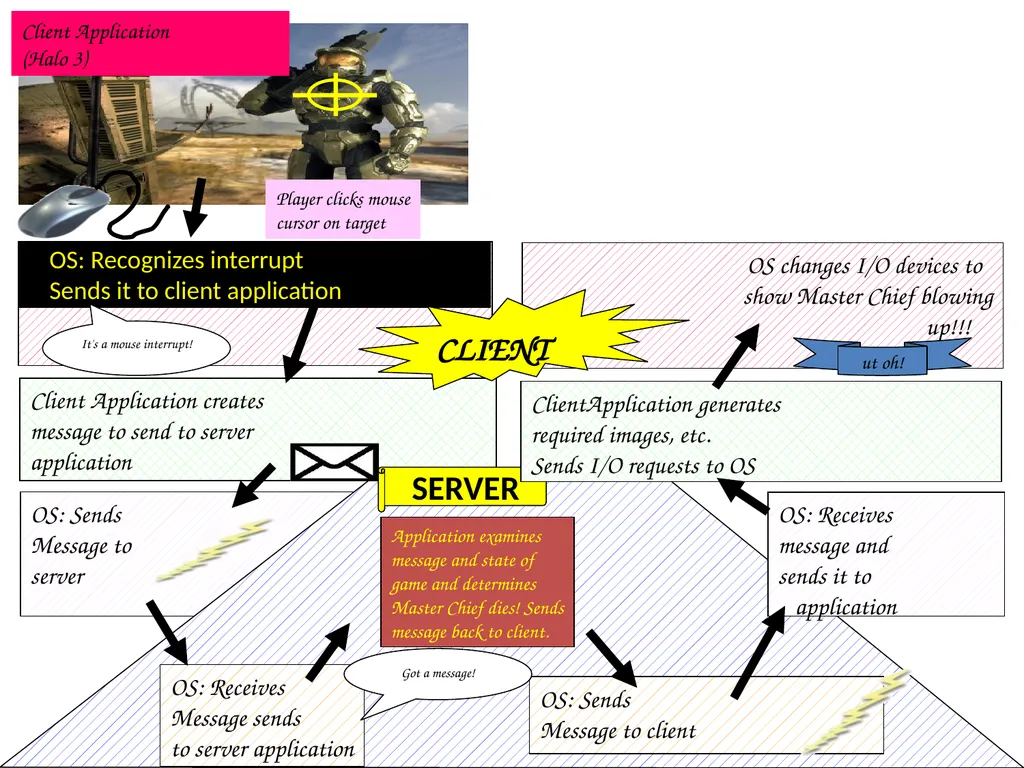

slide17. Client Application creates
message to send to server
application OS: Sends
Message to
server Client Application
(Halo 3) OS: Recognizes interrupt
Sends it to client application OS: Receives
Message sends
to server application Application examines
message and state of
game and determines
Master Chief dies! Sends
message back to client. OS: Sends
Message to client OS changes I/O devices to
show Master Chief blowing
up!!! It's a mouse interrupt! Got a message! CLIENT ut oh! Player clicks mouse
cursor on target SERVER OS: Receives
message and
sends it to
application ClientApplication generates
required images, etc.
Sends I/O requests to OS<br>
slide18. Client Application creates
message to send to server
application OS: Sends
Message to
server Client Application
(Halo 3) OS: Recognizes interrupt
Sends it to client application OS: Receives
Message sends
to server application Application examines
message and state of
game and determines
Master Chief dies! Sends
message back to client. OS: Sends
Message to client OS changes I/O devices to
show Master Chief blowing
up!!! It's a mouse interrupt! Got a message! CLIENT ut oh! Player clicks mouse
cursor on target SERVER BAM!!! OS: Receives
message and
sends it to
application ClientApplication generates
required images, etc.
Sends I/O requests to OS<br>

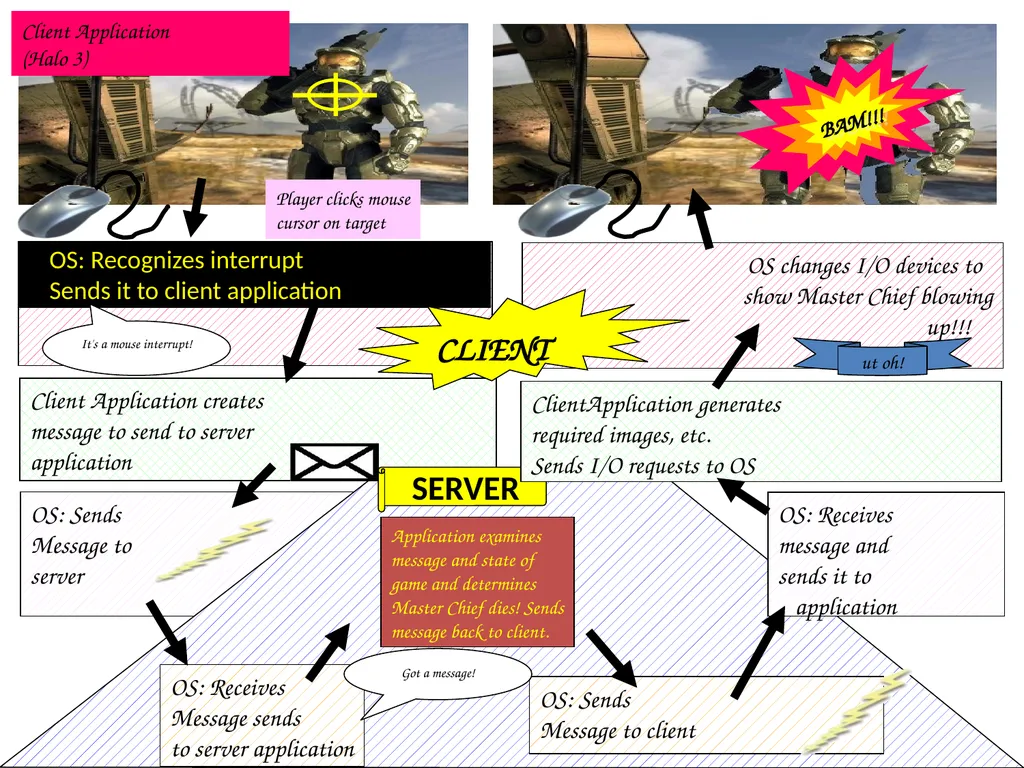

slide19. Client Application creates
message to send to server
application OS: Sends
Message to
server Client Application
(Halo 3) OS: Recognizes interrupt
Sends it to client application OS: Receives
Message sends
to server application Application examines
message and state of
game and determines
Master Chief dies! Sends
message back to client. OS: Sends
Message to client OS changes I/O devices to
show Master Chief blowing
up!!! It's a mouse interrupt! Got a message! CLIENT ut oh! Player clicks mouse
cursor on target SERVER BAM!!! OS: Receives
message and
sends it to
application ClientApplication generates
required images, etc.
Sends I/O requests to OS<br>

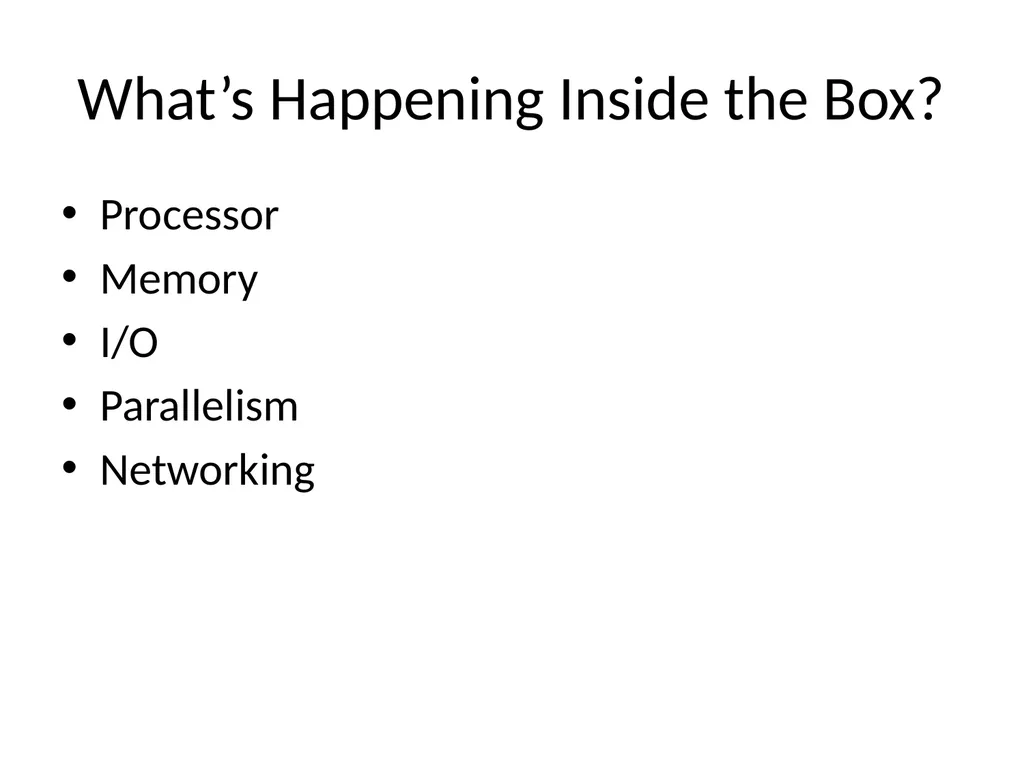

slide20. What’s Happening Inside the Box? Processor
Memory
I/O
Parallelism
Networking<br>

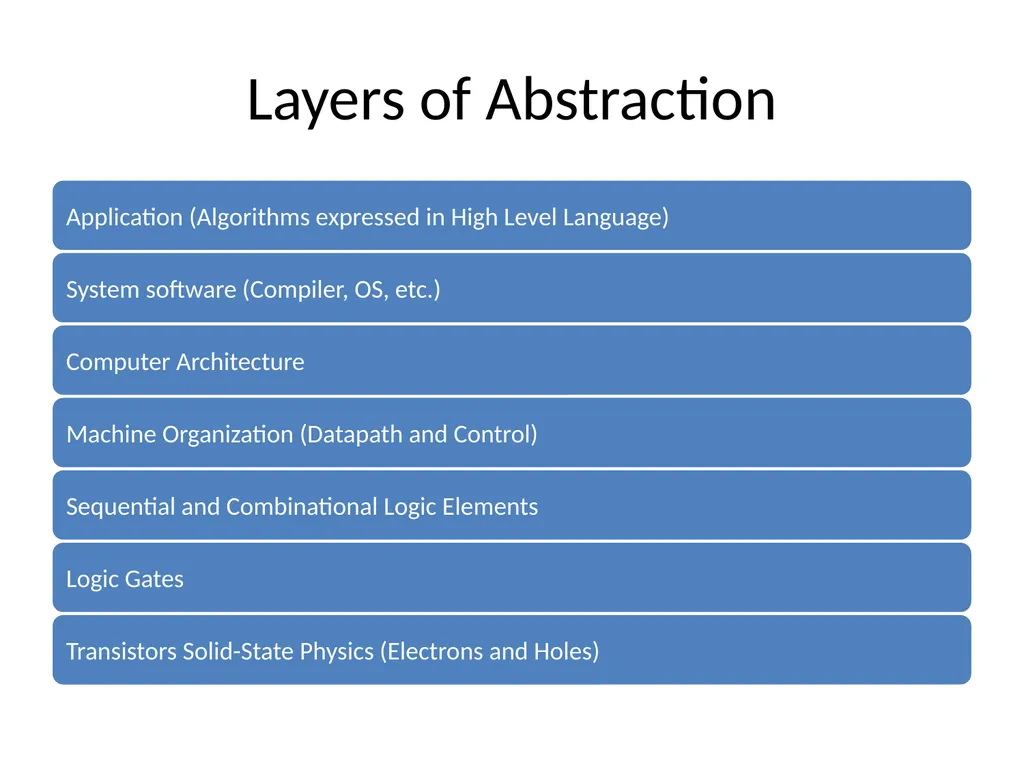

slide21. Layers of Abstraction<br>

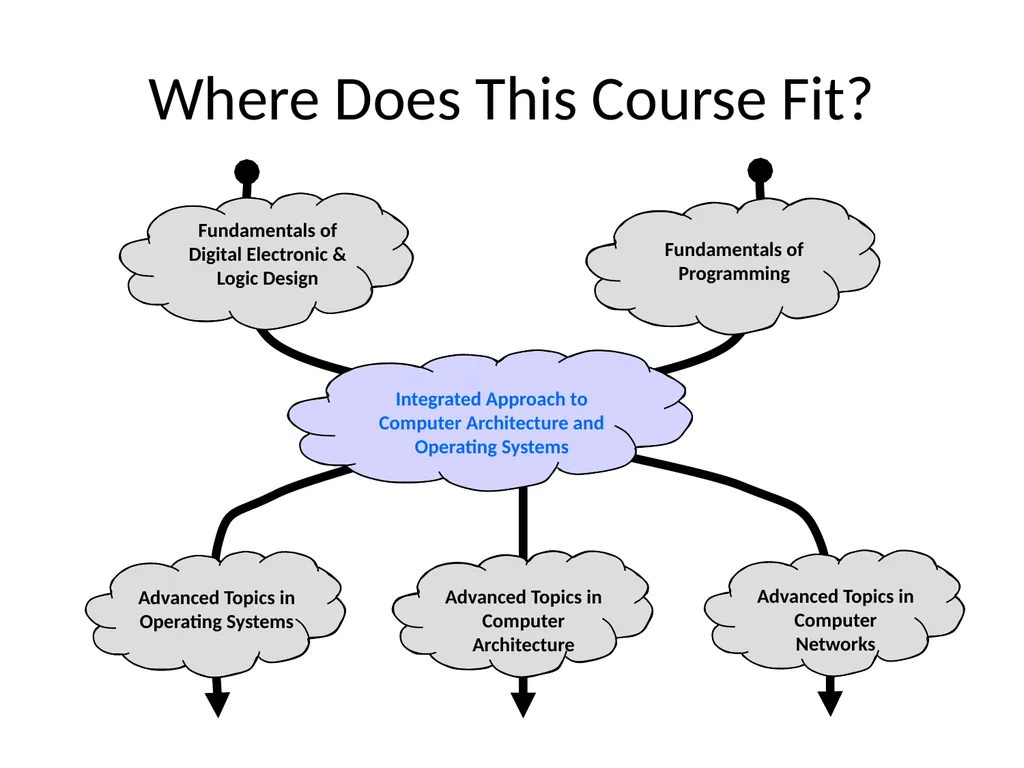

slide22. Where Does This Course Fit?<br>
slide23. Questions?<br>
