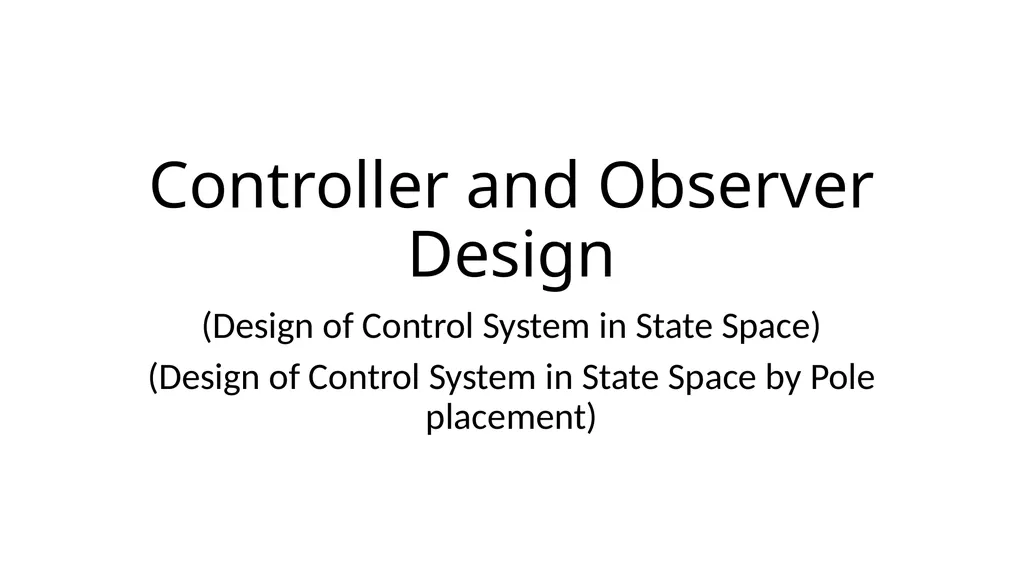

slide1. Controller and Observer Design (Design of Control System in State Space)
(Design of Control System in State Space by Pole placement)<br>

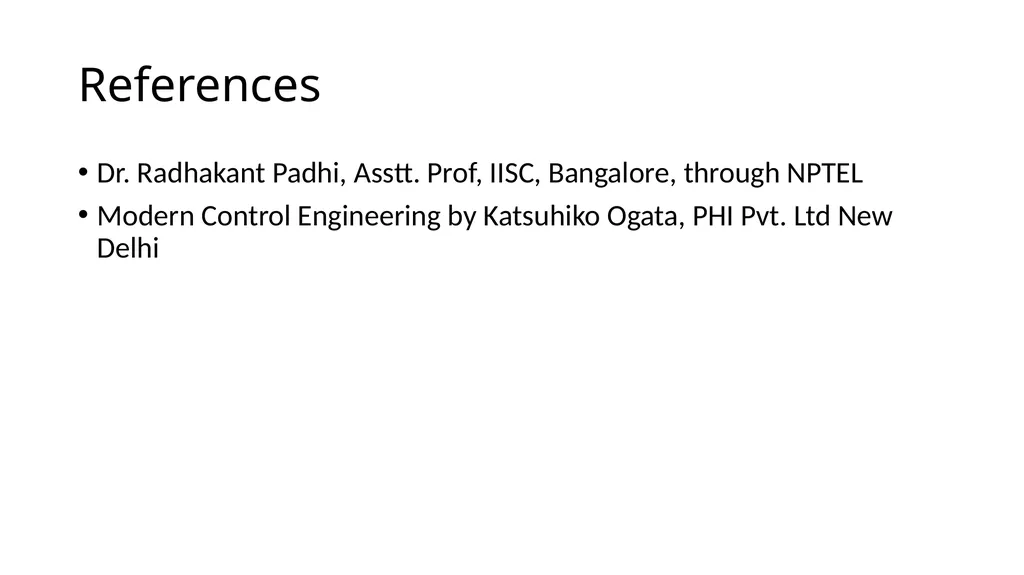

slide2. References Dr. Radhakant Padhi, Asstt. Prof, IISC, Bangalore, through NPTEL
Modern Control Engineering by Katsuhiko Ogata, PHI Pvt. Ltd New Delhi<br>
slide3. Pole placement
Observer Design<br>
slide4. Outline Philosophy of observer design
Full order observer
Reduced (minimum) order observer<br>

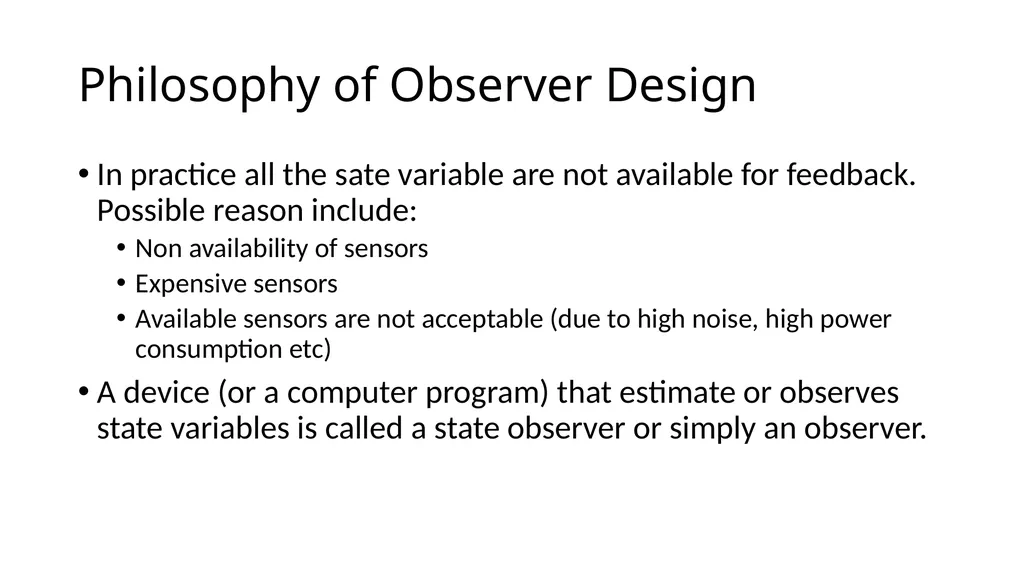

slide5. Philosophy of Observer Design In practice all the sate variable are not available for feedback. Possible reason include:
Non availability of sensors
Expensive sensors
Available sensors are not acceptable (due to high noise, high power consumption etc)
A device (or a computer program) that estimate or observes state variables is called a state observer or simply an observer.<br>

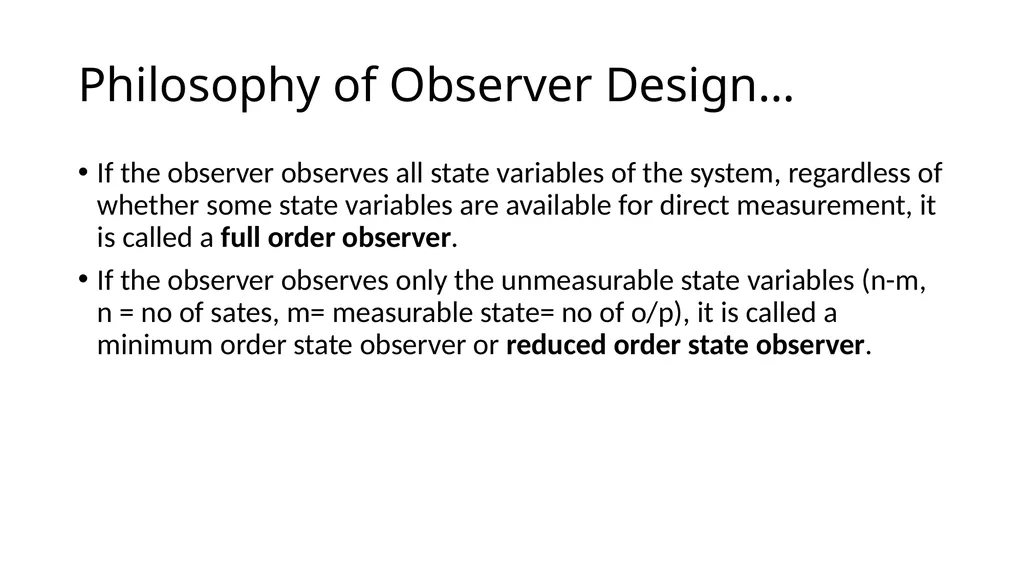

slide6. Philosophy of Observer Design… If the observer observes all state variables of the system, regardless of whether some state variables are available for direct measurement, it is called a full order observer.
If the observer observes only the unmeasurable state variables (n-m, n = no of sates, m= measurable state= no of o/p), it is called a minimum order state observer or reduced order state observer.<br>

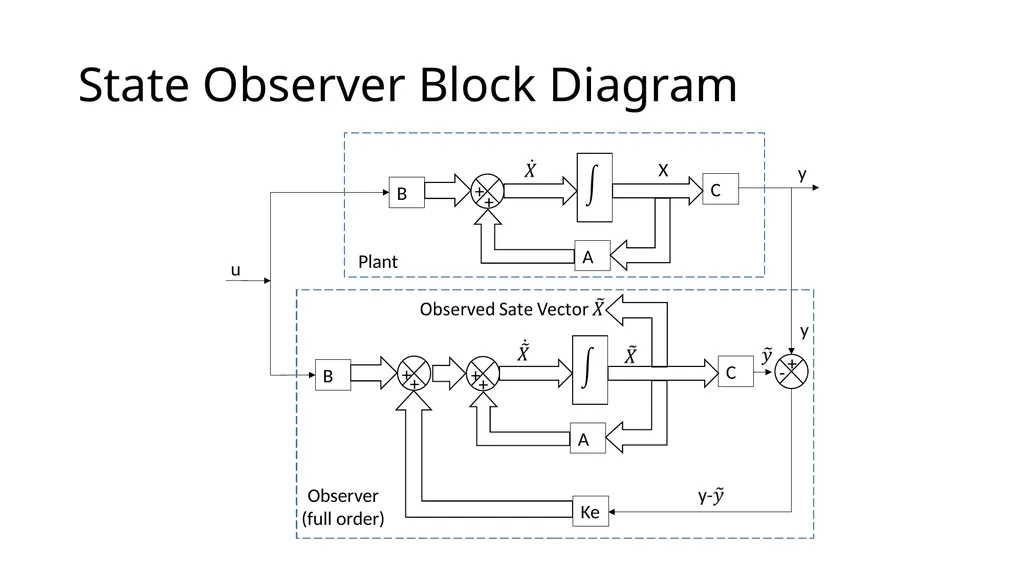

slide7. State Observer Block Diagram<br>

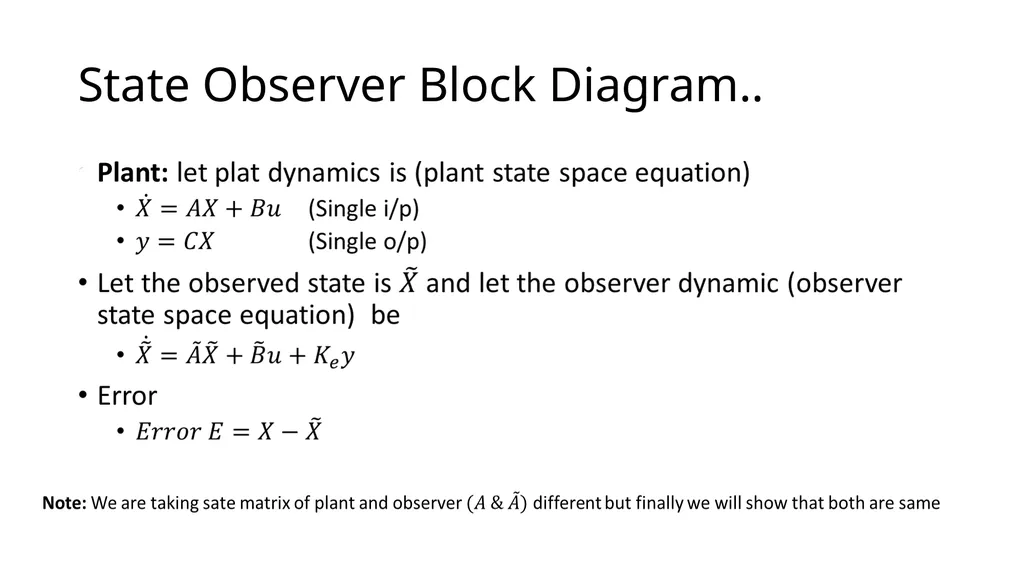

slide8. State Observer Block Diagram..<br>

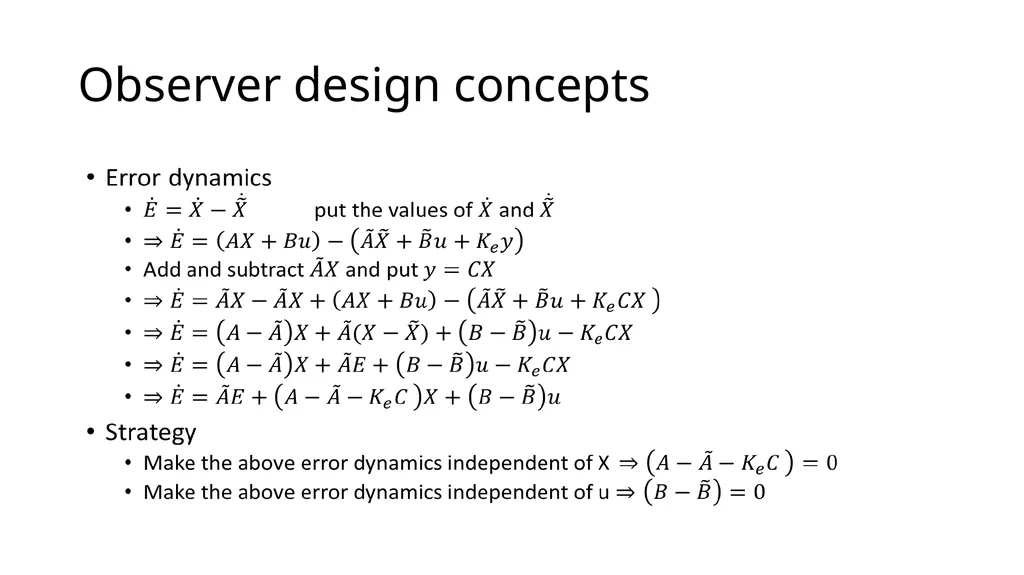

slide9. Observer design concepts<br>

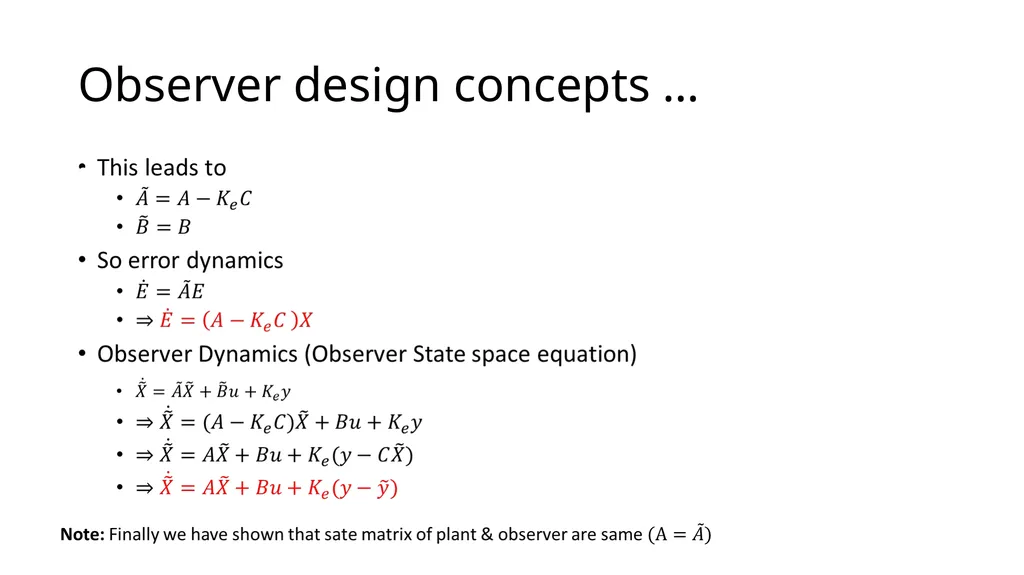

slide10. Observer design concepts …<br>

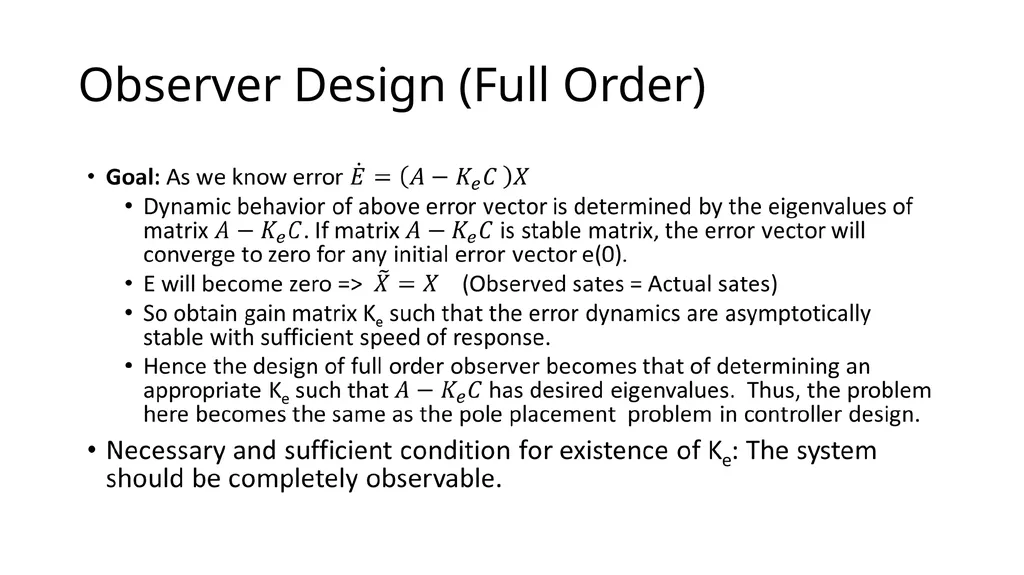

slide11. Observer Design (Full Order)<br>

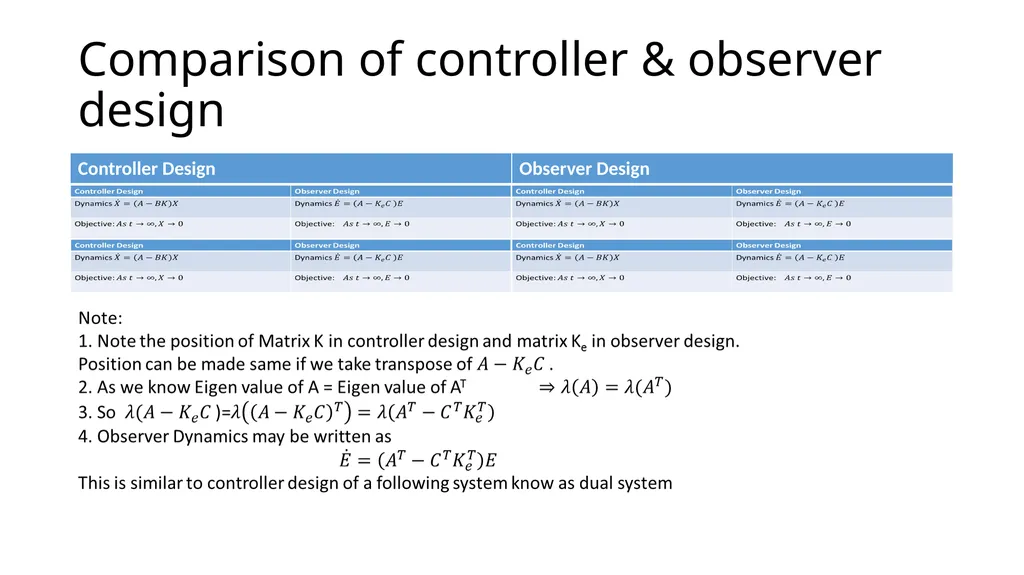

slide12. Comparison of controller & observer design<br>

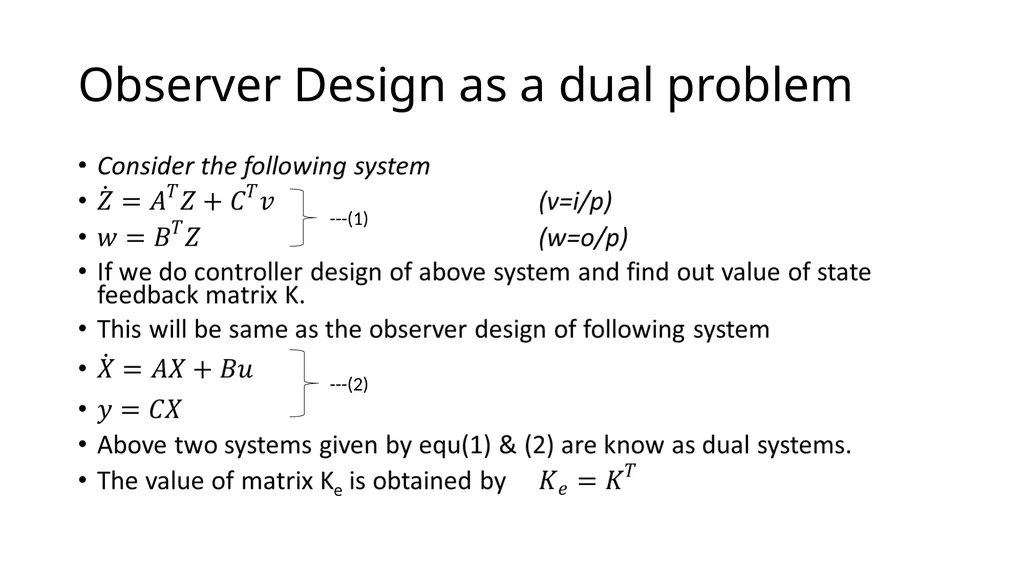

slide13. Observer Design as a dual problem ---(1) ---(2)<br>

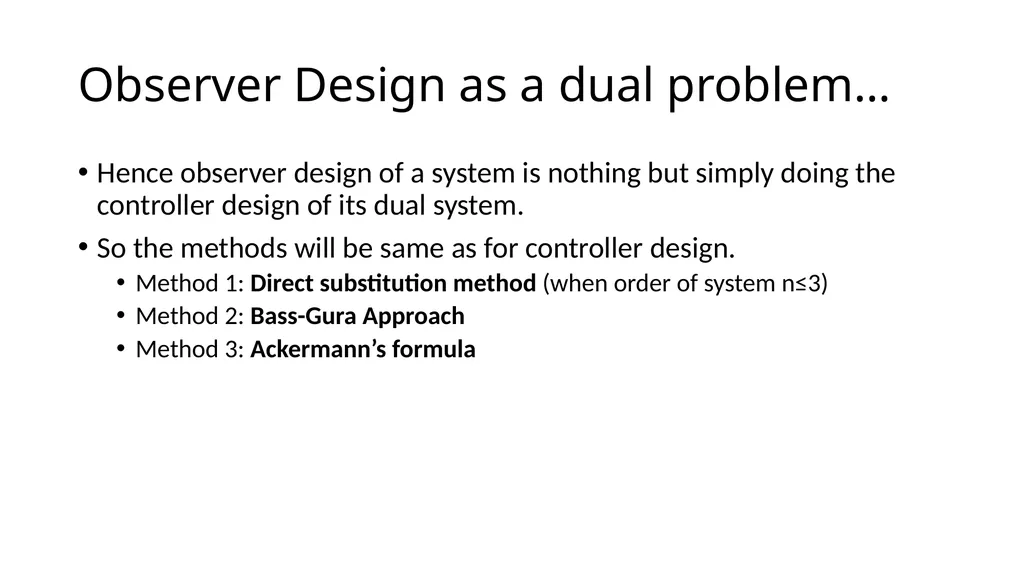

slide14. Observer Design as a dual problem… Hence observer design of a system is nothing but simply doing the controller design of its dual system.
So the methods will be same as for controller design.
Method 1: Direct substitution method (when order of system n≤3)
Method 2: Bass-Gura Approach
Method 3: Ackermann’s formula<br>
slide15. Pole Placement Technique<br>

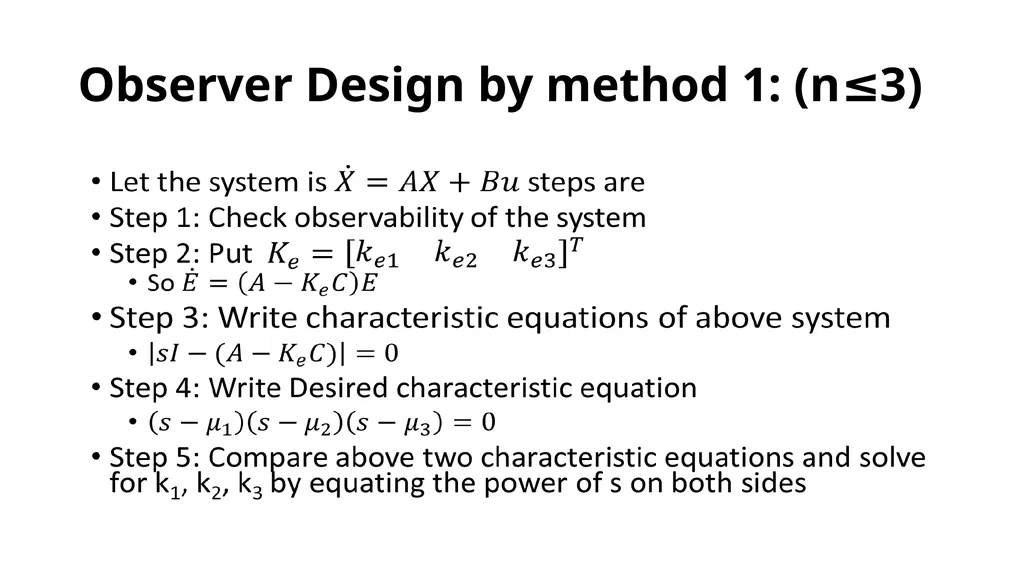

slide16. Observer Design by method 1: (n≤3)<br>

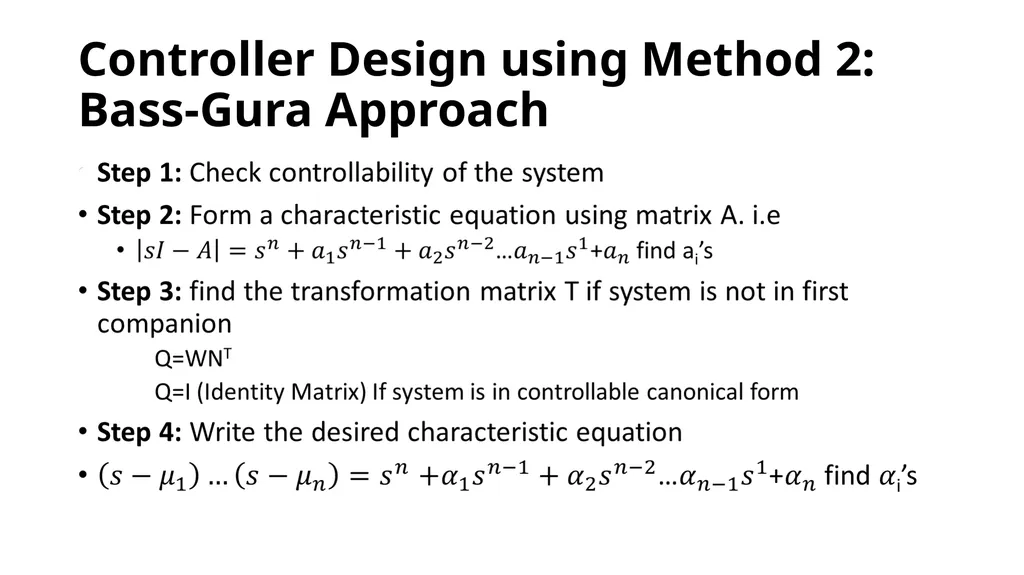

slide17. Controller Design using Method 2: Bass-Gura Approach<br>

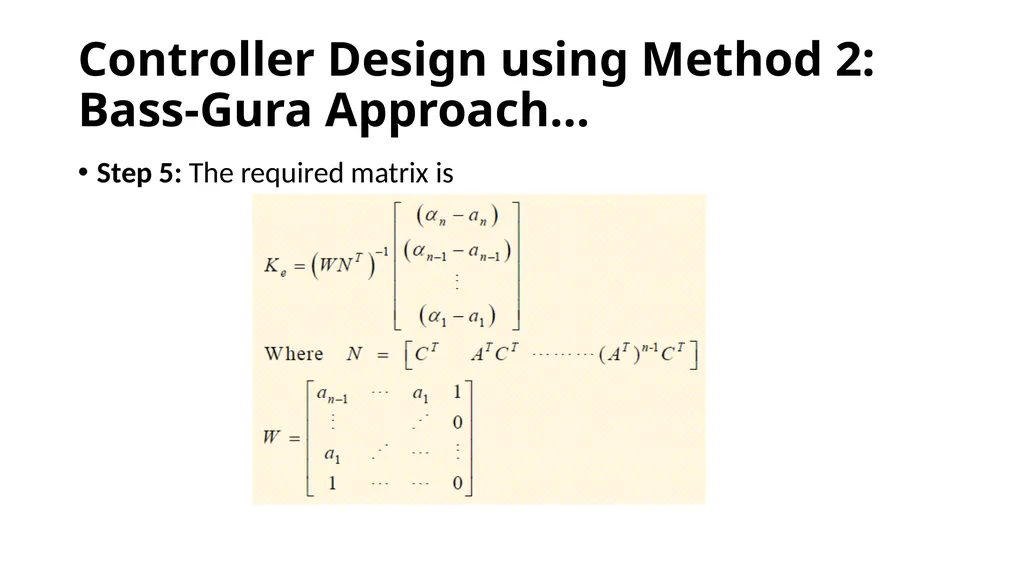

slide18. Controller Design using Method 2: Bass-Gura Approach… Step 5: The required matrix is<br>

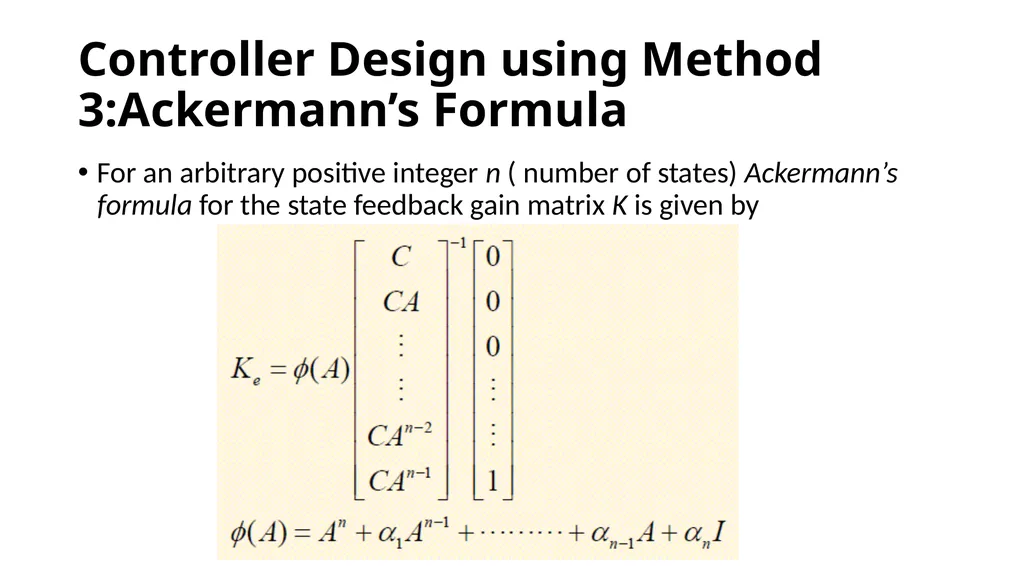

slide19. Controller Design using Method 3:Ackermann’s Formula For an arbitrary positive integer n ( number of states) Ackermann’s formula for the state feedback gain matrix K is given by<br>

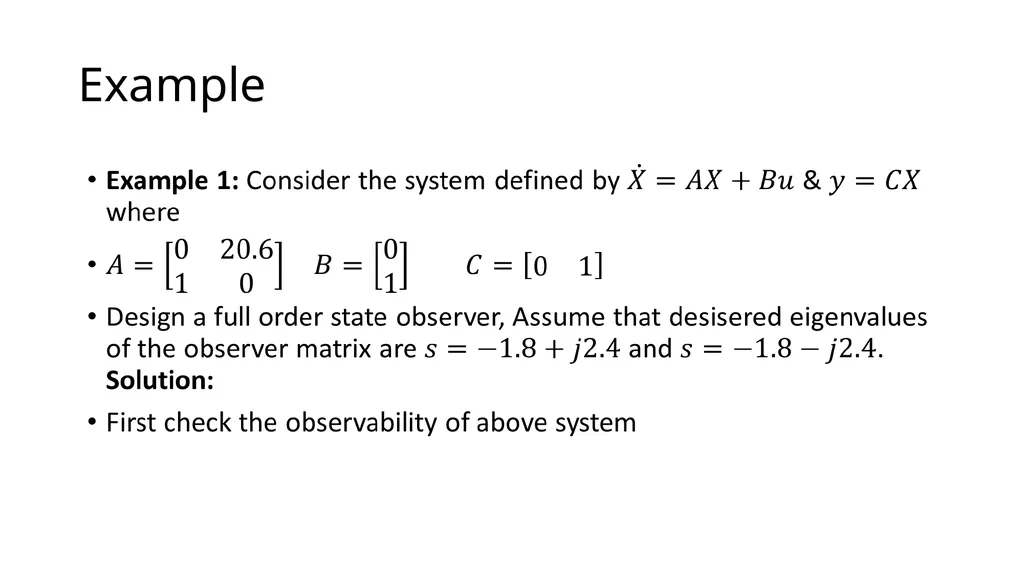

slide20. Example<br>

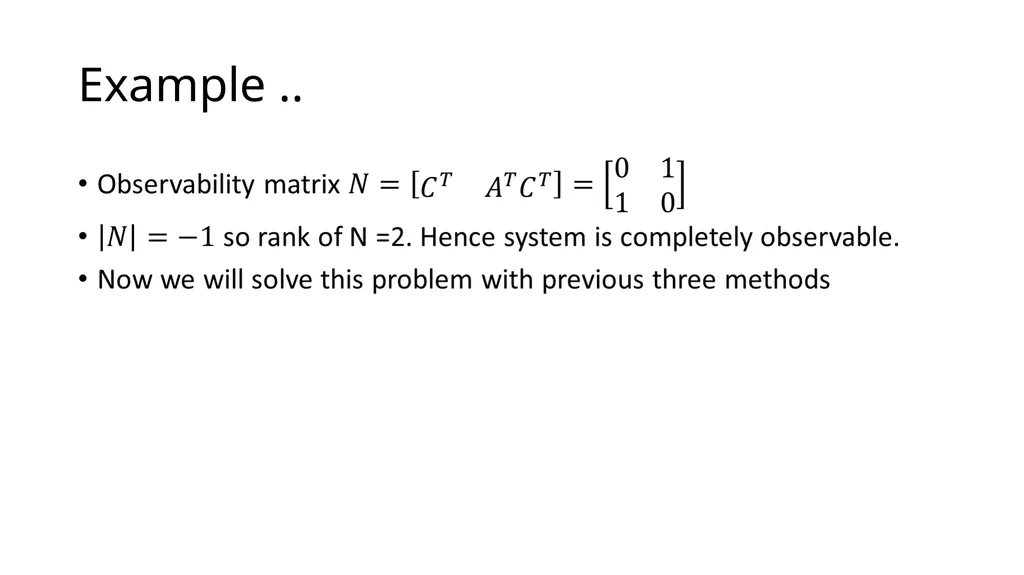

slide21. Example ..<br>

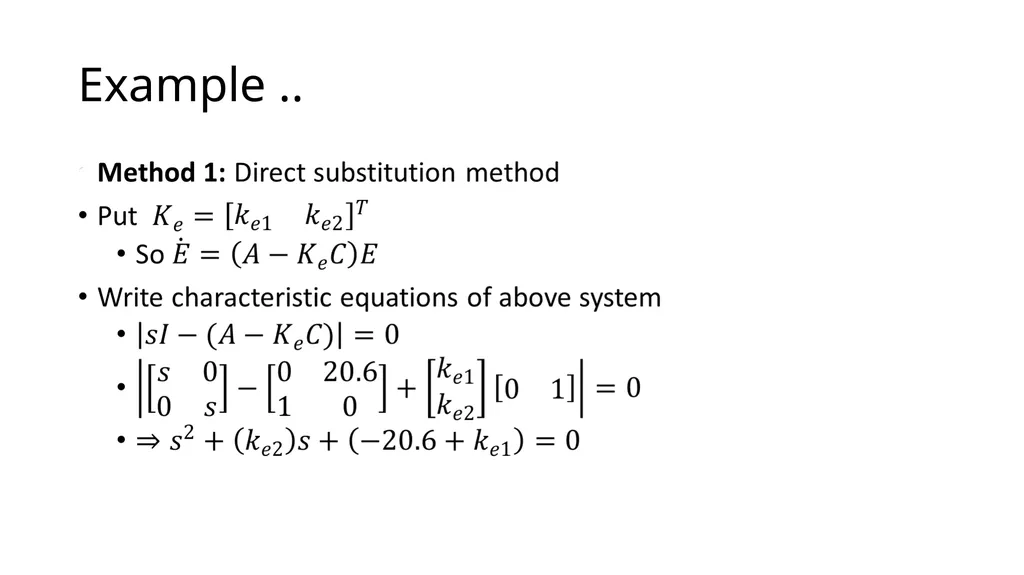

slide22. Example ..<br>

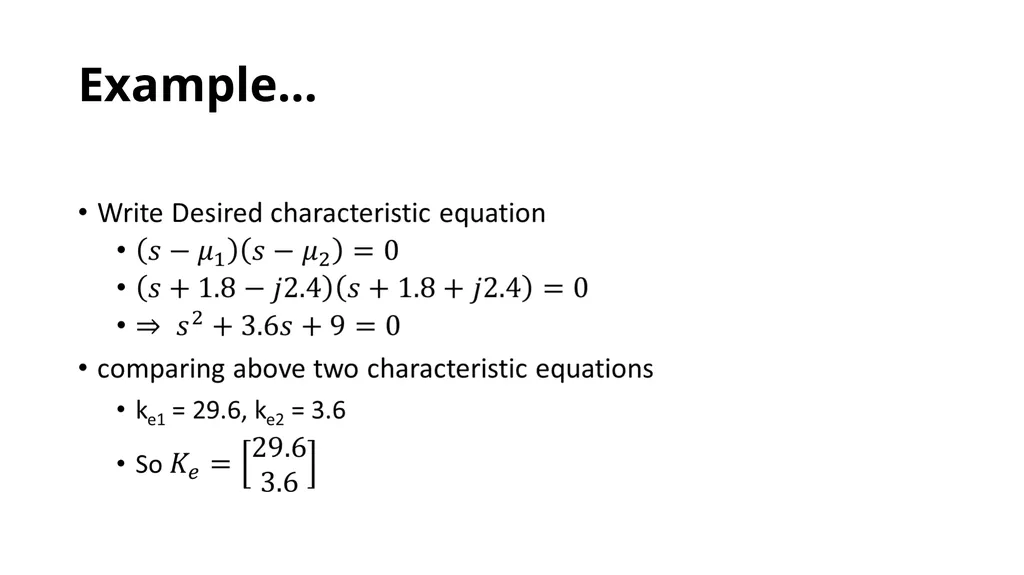

slide23. Example…<br>

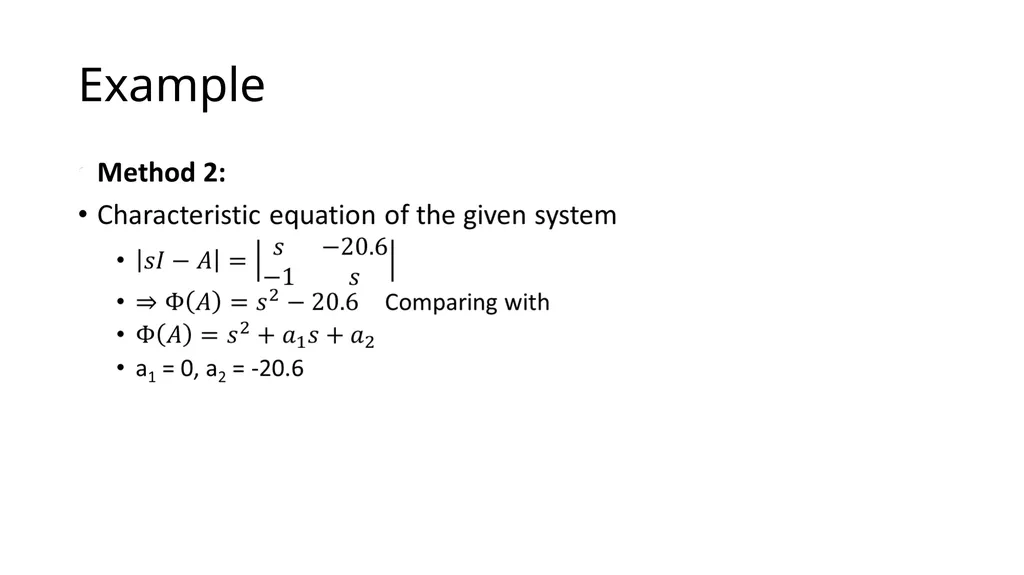

slide24. Example<br>

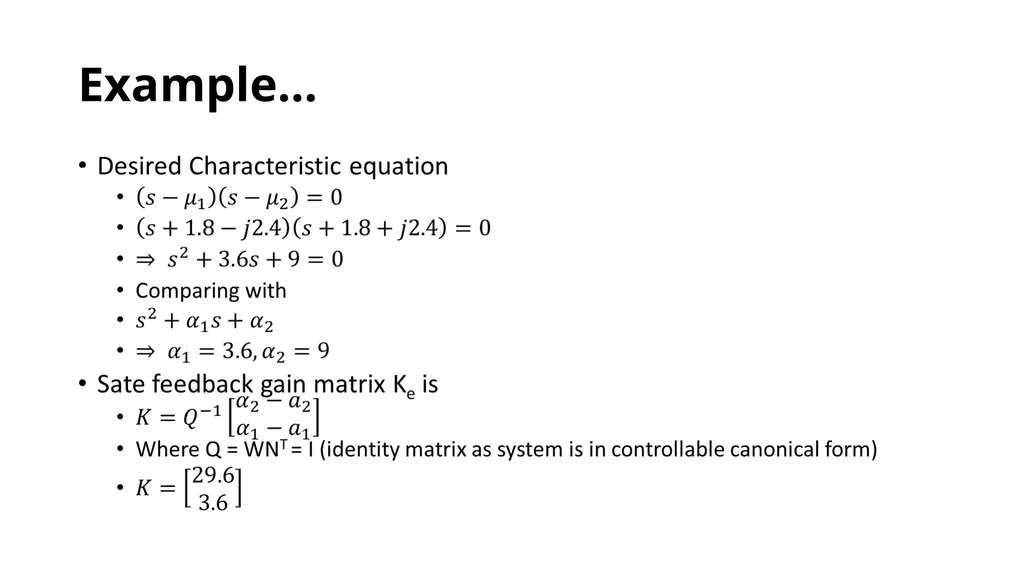

slide25. Example…<br>

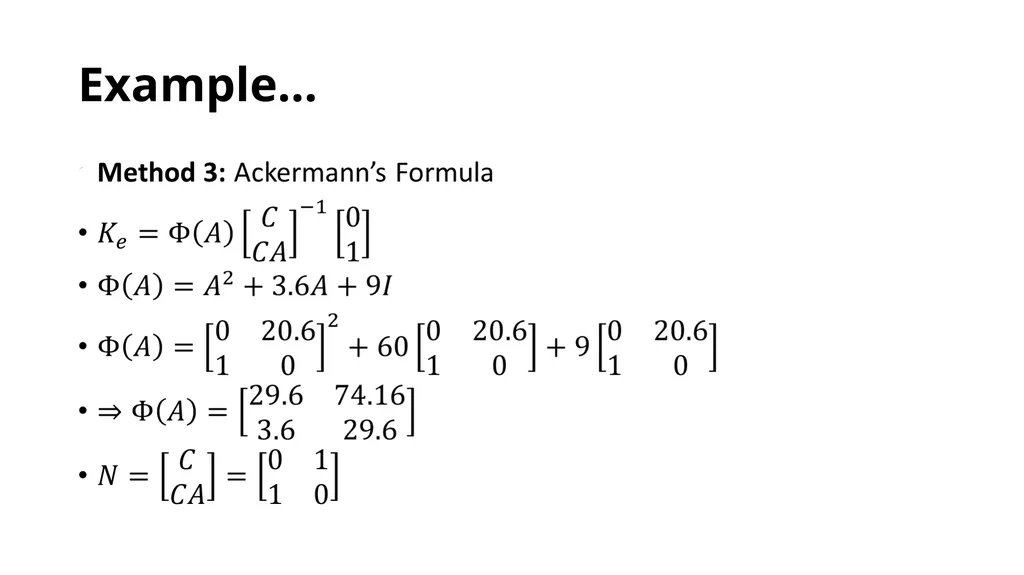

slide26. Example…<br>
slide27. Example…<br>
slide28. Reduced order design?<br>
slide29. Thanks<br>
