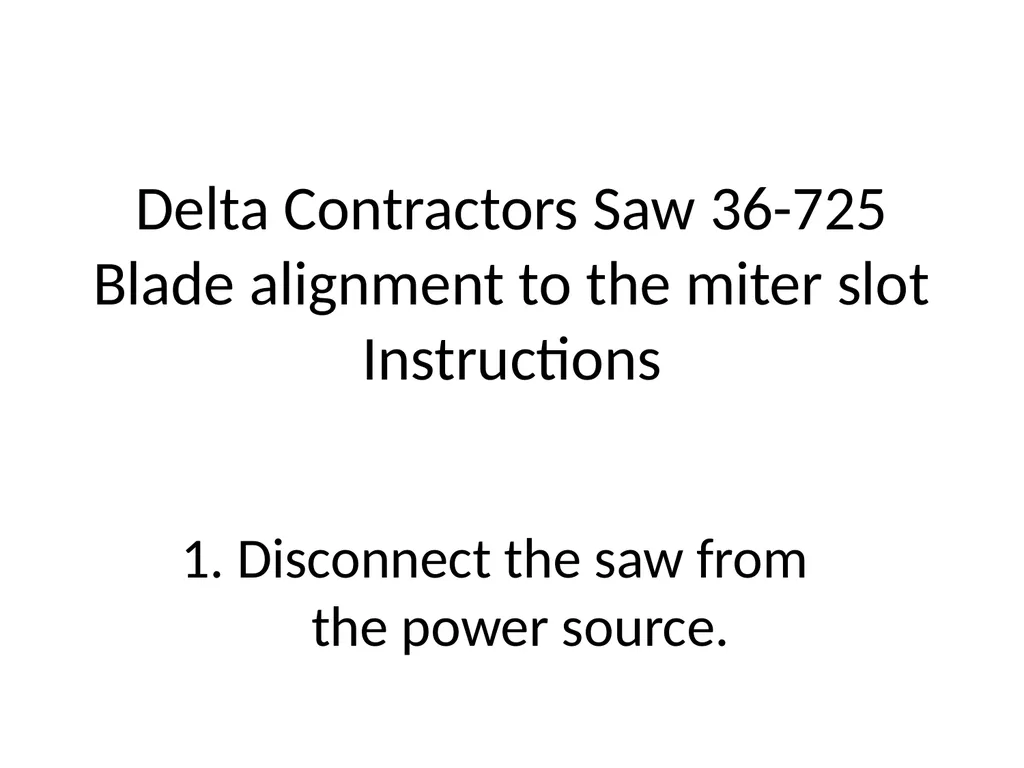

Delta Contractors Saw 36-725 Blade alignment to the miter slot Instructions 1. Disconnect the saw from the power source.<br>
02

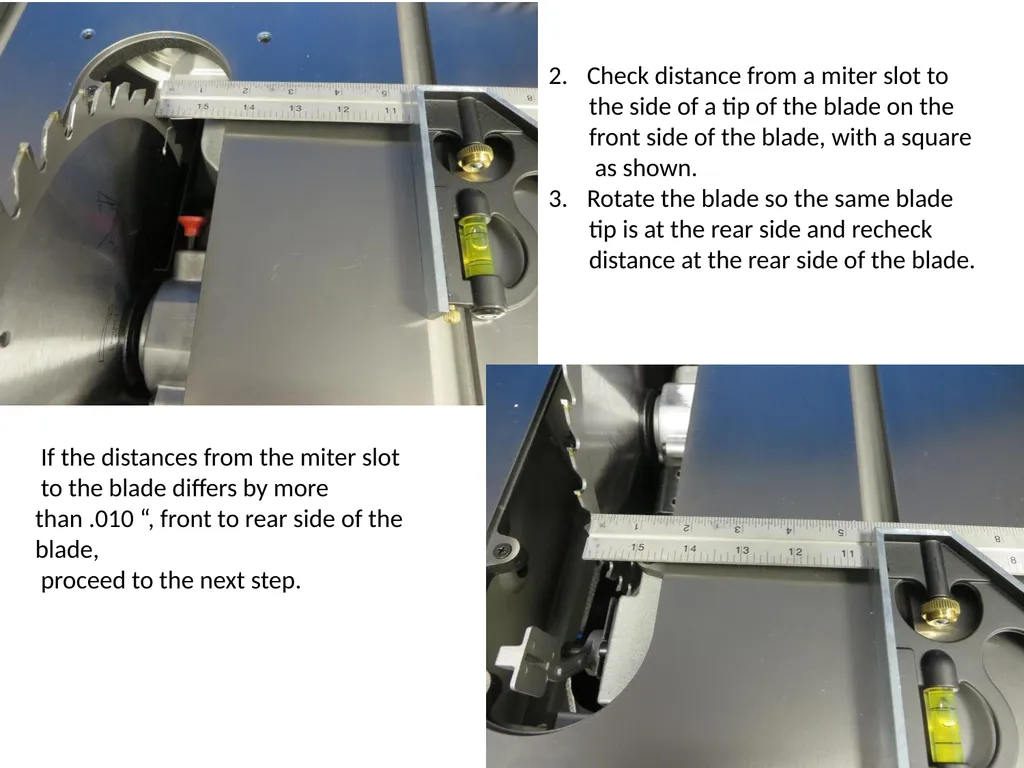

Check distance from a miter slot to
the side of a tip of the blade on the
front side of the blade, with a square
as shown.
Rotate the blade so the same blade
tip is at the rear side and recheck
distance at the rear side of the blade. If the distances from the miter slot
to the blade differs by more than .010 “, front to rear side of the blade,
proceed to the next step.<br>
03

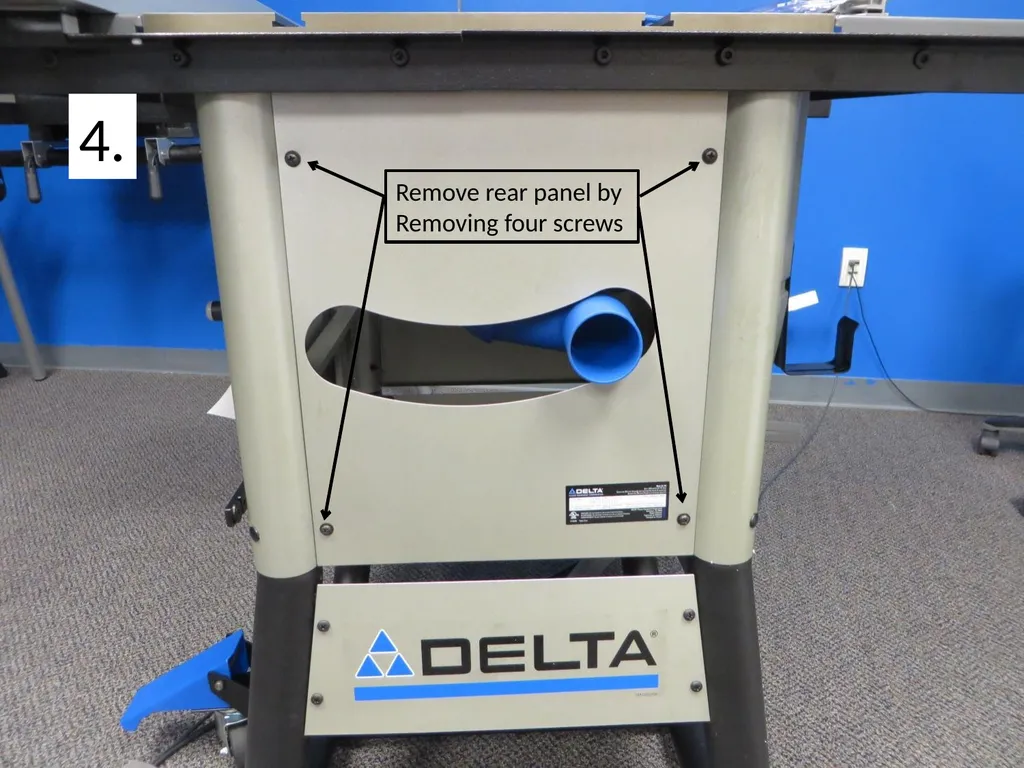

Remove rear panel by
Removing four screws 4.<br>
