slide1. Structural sections: shape in action Mike Ashby
Department of Engineering,
University of Cambridge<br>

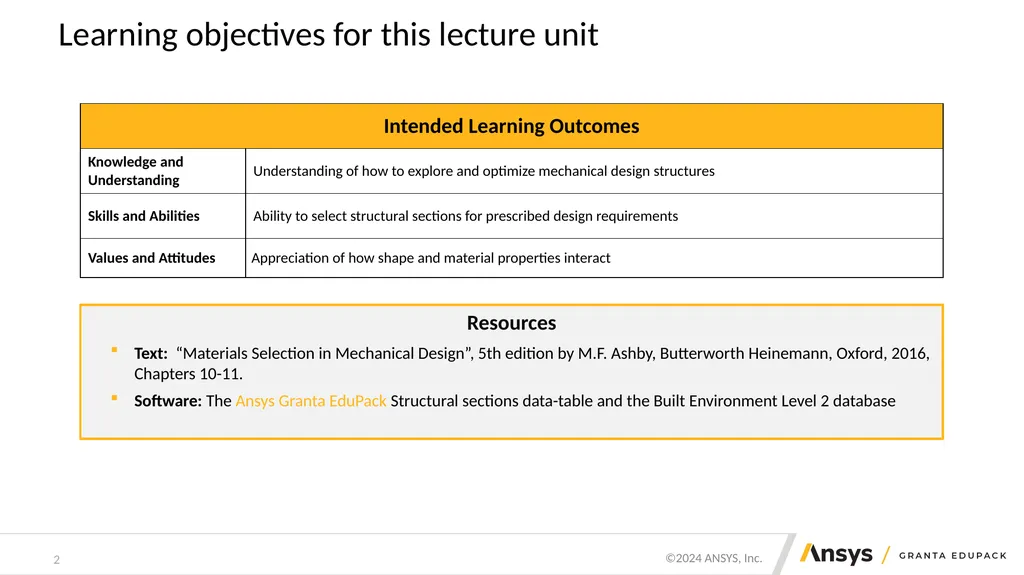

slide2. 2 Learning objectives for this lecture unit Resources
Text: “Materials Selection in Mechanical Design”, 5th edition by M.F. Ashby, Butterworth Heinemann, Oxford, 2016, Chapters 10-11.
Software: The Ansys Granta EduPack Structural sections data-table and the Built Environment Level 2 database<br>

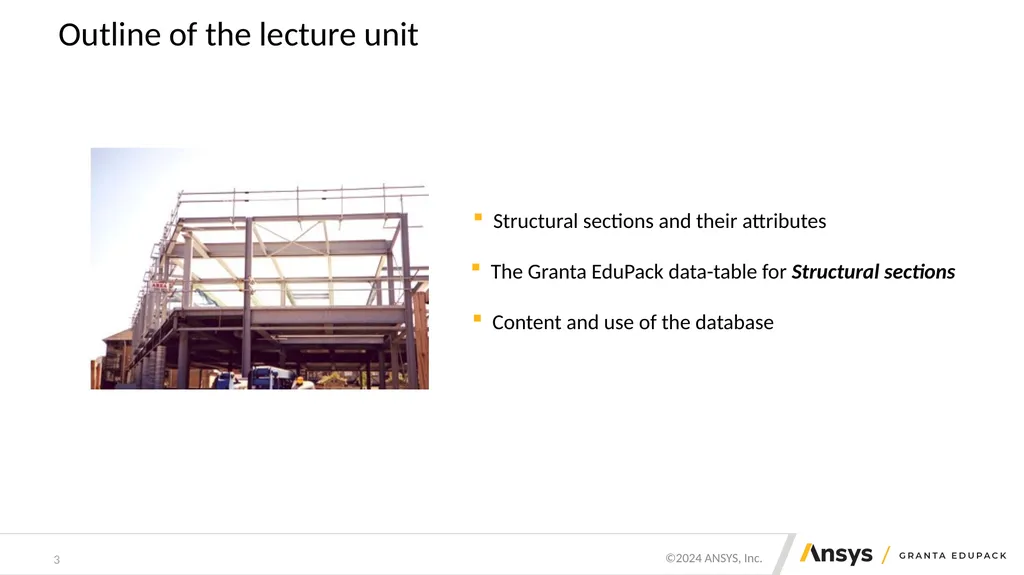

slide3. 3 Outline of the lecture unit Content and use of the database Structural sections and their attributes The Granta EduPack data-table for Structural sections<br>

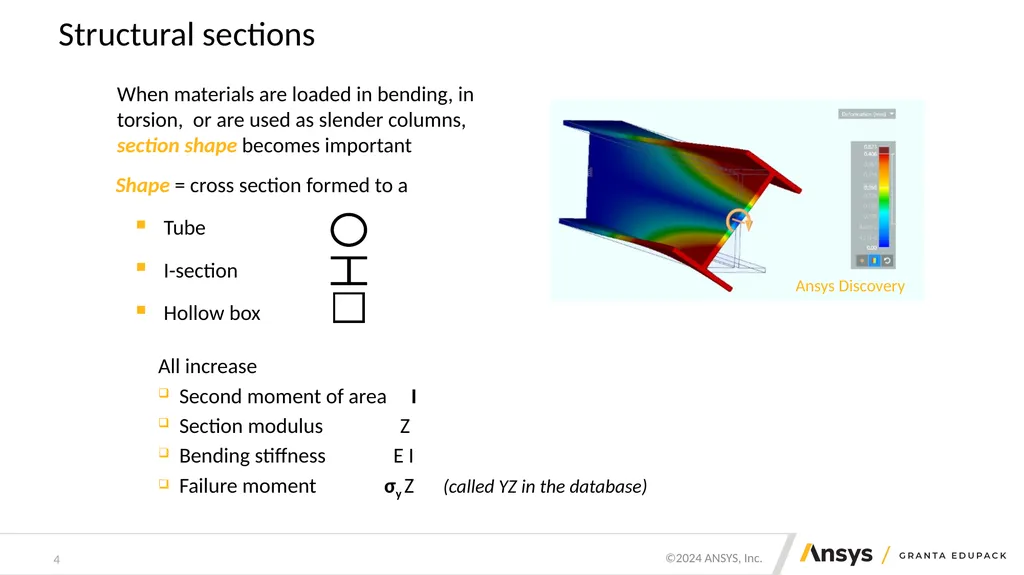

slide4. 4 Structural sections All increase
Second moment of area I
Section modulus Z
Bending stiffness E I
Failure moment σy Z (called YZ in the database) When materials are loaded in bending, in torsion, or are used as slender columns, section shape becomes important Ansys Discovery<br>

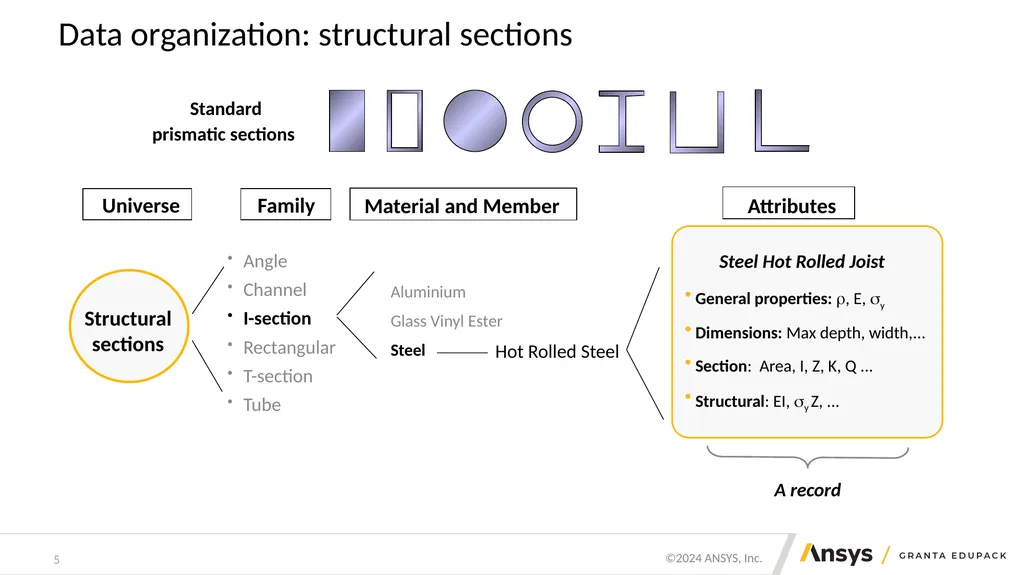

slide5. 5 Data organization: structural sections Standard
prismatic sections<br>

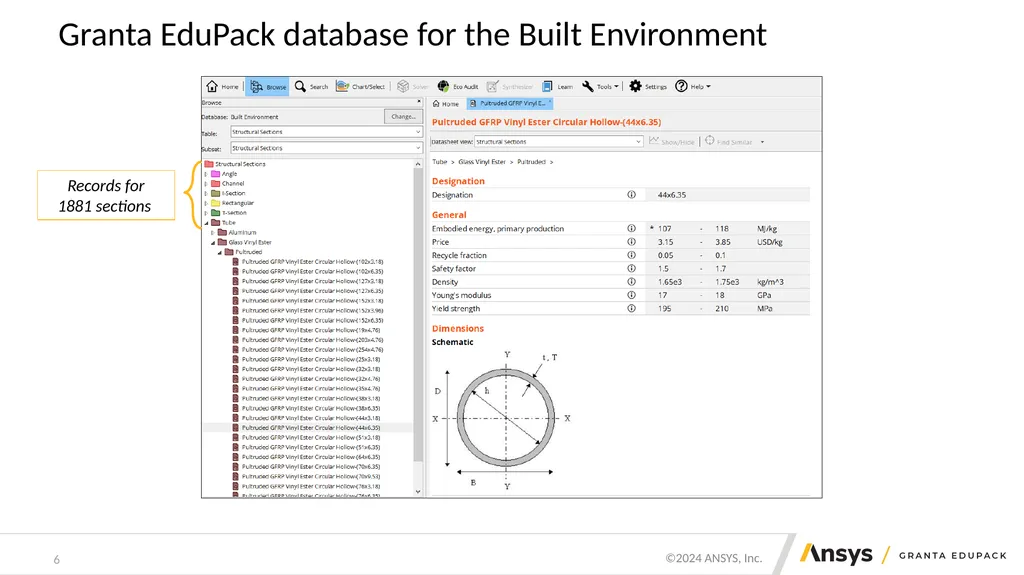

slide6. 6 Granta EduPack database for the Built Environment<br>

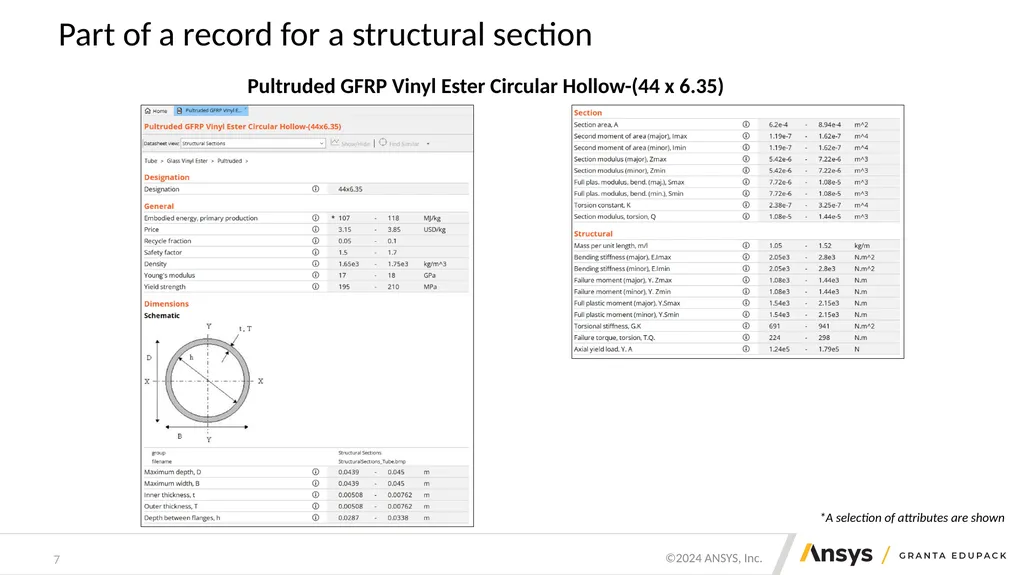

slide7. 7 Part of a record for a structural section *A selection of attributes are shown<br>

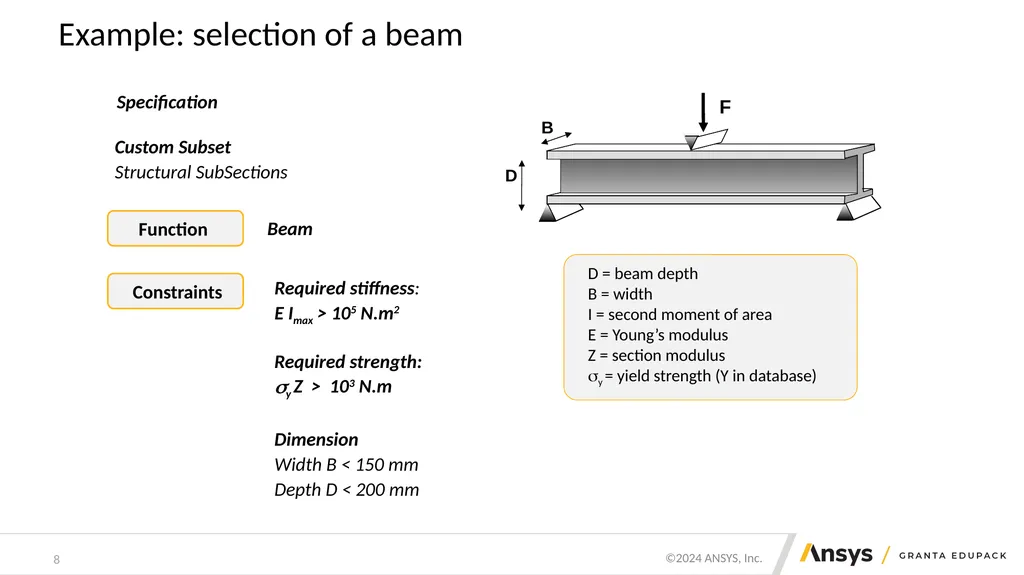

slide8. 8 Example: selection of a beam Beam Dimension
Width B < 150 mm
Depth D < 200 mm Function Specification Required strength:
y Z > 103 N.m Custom Subset
Structural SubSections<br>

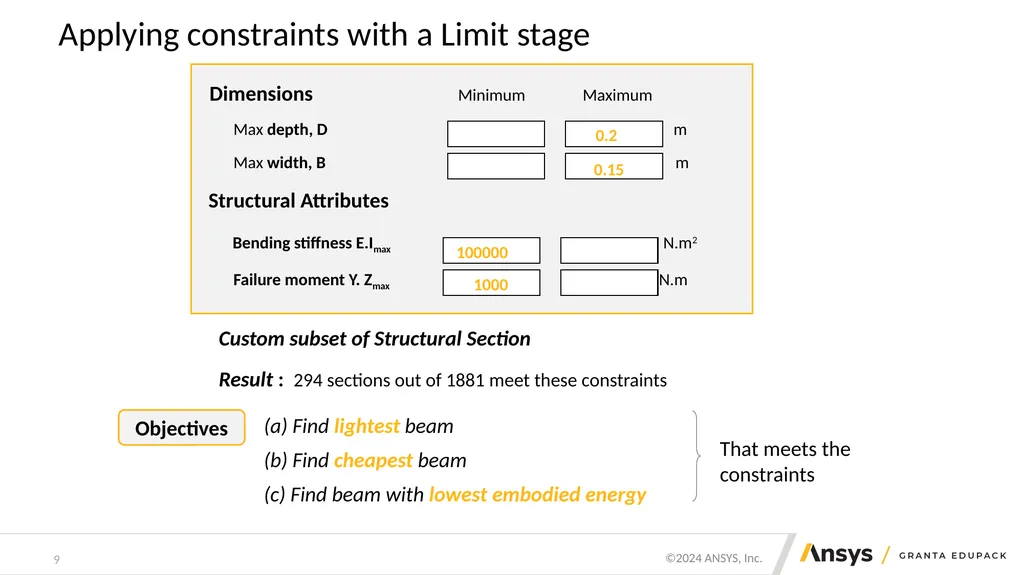

slide9. 9 Applying constraints with a Limit stage 5 15 Dimensions Minimum Maximum
Max depth, D m
Max width, B m
Structural Attributes
Bending stiffness E.Imax N.m2
Failure moment Y. Zmax N.m Custom subset of Structural Section
Result : 294 sections out of 1881 meet these constraints<br>

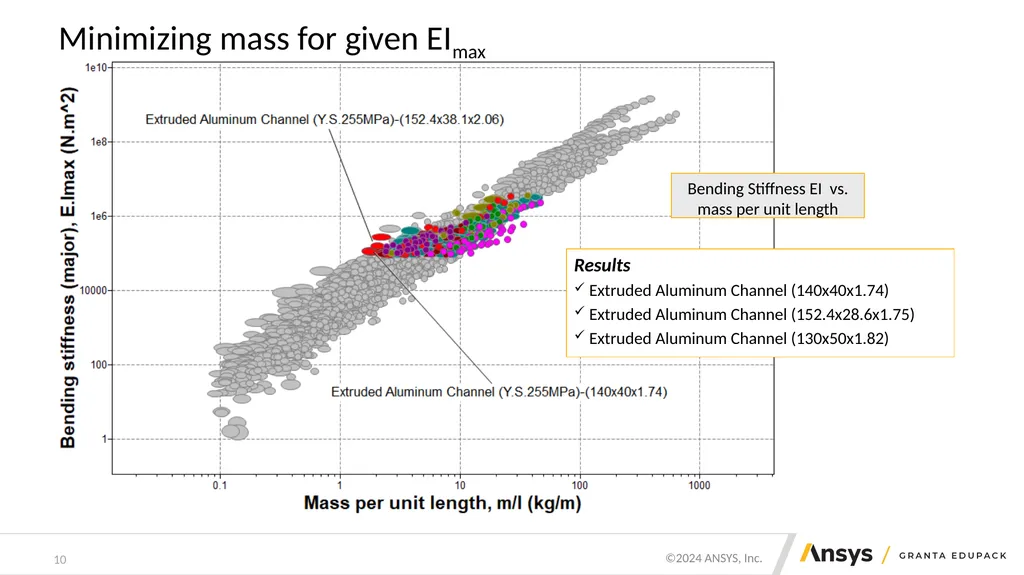

slide10. 10 Minimizing mass for given EImax Results
Extruded Aluminum Channel (140x40x1.74)
Extruded Aluminum Channel (152.4x28.6x1.75)
Extruded Aluminum Channel (130x50x1.82) Bending Stiffness EI vs.
mass per unit length<br>

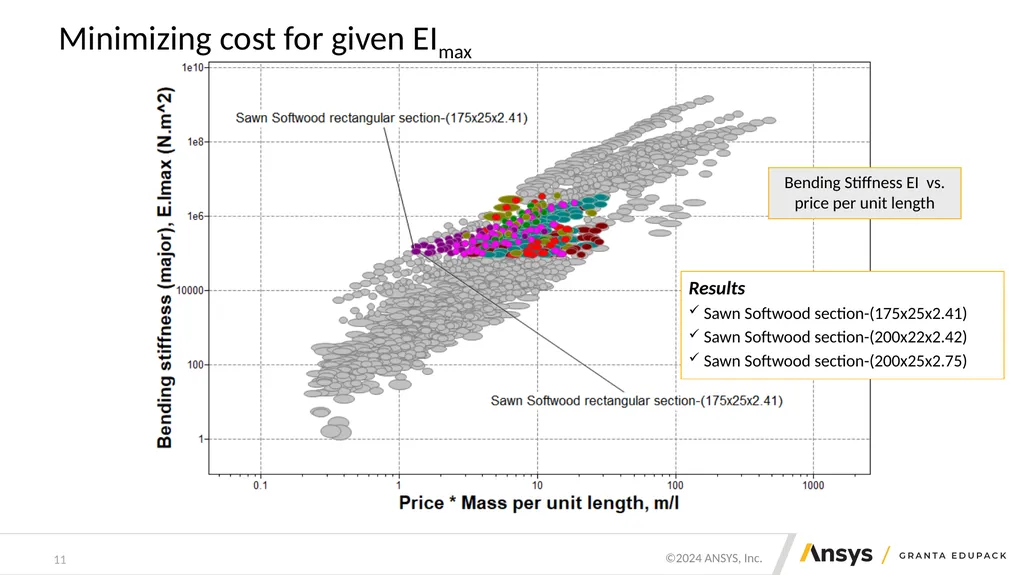

slide11. 11 Minimizing cost for given EImax Results
Sawn Softwood section-(175x25x2.41)
Sawn Softwood section-(200x22x2.42)
Sawn Softwood section-(200x25x2.75) Bending Stiffness EI vs.
price per unit length<br>

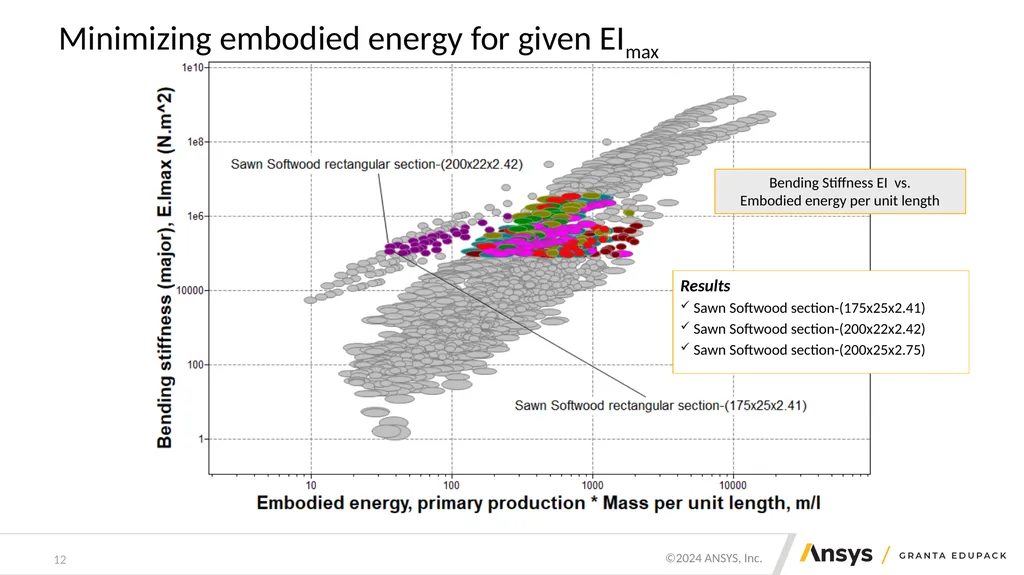

slide12. 12 Minimizing embodied energy for given EImax Results
Sawn Softwood section-(175x25x2.41)
Sawn Softwood section-(200x22x2.42)
Sawn Softwood section-(200x25x2.75) Bending Stiffness EI vs.
Embodied energy per unit length<br>

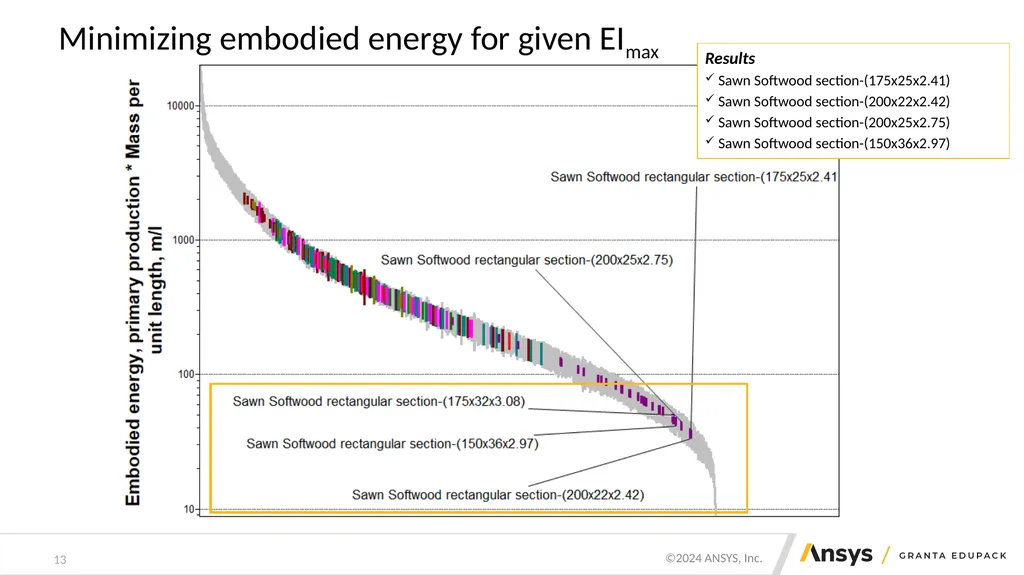

slide13. 13 Minimizing embodied energy for given EImax Results
Sawn Softwood section-(175x25x2.41)
Sawn Softwood section-(200x22x2.42)
Sawn Softwood section-(200x25x2.75)
Sawn Softwood section-(150x36x2.97)<br>

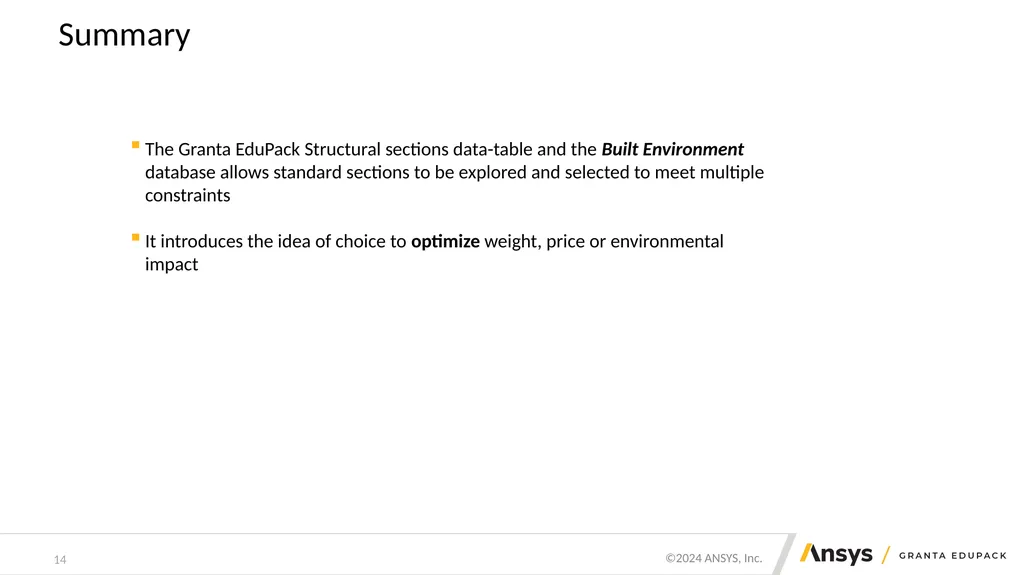

slide14. 14 Summary It introduces the idea of choice to optimize weight, price or environmental impact The Granta EduPack Structural sections data-table and the Built Environment database allows standard sections to be explored and selected to meet multiple constraints<br>

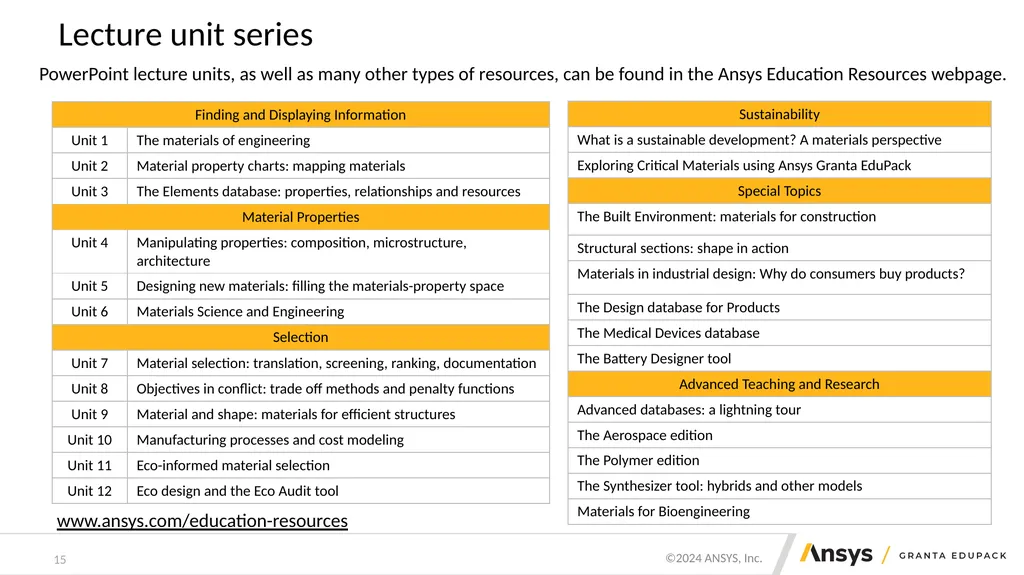

slide15. 15 Lecture unit series PowerPoint lecture units, as well as many other types of resources, can be found in the Ansys Education Resources webpage. www.ansys.com/education-resources<br>

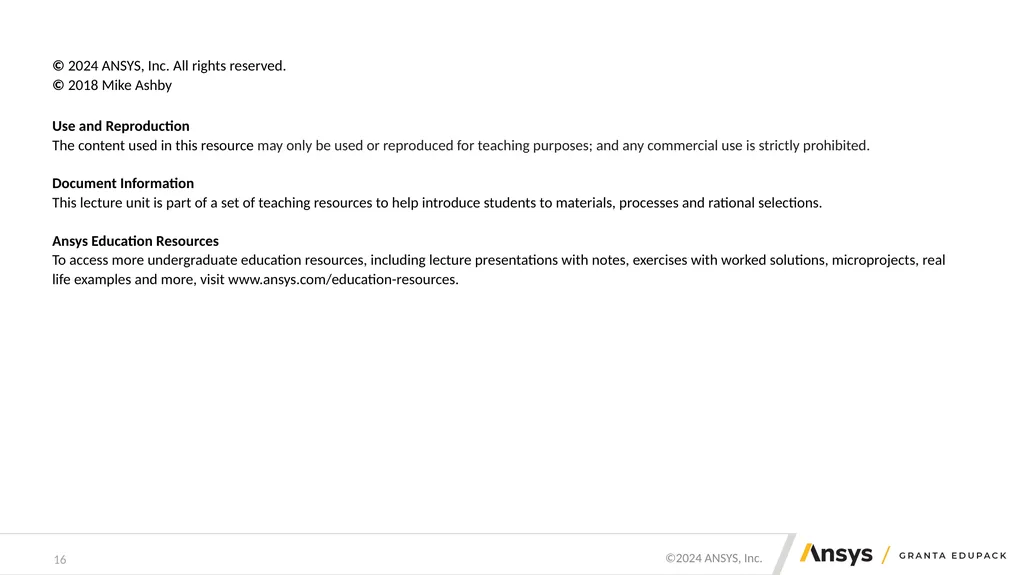

slide16. 16<br>
