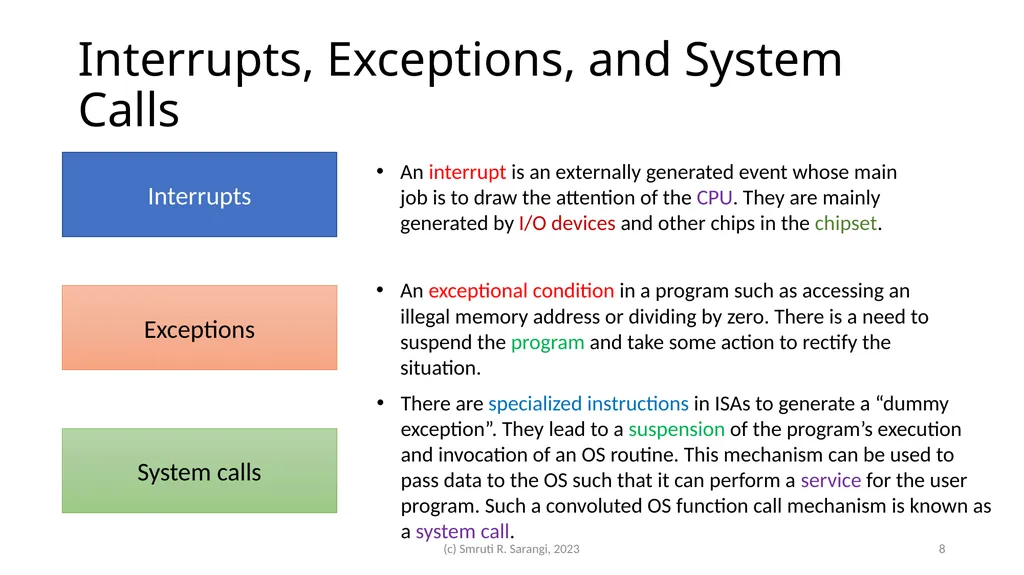

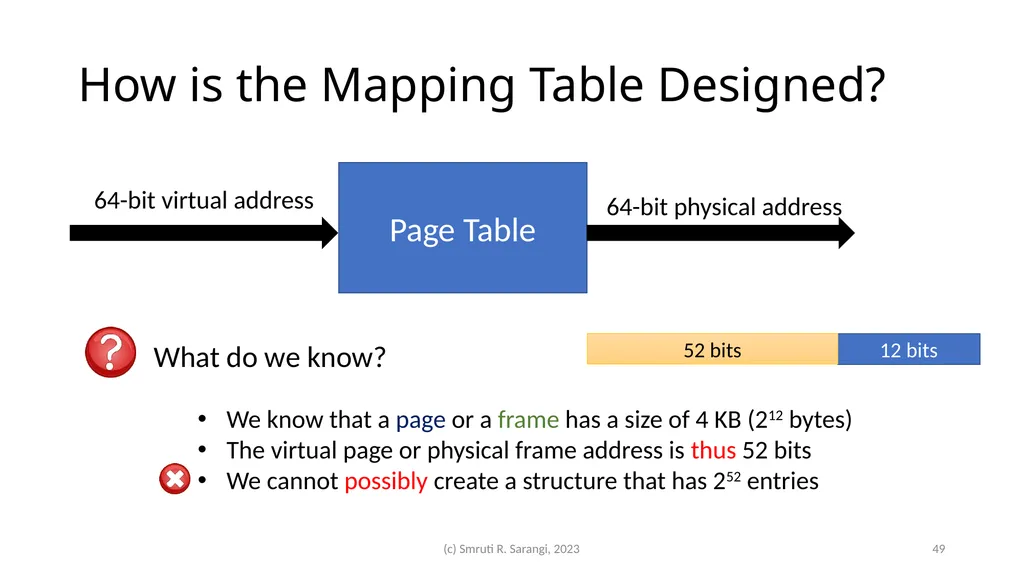

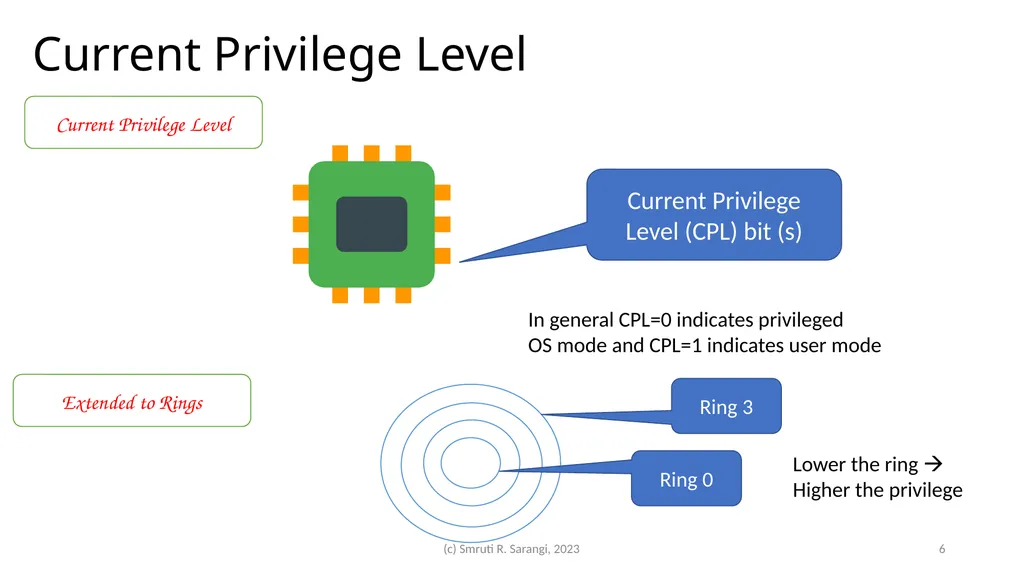

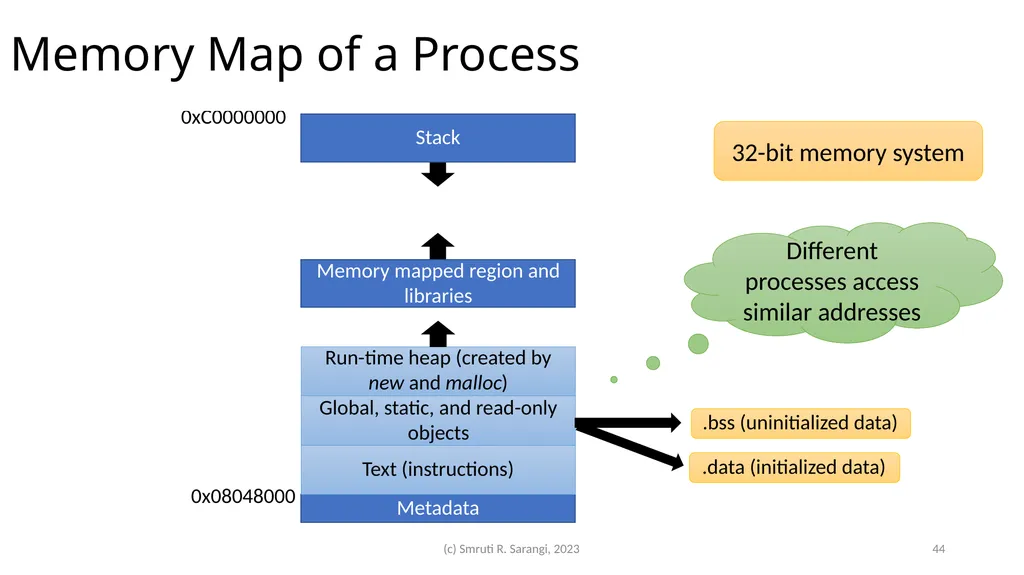

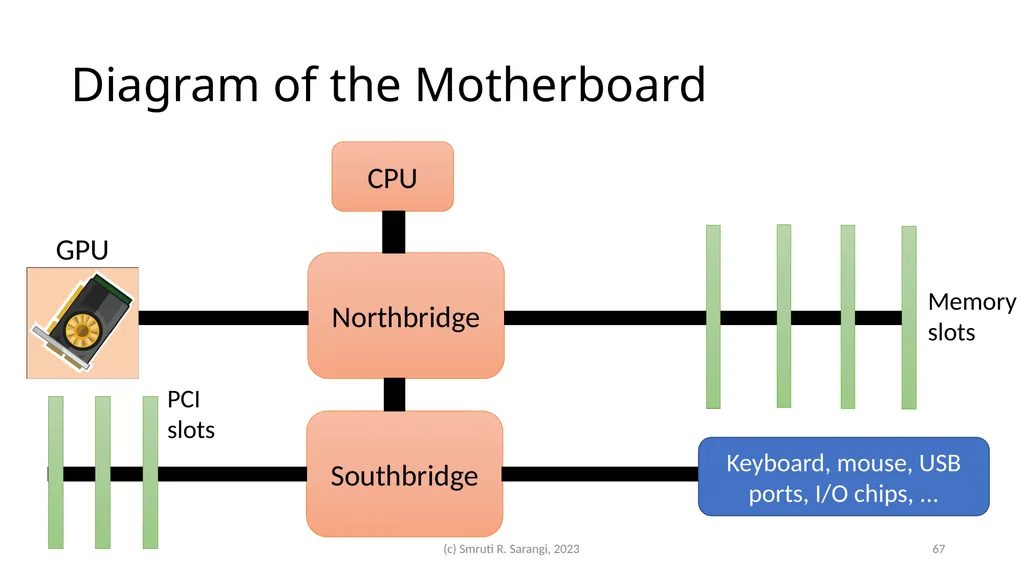

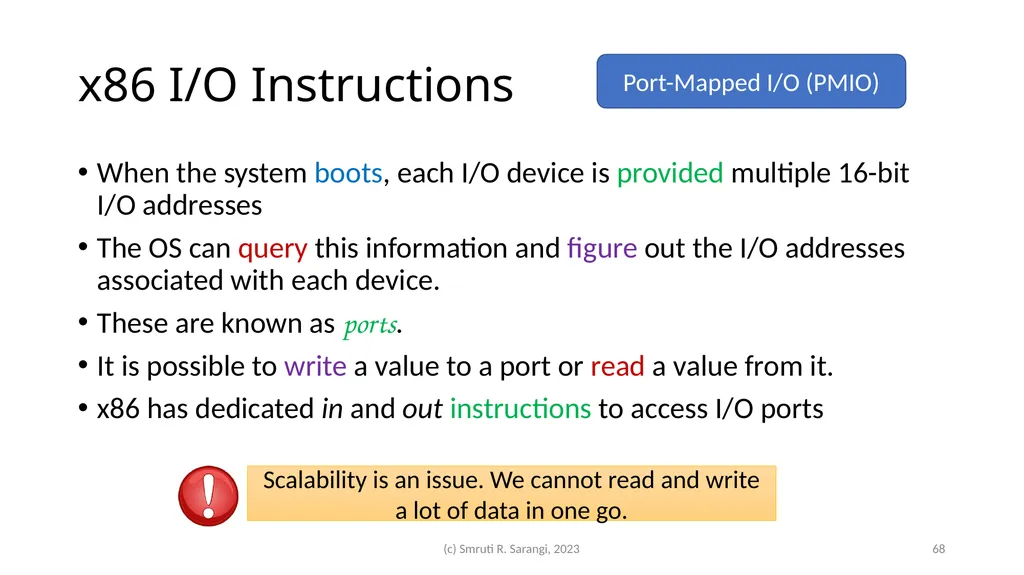

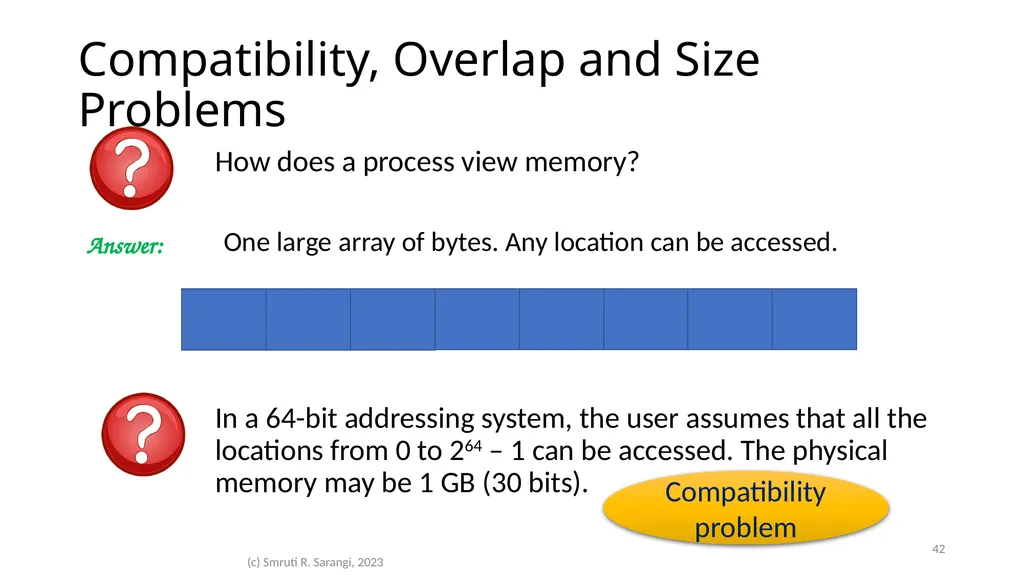

Chapter 2: Basics of Computer Architecture Smruti R Sarangi IIT Delhi 1 (c) Smruti R. Sarangi, 2023 Outline of this Chapter 2 (c) Smruti R. Sarangi, 2023 Design of a Modern Multicore Chip Caches Main memory 4-64 cores Hierarchy of caches

Related Topics

Download this presentation From Below

"Chapter 2: Basics of Computer Architecture Smruti" is the property of its rightful owner. Permission is granted to download and print the materials on this website for personal, non-commercial use only, and to display it on your personal computer provided you do not modify the materials and that you retain all copyright notices contained in the materials. By downloading content from our website, you accept the terms of this agreement.

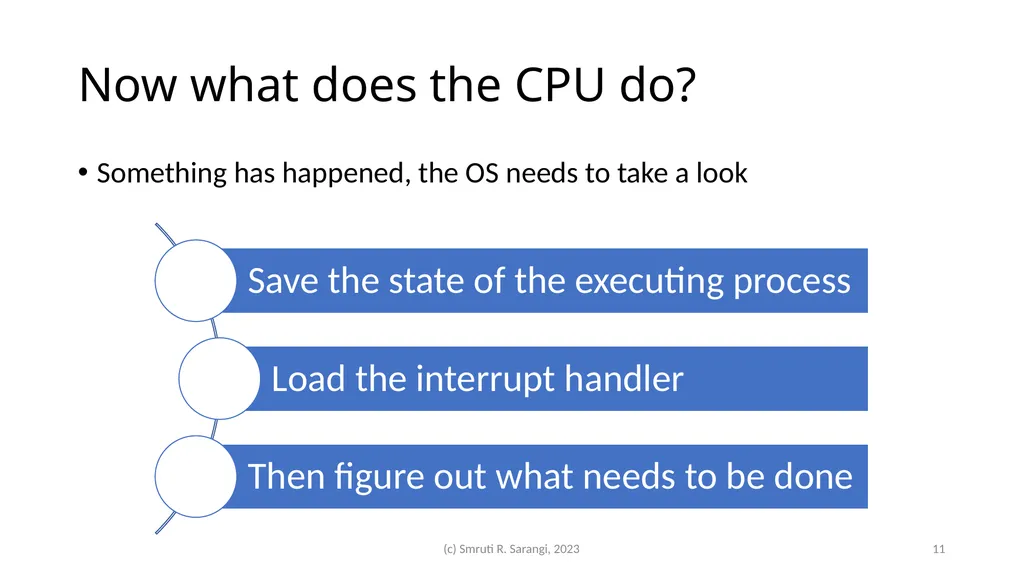

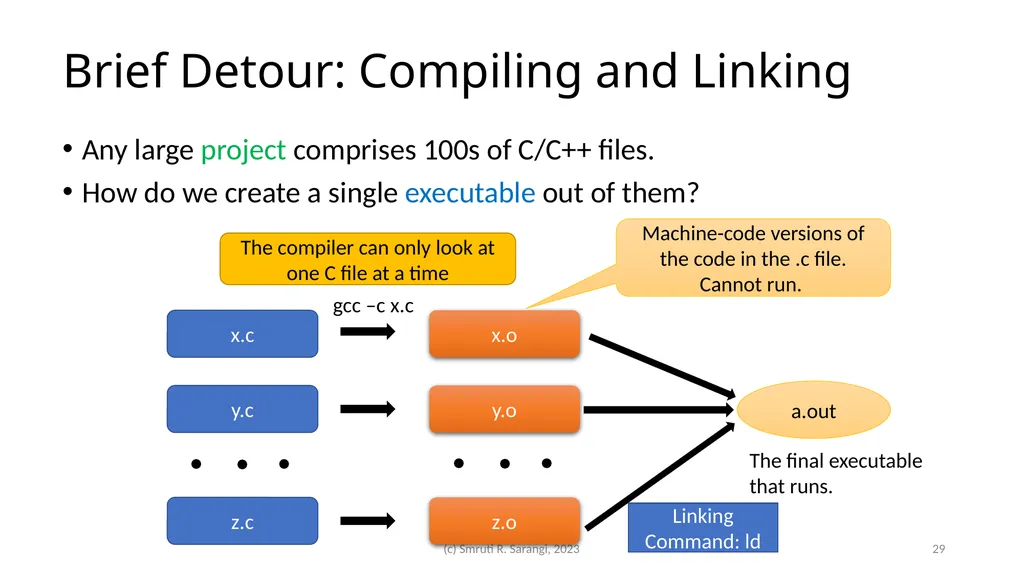

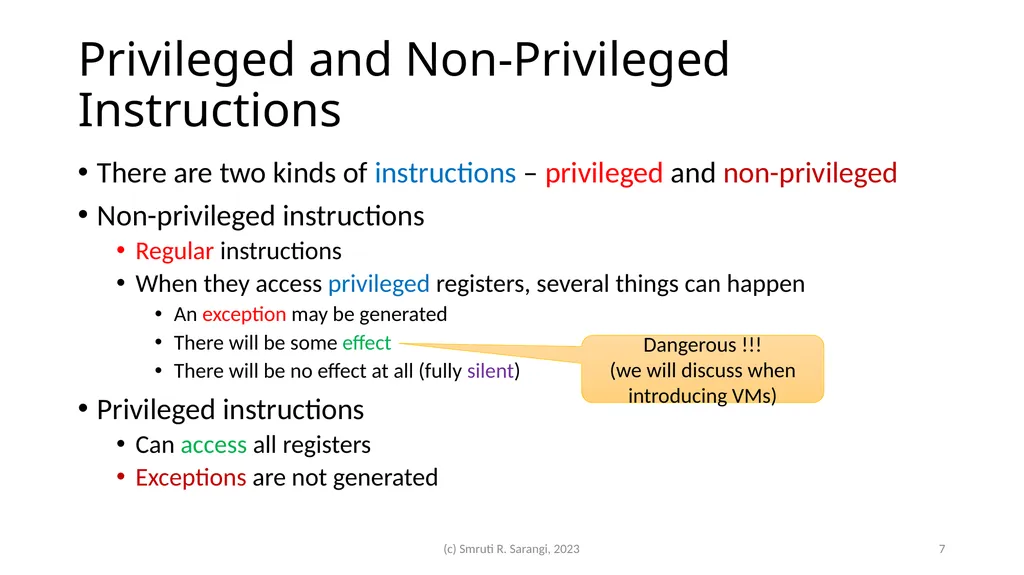

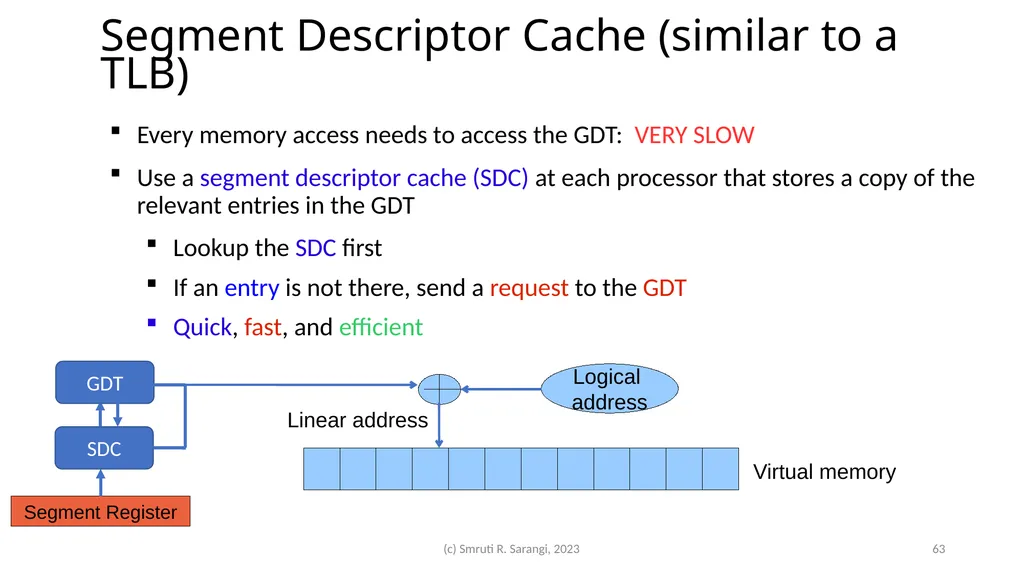

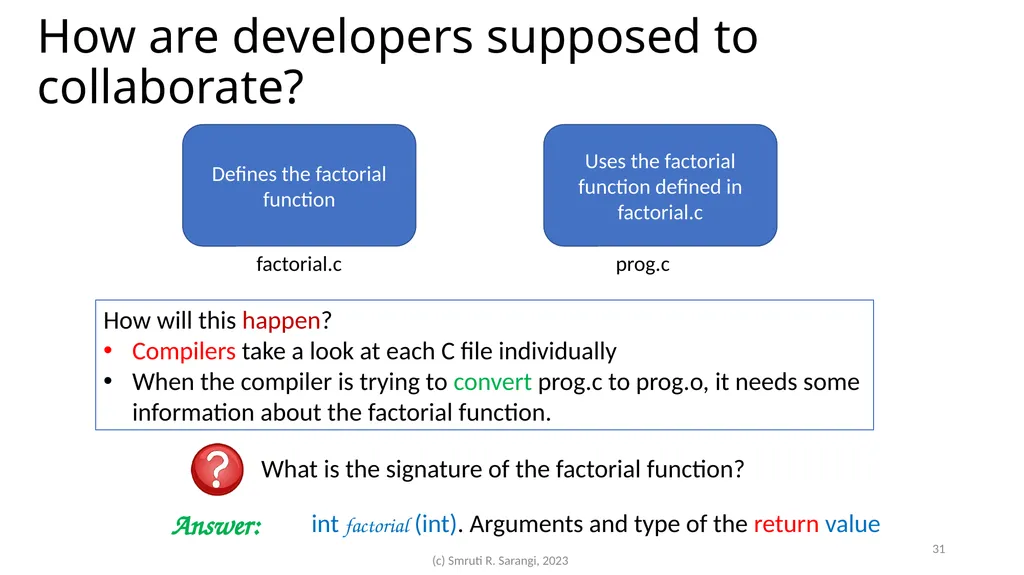

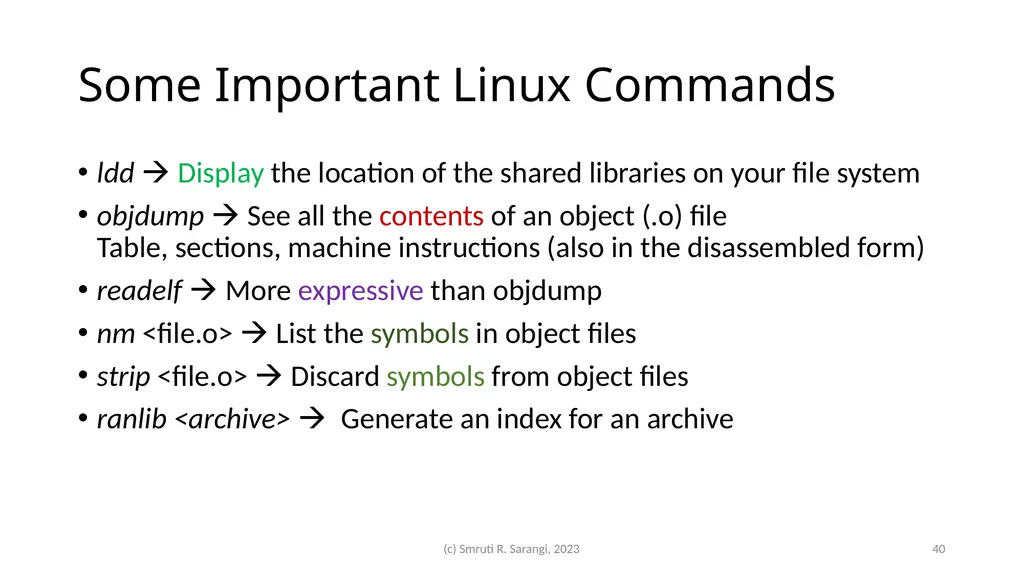

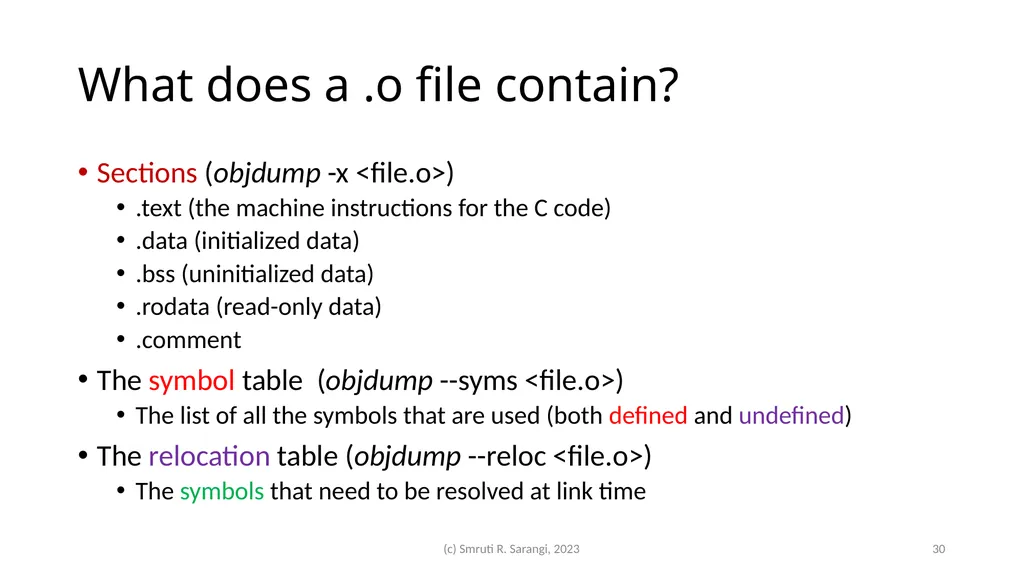

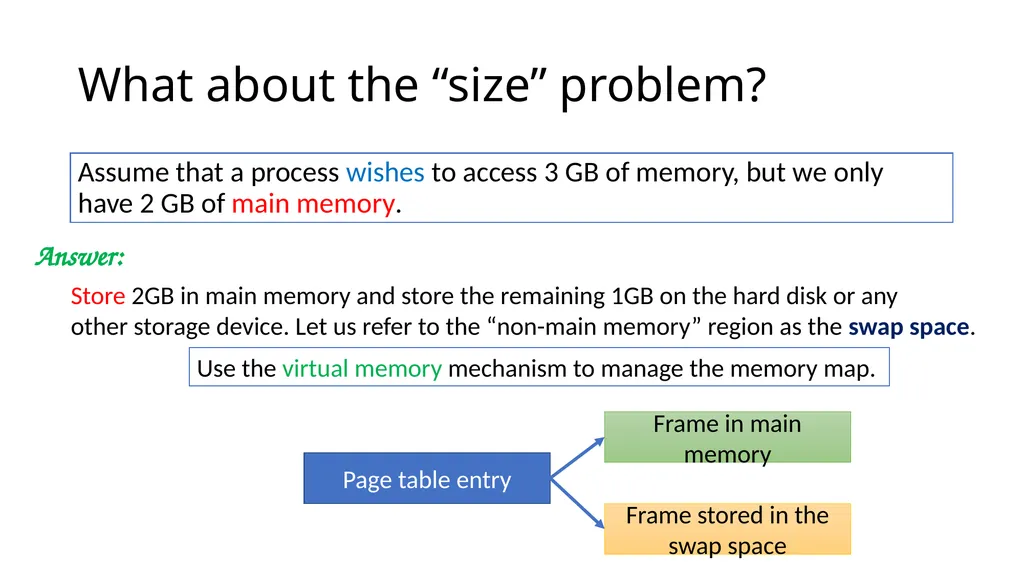

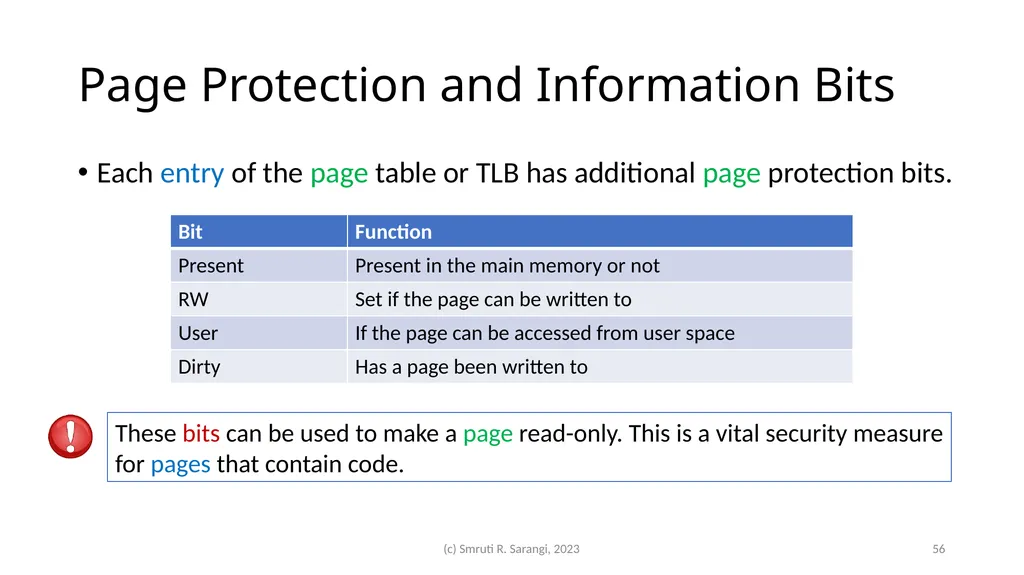

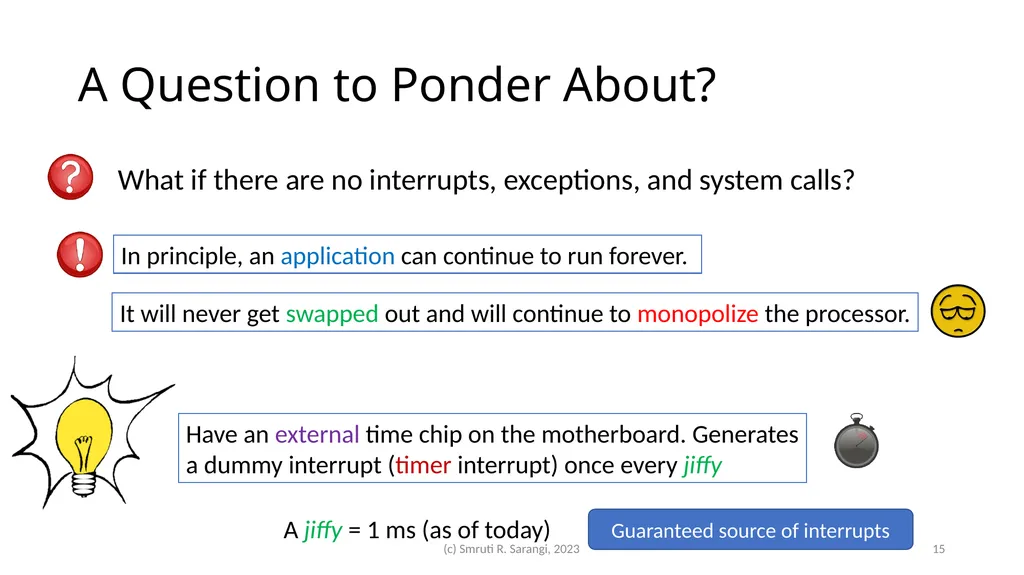

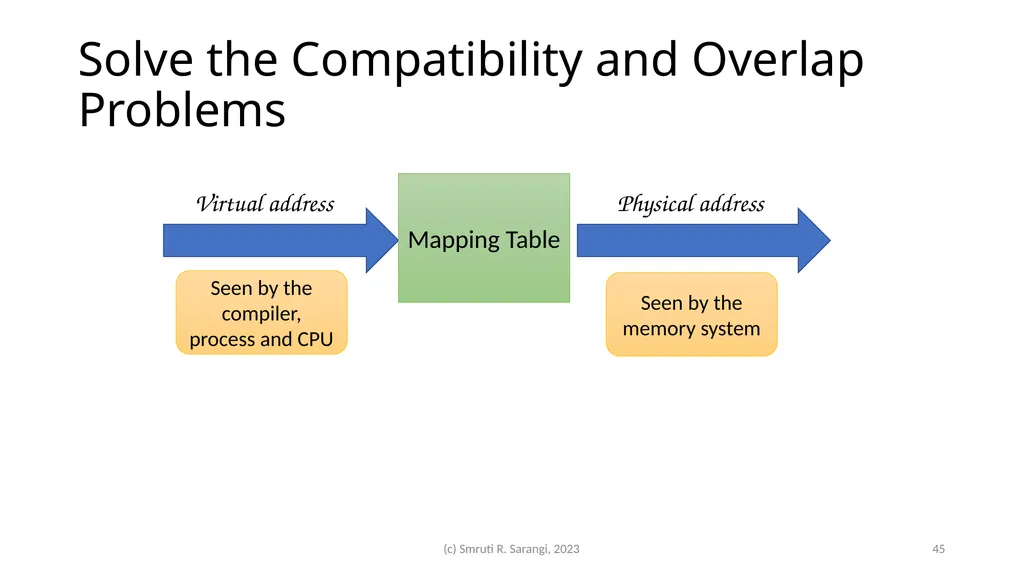

Presentation Transcript

01

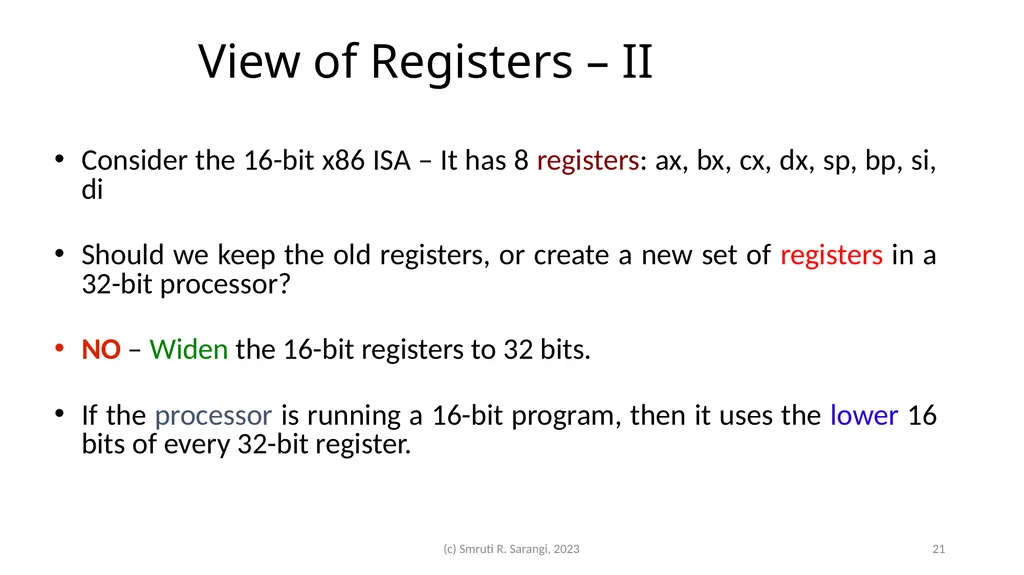

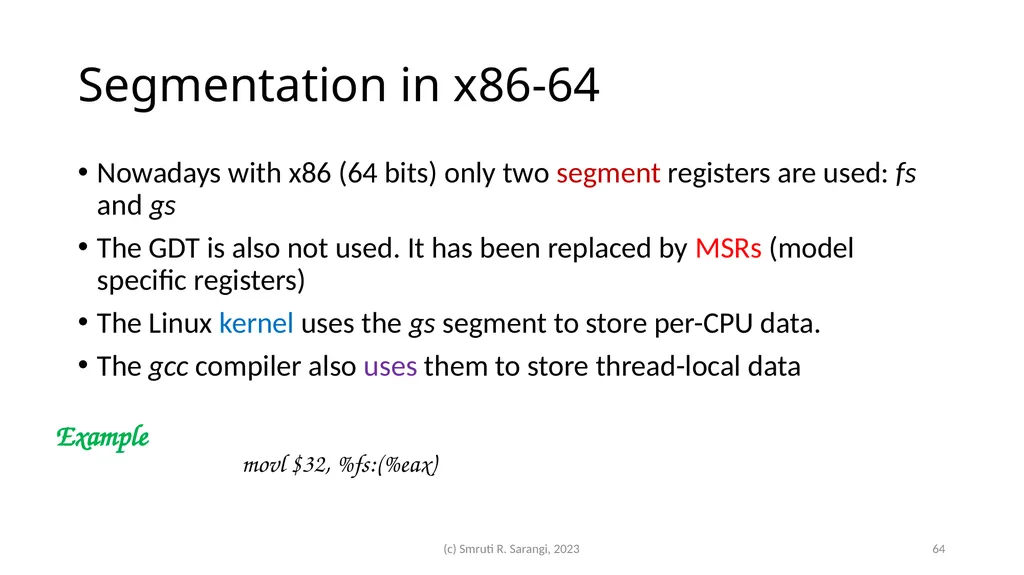

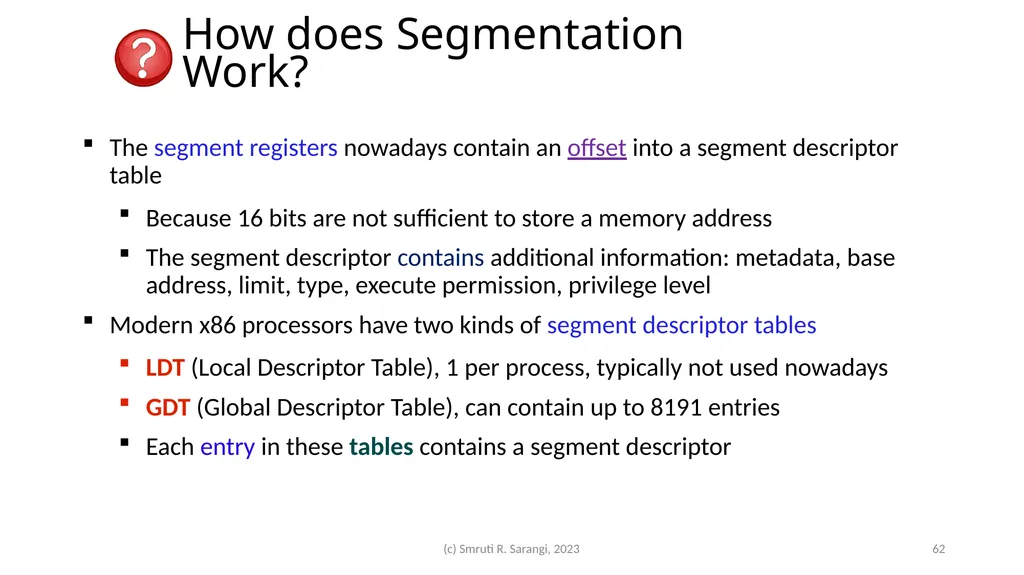

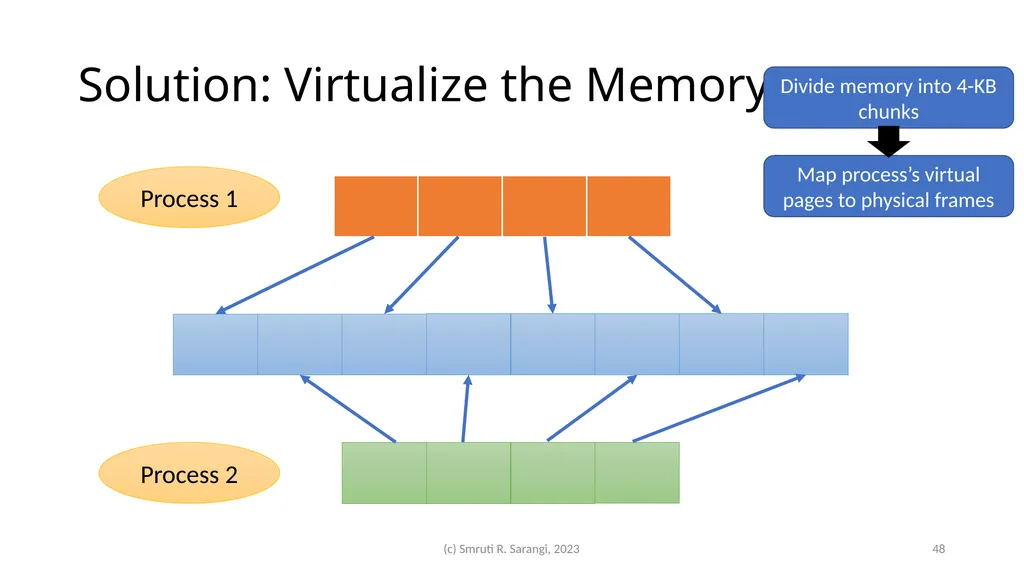

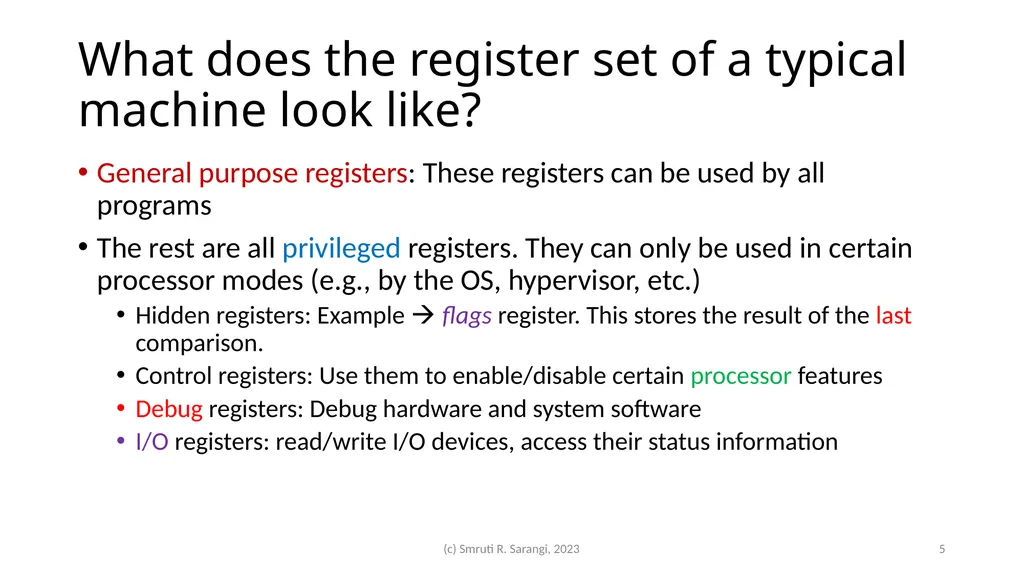

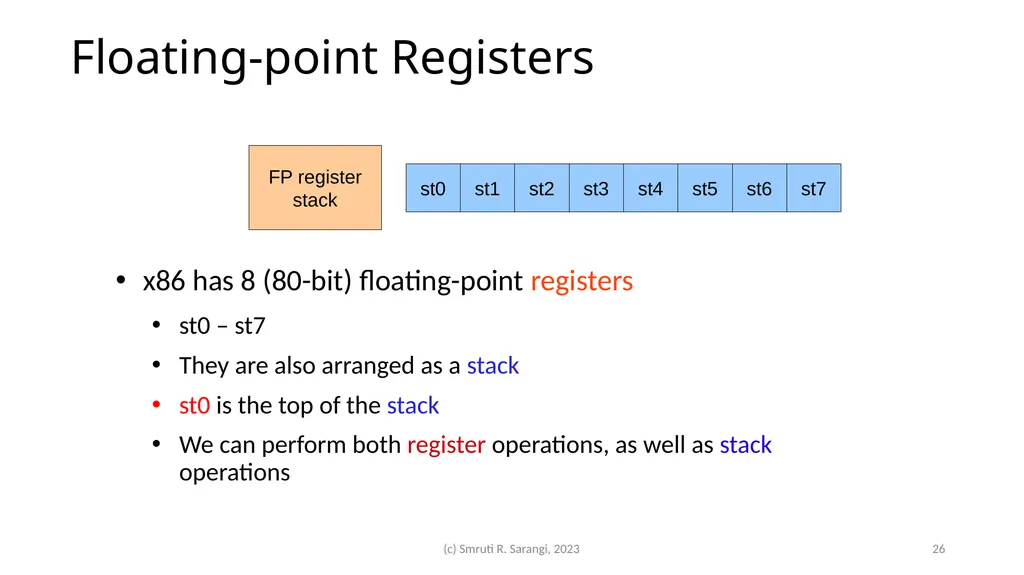

Chapter 2: Basics of Computer Architecture Smruti R Sarangi
IIT Delhi 1 (c) Smruti R. Sarangi, 2023<br>
02
Outline of this Chapter 2 (c) Smruti R. Sarangi, 2023<br>
03

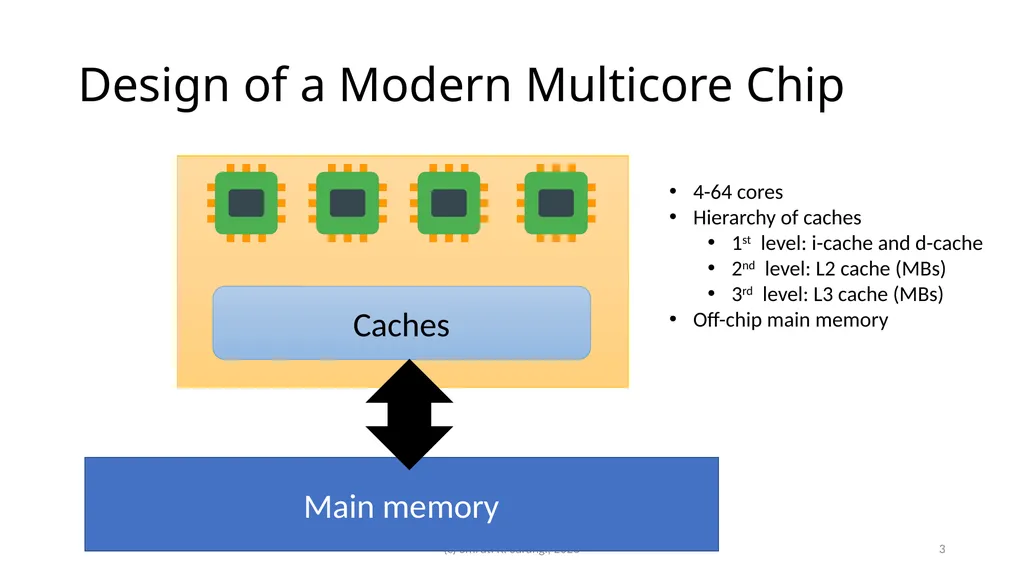

Design of a Modern Multicore Chip Caches Main memory 4-64 cores
Hierarchy of caches
1st level: i-cache and d-cache
2nd level: L2 cache (MBs)
3rd level: L3 cache (MBs)
Off-chip main memory 3 (c) Smruti R. Sarangi, 2023<br>
