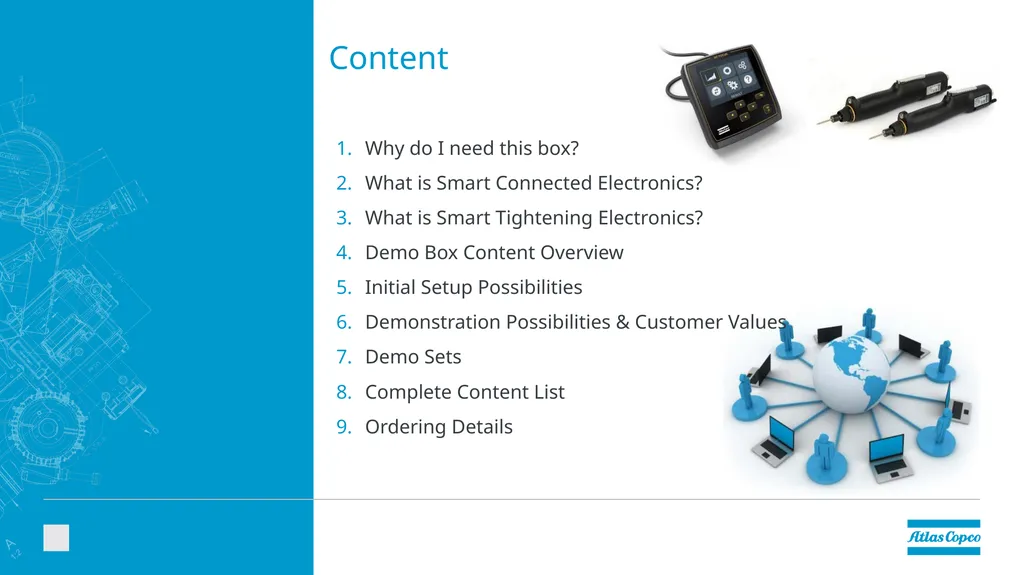

slide2. Content Why do I need this box?
What is Smart Connected Electronics?
What is Smart Tightening Electronics?
Demo Box Content Overview
Initial Setup Possibilities
Demonstration Possibilities & Customer Values
Demo Sets
Complete Content List
Ordering Details<br>

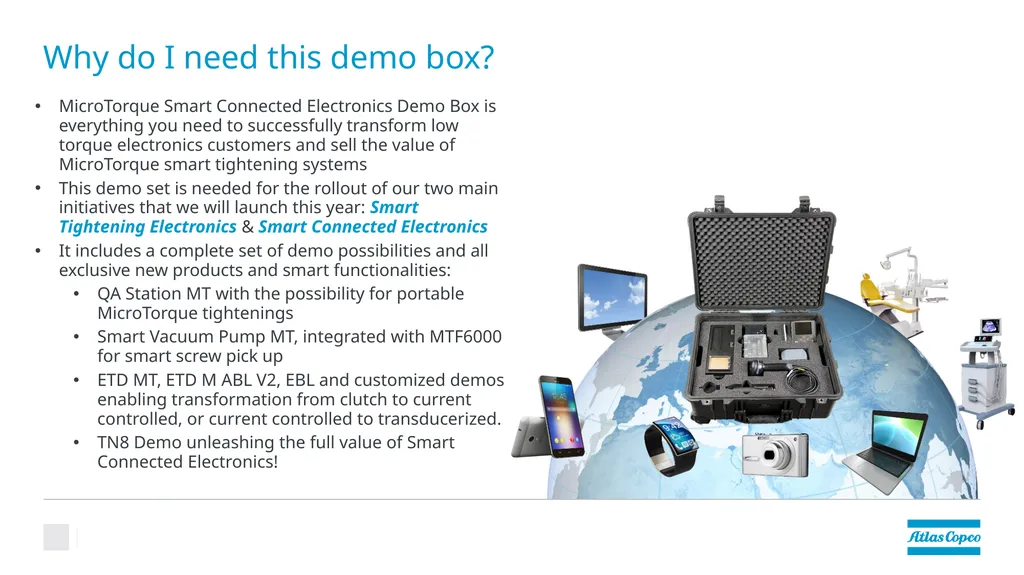

slide3. Why do I need this demo box? MicroTorque Smart Connected Electronics Demo Box is everything you need to successfully transform low torque electronics customers and sell the value of MicroTorque smart tightening systems
This demo set is needed for the rollout of our two main initiatives that we will launch this year: Smart Tightening Electronics & Smart Connected Electronics
It includes a complete set of demo possibilities and all exclusive new products and smart functionalities:
QA Station MT with the possibility for portable MicroTorque tightenings
Smart Vacuum Pump MT, integrated with MTF6000 for smart screw pick up
ETD MT, ETD M ABL V2, EBL and customized demos enabling transformation from clutch to current controlled, or current controlled to transducerized.
TN8 Demo unleashing the full value of Smart Connected Electronics!<br>

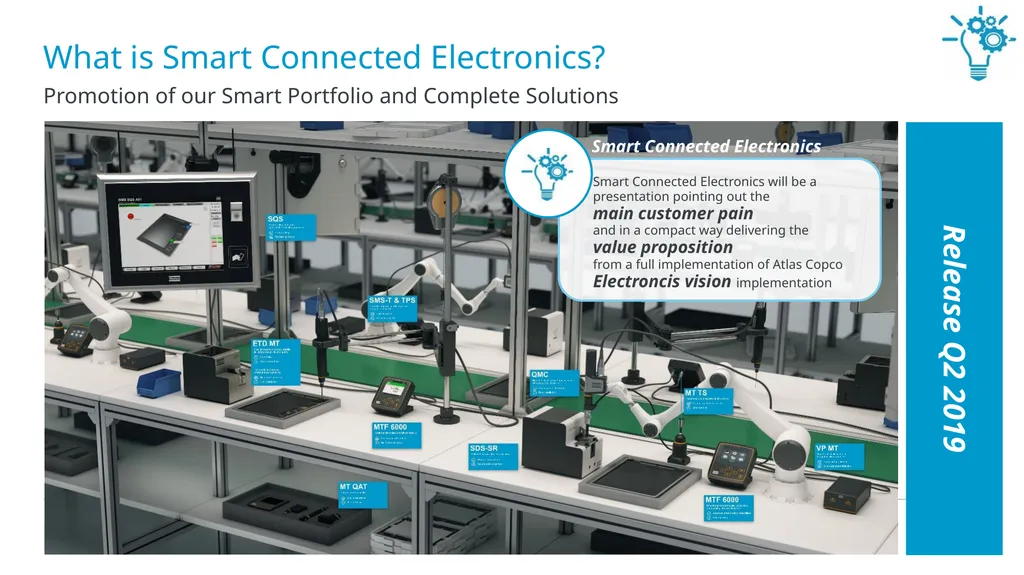

slide4. What is Smart Connected Electronics? Release Q2 2019 Promotion of our Smart Portfolio and Complete Solutions<br>

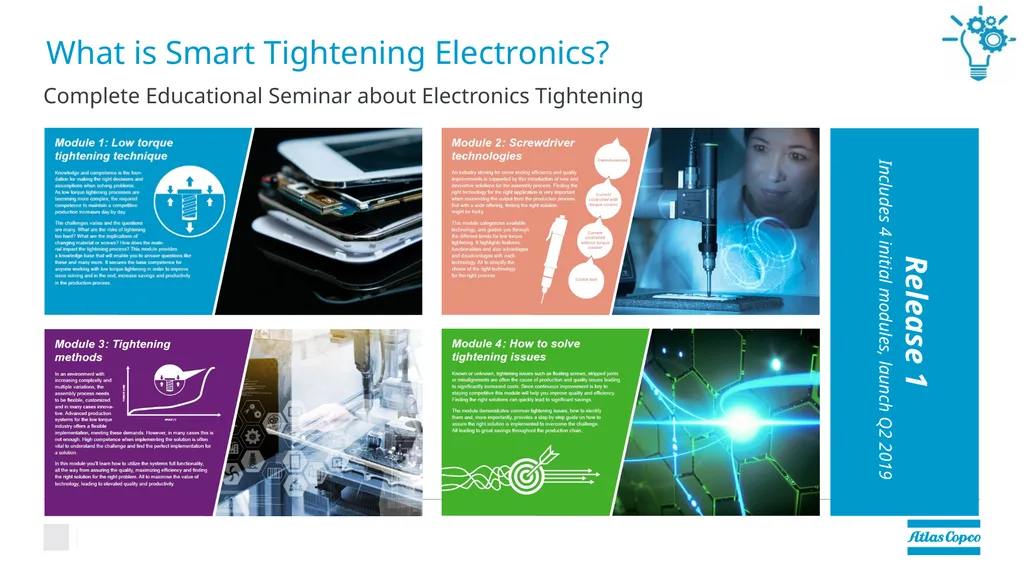

slide5. What is Smart Tightening Electronics? Complete Educational Seminar about Electronics Tightening Release 1
Includes 4 initial modules, launch Q2 2019<br>

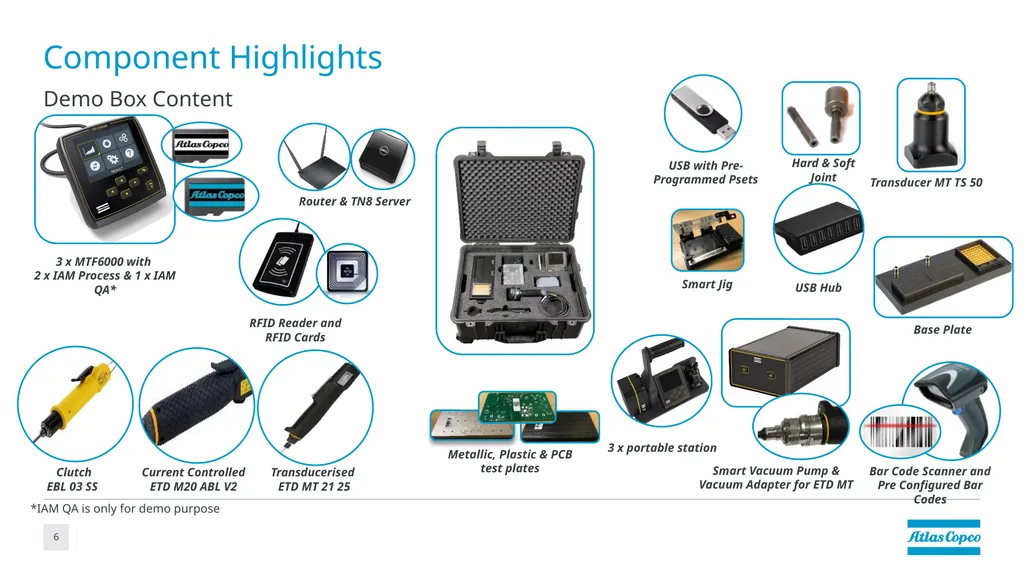

slide6. Component Highlights 6 Demo Box Content 3 x MTF6000 with
2 x IAM Process & 1 x IAM QA* Current Controlled
ETD M20 ABL V2 Smart Vacuum Pump & Vacuum Adapter for ETD MT USB with Pre-Programmed Psets Transducer MT TS 50 Base Plate Hard & Soft Joint Transducerised
ETD MT 21 25 Clutch
EBL 03 SS Bar Code Scanner and Pre Configured Bar Codes *IAM QA is only for demo purpose RFID Reader and RFID Cards USB Hub Smart Jig Metallic, Plastic & PCB test plates Router & TN8 Server 3 x portable station<br>
slide7. Allow you to run ETD MT & ETD M ABL in parallel at the same time
No cable mess and easy to be carried around

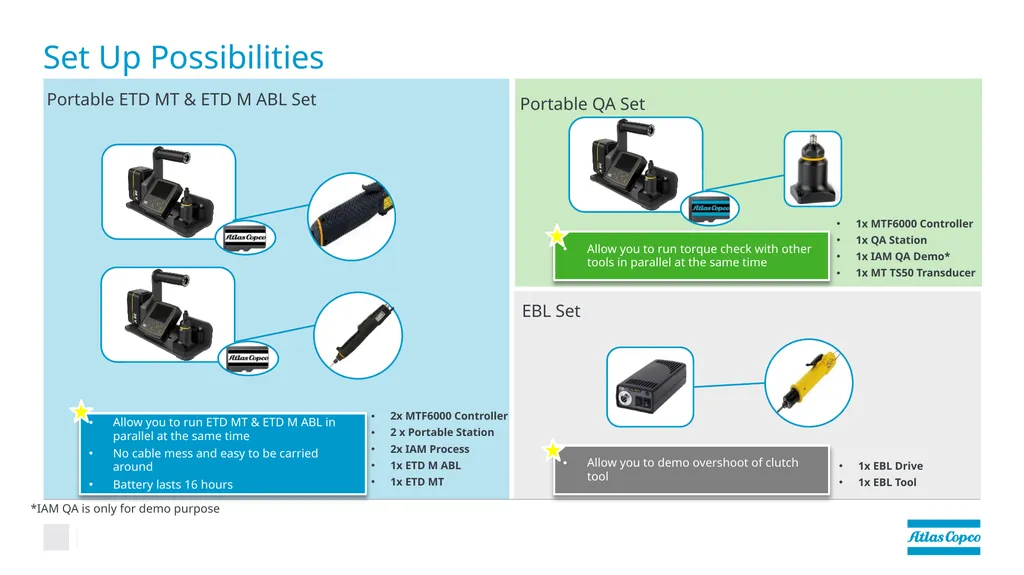

Battery lasts 16 hours Set Up Possibilities Portable ETD MT & ETD M ABL Set Portable QA Set EBL Set Other 1x EBL Drive
1x EBL Tool 1x MTF6000 Controller
1x QA Station
1x IAM QA Demo*
1x MT TS50 Transducer 2x MTF6000 Controller
2 x Portable Station
2x IAM Process
1x ETD M ABL
1x ETD MT Allow you to run torque check with other tools in parallel at the same time Allow you to demo overshoot of clutch tool *IAM QA is only for demo purpose<br>

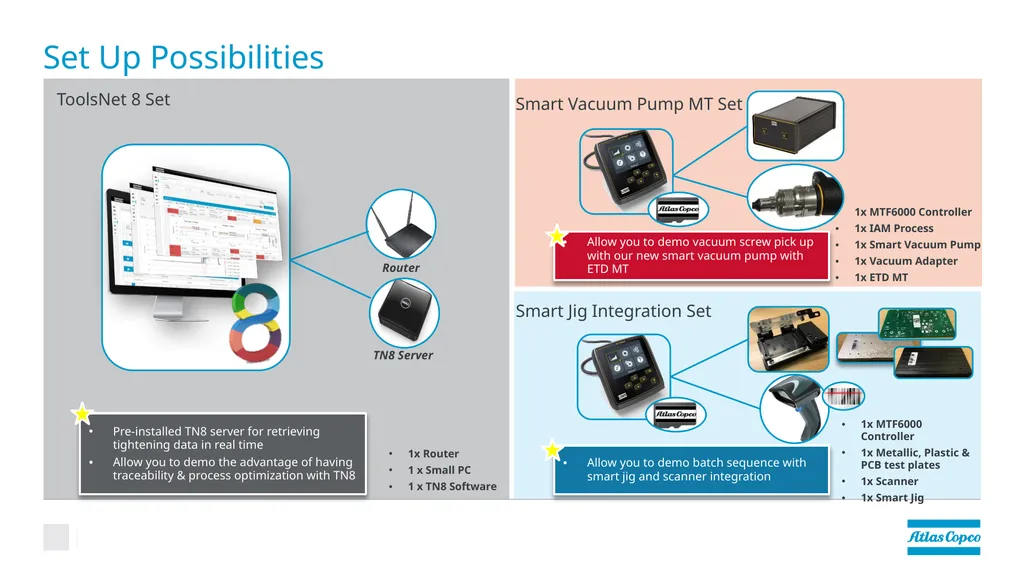

slide8. Pre-installed TN8 server for retrieving tightening data in real time
Allow you to demo the advantage of having traceability & process optimization with TN8 Set Up Possibilities ToolsNet 8 Set Smart Vacuum Pump MT Set Smart Jig Integration Set Other 1x MTF6000 Controller
1x Metallic, Plastic & PCB test plates
1x Scanner
1x Smart Jig 1x MTF6000 Controller
1x IAM Process
1x Smart Vacuum Pump
1x Vacuum Adapter
1x ETD MT 1x Router
1 x Small PC
1 x TN8 Software Allow you to demo vacuum screw pick up with our new smart vacuum pump with ETD MT Allow you to demo batch sequence with smart jig and scanner integration Router TN8 Server<br>

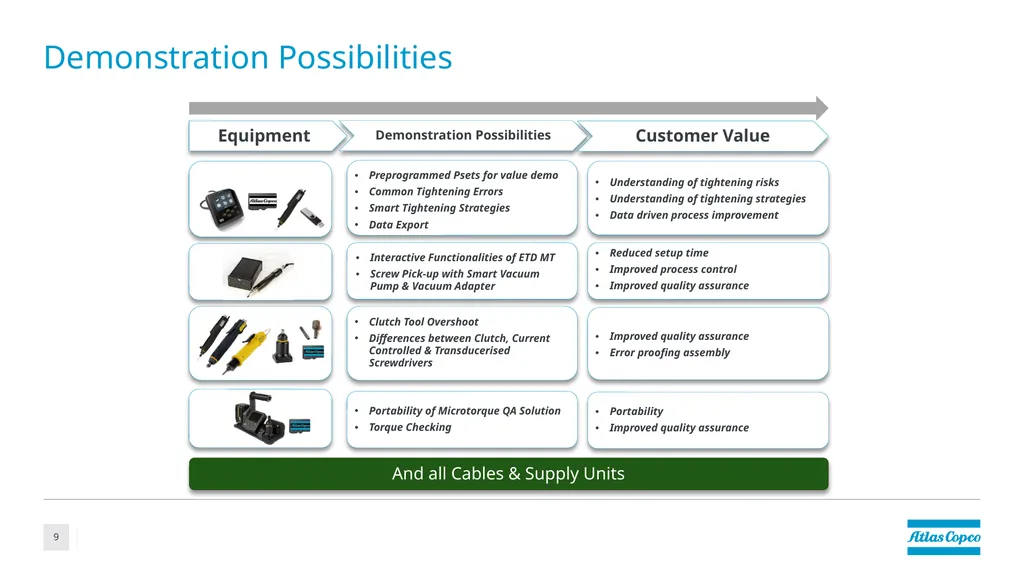

slide9. Demonstration Possibilities 9 Equipment Demonstration Possibilities Customer Value And all Cables & Supply Units Interactive Functionalities of ETD MT
Screw Pick-up with Smart Vacuum Pump & Vacuum Adapter<br>

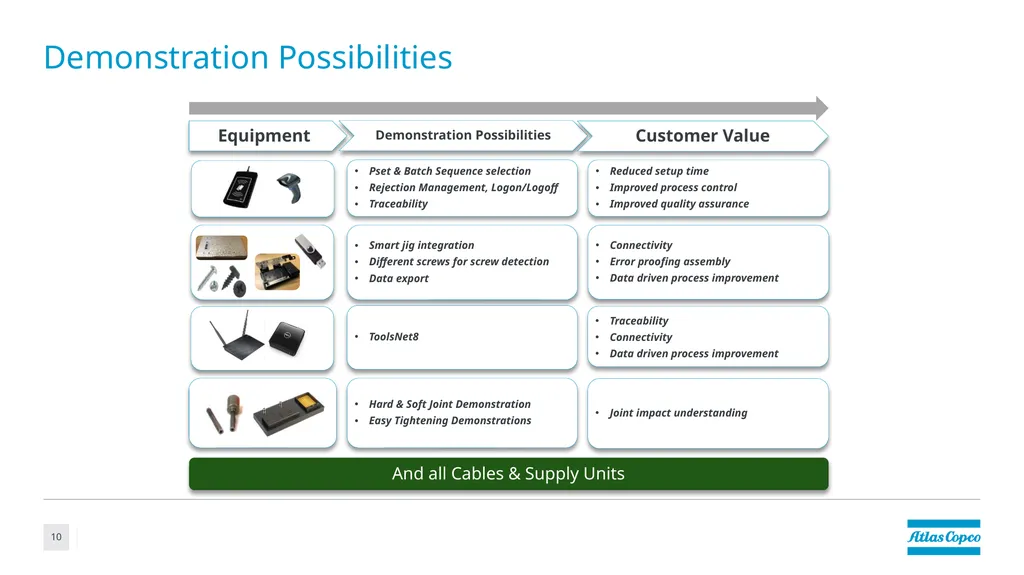

slide10. Demonstration Possibilities 10 Equipment Demonstration Possibilities Customer Value And all Cables & Supply Units<br>

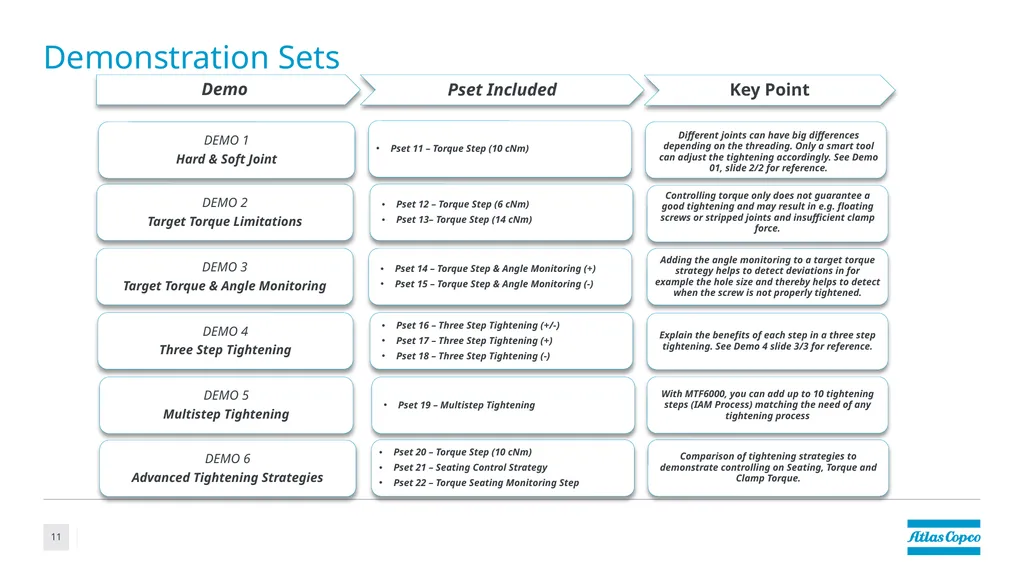

slide11. Demonstration Sets 11 Demo Pset Included Key Point DEMO 2
Target Torque Limitations Pset 12 – Torque Step (6 cNm)
Pset 13– Torque Step (14 cNm) DEMO 3
Target Torque & Angle Monitoring Pset 14 – Torque Step & Angle Monitoring (+)
Pset 15 – Torque Step & Angle Monitoring (-) DEMO 4
Three Step Tightening Pset 16 – Three Step Tightening (+/-)
Pset 17 – Three Step Tightening (+)
Pset 18 – Three Step Tightening (-) DEMO 5
Multistep Tightening Pset 19 – Multistep Tightening With MTF6000, you can add up to 10 tightening steps (IAM Process) matching the need of any tightening process DEMO 6
Advanced Tightening Strategies DEMO 1
Hard & Soft Joint<br>

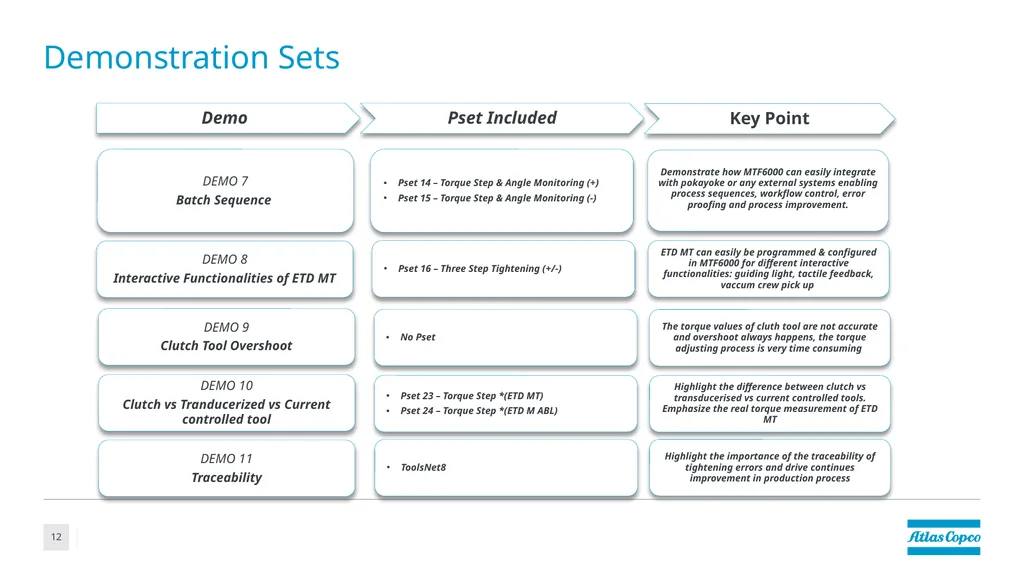

slide12. Demonstration Sets 12 Demo Pset Included Key Point DEMO 7
Batch Sequence Pset 14 – Torque Step & Angle Monitoring (+)
Pset 15 – Torque Step & Angle Monitoring (-) DEMO 8
Interactive Functionalities of ETD MT ETD MT can easily be programmed & configured in MTF6000 for different interactive functionalities: guiding light, tactile feedback, vaccum crew pick up DEMO 10
Clutch vs Tranducerized vs Current controlled tool Highlight the importance of the traceability of tightening errors and drive continues improvement in production process DEMO 11
Traceability DEMO 9
Clutch Tool Overshoot<br>

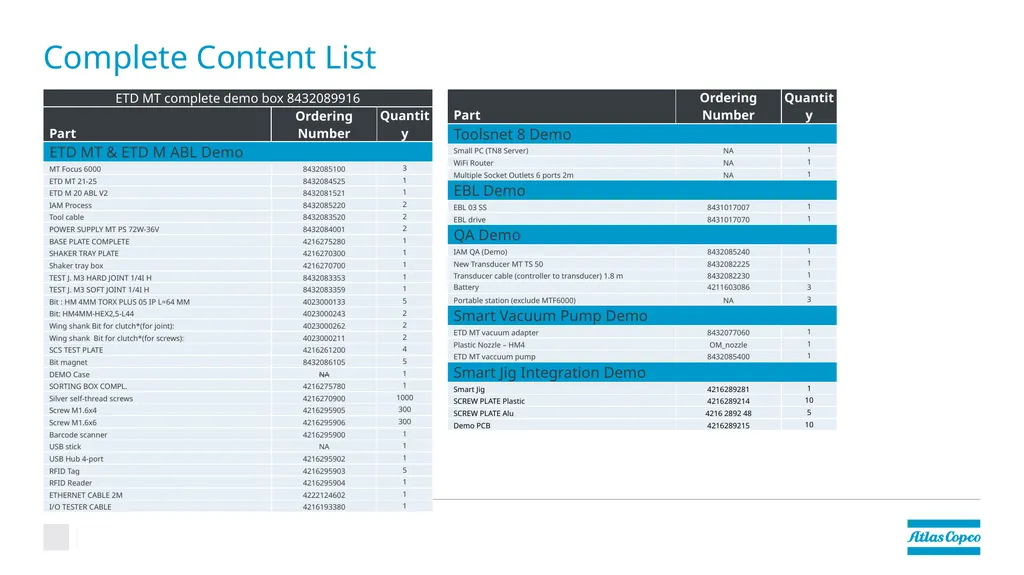

slide13. Complete Content List<br>

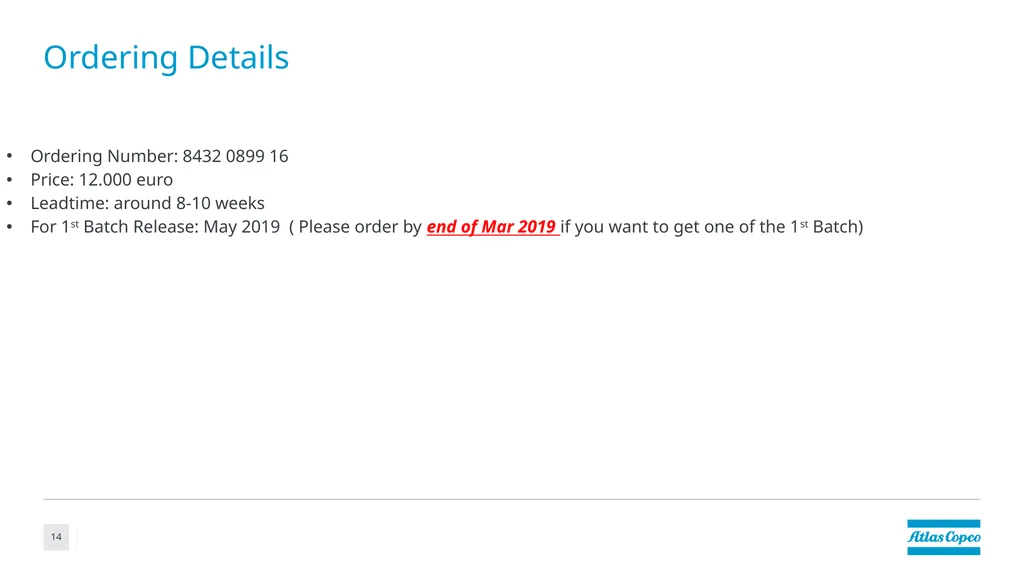

slide14. Ordering Details 14 Ordering Number: 8432 0899 16
Price: 12.000 euro
Leadtime: around 8-10 weeks
For 1st Batch Release: May 2019 ( Please order by end of Mar 2019 if you want to get one of the 1st Batch)<br>
